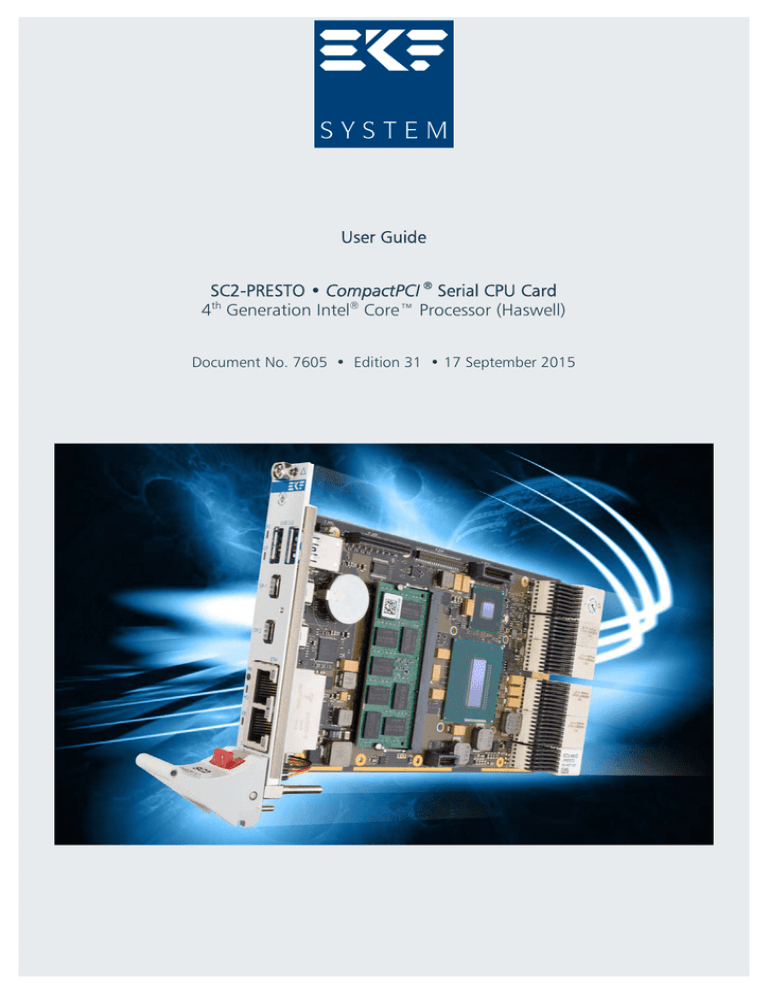

User Guide SC2-PRESTO • CompactPCI ® Serial CPU Card 4th

User Guide SC2-PRESTO • CompactPCI ® Serial CPU Card 4th
User Guide
SC2-PRESTO • CompactPCI ® Serial CPU Card
4th Generation Intel® Core™ Processor (Haswell)
Document No. 7605 • Edition 31 • 17 September 2015
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Contents
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Edition History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trade Marks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Legal Disclaimer - Liability Exclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
4
6
6
6
6
7
8
Technical Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Feature Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Performance Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Top View Component Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bottom View Component Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Panel Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Panel Switches & Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
On-Board Connectors & Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin Headers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Thermal Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Graphics Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LAN Subsystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serial ATA Interface (SATA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCI Express® Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Universal Serial Bus (USB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Utility Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Real-Time Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPI Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Watchdog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PG (Power Good) LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GP (General Purpose) LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HD (Hard Disk Activity) LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EB (Ethernet Backplane) LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Power Supply Control (PS_ON#) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Supply Status (PWR_FAIL#) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mezzanine Side Board Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CompactPCI® Serial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Slot Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Peripheral Slot Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Board Hot-Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
10
14
14
14
15
16
17
18
18
19
19
19
20
21
22
23
23
24
24
25
25
26
26
27
29
29
30
30
30
31
31
31
32
39
39
42
42
Installing and Replacing Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Installing the Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
© EKF
-2-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Removing the Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
EMC Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Replacement of the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Technical Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Local PCI Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Local SMB Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hardware Monitor LM87 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Board Control and Status Registers (BCSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Write/Read Control Register 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Read/Clear Status Register 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Read/Clear Status Register 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Read PLD Revision Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GPIO Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GPIO Usage QM87 PCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuration Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuration PCI Express Switch (DS-P) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading UEFI BIOS Setup Defaults/IEEE 1588 Pulse per Second (J-GP) . . . . . . . . .
Manufacturer Mode Jumper (J-MFG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RTC Reset (J-RTC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Panel Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DisplayPort Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VGA Video Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USB Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ethernet Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mezzanine Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Expansion Interface P-EXP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High Speed Expansion Connector P-HSE . . . . . . . . . . . . . . . . . . . . . . . . . .
PCI Express® Expansion Header P-PCIE . . . . . . . . . . . . . . . . . . . . . . . . . . .
DisplayPort Expansion Header P-DP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pin Headers & Debug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Panel Handle Microswitch Header P-FPH . . . . . . . . . . . . . . . . . . . . .
PLD Programming Header P-ISP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Processor Debug Header P-XDP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Backplane Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CompactPCI® Serial Backplane Connector P1 . . . . . . . . . . . . . . . . . . . . . .
CompactPCI® Serial Backplane Connector P2 . . . . . . . . . . . . . . . . . . . . . .
CompactPCI® Serial Backplane Connector P3 . . . . . . . . . . . . . . . . . . . . . .
CompactPCI® Serial Backplane Connector P4 . . . . . . . . . . . . . . . . . . . . . .
CompactPCI® Serial Backplane Connector P5 . . . . . . . . . . . . . . . . . . . . . .
CompactPCI® Serial Backplane Connector P6 . . . . . . . . . . . . . . . . . . . . . .
52
52
53
53
54
54
55
56
56
57
57
59
59
60
61
61
62
62
65
68
69
70
71
73
74
77
78
79
79
79
80
80
81
82
83
84
85
86
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Known Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Mechanical Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
© EKF
-3-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
About this Manual
This manual describes the technical aspects of the SC2-PRESTO, required for installation and system
integration. It is intended for the experienced user only.
Edition History
Ed.
Contents/Changes
Author
Date
1
User Manual SC2-PRESTO, english, preliminary edition
Text #7605, File: sc2_ug.wpd
gn
2014-07-25
2
Added Specs to i7-4700EQ in table “Intel Core Processors Supported”
Removed entries from table “Recommended Accessories”
Added Section “Board Control and Status Registers”
gn
2014-08-07
3
Edited table “High Speed Expansion Connector P-HSE”
gn
2014-09-02
4
Updated description of BCSR Status Register 1
gn
2014-10-02
5
Photos added/changed
jj
15 October 2014
6
Photos added/changed
jj
20 October 2014
7
Photos added/changed
jj
22 October 2014
8
Modified block diagram (Trusted Platform Module TPM 2.0 added, as
from PCB revision 1.0 off)
jj
4 November 2014
9
Updated table ‘Feature Summary’
jj
18 November 2014
10
Additions to section "CompactPCI Serial"
gn
2014-11-19
11
Modified illustration ‘Backplane Resources’,
modified illustration ‘Block Diagram’
jj
16 December 2014
12
Added notes to the QM87 SATA channel speed capabilities
gn
2014-12-17
13
Clarified resetting of UEFI BIOS settings to factory defaults
gn
2015-01-16
14
Table 'Feature Summary'
added TDP for i7-4700EQ Processor 2.4GHz = 47W
jj
20 January 2015
15
Added comment to PCIe polarity inversion on tables “P1 CompactPCI
Serial Connector” and "P2 CompactPCI Serial Connector"
gn
2015-01-26
16
Added illustration backplane resources system slot right aligned
jj
19 February 2015
17
Added photos SC2 w. SCS side card, added illustration F/P options
8HP/12HP
jj
25 February 2015
18
Updated description of BCSR Control Register 0
gn
2015-02-26
19
Modified illustration 'Mezzanine Side Card Connectors' (SC2-PRESTO
connector PCIE is configurable as PCIe 4x1 or 1x4)
jj
3 March 2015
20
Updated description of BCSR Status Registers 0 and 1
gn
2015-04-01
21
Cleaned up section “Watchdog”
gn
2015-04-07
22
Added IEEE1588 PTP Feature
Updated “GPIO Usage QM87 PCH”
gn
2015-05-18
23
Added photo C48-M2 mezzanine storage module
jj
21 May 2015
© EKF
-4-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Ed.
Contents/Changes
Author
Date
24
Added MTBF, added more photos w. C48-M2 mezzanine storage
module
jj
27 May 2015
25
Updated LM87 Information, added some Power Requirements,
updated Operating Temperature
gn
2015-05-28
26
Added photo SC2 with SCS side card M.2 SATA SSDs populated
jj
2 June 2015
27
Changed photo SC2 in SRS-BLUBOXX
jj
19 June 2015
28
Added section “Known Problems”
gn
2015-07-02
29
Table 'Feature Summary' BIOS replaced by Firmware (UEFI)
Table 'Reference Documents' UEFI & ACPI specifications
cr/jj
13 August 2015
30
Table 'Feature Summary' updated list of processors, TPM 2.0 module
populated by default (was option), Secure Boot & Measured Boot
supported
cr/gn/jj
15/16 September
2015
31
Removed occurrences of DDR3(L)
gn
2015-09-17
© EKF
-5-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Related Documents
Related Information SC2-PRESTO
SC2-PRESTO Home
www.ekf.com/s/sc2/sc2.html
SC2-PRESTO Product Information
www.ekf.com/s/sc2/sc2_pi.pdf
Nomenclature
Signal names used herein with an attached '#' designate active low lines.
Trade Marks
Some terms used herein are property of their respective owners, e.g.
<
<
<
<
Shark Bay, Haswell, Lynx Point, Core i7: ® Intel
CompactPCI, CompactPCI PlusIO, CompactPCI Serial: ® PICMG
Windows 7, Windows 8: ® Microsoft
EKF, ekf system: ® EKF
EKF does not claim this list to be complete.
Legal Disclaimer - Liability Exclusion
This manual has been edited as carefully as possible. We apologize for any potential mistake.
Information provided herein is designated exclusively to the proficient user (system integrator,
engineer). EKF can accept no responsibility for any damage caused by the use of this manual.
© EKF
-6-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Standards
Reference Documents
Term
Document
Origin
CFast™
CFast™ Specification Rev. 1.0
www.compactflash.org
CompactPCI®
CompactPCI Specification, PICMG® 2.0 R3.0, Oct. 1,
1999
www.picmg.org
CompactPCI®
PlusIO
CompactPCI PlusIO Specification, PICMG® 2.30 R1.0,
November 11, 2009
www.picmg.org
CompactPCI®
Serial
CompactPCI Serial Specification, PICMG® CPCI-S.0 R1.0,
March 2, 2011
www.picmg.org
DisplayPort
VESA DisplayPort Standard Version 1.2
December 22, 2009
VESA Mini DisplayPort Connector Standard Version 1
October 26, 2009
www.vesa.org
DVI
Digital Visual Interface Rev. 1.0
Digital Display Working Group
www.ddwg.org
Ethernet
IEEE Std 802.3, 2000 Edition
standards.ieee.org
Precision Time
Protocol
IEEE Std 1588-2008, July 24, 2008
standards.ieee.org
LPC
Low Pin Count Interface Specification, Revision 1.1
developer.intel.com/design/
chipsets/industry/lpc.htm
HD Audio
High Definition Audio Specification Rev.1.0
www.intel.com/design/chipsets/hdau
dio.htm
PCI Express®
PCI Express® Base Specification 3.0
www.pcisig.com
SATA
Serial ATA 2.5/2.6 Specification
Serial ATA 3.0 & 3.1 Specification
www.sata-io.org
TPM
Trusted Platform Module 2.0
www.trustedcomputinggroup.org
UEFI
Unified Extensible Firmware Interface
UEFI Specification Version 2.5
ACPI Specification Version 6.0
www.uefi.org
USB
Universal Serial Bus 3.0 Specification, Revision 1.0
November 12, 2008
www.usb.org
© EKF
-7-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Overview
The SC2-PRESTO is a rich featured high
performance 4HP/3U CompactPCI® Serial CPU
board, equipped with a 4th generation Intel®
Core™ mobile processor (Haswell dual- or quadcore). The SC2-PRESTO front panel is provided
with two Gigabit Ethernet jacks, two USB 3.0
receptacles, and two mDP connectors,
compliant with the DisplayPort 1.2 standard for
Multi-Stream-Transport (MST). Local expansion
mezzanine cards are available for additional I/O.
The SC2-PRESTO is equipped with up to 16GB
Low Power RAM with ECC support. 8GB
memory-down are provided for rugged
applications, and another 8GB are available via
the DDR3L ECC SO-DIMM socket. The on-board
SATA 6G RAID controller allows for powerful
mass storage solutions via the CompactPCI®
Serial backplane. Low profile SSD mezzanine
modules are available as on-board storage
solution, in addition.
While mechanically compliant to CompactPCI®
Most CompactPCI® Serial peripheral slot cards
require only the backplane connector P1, which
comprises PCIe, SATA and USB signals, resulting
in a concise and inexpensive peripheral board
design. More powerful peripheral cards profit
from so called Fat Pipe slots (PCIe x 8).
Classic, CompactPCI® Serial (PICMG® CPCIS.0)
defines a completely new card slot, based on
PCI Express®, SATA, Gigabit Ethernet and USB
serial data lines. Up to 6 high-speed backplane
connectors P1 - P6 are provided on a system
slot controller such as the SC2-PRESTO, which
can be considered as a root hub with respect to
most signal lines. A passive backplane is used
for distribution of a defined subset of I/O
channels from the system slot to each of up to
eight peripheral slots in a CompactPCI® Serial
system.
The SC2-PRESTO is a native CompactPCI® Serial
CPU card, suitable for usage in a pure CPCI
Serial environment. Due to its generous
backplane capabilities (22 x PCI Express® lanes,
6 x USB2, 2 x USB3, 7 x SATA/RAID, 2 x GbE),
very powerful industrial systems can be built.
The SC2-PRESTO is equipped with a set of local
expansion interface connectors, which can be
optionally used to attach a mezzanine side
board. A variety of expansion cards is available,
e.g. providing legacy I/O and additional PCI
Express® based I/O controllers such as SATA,
USB 3.0 and Gigabit Ethernet, or a third video
output. Most mezzanine side cards can
accommodate in addition a 2.5-inch drive.
Typically, the SC2-PRESTO and the related side
card would come as a readily assembled 8HP
unit. As an alternate, low profile Flash based
mezzanine storage modules are available that
fit on the SC2-PRESTO while maintaining the
4HP profile. The C47-MSATA module e.g. is
equipped with two very fast MSATA Solid State
Drives (SSD), which is suitable for installation of
any popular operating system.
© EKF
-8-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
© EKF
-9-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Technical Features
Feature Summary
Feature Summary
General
<
<
<
<
<
<
<
PICMG® CompactPCI® Serial (CPCI-S.0) CPU card
Form factor single size Eurocard (board dimensions 100x1600mm2)
Mounting height 3U
Front panel width 4HP (8HP/12HP assembly with optional mezzanine side card)
Front panel I/O connectors for typical system configuration (2 x USB3, 2 x DisplayPort, 2 x GbE)
Backplane communication via PCI Express® Gen3, SATA 6G, USB 3.0, Gigabit Ethernet
Local mezzanine expansion option (side card), COTS and custom specific boards
Processor
<
<
<
<
<
<
<
<
<
4th Generation Intel® Core™ CPU (Haswell)
i7-4700EQ Processor 2.4/1.7GHz (TB 3.4GHz) • 47W/37W TDP • Quad-Core • GT2-4600 Graphics
1000MHz
i5-4400E Processor 2.7GHz (TB 3.3GHz) • 37W TDP • Dual-Core • GT2-4600 Graphics 1000MHz
i5-4410E Processor 2.9GHz • 37W TDP • Dual-Core • GT2-4600 Graphics 1000MHz
i5-4422E Processor 1.8GHz (TB 2.9GHz) • 25W TDP • Dual-Core • GT2-4600 Graphics 900MHz
i3-4110E Processor 2.6GHz • 37W TDP • Dual-Core • GT2-4600 Graphics 900MHz
i3-4112E Processor 1.8GHz • 25W TDP • Dual-Core • GT2-4600 Graphics 900MHz
Celeron 2000E Processor 2.2GHz • 37W TDP • Dual-Core • HD Graphics 900MHz
Celeron 2002E Processor 1.5GHz • 25W TDP • Dual-Core • HD Graphics 900MHz
Firmware
<
<
<
<
Phoenix® UEFI (Unified Extensible Firmware Interface) with CSM*
Fully customizable by EKF
Secure Boot and Measured Boot supported - meeting all demands as specified by Microsoft®
Windows®, Linux and other (RT)OS' supported
* CSM (Compatibility Support Module) emulates a legacy BIOS environment, which allows to boot a legacy operating system such
as DOS, 32-bit Windows and some RTOS'
© EKF
-10-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Feature Summary
Main Memory
<
<
<
Integrated memory controller up to 16GB DDR3L 1600 +ECC
DDR3L +ECC soldered memory up to 8GB
DDR3L +ECC SO-DIMM memory module socket up to 8GB
Graphics
<
<
<
<
<
<
<
<
Integrated HD Graphics Engine, 3 symmetric independent displays
Enhanced Media Processing, DX11.1, OpenCL 1.2, OpenGL 3.2, JPEG, MJPEG, MVC, SVC, MPEG-2
Front panel: Dual Mini-DisplayPort (mDP) or single VGA connector option
3rd DisplayPort connector via mezzanine side card
DisplayPort™ 1.2 Multi-Stream Transport (MST) - display daisy chaining
Max Resolution 3200 x 2000 @60Hz (any DisplayPort), 1920 x 1200 (VGA)
4k x 2k @24Hz supported for Blu-ray playback
Integrated audio
Chipset
<
<
<
<
<
Intel® QM87 Lynx Point Platform Controller Hub (PCH)
8 x PCIe Gen2 5GT/s
6 x SATA 6G
10 x USB2, 4 x USB3
LPC, Audio, Legacy
On-Board Building Blocks
<
<
<
<
<
© EKF
Additional on-board controllers, PCIe® based
3 x Gigabit Ethernet controllers Intel® I210IT
<
one of them supporting IEEE 1588-2008 Precision Time Protocol including PPS and PPM signals
1 x Gigabit Ethernet PHY Intel® I217LM
PCIe Gen2 packet switch 16-lane 16-port PLX 8618
SATA 6G RAID controller Marvell® 88SE9230, ARM powered subsystem for host CPU offload
-11-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Feature Summary
Security
<
<
<
<
<
Trusted Platform Module
TPM 2.0 for highest level of certified platform protection
Infineon Optiga™ SLB 9665 cryptographic processor
Conforming to TCG 2.0 specification
AES hardware acceleration support by 4th Gen processor 4xxx series (Intel® AES-NI)
Front Panel I/O (4HP)
<
<
<
2 x Gigabit Ethernet RJ45 (1 = PCH & I217LM - iAMT, 2 = I210IT)
2 x DisplayPort (from processor integrated HD graphics engine, mDP style receptacles, optional cable
connector retainer available)
2 x USB 3.0
CompactPCI® Serial Backplane Resources
<
<
<
<
<
<
<
© EKF
PICMG® CPCI-S.0 CPU card & system slot controller
16 x PCIe Gen3 8GT/s (2 links x 8 for two fat pipe slots, derived directly from the Intel® Core™ CPU
6 x PCIe Gen2 5GT/s (6 links x 1 for peripheral slots)
3 x SATA 6G (from PCH)
4 x SATA 6G (Marvell hardware RAID controller)
4 x USB2, 2 x USB3 (from PCH)
2 x Gigabit Ethernet (I210IT networking controllers)
-12-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Feature Summary
Local Expansion
<
<
<
<
<
Mezzanine side card connectors for optional local expansion
P-EXP - 2 x USB 2.0 & Legacy (from PCH)
P-DP3 - 3rd DisplayPort video (from Intel® Core™ CPU)
P-HSE - 3 x SATA 6G & 4 x USB 2.0 (from PCH)
P-PCIE - PCIe Gen2 5GT/s 1 link x 4 lanes (from on-board PCIe® switch)
<
<
<
<
<
<
4HP Low profile mezzanine module options
CFast™ Card with C41-CFAST mezzanine module
SATA 1.8-Inch Solid State Drive with C42-SATA mezzanine module
Dual mSATA SSD with C47-MSATA mezzanine module
Triple M.2/NGFF SATA SSD 2230 - 2280 size with C48-M2 mezzanine module
Custom specific module design
<
<
8HP/12HP Mezzanine side card options
SCS-TRUMPET - 3rd DisplayPort F/P connector, RS-232, 2 x USB3, on-board 2.5-Inch SATA SSD or 2 x
M.2/NGFF SATA SSD module sockets 2230 - 2280
Variety of other side cards available
Custom specific side card design
<
<
Environmental & Regulatory
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
<
© EKF
Suitable e.g. for industrial, transportation & instrumentation applications
Designed & manufactured in Germany - ISO 9000 quality management certified
Long term availability
Rugged solution
Coating, sealing, underfilling on request
Lifetime application support
RoHS compliant
Operating temperature 0°C to +70°C
Operating temperature -40°C to +85°C (industrial temperature range) on request
Storage temperature -40°C to +85°C, max. gradient 5°C/min
Humidity 5% ... 95% RH non condensing
Altitude -300m ... +3000m
Shock 15g 0.33ms, 6g 6ms
Vibration 1g 5-2000Hz
MTBF 11.7 years (SC2-680D)
EC Regulatory EN55022, EN55024, EN60950-1 (UL60950-1/IEC60950-1)
-13-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Performance Rating
Performance Rating
tbd
Operating Conditions
Operating Conditions
Thermal &
Environmental
Conditions
<
<
<
<
<
<
Operating temperature 0°C to +70°C (-40°C to +85°C on Request)
Storage temperature: -40°C to +85°C, max. Gradient 5°C/min
Humidity 5% ... 95% RH non condensing
Altitude -300m ... +3000m
Shock 15g 0.33ms, 6g 6ms
Vibration 1g 5-2000Hz
EC Regulations
<
<
EN55022, EN55024, EN60950-1 (UL60950-1/IEC60950-1)
2002/95/EC (RoHS)
MTBF
<
MTBF 11.7 years (SC2-680D)
Power Requirements
Power Requirements
Load Current [A] at +12V (±5%)
Maximum Performance
LFM / HFM / Turbo 1)
Windows 8 Idle
LFM / HFM / Turbo 1)
SC2-68XX
2.2 / 4.0 / 4.2 2)
1.2 / 1.2 / 1.2 2)
SC2-48XX
1.8 / 3.0 / 3.1 2)
1.1 / 1.1 / 1.1 2)
SC2-28XX
tbd / tbd / tbd 2)
tbd / tbd / tbd 2)
Board
Load Current [A] at +5V[STDBY] (±5%) 3)
Full On / Sleep / Hibernate / Soft Off
(S0 / S3 / S4 / S5)
0 / 0 / 0 / 0.1
1)
Intel SpeedStep Frequence Modes LFM: Low Frequency Mode, HFM: High Frequency Mode.
Add 10/100mA (link only/active) @1Gbps per Ethernet Port.
3)
This power supply is optional. It can be left open if not available.
2)
© EKF
-14-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Block Diagram
Simplified Block Diagram
®
®
SC2-PRESTO
GbE
GbE
DP2
Front Panel Stuffing Alternates either Mini DisplayPort or VGA
DP1
USB3
PICMG CompactPCI Serial
System Slot Controller
Front
Panel
I/O
GbE
1
GbE
2
GbE
NIC
I217LM
GbE
PHY
Flash
SPI
DDR3 ECC SODIMM
I210IT
DDR3L 1600
Dual Channel
up to 16GB
DP 1.2 MST
2
4th Gen ECC
ISG Mobile
CPU
2/4-Core
Haswell
5GT/s
DMI2
i7-4700EQ 4C 1.7GHz/2.4GHz 37W/47W
i5-4400E 2C 2.7GHz 37W
i5-4402E 2C 1.6GHz 25W
i3-4100E 2C 2.4GHz 37W
i3-4102E 2C 1.6GHz 25W
FDI
Lynx Point
PCIe Gen3
PCIe Gen3
DP 1.2 MST
1
2+10
USB2/3
LPC
4
8
8
SLB9665
TPM
2.0
Option
PCIe Gen2
2
PCIe Gen2
6
SATA 6G (4) • SATA 3G (2)
LPC/Audio/SMB/GPIO
2
QM87
Next
Gen
PCH
Mobile
USB3
VGA
SPI
GbE MAC
PCIe Gen2
Intel® 4th Gen Platform
Shark Bay
9230
8618
2x
I210IT
DP3
USB2/3
USB2
USB2
2+4
4
2
SATA 6G (2) • SATA 3G (1)
3
2
GbE
4
PCIe
6
4
SATA 6G
3
SATA 6G (2) • SATA 3G (1)
SATA
RAID
0/1/10 AES
PCIe
2
Gen2
Switch
PCIe
GbE
NIC
Mezzanine
Side Card
I/O
P1 P2
Fat Pipe 1
P2
Fat Pipe 2
Backplane
CompactPCI
Serial
ekf.com
-15-
© EKF
DDR3 ECC Soldered
www.ekf.com/s/sc2/img/sc2_blk.pdf
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Top View Component Assembly
J-RTC
P-USB
BATT1
BATT2
HSE
P-HSE
EXP
P-EXP
P-SODM
P-DP3
DP3
Top Side
Component
Assembly
SODIMM
J-MFG
P-DP2
P-DP1
J-GP
2x
USB
3.0
DP
1
VGA
P-VGA
DP
2
Dual
GbE
P-ETH
P-FPH
P-PCIE
PCIE
SC2-PRESTO • CompactPCI® Serial • © EKF • ekf.com
P6
P5
P4
P3
P2
P1
ekf.com
-16-
© EKF
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
© EKF
-17-
SC2-PRESTO • CompactPCI® Serial • © EKF • ekf.com
EB
LED
1
1
HD
LED
P-XDP
12
DS-P
Bottom Side
Component
Assembly
P-ISP
GP
PG
LED
LED
RB
Bottom View Component Assembly
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Front Panel Connectors
ETH1/2
Dual Gigabit Ethernet RJ-45 receptacles with integrated indicator LEDs
DP1/2
Mini DisplayPort digital video output receptacle (VGA connector available as alternate)
USB1/2
Universal Serial Bus 3.0 type A receptacles
VGA
VGA analog video output connector (Mini DisplayPort connectors available as alternate)
Front Panel Switches & Indicators
EB
LED indicating Backplane Ethernet activity
FPH
Front Panel Handle with integrated switch (programmable function, power event button by default)
GP
General Purpose bicolour LED
HD
Bicoloured LED indicating any activity on SATA ports
PG
Power Good/Board Healthy bicolour LED
RB
System Reset Button (Option)
© EKF
-18-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
On-Board Connectors & Sockets
P-EXP
Utility EXPansion Interface Connector (LPC, USB, HD Audio, SMBus), interface to optional side board
P-HSE
High Speed Expansion Connector (3 x SATA, 4 x USB), interface to optional low profile mezzanine
module or side board
P-PCIE
PCI Express® Expansion Interface Connector, interface to optional side board
P-DP3
Digital Display Interface Connector, interface to optional 3rd DisplayPort on side board
P1
CompactPCI® Serial Type A Connector
P2-P4
CompactPCI® Serial Type B Connectors
P5
CompactPCI® Serial Type C Connector
P6
CompactPCI® Serial Type D Connector
P-SODM
204-pin DDR3L ECC Memory Module SDRAM PC3L-12800 Socket (ECC SODIMM)
P-XDP
CPU Debug Port 1)
1)
Connector populated on customers request only
Pin Headers
P-FPH
Pin header suitable for Front Panel Handle switch cable harness
P-ISP
PLD glue logic device programming connector, not populated
Jumpers
DS-P
Switches to configure link width and speed on P-PCIE
J-GP
Jumper to reset UEFI BIOS Setup to EKF Factory Defaults, IEEE 1588 Pulse per Second Output
J-MFG
Jumper to enter Manufacturing Mode, not populated
J-RTC
Jumper to reset RTC circuitry (part of PCH), not populated
© EKF
-19-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Microprocessor
The SC2-PRESTO is equipped with an Intel® CoreTM i7, i5 or i3 4th generation mobile ECC processor
(code name “Haswell”). These low power processors provide integrated graphics, memory controller
and voltage regulators, which results in a very efficient platform design.
The CoreTM i7/i5/i3 processor family includes units with several thermal design power (TDP) classes to
fit the customers requirements: 47W, 37W and 25W. The processors are housed in a Micro FC-BGA
package for direct soldering to the PCB, i.e. the chip cannot be removed or changed by the user.
The processors supported by the SC2-PRESTO are running at core clock speeds up to 2.4GHz for quad
core and up to 2.7GHz on dual core devices. Due to Enhanced Intel® SpeedStep® and Intel® Turbo
Boost Technology each core can decrease or increase its nominal operating frequency. The clock speed
is chosen depending on the power states of the processor cores/graphics engine, the currently
required performance, and the actual core temperature.
Power is applied across the CompactPCI® connector P1 (12V). The processors core voltage are
generated by a switched voltage regulator according to Intels VR12.5 voltage regulator specification.
Intel® CoreTM Processors Supported 1)
1)
2)
Processor
Number
Physical
Cores
Core Clock
nom./max.
[GHz]
i7-4700EQ
2)
4
2.4/3.4
1.7/3.4
i5-4400E
2
i5-4422E
2002E
Cache
[MB]
Gfx
Clock
[MHz]
Junction
Temp.
[°C]
6
400-1200
400-1150
100
2.7/3.3
3
400-1000
2
1.8/2.9
3
2
1.5/1.5
2
TDP
[W]
CPU ID
Stepping
SPEC
Code
47
37
40661h
C-0
SR17L
100
37
40661h
C-0
SR17M
400-900
100
25
40661h
C-0
SR1T1
400-900
100
25
40661h
C-0
SR17P
The processors listed are units with long life support.
This processor may run with different TDPs configurable by BIOS settings.
© EKF
-20-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Thermal Considerations
In order to avoid malfunctioning of the SC2-PRESTO, take care of appropriate cooling of the processor
and system, e.g. by a cooling fan suitable to the maximum power consumption of the CPU chip
actually in use. The processor contains digital thermal sensors (DTS) that are readable via special CPU
registers. DTS allows to get the temperatures of each CPU core separately.
Two further temperature sensors, located in the system hardware monitor LM87, allows for
acquisition of the boards surface temperature and the thermal state of the onboard system memory
channel. Beside this the LM87 also monitors most of the supply voltages. A suitable software on
Microsoft Windows® systems to display both, the temperatures as well as the supply voltages, is
Speedfan, which can be downloaded from the web. After installation, both temperatures and
voltages can be observed permanently from the Windows® taskbar.
The SC2-PRESTO is equipped with a passive heatsink. Its height takes into account the 4HP limitation
in mounting space of a CompactPCI® board. In addition, a forced vertical airflow through the system
enclosure (e.g. bottom mount fan unit) is strongly recommended (>20m3/h or 2m/s (400LFM) around
the CPU slot). Be sure to thoroughly discuss your actual cooling needs with EKF. Generally, the faster
the CPU speed the higher its power consumption. For higher ambient temperatures, consider
increasing the forced airflow to 3m/s (600LFM) or more.
The table showing the supported processors above give also the maximum power consumption (TDP)
of a particular processor. Fortunately, the power consumption is by far lower when executing typical
Windows® or Linux tasks. The heat dissipation increases when e.g. rendering software like the
Acrobat Distiller is executed.
The CoreTM processors support Intel's Enhanced SpeedStep® technology. This enables dynamic
switching between multiple core voltages and frequencies depending on core temperature and
currently required performance. The processors are able to reduce their core speed and core voltage
in multiple steps down to 800MHz. Additional a reduction of the graphics core clock (down to
200MHz) and voltage is possible. This leads to an obvious reduction of power consumption resulting
in less heating.
A further way to reduce power consumption is achieved by integrating the voltage regulators on the
die of the 4th generation CoreTM processors. This embedding allows the processor to regulate the
voltages to each core, graphics, cache and other units separately depending on their performance
needs. Parts that are currently idle may switched off to save power.
© EKF
-21-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Main Memory
The SC2-PRESTO features two channels of DDR3L SDRAMs with support of ECC (Error Correction
Code). One channel is realized with 18 memory devices soldered to the board (Memory Down) and
delivers a capacity of up to 8GB with a clock frequency of 1600MHz (PC3L-12800).
The 2nd channel provides a socket for installing a 204-pin ECC SODIMM module thus allowing a
simple expansion of system memory (max. module height = 1.25 inch). Supported are unbuffered
DDR3L ECC SODIMMs (72-bit) with VDD=1.35V featuring on-die termination (ODT), according the
PC3L-12800 specification. Minimum module size is 512MB; maximum module size is 8GB. Please note
that neither standard DDR3 SODIMMs nor DDR3L without ECC feature do work on SC2-PRESTO.
It is recommended to add a SODIMM module with same size as the Memory Down to get best
performance. Since some of the system memory is dedicated to the graphics controller a typically
development of 2x8GB of memory is recommended to run operating systems like Windows® 7 or
Windows® 8.
The memory controller supports symmetric and asymmetric memory organization. The maximum
memory performance can be obtained by using the symmetric mode. When in this mode, the memory
controller accesses the memory channels in an interleaved way. Since CoreTM processors support Intels
Flex Memory Technology, interleaved operation isn't limited to systems using memory channels of
equal capacity. In the case of unequal memory population the smaller memory channel dictates the
address space of the interleaved accessible memory region. The remainder of the memory is then
accessed in non-interleaved mode.
In asymmetric mode the memory always will be accessed in a non-interleaved manner with the
drawback of less bandwidth. The only meaningful application of asymmetric mode is the special case
when only one memory channel is populated (i.e. the SODIMM socket may be left empty).
The contents of the SPD EEPROM on the SODIMM is used by the BIOS at POST (Power-on Self Test) to
get any necessary timing parameters to program the memory controller within the chipset.
© EKF
-22-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Graphics Subsystem
The structure of the graphics subsystem has changed compared to the predecessor of the Intel 4th
generation CoreTM processor. The main graphics interfaces like DisplayPort and DVI are part of the
processor. Only a few sideband signals (DDC/Auxiliary channel, hot plug detection) as well as the VGA
interface is remained at the PCH QM87.
The SC2-PRESTO offers two Mini DisplayPort (mDP) interfaces in the front panel. Adapters to convert
Mini DisplayPort to any other popular interface standard are available.
A 3rd DisplayPort is fed to the on-board connector P-DP3. EKF expansion boards like PCS-BALLET
feature the possibility to gain access to the 3rd DisplayPort interface.
As an alternate, the SC2-PRESTO can be equipped with an ordinary HD D-Sub 15-lead connector (VGA
style). This connector is suitable for analog signals only. Nevertheless also flat-panel displays can be
attached to the D-Sub connector but with minor reduced image quality.
Independent from the video connector actually in use, Mini DisplayPort, DVI or VGA, the VESA DDC
standard is supported. This allows to read out important parameters, e.g. the maximum allowable
resolution, from the attached monitor. DDC power, +3.3V on DisplayPort connectors, is delivered via
electronic switches to protect the board from an external short-circuit condition (1.5A) and to prevent
back current flows. On the VGA interface a resettable fuse (0.5A) is used supply the +5V DDC power.
Graphics drivers can be downloaded from the Intel web site.
LAN Subsystem
The Ethernet LAN subsystem is composed of four Gigabit Ethernet ports: One Intel i217LM Physical
Layer Transceiver (PHY) using the PCH QM87 internal MAC and three Intel i210IT Gigabit Ethernet
Controllers. These devices provide also legacy 10Base-T and 100Base-TX connectivity. Two of the
Ethernet ports are fed to two RJ45 jacks located in the front panel, the others are attached to the
CompactPCI® Serial interface on P6. Each port includes the following features:
< One PCI Express lane per Ethernet port (250MB/s)
< 1000Base-Tx (Gigabit Ethernet), 100Base-TX (Fast Ethernet) and 10Base-T (Classic Ethernet)
capability.
< Half- or full-duplex operation.
< IEEE 802.3u, 802.3ab Auto-Negotiation for the fastest available connection.
< Jumperless configuration (complete software-configurable).
Two bicoloured LEDs integrated into the dedicated RJ-45 connector in the front panel are used to
signal the LAN link, the LAN connection speed and activity status. A further bicoloured LED in front
panel labelled EB displays the state of the backplane network ports.
Each device is connected by a single PCI Express lane to the PCH. Their MAC addresses (unique
hardware number) are stored in dedicated FLASH/EEPROM components. The Intel Ethernet software
and drivers for the i217LM and i210IT are available from Intel's World Wide Web site for download.
When managing the board by Intel Active Management Technology (iAMT), the dedicated network
port to do so is accessible by the RJ45 connector GbE1 (the upper port within the front panel).
© EKF
-23-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Although any of the i210 controllers support the IEEE 1588 Precision Time Protocol, the one
connected to GbE2 (the lower port within the front panel) is capable to generate Pulse per Second
(PPS) and Pulse per Minute (PPM) signals that may be routed to the jumper J-GP and the CompactPCI®
Serial connector P1. These signals can be used to trigger events on Mezzanine Side Boards or
Peripheral Boards. The following routing is possible by UEFI BIOS settings:
< Pulse per Second (PPS): J-GP Pin 1 and CompactPCI® Pin J3 (signal SATA-SCL)
< Pulse per Minute (PPM): CompactPCI® Pin H3 (signal SATA-SDO)
Serial ATA Interface (SATA)
The SC2-PRESTO provides a total of ten serial ATA (SATA) ports, derived from three independent SATA
controllers. Eight of these ports support data transfer rates of 6Gbps (600MB/s), 3Gbps (300MB/s) or
1.5Gbps (150MB/s), the remaining two ports up to 3Gbps. SATA controllers are located within the
QM87 Platform Controller Hub that holds 6 SATA interfaces and in a separate SATA host controller
Marvell 88SE9230, providing four SATA ports, all 6Gbps capable.
Three of the QM87 ports are fed to the high speed expansion connector P-HSE. This connector allows
the installation of low profile expansion boards like C41-CFAST or C42-SATA to attach the popular
CFast cards or Micro SATA SSDs (1.8-inch) respectively. Another mezzanine is the C47-MSATA, a
carrier for two MSATA SSD modules.
The Marvell 88SE9230 is a SATA 6Gbps AHCI/RAID I/O controller connected via two PCI Express lanes
(1GB/s) to the QM87. It supports hardware RAID levels 0, 1 and 10. All of its SATA ports as well as the
three remaining QM87 ports are used to supply the CompactPCI® Serial SATA interfaces on the
backplane.
A LED named HD located in the front panel, signals disk activity status of any QM87 SATA devices
(green) or 88SE9230 devices (yellow).
Additionally a variety of side cards is available, suitable for mounting on the SC2-PRESTO in a 4HP
(20.32mm) distance (resulting in 8HP front panel width for the assembly). Some of these side boards
can accommodate a SATA drive, e.g. a 2.5-inch SSD.
Available for download from Intel's web site are drivers for popular operating systems, e.g. Windows®
7, Windows® 8 and Linux.
Drivers and software to manage the RAID configuration of the 88SE9230 (Windows® application) is
provided by Marvell and can be downloaded from EKF’s website.
PCI Express® Interface
The SC2-PRESTO is provided with several PCI Express (PCIe) lanes for I/O expansion. Sixteen PCI Express
lanes, originating from the CoreTM processor, are building the two fat pipes defined by CompactPCI®
Serial. These two links consists of eight lanes with transfer rates of up to 8Gbps (PCI Express Gen 3).
The QM87 offers a total of eight PCI Express ports supporting PCIe Gen 2 speed (5GT/s). Four of them
form the upstream link to a PCI Express switch. The output ports (downstream ports) of the PCIe
switch are connected to the CompactPCI® Serial connectors P4/P5 (six lanes), to the local PCIe
expansion interface connector P-PCIE (four lanes) and to two of the Ethernet controllers (i210IT).
© EKF
-24-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Two small DIP switches (DS-P) located on the backside of the board are used to configure different
lane widths to each of both downstream interfaces and to choose the interface transfer rate. Possible
settings are
< Six links x 1 to CompactPCI® Serial P4/P5, two links x 1 to i217IT and a single link x 4 to P-PCIE
< Six links x 1 to CompactPCI® Serial P4/P5, two links x 1 to i217IT and four links x 1 to P-PCIE
< 2.5GT/s or 5GT/s transfer speed
See section “Configuration PCI Express Switch (DS-P)” for details.
Universal Serial Bus (USB)
The SC2-PRESTO is provided with fourteen USB ports. All of them are USB 2.0 capable, but four ports
are also supporting the USB 3.0 SuperSpeed standard. Two USB 3.0 interfaces are routed to front
panel connectors, the other two SuperSpeed ports are feed to the CompactPCI® Serial connectors P1
and P3.
The USB 2.0 interfaces are distributed to the front panel (two ports), two to the expansion board
interface connectors P-EXP, four to the high speed expansion connector P-HSE, and six ports are
available across the backplane connectors for CompactPCI® Serial.
The front panel USB connectors can source a minimum of 1.5A/5V each, over-current protected by
two electronic switches. Protection for the USB ports on the expansion interfaces and on the
CompactPCI® Serial connectors is located on expansion boards and the boards on the CompactPCI®
Serial backplane respective. The USB xHCI and two EHCI controllers handling the USB port operation
at SuperSpeed, high-speed, full-speed and low-speed are integrated into the QM87 PCH.
An xHCI driver (USB 3.0) for Windows® 7 is provided by Intel and can be downloaded from EKF’s
website.
Utility Interfaces
Besides the high speed mezzanine interface connectors P-HSE and P-PCIE, the SC2-PRESTO is provided
with the utility interface expansion connector socket P-EXP. This connector comprises several
interfaces, which may be useful for system expansion on mezzanine cards, as an option:
<
<
<
<
HD Audio
LPC (Low Pin Count)
SMBus
2 x USB
The SMBus is controlled by the QM87 platform controller hub. The SMBus signal lines on the P-EXP
utility expansion connector can be switched on/off under software control (PCH GPIO) in order to
isolate external components in case of an I2C address conflict.
The HD Audio port requires an additional audio codec, as provided e.g. on the PCS-BALLET side card.
The LPC bus presents an easy way to add legacy interfaces to the system. EKF offers a variety of
mezzanine expansion boards (side cards), to be attached on top of the SC2-PRESTO, featuring all
classic Super-I/O functionality, for example the PCS-BALLET. Access to the connectors PS/2 (mouse,
keyboard), COM, USB and audio in/out is given directly from the front panel.
© EKF
-25-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Real-Time Clock
The SC2-PRESTO has a time-of-day clock and 100-year calendar, integrated into the QM87 PCH. A
battery on the board keeps the clock current when the computer is turned off. The SC2-PRESTO uses
a holder to keep a BR2032 lithium coin cell, giving an autonomy of more than 5 years. Under normal
conditions, replacement should be superfluous during lifetime of the board.
Alternately a BR2032 battery can be soldered in the board when board coating or shock/vibration is
an interest.
In applications were the use of a battery is not permitted, a SuperCap can be soldered instead of the
battery.
SPI Flash
The BIOS and iAMT firmware is stored in flash devices with Serial Peripheral Interface (SPI). Up to
16MByte of BIOS code, firmware and user data may be stored nonvolatile in these SPI Flashes.
The SPI Flash contents can be updated by a DOS or Linux based tool. This program and the latest
SC2-PRESTO BIOS binary are available from the EKF website. Read carefully the enclosed instructions.
If the programming procedure fails e.g. caused by a power interruption, the SC2-PRESTO may no
more be operable. In this case you would possibly have to send in the board, because the Flash
device is directly soldered to the PCB and cannot be changed by the user.
© EKF
-26-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Reset
The SC2-PRESTO is provided with several supervisor circuits to monitor supply rails like the CPU core
voltage, 1.5V, 3.3V or 5V.
To force a manual board reset, the SC2-PRESTO offers a small tactile switch within the front panel.
This push-button is indent mounted and requires a tool, e.g. a pen to be pressed, preventing from
being inadvertently activated.
The handle within the front panel contains a micro switch that is used to generate a power button
event. By pressing the handle's red push button a pulse is triggered.
Animated GIF: www.ekf.com/c/ccpu/img/reset_400.gif
NOTE: To prevent the board to cause a power button override, the handle should be closed
immediately after unlocking the front panel handle. A power button override is triggered by opening
the front panel handle for at least 4 seconds, which results in bringing the board to power state S5.
In case of entering this state, unlock and lock the front panel handle a 2nd time to reenter normal
power state S0 again. See also section 'PG (Power Good) LED' to see how the SC2-PRESTO indicates
the different power states.
WARNING: The SC2-PRESTO will enter the power state S5 if the front panel handle is not closed
properly when the system powers up. An open handle is signalled by a yellow blinking ‘PG LED’.
The manual reset push-button and the power button functionality of the front panel handle could be
passivated by BIOS settings.
An alternative (and recommended) way to generate a system reset is to activate the signal PRST#
located on CompactPCI® Serial connector P1 pin H2. Pulling this signal to GND will have the same
effect as to push the tactile reset switch.
The healthy state of the SC2-PRESTO is indicated by the LED PG (Power Good) located in the front
panel. This bicoloured LED signals different states of the board (see section below). As soon as this
LED begins to lite green, all power voltages are within their specifications and the reset signal has
been deasserted.
© EKF
-27-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
<4s
5
2
© EKF
© EKF • ekf.com
1
6
3
7
4
8
-28-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Watchdog
An important reliability feature is a software programmable watchdog function. The SC2-PRESTO
contains two of these watchdogs. One is part of the QM87 PCH and also known as TCO Watchdog.
A detailed description is given in the QM87 data sheet. Operating systems like Linux offer a driver
interface to the TCO watchdog.
The behaviour of the 2nd watchdog is defined within a PLD of the SC2-PRESTO, which
activates/deactivates the watchdog and controls its time-out period. The time-out delay is adjustable
in the steps 2, 10, 50 and 255 seconds. After alerting the WD and programming the time-out value,
the related software (e.g. application program) must trigger the watchdog periodically. For details on
programming the watchdog see section “Board Control and Status Register (BCSR)”.
This watchdog is in a passive state after a system reset. There is no need to trigger it at boot time. The
watchdog is activated on the first trigger request. If the duration between two trigger requests
exceeds the programmed period, the watchdog times out and a full system reset will be generated.
The watchdog remains in the active state until the next system reset. There is no way to disable it once
it has been put on alert, whereas it is possible to reprogram its time-out value at any time.
Front Panel LEDs
The SC2-PRESTO is equipped with four LEDs which can be observed from the front panel. Three of
these LEDs are labelled according to their primary meaning, but should be interpreted altogether for
system diagnosis:
LED
Status
PG
Green/Red
GP
Green/Red
HD
Green/Yellow
OFF
GREEN
GREEN
Sleep State S5 (Soft Off)
OFF
GREEN
OFF
Sleep State S4 (Suspend to Disk/Hibernate)
OFF
OFF
GREEN
Sleep State S3 (Suspend to RAM/Standby)
GREEN
RED BLINK
X
After Reset
GREEN
X
X
Board Healthy and in S0 State
YELLOW BLINK
X
X
Front panel handle is unlocked
RED
X
X
Hardware Failure - Power Fault
RED BLINK
X
X
Software Failure
© EKF
-29-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
PG (Power Good) LED
The SC2-PRESTO offers a bicolour LED labelled PG located within the front panel. After system reset,
this LED defaults to signal different power states:
<
<
<
<
<
Off
Green
Yellow blink
Red steady
Red blink
Sleep state S3, S4 or S5
Healthy
Front panel handle open
Hardware failure
Software failure
To enter the PG LED state Software Failure, the bit PGLED in the board control register CTRLL_REG
must be set. The PG LED remains in this red blinking state until this bit is cleared. After that it falls
back to its default function.
GP (General Purpose) LED
This programmable bicolour LED can be observed from the SC2-PRESTO front panel. The status of the
red part within the LED is controlled by the GPIO18 of the PCH QM87. Setting GPIO18 to “1" will
switch on the red LED. Turning on or off the green LED is done by setting the bit GPLED in the board
control register CTRLH_REG.
The GP LED is not dedicated to any particular hardware or firmware function with exception of special
power states of the LED PG as described above. Nevertheless, a red blinking GP LED is an indication
that the BIOS code couldn't start.
While the CPU card is controlled by the BIOS firmware, the GP LED is used to signal board status
information during POST (Power On Self Test). After successful operating system boot, the GP LED
may be freely used by customer software. For details please refer to
www.ekf.com/s/sc2/firmware/biosinfo.txt.
HD (Hard Disk Activity) LED
The SC2-PRESTO offers a bicoloured LED marked as HD placed within the front panel. This LED, when
blinking green, signals activity on any device attached to the SATA ports of the QM87.
The yellow part of the HD LED shows activity on any of the 88SE9230 SATA ports.
As previously described, the green part of this LED may change its function dependent on the state of
the LED PG.
© EKF
-30-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
EB (Ethernet Backplane) LED
To monitor the link status and activity on both Ethernet ports attached to the backplane via the
CompactPCI® Serial connector P6 a single bicoloured LED is provided in the front panel. The states are
decoded as follows:
1_ETH
2_ETH
LED EB
no link
no link
OFF
link
no link
GREEN
no link
link
YELLOW
link
link
GREEN/YELLOW
Blinking of the LED EB in the appropriate colour means that there is activity on the port.
Main Power Supply Control (PS_ON#)
The SC2-PRESTO draws its power from the +12V main supply rail defined by the CompactPCI® Serial
specification. The board has been designed to control this main power supply by use of the signal
PS_ON# (connector P1 pin E2). If the system enters the sleep state S5 (soft off), the signal PS_ON#
is pulled high, hence the main power supply is switched-off. The SC2-PRESTO is held in soft off state
until a power management event (e.g. power button event triggered by the front panel handle) brings
back the system to the S0 state.
In order to work as described above and to generate clean signals on PS_ON#, the stand-by voltage
+5VSTB is necessary. This optional power rail, tied to connector P1 pin B1, is also part of the
CompactPCI® Serial specification. The stand-by power rail must be switched-on “always”, independent
of the state of PS_ON#.
Nevertheless, +5VSTB is not mandatory to operate the SC2-PRESTO. If no stand-by power is available,
the board creates this voltage from the main power rail. In this case it is important that the PS_ON#
signal is pulled down somewhere in the system.
Power Supply Status (PWR_FAIL#)
Power supply failures may be detected before the system crashes down by monitoring the signal
PWR_FAIL#. This active low line (connector P1 pin F3) is an addition to the CompactPCI® Serial
specification and may be driven by the power supply. PWR_FAIL# signals the possible failure of the
main supply voltage +12V. On the SC2-PRESTO the signal PWR_FAIL# is routed to GPIO4 of the
QM87 PCH to analyse the state of the power supply unit.
© EKF
-31-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Mezzanine Side Board Options
The SC2-PRESTO is provided with several stacking connectors for attachment of a mezzanine
expansion module (aka side board), suitable for a variety of readily available mezzanine cards (please
refer to www.ekf.com/c/ccpu/mezz_ovw.pdf for a more comprehensive overview). EKF furthermore
offers custom specific development of side boads (please contact [email protected]).
3 x SATA 6G
(PCH)
4 x USB
LPC USB
SMBus
HD Audio
HSE
J-GP
J-RTC
2x
USB
3.0
PCI Express®
Gen2
1x4•4x1
EXP
PCIE
P-EXP
P-HSE
P-PCIE
GbE
(1-2)
P6
Clk PE (1-8)
2 x PE (7-8)
Gen2
2 Links x 1
P5
4 x PE (3-6)
Gen2
4 Links x 1
P4
3 x SATA (PCH)
4 x SATA (RAID)
1 x USB3 (2)
2 x USB2 (5-6)
P3
PE Gen3 x 8 (2)
PE Gen3 ½ x 8 (1)
2 x USB2 (3-4)
P2
PE Gen3 ½ x 8 (1)
1 x USB3 (1)
Sideband
Power
P1
P-USB
DP
1
P-DP1
VGA
P-VGA
DP
2
P-DP2
Top Side
Connector Assembly
J-MFG
Dual
GbE
SC2-PRESTO
4th Generation
Intel® Core™ i7 CPU
© EKF • ekf.com
Front Panel - Mezzanine - Backplane
Video
FlatDP
3
Panel
P-ETH
DP3
P-DP3
P-FPH
SC2-PRESTO • CompactPCI® Serial • © EKF • ekf.com
Most mezzanine expansion modules require an assembly height of 8HP in total, together with the
CPU carrier board (resulting from two cards at 4HP pitch each).
In addition, cropped low profile mass storage mezzanine modules can be attached to P-HSE, which
maintain the 4HP envelope, for extremely compact systems. Furthermore these small size modules
may be combined with the full-size expansion boards (that means an assembly comprised of 3 PCBs).
Related Documents Mezzanine Modules and Side Cards
© EKF
C4* Series Mezzanine Storage Modules
www.ekf.com/c/ccpu/c4x_mezz_ovw.pdf
SCS-TRUMPET Mezzanine Side Card
www.ekf.com/s/csc/scs.html
-32-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
P-EXP
I/F Type
Controller
LPC (Low Pin Count)
PCH
HD Audio
PCH
SMBus
PCH (buffered)
2 x USB 2.0
PCH
P-HSE
I/F Type
Controller
SATA1, SATA2, SATA3
PCH
4 x USB 2.0
PCH
P-PCIE
© EKF
I/F Type
Controller
PCI Express® Gen2 1x4 or 4x1
PE Switch
-33-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
SC2-PRESTO
SC2-PRESTO
© EKF
-34-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
SC2-PRESTO w. C42-SATA Mezzanine Module 4HP Assembly
SC2-PRESTO w. C47-MSATA Mezzanine Module 4HP Assembly
© EKF
-35-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
SC2-PRESTO w. C41-CFAST Mezzanine Module 4HP Assembly
SC2-PRESTO w. C43-SATA Mezzanine Module 4HP Assembly
© EKF
-36-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
8HP Assembly SC2-PRESTO w. SCS-TRUMPET Mezzanine Side Card (2.5-Inch SATA SSD)
© EKF
-37-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
8HP Assembly SC2-PRESTO w. SCS-TRUMPET Side Card (Dual M.2 SATA SSD)
© EKF
-38-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
CompactPCI® Serial
System Slot Controller
The PICMG® CompactPCI® Serial specification defines a card slot system based on the modern high
speed data-links PCI Express®, SATA, Ethernet and USB. The SC2-PRESTO, designed to act as a
CompactPCI® Serial system slot controller, provides the resources of these interfaces. The backplane
distributes them in the form of point to point connections to the peripheral slots.
The SC2-PRESTO allocates most but not all communication channels defined by CompactPCI® Serial
on the backplane:
<
<
<
<
<
<
Two PCIe Links x8, 2.5GT/s, 5GT/s or 8GT/s (Fat Pipes)
Six PCIe Links x1, 2.5GT/s or 5GT/s
Seven SATA Ports (6 x 6G, 1 x 3G)
Two USB 3.0 Ports
Six USB 2.0 Ports
Two Gigabit Ethernet Ports
These resources will be distributed on a typical 9-slot CompactPCI® Serial backplane as follows:
© EKF
-39-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
1
P6
Clk PE (1-8)
2 x PE (7-8)
Gen2
2 Links x 1
GbE
(1-2)
SYS
P5
3 x SATA (PCH)
4 x SATA (RAID)
1 x USB3 (2)
2 x USB2 (5-6)
4 x PE (3-6)
Gen2
4 Links x 1
P3
PE Gen3 x 8 (2)
PE Gen3
½ x 8 (1)
2 x USB2 (3-4)
I/O
P4
P2
PE Gen3
½ x 8 (1)
1 x USB3 (1)
Sideband
GbE
(1)
2
PER
GbE
(2)
3
4
5
6
7
8
PER
9
Peripheral
Slot
SATA 6G (PCH)
PE Gen2 x 1
8
PER
SATA 6G (PCH)
Peripheral
Slot
PE Gen2 x 1
7
PER
Peripheral
Slot
SATA 6G (RAID)
USB2
PE Gen2 x 1
6
PE Gen2 x 1
Peripheral
Slot
SATA 6G (RAID)
USB2
5
PER
PE Gen2 x 1
Peripheral
Slot
SATA 6G (RAID)
USB2
4
PER
PE Gen2 x 1
Peripheral
Slot
SATA 6G (RAID)
USB2
3
PER
SC2-PRESTO R.1 • Resources w. 1+8 Slots Backplane (System Slot Left)
PER
2
PE Gen3 x 8
Fat Pipe
Slot
SATA 3G (PCH)
USB3
1
USB3
PE Gen3 x 8
Fat Pipe
Slot
ekf.com
-40-
© EKF
P1
SC2PRESTO
© EKF • ekf.com
Backplane Resources SC2-PRESTO (System Slot Left)
www.ekf.com/s/sc2/img/sc2_backplane.pdf
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
P6
P5
P4
1
PER
8
PER
5
PER
4
6
3
PE Gen2 x 1
SATA 6G (RAID)
USB2
4
PER
5
PE Gen2 x 1
Peripheral
Slot
SATA 6G (RAID)
USB2
3
PER
6
8
PER
GbE
(1)
PER
PE Gen3 x 8
Fat Pipe
Slot
USB3
1
PE Gen3 x 8
Fat Pipe
Slot
SATA 3G (PCH)
USB3
2
GbE
(2)
7
SC2-PRESTO R.1 • Resources w. 1+8 Slots Backplane (System Slot Right)
2
PER
7
PE Gen2 x 1
SATA 6G (RAID)
USB2
Peripheral
Slot
9
SYS
GbE
(1-2)
Clk PE (1-8)
2 x PE (7-8)
Gen2
2 Links x 1
4 x PE (3-6)
Gen2
4 Links x 1
SC2PRESTO
PE Gen3
½ x 8 (1)
1 x USB3 (1)
Sideband
3 x SATA (PCH)
4 x SATA (RAID)
1 x USB3 (2)
2 x USB2 (5-6)
PE Gen2 x 1
SATA 6G (RAID)
USB2
Peripheral
Slot
P3
PE Gen2 x 1
SATA 6G (PCH)
Peripheral
Slot
PE Gen3 x 8 (2)
PE Gen3
½ x 8 (1)
2 x USB2 (3-4)
I/O
PE Gen2 x 1
SATA 6G (PCH)
Peripheral
Slot
ekf.com
-41-
© EKF
P2
P1
Peripheral
Slot
© EKF • ekf.com
Backplane Resources SC2-PRESTO (System Slot Right)
www.ekf.com/s/sc2/img/sc2_backplane.pdf
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Peripheral Slot Operation
Beyond that the SC2-PRESTO is operable in periphery slots as well. In this case it acts as a satellite
system, linked to other (processor-) boards by its backplane Ethernet connections. The other resources
associated with the backplane like PCI Express, SATA or USB are not usable in this situation.
Some of the following, system slot dedicated control signals get an altered function or will be
disconnected from the backplane:
<
<
<
<
<
PWRBTN# (Connector P1 Pin C3) will be disconnected
PWR_FAIL# (Connector P1 Pin F3) becomes GA1
PRST# (Connector P1 Pin H2) becomes RST# and will be disconnected
WAKE# (Connector P1 Pin I2) will be disconnected
SGPIO (Connector P1 Pins G3/H3/J3/K3) will be disconnected
One result of that is, that a SC2-PRESTO plugged into a peripheral slot will not get a reset even if the
system controller forces the reset signal on the backplane to an active state.
Board Hot-Plug
Hot-plug of the SC2-PRESTO is not supported, no matter whether it is working as a system controller
or satellite board.
SC2-PRESTO as System Slot Controller for CompactPCI® Serial Systems (Picture similar)
© EKF
-42-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Related Documents CompactPCI® Serial
CompactPCI® Serial Concise Overview
www.ekf.com/s/serial_concise.pdf
CompactPCI® Serial All You Need to Know
www.ekf.com/s/smart_solution.pdf
SRS-4401-RACK for up to 8 Peripheral Slot Cards
© EKF
-43-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
CompactPCI® Serial Backplanes
1 + 4 Slots CompactPCI® Serial Backplane
© EKF
-44-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
BLUBOXX Series Small Systems Rack
BLUBOXX Series for up to 4 Peripheral Slot Cards
© EKF
-45-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Sample Backplane w. System Slot Right Aligned
Custom Specific Racks 19-Inch
© EKF
-46-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Installing and Replacing Components
Before You Begin
Warnings
The procedures in this chapter assume familiarity with the general terminology associated with
industrial electronics and with safety practices and regulatory compliance required for using and
modifying electronic equipment. Disconnect
the system from its power source and from
any telecommunication links, networks or
modems before performing any of the
procedures described in this chapter. Failure
to disconnect power, or telecommunication
links before you open the system or perform
any procedures can result in personal injury
or equipment damage. Some parts of the
system can continue to operate even though
the power switch is in its off state.
Caution
Electrostatic discharge (ESD) can damage components. Perform the procedures described in this
chapter only at an ESD workstation. If such a
station is not available, you can provide
some ESD protection by wearing an
antistatic wrist strap and attaching it to a
metal part of the system chassis or board
front panel. Store the board only in its
original ESD protected packaging. Retain the
original packaging (antistatic bag and
antistatic box) in case of returning the board to EKF for repair.
© EKF
-47-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Installing the Board
Warning
This procedure should be done only by qualified technical personnel. Disconnect the system from its
power source before doing the procedures described here. Failure to disconnect power, or
telecommunication links before you open the system or perform any procedures can result in personal
injury or equipment damage.
Typically you will perform the following steps:
C
Switch off the system, remove the AC power cord
C
Attach your antistatic wrist strap to a metallic part of the system
C
Remove the board packaging, be sure to touch the board only at the front panel
C
Identify the related CompactPCI® slot (peripheral slot for I/O boards, system slot for CPU
boards, with the system slot typically most right or most left to the backplane)
C
Insert card carefully (be sure not to damage components mounted on the bottom side of the
board by scratching neighboured front panels)
C
A card with onboard connectors requires attachment of associated cabling now
C
Lock the ejector lever, fix screws at the front panel (top/bottom)
C
Retain original packaging in case of return
© EKF
-48-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Removing the Board
Warning
This procedure should be done only by qualified technical personnel. Disconnect the system from its
power source before doing the procedures described here. Failure to disconnect power, or
telecommunication links before you open the system or perform any procedures can result in personal
injury or equipment damage.
Typically you will perform the following steps:
C
Switch off the system, remove the AC power cord
C
Attach your antistatic wrist strap to a metallic part of the system
C
Identify the board, be sure to touch the board only at the front panel
C
Unfasten both front panel screws (top/bottom), unlock the ejector lever
C
Remove any onboard cabling assembly
C
Activate the ejector lever
C
Remove the card carefully (be sure not to damage components mounted on the bottom side
of the board by scratching neighboured front panels)
C
Store board in the original packaging, do not touch any components, hold the board at the
front panel only
Warning
Do not expose the card to fire. Battery cells and other components could explode
and cause personal injury.
© EKF
-49-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
EMC Recommendations
In order to comply with the CE regulations for EMC, it is mandatory to observe the following rules:
C
The chassis or rack including other boards in use must comply entirely with CE
C
Close all board slots not in use with a blind front panel
C
Front panels must be fastened by built-in screws
C
Cover any unused front panel mounted connector with a shielding cap
C
External communications cable assemblies must be shielded (shield connected only at one end
of the cable)
C
Use ferrite beads for cabling wherever appropriate
C
Some connectors may require additional isolating parts
Recommended Accessories
© EKF
Blind CPCI Front
Panels
EKF Elektronik
Ferrit Bead Filters
Ask EKF
Metal Shielding
Caps
Ask EKF
Widths currently available
(1HP=5.08mm):
with handle 4HP/8HP
without handle
2HP/4HP/8HP/10HP/12HP
-50-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Replacement of the Battery
When your system is turned off, a battery maintains the voltage to run the time-of-day clock and to
keep the values in the CMOS RAM. The battery should last during the lifetime of the SC2-PRESTO.
However, some versions of SC2-PRESTO are delivered with a battery holder which makes it possible for
the user to replace the coin cell. Use a BR2032 cell as replacement part to ensure an extended
temperature range. Be careful when removing the old cell and inserting the new one.
For boards with a soldered battery the old battery must be desoldered, and the new one soldered. We
suggest that you send back the board to EKF for battery replacement.
Warning
Danger of explosion if the battery is incorrectly replaced or shorted. Replace only with
the same or equivalent type. Do not expose a battery to fire.
© EKF
-51-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Technical Reference
Local PCI Devices
The following table shows the on-board PCI devices and their location within the PCI configuration
space. Several devices are part of the processor and platform controller hub QM87.
Bus #
Device #
Function #
Vendor ID
Device ID
Description
0
0
0
0x8086
0x0C04
Processor Host Bridge/DRAM Controller
0
1
0
0x8086
0x0C01
Processor PCI Express Controller
0
1
1
0x8086
0x0C05
Processor PCI Express Controller
0
2
0
0x8086
0x0416
Processor Integrated Graphics Device
0
3
0
0x8086
0x0C0C
Audio Controller
0
20
0
0x8086
0x8C31
USB xHCI Controller
0
22
0
0x8086
0x8C3A
Intel ME Interface #1
0
22
1
0x8086
0x8C3B
Intel ME Interface #2
0
22
2
0x8086
0x8C3C
Intel ME IDE Redirection
0
22
3
0x8086
0x8C3D
Intel ME Keyboard Text Redirection
0
25
0
0x8086
0x153A
PCH Gigabit LAN NC1 (i217LM)
0
26
0
0x8086
0x8C2D
USB EHCI Controller #2
0
27
0
0x8086
0x8C20
Intel High Definition Audio Controller
0
28
0
0x8086
0x8C10
PCH PCI Express Port 1
0
28
3
0x8086
0x8C16
PCH PCI Express Port 4
0
28
4
0x8086
0x8C18
PCH PCI Express Port 5
0
29
0
0x8086
0x8C26
USB EHCI Controller #1
0
31
0
0x8086
0x8C4F
LPC Bridge
0
31
2
0x8086
0x8C01
0x8C03
0x1E07
SATA: Non-AHCI/Non-RAID (Ports 0-3) 1)
SATA: AHCI Mode 1)
SATA: RAID Capable 2)
0
31
3
0x8086
0x8C22
SMBus Controller
0
31
5
0x8086
0x8C09
SATA: Non-AHCI/Non-RAID (Ports 4/5)
0
31
6
0x8086
0x8C24
Thermal Controller
1 3)
00
0
0x1B4B
0x9230
SATA Host Controller (88SE9230)
2 3)
00
0
0x8086
0x157B
Ethernet Controller NC2 (i210IT)
3 3)
00
0
0x10B5
0x8618
PCIe Switch Root Port (PEX8618)
© EKF
-52-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Bus #
Device #
Function #
Vendor ID
Device ID
Description
4 3)
01,02,04 ...
0
0x10B5
0x8618
PCIe Switch Downstream Ports (PEX8618)
5 3)
00
0
0x8086
0x157B
Ethernet Controller NC3 (i210IT)
6 3)
00
0
0x8086
0x157B
Ethernet Controller NC4 (i210IT)
1)
2)
3)
Depends on BIOS settings.
Depending on BIOS settings different RAID modes may lead to other Device IDs.
Bus number can vary depending on the PCI enumeration schema implemented in BIOS.
Local SMB Devices
The SC2-PRESTO contains devices that are attached to the System Management Bus (SMBus). These
are the SPD EEPROMs for the on-board memory or the possibly plugged SODIMM, a general purpose
serial EEPROM, a supply voltage/temperature controlling device and a set of board control and status
registers. Additional devices may be connected to the SMBus via the CompactPCI® Serial backplane
signals I2C_SCL (P1 B2) and I2C_SDA (P1 B3), or pins 29/30 of the mezzanine expansion connector
P-EXP.
Address
Description
0x58
Hardware Monitor/Memory Down Temperature Sensor (LM87)
0x5C
Board Control/Status
0xA0
SPD of On-board Memory
0xA4
SPD of SODIMM
0xAE
General Purpose EEPROM
Hardware Monitor LM87
Attached to the SMBus, the SC2-PRESTO is provided with a hardware monitor (LM87). This device is
capable to observe the board and on-board memory temperatures, as well as several supply voltage
rails with a resolution of 8 bit. The following table shows the mapping of the voltage inputs of the
LM87 to the corresponding supply voltages of the SC2-PRESTO:
© EKF
Input
Source
Resolution
[mV]
Register
AIN1
Processor Core Voltage
9.8
0x28
AIN2
Graphics Core Voltage
9.8
0x29
VCCP1
+1.5V
14.1
0x21
VCCP2/D2-
+1.8V
14.1
0x25
+2.5V/D2+
+1.05V
13
0x20
+3.3V
+3.3V
17.2
0x22
+5V
+5V
26
0x23
+12V
+12V
62.5
0x24
-53-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Beside the continuous measuring of temperatures and voltages the LM87 may compare these values
against programmable upper and lower boundaries. As soon as a measurement violates the allowed
value range, the LM87 can request an interrupt via the GPI13 input of the QM87 PCH (which may
result in a system management interrupt).
Board Control and Status Registers (BCSR)
A set of board control and status registers allow to program special features on the SC2-PRESTO:
•
•
•
•
•
Assert a full reset
Control activity of front panel reset and power event button
Program time-outs and trigger a watchdog
Get access to two LEDs in the front panel
Get power fail and watchdog status of last board reset
The register set consists of five registers located on the SMBus at Device ID=0x5c on the following
addresses:
•
•
•
•
•
•
•
0xA0: CMD_CTRL0_WR: Write to Control Register 0 (Write-Only)
0xA1: CMD_CTRL0_RD: Read from Control Register 0 (Read-Only)
0xB0: CMD_STAT0_WR: Write to Status Register 0 (Write-Clear)
0xB1: CMD_STAT0_RD: Read from Status Register 0 (Read-Only)
0xB2: CMD_STAT1_WR: Write to Status Register 1 (Write-Clear)
0xB3: CMD_STAT1_RD: Read from Status Register 1 (Read-Only)
0xC1: CMD_PLDREV_RD: Read from PLD Revision Register (Read-Only)
To prevent misfunction accesses to the registers should be done by SMBus “Byte Data” commands.
Further writes to read-only or reads to write-only registers should be omitted.
Write/Read Control Register 0
Write: SMBus Address 0xA0
Read: SMBus Address 0xA1
Bit
Default after reset: 0x00
Description CMD_CTRL0
7
GPLED
0=Green part of the front panel LED GP is off (Default)
1=Green part of the front panel LED GP is on
6
FPDIS
0=Enable the front panel handle switch (Default)
1=Disable the front panel handle switch
5
FERP#
0=The front panel handle switch generates a power event (Default)
1=The front panel handle switch generates a system reset
© EKF
-54-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Bit
4:3
Description CMD_CTRL0
WDGT0:WDGT1
Maximum Watchdog retrigger time:
0:0
2 sec
1:0
10 sec
0:1
50 sec
1:1
250 sec
2
WDGTRG
Retrigger Watchdog. Any change of this bit will retrigger the watchdog.
After a system reset the watchdog is in an inactive state. The watchdog is armed on the 1st edge of this bit.
1
PGLED
0=Red part of the front panel LED PG is off (Default)
1=Red part of the front panel LED PG is blinking
0
SRES
0=Normal operation (Default)
1=A full system reset is performed
Read/Clear Status Register 0
Write: SMBus Address 0xB0
Read: SMBus Address 0xB1
Bit
Description CMD_STAT0
7
PF18S
0=Normal operation
1=Last system reset may be caused by a power failure of the +V1.8S voltage regulator
6
PF15S
0=Normal operation
1=Last system reset may be caused by a power failure of the +V1.5S voltage regulator
5
PF135S
0=Normal operation
1=Last system reset may be caused by a power failure of the +V1.35S voltage regulator
4
RESERVED
Always read as 0
3
PF105M
0=Normal operation
1=Last system reset may be caused by a power failure of the +V1.05M voltage regulator
2
PF105S
0=Normal operation
1=Last system reset may be caused by a power failure of the +V1.05S voltage regulator
1
RESERVED
Always read as 0
0
PFVRC
0=Normal operation
1=Last system reset may be caused by a power failure of the CPU voltage regulator
The bits in this register are sticky, i.e. their state will be kept even if a system reset occurs. To clear the
bits a write to the register with arbitrary data may be performed.
© EKF
-55-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Read/Clear Status Register 1
Write: SMBus Address 0xB2
Read: SMBus Address 0xB3
Bit
Description CMD_STAT1
7
WDGARMD
0=Normal operation
1=The watchdog is armed and has to be retriggered within its time-out period
6
WDGRST
0=Normal operation
1=Last system reset may be caused by a watchdog time-out
5
WDGHT
0=Normal operation
1=The watchdog already has elapsed half of its time-out period
4
PF5PS
0=Normal operation
1=Last system reset may be caused by a power failure of the +V5PS voltage regulator
3
PF5S
0=Normal operation
1=Last system reset may be caused by a power failure of the +V5S voltage regulator
2
PF33M
0=Normal operation
1=Last system reset may be caused by a power failure of the +V3.3M voltage regulator
1
PF33A
0=Normal operation
1=Last system reset may be caused by a power failure of the +V3.3A voltage regulator
0
PF33S
0=Normal operation
1=Last system reset may be caused by a power failure of the +V3.3S voltage regulator
Except of WDGHT and WDGARMD the bits in this register are sticky, i.e. their state will be kept even
if a system reset occurs. To clear the bits a write to the register with arbitrary data may be performed.
Read PLD Revision Register
Write: Not allowed
Read: SMBus Address 0xC1
Bit
7:0
© EKF
Description CMD_PLDREV
PLDREV
Read PLD Revison Number
-56-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
GPIO Usage
GPIO Usage QM87 PCH
GPIO Usage QM87 PCH
GPIO
Type
Voltage 1)
Function
Description
0
I
+V3.3S
THRM_ALERT#
Monitoring of processor PROCHOT#
1
I
+V3.3S
EXP_SMI#
Expansion Interface SMI Request (P-EXP Pin 15)
2-3
I
+V3.3S
N/A
Not used on SC2 (pulled via resistors to GND)
4
I
+V3.3S
CPCI_PWR_FAIL#
Sense CompactPCI® Serial Power Failure Line PWR_FAIL#
5
I
+V3.3S
PM_MEMTS#
Memory Thermal Sensor Event
6
I
+V3.3S
N/A
Not used on SC2 (pulled via resistor to GND)
7
I
+V3.3S
GP_JUMP#
Reset UEFI BIOS Setup to Factory Defaults, Jumper J-GP
8
O
+V3.3A
N/A
Sense CompactPCI® System Slot Enable Line SYSEN#
9
I
+V3.3A
USB_OC5#
USB P-HSE Port 2 Overcurrent Detect
10
I
+V3.3A
USB_OC6#
USB P-HSE Port 3 or 4 Overcurrent Detect
11
I
+V3.3A
CPCI_SYSEN#
Non-Volatile Jumper NV-GP1
12
O
+V3.3A
NC1_ENABLE
Enable Ethernet Controller NC1
13
I
+V3.3A
HM_INT#
Hardware Monitor LM87 Interrupt Line
14
I
+V3.3A
USB_OC7#
USB P-EXP Port 1 or 2 Overcurrent Detect
15
O
+V3.3A
N/A
Not connected on SC2
16
O
+V3.3S
SE_SYS_WP
General Purpose Serial EEPROM Write Protection
17
I
+V3.3S
N/A
Connect IEEE 1588 PPS/PPM to J-GP and CompactPCI® P1
LOW: PPS/PPM disconnected from J-GP and P1
HIGH: PPS/PPM connected to J-GP and P1
18
O
+V3.3S
GP_LED_RED
General Purpose Red LED Control (via PLD)
19
I
+V3.3S
N/A
Not used on SC2 (pulled via resistor to +3.3V)
20
I
+V3.3S
PCIE_CLK_REQ2#
CompactPCI® Clock Request Slot 5 (P5 A6: 5_PE_CLKE#)
21
I
+V3.3S
N/A
Not used on SC2 (pulled via resistor to GND)
22
O
+V3.3S
SGPIO_CLOCK
CompactPCI Serial GPIO Bus CLOCK (P1 J3: SATA_SCL)
23
I
+V3.3S
N/A
Not connected on SC2
24
O
+V3.3A
USB_POWEN1#
USB Front Panel Right Port Power Enable
25
I
+V3.3A
PCIE_CLK_REQ3#
CompactPCI® Clock Request Slot 6 (P5 D6: 6_PE_CLKE#)
26
I
+V3.3A
PCIE_CLK_REQ4#
CompactPCI® Clock Request Slot 4 (P5 L5: 4_PE_CLKE#)
27
I
+V3.3A
NC1_WAKE#
Ethernet Controller NC1 WAKE#
28
O
+V3.3A
USB_POWEN2#
USB Front Panel Left Port Power Enable
29
O
+V3.3A
N/A
Not connected on SC2
30-31
I
+V3.3A
N/A
Not used on SC2 (pulled via resistors to +3.3V)
© EKF
-57-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
GPIO Usage QM87 PCH
GPIO
Type
Voltage 1)
Function
Description
32
I
+V3.3S
N/A
Not used on SC2 (pulled via resistor to +3.3V)
33
O
+V3.3S
N/A
Not connected on SC2
34
O
+V3.3S
EXP_SMB_EN
Connect SMBus on P-EXP to local SMBus
LOW: P-EXP disconnected from SMBus
HIGH: P-EXP connected to SMBus
35
O
+V3.3S
CPCI_SMB_EN
Connect SMBus on CompactPCI Serial to local SMBus
LOW: CPCI Backplane disconnected from SMBus
HIGH: CPCI Backplane connected to SMBus
36
I
+V3.3S
N/A
Not used on SC2 (pulled via resistor to GND)
37
I
+V3.3S
N/A
Not used on SC2 (pulled via resistor to +3.3V)
38
O
+V3.3S
SGPIO_LOAD
CompactPCI Serial GPIO Bus LOAD (P1 K3: SATA_SL)
39
O
+V3.3S
SGPIO_OUT
CompactPCI Serial GPIO Bus DATAOUT (P1 H3: SATA_SDO)
40
I
+V3.3A
USB_OC1#
USB Front Panel Right Port Overcurrent Detect
41
O
+V3.3A
ENABLE_NC3
Enable Ethernet Controller NC3
42
O
+V3.3A
ENABLE_NC4
Enable Ethernet Controller NC4
43
I
+V3.3A
USB_OC4#
USB P-HSE Port 1 Overcurrent Detect
44
I
+V3.3A
PCIE_CLK_REQ5#
CompactPCI® Clock Request Slot 8 (P5 J6: 8_PE_CLKE#)
45
I
+V3.3A
PCIE_CLK_REQ6#
CompactPCI® Clock Request Slot 7 (P5 G6: 7_PE_CLKE#)
46
I
+V3.3A
PCIE_CLK_REQ7#
CompactPCI® Clock Request Slot 3 (P5 I5: 3_PE_CLKE#)
47
I
+V3.3A
PEG_A_CLK_RQ#
CompactPCI® Clock Request Slot 1 (P5 C5: 1_PE_CLKE#)
48-49
I
+V3.3S
N/A
Not used on SC2 (pulled via resistors to GND)
50
I
+V3.3S
HWREV
PCB Revision Code HWREV[2:0]:
GPIO[54/52/50] 000
001
010
Revision
0
1
2
...
...
111
7
51
O
+V3.3S
N/A
Not used on SC2 (pulled via resistor to +3.3V)
52
I
+V3.3S
N/A
PCB Revision Code HWREV[2:0], see GPIO50
53
O
+V3.3S
N/A
Not connected on SC2
52
I
+V3.3S
N/A
PCB Revision Code HWREV[2:0], see GPIO50
55
O
+V3.3S
ENABLE_NC2
Enable Ethernet Controller NC2
56
I
+V3.3A
PEG_B_CLK_RQ#
CompactPCI® Clock Request Slot 2 (P5 F5: 2_PE_CLKE#)
57
I
+V3.3A
N/A
TPM2.0 Physical Present Pin
58
I
+V3.3A
N/A
Not used on SC2 (pulled via resistor to +3.3V)
59
I
+V3.3A
USB_OC0#
USB Front Panel Right Port Overcurrent Detect
60
I
+V3.3A
N/A
Not used on SC2 (pulled via resistor to +3.3V)
61-62
O
+V3.3A
N/A
Not connected on SC2
63
O
+V3.3A
SLP_S5#
Multiplexed with chipset internal function
64
O
+V3.3S
CLKOUT_FLEX1
14.318MHz Clock Source
© EKF
-58-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
GPIO Usage QM87 PCH
GPIO
1)
Voltage 1)
Type
Function
Description
65-67
O
+V3.3A
N/A
Not connected on SC2
68-71
I
+V3.3S
BOARD_CFG
Board Configuration Jumpers BOARD_CGF[0:3]
72
I
+V3.3A
N/A
Not used on SC2 (pulled via resistor to +3.3V)
73
I
+V3.3A
PCIE_CLK_REQ0#
Ethernet Controller NC1 Clock Request
74-75
I
+V3.3A
N/A
Not used on SC2 (pulled via resistors to +3.3V)
S=Core Voltage (active in state S0 only), A=Standby Voltage
Configuration Jumpers
Configuration PCI Express Switch (DS-P)
160.15.02.0
© EKF • ekf.com
The link width and transfer rate of the PCI Express interfaces attached to the local expansion
connector P-PCIE is configurable by two DIP switches (DS-P) located on the backside of the
SC2-PRESTO. Note that changes in PCIe link configuration are honoured by the board not before a
system reset was performed.
ON
1
2
DS-P
DS-P
1)
PCIe Link Width
PCIe Switch
Upstream
CPCI Serial 1)
1
2
OFF
OFF
4 Lanes @ 5GT/s
6 Links x 1 Lane @ 5GT/s
4 Links x 1 Lane @ 5GT/s
ON
OFF
4 Lanes @ 5GT/s
6 Links x 1 Lane @ 5GT/s
1 Link x 4 Lanes @ 5GT/s
OFF
ON
4 Lanes @ 2.5GT/s
6 Links x 1 Lane @ 2.5GT/s
4 Links x 1 Lane @ 2.5GT/s
ON
ON
4 Lanes @ 2.5GT/s
6 Links x 1 Lane @ 2.5GT/s
1 Link x 4 Lanes @ 2.5GT/s
P-PCIE
Consists to the non fat pipe slots, generally periphery slots 3 to 8.
When the port on P-PCIE is configured as single link, the PCIe switch may size down the link width to
x2 or x1 by auto-negotiation.
© EKF
-59-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
The following table shows the factory settings of DS-P with different side boards mounted to the
SC2-PRESTO:
Side Board
DS-P
PCIe Link Width
1
2
P-PCIE
None
OFF
OFF
4 Links x 1 Lane @ 5GT/s
CCI-RAP
OFF
OFF
4 Links x 1 Lane @ 5GT/s
CCK-MARIMBA
ON
OFF
1 Link x 4 Lanes @ 5GT/s
CCL-CAPELLA
ON
OFF
1 Link x 4 Lanes @ 5GT/s
PCS-BALLET
OFF
OFF
4 Links x 1 Lane @ 5GT/s
Loading UEFI BIOS Setup Defaults/IEEE 1588 Pulse per Second (J-GP)
The jumper J-GP may be used to reset the UEFI BIOS configuration settings to a default state. The UEFI
BIOS on SC2-PRESTO stores most of its settings in an area within the BIOS flash, e.g. the actual boot
devices. Using the jumper J-GP is only necessary, if it is not possible to enter the setup of the BIOS. To
reset the settings mount a jumper on J-GP and perform a system reset. As long as the jumper is
stuffed the BIOS will use the default configuration values after any system reset. To get normal
operation again, the jumper has to be removed.
There is also an alternate function available on J-GP. Pin 1 of this jumper carries a Pulse per Second
(PPS) signal according the IEEE 1588 specification when enabled by UEFI BIOS settings. A wire may be
connected to trigger events on external devices.
NOTE: The PPS signal can be gripped at the CompactPCI® Serial connector P1 pin J3 (SATA-SCL) also.
1
J-GP
J-GP
Jumper Removed 1)
Normal operation
Jumper Installed
BIOS configuration reset performed
1)
© EKF
Function
This setting is the factory default
-60-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Manufacturer Mode Jumper (J-MFG)
The jumper J-MFG is used to bring the board into the manufacturer mode. This is necessary only on
board production time and should not used by customers. For normal operation the jumper should
be removed. The pin header J-MFG is not stuffed on the SC2-PRESTO by default.
1
J-MFG
J-MFG
Function
Jumper Removed 1)
Normal operation
Jumper Installed
Entering Manufacturer Mode
1)
This setting is the factory default
RTC Reset (J-RTC)
The jumper J-RTC may be used to reset certain register bits of the battery backed RTC core within the
PCH QM87. This can be necessary under rare conditions (e.g. battery undervoltage), if the CPU fails to
enter the BIOS POST after power on. Note that installing of jumper J-RTC will neither set UEFI BIOS
Setup to EKF Factory Defaults nor resets the time and date register values of the RTC (Real Time Clock).
To reset the RTC core the board must be removed from the system rack. Short-circuit the pins of J-RTC
for about 1 sec. Thereafter reinstall the board to the system and switch on the power. It is important
to accomplish the RTC reset while the board has no power. The pin header J-RTC is not stuffed on the
SC2-PRESTO by default.
1
J-RTC
J-RTC
Jumper Removed 1)
Normal operation
Jumper Installed
RTC reset performed
1)
© EKF
Function
This setting is the factory default.
-61-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Connectors
Caution
Some of the internal connectors provide operating voltage (3.3V, 5V and 12V) to devices inside the
system chassis, such as internal peripherals. Not all of these connectors are short circuit protected. Do
not use these internal connectors for powering devices external to the computer chassis. A fault in the
load presented by the external devices could cause damage to the board, the interconnecting cable
and the external devices themselves.
Front Panel Connectors
With respect to the video connector, the SC2-PRESTO is available in two flavours, either dual mDP or
VGA.
PG
USB 3.0
PG
GP
DP1
mDP
DP2
GbE
RB
HD
© EKF • draft - do not scale • ekf.com
GP
1
EB
© EKF
USB 3.0
V
G
A
1
GbE
RB
HD
EB
2
2
SC2-PRESTO
Dual - mDP
SC2-PRESTO
VGA
-62-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Sample Front Panel Options 8HP
1
USB 3.0
PG
GP
USB 3.0
1
USB 3.0
PG
GP
mDP
S
DP2
1
HD
EB
OUT
IN
D
U
S
B
2
SC2-PRESTO
Dual - mDP
SCS-TRUMPET
STD
© EKF • draft - do not scale • ekf.com
DP
RB
USB 3.0
C
O
M
GP
2
DP1
GbE
PG
C
O
M
GP
2
A
U
D
I
O
USB 3.0
DP1
DP
mDP
S
DP2
1
GbE
RB
HD
EB
A
U
D
I
O
OUT
IN
D
C
O
M
B
DP1
mDP
S
DP2
1
GbE
RB
HD
EB
A
U
D
I
O
OUT
IN
D
C
O
M
B
© EKF • draft - do not scale • ekf.com
1
4
© EKF • draft - do not scale • ekf.com
USB 3.0
3
© EKF • draft - do not scale • ekf.com
PG
2
DP1
mDP
S
DP2
USB
1
GbE
RB
HD
EB
D
C
O
M
2
A
2
A
2
A
SC2-PRESTO
Dual - mDP
SCS-TRUMPET
1 x RS-232
SC2-PRESTO
Dual - mDP
2 x RS-232 / AUDIO
SCS-TRUMPET
SC2-PRESTO
Dual - mDP
SCS-TRUMPET
2 x RS-232 / USB2
1. Typical assembly, dual-USB 3.0, DisplayPort, 3.5mm stereo audio in/out, 2 x USB 2.0
2. Bottom RS-232 male D-Sub 9-pin (COM-A) replaces two USB 2.0 jacks
3. Top RS-232 male D-Sub 9-pin (COM-B) replaces dual-USB 3.0 and DisplayPort connectors
4. Center USB 2.0 receptacle replaces both 3.5mm stereo audio jacks
© EKF
-63-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Sample Front Panel Options 12HP
5
1
USB 3.0
PG
C
O
M
GP
U
S
B
DP2
1
GbE
RB
HD
EB
OUT
IN
2
SC2-PRESTO
Dual - mDP
K
B
/
M
S
D
U
S
B
DP1
DP
mDP
U
S
B
S
DP2
1
GbE
RB
HD
EB
C
O
M
C
SCS-TRUMPET
STD
D
2
DP
S
USB 3.0
GP
DP1
mDP
1
C
O
M
D
2
A
U
D
I
O
USB 3.0
© EKF • draft - do not scale • ekf.com
USB 3.0
© EKF • draft - do not scale • ekf.com
PG
6
C32-FIO
A
U
D
I
O
OUT
IN
K
B
/
M
S
D
C
O
M
C
O
M
2
A
C
SC2-PRESTO
Dual - mDP
SCS-TRUMPET
1 x RS-232
C32-FIO
5. Dual-USB 3.0, DisplayPort, 3.5mm stereo audio in/out, 4 x USB 2.0, 2 x RS-232 (COM-C/D)
6. Dual-USB 3.0, DisplayPort, 3.5mm stereo audio in/out, 2 x USB 2.0, 3 x RS-232 (COM-A/C/D)
© EKF
-64-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
DisplayPort Connectors
The Intel® CoreTM processors used on SC2-PRESTO are equipped with an integrated graphics
controller, which supports DisplayPort and DVI interfaces permitting simultaneous independent
operation of up to three displays. Two DP receptacles are available from the SC2-PRESTO front panel,
as mDP (Mini DisplayPort) connectors, which is a space saving alternate to the standard DP connector
and is also specified by the VESA.
1)
2
19
1
© EKF ekf.com
20
270.61.20.0
Mini DisplayPort
Mini DisplayPort P-DP1/2
20
PWR 1)
19
GND
18
AUX_CH(N)
17
LANE2(N)
16
AUX_CH(P)
15
LANE2(P)
14
GND
13
GND
12
LANE3(N)
11
LANE1(N)
10
LANE3(P)
9
LANE1(P)
8
GND
7
GND
6
CONFIG2 (GND)
5
LANE0(N)
4
CONFIG1
3
LANE0(P)
2
Hot Plug Detect
1
GND
+3.3V via 0.5A current-limited electronic power switch. This voltage is switched on in S0 state only.
Most DisplayPort monitors come with the standard DP connector, hence requiring a mDP to DP cable
assembly for use with the SC2-PRESTO. For attachment of either a classic style analog RGB monitor,
DVI or HDMI type display to the P-DP1/2 receptacles, there are both adapters and also adapter cables
available.
Specified by the VESA DisplayPort connector standard is a dedicated power pin 20 (+3.3V 0.5A). Both
the GPU (source side) and a DP monitor (sink side) must provide power via this pin. A VESA specified
standard DisplayPort cable however should not connect the pins 20 of both cable ends, in order to
avoid a back driving conflict. Fortunately the SC2-PRESTO takes care about this situation. Nevertheless,
before ordering DP cable assemblies, verify the associated wiring diagram.
Sample VESA Compliant Mini DisplayPort Cable Assemblies
2.0m Mini DisplayPort (mDP) to DisplayPort (DP) plug to plug cable assembly, VESA compliant
EKF Part. #270.66.2.02.0
© EKF
Astron
T2M2M20020-R
Molex
0687850003
Roline
1045636
Wieson
G9858
-65-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Option Screw-Locked mDP Cable Connectors
A third DisplayPort video output is available when combining the SC2-PRESTO with the mezzanine
side card SCS-TRUMPET or PCS-BALLET. The standard DP connector provided on these side cards is
provided with latches, which may be preferred for some applications.
SC2-PRESTO w. SCS-TRUMPET
© EKF
-66-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
SC2-PRESTO w. PCS-BALLET Side Card & 2.5-Inch SSD, 8HP
SC2-PRESTO w. PCS-BALLET C32-FIO C20-SATA, 12HP
© EKF
-67-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
VGA Video Connector
As an option, the SC2-PRESTO can be equipped with a legacy VGA connector (High-Density D-Sub
15-position female connector). The connector VGA replaces the two Mini DisplayPort receptacles, and
the digital video interface therefore is not available concurrently with this option.
P-VGA (Option)
10
5
15
11
1
6
1)
1
RED
2
GREEN
3
BLUE
4
NC
5
GND
6
GND
7
GND
8
GND
9
DDC_POW 1)
10
GND
11
NC
12
VGA_DDC_SDA
13
HSYNC
14
VSYNC
15
VGA_DDC_SCL
+3.3V protected by a self resetting PolySwitch fuse 0.75A. This voltage is switched on in S0 state only.
© EKF
-68-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
USB Connectors
The Intel® QM87 Platform Controller Hub incorporates a four-port USB 3.0 xHCI host controller. Two
ports are directly available on the SC2-PRESTO front panel (type A receptacle), for attachment of
external USB devices.
P-USB • Dual USB 3.0 Receptacle
#270.23.18.2
© EKF • ekf.com
USB 3.0 dual type A receptacle, stacked, 18-position
1)
USB 3.0
1
2
1
VBUS +5V, 1.5A max 1)
2
USB D-
3
USB D+
4
GND
5
SS RX-
6
SS RX+
7
GND
8
SS TX-
9
SS TX+
+5V via 1.5A current-limited electronic power switch. Power rail may be switched off by software independently for
each port.
Another two USB 3.0 connectors would be available when the SC2-PRESTO is combined with the
SCS-TRUMPET mezzanine side card.
© EKF
-69-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Ethernet Connectors
Gigabit Ethernet Ports 1/2 (P-ETH, RJ-45)
1
NC1_MDX0+
2
NC1_MDX0-
3
NC1_MDX1+
4
NC1_MDX2+
5
NC1_MDX2-
6
NC1_MDX1-
7
NC1_MDX3+
8
NC1_MDX3-
1
NC2_MDX0+
1
2
NC2_MDX0-
270.02.08.5
3
NC2_MDX1+
4
NC2_MDX2+
5
NC2_MDX2-
6
NC2_MDX1-
7
NC2_MDX3+
8
NC2_MDX3-
Port 1
1
Port 2
The lower green LED indicates LINK established when continuously on, and data transfer (activity)
when blinking. If the lower green LED is permanently off, no LINK is established. The upper
green/yellow dual-LED signals the link speed 1Gbit/s when lit yellow, 100Mbit/s when lit green, and
10Mbit/s when off.
© EKF
-70-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Mezzanine Connectors
Mezzanine Side Card Connector Suite
© EKF
-71-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
PCIE EXP HSE
DP
© EKF
-72-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Expansion Interface P-EXP
P-EXP
2
© EKF 276.53.040.01 ekf.com
1
40
1.27mm
Socket
1)
2)
3)
4)
GND
1
2
+3.3V 1)
PCI_CLK (33MHz)
3
4
RST_PLC#
LPC_AD0
5
6
LPC_AD1
LPC_AD2
7
8
LPC_AD3
LPC_FRM#
9
10
LPC_DRQ#
GND
11
12
+3.3V 1)
LPC_SERIRQ
13
14
WAKE#
EXP_SMI#
15
16
SIO_CLK (14.3MHz)
FWH_ID0
17
18
FWH_INIT#
KBRST#
19
20
A20GATE
GND
21
22
+5V 1)
USB_EXP2-
23
24
USB_EXP1-
USB_EXP2+
25
26
USB_EXP1+
USB_EXP_OC#
27
28
DBRESET#
EXP_SCL 2)
29
30
EXP_SDA 2)
GND
31
32
+5V 1)
HDA_SDOUT
33
34
HDA_SDIN0
HDA_RST#CL_RST# 3)
35
36
HDA_SYNC
HDA_CLK/CL_CLK 3)
37
38
HDA_SDIN1/CL_DATA 3)
SPEAKER
39
40
+12V 4)
Power rail switched on in state S0 only.
Connected to SMBus via buffered switch, isolated after reset.
Stuffing option, default is the HDA option.
Power rail switch off in state S5.
WARNING: The +3.3V, +5V and +12V power pins are not protected against a short circuit event.
The connector P-EXP therefore should be used only for attachment of an approved expansion side
card. The maximum current flow across these pins should be limited to 1A per power pin.
© EKF
-73-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
High Speed Expansion Connector P-HSE
High Speed Expansion P-HSE
a1 b1
s10
© EKF • 275.90.08.068.01 • ekf.com
1.00mm Pitch High Speed Female Connector (H=8mm)
s1
s9
s18
a25 b25
1)
2)
3)
4)
5)
6)
7)
GND
a1
b1
GND
SATA_HSE1_TXP
a2
b2
SATA_HSE3_TXP 6)
SATA_HSE1_TXN
a3
b3
SATA_HSE3_TXN 6)
GND
a4
b4
GND
SATA_HSE1_RXN
a5
b5
SATA_HSE3_RXN 6)
SATA_HSE1_RXP
a6
b6
SATA_HSE3_RXP 6)
GND
a7
b7
GND
SATA_HSE2_TXP
a8
b8
SATA_HSE4_TXP 4)
SATA_HSE2_TXN
a9
b9
SATA_HSE4_TXN 4)
GND
a10
b10
GND
SATA_HSE2_RXN
a11
b11
SATA_HSE4_RXN 4)
SATA_HSE2_RXP
a12
b12
SATA_HSE4_RXP 4)
GND
a13
b13
GND
USB_HSE1_P
a14
b14
USB_HSE3_P
USB_HSE1_N
a15
b15
USB_HSE3_N
GND
a16
b16
GND
USB_HSE2_P
a17
b17
USB_HSE4_P
USB_HSE2_N
a18
b18
USB_HSE4_N
GND
a19
b19
GND
USB_HSE_OC1#
a20
b20
USB_HSE_OC34#
USB_HSE_OC2#
a21
b21
USB_HSE_OC34#
+3.3VS 1)
a22
b22
+5VS 1)
+3.3VS 1)
a23
b23
+5VS 1)
+3.3VA 2)
a24
b24
+5VA 2)
+12V 3)
a25
b25
+12V 3)
Power rail switched on in state S0 only (Switched).
Power rail on with system stand-by power (Always).
Power rail switch off in state S5.
This SATA channel is not connected on SC2-PRESTO.
All SATA channels are derived from the PCH QM87.
This SATA channel is limited to max. 3Gbps.
All TX/RX designations with respect to the SATA controller.
WARNING: The +3.3V, +5V and +12V power pins are not protected against a short circuit event.
The connector P-HSE therefore should be used only for attachment of an approved expansion side
card. The maximum current flow through these power pins should be limited to 0.5A per pin.
© EKF
-74-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
C47-MSATA Mezzanine Storage Module Based on the Connector HSE
© EKF
-75-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
SC2-PRESTO w. C48-M2 Mezzanine SATA SSD Module
C48-M2 Mezzanine Storage Module Based on the Connector HSE
© EKF
-76-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
PCI Express® Expansion Header P-PCIE
P-PCIE
1
2
290.1.040.080
© EKF ekf.com
PCI Express x 4
Top View on CPU Carrier Board
High Speed Socket Connector
1)
GND
1
2
GND
+5V 1)
3
4
+3.3V 1)
+5V 1)
5
6
+3.3V 1)
GND
7
8
GND
PE_CLKP
9
10
PLTRST#
PE_CLKN
11
12
PE_WAKE#
GND
13
14
GND
PE_1TP
15
16
PE_1RP
PE_1TN
17
18
PE_1RN
GND
19
20
GND
GND
21
22
GND
PE_2TP
23
24
PE_2RP
PE_2TN
25
26
PE_2RN
GND
27
28
GND
PE_3TP
29
30
PE_3RP
PE_3TN
31
32
PE_3RN
GND
33
34
GND
PE_4TP
35
36
PE_4RP
PE_4TN
37
38
PE_4RN
GND
39
40
GND
Power rail switched on in state S0 only.
WARNING: The +3.3V and +5V power pins are not protected against a short circuit event. The
connector P-PCIE therefore should be used only for attachment of an approved expansion side card.
The maximum current flow through these power pins should be limited to 1A per pin.
© EKF
-77-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
DisplayPort Expansion Header P-DP3
290.1.020.080
© EKF ekf.com
1
2
© EKF
High Speed Socket Connector
P-DP3
GND
1
2
GND
DP_LANE0+
3
4
DP_LANE3+
DP_LANE0-
5
6
DP_LANE3-
GND
7
8
GND
DP_LANE1+
9
10
DP_AUX+
DP_LANE1-
11
12
DP_AUX-
GND
13
14
GND
DP_LANE2+
15
16
DP_HPD
DP_LANE2-
17
18
DP_CFG1
GND
19
20
GND
-78-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Pin Headers & Debug
Front Panel Handle Microswitch Header P-FPH
The jumper P-FPH is used for attachment of an external SPDT switch. By default, P-FPH is connected
across a short cable harness to a microswitch, which is integrated into the SC2-PRESTO front panel
handle (ejector lever). The switch performs a power button event (e.g. system shutdown) by shortcircuiting the pins 1 and 3 of P-FPH when activated (hold unlock button of front panel handle
depressed momentarily).
P-FPH
# 276.02.003.11
© EKF • ekf.com
1
1
black
Microswitch Pole (Common), Wired to PLD
2
red
Microswitch Throw - F/P Handle Locked Position, NC
3
yellow
Microswitch Throw - F/P Handle Unlocked Position, Wired to GND
PLD Programming Header P-ISP
The SC2-PRESTO is provided with a powerful PLD (in-System Programmable Logic Device) which
replaces legacy glue logic. The programming header P-ISP is not stuffed (in use for manufacturing
only). Its footprint is situated at the bottom side of the board.
P-ISP
240.1.08.I • © EKF • ekf.com
key
© EKF
1
+3.3V
2
TDO
3
TDI
4
NC
5
KEY
6
TMS
7
GND
8
TCK
-79-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Processor Debug Header P-XDP
The SC2-PRESTO may be equipped with a 26-position processor debug header for hard- and software
debugging (specified by Intel® as XDP-SFF-26 Pin Platform Connection). The connector is suitable for
installation of a flat flex cable (FFC), in order to attach an JTAG debugger (emulator) such as the
Arium ECM-XDP3. An adapter (ITP-XDP-SFF-26) is required in addition to convert the 26-pin
XDP-SFF-26 Pin connector to the standard 60-pin XDP.
The header P-XDP would be mounted on the PCB bottom side, but is not stuffed by default.
P-XDP Processor Debug Connector
269.1.026.902 • FFC Connector
© EKF • ekf.com
1
OBSFN_A0 (PREQ#)
OBSFN_A1 (PRDY#)
2
3
GND
OBSDATA_A0
4
5
OBSDATA_A1
GND
6
7
OBSDATA_A2
OBSDATA_A3 (CPU_CFG3)
8
9
GND
HOOK0 (CPU_PWRGOOD)
10
11
HOOK1 (XDP_PWRBTN)
HOOK2 (PWR_DBG#)
12
13
HOOK3 (SYS_PWROK)
HOOK4
14
15
HOOK5
VCCOBS_AB (VCCIO_CPU)
16
17
HOOK6 (PLTRST#)
HOOK7 (DBRESET#)
18
19
GND
TDO
20
21
TRST#
TDI
22
23
TMS
TCK1
24
25
GND
TCK0 (TCK)
26
Backplane Connectors
Six high speed backplane connectors optimized for differential signal transmission are specified as P1
to P6 by the PICMG® CompactPCI® Serial. The mandatory P1 conveys amongst others the power,
system control and status pins.
© EKF
-80-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
CompactPCI® Serial Backplane Connector P1
P1 CompactPCI® Serial System Slot Backplane Connector • EKF Part #250.3.1206.20.02 72 pos. 12x6, 14mm Width, Type A
P1
A
B
C
D
E
F
G
H
I
J
K
L
6
GND
1_PE_TX02+
1_PE_TX02-
GND
1_PE_RX02+
1_PE_RX02-
GND
1_PE_TX03+
1_PE_TX03-
GND
1_PE_RX03+
1_PE_RX03-
5
1_PE_TX00+ 3)
1_PE_TX00- 3)
GND
1_PE_RX00+
1_PE_RX00-
GND
1_PE_TX01+
1_PE_TX01-
GND
1_PE_RX01+
1_PE_RX01-
GND
reserved
1)
reserved
1)
GND
1_SATA_TX+
2)
1_SATA_TX-
2)
GND
1_SATA_RX+
2)
1_SATA_RX- 2)
4
GND
1_USB2+
1_USB2-
GND
3
1_USB3_TX+
1_USB3_TX-
PWRBTN#
1_USB3_RX+
1_USB3_RX-
PWR_FAIL#
SATA_SDI
SATA_SDO 5)
GA2 1)
SATA_SCL 4)
SATA_SL
GA3 1)
2
GND
I2C_SCL
I2C_SDA
GND
PS_ON#
RST#
GND
PRST#
WAKE_IN#
GND
reserved 1)
SYSEN#
1
+12V
+5V STANDBY
GND
+12V
+12V
GND
+12V
+12V
GND
+12V
+12V
GND
1)
Not connected.
Not connected (according the CompactPCI® Serial Precedence Order Rules).
3)
Polarity inversion was made on these lanes on SC2-PRESTO for better routing. This is allowed according the “PCI Express Base Specification 3.0" and has no effect on function or
performance of the link. The pin-out shown is as per specification.
4)
This pin may carry the IEEE 1588 Pulse per Second (PPS) signal when enabled within UEFI BIOS settings.
5)
This pin may carry the IEEE 1588 Pulse per Minute (PPM) signal when enabled within UEFI BIOS settings.
2)
©
EKF
-81-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
CompactPCI® Serial Backplane Connector P2
P2 CompactPCI® Serial System Slot Backplane Connector • EKF Part #250.3.1208.20.00 96 pos. 12x8, 16mm Width, Type B
P2
A
B
C
D
E
F
G
H
I
J
K
L
8
GND
IO 1)
IO 1)
GND
2_USB2+
2_USB2-
GND
3_USB2+
3_USB2-
IO 1)
4_USB2+
4_USB2-
7
IO 1)
IO 1)
GND
IO 1)
IO 1)
GND
IO 1)
IO 1)
GND
IO 1)
IO 1)
GND
6
GND
2_PE_TX06+
2_PE_TX06-
GND
2_PE_RX06+ 3)
2_PE_RX06- 3)
GND
2_PE_TX07+
2_PE_TX07-
GND
2_PE_RX07+ 3)
2_PE_RX07- 3)
5
2_PE_TX04+ 3)
2_PE_TX04- 3)
GND
2_PE_RX04+ 3)
2_PE_RX04- 3)
GND
2_PE_TX05+ 3)
2_PE_TX05- 3)
GND
2_PE_RX05+
2_PE_RX05-
GND
4
GND
2_PE_TX02+
2_PE_TX02-
GND
2_PE_RX02+ 3)
2_PE_RX02- 3)
GND
2_PE_TX03+
2_PE_TX03-
GND
2_PE_RX03+
2_PE_RX03-
3
2_PE_TX00+
2_PE_TX00-
GND
2_PE_RX00+
2_PE_RX00-
GND
2_PE_TX01+
2_PE_TX01-
GND
2_PE_RX01+
2_PE_RX01-
GND
2
GND
1_PE_TX06+ 3)
1_PE_TX06- 3)
GND
1_PE_RX06+
1_PE_RX06-
GND
1_PE_TX07+ 3)
1_PE_TX07- 3)
GND
1_PE_RX07+
1_PE_RX07-
1
1_PE_TX04+
1_PE_TX04-
GND
1_PE_RX04+
1_PE_RX04-
GND
1_PE_TX05+
1_PE_TX05-
GND
1_PE_RX05+
1_PE_RX05-
GND
1)
Not connected.
The PCI Express Lanes 1_PE_* and 2_PE_* are derived from the CoreTM processor and capable to transfer 8GT/s.
3)
Polarity inversion was made on these lanes on SC2-PRESTO for better routing. This is allowed according the “PCI Express Base Specification 3.0" and has no effect on function or
performance of the link. The pin-out shown is as per specification.
2)
©
EKF
-82-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
CompactPCI® Serial Backplane Connector P3
P3 CompactPCI® Serial System Slot Backplane Connector • EKF Part #250.3.1208.20.00 96 pos. 12x8, 16mm Width, Type B
P3
A
B
C
D
E
F
G
H
I
J
K
L
8
GND
7_SATA_TX+ 2)
7_SATA_TX- 2)
GND
7_SATA_RX+ 2)
7_SATA_RX- 2)
GND
8_SATA_TX+ 2)
8_SATA_TX- 2)
GND
8_SATA_RX+ 2)
8_SATA_RX- 2)
7
5_SATA_TX+ 4)
5_SATA_TX- 4)
GND
5_SATA_RX+ 4)
5_SATA_RX- 4)
GND
6_SATA_TX+ 4)
6_SATA_TX- 4)
GND
6_SATA_RX+ 4)
6_SATA_RX- 4)
GND
3_SATA_TX+
4)
3_SATA_TX-
4)
GND
3_SATA_RX+
4)
3_SATA_RX-
4)
GND
4_SATA_TX+
4)
4_SATA_TX-
4)
GND
4_SATA_RX+
4)
4_SATA_RX- 4)
6
GND
5
8_USB3_TX+ 1)
8_USB3_TX- 1)
GND
8_USB3_RX+ 1)
8_USB3_RX- 1)
GND
2_SATA_TX+ 3)
2_SATA_TX- 3)
GND
2_SATA_RX+ 3)
2_SATA_RX- 3)
GND
4
GND
6_USB3_TX+ 1)
6_USB3_TX- 1)
GND
6_USB3_RX+ 1)
6_USB3_RX- 1)
GND
7_USB3_TX+ 1)
7_USB3_TX- 1)
GND
7_USB3_RX+ 1)
7_USB3_RX- 1)
3
4_USB3_TX+ 1)
4_USB3_TX- 1)
GND
4_USB3_RX+ 1)
4_USB3_RX- 1)
GND
5_USB3_TX+ 1)
5_USB3_TX- 1)
GND
5_USB3_RX+ 1)
5_USB3_RX- 1)
GND
2
GND
2_USB3_TX+
2_USB3_TX-
GND
2_USB3_RX+
2_USB3_RX-
GND
3_USB3_TX+ 1)
3_USB3_TX- 1)
GND
3_USB3_RX+ 1)
3_USB3_RX- 1)
1
5_USB2+
5_USB2-
GND
6_USB2+
6_USB2-
GND
7_USB2+ 1)
7_USB2- 1)
GND
8_USB2+ 1)
8_USB2- 1)
GND
1)
Not connected (according the CompactPCI® Serial Precedence Order Rules).
This SATA channel is derived from the PCH QM87, capable of up to 6Gbps.
3)
This SATA channel is derived from the PCH QM87, capable of up to 3Gbps.
4)
This SATA channel is derived from the 88SE9230 SATA Host Controller.
5)
The SATA channel assignment shown is valid from Rev. 1+ of the board.
2)
©
EKF
-83-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
CompactPCI® Serial Backplane Connector P4
P4 CompactPCI® Serial System Slot Backplane Connector • EKF Part #250.3.1208.20.00 96 pos. 12x8, 16mm Width, Type B
1)
©
P4
A
B
C
D
E
F
G
H
I
J
K
L
8
GND
6_PE_TX02+ 1)
6_PE_TX02- 1)
GND
6_PE_RX02+ 1)
6_PE_RX02- 1)
GND
6_PE_TX03+ 1)
6_PE_TX03- 1)
GND
6_PE_RX03+ 1)
6_PE_RX03- 1)
7
6_PE_TX00+
6_PE_TX00-
GND
6_PE_RX00+
6_PE_RX00-
GND
6_PE_TX01+ 1)
6_PE_TX01- 1)
GND
6_PE_RX01+ 1)
6_PE_RX01- 1)
GND
5_PE_TX02+
1)
5_PE_TX02-
1)
GND
5_PE_RX02+
1)
5_PE_RX02-
1)
GND
5_PE_TX03+
1)
5_PE_TX03-
1)
GND
5_PE_RX03+
1)
5_PE_RX03- 1)
6
GND
5
5_PE_TX00+
5_PE_TX00-
GND
5_PE_RX00+
5_PE_RX00-
GND
5_PE_TX01+ 1)
5_PE_TX01- 1)
GND
5_PE_RX01+ 1)
5_PE_RX01- 1)
GND
4
GND
4_PE_TX02+ 1)
4_PE_TX02- 1)
GND
4_PE_RX02+ 1)
4_PE_RX02- 1)
GND
4_PE_TX03+ 1)
4_PE_TX03- 1)
GND
4_PE_RX03+ 1)
4__PE_RX03- 1)
3
4_PE_TX00+
4_PE_TX00-
GND
4_PE_RX00+
4_PE_RX00-
GND
4_PE_TX01+ 1)
4_PE_TX01- 1)
GND
4_PE_RX01+ 1)
4_PE_RX01- 1)
GND
2
GND
3_PE_TX02+ 1)
3_PE_TX02- 1)
GND
3_PE_RX02+ 1)
3_PE_RX02- 1)
GND
3_PE_TX03+ 1)
3_PE_TX03- 1)
GND
3_PE_RX03+ 1)
3_PE_RX03- 1)
1
3_PE_TX00+
3_PE_TX00-
GND
3_PE_RX00+
3_PE_RX00-
GND
3_PE_TX01+ 1)
3_PE_TX01- 1)
GND
3_PE_RX01+ 1)
3_PE_RX01- 1)
GND
Not connected.
EKF
-84-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
CompactPCI® Serial Backplane Connector P5
P5 CompactPCI® Serial System Slot Backplane Connector • EKF Part #250.3.1206.20.00 72 pos. 12x6, 12mm Width, Type C
1)
©
P5
A
B
C
D
E
F
G
H
I
J
K
L
6
5_PE_CLKE#
5_PE_CLK+
5_PE_CLK-
6_PE_CLKE#
6_PE_CLK+
6_PE_CLK-
7_PE_CLKE#
7_PE_CLK+
7_PE_CLK-
8_PE_CLKE#
8_PE_CLK+
8_PE_CLK-
5
1_PE_CLK+
1_PE_CLK-
2_PE_CLK+
2_PE_CLK-
3_PE_CLK+
3_PE_CLK-
4_PE_CLK+
4_PE_CLK-
8_PE_TX02+
1_PE_CLKE#
1)
8_PE_TX02-
1)
GND
8_PE_RX02+
2_PE_CLKE#
1)
8_PE_RX02-
1)
GND
8_PE_TX03+
3_PE_CLKE#
1)
8_PE_TX03-
1)
GND
8_PE_RX03+
4_PE_CLKE#
1)
8_PE_RX03- 1)
4
GND
3
8_PE_TX00+
8_PE_TX00-
GND
8_PE_RX00+
8_PE_RX00-
GND
8_PE_TX01+ 1)
8_PE_TX01- 1)
GND
8_PE_RX01+ 1)
8_PE_RX01- 1)
GND
2
GND
7_PE_TX02+ 1)
7_PE_TX02- 1)
GND
7_PE_RX02+ 1)
7_PE_RX02- 1)
GND
7_PE_TX03+ 1)
7_PE_TX03- 1)
GND
7_PE_RX03+ 1)
7_PE_RX03- 1)
1
7_PE_TX00+
7_PE_TX00-
GND
7_PE_RX00+
7_PE_RX00-
GND
7_PE_TX01+ 1)
7_PE_TX01- 1)
GND
7_PE_RX01+ 1)
7_PE_RX01- 1)
GND
Not connected.
EKF
-85-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
CompactPCI® Serial Backplane Connector P6
P6 CompactPCI® Serial System Slot Backplane Connector • EKF Part #250.3.1208.20.02 96 pos. 12x8, 18mm Width, Type D
1)
©
P6
A
B
C
D
E
F
G
H
I
J
K
L
8
GND
8_ETH_A+ 1)
8_ETH_A- 1)
GND
8_ETH_B+ 1)
8_ETH_B- 1)
GND
8_ETH_C+ 1)
8_ETH_C- 1)
GND
8_ETH_D+ 1)
8_ETH_D- 1)
7
7_ETH_A+ 1)
7_ETH_A- 1)
GND
7_ETH_B+ 1)
7_ETH_B- 1)
GND
7_ETH_C+ 1)
7_ETH_C- 1)
GND
7_ETH_D+ 1)
7_ETH_D- 1)
GND
6_ETH_A+
1)
6_ETH_A-
1)
GND
6_ETH_B+
1)
6_ETH_B-
1)
GND
6_ETH_C+
1)
6_ETH_C-
1)
GND
6_ETH_D+
1)
6_ETH_D- 1)
6
GND
5
5_ETH_A+ 1)
5_ETH_A- 1)
GND
5_ETH_B+ 1)
5_ETH_B- 1)
GND
5_ETH_C+ 1)
5_ETH_C- 1)
GND
5_ETH_D+ 1)
5_ETH_D- 1)
GND
4
GND
4_ETH_A+ 1)
4_ETH_A- 1)
GND
4_ETH_B+ 1)
4_ETH_B- 1)
GND
4_ETH_C+ 1)
4_ETH_C- 1)
GND
4_ETH_D+ 1)
4_ETH_D- 1)
3
3_ETH_A+ 1)
3_ETH_A- 1)
GND
3_ETH_B+ 1)
3_ETH_B- 1)
GND
3_ETH_C+ 1)
3_ETH_C- 1)
GND
3_ETH_D+ 1)
3_ETH_D- 1)
GND
2
GND
2_ETH_A+
2_ETH_A-
GND
2_ETH_B+
2_ETH_B-
GND
2_ETH_C+
2_ETH_C-
GND
2_ETH_D+
2_ETH_D-
1
1_ETH_A+
1_ETH_A-
GND
1_ETH_B+
1_ETH_B-
GND
1_ETH_C+
1_ETH_C-
GND
1_ETH_D+
1_ETH_D-
GND
Not connected (according the CompactPCI® Serial Precedence Order Rules).
EKF
-86-
ekf.com
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Appendix
Known Problems
Known Problems
Date
Issue
Description
2015-07-02
3
Some Mouse Devices may lead to a lock of the front USB Interfaces. This will inhibit the boot
of an OS located on one of the USB Interfaces.
Workaround:
Change BIOS setting of node „Advanced/USB Configuration/xHCI Mode“ from „Auto“ to
„Disabled“.
2015-07-02
2015-07-02
Fix
There are no plans to fix this erratum.
7
Sound via P-EXP Interface does not work because of missing BIOS support (Build #194).
Fix
Will be fixed in a future BIOS release.
8
On the CPCI Serial Fat Pipe Slots 1/2 PCI Express Generation 3 Speed may not work properly.
When possible reduce the speed to 5GT/s. Running a link with 8GT/s needs a well tuned
system with interface parameters adjusted to the components in use (backplane, periphery
board).
Workaround:
Change BIOS setting of node „Advanced/SA PCI Express Configuration/Select max speed“
from „Auto“ to „Gen2“.
2015-07-02
©
EKF
Fix
Gen2 speed will be implemented as default with BIOS Build #196.
12
SIO functions (e.g. COM ports) on Mezzanine Boards like SCS-TRUMPET do not work because
of missing BIOS support (Build #194).
Fix
Will be fixed in a future BIOS release.
-87-
User Guide • SC2-PRESTO • CompactPCI® Serial CPU Board • Intel® CoreTM 4xxx Processor
Mechanical Drawing
The following drawing shows the positions of mounting holes and expansion connectors on the SC2-PRESTO.
100.0mm
21.5/
94.5mm
HSE
48.5/5.5mm
ekf.com
© EKF
Mezzanine
Connector
Alignment
P-HSE
39.5/94.0mm
19.3/5.5mm
160.0mm
EXP
75.5/94.5mm
P-EXP
79.3/5.5mm
DP
P-DP3
PCIE
P-PCIE
104.3/93.5mm
89.0/7.0mm
132.07/94.5mm
132.07/5.5mm
SC2-PRESTO • CompactPCI® Serial • © EKF • ekf.com
160.0/100.0mm
-88-
