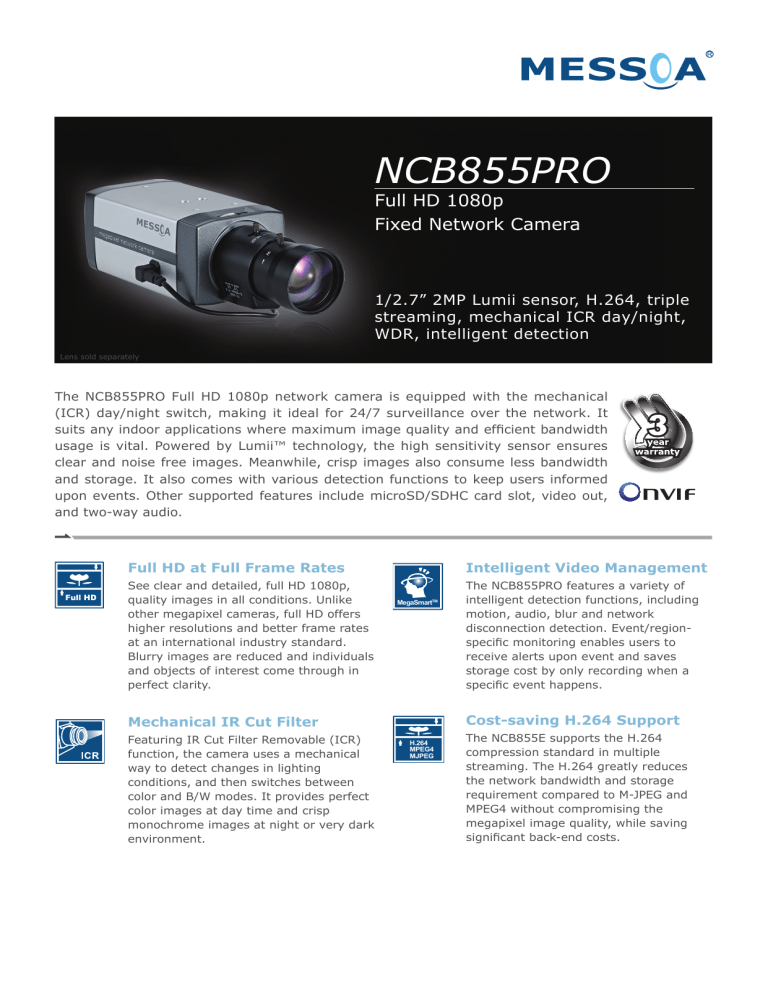

NCB855PRO
Full HD 1080p
Fixed Network Camera
1/2.7” 2MP Lumii sensor, H.264, triple
streaming, mechanical ICR day/night,
WDR, intelligent detection
Lens sold separately
The NCB855PRO Full HD 1080p network camera is equipped with the mechanical
(ICR) day/night switch, making it ideal for 24/7 surveillance over the network. It
suits any indoor applications where maximum image quality and efficient bandwidth
usage is vital. Powered by Lumii™ technology, the high sensitivity sensor ensures
clear and noise free images. Meanwhile, crisp images also consume less bandwidth
and storage. It also comes with various detection functions to keep users informed
upon events. Other supported features include microSD/SDHC card slot, video out,
and two-way audio.
Full HD at Full Frame Rates
See clear and detailed, full HD 1080p,
quality images in all conditions. Unlike
other megapixel cameras, full HD offers
higher resolutions and better frame rates
at an international industry standard.
Blurry images are reduced and individuals
and objects of interest come through in
perfect clarity.
Full HD
Intelligent Video Management
The NCB855PRO features a variety of
intelligent detection functions, including
motion, audio, blur and network
disconnection detection. Event/regionspecific monitoring enables users to
receive alerts upon event and saves
storage cost by only recording when a
specific event happens.
MegaSmartTM
Mechanical IR Cut Filter
Featuring IR Cut Filter Removable (ICR)
function, the camera uses a mechanical
way to detect changes in lighting
conditions, and then switches between
color and B/W modes. It provides perfect
color images at day time and crisp
monochrome images at night or very dark
environment.
H.264
MPEG4
MJPEG
Cost-saving H.264 Support
The NCB855E supports the H.264
compression standard in multiple
streaming. The H.264 greatly reduces
the network bandwidth and storage
requirement compared to M-JPEG and
MPEG4 without compromising the
megapixel image quality, while saving
significant back-end costs.
Specifications
Video
Network
Sensor Type
1/2.7" 2MP sensor optimized for low-light
performance
Active Pixels
1920x1080 (HxV)
Compression
H.264, MPEG-4, MJPEG
Streaming
Max. Frame Rate
Triple simultaneous streams
1080p, SXVGA, 720P, XGA, SVGA, D1, VGA,
2CIF, CIF
30/25 fps at 1920x1080 (NTSC/PAL)
Day/Night
Mechanical (ICR) D/N Control
Day/Night Mode
Auto, Forced BW, Forced Color, External
1/10000s to 1/3.75s Selectable (60Hz);
1/10000s to 1/3.125s Selectable (50Hz)
0.08 lux @30IRE; 0.20 lux @50IRE (F1.2,
Shutter Speed: 1/15sec)
Resolution
Shutter Time
Minimum Illum.
Video Output
NTSC: 720 X 480; PAL: 720 X 576
Bit Rate Control
CBR/VBR (Primary Stream)
Lens Mount
CS Mount; Adjustable lens back focus
Audio
Audio Comm.
Two-way mono audio, Full-duplex
Compression
G.711, PCM, 8kHz
Audio In/Out
External microphone and speaker
Image Enhancement
AWB, AES, AGC, exposure mode, white
balance, backlight compensation, brightness,
contrast, sharpness, staturation, digital WDR,
privacy zone
Image Settings
Image Orientation
Mirror, Flip
Frequency Control
50Hz, 60Hz
Date & Time Stamp
Yes
Intelligent Video
Motion Detection
5x5 zones, 5 level sensitivity or customized
threshold
Audio Detection
5 level sensitivity or customized threshold
Blur Detection
Customized sensitivity in seconds
Ethernet Detection
Network loss detection
Smart Encoding
Configurable ROI
Others
Smart Focus, e-PTZ
Event
Protocol
IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP,
NTP, FTP, RTP,RTSP, ICMP, UPnP
Ethernet
10Base-T/100Base-TX Ethernet, RJ-45,
auto-sensing
PoE
IEEE 802.3af, Class 3
ONVIF
Yes
Browser
IE Browser 6.0 or Above
Security
Two-level access with password protection
I/O & Controls
Power
2-pin Terminal Block
Alarm In/Out
2/1, Terminal Block
Network
RJ-45 with LEDs
Audio In/Out
1/1, 3.5mm phone jack
RS-485
Terminal Block (Reserved)
Analog Video
BNC x 1, 1.0Vp-p, 75 ohm
Reset
Within 5 secs to reboot, ;
More than 5 secs to load default
Power
Power Requirement
DC 12V & AC 24V ± 10% / PoE(IEEE
802.3af)
Power Consumption
6W max.
Mechanical
Dimensions(DxH)
114 x 66 x 65 mm (4.5" x 2.6" x 2.6")
Weight
320g (0.70 lb) w/o lens
Environmental
Operating Temp.
-10ºC ~ 50ºC (-14ºF ~ 122 ºF)
Operating Humidity
10~ 90% RH
Storage Temp.
-20ºC ~ 60ºC (-4ºF ~ 140 ºF)
Regulatory
Approvals
CE, FCC, RoHS
Order Information
Model No.
NTSC: NCB855PRO-HN5-MES;
PAL: NCB855PRO-HP5-MES
Accessories
Wall mount bracket: SAB748-02;
Outdoor housing: SAH722/ SAH725;
IR illuminator housing: SLI070HB
Motion detection, audio detection, blur
detection, Ethernet detection, external alarm
File upload via FTP, SMTP and SD Card;
Notification via email, HTTP over TCP and
external alarm
Event Trigger
Event Management
Local Storage
Memory Card Slot
MicroSD/SDHC card up to 32 GB
Overwrite
Yes
Recording Trigger
Alarm, Event, Schedule
Dimensions
114mm (4.5”)
66mm (2.6”)
Reset
1
2
3
4
5
Ethernet/PoE
ALM-In 2
ALM-In 1
ALM-Out
GND
Audio Out
RS485
RS485+
65mm(2.6”)
56mm(2.2”)
Micro
SD
Card
Power
6
Video
+
~
~
DC 12V
AC 24V
2012.05.31 version.
MESSOA reserves the right to update this datasheet at any time without notice.
www.messoa.com
Audio In
