User's Guide DCAM Framecapture Development Kit

User's Guide DCAM Framecapture Development Kit
USER’S GUIDE
Date
: 18. August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
:1

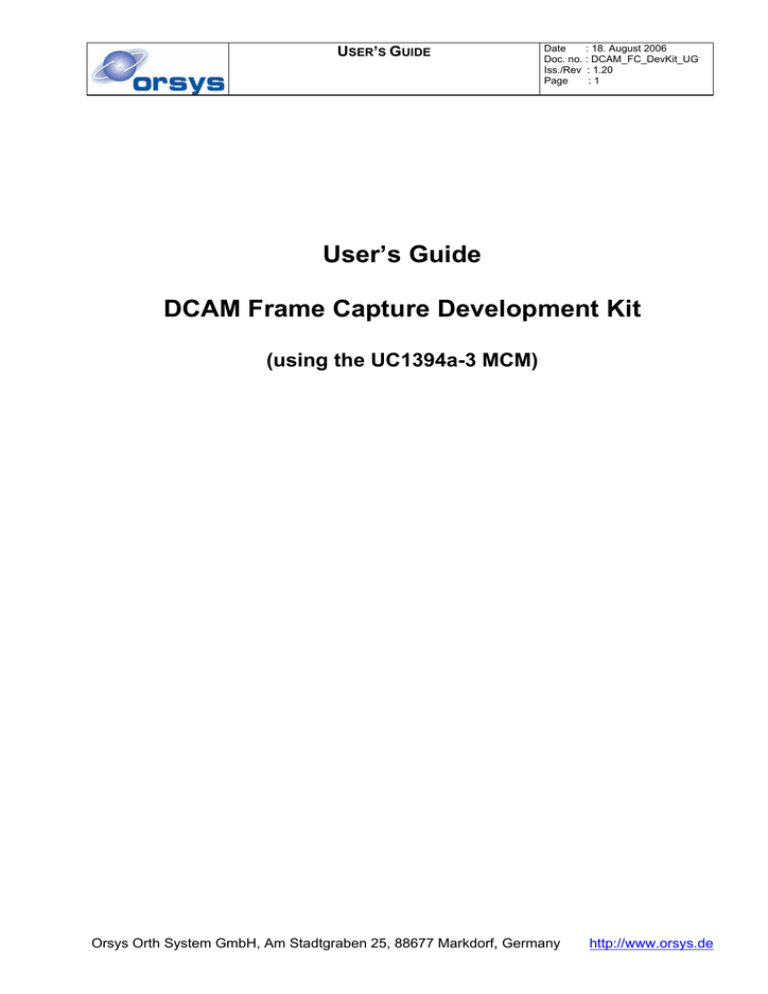

User’s Guide
DCAM Frame Capture Development Kit
(using the UC1394a-3 MCM)
Orsys Orth System GmbH, Am Stadtgraben 25, 88677 Markdorf, Germany
http://www.orsys.de
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
:2
Contents
1 PREFACE...................................................................................................................... 7
1.1
Document Organization ......................................................................................................... 7
1.2
Documentation Overview ...................................................................................................... 7
1.3
Notational conventions.......................................................................................................... 7
1.4
Trademarks ............................................................................................................................. 9
1.5
Revision history ..................................................................................................................... 9
2 KIT OVERVIEW ........................................................................................................... 10
2.1
UC1394a-3 MCM ................................................................................................................... 10
2.2
UC1394a Small Carrier......................................................................................................... 11
2.3 Interfaces and Connectors .................................................................................................. 12
2.3.1 Software Streaming ............................................................................................................. 12
2.3.2 Peripheral Interface ............................................................................................................. 13
2.3.3 IEEE1394 Interface ............................................................................................................. 13
2.3.4 IEEE1394 Data Transfer Methods ...................................................................................... 13
2.3.5 UART Interface.................................................................................................................... 16
2.3.6 System Reset ...................................................................................................................... 17
2.3.7 JTAG Connector.................................................................................................................. 17
2.3.8 Power Supply Input ............................................................................................................. 17
2.3.9 TMS320VC5501/5502 Peripherals...................................................................................... 18
3 GETTING STARTED ................................................................................................... 19
3.1
Required items: .................................................................................................................... 19
3.2
Download procedure: .......................................................................................................... 19
3.3
Debugging Software Using a JTAG Emulator ................................................................... 19
3.4
How to Store an Application in Flash Memory .................................................................. 20
4 PROGRAMMING THE UC1394A-3 ............................................................................. 21
4.1
Required Tools ..................................................................................................................... 21
4.2
Software Development Flow ............................................................................................... 21
4.3
Startup Procedure ................................................................................................................ 22
4.4 Hints for Programming the TMS320VC5501/5502 ............................................................. 23
4.4.1 A Byte is 16 Bits .................................................................................................................. 23
4.4.2 64K Page Limit .................................................................................................................... 23
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
4.4.3
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
:3
Pipeline................................................................................................................................ 23
5 APPLICATION EXAMPLES ........................................................................................ 25
5.1
Download procedure............................................................................................................ 25
5.2
LED Control (toggle_led) ..................................................................................................... 26
5.3
UART (hello).......................................................................................................................... 26
5.4
Buffered Character I/O (dbg_out) ....................................................................................... 26
5.5
Peripheral Interface (periph_if) ........................................................................................... 28
6 MODULE SUPPORT LIBRARY .................................................................................. 31
6.1 Module Support Library Modules ....................................................................................... 31
6.1.1 init.c ..................................................................................................................................... 31
6.1.2 fpgaload.c............................................................................................................................ 31
6.1.3 uart.c ................................................................................................................................... 31
6.1.4 flash.c .................................................................................................................................. 31
6.1.5 debug.c................................................................................................................................ 31
6.1.6 hexutil.c ............................................................................................................................... 31
6.1.7 decutil.c ............................................................................................................................... 31
6.2
Module Support Library Header Files ................................................................................ 32
6.3 Global Variables Reference................................................................................................. 32
6.3.1 Clock Rates ......................................................................................................................... 32
6.3.2 Interrupt Vector Table.......................................................................................................... 32
6.4 Macros Reference ................................................................................................................ 32
6.4.1 DebugOutByteHex .............................................................................................................. 32
6.4.2 DebugOutConstString ......................................................................................................... 33
6.4.3 DebugOutDwordHex ........................................................................................................... 33
6.4.4 DebugOutNibbleHex ........................................................................................................... 33
6.4.5 DebugOutSByteDec ............................................................................................................ 34
6.4.6 DebugOutSDwordDec ......................................................................................................... 34
6.4.7 DebugOutSNibbleDec ......................................................................................................... 34
6.4.8 DebugOutString................................................................................................................... 35
6.4.9 DebugOutSWordDec........................................................................................................... 35
6.4.10 DebugOutUByteDec.......................................................................................................... 35
6.4.11 DebugOutUDwordDec....................................................................................................... 36
6.4.12 DebugOutUNibbleDec....................................................................................................... 36
6.4.13 DebugOutUWordDec ........................................................................................................ 36
6.4.14 DebugOutWordHex ........................................................................................................... 37
6.4.15 UC1394A3_LED_ON ........................................................................................................ 37
6.4.16 UC1394A3_LED_OFF....................................................................................................... 37
6.4.17 UC1394A3_LED_TOGGLE............................................................................................... 37
6.5 Functions Reference............................................................................................................ 37
6.5.1 InitDSP ................................................................................................................................ 37
6.5.2 IntHook ................................................................................................................................ 37
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
6.5.3
6.5.4
6.5.5
6.5.6
6.5.7
6.5.8
6.5.9
6.5.10
6.5.11
6.5.12
6.5.13
6.5.14
6.5.15
6.5.16
6.5.17
6.5.18
6.5.19
6.5.20
6.5.21
6.5.22
6.5.23
6.5.24
6.5.25
6.5.26
6.5.27
6.5.28
6.5.29
6.5.30
6.5.31
6.5.32
6.5.33
6.5.34
6.5.35
6.5.36
6.5.37
6.5.38
6.5.39
6.5.40
6.5.41
6.5.42
6.5.43
6.5.44
6.5.45
6.5.46
6.5.47
6.5.48
6.5.49
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
:4
IntEnable ............................................................................................................................. 38
IntDisable ............................................................................................................................ 38
IntClear................................................................................................................................ 38
FpgaLoad ............................................................................................................................ 39
FlashGetDeviceInfo............................................................................................................. 39
FlashEraseSector................................................................................................................ 40
FlashProgram ...................................................................................................................... 40
DebugBufmgr .................................................................................................................... 40
DebugFlush ....................................................................................................................... 41
DebugGetc ........................................................................................................................ 41
DebugGets ........................................................................................................................ 42
DebugInit ........................................................................................................................... 42
DebugKbhit........................................................................................................................ 42
DebugPutc......................................................................................................................... 43
DebugPuts......................................................................................................................... 43
DecSignedByte2Ascii ........................................................................................................ 43
DecSignedDword2Ascii..................................................................................................... 44
DecSignedNibble2Ascii ..................................................................................................... 44
DecSignedWord2Ascii....................................................................................................... 44
DecUnsignedByte2Ascii .................................................................................................... 45
DecUnsignedDword2Ascii................................................................................................. 45
DecUnsignedNibble2Ascii ................................................................................................. 45
DecUnsignedWord2Ascii................................................................................................... 46
HexByte2Ascii ................................................................................................................... 46
HexDword2Ascii ................................................................................................................ 46
HexNibble2Ascii ................................................................................................................ 46
HexWord2Ascii.................................................................................................................. 47
UartClearRts...................................................................................................................... 48
UartClearToSend .............................................................................................................. 48
UartDisableLinestatInt ....................................................................................................... 48
UartDisableRxInt ............................................................................................................... 48
UartDisableTxInt................................................................................................................ 49
UartEnableLinestatInt........................................................................................................ 49
UartEnableRxInt ................................................................................................................ 50
UartEnableTxInt ................................................................................................................ 50
UartInit............................................................................................................................... 50
UartLinestatIntStat............................................................................................................. 50
UartLineStatus................................................................................................................... 51
UartReceive....................................................................................................................... 51
UartRxIntStat..................................................................................................................... 51
UartRxReady..................................................................................................................... 52
UartSetRts......................................................................................................................... 52
UartShutdown.................................................................................................................... 52
UartTransmit...................................................................................................................... 53
UartTxDone ....................................................................................................................... 53
UartTxIntStat ..................................................................................................................... 53
UartTxReady ..................................................................................................................... 54
7 FPGA DEVELOPMENT SUPPORT............................................................................. 55
8 LIST OF ABBREVIATIONS USED IN THIS DOCUMENT .......................................... 56
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
:5
9 LITERATURE REFERENCES..................................................................................... 57
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
:6
List of Tables
Table 1: UART connector pin assignments..................................................................................... 16
Table 2: Reset signals..................................................................................................................... 17
List of Figures
Figure 1: DCAM frame capture development kit block diagram ...................................................... 10
2: Small carrier board connector locations ...................................................................................... 12
Figure 3: Block diagram of the peripheral interface......................................................................... 13
Figure 4: Isochronous data, recorded from the IEEE1394 bus with an analyzer ............................ 14
Figure 5: Isochronous packet assembly, sampling at 100kHz, 16bit, packet size = 40 bytes......... 15
Figure 6: UART interface block diagram ......................................................................................... 16
Figure 7: JTAG Adapter .................................................................................................................. 17
Figure 8: Software development flow .............................................................................................. 22
Figure 9: Memory view of a string in character format .................................................................... 23
Figure 10: Memory view of a string in binary format ....................................................................... 23
Figure 11: Sample session of the hello example............................................................................. 26
Figure 12: Waveforms generated by the periph_if example............................................................ 28
Figure 13: Waveforms generated by the periph_if example for a write burst.................................. 29
Figure 14: Waveforms generated by the periph_if example for a read burst .................................. 30
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
:7
1 Preface
This document describes software development for the UC1394a-3 MCM using the module
support library from Orsys. The module support library is a collection of declarations and low level
drivers that allow to access hardware on the board, such as loading the FPGA, using the UART as
debug interface etc. This document also contains a detailed explanation of the IEEE1394 interface.
Furthermore it describes the environment that the carrier board adds to the UC1394a-3 MCM
along with some quick start examples.
1.1
Document Organization
This document is organized as follows:
• Chapter 2 gives a brief overview of the whole system and its interfaces
• Chapter 3 shows how to do the first steps with the kit
• Chapter 4 gives an introduction to software development
• Chapter 5 describes the application examples
• Chapter 6 documents the module support library
• Chapter 7 introduces the FPGA development option
• Chapter 8 explains the abbreviations that are used throughout this document
• Chapter 9 lists documents that contain further information
1.2
Documentation Overview
This chapter lists the documentation from Orsys that is shipped together with the DCAM frame
capture development kit. Further documents from other vendors are listed in chapter 9 and are
referenced throughout the document in square brackets.
UC1394a-3 Hardware Reference Guide [14] (UC1394a-3_hrg.pdf):
Describes the hardware of the UC1394a-3 MCM. It is intended to get an overview of the multi chip
module and the features provided by it.
DSP Master BSP User's Guide [15] (DSP_Master_BSP_UG.pdf):
Describes the DSP Master Board Support Package (BSP). This BSP adds an asynchronous 16-bit
peripheral interface and a software streaming interface to the UC1394a-3 MCM. The user’s guide
includes FPGA register description and FPGA register programming documentation for these
interfaces.
DCAM API User's Guide [17] (DCAM_UG.pdf):
Describes the DCAM application programmer interface (API) for controlling digital cameras.
Ultra-compact Small Carrier Hardware Reference Guide [18] (uc_sc_hrg.pdf):
Describes the carrier board that is used in the DSP Development kit, including schematics and
hints for power supply configuration.
1.3
Notational conventions
Names of registers, bit fields and single bits are written in capital letters.
Example: LLC_VERSION
Names of signals are also given in capital letters, active low signals are marked with a '/' at the
beginning of the name.
Example: /RESETIN
Configuration parameters, function names, path names and file names are written in italic typeface.
Example: dev_id
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
:8
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Source code examples are given in a small, fixed-width typeface.
Example: int a = 10;
Menus and commands from menus and submenus are enclosed in double-quotes. Example:
Create a new project using the "Create Project..." command from the "File" menu.
The members of a bit field or a group of signals are numbered starting at zero, which is the least
significant bit.
Example: CFG[4:0] identifies a group of five signals, where CFG0 is the least significant bit and
CFG4 is the most significant bit.
If necessary, numbers are represented with a suffix that specifies their base.
Example: 12AB16 is a hexadecimal number (base 16 = hexadecimal) and is equal to 477910.
The bit fields of a register are displayed with the most significant bit to the left. Below each bit field
is a description of its read / write accessibility and its default value:
bit number
bit name
15
14
13
12
11
10
6
5
4
3
2
1
0
A
B
C
D
E
F
9
G
8
7
H
I
J
K
L
N
O
r,w,0
r,w,0
r,w,0
r,w,0
r,w,0
r,w,0
r,w,0102
r,0
r,wc,0
w
r,w,0
rc,0
r,w,0
r,w,0
accessibility and default value
legend:
r
bit is readable
rc
this bit is cleared after a read
r,w bit is readable and writeable, reading yields the previously written value unless otherwise
specified.
w
bit is writeable, read value is undefined
wc writing a '1' to this bit clears it
w,0 bit is write-only, reading always yields 0.
0
default value
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
1.4
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
:9
Trademarks
TI, Code Composer, DSP/BIOS and TMS320C5000 are registered trademarks
of Texas Instruments.
Microsoft® and Windows® are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other
countries.
Hypterterminal is a trademark of Hilgraeve Inc.
All other brand or product names are trademarks or registered trademarks of
their respective companies or organizations.
1.5
Revision history
Revision
1.2
Changes
First release
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 10
2 Kit Overview
The DCAM frame capture development kit consists of a UC1394a-3 MCM mounted on a UC1394a
Small Carrier board.
Figure 1: DCAM frame capture development kit block diagram
2.1
UC1394a-3 MCM
The UC1394a-3 MCM implements most of the functionality of the DCAM frame capture
development kit. It is a high performance DSP / FPGA system that provides all of the interfaces
shown in Figure 1 and a complete hardware environment for user applications. After development
is finished, the UC1394a-3 can be easily integrated into a customized hardware environment. Its
small size and low cost makes it an ideal solution for end-product usage. Further, the
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 11
implementation as a multi chip module (MCM) allows similar handling as of integrated circuits,
therefore mass production is supported.
The following interfaces and signals are provided without any FPGA design required:
• 2 McBSPs
• 8-bit HPI or general-purpose IO
• UART with LVTTL level
• I2C interface
• general-purpose output (XF)
• 2 DSP timer inputs/outputs
• IEEE1394 interface
• DSP JTAG interface
• FPGA JTAG interface
• system reset input
• system reset output
• external interrupt input to the DSP
These interfaces are described in the Hardware Reference Guide [14] of the UC1394a-3.
The UC1394a-3 is equipped with the DSP master board support package (BSP). This BSP adds
an asynchronous parallel bus peripheral interface and a software streaming interface to the MCM.
The DSP master BSP is described in [15].
2.2
UC1394a Small Carrier
The Ultra Compact small carrier provides all necessary connectors and control elements:
•
•
•
•
•
•
•
•
Two 400 Mbps IEEE1394 ports with standard 6 pin connectors.
Connectors that provide direct access to each MCM signal
Power supply either from an external source or over the IEEE1394 cable
A red LED as power indicator
A reset button
A JTAG connector for service purposes and software/FPGA development option1
RS-232 level converter and RS-232 connector that provides the UART interface with RS232 voltage levels
A Jumper block (not used by DSP Master BSP, can be used by customized BSP’s)
The carrier board is intended as a development aid, which is used in the prototyping stage of a
project. In the end product, the UC1394a-3 MCM will typically be used standalone. However, the
complete kit (MCM mounted on carrier) is also available in quantities. A detailed description of the
carrier hardware, including schematics and component lists can be found in [18].
1
Software and FPGA development is available in other Orsys products.
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 12
Jumper JTAG
DC
block
connec tor input
UC1394a-3
MCM
+
Direc t MCM
connec tors
Reset
Power
indic ator LED
IEEE1394
connec tors
RS-232
connec tor
2: Small carrier board connector locations
2.3
Interfaces and Connectors
2.3.1 Software Streaming
The streaming interface is implemented by the DSP Master BSP and is described in detail in [15].
Software streaming allows to transfer large amount of data between the DSP and IEEE1394 with
minimal overhead. Data transfers are buffered by a FIFO, so that the DSP can operate
independent of the IEEE1394 timing. Streaming transfers are unidirectional and must be set up for
a particular direction before operation is started. The maximum transfer rate for streaming is
32,768,000 byte/s. Software streaming uses isochronous streaming as defined by the IEEE1394
standard. Isochronous streaming is explained in chapter 2.3.3. Software streaming programming is
described in [15] and in [17].
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 13
2.3.2 Peripheral Interface
This interface allows to connect to a wide range of user-defined peripherals. The peripheral
interface is implemented as a parallel bus interface with asynchronous control signals. All signals
of the peripheral interface of the MCM are directly routed to the UC1394a Small Carrier
connectors.
Figure 3: Block diagram of the peripheral interface
A detailed functional description of the peripheral interface and its signals are described in [15].
2.3.3 IEEE1394 Interface
The UC1394a-3 MCM has two 400 Mbps IEEE1394 ports. These ports are routed to two standard
6-pin IEEE1394 connectors on the carrier board. Using these two ports, the DCAM frame capture
development kit can be inserted anywhere in an existing IEEE1394 network. Since the IEEE1394
physical layer acts as a repeater, no processing power is required for transferring data from one
port to the other.
For transferring data between the DCAM frame capture development kit and the IEEE1394
network, three transfer methods are available which are described in the following chapter.
2.3.4 IEEE1394 Data Transfer Methods
IEEE1394 provides three different methods for transferring data:
• isochronous streaming
• asynchronous streaming
• asynchronous transactions
Asynchronous transactions are handled by the IEEE1394 API, whereas isochronous and
asynchronous streaming is only set up by the API and then performed by FPGA register accesses.
2.3.4.1 Isochronous Streaming
In isochronous streaming, data is transferred in regular intervals, called cycles. In each cycle, one
data packet can be transferred. The size of these data packets determines the maximum data
bandwidth which can be calculated as max_bandwidth = packet_size * 8000 packets_per_second.
The cycle clock is 8kHz, therefore, packets get sent every 125 µs. Before transmission is started,
the transmitter reserves the necessary amount of bus bandwidth at a central location on the bus,
the isochronous resource manager. This and the fact that isochronous packets have precedence
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 14
over asynchronous packets guarantees, that the bus provides enough capacity for the transfer.
Isochronous streaming is an excellent solution for transferring image data from a camera.
Isochronous transfers are multicast transfers which are identified by a channel, so there is always
one talker but there may be one or more listeners. The transfer is typically done without any
software overhead and is therefore quite fast. Error detection is done at the receiver side.
Isochronous streaming is well suited for
• large amounts of data
• data distribution to several devices
• data that occurs in regular intervals
Figure 4 shows a part of an isochronous stream, recorded with an analyzer. The large blocks are
isochronous packets with maximum size (4096 bytes). The isochronous packets are preceded by a
cycle start packet, which indicates the start of a new cycle. On the UC1394a-3 MCM, packets are
only transmitted, when enough data is present in the FIFO. Otherwise, the corresponding cycle will
be empty, thus, no packet is transmitted. Figure 5 shows an example for this.
Figure 4: Isochronous data, recorded from the IEEE1394 bus with an analyzer
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 15
Figure 5: Isochronous packet assembly, sampling at 100kHz, 16bit, packet size = 40 bytes
2.3.4.2 Asynchronous Streaming
Asynchronous streaming is similar to isochronous streaming. Asynchronous streaming uses the
same data packets as an isochronous transfer. Packets may be sent anytime, provided that the
bus is free. Bus bandwidth is not guaranteed here, so the transmission of a packet may be blocked
by other transfers on the bus. At the receiver side it makes no difference whether isochronous or
asynchronous streaming is used. Asynchronous streaming should be used, when latency
requirements don't allow isochronous streaming and bus bandwidth can be guaranteed by system
design.
2.3.4.3 Asynchronous Transactions
Asynchronous transactions are handled by the IEEE1394 API. Each data packet that is sent,
receives a response from the addressed device. Asynchronous transfers can occur at any time
(provided that the bus is free). They are point to point transfers, so the originator of the transfer
must know who to talk to. An asynchronous transfer consists of a request that is sent to the
destination device, and a response that the destination device sends back. This enables error
checking at the sender. Asynchronous transfers are well suited for
• data that occurs randomly (e.g. control and status information)
• transfers where the originator of the transfer must be informed about the status of each
single transfer
2.3.4.4 Plug & Play features of IEEE1394
When devices are connected to or disconnected from the IEEE1394 network, node ID's are
automatically assigned for the connected devices. This is done by the chipset without any software
intervention. Independent of the node ID, most devices provide some more information about
themselves. There is an area within the IEEE1394 address space that is called configuration ROM.
The configuration ROM holds information about
• the manufacturer of the device
• device serial number
• software interface of the device
The serial number together with the manufacturer form a world wide unique 64 bit ID. Using this 64
bit ID, the device can be identified independently of the network topology or the currently assigned
node ID.
The next higher level of identification is the protocol level. By default, the UC1394a-3 when
equipped with the DSP Master BSP identifies itself as a device running a generic protocol specified
by Orsys. This protocol can be used on a host PC to load appropriate device drivers. Customized
protocol identification is available at Orsys on request.
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 16
2.3.4.5 Power Distribution over IEEE1394 and Isolation
The IEEE1394 standard defines a 6-wire cable, that allows to supply devices over the cable. This
is often used for digital cameras. To operate the UC1394a-3 powered from the IEEE1394 cable, an
external voltage regulator is required. The IEEE1394 standard allows up to 10W power
consumption for a device. The IEEE1394 interface of the UC1394a-3 is directly connected to the
remaining circuit. There is no galvanic isolation between the IEEE1394 cable and the local power
supply. In a custom hardware design, the VG pin of the 1394 connector must be connected to the
GND pins of the UC1394a-3. For a detailed description of power distribution and isolation please
refer to [14].
2.3.5 UART Interface
The UC1394a-3 MCM has an UART interface that can be used for standard asynchronous
communication. Different baud rates are supported as well as RTS/CTS handshake. The UC1394a
Small Carrier board uses a level converter to convert these signals to RS-232 level. How to
program the UART interface is described chapter 6. The distribution media contains an application
example for the UART in the hello folder. The UART interface uses 2 data lines and 2 handshake
lines. A detailed description of the UART signals can be found in [14].
Figure 6: UART interface block diagram
The RS-232 signals are available on a 10-pin connector, located on the UV1394a Small Carrier
board. The UART signals are also available on MCM connector A at 3.3V LVTTL. To convert to
RS-232 an external level converter is required. For a connection example please refer to [14].
Signal
TxD
RxD
RTS
CTS
GND
Connector
UC1394a Small
Carrier 10-pin
5
3
4
8
9, 10
Cable connection to a remote PC
Sub-D 9-pin
Sub-D 25-pin
2
3
8
7
5
Table 1: UART connector pin assignments
3
2
5
4
7
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 17
2.3.6 System Reset
.The reset input /RESETIN is connected to a pushbutton on the UC1394a Small Carrier. The
required pull-up resistor is integrated in the MCM. The reset signals are described in [14].
Signal
/RESETIN
/RESETOUT
MCM
pin
A10
A9
Connector
Table 2: Reset signals
Please note that /RESETIN is driven for a short period of about 1µs in case of a software reset or
watchdog reset.
2.3.7 JTAG Connector
The JTAG connector provides the JTAG signals of both, the CPU and the FPGA of the MCM. The
JTAG interfaces are typically used with the respective download cables or emulators. For
development kits, the carrier is shipped together with a JTAG adapter that provides suitable
connectors for the download cables and emulators. Please refer to [14] for a description of the
pinning of the JTAG connector.
A13
A1
B13
B1
+3.3V GND TCK TDO TDI TMS
FPGA JTAG c onnec tor
DSP JTAG c onnec tor
(fits TI emulator POD)
top view
Figure 7: JTAG Adapter
The DSP JTAG interface is used for downloading and debugging DSP software. It is used with a
JTAG emulator, such as the TI XDS series, which can be connected to the carrier board by an
adapter. The JTAG adapter is included in the DCAM frame capture development kit.
Usually, the JTAG connector is used in conjunction with the JTAG adapter. This JTAG adapter
provides connectors which are compatible with standard development tools:
• the Texas Instruments emulator cables, such as the XDS510 or compatible
• the Xilinx parallel download cable
The FPGA JTAG interface is used with programming hardware, such as the Xilinx parallel
download cable. A JTAG adapter, which is included in the DCAM frame capture development kit,
provides a suitable connector.
FPGA development for the MCM or the carrier board is available as a separate product.
2.3.8 Power Supply Input
The UC1394a-3 MCM requires a single, regulated 3.3 V power supply. The UC1394a Small Carrier
generates this voltage.
The Power supply of the carrier can be provided by three different ways:
• From the DC power input socket (J7)
• From the IEEE1394 cable (over J8 or J9)
• Over the direct MCM connectors (J1, J2; requires modification of the carrier)
For a detailed description of the power supply please refer to [18].
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 18
2.3.9 TMS320VC5501/5502 Peripherals
The signals of the DSP peripherals HPI, GPIO, McBSPs, I2C, Timers etc. are directly routed to the
MCM connectors of the UC1394a Small Carrier. For a detailed description of these interfaces
please refer to [14].
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 19
3 Getting Started
Usually, the UC1394a-3 DSP Master BSP comes as a kit, including documentation and quick start
examples. This chapter describes the first steps when using the DCAM frame capture development
kit.
3.1
Required items:
•
•
•
•
•
3.2
a development PC
a JTAG emulator, from Texas Instruments (e.g. XDS510) or from another vendor
Code Composer Studio (CCS) from Texas Instruments, version 3.1 or higher
UC1394a Small Carrier or another suitable power supply
optional: a terminal program, such as Hyperterminal and a RS-232 cable
Download procedure:
•
•
•
•
•
•
•
•
•
•
connect the kit to the development PC using the JTAG emulator and the RS-232 cable
(optional)
for Camera and OperateTool: connect the digital camera to the kit, using the IEEE1394
cable.
power on the system
start Code Composer Studio
select the "Load GEL..." command from the "File" menu
locate uc1394a-3master.gel from the GEL folder on the distribution media and open it
select the "Initialization"->"CPU_reset_and_init_300" command from the "GEL" menu
select the "Load Program..." command from the "File" menu
locate one of the application examples from the examples folder on the distribution media
and open it (e.g. toggle_led.out)
select the "Run" command from the "Debug" menu
Please note: the application examples do not use the usual printf function. Instead, where
necessary, output is sent over the RS-232 interface (using 115200 baud and RTS/CTS
handshake). This allows to store the examples in flash memory and then to execute them without
the JTAG emulator. Before running applications using the RS-232 interface a Hyperterminal should
be startet on the PC.
3.3
Debugging Software Using a JTAG Emulator
Select the "Halt" command from the "Debug" menu. CCS will stop the DSP from toggling the LED
and it displays the current instruction in the disassembly window and in the source code window.
Now you can use all debugging features that CCS provides, such as breakpoints, single stepping,
and so on. For details, please refer to the CCS on-line help and documentation.
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
3.4
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 20
How to Store an Application in Flash Memory
The UC1394a-3 supports up to 832KB of flash memory for application code. This application code
must be in a format suitable for the processor's boot loader. To generate such a file, the projects
on the distribution CD contain a final build step that uses the hex55 utility. To program your
application into the UC1394a's flash memory, you must
• connect the JTAG emulator to the UC1394a-3.
• start Code Composer Studio.
• open your project.
• build the project as normal.
• select the "Initialization" → "CPU_reset_and_init" command from the "GEL" menu.
• start the FlashBurn utility.
• the FlashBurn utility starts up with an empty window.
• select the "New" command from the "File" menu.
• click on the "Browse..." button right of "File To Burn".
• locate the application code that is to be programmed, e.g. asynctst.hex and open it.
• click on the "Browse..." button right of "FBTC Program File".
• locate FBTCOrsysUC1394a-3.out (the Flash Burn Target Component, usually in a folder
named FlashBurn on the distribution media) and open it.
• select the "Save As..." command from the File menu.
• select a convenient location an and appropriate name for this configuration an save it.
• select the "Download FBTC" command from the "Program" menu.
• FlashBurn downloads the target component to the UC1394a-3.
• if FlashBurn still displays "Not connected",
o change to Code Composer Studio,
o select the "Initialization" → "CPU_reset_and_init" command from the "GEL" menu,
o select the "Reload Program" command from the "File" menu,
o select the "Run" command from the "Debug" menu
o Now Code Composer Studio must display the cursor at DoMessageProc in the
disassembly window.
• select the "Erase Flash" command from the "Program" menu.
• the erase process takes about 8..12 seconds to complete.
• select the "Program Flash" command from the "Program" menu.
• wait until the programming process is completed.
• now your application is programmed to flash memory and will boot at the next system start.
Further help can be found in the help menu of Code Composer Studio. The FlashBurn utility is
included in the Orsys distribution.
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 21
4 Programming the UC1394a-3
This chapter describes the software programming interfaces of the UC1394a-3. It is intended for
programmers who want develop their own, customized software to run on the UC1394a-3.
The UC1394a-3 provides the following programming interfaces:
• DCAM API
• register-level programming of the (BSP-specific) FPGA peripherals
• on-chip peripherals of the TMS320VC5501/5502
Programming the FPGA peripherals is described in [15]. Programming the on-chip DSP
peripherals is supported on register level by the provided header files or by the chip support library,
which is part of Code Composer Studio.
4.1
Required Tools
•
•
•
4.2
TI Code Composer Studio V3.1 or higher
SDS FlashBurn Utility (part of Orsys distribution)
JTAG Emulator for program download, such as TI XDS510 or other products
Software Development Flow
User defined software can be written as C-source code. The source code modules are compiled by
the C-compiler. The resulting object files must be linked with at least the runtime library for the
TMS320VC5501/5502 (rts55x.lib). Usually, one or more object libraries are added during the
linker process, such as the IEEE1394 API libraries and the module support library. The output of
the linker is an executable file, which can be downloaded to the UC1394a-3 over the JTAG
interface using an emulator. To store the user application permanently in flash memory, the .out file
must be converted to a boot data stream by the hex conversion tool. To program this boot data
stream, the FlashBurn utility must be started. The FlashBurn utility
•
•
loads the Target Component (FBTCOrsysUC1394a-3.out) executable to the UC1394a-3
and starts it
sends the boot data stream to the FBTC55, which in turn programs it to the flash memory.
Further details on flash programming can be found in chapter 3.4.
This development flow is shown in the picture below. The distribution media contains some project
examples which perform this development flow.
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 22
Figure 8: Software development flow
4.3
Startup Procedure
After power-up or a system reset, the DSP starts its internal boot loader. The boot loader initializes
the MCM according to the information of the boot header. Then, it loads the application from flash
memory into the internal RAM and starts program execution at the specified address. This is the
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 23
default startup procedure in end-system environment. During development the startup procedure
looks a little bit different:
After power-up or a system reset, the DSP starts its internal boot loader. The boot loader tries to
load an application from flash, which may succeed or leave the DSP in an unknown state. The user
starts Code Composer Studio, loads UC1394a-3.GEL and puts the DSP to an initialized state by
selecting the CPU_reset_and_init command from the "GEL" → "Initialization" menu. Now the user
application can be loaded, executed and debugged using the emulator.
4.4
Hints for Programming the TMS320VC5501/5502
4.4.1 A Byte is 16 Bits
Please note, that these DSPs can only access data in units of 16 bit. Even a character array will
consist of 16 bit. The screenshots below illustrate this.
Figure 9: Memory view of a string in character format
Figure 10: Memory view of a string in binary format
Further information can be found in [7]; chapter "Memory and I/O space" and in [11]; chapter "Data
types"
4.4.2 64K Page Limit
The TMS320C5000 series of DSPs use a 16-bit architecture, which adds restrictions to pointer
accesses. Although the DSP as well as the C-compiler support 23-bit pointers, pointer
manipulation is always done modulo 64K. Below is a code example that shows how to handle
arrays which cross 64K boundaries.
/* wrong, will stay in the lower 64K bytes */
static int array[100000];
int i;
for (i = 0; i < sizeof(array); i++)
array[i] = 0;
/* correct: use a cast to calculate the pointer for each access */
static int array[100000];
unsigned long i;
for (i = (unsigned long)array;
i < (unsigned long array) + sizeof(array);
i++)
*(unsigned long *)i = 0;
4.4.3 Pipeline
Accesses to memory may take some clock cycles until they are completed, since the execution is
broken down into several pipelined steps. For memory accesses this is no problem. However,
accesses to hardware registers can lead to unexpected results. One example is disabling
interrupts:
asm("
asm("
asm("
asm("
asm("
asm("
asm("
BSET INTM");
NOP");
NOP");
NOP");
NOP");
NOP");
NOP");
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 24
Without the NOP instruction, an interrupt can occur immediately after the BSET INTM instruction.
The execution of the NOPs ensures, that all stages of the BSET INTM instruction have been
performed before further code is executed. The NOPs must be inserted only if the code
immediately following the BSET INTM instruction must be protected against interrupts.
Another point is access to peripherals in a write-read back fashion. Since a write access takes
longer to be performed than a read access, the read may occur before the write, resulting in
outdated data. When reading back data that has just been written, two NOP instructions should be
inserted between write and read. Below is an example taken from the flash programming routines:
/* Wrong, do not use that */
for (ulWords = 0; ulWords < ulLengthInWords; ulWords++)
{
// enter programming mode
*(volatile INT16U*) (UC1394A3_FLASH_BASE + 0x0555) = 0xAA;
*(volatile INT16U*) (UC1394A3_FLASH_BASE + 0x02AA) = 0x55;
*(volatile INT16U*) (UC1394A3_FLASH_BASE + 0x0555) = 0xA0;
........// write data word to flash
*(volatile INT16U*)ulFlashAdr = *(volatile INT16U*)ulDataAdr;
........// wait until programmed
while (*(volatile INT16U*)ulFlashAdr != *(volatile INT16U*)ulDataAdr)
asm(" NOP");
ulFlashAdr++;
ulDataAdr++;
if ((ulWords & FLASH_PRG_CALLBACK_RATIO) == 0 &&
pCallback != NULL)
pCallback();
}
/* corrected code */
for (ulWords = 0; ulWords < ulLengthInWords; ulWords++)
{
// enter programming mode
*(volatile INT16U*) (UC1394A3_FLASH_BASE + 0x0555) = 0xAA;
*(volatile INT16U*) (UC1394A3_FLASH_BASE + 0x02AA) = 0x55;
*(volatile INT16U*) (UC1394A3_FLASH_BASE + 0x0555) = 0xA0;
........// write data word to flash
*(volatile INT16U*)ulFlashAdr = *(volatile INT16U*)ulDataAdr;
// The following NOP's causes the write operation to finish before
// the programming status is read. Otherwise, the pipeline could
// exchange write and read, which causes a premature abort.
asm(" NOP");
asm(" NOP");
........// wait until programmed
while (*(volatile INT16U*)ulFlashAdr != *(volatile INT16U*)ulDataAdr)
asm(" NOP");
ulFlashAdr++;
ulDataAdr++;
if ((ulWords & FLASH_PRG_CALLBACK_RATIO) == 0 &&
pCallback != NULL)
pCallback();
}
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 25
5 Application Examples
The distribution media contains two kinds of application examples:
• Examples that use the DCAM API
• Examples from the DSP master BSP
The examples using the DCAM API are described in [17]. All other examples are described in the
subsequent sections. All examples can be downloaded to the kit by using a JTAG emulator or they
can be programmed to the MCM's flash memory as described in chapter 3.4. To download an
application example to the MCM, please proceed as follows:
Required items:
•
•
•
•
•
•
a development PC, with the software listed below installed.
Texas Instruments Code Composer Studio (CCS) V2.2x. A run time limited version is
downloadable from www.ti.com.
a JTAG emulator
a terminal program, such as Hyperterminal, which is usually part of Windows distributions
a DCAM frame capture development kit, including a JTAG adapter, all cables and a
suitable power supply
a digital camera for DCAM API examples
All application examples are provided as a CCS project. The project has two available
configurations: Debug and Release. Debug is the default configuration and should be used during
development. The Release configuration differs from Debug in two points:
•
•
no debugging symbols are created, the code is not suitable for source code debugging, but
better optimized
The Release version of the module support library is used
The Release configuration should be used for the final application after development is finished.
Further, all example projects contain a final build step that creates a .hex file. This file can be
programmed to flash memory as described in chapter 3.4.
5.1
Download procedure
•
•
•
•
•
•
•
•
•
•
connect the kit to the development PC using the JTAG emulator / JTAG adapter and the
RS-232 cable
for Camera and Operate Tool: connect the digital camera to the kit, using the IEEE1394
cable.
power on the system
start Code Composer Studio
select the "Load GEL..." command from the "File" menu
locate uc1394a-3_master_bsp.gel from the GEL folder on the distribution media and open it
select the "Initialization"->"CPU_reset_and_init_300Mhz" command from the "GEL" menu
select the "Load Program..." command from the "File" menu
locate one of the application examples from the examples folder on the distribution media
and open it (e.g. toggle_led.out)
select the "Run" command from the "Debug" menu
Please note: the application examples do not use the usual printf function. Instead, where
necessary, output is sent over the UART interface (using 115200 baud and RTS/CTS handshake).
This allows to store the examples in flash memory and then to execute them without the JTAG
emulator.
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
5.2
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 26
LED Control (toggle_led)
This is the most basic application example. It initializes the MCM and then enters a main loop. The
main loop just toggles the MCM's LED. After loading and starting this example. the MCM's LED is
blinking. This application example can be used as a rudimentary test to check if the kit and the
MCM are working properly.
5.3
UART (hello)
This example shows how to program the UART of the DSP using driver functions from the module
support library. First, the MCM is set up. Then, the UART is initialized for 115200 baud and
hardware (RTS/CTS) handshake. Then, an output message is assembled using the stdio function
sprintf. The output message contains some information about the MCM. The output message is
sent to the RS-232. Finally, the main loop is entered. In the main loop, the UART interface is
checked for incoming characters. Whenever a character comes in, it is simply echoed.
Figure 11: Sample session of the hello example
5.4
Buffered Character I/O (dbg_out)
This example uses the UART interface at a higher level of abstraction: buffered character I/O, as
provided by the module support library, see chapter 6 for details. This is an alternative to using the
stdio functions, such as sprintf, sscanf, etc. dbg_out prints out the same startup message as hello,
but the main loop is programmed as a command interpreter. This shows how to implement an
application that is interactively controlled over RS-232. Pressing the '?' key within the terminal
program causes a help page to be displayed. Other command keys can easily be added by
inserting appropriate case statement in the command switch. Below is an example that shows how
insert a command that toggles the MCM LED by pressing the key 't':
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 27
// below is a command switch that could be used in applications
// that require user interaction over RS_232
switch(c)
{
case '?':
case 'h':
DebugOutConstString("Debug interface example\r\n");
DebugOutConstString("'h' and '?' show this help page\r\n"
"no other commands/keys defined\r\n");
break;
case 't':
// toggle the red MCM LED
UC1394A3_SYS_CTL ^= UC1394A_SYS_LED;
break;
default:
DebugOutConstString("invalid command. "
"'?' shows a help page.\r\n");
break;
}
}
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
5.5
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 28
Peripheral Interface (periph_if)
This application example has neither any text output, nor does it control the LED. It is mainly
intended as a source code example. Further, the peripheral interface signals can be viewed with
an oscilloscope or a logic analyzer. The UC1394a-3 is initialized with the default settings, the
peripheral interface is set to a burst size of 5 16-bit words and the interface timings are set to 1-1-1
(setup-strobe-hold).
Then the main loop performs the following sequence in an infinite loop:
• issue pulse on XF pin (can be used as a trigger signal)
• wait until the write FIFO has space for the next burst
• write 5 16-bit words to the peripheral interface
• trigger read burst (will be performed after write has completed)
• wait until read operation complete
• read data from read FIFO
Figure 12 shows the waveforms of the control signals /PER_CS, PER_R/W, /PER_STRB and data
signal PER_D0 generated by each cycle of the main loop. The left side of the figure shows a write
burst of 5 16-bit words, the rigth side shows the followed read burst of 5 16-bit words.
Figure 12: Waveforms generated by the periph_if example
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 29
Figure 13 shows the signals generated by a write burst of 5 16-bit words in a higher resolution than
Figure 12. Data can be written to the write FIFO of the peripheral interface by 16-bit or 32-bit
accesses. In this example the data is written to the FIFO by 2 x 32-bit and 1 x 16-bit accesses. 32bit write accesses are faster than two consecutive 16-bit writes since two accesses (strobes) take
place within one chip select cycle. The data written to the interface are counter values, that is
PER_D0 toggles with each write access.
Figure 13: Waveforms generated by the periph_if example for a write burst
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 30
Figure 14 shows the signals generated by a read burst of 5 16-bit words in a higher resolution than
Figure 12. Data can be read from the read-FIFO of the peripheral interface only by 32-bit accesses
since the EMIF does not support 16-bit reads. In this example the data is read from the FIFO by 3
x 32-bit accesses. Read accesses are always executed as access bursts, that is multiple accesess
(strobes) take place within one chip select cycle. The data words are dummy values, here PER_D0
remains low.
Figure 14: Waveforms generated by the periph_if example for a read burst
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 31
6 Module Support Library
The module support library is a collection of functions that are commonly used when programming
the UC1394a-3 MCM. The code in this library is usually not changed by the user. During software
development, this library is simply added to the project. However, the source code is provided for
reference and for cases where a customization is necessary. A CCS project for creating the
module support library is also provided. Please note: after compiling the library sources, the
compiled libraries reside in the respective output directories (Debug and/or Release). For using
them with the example projects, they must be copied to the lib\Release and lib\Debug directories.
6.1
Module Support Library Modules
The module support library contains the following modules:
Module
Init.c
fpgaload.c
Uart.c
flash.c
debug.c
Hexutil.c
Decutil.c
Contents
module support functions
FPGA loader
UART routines
flash programming routines
simple, buffered I/O over the UART interface
binary to hexadecimal ASCII conversion
binary to decimal ASCII conversion
Below is a brief description of each module. The functions of module are explained in chapter 6.5.
6.1.1 init.c
This module defines initialization and utility functions for the MCM, such as interrupt control.
6.1.2 fpgaload.c
This module contains a loader for FPGA code. The FPGA must be loaded using this loader at
system startup. FPGA resources are only available after loading.
6.1.3 uart.c
This module contains functions to control the UART of the TMS320C5501/5502 DSP.
6.1.4 flash.c
Contains flash programming routines. It is recommended that application software does not modify
the flash memory. Instead, the provided methods for accessing the flash memory should be used
(FlashBurn utility for application code programming (see chapter 4.3) or FPGA flasher executable
for updating / programming FPGA code).
6.1.5 debug.c
This module contains a simple system for buffered character I/O over the UART interface.
Typically, the functions of this module are not used directly, but over associated macros (see
chapter 6.4). debug.c can be used as an alternative for the stdio functions (e.g. printf), especially,
when small code size is required or no emulator is available.
6.1.6 hexutil.c
Utility functions that convert binary values to hexadecimal ASCII.
6.1.7 decutil.c
Utility functions that convert binary values to decimal ASCII.
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
6.2
Module Support Library Header Files
msl.h
Contains function prototypes for the main part of the module support library,
such as initialization and interrupt management.
Defines the FPGA registers and includes basic hardware definitions of the
UC1394a-3 equipped with Master BSP.
functions for loading the FPGA.
Defines a simple, buffered character I/O interface using the UART
interface. Suitable for debugging output as well as general character I/O.
master_bsp.h
fpgaload.h
debug.h
6.3
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 32
Global Variables Reference
6.3.1 Clock Rates
The variables below contain the clock rates of the DSP. The function InitDSP sets up the clock
rates and then initializes the variables. These variables can be used to calculate software
controlled timings.
Clock rates initialized by InitDSP:
INT32U
INT32U
INT32U
INT32U
ulSysclk1;
ulSysclk2;
ulSysclk3;
ulClkout3;
//
//
//
//
fast peripherals (DMA, HPI, Timer)
slow peripherals (McBSP, I2C, UART)
EMIF
CPU
6.3.2 Interrupt Vector Table
The module support library maintains an interrupt vector table. This table is initialized by InitDSP.
User interrupt handlers can be inserted by calling IntHook. The table is accessible from outside of
the module support library in order to better support debugging. Directly accessing the interrupt
vector table should be avoided.
// interrupt vector table
extern struct
{
void (*handler) (void);
INT32U dummy;
} vectab[32];
6.4
Macros Reference
This chapter lists the macros that are defined by the module support library. Currently, the only
available macros are utility functions for debug.c and macros to control the red LED of the
UC1394a-3 MCM.
6.4.1 DebugOutByteHex
Converts a 8-bit number into a string (hexadecimal) and puts the string into the debug transmit
buffer. This is a macro that calls the functions HexByte2Ascii and DebugPuts.
defined in
debug.h
synopsis
void DebugOutByteHex(INT8U digit);
parameters
digit
8-bit number to convert and put to the debug interface
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 33
return value
none
6.4.2 DebugOutConstString
Puts a string into the debug transmit buffer. This is a macro that calls the function DebugPuts. It is
intended for constant string output , such as DebugOutConstString("Hello, world\r\n");. Pointers to
strings will fail because the length of the string is not known at compile time.
defined in
debug.h
synopsis
INT16U DebugOutConstString(char cString[]);
parameters
cString[]
output string for the debug interface
return value
number of characters actually written
6.4.3 DebugOutDwordHex
Converts a 32-bit number into a string (hexadecimal) and puts the string into the debug transmit
buffer. This is a macro that calls the functions HexLong2Ascii and DebugPuts.
defined in
debug.h
synopsis
void DebugOutDwordHex(INT32U digit);
parameters
digit
32-bit number to convert and put to the debug interface
return value
none
6.4.4 DebugOutNibbleHex
Converts a 4-bit number (lower 4 bits of 8-bit number) into a string (hexadecimal) and puts the
string into the debug transmit buffer. This is a macro that calls the functions HexNibble2Ascii and
DebugPuts.
defined in
debug.h
synopsis
void DebugOutNibbleHex(INT8U digit);
parameters
digit
8-bit number to convert and put to the debug interface
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 34
return value
none
6.4.5 DebugOutSByteDec
Converts a signed 8-bit number into a string of 4 characters and puts the string into the debug
transmit buffer. This is a macro that calls the functions DecSignedByte2Ascii and DebugPuts.
defined in
debug.h
synopsis
void DebugSByteDec(INT8S digit);
parameters
digit
number to convert and put to the debug interface
return value
none
6.4.6 DebugOutSDwordDec
Converts an signed 32-bit number into a string of 11 characters and puts the string into the debug
transmit buffer. This is a macro that calls the functions DecSignedDword2Ascii and DebugPuts.
defined in
debug.h
synopsis
void DebugOutsDwordDec(INT32S digit);
parameters
digit
number to convert and put to the debug interface
return value
none
6.4.7 DebugOutSNibbleDec
Converts a signed 4-bit number into a string of two characters and puts the string into the debug
transmit buffer. This is a macro that calls the functions DecSignedNibble2Ascii and DebugPuts.
defined in
debug.h
synopsis
void DebugOutSNibbleDec(INT8S digit);
parameters
digit
number to convert and put to the debug interface
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 35
return value
none
6.4.8 DebugOutString
Puts a string into the debug transmit buffer. This is a macro that calls the function DebugPuts.
Pointers to strings are allowed since the length of the string is determined at run time.
defined in
debug.h
synopsis
INT16U DebugOutString(char *pString);
parameters
pString
pointer to output string for debug the interface
return value
number of characters actually written
6.4.9 DebugOutSWordDec
Converts a signed 16-bit number into a string of 6 characters and puts the string into the debug
transmit buffer. This is a macro that calls the functions DecSignedWord2Ascii and DebugPuts.
defined in
debug.h
synopsis
void DebugOutSWordDec(INT16S digit);
parameters
digit
number to convert and put to debug the interface
return value
none
6.4.10 DebugOutUByteDec
Converts an unsigned 8-bit number into a string of 3 characters and puts the string into the debug
transmit buffer. This is a macro that calls the functions DecUnsignedByte2Ascii and DebugPuts.
defined in
debug.h
synopsis
void DebugOutUByteDec(INT8U digit);
parameters
digit
number to convert and put to the debug interface
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 36
return value
none
6.4.11 DebugOutUDwordDec
Converts an unsigned 32-bit number into a string of 10 characters and puts the string into the
debug transmit buffer. This is a macro that calls the functions DecUnsignedDword2Ascii and
DebugPuts.
defined in
debug.h
synopsis
void DebugOutUDwordDec(INT32U digit);
parameters
digit
number to convert and put to the debug interface
return value
none
6.4.12 DebugOutUNibbleDec
Converts an unsigned 4-bit number into a string of two characters and puts the string into the
debug transmit buffer. This is a macro that calls the functions DecUNibble2Ascii and DebugPuts.
defined in
debug.h
synopsis
void DebugOutUNibbleDec(INT8U digit);
parameters
digit
number to convert and put to the debug interface
return value
none
6.4.13 DebugOutUWordDec
Converts an unsigned 16-bit number into a string of 5 characters and puts the string into the debug
transmit buffer. This is a macro that calls the functions DecUnsignedWord2Ascii and DebugPuts.
defined in
debug.h
synopsis
void DebugOutUWordDec(INT16U digit);
parameters
digit
number to convert and put to the debug interface
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 37
return value
none
6.4.14 DebugOutWordHex
Converts a 16-bit number into a string (hexadecimal)) and puts the string into the debug transmit
buffer. This is a macro that calls the functions HexWord2Ascii and DebugPuts.
defined in
debug.h
synopsis
void DebugOutWordHex(INT16U digit);
parameters
digit
16-bit number to convert and put to the debug interface
return value
none
6.4.15 UC1394A3_LED_ON
Turns the red LED of the UC1394a-3 MCM on. Defined in uc1394a-3.h.
6.4.16 UC1394A3_LED_OFF
Turns the red LED of the UC1394a-3 MCM off. Defined in uc1394a-3.h.
6.4.17 UC1394A3_LED_TOGGLE
Toggles the red LED of the UC1394a-3 MCM. Defined in uc1394a-3.h.
6.5
Functions Reference
This chapter gives a brief description of the module support library functions.
6.5.1 InitDSP
Configures the DSP to work with the peripherals. Sets up processor clock and EMIF settings. Sets
up and initializes the interrupt vector table. Interrupts are disabled globally during initialization an
are enabled again when InitDSP returns. Further, all maskable interrupts are disabled and cleared.
Interrupt vectors are set up to a table managed by the module support library. The interrupt vector
table is initialized with dummy interrupt handlers (DefaultISRx()) in order to get deterministic
behavior when uninitialized interrupts are triggered.
defined in
msl.h
synopsis
void InitDsp(INIT_MODE eMode);
parameters
none
return value
none
6.5.2 IntHook
defined in
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 38
msl.h
Description
Installs an interrupt handler for the given interrupt number in the interrupt vector table. The interrupt
numbers are defined in c5501.h. The interrupt handler must be defined with the interrupt keyword.
synopsis
void IntHook (int iIntNumber, void (*pHandler)(void));
parameters
int iIntNumber
pHandler
number of interrupt to be inserted
pointer to the interrupt handler
return value
none
6.5.3 IntEnable
Enables the specified interrupt in the corresponding Interrupt Enable Register. The interrupt
numbers are defined in c5501.h.
defined in
msl.h
synopsis
void IntEnable (int iIntNumber)
parameters
int iIntNumber
number of interrupt to be enabled
return value
none
6.5.4 IntDisable
Disables the specified interrupt in the corresponding Interrupt Enable Register. The interrupt
numbers are defined in c5501.h.
defined in
msl.h
synopsis
void IntDisable (int iIntNumber)
parameters
int iIntNumber
number of interrupt to be disabled
return value
none
6.5.5 IntClear
Clears the specified interrupt in the corresponding Interrupt Flag Register if pending. The interrupt
numbers are defined in c5501.h.
defined in
msl.h
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 39
synopsis
void IntClear (int iIntNumber)
parameters
iIntNumber
number of interrupt to be cleared (see c5501.h)
return value
none
6.5.6 FpgaLoad
Loads code to the FPGA (usually from flash memory). Default address when loading the FPGA
code from flash is UC1394A3_FLASH_FPGA_CODE. The code length can be retrieved from the code's
header by specifying UC1394A3_FLASH_FPGA_LENGTH. When the FPGA code is linked to the application,
the parameters must be modified accordingly. Please note: The FPGA code is usually preceded by
a header. FpgaLoad() supports both, code with and without header. Care must be taken to specify
the correct length for each variant. The length is of the header is 28 bytes for each variant.
defined in
fpgaload.h
synopsis
int FpgaLoad(INT32U *pData, INT32U ulLength);
parameters
pData
ulLength
pointer to FPGA image in flash memory
length of FPGA image in bytes
return value
(zero) if FPGA image is loaded successfully, otherwise the FPGA has not been
loaded. Possible reasons for this are:
the flash area for FPGA code is not programmed or contains invalid data
the FPGA Code was created for a non-matching device
the FPGA Code was created with incorrect programming file options.
FPGA_SUCCESS
6.5.7 FlashGetDeviceInfo
Reads manufacturer and device ID from the flash and stores them in the specified locations.
Default manufacturer ID is 000116 (AMD). Default device ID is 22BA16 (29LV800).
defined in
msl.h
synopsis
void FlashGetDeviceInfo(INT16U *pManufacturer, INT16U *pDevice, void (*pCallback)(void));
parameters
pManufacturer
pDevice
return value
None
pointer to location where manufacturer ID is stored
pointer to location where device ID is stored
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 40
6.5.8 FlashEraseSector
Erases the specified sector. During the erase process, a user-specified callback function is
executed to allow the application to continue processing or to indicate the progress of the
operation. The callback is called whenever the erase status is queried. Since the flash memory is
completely used for storing application and FPGA code (see chapter “Flash Memory” in [14]),
application software should not modify the flash contents.
defined in
msl.h
synopsis
void FlashEraseSector(int iSector, void (*pCallback)(void));
parameters
iSector
pCallback
return value
FLASH_OK
Sector number to be erased. Allowed values: 0 .. 15.
Pointer to a user callback function. Must be set to a valid user callback
function or to NULL if no callback is used.
Operation was successful
6.5.9 FlashProgram
Programs data into a previously erased area. During programming, a user-specified callback
function is executed to allow the application to continue processing or to indicate the progress of
the operation. The callback is called each time when 100 words have been programmed to the
flash. After programming, the programmed data is verified.
defined in
msl.h
synopsis
int FlashProgram(INT32U ulStartOffset, INT32U ulLengthInWords, INT16U *pusData,
void (* pCallback)(void));
parameters
ulStartOffset
ulLengthInWords
pusData
pCallback
Destination offset relative to start of the flash, specified in 16-bit words.
Allowed values: 0000000016 ... 000C000016, or one of
UC1394A3_FLASH_SA0_OFFS ... UC1394A3_FLASH_SA15_OFFS.
Number of 16-bit words to program.
Points to the source data.
User callback function.
return value
FLASH_OK
FLASH_COMPARE_ERROR
Programming was successful.
Verification of the programmed data failed.
6.5.10 DebugBufmgr
Writes one character form the debug transmit buffer to the debug interface if there is data in the
transmit buffer and the underlying debug interface is ready to accept it.
Reads one character from the debug interface to the debug receive buffer if data is available and
the buffer is not already full.
The function doesn’t operate interrupt-driven, so it must be called periodically.
defined in
debug.h
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 41
synopsis
void DebugBufmgr(void);
parameters
none
return value
none
6.5.11 DebugFlush
Flushes the debug transmit buffer. The function just calls DebugBufmgr as long as the debug
transmit buffer is not empty.
defined in
debug.h
synopsis
void DebugFlush(void);
parameters
none
return value
none
6.5.12 DebugGetc
Reads one character from the debug receive buffer.
defined in
debug.h
synopsis
int DebugGetc(void);
parameters
none
return value
character read from the debug receive buffer or DEBUG_EOF if buffer is empty
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 42
6.5.13 DebugGets
Gets a debug message from the debug receive buffer.
The debug receive buffer is read until:
a) a newline character (\n) is encountered
b) a carriage return character (\r) is encountered
c) a null-character ('\0') is encountered
d) usMaxLen - 1 characters are read
e) buffer is empty
defined in
debug.h
synopsis
unsigned short DebugGets(unsigned short usMaxLength, char *pDebugText);
parameters
usMaxlength
pDebugText
maximum size of the debug message with trailing ‘\0’
pointer to debug message.
return value
number of actually read characters.
6.5.14 DebugInit
Initializes the debug interface and the UART.
defined in
debug.h
synopsis
void DebugInit(void);
parameters
none
return value
none
6.5.15 DebugKbhit
Tests, whether the debug receive buffer is empty.
defined in
debug.h
synopsis
BOOL DebugKbhit(void);
parameters
none
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
return value
TRUE
FALSE
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 43
there is at least one character in the debug receive buffer
debug receive buffer is empty
6.5.16 DebugPutc
Puts one character into the debug transmit buffer.
defined in
debug.h
synopsis
INT8U DebugPutc(char c);
parameters
c
output character for debug interface
return value
number of characters actually written (0 or 1)
6.5.17 DebugPuts
Puts a message into the debug transmit buffer.
defined in
debug.h
synopsis
INT16U DebugPuts(unsigned short usLength, char *pDebugText);
parameters
usLength
pDebugText
number of characters in debug string (without trailing '\0')
pointer to debug message
return value
number of characters actually written
6.5.18 DecSignedByte2Ascii
Converts a signed 8 bit number into a character string in decimal ASCII representation. The
Character string consists of 4 characters, starting with either <space> for positive numbers or '-' for
negative numbers. The string contains leading zeros if the absolute value is less than 100.
defined in
decutil.h
synopsis
void DecSignedByte2Ascii(INT8S digit, char *pResult);
parameters
digit
pDebugText
return value
none
number to be converted
pointer to storage for the converted string
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 44
6.5.19 DecSignedDword2Ascii
Converts a signed 32 bit number into a character string in decimal ASCII representation. The
Character string consists of 11 characters, starting with either <space> for positive numbers or '-'
for negative numbers. The string contains leading zeros if the absolute value is less than
1000000000.
defined in
decutil.h
synopsis
void DecSignedDword2Ascii(INT32S digit, char *pResult);
parameters
digit
pDebugText
number to be converted
pointer to storage for the converted string
return value
none
6.5.20 DecSignedNibble2Ascii
Converts a signed 4 bit number into a character string in decimal ASCII representation. The
Character string consists of 2 characters, starting with either <space> for positive numbers or '-' for
negative numbers.
defined in
decutil.h
synopsis
void DecSignedNibble2Ascii(INT8U digit, char *pResult);
parameters
digit
pDebugText
number to be converted
pointer to storage for the converted string
return value
none
6.5.21 DecSignedWord2Ascii
Converts a signed 16 bit number into a character string in decimal ASCII representation. The
Character string consists of 6 characters, starting with either <space> for positive numbers or '-' for
negative numbers. The string contains leading zeros if the absolute value is less than 10000.
defined in
decutil.h
synopsis
void DecSignedWord2Ascii(INT16S digit, char *pResult);
parameters
digit
pDebugText
return value
none
number to be converted
pointer to storage for the converted string
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 45
6.5.22 DecUnsignedByte2Ascii
Converts an unsigned 8 bit number into a character string in decimal ASCII representation. The
Character string consists of 3 characters and contains leading zeros if the result is less than 100.
defined in
decutil.h
synopsis
void DecUnsignedByte2Ascii(INT8U digit, char *pResult);
parameters
digit
pDebugText
number to be converted
pointer to storage for the converted string
return value
none
6.5.23 DecUnsignedDword2Ascii
Converts an unsigned 32 bit number into a character string in decimal ASCII representation. The
Character string consists of 10 characters and contains a leading zero if the result is less than
1000000000.
defined in
decutil.h
synopsis
void DecUnsignedDword2Ascii(INT32U digit, char * pResult)
parameters
digit
pDebugText
number to be converted
pointer to storage for the converted string
return value
none
6.5.24 DecUnsignedNibble2Ascii
Converts an unsigned 4 bit number into a character string in decimal ASCII representation. The
Character string consists of 2 characters and contains a leading zero if the result is less than 10.
defined in
decutil.h
synopsis
void DecUnsignedNibble2Ascii(INT8U digit, char *pResult);
parameters
digit
pDebugText
return value
none
number to be converted
pointer to storage for the converted string
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 46
6.5.25 DecUnsignedWord2Ascii
Converts an unsigned 16 bit number into a character string in decimal ASCII representation. The
Character string consists of 5 characters and contains leading zeros if the result is less than
10000.
defined in
decutil.h
synopsis
void DecUnsignedWord2Ascii(INT16U digit, char *pResult);
parameters
digit
pDebugText
number to be converted
pointer to storage for the converted string
return value
none
6.5.26 HexByte2Ascii
Converts a 8 bit number into a string ("00".."FF").
defined in
hexutil.h
synopsis
void HexByte2Ascii(unsigned char ucNum, char *pResult);
parameters
ucNum
pResult
8 bit number to convert
Pointer to result. Must be at least 3 bytes.
return value
none
6.5.27 HexDword2Ascii
Converts a 32-bit number into a string ("00000000".."FFFFFFFF").
defined in
hexutil.h
synopsis
void HexDword2Ascii(unsigned long ulNum, char *pResult);
parameters
ulNum
pResult
32 bit number to convert
Pointer to result. Must be at least 9 bytes.
return value
none
6.5.28 HexNibble2Ascii
Converts a 4-bit number (lower 4 bits of 8 bit number) into a string ("0".."F").
defined in
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
hexutil.h
synopsis
void HexNibble2Ascii(const INT8U digit, char *pResult);
parameters
digit
pResult
8 bit number to convert
Pointer to result. Must be at least 2 bytes.
return value
none
6.5.29 HexWord2Ascii
Converts a 16-bit number into a string ("0000".."FFFF").
defined in
hexutil.h
synopsis
void HexWord2Ascii(INT16U
parameters
usNum
pResult
return value
none
usNum, char *pResult);
16 bit number to convert
Pointer to result. Must be at least 5 bytes.
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 47
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 48
6.5.30 UartClearRts
Signals ‘no-request-to-send’ on the RTS line. The RTS line must be controlled by application
software if it was enabled by the call to UartInit.
defined in
msl.h
synopsis
void UartClearRts (void);
parameters
none
return value
none
6.5.31 UartClearToSend
Check if remote device can accept a character, that is the /CTS line is active (low). Then a
character may be sent to the remote device.
defined in
msl.h
synopsis
INT16U UartClearToSend (void);
parameters
none
return value
1, remote device is ‘clear-to-send’, that is a character may be sent
0, remote device is ‘not-clear-to-send’, that is if character is sent it will be lost
6.5.32 UartDisableLinestatInt
Disables the receiver line status interrupt.
defined in
msl.h
synopsis
void UartDisableLinestatInt(void);
parameters
none
return value
none
6.5.33 UartDisableRxInt
Disables the receiver data-ready and the receiver timeout interrupt.
defined in
msl.h
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 49
synopsis
void UartDisableRxInt(void);
parameters
none
return value
none
6.5.34 UartDisableTxInt
Disables the transmit holding register empty interrupt.
defined in
msl.h
synopsis
void UartDisableTxInt(void);
parameters
none
return value
none
6.5.35 UartEnableLinestatInt
Enables the receiver line status interrupt. Multiple interrupts cause the interrupt to stay asserted, so
the interrupt handler must check all possible interrupt sources.
defined in
msl.h
synopsis
void UartEnableLinestatInt(void);
parameters
none
return value
none
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 50
6.5.36 UartEnableRxInt
Enables the receiver data-ready and the receiver timeout interrupt. Multiple interrupts cause the
interrupt to stay asserted, so the interrupt handler must check all possible interrupt sources.
defined in
msl.h
synopsis
void UartEnableRxInt(void);
parameters
none
return value
none
6.5.37 UartEnableTxInt
Enables the transmit holding register empty interrupt. Multiple interrupts cause the interrupt to stay
asserted, so the interrupt handler must check all possible interrupt sources.
defined in
msl.h
synopsis
void UartEnableTxInt(void);
parameters
none
return value
none
6.5.38 UartInit
Initializes the UART of the DSP.
defined in
msl.h
synopsis
INT16U UartInit(UART_CFG *psCfg);
parameters
psCfg
UART parameters
return value
none
6.5.39 UartLinestatIntStat
Checks if the receiver line status interrupt is enabled.
defined in
msl.h
synopsis
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 51
INT16U UartLinestatIntStat(void);
parameters
none
return value
1, if receiver line status interrupt is enabled.
0, if receiver line status interrupt is disabled.
6.5.40 UartLineStatus
Returns the contents of the line status register. Please note that reading the line status register
clears overrun errors only. All other errors must be cleared by reading the errornous data.
defined in
msl.h
synopsis
INT16U UartLineStatus(void);
parameters
none
return value
contents of the line status register
6.5.41 UartReceive
Reads one character from the receive buffer register of the UART. This function does not check for
available data, therefore UartRxReady should be called before to check if characters are available.
defined in
msl.h
synopsis
char UartReceive(void);
parameters
none
return value
character from the receive buffer register. If it is empty, the last value is repeated.
6.5.42 UartRxIntStat
Checks if the receiver data-ready and the receiver timeout interrupt is enabled.
defined in
msl.h
synopsis
INT16U UartRxIntStat(void);
parameters
void UartRxIntStat(void);
return value
1, if receiver data-ready and the receiver timeout interrupt is enabled.
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 52
0, if receiver data-ready and the receiver timeout interrupt is disabled.
6.5.43 UartRxReady
Checks, if the receive holding register is empty. Application software should call this function
before it calls UartReceive to read a character.
defined in
msl.h
synopsis
INT16U UartRxReady(void);
parameters
none
return value
TRUE: at least one character available
FALSE: receiver holding register is empty
6.5.44 UartSetRts
Signals ‘request-to-send’ on the RTS line. The RTS line must be controlled by application software
if it was enabled by the call to UartInit.
defined in
msl.h
synopsis
void UartSetRts (void);
parameters
none
return value
none
6.5.45 UartShutdown
This function disables all UART interrupts, clears the RTS signal and installs the previous interrupt
handler. After this function is called none of the UART functions, except UartInit may be called.
defined in
msl.h
synopsis
void UartShutdown(void);
parameters
none
return value
none
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 53
6.5.46 UartTransmit
This function writes the character to the transmit holding register of the UART. It does not checked
whether the transmit FIFO can accept one more character. Therefore, UartTxReady should be
called before calling this function.
defined in
msl.h
synopsis
void UartTransmit(char cTxChar);
parameters
cTxChar
character to transmit
return value
none
6.5.47 UartTxDone
Checks, if the UART has transmitted all available characters. Application software can use this
function to ensure that no more characters are in the transmit FIFO. When the transmitter is empty,
up to FIFO size + 1 characters can be written to the transmit holding register without calling
UartTxReady.
defined in
msl.h
synopsis
INT16U UartTxDone(void);
parameters
none
return value
TRUE: the transmit FIFO of the UART is empty
FALSE: not all characters have been transmitted yet.
6.5.48 UartTxIntStat
Checks, if the transmit holding register empty interrupt is enabled.
defined in
msl.h
synopsis
INT16U UartTxIntStat(void);
parameters
none
return value
1, if transmit holding register empty interrupt is enabled.
0, if transmit holding register empty interrupt is disabled.
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 54
6.5.49 UartTxReady
Checks, if the transmit holding register is empty. Application software should call this function
before it calls UartTransmit to send a character.
defined in
msl.h
synopsis
INT16U UartTxReady(void);
parameters
none
return value
TRUE: UART can accept at least one more character.
FALSE: UART can accept no more character, the transmit FIFO is full.
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 55
7 FPGA Development Support
FPGA Development is supported by a separate FPGA development package. This package
contains the FPGA design of the DSP master BSP as a project with most parts of the design
provided as VHDL source code. The user can add own functions to the DSP master BSP or can
create a totally different FPGA design. For the latter, a framework with an empty FPGA design is
provided. Together with the FPGA development package, development tools from Xilinx [2] are
required.
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 56
8 List of Abbreviations Used in this Document
API
BSP
CCS
CPU
DSP
EMIF
FIFO
firmware
FPGA
I2C
KB
KBps
LED
LLC
LSB
MB
MBps
Mbps
McBSP
MCM
ML
MSB
n/a
Phy
RAM
SDRAM
ROM
SDK
TBC
TBD
TI
UART
application programming interface
board support package: a combination of software and FPGA design that provides a
dedicated functionality to the UC1394a-3 MCM
Code Composer Studio –TI's development environment
central processing unit = processor
Digital Signal Processor
external memory interface – an interface of the DSP
first in first out; a special type of memory
software installed on the UC1394a-3 MCM (firmly installed software)
field programmable gate array
inter integrated circuit – a low speed interface between integrated circuits
kilobyte = 1024 byte
KB per second
light emitting diode
IEEE1394 link layer controller
least significant bit or byte
Megabyte = 1204 KB = 1048576 byte
Megabytes per second
Megabits per second
multi-channel buffered serial port – a peripheral of the DSP
multi chip module
micro-line®, a proprietary quasi-standard for micro-controller buses defined by Orsys
most significant bit or byte
not available
IEEE1394 physical layer transceiver
random access memory
synchronous dynamic random access memory
read only memory
software development kit
to be changed = value not 100% tested and may change in future
to be defined = value is not yet specified
Texas Instruments
universal asynchronous receiver transmitter
USER’S GUIDE
DCAM FRAME CAPTURE DEVELOPMENT KIT
Date
: 28 August 2006
Doc. no. : DCAM_FC_DevKit_UG
Iss./Rev : 1.20
Page
: 57
9 Literature references
Further information that is not covered in this user's guide can be found in the documents listed
below. References to this list are given in square brackets throughout this document. The
documents are listed by title, author and literature number or file name
[1]
[2]
[3]
[4]
[5]
[6]
Texas Instruments website at www.ti.com
Xilinx website at www.xilinx.com
TMS320VC5501 Fixed-Point Digital Signal Processor Data Manual, TI, SPRS206
TMS320VC5502 Fixed-Point Digital Signal Processor Data Manual, TI, SPRS166
TMS320VC5501/5502 DSP Host port Interface (HPI), TI, SPRU620
TMS320VC5501/5502 DSP Universal Asynchronous Receiver/Transmitter Reference Guide, TI,
SPRU597
[7] TMS320VC5501/5502 Timers Reference Guide, TI, SPRU618
[8] TMS320C55x DSP CPU Reference Guide, TI, SPU371
[9] TMS320C55x DSP Peripherals Reference Guide, TI, SPRU317
[10] TMS320C55x Assembly Language Tools User's Guide, TI, SPRU280
[11] TMS320C55x Optimizing C/C++ Compiler User’s Guide, TI, SPRU281
[12] FireWire System architecture by Don Anderson, Mind Share Inc., ISBN 0-201-48535-x
[13] Spartan-3 FPGA Family: DC and Switching Characteristics, Xilinx, ds099
[14] UC1394a-3 Hardware Reference Guide, Orsys, DSP_hrg.pdf
[15] DSP Master BSP User's Guide for the UC1394a-3 MCM, Orsys, DSP_master_BSP_UG
[16] User's Guide micro-line® Power Supply Kit, Orsys, Power_Supply.pdf
[17] User’s Guide DCAM API, Orsys, DCAM_UG.pdf
[18] UC1394a Small Carrier User’s Guide, Orsys, UC_SC_HRG.pdf
