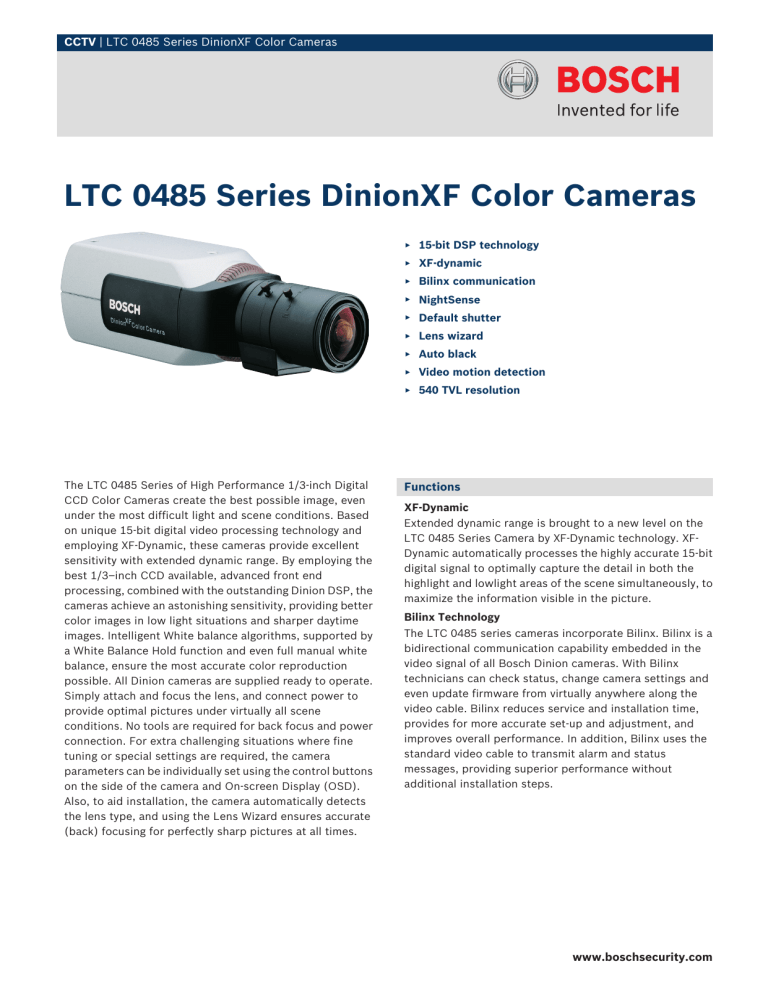

LTC 0485 Series DinionXF Color Cameras

LTC 0485 Series DinionXF Color Cameras
CCTV | LTC 0485 Series DinionXF Color Cameras
LTC 0485 Series DinionXF Color Cameras
▶ 15-bit DSP technology
▶ XF-dynamic
▶ Bilinx communication
▶ NightSense
▶ Default shutter
▶ Lens wizard
▶ Auto black
▶ Video motion detection
▶ 540 TVL resolution
The LTC 0485 Series of High Performance 1/3-inch Digital
CCD Color Cameras create the best possible image, even
under the most difficult light and scene conditions. Based
on unique 15-bit digital video processing technology and
employing XF-Dynamic, these cameras provide excellent
sensitivity with extended dynamic range. By employing the
best 1/3–inch CCD available, advanced front end
processing, combined with the outstanding Dinion DSP, the
cameras achieve an astonishing sensitivity, providing better
color images in low light situations and sharper daytime
images. Intelligent White balance algorithms, supported by
a White Balance Hold function and even full manual white
balance, ensure the most accurate color reproduction
possible. All Dinion cameras are supplied ready to operate.
Simply attach and focus the lens, and connect power to
provide optimal pictures under virtually all scene
conditions. No tools are required for back focus and power
connection. For extra challenging situations where fine
tuning or special settings are required, the camera
parameters can be individually set using the control buttons
on the side of the camera and On-screen Display (OSD).
Also, to aid installation, the camera automatically detects
the lens type, and using the Lens Wizard ensures accurate
(back) focusing for perfectly sharp pictures at all times.
Functions
XF-Dynamic
Extended dynamic range is brought to a new level on the
LTC 0485 Series Camera by XF-Dynamic technology. XFDynamic automatically processes the highly accurate 15-bit
digital signal to optimally capture the detail in both the
highlight and lowlight areas of the scene simultaneously, to
maximize the information visible in the picture.
Bilinx Technology
The LTC 0485 series cameras incorporate Bilinx. Bilinx is a
bidirectional communication capability embedded in the
video signal of all Bosch Dinion cameras. With Bilinx
technicians can check status, change camera settings and
even update firmware from virtually anywhere along the
video cable. Bilinx reduces service and installation time,
provides for more accurate set-up and adjustment, and
improves overall performance. In addition, Bilinx uses the
standard video cable to transmit alarm and status
messages, providing superior performance without
additional installation steps.
www.boschsecurity.com
2 | LTC 0485 Series DinionXF Color Cameras
Video Motion Detection
The built-in video motion detector allows you to select up
to four fully programmable areas with individual thresholds.
The global scene change detector minimizes false alarms
caused by sudden lighting condition changes, such as
switching on or off the indoor or security lighting. When
motion is detected alarms may be displayed in the video
signal, the output relay can be closed in addition to alarm
message transmission on Bilinx.
Auto Black
The automatic black level feature, enhances contrast by
removing veiling glare from the picture or when contrast is
reduced by fog or mist.
Default Shutter
Certifications and Approvals
Electro Magnetic Compatibility
Emission
EN55022 class B, FCC class B part 15
Immunity
EN50130-4 Alarm Systems, Part 4
Vibration
Camera with .5 kg (1.1 lbs) lens according to
IEC60068-2-27
Safety
LTC 0485/11 and LTC 0485/51: EN60065
LTC 0485/21 and LTC 0485/61: UL6500, cUL CAN/CSA E60065-00
Installation/Configuration Notes
When viewing moving objects a fast shutter speed is
required. When using a fast shutter speed the lens opening
or gain control needs to be increased to maintain the video
signal. The camera sensitivity is limited by the fast shutter
speed. The default shutter setting of the LTC 0485 offers
the best of all worlds, fast shutter speed as long as there is
sufficient light, however as the light level falls, when other
adjustments have been exhausted, the shutter reverts to
the standard setting maintaining the cameras excellent
sensitivity.
Back Light Compensation (BLC)
Offering a fully programmable BLC area of interest, and a
variable BLC level, the camera can be easily set up for even
the most challenging entrance applications.
Lens Wizard
The LTC 0485 Series automatically detects the type of lens
installed. The Lens Wizard will focus the lens at the
maximum lens opening, to ensure that focus is maintained
throughout the entire 24–hour day/night cycle. No special
tools or filters are required.
Programmable Modes
The camera supports 3 independent operating modes.
The 3 modes are preprogrammed for typical applications,
but are fully programmable for individual situations.
Switching between modes is easy via Bilinx or the external
alarm input.
NightSense
The LTC 0485 cameras feature NightSense. With
NightSense the sensitivity is increased by 9 dB in
monochrome mode. NighSense can be automatically
activated in low light situations, or remotely using Bilinx.
SensUp
By increasing the integration time on the CCD up to 10
times, the effective sensitivity is dramatically enhanced,
especially useful where there is no artificial lighting and you
rely on the moon, stars and scattered radiation.
Dimensions in mm (inches)
Parts Included
Quantity
Components
1
LTC 0485 Series DinionXF Color Camera
1
Spare male 4–pin lens connector
Lens not included
Technical Specifications
Electrical
Model No.
Voltage Range
LTC 0485/11
12–28 VAC
45–65 Hz
11–36 VDC
LTC 0485/21
12–28 VAC
45–65 Hz
LTC 0485/51
85–265 VAC
45–65 Hz
LTC 0485/61
85–265 VAC
45–65 Hz
11–36 VDC
Power Consumption 4 W
Imager
Interline transfer CCD, 1/3-inch format
LTC 0485 Series DinionXF Color Cameras | 3
Mechanical
Active Pixels
PAL
752 H x 582 V
NTSC
768 H x 492 V
Sensitivity
(3200 k)
Sensitivity (Full Vid- 2.4 lux (0.24 fc)
eo)1)
Sensitivity 50 IRE1) 0.59 lux / 0.24 lux (NightSense) (0.059 fc / 0.024 fc
(NightSense))
Minimum Illumination1)
0.24 lux / 0.10 lux (NightSense) (0.024 fc / 0.01 fc
(NightSense))
Minimum Illumination with Sens Up
0.024 lux / 0.010 lux (NightSense)
(0.0024 fc / 0.0010 fc (NightSense))
Horizontal Resolution
540 TVL
Signal-to-Noise-Ra- > 50 dB
tio
Video Output
1 Vpp, 75 Ohm
Y/C Output
Y: 1 Vpp / C: 0.3 Vpp
Synchronization
Internal, line lock, HV-lock and genlock (Burst lock)
selectable
Electronic Shutter
Auto (1/60 (1/50) to 1/500000), fixed, flickerless,
default
Sensitivity up
Off, automatic continuous up to 10x
Auto Black
On, off selectable
Range
32x dynamic range enhancement
Dynamic Noise Reduction
Auto, off selectable
Contour
Sharpness enhancement level selectable
BLC
Off, area and level selectable
Gain
Auto (maximum level selectable to 28 dB) or fixed
level selectable
White Balance
ATW (2500–10000 K), AWB hold, manual WB selectable
VMD
4 area, sensitivity selectable
Alarm Output
VMD or Bilinx
Alarm Input (TTL)
Profile switching, +5 V nominal, +40 VDC max.
Alarm Output Relay Max. 30 VAC or +40 VDC, max. 0.5 A continuous, 10
VA
External Synchrona- 75 Ohm or High Impedance selectable
lInput
Cable Compensation
Up to 1000 m (3000 ft) coax without external amplifiers (automatic set-up in combination with coaxial
communication)
Camera ID
16 character editable string, position selectable
Lens Types
Manual, DC- and Video-iris auto-detect with override
DC-iris drive: max. 50 mA continuous Video-iris: 11.5
± 0.5 VDC, max. 50 mA continuous
Remote Control
Bi-directional coaxial communication
Dimensions
(H x W x L)
59 x 67 x 122 mm (2.28 x 2.6 x 4.8 in.) without lens
Weight
450 g (0.99 lbs) without lens
Tripod Mount
Bottom (isolated) and top 1/4-in. 20 UNC
Lens Mount
Cand CS
Controls
OSD with softkey operation
Environmental
Operating Temperature
-20 °C to +50 °C(-4 °F to +122 °F)
Storage Temperature
-25 °C to +70 °C(-13 °F to +158 °F)
Operating Humidity
20% to 93% Relative humidity
Storage Humidity
Up to 98% Relative humidity
Ordering Information
LTC 0485/11 DinionXF Color Camera
1/3-inch, high performance, 540 TVL, PAL,
DSP, 12 – 28 VAC/11 – 36 VDC, 50 Hz
LTC0485/11
LTC 0485/21 DinionXF Color Camera
1/3-inch, high performance, 540 TVL, NTSC,
DSP, 12 – 28 VAC/11 – 36VDC, 60 Hz
LTC0485/21
LTC 0485/51 DinionXF Color Camera
1/3-inch, high performance, 540 TVL, PAL,
DSP, 85 – 268 VAC, 50 Hz
LTC0485/51
LTC 0485/61 DinionXFColor Camera
1/3-inch, high performance, 540 TVL, NTSC,
DSP, 85 – 265 VAC, 60 Hz
LTC0485/61
Accessories
LTC 3364/21 Varifocal Lens IR corrected
1/3-inch, 2.8 – 6 mm, DC-iris, CS-mount
F1.4-200, 4-pin
LTC3364/21
LTC 3364/31 Varifocal Lens
1/3-inch, 3.5 – 8 mm, DC-iris, CS-mount F/
1.4-200, 4-pin
LTC3364/31
LTC 3384/21 Zoom Lens
1/3-inch, 6 – 60 mm, DC-iris, CS-mount
F1.4-360, 4-pin
LTC3384/21
TC120PS Power Supply Unit
110-120 VAC/15 VDC, 50/60 Hz, 300 mA
TC120PS
TC220PS Power Supply Unit
230 VAC/12 VDC, 50 Hz, 10 VA
TC220PS
TC220PSX‑24 Power Supply Unit
230 VAC/20 VAC, 50 Hz, 20 VA
TC220PSX-24
TC1334 Power Supply Unit
120 VAC/24 VAC, 60 Hz, 30 VA
TC1334
Software Options
VP‑CFGSFT Configuration Software
for cameras using Bilinx, includes VP-USB
Adaptor
VP-CFGSFT
1) F1.2, 89% reflection, SensUp Off
www.boschsecurity.com
4 | LTC 0485 Series DinionXF Color Cameras
Americas:
Bosch Security Systems, Inc.
130 Perinton Parkway
Fairport, New York, 14450, USA
Phone: +1 800 289 0096
Fax: +1 585 223 9180
[email protected]
www.boschsecurity.us
Europe, Middle East, Africa:
Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven, The Netherlands
Phone: + 31 40 2577 284
Fax: +31 40 2577 330
[email protected]
www.boschsecurity.com
© Bosch Security Systems Inc. 010 | Data subject to change without notice
T1892137995 | Cur: en-US, V13, 21 Apr 2010
Asia-Pacific:
Represented by
Robert Bosch (SEA) Pte Ltd, Security Systems
11 Bishan Street 21
Singapore 573943
Phone: +65 6571 2600
Fax: +65 6571 2698
[email protected]
www.boschsecurity.com
