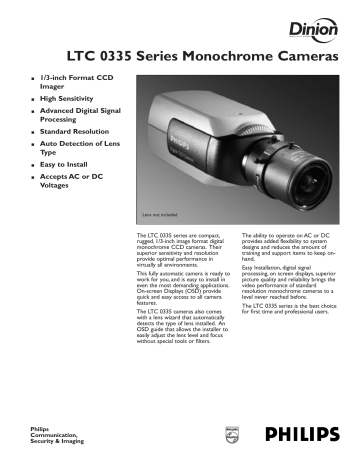

LTC 0335 Series Monochrome Cameras
■
1/3-inch Format CCD
Imager
■
High Sensitivity
■
Advanced Digital Signal
Processing
■
Standard Resolution
■
Auto Detection of Lens
Type
■
Easy to Install
■
Accepts AC or DC
Voltages
Lens not included
The LTC 0335 series are compact,
rugged, 1/3-inch image format digital
monochrome CCD cameras. Their
superior sensitivity and resolution
provide optimal performance in
virtually all environments.
This fully automatic camera is ready to
work for you, and is easy to install in
even the most demanding applications.
On-screen Displays (OSD) provide
quick and easy access to all camera
features.
The LTC 0335 cameras also comes
with a lens wizard that automatically
detects the type of lens installed. An
OSD guide that allows the installer to
easily adjust the lens level and focus
without special tools or filters.
Philips
Communication,
Security & Imaging
The ability to operate on AC or DC
provides added flexibility to system
designs and reduces the amount of
training and support items to keep onhand.
Easy Installation, digital signal
processing, on screen displays, superior
picture quality and reliability brings the
video performance of standard
resolution monochrome cameras to a
level never reached before.
The LTC 0335 series is the best choice
for first time and professional users.
SPECIFICATIONS
MECHANICAL
Electrical
Connectors:
- Video Output: BNC.
- Video/DC-Iris connector: 4-pin EIA-J.
Power:
LTC 0335/10 and LTC 0335/20: push type connectors,
polarity independent, isolated from video output
terminals
LTC 0335/50: 2-wire power cord with Euro plug
LTC 0335/60: 2-wire power cord with polarized plug
Camera mounting: Top and Bottom, 1/4-inch 20 UNC.
Lens Mounting: C and CS.
Dimensions: (HxWxD*) 58 x 66 x 122 mm
(2.28 x 2.6 x 4.8 inch). *including connectors.
Weight: 0.45 kg (0.99 lb).
Model No.
LTC 0335/10
LTC 0335/20
LTC 0335/50
LTC 0335/60
Rated Voltage
12 VDC
24 VAC, 50 Hz
12 VDC
24 VAC, 60 Hz
230 VAC, 50 Hz
120 VAC, 60 Hz
Voltage Range
10.8-39 VDC
12-28 VAC, 45-65 Hz
10.8-39 VDC
12-28 VAC, 45-65 Hz
85-265 VAC, 45-65 Hz
85-265 VAC, 45-65 Hz
System
CCIR
EIA
CCIR
EIA
Power Consumption: 4 W, excluding lens.
Imager: Interline transfer CCD, 1/3-inch image format.
Active Picture Elements:
CCIR Models: 512 H x 582 V.
EIA Models: 512 H x 492 V.
Sensitivity (3200 k):
Usable Picture
(50 IRE)
Scene illumination
fc
0.01
lx
0.12
Imager illumination
fc
0.0024
lx
0.024
1)
for f/1.2 lens, 89% scene reflectance.
1)
Full Video
0.048
0.48
0.010
0.10
Horizontal Resolution: 380 TVL.
Signal-to-noise Ratio: 50 dB.
AGC: 21 dB, (max).
Electronic Shutter:
Automatic, 1/50 to 1/500000 sec. (CCIR),
1/60 to 1/600000 sec. (EIA)
Aperture Correction: Horizontal and vertical
symmetrical.
Backlight Compensation: Center window weighting.
Video Output: Composite video 1.0 Vpp, 75 Ohms.
Synchronization:
Line-Lock : (When powered by AC only) Synchronizes the
camera to the power line zero crossing for roll-free
vertical interval switching.Vertical phase delay can be
adjusted (0 - 358 degrees) to allow vertical
synchronization in multi-phase power installations.
Crystal-Lock: (When DC-supply or L/L off) Internal crystal
reference is standard on all models.
Controls
Video level
Shutter: AES/Off/Flickerless
AGC: On/Off
BLC: On/Off
Auto Black: On/Off
Vphase Adjustment: 0 - 358 degrees
9922 141 00152en 02-35
ENVIRONMENTAL
Temperature Range:
Operating: -20 to 50°C (-4 to 122°F).
Storage: -25 to 70°C (-13 to 158°F).
Operating Humidity: 5% to 93% non-condensing.
Electromagnetic Compatibility:
EMC immunity: According EN50130-4
EMC emission: According EN505022 class B,
According FCC, class B part 15
Safety:
LTC 0335/10 and LTC 0335/50: EN60065
LTC 0335/20 and LTC 0335/60: UL6500
Accessories
Lenses DC-Iris:
LTC 3364/40: 2,8 - 12 mm, F1,4 - F360.
LTC 3374/20: 5 - 50 mm, F1,4 - F185.
Power Transformers and Power Supplies:
Model No.
TC1334
TC120PS
TC220PSX-24
TC220PS
© 2002 Philips Electronics N.V.
© 2002 Philips Communication, Security & Imaging, Inc.
All Rights Reserved. Philips ® is a registered trademark of
Philips Electronics N.V.
Data subject to change without notice
Rated Input
120 VAC, 60 Hz
120 VAC, 60 Hz
220 - 240 VAC, 50/60 Hz
220 - 240 VAC, 50/60 Hz
Rated Output
24 VAC, 30 VA
15 VDC, 9 VA
24 VAC, 20 VA
15 VDC, 9 VA
