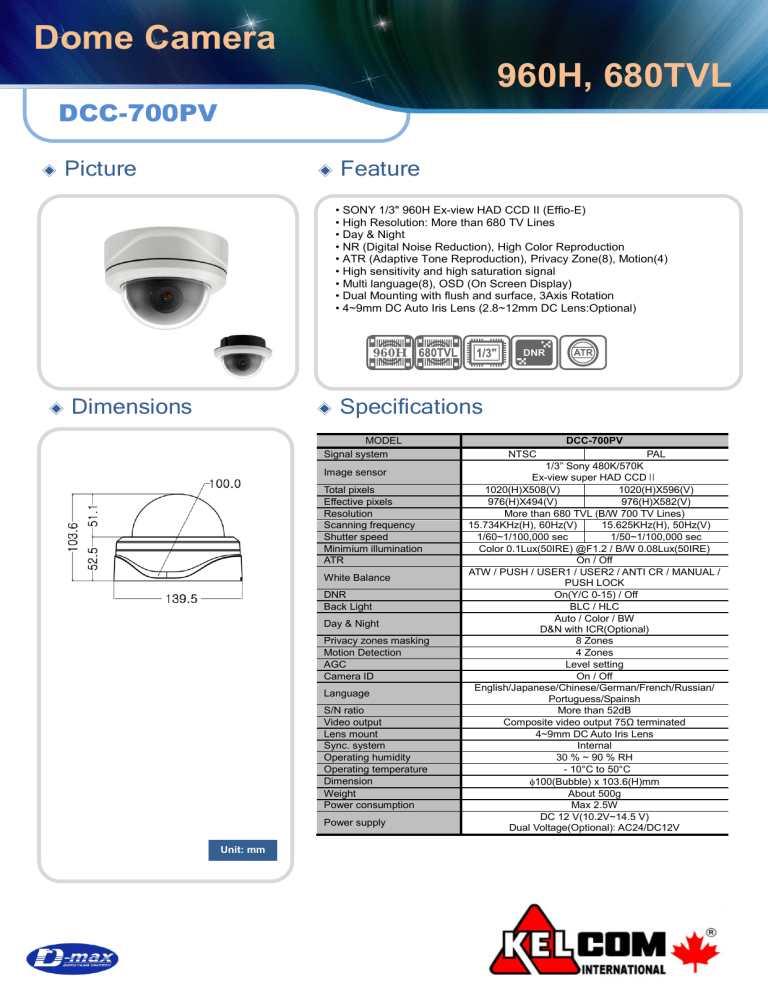

User manual | Dome Camera 960H, 680TVL

Dome Camera
960H, 680TVL
DCC-700PV
◈
◈
Feature
• SONY 1/3" 960H Ex-view HAD CCD II (Effio-E)
• High Resolution: More than 680 TV Lines
• Day & Night
• NR (Digital Noise Reduction), High Color Reproduction
• ATR (Adaptive Tone Reproduction), Privacy Zone(8), Motion(4)
• High sensitivity and high saturation signal
• Multi language(8), OSD (On Screen Display)
• Dual Mounting with flush and surface, 3Axis Rotation
• 4~9mm DC Auto Iris Lens (2.8~12mm DC Lens:Optional)
◈
Dimensions
◈
Specifications
MODEL
Signal system
Image sensor
Total pixels
Effective pixels
Resolution
Scanning frequency
Shutter speed
Minimium illumination
ATR
White Balance
DNR
Back Light
Day & Night
Privacy zones masking
Motion Detection
AGC
Camera ID
Language
S/N ratio
Video output
Lens mount
Sync. system
Operating humidity
Operating temperature
Dimension
Weight
Power consumption
Power supply
Unit: mm
DCC-700PV
NTSC
PAL
1/3” Sony 480K/570K
Ex-view super HAD CCDⅡ
1020(H)X508(V)
1020(H)X596(V)
976(H)X494(V)
976(H)X582(V)
More than 680 TVL (B/W 700 TV Lines)
15.734KHz(H), 60Hz(V)
15.625KHz(H), 50Hz(V)
1/60~1/100,000 sec
1/50~1/100,000 sec
Color 0.1Lux(50IRE) @F1.2 / B/W 0.08Lux(50IRE)
On / Off
ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL /
PUSH LOCK
On(Y/C 0-15) / Off
BLC / HLC
Auto / Color / BW
D&N with ICR(Optional)
8 Zones
4 Zones
Level setting
On / Off
English/Japanese/Chinese/German/French/Russian/
Portuguess/Spainsh
More than 52dB
Composite video output 75Ω terminated
4~9mm DC Auto Iris Lens
Internal
30 % ~ 90 % RH
- 10°C to 50°C
100(Bubble) x 103.6(H)mm
About 500g
Max 2.5W
DC 12 V(10.2V~14.5 V)
Dual Voltage(Optional): AC24/DC12V
