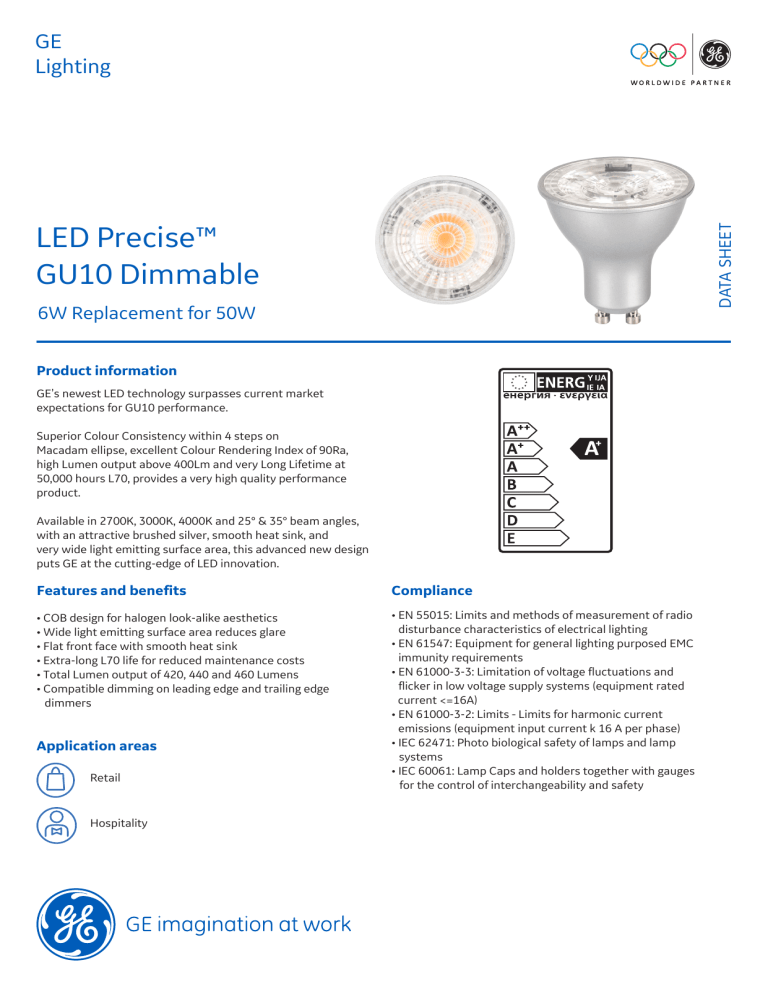

LED Precise™ GU10 Dimmable

LED Precise™ GU10 Dimmable
GE
Lighting
DATA SHEET
LED Precise™
GU10 Dimmable
6W Replacement for 50W
Product information
GE’s newest LED technology surpasses current market
expectations for GU10 performance.
Superior Colour Consistency within 4 steps on
Macadam ellipse, excellent Colour Rendering Index of 90Ra,
high Lumen output above 400Lm and very Long Lifetime at
50,000 hours L70, provides a very high quality performance
product.
Available in 2700K, 3000K, 4000K and 25° & 35° beam angles,
with an attractive brushed silver, smooth heat sink, and
very wide light emitting surface area, this advanced new design
puts GE at the cutting-edge of LED innovation.
Features and benefits
Compliance
• COB design for halogen look-alike aesthetics
• Wide light emitting surface area reduces glare
• Flat front face with smooth heat sink
• Extra-long L70 life for reduced maintenance costs
• Total Lumen output of 420, 440 and 460 Lumens
• Compatible dimming on leading edge and trailing edge
dimmers
• EN 55015: Limits and methods of measurement of radio
disturbance characteristics of electrical lighting
• EN 61547: Equipment for general lighting purposed EMC
immunity requirements
• EN 61000-3-3: Limitation of voltage fluctuations and
flicker in low voltage supply systems (equipment rated
current <=16A)
• EN 61000-3-2: Limits - Limits for harmonic current
emissions (equipment input current k 16 A per phase)
• IEC 62471: Photo biological safety of lamps and lamp
systems
• IEC 60061: Lamp Caps and holders together with gauges
for the control of interchangeability and safety
Application areas
Retail
Hospitality
Type
Rated Power
(W)
CCT
(K)
Total
Lumens (lm)
DIM2
Lumen
Rated
Angle
CBCP
Life L70
(Hrs)
Pack
Qty
Product code
GU10
6
2700
420
400
25°
1500
50 000
A+
10
93040548
GU10
6
2700
420
400
35°
1000
GU10
6
3000
440
420
25°
1600
50 000
A+
10
93040549
50 000
A+
10
93040550
GU10
6
3000
440
420
35°
GU10
6
4000
460
440
25°
1100
50 000
A+
10
93040551
1900
50 000
A+
10
93040552
GU10
6
4000
460
440
35°
1200
50 000
A+
10
93040554
EEC
Common attributes
• Colour Rendering Index >90
• Input Voltage 220-240V
• Warm up time: Instant on
• Switching Cycles: 100,000
• Power factor: >0.9
Recommended operation temperature
Dimensions [mm]
To meet B50 life claim
54
Maximum T hs
Temperature [°C]
83
Thermal test point
50.2
Operation & maintenance
• Store and use the lamps the same way as traditional lamps.
• Check your fixtures are properly wired and don't deliver voltage spike to lamps causing overheating/failure.
• Ambient temperature range -20° C to 40°C
• Lamps should be kept free from contamination.
• Good condition of the lamp-holder contacts is important to en sure proper operation of lamp.
• Ensure lamp is cool before removing.
• Switch off mains supply before installing/removing lamp.
• Not for use in totally enclosed recessed fixtures.
GE LED Precise™ GU10 6W lamps are dimmable on most leading and trailing edge dimmers,
for more information please check our website www.gelighting.com/dimming-led.
www.gelighting .com
and General Electric a re both registered trademarks
of the General Electric Company
GE Lighting is constantly developing and improving its products. For this reason, all product descriptions in this brochure are intended as a
general guide, and we may change
time to time in the interest of product development, without prior
or public
announcemen t. All descriptions in this publication present only general particulars of the goods to which they refer and shall not form part
of any contract . Data in this guide has been obtained in controlled e×perimental conditions. However, GE Lighting cannot accept any liability
arising from the reliance on such data to the e×tent permitted by law.
LED Precise™ GU10 6W – January 2017
