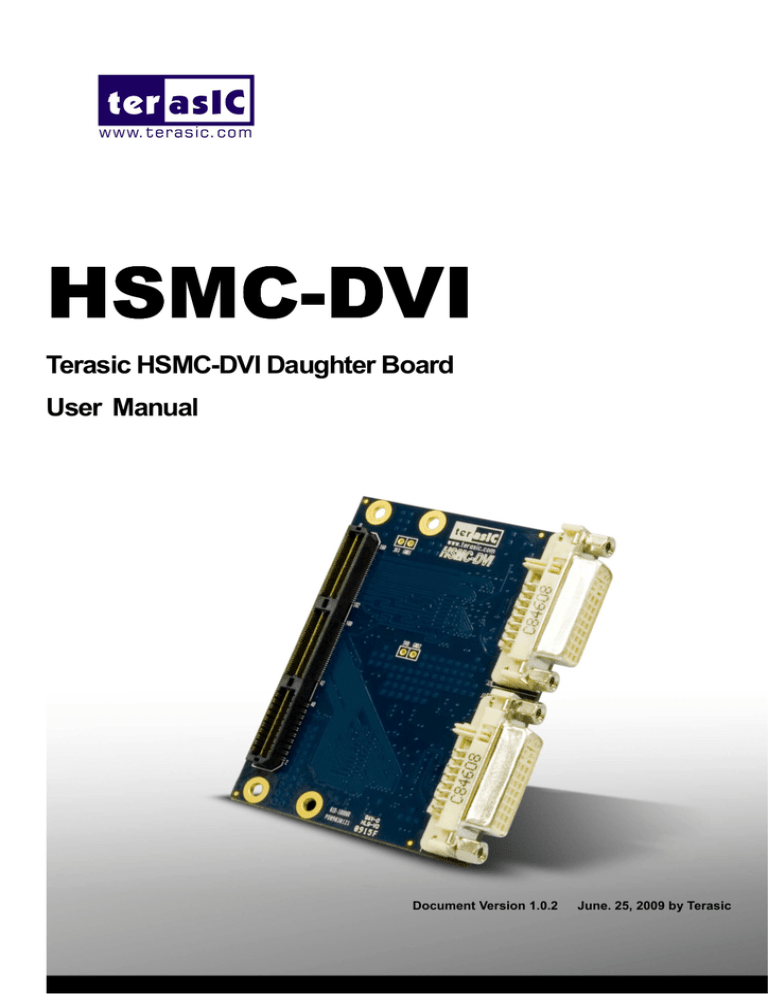

HSMC-DVI User Manual
Terasic THDB-
HSMCHSMC-DVI
Terasic HSMC-DVI Daughter Board
User Manual
Document Version 1.0.2
June. 25, 2009 by Terasic
Introduction
Page Index
INTRODUCTION................................................................................................................................................................................. 1
1.1
1.1 FEATURES..................................................................................................................................................................... 1
1.2
1.2 ABOUT THE KIT ............................................................................................................................................................ 2
1.3
1.3 ASSEMBLE THE HSMC-DVI BOARD ............................................................................................................................ 6
1.4
1.4 GETTING HELP ............................................................................................................................................................. 6
ARCHITECTURE ................................................................................................................................................................................ 8
2.1
2.1 LAYOUT AND COMPONETS............................................................................................................................................ 8
2.2
2.2 BLOCK DIAGRAM ........................................................................................................................................................ 10
BOARD COMPONENTS ..................................................................................................................................................................11
3.1
3.1 THE HSMC-DVI CONNECTOR................................................................................................................................... 11
3.2
3.2 GENERATE PIN ASSIGNMENTS ................................................................................................................................... 17
DEMONSTRATION .......................................................................................................................................................................... 26
4.1
4.1 INTRODUCTION ........................................................................................................................................................... 26
4.2
4.2 SYSTEM REQUIREMENTS ........................................................................................................................................... 26
4.3
4.3 HARDWARE SETUP ..................................................................................................................................................... 27
4.4
4.4 CONFIGURE FPGA .................................................................................................................................................... 27
4.5
4.4 DEMO OPERATION ...................................................................................................................................................... 28
4.6
4.5 DESIGN CONCEPT ...................................................................................................................................................... 29
4.7
4.6 SOURCE CODE LOCATION .......................................................................................................................................... 31
APPENDIX ......................................................................................................................................................................................... 32
5.1
5.1 REVISION HISTORY..................................................................................................................................................... 32
5.2
5.2 ALWAYS VISIT HSMC-DVI W EBPAGE FOR NEW MAIN BOARD ................................................................................. 32
ii
Introduction
1
Introduction
The Terasic HSMC-DVI is a DVI transmitter/receiver board with a High Speed Mezzanine Connector (HSMC)
interface. It is designed to allow developers to access high quality and high resolution video signals in their
FPGA. It gives the flexibility required in high resolution image processing systems by combining both the DVI
transmitter and receiver onto the same card. Lastly, the HSMC-DVI daughter board can be connected to any
HSMC/HSTC interface host boards.
1.1 1.1 Features
Figure 1.1 shows the photo of the HSMC-DVI board. The important features are listed below:
Digital Transmitter
•
One DVI transmitter with single transmitting port
•
Digital Visual Interface (DVI) Compliant
•
Supports resolutions from VGA to UXGA (25 MHz – 165 MHz Pixel Rates)
•
Universal Graphics Controller Interface
•
12-Bit, Dual-Edge and 24-Bit, Single-Edge Input Modes
Adjustable 1.1 V to 1.8 V and Standard 3.3 V CMOS Input Signal Levels
Fully Differential and Single-Ended Input Clocking Modes
Standard Intel 12-Bit Digital Video Port Compatible as on Intel™ 81x Chipsets
Enhanced PLL Noise Immunity
•
On-Chip Regulators and Bypass Capacitors for Reducing System Costs
Enhanced Jitter Performance
No HSYNC Jitter Anomaly
Negligible Data-Dependent Jitter
•
Programmable Using I²C Serial Interface
•
Single 3.3-V Supply Operation
Digital Receiver
•
One DVI receiver with single receiving port
•
Supports UXGA Resolution (Output Pixel Rates Up to 165 MHz)
•
Digital Visual Interface (DVI) Specification Compliant
•
True-Color, 24 Bit/Pixel, 16.7M Colors at 1 or 2-Pixels Per Clock
•
Laser Trimmed Internal termination Resistors for Optimum Fixed Impedance Matching
•
4x Over-Sampling
•
Reduced Ground Bounce Using Time Staggered Pixel Outputs
•
Lowest Noise and Best Power Dissipation Using TI PowerPAD™ Packaging
1
Introduction
Figure 1.1. The HSMC-DVI board
1.2 1.2 About the KIT
This section describes the package content
•
HSMC-DVI board x 1
•
System CD-ROM x 1
The CD contains technical documents of the HSMC-DVI, and one reference design along with the source
code.
Figure 1.2 HSMC-DVI Package
2
Introduction
The source code of reference design are available for the following FPGA main board:
•
DE3
Figure 1.2.1 The HSMC-DVI board connects with DE3
•
Arria II GX Development Board
Figure 1.2.2. The HSMC-DVI board connects with Arria II Development Board
3
Introduction
•
Cyclone III Starter Board
Figure 1.2.3. The HSMC-DVI board connects with Cyclone III Starter Board
•
Cyclone III FPGA Development Kit
Figure 1.2.4 The HSMC-DVI board connects with Cyclone III Development Board
4
Introduction
•
Stratix III FPGA Development Kit
Figure 1.2.5. The HSMC-DVI board connects with Stratix III Development Board
•
DE2-115 Development Board
Figure 1.2.6. The HSMC-DVI board connects with DE2-115 Development Board
5
Introduction
•
DE4 Development Board
Figure 1.2.7. The HSMC-DVI board connects with DE4 Development Board
1.3 1.3 Assemble the HSMC-DVI Board
This section describes how to connect the HSMC-DVI daughter board to a main board, and using DE3 as an
example.
The HSMC-DVI daughter board connects to the main boards through the HSTC interface.
For the DE3, the
HSMC-DVI can be connected to any DE3’s four HSTC connectors using a THCB-HFF adapter card (Figure
1.3.1) which can be found in the DE3 package.
Figure 1.3.1 THCB-HFF adapter card
6
Introduction
Figure 1.3.2 The HSMC-DVI board connects with DE3
Note.
Do not attempt to connect/remove the HSMC-DVI daughter board to/from the main the main board
when the power is on, or else the hardware could be damaged.
1.4 1.4 Getting Help
Here are some places to get help if you encounter any problem:
Email to [email protected]
Taiwan & China: +886-3-550-8800
Korea : +82-2-512-7661
Japan: +81-428-77-7000
7
Architecture
2
Architecture
This Chapter covers the architecture of the HSMC-DVI board including its PCB and block diagram.
2.1 2.1 Layout and Componets
The picture of the HSMC-DVI board is shown in Figure 2.1.1 and Figure 2.1.2 It depicts the layout of the board
and indicates the location of the connectors and key components.
Figure 2.1.1 The HSMC-DVI PCB and component diagram
8
Architecture
Figure 2.1.2 The HSMC-DVI Back side – HSMC connector view
The following components are provided on the HSMC-DVI board :
•
DVI Transmitter (U2)
•
DVI Receiver (U3)
•
I2C EEPROM (U4)
•
DVI Transmitter Connector (J2)
•
DVI Receiver Connector (J3)
•
HSMC Connector (J1)
9
Architecture
2.2 2.2 Block Diagram
Figure 2.2.1 shows the block diagram of the HSMC-DVI board
Figure 2.2.1 The block diagram of the HSMC-DVI board
10
Board Components
3
Board Components
This section illustrates the detailed information of the components, connector interfaces, and the pin mapping
tables of the HSMC-DVI board
3.1 3.1 The HSMC-DVI Connector
This section describes pin definition of the HSMC-DVI interface onboard
All the control and data signals of the DVI transmitter and receiver are connected to the HSMC connector, so
users can fully control the HSMC-DVI daughter board through the HSMC interface.
and 12V of the HSMC connector.
11
Power is derived from 3.3V
Board Components
Figure 3.1. The pin-outs on the HSMC connector
12
Board Components
The table 3.1 below lists the HSMC signal direction and description.
Note. The power pins are not shown in the table
Table 3.1
Pin Numbers
Name
Direction
Description
1
N.C.
N/A
Not Connect
2
N.C.
N/A
Not Connect
3
N.C.
N/A
Not Connect
4
N.C.
N/A
Not Connect
5
N.C.
N/A
Not Connect
6
N.C.
N/A
Not Connect
7
N.C.
N/A
Not Connect
8
N.C.
N/A
Not Connect
9
N.C.
N/A
Not Connect
10
N.C.
N/A
Not Connect
11
N.C.
N/A
Not Connect
12
N.C.
N/A
Not Connect
13
N.C.
N/A
Not Connect
14
N.C.
N/A
Not Connect
15
N.C.
N/A
Not Connect
16
N.C.
N/A
Not Connect
17
N.C.
N/A
Not Connect
18
N.C.
N/A
Not Connect
19
N.C.
N/A
Not Connect
20
N.C.
N/A
Not Connect
21
N.C.
N/A
Not Connect
22
N.C.
N/A
Not Connect
23
N.C.
N/A
Not Connect
24
N.C.
N/A
Not Connect
25
N.C.
N/A
Not Connect
26
N.C.
N/A
Not Connect
27
N.C.
N/A
Not Connect
28
N.C.
N/A
Not Connect
29
N.C.
N/A
Not Connect
30
N.C.
N/A
Not Connect
31
N.C.
N/A
Not Connect
32
N.C.
N/A
Not Connect
33
HSMC_SDA
Inout
I²C data
13
Board Components
34
HSMC_SCL
Output
I²C clock
35
N.C.
N/A
Not Connect
36
N.C.
N/A
Not Connect
39
N.C.
N/A
Not Connect
40
N.C.
N/A
Not Connect
41
DVI_RX_D0
Input
DVI receiver pixel data
42
DVI_RX_D14
Input
DVI receiver pixel data
43
DVI_RX_D1
Input
DVI receiver pixel data
44
DVI_RX_D15
Input
DVI receiver pixel data
45
3V3
Power
Power 3.3V
46
12V
Power
Power 12V
47
DVI_RX_D2
Input
DVI receiver pixel data
48
DVI_RX_D13
Input
DVI receiver pixel data
49
DVI_RX_D3
Input
DVI receiver pixel data
50
DVI_RX_D12
Input
DVI receiver pixel data
51
3V3
Power
Power 3.3V
52
12V
Power
Power 12V
53
DVI_RX_D4
Input
DVI receiver pixel data
54
DVI_RX_D11
Input
DVI receiver pixel data
55
DVI_RX_D5
Input
DVI receiver pixel data
56
DVI_RX_D10
Input
DVI receiver pixel data
57
3V3
Power
Power 3.3V
58
12V
Power
Power 12V
59
DVI_RX_D6
Input
DVI receiver pixel data
60
DVI_RX_D9
Input
DVI receiver pixel data
61
DVI_RX_D7
Input
DVI receiver pixel data
62
DVI_RX_D8
Input
DVI receiver pixel data
63
3V3
Power
Power 3.3V
64
12V
Power
Power 12V
65
DVI_RX_CTL1
Input
Control signal
66
DVI_RX_D23
Input
DVI receiver pixel data
67
DVI_RX_HS
Input
DVI receiver horizontal sync
68
DVI_RX_D22
Input
DVI receiver pixel data
69
3V3
Power
Power 3.3V
70
12V
Power
Power 12V
71
DVI_RX_VS
Input
DVI receiver vertical sync
72
DVI_RX_D21
Input
DVI receiver pixel data
73
DVI_RX_DE
Input
DVI receiver data enable
14
Board Components
74
DVI_RX_D20
Input
DVI receiver pixel data
75
3V3
Power
Power 3.3V
76
12V
Power
Power 12V
77
DVI_RX_CTL3
Input
Control signal
78
DVI_RX_D19
Input
DVI receiver pixel data
79
DVI_RX_CTL2
Input
Control signal
80
DVI_RX_D18
Input
DVI receiver pixel data
81
3V3
Power
Power 3.3V
82
12V
Power
Power 12V
83
DVI_RX_DDCSDA
Inout
DDC I²C data
84
DVI_RX_D17
Input
DVI receiver pixel data
85
DVI_RX_DDSCL
Inout
DDC I²C clock
86
DVI_RX_D16
Input
DVI receiver pixel data
87
3V3
Power
Power 3.3V
88
12V
Power
Power 12V
89
EDID_WP_n
Output
I²C write protect enable
90
DVI_RX_SCDT
Input
Receiver sync detect
91
N.C.
N/A
Not Connect
92
DVI_TX_D17
Output
DVI transmitter data bus
93
3V3
Power
Power 3.3V
94
12V
Power
Power 12V
95
DVI_TX_D16
Output
DVI transmitter data bus
96
DVI_RX_CLK
Input
DVI receiver clock
97
N.C.
N/A
Not Connect
98
N.C.
N/A
Not Connect
99
3V3
Power
Power 3.3V
100
12V
Power
Power 12V
101
DVI_TX_D12
Output
DVI transmitter data bus
102
DVI_TX_D18
Output
DVI transmitter data bus
103
DVI_TX_D13
Output
DVI transmitter data bus
104
DVI_TX_D19
Output
DVI transmitter data bus
105
3V3
Power
Power 3.3V
106
12V
Power
Power 12V
107
DVI_TX_D14
Output
DVI transmitter data bus
108
DVI_TX_D20
Output
DVI transmitter data bus
109
DVI_TX_D15
Output
DVI transmitter data bus
110
DVI_TX_D21
Output
DVI transmitter data bus
111
3V3
Power
Power 3.3V
15
Board Components
112
12V
Power
Power 12V
113
DVI_TX_D11
Output
DVI transmitter data bus
114
DVI_TX_D22
Output
DVI transmitter data bus
115
DVI_TX_D10
Output
DVI transmitter data bus
116
DVI_TX_D23
Output
DVI transmitter data bus
117
3V3
Power
Power 3.3V
118
12V
Power
Power 12V
119
DVI_TX_D9
Output
DVI transmitter data bus
120
DVI_TX_DKEN
Output
Data de-skew enable
121
DVI_TX_D8
Output
DVI transmitter data bus
122
DVI_TX_HS
Output
DVI transmitter Horizontal sync
123
3V3
Power
Power 3.3V
124
12V
Power
Power 12V
125
DVI_TX_D7
Output
DVI transmitter data bus
126
DVI_TX_VS
Output
DVI transmitter vertical sync
127
DVI_TX_D6
Output
DVI transmitter data bus
128
DVI_TX_CTL3
Output
Multifunction
129
3V3
Power
Power 3.3V
130
12V
Power
Power 12V
131
DVI_TX_D5
Output
DVI transmitter data bus
132
DVI_TX_CTL2
Output
Multifunction
133
DVI_TX_D4
Output
DVI transmitter data bus
134
DVI_TX_CTL1
Output
Multifunction
135
3V3
Power
Power 3.3V
136
12V
Power
Power 12V
137
DVI_TX_D3
Output
DVI transmitter data bus
138
DVI_TX_HTPLG
Output
Edge select/hot plug input
139
DVI_TX_D2
Output
DVI transmitter data bus
140
TX_PD_n
Output
Power down (active low)
141
3V3
Power
Power 3.3V
142
12V
Power
Power 12V
143
DVI_TX_D1
Output
DVI transmitter data bus
144
DVI_TX_MSEN
Input
Monitor sense/programmable output
145
DVI_TX_D0
Output
DVI transmitter data bus
146
DVI_TX_ISEL
Output
I²C interface select/I²C reset
147
3V3
Power
Power 3.3V
148
12V
Power
Power 12V
149
DVI_TX_DE
Output
DVI data enable
16
Board Components
150
DVI_TX_SDA
I/O
DSEL/I²C data
151
DVI_TX_DDCSDA
I/O
DDC I²C data
152
DVI_TX_SCL
Output
Input bus select/I²C clock
153
3V3
Power
Power 3.3V
154
12V
Power
Power 12V
155
DVI_TX_CLK
Output
DVI transmitter clock
156
N.C.
N/A
Not Connect
157
DVI_TX_DDCSCL
Output
DDC I²C clock
158
N.C.
N/A
Not Connect
159
3V3
Power
Power 3.3V
160
GND
Power
Power Ground
161
GND
Power
Power Ground
162
GND
Power
Power Ground
163
GND
Power
Power Ground
164
GND
Power
Power Ground
165
GND
Power
Power Ground
166
GND
Power
Power Ground
167
GND
Power
Power Ground
168
GND
Power
Power Ground
169
GND
Power
Power Ground
170
GND
Power
Power Ground
171
GND
Power
Power Ground
172
GND
Power
Power Ground
3.2 3.2 Generate Pin Assignments
This section describes how to automatically generate a top-level project, including DVI pin assignments
For the DE3 main board:
Users can easily create the HSMC-DVI board pin assignments by utilizing the DE3_System Builder V 1.4.3 or
later (DE3_System Builder is available on the DE3 System CD or can be downloaded from the website
http://de3.terasic.com).
Here are the procedures to generate a top-level project for HSMC-DVI.
1) Launch DE3-System Builder
2) Add a DE3 board.
Enable the HSTC-C connector and type desired pin pre-fix name in the dialog of DE3
Configuration.
17
Board Components
3) Add HSMC-DVI Board.
4) Connect DE3 and HSMC-DVI Board by drag-and-drop the mouse
18
Board Components
5)
Click “Generate” to generate the desired top-level and pin assignments for the HSMC-DVI project.
For the Cyclone III starter board, Cyclone III development board, Arria II GX development board and
Stratix III development board:
Users can easily generate HSMC-DVI pin assignments onto their main board by utilizing the Daughter Board
Wizard V1.2.0 or later (Daughter Board Wizard is available on the DVI CD-ROM located in the “Tool” folder).
Here are the procedures to generate a top-level project for HSMC-DVI.
1)
Launch Daughter Board Wizard.
2)
Select the Main Board Connector
3)
Select the HSMC-Compliant Daughter Board
19
Board Components
4)
Enter the signal Pre-fix name of Daughter Board and Click ‘Generate’ to generate the desired top-level
and pin assignments for the HSMC-DVI project.
For the DE4 development board:
1) Launch the DE4 System Builder.
20
Board Components
2) Select the appropriate Stratrix IV GX device of the DE4 under ‘Board Type’, as well as the ‘Project Name’.
21
Board Components
3) Select the components on the DE4 to be enabled in your design.
4) Under HSMC Expansion, select DVI under HSMC-A or HSMC-B or both to which the daughter card is
connected to. The ‘Prefix Name; is an optional feature that denotes the pin name of the daughter card
assigned in your design. Users may leave this field empty. However, if 2 DVI daughter cards are
connected to both HSMC-A and HMSC-B, a prefix name is required to avoid duplication in the pin name.
22
Board Components
For the DE2-115 development board:
1) Launch the DE2-115 System Builder.
23
Board Components
2) Select the ‘Project Name’ of the design
3) Select the components on the DE4 to be enabled in your design.
4) Under HSMC, select DVI under HSMC-A or HSMC-B or both to which the daughter card is connected to.
The ‘Prefix Name; is an optional feature that denotes the pin name of the daughter card assigned in your
24
Board Components
design. Users may leave this field empty.
25
Demonstration
4
Demonstration
This Chapter illustrates the reference design for the HSMC-DVI board
4.1 4.1 Introduction
This section describes the functionality of the demonstration briefly.
The demonstration shows how to use DE3 to controls the HSMC-DVI board.
The demonstration includes
two parts:
Transmission Demo:
The reference design can generate various video format signal for transmit. The supported format includes:
Pattern ID
Video Format
PCLK (MHZ)
0
[email protected]
25
1
[email protected]
27
2
[email protected]
65
3
[email protected]
108
4
[email protected]
148.5
5
[email protected]
162
Loopback Demo:
Loopback (Internal bypass) the DVI video signals within the FPGA board.
The video output pins of the
receiver are directly connected to the input video pins of the transmitter.
4.2 4.2 System Requirements
The following items are required for the HSMC-DVI Server demonstration.
•
HSMC-DVI x 1
•
DE3 Board x 1
•
LCD monitor with at least one DVI input x 1
•
DVI Video source x 1
•
DVI Cable x 2
26
Demonstration
4.3 4.3 Hardware Setup
Figure 4.3.1 shows how to setup hardware for the HSMC-DVI demonstration.
DVI Cable
DVI Source Device
Figure 4.3.1
Note: It is important to connect the DVI daughter board to Port C of the DE3 board.
A THCB-HFF adapter card is used to establish connection with DE3 and HSMC-DVI daughter board.
4.4 4.4 Configure FPGA
This section describes the procedures of configure the FPGA.
Please follow the procedure below to configure FPGA:
•
Connect DE3 to your PC by an usb cable.
•
Power on DE3
•
Project directory: DVI_Demo_DE3_150_PortC (Note: Project folder may vary depending on the DE3
device you are using and the corresponding port.
As for this demonstration, we are using Port C on
the DE3 FPGA)
•
Configure FPGA by the Bit Stream File: DVI_Demo.sof
27
Demonstration
4.5 4.4 Demo Operation
This section describes the procedures of operation the demonstration.
DVI Transmission Demo:
For transmission demo, please attach a LCD to DVI-TX port with a DVI cable.
By pressing Button[2] you can toggle between the transmission Demo and Loopback Demo. When
transmission demo is active, LED[3] is Off.
Click Button[3] can change active transmission pattern. The associated pattern ID is indicated by
LED[2:0]. LED[2]Off -- LED[1]Off -- LED[0]Off means pattern ID zero.
DVI Loopback Demo:
For loopback demo, please attach a LCD to DVI-TX port and attach a DVI-Video source to DVI-RX port
with DVI cables, in respectively.
By pressing Button[2] you can toggle the transmission Demo and Loopback Demo. When loopback demo
is active, LED[3:0] are on.
The loopback demonstration uses the EDID information which is stored in EEPROM on the DVI-RX. The
EDID is already initiated with the DVI board. However, if the EDID is erased or modified by users, please
remember to initialize EDID.
By pressing Button[1], the EDID initialization process is started. The LED[3:0] starts to blink when EDID
initialization is in process. When EDID is initialized successfully, the LED[3:0] stops blinking.
If EDID
initialization fails, please try to remove the cable attached to DVI_RX port and press Button[1] to try again.
The table below lists the functionality of each button for each development board of the reference design.
Cyclone III
DE3 Dev
Cyclone
Stratix III
Arria II GX
DE2-115
DE4
Dev
Board
III
Dev
Dev
Dev
Dev
Starter
Board
Board
Board
Board
Board
Kit
Transmission
User_pb[3]
Button[3]
Button[3]
Button[3]
Button[1]
Button[3]
Button[3]
Mode_button
User_pb[2]
Button[2]
Button[2]
Button[2]
Button[0]
Button[2]
Button[2]
EDID
User_pb[1]
Button[1]
Button[1]
Button[1]
Button[1]
Button[1]
Button[1]
Pattern
Initialization
&
Button[0]
28
Demonstration
4.6 4.5 Design Concept
This section describes the design concepts for the HSMC-DVI demonstration.
System Block Diagram:
Figure 4.5.1 show the block diagram of the demonstration.
Figure 4.5.1 Block diagram
29
Demonstration
The “Video Pattern Generator” module corresponds to the generated test patterns for transmission demo. The
test patterns includes:
Pattern ID
Video Format
PCLK (MHZ)
0
[email protected]
25
1
[email protected]
27
2
[email protected]
65
3
[email protected]
108
4
[email protected]
148.5
5
[email protected]
162
The display resolution and pixel rate will change when the mode changes. In this module, the ALTERA
PLL-RECONFIG controller is used to generate various pixel rates. The RECONFIG data for various clocks
are stored on the ROM. The module source code is located in “vpg” sub-folder.
For more information about
Stratix III re-configuration PLL, please refer to www.altera.com/literature/an/an454.pdf
The “Video Latch” module is used to latch DVI-RX video for high-speed video streaming.
The “Video Source Selector” module corresponds to the selected desired video source for final video display.
Altera LPM_MUX controller is used to achieve high-speed video streaming selection.
The “I2C EEPROM Write” module corresponds to writing aspects of the EDID content to EDID. For writing
custom EDID data, users can change this module.
30
Demonstration
4.7 4.6 Source Code Location
Table 4.6 shows the source code location for the DVI reference design for various FPGA main boards.
Table 4.6
FPGA Main Boards
Reference design location
DE3-340 Device (Port C)
\Examples\DVI_Demo_DE3_340_PortC
DE3-150 Device (Port C)
\Examples\DVI_Demo_DE3_150_PortC
Cyclone III Starter Board
\Examples\DVI_Demo_QB3
Cyclone III Development Board (Port B)
\Examples\DVI_Demo_C3H_PortB
Stratix III Development Board (Port B)
\Examples\DVI_Demo_S3H_PortB
Arria II GX Development Board
\Examples\DVI_Demo_A2GX
DE2-115 Development Board
\Examples\DVI_Demo_DE2_115
DE4-230 (Port A)
\Examples\DVI_Demo_DE4_230_PortA
DE4-230 (Port B)
\Examples\DVI_Demo_DE4_230_PortB
DE4-530 (Port A)
\Examples\DVI_Demo_DE4_530_PortA
DE4-530 (Port B)
\Examples\DVI_Demo_DE4_530_PortB
31
Appendix
5
Appendix
5.1 5.1 Revision History
Date
Change Log
June 25, 2009
Initial Version
March 15, 2010
Table 3.1 Pin assignments corrected
June 30, 2010
DE4, DE2-115, and Arria II GX dev board demonstration added
5.2 5.2 Always Visit HSMC-DVI Webpage for New Main board
We will be continuing providing interesting examples and labs on our HSMC-DVI
webpage. Please visit www.altera.com or hsmcdvi.terasic.com for more information.
32
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
