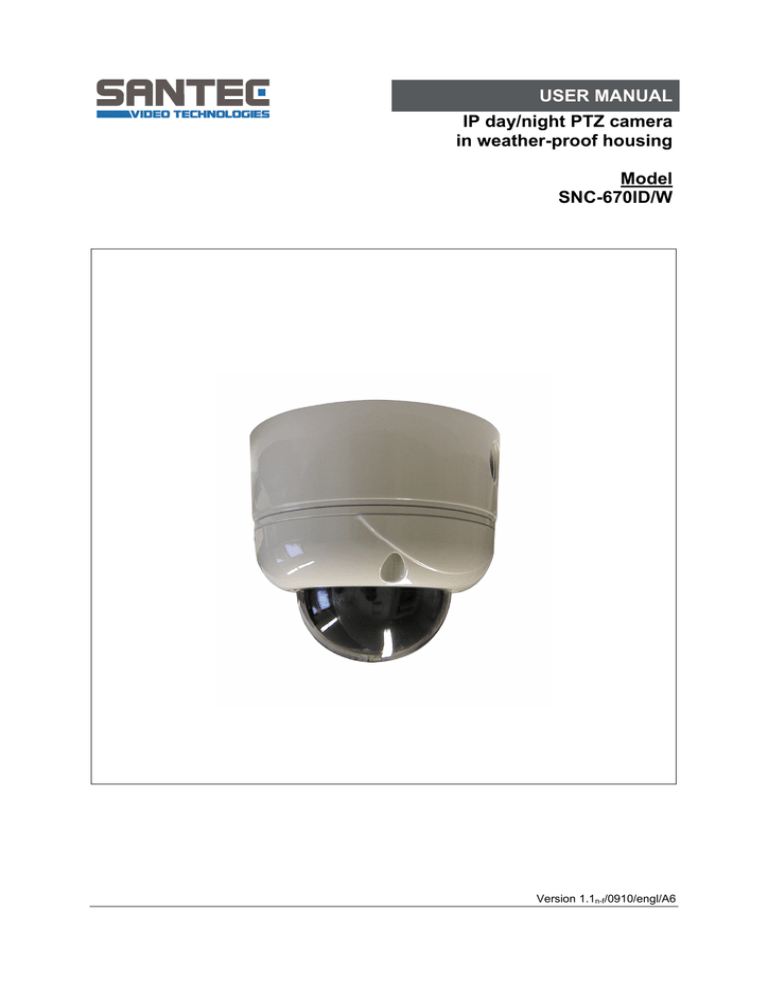

USER MANUAL

IP day/night PTZ camera in weather-proof housing

Model

SNC-670ID/W

Version 1.1

n-f

/0910/engl/A6

Dear customer,

Thank you for purchasing a high quality SANTEC device.

We recommend that you read this manual thoroughly before operating your new system for the first time. Please follow all instructions and observe the warnings contained in this manual.

Please contact your local dealer or use the SANTEC Service Hotline if you have any questions or if you wish to claim for a service or warranty.

You will find further information on our website: www.santec-video.com

SANTEC Service Hotline:

+49 / 900 / 1 72 68 32

+49 / 900 / 1 SANTEC

(if available from your country)

[email protected]

All rights reserved. This publication may not be reproduced, stored in a retrieval system or transmitted, in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), without the written prior permission of SANYO VIDEO Vertrieb AG.

No reproduction of any part or excerpts thereof are permitted.

Errors excepted. Specifications are subject to change without notice for quality improvement.

SANTEC is a registered trademark of SANYO VIDEO Vertrieb AG. All other companies or products mentioned in this publication are trademarks, registered trademarks or brands of the respective company. They are not connected in any way with SANYO VIDEO Vertrieb AG.

© copyright by SANYO VIDEO Vertrieb AG

User manual SNC-670ID/W

Table of contents

Safety precautions

Safety instructions

About this user manual

Items included in the delivery

1. Installation

1.1 Camera overview

1.2 Connections

1.3 How to open the housing

1.4 Connections for power supply and video

1.5 DIP-switch settings

1.6 Reset the camera to default settings

1.7 External RS-485 connection

1.8 Camera mounting

1.9 Dimensions

1.10 PTZ control vial Pelco D protocol

1.11 Diagnosis

1.12 Adjustment of analogue camera module

2. OSD menu

2.1 Overview

2.2 Dome: PTZ adjustment

2.3 Camera adjustments

2.4 Preset

2.5 Auto scan

2.6 Tour

2.7 Privacy zones

2.8 Patterns

2.9 Alarm

2.10 Sector

3. IP settings

4. Web interface

4.1 Calling-up the camera web interface

4.2 Live-view

4.3 Setting overview

4.4 System settings

4.4.1 Time/date

4.4.2 Time stamp

4.4.3 User

4.4.4 Language

4.4.5 RS-485 settings

4.4.6 PTZ settings

4.4.5 Camera name

4.4.5 Update firmware

16

16

17

21

23

24

25

26

27

28

29

30

32

32

33

35

36

36

37

37

38

39

40

41

41

12

12

13

13

14

15

10

10

11

11

8

8

8

5

6

7

7

_________________________________________________________________________________

- 3 -

4.5 Network

4.5.1 IP-address

4.5.2 SNTP (time server for time synchronisation)

4.5.3 FTP

4.5.4 SMTP

4.5.5 DDNS (dynamic domain name system)

4.5.6 Event protocol

4.6 Video settings

4.6.1 Encoding

4.6.2 Camera settings

4.7 Audio settings

4.8 Extended settings

4.8.1 Motion detection

4.8.2 Alarm settings

4.8.3 SD-card

4.8.3.1 SD-card settings

4.8.3.2 SD-card content

4.8.4 Recording

4.8.4.1 Recording settings

4.8.4.2 Recording schedules

5. Technical specifications

User manual SNC-670ID/W

46

47

48

49

49

50

50

51

51

52

52

53

42

42

43

43

44

45

45

46

54

_________________________________________________________________________________

- 4 -

User manual SNC-670ID/W

Safety precautions

Caution

Description of symbols

Danger: This symbol is intended to alert the user to the presence of un-insulated

"dangerous voltage" within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to a person.

Warning: This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying

the

CE compliance

Attention: Any changes or modifications to this appliance which have not been explicitly approved of by the respective regulatory authority, may lead to a prohibition of usage of this appliance.

This appliance complies with the CE guidelines.

_________________________________________________________________________________

- 5 -

User manual SNC-670ID/W

Safety instructions

 Before operating the appliance, please read this manual carefully and retain it for further reference.

 Before cleaning the appliance, it has to be switched off and unplugged from the power outlet.

Wipe the appliance with a soft damp cloth.

Do not use harsh cleansers or aerosols for cleaning. The type label may not be replaced.

 Do not use attachments unless recommended by the manufacturer as they may affect the functionality of the appliance and result in the risk of fire, electric shock or injury.

 Never install the appliance in areas exposed to water or other liquids.

 The camera housing complies with class IP-66.

 The appliance has to be installed in a safe and stable location which is able to carry the weight of the appliance. Quick stops, excessive force, and uneven surfaces may cause the appliance to fall causing serious injury to persons and damage to objects.

 Openings in the appliance, if any, are provided for ventilation to ensure reliable operation of the appliance and to protect if from overheating. These openings must not be covered or blocked.

Please make sure that the appliance does not overheat.

 The appliance should only be operated from the type of power source indicated on the marking label. If you are not sure of the type of power supplied at the installation location, please contact your local dealer.

 An appliance which is powered through a polarized plug (a plug with one blade wider than the other) will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug into the outlet, try reversing the plug. Do not defeat the safety purpose of the polarized plug.

 If the appliance is powered through a grounding-type plug, the plug will only fit into a groundingtype power outlet. This is a safety feature. If your outlet does not have the grounding plug receptacle, contact your local electrician.

 Route power cords and cables in a manner to protect them from damage by being walked on or pinched by items places upon or against them.

 For protection of the appliance during a lightning storm or when it is left unattended and unused for a longer period, unplug the appliance from the wall outlet. Disconnect any antennas or cable systems that may be connected to the appliance. This will prevent damage to the appliance due to lightning or power-line surges.

 Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

 Never insert items into the openings of the appliance. They may touch parts under electric current which may cause an electric shock.

 Never pour any liquids over the appliance.

_________________________________________________________________________________

- 6 -

User manual SNC-670ID/W

 In case of any operating interruption or a complete operating failure please switch off the appliance and disconnect it from the wall outlet. Never attempt to service or repair the appliance yourself, as opening or removing covers may expose you to dangerous voltage or other hazards.

Refer all servicing to qualified service personnel.

 When replacement parts are required, be sure that the service technician uses replacements parts specified by the manufacturer or that have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock or other hazards.

 Upon completion of any service or repairs to the appliance, ask the service technician to perform safety checks to verify that the appliance is in proper operating condition.

 The appliance should only be installed by qualified service personnel and has to comply with local specifications and regulations.

 Never point the camera at an object with a high degree of luminance. Bright vertical or horizontal lines can result in a distortion (outshine) of the entire image on the monitor. This artifact is not an error but a particularity of semiconductor CCDs when they are directly exposed to a powerful light source.

 At the installation site, the camera has to be adjusted to the given light conditions (see OSD).

 Please respect the local legal regulations on waste if you need to dispose of discarded appliances.

This symbol means that electrical appliances need to be disposed of properly and not simply with unsorted household refuse. Please respect local regulations on waste disposal.

About this user manual

This manual aims at assisting the user on how to operate camera SNC-670ID/W.

This manual is subject to rigid quality control. However, no guarantee can be given that mistakes are not present. We reserve the right to make changes to the manual without prior notice.

Before operating the appliance, please read this manual carefully and retain it for further reference.

Verify that all appliance items are included in the delivery. Should items be missing, do not operate the appliance and contact your local dealer.

Never attempt to repair the appliance yourself. This should only be done by qualified service personnel.

Improper handling of the appliance will invalidate the warranty.

Items included in the delivery

1x cable adapter BNC socket

2x connection plug

1x IP-finder software

_________________________________________________________________________________

- 7 -

User manual SNC-670ID/W

1. Installation

(also see the pictures on the following pages)

This camera is a PTZ camera in a vandal-proof housing, class IP-66. You will find the technical data at the end of the manual.

1.1. Camera overview

1. Adapter for mounting plate

2. Screw (PT ½)

3. DIP-switch

4. Distributor

5. Camera module

1.2. Connections

Ethernet connection

Power supply 12 V DC

_________________________________________________________________________________

- 8 -

User manual SNC-670ID/W

Audio input/output

Alarm input/output

_________________________________________________________________________________

- 9 -

1.3. How to open the housing

Open the housing by carefully loosening the housing’s screws. Pull off the housing module from the camera module. Make sure not to damage the rubber gasket.

Improper handling of the appliance will invalidate the warranty.

User manual SNC-670ID/W

1.4. Connections for power supply and video

The camera can be powered by 12 V DC using an external power supply unit.

Plug-in the power cable (it is recommended to use 12 V DC, 2 A) to the Power interface.

The camera has an analogue video output (BNC). If a monitor is directly connected to the analogue video output of the camera, the monitor impedance has to be set to 75 Ohm.

Check the switch in case the video picture is not clear. Plug-in the video cable to the video output (marked Video). analogue alarm inputs

_________________________________________________________________________________

- 10 -

User manual SNC-670ID/W

1.5. DIP-switch settings

By default, the DIP-switch settings are as follows:

Protocol

By default, the following settings apply:

 ID:

 Baud rate: 9600

 Protocol: Pelco D

These settings of the analogue camera module must not be changed because they are aligned with the RS-485 settings of the IP camera module.

1.6. Reset the camera to default settings

To reset the camera to default settings, press and hold the reset button for 5 seconds.

Reset button

_________________________________________________________________________________

- 11 -

User manual SNC-670ID/W

1.7. External RS-485 connection

PTZ camera control can also be done by the RS-485 interface.

Please note the following: The DIP-switch SM10 is used for 100 Ohm. DIP-switch SW10 must only be used for the last camera at the bus (even if only one camera is used).

Bus connection

Camera 1 Camera 2 Camera 3 Camera N

1.8. Camera mounting

Mount the camera onto a solid surface which is capable to carry the weight of the camera. In case the screws included in the delivery are not adequate, please make sure to use other suitable screws to ensure a safe camera installation.

1. Fix the bracket to the desired location using 4 screws.

2. If you use a tube cable channel, please make sure to use the right size.

3. Assemble the camera.

_________________________________________________________________________________

- 12 -

User manual SNC-670ID/W

1.9. Dimensions

1.10. PTZ control via Pelco D protocol

Command Description

1 - 64, 100-200 +Preset Presets Execute preset 1 – 165

Function

65 + Preset

66 +Preset

67 +Preset

71-78 +Preset

81-88 +Preset

91 + Preset

92 + Preset

93 + Preset

94 + Preset

95 + Preset

96 + Preset

Preset status

Autoscans

Preset status display

Execute autoscan 1 – 8

AUTO FLIP function Select auto flip mode ON / OFF / AUTO

Tours Execute tour 1 – 8

Patterns

Homeposition

Freeze

BLC mode

Day/night mode

OSD menu

Focus setting

Execute patterns 1 – 8

Go to home position

Freeze picture

Select BLC mode ON / OFF

Select day/night mode AUTO / DAY / NIGHT

Open OSD main menu

Adapt focus

Select alarm mode for all inputs ON / OFF 97 +Preset Alarm

Navigation in OSD menu

Move cursor up/down

Open sub-menu

Change status (decrease/increase)

Entry key

Use function key for coordinates

Cursors right

Cursors left

Command / Button

Tilt up (arrow up) / down (arrow down)

Pan right (arrow right)

Pan right (arrow right) / pan left (arrow left)

Focus near (focus -)

Focus far (focus +)

Zoom tele (zoom +)

Zoom wide (zoom -)

_________________________________________________________________________________

- 13 -

User manual SNC-670ID/W

1.11. Diagnosis

When the camera is switched on, the DIAGNOSIS menu appears. The following notification is displayed:

CAMERA ID : 001

BAUD RATE : 2400 BPS

WAITING………

PAN ORIGIN

TILT ORIGIN

TX CONNECTION TEST

CAMERA COMM TEST OK

Pan origin test

After the panning test, the pan function is set to zero.

Tilt origin test

After the tilting test, the tilt function iss et to zero.

TX connection test

60 seconds countdown for TX connection test. The camera has to receive a signal from a controller or a video for a duration of 60 seconds. Once the correct signal is received, the TX connection test says "OK“.

If the notification „Not Tested“ is displayed on the monitor:

 the camera didn’t receive any signal

 the camera hasn’t received a readable signal

 protocol, Baud rate and RS-485 connector should be checked.

Camera communication test

The camera communication test is initialised automatically. Before the installation these 4 tests should be completed with “OK”.

Once all tests are okay, the following notifications appear on the monitor: „NOW EEPROM

CHECKING“ and „ALL DATA INITIALIZING“. The camera is now ready to be used.

_________________________________________________________________________________

- 14 -

User manual SNC-670ID/W

1.12. Adjustment of analogue camera module

The camera adjustments of the analogue camera module are done by an OSD (on-screen display) menu.

Follow the instructions in chapter „OSD menu“ for more detailed information.

The OSD menu can be displayed by using the web interface of the camera on the page „live view“.

In order to navigate through the OSD menu, please use the arrow buttons. To confirm your selection, press the button.

The SanView software also enables access to the camera OSD menu via the network.

To call up the OSD menu, press the OSD button on the PTZ tab.

In order to navigate through the OSD menu, please use the arrow buttons. To confirm your selection, press the OSD button.

_________________________________________________________________________________

- 15 -

User manual SNC-670ID/W

2. OSD menu

2.1. Overview

_________________________________________________________________________________

- 16 -

User manual SNC-670ID/W

Main menu:

MAIN MENU

DOME SETUP

CAMERA SET

AUTO SCAN

TOUR

PRAVACY

PATTERN

ALARM

SECTOR

EXIT

Use the up/down arrows to go the desired position. Use the left/right arrows to confirm your choice.

2.2. Dome: PTZ adjustments

DOME SET

CAMERA ID : CAM1□□□□□□□□□□□□

RECOVER : OFF

MANUAL SPEED : 100°/S

AUTO FLIP : OFF

ZOOM SPEED : FAST

ALARM

LANGUAGE

: DISABLE

: ENGLISH

[NEXT PAGE]

SAVE AND EXIT

EXIT

Default setting

DOME-SETUP -> CAMERA ID:

You can enter up to 16 characters using the left/right arrows.

 To move from left to right to the next character, press ZOOM +.

 To move from right to left to the next character, press ZOOM -.

Blanks are marked with .

_________________________________________________________________________________

- 17 -

User manual SNC-670ID/W

DOME-SETUP -> RECOVER:

The camera is able to return to those previous settings which were used before you operated the camera manually (auto scan, group tour, preset, pattern or sectors).

After the set time, the camera goes into operation again in case it has been switched off. The recovery time can vary between 15 – 99 seconds. The default setting is OFF.

DOME-SETUP -> MANUAL SPEED:

The manual pan/tilt speed can be set from 10°/sec to 200°/sec. The default setting is 100°/sec.

DOME-SETUP -> AUTO FLIP

Use the left/right arrows to turn the auto flip function on/off. The default setting for auto flip is

OFF

DOME-SETUP -> ZOOM SPEED:

Zoom speed can be set to FAST or SLOW. Use the left/right arrows to make the setting. The default setting is FAST.

DOME-SETUP -> ALARM:

The alarm function is activated by switching-on the ENABLE mode. Use the left/right arrows to make the setting. The default setting is DISABLE.

DOME-SETUP -> LANGUAGE:

English, Italian and Polish are available, plus some other languages. Use the left/right arrows to make the setting. The default setting is ENGLISH.

DOME SET

SYSTEM LOCK: : OFF

[PASS WORD]

[OSD DISPLAY]

[SYSTEM STATUS]

Default setting

[INITIALIZATION]

[PREVIOUS PAGE]

DOME-SETUP -> SYSTEM LOCK:

Saved data is stored is protected by a password. Changes are only possible using the correct password. Set the System Lock“ to ON to get to the password page. Use the left/right arrows to make the settings. The default setting is OFF.

_________________________________________________________________________________

- 18 -

User manual SNC-670ID/W

DOME-SETUP -> PASSWORD:

Use the left/right arrows to enter the password on this page. The password has to contain numbers from 001 to 255. The default password is 99.

ENTER PASSWORD

BY ENTERING PRESET CODE

PASSWORD ***

CONFIRM ***

In the password field, enter a number from 001-255 using the PRESET button. Re-enter the number in the confirmation field. The monitor displays „CONFIRMED“. The menu page is then started automatically.

ENTER PASSWORD

BY ENTERING PRESET CODE

ENTER PASSWORD

BY ENTERING PRESET CODE

PASSWORD ***

CONFIRM ***CONFIRMED

PASSWORD ***

CONFIRM ***CANCELLED

<CANCELLED>

If a user enters a wrong PRESET number for PASSWORD or CONFIRM, the monitor displays

"CANCELLED". If a user enters a wrong PRESET number three times, the previous monitor page is displayed.

NOTE: Once a password has been created, it has to be used to access the OSD main menu. This also applies to changes. The user has to know the password to make changes. The device is delivered without a saved password.

DOME-SETUP -> OSD DISPLAY:

The OSD ID is displayed if set to ON and can be switched of with OFF. Use the left/right arrows to make the settings.

OSD DISPLAY

CAMERA ID

PRESET ID

: OFF

: OFF

Default setting

SECTOR ID : OFF

[PREVIOUS PAGE]

_________________________________________________________________________________

- 19 -

User manual SNC-670ID/W

DOME-SETUP -> OSD DISPLAY:

Camera information is displayed.

SYSTEM STATUS

PROTOCOL : PELCO D, P

BAUD RATE : 9600 BPS

FIRMWARE VER. : 2.01

UPGRADED DATE : 24.01.08

CAMERA MODULE : SDM100

[PREVIOUS PAGE]

Default setting

 Protocol and Baud rate are displayed according to the settings oft he DIP-switch

 Firmware version and data upgrade are applied when running updates

DOME-SETUP -> INITIALIZATION:

Using this function, all saved data of “tour“, “preset“, “sector“, “privacy“ or “pattern“ are deleted.

INITIALIZATION

[TOUR CLEAR]

[PRESET CLEAR]

[SECTOR CLEAR]

[PRIVACY CLEAR]

[PATTERN CLEAR]

[LOAD OPTIMIZED DEFAULT]

Use the left/right arrows to delete saved data.

TOUR CLEAR

ARE YOU SURE? YES NO

TOUR CLEAR

If you press FOCUS - and the curser is set to YES, saved data is deleted. After that, every element such as “preset“, „sector“ etc blinks and appear for approx. 2-3 seconds on the screen. Then the screen displays the previous page.

In order to delete the saved data and to reset to default settings, select LOAD OPTIMIZED

DEFAULT . The following page appears:

_________________________________________________________________________________

- 20 -

User manual SNC-670ID/W

LOAD OPTIMIZED DEFAULT

ALL DATA INITIALIZING

ARE YOU SURE? YES NO

To delete the data, select YES and press FOCUS -. The screen displays„ALL DATA

INITIALIZING“ for 5-7 seconds. The previous menu page is displayed automatically.

DOME-SETUP -> SAVE AND EXIT:

Data is saved and the page is exited.

DOME-SETUP -> EXIT:

The page is exited without saving any data.

2.3. Camera adjustments

CAMERA SET

WB MODE : AWB MODE

PIC FLIP

BLC

<TS-PTZ10X>

OFF

D/N MODE : AUTO

DSS MODE

EXIT

: OFF

<TS-PTZ10X>

CAMERA SET -> FLICKER:

BLC :

EXIT

CAMERA SET

<TS-PTZ3X>

<TS-PTZ3X>

This function reduces picture flickering. The default setting is OFF. Set the flicker mode to ON in case the power source doesn’t comply with the frequency.

CAMERA SET -> MIRROR:

This function can be used to display a horizontally mirrored picture. The default setting is OFF.

_________________________________________________________________________________

- 21 -

User manual SNC-670ID/W

CAMERA SET -> APERTURE:

This function enables to show details and to emphasise picture borders. The granularity is increased. The default setting is 10 (the aperture can be set from 0-15).

CAMERA SET -> D ZOOM:

Switches on the 10x digital zoom.

CAMERA SET -> WB MODE:

The white balance function has 4 setting modes, depending on the outside light. The default setting is AWB MODE (automatic white balance).

Depending on the light conditions, the following settings are possible:

 AWB MODE: from 3200 °K to 6000°K

 INDOOR: up to 3200 °K

 OUTDOOR: up to 5800 °K

 ATW MODUS: from 2000 °K to 10000 °K

CAMERA SET -> PIC FLIP:

The picture can be vertically mirrored. The default setting is OFF.

CAMERA SET -> BLC:

The default setting for backlight compensation is OFF.

OFF – backlight compensation (BLC) is not active.

ON – backlight compensation (BLC) is active.

CAMERA SET -> D/N MODE:

The IR cut filter operates in the following modes:

 AUTO MODE: Automatic switching between colour mode and black/white mode

 NIGHT MODE: The camera always remains in black/white mode.

 DAY MODE: The camera always remains in colour mode.

The default setting is AUTO MODE.

CAMERA SET -> DSS MODE:

Digital slow filter. This function determines the shutter speed. The shutter speed is increased to accumulate the light longer. The values can be set to 2x, 4x, … , 128x. The default setting is

OFF.

CAMERA SET -> EXIT:

Exit the menu.

_________________________________________________________________________________

- 22 -

User manual SNC-670ID/W

2.4. Preset

PRESET NO :001

PRESET ID :PRESET001-------

PAN :XXX.XX TILT : XXX.XX

SAVE

EXIT

PRESET SET

Default setting

PRESET -> PRESET NO:

There are 165 preset numbers available. Use the left/right arrows to select a preset number.

PRESET -> PRESET ID:

You can assign a name to a preset position, consisting of up to 16 characters. Use the left/right arrow to select the characters. To move from left to right, press ZOOM +. To move from right to left, press ZOOM - . Blanks are indicated with .

PRESET -> Pan XXX.X Tilt XX.X:

The coordinates of the preset position are displayed.

PRESET -> SAVE:

This function savest he preset position.

In order to set a preset position, please follow these steps:

 Exit the OSD menu of the camera module.

 Use the arrows and zoom button to move to the desired position.

 Once the position is selected, call-up the PRESET menu.

 Enter the desired preset number in the PRESET NO field.

 Select SAVE to store the settings. The curser is positioned at PRESET NO and the next preset number is displayed.

PRESET -> EXIT:

Exit the preset menu.

_________________________________________________________________________________

- 23 -

User manual SNC-670ID/W

2.5. Auto scan

AUTO SCAN SET

START ANGLE : XXX.X.XX.X

END ANGLE

SPEED

: XXX.X.XX.X

: 20 °/S

DWELL TIME : 03

SAVE AND EXIT

EXIT

AUTO SCAN -> START ANGLE:

Default setting

Press FOCUS + to select a start position. Move to the desired position by using the arrows.

Confirm your choice with FOCUS +.

AUTO SCAN -> END ANGLE:

Press FOCUS + to select an end position. Move to the desired position by using the arrows.

Confirm your choice with FOCUS +.

AUTO SCAN -> DIRECTION:

You can choose from 2 directions:

 CW: clockwise (default setting) counter-clockwise

AUTO SCAN SET -> ENDLESS:

The AUTO SCAN function can be used endlessly. Use the left/right arrows to make the settings. The default setting is OFF.

AUTO SCAN -> SPEED:

Speed settings ara available from 1°/sec to 35°/sec. The default setting is 20°/sec.

AUTO SCAN -> DWELL TIME:

Use the left/right arrows to set the dwell time. It can vary from 1-30 seconds. The default setting is 1 sec.

AUTO SCAN -> SAVE AND EXIT:

This function savest he settings and exits the auto scan menu.

AUTO SCAN -> EXIT:

Exit the menu.

_________________________________________________________________________________

- 24 -

User manual SNC-670ID/W

2.6. Tour

There are 8 programmable tours available. Each tour can contain up to 60 preset positions.

TOUR SET

TOUR NO

TOUR TITLE : TOUR01□□□□□□□□□□

TOUR STEP

: 01

: 01

PRESET NO. : 001

DWELL TIME : 03

SPEED

SAVE

EXIT

TOUR -> TOUR NO:

: 200 °/S

Default setting

There are 8 tour numbers available. Use the left/right arrows to select a tour number.

TOUR -> TOUR TITLE:

You can assign a name to a tour, consisting of up to 16 characters. Use the left/right arrow to select the characters. To move from left to right, press ZOOM +. To move from right to left, press ZOOM - . Blanks are indicated with .

TOUR -> TOUR STEP:

Each tour can consist of up to 60 steps (preset positions). All presets can be run with different speeds and dwell times. Use the left/right arrows to select a tour step.

TOUR -> PRESET NO:

Assigns a preset number to the current step. Use the left/right arrows to select a preset number.

TOUR -> DWELL TIME:

A dwell time is assigned to the current step. The dwell time can be from 1-99 sec. The default setting is

TOUR -> SPEED:

Defines the speed of the current step. The speed can be from 10°/sec to 200°/sec. The default setting is 200°/sec. Use the left/right arrows to select a value.

TOUR -> SAVE:

Saves the settings of the current tour step.

TOUR -> EXIT:

Exit the menu.

_________________________________________________________________________________

- 25 -

User manual SNC-670ID/W

2.7. Privacy zones

The camera contains 4 privacy zones which can be used to hide certain areas.

PRIVACY SET

PRIVACY NO : 01

Default setting

SAVE

EXIT

PRIVACY -> PRIVACY NO:

There are 4 privacy zones available. Use the left/right arrows to select a zone number.

PRIVACY -> DISPLAY:

Use the left/right arrows to show the current privacy zone (ON). This area is displayed as a grey square. The default setting is OFF.

PRIVACY -> ACTION:

In order to set the position of a privacy zone, do the following:

 Use the left/right arrows to select MOVE.

FOCUS +.

 Use the arrows to go to the desired position.

FOCUS + to save the position.

In order to set the size of a privacy zone, do the following:

 Use the left/right arrows to select ADJUST.

 Press

 Use the arrows to go to the desired position.

PRIVACY -> SAVE:

Saves the settings of the current privacy zone.

PRIVACY -> EXIT:

Exit the menu.

_________________________________________________________________________________

- 26 -

User manual SNC-670ID/W

2.8. Patterns

There are 8 programmable patterns available.

PATTERN SET

PATT NO : 01

PATT TITLE: PATTERN01□□□□□□□

DATA FILL : 100%

SAVE

EXIT

Default setting

PATTERN -> PATT NO:

There are 8 patterns available. Use the left/right arrows to select a pattern number.

PATTERN -> PATT TITLE:

You can assign a name to a pattern, consisting of up to 16 characters. Use the left/right arrow to select the characters. To move from left to right, press ZOOM +. To move from right to left, press ZOOM - . Blanks are indicated with .

PATTERN -> DATA FILL:

Indicates whether the storage location which is reserved for the current pattern, is already fully used..

In order to set a pattern, do the following:

 Press

 Use the arrows and the zoom button to go to the desired route.

 Press

PATTERN -> SAVE:

Saves the settings of the current pattern.

PATTERN -> EXIT:

Exit the menu.

_________________________________________________________________________________

- 27 -

User manual SNC-670ID/W

2.9. Alarm

The camera has 4 analogue alarm inputs which can be connected with presets, tours and patterns.

ALARM SET

ALARM NO : 01

ALARM INPUT : OFF

ALARM ACT : 001

Default setting

SAVE

EXIT

ALARM -> ALARM NO:

There are 4 alarm inputs available. Use the left/right arrows to select an alarm number.

ALARM -> ALARM INPUT:

The alarm inputs can be set to NC (Normal Closed) or NO (Normal Open). The default setting is OFF. Use the left/right buttons to select a value.

ALARM -> ALARM ACT:

If an alarm is triggered, one of 165 preset positions (001-165), one of 8 tours (T01-T08) or one of 8 patterns (P01-P08) can be started. Use the left/right arrows to seelct a value.

ALARM -> SAVE:

Saves the adjustments oft he current alarm input.

ALARM -> EXIT:

Exit the menu.

_________________________________________________________________________________

- 28 -

User manual SNC-670ID/W

2.10. Sector

SECTOR SET

SECTOR NO : 01

SECTOR ID : SECTOR1

SECTOR START : XXX.X.XX.X

SECTOR END : XXX.X.XX.X

SAVE

Start Position

End Position

EXIT

Default setting

SECTOR -> SECTOR NO:

There are 8 sectors available. Use the left/right arrows to select a sector number.

SECTOR -> SECTOR ID:

You can assign a name to a sector, consisting of up to 16 characters. Use the left/right arrow to select the characters. To move from left to right, press ZOOM +. To move from right to left, press ZOOM - . Blanks are indicated with .

SECTOR -> SECTOR START:

Press FOCUS + to select a start position. Move to the desired position by using the arrows.

Confirm your choice with FOCUS +.

SECTOR -> SECTOR END:

Press FOCUS + to select an end position. Move to the desired position by using the arrows.

Confirm your choice with FOCUS +.

SECTOR -> SAVE:

Saves the settings of the current sector.

SECTOR -> EXIT:

Exit the menu

_________________________________________________________________________________

- 29 -

User manual SNC-670ID/W

3. IP settings

The SANTEC IP cameras come with the following default settings:

IP-address : 192.168.1.168

Subnet mask : 255.255.255.0

Gateway : 0.0.0.0

DNS-server

User ID

:

:

0.0.0.0 admin

Password : 9999

To retain the default settings, press the reset button.

There are the following 3 options to change the IP-address of the camera:

a. IP-finder software

Every SANTEC IP camera comes with the IP-finder software.

 Select the camera from the list by double-clicking.

 Change the IP settings to the new settings.

 Enter the user name (ID) and the password.

 Click

b. Camera web interface

You will find the description of the web interface in the following chapter.

_________________________________________________________________________________

- 30 -

User manual SNC-670ID/W

c. SanView software

Every SANTEC IP camera comes with the SanView-Lite software. In order to change the network settings, open the device adjustment page via the context menu (also see brief instructions on SanView software).

You will find the respective control elements on the network parameter tab. To copy the parameters, click on Apply. Further details on how to add a camera to the SanView software can be found in the brief instructions on the SanView software).

Below are the default settings to login to the SanView software:

User ID: admin

Password: santec

_________________________________________________________________________________

- 31 -

User manual SNC-670ID/W

4. Web interface

4.1. Calling-up the camera web interface

Open the Microsoft Internet Explorer and start the connection of the network camera as follows:

Click on the URL field.

Type in the URL address of the network camera and press the ENTER key. You will then access the web interface of the camera.

The default IP-address of the camera is 192.168.1.168

You need the user ID and the password in order to access the web interface.

The default user ID is admin and the default password is 9999.

Note:

When you call up the camera web interface, it may happen that you are prompted for an

ActiveX installation. Please note that the Internet Browser settings allow the installation of

ActiveX components.

_________________________________________________________________________________

- 32 -

User manual SNC-670ID/W

4.2. Live-View

Page for camera adjustments

Page for Live-View

Live-View with 50% resolution

Live-View with defined resolution

PTZ-control:

 pan

 tilt

OSD

PTZ speed: S = slow, F = fast

Zoom in

Zoom out

Focus close

Focus far

Select preset number

Select and start tour number

Select and start pattern number

_________________________________________________________________________________

- 33 -

User manual SNC-670ID/W

Start autoscan

Digital output (relay) on

Digital output (relay) off

Audio on (camera -> web interface)

Audio off (camera -> web interface)

Audio on (web interface -> camera)

Audio off (web interface -> camera)

Storage location for snapshots and video sequences

Save snapshot

Start recording (the video sequence is saved as AVI-file)

Stop recording

Note:

 In order to activate the 2-way audio function, press the

and buttons.

 In order to save a snapshot or a video sequence, select the storage location by using the

button.

_________________________________________________________________________________

- 34 -

User manual SNC-670ID/W

4.3. Setting overview

_________________________________________________________________________________

- 35 -

4.4. System settings

4.4.1. Time / date

User manual SNC-670ID/W

Local time: The local time is the one as set in the camera.

Desired time: You can change the time which is set in the camera as follows: o Set manually: Select the desired time and date from the drop-down list. o Synchronize with computer time: If you select this option, the computer time/date is transferred to the camera. o Synchronize with SNTP server: If you select this option, the SNTP server time/date is transferred to the camera.

Automatically adjust for daylight saving time changes: This option activates the automatic adjustment to summer/winter time.

Time zone: This is the time zone in which the camera is located. This option is important for daylight saving time changes.

Submit: Click here to apply the new date/time settings to the network camera.

_________________________________________________________________________________

- 36 -

User manual SNC-670ID/W

4.4.2. Time stamp

Enable time stamp: The time stamp is displayed.

Time stamp position: o UPPER o UPPER

LEFT

Time stamp format: o YY/MM/DD o MM/DD/YY o DD/MM/YY

TITLE

(YY = year, DD = day, MM = month)

Submit: Click here to apply the new time stamp settings to the network camera.

4.4.3. User

_________________________________________________________________________________

- 37 -

User manual SNC-670ID/W

User list:

This list displays the user(s) and their respective authorisations.

Delete user: Select a user from the list to be deleted and click this button.

User name: Enter the user name here which is to be added or modified.

Password: Password of the above user name.

Confirm: Re-enter and thus confirm the password here.

Authority: Authorisation level: admin, operator or viewer.

Submit: Click here to apply the new user settings to the network camera.

4.4.4. Language

Language: Select your language o English o German

Submit: Click here to apply the new language settings to the network camera.

_________________________________________________________________________________

- 38 -

User manual SNC-670ID/W

4.4.5. RS-485 settings

The RS-485 settings define the communication via the RS-485 interface between the camera

IP module and the camera PTZ module.

Baud rate: o 2400 o 4800 o 9600 o 19200 o 38400 o 57600 o 115200

Type: Type of command strings o 8-N-1 o 8-E-1 o 8-O-1 o 7-N-1 o 7-E-1 o 7-O-1

ID: ID of external device

Submit: Click here to apply the new RS-485 settings to the network camera.

Note:

To ensure a trouble-free PTZ control of the camera, the RS-485 settings have to match the

DIP-switch settings.

_________________________________________________________________________________

- 39 -

4.4.6. PTZ settings

User manual SNC-670ID/W

PTZ-control:

 pan

 tilt

PTZ speed: S = slow, F = fast

Zoom in

Zoom out

Focus close

Focus far

Select preset number

Save preset position

Go to preset position

_________________________________________________________________________________

- 40 -

User manual SNC-670ID/W

4.4.7. Camera name

Camera name: Enter the name/title of the camera.

Submit: Click here to apply the new camera name to the network camera.

4.4.8. Update firmware

This page displays information on the installed firmware version and the ActiveX components.

Search: Select the firmware file from your PC.

Update: Start the update process.

Restart: Restart the camera.

_________________________________________________________________________________

- 41 -

4.5 Network

4.5.1 IP-address

User manual SNC-670ID/W

IP-address: Enter the 4-Byte IP-address (value from 0 to 255). Every network camera has to have its own IP-address which can be identified in the network.

Netmask: Enter the 4-Byte subnet-mask (value from 0 to 255). By this, the netmask can be identified in which the network camera is located.

Gateway: Enter the 4-Byte gateway (value from 0 to 255).

First DNS: Enter the 4-Byte DNS-server address (value from 0 to 255). The DNS-server transforms the domain name into an IP-address.

Second DNS: Enter the 4-Byte DNS-server address (value from 0 to 255). The DNSserver transforms the domain name into an IP-address.

HTTP port: Displays the specific HTTP port number. Default is 80.

Submit: Click here to apply the new network settings to the network camera.

_________________________________________________________________________________

- 42 -

User manual SNC-670ID/W

4.5.2. SNTP (time server for time synchronisation)

SNTP server: IP-address of the SNTP server. Can be entered as 4-Byte IP-address or as domain name.

Submit: Click here to apply the new network settings to the network camera.

4.5.3 FTP

FTP server: IP-address of the FTP server. Can be entered as 4-Byte IP-address or as domain name.

Port: Port number of the FTP server.

User name: User name to login to the FTP server.

Password: Password to login to the FTP server.

File upload path: Folder path of FTP server in which the video data is to be stored.

Submit: Click here to apply the new network settings to the network camera.

_________________________________________________________________________________

- 43 -

4.5.4. SMTP

User manual SNC-670ID/W

If necessary, enable the option „My server requires authentication”.

Account name: Account on e-mail server.

Password: Password of account on e-mail server.

Sender: This information is displayed as e-mail sender.

SMTP server: IP-address of SMTP server. Can be entered as 4-Byte IP-address or as domain name.

E-mail address: E-Mail address to which the e-mails are to be sent.

Send count (1-8): Number of files attached to an e-mail.

Submit: Click here to apply the new network settings to the network camera.

_________________________________________________________________________________

- 44 -

User manual SNC-670ID/W

4.5.5. DDNS (dynamic domain name system)

DDNS host name: IP-address of DDNS server. Can be entered as 4-Byte IP-address or as domain name.

DDNS account: Account on DDNS server.

DDNS password: Password of account on e-mail server.

Submit: Click here to apply the new network settings to the network camera.

4.5.6. Event protocol

On this page, the events are displayed. You can browse in the events by clicking on the buttons “first page”, previous 20” and “next 20”.

_________________________________________________________________________________

- 45 -

User manual SNC-670ID/W

4.6 Video settings

4.6.1 Encoding

 Compression: Setting of the video streaming mode o Single o MPEG4 Half D1 o MPEG4 + MPEG4 o MPEG4 + JPEG: Pre-set mode. This mode is used in the SanView software.

 Resolution: The resolution of each video stream depends on the compression. The following values apply:

Compression Resolution

Single MPEG4

MPEG4 Half D1

Video Stream 1 – MPEG4: D1 (720x576)

Video Stream 1 – MPEG4: D1 (720x288)

MPEG4 + MPEG4 Video Stream 1 – MPEG4: D1 (720x576)

Video Stream 2 – MPEG4: CIF (352x288)

MPEG4 + JPEG Video Stream 1 – MPEG4: D1 (720x576)

Video Stream 2 – JPEG: D1 (720x576)

 Bit rate: Bit rate mode o CBR: Constant bit rate o CVBR: Variable bit rate settings o Quality: HIGH / NORMAL / LOW o Frame rate: 20 / 15 / 7.5 / 3 / 1 fps

_________________________________________________________________________________

- 46 -

User manual SNC-670ID/W setting o Bit rate: 200 - 4000 Kbit/sec o Bild rate: 25 / 13 / 6 / 3 fps setting o Bitrate: 200 - 4000 Kbit/sec o Bildrate: 25 / 13 / 6 / 3 fps

Submit: Click here to save the new settings.

4.6.2 Camera settings

 On this page, you can change the following picture settings: o brightness: 0 - 255 o contrast: 0 - 255 o saturation: 0 - 255

Reset: The picture settings are reset to: brightness: 96; contrast: 120; saturation: 128.

Submit: Click here to save the new picture settings.

_________________________________________________________________________________

- 47 -

4.7. Audio settings

User manual SNC-670ID/W

Audio: Set the audio mode to: o OFF: audio is turned off o one-way: audio only from camera to PC o two-way: audio in both directions

Audio out volume: 0 - 4

Submit: Click here to save the new audio settings.

_________________________________________________________________________________

- 48 -

User manual SNC-670ID/W

4.8. Extended settings

4.8.1. Motion detection

Motion detection: Activation/deactivation of motion detection

Sensitivity: Set the sensitivity level of the motion detection o Lowest o Low o Medium o High o Highest

CCD reference: CCD reference (20 - 50)

Motion detection mask: Click on the picture to set or to delete an element of the motion detection mask. If a motion occurs in the marked field, it will be detected.

Submit: Click here to save the new motion detection settings.

_________________________________________________________________________________

- 49 -

4.8.2. Alarm settings

User manual SNC-670ID/W

Alarm in (sensor): Activate/deactivate the alarm input o Active type “low”: This means 0 V. The camera will trigger an alarm if the alarm input has 0 V. To achieve 0 V at the alarm input, the contacts are closed. o Active type „high“: This means 3.3 V. The camera will trigger an alarm if the alarm input has 3.3 V. To achieve 3.3 V at the alarm input, the contacts are not closed.

Alarm out (relay): Activate/deactivate the alarm output o Active type „low“: This means 0 V. If the camera triggers an alarm, the alarm output has 0 V. o Active type „High“: This means 3.3 V. If the camera triggers an alarm, the alarm output has 3.3 V. o

Trigger an alarm when Ethernet is lost: The camera can trigger an alarm if the network connection is interrupted.

Alarm relay duration: You can set how long the alarm output should be active since the alarm is not being triggered anymore. o 0 second: The alarm output is set to inactivity immediately after the alarm. o 10 seconds: The alarm output is set to inactivity 10 seconds after the alarm. o 30 seconds: The alarm output is set to inactivity 30 seconds after the alarm. o 1 minute: The alarm output is set to inactivity 1 minute after the alarm. o Endless: The alarm output remains active until the alarm output is manually set to inactivity (press button on the “live view” page of the web interface).

Submit: Click here to save the new alarm settings.

_________________________________________________________________________________

- 50 -

User manual SNC-670ID/W

4.8.3. SD-card

4.8.3.1 SD-card settings

SD-card enable: Activate/deactivate the SD-card.

SD-card rewrite: Activate/deactivate the rewriting of the SD-card.

Format: The SD-card is being formatted.

Submit: Click here to save the new SD-card settings.

4.8.3.2 SD-card content

 This page displays the content of the SD-card.

 Click on the respective file name to open it.

 Click on „Delete“ to delete the file.

_________________________________________________________________________________

- 51 -

4.8.4. Recording

4.8.4.1 Recording settings

 On this page you can set the recording modes: o Schedule record – upload via FTP o Schedule record – save into SD-card o Alarm record – upload via FTP o Alarm record – save into SD-card o Alarm record – upload via SMTP (e-mail sending)

Additional setting options: o Buffer: Pre-alarm buffer can be set to: 0 / 1 / 2 / 3 seconds. o SD file format can be set to: AVI / JPEG o FTP file format can be set to: AVI / JPEG

Submit: Click here to save the new recording settings.

User manual SNC-670ID/W

_________________________________________________________________________________

- 52 -

User manual SNC-670ID/W

4.8.4.2 Recording schedules

 You can set up to 7 schedules in the camera.

Submit: Click here to save the new schedule settings.

Remove all schedules: All existing schedules are deleted.

_________________________________________________________________________________

- 53 -

User manual SNC-670ID/W

5. Technical specifications

Camera SNC-670ID/W

Camera type Day/night IP PTZ camera

Sensor 1/4" Sony Super HAD CCD 540 TVL

Day/night adjustment mode Auto, colour, black/white

IR cut filter

Lens min. illumination

Camera setting

OSD configuration

Pan angle

Pan speed

Tilt anlge

Motion detection

Schedule

Picture upload

SD card

Alarm input/output

Mechanic, automatically operated

Motor zoom, 3.8-38.0 mm, DC-controlled

0.7 / 0.02 lux

OSD menu

Also via network

Endless 360°

10-240°/sec.

90°

Tilt speed 10-240°/sec

Number of reset positionen 164

Number of tours

Number of atterns

Number of autoscans

Resolution

Compression

Video streaming

8

8

1

D1 (720x576) / half D1 (720x288) / CIF (352x288)

MJPEG/MPEG4

Single MPEG4 D1 max. 25 fps

Single MPEG4 half D1 max. 25 fps

Dual MPEG4 D1 max. 20 fps / MPEG4 CIF max. 20 fps

Dual MPEG4 D1 max. 25 fps / MJPEG D1 max. 20 fps

Yes

Yes

FTP/e-mail/HTTP

Yes (optional)

Digital 1x/1x

Audio input/output

Interface

Ethernet

Voltage

Power consumption

Dimensions (DxH)

Weight

Operating temperature

Relative humidity

Analog 4x/0x

1x/1x, 3.5 mm jack plug

RS-485

100 Mbit, RJ-45, 10 Base-T/100 Base-TX

12.0 V DC max. 11.5 watt

167 x 167 mm

1600 g

-10°C to +50°C

Max. 80%

Items included in delivery SanView-Lite sofware

Subject to technical changes without prior notice. Errors excepted.

_________________________________________________________________________________

- 54 -

User manual SNC-670ID/W

NOTES:

_________________________________________________________________________________

- 55 -

Your local distributor:

__________________________________________________________________________

www.santec-video.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
