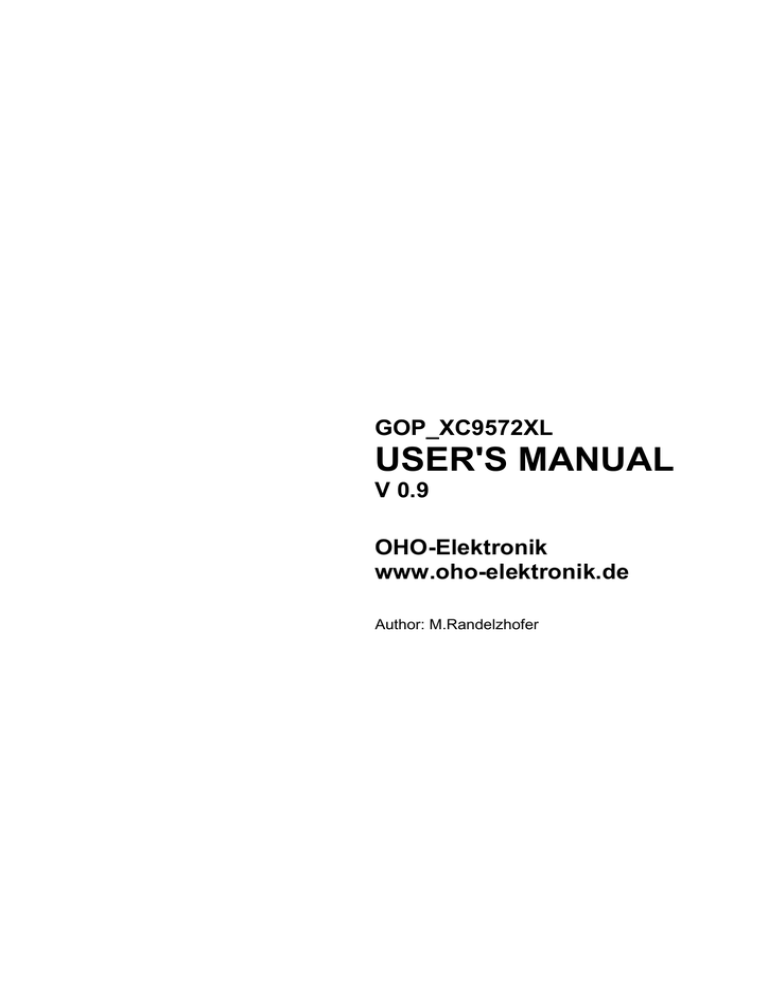

GOP_XC9572XL

USER'S MANUAL

V 0.9

OHO-Elektronik www.oho-elektronik.de

Author: M.Randelzhofer

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

OHO-Elektronik

Michael Randelzhofer

Rudolf-Diesel-Str. 8

85221 Dachau

Germany

WEB: www.oho-elektronik.de

EMAIL: [email protected]

Phone: +49 8131 339230

FAX: +49 8131 339294

©2005 OHO-Elektronik - Michael Randelzhofer

All rights reserved

Disclaimer:

Under no circumstances OHO-Elektronik - Michael Randelzhofer is liable for consequential costs, losses, damages, lost profits.

Any schematics, pcb or program parts are under the copyright of OHO-Elektronik - Michael

Randelzhofer, and can only be reproduced by permission of this company.

The contents of this USER'S MANUAL are subject to change without notice.

However the main changes are listed in the revision table at the end of this document.

Products of OHO-Elektronik - Michael Randelzhofer are not designed for use in life support systems, where malfunction of these products could result in personal injury.

The products of OHO-Elektronik - Michael Randelzhofer are intended for use in a laboratory test environment only. They can generate radio frequency energy (depending on the downloaded design and application), which can disturb local radio or TV equipment, and so they have not been tested to be CE compliant.

If you encounter any technical problems or mistakes in this document, please contact [email protected]

, serious hints are very appreciated.

Trademarks:

All brand names or product names mentioned are trademarks or registered trademarks of their respective holders.

PAL and GAL are registered trademarks of Lattice Semiconductor Corp.

GOP_XC9572XL USER'S MANUAL V0.9 Page 2 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

1. Table of contents:

1. Table of contents: ..................................................................................................................................3

2. Introduction............................................................................................................................................5

Applications:....................................................................................................5

2.3. Xilinx XC9572XL CPLD Features: ..............................................................................................6

2.4. Xilinx XC9572XL CPLD Disadvantages:.....................................................................................6

2.5. GOP_XC9572XL Board Picures, Top And Bottom View............................................................7

2.6. GOP_XC9572XL Board In A Lab Environment. .........................................................................8

3. GOP_XC9572XL Board Overview.......................................................................................................9

Port....................................................................................................................................10

Suppy................................................................................................................................11

3.4. PAL / GAL Emulation Of 24 Pin And 20 Pin Devices ...............................................................11

Design

5. GOP_XC9572XL I/O Voltage Levels.................................................................................................13

6. Detailed XC9572XL-VQ44 CPLD Pinout Table ................................................................................14

7. CON4 Test Connector Pinout Table....................................................................................................16

8. CON3 Configuration Jumper options..................................................................................................16

9. CON2 DIL Connector Pinout Table ....................................................................................................17

10. DIL Connector Layout.....................................................................................................................18

11. Schematics .......................................................................................................................................19

12. Module Layout Top View ...............................................................................................................20

13. Module Layout Bottom View..........................................................................................................21

Specifications..................................................................................................................22

15. Literature..........................................................................................................................................23

16. USER'S MANUAL Revisions.........................................................................................................24

GOP_XC9572XL USER'S MANUAL V0.9 Page 3 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

GOP_XC9572XL USER'S MANUAL V0.9 Page 4 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

2. Introduction

The GOP_XC9572XL is a mini module composed of a CPLD device with a PAL / GAL compatible 24 pin DIL footprint. Many additional features make it useful and flexible:

XC9572XL-10VQ44C CPLD, a member of the XILINX XC9500XL family, with a 24 or 20 pin PAL / GAL compatible DIL footprint

Xilinx Parallel Cable IV or Platform USB compatible download connector 14pin / 2mm, an OHO-Elektronik low cost programmer is also availlable

Operating voltage from 3,5V to 5.5V

Serial resistors in the I/O and test connector pins helps to decrease ringing

Onboard Clock oscillator with 49.152 MHz for audio or RS232 applications

Reverse plug in protection

A red / green dual led

A 7-pin test connector for probing internal signals, or interconnecting several GOP's

Solder jumpers for additional ground connections.

Easy to reuse

Professional design, manufactured on a 4 layer PCB, Made in Germany

Replacement of PAL / GAL devices

Rapid Prototyping

Fast evaluation of Xilinx CPLD's

Hardware platform for VHDL / VERILOG / digital design introductory courses

GOP_XC9572XL USER'S MANUAL V0.9 Page 5 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

2.3. Xilinx XC9572XL CPLD Features:

Document [1] and [2] lists lots of goodies, here are the best facts:

Highest density and lowest cost non volatile CPLD device in the 64 macrocell device class, but with 72 macrocells

4 logic arrays "18V54", each offers 54 (!) array inputs with 18 macrocells and 90 product terms, wired together by a FASTCONNECT II SWITCHMATRIX

Inputs are 5V-tolerant

Macrocells offer D and T type flipflops with dedicated CE input

3 global clocks, 2 global tristate nets and a global set / reset net

Programmable ground I/O pins decreases ground bounce problems

Free powerful VHDL / VERILOG / schematics / simulation design software availlable

(Webpack)

10000 reprogramming cycles, 20 years data retention

Widely used CPLD, lots of information availlable by XILINX Inc. and on the web

2.4. Xilinx XC9572XL CPLD Disadvantages:

The following items are not relevant in most cases.

However they should be used as a checklist, wheather an application is affected.

Relative high power consumption

Output current driving capability is asymmetrical: VOH: -4 mA, VOL: 8 mA in a 3,3V

VCCIO configuration

Inputs do not have sufficient hysteresis for Schmitt Trigger functionality, simple rcoscillators won't work

Relatively unflexible product term distribution (no PLA structure)

Output voltages drives only up to VCCIO, a pullup can not reach 5V, except in tristate

No input registers, I/O setup time is 6,5ns for XC9572XL-10 parts

In rare cases, reprogramming is only possible, if no running clocks are applied to any

CPLD pin

GOP_XC9572XL USER'S MANUAL V0.9 Page 6 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

Flipflops can trigger on positive or negative edges only, not on both. This is a feature found on CoolRunner-II devices only.

No pullup option on the I/O's after configuration, but buskeepers

Only 2 I/O standards: 3,3V and 2.5V, low 2.5V output drive capability

GOP_XC9572XL USER'S MANUAL V0.9 Page 7 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

2.6. GOP_XC9572XL Board In A Lab Environment.

GOP_XC9572XL USER'S MANUAL V0.9 Page 8 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

3. GOP_XC9572XL Board Overview

2mm - 14pin

JTAG - PORT

CON1

1

USER

DUO-LED

RED /

GREEN

XILINX

CPLD

XC9572XL

Voltage Regulator

3,3V / 250mA

With Reverse

Protection

XOSC

49.152

MHz

2 4

1

3

2mm - 4pin

Jumper Block

CON3

1-2: 20-Pin Ground

3-4: XOSC-Supply

1

0,1" /

2.54mm

24 - Pin

DIL

SOCKET

PLUG

CON2

Access

To 22

CPLD

Pins

0.3" GAP

JP1 JP2 JP3

Solder Jumper

For Additional Ground

Connections

2.54mm / 7pin

Test Connector

CON4

22 Xilinx XC9572XL-10VQ44C CPLD I/O's are wired to a 24 pin DIL socket plug (CON2) on the bottom of the module through 22Ω serial resistors. These resistors primarily reduces ringing.

Pin 1 and 2 of the DIL plug accesses global clock nets GCK1 and GCK2 inside the CPLD.

Pin 13 accesses the global tristate net GTS1.

5 remaining I/O's are availlable to the front side test connector CON4, also through 22Ω series resistors.

Pin 2 of the connector accesses the global tristate net GTS2.

GOP_XC9572XL USER'S MANUAL V0.9 Page 9 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

This pin also has a pullup resistor to VCC (R39). A 2.54mm jumper can be used to short pin 2 to

GND at pin 1 of the testconnector as a simple status input.

Pin 7 of the testconnector has an unmounted pullup resistor to the 5V supply voltage. If a 5V rails is needed on this pin, a resistor between 680Ω and 10kΩ could be soldered on position

R44.

Please note, that 5V rails can be produced only by tristating outputs. A logical '1' output on an

XC9572XL is clamped to VCCIO, which is 3,3V on this module.

A crystal oscillator with an output frequency of 49,152MHz is connected to another I/O of the

CPLD. This oscillator can be disabled completely by removing its power supply at jumper block

CON3 position 3-4.

Please note, that this clock must be routed inside the CPLD to a global clock net, to insure proper synchronous circuit operation.

Furthermore 2 I/O's are connected to a dual led, having a red and a green chip in it's case.

These leds can be lighted by driving a logical '1' to these I/O's.

Finally 2 I/O's are connected to an RC network for demontration purpose.

A simple RC oscillator can be evaluated.

However it can be observed, that an XC95xxx RC oscillator does't produce a stable clock.

The same PCB is used for the CoolRunner-II module where the RC oscillator works fine due to selectable Schmitt Trigger inputs.

For the same reason CPLD pin 7 is fixed to GND, this is a compatibility issue to the

CoolRunner-II module.

The CPLD JTAG signals are routed directly to the Xilinx standard 2mm 14pin JTAG port connector CON1, supported from the Parallel cable IV, and Platform USB cable, see [7], [8].

Pin 1 of the port is connected to GND, which allows high speed programming with the above cables.

Pins 12,13 and 14 of the JTAG port are not used on this module.

Please notice the pin orientation of JTAG port CON1:

GOP_XC9572XL USER'S MANUAL V0.9 Page 10 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

The module can be powered at DIL pin 24 from 3,5 to 5,5 Volts.

Module GND pin is pin 12 in 24 pin mode, and pin 10 in 20 pin mode.

An onboard voltage regulator produces the CPLD core and I/O voltage of 3,3V.

The regulator [5] can source up to 250mA.

While it's specification allows input voltages up to 16V, power dissipation can reach it's maximum on lower input voltages, depending on the CPLD design.

However if R44 is left unmounted, the module can absorb transients up to 16V.

The module has a protection against reverse insertion, or reverse power connection.

In that case, the protection shorts the power supply by a polyfuse device.

The polyfuse recovers after deactivation of the power supply.

Burn through cycles of the polyfuse are limited.

For more information, please consult the data sheet.

Even so care should be taken when plugging the module.

Consider that a short pulse of several amps can damage the environment in which the module is inserted.

3.4. PAL / GAL Emulation Of 24 Pin And 20 Pin Devices

As a general hint, the DIL plug should be protected mechanically with the supplied DIL sockets as an adaptor.

In 24 pin mode of the module, a 24 pin socket should be used.

In 20 pin mode of the module, a 20 pin socket should be used.

Please insure, that pin 1 of the module is always pin 1 of a socket.

In the 20 pin mode, an additional GND connection must be done via a 2mm jumper on jumper block CON3 at position 1-2, see Layout Top View. This adds GND to pin 10.

In rare cases additional GND connections are desired.

Pins 3, 14 and 23 can be shorted to GND with solder jumpers JP1, JP3, JP2 respectively, on the bottom side of the module. These shorts should be soldered via a stereo microscope, to insure, that there are no other invalid connections.

GOP_XC9572XL USER'S MANUAL V0.9 Page 11 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

4. CPLD Design Support

As for CPLD design [4] and [9] are very recommended readings.

VHDL and UCF design templates for 20 and 24 pin configurations are availlable.

GOP_XC9572XL USER'S MANUAL V0.9 Page 12 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

5. GOP_XC9572XL I/O Voltage Levels

Since CPLD I/O's can be inputs or outputs or bidirectional, we have to distinguish between voltage levels driven from the outputs of the CPLD, and voltage levels that are applied to their inputs.

The XC9500 series inputs can accept input voltage levels from 0 to 5V, so they are 5V tolerant.

However they can not deal with analog input voltages.

The maximum low input voltage VIL, where the CPLD sees a logical '0', must be 0.8V.

The minimum high input voltage VIH, where the CPLD sees a logical '1', must be 2.0V, and must not exceed 5,5V.

Voltage levels in between VIL and VIH should change very fast, transition times should be lower than 100ns, although Xilinx makes no recommendations about them in this CPLD family.

As stated in the datasheet, after configuration of the device, there are buskeepers on the I/O' s, which only allows digital levels.

However the ISE software also knows of a floating pin option, but the CPLD always has buskeepers on it's inputs and unused pins after configuration.

It is remarkable, that because of the 5V tolerant inputs, there is no diode between the inputs and VCC. So the devices can be used in hot plugging applications [6].

The XC9500 series outputs delivers different voltage levels, dependent on the supplied VCCIO voltage.

In the GOP_XC9572XL module this voltage is 3,3V.

In this case, the CPLD drives a low output '0' with a maximum of 0,4V at 8mA sink current.

If the CPLD sources current on a logical '1' output, the voltage is guaranteed to be 2,4V minimum at 4mA.

So sourcing and sinking current is not symmetrical.

If more output current is desired, [3] shows appropriate I/V curves.

Another important fact is, that a bidirectional I/O with a pullup to 5V, can not drive to 5V on the output, but 3,3V only. The output driver stage clamps the voltage to VCCIO in that case.

As an example, driving bright leds with relatively high current consumption is best done by sinking current, or in other words, the cathode of the led should be connected to a CPLD I/O, the anode to the led's supply voltage.

If the leds have forward voltages beyond 3,3V (e.g. blue leds) , the 5V tolerance can be used to completely turn off the led by tristating the output.

For driving leds with CPLD's, see also [10].

Please consider that there are 22Ω series resistors between GOP_XC9572XL pin connections and the CPLD.

GOP_XC9572XL USER'S MANUAL V0.9 Page 13 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

6. Detailed XC9572XL-VQ44 CPLD Pinout Table

Pin

CPLD pin function

*

1 FB1MC14

I/O/GCK3

(Schema net name) routed to

--

2 FB1MC15 (PLD2)

CON2 pin6

3 FB1MC17 (PLD3)

CON2 pin7

4 GND Power GND

5 FB3MC2 (PLD5)

CON2 pin9

UCF

port

24pin**

(20 pin)

1. Comment:

gck3 Use as an internal clock node to the global clock net GCK3

If XOSC1 is used, but not routed to GCK1 or GCK2, use this global net instead. pin6

(pin6) pin7

(pin7)

-- pin9

(pin9)

Connection to the 20/24pin DIL plug to pin6 via serial resistor

Connection to the 20/24pin DIL plug to pin7 via serial resistor

Connection to the GND Layer of the PCB

Connection to the 20/24pin DIL plug to pin9 via serial resistor

6 FB3MC5 (PLD6)

CON2 pin8

7 FB3MC8 (PRG_GND)

Power GND pin8

(pin8)

--

8 FB3MC9 (LED_G)

LED1 ledgn

--

Connection to the 20/24pin DIL plug to pin8 via serial resistor

Additional GND connection as a programmable ground pin

Green led of the duo led

0 -> led off, 1 -> led on

JTAG interface, additional 47k pullup to VCC 9 TDI (TDI)

CON1 pin10

10 TMS (TMS)

CON1 pin4

-- JTAG interface, additional 47k pullup to VCC

-- JTAG interface, additional 47k pullup to VCC 11 TCK (TCK)

CON1 pin6

12 FB3MC11 (PLD12)

CON2 pin10

13 FB3MC14 (PLD13)

CON2 pin11 pin10

(--) pin11

(--)

Connection to the 24pin DIL plug to pin10 via serial resistor

Short to GND by CON3 for 20pin DIL plug

Connection to the 24pin DIL plug to pin11 via serial resistor

Not used for the 20pin DIL plug tp3 Test connector pin3 14 FB3MC15 (PLD14)

CON4 pin3

15 VCCINT Power VCC

16 FB3MC17 (RC_IN)

RC network

17 GND Power GND

18 FB3MC16 (RC_OUT)

RC network

-- rcin Input to an RC network, this is for demonstration, that rc oscillators do not work reliably with XC9500, but on

-- rcout

Power supply 3,3V from regulator LP2992-3.3

CoolRunner-II devices with Schmitt Trigger inputs.

Connection to the GND Layer of the PCB

Output from an RC network, this is for demonstration, that rc oscillators do not work reliably with XC9500, but on

CoolRunner-II devices with Schmitt Trigger inputs tp4 Test connector pin4 19 FB4MC2 (PLD19)

CON4 pin4

20 FB4MC5 (PLD20)

CON4 pin5

21 FB4MC8 (PLD21)

CON4 pin6 tp5 tp6

Test connector pin5

Test connector pin6

R44 could be soldered to the 5V supply voltage, for generation of an 5V rail on tp6. Use 680Ω to 10kΩ for R44

22 FB4MC11 (PLD22)

CON2 pin14

23 FB4MC14 (OSC)

XOSC1 pin14

(--) osc

Connection to the 24pin DIL plug to pin14 via serial resistor

Not used for the 20pin DIL plug

Crystal oscillator input

This signal should be routed internally to a global clock net

24 TDO (TDO) -- JTAG

GOP_XC9572XL USER'S MANUAL V0.9 Page 14 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

25 GND

CON1 pin8

Power GND

26 VCCIO Power VCC

27 FB4MC15 (PLD27)

CON2 pin15

28 FB4MC17 (PLD28)

CON2 pin16

29 FB2MC2 (PLD29)

CON2 pin17

30 FB2MC5 (PLD30)

CON2 pin18

31 FB2MC6 (PLD31)

CON2 pin19

32 FB2MC8 (PLD32)

CON2 pin20

33 FB2MC9

I/O/GSR

(LED_R)

LED1

34 FB2MC11

I/O/GTS2

(PLD34)

CON4 pin2

35 VCCINT Power VCC

36 FB2MC14

I/O/GTS1

(PLD36)

CON2 pin13

37 FB2MC15 (PLD37)

CON2 pin21

38 FB2MC17 (PLD38)

CON2 pin22

39 FB1MC2 (PLD39)

CON2 pin23

40 FB1MC5 (PLD40)

CON2 pin3

41 FB1MC6 (PLD41)

CON2 pin4

42 FB1MC8 (PLD42)

CON2 pin5

43 FB1MC9

I/O/GCK1

(PLD43)

CON2 pin10

--

-- pin15

(pin11) pin16

(pin12)

Connection to the GND Layer of the PCB

Power supply 3,3V from regulator LP2992-3.3

Connection to the 24pin DIL plug to pin15 via serial resistor

Connection to the 20pin DIL plug to pin11 via serial resistor

Connection to the 24pin DIL plug to pin16 via serial resistor

Connection to the 20pin DIL plug to pin12 via serial resistor pin17

(pin13) pin18

(pin14)

Connection to the 24pin DIL plug to pin17 via serial resistor

Connection to the 20pin DIL plug to pin13 via serial resistor

Connection to the 24pin DIL plug to pin18 via serial resistor

Connection to the 20pin DIL plug to pin14 via serial resistor pin19

(pin15) pin20

(pin16)

Connection to the 24pin DIL plug to pin19 via serial resistor

Connection to the 20pin DIL plug to pin15 via serial resistor

Connection to the 24pin DIL plug to pin20 via serial resistor

Connection to the 20pin DIL plug to pin16 via serial resistor ledrd Red led of the duo led

0 -> led off, 1 -> led on

This is also an input to the global set/reset net GSR tp2 Test connector pin2, R38 is soldered to the 3,3V supply voltage, as a pullup on tp2.

--

Tp2 can be used as a simple input by shorting to tp1

This is also an input to the global tri state net GTS2

Power supply 3,3V from regulator LP2992-3.3 pin13

(--)

Connection to the 24pin DIL plug to pin13 via serial resistor

Not used for the 20pin DIL plug

This is also an input to the global tri state net GTS1 pin21

(pin17) pin22

(pin18) pin23

(pin19) pin3

(pin3) pin4

(pin4) pin5

(pin5) pin1

(pin1)

Connection to the 24pin DIL plug to pin21 via serial resistor

Connection to the 20pin DIL plug to pin17 via serial resistor

Connection to the 24pin DIL plug to pin22 via serial resistor

Connection to the 20pin DIL plug to pin18 via serial resistor

Connection to the 24pin DIL plug to pin23 via serial resistor

Connection to the 20pin DIL plug to pin19 via serial resistor

Connection to the 20/24pin DIL plug to pin3 via serial resistor

Connection to the 20/24pin DIL plug to pin4 via serial resistor

Connection to the 20/24pin DIL plug to pin5 via serial resistor

Connection to the 20/24pin DIL plug to pin1 via serial resistor

This is also an input to the global clock net 1 GCK1

44 FB1MC11

I/O/GCK2

(PLD44)

CON2 pin10 pin2

(pin2)

Connection to the 20/24pin DIL plug to pin2 via serial resistor

This is also an input to the global clock net 2 GCK2

* FB1MC11 denotes function block1, macrocell 11

** There is an UCF file definition for 24pin, and another one for 20pin device usage

GOP_XC9572XL USER'S MANUAL V0.9 Page 15 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

7. CON4 Test Connector Pinout Table

function

*

(Schema net name) routed to

1 GND

2 FB2MC11

I/O/GTS2

GND

(PLD34)

CON4 pin2

3 FB3MC15 (PLD14)

CON4 pin3

4 FB4MC2 (PLD19)

CON4 pin4

5 FB4MC5 (PLD20)

CON4 pin5

6 FB4MC8 (PLD21)

CON4 pin6

UCF port name **

Comment

-- Power ground plane connection tp2 Test connector pin2, R38 is soldered to the 3,3V supply voltage, as a pullup on tp2.

Tp2 can be used as a simple input by shorting to tp1

This is also an input to the global tri state net GTS2 tp3 Test connector pin3 tp4 Test connector pin4 tp5 Test connector pin5 tp6 Test connector pin6

R44 could be soldered to the 5V supply voltage, for generation of an 5V rail on tp6. Use 680Ω to 10kΩ for R44

5V input voltage protected by a polyfuse voltage reg

8. CON3 Configuration Jumper options

1-2

3-4

Enable 20pin PAL / GAL Emulation, put GND to pin 10 of CON2

Enable XOSC1 crystal oscillator 49,152 MHz

GOP_XC9572XL USER'S MANUAL V0.9 Page 16 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

9. CON2 DIL Connector Pinout Table

function

*

(Schema net name) routed to

1 FB1MC9

I/O/GCK1

(PLD43)

CPLD pin 43

2 FB1MC11

I/O/GCK2

(PLD44)

CPLD pin 44

3 FB1MC5 (PLD40)

CPLD pin 40

4 FB1MC6 (PLD41)

CPLD pin 41

5 FB1MC8 (PLD42)

CPLD pin 42

6 FB1MC15 (PLD2)

CPLD pin 2

7 FB1MC17 (PLD3)

CPLD pin 3

8 FB3MC5 (PLD6)

CPLD pin 6

9 FB3MC2 (PLD5)

CPLD pin 5

10 FB3MC11 (PLD12)

CPLD pin 12

11 FB3MC14 (PLD13)

CPLD pin 13

12 GND

13 FB2MC14

I/O/GTS1

GND

(PLD36)

CPLD pin 36

UCF port name **

pin1

(pin1) pin2

(pin2) pin3

(pin3) pin4

(pin4) pin5

(pin5) pin6

(pin6) pin7

(pin7) pin8

(pin8) pin9

(pin9) pin10

(--) pin11

(--)

-- pin13

(--)

Comment

Connection to CPLD pin 43 via serial resistor

This is also an input to the global clock net 1 GCK1

Connection to CPLD pin 44 via serial resistor

This is also an input to the global clock net 2 GCK2

Connection to CPLD pin 40 via serial resistor

Connection to CPLD pin 41 via serial resistor

Connection to CPLD pin 42 via serial resistor

Connection to CPLD pin 2 via serial resistor

Connection to CPLD pin 3 via serial resistor

Connection to CPLD pin 6 via serial resistor

Connection to CPLD pin 5 via serial resistor

14 FB4MC11 (PLD22)

CPLD pin 22

15 FB4MC15 (PLD27)

CPLD pin 27

16 FB4MC17 (PLD28)

CPLD pin 28

17 FB2MC2 (PLD29)

CPLD pin 29

18 FB2MC5 (PLD30)

CPLD pin 30

19 FB2MC6 (PLD31)

CPLD pin 31

20 FB2MC8 (PLD32)

CPLD pin 32

21 FB2MC15 (PLD37)

CPLD pin 37

22 FB2MC17 (PLD38)

CPLD pin 38

23 FB1MC2 (PLD39)

CPLD pin 39 pin14

(--) pin15

(pin11) pin16

(pin12) pin17

(pin13) pin18

(pin14) pin19

(pin15) pin20

(pin16) pin21

(pin17) pin22

(pin18) pin23

(pin19)

Connection to CPLD pin 12 via serial resistor

Short to GND by CON3 for 20pin DIL plug

Connection to CPLD pin 13 via serial resistor

Not used for the 20pin DIL plug

Power ground plane connection

Connection to CPLD pin 36 via serial resistor

Not used for the 20pin DIL plug

This is also an input to the global tri state net GTS1

Connection to CPLD pin 22 via serial resistor

Not used for the 20pin DIL plug

Connection to CPLD pin 27 via serial resistor

Connection to CPLD pin 28 via serial resistor

Connection to CPLD pin 29 via serial resistor

Connection to CPLD pin 30 via serial resistor

Connection to CPLD pin 31 via serial resistor

Connection to CPLD pin 32 via serial resistor

Connection to CPLD pin 37 via serial resistor

Connection to CPLD pin 38 via serial resistor

Connection to CPLD pin 39 via serial resistor

GOP_XC9572XL USER'S MANUAL V0.9 Page 17 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

24 -- PIN_24 -- 5V input voltage to the module

10. DIL Connector Layout

GOP_XC9572XL module top view for 24 pin and 20 pin emulation mode:

GOP_XC9572XL USER'S MANUAL V0.9 Page 18 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

11. Schematics

GOP_XC9572XL USER'S MANUAL V0.9 Page 19 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

12. Module Layout Top View

GOP_XC9572XL USER'S MANUAL V0.9 Page 20 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

13. Module Layout Bottom View

GOP_XC9572XL USER'S MANUAL V0.9 Page 21 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

14. Technical Specifications

Supply Voltage on PIN24: 3,5 - 5,5V

Size: 40,5 x 20mm, 1,594" x 0,787"

Height PCB to Top: max. 8mm, 0,315"

Height PCB to Bottom: max. 12mm, 0,472"

7g

GOP_XC9572XL USER'S MANUAL V0.9 Page 22 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

15. Literature

[1] DS054 XC9500XL High-Performance CPLD Family Data Sheet http://direct.xilinx.com/bvdocs/publications/DS054.pdf

[2] DS057 XC9572XL High Performance CPLD http://direct.xilinx.com/bvdocs/publications/ds057.pdf

[3] XAPP150 I/V Curves for Xilinx FPGA and CPLD Families http://direct.xilinx.com/bvdocs/appnotes/xapp150.pdf

[4] XAPP444 CPLD Fitting, Tips and Tricks http://direct.xilinx.com/bvdocs/appnotes/xapp444.pdf

[5] LP2992 Micropower 250 mA Low-Noise Ultra Low-Dropout Regulator http://cache.national.com/ds/LP/LP2992.pdf

[6] XAPP140 XC9500XL CPLD Power Sequencing and Hot Plugging http://direct.xilinx.com/bvdocs/appnotes/xapp140.pdf

[7] DS097 Xilinx Parallel Cable IV http://direct.xilinx.com/bvdocs/publications/ds097.pdf

[8] DS300 Platform Cable USB http://direct.xilinx.com/bvdocs/publications/ds300.pdf

[9] XAPP784 Bulletproof CPLD Design Practices http://direct.xilinx.com/bvdocs/appnotes/xapp784.pdf

[10] XAPP805 Driving Leds with Xilinx CPLD's http://direct.xilinx.com/bvdocs/appnotes/xapp805.pdf

GOP_XC9572XL USER'S MANUAL V0.9 Page 23 of 24

OHO-Elektronik · Rudolf-Diesel-Str. 8 · D-85221 Dachau · Germany · www.oho-elektronik.de

16. USER'S MANUAL Revisions

Version Date

V0.9 23/10/2005

Comments

Prerelease

GOP_XC9572XL USER'S MANUAL V0.9 Page 24 of 24

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
