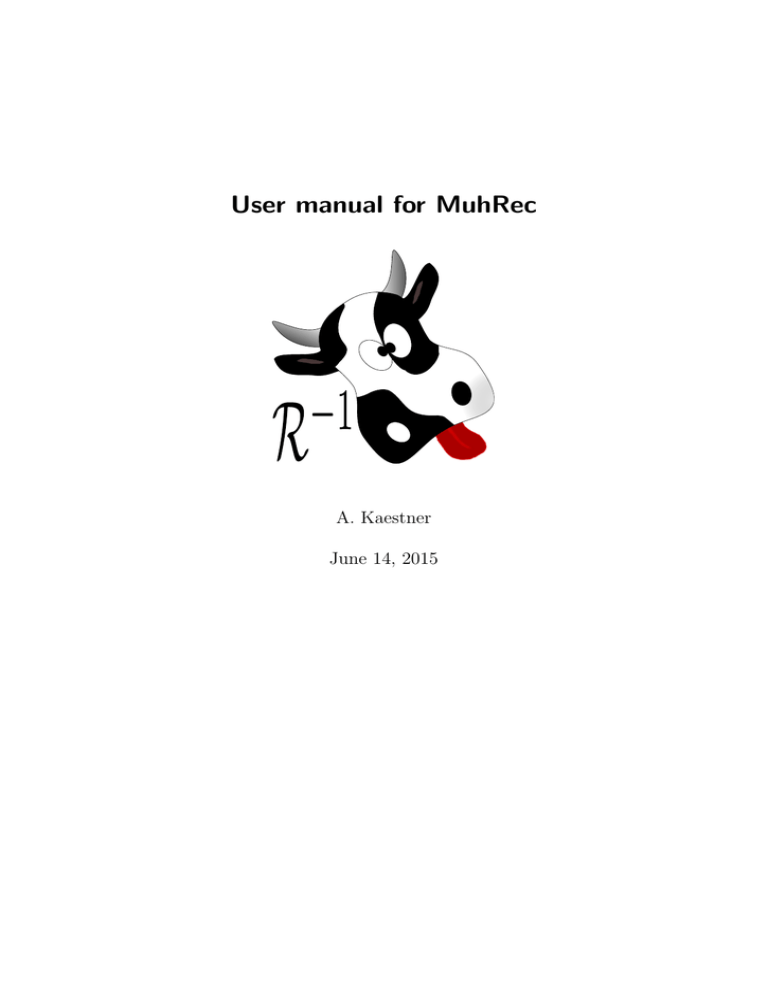

User manual for MuhRec

User manual for MuhRec
User manual for MuhRec
A. Kaestner
June 14, 2015
Contents
1. Introduction
1.1. Introduction . . . . . . . . .
1.2. Features . . . . . . . . . . .
1.3. Node locked software . . . .
1.4. Some words about the name
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
4
4
4
4
4
2. A First Reconstruction
2.1. Project information . . . . . . . . . . . .
2.2. Set projection information and geometry
2.2.1. Setting the geometry . . . . . . .
2.2.2. Saving the parameters . . . . . .
2.3. Configure the processing chain . . . . .
2.3.1. Pre-processing chain . . . . . . .
2.3.2. The back-projector . . . . . . . .
2.4. Reconstruction . . . . . . . . . . . . . .
2.4.1. Start the processing . . . . . . .
2.4.2. Finalize the data . . . . . . . . .
2.5. The geometry list . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
5
5
5
7
7
7
7
7
8
8
8
9
3. Detailed descriptions
3.1. Processing modules . . . . . . . . . . .
3.1.1. FullLogNorm . . . . . . . . . .
3.1.2. SpotClean2 . . . . . . . . . . .
3.1.3. MedianMixRingClean . . . . .
3.1.4. ProjectionFilterSingle . . . . .
3.1.5. ISSfilter . . . . . . . . . . . . .
3.1.6. AdaptiveFilter . . . . . . . . .
3.1.7. BasicRingClean . . . . . . . . .
3.1.8. DataScaler . . . . . . . . . . .
3.1.9. GeneralFilter . . . . . . . . . .
3.1.10. PolynomialCorrection . . . . .
3.1.11. SpotRingClean . . . . . . . . .
3.1.12. TranslatedProjectionWeighting
3.1.13. WaveletRingClean . . . . . . .
3.1.14. CountNANs . . . . . . . . . . .
3.1.15. ProjectionInspector . . . . . .
3.1.16. SaveProjections . . . . . . . . .
3.2. The Viewer . . . . . . . . . . . . . . .
3.3. The projection data . . . . . . . . . .
3.4. Spatio-temporal tomography . . . . .
3.5. Tilt correction . . . . . . . . . . . . .
3.6. Reconstructing from the command line
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
11
11
11
12
13
13
14
15
15
16
16
16
16
16
17
17
17
18
18
19
19
19
20
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
4. Continued development
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
22
2
MuhRec3 User Manual – Draft
A. License
24
B. Parameter file format
25
C. Intended new features
28
D. Known bugs and limitations. . .
D.1. Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
D.2. Bugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29
29
29
3
1. Introduction
1.1. Introduction
The development of MuhRec started when
1.2. Features
MuhRec is a reconstructor for computed tomography. It reconstructs parallel beam geometry
tomographies. The software includes the following features:
• Two modes of operation; GUI and command-line.
• The GUI helps the user to set up the reconstruction and execute the processing.
• Artifact cleaning algorithms to remove ring and line artifacts.
• A guide to find center of rotation and tightest margins.
• Acquisition axis tilt correction.
• Handles image formats common at neutron imaging beamlines.
• Various options for normalization.
MuhRec3 is the next step of my reconstruction tool development. It provides more flexibility
in terms of configuration. The design of the reconstruction engine has an open API that makes it
possible for users to add their own processing modules. In addition the user can configure order
in which the preprocessing modules are executed. Due to major changes in the architecture of
the software it was not possible to maintain backwards compatibility with the configuration files
from the first version of MuhRec.
1.3. Node locked software
MuhRec is free of charge and I intend to keep it so. But, since I want to have control over
the distribution I decided to include a node locking routine. The node locking gives me better
contact to the user community. The license key you get can only be used on the computer that
generated the unlock code.
1.4. Some words about the name
The name MuhRec is derived from the sound of the cow (in German ’Muh’) and Reconstructor.
There are two reasons for the Muh. Firstly, the author lives in the Swiss village Muhen (which
by the way has nothing to do with cows). The software was to large extent developed on the
train commuting between Muhen and Paul Scherrer Institut. The development distance can
hence be determined to be about 20000 km. The second reason is that the cow is the national
proudness of Switzerland . . . and the cow says ’Muh’. The third reason is that there are many
cows surrounding PSI.
4
2. A First Reconstruction
2.1. Project information
When you start MuhRec, you will see the project information tab, figure (2.1). This tab allows
Figure 2.1.: The project information tab.
you to enter information about the experiment. The name you enter in the fields will be written
to the image file headers of the reconstructed slices.
2.2. Set projection information and geometry
The next step is enter information about the projection files and the image geometry. This is
done in the Projections and geometry tab, figure ().
The projection data is the input to the reconstruction. You can also provide reference images
here. To enter the information you have to enter the path of the directory which contains
the projection data. Then you have to enter the file mask of the projection files the general
format is basename####.ext, where the base name can be any string. the extension is used to
5
MuhRec3 User Manual – Draft
Figure 2.2.: The projection and geometry tab
determine image file type and must be correctly specified. Finally the # are place holders for
the file index. The number of place holders defines how the zero padding should be used. Some
examples: proj_##.tif will give the filenames proj_00.tif to proj_99.tif, and thereafter
proj_100.tif etc. If you omit the # at all the indices will be inserted after the base name and
before the extension without zero padding.
Once you have defined file names and path you have to set the first and last projections as
well as the file stride. The stride is used to reduce the number of projections for test purposes
when you want a quick reconstruction. The first index can be any positive number smaller than
the last projection index.
Below the projection information you find some fields for rotation, flip, and skip projections.
Theses fields are currently only place-holders for up coming features which are not even implemented.
The reference files are entered in the same manner as the projections. Both open beam and
dark current images are required to located in the same directory. You also have to set the first
reference image index and the number of references. These numbers are set for both open beam
and dark current image separately. If you don’t have any reference images just set the number
of references to 0.
When all file parameters are set you can click the preview button to see the projection in the
display area to the right.
6
MuhRec3 User Manual – Draft
2.2.1. Setting the geometry
The geometry is essential for the reconstruction. The most important is the center of rotation
which has to be determined to sub-pixel accuracy. Other parameters defines the number of slices
and the margins of the projections. The projection configuration dialog helps you to find the
minimal margins and the center of rotation.
If your projection data was acquired with a tilted axis of rotation it will have an impact on the
reconstructed data. Since this means that the center of rotation depends on the slice position,
i.e. only the slice you tuned center of rotation for will be correctly reconstructed. Small tilts
(<1◦ ) can be corrected. The correction for larger tilt angles is still a pending feature.
Finally, you can also set the pixel size of the projections. This information is needed if you
want the gray-levels of the pixels to have the unit cm-1 . The pixel size is also written as resolution
in the slice images.
The amount of memory required for the reconstruction is estimated to give you an idea if the
task is feasible for your computer. You can control the memory usage by changing the geometry
of the reconstructed image, i.e. change the margins or number of slices.
The region of interest is marked in the projection preview image. The region used for dose
computation is also marked in this display.
2.2.2. Saving the parameters
Once you have set all parameters it is recommended to save the parameters. You save the
parameters by selecting save or save as in the file menu. Alternatively, you can also press
CTRL-S which performs the same action. In a way the parameter file is a documentation of
your reconstruction. It also allows you to load the parameters at later moment if you would like
to do adjustments or reconstruct a new part of the samples. You can also use the parameter file
for command line reconstructions and batch processing. For more details about the command
line mode please read section 3.6.
The saved parameters can either be loaded into the GUI by using the File-Open menu or
without GUI in the command-line option.
When you start a reconstruction the used parameters are automatically save in the file CurrentRecon.xml which is save in your home directory. This file will automatically be loaded when
you start Muhrec next time.
2.3. Configure the processing chain
2.3.1. Pre-processing chain
When the geometry is configured you can switch to the processing tab, figure(2.3) On this tab,
you can configure the chain of preprocessing modules. This means you can add new modules
if your data requires some special treatment and you can edit the module parameters. IN the
current version this can only be done in entry fields. In the future it is planed to add wizards
to guide the configuration of the more complex modules.
2.3.2. The back-projector
It is also possible to change back-projector and configure its parameters. The most important
parameter is the buffer size. This parameter has a direct effect on the memory consumption
during the reconstruction. On a 32-bit system it may be needed to change the buffer to a smaller
value when wide projections are reconstructed.
7
MuhRec3 User Manual – Draft
Figure 2.3.: The process chain configuration tab.
2.4. Reconstruction
2.4.1. Start the processing
Once the parameters for the reconstruction have been set you can start the reconstruction by
pressing the ’Start Reconstruction’ button. There are however two modes to consider; for small
data sets you can do the reconstruction in interactive mode. This means that you after the
finished reconstruction can adjust the gray levels and select destination folder, file name, and
file format. When the selected matrix is to large for the available memory a dialog that gives
you the options to reconstruct directly to disk with the setting on the matrix tab or to cancel
the started reconstruction. If you select the direct streaming option for the reconstruction there
will be no output in the slice display.
Often it is recommended to make a small test reconstruction to check the quality of the
selected parameters. Select between 16 and 64 slices in a relevant region of the sample and
reconstruct them. It may take some iterations until you have everything as you want it. When
you are satisfied with the result you can reconstruct the whole data set in a single run. This
may take some time.
2.4.2. Finalize the data
When the reconstructor finished processing the data you are automatically directed to the
’Matrix’-tab, figure 2.4.
In this mode you see a histogram of the reconstructed data. The vertical lines in the histogram
shows the interval used to display the reconstructed slice in the viewer. These levels will also
be used to in the conversion to integer formats. You can change the gray level interval in the
entry fields on the top.
8
MuhRec3 User Manual – Draft
Figure 2.4.: The matrix display tab.
A slider can be used to browse through the slices. By sliding through the slices you can
inspect the slices to check that the gray interval is correctly set. You can also see if there are
any artifacts in your data.
Once you are satisfied the image settings and reconstruction quality you can save the slices.
To do this you have to select the destination folder and enter the file mask for the slices. The
mask has the same format as the projection data i.e. base####.ext. The extension must be
entered manually as it is not adapted to the selected file type. The last selection to make is the
file format which can be either tiff with different bit depths or matlab binary.
2.5. The geometry list
It is possible to store the current configuration in the geometry list using the application menu
item Geometry. This can be used to test the effect of different settings without losing the original
settings. Each parameter set will be stored with the central slice to make comparison easier.
If you have reconstructed several slices on different places you can use the entries of the list to
calculate the axis tilt.
9
MuhRec3 User Manual – Draft
Figure 2.5.: The Geometry list dialog.
10
3. Detailed descriptions
3.1. Processing modules
The processing module play a central roll in the reconstruction. They are used to manipulated
the projection data prior to the back projection task. In the following sections each module is
described. The order of the modules can be arbitrarily configured. In some cases it makes sense
to maintain a certain order among the modules. This reordering can be done in the GUI by
dragging the modules in the pre-processing module list. Unfortunately, there is a bug in the
GUI package that may cause the application to crash. The reordering can also be made in the
config file since the modules are executed in the order they are entered.
The modules can be configured by clicking on a module in the module list. Then, a list of
parameters for the module is shown. Click on the parameter value you want to change and enter
the new value. Don’t forget to press enter to confirm the new entry. A module can also be
temporarily disabled by unchecking the active check-box. Then it remains in the configuration
but does not contribute to the processing chain. This option is useful if you want to speed up
the processing a little. It can also be used to demonstrate effect before and after adding the
module.
3.1.1. FullLogNorm
In most cases a complete projection data set also contains open beam and dark current images.
The location and names of the images are entered separately under the ’Projections’-tab. Here,
you can also set the number of available reference images. The full normalization operation is
computed using
p = − log
D0
I − IDC
·
D IOB − IDC
(3.1)
This equation includes correction for variations in the neutron dose.
This module computes the flat field correction of the projections. The correction is followed
by the negative logarithm. The module uses the reference images entered in the projection
information tab.
uselut Selects if the computation should be supported by a LUT to gain some speed.
Values:true/false.
usenormregion Selects if the norm region should be used for dose correction.
Values:true/false.
Figure 3.1.: Configuration dialog for the log norm module.
Object file: libStdPreprocModules.so
11
MuhRec3 User Manual – Draft
3.1.2. SpotClean2
Spots are the most frequent outlier artifacts encountered in neutron imaging. These appear
as line artifacts in the reconstructed data. There is a large benefit in using the spot-cleaning
algorithm since this increases the signal to noise ratio in the matrix significantly.
Line artifact cleaning is parameterized by two parameters; the threshold level and a fuzziness
parameter around the threshold. Mostly, the fuzzy width parameter is set to about 10% of the
threshold.
Original
Cleaned
Figure 3.2.: The effect of spot cleaning.
The spot cleaning is parameterized by two parameters; the threshold and the mixing fuzziness.
The threshold defines the intensity of the pixels to correct. All pixels with values exceeding
the threshold will be corrected. The second parameter is used for interpolation between the
estimated correction values and the original image.
pcorrected = (1 − w) poriginal + w pestimate
the weight function is a sigmoid centered about the threshold level. This means that some pixels
below the threshold will also be involved in the correction.
The spot cleaning configuration wizard helps you to find the correct levels of the two parameters. A threshold function plot in the cumulative histogram shows in which interval the
correction will work. When you execute the correction the detection map and the the corrected
image will be shown. The amount of corrected pixels will also be displayed. This wizard will
only show you the region of interest you marked in the projection geometry setting. Therefore,
you may want to increase the number of slices a while for a better overview during the tuning
process of the spot cleaning.
gamma This is a threshold value setting an allowed variance maximum that discriminates local
image variations from actual outliers.
Typical value: 0.03
iterations This is currently an unused parameter that would iterate the cleaning procedure N
times.
Typical value: 1
maxlevel Data clamping parameter, values greater than this level are set to the defined level.
Default value: 12
minlevel Data clamping parameter, values less than this level are set to the defined level.
Typical value: 0
sigma A width parameter to allow smooth mixing of the values around the threshold.
Default value: 0.005
Object file: libStdPreprocModules.so
12
MuhRec3 User Manual – Draft
Figure 3.3.: The spot clean 2 configuration dialog.
3.1.3. MedianMixRingClean
Ring artifacts are with line artifacts the most common artifact in a CT slice. This is a basic
method for correcting ring artifacts. It identifies outliers in the average sinogram and corrects
them by the local median.
threshold Sets a threshold on the local variance that identifies an outlier that would cause a
ring.
Default value: 0.01
width Sets a smooth weighting interval for the replacement. Typically this value is about 10%
of the threshold.
Default value: 0.001
Object file: libStdPreprocModules.so
3.1.4. ProjectionFilterSingle
This is a central module for the filtered back-projection algorithm. It applies a ramp filter
combined with a apodization window line-wise on the projection data.
cutoff The cut-off frequency can be used to improve the signal to noise ratio of the reconstruction. As it has a low-pass effect it will smooth the edges in the image. It can take values
between 0 and 0.5.
Default value: 0.5
filtertype This parameter controls the shape of the apodization filter. There are several window
shapes implemented: ramlak, shepplogan,hanning,hamming, and butterworth.
Default value: hamming
order This parameter is only relevant for the Butterworth filter where it defines the exponent
of the filter and thus controls the filter shape.
Default value: 0
13
MuhRec3 User Manual – Draft
Figure 3.4.: The median mix ring clean configuration dialog.
usebias The ramp filter cancels the DC term of the spectrum. The effect is a bias in the
reconstruction. By activating this parameter a small value is added to the DC component.
Default value: true
Figure 3.5.: The projection filter configuration dialog.
Object file: libStdPreprocModules.so
3.1.5. ISSfilter
This is an experimental module used to smooth the projection data. The module uses an
inverse scale space filter [?] to filter the individual projections. It seems to improve the SNR
with maintained edge sharpness. The filter has some problems with the numerical stability, at
least it is difficult to tune. There will be a tuning wizard in the future.
N Number of solution iterations.
Default value 10
alpha 0.25
lambda 1
tau 0.02
Object file: libStdPreprocModules.so
14
MuhRec3 User Manual – Draft
Figure 3.6.: The projection filter configuration dialog.
3.1.6. AdaptiveFilter
Samples with high aspect ratio between width and thickness have an orientation dependent signal
to noise ratio[?]. This filter adaptively applies more smoothing to regions with low transmission.
(a)
(b)
(c)
Figure 3.7.: The effect of the module for adaptive filtering. The unfiltered image (a), reconstruction with the adaptive filter activated (b), and (c) is difference image between the
images (a) and (b).
lambda Threshold at with the smoothing takes place. The value of lambda makes sense in the
interval [0.0, 1.0].
Default value: 0.1
sigma Defines the width of the mixing interval. This value should mostly be less than 0.1.
Default value: 0.05
size Width of the smoothing filter kernel.
Default value: 5
Object file: libStdPreprocModules.so
3.1.7. BasicRingClean
The basic ring clean subtracts a high-pass filtered average sinogram from all sinogram. This a
rather crude way of ring correction but it will cancel some of the rings.
Object file: libStdPreprocModules.so
15
MuhRec3 User Manual – Draft
3.1.8. DataScaler
The data scaler makes a linear scaling of the data k x+m. This can be useful if have preprocessed
images that are save in a 16-bit data format.
Object file: libStdPreprocModules.so
offset The offset (m) of the straight line.
Default value: 0.0
slope The slope (k) of the straight line.
Default value: 1.0
3.1.9. GeneralFilter
Object file: libStdPreprocModules.so
size 3
type box
3.1.10. PolynomialCorrection
This module applies a polynomial to each pixel value. This is used to correct for beam hardening
effects in the reconstructed image. Object file: libStdPreprocModules.so
Coefficents The coefficients of the terms of the polynomial starting with a0 i.e. there must be
PolynomialDegree+1 values.
Default value: 0.0 1.0
PolynomialDegree Sets the polynomial degree, the module can handle up to the 8th degree.
Default value: 1
3.1.11. SpotRingClean
Ring cleaning by spot cleaning is an experimental module that is not finished. It cleans some
of the rings but the performance is still not satisfying.
Object file: libStdPreprocModules.so
gamma Threshold level in the detection image.
Default value: 0.01
iterations Number of times the filter should be repeated.
Default value: 1
sigma Width of the mixing interval.
Default value: 0.001
3.1.12. TranslatedProjectionWeighting
This module weights the projections near the center of rotation to provide a smooth stitching of
the projection data when you reconstruct data that is acquired with the center near the edge.
This is a method to increase the FOV at maintained resolution.
Object file: libStdPreprocModules.so
weightfunction sigmoid
width 5
16
MuhRec3 User Manual – Draft
Figure 3.8.: The projection filter configuration dialog.
3.1.13. WaveletRingClean
This ring cleaning module works in the sinogram domain. It does the cleaning using a combination of wavelet and fourier transforms[?]. The current version introduces new artifacts as a
consequence of bad edge processing in the wavelet transform. I.e. this module is still under development. The filter bank could also gain of the addition of more and longer filter descriptions.
Object file: libStdPreprocModules.so
decnum Number of decomposition levels.
Default value: 5
sigma Width of the Gaussian that forms the stop band.
Default value 0.1
wname The name of the wavelet base.
Default value: daub25
3.1.14. CountNANs
This module is mainly for debugging use. It counts the number of pixels set to NaN. This can
be helpful to identify which module causes the numeric errors in your processing chain.
Object file: libInspectorModules.so
3.1.15. ProjectionInspector
This module is not fully implemented but is intended to open a display window that shows the
projections in their current condition.
Object file: libInspectorModules.so
17
MuhRec3 User Manual – Draft
Figure 3.9.: Dialog to tune the ring correction using wavelet ringclean. Left panel is original,
mid shows the processed sinogram, and the panel to the right shows the difference.
3.1.16. SaveProjections
This module save the projection data in the current state of processing as a set of 32-bit tif
images.
Object file: libInspectorModules.so
path Path to the destination folder
filemask File mask of the written files. It shall always contain a block of #’s as placeholder for
the file index. Default value:./projections_####.tif
imagetype Selects the file type of the projection data. It can be either projections or sinograms.
Default value: projections.
filetype Selects the precision of the data in the written files. It can be 8- or 16- bit unsigned or
32 bit floating point.
Default value: 32bit floating point.
Figure 3.10.: Dialog to set the values of the SaveProjections module.
3.2. The Viewer
The viewer area on the right hand side of the application main window is used to display
projections and reconstructed slices. If move mouse pointer to the viewer and wait shortly a
tool tip message will appear. It tells you the position and intensity on position you point with the
mouse. This is useful to determine threshold levels guiding algorithms like the margin detector.
18
MuhRec3 User Manual – Draft
The contrast and brightness can be adjusted by dragging using the right mouse button. If
you pause while the right mouse button is pressed, a tool tip shows the current brightness and
contrast.
A level dialog appear if you press ”l’ when the viewer is active. You can also mark regions in
the viewer and press the Get ROI button related to the viewer.
3.3. The projection data
MuhRec supports input projection data in the formats: TIFF, FITS, and Matlab binary. Normally the filenames of the projections are sequentially ordered and each file has a base name and
an index number. To enter the file name in the projection entry field you should use the format
base_####.ext. The number of # tells MuhRec how many zeros to use in the formatting. The
#’s can be placed anywhere in the name string. The extension indicates which file format to
use.
Below the file name field the file interval can be entered with first and last file index. These
indices will both both included. In addition there is also an entry to set the increment. This
increment can be used to decrease the number of projection in test reconstructions. This saves
time, but do not forget to repeat the reconstruction with all projections before you start the
final reconstruction.
An alternative way to enter the projection data with a text file. The advantage of this approach
is that you can use any filename and for each projection and you can specify the acquisition
angle for each projection. The format of the file is
angle0 <tab> fileA.ext
angle1 <tab> fileB.ext
.
.
.
angleN <tab> fileXYZ.ext
The you use a text file to specify the projection data. You can use the file index numbers to
select intervals in the file list. The first line in the file has index 1. Stepping does not work.
Once you have entered all projection information you can press the ’Preview’-button and the
first projection will appear in the viewer. The displayed projection is the raw projection.
3.4. Spatio-temporal tomography
For samples which change over time it is not possible to
3.5. Tilt correction
When the turn table and detector are not aligned there will be an error in the reconstructed
data. For small deviations this error can be corrected by adjusting the center of rotation for
each slice. In MuhRec you have two parameters for the tilt correction. The first is the axis tilt
angle and the other set the pivot point relative to the image.
The pivot is used for long samples where the turn table is located far away from the detector.
For a single data set this parameter is less important than when you have several scans that you
want to merge after the completed reconstruction. It is not possible to correct for both detector
and pivot tilt simultaneously in the current version. Figure 3.11 shows the two different detector
rotations.
19
MuhRec3 User Manual – Draft
Figure 3.11.: Possible acquisition axis tilts.
3.6. Reconstructing from the command line
In addition to the GUI you can also start MuhRec from the command line. This can done by
typing
muhrec3 -f parameters.xml
The file parameters.xml contains all settings needed for the reconstruction. This is also the same
type of files written by GUI. In appendix B an example of the parameter file is given.
The command line option is useful for batch reconstructions. The parameter files for all
reconstruction jobs can be prepared with the GUI. In some cases there are only a few parameters
that change between the data sets. In this case you can add these parameters on the command
line using the format:
muhrec3 -f parameters.xml block1:parameter1=value1 block2:parameter2=value2
The block is the xml block in the parameter file (userinformation, system, projections, matrix)
and parameter is the parameter you want to modify with value. Please note that each parameter argument must be a single string each space will be interpreted as delimiter for a new
argument. Therefore if you want to change an array parameter you have to use ”. . . ” to enclose
the argument. Eg.
muhrec3 -f parameters.xml "projections:roi=10 10 100 100"
Muhrec use less memory when it is operated in CLI mode.
Invoking Muhrec from a script
Sometimes it is convenient to use a script to run muhrec. Here is an example using python
#!/usr/bin/env python
print("Processing some frames.")
projpath="/Volumes/DataDisk/P20140142"
destpath=projpath+"/04_evaluation/20141126"
20
MuhRec3 User Manual – Draft
muhrec="/Users/kaestner/Applications/muhrec3.app/Contents/MacOS/muhrec3"
cfgpath=projpath+"/04_evaluation/20141126/recon_roots.xml"
from subprocess import call
from math import fmod
firstproj=1;
firstframe=0
lastframe=3
for i in range(firstframe,lastframe) :
# select projection sub set
firstindex="projections:firstindex="+str(firstproj+i*180)
lastindex="projections:lastindex="+str(firstproj+(i+1)*180)
# set file mask for the slices
matrixname="matrix:matrixname=frame_"+("%04d" % i)+"-slice_####.tif"
# adjust the reconstruction angles to alternating between 0-180 and 180-360
angle=fmod(i,2)*180
scanarc="projections:scanarc="+str(angle)+" "+str(angle+180)
# call the reconstruction
call([muhrec, "-f", cfgpath, firstindex, lastindex, matrixname, scanarc])
This script assumes that you have a well configured Recon.xml file and that the data is
acquired as a long sequence, e.g. a time series of CTs.
21
4. Continued development
MuhRec is continuously developing to adapt to new challenges at the neutron imaging beamlines
at Paul Scherrer Institut. Unfortunately, it is not only new development but also bug fixing.
To fix bug the input from users is important, so I kindly ask you to report problems when the
software misbehaves.
For the continued development it also important with feedback regarding improvements of
existing and new features. So, if you have any comments that you would like to share I appreciate
if you send them to me. I cannot promise that I will implement everything but I will at least
consider it.
22
Bibliography
23
A. License
Definitions: The software refers to any revision of MuhRec. The author Anders Kaestner is
referred to as the author. Any person who installed and intends to use or uses the software is
referred to as the user.
• The software (source code, binaries, and any supporting material) is the property of the
author.
• The user is allowed to install and use the software free of charge.
• It is not allowed to decompile and/or modify the files in the software distribution.
• The software is delivered as is. The author gratefully receives bug reports and feature
requests but can not promise any updates. In case of updates the user will be notified.
• The author takes no responsibility for the use of the software and the accuracy of the
results.
• The user is strongly discouraged from using the software for medical applications.
• If you use the results in a publication. The following publication should cited: Anders P.
Kaestner, MuhRec – A new tomography reconstructor, Nuclear Instruments and Methods in
Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment Volume 651, Issue 1, 21 September 2011, Pages 156-160, doi:10.1016/j.nima.2011.01.129
24
B. Parameter file format
The parameter file is formatted with xml and is divided into subsections. Here the default
parameter file is shown:
<reconstructor>
<userinformation>
<operator>Anders Kaestner</operator>
<instrument>ICON</instrument>
<projectnumber>P11048</projectnumber>
<sample>Curse tablet</sample>
<comment>No comment</comment>
</userinformation>
<system>
<memory>6000</memory>
<loglevel>message</loglevel>
</system>
<projections>
<dims>2048 2048</dims>
<resolution>0.0135 0.0135</resolution>
<firstindex>1</firstindex>
<lastindex>625</lastindex>
<projectionstep>1</projectionstep>
<repeatline>false</repeatline>
<scantype>sequential</scantype>
<imagetype>projections</imagetype>
<center>568</center>
<translation>false</translation>
<tiltangle>0</tiltangle>
<tiltpivot>0</tiltpivot>
<correcttilt>false</correcttilt>
<filemask>tablet_####.fits</filemask>
<path>/home/data/P11048_tablet/tomo/</path>
<referencepath>/home/data/P11048_tablet/tomo/</referencepath>
<obfilemask>ob_####.fits</obfilemask>
<obfirstindex>1</obfirstindex>
<obcount>5</obcount>
<dcfilemask>dc_####.fits</dcfilemask>
<dcfirstindex>1</dcfirstindex>
<dccount>5</dccount>
<roi>600 400 1700 432</roi>
<doseroi>300 600 350 800</doseroi>
<scanarc>0 360</scanarc>
</projections>
25
MuhRec3 User Manual – Draft
<matrix>
<dims>1100 1100 32</dims>
<rotation>0</rotation>
<serialize>false</serialize>
<path>/home/kaestner/work/svn/</path>
<matrixname>tablet_####.tif</matrixname>
<filetype>TIFF16bits</filetype>
<firstindex>0</firstindex>
<grayinterval>-1 0.728486</grayinterval>
</matrix>
<processchain>
<preprocessing>
<module>
<modulename>FullLogNorm</modulename>
<sharedobject>libStdPreprocModules.so</sharedobject>
<active>true</active>
<parameters>
<uselut>false</uselut>
<usenormregion>true</usenormregion>
</parameters>
</module>
<module>
<modulename>SpotClean2</modulename>
<sharedobject>libStdPreprocModules.so</sharedobject>
<active>true</active>
<parameters>
<gamma>0.03</gamma>
<iterations>1</iterations>
<maxlevel>12</maxlevel>
<minlevel>0.0</minlevel>
<sigma>0.005</sigma>
</parameters>
</module>
<module>
<modulename>MedianMixRingClean</modulename>
<sharedobject>libStdPreprocModules.so</sharedobject>
<active>true</active>
<parameters>
<threshold>0.01</threshold>
<width>0.001</width>
</parameters>
</module>
<module>
<modulename>ProjectionFilterSingle</modulename>
<sharedobject>libStdPreprocModules.so</sharedobject>
<active>true</active>
<parameters>
<cutoff>0.5</cutoff>
<filtertype>hamming</filtertype>
<order>0</order>
26
MuhRec3 User Manual – Draft
<usebias>true</usebias>
</parameters>
</module>
</preprocessing>
<backprojector>
<module>
<modulename>MultiProjBP</modulename>
<sharedobject>libStdBackProjectors.so</sharedobject>
<active>true</active>
<parameters>
<ProjectionBufferSize>16</ProjectionBufferSize>
<SliceBlock>64</SliceBlock>
<SubVolume>1</SubVolume>
</parameters>
</module>
</backprojector>
</processchain>
</reconstructor>
Most of the parameters can be set with GUI. There are however some exceptions.
• <memory> amount of memory available for reconstruction, unit mb.
• <projectionbuffersize> number of projections to process simultaneously.
• <sliceblock> max number of slices to process in one processing block.
The buffer parameters have direct impact on the reconstruction time.
27
C. Intended new features
1. Flip, and 90◦ rotations.
2. True rotation of the projections.
3. Center estimation by reconstruction.
4. Add a module for QNI for the projections. QNI is a method to reduce the impact of
scattering on the data. It often makes it possible to quantify the water content in a
sample.
5. Your suggestions.
28
D. Known bugs and limitations. . .
D.1. Limitations
1. The back-projection core only works on a single thread.
2. Center of rotation can not be found for translated projection data.
D.2. Bugs
• The reconstructor may crash when the number of slices is not a factor of 4.
• The translated center reconstruction does not reconstruct correctly near the center of
rotation. This is especially noticeable when tilt correction is activated
• First and last slice in a block appears to have different intensity. Not verified.
• The module selection list in add module is not cleared when a new object file is opened.
29
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
