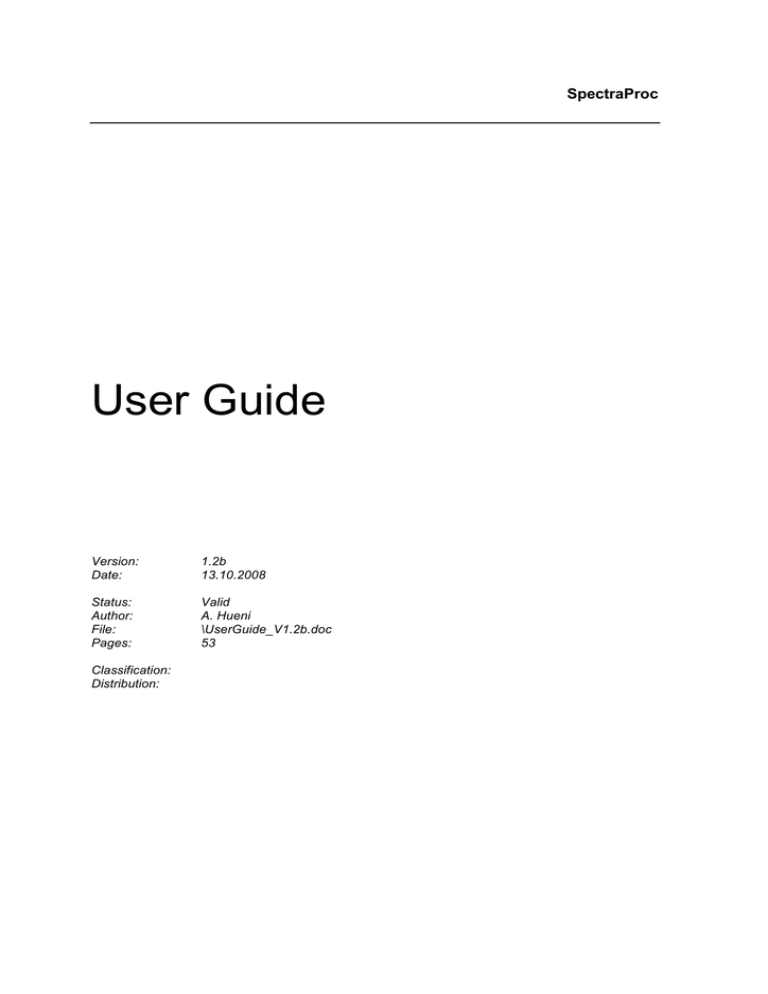

User Guide

User Guide
SpectraProc
User Guide
Version:
Date:
1.2b
13.10.2008
Status:
Author:
File:
Pages:
Valid
A. Hueni
\UserGuide_V1.2b.doc
53
Classification:
Distribution:
SpectraProc
User Guide
Page 2
of 53
History
Version
Date
Author
Remark
0.1
03.04.2006
A. Hueni
First draft
0.11
06.04.2006
A. Hueni
Modified MySQL installation
0.2
16.06.2006
A. Hueni
Modified Tutorial for new example set
1.1
20.10.2006
A. Hueni
Added description of new SpectraProc Features.
Added description of new SpectraProc Query
interface.
Added new section in the Tutorial about disabling of outliers.
Added change history of added features, fixed
bugs and known bugs.
16.11.2006
A. Hueni
Added another table change statement for the
spectrum table (see Upgrading to SpectralDB
V1.1)
1.2
17.12.2006
A. Hueni
Added description how to change the database
connection string for SpectraProc Query
1.2a
15.02.2008
A. Hueni
Upgraded the supplied spectral_db schema to
V1.1 and therefore adapted the installation instructions in this user guide.
Removed the ‘upgrade database’ section.
1.2b
A. Hueni
13.10.2008
A. Hueni
Updated the application bundle (TCL relevant)
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 3
of 53
Table of Contents
1 Introduction ...................................................................................................... 5 2 Installation and Configuration ........................................................................ 6 2.1 Database...................................................................................................................................6 2.1.1 Installing MySQL ................................................................................................................6 2.1.2 Installing MySQL-Administrator and Query Browser ......................................................... 6 2.1.3 Setting up the Spectral Database Schema, Tables and Users ..........................................6 2.1.4 Network Access .................................................................................................................6 2.2 SpectraProc Application............................................................................................................7 2.3 SpectraProc Query Interface ....................................................................................................8 2.3.1 Installing TCL/TK ...............................................................................................................8 2.3.2 Installing Mysqltcl Package ................................................................................................ 8 2.3.3 Plotchart Package ..............................................................................................................8 2.3.4 Installing SpectraProc Query Interface ..............................................................................8 2.3.5 Changing the Database Connection ..................................................................................8 2.3.6 Running SpectraProc Query Interface ...............................................................................8 3 Design of Sampling Experiments ................................................................. 10 3.1 Overview .................................................................................................................................10 3.2 Hierarchical Structure .............................................................................................................10 3.3 Directory Structure and Spectral Files ....................................................................................10 4 Operation ........................................................................................................ 12 4.1 Overview .................................................................................................................................12 4.1.1 Dataflow ........................................................................................................................... 12 4.1.2 File System Interfaces .....................................................................................................12 4.1.3 SpectraProc Operation ....................................................................................................13 4.1.4 Spectral Processing Concept........................................................................................... 13 4.2 SpectraProc ............................................................................................................................ 14 4.2.1 User Interface ..................................................................................................................14 4.2.2 Creating a new Study.......................................................................................................15 4.2.3 Deleting an existing Study ............................................................................................... 16 4.2.4 Study Report ....................................................................................................................16 4.2.5 Selecting Studies .............................................................................................................16 4.2.6 Loading Spectra ...............................................................................................................17 4.2.7 Processing Chain Settings ............................................................................................... 17 4.2.7.1 Waveband Filtering...................................................................................................................17 4.2.7.2 Smoothing.................................................................................................................................18 4.2.7.3 Sensor Synthesizing / Downsampling ......................................................................................20 4.2.7.3.1 4.5.3.1 Ratio Sensors .........................................................................................................20 4.2.7.3.2 Gaussian Sensors ...............................................................................................................20 4.2.7.3.3 Supplied Sensors ...............................................................................................................22 4.2.7.4 Derivative Calculation ..............................................................................................................22 4.2.7.5 Feature Space Transformation ..................................................................................................23 4.2.7.5.1 DI (DGVI) .........................................................................................................................23 4.2.7.5.2 NTBI..................................................................................................................................23 4.2.7.5.3 PCT....................................................................................................................................24 4.2.7.5.4 Creation, Modification and Deletion of Feature Space Definitions ..................................24 4.2.7.5.5 Feature Space Selection.....................................................................................................25 A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 4
of 53
4.2.8 File Export ........................................................................................................................ 26 4.2.9 Saving the Contents of the Report Window .....................................................................28 4.2.10 Spectral Mixtures ...........................................................................................................28 4.2.10.1 Endmember Designation.........................................................................................................28 4.2.10.2 Abundance Settings ................................................................................................................29 4.2.11 Library Building ..............................................................................................................29 4.2.12 Analysis.......................................................................................................................... 29 4.2.12.1 Separability .............................................................................................................................29 4.2.12.2 Discriminant Analysis ............................................................................................................30 4.2.12.3 Principal Component Analysis ...............................................................................................32 4.2.12.4 Unmixing ................................................................................................................................32 4.2.13 Adding new Sensors ......................................................................................................33 4.2.14 Linking to a GIS System ................................................................................................ 35 4.2.14.1 Setting up the Spectral DB as a Data Source..........................................................................35 4.2.14.2 Establishing a Database Connection in ArcCatalog ...............................................................35 4.2.14.3 Adding Table Data to a Map...................................................................................................37 4.3 SpectraProc Query Interface ..................................................................................................39 4.3.1 Introduction ...................................................................................................................... 39 4.3.2 Database Connection ......................................................................................................39 4.3.3 User Interface ..................................................................................................................39 4.3.4 Report Windows...............................................................................................................40 4.3.4.1 Campaign Report ......................................................................................................................40 4.3.4.2 Species Report ..........................................................................................................................41 4.3.4.3 Site Report ................................................................................................................................41 4.3.4.4 Spectrum Report .......................................................................................................................42 5 Tutorial ............................................................................................................ 43 5.1 Overview .................................................................................................................................43 5.2 Examine the Folder and File Structure ...................................................................................43 5.3 Creating a new Study and Loading the Spectra .....................................................................43 5.4 Get to Know Your Data ...........................................................................................................43 5.5 Discriminant Analysis in PCT Feature Space .........................................................................47 5.6 Disabling Outliers....................................................................................................................48 6 Change History............................................................................................... 51 6.1 SpectraProc ............................................................................................................................ 51 6.1.1 Added Features ...............................................................................................................51 6.1.2 Fixed Bugs ....................................................................................................................... 51 6.1.3 Known Bugs .....................................................................................................................52 6.2 SpectraProc Database............................................................................................................52 6.2.1 Added Features ...............................................................................................................52 7 References ...................................................................................................... 53 A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 5
of 53
1 Introduction
Field spectroradiometry has become increasingly popular in the last few years. The technology has
advantages over conventional techniques, allowing the non-destructive sampling of objects and
possibly enabling the user to gain critical information more quickly and cheaply. As a result, many
scientists are now actively researching applications of hyperspectral sensing. The operation of the
instruments tends to be relatively easy and data are collected quickly. However, the interpretation
of these data is not so simple. The main issue when dealing with hyperspectral data is their dimensionality which is the result of sampling a wide spectral range in very narrow bands. This is in itself
a problem because the influence of noise on narrow channels is much higher than on traditional
broadband channels. Hyperspectral data are more complex than previous multispectral data and
different approaches for data handling and information extraction are needed (Landgrebe, 1997,
Vane and Goetz, 1988).
Hyperspectral data are essentially multivariate data, consisting of hundreds or even thousands of
variables. It has been shown that more bands do not automatically imply better results. Although
the separability of classes does increase with growing dimensionality, the classification accuracy
does not follow this trend endlessly but will decrease at a certain point. This is called the Hughes
Phenomenon and is caused by the ever increasing number of samples needed to build sound statistics if the dimensionality grows (Landgrebe, 1997). In practice this means that more samples
must be collected to ensure successful statistical analyses. It is necessary, therefore, to collect a
large number of spectral data files, each containing a hyperspectral spectrum. The sheer number
of files and variables can become overwhelming. Interestingly, very few studies concerned with
hyperspectral data have ever mentioned how the data had been organised and stored.
A further issue that is rarely addressed is the reusability of the data. Reference data is usually
compiled in so called spectral libraries. The majority of the publicly available spectral libraries are
distributed as physical files. This has drawbacks such as low flexibility and low query performance
(Bojinski et al., 2003). Another drawback of most libraries is their restriction in the number of spectra per class. In many cases, only one reference spectrum is supplied. This reduces any statistical
analysis to first order statistics. The use of average values may be useful in some circumstances,
however, Landgrebe (1997) noted that the reduction of data to mean values results in a loss of
information. Second order statistics contain vital information about the distribution of data in spectral or feature space and should therefore be included in spectral data collections.
The time and effort that is spent in collecting spectral data, combined with the characteristically
large number of files, makes it clear that spectral data should be well organised. Otherwise valuable data can be lost or loses its value because of missing metadata. Considering the above, it
seems logical to employ a database to store spectral data in a suitable form. A further characteristic of hyperspectral data is the data redundancy. It has been shown that neighbouring wavebands
have a high degree of correlation (Thenkabail et al., 2004). This redundancy is created by oversampling, i.e. the spectral signal is sampled at small enough steps to describe very narrow features
that could be discriminating (Shaw and Manolakis, 2002). The redundancy and general noisiness
of the data usually mean that certain pre-processing must be carried out before any useful analysis
can be performed.
SpectraProc and ‘SpectraProc Query’ bundled with the associated spectral database is a solution
for the efficient storage and pre-processing of field spectroradiometer data. The system has been
successfully used in studies concerned with New Zealand native vegetation, soil properties and
pastures (Kusumo et al., 2008).
SpectraProc has also lately been used in a study of rapid avalanche mapping at the Remote Sensing Laboratories, Zurich, Switzerland.
For the storage of spectral data and associated metadata, you may wish to consider using the
SPECCHIO spectral database. However, SPECCHIO is still lacking the processing features as
offered by SpectraProc at this point of time. For more information see www.specchio.ch.
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 6
of 53
2 Installation and Configuration
2.1 Database
2.1.1 Installing MySQL
SpectraProc runs on versions 4 and 5 of MySQL database. SpectraProc Query only runs on version 5.
□ Download the installation wizard ZIP file for Windows from www.mysql.com: mysql5.0.26-win32.zip
□ Install the above ZIP file by running it
□ Use standard configuration
□ In the configuration section select:
o Install as windows service
o Root password: ‘root’ (or any other password, but make sure you can remember it)
2.1.2 Installing MySQL-Administrator and Query Browser
□
□
Download the windows install MSI file from www.mysql.com mysql-gui-tools-5.0-r4win32.msi
Install both applications by running the above MSI file
2.1.3 Setting up the Spectral Database Schema, Tables and Users
□
□
□
□
Run MySQL Administrator
Go to Restore and load the supplied Spectral_DB_XXXXXXX.SQL file. This will create
all tables and populate them.
Go to the User Administration tab and create a new user. User name and password
are both ‘SpectraProc’. Edit the spectral_db schema privileges by adding SELECT,
INSERT, UPDATE AND DELETE to the assigned privileges. Assign Resources:
max_questions: 0, max_updates: 0, max_connections: 0 (This allows unlimited access.
If you want to limit the access select positive values)
The new user should have access rights for localhost by default. If not so: add ‘localhost’ to the list of hosts from which the user SpectraProc can connect (click on the icon
under User Accounts to do this).
2.1.4 Network Access
The SpectraProc application can access the database over the network if the following configurations are performed:
□ The IP addresses of all machines from which the user ‘SpectraProc’ can connect are
added to the ‘SpectraProc’ privileges. Alternatively a range of IP addresses can be
configured using a netmask (see MySQL online documentation for details) or a value
of ‘%’ will allow access from any possible machine.
□ The port of the MySQL server (3306 by default) is not blocked by Microsoft Windows
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 7
of 53
2.2 SpectraProc Application
Copy the SpectraProc directory supplied on the installation CD to C:\Program Files\. Open the directory after copying it and open spectra_config.txt. Edit the configuration file as described below.
□ Server: if the database is running on a machine different to the machine this copy of
SpectraProc is installed on change ‘localhost’ to the IP address of the database server.
If the database is access over the network also see 2.1.4.
□ Database: if the database has been given a different name during the restore operation
change the name of the database.
□ Default filter settings: these are the waveband filter ranges that are used as default values in the waveband filter setup (see 4.2.7.1). More filter ranges can be added to the
configuration file by adding a new line starting with ‘filter_br’ for each range.
□ Output drive and directory: specify the output drive and the output directory. All file output is written to this directory. This must be a valid (i.e. existing) pathname.
# Configuration settings for spectraProc
# database settings
server localhost
user SpectraProc
password SpectraProc
database spectral_db
# default
filter_br
filter_br
filter_br
filter settings
1350-1440
1790-1980
2360-2500
# specification of file output drive and directory
output_drive C:
output_dir \Data\MPhil Remote Sensing\SpectraProc_output
Hint: access to SpectraProc is made easier by placing a shortcut to the executable on the desktop.
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 8
of 53
2.3 SpectraProc Query Interface
The SpectraProc Query Interface is written in TCL/TK. Access to the database is provided by a
package called mysqltcl. TCL/TK and the package must be installed on the same machine as the
SpectraProc Query Interface.
SpectraProc Query only runs on MySQL version 5 and SpectraProc DB V1.1.
2.3.1 Installing TCL/TK
TCL/TK is open source software and can be downloaded for free on the web on
http://www.activestate.com/Products/ActiveTcl/.
Choose C:\TCL as installation directory.
2.3.2 Installing Mysqltcl Package
Mysqltcl is a package that handles the communication between a TCL client and a MySQL database. The package can be downloaded on http://www.xdobry.de/mysqltcl/#downloads (select the
Windows binary version (ZIP). The ZIP file contains a folder called mysqltcl-3.02, which has been
included
This folder needs to be copied into the TCL library. If TCL was installed on the C: drive (C:\TCL)
then the library folder is: C:\Tcl\lib.
2.3.3 Plotchart Package
The Plotchart package is usually part of the general TCL/TK distribution: the package is contained
in /tcl/lib/tcl8.5/tklib0.4/ or similar. In some distributions, it might be missing. In the later case, copy
the plotchart directory contained in the SpectraProc distribution into /tcl/lib/.
2.3.4 Installing SpectraProc Query Interface
The source files of SpectraProc Query are supplied in a folder. The folder can be copied wherever
seems convenient, e.g. in C:\Program Files.
2.3.5 Changing the Database Connection
By default the SpectraProc Query connects to the local host. If the SpectraProc database is installed on a different machine the connection string must be edited manually.
Open the file spectra_proc_query.tcl in some editor. Then replace the string localhost with the
name or IP address of the database server.
#-------------------------------------------------# Database Connection
#-------------------------------------------------set db_handle [mysqlconnect -host localhost -db spectral_db -user SpectraProc -password SpectraProc]
2.3.6 Running SpectraProc Query Interface
The main source file is called spectra_proc_query.tcl. Double clicking this file will invoke the TCL
interpreter and start the application.
Tip: create a shortcut to spectra_proc_query.tcl on your desktop for easy access.
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
A. Hueni
Page 9
of 53
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 10
of 53
3 Design of Sampling Experiments
3.1 Overview
The data collected during sampling campaigns must be organised in a structured way in order to
allow the automated import into the spectral database. Section 3.2 explains the background of the
structure used and section 3.3 gives a practical example of a directory and file structure that should
be adopted for data collection.
Preferably sampling experiments should be designed to reflect the structure used by SpectraProc.
Alternatively, existing data can be arranged to meet the requirements.
3.2 Hierarchical Structure
A hierarchical data structure that reflects the real world and the setup of sampling campaigns for
vegetation is used. This structure is derived from the following conditions:
1. Reflectances of several different species are captured
2. In order to describe the in-species variation, several specimens of a species are sampled
3. The variability of the specimens is described by several measurements per specimen
The spatial extent where a specimen is sampled is termed a sample site, thus a species contains a
number of sample sites. The sites are numbered in the order of sampling. At each site, several
readings are taken to capture the variation exhibited by the specimen in question. A site therefore
contains a number of spectra. This leads to a hierarchical directory structure (Figure 1).
Figure 1: Hierarchical directory structure
Although the term species is used it essentially represents the different classes found in a study.
These classes can either be assigned due to already existing classification systems for e.g. plants
or minerals. In other cases a hypothesis might exist that a group of objects can be separated into
classes. If so the setup of the experiment should mirror this hypothesis. If no such assumption exists all objects can be put into the same class (i.e. species) and the identification of classes could
then be carried out by e.g. cluster analysis.
3.3 Directory Structure and Spectral Files
The hierarchical structure is used for the directory structure that holds the spectral files. Ideally, this
directory structure is setup when designing the experiment.
Figure 2 shows an example of a directory structure. The main directory ‘Vegetation_example’ holds
all species directories of the study. This main directory is the folder that needs to be specified when
creating a study in the database (see 4.2.2). The names given to the species directories are stored
in the database and are included in file output if ‘Folder name’ is specified as desired name type
(see 4.2.8 for more information on file export).
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 11
of 53
The species directories contain the site directories. These can be named freely and the sites will be
automatically numbered when read into the database. Thus, naming a site ‘1’ or ‘s1’ is perfectly
acceptable.
The site directories contain all spectral files collected at this site. They are auto-numbered by the
ASD capturing software.
Figure 2: Example of a directory structures holding spectral files
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 12
of 53
4 Operation
4.1 Overview
4.1.1 Dataflow
A typical dataflow is illustrated in Figure 3. An ASD FieldspecPro spectroradiometer is used to capture the radiance of field objects. A GPS connected to the field laptop records the spatial position of
the field object. Reflectance and metadata are automatically saved on the field laptop in a binary
file for every reading taken.
These binary files are transferred to a laboratory computer where they are read by SpectraProc
and stored in the relevant tables in the spectral database.
GPS
Spatial data
Radiance
Field
object
Reflectance
ASD
Spectroradiometer
Reflectance
& metadata
Binary file
Field laptop
Lab computer
Spectral
database
Figure 3: Dataflow and involved hardware
4.1.2 File System Interfaces
SpectraProc provides input and output interfaces to the file system (see Figure 4). Input file formats
are: ASD binary file as produced by the ASD FieldSpecPro Spectroradiometer, ENVI Z-Profiles that
are signatures extracted from hyperspectral imagery in ENVI and sensor specifications in a proprietary, tabulator separated format. ASD files can be imported into the database as part of a study or
loaded into memory for classification against a study dataset. ENVI Z-Profiles can be loaded for
classification only. Sensor specification files are a way of defining new sensors in the database.
Output can be written in three data formats: (1) CSV (Comma Separated Values) for import into
rd
various 3 party applications like spreadsheets or statistic packages, (2) ENVI Spectral Library for
import into ENVI and subsequent use for e.g. signature matching and (3) ARFF which is a special
format used by WEKA. WEKA is a collection of machine learning algorithms for data mining tasks
(University of Waikato, 2005).
ASD
Binary
File
SpectraProc
Output Interface
Input Interface
ENVI
ZProfile
File
CSV
File
Sensor
Specifications
ENVI
Spectral
Library
File
ARFF
File
Spectral DB
Figure 4: File System Interfaces
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 13
of 53
4.1.3 SpectraProc Operation
SpectraProc is study based, i.e. spectral data is grouped into studies. Advisably, a new study is
created to hold data for every new sampling experiment. The spectral data files of studies must be
structured according to the hierarchical structure introduced in 3. This structuring allows the automated loading of spectra into the database.
Typically, the operations carried out on a study are:
1. Creation of a new study
2. Loading of spectra
3. Repeated pre-processing and analysis
In ongoing studies, new data can be added to the database by simply selecting the loading operation again. Only new spectra will be added to the database in this case.
4.1.4 Spectral Processing Concept
The spectral database only stores the raw
spectral data. Further processing of the spectra is performed at runtime and the results
are held in memory. Once a spectrum is
loaded from the database it is put through a
cascade of operations as shown in Figure 5.
The result of every stage is saved in a separate data structure in memory. This allows
easy file export of spectral data at any processing step.
Consequently, the structure of this processing chain implicates that a change of processing parameters of any stage will influence the results of the subsequent stages. A
complete set of pre-processing parameters
thus describes the processing from raw to
feature space transformed data.
All processing settings are stored in the database when a library is built. Repeated processing of the data with the same settings will
always result in the same final data set.
Spectral DB
Load
spectrum
Waveband
filtering
Raw data
Smoothing
Waveband
filtered data
Synthesizing
Derivative
calculation
Smoothed
data
Synthesized
data
Derived data
Feature
Space
Transformation
Data in
Feature Space
Figure 5: Spectral data processing cascade
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 14
of 53
4.2 SpectraProc
4.2.1 User Interface
The graphical user interface (GUI) is based on the structure of the processing cascade (see Figure
6). The left side of the main window consists of controls for the selection of the study and the main
settings for smoothing filter, synthesizing, derivative calculation, feature space transformation and
classifier discriminant function. Processing details are entered in pop up windows which are explained in the relevant sections. The text output panel (report window) in the middle of the main
window is used to display processing and error information.
The listbox on top of the text output panel is used to display spectra files that are loaded directly
into memory. The ‘Indiv. Classify’ button under it classifies the selected, individually loaded spectra
against the current library.
The library status box on the top right of the screen indicates whether statistical information has
been compiled for the current pre-processing settings.
Study selection
List of directly
loaded spectra
Classification button for directly
loaded spectra
Library status field
Smoothing filter
Smoothing filter
detail settings
button
Sensor
Derivative order
Derivative
calculation method
Report window
Derivative
calculation detail
settings button
Feature space
type
Feature space
Classifier
discriminant function
Figure 6: Main window elements
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 15
of 53
4.2.2 Creating a new Study
To create a new study, select ‘Database‘->‘Create New Study’ (Figure 7). This brings up the new
study dialog (Figure 8).
Figure 7: Create New Study menu entry
Enter a study name of 45 character maximum and not containing special characters that can not be
part of any Windows file name like: \ / : * ? < > “ |.
The study description is optional and can contain any string up to 200 characters long.
The species directory path is a Windows pathname pointing to the directory that contains all species folders of this study. To set the path either type it in manually or select the ‘Browse’ button that
brings up a directory tree (Figure 9) and select the appropriate directory.
The number of samples per species for library inclusion can be set to any positive number. If a
species has less than the specified number of samples it will not be included in the statistics calculations when building libraries.
Once a new study is created it will automatically be selected as the current study.
Figure 8: New study dialog
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 16
of 53
Figure 9: Directory tree dialog
4.2.3 Deleting an existing Study
To remove a study and all associated data from the database select this study as the current study,
then select ‘Database’->’Delete Current Study’ (Figure 10). Before any data is deleted a warning
will be displayed (Figure 11). To delete all data of the current study click OK, to abort the operation
click ‘Cancel’.
The message window will list the involved operations of the deletion.
Figure 10: Delete Current Study menu entry
Figure 11: Deletion warning box
4.2.4 Study Report
To display name, description, datapath, number of minimum spectra per endmember, number of
species, number of spectra and the capturing timeframe of a study select ‘Database’->’Study Report’ (Figure 13).
Figure 12: Starting a study report
4.2.5 Selecting Studies
To select a study to work with, select the appropriate study from the drop down list in main window
(Figure 13).
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 17
of 53
Figure 13: Selection of current study
4.2.6 Loading Spectra
To load the spectra of a study into the database make sure the correct study is selected. Please
refer to 4.2.3 on the process of selecting the current study. Then select ‘Database‘->‘Import Spectra into current Study’ (Figure 14). A popup window will appear indicating the loading progress.
Additionally, the loaded species are listed in the message window.
Figure 14: Import Spectra menu entry
4.2.7 Processing Chain Settings
4.2.7.1 Waveband Filtering
Waveband filtering is the process of removing unwanted regions of the spectrum. All subsequent
processing operations will then ignore these regions.
A typical example is the removal of water bands. These water band regions are usually found
around 1350-1440 nm, 1790-1980 nm and 2360-2500 nm (Figure 15). If contact probes are used
the noise can be minimal because the atmosphere is effectively non existent.
Filtered Reflectance Curve of Pittosporum eugenioides
1.00E+00
1.00E+00
9.00E-01
9.00E-01
8.00E-01
8.00E-01
7.00E-01
7.00E-01
Reflectance
Reflectance
Raw Reflectance Curve of Pittosporum eugenioides
6.00E-01
5.00E-01
4.00E-01
3.00E-01
2.00E-01
6.00E-01
5.00E-01
4.00E-01
3.00E-01
2.00E-01
1.00E-01
1.00E-01
0.00E+00
300
0.00E+00
300
500
700
900
1100 1300 1500 1700 1900 2100 2300 2500
500
700
Wavelength [nm]
900
1100 1300 1500 1700 1900 2100 2300 2500
Wavelength [nm]
Figure 15: An example of pre and post filtering of water noise bands
The waveband filter regions are freely configurable for each study. To modify the current filter settings select ‘Chain Settings‘->‘Waveband Filter Setup’ (Figure 16).
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 18
of 53
Figure 16: Waveband Filter Setup menu entry
Figure 17: Waveband Filter Setup dialog (no regions defined)
The Waveband Filter Setup dialog lists the waveband filter ranges in the listbox on the left side
Figure 17). To add a new filter region click ‘New’. In the pop-up window enter the lower and upper
wavelengths in nanometres of the region (Figure 18). After clicking on OK in this dialog, the newly
created filter range is shown in the Waveband Filter Setup dialog (Figure 19).
Figure 18: Filter band definition dialog
Figure 19: A new waveband filter range added to the list of filter ranges
To modify an existing range, select the range to be modified in the listbox and click ‘Modify’. To
delete an existing range, select the range and click ‘Delete’.
To add the default ranges as defined in the configuration file click on ‘Add default ranges’ (see 2.2
on how to configure the default filter ranges).
4.2.7.2 Smoothing
Smoothing applies a smoothing function to the spectra. The default smoothing filter type is ‘None’
meaning no smoothing is carried out. The smoothing type is selected using the drop down list box
in the main window (Figure 20). Two different Savitzky-Golay implementations are offered in this
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 19
of 53
list: Moving Window (MW) and Fast-Fourier-Transformation (FFT). The output is exactly the same,
however, due to internal overhead the MW method is currently the faster of the two.
Figure 20: Smoothing filter type drop down list box
The processing details of the smoothing filter are set by clicking on the ‘Edit’ button below the list
box. This brings up a dialog where the polynomial order and the filter window size can be changed
(Figure 21). The filter size is automatically incremented resp. decremented in steps of two to keep
the filter size and uneven number, i.e. the number of points on the left and right of the point to be
smoothed are equal. The polynomial order sets the order of the curve that is used in the least
squares approximation. Note that the Savitzky-Golay coefficients for quadratic and cubic functions
are the same and the same applies to orders 4 and 5 (Savitzky and Golay, 1964).
Figure 21: Smoothing Filter Details dialog
The result is automatically filtered to remove artefacts that appear at the start and end of every
valid waveband segment (Figure 22). The new valid segment sizes are calculated by:
λu smoothed = λu − pos _ filter _ size
λl smoothed = λl − neg _ filter _ size
where
λl , λu = lower and upper segment wavelengths
Thus every segment looses information of filter_size – 1.
Smoothed Reflectance Curve of Pittosporum eugenioides showing smoothing artefacts
Smoothed Reflectance Curve of Pittosporum eugenioides after the removal of smoothing artefacts
1
1
0.9
0.9
0.8
0.8
0.7
0.7
0.6
Reflectance
Reflectance
0.6
0.5
0.4
0.5
0.4
0.3
0.3
0.2
0.2
0.1
0.1
0
0
500
1000
1500
2000
2500
3000
0
0
Wav elength [nm]
500
1000
1500
2000
2500
Wav elength [nm]
Figure 22: A smoothed signature of Pittosporum eugenoides before and after the removal of
smoothing artefacts
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
3000
SpectraProc
User Guide
Page 20
of 53
Generally, bigger filter sizes remove more noise while higher polynomial orders fit the original data
values better.
4.2.7.3 Sensor Synthesizing / Downsampling
The sensor synthesizing/downsampling is effectively a data reduction operation. The response of
the sensor selected as the current sensor is calculated from ASD data.
The synthesizing of other sensor responses using ASD data is useful due to several reasons:
1. Reduction of dimensionality
2. Direct comparison of airborne/spaceborne sensor and ground data
3. Implicit smoothing of the data
4. Prediction and assessment of the usefulness of a certain sensor
Two classes of sensors are supported: Ratio and Gaussian.
4.2.7.3.1 4.5.3.1 Ratio Sensors
The sensor element function of these sensors is modelled by a number of known coefficients, thus
the synthesizing operation is simply a convolution of a defined wavelength region using these coefficients.
An example of such ratios is shown for Landsat7 TM band 1 (Figure 23).
Ratios for Landsat Band 1
1.2
1
Ratio
0.8
0.6
0.4
0.2
520
510
515
505
495
500
490
480
485
475
465
470
460
450
455
445
435
440
0
Wavelength (nm)
Figure 23: Ratios for Landsat7 TM band 1
The convolution is calculated by:
uw _ j
rj =
∑c
i
⋅ ri
i =lw _ j
uw _ j
∑c
i
i =lw _ j
where
r j = the synthesized reflectance value of the j-th synthesized band
ci = the coefficient for wavelength i
ri = reflectance value of i-th ASD band
lw _ j = lower wavelength of the j-th band
uw _ j = upper wavelength of the j-th band
4.2.7.3.2 Gaussian Sensors
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 21
of 53
The sensor element response function of these sensors is best approximated by a Gaussian function. The sensor elements are technically defined by the middle wavelength and the full width at
half the maximum (FWHM) (see Figure 24).
Gaussian function for mu=0 and sigma=2
0.2
0.18
0.16
0.14
FWHM
0.12
0.1
0.08
0.06
0.04
0.02
0
-10
-8
-6
-4
-2
0
2
4
6
8
10
Figure 24: Gaussian curve illustrating the FWHM measure
The coefficients used for the convolution operation are given by the Gaussian function:
ci = f ( wavelength _ band _ i ) =
1
2 ⋅π ⋅σ
⋅e
1  wavelength _ band _ i − wavelenth _ band _ j 
− 

2
σ

2
where
wavelength _ band _ i = wavelength of the i-th ASD band
wavelength _ band _ j = wavelength of the j-th band of the sensor to be synthesized
ci = the i-th coefficient for the convolution operation
The band convolution is calculated by
µ + range
rj =
∑c
i
i = µ − range
⋅ ri
µ + range
∑c
i
i = µ − range
where
r j = the synthesized reflectance value of the j-th synthesized band
ci = the coefficient determined by the Gaussian function for the wavelength of the i-th ASD band
ri = reflectance value of i-th ASD band
range = defines the range of values to be used for the band convolution symmetrically to the middle
ASD waveband. The middle ASD waveband is the one closest to the average wavelength of the jth synthesized band.
The nature of the Gaussian function effectively carries out a smoothing of the data. The range of
values used for the convolution is set to 3 times the standard deviation: range = 3 ⋅ σ , i.e.
99.74% of all contributing values are used (Papula, 1994). This range is practically not usable for
all bands because some wavelengths may have been filtered previously, segmenting the spectrum.
In these situations, the range is symmetrically reduced to avoid filtered regions.
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 22
of 53
4.2.7.3.3 Supplied Sensors
The sensors currently supplied with the software are:
Name
Hyperion
ASD
Opt_Hyperion
Type
Gaussian
Ratio
Gaussian
Downsampling_by_10
Landsat7
ACS_210 Red_NIR
ACS_210 Yellow_NIR
Downsampling_by_5
Ratio
Ratio
Gaussian
Gaussian
Ratio
Description
Sensor as flown on EO-1
Effects a 1:1 copy of ASD data, i.e. no data reduction
The Hyperion sensor according to the blueprint, i.e. all sensor elements are operating
Effects a downsampling by selecting every tenth waveband
Sensor as flown on Landsat7 ETM satellite
Crop circle sensor simulation with red – NIR illumination
Crop circle sensor simulation with yellow – NIR illumination
Effects a downsampling by selecting every fifth waveband
To change the current sensor select a sensor from the sensor drop down list box (Figure 25).
Figure 25: Selection of current sensor
It may be advisable to apply the downsampling only to smoothed data in order to avoid aliasing.
The combination of smoothing and downsampling is called decimation (Fliege, 1994).
4.2.7.4 Derivative Calculation
The derivative order is set to zero by default, i.e. no derivative is calculated. To change the order
use the up and down arrows next to the box showing the derivative order (Figure 26). If the order is
changed to a non-zero value, the calculation method can be selected.
Iterative calculation is based on the gradient of the linear curve segment between two wavebands:
ρ ' (bi bi +1 ) =
ρ (bi +1 ) − ρ (bi )
λ (bi +1 ) − λ (bi )
where
ρ (bi ) = reflectance of band i
λ (bi ) = wavelength of band i
ρ ' (bi bi +1 ) = first derivative of linear curve segment between reflectances of band i and band i+1
The n-th derivative is thus calculated by applying the above formula n times.
The SavGol method uses Savitzky-Golay coefficients to calculate the derivatives. In this case the
derivative is actually the derivative of the approximating function at the wavelength of interest. Thus
the SavGol method automatically performs a smoothing of the data. This can be useful when dealing with noisy data where a single smoothing operation is not removing enough noise.
Both methods loose N data points per valid segment where N is the derivative order.
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 23
of 53
Figure 26: Derivative calculation settings: zero derivative (left), first derivative iterative (middle) and
first derivative SavGol method (right)
For the SavGol method the filter size and polynomial order can be modified by clicking on the ‘Edit’
button. This brings up the Derivative Filter Details dialog (Figure 27). The filter size and order are
automatically restricted to meet the following minimal conditions for the calculation of the derivative:
polynomial _ order ≥ derivative _ order
filter _ size ≥ max( polynomial _ order + 1, derivative _ order + 1)
Thus the minimal filter size depends on both the polynomial and the derivative order. A minimal
filter size of (derivative_order+1) will result in the removal of n = derivative_order number of points.
Figure 27: Savitzky-Golay settings for derivative calculation
Note that too big filter sizes remove relatively lot of data because the derivative calculation takes
place after the data reduction step (sensor synthesizing/downsampling). E.g. a filter size of 5 applied to data downsampled by factor ten will remove 4 data points, i.e. 40nm, per segment.
4.2.7.5 Feature Space Transformation
Three types of feature spaces are implemented:
□ Derivative Indices (DI)
□ Normalized Two Band Indices (NTBI)
□ Principal Component Transformation (PCT)
4.2.7.5.1 DI (DGVI)
DGVIs (Derivative Greenness Vegetation Indices) are an example of a DI. These indices are trying
to describe the shape of the reflectance curve. The DGVI calculation is based on the equations
used by Thenkabail et al. (Thenkabail et al., 2004) and Elvidge and Chen (Elvidge and Chen,
1995):
ρ ' (bi −1bi )− ρ ' (bi bi +1 )
Δbi
i =m
n
DGVI = ∑
where
ρ’(bi-1bi) = first derivative of reflectance curve between bi-1 and bi
m..n
= start and end band number of DGVI area
bi
= centre wavelength of band i
i
= band number
Δbi
= step width: bi+1 – bi-1
4.2.7.5.2 NTBI
Normalized two band indices are calculated by:
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
NTBI =
Page 24
of 53
ρ (bx ) − ρ (b y )
ρ (bx ) + ρ (b y )
4.2.7.5.3 PCT
Principal components transformation requires as input the eigenvectors of a given dataset. A principal component analysis (PCA) must be carried out before PCT can be applied to the data. PCA
results in eigenvalues and eigenvectors. The eigenvectors are used in the transformation matrix G.
If only the first n components are to be used, the transformation matrix is a sub-matrix of G, consisting of the first n column vectors. The dimension of the resulting feature space is therefore n:
y = G⋅ x
n×1
n×m m×1
where
m = original size of data space
n = new size of data space, equal to the number of selected components
4.2.7.5.4 Creation, Modification and Deletion of Feature Space Definitions
Based on the three basic feature space types new feature spaces can be created. Existing feature
spaces can be edited or deleted. For any of these functions navigate to the ‘Chain Settings’>‘Feature Space’ submenu (Figure 28).
Figure 28: Feature Space Submenu
To create a new feature space select ‘Copy and Edit’ or ‘New’ in the ‘Feature Space’ submenu.
‘New’ opens up an empty dialog for the definition of a new feature space. ‘Copy and Edit’ copies
the settings of the currently selected feature space into the dialog. The settings can subsequently
be changed before creating the new feature space in the database.
To modify an existing feature space select ‘Edit’.
All the above three commands invoke the same dialog, shown here on the example of a NTBI feature space consisting of three individual NTBIs (Figure 29). The name of the feature space can be
any alphanumeric string of maximal 45 characters, the description can be any alphanumeric string
of maximal 250 characters. The bands listbox lists the band combinations used to calculate the
indices. E.g. index 1 uses bands 550nm and 468nm. New band combinations are entered by clicking on ‘New’, existing band combinations are modified by clicking modify. Both commands bring up
a dialog box to define the two bands (Figure 30). To delete an existing band combination select the
combination in the list and click ‘Delete’.
The dimension field in the Feature Space dialog is non editable for DIs and NTBIs where it reflects
the number of band combinations. For PCT feature spaces, the dimension field specifies how many
components are to be used for the transformation. In the given example, the first 10 components
will be used (Figure 31).
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 25
of 53
Figure 29: Feature Space edit dialog on the example of a NTBI feature space
Figure 30: Waveband Definition Dialog
Figure 31: PCT Feature Space dialog
To delete an existing feature space make sure the currently selected feature space is the one to be
deleted. Then select ‘Delete’ from the ‘Feature Space’ submenu. The current feature space is removed from the database.
4.2.7.5.5 Feature Space Selection
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 26
of 53
The feature space selection is comprised of two panels: (a) a selection of the feature space type
offering DI, NTBI and PCT and (b) a drop down list box that contains all feature spaces of the current type (see Figure 32).
Figure 32: Feature space settings
4.2.8 File Export
SpectraProc features a powerful file export that facilitates the analysis and visualisation of the data
in third party products. All output files are written to the directory
The output is controlled by a single dialog (see Figure 33). The file export dialog is displayed by
selecting ‘File’->’Export’.
Data can be exported at any processing stage:
□ Raw
□ Filtered (removal of noisy band regions)
□ Smoothed
□ Synthesized
□ Derived
□ Feature Space transformed
The processing for these stages depends upon the parameters that are defined at that point in time
for the processing cascade. If e.g. ‘Synthesized’ is selected, every spectrum is put through the
cascade of filtering, smoothing and synthesizing and is then written to the file. I.e. if a certain stage
is selected all the preceding stages are automatically performed.
The data can be averaged either on site level or on species level. If the site mean is chosen a column containing the site number will be added to the output file. Selecting the ‘All spectra’ option
performs no averaging but writes every spectrum to the file. The averaging is the last step of the
processing, e.g. if the ‘Synthesized’ and ‘Mean per species’ is selected, then all spectra of each
species are processed till the synthesizing stage and then averaged and written to the file.
Three file formats are currently supported:
□ CSV (Comma Separated Values)
□ ENVI spectral library file
□ ARFF (WEKA file format)
The species that are written to the file can be controlled by selecting on of four options:
□ Include all species: all species are written
□ Include only library relevant species: only species that have equal or more than the
minimum number of spectra are written. The minimum number of spectra is set when
defining a new study (see 4.2.2)
□ Only endmembers: only species that have been designated as endmembers are written
□ Only mixtures: only species that are not designated endmembers are written
The name that is used as species name can be one out of five choices:
□ Common: common name is defined in database
□ Maori: Maori name as defined in database
□ Latin: Latin name as defined in database
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
□
□
Page 27
of 53
Folder: name of the folder that contains the site directories of the species
Auto number: incrementing numbers are assigned to the species according to their
order in the database
The current version of the software supports only one file level setting: study. I.e. all species of the
current study are written to one single file.
Four checkboxes allow for the following operations:
□ Transpose: the observations are written as columns instead of rows. This option can
make the import of data into other programs easier.
□ Include filtered bands: this is for visualisation purposes only. The regions that were removed in the waveband filtering stage are written as empty cells, i.e. when plotted the
filtered regions will appear as gaps.
□ Offset: each species will be set off by a freely choose able percentage of 100% reflectance. This is to be used for visualisation purposes only.
□ Interpolate: this option is only available when the ‘Synthesized’ stage is selected as
output step. The synthesized data is interpolated to ASD data using straight line segments. This is useful for the assessment of the smoothing effect of the synthesizing
operation e.g. by plotting a noise spectrum (smoothed minus interpolated synthesized
data).
□ Sort species numerically: Sorts the species by interpreting the species names as
numbers
Species restriction
selection
Name type
selection
File level
selection
Processing stage
for file export
Data averaging
options
Transpose
observations
Include the filtered
band regions
Offset each species
by a given percentage
File format
selection
Sort the species names
numerically
Interpolate output by
linear segments
Figure 33: File Export dialog
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 28
of 53
4.2.9 Saving the Contents of the Report Window
The contents of the report window can be saved to a file by selecting: File -> Save Report Window
Content. The file is written to the default output directory and named report_window_output.txt (see
Figure 34).
Figure 34: Saving the report window content
4.2.10 Spectral Mixtures
Spectral mixtures occur when more than one endmember is present in the field of view. If the endmembers are known the mixtures can be unmixed to give estimates of the abundance of each
endmember in the mixture. For the process of unmixing refer to 4.2.12.4.
The unmixing process needs to have a set of endmembers and a set of mixtures to be unmixed
using the endmember information. For this purpose species can be designated as endmembers.
If the spectral mixtures are the result of a controlled mixing experiment the abundances of the
endmembers are usually know. These known endmember fractions can be entered into the database for each mixture, thus allowing the automatic calculation of the error involved in the estimation
by the unmixing procedure.
4.2.10.1 Endmember Designation
To display the endmember designation dialog choose ‘Spectral Mixing’->‘Endmember Selection’
(Figure 35).
Figure 35: Endmember Selection menu entry
Initially, all species will be listed in the ‘Classes’ list while the ‘Endmembers’ list is empty. To designate a species as an endmember select the class by clicking on it, then click on the arrow pointing
towards the right to shift this class into the Endmember list. Similarly, to move an endmember back
to the Classes list, select the endmember and click the arrow pointing towards the left.
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 29
of 53
Figure 36: Endmember Selection dialog
4.2.10.2 Abundance Settings
Before invoking the abundance settings the endmembers should be selected as described in
4.2.10.1.
To display the abundance settings dialog select Spectral Mixing’->‘Abundance Settings’.
All mixtures are listed in the ‘Classes (excl endmembers)’ list box. The abundances of the endmembers are set for each of these mixtures by:
1. Selecting the mixture
2. Select the endmembers that are contained in the mixture one after another from the
‘Available endmembers’ list box and shift them down into the ‘Selected endmembers’
list box.
3. For every selected endmember do: select the endmember by clicking on it, then enter
the abundance in the provided box. Click ‘Save’. The total abundance is updated.
When defining the abundance of the last endmember, click on ‘Complement’. This
automatically assigns the abundance to the last endmember by summing the total
abundance to 1.
Figure 37: Abundance Settings dialog
4.2.11 Library Building
A library is a collection of statistics data built for a certain configuration of the processing chain. The
‘Library status’ field in the main window indicates if a library has been built for the current processing settings. To build a library select ‘Library’->’Build’.
4.2.12 Analysis
4.2.12.1 Separability
Before running the separability analysis the library for the current pre-processing settings must be
built. See 4.2.11 on how to build libraries. The JM and B distance analyses are carried out in the
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 30
of 53
currently selected feature space. I.e. the discriminating power of feature spaces can be assessed
by the separability analysis.
To run the separability analysis select ‘Statistics’->’Separability Report’. In the displayed JM/B Distance dialog select the name and distance type and press OK (Figure 38).
A short message will be displayed in the message window, looking similar to:
Separability Analysis
Using JM and B distance
JM and B output written to file:
C:\Data\MPhil Remote Sensing\SpectraProc_output\JM and B output.csv
The output filename is shown in this message. Note that only library relevant species are included
in this report.
Figure 38: JM/B Distance dialog
The JM distance is listed in the upper triangular matrix, the B distance in the lower triangular matrix
(see Table 1). The JM distance is asymptotic to 2.0. A JM distance of 2.0 indicates a complete
separability and a distance of 1.9 a good separability (Richards, 1993). The B distance is not
asymptotic and can get infinite (Inf.) due to limits in numerical precision.
Table 1: Example of a JM and B output using a 10 dimensional DI feature space
Blackfern
Blackfern
Cabbage_tree
-
Lemonwood
1.93
Cabbage_tree
3.41
Lemonwood
2.99
1.90
-
1.76
2.11
-
4.2.12.2 Discriminant Analysis
Discriminant analysis (DA) uses a discriminant function to assign a class to samples. In the case of
the calibration set being subjected to DA the result is an assessment of the separability of the
classes. The DA is carried out in the currently selected feature space. The DA result is thus also an
assessment of the discriminating power of the feature space.
Note that the discriminant function used is the one currently selected in the main window.
Before running DA the library for the current pre-processing settings must exist. See 4.2.11 on how
to build libraries.
To run the DA select ‘Statistics’->’Discriminant Analysis’. A dialog will be displayed to select the
names to be used in the output (Figure 39).
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 31
of 53
Figure 39: Discriminant Analysis dialog
A message stating the file name of the error matrix and the overall accuracy is reported in the message window, similar to the example shown below.
Discriminant Analysis
--------------------------------------------------Error matrix written to file:
C:\Data\MPhil Remote Sensing\SpectraProc_output\Error Matrix.csv
--------------------------------------------------Overall Accuracy: 78.46154
---------------------------------------------------
The error matrix written to a file contains the errors of omission and commission, the total accuracy,
the producer and user accuracy and the minimum, maximum and mean for both producer and user
accuracy.
Table 2: Error matrix of DA using a 3 dimensional NTBI feature space
Blackfern
Blackfern
Cabbage_tree
Lemonwood
Row Total
User
Accuracy
11.00
0.00
0.00
11.00
100.00
Cabbage_tree
7.00
19.00
6.00
32.00
59.38
Lemonwood
0.00
1.00
21.00
22.00
95.45
Column Total
18.00
20.00
27.00
65.00
Producer Accuracy
61.11
95.00
77.78
Prod. Acc. Min
61.11
Prod. Acc. Max
95.00
Prod. Acc. Mean
77.96
User Acc. Min
59.38
User Acc. Max
100.00
User Acc. Mean
78.46
84.94
To run the DA with an independent data set choose ‘Statistics’->’Discr. Analysis using indep. set’. A
dialog is displayed to select the study that contains the independent set (Figure 40).
Note that in order to work correctly the folder names of corresponding species in the training and in
the independent study must be identical.
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 32
of 53
Figure 40: Selection dialog for independent data sets
4.2.12.3 Principal Component Analysis
Principal components analysis (PCA) is applied after the derivative calculation step. I.e. the PCA is
carried out for the current settings of waveband filtering, sensor synthesizing and derivative calculation. To run PCA select ‘Statistics’->’PCA’. A message stating the output file similar to the one
below is displayed in the message window:
Principal Component Analysis
--------------------------------------------------PCA output written to file:
C:\Data\MPhil Remote Sensing\SpectraProc_output\pca_output.csv
---------------------------------------------------
The two first components will be plotted as a scatterplot in a graphics window, this plot is also
known as scoreplot.
The pca_output file contains the eigenvalues, proportions, cumulative proportions (see Table 3 for
an example) and the eigenvectors (also know as factor loadings). The eigenvectors can possibly
be used to assess the significance of the wavelengths in respect to the each component. The
eigenvalues and eigenvectors are stored in the database.
Table 3: First ten eigenvalues and proportions of a PCA
PC#
Eigenvalue
Proportion
Cumulative
1
2.211
0.944
0.944
2
0.097
0.042
0.986
3
0.019
0.008
0.994
4
0.007
0.003
0.997
5
0.005
0.002
0.999
6
0.001
0.001
0.999
7
0.000
0.000
0.999
8
0.000
0.000
1.000
9
0.000
0.000
1.000
10
0.000
0.000
1.000
4.2.12.4 Unmixing
The unmixing procedure implemented is experimental at this stage and works on Landsat7 data
only. Before starting the unmixing, make sure that the current sensor is Landsat7, the study has the
mixtures and endmembers defined and the abundances are entered for each mixture.
The model used is unconstrained (Keshava and Mustard, 2002):
−1
( )
aˆU = S T S
A. Hueni
ST x
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 33
of 53
where:
x = spectrum vector to be unmixed (L x 1)
S = endmember matrix (L x M) consisting of M endmembers with the columns being the endmember spectra vectors
aˆU = the unconstrained least squares solution for the abundances of the endmembers in the spectrum vector
x
To start the unmixing select ‘Spectral Mixing’->’Unmix’. For each mixture the unmixing results are
displayed in the message window; first stating the calculated abundances for each endmember,
then the abundances stored in the database and finally the absolute errors for each endmember
abundance (see example of such an output below).
Spectral Unmixing
--------------------------------------------------120V_240P
--------------------------------------------------0.69 0V_360P
0.35 360V_0P
simulated mixture abundances from database:
0.67 0V_360P
0.33 360V_0P
absolute errors:
0.03 0V_360P
0.02 360V_0P
4.2.13 Adding new Sensors
New sensors can be added to the database if their properties are known. The sensors details must
be entered in a tabulator formatted file as described below. Two classes of sensors are supported:
Gaussian and Ratio (see also 4.2.7.3).
The header structure is identical for both sensor classes:
<Sensor name>
<Sensor description>
<Column headers>
The sensor name should not include any of the following characters: \ / : * ? < > “ |.
The column header line is not interpreted by the program and exists only for the convenience of the
user preparing the sensor description file.
For Gaussian sensors the file body contains one line per sensor band:
<Band> TAB <Average Wavelength (nm)> TAB <FWHM (nm)> TAB <Calibrated (Y/X)>
For Ratio sensors the file body contains 1 to many lines per band to model the response (see also
Figure 23):
<Band> TAB <Wavelength(nm)> TAB <Ratio>
Examples of Gaussian and Ratio sensor description files are given in tables 4 and 5:
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 34
of 53
Table 4: Example of a Gaussian sensor (Hyperion)
Hyperion
Hyperion Sensor as flown on EO1
Hyperion Band
Average Wavelength (nm)
1
355.59
FWHM (nm)
11.3871
Calibrated
X
2
3
4
5
6
365.76
375.94
386.11
396.29
406.46
11.3871
11.3871
11.3871
11.3871
11.3871
X
X
X
X
X
7
8
9
10
416.64
426.82
436.99
447.17
11.3871
11.3871
11.3871
11.3871
X
Y
Y
Y
11
12
13
14
457.34
467.52
477.69
487.87
11.3871
11.3871
11.3871
11.3784
Y
Y
Y
Y
Table 5: Example of a Ratio sensor (Landsat7)
Landsat7
Landsat 7 Thematic Mapper Sensor
Band
Wavelength(nm)
1 435
1 436
1 437
1 438
1 439
1 440
1 441
1 442
1 443
1 444
Ratio
0.016
0.027
0.048
0.094
0.167
0.287
0.459
0.605
0.728
0.769
To import a new sensor select ‘Database’->’Import Sensor’. In the Import Sensor dialog select the
sensor response type and the input file by clicking on ‘Browse’. Then click OK and the sensor data
will be imported. An according message will be displayed in the message window when the sensor
is loaded.
Figure 41: Import Sensor dialog
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 35
of 53
4.2.14 Linking to a GIS System
If a GPS unit is used to record the spatial position of the sampling sites during the sampling process every site in the database contains the latitude, longitude and altitude in WGS84 format.
The database tables can be accessed by a GIS system if ODBC connections are supported.
The connection is shown here on the example of ArcGIS.
4.2.14.1 Setting up the Spectral DB as a Data Source
Note that before the Spectral DB can be configured as a data source the MySQL ODBC driver
(available from the MySQL website) must be installed on the system.
Start ‘Data Sources (ODBC)’ from the Windows administrative tools. In the New Data Source dialog (Figure 42) select the MySQL ODBC Driver and click on ‘Finish’.
Figure 42: New Data Source dialog
This brings up the ODBC configuration dialog (Figure 43). Type in a name for the Data Source
Name. Set the Server to the address of the database server. Enter the User name and Password
(SpectraProc). Select the database schema containing the spectral data from the Database dropdown list.
Figure 43: MySQL ODBC Configuration dialog
4.2.14.2 Establishing a Database Connection in ArcCatalog
Start ArcCatalog and select ‘Add OLE DB Connection’ (Figure 44).
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 36
of 53
Figure 44: Adding an OLE DB Connection in ArcCatalog
In the Data Link Properties select ‘Microsoft OLE DB Provider for ODBC Drivers’ (Figure 45) and
click ‘Next>>’.
Figure 45: Data Link Properties; Provider tab
In the Connection tab select the data source from the dropdown list and enter again the username
and password (SpectraProc) (Figure 46). Click ‘OK’.
Figure 46: Data Link Properties; Connection tab
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 37
of 53
The database is now listed in ArcCatalog and the tables are displayed when selecting the database
(Figure 47).
Figure 47: SpectralDB and tables in ArcCatalog
4.2.14.3 Adding Table Data to a Map
To add table data to a map select ‘Add Data’ in ArcMap and choose the SpectralDB under Database Connections (Figure 48). Then select the site table as the data source (Figure 49).
The sampling sites can then be displayed on the map by selecting ‘Display XY Data’ and using the
longitude and latitude fields of the site table as X and Y coordinates.
Figure 48: Selecting the SpectralDB as data source
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 38
of 53
Figure 49: Selecting the site table as data source
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 39
of 53
4.3 SpectraProc Query Interface
4.3.1 Introduction
SpectraProc Query was written as an example of an intuitive, interactive query building interface. It
was written in TCL/TK with the goal to get to know the characteristics of that language. It has
proven to be extremely powerful for rapid development of graphical user interfaces. A further advantage are the string handling capabilities that are useful for the building of SQL queries.
One of the shortcomings of SpectraProc is the limitation in graphic output. Certainly most users
would like to see their spectral data visualized. Furthermore, an overview over the different studies
(campaigns), species and sites was not available via the SpectraProc application.
SpectraProc Query can build reports on four different levels: campaign (study), species, site and
spectrum. The report output can be restricted by specifying conditions.
4.3.2 Database Connection
The database connection is currently hard coded and SpectraProc Query will consequently only
run on the localhost, i.e. the same machine as the database is installed on. This can be changed
by editing the file spectra_proc_query.tcl. The localhost string must be replaced with the network name of the database server (this is similar to running SpectraProc over a network).
#-------------------------------------------------# Database Connection
#-------------------------------------------------set db_handle [mysqlconnect -host localhost -db spectral_db -user SpectraProc -password SpectraProc]
4.3.3 User Interface
This section describes the user interface of SpectraProc Query. Please refer to Figure 50 for an
example of the GUI.
As indicated above, the resulting rows in reports can be restricted by setting conditions. These
conditions are situated at the left side of the GUI.
The campaign conditions refer to conditions that restrict the campaigns (studies). The campaigns
can be restricted by either choosing a specific campaign name in the Campaign Name Selection
box or by entering a string in the Campaign Name Wildcard String box. The latter also accepts
wildcards: % stands for any string and _ stands for a single character.
The species conditions restrict the species by their folder names. A name can be selected in the
Species Name Selection box or be entered as a string with wildcards in the Species Name Wildcard String box. A restriction of the campaigns has a direct impact on the names available in the list
of species names: only species contained in the resulting campaigns are available in the list.
The result set can be temporally restricted by entering dates in the Collection Date From and To
Fields. The dates have the format DD MM YYYY. They greyed out fields to the right of the date
fields automatically show the resulting dates when one of the date fields is filled. The years are
automatically restricted to the maximal or minimal year of all records in the database.
Spatial restrictions can be added by specifying a threshold for the altitude in the Minimal/Maximal
Altitude Fields.
The report level is chosen by clicking on the option buttons in the Report Level Selection.
The resulting SQL query is displayed in the Auto-Built SQL Query Text Field.
The number of records (rows) that will be selected by the current query is displayed in the Result
Set Counter field.
Any change in conditions or report level will automatically update the auto-built query and the number of resulting rows.
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 40
of 53
Finally, there are two buttons at the bottom right side of the GUI. ‘Exec Query’ will run the current
query and display a report in a new window. ‘Reset’ will return all conditions to their starting values
and reset the level to ‘Campaign’.
Campaign Name
Selection
Campaign Name
Wildcard String
Species Name
Wildcard String
Report Level
Selection
Auto -built SQL
Query Text Field
Species Name
Selection
Campaign Conditions
Species Conditions
Collection Dates
Conditions
Spatial Attributes
Conditions
Collection Date
From and To Fields
Minimal Altitude
Field
Maximal Altitude
Field
Exec Query Button
Reset Button
Result Set Counter
Figure 50: SpectraProc Query GUI
4.3.4 Report Windows
The number of report windows is not restricted by the software, although a limit might exist due to
memory or operating system restrictions.
All reports start with a title that contains the level of the report plus a subtitle indicating the time
taken for the report building. This is followed by the main table containing the data.
4.3.4.1 Campaign Report
An example of a campaign report is shown in Figure 51.
The reported attributes are: campaign name, description and file system path.
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 41
of 53
Figure 51: Campaign Report
4.3.4.2 Species Report
An example of a species report is shown in Figure 52.
The reported attributes are: folder_name, common_name, latin_name.
Figure 52: Species Report
4.3.4.3 Site Report
An example of a site report is shown in Figure 53.
The reported attributes are: capture_date, longitude, latitude and altitude.
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 42
of 53
Figure 53: Site Report
4.3.4.4 Spectrum Report
An example of a spectrum report is shown in Figure 54.
The reported attributes are: reflectances as a spectral plot, disabled flag as checkbox, spectrum
number (auto-number by ASD), pathname, ASD comments (as entered in the capturing software
on the field laptop).
The graphics output is relatively computing intensive. One should be careful not to start a report
with too many (several hundred) resulting rows as the report can run for a while (e.g. 45 seconds
for 1100 spectra). Note that the spectral resolution of the graphic is reduced (decimated by factor
10) in order to speed up plotting time. I.e. the data points are spaced at 10 nm intervals. This may
result in some noise being less accentuated than in the raw data.
The ‘disabled’ checkbox offers some interaction with the database. If checked it will set the field
‘disabled’ in the spectrum table to TRUE. Likewise, unchecking sets the field to FALSE. Setting this
field has a direct impact on the processing by SpectraProc. Disabled (i.e. disable = TRUE) spectra
will not be included in any processing. It is therefore a chance to remove outliers from the data
while still retaining all data in the database. An example illustrating this functionality is included in
the tutorial (see 5.6).
Figure 54: Spectrum Report
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 43
of 53
5 Tutorial
5.1 Overview
The tutorial is based on an example dataset comprised of three plant species. The folder containing the species folders is called ‘Vegetation_example’.
5.2 Examine the Folder and File Structure
Open the folder ‘Vegetation_example’. It contains three species folders: Blackfern, Cabbage tree
and Lemonwood. Open each of these species folders and examine the contents of the site directories contained in them. Blackfern has only one sample site while Lemonwood and Cabbage tree
have two. Also browse inside the site directories to find the ASD binary files.
5.3 Creating a new Study and Loading the Spectra
Create a new study as detailed in 4.2.2. As study name type ‘your-name_example’, e.g.
‘Mikes_example’. The ‘Species directory path’ is in this case the path pointing to the folder named
‘Vegetation_example’. Set the number of samples per species for library inclusion to 10.
Once the new study is created it will be automatically selected as the current study (otherwise select it (see 4.2.5)) and import the spectra (see 4.2.6).
5.4 Get to Know Your Data
Check the settings of the processing chain:
□ Smoothing filter: none
□ Current Sensor: Hyperion
□ Derivative: 0
Use the ‘Export’ function (see 4.2.8) to export the Hyperion synthesized spectra to a CSV file:
□ Processing Stage: Synthesized
□ Data Details: All Spectra
□ Species Restriction: Include all species
□ Names: Folder
□ Transpose: Ticked
□ Format: csv
This will create a file in the SpectraProc output directory. The output file name is shown in the message window. Open this file by double-clicking which should load it directly into Excel. The columns
displayed should be similar to the example shown in Figure 55. Column A contains the average
wavelengths of the Hyperion bands. The following columns contain the spectral data for each spectrum. The column headers are the species folder names.
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 44
of 53
Figure 55: Example of a SpectraProc CSV output
Create an X-Y plot. The result should be similar to the one shown in Figure 56. Maybe surprisingly
the plot shows not the expected spectra but some noise that reaches values of up to 140. To see
the vegetation spectra rescale the Y axis to a maximum of 1.0 (see Figure 57).
The noise is caused by atmospheric absorption (Thenkabail et al., 2004). As first step this waterband noise should be removed from the data before any further processing or analysis is carried
out.
To remove the noise affected regions from the spectra open the waveband filter dialog (see
4.2.7.1) and click on ‘Add default ranges’. This adds three wavelength regions that are known to
contain waterband noise.
Blackfern
1.60E+02
Blackfern
Blackfern
1.40E+02
Blackfern
Blackfern
1.20E+02
Blackfern
Blackfern
Blackfern
1.00E+02
Blackfern
Blackfern
8.00E+01
Blackfern
Blackfern
6.00E+01
Blackfern
Blackfern
4.00E+01
Blackfern
Blackfern
2.00E+01
Blackfern
Blackfern
Cabbage_tree
0.00E+00
0.00E+00
5.00E+02
1.00E+03
1.50E+03
2.00E+03
2.50E+03
3.00E+03
Cabbage_tree
Cabbage_tree
Figure 56: A plot showing mainly noise
A. Hueni
\UserGuide_V1.2b.doc
Cabbage_tree
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 45
of 53
Blackfern
1.00E+00
Blackfern
Blackfern
9.00E-01
Blackfern
8.00E-01
Blackfern
Blackfern
7.00E-01
Blackfern
Blackfern
6.00E-01
Blackfern
Blackfern
5.00E-01
Blackfern
Blackfern
4.00E-01
Blackfern
3.00E-01
Blackfern
Blackfern
2.00E-01
Blackfern
Blackfern
1.00E-01
0.00E+00
0.00E+00
Blackfern
Cabbage_tree
5.00E+02
1.00E+03
1.50E+03
2.00E+03
2.50E+03
3.00E+03
Cabbage_tree
Cabbage_tree
Cabbage_tree
Figure 57: The same plot as above but rescaled to a reflectance of 1.0
Once the waveband filter is setup, repeat the export function (close the previously written file first in
Excel) and load it again into Excel and plot it. The plot will look similar to the one shown in Figure
58. Note that now the noise regions are plotted as straight line segments. For visualization purposes this should be avoided as it suggests that data exists in the filtered regions.
Blackfern
1.20E+00
Blackfern
Blackfern
Blackfern
1.00E+00
Blackfern
Blackfern
Blackfern
8.00E-01
Blackfern
Blackfern
Blackfern
6.00E-01
Blackfern
Blackfern
Blackfern
4.00E-01
Blackfern
Blackfern
Blackfern
2.00E-01
Blackfern
Blackfern
Cabbage_tree
0.00E+00
0.00E+00
5.00E+02
1.00E+03
1.50E+03
2.00E+03
2.50E+03
Cabbage_tree
Cabbage_tree
Cabbage_tree
Figure 58: Spectra after setting up the waveband filter regions
Cabbage_tree
To plot the filtered regions as gaps, select the option ‘Include filtered bands’ in the file export dialog. If the data is plotted again the result will be similar to the one shown in Figure 59.
Two other points are noteworthy: (a) some reflectance values are higher than one and (b) one Cabbage tree spectrum seems to be an outlier.
The reflectances higher than one could be the effect of changing illumination conditions during the
sampling or a result of the BRDF.
The outlier problem can currently not be solved automatically. Two options exist: (a) remove the
concerned spectrum from the file system and then delete, recreate and reload the study or (b) reA. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 46
of 53
move the concerned spectrum from the database using SQL commands. Future versions of the
software may feature automatic outlier detection and elimination.
Blackfern
1.20E+00
Blackfern
Blackfern
Blackfern
1.00E+00
Blackfern
Blackfern
Blackfern
8.00E-01
Blackfern
Blackfern
Blackfern
6.00E-01
Blackfern
Blackfern
Blackfern
4.00E-01
Blackfern
Blackfern
Blackfern
2.00E-01
Blackfern
Blackfern
Cabbage_tree
0.00E+00
0.00E+00
5.00E+02
1.00E+03
1.50E+03
2.00E+03
2.50E+03
3.00E+03
Cabbage_tree
Cabbage_tree
Cabbage_tree
Figure 59: Waveband filtered data export with the 'include filtered bands' option
Reflectance (offset for clarity)
To generate stacked plots select the option ‘Offset by [%]’ in the file export dialog and set the percentage to 100. Then plot the data again. The spectra of each species are offset by the same
amount (see Figure 60). If only the species mean is selected, the resulting plot is similar to the
ones shown in diverse journal articles (see Figure 61). Note that when creating graphs in these
cases the Y axis scale should not displayed as it makes physically not much sense (reflectances
bigger than 1).
350
550
750
950
1150
1350
1550
1750
1950
2150
2350
Wavelength[nm]
Figure 60: Stacked plots offset by 100% showing all spectra per species
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
Page 47
of 53
Reflectance (offset for clarity)
SpectraProc
User Guide
Blackfern
Cabbage_tree
Lemonwood
250
450
650
850 1050 1250 1450 1650 1850 2050 2250 2450
Wavelength[nm]
Figure 61: Stacked plot showing the mean per species
5.5 Discriminant Analysis in PCT Feature Space
Discriminant Analysis (DA) is carried out in feature spaces. As an example the data will be transformed by a principal component transformation (PCT). The number of components used in the
transformation has a direct impact on the classification accuracy achieved by DA as will be demonstrated hereafter.
Select ‘PCT’ as the current feature space type. Note that the ‘Feature Spaces’ dropdown listbox
states that there exist no feature spaces of this type (see Figure 62). A PCT is only possible if a
Principal Components Analysis has been carried out. Perform PCA (see 4.2.12.3 for details).
Figure 62: PCT feature spaces
Open the PCA output file in Excel and plot the first 10 eigenvalues against the component number.
The result should be similar than the one showed in Figure 63. This graph is called ‘screeplot’. The
sharper the drop off in eigenvalues the better are the results that can be expected from the following PCT.
Note that once the PCA has been performed the ‘Feature Spaces’ dropdown listbox contains a
selection of feature spaces. The numbers at the end of the names are equal to the number of components used in the feature space. E.g. PCT_10 will effect a PCT using the first 10 components of
the transformation matrix, i.e. the data will be reduced to 10 variables (dimensions).
Select ‘PCT_5’ as feature space.
The discriminating power of feature spaces can be assessed by carrying out a discriminant analysis. Before the DA can be executed the library for the current processing chain settings must be
built (see 4.2.11 how to build libraries). Then subject the data to DA (see 4.2.12.2 for details). The
resulting overall accuracy should be around 90.7%. The DA results are detailed in the DA output
file ‘Error_Matrix.csv’ (see Table 6). The columns are the species that were classified. The number
of correctly classified spectra is contained in the diagonal elements. The errors of omission are
written in the off-diagonal elements. E.g. 6 Blackfern spectra were wrongly classified as Cabbage
tree.
Close the DA output file, select PCT_10 as feature space and repeat the process of library building
and DA and inspect the DA output file once more. The classification accuracy should have risen to
100%.
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 48
of 53
Scree Plot
2.5
2
1.5
Eigenvalue
1
0.5
0
0
2
4
6
8
10
Figure 63: Scree plot of the eigenvalues of the first 10 components
Table 6: Error Matrix for DA on PCT_5 feature space
Blackfern
Blackfern
Cabbage_tree
Lemonwood
Row Total
User
Accuracy
12
0
0
12
1.00E+02
Cabbage_tree
6
20
0
26
7.69E+01
Lemonwood
0
0
27
27
1.00E+02
Column Total
18
20
27
65
6.67E+01
1.00E+02
1.00E+02
Producer Accuracy
9.08E+01
5.6 Disabling Outliers
By combining SpectraProc and SpectraProc Query, outliers can be identified and disabled.
In the example dataset you might have spotted one cabbage tree spectrum that looks different (low
reflection in the NIR) than all others. If PCA is run on this data set, the outlier can also be spotted
(see Figure 64).
Figure 64: Score Plot showing an outlier
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 49
of 53
Now start SpectraProc Query, select the ‘example’ campaign in the Campaign Conditions, select
‘Cabbage Tree’ as Species Condition, select ‘Spectrum’ as report level and click ‘Exec Query’ (see
Figure 65).
Figure 65: Conditions set to select Cabbage Tree spectra from the 'example' campaign
In the spectrum report (see Figure 66) scroll down till you see the wrong looking cabbage tree
spectrum (spectrum number 9 of site 1, you can deduce the site number from the pathname).Tick
the checkbox in order to disable the spectrum. Now rerun the PCA calculation in SpectraProc and
the outlier will vanish from the Score plot (see Figure 67).
Figure 66: Spectrum Report showing a wrong looking Cabbage Tree spectrum
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 50
of 53
Figure 67: Score Plot after disabling an outlier
To assess the impact of an outlier on the building of covariances and thus on the classification
result build a library using a PCT feature space of low dimensionality, e.g. 2, and run ‘Discriminant
Analysis’. Repeat library building and discriminant analysis after re-enabling the outlier in SpectraProc Query. You should see a significant change in classification accuracy:
--------------------------------------------------Principal Component Analysis
--------------------------------------------------PCA output written to file:
C:\Data\MPhil Remote Sensing\SpectraProc_output\pca_output.csv
--------------------------------------------------New library built and reloaded
--------------------------------------------------Discriminant Analysis
--------------------------------------------------Error matrix written to file:
C:\Data\MPhil Remote Sensing\SpectraProc_output\Error Matrix.csv
--------------------------------------------------Overall Accuracy: 70.31250
--------------------------------------------------Principal Component Analysis
--------------------------------------------------PCA output written to file:
C:\Data\MPhil Remote Sensing\SpectraProc_output\pca_output.csv
--------------------------------------------------New library built and reloaded
--------------------------------------------------Discriminant Analysis
--------------------------------------------------Error matrix written to file:
C:\Data\MPhil Remote Sensing\SpectraProc_output\Error Matrix.csv
--------------------------------------------------Overall Accuracy: 47.69231
---------------------------------------------------
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 51
of 53
6 Change History
6.1 SpectraProc
6.1.1 Added Features
SpectraProc
Version
V1.1
Feature
Date
Eigenvectors are written into the PCA output file
When creating a new study the new study is automatically selected as the active study
Study information report
PCA Score Plot shown when performing PCA
The contents of the report window can be saved to a file by selecting: File -> Save Report Window Content. The file is written to the
default output directory and named report_window_output.txt
Disabled spectra are not utilized in the calculations (disabling
spectra with the SpectraProc Query tool)
Depending on the sensor dimensionality, only feature spaces with
less or equal number of dimensions are selectable in the GUI.
E.g. DGVI’s (dimension 10) cannot be built if Landsat data is synthesized.
PCA can now be carried out on multispectral sensors like Landsat
and Cropcircle (ACS210)
13.4.2006
24.4.2006
26.4.2006
10.5.2006
20.10.2006
20.10.2006
20.10.2006
20.10.2006
6.1.2 Fixed Bugs
SpectraProc
Version
V1.1
A. Hueni
Problem
Fix
Date
Mixtures not deleted when
deleting studies.
Crash when trying to write
PCA output and file is open
Feature space list not updated
when derivative settings
change
ARFF file output produces
corrupt files
PCA crashes when no data is
available
PCA on Landsat7: crashes
st
because 1 feature space is
PCT_10 (cant build matrix)
Include mixtures in the delete study
function
Check for open files when writing
PCA output file
Update feature space list when
changing derivative calculation
12.4.06
Attributes list fixed
18.4.2006
Check if data exists before starting
the eigenanalysis
Limit the dimensionality of the feature spaces to smaller or equal the
number of bands of the sensor.
24.4.2006
\UserGuide_V1.2b.doc
13.4.2006
18.4.2006
20.10.2006
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 52
of 53
6.1.3 Known Bugs
SpectraProc
Version
V1.1
Problem
Work around
The application will crash when
building a library using a feature
space that requires certain wavelengths on sensors with not enough
band information. Can occur when
e.g. redefining the DGVI’s to have
only 5 dimensions and then try to
calculate DGVI’s from Landsat data.
Just avoid doing this. There is a logic explanation why this cannot be done.
Implementing a check to disable such user
actions is too time consuming at this point.
The application can sometimes just
refuse to load. This is some effect of
the Symantec Internet security
(SpectraProc not being in the list of
programs that are allowed to access
the database port), probably coupled with hibernating the machine.
A reboot of the system helps here.
6.2 SpectraProc Database
6.2.1 Added Features
SpectraProc
Database
Version
V1.1
A. Hueni
Feature
Date
Added ‘disabled’ field to spectrum table
Removed the ‘not null’ constraint and added a default value of null
for the BLOBS in: pca_data, spectrum and statistic
20.10.2006
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
SpectraProc
User Guide
Page 53
of 53
7 References
Bojinski, S., Schaepman, M., Schlaepfer, D., Itten, K., 2003. SPECCHIO: a spectrum database for
remote sensing applications. Computers & Geosciences 29, 27-38
Elvidge, C. D., Chen, Z., 1995. Comparison of broadband and narrowband red and near-infrared
vegetation indices. Remote Sensing of Environment 54, 38-48
Fliege, N. J., 1994. Multirate Digital Signal Processing, John Wiley & Sons, Chichester.
Keshava, N., Mustard, J. F., 2002. Spectral Unmixing. IEEE Signal Processing Magazine 19(1), 4457
Kusumo, B., Hedley, C. B., Hedley, M. J., Hueni, A., Tuohy, M., Arnold, G. C., 2008. The use of
diffuse reflectance spectroscopy for in situ carbon and nitrogen analysis of pastoral soils. Australian
Journal of Soil Research 46, 623-635
Landgrebe, D., 1997. On Information Extraction Principles for Hyperspectral Data, Purdue University, West Lafayette, IN, 34 pp.
Papula, L., 1994. Mathematik fuer Ingenieure und Naturwissenschaftler Vol. Band 3, Viewegs.
Richards, J. A., 1993. Remote Sensing Digital Image Analysis, 2nd edn., Springer Verlag, Berlin.
Savitzky, A., Golay, M. J. E., 1964. Smoothing and Differentiation of Data by Simplified Least
Squares Procedures. Analytical Chemistry 36(8), 1627-1639
Shaw, G., Manolakis, D., 2002. Signal Processing for Hyperspectral Image Exploitation. IEEE Signal Processing Magazine 19(1), 12-16
Thenkabail, P. S., Enclona, E. A., Ashton, M. S., 2004. Accuracy assessment of hyperspectral
waveband performance for vegetation analysis applications. Remote Sensing of Environment 91,
354-376
WEKA. 2005. Version 3-4-5, University of Waikato.
Vane, G., Goetz, A. F. H., 1988. Terrestrial Imaging Spectroscopy. Remote Sensing of Environment 24, 1-29
A. Hueni
\UserGuide_V1.2b.doc
Version 1.2b / 13.10.2008
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
