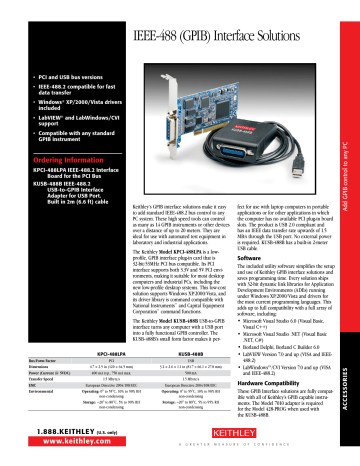

IEEE-488 (GPIB) Interface Solutions
IEEE-488 (GPIB) Interface Solutions
• PCI and USB bus versions
• IEEE-488.2 compatible for fast
data transfer
• Windows® XP/2000/Vista drivers
included
Ordering Information
KPCI-488LPA IEEE-488.2 Interface
Board for the PCI Bus
KUSB-488B IEEE-488.2
USB-to-GPIB Interface
Adapter for USB Port.
Built in 2m (6.6 ft) cable
Keithley’s GPIB interface solutions make it easy
to add standard IEEE-488.2 bus control to any
PC system. These high speed tools can control
as many as 14 GPIB instruments or other devices
over a distance of up to 20 meters. They are
ideal for use with automated test equipment in
laboratory and industrial applications.
The Keithley Model KPCI-488LPA is a lowprofile, GPIB interface plug-in card that is
32-bit/33MHz PCI bus compatible. Its PCI
interface supports both 3.3V and 5V PCI environments, making it suitable for most desktop
computers and industrial PCs, including the
new low-profile desktop systems. This low-cost
solution supports Windows XP/2000/Vista, and
its driver library is command compatible with
National Instruments™ and Capital Equipment
Corporation™ command functions.
The Keithley Model KUSB-488B USB-to-GPIB
interface turns any computer with a USB port
into a fully functional GPIB controller. The
KUSB-488B’s small form factor makes it per-
Bus/Form Factor
Dimensions
Power (Current @ 5VDC)
Transfer Speed
EMC
Environmental
KPCI-488LPA
KUSB-488B
PCI
4.7 × 2.5 in (120 × 64.5 mm)
400 mA typ., 750 mA max.
1.5 Mbyte/s
European Directive 2004/108/EEC
Operating: 0° to 55°C, 10% to 90% RH
non-condensing
Storage: –20° to 80°C, 5% to 90% RH
non-condensing
USB
3.2 × 2.6 × 1.1 in (81.7 × 66.1 × 27.8 mm)
500 mA
1.5 Mbyte/s
European Directive 2004/108/EEC
Operating: 0° to 55°C, 10% to 90% RH
non-condensing
Storage: –20° to 80°C, 5% to 95% RH
non-condensing
1.888.KEITHLEY (U.S. only)
w w w.keithley.com
A
G R E A T E R
fect for use with laptop computers in portable
applications or for other applications in which
the computer has no available PCI plug-in board
slots. The product is USB 2.0 compliant and
has an IEEE data transfer rate upwards of 1.5
MB/s through the USB port. No external power
is required. KUSB-488B has a built-in 2-meter
USB cable.
Software
The included utility software simplifies the setup
and use of Keithley GPIB interface solutions and
saves programming time. Every solution ships
with 32-bit dynamic link libraries for Application
Development Environments (ADEs) running
under Windows XP/2000/Vista and drivers for
the most ­current programming languages. This
adds up to full compatibility with a full array of
software, ­including:
• Microsoft Visual Studio 6.0 (Visual Basic,
Visual C++)
• Microsoft Visual Studio .NET (Visual Basic
.NET, C#)
• Borland Delphi, Borland C Builder 6.0
• LabVIEW Version 7.0 and up (VISA and IEEE488.2)
• LabWindows™/CVI Version 7.0 and up (VISA
and IEEE-488.2)
Hardware Compatibility
These GPIB Interface solutions are fully compatible with all of Keithley’s GPIB capable instruments. The Model 7010 adapter is required
for the Model 428-PROG when used with
the KUSB-488B.
M E A S U R E
O F
C O N F I D E N C E
ACCESSORIES
• Compatible with any standard
GPIB instrument
Add GPIB control to any PC
• LabVIEW® and LabWindows/CVI
support
Side Text
Specifications are subject to change without notice.
All Keithley trademarks and trade names are the property of Keithley Instruments, Inc.
All other trademarks and trade names are the property of their respective companies.
A
G R E A T E R
M E A S U R E
O F
C O N F I D E N C E
ACCESSORIES
KEITHLEY INSTRUMENTS, INC . ■ 28775 AUROR A RD. ■ CLEVEL AND, OH 44139-1891 ■ 440 -248- 0400 ■ Fax: 440 -248-6168 ■ 1-888-KEITHLEY ■ w w w.keithley.com
BELGIUM
Sint-Pieters-Leeuw
Ph: 02-3630040
Fax: 02-3630064
[email protected]
www.keithley.nl
CHINA
Beijing
Ph: 86-10-8447-5556
Fax: 86-10-8225-5018
ch[email protected]
www.keithley.com.cn
FRANCE
Saint-Aubin
Ph: 01-64532020
Fax: 01-60117726
[email protected]
www.keithley.fr
GERMANY
Germering
Ph: 089-84930740
Fax: 089-84930734
info @ keithley.de
w w w.keithley.de
INDIA
Bangalore
Ph: 080-26771071, -72, -73
Fax: 080-26771076
[email protected]
w w w.keithley.com
ITALY
Peschiera Borromeo (Mi)
Ph: 02-5538421
Fax: 02-55384228
info @ keithley.it
w w w.keithley.it
JAPAN
Tokyo
Ph: 81-3-5733-7555
Fax: 81-3-5733-7556
info.jp @ keithley.com
w w w.keithley.jp
KOREA
Seoul
Ph: 82-2-574-7778
Fax: 82-2-574-7838
[email protected]
w w w.keithley.co.kr
MALAYSIA
Penang
Ph: 60-4-643-9679
Fax: 60-4-643-3794
[email protected]
www.keithley.com
NETHERLANDS
Gorinchem
Ph: 0183-635333
Fax: 0183-630821
info @ keithley.nl
w w w.keithley.nl
SINGAPORE
Singapore
Ph: 65-6747-9077
Fax: 65-6747-2991
[email protected]
www.keithley.com
SWITZERLAND
Zürich
Ph: 044-8219444
Fax: 044-8203081
[email protected]
w w w.keithley.ch
TAIWAN
Hsinchu
Ph: 886-3-572-9077
Fax: 886-3-572-9031
[email protected]
w w w.keithley.com.t w
UNITED KINGDOM
Theale
Ph: 0118-9297500
Fax: 0118-9297519
info @ keithley.co.uk
w w w.keithley.co.uk
© Copyright 2010 Keithley Instruments, Inc.
Printed in the U.S.A.
No. 0000
04.27.10
