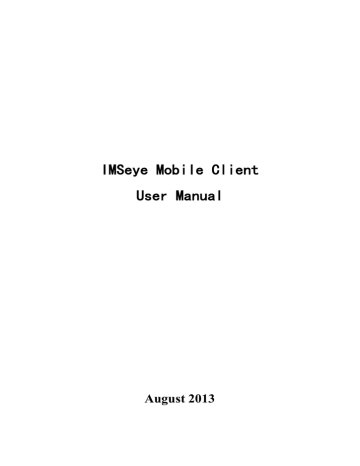

IMSeye Mobile Client

User Manual

August 2013

Instruction

This instruction is for cell phone software that long-distance login DVR.

Directory

1 Android System ......................................................................... 2

1.1

1.2

Introduction ......................................................................................................................................................................2

Installation and operating instruction ...............................................................................................................................2

2 iPhone System ........................................................................... 9

2.1

2.2

Introduction ......................................................................................................................................................................9

Installation and operating instruction ...............................................................................................................................9

3 Symbian System ...................................................................... 17

3.1

3.2

Introduction .................................................................................................................................................................... 17

Installation and operating instruction ............................................................................................................................. 17

4 Blackberry System .................................................................. 22

4.1

4.2

Introduction .................................................................................................................................................................... 22

Installation and operating instruction ............................................................................................................................. 22

5 Windowsmobile System ........................................................... 29

5.1 Introduction ............................................................................................................................................................................. 29

5.2 Install and operating instruction............................................................................................................................................... 30

5 Support phone models: ......................................................... 35

1

1 Android System

1.1 Introduction

This user guide is mainly applicable to installation and use of monitor software in Android system mobile phone.

Main functions and features of Cell Phone (Android) monitor program:

Real time video browse function;

PTZ controlling function(only for PTZ)

Video footage、pictures screenshots function

Alarm function

Requirement:

Support Android system above 1.5 version,cell phone contains HTC G1,HTC Magic,HTC Hero,HTC G5 etc。

1.2 Installation and operating instruction

1) Copy IMSeye.apk install pack to Android cell phone across the data line.

2) Find IMSeye.apk in the list,press program install..The icon will show as follows after installation:

2

3) Click IMSeye program icon, running the program after the initial interface below:

4)Click on the real-time preview, the initial interface below:

Buttons and functions are as follows:

3

Button Name Function & Specification

Play Program connect equipment and begin to play

Snap-shot

Video

Alarm

Device list

Choose channels

Snapshot image (image file to default to the local image directory of the default software.)

Video (video file to default to the local video directory of the default software.)

Receive the alarm information of DVR (when the alarm button lights)

Select the connected device and channel

Choose to play a video channel of the device. Can be achieved in conjunction with the next set of 8, 16 channels switch

Next group Can choose the next group of channels

PTZ control

Achieve PTZ control (including the head up and down and move around, the focal length of addition and subtraction, aperture subtraction, etc.)

5) For the first time using or need to change the parameter ,please press set button to enter into the parameter setting interface as follows:

4

Explain

:Add to the equipment.

:To modify the device information.

:Remove the existing equipment.

Click to add a device, as shown:

Connection device address:

5

Explain

DeviceName:The alias of the device easy to distinguish between multiple devices.

Connection:Two ways to connect the DVR,address and P2P mode.

TCP Port:DVR’s server port.

User Name:same as that of the IE port.

Password:same as that of the IE port/

Max Channel:The total number of channels of the device selection.

P2P connection:

6

DeviceName:The alias of the device easy to distinguish between multiple devices.

Connection:Two ways to connect the DVR,address and P2P mode.

Device serial number:The DVR ID number that uniquely identifies the device,Can not be modified.

Password:DVR automatically generated,you can also modify.

Max Channel:The total number of channels of the device selection.

:Dimensional code scanning capabilities, DVR using a mobile phone to scan two-dimensional code, device serial number can be filled in automatically.

6)In the options you can do in the real-time monitoring of the relevant parameters, where:

7

AutoPlay;

Alarm voice prompts switch, playback mode selection (once, loop);

Voice switch;

Screen scaling switch;

Priority type selection: smooth mode and real mode (selected according to network traffic conditions, network mode selection process when poor).

7)Album to view pictures cut down in the real-time monitoring:

Support slide show mode;

Pictures display pixels, the size and screenshots;

Support picture zoom in and zoom function;

8)Video mode:

Video to MP4 mode;

Video recording time is displayed;

Video playback support fast forward and slow forward and pause function;

Click edit, and delete operations on the video。

9) Full-screen playback mode

When the cell phone thwart, it will be full screen playing automatically.

8

10) Channel switching

Select the appropriate channel number, the program will open the corresponding channel and automatically play the video. Program by default will display 1--channel, elected in the next set of channel button, channel number will be switched to 5-8,9-12,13-16 cycle switch.

DVR parameters setting reference for cell phone:

 resolution:CIF or QCIF;

 frame rate:5-10 frame;

 stream type:limited;

 stream:64-256Kb/S。

Note: The above parameters can be adjusted according to the cell phone’s capability and the network status, if both of them are good, the effect will be better. If net status is not very good, please reduce the frame rate appropriately to keep fluency.

2 iPhone System

2.1 Introduction

This user guide is mainly applicable to installation and use of monitor software in iPhone.

Main functions and features of iPhone monitor program:

Real time video browse function;

PTZ controlling function(only for PTZ)

Video footage、pictures screenshots function

Alarm function

Requirement:

Support iOS 3.0 or higher version,that contains Iphone ,ipod touch etc.

2.2 Installation and operating instruction

1)Run iPhone’s App Store program,switch to searching page,click IMSeye in the address bar., then the program install pack will be found and please install that. After installation, the program icon will show as follow:

9

2) Click IMSeye icon. After running program, the original interface will be as follows:

10

3)Click on the homepage , the initial interface below:

Buttons and functions are as follows:

11

Button Name

Play

Function & Specification

Program connect equipment and begin to play close

Snap-shot

Video

Alarm

Close the current video window

Snapshot image (image file to default to the local image directory of the default software.)

Video (video file to default to the local video directory of the default software.)

Receive the alarm information of DVR (when the alarm button lights)

Select the connected device and channel Device list

Choose channels

Choose to play a video channel of the device. Can be achieved in conjunction with the next set of 8, 16 channels switch

Next group

PTZ direction control

Can choose the next group of channels

PTZ From top to bottom and move around

Zoom PTZ Variable times amplification

Zoom

PTZ Variable times reduced focus PTZ Focusing increase focus PTZ Focus to reduce aperture PTZ Aperture amplification

12

aperture

PTZ Aperture reduced

4) For the first time using or need to change the parameter ,please press set button to enter into the parameter setting interface as follows::

Explain

:Add to the equipment.

:To modify the device information.

:Remove the existing equipment.

Click to add a device, as shown:

Connection device address:

13

Explain

DeviceName:The alias of the device easy to distinguish between multiple devices.

Connection:Two ways to connect the DVR,address and P2P mode.

TCP Port:DVR’s server port.

User Name:same as that of the IE port.

Password:same as that of the IE port/

Max Channel:The total number of channels of the device selection.

P2P connection:

14

DeviceName:The alias of the device easy to distinguish between multiple devices.

Connection:Two ways to connect the DVR,address and P2P mode.

Device serial number:The DVR ID number that uniquely identifies the device,Can not be modified.

Password:DVR automatically generated,you can also modify.

Max Channel:The total number of channels of the device selection.

:Dimensional code scanning capabilities, DVR using a mobile phone to scan two-dimensional code, device serial number can be filled in automatically.

15

autoplay:After running software automatic connection last had connected equipment channel and play;

Picture settings:After running software 1 window or four window two modes;

Voice Alerts:Don't need is closed, once, cycle three modes; play audio:Open or closed voice.

6)Album to view pictures cut down in the real-time monitoring:

Support slide show mode;

Pictures display pixels, the size and screenshots;

Support picture zoom in and zoom function;

7)Video mode:

Video to MP4 mode;

Video recording time is displayed;

Video playback support fast forward and slow forward and pause function;

Click edit, and delete operations on the video。

8) Full-screen playback mode

When the cell phone thwart, it will be full screen playing automatically.

9) Channel switching

Select the appropriate channel number, the program will open the corresponding channel and automatically play the video. Program

16

by default will display 1--channel, elected in the next set of channel button, channel number will be switched to 5-8,9-12,13-16 cycle switch.

DVR parameters setting reference for cell phone:

 resolution:CIF or QCIF;

 frame rate:5-10 frame;

 stream type:limited;

 stream:64-256Kb/S。

Note: The above parameters can be adjusted according to the cell phone’s capability and the network status, if both of them are good, the effect will be better. If net status is not very good, please reduce the frame rate appropriately to keep fluency.

3 Symbian System

3.1 Introduction

This user guide is mainly applicable to installation and use of monitor software in Symbian system mobile phone.

Main functions and features of Cell Phone (Symbian) monitor program:

Real time video browse function;

PTZ controlling function(only for PTZ)

Requirement:

Support symbain system 9.1 version or above (symbian 3

th

&5 th

3

th

vision 240*320,320*240 resolution,5 th

360*640,640*360 resolution cell phone.

3.2 Installation and operating instruction

1) Download and install the sisx document into the cell phone.

Program icon will appear after installation, find IMSeye in the program list as follow:

17

2) Click and run IMSeye program icon,the original interface will be as follow: stand mode

Functions and buttons:

Function key name play

Snapshot set specification

Program connect device and begin to play

Snapshot image and save as the default image list

Set DVR’s IP add or DDNS、port、user name、 password and other name info of device

18

Out Out of program

Full screen

Channels selection

Full screen browsing

To play any Channel. Could change to 8 or 16

Channels with next group function

PTZ control Up down left right control

Zoom,focus,iris

Zoom Far and near,Focus long and short,Iris increase and reduce,you will be noted the function when you choose any button

3)For the first time using or need to change the parameter, please press set button to enter the parameter setting interface as follow:

(Address):DVR’s public network IP address or DDNS

(Port):Set DVR’s server port

(Device name):To distinguish between multi-equipments

(User ID): same as that of the IE port

(Password):same as that of the IE port

(alias):Name the relevant location that will show on the playing page

4) Open the menu and login the history list, or click the play button to back to the playing page, this setting will be saved.

It will not be saved if you click the right key to return directly.

19

5) Confirm and delete options are in the history list menu.(back to the setting interface after confirmation, update the data of setting

Choose any item in the history list, open the menu and choose [confirm] to view the scene of the location.

Delete history record:

Open the menu of the useless record,choose [delete] to delete this record.

6) Video display mode

Typical and full screen mode switch

20

Erect screen cell phone’s typical mode

When the cell phone thwart, it will be full screen playing naturally.

Or press the full screen mode key to switch full screen in any mode of whatever the cell phone’s mode

7)Channels switch

Choose the relevant channel, the system will open it and play the video automatically. System is default to show 1-4 channels. if you press next group of channels,the channels No. will switch to be 5-8,8-12,12-16 circularly.

DVR parameter setting reference for cell phone:

 resolution:CIF or QCIF;

 frame rate:5-10 frame;

 stream type:limited;

 stream:64-256Kb/S。

Note: The above parameters can be adjusted according to the cell phone’s capability and the network status, if both of them are good, the effect will be better. If net status is not very good, please reduce the frame rate appropriately to keep fluency.

21

4 Blackberry System

4.1 Introduction

This user guide is mainly applicable to installation and use of monitor software in Android system mobile phone.

Main functions and features of Cell Phone (Android) monitor program:

Real time video browse function;

PTZ controlling function(only for PTZ)

Requirement:

Support Blackberry system above 4.6 version,screen resolution 480*360 and 480*320,that contains:8900、9000、9700、9630 etc, it will be better performance if update to special version,they are:

8900/9000 necessary system is 5.0.0.90

9700 necessary system is 5.0.0.714 or 5.0.0.344。

4.2 Installation and operating instruction

1) Install the IMSeye.cod and IMSeye.alx pack into Blackberry cell phone across table manage system as follows:

22

2) Click’"options"on the cell phone table,login the page as following:

3) Click“application”to find IMSeye,click and login,click"editor limits",set all to be"allow".

4) Click IMSeye program icon. After running the program,login the original interface across a original flash screen interface as follows:

23

(Name): to differentiate multi-devices

(Address):DVR’s company IP address and DDNS

(Port):Set DVR’s server port

(User ID): the same as than of the IE port

(Password):the same as that of IE port

(Network Type):Choose the network type as your will.

Button’s relevant function:

Function key name

Login specification

Login the main interface,program connect device and begin to play video logout program Cancel

5) Click and login the main interface: history Login the history record page

24

Button’s relevant function:

Function key name play specification

Program connect device and begin to play

Full screen

Snapshot set

Next group

Full screen play

Snapshot image and save as the default cell’s image list

Set DVR’s IP add or DDNS、port、user name、 password and other name info of device

Next group about channels selection

PTZ control

About information

To play any channel

Up down left right control

25

zoom focus iris

6) Click cancel, Logout program as follows:

Zoom Far and near

Focus long and short

Iris increase and reduce

7) Click history record, login history list as follows:

26

8) Click menu key, the menu will show as follows:

Menu function:

Function key open edit

Clear savePath record

New Device

Delete

Delete All Records

Switch Application

Close

9) video display mode

Typical and full screen mode switch name play edit clear new delete

Delete all specification

Program connect device and begin to play

Edit record

Clear savePath record(Snapshoted image saving path)

Rebuild a new record

Delete any record

Delete All Records

Switch close

Switch to other program

Close other program

27

Typical mode

Full screen mode

DVR parameter setting reference for cell phone:

 resolution:CIF or QCIF;

 frame rate:5-10 frame;

 stream type:limited;

 stream:64-256Kb/S。

Note: The above parameters can be adjusted according to the cell phone’s capability and the network status, if both of them are good,

28

the effect will be better. If net status is not very good, please reduce the frame rate appropriately to keep fluency.

5 Windowsmobile System

5.1 Introduction

This user guide is mainly applicable to installation and use of monitor software in Windowsmobile system mobile phone..

Main functions and features of Windowsmobile monitor program:

Real time video browse function;

PTZ controlling function(only for PTZ)

Requirement:

29

Support windowsmobile system 2003 version or above.Only support touch screen version currently.

5.2 Install and operating instruction

1) Copy the IMSeyesetup.cab to windows mobile cell phone across the data line

2) Find IMSeye setup.cab in the appointed list,double click to install,the program icon will show under (program) path after install

3) Click IMSeye program icon,the original interface will be as follows after running program:

Button relevant function as follows:

30

button name play set stop

Function & Specification

Program connect device and begin to play

Set DVR’s IP add or DDNS、port、user name、 password and other name info of device

Program stop playing the video

Route way selection

PTZ control zoom focus iris

Snapshot

Choose and play any channels

Up down left right control

Zoom Far and near

Focus long and short

Iris increase and reduce

Snapshot current image(Snapshoted image will be saved in photo list as follows:)

31

4) For the first time using or need to change the parameters ,please press follow:

button into the parameters setting interface as

Press button to login the list of snapshoted image

32

Press button to login the history record page.

Choose the useless record,press “Delete” button to delete relevant item.

Choose any record and click [OK] button to back to the setting interface.

Then press [OK] button to login the connect interface

33

The display menu will appear after successful connection

5) Video display mode

Typical and full screen mode switch

Click button to stop browsing

It will switch to be full screen mode when you click the playing image.

Click the full screen playing image, it will switch to be typical playing mode

6) Route way switch

34

Click pull down button

Choose the relevant channels No.,program will play the relevant channel automatically

DVR parameters setting reference:

 resolution:CIF or QCIF;

 frame rate:5-10 frame;

 stream type:limited;

 stream:64-256Kb/S。

Note: The above parameters can be adjusted according to the cell phone’s capability and the network status, if both of them are good, the effect will be better. If net status is not very good, please reduce the frame rate appropriately to keep fluency.

5 Support phone models

品牌 操作系统 机型

8900/Apache/AT&T Pure/HD Diamond/P3600 Trinity/P3600i

Trinity/P3650Cruise/P3651Touch Cruise/P4350/P4351/P4500

TyTN/P4550 TyTN 3G/T3333 Touch 2/T4242 Touch

Cruise09/T5353Touch Diamond 2/T7377 AT&TTilt 2/T8282 Touch

HD/T8285 Touch HD/T8290 Max Touch

4G/Touch/Diamond/TouchDual/Touch Pro/Touch Pro

2/X7500Advantage/X7510Advantage/XV6975 Imagio

Aria/ Desire/Dream/ Droid Eris/ Evo 4G/Hero/Incredible/Legend/

Magic/Tattoo/Wildfire

35

CT810 Incite /GM730 Eigen /GM750 /GT810H /GW550/GW820 eXpo/KS20 /VS750 Fathom

GT540 Swift / GW620 Eve / KH5200 Andro-1 / LU2300Optimus Q /

VS740 Ally

DX650 / DX900 / E100 beTouch / E101 beTouch / M900 /neoTouch /

X960

E110 beTouch / E400 beTouch / Liquid

3250/5230/5233/5235 Comes With Music/5320 XpressMusic/5500

Sport/5530 XpressMusic/5630 Xpress Music/5700XpressMusic/5730

XpressMusic/5800 XpressMusic/6110Navigator/6120 classic 6121 classic 6122c/6124 classic/6210Navigator/6220 Classic 6290/6650 Fold

6720 Classic 6730 classic6788/6790Mako/ C5/ C6/ E50/ E51/ E52/ E55/

E60/ E61/ E62/

E63/ E65/ E66/ E70/ E71/E72/ E73

Mode/E75/E90/N71/N73/N75/N76/N77/N78/N79/N80/N81/N82

N85/N86/N91/ N92/N93/ N95/ N96/ N97/ N97 Mini/ X6

GT i7110 / GT i8510 Innov8 / GT i8910 Omnia / SGH G810/ SGH i450 /

SGH i550 / SGH i560 / SGH L870

GT B7300 OmniaLITE/GT B7320 OmniaPRO/GT B7330 OmniaPRO/GT

B7610 OmniaPRO/GT B7620 Giorgio Armani/GT C6620/GTC6625

Valencia/GT i8000 Omnia II/SCH i220 Code/SCH i760/SCH i770

Saga/SCH i910 Omnia/SCH i920 Omnia II/SGH i300/SGH i600/SGH i607 Blackjack/SGH i617 Blackjack2/SGH I627Propel Pro/SGH i637,

SGH i710/SGH i718/SGH i740/SGH i780/SGH i900/SGH i908

Omnia/SPH i325 Ace/SPH i350 intrepid/SPHIP830/SPH M7350 OZ

Omnia

U1 Satio / U5 Vivaz / U8 Kanna

36

M1 Aspen / X1 Xperia / X2 Xperia

DX650 / DX900 / E100 beTouch / E101 beTouch / M900 /neoTouch,

X960

E110 beTouch /E400 beTouch / Liquid

A3000 / A3100 / Q / Q9

A555 Devour/A955 Droid II/Droid/Droid X/i1/ MB200MB300/ MB501

Cliq XT/ MB511 Flipout/ Moto XT800/ZHILING/ Quench XT3/ XT701

XT720 Motoroi

E850 / N810

M10 Nuvifone/ M20 Nuvifone/ P320/ P505/ P525/ P526/ P527/P550/

P552/ P750/ P835

SMT 5600

E72 / P51

Axim X50

37

Mini 3iX / Streak / Thunder

310/535/565/566/577W/585/586w/595/818

Pro/828/838/838Pro/900/C720/C750/C800/D810/M700/P800/S1/S60

0/S900/T2222 Touch Viva/U1000 g-Smart i120

GSmart G1305 Boston iPAQ 510 Mobile Messenger / iPAQ HW6500 / iPAQ K3 Glisten i9502 Ultimate / i-mate Jamin / i-mate JAQ / i-mate imate JASJAM / i-mate JASJAR / i-mate K-JAM

E-4000 Solo

M6000 Zio

ET980 / i921

Xda Argon/Xda Atmos/Xda Atom/Xda Atom Exec/Xda Atom Life/XDA

Diamond Pro/Xda Graphite/XDA Ignito/Xda Nova/Xda Orbit/Xda Orbit

II/XDA Serra/XDA Star/XDA Stealth/DAStellar/XDA Trion/Xda Zinc

38

SPV C100 / SPV C600 / SPV M2000 / SPV M3000 / SPV M3100 /SPV

M5000/ SPV M600 / SPV M700

Treo 700 / Treo 750 / Treo 800 / Treo 850 Pro

C810 Duo / C820 Matrix Pro

IMA600S Sirius

IS01

Dash/ Dash 3G/ MDA AMEO/ MDA Basic Opal/ MDA Compact IV/MDA

Touch/ MDA Touch Plus/ MDA Vario III/ Shadow/ Shadow 2009/ Wing

G2 Touch/ MyTouch 3G/ myTouch 3g Slide/ Pulse

G710 / G900 / TG01

1231 / VPA Compact IV / VPA III

E811

39

X850 Racer

Blaze / X5E

Garminfone

Nexus One

U8110 / U8230

General Mobile DSTL1

BlackBerry 8900/ BlackBerry 9000 Bold/ BlackBerry 9100 Pearl (9105

Pearl) /BlackBerry 9630 Tour /BlackBerry 9650 Tour2/BlackBerry 9700

Onyx (Bold, 9020)

Apple iPhone 3G/3GS (OS 3.0 or later) Apple iPhone 4 / iPod touch, iPad

D-1100 / D-1111 / S-1000

SX66

40

QTEK 8010 /QTEK 8020 / QTEK 9000 / QTEK 9090 / QTEK 9100/Qtek

9600 / 8500

MY S-7

41

42

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
