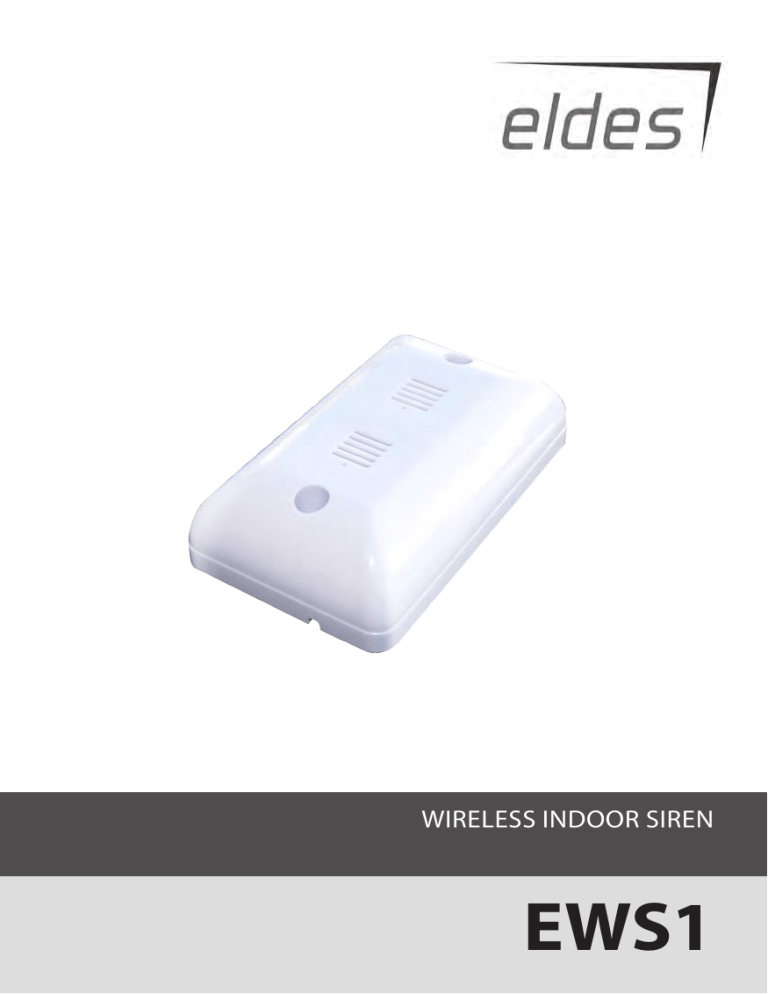

WIRELESS INDOOR SIREN EWS1
EWS1 is a wireless device with built-in siren speaker and operates with ELDES wireless alarm systems. EWS1 has to be bind to the
alarm system by sending a corresponding SMS message or using software ELDES Configuration Tool. Upon successful EWS1 binding,
the system adds one wireless zone and one wireless PGM output. The wireless zone is used to monitor the device (tamper - when
the batteries are being removed) and the wireless PGM output is used to control the speaker. In case of alarm, the siren provides a
sound alarm for one minute. This parameter can be configured. Please, refer to ELDES alarm system user manual for more information.
It is possible to connect up to 16 EWS1 devices to the alarm system at a time. Minimum distance for wireless connection is 3 centimeters, maximum – 150 meters (in open areas).
1. Package Content
1. EWS1................................................................................qty. 1
2. 1,5V Alkaline AA Type Battery................................qty. 3
3. Screws..............................................................................qty. 2
4. EWS1 User Manual.....................................................qty. 1
2 Technical Specifications
2.1 Electrical & Mechanical Characteristics
Battery Type
1,5V Alkaline AA type
Number of Batteries
3
Battery Operation Time
~18 months*
Wireless Transmitter-Receiver Frequency
868 Mhz
Range of Operating Temperatures
-20...+55ºC
Dimensions
123x73x36mm
Wireless Communication Range
Up to 30 meters in premises; up to 150 meters in open areas
Compatible with Alarm Systems
ELDES Wireless
* This operation time might vary in difference conditions.
2.2 Main Unit & LED Functionality
EWS1 status indication
Fig. No. 1
2
BATTERY
+
-
LED
-
LED
RESET
BATTERY
Battery slots
+
+/-
+
Button for restoring default parameters
BATTERY
RESET
3. Installation
1. Open EWS1 enclosure.
Insert a thin flat-shaped screwdriver or any tool alike into the gap located on the back of the enclosure (see Fig. No. 2).
Fig. No. 2
Push the screwdriver down to the right carefully in order to detach the enclosure parts from each other (see Fig. No. 3)
Fig. No. 3
2. Once the enclosure is opened, remove the plastic tab inserted between one of the battery terminals and battery slot contact (see
Fig. No. 4).
Fig. No. 4
USER MANUAL EWS1 V1.1
3
3. Fix the siren on the wall using the screws (see Fig. No. 5).
-
BATTERY
RESET
+
+
LED
-
BATTERY
+
-
BATTERY
Fig. No. 5
4. Close EWS1 enclosure. No tools are required for this action.
5. Bind the device to the alarm system by sending a corresponding command via SMS message or using ELDES Configuration Tool
software. Please, refer to the software‘s HELP section or refer to ELDES alarm system user manual.
6. The system automatically informs about successful/unsuccessful binding process. If attempt to bind is unsuccessful, try to move
EWS1 closer to alarm system device and bind anew.,
7. EWS1 siren is ready for use.
NOTE: If you are unable to bind the wireless device, please, restore the parameters of the wireless device to default and try again.
See chapter 5. Restoring Default Parameters for more details.
4. Battery Replacement
1. Open EWS1 enclosure.
2. Remove all 3 old batteries from the battery slots.
3. Postition the 3 new 1,5V alkaline AA type batteries according to the appropriate battery slot positive/negative terminals indicated
on the PCB (printed-circuit-board) of EWS1
4. Insert the batteries into the battery slots.
5. Batteries replaced.
See chapter 3. Installation for more details.
ATTENTION: Only 1,5V Alkaline AA type batteries can be used. Install only new, high quality and unexpired batteries. Do not mix
the old batteries with the new ones.
ATTENTION: At least 1 battery must be removed if the device is not in use.
ATTENTION: In order to avoid fire or explosion hazards, the system must be used only with approved battery. Special care must
be taken when connecting positive and negative battery terminals. Dispose old batteries only into special collection sites. Do not
charge, disassemble, heat or incinerate old batteries.
NOTE: The battery status can be monitored in real-time using ELDES Configuration Tool software.
4
5. Restoring Default Parameters
1. Remove one battery from EWS1.
2. Press and hold the RESET button.
3. Insert the battery back to EWS1.
4. Hold the RESET button until LED indicator starts blinking.
5. Release the RESET button.
6. Parameters reset to default.
6. Additional Information
Limited Liability
The buyer must agree that the system will reduce the risk of fire, theft, burglary or other dangers but does not guarantee against such
events.“ELDES UAB” will not take any responsibility regarding personal or property or revenue loss while using the system. “ELDES
UAB” liability according to local laws does not exceed value of the purchased system. “ELDES UAB” is not affiliated with any of the
Internet providers therefore is not responsible for the quality of Internet service.
Manufacturer Warranty
This device carries a 24-month warranty by the manufacturer “ELDES UAB”. Warranty period starts from the day the system has been
purchased by the end user. The warranty is valid only if the system has been used as intended, following all guidelines listed in the
manual and within specified operating conditions. Receipt must be kept as a proof of purchase date. The warranty is voided if the
system has been exposed to mechanical impact, chemicals, high humidity, fluids, corrosive and hazardous environment or other
force majeure factors.
Safety instructions
Please read and follow these safety guidelines in order to maintain safety of operators and people around:
• DO NOT use the system where it can be interfere with other devices and cause any potential danger.
• DO NOT use the system with medical devices.
• DO NOT use the system in hazardous environment.
• DO NOT expose the system to high humidity, chemical environment or mechanical impacts.
• DO NOT attempt to personally repair the system.
The WEEE (Waste Electrical and Electronic Equipment) marking on this product (see left) or its documentation indicates
that the product must not be disposed of together with household waste. To prevent possible harm to human health
and/or the environment, the product must be disposed on in an approved and environmentally safe recycling process.
For further information on how to dispose of this product correctly, contact the system supplier, or the local authority
responsible for waste disposal in your area.
Copyright © “ELDES UAB”, 2011. All rights reserved
It is not allowed to copy and distribute information in this document or pass to a third party without advanced written
authorization by “ELDES UAB”. “ELSDES UAB” reserves the right to update or modify this document and/or related products
without a warning. Hereby, ELDES UAB declares that this wireless indoor siren EWS1 is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at
www.eldes.lt
