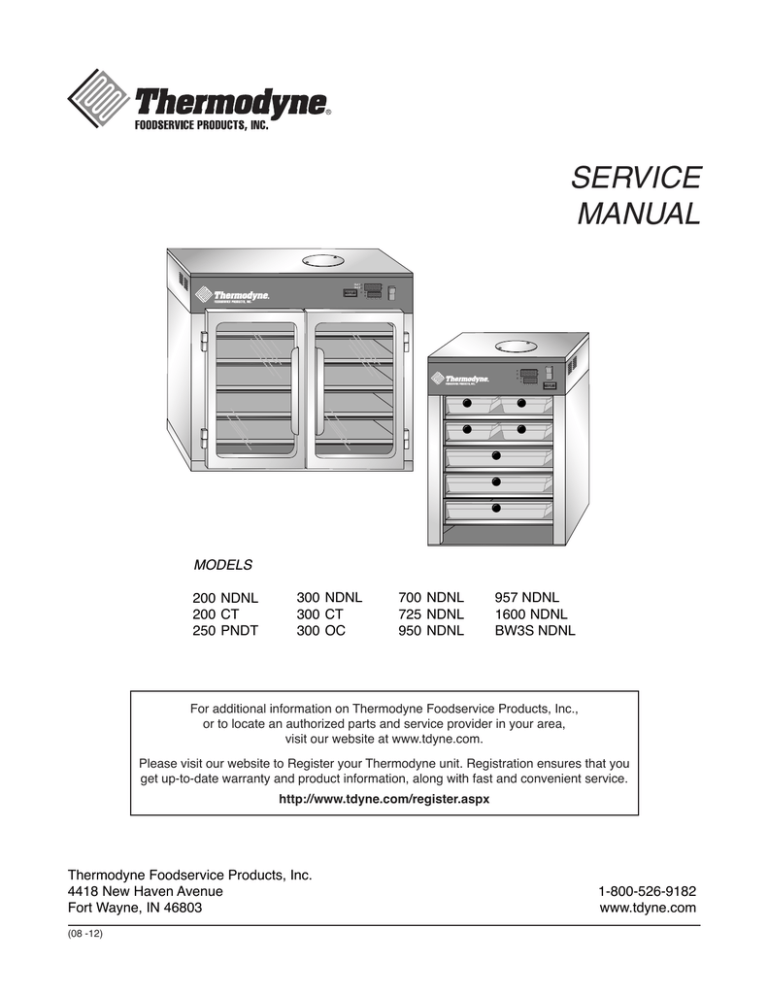

SERVICE

MANUAL

MODELS

200 NDNL

200 CT

250 PNDT

300 NDNL

300 CT

300 OC

700 NDNL

725 NDNL

950 NDNL

957 NDNL

1600 NDNL

BW3S NDNL

For additional information on Thermodyne Foodservice Products, Inc., or to locate an authorized parts and service provider in your area, visit our website at www.tdyne.com.

Please visit our website to Register your Thermodyne unit. Registration ensures that you get up-to-date warranty and product information, along with fast and convenient service.

http://www.tdyne.com/register.aspx

Thermodyne Foodservice Products, Inc.

4418 New Haven Avenue

Fort Wayne, IN 46803

(08 -12)

1-800-526-9182 www.tdyne.com

ELECTRICAL WARNINGS

THIS MANUAL HAS BEEN PREPARED FOR PERSONNEL QUALIFIED TO INSTALL ELECTRICAL

EQUIPMENT, WHO SHOULD PERFORM THE INITIAL FIELD STARTUP AND ADJUSTMENTS OF

THE EQUIPMENT COVERED BY THIS MANUAL.

READ THIS MANUAL THOROUGHLY BEFORE OPERATING, INSTALLING OR PERFORMING

MAINTENANCE ON THE EQUIPMENT.

WARNING

: Failure to follow all the instructions in this manual can cause property damage, injury or death.

WARNING

: Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death.

WARNING

: Electrical connections should be performed only by a certified professional.

WARNING

: Electrical and grounding connections must comply with the applicable portions of the National Electric Code and/or all local electric codes. Failure to comply with this procedure can cause property damage, injury or death.

WARNING

: Before connecting the unit to the electrical supply, verify that the electrical and grounding connections comply with the applicable portions of the National Electric Code and/or other local electrical codes. Failure to comply with this procedure can cause property damage, injury or death.

WARNING

: Before connecting the unit to the electrical supply, verify that the electrical connection agrees with the specifications on the data plate. Failure to comply with this procedure can cause property damage, injury or death.

WARNING

: UL73 grounding instructions: This appliance must be connected to a grounded, metal, permanent wiring system. Or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance. Failure to comply with this procedure can cause property damage, injury or death.

WARNING

: Appliances equipped with a flexible electric supply cord, are provided with a three-prong grounding plug. It is imperative that this plug be connected into a properly grounded three-prong receptacle. Failure to comply with this procedure can cause property damage, injury or death.

WARNING

: If the receptacle is not the proper grounding type, contact an electrician. Do not remove the grounding prong from the plug. Failure to comply with this procedure can cause property damage, injury or death.

— 2 —

WARNING

: Before performing any service that involves electrical connection or disconnection and/or exposure to electrical components, always perform the Electrical

LOCKOUT/TAGOUT Procedure. Disconnect all circuits. Failure to comply with this procedure can cause property damage, injury or death.

WARNING

: Before removing any sheet metal panels, always perform the Electrical

LOCKOUT/TAGOUT Procedure. Be sure all circuits are disconnected. Failure to comply with this procedure can cause property damage, injury or death.

WARNING

: Do not operate this equipment without properly placing and securing all covers and access panels. Failure to comply with this procedure can cause property damage, injury or death.

WARNING

: Do not use or store gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance. Failure to comply can cause property damage, injury or death.

WARNING

: In the event of a power failure, do not attempt to operate this appliance.

Failure to comply can cause property damage, injury or death.

— 3 —

TABLE OF CONTENTS

ELECTRICAL WARNINGS ............................................................................................................................... 2

ELECTRICAL LOCKOUT/TAGOUT PROCEDURE ......................................................................................... 5

COVERS AND PANELS ................................................................................................................................... 6

Top Fill Cover ............................................................................................................................................. 6

Power Head Lid ......................................................................................................................................... 6

Units with Doors ......................................................................................................................................... 6

COMPONENT LOCATOR ................................................................................................................................ 7

Power Head Components .......................................................................................................................... 7

Delivery Manifold Components .................................................................................................................. 8

Return Manifold Components .................................................................................................................... 9

COMPONENT REMOVAL AND REPLACEMENT .......................................................................................... 10

Electrical Components ............................................................................................................................. 10

Power Toggle Switch ................................................................................................................................ 10

Add Fluid Light ..........................................................................................................................................11

Temperature Controller .............................................................................................................................11

Cooling Fan .............................................................................................................................................. 12

Power Cord .............................................................................................................................................. 13

POWER BOARD COMPONENTS ................................................................................................................. 13

Solid State Relay ..................................................................................................................................... 13

120VAC Float Board ................................................................................................................................ 14

300NDNL TWELVE BUTTON TIMER............................................................................................................. 15

PLUMBING COMPONENTS .......................................................................................................................... 16

B&G Pump ............................................................................................................................................... 16

Teflon Hoses ............................................................................................................................................ 17

Fluid Level Probes ................................................................................................................................... 18

Snap Disc ................................................................................................................................................. 20

Thermocouple .......................................................................................................................................... 20

Heat Elements ......................................................................................................................................... 22

MAINTENANCE PROCEDURES ................................................................................................................... 24

Temperature Controller Set Up Procedures ............................................................................................. 24

Keypad Operation .................................................................................................................................... 24

Unlock the Controller ............................................................................................................................... 24

Set-Up ...................................................................................................................................................... 24

To Toggle Between °F and °C Readout ................................................................................................... 25

Changing the Heat Transfer Fluid ............................................................................................................ 25

CT Door Adjustment ................................................................................................................................. 25

Stainless Steel Care ................................................................................................................................ 26

TROUBLESHOOTING ................................................................................................................................... 27

WIRING SCHEMATIC .................................................................................................................................... 28

FLUID CAPACITIES (STANDARD SHELF CONFIGURATION) ..................................................................... 30

WARRANTY ................................................................................................................................................... 31

HEAT TRANSFER FLUID MSDS ................................................................................................................... 31

— 4 —

ELECTRICAL LOCKOUT/TAGOUT PROCEDURE

WARNING

: Before performing any service that involves electrical connection or disconnection and/or exposure to electrical components, always follow the

Electrical LOCKOUT/TAGOUT Procedure.

Disconnect all circuits. Failure to comply can cause property damage, injury or death.

The Electrical LOCKOUT/TAGOUT Procedure is used to protect personnel working on an electrical appliance. Before performing any maintenance or service that requires exposure to electrical components, follow these steps:

1. In electrical box, place appliance circuit breaker into OFF position.

2. Place a lock or other device on electrical box cover to prevent someone from placing circuit breaker ON.

3. Place a tag on electrical box cover to indicate that appliance has been disconnected for service and power should not be restored until tag is removed by maintenance personnel.

4. Disconnect appliance power cord from electrical outlet.

5. Place a tag on the cord to indicate that unit has been disconnected for service and power should not be restored until tag is removed by maintenance personnel.

— 5 —

COVERS AND PANELS

TOP FILL COVER

The Top Fill Cover provides access to the Reservoir

Tank Cap without the requirement to remove the entire Power Head Lid. Remove the cover to access the Reservoir Tank Cap when the Add

Fluid Light is illuminated.

1. Place the Power Switch in its OFF position.

2. Remove the Philips screws securing the Top

Fill Cover.

3. Remove the Top Fill Cover.

POWER HEAD LID

Under normal circumstances it is not necessary to remove the Back Panel to access components. The exception to this is the BW3SNDNL model. The

Back Panel on the BW3SNDNL provides access to the Heater Tank components and the Pump.

The Back Panel on the 950NDNL and 957NDNL may be lifted off to provide pass through access.

1. Follow the LOCKOUT/TAGOUT procedure.

2. Remove the Philips screws securing the Back

Panel.

3. Lift the Back Panel up and away from the unit.

WARNING

Before removing any sheet metal panels, always perform the Electrical LOCKOUT/

TAGOUT Procedure. Be sure all circuits are disconnected. Failure to comply with this procedure can cause property damage, injury or death.

UNITS WITH DOORS

All CT models are supplied with doors. The doors are provided with lift off hinges. To remove the doors, open the slightly and lift it straight up and off the hinge.

— 6 —

12

COMPONENT LOCATOR

POWER HEAD COMPONENTS

13 17 14 15 16 1 2

9

8

11

10

6

7

15

5

3

4

1

2 3 4

5 6

7 8 9 10

11 12

ADD FLUID

1. Cooling Fan

2. B&G Pump

3. Reservoir Fill Cap

4. Reservoir Assembly

5. Contactor

6. Lighted Power Toggle Switch

7. Add Fluid Light

8. Temperature Controller

9. Solid State Relay

Figure 1: Power Head Components

10. 120VAC Float Board

11. Neutral Lug

12. Heater Elements

13. Snap Disc

14. 16 PSI Pressure Cap

15. Fluid Level Probes

16. Thermocouple

17. Heater Tank Assembly

— 7 —

DELIVERY MANIFOLD COMPONENTS

7

6 5

Figure 2: Delivery Manifold Components

1. Delivery Line

2. Teflon Washer

3. Shelf Plug

4. Power Cord

5. Delivery Manifold Assembly

6. Short Teflon Hose

7. Shelf Elbow

— 8 —

3

4

1

2

RETURN MANIFOLD COMPONENTS

8

7 6

Figure 3: Return Manifold Components

5

1. Overflow Tube

2. Shelf Plug

3. Teflon Washer

4. Drain Tube

5. Drain Tube ON/OFF Valve

6. Return Manifold

7. Long Teflon Hose

8. Shelf Elbow

— 9 —

1

2

3

4

COMPONENT REMOVAL AND REPLACEMENT

ELECTRICAL COMPONENTS

Spring

Tab

WARNING

Before removing any sheet metal panels or servicing this equipment, always perform the Electrical LOCKOUT/TAGOUT

Procedure. Be sure all circuits are disconnected. Failure to comply with this procedure can cause property damage, injury or death.

Power

Toggle

Switch

WARNING

Certain components may be hot if the unit was in operation prior to performing a procedure. Allow the unit to cool before beginning work.

POWER TOGGLE SWITCH

1. Follow the LOCKOUT/TAGOUT procedure using the procedures provided in the Lockout/

Tagout Procedures section of this manual.

2. Remove the Power Head Lid following the instructions provided in the Panels and

Covers section of this manual.

3. Tag and disconnect the wires connected to the Power Toggle Switch

4. Squeeze the spring tabs that hold the switch in place and push the switch through the front of the unit.

NOTE: If the switch being removed is damaged, it may be easier to break the spring tabs off of the switch rather than attempting to squeeze the spring tabs. If this method is used, remember to remove the broken tabs from the inside of the Power Head.

Figure 4: Power Toggle Switch

5. Insert the new switch through the front of the unit ensuring the tabs have locked in place.

6. Referring to the tags or Circuit Schematic reconnect all of the wires.

7. Restore power to the unit and check the switch for proper operation.

8. Remove the units from power.

9. Replace the Power Head Lid.

10. Restore power to the unit and verify proper operation.

WARNING

Before removing any sheet metal panels or servicing this equipment, always perform the Electrical LOCKOUT/TAGOUT

Procedure. Be sure all circuits are disconnected. Failure to comply with this procedure can cause property damage, injury or death.

— 10 —

WARNING

Certain components may be hot if the unit was in operation prior to performing a procedure. Allow the unit to cool before beginning work.

ADD FLUID LIGHT

1. Follow the LOCKOUT/TAGOUT procedure using the procedures provided in the Lockout/

Tagout Procedures section of this manual.

2. Remove the Power Head Lid following the instructions provided in the Panels and

Covers section of this manual.

3. Tag and disconnect the wires connected to the Add Fluid Light. For easier access to the

Add Fluid Light, tag and disconnect the Power

Toggle Switch wires.

4. Squeeze the spring tabs that hold the Add

Fluid Light in place and push it through the front of the unit.

Power

Toggle

Switch

Spring

Tabs

Add Fluid

Light

8. Remove the units from power.

9. Replace the Power Head Lid.

10. Restore power to the unit and verify proper operation.

WARNING

Before removing any sheet metal panels or servicing this equipment, always perform the Electrical LOCKOUT/TAGOUT

Procedure. Be sure all circuits are disconnected. Failure to comply with this procedure can cause property damage, injury or death.

WARNING

Certain components may be hot if the unit was in operation prior to performing a procedure. Allow the unit to cool before beginning work.

TEMPERATURE CONTROLLER

The Temperature Controller consists of two parts: the Controller Main Board (wire harness terminals) and the Display/Pushbutton Board.

These two boards are connected by a multiconductor ribbon cable.

Main Board

Figure 5: Add Fluid Light

5. Insert the new Add Fluid Light through the front of the unit ensuring the tabs have locked in place.

6. Referring to the tags or Circuit Schematic reconnect the wires.

7. Restore power to the unit and check the Add

Fluid Light for proper operation.

Display/ Pushbutton

Figure 6: Temperature Controller

NOTE: The Add Fluid Light will not illuminate if the

Heat Transfer Fluid level is sufficient. Drain fluid as necessary in order to test for proper light operation. Refer to the Changing

the Heat Transfer Fluid section of this manual for procedures on draining and adding Heat Transfer Fluid.

— 11 —

1. Follow the LOCKOUT/TAGOUT procedure using the procedures provided in the Lockout/

Tagout Procedures section of this manual.

2. Remove the Power Head Lid following the instructions provided in the Panels and

Covers section of this manual.

3. The TBC-41 Controller is very easy to remove.

There are four screws and spacers apiece holding the display and power boards. They are different lengths: the spacers used with the power board are 1/2" (12.7mm) long; the spacers used with the display board are 5/16"

(8mm) long.

Springs (4)

COOLING FAN

1. Follow the LOCKOUT/TAGOUT procedure using the procedures provided in the Lockout/

Tagout Procedures section of this manual.

2. Remove the Power Head Lid following the instructions provided in the Panels and

Covers section of this manual.

3. Unplug the leads from the fan.

4. Remove the four screws securing the fan to the Power Head.

1/2" (12.7mm)

Spacers (4)

Figure 7: Temperature Controller Removal

4. Restore the power and check the controller for proper operation.

5. Remove the unit from its power source and reattach the Power Head Lid.

6. Restore power to the unit and ensure it is operating correctly.

NOTICE: The new Temperature Controller may require set up procedures. Refer to the

Temperature Controller Set Up Procedures

section of this manual for set up procedures.

WARNING

Before removing any sheet metal panels or servicing this equipment, always perform the Electrical LOCKOUT/TAGOUT Procedure.

Be sure all circuits are disconnected. Failure to comply with this procedure can cause property damage, injury or death.

WARNING

Certain components may be hot if the unit was in operation prior to performing a procedure. Allow the unit to cool before beginning work.

— 12 —

Figure 8: Cooling Fan

5. Reverse this procedure to install the new

Cooling Fan.

WARNING

Before removing any sheet metal panels or servicing this equipment, always perform the Electrical LOCKOUT/TAGOUT

Procedure. Be sure all circuits are disconnected. Failure to comply with this procedure can cause property damage, injury or death.

WARNING

Certain components may be hot if the unit was in operation prior to performing a procedure. Allow the unit to cool before beginning work.

POWER CORD

1. Follow the LOCKOUT/TAGOUT procedure using the procedures provided in the Lockout/

Tagout Procedures section of this manual.

2. Remove the Power Head Lid following the instructions provided in the Panels and

Covers section of this manual.

3. Disconnect the Power Cord from the Contactor and remove the ground screw securing the green ground wire to the unit’s chaise.

4. Refer to the unit’s schematic, connect the new power cord.

5. Restore power to the unit.

6. Verify unit is working properly.

7. Remove the unit from its power supply.

8. Reattach the Power Head Lid

9. Restore power to the unit and ensure unit is operating correctly.

POWER BOARD COMPONENTS

The Power Board Components include the Solid

State Relay, Contactor, 120VAC Float Board and the Neutral Lug. Under normal circumstances it should not be necessary to replace either the

Contactor or Neutral Lug.

Neutral

Lug

Contactor

120VAC

Float

Board

NOTICE: The Power Board is mounted on plastic risers that allow for air flow on the underside of the board. It is not necessary to remove the board when replacing one of its components; however it may be necessary to loosen the screws that secure the Power Board to the unit. Loosen the screws but do not remove them as they will hold the plastic risers in place.

WARNING

Before removing any sheet metal panels or servicing this equipment, always perform the Electrical LOCKOUT/TAGOUT

Procedure. Be sure all circuits are disconnected. Failure to comply with this procedure can cause property damage, injury or death.

WARNING

Certain components may be hot if the unit was in operation prior to performing a procedure. Allow the unit to cool before beginning work.

Solid State Relay

1. Follow the LOCKOUT/TAGOUT procedure using the procedures provided in the Lockout/

Tagout Procedures section of this manual.

2. Remove the Power Head Lid following the instructions provided in the Panels and

Covers section of this manual.

3. Tag and disconnect the wires mounted to the

Solid State Relay.

4. Remove the Solid State Relay by removing the four screws securing it to the Power Board. It may be necessary to loosen screws securing the Power Board to gain access to the screws at the front of the relay.

Solid State

Relay

Power

Board

Figure 9: Power Board Component Locator

— 13 —

Relay

Mounting

Screws

Power Board

Mounting Screws

Plastic

Riser

Figure 10: Solid State Relay

5. Install the new Solid State Relay.

6. Reattach the screws securing the Power Board to the unit

7. Referring to the tags or to the wiring schematic reconnect the wires to the new relay.

8. Restore power to the unit and verify operation.

9. Remove the unit from its power source and reattach the Power Head Lid

10. Restore power to the unit and check it for proper operation.

WARNING

Before removing any sheet metal panels or servicing this equipment, always perform the Electrical LOCKOUT/TAGOUT

Procedure. Be sure all circuits are disconnected. Failure to comply with this procedure can cause property damage, injury or death.

WARNING

Certain components may be hot if the unit was in operation prior to performing a procedure. Allow the unit to cool before beginning work.

120VAC Float Board

1. Follow the LOCKOUT/TAGOUT procedure using the procedures provided in the Lockout/

Tagout Procedures section of this manual.

2. Remove the Power Head Lid following the instructions provided in the Panels and

Covers section of this manual.

3. Tag and disconnect the wires attached to the

120VAC Float Board.

4. Remove the screws and plastic risers securing the float board to the Power Board and lift the float board out of the unit.

Float Board

Mounting

Screws

Plastic

Riser

Figure 11: 120VAC Float Board

NOTE: It is NOT necessary to loosen the Power

Board screws to gain access to the float board

5. Install the new float board making sure a plastic riser is attached it each screw.

6. Referring to the tags or the wiring schematic reconnect the wires to the float board.

7. Restore power to the unit and check it for proper operation.

8. Remove the units from its power source and reattach the Power Head Lid.

9. Restore power to the units and verify its operation.

— 14 —

WARNING

Before removing any sheet metal panels or servicing this equipment, always perform the Electrical LOCKOUT/TAGOUT

Procedure. Be sure all circuits are disconnected. Failure to comply with this procedure can cause property damage, injury or death.

WARNING

Certain components may be hot if the unit was in operation prior to performing a procedure. Allow the unit to cool before beginning work.

300NDNL TWELVE BUTTON TIMER

1

2 3 4

5 6

7 8 9 10

11 12

ADD FLUID

Plastic

Risers

1

2 3 4

5 6

7 8 9 10

11 12

ADD FLUID

Power

Board

Figure 13: Power Board and Components

5. Tag and disconnect the wires attached to the

Twelve Button Timer.

6. Remove the screws securing the timer to the unit.

12-Button

Timer

Figure 12: 300NDNL Twelve Button Timer

1. Follow the LOCKOUT/TAGOUT procedure using the procedures provided in the Lockout/

Tagout Procedures section of this manual.

2. Remove the Power Head Lid following the instructions provided in the Panels and

Covers section of this manual.

3. Tag and disconnect all of the component wires on the Power Board.

4. Remove the screws and plastic risers that secure the power board to the unit and lift the board and its components out of the unit.

1

2 3 4

5 6

7 8 9 10

11 12

ADD FLUID

— 15 —

Figure 14: Twelve Button Timer with Power Board Removed

7. Replace the timer and reattach its wires

8. Reinstall the Power Board, make sure each screw has its plastic riser installed.

9. Referring to the tags or the wiring schematic reattach the Power Board component’s wiring.

10. Restore power to the unit and check the timer for proper operation.

11. Remove the unit from its power source and reattach the Power Head Lid

12. Restore power to the unit and verify that the unit is operating correctly.

PLUMBING COMPONENTS

2. Remove the Power Head Lid following the instructions provided in the Panels and

Covers section of this manual.

3. Remove the left side panel using the procedures provided in the Panels and

Covers section of this manual.

4. Locate the Drain Tube and place it into an empty pan.

WARNING

Before removing any sheet metal panels or servicing this equipment, always perform the Electrical LOCKOUT/TAGOUT

Procedure. Be sure all circuits are disconnected. Failure to comply with this procedure can cause property damage, injury or death.

Drain

Tube

WARNING

Certain components may be hot if the unit was in operation prior to performing a procedure. Allow the unit to cool before beginning work.

Drain Valve

Figure 15: Drain Tube & Drain Valve

Location

5. Remove the Heater Tank Cap and the

Reservoir Cap.

WARNING

Before servicing the plumbing system the heat transfer fluid must be drained from the system.

B&G PUMP

NOTICE: In BW5SNDNL models the B&G Pump and Heater Tank are located at the back of the unit. Removal of the Back Panel is required when servicing the B&G Pump or Heater Tank

Components.

Additional tools required for this procedure:

1-1/16 Wrench

1-3/8 Wrench

7/16 Wrench

1. Follow the LOCKOUT/TAGOUT procedure using the procedures provided in the Lockout/

Tagout Procedures section of this manual.

— 16 —

Heater Tank

Cap

Reservoir

Cap

Pump

Unions

Gaskets

B&G Pump

Delivery

Hose

Fitting

Figure 16: B&G Pump Removal

Pump

Bracket

6. Open the Drain Valve to drain the Heat

Transfer Fluid.

7. Discard the drained fluid; refer to the Heat

Transfer Fluid Material Safety Data Sheet

provided in this manual for proper disposal of fluid.

8. Tag and disconnect the B&G pump wires.

9. Using the 1-1/16 wrench, remove the

Delivery Line.

10. Using the 1-3/8 wrench, unscrew the unions on both sides of the pump.

11. Using the 7/16 wrench, remove the U-clamp securing the pump to the Pump Bracket and remove the pump

12. Place the new pump into position.

13. Loosely connect the U-clamp.

14. Ensure NEW gaskets are in place at both unions, tighten the unions using the 1-3/8 wrench.

15. Tighten the 7/16 nuts on the U-clamp.

16. Reconnect the Delivery Line.

17. Referring to the tags or circuit schematic reconnect the pump wires.

18. Close the Drain Valve

19. Restore power to the unit.

20. Fill the Heater Tank with FRESH Heat

Transfer Fluid and replace the Heater Tank

Pressure Cap.

21. Fill the Reservoir Tank until the Add Fluid Light goes out and replace the Reservoir Tank Cap.

22. Ensure there are no leaks at the pump unions or Delivery Line fitting.

23. Remove the unit from its power source.

24. Reattach all covers and panels.

25. Restore the unit’s power, check it for proper operation. It may be necessary to add additional fluid after the unit has operated for several minutes.

WARNING

Before removing any sheet metal panels or servicing this equipment, always perform the Electrical LOCKOUT/TAGOUT

— 17 —

Procedure. Be sure all circuits are disconnected. Failure to comply with this procedure can cause property damage, injury or death.

WARNING

Certain components may be hot if the unit was in operation prior to performing a procedure. Allow the unit to cool before beginning work.

WARNING

Before servicing the plumbing system the heat transfer fluid must be drained from the system.

TEFLON HOSES

Under normal operating circumstances it should not be necessary to replace a hose. Should a hose become damaged or begin leaking it must be replaced. There are two sets of Teflon Hoses installed on each unit. The short Teflon Hoses are located on the delivery side (left side) of the unit.

The long Teflon Hoses are located on the return side (right side) of the unit. Both sets of hoses are replaced in the same manner.

1. Follow the LOCKOUT/TAGOUT procedure using the procedures provided in the Lockout/

Tagout Procedures section of this manual.

2. Remove the Power Head Lid following the instructions provided in the Panels and

Covers section of this manual.

3. Remove the left side panel using the procedures provided in the Panels and Covers section of this manual.

4. Locate the Drain Tube and place it into an empty pan.

5. Remove the Heater Tank Cap and the

Reservoir Cap.

6. Open the Drain Valve to drain the Heat

Transfer Fluid.

7. Discard the drained fluid; refer to the Material

Safety Data Sheet provided in this manual for proper disposal of fluid.

8. Using a 3/4 open end wrench remove the hose from the Shelf Elbow side first.

9. Using a 7/16 open end wrench remove the hose from the manifold.

Manifold

Shelf

Elbow

Teflon Tube Drain Tube

Figure 17: Return Side of Unit

12. Fill the Heater Tank with FRESH Heat

Transfer Fluid and replace the Heater Tank

Pressure Cap.

13. Fill the Reservoir Tank until the Add Fluid

Light goes out and replace the Reservoir

Tank Cap.

14. Ensure there are no leaks around the fittings of the new hose.

15. Remove the unit from its power source.

16. Reattach all covers and panels.

17. Restore the unit’s power, check it for proper operation. It may be necessary to add additional fluid after the unit has operated for several minutes.

18. After the unit has operated for several minutes remove the Side Panel where the hose was replaced and ensure that it is not leaking.

Tighten as necessary.

19. Reattach the removed Side Panel.

WARNING

Before removing any sheet metal panels or servicing this equipment, always perform the Electrical LOCKOUT/TAGOUT

Procedure. Be sure all circuits are disconnected. Failure to comply with this procedure can cause property damage, injury or death.

Manifold

Shelf

Elbow

WARNING

Certain components may be hot if the unit was in operation prior to performing a procedure. Allow the unit to cool before beginning work.

Teflon Tube

WARNING

Before servicing the plumbing system the heat transfer fluid must be drained from the system.

Figure 18: Delivery Side of Unit

9. Attached the replacement Teflon Hose to the manifold first, than attach the other end to the

Shelf Elbow using the appropriate wrenches.

10. Close the Drain Valve

11. Restore power to the unit.

— 18 —

FLUID LEVEL PROBES

There are two Fluid Level Probes. One is installed in the Heater Tank, the other is installed in the

Reservoir Tank. Before changing either of the

probes check the fluid levels in the Heater Tank and the Reservoir Tank. Also, check the electrical connection to the probes. The probes should test as open with a continuity test when the tanks are filled with fluid. With an empty tank the probe should test as closed during a continuity test.

NOTICE: In BW5SNDNL models the B&G Pump and Heater Tank are located at the back of the unit.

Removal of the Back Panel is required when servicing the B&G Pump or Heater Tank Components.

1. Follow the LOCKOUT/TAGOUT procedure using the procedures provided in the Lockout/

Tagout Procedures section of this manual.

2. Remove the Power Head Lid following the instructions provided in the Panels and

Covers section of this manual.

3. Remove the left side panel using the procedures provided in the Panels and Covers section of this manual.

4. Locate the Drain Tube and place it into an empty pan.

5. Remove the Heater Tank Cap and the

Reservoir Cap.

6. Open the Drain Valve to drain the Heat

Transfer Fluid.

7. Discard the drained fluid; refer to the Material

Safety Data Sheet provided in this manual for proper disposal of fluid.

Fluid

Sensor

Probes

8. Disconnect the Fluid Sensor Probe lead.

9. Remove the defective probe.

10. Install the new probe.

11. Reconnect the probe lead.

12. Restore power to the unit.

13. Close the fluid Drain Valve.

14. Fill the Heater Tank and Reservoir Tank with fluid until the Low Fluid Light goes out.

15. Ensure that are no leaks around the newly installed probe, tighten as needed.

16. Remove the unit from its power source.

17. Reattached the Side Panel and Power

Head Cover.

18. Restore power to the unit and verify the unit is operating correctly. It may be necessary to add additional fluid after the unit has operated for several minutes.

WARNING

Before removing any sheet metal panels or servicing this equipment, always perform the Electrical LOCKOUT/TAGOUT

Procedure. Be sure all circuits are disconnected. Failure to comply with this procedure can cause property damage, injury or death.

WARNING

Certain components may be hot if the unit was in operation prior to performing a procedure. Allow the unit to cool before beginning work.

WARNING

Before servicing the plumbing system the heat transfer fluid must be drained from the system.

Figure 19: Fluid Sensor Probes

— 19 —

SNAP DISC

The Snap Disc is located on the Heater Tank and provides over temperature protection for the unit.

NOTICE: In BW5SNDNL models the B&G Pump and Heater Tank are located at the back of the unit. Removal of the Back Panel is required when servicing the B&G Pump or Heater Tank

Components.

1. Follow the LOCKOUT/TAGOUT procedure using the procedures provided in the Lockout/

Tagout Procedures section of this manual.

2. Remove the Power Head Lid following the instructions provided in the Panels and

Covers section of this manual.

3. Remove the left side panel using the procedures provided in the Panels and Covers section of this manual.

4. Locate the Drain Tube and place it into an empty pan.

5. Remove the Heater Tank Cap and the Reservoir

Cap.

6. Open the Drain Valve to drain the Heat Transfer

Fluid.

7. Discard the drained fluid; refer to the Material

Safety Data Sheet provided in this manual for proper disposal of fluid.

8. Tag and disconnect the Snap Disc wires.

Heater Tank

Cap

Snap Disk

Reservoir

Cap

Figure 20: Location of Snap Disc

9. Remove the defective Snap Disc.

10. Install the new Snap Disc.

11. Referring to the tags or circuit schematic reconnect the wires to the Snap Disc.

12. Restore power to the unit.

13. Close the fluid Drain Valve.

14. Fill the Heater Tank and Reservoir Tank with fluid until the Low Fluid Light goes out.

15. Ensure that are no leaks around the newly installed probe, tighten as needed.

16. Remove the unit from its power source.

17. Reattached the Side Panel and Power Head

Cover.

18. Restore power to the unit and verify the unit is operating correctly. It may be necessary to add additional fluid after the unit has operated for several minutes.

WARNING

Before removing any sheet metal panels or servicing this equipment, always perform the Electrical LOCKOUT/TAGOUT

Procedure. Be sure all circuits are disconnected. Failure to comply with this procedure can cause property damage, injury or death.

WARNING

Certain components may be hot if the unit was in operation prior to performing a procedure. Allow the unit to cool before beginning work.

WARNING

Before servicing the plumbing system the heat transfer fluid must be drained from the system.

— 20 —

THERMOCOUPLE

The Thermocouple is located on the Heater

Tank.

NOTICE: In BW5SNDNL models the B&G Pump and Heater Tank are located at the back of the unit. Removal of the Back Panel is required when servicing the B&G Pump or Heater Tank

Components.

1. Follow the LOCKOUT/TAGOUT procedure using the procedures provided in the Lockout/

Tagout Procedures section of this manual.

2. Remove the Power Head Lid following the instructions provided in the Panels and

Covers section of this manual.

3. Remove the left side panel using the procedures provided in the Panels and Covers section of this manual.

4. Locate the Drain Tube and place it into an empty pan.

5. Remove the Heater Tank Cap and the

Reservoir Cap.

6. Open the Drain Valve to drain the Heat

Transfer Fluid.

7. Discard the drained fluid; refer to the Material

Safety Data Sheet provided in this manual for proper disposal of fluid.

8. The TBC-41 Controller is very easy to remove.

There are four springs and spacers apiece holding the display and power boards. They are different lengths: the spacers used with the power board are 1/2" (12.7mm) long; the springs used with the display board are 5/16"

(8mm) long.

Springs (4)

1/2" (12.7mm)

Spacers (4)

Thermocouple

Figure 22: Location of Thermocouple

12. Install the new Thermocouple into the

Heater Tank; be careful not to damage the Thermocouple lead while performing this task.

13. Referring to the note made in step 9 or the circuit schematic, connect the new Thermocouple leads to the Controller terminals.

14. Restore power to the unit.

15. Close the fluid Drain Valve.

16. Fill the Heater Tank and Reservoir Tank with fluid until the Low Fluid Light goes out.

17. Ensure that are no leaks around the newly installed Thermocouple, tighten as needed.

18. Remove the unit from its power source.

19. Reattached the Side Panel and Power Head

Cover.

20. Restore power to the unit and verify the unit is operating correctly. It may be necessary to add additional fluid after the unit has operated for several minutes.

Figure 21: Controller

9. Note the location of and colors of the

Thermocouple wires on the Controller.

10. Remove the wires for the Controller terminals.

11. Remove the Thermocouple from the Heater

Tank.

— 21 —

WARNING

Before removing any sheet metal panels or servicing this equipment, always perform the Electrical LOCKOUT/TAGOUT

Procedure. Be sure all circuits are disconnected. Failure to comply with this

procedure can cause property damage, injury or death.

WARNING

Certain components may be hot if the unit was in operation prior to performing a procedure. Allow the unit to cool before beginning work.

WARNING

Before servicing the plumbing system the heat transfer fluid must be drained from the system.

HEAT ELEMENTS

The Heat Elements are located inside of the Heater

Tank. The Heater Tank must be removed to gain access to the Heat Elements. Use this procedure to replace a Heat Element. Before performing this procedure check each Heat Element with a continuity meter. It is only necessary to replace the faulty element.

NOTICE: In BW5SNDNL models the B&G Pump and Heater Tank are located at the back of the unit. Removal of the Back Panel is required when servicing the B&G Pump or Heater Tank

Components.

1. Follow the LOCKOUT/TAGOUT procedure using the procedures provided in the Lockout/

Tagout Procedures section of this manual.

2. Remove the Power Head Lid following the instructions provided in the Panels and Covers section of this manual.

3. Remove the left side panel using the procedures provided in the Panels and Covers section of this manual.

4. Locate the Drain Tube and place it into an empty pan.

5. Remove the Heater Tank Cap and the

Reservoir Cap.

6. Open the Drain Valve to drain the Heat

Transfer Fluid.

7. Discard the drained fluid; refer to the Material

— 22 —

Safety Data Sheet provided in this manual for proper disposal of fluid.

8. Tag and disconnect the Snap Disc Leads,

Fluid Level Probe wire, Heat Element leads, and the tank ground wire.

NOTE: It may not be necessary to remove the Thermocouple to change the Heat

Elements. If Thermocouple needs to be removed refer to the Thermocouple replacement procedure in this manual.

9. Before removing the Heater Tank loosen the Heat Elements with an appropriately sized wrench.

10. Remove the nuts and bolts securing the

Heater Tank to the Return Manifold.

Loosen

Heat Elements

Heater Tank

Heater Tank

Connection

Manifold Connection

Flange

Gasket

Figure 23: Heater Tank to

Return Manifold Connection

11. Disconnect the Overflow Tube at the Pressure

Cap on the Heater Tank

12. Completely loosen the Pump Union on the tank side of the pump.

13. Remove the nuts securing the Heater Tank to the unit’s chassis.

Heater Tank

Mounting

Nuts

Loosen

Pump

Union

Figure 24: Heater Tank Removal

14. Carefully lift the Heater Tank out of the Power

Head. If the Thermocouple is still attached be careful not to place undue stress on the

Thermocouple wires.

Remove

Heat Elements

23. Restore power to the unit and fill the Heater

Tank and Reservoir Tank with fresh Heat

Transfer fluid until the Low Fluid Level light goes out.

24. Check for leaks at the Return Manifold

Flange, Pump Union, Heat Element and the

Thermocouple if it was removed. Tighten as needed.

25. Remove the unit from its power source and reattach the left Side Panel and Power

Head Cover.

26. Restore the unit to its power source and check the unit for proper operation. It may be necessary to add additional Heat

Transfer Fluid after the unit has operated for several minutes.

Figure 25: Heater Tank with

Heat Elements Removed

15. Unscrew and remove the defective Heat

Element.

16. Install the new Heat Element.

17. Using a NEW Flange Gasket reconnect the

Heater Tank to the Return Manifold.

18. Reattach the Heater Tank to the Power Head chassis.

19. Tighten the Heat Element that was replaced.

20. Using a new Pump Union Gasket, reconnect the pump to the tank.

21. Reconnect the Overflow Tube.

22. Referring to the tags or the wiring schematic, reconnect all of the wires and leads. If the

Thermocouple was removed, reinstall it.

— 23 —

MAINTENANCE PROCEDURES

TEMPERATURE CONTROLLER

SET UP PROCEDURES

6. Enter the manual control menu if the sensor has failed.

Output 2

Indicator

Mode

Indicator

Auto-Tuning

Indicator

Upper Display:

To display process value, menu symbol, error code, etc.

(ϒC on top,

ϒ

F on bottom) set point value, parameter value, control value, etc.

Unlock the Controller

1. Follow the LOCKOUT/TAGOUT procedure using the procedures provided in the

LOCKOUT/TAGOUT Procedures of this manual.

2. Remove the Power Head Lid following the instructions provided in the Panels and

Covers section of this manual.

3. Enter the Set-Up Menu. With the unit under power, press the “Scroll” key for approximately

5 seconds until the upper display reads:

Up

Key

Down

Key

Figure 26: Controller

Keypad Operation

Scroll Key:

This key is used to select a parameter to be viewed or adjusted.

Up Key:

This key is used to increase the value of the selected parameter.

Down Key:

This key is used to decrease the value of the parameter.

Return / Reset Key:

This key is used to:

R

1. Return the display to indicate the Process

Value (PV) and Set Value (SV).

2. Reset a Latching Alarm once the alarm condition has cleared.

3. Discontinue Manual Control, Auto-Tuning and

Calibration Modes.

4. Clear error messages indicating communication and auto-tuning errors.

5. Re-set the dwell timer function.

— 24 —

4. Press the “Scroll” key once. The upper display will read: “LOCK”. Press the “Down” key until the lower display reads: “nonE”. The controller is now unlocked. Press the “R” button to return controller to the home position of reading

Process Value & Set Value. Also refer to pages

13 & 14 in the TBC-41 Instruction Manual for complete “LOCK” parameter choices.

5. Test the controller by trying to change the set temperature up and down.

Set-Up

1. Press the “Up” and “Down” key as needed to adjust the displayed set-point temperature.

2. The “OUT1” LED will be lit up solid during warm up. (normal operation)

3. When the “OUT1” LED is blinking, the unit has reached the desired temperature.

NOTE: This controller is not an indicator of fluid level in the Heater or Reservoir Tanks.

To Toggle Between °F and °C Readout:

1. Press the “Scroll” key 2 -3 times until the upper display reads: “unit”.

2. Press the “Up” or “Down” key to choose.

5. Remove the Heater Tank and Reservoir caps.

Heater Tank

Cap

Reservoir

Cap

CHANGING THE

HEAT TRANSFER FLUID

The Heat Transfer Fluid must be changed on an annual basis.

NEVER SUBSTITUTE THERMODYNE

HEAT TRANSFER FLUID WITH WATER

OR OTHER LIQUID.

1. Follow the LOCKOUT/TAGOUT procedure using the procedures provided in the Lockout/

Tagout Procedures section of this manual.

2. Remove the Power Head Lid following the instructions provided in the Panels and

Covers section of this manual.

3. Remove the left side panel using the procedures provided in the Panels and Covers section of this manual.

4. Place the Drain Tube end into an empty pan.

Out 1

Out 2

Alm 1

MAN

ϒ C

ϒ

F

Figure 28: Heater Tank Cap & Reservoir Cap

6. Open the Drain Valve to drain the Heat

Transfer Fluid.

7. Discard the drained fluid; refer to the Material

Safety Data Sheet provided in this manual for proper disposal of fluid.

8. Close the Drain Valve and stow the Drain Tube inside the cabinet.

9. Replace the Side Panel and the Power

Head Lid.

10. Restore power to the unit and turn it on.

11. Fill the Heater Tank and replace the

Pressure Cap.

12. Fill the Reservoir until the Add Fluid Light goes out and replace the Reservoir Cap.

13. The Add Fluid Light may come on after a few minutes of operation. Remove the Fill Cap

Cover on the Power Head Lid and the Reservoir

Cap; top off the Reservoir until the Add Fluid

Light goes out.

14. Reattach the Fill Cap Cover to the Power

Head Lid.

Drain

Tube

Drain Valve

Figure 27: Drain Tube & Valve Location

— 25 —

CT DOOR ADJUSTMENT

1. Follow the LOCKOUT/TAGOUT procedure using the procedures provided in the Lockout/

Tagout Procedures section of this manual.

2. Allow the unit to cool.

3. Remove the Side Panels following the procedures provided in the Covers and Panels section of this manual.

4. Lift the door/s up and off of the unit.

5. Loosen the hinges on the unit.

CAUTION

Never use steel wool, which will leave behind particles that rust.

CAUTION

Never use acid-based or chloride-containing cleaning solutions, which will break down the protective film.

CAUTION

Never rub in a circular motion.

Hinge

Screws

Figure 29: Location of Hinge Screws

CAUTION

Never leave any food products or salt on the surface. Many foods are acidic. Salt contains chloride.

For routine cleaning, use warm water, mild soap or detergent and a sponge or soft cloth. For heavyduty cleaning, use warm water, a degreaser and a plastic, stainless steel or Scotch-Brite pad. Always rinse thoroughly. Always rub gently in the direction of the steel grain.

Preserving & Restoring

6. Reattach the door/s to the loosened hinges.

7. Close the door/s and align them in the closed position.

8. Tighten the hinge screws.

9. Make sure the doors open and close properly.

10. Attach the Side Panels.

11. Restore the unit to its power source.

Cleaning

STAINLESS STEEL CARE

Stainless steel contains 70-80% iron, which will rust if not properly maintained. It also contains 12-

30% chromium, which forms an invisible passive, protective film that shields against corrosion. If the film remains intact, the stainless steel will remain intact. However, if the film is damaged, the stainless steel can break down and rust. To prevent stainless steel breakdown, follow these steps:

CAUTION

Never use any metal tools. Scrapers, files, wire brushes or scouring pads (except for stainless steel scouring pads) will mar the surface.

— 26 —

Special stainless steel polishing cleaners can preserve and restore the protective film.

Preserve the life of stainless steel with a regular application of a high quality stainless steel polishing cleaner as a final step to daily cleaning.

If signs of breakdown appear, restore the stainless steel surface. First, thoroughly clean, rinse and dry the surface. Then, on a daily basis, apply a high-quality stainless steel polish according to manufacturer’s instructions.

Heat Tint

Darkened areas, called heat tint, may appear on stainless steel exposed to excessive heat, which causes the protective film to thicken. It is unsightly but is not a sign of permanent damage.

To remove heat tint, follow the routine cleaning procedure. Stubborn heat tint will require heavyduty cleaning.

To reduce heat tint, limit the exposure of equipment to excessive heat.

Problem

No Power

TROUBLESHOOTING

Probable Cause

Main Power Switch Off

Suggested Solution

Place Power Switch in ON position.

Unit not plugged in

Circuit Breaker off or tripped

On/Off switch illuminated but controller will not illuminate

Unit continuously shuts down and requires fluid replenishment

– Or –

Add Fluid light illuminates every couple of days

Add Fluid light is illuminated but unit is operating normally

Unit not reaching desired temperature

Contactor Failure

Heater Tank fluid level low

Fluid Level Probe defective

Fluid leak

Reservoir Tank low on fluid

Controller not set to 189°F.

Defective Controller

OUT light illuminated but unit not heating up

Some shelves heat while others remain cold

Extreme Electrical

Load, clicking noise or controller turning on and off

Loud Squealing Noise

Controller reads SBER on top screen

Ensure unit is plugged into a live receptacle.

Check and reset the Circuit Breaker.

Replace the Contactor.

Remove unit from power source and fill Heater Tank to Pressure

Cap neck with fresh Heat Transfer Fluid.

Determine which Fluid Level Probe is defective and replace it.

Remove the unit from power and remove the Power Head Lid and Side Covers. Restore power and place the ON/OFF switch in its ON position. Observe the unit for leaks. Repair leak and top of fluid levels.

Top off Reservoir with fresh Heat Transfer Fluid.

Defective Solid State Relay

Defective or tripped Snap

Disc

Shelf or Delivery/Return

Hose is plugged.

Fluid Level in Heater Tank low

Faulty Contactor

Defective Pressure Cap or

Pressure Cap Gasket

Defective Pump

Defective Thermocouple

Refer to Temperature Controller Set Up Procedures and set temperature to 189°F.

Refer to Temperature Controller replacement procedure and replace controller.

Refer to Solid State Relay replacement procedure and replace relay.

Note: If relay LED is illuminated check Snap Disc.

Reset Snap Disc. If unit fails to warm up, replace Snap Disc.

Replace defective shelf or defective hose.

Note: Delivery and Return hoses are different lengths.

Remove unit from power and top off Heater Tank with fresh Heat

Transfer Fluid.

Replace the Contactor.

Replace the 16 PSI Pressure Cap.

Replace the defective pump referring to the pump replacement procedures.

Refer to Thermocouple replacement procedure and replace the

Thermocouple.

— 27 —

WIRING SCHEMATIC

Standard Wiring

— 28 —

ON / OFF

ADD FLUID

110 V

TO POWER BOARD TERMINALS

L1 L2

BK WH GN

120 VOLT

SUPPLY

80 TO 260

VOLTS IN

OGDEN 9300

TC+ TC-

W-20

R-20

SOLID STATE RELAY

BK-18

3-32 VDC

R-18

BK-10

BK-10

BK-10

RELAY / 55 AMP RES.

W-18

W-18

W-18

BK-18

BK-10

BK-18

BK-18

R-10

R-10

BK-18

Y-18

GN

LIQUID LEVEL

CONTROL

#LNC-NS211-120

BR-18

BL-18

PR-18

W-18

W-18

GR-18

PRIMARY

POWER BOARD

Standard 120 VAC Wiring

RESERVOIR

TANK

LEVEL PROBE

PUMP

110 V

T1

T2

BK-18

BK-18

TRANSFORMER

24V

R-18

FAST TIMER

T1 T2

BK-18

BK-10

BK-10

SNAP

DISK

RESET

BUTTON

HEATERS

THERMOCOUPLE

PROBE

LEVEL

PROBES

HEATER TANK

REAR FAN

110 V

— 29 —

ON / OFF

80 TO 260

VOLTS IN

OGDEN 9300

TC+ TC-

W-20

R-20

ADD FLUID

110 V

SOLID STATE RELAY

BK-18

3-32 VDC

R-18

BK-10

BK-10

BK-10

LIQUID LEVEL

CONTROL

#LNC-NS211-120

BR-18

BL-18

PR-18

RELAY / 55 AMP RES.

GN

W-18

W-18

W-18

BK-10

BK-18

BK-18

R-10

R-10

BK-18

Y-18

W-18

NOTE: REMOVE JUMPER FOR

120-208/240 VOLT CONNECTION

W-18

GR-18

TO POWER BOARD TERMINALS

L1 L2 L1 L2 N

BK WH GN

120 VOLT

SUPPLY

BK R W GN

208/240 VOLT

SUPPLY

PRIMARY

POWER BOARD

120-208/240 VAC Wiring

RESERVOIR

TANK

LEVEL PROBE

PUMP

110 V

T1

T2

BK-18

BK-18

TRANSFORMER

24V

R-18

FAST TIMER

T1 T2

BK-18

BK-10

BK-10

SNAP

DISK

RESET

BUTTON

HEATERS

THERMOCOUPLE

PROBE

LEVEL

PROBES

HEATER TANK

REAR FAN

110 V

FLUID CAPACITIES (STANDARD SHELF CONFIGURATION)

MODEL

125OC

200NDNL

200CT

250OC

250PNDT

BW3

BW4

300NDNL

300CT

700NDNL

700CT

950NDNL

300OC

GALLONS

1.5

1.75

1.75

1.65

2.1

1.65

1.7

1.91

1.91

2.25

2.25

2.16

2.24

LITERS

3.78

6.62

6.62

6.62

7.95

6.25

6.44

7.23

7.23

8.52

8.52

8.18

8.48

14

14

20

14

6

6

6

20

6

6

6

PER

(OZ)

14

6

MODEL

1200G

1200DW

1300G

1600NDNL

1900G

1900DW

2100DW

6000P

700DP

1500DP

742HW

744HW

1600HZ

GALLONS

3.06

3.59

4.95

2.25

3.01

2.45

3

2.22

2.3

2.32

2.1

3.02

2.5

LITERS

8.40

8.71

8.78

7.95

11.43

11.58

13.59

18.74

8.52

11.39

9.27

11.36

9.46

14

20

23.8

14

14

14

28

SHELF

(OZ)

13

14

13

6

13

— 30 —

WARRANTY

Thermodyne Foodservice Products, Inc. warrants to the original purchaser for use of each new Thermodyne Conductive

Cooking/Holding Oven the following: Any part which proves to be defective in materials or workmanship within the warranty period will, subject to the terms of this warranty, be repaired or replaced at Thermodyne

Foodservice, Inc.’s option. Claims under this warranty must be presented to Thermodyne

Foodservice Products, Inc. in writing, promptly.

Thermodyne stainless steel cabinets are warranted for 5 years and all other original equipment parts such as heat transfer plates, doors, casters, fluid system components and electrical components are warranted against defect for one year from the date of purchase.

This warranty applies only to Thermodyne

Conductive Cooking/Holding Ovens in the

Continental United States. This warranty shall not apply if the oven or any part is subjected to accident, casualty, alteration, misuse, abuse, neglect, faulty installation, or if the date of manufacture is altered or removed.

The obligation of Thermodyne Foodservice

Products, Inc. is limited specifically to the aforementioned. No additional guarantees or warranty, expressed or implied, to include without limitation warranties of Fitness or

Merchantability with respect to Thermodyne

Conduction Ovens and Thermodyne

Foodservice Products, Inc. regarding other liability with respect thereto including, without limitation, liability for incidental, special, or consequential damages.

RESPONSIBILITIES OF PURCHASER

It is the responsibility of the purchaser to:

1. Arrange on site electrical services in accordance with Thermodyne specifications.

2. Receive shipment of Thermodyne conduction oven to include unloading, uncrating, inspecting for damage in shipment, and installation of the oven in its proper location; in accordance with installation instructions.

3. Arrange that the electric services are connected properly by a qualified technician. All such connections must be in accordance with applicable code requirements and Thermodyne installation procedures.

Please note the specific details on the

Warranty and make certain that service connections are made to the proper utility services. This warranty and purchasers responsibility information should be retained for future reference.

For assistance please call:

Toll Free: (800) 526-9182

Local: (260) 428-2535

HEAT TRANSFER FLUID MSDS

Dow Chemical U.S.A.

Midland, MI 48674

Emergency Phone: 517-636-4400

Product Code: 23545

Product Name: PROPYLENE GLYCOL

HEAT TRANSFER FLUID

Effective Date: 03-02-88

Date Printed: 06/02/88

MSDS: 000130

1. INGREDIENTS:

Propylene glycol CAS# 000057-55-6

95%

Dipotassium phosphate CAS# 007758-

11-4 <5%

Deionized water CAS# 007732-18-5

<5%

This document is prepared pursuant to the

OSHA Hazard Communication Standard

(29CFR 1910.1200). In addition, other substances not ‘Hazardous’ per this

OSHA Standard may be listed. Where proprietary ingredient shows, the identity may be made available as provided in this standard.

2. PHYSICAL DATA:

BOILING POINT: 370F, 188C

VAP. PRESS: 0.22 mmHg @ 20C, 68F

VAP. DENSITY: 2.62

SOL. IN WATER; Complete

SP. Gravity: 1,050 @ 60/60F, 16C

APPEARANCE: Colorless.

ODOR: Odorless liquid.

3. FIRE AND EXPLOSION HAZARD

DATA:

FLASH POINT: 215F, 102C

METHOD USED: COC

FLAMMABLE LIMITS

LFL: 2.6% @ 100C

UFL: 12.5% @ 130C

EXTINGUISHING MEDIA: Water fog, alcohol foam, dry chemical

FIRE AND EXPLOSION HAZARDS:

None.

FIRE-FIGHTING EQUIPMENT: None.

4. REACTIVITY DATA:

STABILITY: (CONDITIONS TO AVOID)

Stable over normal

Operating temperature range of –30F to

250F.

INCOMPATIBILITY: (SPECIFIC

MATERIALS TO AVOID)

Oxidizing material.

HAZARDOUS DECOMPOSITION

PRODUCTS: None

HAZARDOUS POLYMERIZATION: Will not occur,

5. ENVIROMENTAL AND DISPOSAL

INFORMATION:

ACTION TO TAKE FOR SPILLS/LEAKS:

Cover with absorbent material, soak up and sweep into bag.

6. HEALTH HAZARD DATA:

EYE: May cause slight transient eye irritation. Corneal injury is unlikely.

SKIN CONTACT: Essentially nonirritating to skin on prolonged contact.

SKIN ABSORPTION: A single prolonged skin exposure is not likely to result in absorption of harmful amounts. The LD50 for skin absorption in rabbits is >10,000 mg/kg.

Repeated exposures may cause slight flaking, tenderness and softening of skin.

INGESTION: Single does oral toxicity is low. The LD50 for female rats is about

20.3 g/kg

INHALATION: A single prolonged (hours) inhalation exposure is not likely to cause adverse side effects. Mists are not to be hazardous.

SYSTEMIC & OTHER EFFECTS:

Repeated excessive ingestion may cause central nervous system effects.

No carcinogenic effects have been seen in long-term animal studies. Birth defects are unlikely. Exposures having no adverse effects on the mother should have no effect on the fetus. In animal studies, has been shown not to interfere with reproduction. Results of mutagenicity tests in vitro (test tube) and in animals have been negative.

7. FIRST AID

EYES: Irrigate immediately with water for at least 5 minutes.

SKIN: wash off in flowing water or shower

INGESTION: Induce vomiting if large amounts are ingested, consult medical

INHALATION: Remove to fresh air if effects occur. Consult medical.

NOTE TO PHYSICIAN: No specific antidote. Supportive care. Treatment based on judgment of the physician in response to reactions of the patient.

8. HANDLING PRECAUTIONS:

EXPOSURE GUIDELINE (S): Dow IHG is 10mg/m3 for propylene glycol mist.

Dow IHG 440 ppm for propylene glycol vapors.

VENTILATION; Good general ventilation sufficient.

RESPIRATORY PROTECTION:

No respiratory protection should be needed.

SKIN PROTECTION: No precautions other than clean body covering should be needed.

EYE PROTECTION: Use safety glasses.

9. ADDITIONAL INFORMATION:

REGULATORY REQUIREMENTS:

SARA HAZARD CATEGORY: This product has been reviewed according to the EPA

‘Hazard Categories’ promulgated under

Section 311 and 312 of the Superfund

Amendment and Reauthorization Act of

1986 (SARA Title III) and is considered, under applicable definitions, to meet the following categories: A delayed hazard.

SPECIAL PRECAUTIONS TO BE

TAKEN IN HANDLING AND STORAGE:

Exercise reasonable care and caution.

MSDS STATUS: Revised Section 9

— 31 —

— 32 —

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
