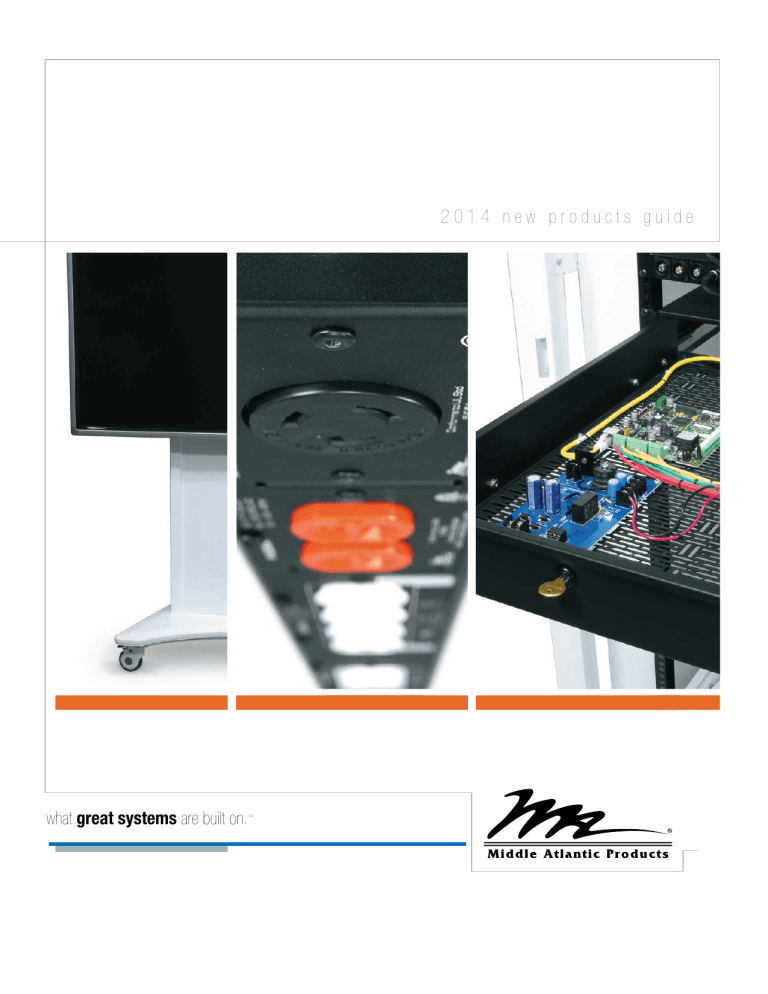

2014 new products guide

what

great systems are built on.

2 0 1 4 n e w p r o d u c t s g u i d e

Middle Atlantic Products, part of the Commercial

AV division of Legrand, North America, has manufactured exceptional support and protection products to mount integrated AV systems in Residential,

Commercial, Broadcast, and Security applications since

1979. All of our products are designed and engineered in the US to maximize system reliability and to meet the needs of installers.

From thermal considerations and built-in cable management, to pre-installed washers on our rack screws, we build in ways to save time and simplify the job.

At the heart of every installation, you’ll find Middle Atlantic

Products - what great systems are built on.

2

what great systems are built on.

middleatlantic.com • 800-266-7225

racks and enclosures technical furniture power

2014 new products guide

meeting room solutions accessories

pg. 4 pg. 12 pg. 22 pg. 30 pg. 32

3

4

Racks and Enclosures | SNE Series

45

42

24 spaces

36”, 42”, or 48”

24H-4536-A1

24”, 27.6”, or 30”

Le ver Lock

most advanced rack enclosure

compatibLe

The

SNE Series is the most advanced security rack enclosure available.

• Four available configurations fit your system

type, wiring needs, cooling requirements

and rack location

• Thermal options built for unconditioned or

conditioned environments with active or

passive ventilation

• Adaptable equipment mounting threaded rail,

cage nut rail or innovative adapter for both

• Raised-floor ready with seismic and standard

riser bases

• Efficient mounting Lever Lock

system compatible

(see pg. 32)

• Versatile cable management and routing included

• Lockable, flush mount side panels

• Doors accommodate industry standard electronic locks

• Customized solutions available

Certifications

• Seismic Certified

• UL/ETL Listed

Market Solutions

Broadcast Commercial

AV

Residential

AV

Security Structured

Cabling

Education middleatlantic.com • 800-266-7225

seismic certified raised floor security ready

Racks and Enclosures | SNE Series innovative component management

Overall

Height

(w/ casters)

Hybrid or

Digital

Hybrid

48”

(24 space)

Hybrid

Digital

Hybrid

Ventilation

top active rear active front to rear passive top active

79-1/2”

(42 space)

36” Depth

24” Width

42” Depth

SNE24H-2436-A1 SNE24H-2442-A1

SNE24H-2436-A2 SNE24H-2442-A2

SNE24D-2436-P1* SNE24D-2442-P1*

48” Depth

36” Depth

27.6” Width

42” Depth

48” Depth

36” Depth

30” Width

42” Depth

48” Depth

SNE24H-4236-A1 SNE24H-4242-A1 – SNE27H-4236-A1 SNE27H-4242-A1 – SNE30H-4236-A1 SNE30H-4242-A1 –

Hybrid rear active SNE24H-4236-A2 SNE24H-4242-A2

Digital front to rear passive

Digital passive chimney

SNE24D-4236-P1* SNE24D-4242-P1* SNE24D-4248-P1* SNE27D-4236-P1* SNE27D-4242-P1* SNE27D-4248-P1* SNE30D-4236-P1* SNE30D-4242-P1* SNE30D-4248-P1*

SNE24D-4242-P2 SNE24D-4248-P2

SNE27H-4236-A2 SNE27H-4242-A2

SNE27D-4242-P2 SNE27D-4248-P2

SNE30H-4236-A2 SNE30H-4242-A2

SNE30D-4242-P2 SNE30D-4248-P2

Hybrid top active SNE24H-4536-A1 SNE24H-4542-A1 – SNE27H-4536-A1 SNE27H-4542-A1 – SNE30H-4536-A1 SNE30H-4542-A1 –

84-3/4”

(45 space)

Hybrid rear active SNE24H-4536-A2 SNE24H-4542-A2

Digital front to rear passive

Digital passive chimney

SNE24D-4536-P1* SNE24D-4542-P1* SNE24D-4548-P1* SNE27D-4536-P1* SNE27D-4542-P1* SNE27D-4548-P1* SNE30D-4536-P1* SNE30D-4542-P1* SNE30D-4548-P1*

SNE24D-4542-P2 SNE24D-4548-P2

SNE27H-4536-A2 SNE27H-4542-A2

SNE27D-4542-P2 SNE27D-4548-P2

SNE30H-4536-A2 SNE30H-4542-A2

SNE30D-4542-P2 SNE30D-4548-P2

*available without side panels, suffix part# with ‘AB’

Options

Cable Chase Lift-Off

(Front & Back Only)

Cable Chase Top Only

Height

42 space

45 space

42 space

45 space

Width

all all

36” Deep

SNE-CC-36LT

SNE-CC-36LT

42” Deep

SNE-CC-42LT

SNE-CC-42LT

Fits

48” Deep

SNE-CC-48LT

SNE-CC-48LT

All Depths

SNE-CC-42FB

SNE-CC-45FB

Front-Air Dam/

Zero-U Panel Mount

42 space

45 space

27.6”

30”

27.6”

30”

SNE27-FAD-PM-42

SNE30-FAD-PM-42

SNE27-FAD-PM-45

SNE30-FAD-PM-45

Bracket for Top

Cable Pass-Through

Lever Lock ™

Mounting Bracket all all all all

SNE-TCB-36

LL-SNE-36BKT

SNE-TCB-42

LL-SNE-42BKT

SNE-TCB-48

LL-SNE-48BKT

Lever Lock

Brackets

Accessories

6” Wide Vertical

Wire Grid Lace

Internal Vertical

Cable Manager

Seismic Anchoring all

24 space

42 space

45 space

24 space

42 space

45 space all all all all

24”

27.6”

30”

Vertical

Angle

LL-VA21

Vertical

Channel

LL-VC21

Vertical

10” Plate

LL-VP2110

LACE-WB6-24

LACE-WB6-42

LACE-WB6-45

SNE-IVCMF-24

SNE-IVCMF-42

SNE-IVCMF-45

SNE24-Z4

SNE27-Z4

SNE30-Z4

Vertical

DIN Rail

LL-VDIN21

See Website for additional Options

Riser Bases Seismic Riser Bases Raised Floor Angles

2014 new products guide

5

Racks and Enclosures | RCS Series pre-configured rack system

The

RCS Series racks are pre-configured with items such as shelves and fans for convenient equipment mounting and shipped fully assembled to save time.

42

27

18 spaces

• Pre-configured with shelves, fans and

blank panels

• Cost effective solution

• Robust welded steel construction

• Ships fully assembled to save time

• Locking removable side panels for easy integration

• Glass front door, locking rear access panel standard

• Includes front and rear adjustable rackrail

• Active cooling

Certifications

• UL/ETL Listed

• RoHS

Market Solutions

• GREENGUARD

24”

23-5/8”

Broadcast Commercial

AV

Residential

AV

Security Structured

Cabling

Education

RCS-1824

6

Part #

RCS-1824

RCS-2724

RCS-4224

Racking Weight Rating

500 lbs.

750 lbs.

1,200 lbs.

Shelves

(3) 2 space, 16” deep (50 lbs.)

2 Space Blank Panels* Racking Height

3 17-1/2” (18 space)

(4) 2 space, 16” deep (50 lbs.)

(1) 2 space, 18” deep (50 lbs.)

(5) 2 space, 16” deep (50 lbs.)

(2) 2 space, 18” deep (50 lbs.)

(2) 3 space, 20” deep (100 lbs.)

5

9

17-1/2” (27 space)

17-1/2” (42 space)

*shelves and panels are pre-installed

Overall Height

38-5/8”

54-3/8”

Overall Depth Overall Width

24” 23-5/8”

24” 23-5/8”

80-5/8” 24” 23-5/8” middleatlantic.com • 800-266-7225

Racks and Enclosures | HRF Series half rack size

The

HRF Series is designed to accommodate half rack equipment from a variety of manufacturers, featuring a low profile design and compact dimensions. An offset cable tie area maximizes the amount of useable rackspace in confined areas.

• Designed to accommodate ‘half rack’ equipment

from many vendors

• Full range of accessories: shelves, panels,

cooling and power products

• Low profile design to maximize useable space in

confined areas

• Strong welded steel construction

• Abundant internal cable lacing points facilitate

cable management

• Standard fixed front and rear 10-32 threaded rackrail

12

8 spaces

14”

10-5/8”

HRF-1214

Part #

HRF-814

HRF-1214

Racking Height

14” (8 rackspaces)

21 “(12 rackspaces)

Overall Height

14-15/16”

21-15/16”

options

Runner Kit

5-RS14

Universal Multi Shelves

HR-UMS1-3.5 (3-1/2” depth)

HR-UMS1-5.5 (5-1/2” depth)

HR-UMS1-11.5 (11-1/2” depth)

Blank Panels

HRBL1 (1 space)

HRBL2 (2 space)

Vent Panels

HR-EVT1 (1 space)

HR-EVT2 (2 space)

Quiet Blower

HR-QBP-1

AVIP Half Rack Fixed Panels

AVIP-HFK1 (1 sp.)

AVIP-HFK2 (2 sp.)

“Mini” PD Slim power strip

PD-715SC-NS

2014 new products guide

7

Racks and Enclosures | MFR Series

20

16

12 spaces

MFR-2027GE

27-3/8”

22-5/8”

rugged and reliable

The

MFR Series racks are engineered and rigorously tested to provide years of trouble-free service, these racks feature premium bolt-through casters and rigid construction for reliability.

• Cost-effective furniture rack

• Bolt-through casters (3”) and internal steel

bracing for strength (4” casters on 20 space rack)

• Designed for passive cooling; optional fan kit is available

• Includes 10-32 threaded adjustable front rail

• Locking Plexi Glas

®

front door is standard

• Ships fully assembled

• Optional flat screen mount holds most monitors up to 32”

Certifications

• UL/ETL Listed

• RoHS

• GREENGUARD

Market Solutions

Broadcast Commercial

AV

Residential

AV

Security Structured

Cabling

Education

8

Part #

MFR-1227xx*

MFR-1627xx*

MFR-2027xx*

Overall Height

27”

34”

Racking Height

21” (12 rackspaces)

28” (16 rackspaces)

Overall Depth

27-3/8”

27-3/8”

42” 35” (20 rackspaces) 27-3/8”

* Replace ‘xx’ with KM = Knotted Maple, GE = Grained Ebony Ash, GC = Grained Dark Cherry.

options

Rear Rackrail Kits*

MFR-RRK-12

MFR-RRK-16

MFR-RRK-20

finishes

see pg. 38 for finish selections

Racking Height

21” (12 rackspaces)

28” (16 rackspaces)

Monitor Mount

MMB-1X1-12C

35” (20 rackspaces)

* NOTE: you must order rear rail in the same size as your rack order.

Useable Depth

23-3/16”

23-3/16”

23-3/16”

(2) 3” DC Fans, 50 CFM with Power Supply

MFR-FANKIT-2 middleatlantic.com • 800-266-7225

Racks and Enclosures | RFR Series

Le ver Lock

elegant mobility

compatibLe

The

RFR Reference Series

combines our most elegant design and highest reliability.

24

20

16 spaces

• Mobile presentation furniture rack, with wide,

stable design

• Bolt-through casters (3”) and internal steel bracing

for strength

• Designed for passive cooling: optional blower kit is available

• Includes 10-32 threaded adjustable front rail

• Ships fully assembled

• Optional flat screen mount holds most monitors up to 32”

• Efficient mounting Lever Lock

system compatible

(see pg. 32)

Certifications

• UL/ETL Listed

• RoHS

• GREENGUARD

Market Solutions

Broadcast Commercial

AV

Residential

AV

Security Structured

Cabling

Education

28-1/4”

28”

RFR-2428TR

Part #

RFR-1628xx*

RFR-2028xx*

RFR-2428xx*

Overall Height

35”

42”

49”

Racking Height

28” (16 rackspaces)

35” (20 rackspaces)

Overall Depth

28-1/4”

28-1/4”

42” (24 rackspaces)

* Replace ‘xx’ with BR = Black Rain, CR = Cherry Rain, TR = Teak Rain.

28-1/4”

Useable Depth

23-1/4”

23-1/4”

23-1/4”

options

Rear Rackrail Kits*

RFR-ERRK-16

RFR-ERRK-20

RFR-ERRK-24

Racking Height

28” (16 rackspaces)

35” (20 rackspaces)

Monitor Mount Lever Lock™ Mounts (2)** Quiet DC Blower Panel 50 CFM, 29 dB

MMB-1X1-12C LL-RFR

42” (24 rackspaces)

* NOTE: you must order rear rail in the same size as your rack order. **Accommodates all 17” vertical Lever Lock options.

RFR-CABCOOL50

finishes

see pg. 38 for finish selections

2014 new products guide

9

Racks and Enclosures | BGR Series

25

19 spaces

27” or 38”

Le ver Lock

rugged and reliable

compatibLe

The

BGR-MDK Series combines furniture elegance with a robust rolling steel enclosure.

Attractive thermolaminate top can accommodate video monitors.

• Breakthrough design provides high strength

without extra weight

• Curved plexi front door, cable entry rear door,

and wood top

• Fixed solid sides for security and to control airflow

• Efficient mounting Lever Lock™ system compatible

(see pg. 32)

• Standard front and rear adjustable 10-32 threaded

rackrail with numbered spaces

23”

BGR-19SA27-MDK-DS

Certifications

• Seismic Certified

• UL/ETL Listed

Market Solutions

• RoHS

• GREENGUARD

10

Part #

BGR-19SA27MDK-DS*

BGR-25SA27MDK-DS*

BGR-25SA32MDK-DS*

Overall Height

39-1/2”

50”

50”

Racking Height

33-1/4” (19 rackspaces)

43-3/4” (25 rackspaces)

43-3/4” (25 rackspaces)

Overall Depth

27”

27”

32”

* Replace ‘DS’ with desired finish. For example BGR-19SA27MDK-GS (GS = Graystone)

finishes

see pg. 38 for finish selections

Broadcast Commercial

AV

Residential

AV

Security Structured

Cabling

Education

Useable Depth

24-3/8”

24-3/8”

29-3/8” middleatlantic.com • 800-266-7225

Racks and Enclosures | HDR Series more space

The

HDR Series low-profile wall cabinet was designed to save space by allowing equipment to be vertically mounted in areas such as classrooms, offices and and closets.

• Available in 2 new sizes with two mounting areas

(providing 4 or 9 total rackspaces) for mounting

patch panels, hubs, routers, switches and other

equipment

• Upper bay pivots 100º with a positive stop for

punch-downs; strong enough to punch down patch

panels post-install.

• Lower bay pivots 15º for access to connections

42

32 spaces

24-1/8”

18” or 24”

HDR-9

Certifications

• Seismic Certified

• UL/ETL Listed

Market Solutions

• RoHS

• GREENGUARD

Broadcast Commercial

AV

Residential

AV

Security Structured

Cabling

Education

Part #

HDR-9

HDR-9X

Overall Height

32”

42”

Racking Height

7” + 8-3/4” (4 rackspaces + 5 rackspaces)

7” + 8-3/4” (4 rackspaces + 5 rackspaces)

Overall Width

24-1/8”

24-1/8”

Useable Depth

18”

24”

11

2014 new products guide

Technical Furniture | ViewPoint

Sit/Stand Workstations

holds 3 convenient pre-set height settings

Part #

VC-LS3619-DT37SA

VC-LS4819-DT37SA

VC-LS7219-DT37SA

VC-LSWS1-DT37SA

12

options

please visit middleatlantic.com for full list of available options

finishes

see pg. 38 for finish selections

improved ergonomics

Promoting proper ergonomics for healthy work environments, height- adjustable Sit/Stand functionality is now available for the

ViewPoint

Series.

• Simplified installation made possible by factory

integrated lift systems, pre-installed in welded

ViewPoint console bays

• Quick shipment – 3 week standard lead time

• Sit/stand functionality promotes proper ergonomics for

healthy work environments

• Lift legs do not intrude in equipment mounting bays –

full bay width is available for equipment

Certifications

• UL/ETL Listed

• RoHS

• GREENGUARD

Description

36” w x 19” d stand-alone ViewPoint

lift system

48” w x 19” d stand-alone ViewPoint

lift system

72” w x 19” d stand-alone ViewPoint

lift system stand-alone ViewPoint

lift system workstation middleatlantic.com • 800-266-7225

Technical Furniture | ViewPoint

and VisionFrame

Series Options

Large Monitor Mounts

Large format monitor mounts accommodate monitors with 32” to 63” screen sizes.

Part #

VC-MM32X41

VC-MM42X63

Description

large monitor mount for 32” to 41” monitors (screen size) large monitor mount for 42” to 63” monitors (screen size)

VC-MM32X41

Free Standing Storage Cabinet

The free standing storage cabinet matches appearance and style of the

ViewPoint

system to provide additional storage space.

Part #

VC-C3624-GDFS-xx

Description

free standing storage cabinet

(replace ‘xx’ with desired finish color)

Radial Binder Storage Cabinet

Keep essential reference materials close at hand with the radial binder storage cabinet, a new option in the ViewPoint

™ system.

Part #

VC-BC24

VC-BC34

Description

radial binder storage cabinet radial binder storage cabinet

VisionFrame

Vertical Panel Mount

Mount rackmount components to the back of the monitor walls quickly and easily with the VisionFrame

vertical panel mount.

Part #

VF-VPM-3

Description

vertical panel mount

VC-C3624-GDFS-DC

VC-BC24

VF-VPM-3

VisionFrame

Vertical Multi-Mount Panel

Mount HDMI extenders, video switchers and other small components to the back of the monitor walls with the VisionFrame

vertical multi-mount panel.

Part #

VF-MPV

Description

vertical multi-mount panel

VF-MPV

13

2014 new products guide

Technical Furniture | VTC Series

Le ver Lock

rugged & high capacity

compatibLe

The

VTC Series Video Carts are the industry’s most versatile mobile monitor cart system for videoconferencing and presentation applications.

• Heavy-duty design to support large screens:

up to one 80” or two 70”

• 3-space equipment mounting area in base

• Configurable mounting area of 4 rackspaces or a

tower CPU

• Efficient mounting Lever Lock ™ system compatible

(see pg. 32)

• 550 lb. overall weight capacity

• Includes low-profile 2 locking casters, adjustable camera

mount and an 8 outlet 15A power strip with 10’ cord

• Includes connectivity panel

• Available with 12 space rack

VTC-4280S

14

Part #

VTC-4280S

VTC-4255D

VTC-5670D

VTC-4280S-R

VTC-4255D-R

VTC-5670D-R

options

Part #

VTC-DWR-5.5

VTC-SPK-SH5.5

VTC-SPK-SH11

Display Capacity

single 42"- 80" dual 42" - 55" dual 56" - 70" single 42" - 80" dual 42" - 55" dual 56" - 70"

Description

5.5" high X 7.5"deep, drawer for VTC Series

5.5" high, VTC speaker shelf only

11" high, VTC speaker shelf only

finishes

see pg. 38 for finish selections

Frame Capacity

4 rackspaces + 10" Lever Lock

plate

4 rackspaces + 10" Lever Lock

plate

4 rackspaces + 10" Lever Lock ™ plate

12 rackspaces + 10" Lever Lock

plate

12 rackspaces + 10" Lever Lock

plate

12 rackspaces + 10" Lever Lock

plate

Includes Rack

X

X

X

Part #

LL-VTC-K

VTC-WS-32X12SL

VTC-R1214

Description

VTC Lever Lock

kit, (2) LL receptacles (1) LL-HC21 (1) LL-VP2110

32" wide, 12" deep VTC work surface, slate

12SP EIA, 14" deep, VTC Add-On rack with glass door middleatlantic.com • 800-266-7225

Technical Furniture | FlexView

Series

Le ver Lock

sleek new design

compatibLe

The

FlexView

Series is a collection of display stands and carts that are easy-to-integrate, cost-effective solutions for corporate, hospitality and education environments.

• Engineered for durability, certified for

strength and safety

• Rugged casters on cart models provide

long-lasting use

• Lowest profile display mount in the industry

• Models with electric lift display height adjustment for optimal

ergonomics, or manual display height positioning

• Efficient mounting Lever Lock ™ system compatible

(see pg. 32)

Certifications

• UL/ETL Listed

• RoHS

• GREENGUARD

Part #

FVS-800SC-BK

FVS-800S-BK

FVS-800ESC-BK

FVS-800ES-BK

FVS-800SC-WH

FVS-800S-WH

FVS-800ESC-WH

FVS-800ES-WH

options

Part #

FVS-TS

FVS-SBBU

FVS-CMTB-128-BK

FVS-CMTB-128-WH

Description

FlexView single display cart with 4 inch casters, up to vesa 800 mounting pattern

FlexView single display cart, static with levelers, up to vesa 800 mounting pattern

FlexView electric lift display cart with 4 inch casters, up to vesa 800 mounting pattern

FlexView electric lift display cart , static with levelers, up to vesa 800 mounting pattern

FlexView electric lift display cart , static with levelers, up to vesa 800 mounting pattern

FlexView single display cart, static with levelers, up to vesa 800 mounting pattern

FlexView electric lift display cart with 4 inch casters, up to vesa 800 mounting pattern

FlexView electric lift display cart , static with levelers, up to vesa 800 mounting pattern

Description

FlexView video teleconferencing table support, adjustable height, hardware included,

FlexView soundbar attachment bracket, mounts soundbar above or below monitor, universal fit

FlexView camera mount, fits flexview cart/stand, top or bottom of screen mounting

FlexView camera mount, fits flexview cart/stand, top or bottom of screen mounting

finishes

see pg. 38 for finish selections

2014 new products guide

Finish

black black black black white white white white

FVS-800SC-WH

Finish

black black black powdercoat white powdercoat

15

Technical Furniture | C5 Series Credenzas

16

moderno

• Contemporary style

• 1” wrap around the credenza

• Side panels and top

completely flush

• Door styles are inset middleatlantic.com • 800-266-7225

sota

• Simplified contemporary

style ideal for pairing

• Recessed side panels

2014 new products guide

Technical Furniture | C5 Series Credenzas rack foundation with a furniture finish

Middle Atlantic Products is expanding its

C5 Series Credenza offering to address the latest trends in commercial interior design. The credenza system built around the rack you trust is now available in several styles with a wide variety of furniture finish options.

• Attractive styles, finishes and options reflect current design trends

• Frames are in stock guaranteeing quick delivery while allowing the

integrator to immediately start the installation

• Built-in high static pressure MAP blower

• Veneer, high-pressure laminate and thermolaminate finishing options

• Available in 1, 2 or 3-bay models with standard or extra depth

• Vent finishes in white, black, silver or off-white

• Door hardware, locks and plexi door options available

• Push-touch latch

options

Door Accents

finishes

see pg. 39 for finish selections

Classic

Nickel

Classic

Bronze

Modern

Accent

ordering information

please call or visit middleatlantic.com/c5-ordering-guide

• Traditional style with

classic detail

• Recessed side panels

• Veneer only klasik

17

18

Technical Furniture | L5 Series Lecterns

Le ver Lock

integration friendly lectern

compatibLe

Introducing the

L5 Series, the industry’s most integrationfriendly lectern. What makes

Middle Atlantic’s lecterns unique is the Frame to Furniture

foundation.

• Customize your solution: Presenter’s Panel

can

accommodate a wide range of displays/screens;

a variety of finishes & accessories are available

• Frames ship from stock

• Easy to integrate

• Future proofing: replace individual panels or the entire

outer shell without removing equipment

• Efficient mounting Lever Lock ™

(see pg. 32)

system compatible middleatlantic.com • 800-266-7225

Technical Furniture | L5 Series Lecterns two styles

traditional contemporary

L5 Frames with Presenters Panel

L5-TURFR-23

L5-TURFR-33

L5-TURFR-43

L5 Frames with Flat Top

L5-FLATFR-23

L5-FLATFR-33

L5-FLATFR-43

Finishing Kit, Traditional Style*

L5-TKIT-23

L5-TKIT-33

L5-TKIT-43

Finishing Kit, Contemporary Style*

L5-TKITM-23

L5-TKITM-33

L5-TKITM-43

Finishing Kit, Traditional Style*

L5-FLKIT-23

L5-FLKIT-33

L5-FLKIT-43

Finishing Kit, Contemporary Style*

Flat kits available only in traditional routing style.

*Finishing kits require finish color selection. Laminate finish to be added as a line item (Qty 1).

options

Part #

L5TASKLIGHT18

MMB-1X1-12C

LT-TABLETMT

L5-SHOC-XLR-S

L5-CLOCKTIMER4

L5CUSTPNL-X

L5-LOGO14A-XXXX

L5-LOGO14B-XXXX

L5-LOGO14C-XXXX

L5-LOGO14L-XXXX

L5-MKxx

Description

gooseneck light monitor mount with 12” pole articulating tablet mount shockmount microphone holder

4” clock timer custom Presenter’s Panel ™ (replace “xx” with 23 for 23”w, 33 for 33”w or 43 for 43”w) custom aluminum 12” x 14” logo custom bronze 12” x 14” logo custom color 12” x 14” logo custom laser 12” x 14” logo millwork kit (replace “xx” with 23 for 23”w, 33 for 33”w or 43 for 43”w)

Overall Width

23”

33”

43”

Overall Width

23”

33”

43”

finishes

see pg. 38 for finish selections

2014 new products guide

19

20

Technical Furniture | TechPed

Series Technology Pedestal

Le ver Lock

easy to service solution

compatibLe

The

TechPed

Series Technology

Pedestals provide under table support while housing equipment and cables; a simple to integrate, easy to service solution ideal for conference rooms and collaboration spaces.

• Table support system designed to house

electronics and cables

• Frames are in stock guaranteeing quick delivery

while allowing the integrator to immediately start

the installation

• Available in a spectrum of finishes to match any

• Engineered to maximize space and promote proper

thermal and cable management

• The custom finishing kit is manufactured to order

• Removable side panels make installation and on-going

maintenance easy

• Efficient mounting Lever Lock ™ system compatible

(see pg. 32) middleatlantic.com • 800-266-7225

frame to furniture

Technical Furniture | TechPed

Series Technology Pedestal

Frame

TP-F1318

TP-F1325

TP-F1330

Width

18”

25”

30”

Finishing Kit*

TP-K1318

TP-K1325

TP-K1330

Top & Bottom Opening

11” x 16”

11” x 23”

11” x 28”

*Finishing kits require finish color selection. Laminate finish to be added as a line item (Qty 1).

Ideal For

small size tables with minimal equipment mounting small to mid size tables with equipment mounting and table top boxes mid to large size tables with equipment mounting and table top boxes with cable retractors

options

Part #

TCCH-M-5

UTCM5

TP-MK1

TP-CR-BKT*

Description

under table hinged cable management, 9-1/2” wide under table hinged cable management, 5” wide custom finishing kit for millworker change the mounting position of Wiremold® cable retractors

*Only required for smaller frames

finishes

see pg. 38 for finish selections

2014 new products guide

21

Power | RackLink

Power Management System

compact In-Line models great for one or two outlets

RLNK-SW715R-NS monitored, individually controlled outlets

RLNK-SW415R-SP

real-time visibility and control

RackLink

provides integrators with real-time visibility and control over the power distribution and status of any installation from anywhere in the world. It is designed to help ensure system reliability and uptime through the use of intuitive setup and operation, pre-emptive problem notification and automatic problem resolution.

• Series Protection

(non-sacrificial, non-degrading)

• Auto-shutdown in an over or under voltage event

with automatic recovery

• Emergency power off with automatic

recovery option

• Energy management can be used to reduce

consumption or troubleshoot systems

• Integrated sequencing with user defined sequence delays

• Front panel control of individual outlets, along with a

‘disable’ function to prevent unauthorized access

• More controlled outlets than previous models

• Half-rack size model fits in compact locations

• Apps available for iPhone

®

, iPad, and Android

mobile devices

• Integrates easily with control systems

Now includes programmable sequencing and Series Protection

22

Part #

RLNK-MON115-NS

RLNK-MON120-NS

RLNK-SW215-NS

RLNK-SW220-NS

RLNK-SW715R

RLNK-SW715R-NS

RLNK-SW620R

RLNK-SW620R-NS

RLNK-SW415R-SP

RLNK-SW815R-SP

RLNK-SW820R-SP

Form Factor

In-Line Module

In-Line Module

In-Line Module

In-Line Module

Rackmount

Rackmount

Rackmount

Rackmount

Half-Rack

Rackmount

Rackmount

Max

Load

15A

20A

15A

20A

15A

15A

20A

20A

15A

15A

20A

Rated

Load

12A

16A

12A

16A

12A

12A

16A

16A

12A

12A

16A

Surge

Protection

Basic

Basic

Basic

Basic

2-Stage

Basic

2-Stage

Basic

Series

Series

Series

Sequencing

No

No

No

No

No

No

No

No

Yes

Yes

Yes

8

8

6

4

7

6

2

7

Total

# of Outlets

Controlled

1

1

2

0

0

1

8

8

4

4

5

4

1

5

Controlled

Dry Contacts

5

4

1

4

0

0

1

2

2

5

2

Integrated

Web Server

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes middleatlantic.com • 800-266-7225

advanced surge protection technology

Series Protection

Power

Distribution products feature the industry’s fastest-responding surge protection technology.

• Industry’s fastest patent-pending non-degrading

surge technology

• Protects equipment without contaminating

system ground

• 100% MOV-free design – unlike any

competitive offering

• Single circuit, 15A and 20A models available

• Half-rack sizes and hardwired model available

• Automatic recovery – does not require hard reset after

an over or under voltage event

Power | Series Protection

Power Distribution

PD-915R-SP

PD-420R-SP

PD-HW15-SP

Part #

PD-915R-SP

PD-920R-SP

PD-415R-SP

PD-420R-SP

PD-HW15-SP

PD-HW20-SP

Circuits

1

1

1

1

1

1

Rated

Load

15A

20A

15A

20A

15A

20A

Spec Grade

Output Type

Duplex on rear, single on front

Duplex on rear, single on front

Duplex – rear only

Duplex – rear only

Internal J-Box w/ cover & knockout

Internal J-Box w/ cover & knockout

Illuminated

Combo

Breaker ON/OFF

Rear (with bar)

Rear (with bar)

Side (with bar)

Side (with bar)

N/A

N/A

Outlets Protection

Overload

Over/Under

Voltage

Notification LED Total Rear Front

9 8 1

9 8 1

4

4

4

4

N/A N/A N/A

N/A N/A N/A

0

0

Surge

Series

Protection supplementary overload protector

None

None

Two LEDS.

• Over voltage

• Under voltage

• Default=Off

2014 new products guide

23

Power | MPR Series Modular Power Raceway custom power solution

Design and build an ETL-Listed custom power solution by mixing and matching components ideal for the system’s individual power requirements with the MPR Series. Featuring the broadest selection of circuit and control options interconnected via a proprietary pre-terminated system.

24

choose modular power raceways

1

• Lightweight raceway with versatile

back-mount support clip

• Open design for easy module

installation

MPR-3A

Part #

MPR-3A

MPR-6A

MPR-8A

MPR-9A

Chassis

Length

32”

56”

72”

80”

Useable Module

Mounting Space

Using Integral J-Box

24”

48”

64”

72”

Useable Module

Mounting Space

Using Optional J-Box

32”

56”

72”

80”

choose controlled modules

2

Now with

Series Protection

• The industry’s only ETL Listed

off-the-shelf configurable power

strip to offer Series type surge

suppression

• Remote power modules fit in

MPR raceways

• Fast, flexible solution to many

installation challenges

RLM-20A-SP

Part #

RLM-15A

RLM-15A-SP

RLM-20A

RLM-20A-SP

RLM-20IGA

FC-4A

MPR-SEQA

Module

Size

8”

8”

8”

8”

8”

8”

8”

Description

15A controlled module

15A controlled module w/ Series Protection

20A controlled module

20A controlled module w/ Series Protection

20A isolated ground controlled module thermostatic fan control module

[(4) 1-15R fan receptacles]

6 step sequencing controller, contact closure control

or stand-alone modules

• Fast, flexible solution to many

installation challenges

• Ready to use

Part #

RLM-15-1CA

RLM-20-1CA

FC-4-1CA

FC-2-215-1CA

MPR-SEQ-1CA

FC-4-1CA

Description

stand-alone 15A controlled module, 9’cord stand-alone 20Acontrolled module, 9’cord stand-alone thermostatic fan control [(4) 1-15R receptacles], 9’cord stand-alone thermostatic fan control (2) 1-15R fan receptacles,

(2) 5-15R always on fan receptacles], 9’cord stand-alone 6 step sequence controller, contact closure control, 9’ cord

or always on modules

Now with

Series Protection

• Provides Series Protection to all modules

cascading down in circuit from the series module

• Modules allow the customization of a power

strip to meet project needs

M-15A-SP

M-15A 4”

M-15A-SP 4”

M-20A 4”

M-20A-SP 4”

M-20IGA 4”

M-2X15A 8”

Description

15A duplex module

15A duplex module w/ Series Protection

20A duplex module

20A duplex module w/ Series Protection

20A duplex isolated ground module

15A double duplex module

Part #

M-2X20A

M-2X20IGA

M-15IECA

M-20IECA

M-20TL-HWA

M-30TL-HWA

Module

Size

8”

8”

4”

4”

4”

4”

Description

20A double duplex module

20A double duplex isolated ground module

15A 3-gang

IEC module

20A 1-gange

IEC module

20A twist lock L5-20R

(hardwired only)

30A twist lock L5-20R

(hardwired only) middleatlantic.com • 800-266-7225

Power | MPR Series Modular Power Raceway choose blank covers

3

• Blank cover

for MPR

raceway

position

MPR-BL8A

Part # Module Size

MPR-BL2A

MPR-BL4A

MPR-BL8A

2”

4”

8”

Description

sold in packs of two sold individually sold individually

or junction boxes

• Optional J-box

fits on end of

MPR raceway

• Equipped w/electrical

knockouts

MPR-JB663A

Part #

MPR-JB663A

MPR-JB843A

MPR-JB853A

MPR-JB863A

Description

optional 6” x 6” x 3” J-Box optional 8” x 4” x 3” J-Box optional 8” x 5” x 3” J-Box optional 8” x 6” x 3” J-Box

or module accessories

• Ground wires with ring terminals (one end)

simplifies attachment of multiple ground wires

to a supplemental grounding stud

• MPR-SS transient voltage surge suppressor

provides protection for MPR Series modules

when mounted in raceways

Part #

G-8X10

Description

ten 8” ground wires

MPR-SS

choose module connections

4

• J Series jumpers interconnect power modules,

providing AC power to all modules on the

same circuit

• T Series tails connect incoming power to a single

circuit within a raceway

• JMS master/slave jumper control M Series basic

modules by advancing the RLM Series on the

same circuit

• 6 packs

Part #

J-12X6

J-24X6

J-72X6

T-24X6

T-80X6

JMS-12X6

Jumper Length

12”

24”

72”

24”

80”

12”

Termination

connector on each end connector on each end connector on each end connector on one end, tails on the other connector on one end, tails on the other connector on one end, connector plus push-on terminal on the other

T-80X6

2014 new products guide

25

Power | | PDT Series Low Profile Power Strips unique thin design

PDT Series Thin Power Strips take up minimal space inside a rack and feature a unique design that allows for isolated ground configurability.

• Unique design allows for isolated ground

configurability in the field (hardwired models only)

• Dual circuit models can be field configured to

operate as a single circuit

• Corded models feature SignalSAFE

cords to

virtually eliminate AC magnetic fields

• Ships fully assembled

• Mounts easily with provided clips

• 15 Amp models are prewired with 12-gauge wiring

and can be attached to a 20 Amp branch circuit

• Surge protected models include LEDs for convenient

local status indication, and also have dry contact

closure for remote status notification

• Top feed models with J-Box on the top of the power strip

• Metered models include high visibility red LED display;

indicates current to tenths of Amps

• NRTL Listed in the US and Canada

26

PDT-2X820 PDT-1415C-NS middleatlantic.com • 800-266-7225

Power | | PDT Series Low Profile Power Strips

15

Amp

20

Amp

Part #

PDT-2015C-NS

PDT-2015C-M-NS

PDT-620C-NS

PDT-1020C-NS

PDT-1220C-NS

PDT-1620C-NS

PDT-2020C-NS

PDT-2020C-RN

PDT-2020C-M-NS

PDT-2020TL-NS

PDT-2020TL-M-NS

PDT-615C

PDT-615C-NS

PDT-1015C-RN

PDT-1015C-NS

PDT-1015C-NS20

PDT-1015C-M-NS

PDT-1415C

PDT-1415C-NS

PDT-1615C-NS

PDT-2015C-RN

Chassis Style

Chassis

Length

30”

30”

37-3/4"

37-3/4"

37-3/4"

37-3/4"

60”

60”

33-1/2"

72-3/4"

72-3/4"

72-3/4"

30”

37-3/4"

60”

33-1/2"

72-3/4"

72-3/4"

72-3/4"

72-3/4"

72-3/4"

PDT

PDT

PDT

PDT

PDT

PDT

PDT

PDT

PDT

PDT

PDT

PDT

PDT

PDT

PDT

PDT

PDT

PDT

PDT

PDT

PDT

Chassis

Width

1-3/8”

1-3/8”

1-3/8”

1-3/8”

1-3/8”

1-3/8”

1-3/8”

1-3/8”

1-3/8”

1-3/8”

1-3/8”

1-3/8”

1-7/8”

1-7/8”

1-7/8”

1-7/8”

1-7/8”

1-7/8”

1-7/8”

1-7/8”

1-7/8”

10

10

10

14

14

16

20

# of

Outlets

6

6

10

20

20

20

20

20

20

6

10

12

16

20

Rated

Amperage

15A

15A

15A

15A

15A

15A

15A

15A

15A

15A

20A

20A

20A

20A

15A

15A

20A

20A

20A

20A

20A

Cord Length w/

Termination

9’ cord w/ NEMA 5-15P plug

9’ cord w/ NEMA 5-15P plug

9’ cord w/ NEMA 5-15P plug

9’ cord w/ NEMA 5-15P plug

20’ cord w/ NEMA 5-15P plug

9’ cord w/ NEMA 5-15P plug

9’ cord w/ NEMA 5-15P plug

9’ cord w/ NEMA 5-15P plug

9’ cord w/ NEMA 5-15P plug

9’ cord w/ NEMA 5-15P plug

9’ cord w/ NEMA 5-15P plug

9’ cord w/ NEMA 5-15P plug

9’ cord w/ NEMA 5-20P plug

9’ cord w/ NEMA 5-20P plug

9’ cord w/ NEMA 5-20P plug

9’ cord w/ NEMA 5-20P plug

9’ cord w/ NEMA 5-20P plug

9’ cord w/ NEMA 5-20P plug

9’ cord w/ NEMA 5-20P plug

9’ cord w/ NEMA L5-20P plug

9’ cord w/ NEMA L5-20P plug

5-15R

5-15R

5-15R

5-15R

5-15R

5-15R

5-15R

Outlet

Type

5-15R

5-15R

5-15R

5-20R

5-20R

5-20R

5-20R

5-15R

5-15R

5-20R

5-20R

5-20R

5-20R

5-20R

Protection

single stage surge, EMI, circuit breaker circuit breaker only

2-stage surge w/ remote notification & circuit breaker circuit breaker only circuit breaker only circuit breaker only single stage surge,

EMI, circuit breaker circuit breaker only circuit breaker only

2-stage surge w/remote notification & circuit breaker circuit breaker only circuit breaker only circuit breaker only circuit breaker only circuit breaker only circuit breaker only circuit breaker only

2-stage surge w/remote notification & circuit breaker circuit breaker only circuit breaker only circuit breaker only

No

No

Yes

No

No

No

No

Local

Meter

No

No

No

No

Yes

No

Yes

No

Yes

No

No

No

No

No

15

Amp

20

Amp

Part #

PDT-2X615S

PDT-2X815

PDT-2X1015

PDT-2X1015S

PDT-2X1015T

PDT-2X1015TS

PDT-2X320

PDT-2X520

PDT-2X820

PDT-2X1020

PDT-2X1020S

PDT-2X1020T

PDT-2X1020TS

1/2” Flex Cable available on request (1’–10’ length)

PDT

PDT

PDT

PDT

PDT

PDT

PDT

Chassis

Style

PDT

PDT

PDT

PDT

PDT

PDT

Circuits/

Rated Amperage

(2) 15A

(2) 15A

(2) 15A

(2) 15A

(2) 15A

(2) 15A

(2) 20A

(2) 20A

(2) 20A

(2) 20A

(2) 20A

(2) 20A

(2) 20A

6

10

16

20

20

20

20

20

20

20

20

# of

Outlets

12

16

30”

44”

60”

72-3/4"

72-3/4"

72-3/4"

72-3/4"

Chassis

Length

30”

60”

72-3/4"

72-3/4"

72-3/4"

72-3/4"

1-7/8”

1-7/8”

1-7/8”

1-7/8”

1-7/8”

1-7/8”

1-7/8”

Chassis

Width

1-3/8”

1-3/8”

1-3/8”

1-3/8”

1-3/8”

1-3/8”

Termination

J-Box

J-Box

J-Box Size

L x W x H

4” x 2.58” x 2.1”

4” x 2.58” x 2.1”

J-Box 4” x 2.58” x 2.1” small J-Box 3.5” x 1.56” x 2.1”

J-Box 4” x 2.58” x 2.1” small J-Box 3.5” x 1.56” x 2.1”

J-Box

J-Box

J-Box

J-Box small J-Box

J-Box small J-Box

4” x 3.5” x 2.1”

4” x 3.5” x 2.1”

4” x 3.5” x 2.1”

4” x 3.5” x 2.1”

3.5” x 2.1” x 2.1”

4” x 3.5” x 2.1”

3.5” x 2.1” x 2.1”

Outlet

Type

5-15R

5-15R

5-15R

5-15R

5-15R

5-15R

5-20R

5-20R

5-20R

5-20R

5-20R

5-20R

5-20R

12

12

12

12

12

12

12

12

12

12

12

Wire

Gauge

12

12

Isolated

(Technical) Ground

Field Configurable

Field Configurable

Field Configurable

Field Configurable

Field Configurable

Field Configurable

Field Configurable

Field Configurable

Field Configurable

Field Configurable

Field Configurable

Field Configurable

Field Configurable

2014 new products guide

27

Power | Economy IEC Power Cords

6” length

12” length

7 lengths available

get the perfect fit

Economical

IEC cords are priced to fit tight budgets. Perfect for standard digital AV equipment, networking switches/routers, and other similar applications.

• The widest selection of IEC cord lengths in the

AV industry – between 6” - 72” available

• Replace bulky cords that block airflow or take

up valuable space

• Competitive price, with trusted Middle Atlantic

quality

• Designed and packaged for integrator convenience

• Industry-standard 18 AWG conductors with 10A

max current rating

28

6" Length

Part #

S-IEC-6X6

12" Length

Part #

S-IEC-12X6

S-IEC-6X20 S-IEC-12X20

S-IEC-6X100 S-IEC-12X100

18" Length

Part #

S-IEC-18X6

S-IEC-18X20

S-IEC-18X100

24" Length

Part #

S-IEC-24X6

S-IEC-24X20

S-IEC-24X100

36" Length

Part #

S-IEC-36X6

S-IEC-36X20

S-IEC-36X100

48" Length

Part #

S-IEC-48X6

S-IEC-48X20

S-IEC-48X100

72" Length

Part #

S-IEC-72X6

S-IEC-72X20

S-IEC-72X100

Plug

Type

Straight

Straight

Straight

Connector

Type

IEC 60320-1/C13

IEC 60320-1/C13

IEC 60320-1/C13

Wire

Gauge

18

18

18

Qty.

6

20

100 middleatlantic.com • 800-266-7225

ultra bright worklight

The

Gooseneck Magnetic LED

Worklight illuminates the inside of racks, for easy viewing of equipment and cabling during system installation and servicing

• 32 LED lights positioned at the ideal angle for high

visibility and brightness

• Flexible 16” long gooseneck allows light to be directed

where it is needed most

• Strong, scratch resistant magnetic base attaches to any

steel surface

• 395 Lumens

Lighting | Gooseneck Magnetic LED Worklight

LT-GN-WL

Part #

LT-GN-WL

2014 new products guide

Description

magnetic worklight, gooseneck, includes 32 LED lights

29

Meeting Room Solutions

1

2

30

3

Evolution

Series

Ceiling Boxes

1

Offer localized mounting for A/V and technology equipment in a plenumapproved enclosure while hiding clutter. Available with RackLink

.

5

6

7

4

Evolution

Series

Wall Boxes

Ideal for behind flat screen displays in both new and retrofit applications. Low profile allows screens to sit flush against the wall.

2

8

C5 Series

Credenzas

The credenza system built around the rack you trust is now available in several styles with a wide variety of furniture finish options.

See pg. 16-17.

middleatlantic.com • 800-266-7225

C5 Series

Credenzas

3

The credenza system built around the rack you trust is now available in several styles with a wide variety of furniture finish options.

See pg. 16-17.

2014 new products guide

OFR Series

Overfloor Raceway

4

Provides four channels for multiple combinations of power, communications, and A/V in an ADA compliant profile that installs over existing floor coverings.

Meeting Room Solutions a powerful combination for meeting room solutions

Wiremold

®

products are now available through Middle Atlantic, and together, these product lines provide a flexible and complete set of A/V equipment mounting and connectivity solutions for

Meeting & Conference Rooms.

InteGreat

Cable Retractors

Keep work areas organized and let users pull-out cables for convenient connectivity.

5

InteGreat

A/V Table Box

An elegant solution for extending power, communication and A/V to the meeting presenter’s point-of-use.

6

InteGreat

Transition Channel and

Under Table Cable Management

7

Manages cabling and connections for power, communications and A/V from the building infrastructure to the point of use.

Evolution

Series

Floor Boxes and Poke Thrus

An ideal option for installations where services are constantly evolving, such as commercial offices, conference rooms, stages, and entertainment venues.

8

31

32

designed to hold a wide range of standard DIN mount devices

Part #

LL-H2A21

LL-H4A21

LL-HA21

LL-HC21

LL-HR21

LL-VA17

LL-VA21

LL-VC17

LL-VC21

LL-VDIN17

LL-VDIN21

LL-VP1710

LL-VP2110

LL-MP21

Accessories | Lever Lock

System

use vertical channels or angles to lace cable bundles from top to bottom

4 Pack Part #*

LL-HA21-4

LL-HC21-4

LL-HR21-4

LL-VA17-4

LL-VA21-4

LL-VC17-4

LL-VC21-4

LL-VDIN17-4

LL-VDIN21-4

– mount horizontal lacer bars between vertical Lever Lock™ accessories, or between rackrail brackets for strain relief and cable management

internal management system

Le ver Lock

SYStem

The patent-pending

Lever Lock

internal management system facilitates cable management and device mounting within the rack through the use of unique tool-free cable management bars and vertical accessory mounting plates.

• Locks in place without tools in Lever Lock

compatible products

• Universal mounting pattern accommodates

most small devices

• Steel construction with black powder coat finish

DIN rail

Combines the convenience of

Lever Lock

tool free mounting capability with efficient

DIN rail mounting.

vertical plates for small devices

2” & 4” offset angle lacer bars

Our popular offset angle lacer bars have been made even easier to install with the addition of tool free Lever Lock ™ mounting capability.

install horizontal LeverLock™ lacer bars on any location on rackrail brackets to provide offset cable management

Description

22” long horizontal 2” off-set angle

22” long horizontal 4” off-set angle

22” long horizontal angle

22” long horizontal channel

22” long horizontal round

13.6” long vertical angle

17” long vertical angle

13.6” long vertical channel

17” long vertical channel

13.6” long vertical DIN rail

17” long vertical DIN rail

13.6” long vertical 10” deep plate

17” long vertical 10” deep plate

7 piece multipack includes (2) LL-VC21, (4) LL-HA21, and (1) LL-VP2110

Products Accepting Lever Lock ™

BGR Series Racks

BGR-MDK Series Racks

SNE Series Racks

RFR Series Racks

DTRK Series Racks

VTC Series Video Carts

FlexView™ Video Carts

L5 Series Lecterns

TechPed™ Technology Pedestal middleatlantic.com • 800-266-7225

Accessories | Universal Mounting Drawer innovative design

The

Universal Mounting

Drawer was designed with our patented pattern to mount small devices traditionally located outside the rack to the bottom of the drawer.

• Smaller components typically mounted to the wall

can now be mounted securely within the rack

• Bottom of drawer can be removed before

installation to mount small devices and can

be screwed into place

• Articulating cable arm keeps wires from

getting pinched

• Pattern of holes and slots accommodates nearly any

mounting hole pattern, and can also be used for wire

tie or other cable fastening methods

• Provides abundant cable management and device tie

down points

• Drawer locks for added security

Part #

D2-UMS-28

D2-UMS-28

Description

28” D universal mounting drawer articulating cable arm keeps wires from getting pinched when the drawer is pulled open or closed shut

Racking Height

3-1/2” (2 space)

33

2014 new products guide

Accessories | AVIP Rackmount Panels and Cable Ladder Elevation Kit supports industry standard device plates

The

AVIP Series is a great solution providing rackmount connectivity without the wait or expense of custom panels.

34

AVIP-FK2

Part #

AVIP-FK1

AVIP-HFK1

AVIP-FK2

AVIP-HFK2

AVIP-SF1*

AVIP-SF2*

AVIP-UCP

Part #

CLH-ELS-5/7

CLH-ELS-8/12

CLH-ELS-13/18

Description

1 space fixed panel

1 space fixed panel

2 space fixed panel

2 space fixed panel

1 space swing-out panel

2 space swing-out panel single UCP module (compatible with UCP Series frames)

Width

19”

10.4”

19”

10.4”

19”

19”

*Product Includes 10-32 thumb nuts.

• Holds industry-standard modular AV connector

plates including Wiremold

®

AVIP, Extron

®

MAAP,

and FSR IPS

• Works with single, double, and triple size plates

• Fixed and easy-access hinged styles are available for

standard racks

• Fixed styles are also available for half-rack applications

Device Plate Orientation

horizontal horizontal vertical vertical horizontal vertical vertical

# of Plates Accepted

14 single or 7 dual

6 single or 3 dual

21 single, 7 dual, or 7 triple

9 single, 3 dual, or 3 triple

14 single or 7 dual

21 single, 7 dual, or 7 triple

3 single, 1 dual, or 1 triple

Adjustable Width

18.25”

28.37”

strong & adjustable support

The

CLH Series cable ladder elevation kit provides a strong, adjustable support for cable ladders or baskets above equipment racks.

• Versatile design fits all floor standing rack

types, including 2- and 4- post, stand-alone

and gangable racks

• Can be mounted to support ladder or basket

crossing side-to-side or front-to-back orientations

• Three models cover a range of heights and widths;

highly visible height markings speed installation

Description

5"- 7" Elevation Kit

8"- 12" Elevation Kit

13"- 18" Elevation Kit

*Side-to-side direction on 2-post racks requires adapter plate MK-LA.

middleatlantic.com • 800-266-7225

Accessories | Universal Mounting Shelves/Accessories and Utility Shelves universal pattern

The

UMS Series universal mounting shelves are designed with a patented pattern to hold nearly any small device.

shown w/ Extron

®

1/8 space device, (1) 1/8 blank and (1) 1/4 blank

• Universal pattern includes counter-sunk holes to

match popular Extron

®

devices up to 19”

• Models available for both half and full width racks

• Kits include one shelf plus three partial blank

panels (one each: 1/8, 1/4, and 1/2) and hardware

• Optional filler blank panels improve finished appearance

and support proper thermal management

Full Width Part # Half Width Part #

UMS1-3.5 HR-UMS1-3.5

UMS1-5.5

UMS1-11.5

HR-UMS1-5.5

HR-UMS1-11.5

Shelf Kits Part # Racking Height

UMS1-3.5K

1-3/4” (1 space)

UMS1-5.5K

UMS1-11.5K

1-3/4” (1 space)

1-3/4” (1 space)

Depth

3.5”

5.5”

11.5”

UMS1-3.5

Filler Blank Panel Part #

UMSFP1-1/2

UMSFP1-1/4

UMSFP1-1/8

Size

1 space, 1/2 rack

1 space, 1/4 rack

1 space, 1/8 rack

UMSFP1-1/2

Finish

black powder coat black powder coat black powder coat

fully vented one-space shelf

The

U1V Series is a convenient one-space shelf designed for smaller electronic components.

• Fully ventilated bottom and side areas for

maximizing heat dissipation

• Includes 3 adjustable brackets to prevent components

from sliding backwards

• Optional clamping bars can be used to secure component

(Part # -C)

• Optional power strip PD-815SC-PBSH attaches easily to

rear of the shelf*

Part #

U1V

Racking Height

1-3/4” (1 rackspace)

Overall Depth*

10-3/4”

Useable Depth

*Power strip on rear adds 2” overall depth of shelf

10-3/8”

2014 new products guide

U1V

Weight Capacity

35 lbs.

35

Accessories | PowerCool

and Quiet-Cool

Series Products power and cooling solution in one

The

PowerCool

line provides integrated rackmount power distribution and cooling in a convenient one rackspace package.

PDCOOL-1015RA

36

PDCOOL-1115R

Part #

PDCOOL-1015RA

PDCOOL-1115R

PDCOOL-1120R

PDCOOL-1020RK

Racking Height

1-3/4” (1 rackspace)

1-3/4” (1 rackspace)

1-3/4” (1 rackspace)

1-3/4” (1 rackspace)

QBP-2A

120V Flat Black Finish Part #**

QBP-2 rear

Description

black brushed and anodized front convenience outlet, flat black front convenience outlet, flat black front key switch, flat black

• Blower exhausts 50 CFM while providing high

static pressure to maintain airflow

• Ultra quiet operation with a unique space

saving design

• Thermal sensing with proportional blower speed

• Multi-stage surge protection with surge status notification

• Multiple models for residential and commercial applications

• Key-lock switch model for additional security

Rated Amperage Total #of Outlets

15A

15A

20A

20A

10

11

11

10

Free Air Rating

50 CFM

50 CFM

50 CFM

50 CFM

Max Sound Level

29 dB

29 dB

29 dB

29 dB

compact and quiet operation

The

QBP-2 quiet blower panel is very quiet, yet puts out 100 CFM, more than any other 1 space fan panel. This unit uses a pair of our custom-designed blowers in a single rackspace.

• For smaller rack systems & credenzas where

space is at a premium and quiet operation

is a must

• Quiet even at full speed; proportional speed

assures the quietest operation possible

• Low power consumption

• Proprietary blowers provide high static pressure to

maintain airflow even in crowded racks

120V Black Anodized Part #**

QBP-2A

Racking Height

1-3/4” (1 rackspace)

**international versions available

Free Air Rating

100 CFM

Max Sound Level

32 dB middleatlantic.com • 800-266-7225

Accessories | Quiet-Cool

Series Products stand-alone & platform versions

The 50 CFM

Comp-Cool Series is a powerful & quiet way to remove heat from system components on open shelving or in racks.

Stand-alone version is ideal for cooling one component; while the platform version is ideal for cooling stacked components.

• Designed to pull hot air up and out of a component

and direct it where desired

• High 50 CFM maximum flow rate to meet demanding

requirements

• Blower design provides high static pressure to overcome

flow restrictions

120V Stand-Alone Version Part #**

COMP-COOL50

120V Platform Version Part #**

COMP-COOL50P

Free Air Rating

50 CFM

**international versions available

Max Sound Level

29 dB

COMP-COOL50

COMP-COOL50P

low profile design

The 50 CFM

Cabinet Cooler is a powerful and quiet way to remove heat from credenzas, lecterns, and entertainment centers.

• Intelligent proportional speed controller which runs

only when needed

• Provides high static pressure to overcome flow

restrictions

• Low profile design, the cabinet cooler is only 2” thick

• Low 29 dB max sound level at full speed

CAB-COOL50

2014 new products guide

120V Part #**

CAB-COOL50

Free Air Rating

50 CFM

**international versions available

Max Sound Level

29 dB

37

Finishes

BGR-MDK, ViewPoint

, L5 Lecterns, and TechPed

Thermolaminate

FIN-DS darkstone

FIN-GS graystone

FIN-PS pepperstone

FIN-SG shark gray

FIN-EA ebony ash

FIN-SL slate

FIN-WG wenge

FIN-DC dark cherry

FIN-DP dark pecan

FIN-AC aged cherry

FIN-HM honey maple

FIN-LW light walnut

FIN-MP maple

MFR Series RFR Series

knotted maple grained ebony ash grained dark cherry black rain cherry rain teak rain

38

VTC Series

black black & champagne

FlexView

Series

black white middleatlantic.com • 800-266-7225

Finishes

NEW

C5 Credenzas Finishes

HPL Options - Wood Grain

Formica

White Ash

Wilsonart

High Line

Formica

Weathered Ash

WIsonart

5th Ave. Elm

Wilsonart

Walnut Heights

Formica

Pecan Woodline

Wilsonart

Limber Maple

Formica

Oiled Lengo

Wilsonart

Mambo

Formica

Blackened Lengo

HPL Options - Solid Finish

Wilsonart

Brite White

Wilsonart

Beigh

Wilsonart

Grey

Wilsonart

Citadel

Wilsonart

Black

HPL Options - Visual Texture

Formica

Basalt Slate

Formica

Perlato Granite

Nevermar

Silver Alu Metalx

Formica

Mineral Spa

Nevermar

Adaptable Muse

Veneer Options* - Wood Grain

Sandy –

Maple

Scarlett –

Cherry

*Klasik style in Veneer only

Cerise –

Sapele

Ashen –

Walnut

Late –

Walnut

Demitasse –

Walnut

Sepia –

Walnut

Mink –

Cherry

Titan –

Walnut

Noire –

Sapele

2014 new products guide

39

corporate headquarters

300 Fairfield Road, Fairfield, NJ 07004, U.S.A.

Voice: 800-266-7225 • Fax: 800-392-3955

International Voice: +1 973 839-1011

International Fax: +1 973 831-4982 middleatlantic.com

canada

Ottawa, Ontario (Canada Head Office)

113 Iber Road, Ottawa, Ontario K2S 1E7

Voice: 888-766-9770 • Fax: 888-599-5009 middleatlantic.ca

factory distribution

USA: New Jersey · California · Illinois

Canada: Ontario

NEWPRODUCTS2015 ©2014-2015 MIDDLE ATLANTIC PRODUCTS, INC. ALL RIGHTS RESERVED NOT RESPONSIBLE FOR TYPOGRAPHICAL ERRORS 40M6/14 PRINTED IN U.S.A.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
