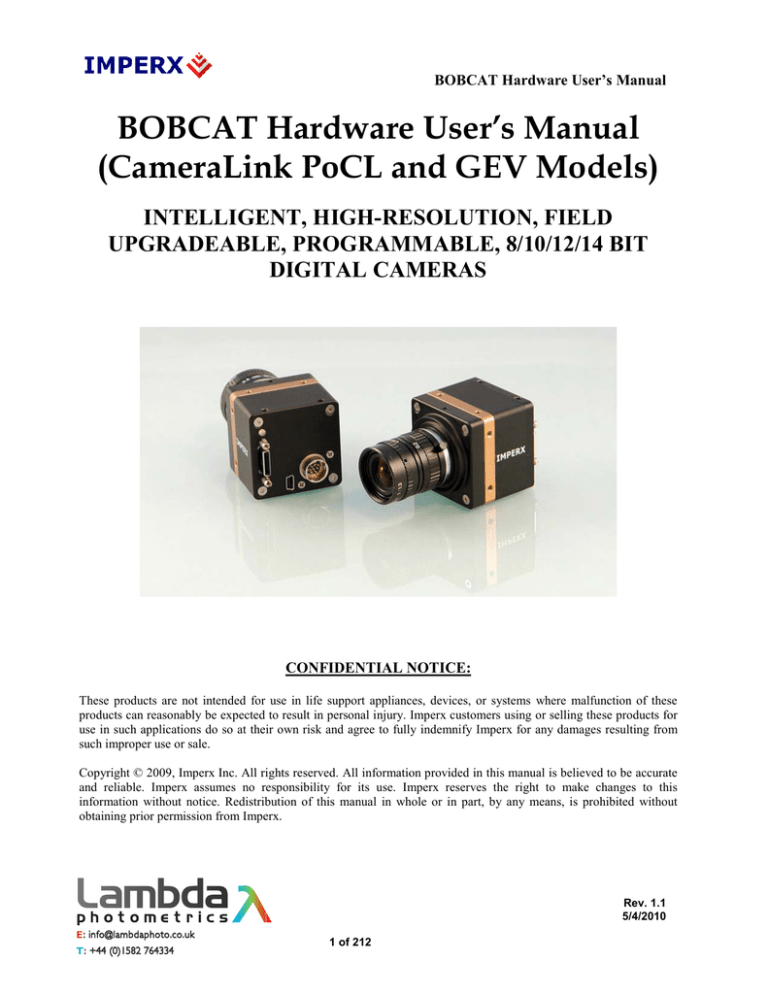

BOBCAT Hardware User’s Manual
BOBCAT Hardware User’s Manual
(CameraLink PoCL and GEV Models)
INTELLIGENT, HIGH-RESOLUTION, FIELD
UPGRADEABLE, PROGRAMMABLE, 8/10/12/14 BIT
DIGITAL CAMERAS
CONFIDENTIAL NOTICE:
These products are not intended for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Imperx customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Imperx for any damages resulting from
such improper use or sale.
Copyright © 2009, Imperx Inc. All rights reserved. All information provided in this manual is believed to be accurate
and reliable. Imperx assumes no responsibility for its use. Imperx reserves the right to make changes to this
information without notice. Redistribution of this manual in whole or in part, by any means, is prohibited without
obtaining prior permission from Imperx.
Rev. 1.1
5/4/2010
E:: i n f o @ l a m b d a p h o t o . c o . u k
T:: +44 (0)1582 764334
1 of 212
BOBCAT Hardware User’s Manual
Revision History
Rev 0.2
Rev 0.3
03/23/09 P. Dinev
07/31/09 P. Dinev
Rev 0.4
Rev 0.5
Rev 0.6
08/25/09 P. Dinev
08/27/09 P. Dinev
01/15/10 P. Dinev
Rev 0.7
03/02/10 P. Dinev
Rev 0.8
03/12/10 P. Dinev
Rev 0.9
04/12/10 P. Dinev
Rev 1.0
04/25/10 P. Dinev
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Initial Pre-Release – Old UART protocol
Old UART removed, added new UART protocol and new
register addresses.
Image Enhancement section, AOI8 modes added.
Figure 2.27a and related text changed.
B0620, B2520 cameras added, all related tables and figures
updated. Minor errors fixed.
B1620, B1920 cameras added, all related tables and figures
updated. Minor errors fixed.
B2020, B4020 and B4820 cameras added, all related tables
and figures updated. Minor errors fixed.
GEV option added to all cameras, all related tables and
figures updated. Minor errors fixed.
Official Release
Rev. 1.0
5/4/2010
2 of 212
BOBCAT Hardware User’s Manual
TABLE OF CONTENTS
BOBCAT HARDWARE USER’S MANUAL
CHAPTER 1 – INTRODUCTION
1
15
1.1
BOBCAT FAMILY............................................................................................................ 16
1.2
GENERAL DESCRIPTION ............................................................................................. 17
1.3
BOBCAT SPECIFICATIONS .......................................................................................... 19
1.3.1
General Information ..................................................................................................... 19
1.3.2
Spectral Response ........................................................................................................ 21
1.3.3
Bayer Pattern Information............................................................................................ 23
1.3.4
Technical Specifications .............................................................................................. 24
1.4
CAMERA CONNECTIVITY ........................................................................................... 34
1.4.1
Camera Link Output..................................................................................................... 34
1.4.2
GigE Output ................................................................................................................. 39
1.4.3
Power Supply ............................................................................................................... 40
1.5
MECHANICAL, OPTICAL and ENVIRONMENTAL ................................................ 41
1.5.1
Mechanical ................................................................................................................... 41
1.5.2
Optical .......................................................................................................................... 48
1.5.3
Environmental .............................................................................................................. 48
CHAPTER 2 – CAMERA FEATURES
52
2.1
IMAGE RESOLUTION .................................................................................................... 53
2.1.1
Normal Mode – Single Output ..................................................................................... 53
2.1.2
Normal Mode – Dual Output ....................................................................................... 54
2.1.3
Center Mode................................................................................................................. 54
2.2
FRAME TIME CONTROL .............................................................................................. 58
2.2.1
Internal Line and Frame Time Control ........................................................................ 58
2.2.2
Camera Speed Control ................................................................................................. 58
2.2.3
External Line and Frame Time Control ....................................................................... 59
2.3
AREA OF INTEREST....................................................................................................... 60
2.3.1
Horizontal and Vertical Window ................................................................................. 60
2.3.2
Calculating the Frame Rate using Vertical Window.................................................... 62
2.4
BINNING ............................................................................................................................ 73
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
3 of 212
BOBCAT Hardware User’s Manual
2.5
EXPOSURE CONTROL................................................................................................... 77
Internal Exposure Control - Electronic Shutter............................................................ 77
2.5.1
2.5.2
External exposure control............................................................................................. 77
2.5.3
Variable Frame Time – Programmable Line and Frame Time .................................... 77
2.5.4
Automatic Exposure Control (AEC) ............................................................................ 78
2.5.5
Automatic Iris Control (AIC)....................................................................................... 79
2.6
EXTERNAL TRIGGER.................................................................................................... 80
2.6.1
Triggering Inputs.......................................................................................................... 80
2.6.2
Acquisition and Exposure Control ............................................................................... 80
2.6.3
Trigger Strobe Control ................................................................................................. 81
2.6.4
Triggering modes ......................................................................................................... 81
2.7
STROBE OUTPUT ............................................................................................................ 86
2.8
GAIN and OFFSET ........................................................................................................... 87
2.8.1
Analog Domain – manual control ................................................................................ 87
2.8.2
Digital Domain – manual control................................................................................. 88
2.8.3
Automatic Gain Control (AGC)................................................................................... 88
2.9
DATA OUTPUT FORMAT .............................................................................................. 89
2.9.1
Bit Depth ...................................................................................................................... 89
2.9.2
Digital Data Shift ......................................................................................................... 90
2.9.3
Output Format .............................................................................................................. 90
2.10
PULSE GENERATOR ...................................................................................................... 93
2.11 I/O CONTROL................................................................................................................... 94
2.11.1
I/O Mapping ................................................................................................................. 94
2.11.2
Electrical Connectivity................................................................................................. 95
2.12 TEST IMAGE PATTERNS .............................................................................................. 97
2.12.1
Test Image patterns ...................................................................................................... 97
2.12.2
Image Superimposition ................................................................................................ 97
2.13
DYNAMIC BLACK LEVEL CORRECTION AND TAP BALANCING.................... 98
2.14 TRANSFER FUNCTION CORRECTION – USER LUT.............................................. 98
2.14.1
Standard Gamma Correction........................................................................................ 99
2.14.2
User Defined LUT........................................................................................................ 99
2.15
DEFECTIVE PIXEL CORRECTION........................................................................... 101
2.16
FLAT FIELD CORRECTION ....................................................................................... 102
2.17
NEGATIVE IMAGE ....................................................................................................... 104
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
4 of 212
BOBCAT Hardware User’s Manual
2.18 CAMERA INTERFACE ................................................................................................. 105
Status LED ................................................................................................................. 105
2.18.1
2.18.2
Temperature Monitor ................................................................................................. 105
2.18.3
Exposure Time Monitor ............................................................................................. 105
2.18.4
Frame Time Monitor .................................................................................................. 106
2.18.5
Current image size...................................................................................................... 106
CHAPTER 3 – DIGITAL IMAGE PROCESSING
3.1
107
OVERVIEW ..................................................................................................................... 108
3.2
IMAGE ENHANCEMENT............................................................................................. 108
3.2.1
Threshold Operation................................................................................................... 108
3.2.2
Multi Point Correction ............................................................................................... 110
CHAPTER 4 – CAMERA CONFIGURATION
4.1
4.2
4.2.1
4.2.3
114
OVERVIEW ..................................................................................................................... 115
CAMERA CONFIGURATION .................................................................................. 115
Configuration Memory – parameter FLASH ............................................................. 115
Camera Serial Protocol............................................................................................... 116
4.3
CAMERA CONFIGURATION REGISTER DESCRIPTION.................................... 120
4.3.1
Startup Procedure ....................................................................................................... 120
4.3.2
Saving and Restoring Settings.................................................................................... 120
4.3.3
Retrieving Manufacturing Data.................................................................................. 122
4.3.4
Camera Information Registers ................................................................................... 123
4.3.5
Image Size (AOI) Workspace Registers .................................................................... 126
4.3.6
Exposure Control Workspace Registers..................................................................... 132
4.3.7
AEC, AGC, AIC Workspace Registers...................................................................... 134
4.3.8
Video Amp, Gain and Offset Workspace Registers................................................... 137
4.3.9
Triggering Workspace Registers................................................................................ 138
4.3.10
Pulse Generator Workspace Registers ....................................................................... 142
4.3.11
Test Pattern Workspace Registers.............................................................................. 143
4.3.12
Input/output Workspace Registers ............................................................................. 144
4.3.13
Output Data Format.................................................................................................... 149
4.3.14
Data Correction Workspace Registers ....................................................................... 151
4.4
DATA PROCESSING REGISTER DESCRIPTION ................................................... 153
4.4.1
Image Enhancement Workspace Registers ................................................................ 153
CHAPTER 5 - CONFIGURATOR FOR CAMERALINK
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
155
Rev. 1.0
5/4/2010
5 of 212
BOBCAT Hardware User’s Manual
5.1
OVERVIEW ..................................................................................................................... 156
5.2
DISCOVERY PROCEDURE.......................................................................................... 156
5.3
GRAPHICAL USER INTERFACE ............................................................................... 157
5.4
MAIN GUI MENU ........................................................................................................... 158
5.5
VIEW GUI WINDOWS .................................................................................................. 162
5.6
GUI HELP ........................................................................................................................ 163
5.7
PARAMETER WINDOWS ............................................................................................ 164
5.7.1
Video Amp ................................................................................................................. 164
5.7.2
I/O Control ................................................................................................................. 165
5.7.3
Trigger........................................................................................................................ 167
5.7.4
Pulse Generator .......................................................................................................... 169
5.7.5
Exposure..................................................................................................................... 170
5.7.6
Test Image .................................................................................................................. 172
5.7.7
Area of Interest (AOI) ................................................................................................ 173
5.7.8
Strobe Control ............................................................................................................ 175
5.7.9
Processing................................................................................................................... 176
5.7.10
Data Output ................................................................................................................ 178
CHAPTER 6 – GEN<I>CAM REFERENCE MANUAL
6.1
181
INTRODUCTION............................................................................................................ 182
6.2
NODE TREE .................................................................................................................... 183
6.2.1
Device Information .................................................................................................... 183
6.2.2
IP Engine .................................................................................................................... 183
6.2.3
GigE Vision Transport Layer..................................................................................... 183
6.2.5
Acquisition and Trigger Controls............................................................................... 185
6.2.6
Counters and Timers Controls.................................................................................... 185
6.2.7
Analog Controls ......................................................................................................... 186
6.2.8
Test Mode................................................................................................................... 186
6.2.9
User Sets..................................................................................................................... 186
6.2.10
Custom Features......................................................................................................... 187
CHAPTER 7 – BOBCAT WARRANTY AND SUPPORT
190
7.1
ORDERING INFORMATION ....................................................................................... 191
7.2
TECHNICAL SUPPORT ................................................................................................ 192
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
6 of 212
BOBCAT Hardware User’s Manual
7.3
WARRANTY.................................................................................................................... 193
APPENDIX A – CAMERA CONFIGURATION REFERENCE
194
A.0
ABBREVIATIONS .......................................................................................................... 195
A.1
SAVING AND RESTORING REGISTERS.................................................................. 195
A.2
CAMERA INFORMATION REGISTERS ................................................................... 195
A.3
IMAGE SIZE (AOI) REGISTERS................................................................................. 196
A.4
EXPOSURE CONTROL REGISTERS......................................................................... 197
A.5
VIDEO REGISTERS....................................................................................................... 197
A.6
AEC, AGC, AIC REGISTERS ....................................................................................... 198
A.7
TRIGGER REGISTERS ................................................................................................. 198
A.8
PULSE GENERATOR REGISTERS ............................................................................ 199
A.9
TEST PATTERN REGISTERS...................................................................................... 199
A.10
STROBE REGISTERS.................................................................................................... 199
A.11
INPUT AND OUTPUT REGISTERS ............................................................................ 199
A.12
OUTPUT DATA FORMAT REGISTERS .................................................................... 200
A.13
DATA CORRECTION REGISTERS ............................................................................ 200
A.14
PROCESSING REGISTERS .......................................................................................... 200
A.15
MANUFACTURING DATA REGISTERS ................................................................... 201
APPENDIX B – CREATING LOOK UP TABLES
202
B.1
OVERVIEW ..................................................................................................................... 203
B.2
USING AN ASCII TEXT EDITOR................................................................................ 203
B.3
USING MICROSOFT EXCEL....................................................................................... 204
APPENDIX C – CREATING DPC AND HPC TABLES
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
205
Rev. 1.0
5/4/2010
7 of 212
BOBCAT Hardware User’s Manual
C.1
OVERVIEW ..................................................................................................................... 206
C.2
USING AN ASCII TEXT EDITOR................................................................................ 206
APPENDIX D – SOFTWARE INSTALLATION - CL
207
APPENDIX E – FIRMWARE UPGRADE - CL
209
E.1
OVERVIEW ..................................................................................................................... 210
E.2
BOBCAT UPGRADE ...................................................................................................... 210
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
8 of 212
BOBCAT Hardware User’s Manual
FIGURES
Figure 1.0 – Interline CCD pixel structure.
20
Figure 1.1a – KAI (Kodak) CCD typical mono spectral response.
21
Figure 1.1b – KAI (Kodak) CCD typical UV spectral response.
21
Figure 1.1c – KAI (Kodak) CCD typical color spectral response.
22
Figure 1.2a – ICX (SONY) CCD typical mono spectral response.
22
Figure 1.2b – ICX (Sony) CCD typical color spectral response.
23
Figure 1.3 – Bayer Patter arrangement.
23
Figure 1.4 – Camera back panel – camera link output
34
Figure 1.5a – Camera output connector
35
Figure 1.5b – Camera power connector
37
Figure 1.6 – Camera back panel –GigE output
39
Figure 1.7a – C-mount camera link cameras.
41
Figure 1.7b – C-mount GEV cameras.
41
Figure 1.8a – C-mount camera link output – dimensional drawings for ICL-B0610, ICLB0620, ICL-B1410, ICL-B1610 and ICL-B2520.
42
Figure 1.8b – C-mount camera link output – dimensional drawings for ICL-B1620 and
ICL-B1920.
43
Figure 1.8c – F-mount camera link output – dimensional drawings for ICL-B2020, ICLB4020 and ICL-B4820.
44
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
9 of 212
BOBCAT Hardware User’s Manual
Figure 1.8d – C-mount GigE vision output – dimensional drawings for IGV-B0610, IGV45
B0620, IGV-B1410, IGV-B1610 and IGV-B2520.
Figure 1.8e – C-mount GigE vision output – dimensional drawings for IGV-B1620 and
IGV-B1920.
46
Figure 1.8f – F-mount GigE vision output – dimensional drawings for IGV-B2020, IGVB4020 and IGV-B4820.
47
Figure 1.9a – Optical plane position for B0610, B0620, B1410, B1610 and B2520
cameras.
49
Figure 1.9b – Optical plane position for B1620 and B1920 cameras.
50
Figure 1.9b – Optical plane position for B2020, B4020 and B4820 cameras.
51
Figure 2.1 – Single output mode of operation.
53
Figure 2.2 – Dual output mode of operation.
54
Figure 2.3 – Center columns output mode of operation.
55
Figure 2.4 – Center columns output in dual mode of operation.
56
Figure 2.5 – Center columns output in dual tap mode.
56
Figure 2.6 – Sub-sampled CCD output.
57
Figure 2.7 – Horizontal and vertical window positioning.
60
Figure 2.8 – Slave AOIs.
61
Figure 2.9 – PAOI enabled as processing ROI.
62
Figure 2.10a – Frame rate vs. vertical window size for B0610
63
Figure 2.10b – Frame rate vs. Vertical window size for B0620
64
Figure 2.10c – Frame rate vs. Vertical window size for B1410
65
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
10 of 212
BOBCAT Hardware User’s Manual
Figure 2.10d – Frame rate vs. Vertical window size for B1610
66
Figure 2.10e – Frame rate vs. Vertical window size for B1620
67
Figure 2.10f – Frame rate vs. Vertical window size for B1920
68
Figure 2.10g – Frame rate vs. vertical window size for B2520
69
Figure 2.10h – Frame rate vs. vertical window size for B2020
70
Figure 2.10i – Frame rate vs. vertical window size for B4020.
71
Figure 2.10j – Frame rate vs. vertical window size for B4820.
72
Figure 2.11 – 2:2 Horizontal and vertical binning
73
Figure 2.11a – AOI within horizontal and vertical binned image.
76
Figure 2.12 – Electronic shutter position
77
Figure 2.13 – Programmable frame time
78
Figure 2.14 – Standard triggering timing
82
Figure 2.15 – Fast synchronized triggering - rapid capture
83
Figure 2.16 – Double exposure triggering
84
Figure 2.17 – Frame accumulation triggering
85
Figure 2.18 – Asynchronous triggering
85
Figure 2.19 – Strobe pulse positioning
86
Figure 2.20 – AFE gain and offset
87
Figure 2.21 – DATA output format
89
Figure 2.22 – Output data using 4 bits digital right shift
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
90
Rev. 1.0
5/4/2010
11 of 212
BOBCAT Hardware User’s Manual
Figure 2.24a – 2 tap sequential output
91
Figure 2.24b – 2 tap interleaved output
92
Figure 2.25 – Internal pulse generator
93
Figure 2.26 – IN1, IN2 electrical connection.
95
Figure 2.27 – OUT1, OUT2 electrical connection.
95
Figure 2.30 – Look up table
98
Figure 2.31 – Gamma corrected video signal
99
Figure 2.32 – Custom LUT
100
Figure 2.33a – Original image showing ‘shading’ effect
103
Figure 2.33b – Flat field corrected image
103
Figure 2.34 – Normal and Negative Image
104
Figure 3.1 – Original and processed image with single threshold.
109
Figure 3.2 – Original and processed image with double threshold.
109
Figure 3.3 – Original and processed image with threshold and gray scale stretch.
110
Figure 3.4 – Single point TF correction.
111
Figure 3.5 – Multi point TF correction.
112
Figure 3.6 – Multi point image correction (a – original, b – processed).
113
Figure 3.1 – Serial protocol format
116
Figure 3.2 – Normal write cycle
117
Figure 3.3a – Invalid command error
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
117
Rev. 1.0
5/4/2010
12 of 212
BOBCAT Hardware User’s Manual
Figure 3.3b – Rx timeout error
117
Figure 3.4 – Normal read cycle
118
Figure 5.1 – Discovery procedure – select port
156
Figure 5.2 – CamConfig GUI
157
Figure 5.3 – Main Menu
158
Figure 5.5 – Command terminal
160
Figure 5.6 – Download terminal
161
Figure 5.7 – View GUI Windows
162
Figure 5.8 – Help menu
163
Figure 5.9 – About CamConfig.
163
Figure 5.10 – Video Amp parameter window
164
Figure 5.11 – I/O control parameter window
166
Figure 5.13 – Pulse generator window
169
Figure 5.16 – AOI window.
174
Figure 5.17 – Strobe Control window
175
Figure 5.19 – Data output window
178
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
13 of 212
BOBCAT Hardware User’s Manual
TABLES AND CAPTIONS
Table 1.0 – Pixel structure for different BOBCAT cameras
20
Table 1.1a – B01610, B0620 Camera Specifications.
25
Table 1.1b – B1410 and B1610 Camera Specifications
27
Table 1.1c – B1620 and B1920 Camera Specifications
29
Table 1.1d – B2520 and B2020 Camera Specifications
31
Table 1.1e – B4020 and B4820 Camera Specifications
33
Table 1.2 – Camera Output Connector – Signal Mapping
35
Table 1.3 – Base Camera Link bit assignment
36
Table 1.4a – Camera Power Connector Pin Mapping
37
Table 1.4b – BNC Connectors Pin Mapping
38
Table 2.1 – Image resolutions for different modes
57
Table 2.2 – Frame rates for different modes
59
Table 2.3a – Image sizes and frame rates for different H binning modes
74
Table 2.3b – Image sizes and frame rates for different V binning modes
74
Table 2.3c – B0620 Center mode image sizes and frame rates during V binning
74
Table 2.4a – BOBCAT Input Mapping
94
Table 2.4b – BOBCAT Output Mapping
94
Table 3.1 – Current camera temperature values
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
126
Rev. 1.0
5/4/2010
14 of 212
BOBCAT Hardware User’s Manual
Chapter 1 – Introduction
Introduction
This chapter outlines the key features of the BOBCAT camera.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
15 of 212
BOBCAT Hardware User’s Manual
1.1
BOBCAT FAMILY
The BOBCAT series of cameras are built around a robust imaging platform utilizing the
latest digital technology and components. BOBCAT camera series is designed around 10
different CCD imaging sensors, featuring different resolutions and frame rates. Each base
model is available in monochrome and color. Each base model is also available with Base
CameraLink PoCL output and GEV. The first three letters in the camera model name
shows the output interface – ICL for Camera Link, and IGV – for GigE Vision.
The BOBCAT family list is shown below:
Model
ICL-B0610M
ICL-B0610C
ICL-B0620M
ICL-B0620C
ICL-B1410M
ICL-B1410C
ICL-B1610M
ICL-B1610C
ICL-B1620M
ICL-B1620C
ICL-B1920M
ICL-B1920C
ICL-B2020M
ICL-B2020C
ICL-B2520M
ICL-B2520C
ICL-B4020M
ICL-B4020C
ICL-B2520M
Resolution
648/640 x 488/480
648/640 x 488/480
648/640 x 488/480
648/640 x 488/480
1392/1360 x 1040/1024
1392/1360 x 1040/1024
1628/1620 x 1236/1220
1628/1620 x 1236/1220
1608/1600 x 1208/1200
1608/1600 x 1208/1200
1928/1920 x 1084/1080
1928/1920 x 1084/1080
2056/2048 x 2060/2048
2056/2048 x 2060/2048
2456/2448 x 2058/2050
2456/2448 x 2058/2050
4032/4008 x 2688/2672
4032/4008 x 2688/2672
4904/4872 x 3280/3248
Speed
110/138 fps
110/138 fps
210/260 fps
210/260 fps
23/30 fps
23/30 fps
16/25 fps
16/25 fps
35/44 fps
35/44 fps
33/41 fps
33/41 fps
16/20 fps
16/20 fps
11/16 fps
11/16 fps
4.9/6.5 fps
4.9/6.5 fps
3.2/4.2 fps
Type
Mono
Color
Mono
Color
Mono
Color
Mono
Color
Mono
Color
Mono
Color
Mono
Color
Mono
Color
Mono
Color
Mono
Optics
1/3"
1/3"
1/3"
1/3"
2/3"
2/3"
1/1.8"
1/1.8"
1.0"
1.0"
1.0"
1.0"
1.3"
1.3"
2/3"
2/3"
43.3 mm
43.3 mm
43.3 mm
CCD Vendor
Kodak
Kodak
Kodak
Kodak
SONY
SONY
SONY
SONY
Kodak
Kodak
Kodak
Kodak
Kodak
Kodak
SONY
SONY
Kodak
Kodak
Kodak
CCD Model
KAI-0340SM
KAI-0340SC
KAI-0340DM
KAI-0340DC
ICX-285AL
ICX-285AQ
ICX-274AL
ICX-274AQ
KAI-2020M
KAI-2020C
KAI-2093M
KAI-2093C
KAI-4022M
KAI-4022C
ICX-625ALA
ICX-625AQA
KAI-11002M
KAI-11002C
KAI-16000M
ICL-B2520C
4904/4872 x 3280/3248
3.2/4.2 fps
Color
43.3 mm
Kodak
KAI-16000C
NOTE: Since the camera features and performance are output invariant, when describing
the cameras we will use only the model number without the first three letters.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
16 of 212
BOBCAT Hardware User’s Manual
1.2
GENERAL DESCRIPTION
The BOBCAT cameras are advanced, intelligent, high-resolution, progressive scan, fully
programmable and field upgradeable CCD cameras. They are built around SONY’s and
KODAK’s line of interline transfer CCD imagers. BOBCAT cameras are feature rich with
built in image processing engine (based on a 2 million gates FPGA), have small size, very
low power consumption, low noise, and efficient and optimized internal thermal
distribution. The BOBCAT cameras feature programmable image resolution, frame rates,
gain, offset, asynchronous external triggering with programmable exposure, fast triggering,
double exposure and capture duration, electronic shutter, long time integration, strobe
output, transfer function correction, temperature monitoring and user programmable and
up-loadable LUT. A square pixel provides for a superior image in any orientation. The
interline transfer CCD permits full vertical and horizontal resolution of high-speed shutter
images. The combination of electronic shutter and long time integration enables the
cameras capturing speed to be from 1/500,000 second to more than 16 seconds. A built-in
Gamma correction and user LUT optimizes the CCD‘s dynamic range. The cameras have a
standard GEV or Camera Link™ interface that includes 8/10/12/14 bits data transmission
with one or two output taps as well as camera control and asynchronous RS232 serial
communication interface, all on a single cable. The cameras are fully programmable via the
serial interface using a GUI based configuration utility. The adaptability and flexibility of
the camera allows it to be used in a wide and diverse range of applications including
machine vision, metrology high-definition imaging and surveillance, medical and scientific
imaging, intelligent transportation systems, character recognition, document processing and
many more.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
17 of 212
BOBCAT Hardware User’s Manual
MAIN BOBCAT FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Mono and color - 8/10/12/14-bit data
Color - 3x8-bit (RGB) data, auto white balance (optional)
Normal and over-clock operation
Base camera link, PoCL support or GigE Vision
Rs232 serial communication
Analog and digital gain and offset control
1x, 2x, 3x, 4x, 8x horizontal and vertical binning
Eight (7 + 1) independent horizontal and vertical AOIs
Programmable horizontal and vertical resolution
Programmable line time, frame time and speed.
Programmable external trigger:
o 3 triggering sources
o 5 triggering modes
Automatic gain, exposure and iris control
Internal/External exposure control
Internal/External H and V sync input/output
Left/right digital bit shift
Test image with image superimposition
Built in pulse generator
Programmable I/O mapping
o 4 programmable inputs
o 3 programmable outputs
Dynamic transfer function correction
Dynamic black level correction
Two dimensional Flat field correction
Defective and hot pixel correction
Temperature monitor
Field upgradeable firmware, LUT, DPC, HPC, FFT
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
18 of 212
BOBCAT Hardware User’s Manual
1.3
BOBCAT SPECIFICATIONS
1.3.1 General Information
A CCD camera is an electronic device for converting light into an electrical signal.
The camera contains a light sensitive element CCD (Charge Coupled Device) where
an electronic representation of the image is formed. The CCD consists of a two
dimensional array of sensitive elements – silicon photodiodes, also known as pixels.
The photons falling on the CCD surface create photoelectrons within the pixels,
where the number of photoelectrons is linearly proportional to the light level.
Although the number of electrons collected in each pixel is linearly proportional to
the light level and exposure time, the amount of electrons varies with the
wavelength of the incident light. When the desired exposure is reached, the charges
from each pixel are shifted onto a vertical register, VCCD, and then one row
downwards in a vertical direction towards a horizontal register, HCCD. After that
the electrons contained in the HCCD are shifted in a horizontal direction, one pixel
at a time, onto a floating diffusion output node where the transformation from
charge to voltage takes place. The resultant voltage signal is buffered by a video
amplifier and sent to the corresponding video output. There are two floating
diffusions and two video amplifiers at each end of the HCCD, and the charges can
be transferred towards any of the outputs (depending on the mode of operation).
The time interval required for all the pixels, from the entire imager, to be clocked
out of the HCCD is called a frame. To generate a color image a set of color filters
(Red, Green, and Blue) arranged in a “Bayer” pattern, are placed over the pixels.
The starting color is typically Green for Kodak CCDs and Red for SONY CCDs,
but it varies from CCD to CCD. Figure 1.0 shows the CCD pixel structure. Table
1.1 shows the individual pixel structure for different BOBCAT cameras. Effective
pixels image consists of Active and Buffer pixels. Figures 1.1a, b, c and 1.2a,b
show the camera’s spectral response. Figure 1.3 shows the Bayer patter
arrangement.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
19 of 212
BOBCAT Hardware User’s Manual
Figure 1.0 – Interline CCD pixel structure.
Camera
Type
B0610
B0620
B1410
B1610
B1620
B1920
B2020
B2520
B4020
B4820
Effective
Pixels
648
648
1392
1628
1608
1928
2056
2456
4032
4904
Active
Pixels
640
640
1360
1620
1600
1920
2048
2448
4008
4872
Effective
Lines
488
488
1040
1236
1208
1084
2060
2058
2688
3280
Active
Lines
480
480
1024
1220
1200
1080
2048
2050
2672
3248
CCD Sensor
KAI-0340S
KAI-0340D
ICX-285
ICX-274
KAI-2020
KAI-2093
KAI-4022
ICX-625
KAI-11002
KAI-16000
Pixel Size
7.40 µm sq
7.40 µm sq
6.45 µm sq
4.40 µm sq
7.40 µm sq
7.40 µm sq
7.40 µm sq
3.45 µm sq
9.00 µm sq
7.40 µm sq
Table 1.0 – Pixel structure for different BOBCAT cameras
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
20 of 212
BOBCAT Hardware User’s Manual
1.3.2 Spectral Response
Figure 1.1a – KAI (Kodak) CCD typical mono spectral response.
(Monochrome with the cover glass)
Figure 1.1b – KAI (Kodak) CCD typical UV spectral response.
(UV quantum efficiency measured without cover glass and micro-lenses)
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
21 of 212
BOBCAT Hardware User’s Manual
Figure 1.1c – KAI (Kodak) CCD typical color spectral response.
(Color with the cover glass)
Figure 1.2a – ICX (SONY) CCD typical mono spectral response.
(Monochrome with the cover glass)
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
22 of 212
BOBCAT Hardware User’s Manual
Figure 1.2b – ICX (Sony) CCD typical color spectral response.
(Color with the cover glass)
1.3.3 Bayer Pattern Information
Bobcat is available with Monochrome or Color CCD imager. To generate a color
image a set of color filters (Red, Green, and Blue) arranged in a “Bayer” pattern,
are placed over the pixels. The starting color is typically GREEN for Kodak CCDs
and RED for SONY CCDs – Figure 1.3.
Figure 1.3 – Bayer Patter arrangement.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
23 of 212
BOBCAT Hardware User’s Manual
1.3.4 Technical Specifications
Specifications
Active image resolution
Active image area (H, V) mm
Pixel size
Video output
Output structure
Data clock
Camera interface
RS 232 interface
PoCL
Nominal frame rate
Maximum frame rate
S/N ratio
Shutter speed
Line time
Frame Time (Long int.)
Analog gain
Gain resolution
Analog CDS gain
Black level offset
Digital gain
Digital offset
Auto gain/exposure
Auto iris
Area of interest
Binning
Test image
User LUT
Defective pixel correction
Hot pixel correction
Flat field correction
Negative Image
I/O Control
Digital bit shift
Strobe output
Pulse Generator
Hardware trigger
Software trigger
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
B0610
648/640 (H) x 488/480 (V)
4.795/4.736 x 3.611/3.552
7.40 µm
Digital, 8/10/12/14 bit
Single
40.000/50.000 MHz
Base CL
Yes
12VDC, 4W (CL only)
110/137 fps
Up to 2000 fps
60 dB
1/500000 to 1/110 sec
Up to 200 us
Up to 16 sec
0 to 36 dB per output
0.035 dB/step, 1024 steps
(-3.0, 0.0, +3.0, +6.0) dB
1024 levels per output
1.0x to 3.0x (0.1x step)
-511 to + 511
Yes, with AOI
Yes
Eight Independent AOIs
2x2, 3x3, 4x4, 8x8
Yes, Image superimposition
2 LUTs: Gamma, User LUT
Yes, User DPM
Yes, User HPM
No
Yes
4 inputs, 3 outputs
7 bits, Left or Right
Two strobes, Active HIGH
Yes
Asynchronous, optically
isolated
Asynchronous, frame-grabber
B0620
648/640 (H) x 488/480 (V)
4.795/4.736 x 3.611/3.552
7.40 µm
Digital, 8/10/12/(14 sing.) bit
Single or Dual
40.000/50.000 MHz
Base CL
Yes
12VDC, 4W (CL only)
208/260 fps
Up to 2200 fps
60 dB
1/500000 to 1/110 sec
Up to 200 us
Up to 16 sec
0 to 36 dB per output
0.035 dB/step, 1024 steps
(-3.0, 0.0, +3.0, +6.0) dB
1024 levels per output
1.0x to 3.0x (0.1x step)
-511 to + 511
Yes, with AOI
Yes
Eight Independent AOIs
2x2, 3x3, 4x4, 8x8
Yes, Image superimposition
2 LUTs: Gamma, User LUT
Yes, User DPM
Yes, User HPM
No
Yes
4 inputs, 3 outputs
7 bits, Left or Right
Two strobes, Active HIGH
Yes
Asynchronous, optically
isolated
Asynchronous, frame-grabber
Rev. 1.0
5/4/2010
24 of 212
BOBCAT Hardware User’s Manual
Trigger modes
Trigger features
In-camera Image Processing
Camera Image Memory
Camera housing
Size (W x H x L) - CL
Size (W x H x L) - GigE
Weight - CL/GigE
Min. illumination
Lens Mount
Supply voltage range
Power CL/GigE
Upgradeable firmware
Upgradeable LUT, DPM, HPM
Environmental - Operating
Environmental - Storage
Vibration, Shock
Relative humidity
Standard, Double, Fast,
Standard, Double, Fast,
Async., Frame integration
Async., Frame integration
Rising/Falling edge, De-glitch, Rising/Falling edge, De-glitch,
Delay, Strobe
Delay, Strobe
Yes, User
Yes, User
256MB
Aluminum
(45 x 45 x 39) mm
(45 x 45 x 63) mm
160/180 g
1.0 Lox, f=1.4
C mount, 1/3” format
10 V to 15 V DC
1.4 W / 3.9 W
Yes
Yes
- 30.0 to + 65.0 deg C
- 40.0 to + 70.0 deg C
10G (20-200) Hz XYZ, 70G
80% non-condensing
256MB
Aluminum
(45 x 45 x 39) mm
(45 x 45 x 63) mm
160/180 g
1.0 Lux, f=1.4
C mount, 1/3” format
10 V to 15 V DC
2.4 W/ 4.9 W
Yes
Yes
- 30.0 to + 65.0 deg C
- 40.0 to + 70.0 deg C
10G (20-200) Hz XYZ, 70G
80% non-condensing
Table 1.1a – B01610, B0620 Camera Specifications.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
25 of 212
BOBCAT Hardware User’s Manual
Specifications
B1410
B1610
Active image resolution
1392/1360 (H) x 1040/1024 (V) 1628/1620 (H) x 1236/1220 (V)
Active image area (H, V) mm
8.978/8.772 x 6.708/6.605
7.163/7.128 x 5.439/5.368
Pixel size
6.45 µm
4.40 µm
Video output
Digital, 8/10/12/14 bit
Digital, 8/10/12/14 bit
Output structure
Single
Single
Data clock
40.000/54.000 MHz
40.000/64.000 MHz
Camera interface
Base CL/GigE/GEV
Base CL/GigE/GEV
RS 232 interface
Yes
Yes
PoCL
12VDC, 4W (CL only)
12VDC, 4W (CL only)
Nominal frame rate
23/30 fps
17/25 fps
Maximum frame rate
Up to 200 fps
Up to 200 fps
S/N ratio
60 dB
60 dB
Shutter speed
1/250000 to 1/23 sec
1/200000 to 1/17 sec
Line time
Up to 200 us
Up to 200 us
Frame Time (Long int.)
Up to 16 sec
Up to 16 sec
Analog gain
0 to 36 dB per output
0 to 36 dB per output
Gain resolution
0.035 dB/step, 1024 steps
0.035 dB/step, 1024 steps
Analog CDS gain
(-3.0, 0.0, +3.0, +6.0) dB
(-3.0, 0.0, +3.0, +6.0) dB
Black level offset
1024 levels per output
1024 levels per output
Digital gain
1.0x to 3.0x (0.1x step)
1.0x to 3.0x (0.1x step)
Digital offset
-511 to + 511
-511 to + 511
Auto gain/exposure
Yes, with AOI
Yes, with AOI
Auto iris
Yes
Yes
Area of interest
Eight Independent AOIs
Eight Independent AOIs
Binning
2x2, 3x3, 4x4, 8x8
2x2, 3x3, 4x4, 8x8
Yes, Image superimposition
Yes, Image superimposition
Test image
User LUT
2 LUTs: Gamma, User LUT
2 LUTs: Gamma, User LUT
Defective pixel correction
Yes, User DPM
Yes, User DPM
Hot pixel correction
Yes, User HPM
Yes, User HPM
Flat field correction
No
No
Negative Image
Yes
Yes
I/O Control
4 inputs, 3 outputs
4 inputs, 3 outputs
Digital bit shift
7 bits, Left or Right
7 bits, Left or Right
Strobe output
Two strobes, Active HIGH
Two strobes, Active HIGH
Pulse Generator
Yes
Yes
Hardware trigger
Asynchronous, optically isolated Asynchronous, optically isolated
Software trigger
Trigger modes
Trigger features
In-camera Image Processing
Camera Image Memory
Camera housing
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Asynchronous, frame-grabber Asynchronous, frame-grabber
Standard, Double, Fast, Async, Standard, Double, Fast, Async,
Frame integration
Frame integration
Rising/Falling edge, De-glitch, Rising/Falling edge, De-glitch,
Delay, Strobe
Delay, Strobe
Yes, User
Yes, User
256MB
256MB
Aluminum
Aluminum
Rev. 1.0
5/4/2010
26 of 212
BOBCAT Hardware User’s Manual
Size (W x H x L) - CL
Size (W x H x L) - GigE
Weight - CL/GigE
Min. illumination
Lens Mount
Supply voltage range
Power CL/GigE
Upgradeable firmware
Upgradeable LUT, DPM, HPM
Environmental - Operating
Environmental - Storage
Vibration, Shock
Relative humidity
(45 x 45 x 39) mm
(45 x 45 x 63) mm
160/180 g
0.2 Lux, f=1.4
C mount, 2/3” format
10 V to 15 V DC
2.1 W / 4.6 W
Yes
Yes
- 30.0 to + 65.0 deg C
- 40.0 to + 70.0 deg C
10G (20-200) Hz XYZ, 70G
80% non-condensing
(45 x 45 x 39) mm
(45 x 45 x 63) mm
160/180 g
0.5 Lux, f=1.4
C mount, 1/1.8” format
10 V to 15 V DC
2.1 W / 4.6 W
Yes
Yes
- 30.0 to + 65.0 deg C
- 40.0 to + 70.0 deg C
10G (20-200) Hz XYZ, 70G
80% non-condensing
Table 1.1b – B1410 and B1610 Camera Specifications
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
27 of 212
BOBCAT Hardware User’s Manual
Specifications
B1620
Active image resolution
1608/1600 (H) x 1208/1200 (V)
Active image area (H, V) mm 11.899/11.840 x 8.939/8.880
Pixel size
7.40 µm
Video output
Digital, 8/10/12/(14 sing.) bit
Output structure
Single RGB or Dual (Seq. or Int.)
Data clock
40.000/50.000 MHz
Camera interface
Base CL/GigE/GEV
RS 232 interface
Yes
PoCL
12VDC, 4W (CL only)
Nominal frame rate
35/44 fps
Maximum frame rate
Up to 299 fps
S/N ratio
60 dB
Shutter speed
1/100000 to 1/35 sec
Line time
up to 200 us
Frame Time (Long int.)
up to 16 sec
Analog gain
0 to 36 dB per output
Gain resolution
0.035 dB/step, 1024 steps
Analog CDS gain
(-3.0, 0.0, +3.0, +6.0) dB
Black level offset
1024 levels per output
Digital gain
1.0x to 3.0x (0.1x step)
Digital offset
-511 to + 511
Auto gain/exposure
Yes, with AOI
Auto iris
Yes
Area of interest
Eight Independent AOIs
Binning
2x2, 3x3, 4x4, 8x8
Yes, Image superimposition
Test image
User LUT
2 LUTs: Gamma, User LUT
Defective pixel correction
Yes, User DPM
Hot pixel correction
Yes, User HPM
Flat field correction
Yes, User FFC
Negative Image
Yes
I/O Control
4 inputs, 3 outputs
Digital bit shift
7 bits, Left or Right
Strobe output
Two strobes, Active HIGH
Pulse Generator
Yes
Hardware trigger
Asynchronous, optically isolated
Software trigger
Trigger modes
Trigger features
In-camera Image Processing
Camera Image Memory
Camera housing
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Asynchronous, frame-grabber
Standard, Double, Fast, Async,
Frame integration
Rising/Falling edge, De-glitch,
Delay, Strobe
Yes, User
256MB
Aluminum
B1920
1928/1920 (H) x 1084/1080 (V)
14.267/14.208 x 8.022/7.992
7.40 µm
Digital, 8/10/12/(14 sing.) bit
Single RGB or Dual (Seq. or Int.)
40.000/50.000 MHz
Base CL/GigE/GEV
Yes
12VDC, 4W (CL only)
33/41 fps
Up to 136 fps
60 dB
1/100000 to 1/32 sec
up to 200 us
up to 16 sec
0 to 36 dB per output
0.035 dB/step, 1024 steps
(-3.0, 0.0, +3.0, +6.0) dB
1024 levels per output
1.0x to 3.0x (0.1x step)
-511 to + 511
Yes, with AOI
Yes
Eight Independent AOIs
2x2, 3x3, 4x4, 8x8
Yes, Image superimposition
2 LUTs: Gamma, User LUT
Yes, User DPM
Yes, User HPM
Yes, User FFC
Yes
4 inputs, 3 outputs
7 bits, Left or Right
Two strobes, Active HIGH
Yes
Asynchronous, optically isolated
Asynchronous, frame-grabber
Standard, Double, Fast, Async,
Frame integration
Rising/Falling edge, De-glitch,
Delay, Strobe
Yes, User
256MB
Aluminum
Rev. 1.0
5/4/2010
28 of 212
BOBCAT Hardware User’s Manual
Size (W x H x L) - CL
Size (W x H x L) - GigE
Weight - CL/GigE
Min. illumination
Lens Mount
Power input range
Power CL/GigE
Upgradeable firmware
Upgradeable LUT, DPM, FFC
Environmental - Operating
Environmental - Storage
Vibration, Shock
Relative humidity
(45 x 45 x 43) mm
(45 x 45 x 66) mm
180/180 g
1.0 Lux, f=1.4
C mount, 1.0” format
10 V to 15 V DC
3.2 W / 5.7 W
Yes
Yes
- 30.0 to + 65.0 deg C
- 40.0 to + 70.0 deg C
10G (20-200) Hz XYZ, 70G
80% non-condensing
(45 x 45 x 43) mm
(45 x 45 x 66) mm
180/180 g
1.0 Lux, f=1.4
C mount, 1.0” format
10 V to 15 V DC
3.0 W / 5.5 W
Yes
Yes
- 30.0 to + 65.0 deg C
- 40.0 to + 70.0 deg C
10G (20-200) Hz XYZ, 70G
80% non-condensing
Table 1.1c – B1620 and B1920 Camera Specifications
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
29 of 212
BOBCAT Hardware User’s Manual
Specifications
B2520
Active image resolution
2456/2448 (H) x 2058/2050 (V)
Active image area (H, V) mm
8.473/8.446 x 7.100/7.072
Pixel size
3.45 µm
Video output
Digital, 8/10/12 bit
Output structure
Dual
Data clock
40.000/64.000 MHz
Camera interface
Base CL/GigE/GEV
RS 232 interface
Yes
PoCL
12VDC, 4W (CL only)
Nominal frame rate
11/16 fps
Maximum frame rate
Up to 45 fps
S/N ratio
60 dB
Shutter speed
1/80000 to 1/11 sec
Line time
up to 200 us
Frame Time (Long int.)
up to 16 sec
Analog gain
0 to 36 dB per output
Gain resolution
0.035 dB/step, 1024 steps
Analog CDS gain
(-3.0, 0.0, +3.0, +6.0) dB
Black level offset
1024 levels per output
Digital gain
1.0x to 3.0x (0.1x step)
Digital offset
-511 to + 511
Auto gain/exposure
Yes, with AOI
Auto iris
Yes
Area of interest
Eight Independent AOIs
Binning
2x2, 3x3, 4x4, 8x8
Yes, Image superimposition
Test image
User LUT
2 LUTs: Gamma, User LUT
Defective pixel correction
Yes, User DPM
Hot pixel correction
Yes, User HPM
Flat field correction
No
Negative Image
Yes
I/O Control
4 inputs, 3 outputs
Digital bit shift
7 bits, Left or Right
Strobe output
Two strobes, Active HIGH
Pulse Generator
Yes
Hardware trigger
Asynchronous, optically isolated
Software trigger
Asynchronous, frame-grabber
Standard, Double, Fast, Async,
Trigger modes
Frame integration
Rising/Falling edge, De-glitch,
Trigger features
Delay, Strobe
In-camera Image Processing
Yes, User
Camera Image Memory
256MB
Camera housing
Aluminum
Size (W x H x L) - CL
(45 x 45 x 39) mm
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
B2020
2056/2048 (H) x 2060/2048 (V)
15.214/15.155 x 15.244/15.155
7.40 µm
Digital, 8/10/12/(14 sing.) bit
Single RGB or Dual (Seq. or Int.)
40.000/50.000 MHz
Base CL/GigE/GEV
Yes
12VDC, 4W (CL only)
16/20 fps
Up to 155 fps
60 dB
1/100000 to 1/16 sec
up to 200 us
up to 16 sec
0 to 36 dB per output
0.035 dB/step, 1024 steps
(-3.0, 0.0, +3.0, +6.0) dB
1024 levels per output
1.0x to 3.0x (0.1x step)
-511 to + 511
Yes, with AOI
Yes
Eight Independent AOIs
2x2, 3x3, 4x4, 8x8
Yes, Image superimposition
2 LUTs: Gamma, User LUT
Yes, User DPM
Yes, User HPM
Yes, User FFC
Yes
4 inputs, 3 outputs
7 bits, Left or Right
Two strobes, Active HIGH
Yes
Asynchronous, optically isolated
Asynchronous, frame-grabber
Standard, Double, Fast, Async,
Frame integration
Rising/Falling edge, De-glitch,
Delay, Strobe
Yes, User
256MB
Aluminum
(60 x 60 x 38) mm
Rev. 1.0
5/4/2010
30 of 212
BOBCAT Hardware User’s Manual
Size (W x H x L) - GigE
Weight - CL/GigE
Min. illumination
Lens Mount
Supply voltage range
Power consumption
Upgradeable firmware
Upgradeable LUT, DPM, FFC
Environmental - Operating
Environmental - Storage
Vibration, Shock
Relative humidity
(45 x 45 x 63) mm
150/180 g
1.0 Lux, f=1.4
C mount, 1.0” format
10 V to 15 V DC
2.4 W / 4.9 W
Yes
Yes
- 30.0 to + 65.0 deg C
- 40.0 to + 70.0 deg C
10G (20-200) Hz XYZ, 70G
80% non-condensing
(60 x 60 x 51) mm
280/300 g
1.0 Lux, f=1.4
F mount, 43.3 mm format
10 V to 15 V DC
3.6 W / 6.1 W
Yes
Yes
- 30.0 to + 65.0 deg C
- 40.0 to + 70.0 deg C
10G (20-200) Hz XYZ, 70G
80% non-condensing
Table 1.1d – B2520 and B2020 Camera Specifications
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
31 of 212
BOBCAT Hardware User’s Manual
Specifications
Active image resolution
Active image area (H, V) mm
Pixel size
Video output
Output structure
Data clock
Camera interface
RS 232 interface
PoCL
Nominal frame rate
Maximum frame rate
S/N ratio
Shutter speed
Line time
Frame Time (Long int.)
Analog gain
Gain resolution
Analog CDS gain
Black level offset
Digital gain
Digital offset
Auto gain/exposure
Auto iris
Area of interest
Binning
Test image
User LUT
Defective pixel correction
Hot pixel correction
Flat field correction
Negative Image
I/O Control
Digital bit shift
Strobe output
Pulse Generator
Hardware trigger
Software trigger
Trigger modes
Trigger features
In-camera Image Processing
Camera Image Memory
Camera housing
Size (W x H x L) - CL
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
B4020
4032/4008 (H) x 2688/2672 (V)
36.288/36.072 x 24.192/24.048
9.00 µm
Digital, 8/10/12 bit
Dual
30.000/40.000 MHz
Base CL/GigE/GEV
Yes
NO
4.8/6.5 fps
Up to 39 fps
60 dB
1/67000 to 1/5 sec
up to 200 us
up to 16 sec
0 to 36 dB per output
0.035 dB/step, 1024 steps
(-3.0, 0.0, +3.0, +6.0) dB
1024 levels per output
1.0x to 3.0x (0.1x step)
-511 to + 511
Yes, with AOI
Yes
Eight Independent AOIs
2x2, 3x3, 4x4, 8x8
Yes, Image superimposition
2 LUTs: Gamma, User LUT
Yes, User DPM
Yes, User HPM
No
Yes
4 inputs, 3 outputs
7 bits, Left or Right
Two strobes, Active HIGH
Yes
Asynchronous, optically isolated
Asynchronous, frame-grabber
Standard, Double, Fast, Async,
Frame integration
Rising/Falling edge, De-glitch,
Delay, Strobe
Yes, User
256MB
Aluminum
(60 x 60 x 38) mm
B4820
4904/4872 (H) x 3280/3248 (V)
36.289/36.053 x 24.272/24.035
7.40 µm
Digital, 8/10/12/(14 sing.) bit
Single RGB or Dual (Seq. or Int.)
30.000/40.000 MHz
Base CL/GigE/GEV
Yes
12VDC, 4W (CL only)
3.2/4.3 fps
Up to 24 fps
60 dB
1/67000 to 1/3 sec
up to 200 us
up to 16 sec
0 to 36 dB per output
0.035 dB/step, 1024 steps
(-3.0, 0.0, +3.0, +6.0) dB
1024 levels per output
1.0x to 3.0x (0.1x step)
-511 to + 511
Yes, with AOI
Yes
Eight Independent AOIs
2x2, 3x3, 4x4, 8x8
Yes, Image superimposition
2 LUTs: Gamma, User LUT
Yes, User DPM
Yes, User HPM
Yes, User FFC
Yes
4 inputs, 3 outputs
7 bits, Left or Right
Two strobes, Active HIGH
Yes
Asynchronous, optically isolated
Asynchronous, frame-grabber
Standard, Double, Fast, Async,
Frame integration
Rising/Falling edge, De-glitch,
Delay, Strobe
Yes, User
256MB
Aluminum
(60 x 60 x 38) mm
Rev. 1.0
5/4/2010
32 of 212
BOBCAT Hardware User’s Manual
Size (W x H x L) - GigE
Weight - CL/GigE
Min. illumination
Lens Mount
Supply voltage range
Power consumption
Upgradeable firmware
Upgradeable LUT, DPM, FFC
Environmental - Operating
Environmental - Storage
Vibration, Shock
Relative humidity
(60 x 60 x 51) mm
280/300 g
1.0 Lux, f=1.4
F mount, 43.3 mm format
10 V to 15 V DC
4.0 W / 6.5 W
Yes
Yes
- 30.0 to + 65.0 deg C
- 40.0 to + 70.0 deg C
10G (20-200) Hz XYZ, 70G
80% non-condensing
(60 x 60 x 51) mm
280/300 g
1.0 Lux, f=1.4
F mount, 43.3 mm format
10 V to 15 V DC
3.6 W / 6.1 W
Yes
Yes
- 30.0 to + 65.0 deg C
- 40.0 to + 70.0 deg C
10G (20-200) Hz XYZ, 70G
80% non-condensing
Table 1.1e – B4020 and B4820 Camera Specifications
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
33 of 212
BOBCAT Hardware User’s Manual
1.4
CAMERA CONNECTIVITY
1.4.1
Camera Link Output
The interface between the BOBCAT-CL camera and outside equipment is done via
3 connectors and one LED, located on the back panel of the camera – Figure 1.4.
1. Camera output – standard base Camera Link Mini provides data, sync, control,
serial interface and PoCL power.
2. 12-pin Power Connector – provides power and I/O interface.
3. USB type B programming/SPI connector.
4. Status LED – indicates the status of the camera – refer to Status LED section.
5. Serial Number – shows camera model and serial number.
Figure 1.4 – Camera back panel – camera link output
Camera data output is compliant with base Camera Link standard and includes
12VDC Power over camera Link (PoCL), 4 W max, 24 data bits, 4 sync signals
(LVAL, FVAL, DVAL and User Out), 1 reference clock, 2 external inputs CC1,
CC2 and a bi-directional serial interface. The camera link output connector is
shown in Figure 1.5a, and the corresponding signal mapping in Table 1.2.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
34 of 212
BOBCAT Hardware User’s Manual
13
1
26
14
Figure 1.5a – Camera output connector
Cable Name
Pin
CL Signal
Base Wire
Base Wire
- PAIR 1
+ PAIR 1
- PAIR 2
+ PAIR 2
- PAIR 3
+ PAIR 3
- PAIR 4
+ PAIR 4
- PAIR 5
+ PAIR 5
+ PAIR 6
1
14
2
15
3
16
4
17
5
18
6
19
7
12 VDC Power
Power Return
-X0
+X0
-X1
+X1
-X2
+X2
- X CLK
+ X CLK
-X3
+X3
+ SerTC
- PAIR 6
20
- SerTC
Type
Description
Power
Ground
LVDS - Out
LVDS - Out
LVDS - Out
LVDS - Out
LVDS - Out
LVDS - Out
LVDS - Out
LVDS - Out
LVDS - Out
LVDS - Out
LVDS - In
PoCL Power
PoCL Power
Camera Link Channel Tx
Camera Link Channel Tx
Camera Link Channel Tx
Camera Link Channel Tx
Camera Link Channel Tx
Camera Link Channel Tx
Camera Link Clock Tx
Camera Link Clock Tx
Camera Link Channel Tx
Camera Link Channel Tx
Serial Data Receiver
LVDS - In
Serial Data Receiver
- PAIR 7
8
- SerTFG
LVDS - Out
Serial Data Transmitter
+ PAIR 7
21
+ SerTFG
LVDS - Out
Serial Data Transmitter
- PAIR 8
9
- CC 1
LVDS - In
User Selectable Input
+ PAIR 8
+ PAIR 9
- PAIR 9
- PAIR 10
+ PAIR 10
+ PAIR 11
- PAIR 11
Base Wire
Base Wire
22
10
23
11
24
12
25
13
26
+ CC 1
+ CC2
- CC2
N/C
N/C
N/C
N/C
Power Return
12 VDC Power
LVDS - In
LVDS - In
LVDS - In
N/C
N/C
N/C
N/C
Ground
Power
User Selectable Input
User Selectable Input
User Selectable Input
N/C
N/C
N/C
N/C
PoCL Power
PoCL Power
Table 1.2 – Camera Output Connector – Signal Mapping
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
35 of 212
BOBCAT Hardware User’s Manual
The bit assignment corresponding to the base configuration is shown in the
following table.
Port
Port/bit
8-bits
Tap 1, 2
10-bits
Tap 1, 2
12-bits
Tap 1, 2
14-bits
Tap 1
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A11
DATA 0
DATA 1
DATA 2
DATA 3
DATA 4
DATA 5
DATA 6
DATA 7
DATA 8
DATA 9
DATA 10
Port
Port
Port
Port
Port
Port
Port
Port
Port
Port
Port
A0
A1
A2
A3
A4
A5
A6
A7
B0
B1
B2
A0
A1
A2
A3
A4
A5
A6
A7
B0
B1
B2
DATA 11
Port B3
B3
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
N/C
N/C
DATA 12
Port B4
B4
B8
B8
A12
DATA 13
Port B5
B5
B9
A13
DATA 14
Port B6
B6
B9
N/C
B10
N/C
N/C
B11
N/C
DATA 15
Port B7
DATA 16
DATA 17
DATA 18
DATA 19
DATA 20
DATA 21
DATA 22
DATA 23
ENABLE 0
Port C0
Port C1
Port C2
Port C3
Port C4
Port C5
Port C6
Port C7
LVAL
N/C
N/C
N/C
N/C
N/C
N/C
N/C
LVAL
B0
B1
B2
B3
B4
B5
B6
B7
LVAL
B0
B1
B2
B3
B4
B5
B6
B7
LVAL
N/C
N/C
N/C
N/C
N/C
N/C
N/C
N/C
LVAL
ENABLE 1
FVAL
FVAL
FVAL
FVAL
FVAL
ENABLE 2
DVAL
User Out
DVAL
User Out
DVAL
User Out
DVAL
User Out
DVAL
User Out
CC 1
CC 2
N/C
N/C
CC 1
CC 2
N/C
N/C
CC 1
CC 2
N/C
N/C
CC 1
CC 2
N/C
N/C
CC 1
CC 2
N/C
N/C
ENABLE 3
CONTROL 0
CONTROL 1
CONTROL 2
CONTROL 3
B7
N/C
Table 1.3 – Base Camera Link bit assignment
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
36 of 212
BOBCAT Hardware User’s Manual
The power and all external input/output signals are supplied to the camera via the
camera power connector shown in Figure 1.5b. The corresponding pin mapping is
shown in Table 1.4a. The connector is a HIROSE type miniature locking receptacle
#HR10A-10R-12P.
Figure 1.5b – Camera power connector
(Viewed from rear)
Pin
1
2
3
4
5
6
7
8
9
10
11
12
Signal
Type
12 VDC Return Ground Return
+ 12 VDC
Power - Input
IRIS VCC
Power - Input
IRIS Video
Analog Output
IRIS Return
Ground Return
GP OUT Return Ground Return
GP OUT 1
TTL OUT 1
GP IN 1
TTL/LVTTL IN 1
GP IN 2
TTL/LVTTL IN 2
GP IN Return
Ground Return
GPIO
LVTTL IN/OUT
GP OUT 2
TTL OUT 2
Description
12 VDC Main Power Return
+ 12 VDC Main Power
12 V Iris Power
Iris Video Output
12 VDC Iris Power Return
General Purpose Outputs Return
General Purpose Output 1
General Purpose Input 1
General Purpose Input 2
General Purpose Inputs Return
Reserved for custom GPIO
General Purpose Output 2
Table 1.4a – Camera Power Connector Pin Mapping
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
37 of 212
BOBCAT Hardware User’s Manual
The camera power cable (sold separately) terminates in a HIROSE plug #HR10A10P-12S, and has two small BNC pig-tail cables for the external trigger input
(black) and strobe output (white). The corresponding BNC connector pin mapping
is shown on Table 1.4b.
Pin
Signal
Shield
In 1 Return
Signal
In 1 Active
Shield
Out 1 Return
Signal
Out 1 Active
Cable color
BNC Black
Description
User Selectable Input 1 Return
User Selectable Input 1 Signal
BNC White
User Selectable Out 1 Return
User Selectable Out 1 Signal
Table 1.4b – BNC Connectors Pin Mapping
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
38 of 212
BOBCAT Hardware User’s Manual
1.4.2
GigE Output
The interface between the GEV camera and outside equipment is done via 2
connectors and one LED, located on the back panel of the camera – Figure 1.6.
1. Camera output – standard RJ-45 provides data, sync, control, and serial
interface.
2. 12-pin Power Connector – provides power and I/O interface.
3. Status LED – indicates the status of the camera – refer to Status LED section.
4. Serial Number – shows camera model and serial number.
Figure 1.6 – Camera back panel –GigE output
The Camera data along with the serial communication and triggering signals are
serialized and continuously transmitted over the Gigabit Ethernet interface at
GigE’s full 1-Gb/s line rate, while delivering consistently low, predictable latencies.
The network interface is compatible with IP/Ethernet networks operating at 1000
Mb/s using standard LAN CAT-5 (CAT-5e) cables.
The power and all external input/output signals are supplied to the camera via the
camera power connector shown in Figure 1.5b. The corresponding pin mapping is
shown in Table 1.4a. The connector is a HIROSE type miniature locking receptacle
#HR10A-10R-12P. The camera is shipped with a power cable which terminates in a
HIROSE plug #HR10A-10P-12S, and has two small BNC pig-tail cables for the
external trigger input (black) and strobe output (white). The corresponding BNC
connector pin mapping is shown on Table 1.4b.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
39 of 212
BOBCAT Hardware User’s Manual
1.4.3
Power Supply
The camera Link version of the camera is compatible with power over camera Link
– PoCL, with a maximum power of 4 W.
If PoCL is not available, a universal desktop power supply adapter, providing +12
VDC, +/- 10%, and up to 2.5A constant DC current, is available (for additional
price) from Imperx for the BOBCAT cameras. The operating input voltage ranges
from 90 to 240 VAC.
CAUTION NOTE
1. It is strongly recommended that you do not use an adapter other than the one
that is available from Imperx for the camera!
2. The PoCL current is limited to 333 mA. The cameras are PoCL compatible in
normal camera operation – free running with full image. In some modes such as
vertical binning x4 and x8 and in AOI (with keep frame rate disabled), when the
vertical height is less than 100 lines, the camera current can exceed 333 mA.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
40 of 212
BOBCAT Hardware User’s Manual
1.5
MECHANICAL, OPTICAL and ENVIRONMENTAL
1.5.1
Mechanical
The camera housing is manufactured using high quality zinc-aluminum alloy and
anodized aluminum. For maximum flexibility the camera has twelve (12)
M3X0.5mm mounting, located towards the front and the back. An additional plate
with ¼-20 UNC (tripod mount) is shipped with each camera. Figure 1.7a, 1.8a show
the C-Mount camera link cameras and Figure 1.7b, 1.8b – C-Mount GEV cameras
respectively. All dimensions are in millimeters.
Figure 1.7a – C-mount camera link cameras.
Figure 1.7b – C-mount GEV cameras.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
41 of 212
BOBCAT Hardware User’s Manual
C – Mount Camera Link Output
Figure 1.8a – C-mount camera link output – dimensional drawings for ICL-B0610, ICL-B0620,
ICL-B1410, ICL-B1610 and ICL-B2520.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
42 of 212
BOBCAT Hardware User’s Manual
C – Mount Camera Link Output
Figure 1.8b – C-mount camera link output – dimensional drawings for ICL-B1620 and ICLB1920.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
43 of 212
BOBCAT Hardware User’s Manual
F – Mount Camera Link Output
Figure 1.8c – F-mount camera link output – dimensional drawings for ICL-B2020, ICL-B4020 and
ICL-B4820.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
44 of 212
BOBCAT Hardware User’s Manual
C – Mount GigE Vision (GEV) Output
Figure 1.8d – C-mount GigE vision output – dimensional drawings for IGV-B0610, IGV-B0620,
IGV-B1410, IGV-B1610 and IGV-B2520.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
45 of 212
BOBCAT Hardware User’s Manual
C – Mount GigE Vision (GEV) Output
Figure 1.8e – C-mount GigE vision output – dimensional drawings for IGV-B1620 and IGVB1920.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
46 of 212
BOBCAT Hardware User’s Manual
F – Mount GigE Vision (GEV) Output
Figure 1.8f – F-mount GigE vision output – dimensional drawings for IGV-B2020, IGV-B4020
and IGV-B4820.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
47 of 212
BOBCAT Hardware User’s Manual
1.5.2 Optical
The smaller body BOBCAT cameras (45 x 45) mm cross-section come with an
adapter for C-mount lenses, which have a 17.52 mm back focal distance – Figure
1.9a and Figure 1.9b. An F-mount lens can be used with a C-mount camera via an
F-mount to C-mount adapter, which can be purchased separately – refer to the
Imperx web site for more information. The bigger body BOBCAT cameras (60 x
60) mm cross-section come with an adapter for F-mount lenses, which have a 46.50
mm back focal distance – Figure 1.9c. The camera performance and signal to noise
ratio depends on the illumination (amount of light) reaching the sensor and the
exposure time. Always try to balance these two factors. Unnecessarily long
exposure will increase the amount of noise and thus decrease the signal to noise
ratio.
The cameras are very sensitive in the IR spectral region. All color cameras have and
IR cut-off filter installed. The monochrome cameras are without IR filter. If
necessary, an IR filter (1 mm thickness or less) can be inserted under the front lens
bezel.
CAUTION NOTE
1. Avoid direct exposure to a high intensity light source (such as a laser beam).
This may damage the camera optical sensor!
2. Avoid foreign particles on the surface of the imager.
1.5.3 Environmental
The camera is designed to operate from -300 to 600 C in a dry environment. The
relative humidity should not exceed 80% non-condensing. Always keep the camera
as cool as possible. Always allow sufficient time for temperature equalization, if the
camera was kept below 00 C!
The camera should be stored in a dry environment with the temperature ranging
from -500 to + 700 C.
CAUTION NOTE
1. Avoid direct exposure to moisture and liquids. The camera housing is not
hermetically sealed and any exposure to liquids may damage the camera
electronics!
2. Avoid operating in an environment without any air circulation, in close
proximity to an intensive heat source, strong magnetic or electric fields.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
48 of 212
BOBCAT Hardware User’s Manual
3. Avoid touching or cleaning the front surface of the optical sensor. If the sensor
needs to be cleaned, use soft lint free cloth and an optical cleaning fluid. Do not
use methylated alcohol!
Figure 1.9a – Optical plane position for B0610, B0620, B1410, B1610 and B2520 cameras.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
49 of 212
BOBCAT Hardware User’s Manual
Figure 1.9b – Optical plane position for B1620 and B1920 cameras.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
50 of 212
BOBCAT Hardware User’s Manual
Figure 1.9b – Optical plane position for B2020, B4020 and B4820 cameras.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
51 of 212
BOBCAT Hardware User’s Manual
Chapter 2 – Camera Features
Camera Features
This chapter discusses the camera’s features and their use.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
52 of 212
BOBCAT Hardware User’s Manual
2.1
IMAGE RESOLUTION
The image resolution is determined by the number of pixels per line and number of lines
per frame. The image is framed by two signals LVAL, enveloping the valid pixels in a line,
and FVAL – enveloping the valid lines in a frame. The camera offers two independently
selectable LVAL and FVAL sizes. The first LVAL value envelops all visible pixels in a
line (active pixels plus buffer pixels) and the second – only the active pixels. Respectively,
the first FVAL envelops all visible lines in a frame (active lines and buffer lines), and the
second – only the active lines. The camera speed (Frames per Second) is the same for both
image size selections. Typically, the pixels outside of LVAL and FVAL (primarily dark
pixels and lines) are masked with zeros, but in BOBCAT, the user has an option to mask or
not to mask these pixels or lines. Refer to section “BOBCAT Configuration” for more
information.
Camera models B0610, B1410and B1610 are available only with a single output. Models
B0620, B1620 and B1920 are available in single or dual, and B2520 is available only with
dual output. In some camera models a high readout mode is available as described below.
2.1.1
Normal Mode – Single Output
When operating in the single output mode, all pixels are shifted out of the HCCD
register towards the left video amplifier – Video L (Figure 2.1). The resulting image
has a normal orientation.
Figure 2.1 – Single output mode of operation.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
53 of 212
BOBCAT Hardware User’s Manual
2.1.2
Normal Mode – Dual Output
When operating in a dual output mode, the image is split in two equal parts, each
side consisting of half of the horizontal pixels and the full vertical lines. The first
(left) half of the pixels are shifted out of the HCCD register towards the left video
amplifier – Video L, while the second (right) half of the pixels are shifted towards
the right video amplifier – Video R (Figure 2.2). In the horizontal direction the first
half of the image appears normal and the second half is left/right mirrored. The
camera reconstructs the image by flipping the mirrored portion and rearranging the
pixels. Dual output is the default factory mode of operation – refer to the
Configuration Memory section. The image resolutions for different cameras are
shown in Table 2.1, and a frame rates – in Table 2.2.
Figure 2.2 – Dual output mode of operation.
2.1.3
Center Mode
A.
B0610 and B0620 Models
The ‘center columns’ output mode is available in the B0610 and B0620 camera
models. In this mode the image field has only 228 horizontal pixels located in the
center of the imager – Figure 2.3. When operating in a single output mode, all 228
pixels are shifted out of the HCCD register towards the left video amplifier – Video
L (Figure 2.4). The resulting image has a normal orientation. When operating in a
dual output mode, the image is split in two equal parts, each having 114 pixels and
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
54 of 212
BOBCAT Hardware User’s Manual
full vertical lines. The first (left) half of the pixels are shifted out of the HCCD
register towards the left video amplifier – Video L, while the second (right) half of
the pixels is shifted towards the right video amplifier – Video R (Figure 2.5). In the
horizontal direction the first half of the image appears normal and the second half is
left/right mirrored. The camera reconstructs the image by flipping the mirrored
portion and rearranging the pixels. The image resolutions for different cameras are
shown in Table 2.1, and a frame rates – in Table 2.2.
CAUTION NOTE
1. Vertical and horizontal binning can be performed when the Center mode is used
for B0610 and B0620.
Figure 2.3 – Center columns output mode of operation.
B.
B1410, B1610 and B2520 Models
To achieve a higher frame rate B1410, B1610 and B2520 camera models can
provide a fast readout, where every the image is sub-sampled – 2 out of 8
lines/pixels are read out of the CCD – Figure 2.6. The image resolutions for
different cameras are shown in table 2.1a, and a frame rates – in Table 2.2.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
55 of 212
BOBCAT Hardware User’s Manual
Figure 2.4 – Center columns output in dual mode of operation.
Figure 2.5 – Center columns output in dual tap mode.
CAUTION NOTE
1. Vertical and horizontal binning cannot be performed when the Center mode is
used for B1410, B1610 and B2520.
2. Currently there is no support for center mode for B2520. Please contact Imperx
if you need this feature enabled.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
56 of 212
BOBCAT Hardware User’s Manual
Figure 2.6 – Sub-sampled CCD output.
(a – B1410, b – B1610, c – B2520)
Normal Mode
Camera
Effective Image
B0610
B0620
B1410
B1610
B1620
B1920
B2020
B2520
B4020
B4820
648
648
1392
1628
1608
1928
2056
2456
4032
4904
x
x
x
x
x
x
x
x
x
x
488
488
1040
1236
1208
1084
2060
2058
2688
3280
Center Mode
Active Image
640
640
1360
1620
1600
1920
2048
2448
4008
4872
x
x
x
x
x
x
x
x
x
x
480
480
1024
1220
1200
1080
2048
2050
2672
3248
Output
Active Image
228 x 488/480
228 x 488/480
340/348 x 256/260
405/407 x 305/309
N/A
N/A
N/A
Not implemented
N/A
N/A
Single
Single, Dual
Single
Single
Singe, Dual
Single, Dual
Single, Dual
Dual
Single, Dual
Single, Dual
Table 2.1 – Image resolutions for different modes
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
57 of 212
BOBCAT Hardware User’s Manual
2.2
FRAME TIME CONTROL
2.2.1 Internal Line and Frame Time Control
The camera speed (frame rate) depends on the CCD “read-out” time – the time
necessary to read all the pixels out of the CCD imager. The frame rate can be
calculated using the following Formula 1.1:
Frame rate [fps] = 1 / read-out time [sec]
(1.1)
The user can program the camera to run slower than the nominal speed preserving
the camera full resolution. The user can independently extend the camera line time
(the time required to read one line out of the CCD imager) and camera frame time
(the time required to read the entire frame out of the CCD imager). The camera line
time can be extended to ~ 200 us, with a precision ~ 25 ns. The camera frame time
can be extended to ~ 16 sec, with a precision of ~ 1.0us. Please refer to
“EXPOSURE CONTROL” section for more information.
CAUTION NOTE
It is not recommended to use the Programmable Line Time feature when Vertical
Binning higher than 2x is used!
2.2.2 Camera Speed Control
BOBCAT camera series provides a unique way to control and increase the camera
nominal (free-running) speed. The user can select (Slow) or (Fast) camera speed.
The “Slow” speed is the camera nominal frame rate as determined by the CCD
manufacturer. Since BOBCAT internal design is optimized for higher clock rates, it
is possible to over-clock the camera (use an internal clock higher than the
recommended one), which will result in higher (~ 20%) frame rate. Special
measures have been taken in order to preserve the camera performance when overclock mode is used. The possible frame rates are shown in Table 2.2, where the
camera speed is the shown in [FPS)]. The first number represents the “Slow” speed,
and the second – “Fast” speed.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
58 of 212
BOBCAT Hardware User’s Manual
Normal Mode
Center Mode
Camera
Single Out
Dual Out
Single Out
Dual Out
B0610
B0620
B1410
B1610
B1620
B1920
B2020
B2520
B4020
B4820
110/137 fps
110/137 fps
23/30 fps
17/25 fps
19/23 fps
17/22 fps
8.6/10.8 fps
N/A
2.6/3.4 fps
1.7/2.3 fps
N/A
208/260 fps
N/A
N/A
35/44 fps
33/41 fps
16.3/20.4 fps
11/16 fps
4.8/6.5 fps
3.2/4.3 fps
293 fps
293/366 fps
79 fps
74 fps
N/A
N/A
N/A
N/A
N/A
N/A
N/A
539/674 fps
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Table 2.2 – Frame rates for different modes
CAUTION NOTE
1. Changing the camera speed involves changing the output data clock frequency. Not all
frame-grabbers can automatically adapt to the new data clock. To prevent any loss of
data or synchronization, it is recommended to stop or pause the data acquisition prior to
changing the camera speed.
2.2.3 External Line and Frame Time Control
The camera speed (frame rate) can be controlled using external sync pulses. The
camera line time can be slaved to an external H-Sync pulse, and the camera frame
time can be slaved to an external V-Sync pulse. The camera can be slaved to one or
both pulses. The H-Sync and V-Sync has to be mapped to corresponding camera
input. For more information, please refer to the I/O Control section.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
59 of 212
BOBCAT Hardware User’s Manual
2.3
AREA OF INTEREST
2.3.1 Horizontal and Vertical Window
For some applications the user may not need the entire image, but only a portion of
it. To accommodate this requirement BOBCAT provides total of 8 (eight)
Horizontal and Vertical Areas of Interest (AOI) – one Master, 6 Slave and one
Processing. The starting and ending point for each AOI can be set independently in
horizontal direction (Horizontal Window) and vertical direction (Vertical Window),
by setting the window (H & V) offset and (H & V) size – Figure 2.7. The minimum
window size is one pixel/line for single mode and two pixels/lines for dual mode.
The maximum horizontal window size (H) and the vertical window size (V) are
determined by image full resolution as shown in Table 2.1, and the selected size of
LVAL and FVAL.
Figure 2.7 – Horizontal and vertical window positioning.
A.
Master AOI (MAOI)
The MAOI can be set to preserve or to change the camera frame rate. When the user
wants to preserve the camera frame rate the MAOI settings will control only the
image H & V dimensions. When the user wants to take advantage of the reduced
vertical image size and increase the camera frame rate, the image maximum camera
speed will be determined by the V size of this MAOI. The image resolution will
reflect the MAOI H & V settings.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
60 of 212
BOBCAT Hardware User’s Manual
B.
Slave AOIs
AOI1 to AOI6 are assigned as slave AOIs and they MUST be selected so they are
completely inside MAOI. All slave AOIs can be set independently with no
restrictions for overlapping and order – Figure 2.8. In addition, each AOI can be
included or excluded from the MAOI. In figure 2.8 AOI2 to AOI6 are included in
MAOI and AOI1 is excluded. The salve AOIs can be enabled in random order and
based on include/exclude selection can be inside each other.
Figure 2.8 – Slave AOIs.
C.
Processing AOI (PAOI)
All AOIs are functionally equal except PAOI. PAOI can be enabled as LUT or
image processing Region of Interest (ROI). When enabled as LUT ROI, the LUT
function will apply only to the selected ROI, all data outside of the region will not
be processed with the LUT function. When enabled as processing ROI, the selected
processing function will apply only to the selected ROI, all data outside of the
region will not be processed with the selected function – Figure 2.9.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
61 of 212
BOBCAT Hardware User’s Manual
Figure 2.9 – PAOI enabled as processing ROI.
(All data within the selected ROI are processed with “One Point
Correction”, all data outside of the ROI are not processed)
CAUTION NOTE
1. If the user needs to enable AOI1 to AOI6 MAOI MUST be enabled.
2. To qualify the selected pixels/lines MAOI uses DVAL, where DVAL is high
within the selected MAOI. The frame-grabber horizontal and vertical
resolutions must be adjusted for each window size
3. Horizontal and vertical windows can be enabled in all camera modes, including
H & V binning. Refer to binning section for more information.
4. The size of the horizontal window does not affect the camera frame rate, the
vertical window does, but only if “Keep Frame Rate” is not enabled.
5. For dual tap mode of operation the horizontal Offset and Width must be even
number.
6. For B1920 the minimum “Horizontal Offset” is 10 pixels when “Constant
Frame Rate” is disabled, and 0 pixels when “Constant Frame Rate” is enabled.
7. Positioning the horizontal and vertical window size outside the maximum image
window will result in an error.
8. Color version users – for proper color reconstruction ‘Offset X’ and ‘Offset Y’
must be an odd number.
2.3.2 Calculating the Frame Rate using Vertical Window
When camera frame rate changes with the size of the vertical window, the resulting
frame rate (FR) for each camera is shown on figure 2.10a – 2.10fg. The camera uses
an adaptive algorithm for the frame rate change, so it is difficult to put a simple
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
62 of 212
BOBCAT Hardware User’s Manual
formula for the frame rate calculation. The camera will calculate and display the
actual frame rate at any vertical window selection.
B0610 FRAME RATE
2000
. . . . . Normal window, normal clock
- . - . - Normal window, normal clock
-------- Center window, slow clock
- - - - - Center window, fast clock
1800
1600
1400
Frame Rate (fps)
Frame Rate (fps)
1200
1000
800
600
400
200
0
50
100
150
200
250
Active Lines
300
350
400
450
Figure 2.10a – Frame rate vs. vertical window size for B0610
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
63 of 212
BOBCAT Hardware User’s Manual
B0620 FRAME RATE
2200
Dual Output
. . . . . Normal window, normal clock
- . - . - Normal window, fast clock
-------- Center window, normal clock
- - - - - Center window, fast clock
2000
1800
1600
Frame Rate (fps)
1400
1200
1000
800
600
400
200
50
100
150
200
250
Active Lines
300
350
400
450
Figure 2.10b – Frame rate vs. Vertical window size for B0620
This figure shows the speed in dual output only. The speed in single output is identical to
B0610 – Figure 2.10a.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
64 of 212
BOBCAT Hardware User’s Manual
B1410 FRAME RATE
200
180
----- Normal clock
- - - Fast clock
160
Frame Rate (fps)
140
120
100
80
60
40
20
0
200
400
600
800
1000
Active Lines
Figure 2.10c – Frame rate vs. Vertical window size for B1410
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
65 of 212
BOBCAT Hardware User’s Manual
B1610 FRAME RATE
220
----- Normal clock
- - - Fast clock
200
180
160
Frame Rate (fps)
140
120
100
80
60
40
20
0
200
400
600
Active Lines
800
1000
1200
Figure 2.10d – Frame rate vs. Vertical window size for B1610
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
66 of 212
BOBCAT Hardware User’s Manual
B1620 FRAME RATE
350
-------.-.---
300
dual output normal clock
single output normal clock
dual output fast clock
single output fast clock
250
Frame Rate
200
150
100
50
0
200
400
600
Active Lines
800
1000
1200
Figure 2.10e – Frame rate vs. Vertical window size for B1620
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
67 of 212
BOBCAT Hardware User’s Manual
B1920 FRAME RATE
140
-------.-.---
130
120
dual output normal clock
single output normal clock
dual output fast clock
single output fast clock
110
100
Frame Rate
90
80
70
60
50
40
30
20
10
200
400
600
Active Lines
800
1000
Figure 2.10f – Frame rate vs. Vertical window size for B1920
CAUTION NOTE
The CCD used in B1920 (KAI-2093) natively does not support increase frame rate with
reduced vertical frame size. Due to this, in some bright light scenes, blooming is possible.
If blooming occurs, please reduce the light by closing the lens or introduce an ND filter.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
68 of 212
BOBCAT Hardware User’s Manual
B2520 FRAME RATE
60
----- Normal clock
- - - Fast clock
55
50
45
Frame Rate (fps)
40
35
30
25
20
15
10
0
200
400
600
800
1000
1200
Active Lines
1400
1600
1800
2000
Figure 2.10g – Frame rate vs. vertical window size for B2520
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
69 of 212
BOBCAT Hardware User’s Manual
B2020 FRAME RATE
160
-------.-.---
140
dual output normal clock
single output normal clock
dual output fast clock
single output fast clock
120
Frame Rate
100
80
60
40
20
0
200
400
600
800
1000
1200
Active Lines
1400
1600
1800
2000
Figure 2.10h – Frame rate vs. vertical window size for B2020
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
70 of 212
BOBCAT Hardware User’s Manual
B4020 FRAME RATE
40
-------.-.---
35
dual output normal clock
single output normal clock
dual output fast clock
single output fast clock
30
Frame Rate
25
20
15
10
5
0
500
1000
1500
Active Lines
2000
2500
Figure 2.10i – Frame rate vs. vertical window size for B4020.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
71 of 212
BOBCAT Hardware User’s Manual
B4820 FRAME RATE
26
-------.-.---
24
22
dual output normal clock
single output normal clock
dual output fast clock
single output fast clock
20
18
Frame Rate
16
14
12
10
8
6
4
2
0
500
1000
1500
Active Lines
2000
2500
3000
Figure 2.10j – Frame rate vs. vertical window size for B4820.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
72 of 212
BOBCAT Hardware User’s Manual
2.4
BINNING
Horizontal binning combines adjacent pixels in horizontal directions to effectively create
larger pixels and less resolution. BOBCAT supports 4 binning modes 2x, 3x, 4x and 8x. In
2:1 horizontal binning mode, two adjacent pixels in each line are summed together (in the
horizontal direction), for example, pixels 1+2, 3+4, 5+6, in each line are summed together.
Horizontal binning does not affect the frame rate. It does, however, reduce the horizontal
resolution by a factor of 2. This occurs because when binning two pixels together, only half
of the pixels per line remain. Horizontal binning 2:1 is equivalent to 2:1 sub-sampling in
the horizontal direction. The same rule applies for higher binning modes. In horizontal
binning mode, the entire image is captured and displayed, which is different than horizontal
windowing, where only a portion of the image is captured and displayed.
Vertical binning is a readout mode of progressive scan CCD image sensors where several
image lines are clocked simultaneously into the horizontal CCD register before being read
out. This results in summing the charges of adjacent pixels (in the vertical direction) from
two lines. BOBCAT supports 4 binning modes 2x, 3x, 4x, and 8x. In 2:1 binning for
example, the corresponding pixels in every two lines (1+2, 3+4, 5+6 …) are summed
together. Vertical binning reduces the vertical resolution by a factor of 2, and almost
doubles the frame rate. This occurs because when binning two lines together, only half of
the lines need to be read out. Vertical binning 2:1 is equivalent to 2:1 sub-sampling in the
vertical direction. The same rule applies for higher binning modes. In vertical binning the
entire image is captured and displayed, which is different than vertical windowing, where
only a portion of the image is captured and displayed.
Horizontal and Vertical binning can be used simultaneously – Figure 2.11. Horizontal and
vertical binning can work simultaneously with AOI. The corresponding image sizes and
frame rates for different binning modes are shown in Table 2.3a, Table 2.3b and Table
2.3c. “H size” shows the image size for different LVAL selections, “V size” shows the
image size for different FVAL selections, “Speed” shows the camera speed for slow and
fast speed modes. The speed difference is shown for the bigger LVAL/FVAL value.
Figure 2.11 – 2:2 Horizontal and vertical binning
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
73 of 212
BOBCAT Hardware User’s Manual
2:1 H Binning
3:1 H Binning
4:1 H Binning
Camera
H Size
H Size
H Size
B0610
B0620
B1410
B1610
B1620
B1920
B2020
B2520
B4020
B4820
324/320
324/320
696/680
810/814
804/800
964/960
1028/1024
1228/1224
2016/2004
2452/2436
Speed
Speed
8:1 H Binning
Speed
H Size
110/137 216/213 110/137 162/160 110/137
210/260 216/213 210/260 162/160 210/260
23/30
464/453
23/30
348/340
23/30
17/25
542/540
17/25
405/407
17/25
35/44
536/532
35/44
402/400
35/44
33/41
642/640
33/41
482/480
33/41
16/20
686/682
16/20
514/512
16/20
11/16
818/816
11/16
614/612
11/16
4.8/6.5 1344/1336 4.8/6.5 1008/1002 4.8/6.5
3.2/4.3 1634/1624 3.2/4.3 1226/1218 3.2/4.3
Speed
81/80 110/137
81/80 210/260
174/170 23/30
202/203 17/25
200/200 35/44
240/240 33/41
256/256 16/20
306/306 11/16
504/500 4.8/6.5
613/609 3.2/4.3
Table 2.3a – Image sizes and frame rates for different H binning modes
Camera
B0610
B0620
B1410
B1610
B1620
B1920
B2020
B2520
B4020
B4820
1:2 V Binning
1:3 V Binning
V Size
V Size
Speed
224/220 210/263 162/160
224/220 388/485 162/160
520/512
41/52
346/341
618/610
30/45
412/410
604/600
62/77
402/400
542/540
59/74
360/360
1030/1024 29/37
686/682
1029/1025 19/25
686/683
1344/1336 8/11
896/890
1640/1624
5/7
1093/1082
1:4 V Binning
1:8 V Binning
Speed
V Size
Speed
V Size
Speed
301/376
543/679
55/68
42/61
84/105
81/101
41/51
24/31
10/14
7/9
122/120
122/120
260/256
309/305
302/300
271/270
515/512
516/515
672/668
820/812
390/486
688/860
67/82
53/74
102/128
99/124
50/62
28/35
12/16
8/11
61/60
61/60
130/128
154/152
151/150
135/135
257/256
257/256
336/334
410/406
676/846
1121/1402
99/115
82/110
150/188
150/187
77/96
38/43
16/22
11/15
Table 2.3b – Image sizes and frame rates for different V binning modes
B0620
1:2 V Binning
V Size
Speed
1:3 V Binning
V Size
Speed
1:4 V Binning
V Size
Speed
1:8 V Binning
V Size
Speed
Center Single 242/238 525/656 160/158 702/884 120/118 862/1078 59/58 1240/1550
Center Dual 240/236 896/1121 158/156 1140/1424 118/116 1324/1655 57/56 1686/2105
Table 2.3c – B0620 Center mode image sizes and frame rates during V binning
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
74 of 212
BOBCAT Hardware User’s Manual
Horizontal and vertical binning can work simultaneously with AOI. Although vertical and
horizontal binning are done in different domains, there are no differences in the way the
AOI with binning works.
Vertical Binning is done in the time domain, where the data from the binned lines is
added in the CCD. The vertical binning is performed first, and the vertical AOI is
second. The vertical AOI settings are referenced to the binned image. If the user wants to
set a vertical window of 200 lines, the user has to put 200 in the AOI height register
regardless off the selected vertical binning mode.
Horizontal Binning is done in the digital domain, where the data from the binned
pixels is added digitally. The horizontal binning is performed first, and the horizontal
AOI is second. The horizontal AOI settings are referenced to the binned image If the user
wants to set a horizontal window in the binned image with width 200 the user has to put
200 in the AOI width register regardless of off the selected horizontal binning mode.
Figure 2.11a illustrates the simultaneous usage of AOI and H & V binning. The original
image is 640 x 480. Then after 2 x 2 binning the resultant image is 320 x 240. Then a
master AOI is enabled with offset X = 80, offset Y = 120, width = 200 and height = 100.
Then a slave AOI is enabled with offset X = 50, offset Y = 30, width = 45 and height = 40.
In the left side the slave AOI is enabled in “Include” mode, and in the right side the same
AOI is enabled in “Exclude” mode. When enabled as “Include” only the selected slave AOI
region is displayed, the rest (of the master AOI) is black. When enabled as “Exclude” only
the selected slave AOI region is black, the rest is the selected master image
CAUTION NOTE
1. Vertical and horizontal binning cannot be performed when the Center mode is
used for B1410, B1610 and B1610.
2. Horizontal or vertical binning used alone changes the aspect ratio of the image
in the vertical or horizontal direction. To correct this, use identical horizontal
and vertical binning modes simultaneously.
3. The frame-grabber vertical and horizontal resolution should be changed to
reflect the actual number of active pixels and lines.
4. Vertical binning may cause blooming for saturated signal levels.
5. Color version users – horizontal or vertical binning used alone will create color
distortions. If used simultaneously, the resulting image will be monochrome.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
75 of 212
BOBCAT Hardware User’s Manual
Figure 2.11a – AOI within horizontal and vertical binned image.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
76 of 212
BOBCAT Hardware User’s Manual
2.5
EXPOSURE CONTROL
2.5.1 Internal Exposure Control - Electronic Shutter
During normal camera operation, the exposure time is fixed and determined by the
readout (frame) time. The electronic shutter can be used to precisely control the
image exposure time under bright light conditions. The electronic shutter does not
affect the frame rate; it only reduces the amount of electrons collected. Positioning
a short pulse “SHUTTER”, with respect to the vertical transfer pulse, VCCD –
Figure 2.12, sets the exposure time. The electronic shutter pulse can be positioned
within the entire frame period with a precision of 1.0us. The maximum exposure is
frame time dependent and the minimum exposure is ~ 2 microseconds (camera
dependent).
Frame Time
Exposure
VCCD
SHUTTER
Figure 2.12 – Electronic shutter position
2.5.2 External exposure control
The camera exposure can be controlled using an external pulse, supplied to the
camera. The pulse duration determines the exposure. For stable operation, this pulse
MUST be synchronized with the camera frame timing. Please refer to “I/O Control”
section for pulse mapping information.
2.5.3 Variable Frame Time – Programmable Line and Frame Time
Variable frame time mode provides the ability to run the camera in full resolution
and a frame rate slower than the nominal camera frame. This has two effects: 1) it
reduces the bandwidth requirements on the camera output and 2) it increases the
exposure time for the frame. During normal camera operation (no shutter), the
nominal frame rate determines the integration time. The desired frame rate, and thus
the new integration time, can be achieved by moving the vertical transfer pulse,
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
77 of 212
BOBCAT Hardware User’s Manual
VCCD, beyond the normal integration period (the standard frame time) – Figure
2.13. The resultant frame rate can be calculated using formula 2.2. The user can
program the camera integration (frame time) from the nominal camera frame time
to 16 sec (~ 0.0625 fps) with a precision of 1.0 us.
Frame rate [fps] = 1 / frame time [sec]
(2.2)
Programmable Integration Time
Standard Frame Time
VCCD
Figure 2.13 – Programmable frame time
CAUTION NOTE
1. The maximum frame rate (and minimum frame time) is determined by the
camera mode of operation. If the user enters a higher frame rate than the
allowed one, the image will halt. Programmable Frame Time cannot be enabled
in Trigger mode.
2. When programmable line time and programmable frame time are to be enabled
simultaneously, enable line time first, set the appropriate line value, and then
enable the programmable frame time. If you change the line time value while
the frame time is enabled, please note that you might need to re-adjust the frame
time value.
3. If the frame time is greater than 500ms the camera has to be kept still otherwise
a motion smear will appear on the image.
2.5.4 Automatic Exposure Control (AEC)
The camera can be set to automatic exposure (and gain) control in order to keep the
same image brightness during changing light conditions. Both modes – automatic
exposure and automatic gain can be enabled simultaneously. In this mode the user
sets the image brightness (luminance) to be maintained, and the camera adjusts the
exposure accordingly. The user can select the average or peak brightness to be
maintained. The camera starts with changing the exposure within the preset by the
user min-max limits. If one of the exposure limits has been reached, the camera
indicates the limit has been reached and keeps the value until the light condition
change. The speed of convergence (how fast the camera stabilizes after change),
can be preset by the user (four possible options are available). The AEC algorithm
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
78 of 212
BOBCAT Hardware User’s Manual
samples all pixels for the entire frame, but the user can select only a portion of the
image (AOI) to be used as a sample collecting region. The camera displays the
current luminance, current exposure and current gain. For auto gain control refer to
Automatic Gain Control (AGC) section.
CAUTION NOTE
1. In some bright light conditions a very small exposure values (~ microseconds)
must be used. In such cases the camera response is not linear, i.e. equal exposure
increments do not result in equal brightness increase. In some rare occasions during
such conditions, an image brightness oscillation (image flipping from bright to
dark) could occur. To prevent this, please change the AEC/AGC setting (exposure
speed, luminance level or AOI), or change the lens iris.
2.5.5 Automatic Iris Control (AIC)
The camera has a built in auto iris control feature, which is hardware compatible
with a "Video” auto iris lens. If enabled, the camera provides an analog video
signal (via 12 pin HIROSE connector), which is used by the lens to control the iris.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
79 of 212
BOBCAT Hardware User’s Manual
2.6
EXTERNAL TRIGGER
2.6.1
Triggering Inputs
In the normal mode of operation, the camera is free running. Using the trigger mode
allows the camera to be synchronized to an external timing pulse. There are three
input modes available for external triggering – software (CC), internal (pulse
generator), and external. Please note that the desired trigger input has to be mapped
to corresponding camera input. For more information, please refer to the I/O
Control section.
2.6.2
-
“External” – the camera receives the trigger signal coming from the connector
located on the back of the camera.
-
“Computer” – the camera receives the trigger signal command from the framegrabber.
-
“Internal” – the camera has a build in programmable pulse generator – refer to
“Pulse Generator” section. In Internal triggering mode the camera receives the
trigger signal from the internal pulse generator.
-
“Software” – the camera receives the trigger signal which is computer
generated. This input is available only for GigE Cameras. The camera expects a
one clock cycles pulse generated by the computer. The trigger exposure is
internal register controlled. Pulse duration exposure is not allowed.
Acquisition and Exposure Control
For each trigger input the user can set the trigger edge, the over-trigger conditions,
the de-bounce (de-glitch) time, the exposure time, the exposure delay, and the
number of frames captured.
1. “Triggering Edge” – the user can select the active triggering edge:
-
“Rising” – the rising edge will be used for triggering
-
“Falling” – the falling edge will be used for triggering
2. “De-bounce” – the trigger inputs are de-bounced to prevent multiple triggering
from ringing triggering pulses. The user has four choices of de-bounce interval:
-
“Off” – no de-bounce (default)
-
“0.1” ms de-bounce interval
-
“1.0” ms de-bounce interval
-
“10.0” ms de-bounce interval
3. “Trigger Overlap” – if the next trigger pulse arrives while the previous
triggering cycle is in process, the user has three options:
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
80 of 212
BOBCAT Hardware User’s Manual
-
“Ignore” – the next rigger will be ignored, and the camera will continue its
present operation.
-
“Accept” – the next trigger will be used. The camera will stop the present
operation, will reset and the new trigger cycle will start.
-
“Accept after Exposure” – the next rigger will be ignored while the camera
is exposing the image. The next trigger will be used only after the image
exposure based on the previous trigger has been completed. The camera will
stop the present operation, will reset and the new trigger cycle will start.
4. “Exposure Time” – the exposure for all frames can be set in two ways:
-
“Pulse Width” – the trigger pulse width (duration) determines the exposure.
-
“Internal” – the camera internal exposure register determines the exposure.
A mid exposure pulse is generated in this mode.
5.
“Frames captured” – the number of frames captured after the trigger pulse
can be programmed from 1 to 65530 frames, or to be free-running.
CAUTION NOTE
1. The de-bounce interval MUST be bigger than the trigger pulse duration. Adjust
the interval accordingly.
2.6.3
Trigger Strobe Control
Along with the shutter pulse, the camera can send one strobe pulse for
synchronization with an external light source. The user can set the strobe pulse
duration and the delay with respect to the trigger pulse active edge. The maximum
pulse duration and the maximum delay can be set up to 16777215 us with 1.0us
precision. The strobe pulse can be assigned to “Strobe 1” or “Strobe 2. If the
number of frames captured is more than 1, and the user wants to enable the strobe
for the next frames, he/she has to using the camera strobe – please refer to “Strobe”
section for more information.
2.6.4
Triggering modes
A.
Standard Mode
When the standard triggering mode is enabled, the camera idles and waits for a
trigger signal. Upon receiving the external trigger signal, the camera clears the
horizontal and vertical registers, sends a shutter pulse to clear the pixels and starts
integration – Figure 2.14. Upon receiving the trigger signal the camera starts
integration for the frame, completes the integration, and transfers the information to
the vertical registers and then captures the image is being read out. There is no
delay between the trigger rising edge and the exposure start. The exposure is set by
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
81 of 212
BOBCAT Hardware User’s Manual
the trigger pulse duration or by internal exposure register. The number of frames
captured after each trigger pulse can be programmed. This completes the current
trigger cycle and the camera idles until the next trigger pulse.
CAUTION NOTE
The time interval between the trigger pulses must be greater than the combined
exposure and frame time. If the time between the triggers is shorter, the frame readout cycle will be interrupted and part of the frame will be lost.
TRIGGER
SHUTTER
EXPOSURE
First Frame Exposure
VCCD
FVAL
DATA
DATA Out
STROBE
Only if the trigger strobe is enabled
Only if the main strobe is enabled
Figure 2.14 – Standard triggering timing
B.
Fast Synchronized Triggering – Rapid Capture
Fast synchronized triggering (a.k.a. rapid capture) provides the ability to run the
camera in a slave mode, allowing several cameras to be synchronized with an
external master trigger signal. This mode also enables the camera to run close to its
original frame rate. If this mode is enabled, the camera idles and waits for a trigger
signal to come from the selected. Upon receiving the trigger signal, the camera
starts integration until the next trigger is received. Then the information is
transferred to the registers and read out. During this time the next frame is exposed
– Figure 2.15. In this mode the camera exposure can be controlled with the internal
shutter or with the trigger pulse width. If the shutter is not used, the camera
exposure time will be equal to the time between the trigger pulses (trigger period).
If the internal shutter is used the exposure control slider sets the exposure – Figure
2.15. The number of frames captured is set to 1 and cannot be changed.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
82 of 212
BOBCAT Hardware User’s Manual
CAUTION NOTE
1. The time interval between the trigger pulses must be greater than the
corresponding camera frame time. If the time between the triggers is shorter, the
frame read-out cycle will be interrupted and part of the frame will be lost.
TRIGGER
N+1
N
N+2
SHUTTER
EXPOSURE
DATA
Exposure N
DATA N - 1
Exposure N+1
DATA N
DATA N + 1
STROBE
Only if the main strobe is enabled
Figure 2.15 – Fast synchronized triggering - rapid capture
C.
Double Exposure Triggering
Double exposure allows two events (two images) to be captured in rapid succession
using a single trigger pulse. In this mode, the camera idles and waits for a trigger
signal to come from the selected source. Upon receiving the external trigger signal,
the camera clears the horizontal and vertical registers, and starts integration. There
is NO DELAY between the active trigger edge of the trigger pulse and the
beginning of the integration. Upon receiving the trigger signal the camera starts
integration for the first frame, completes the integration, transfers the information to
the vertical registers and then captures the second image. While capturing the
second image the first one is being read out. After exposing the second image, the
information is transferred to the vertical registers and read out – Figure 2.16. This
completes the current trigger cycle and the camera idles until the next trigger pulse.
In this mode the camera exposure can be controlled with the internal shutter or with
the trigger pulse width. The number of frames captured is set to 2 and cannot be
changed. There is NO DELAY between the frames captured.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
83 of 212
BOBCAT Hardware User’s Manual
TRIGGER
1
2
EVENTS
EXPOSURE
DATA
Exp 1
Exposure 2
DATA 1
DATA 2
SHUTTER
STROBE
Only if the trigger strobe is enabled
Only if the main strobe is enabled
Figure 2.16 – Double exposure triggering
CAUTION NOTE
The Vertical Frame Transfer period is the time required for all pixel charges to be
transferred under the vertical registers after the frame exposure ends. This finite
time imposes some restrictions for minimum exposure duration in standard and
double triggering modes. The minimum exposure period is camera dependent as
shown below:
B0610 and B0620 – minimum exposure is 2 us,
B1410 and B1610 – minimum exposure is 4 us,
B2520 – minimum exposure is 8 us.
B1620, B1920 and B2020 – minimum exposure is 11 us,
B4020 and B4820 – minimum exposure is 15 us.
D.
Frame Accumulation Triggering
When the Frame Accumulation triggering mode is enabled, the camera idles and
waits for a trigger signal. Upon receiving the external trigger signal, the camera
clears the horizontal and vertical registers, sends a shutter pulse to clear the pixels
and starts integration – Figure 2.17. Upon receiving the trigger signal the camera
starts integration for the first frame, completes the integration, transfers the
information to the vertical registers and then waits for the next trigger. Upon
receiving the next trigger signal the camera starts integration for the next frame,
completes the integration, transfers the information to the vertical registers and then
waits for the next trigger. The number of triggers used is set by the “Pulses per
Capture” register. After the last trigger has been received the information is being
read out. This completes the current trigger cycle and the camera idles until the next
trigger pulse. In this mode the camera exposure can be controlled with the internal
shutter or with the trigger pulse width.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
84 of 212
BOBCAT Hardware User’s Manual
Trg.1
Trg.2
Trg.3
Trg.4
Trg.5
TRIGGER
EXPOSURE
Exp.1
Exp.2
Exp.3
Exp.4
Exp.5
DATA
TRANSFER
DATA
OUTPUT
DATA
STROBE
Figure 2.17 – Frame accumulation triggering
E.
Asynchronous Triggering
When the Asynchronous triggering mode is enabled, the camera is free running (no
horizontal and vertical flushing prior to trigger). Upon receiving the external trigger
signal, the current CCD timing stops, all camera lines are rapidly flushed, and a new
frame starts – Figure 2.18. This completes the current trigger cycle, the camera free
running and waits for the next trigger pulse. In this mode the camera exposure can
be controlled with the internal shutter or with the trigger pulse width. The time
required for rapid line flush (all charges stored in the vertical registers are cleared)
is camera dependent and if the camera is triggered via CC line, and the camera
exposure is determined by the duration of the CC pulse, the CC pulse duration must
be longer than the rapid flush time, as shown below.
TRIGGER
VCCD
DUMP
EXPOSURE
DATA
DATA
DATA
DATA
DATA
SHUTTER
Figure 2.18 – Asynchronous triggering
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
85 of 212
BOBCAT Hardware User’s Manual
2.7
STROBE OUTPUT
The strobe output is used to synchronize an external light source with the camera timing,
and thus to maximize the camera efficiency in low light level conditions. The optimal
strobe signal position is achieved by the positioning of the STROBE pulse, with respect to
the vertical transfer pulse VCCD (end of the frame) - Figure 2.19. BOBCAT supports two
independent strobe signals. Each strobe pulse can be positioned within the entire frame
timing period with a precision 1.0 us. The strobe duration can be seen from 1.0 us to 65535
us with a precision of 1.0us. The internal camera timing has a flag for odd and even frames.
Each strobe can be assigned to every frame, only odd frames, only even frames, or the
strobe can be disabled. The actual strobe signal can be mapped to the corresponding camera
outputs – please refer to the “I/O Control” section.
CAUTION NOTE
During Standard triggering mode the odd/even frame flag resets with each new trigger. In
this case, if the number of frames is set to 1 the strobe will be present only in “Every
Frame” and “Odd Frames”.
Frame Time
Position Strobe 1
Position Strobe 2
VCCD
STROBE 1
STROBE 2
Duration
Figure 2.19 – Strobe pulse positioning
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
86 of 212
BOBCAT Hardware User’s Manual
2.8
GAIN and OFFSET
2.8.1 Analog Domain – manual control
The camera has dual analog signal processors (or Analog Front End – AFE), one
per channel. It features one dual processor, each containing a differential input
sample-and-hold amplifier (SHA), digitally controlled variable gain amplifier
(VGA), black level clamp and a 14-bit ADC. The programmable internal AFE
registers include independent gain and black level adjustment. There are 1024
possible gain levels (gcode 0 to 1023) and 1024 offset (clamp) levels (ocode 0 to
1023). Figure 2.20 shows the relationship between the video signal output level and
gain/offset. Theoretically, the black level should reside at 0 volts and the gain
changes should only lead to increasing the amplitude of the video signal. Since the
camera has two separate video outputs coming out of the CCD, there is always
some offset misbalance between the video outputs. Thus, changing the AFE gain
leads to a change in the offset level and to a further misbalance between the two
video signals. To correct the balance between two signals for a particular gain, the
user should always adjust the offset for each output – refer to the Camera
Configuration section. The overall camera gain can be calculated using formula 2.3,
where Fixed Gain (FG) is user selectable (- 3dB, 0, 3 dB, or 6dB).
VGA Gain [dB] = FG [dB] + 0.0351 x gcode
(2.3)
video output
AFE output
AFE gain
pixel output
black level
~ 20 mV offset
0V
light intensity
Figure 2.20 – AFE gain and offset
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
87 of 212
BOBCAT Hardware User’s Manual
2.8.2 Digital Domain – manual control
The camera has a built in digital gain and offset control. There are 20 possible
digital gain levels from 1.0x to 3.0x with step of 0.1x, and 1024 offset levels from
(–511, to + 511).
2.8.3 Automatic Gain Control (AGC)
The camera can be set to automatic gain (and exposure) control in order to keep the
same image brightness during changing light conditions. In this mode the user sets
the image brightness (luminance) to be maintained, and the camera adjusts the gain
accordingly. The user can select the average or peak brightness to be maintained.
The camera starts with changing the gain within the preset by the user min-max
limits. If one of the gain limits has been reached, the camera indicates the limit has
been reached and keeps the value until the light condition change. The speed of
convergence (how fast the camera stabilizes after change), can be preset by the user
(four possible options are available). If both modes, automatic exposure and
automatic gain are enabled simultaneously, the camera starts with changing the
exposure first within the preset by the user min-max limits. If one of the exposure
limits has been reached, the camera engages the analog gain, and changes it within
the preset by the user min-max limits. The AGC algorithm samples all pixels for the
entire frame, but the user can select only a portion of the image (AOI) to be used as
a sample collecting region. The camera displays the current luminance, current
exposure and current gain. For auto exposure control refer to Automatic Exposure
Control (AEC) section.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
88 of 212
BOBCAT Hardware User’s Manual
2.9
DATA OUTPUT FORMAT
2.9.1 Bit Depth
The internal camera processing of the CCD data is performed in 14 bits. The
camera can output the data in 14, 12, 10 or 8 bit format. During this standard bit
reduction process, the least significant bits are truncated – Figure 2.21.
-
“14-bit” – All original bits D0 (LSB) to D13 (MSB) are used. This mode is
available only for Single Output.
-
“12-bit” – If the 14 bit original camera data is D0 (LSB) to D13 (MSB), and
camera is set to output 12 bit data, the 12 output bits are mapped to D2 (LSB) to
D13 (MSB).
-
“10-bit” – If the 14 bit original camera data is D0 (LSB) to D13 (MSB), and
camera is set to output 10 bit data, the 10 output bits are mapped to D4 (LSB) to
D13 (MSB).
-
“8-bit” – If the 14 bit original camera data is D0 (LSB) to D13 (MSB), and
camera is set to output 8 bit data, the 8 output bits are mapped to D6 (LSB) to
D13 (MSB).
LSB
D0
Internal Camera Processing - 14 bit Data
D1
D2
D3
D4
D5
D6
D7
D8
D9
MSB
D10 D11 D12 D13
8-bit output data
10-bit output data
12-bit output data
14-bit output data
Figure 2.21 – DATA output format
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
89 of 212
BOBCAT Hardware User’s Manual
2.9.2 Digital Data Shift
The “Digital Shift” feature allows the user to change the group of bits sent to the
camera output and therefore manipulate the camera brightness. The user can
implement up to 7 bits left or right digital shift. The internal camera processing of
the data is 14 bits. If the camera is set to output 10 bits of data then the four least
significant bits are truncated. In some cases the user may need to convert from 14 to
10 bit by preserving the 4 least significant bits and truncating the 4 most significant
ones – Figure 2.22. Please note that the camera signal-to-noise ratio will be reduced
using the data shift option.
Camera Data - 14 bit
D13 D12 D11 D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
0
0
0
0
D1
D0
Standard 10 bit Output Data
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
Modified 10 bit Output Data - (10 bit data + 4 bits shifted right)
0
0
0
0
D9
D8
D7
D6
D5
D4
D3
D2
Figure 2.22 – Output data using 4 bits digital right shift
2.9.3 Output Format
BOBCAT camera series supports several out formats, which are based primarily on
the CCD imager used in the camera, and the number of outputs available. For more
information, please refer to Table 2.1.
A.
Single Output Cameras
For the single output cameras (B0610, B1410 and B1610) the user has several
options based on the CDD imager used. For the camera with monochrome imager
the user has only one option – 1 Tap Sequential. If the camera has a color imager
user can select the raw Bayer data output (1 Tap Sequential) or the interpolated
color – 3 Tap RGB.
-
“1 Tap Sequential” – In this mode all pixels (for every line) are sent to one
output (Tap 1) in a sequence, starting with the first and ending with the last (L)
pixel (1, 2, 3, … L-1, L) – Figure 2.23. Each pixel can be 8, 10, 12 or 14 bit
deep.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
90 of 212
BOBCAT Hardware User’s Manual
Tap 1
P(1)
P(2)
...
P(L-1)
P(L)
Figure 2.23 – 1 tap sequential output
-
“3 Tap RGB” – In this mode each pixel is sent in 24 bit format (3 x 8 bit RGB),
starting with the first pixel of the first line and ending with the last pixel of the
line. Each pixel consists of three components R (red), G (green) and B (blue),
which can be only 8 bits deep. This feature is optional, please contact Imperx
for more information.
B.
Dual Output Cameras
For the dual output cameras (B0620, B1620, B1920 and B2520) there are several
options available, since the camera can work in a single or in a dual output mode
and can have a color or monochrome imager. In a single mode (not available in
B2520) operation for the camera with monochrome imager the user has only one
option – 1 Tap Sequential. If the camera has a color imager and is in a single mode,
user can select the raw Bayer data output (1 Tap Sequential) or the interpolated
color – 3 Tap RGB. For Dual mode of operation regardless of imager type (mono or
color) the user has two choices – 2 Tap Sequential or 2 Tap Interleaved. 3 Tap RGB
is not available because of bandwidth limitations for Base Camera Link
-
“2 Tap Sequential” – In this mode all pixels are sent to two outputs (Tap 1 and
Tap2) in the following sequence – Figure 2.24a. Each pixel can be 8, 10 or 12
deep (14 bit output is not available in this mode). This feature is optional, please
contact Imperx for more information.
Tap 1 – starting (for every line) with the pixel 1 and then all pixels in a
sequence (1, 2, 3 … M-1, M) until reaches the middle pixel (if the
CCD has 1000 pixels in one line, the middle pixel M is #500.
Tap 2 – starting (for every line) with the pixel M+1 and then all pixels in a
sequence (M+1, M+2, M+3 …L-1, L) until reaches the last pixel for
the line.
Tap 1
P(1)
P(2)
...
P(M-1)
P(M)
Tap 2
P(M+1)
P(M+2)
...
P(L-1)
P(L)
Figure 2.24a – 2 tap sequential output
-
“2 Tap Interleaved” – In this mode all pixels are sent to two outputs (Tap 1
and Tap2) in the following sequence – Figure 2.24b. Each pixel can be 8, 10 or
12 deep (14 bit output is not available in this mode).
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
91 of 212
BOBCAT Hardware User’s Manual
Tap 1 – starting (for every line) with the pixel 1 and then all odd pixels in a
sequence (1, 3 … L-3, L-1) until reaches the one before last pixel.
Tap 2 – starting (for every line) with the pixel 2 and then all even pixels in a
sequence (2, 4 …L-2, L) until reaches the last pixel for the line.
Tap 1
P(1)
P(3)
...
P(L-3)
P(L-1)
Tap 2
P(2)
P(4)
...
P(L-2)
P(L)
Figure 2.24b – 2 tap interleaved output
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
92 of 212
BOBCAT Hardware User’s Manual
2.10 PULSE GENERATOR
The camera has a built in pulse generator. The user can program the camera to generate a
discrete sequence of pulse or a continuous trail – Figure 2.25. The pulse generator can be
used as a trigger signal, or can be mapped to one of the outputs – refer to “I/O Control”
section for more information. The discrete number of pulse can be set from 1 to 65530 with
a step of 1. The user has options to set:
-
-
Granularity – Indicates the number of clock cycles that are used for each increment of
the width and the period. Four possible options are available (x1, x10, x100 and x
1000).
Period – Indicates the amount of time (also determined by the granularity) between
consecutive pulses. Minimum value is 1, maximum is 1048576
Width – Specifies the amount of time (determined by the granularity) that the pulse
remains at a high level before falling to a low level. Minimum value is 1, maximum is
524288
Width
Period
Figure 2.25 – Internal pulse generator
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
93 of 212
BOBCAT Hardware User’s Manual
2.11 I/O CONTROL
2.11.1 I/O Mapping
The camera has 2 external inputs end 2 external outputs wired to the 12 pin
HIROSE connector, located on the back of the camera – please refer to Table 1.4a
for more information. In addition to these inputs and outputs, the cameras with
camera link output have two more inputs (CC1 and CC2) and one output (CL
Spare) available. The user can map camera inputs to: H or V Sync, External trigger,
Computer trigger and Exposure control. The user can map the camera outputs to:
Exposure Start, Exposure End, Mid-Exposure, Active Exposure Window, H or, V
Sync, Odd/Even Frame Flag, Trigger Pulse, Trigger Pulse Delayed, Camera Ready,
Pulse Generator, Strobe One, Strobe Two. For each mapped signal active “High”,
active “Low”, can be selected. All possible mapping options for the camera inputs
and outputs are shown in Table 2.4a and Table 2.4b respectively.
Input Signals
Exposure Control
External Trigger
Computer Trigger
H-Sync
V-Sync
IN1
N/A
IN2 CC1 CC2
N/A N/A
N/A Table 2.4a – BOBCAT Input Mapping
Output Signals
Exposure Start
Exposure End
Mid-Exposure
Active Exposure Window
H-Sync
V-Sync
Odd/Even Frame Flag
Trigger Pulse
Trigger Pulse Delayed
Camera Ready
Pulse Generator
Strobe One
Strobe Two
OUT1
OUT2 CL SP
Table 2.4b – BOBCAT Output Mapping
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
94 of 212
BOBCAT Hardware User’s Manual
2.11.2 Electrical Connectivity
Inputs IN1 and IN2
A.
The external inputs in BOBCAT (GigE or CL models) are directly connected to the
camera hardware (NOT optically isolated) – Figure 2.26. The input signals “Signal”
and “Return” are used to connect to an external Input to the outside source. The
signal level (voltage difference between the inputs “Signal” and “Return”) MUST
be LVTTL (3.3 volts) or TTL (5.0 volts). The total maximum input current MUST
NOT exceed 2.0 mA. There are no restrictions for the minimum or maximum
duration.
BNC
1
R4
300
Signal
1
2
TO I/O CONTROL
2 mA MAX
2
Input
D1
6.2V
Return
Figure 2.26 – IN1, IN2 electrical connection.
B.
Outputs OUT1 and OUT2
The external outputs in BOBCAT (GigE or CL models) are directly connected to
the camera hardware (NOT optically isolated) and are TTL (5.0 Volts) compatible
signals. The maximum output current MUST NOT exceed 8 mA. Figure 2.27 shows
the output external electrical connection.
BNC
1
Signal
R5
100
4
3
FROM I/O CONTROL
2
Output
8 mA MAX
Return
Figure 2.27 – OUT1, OUT2 electrical connection.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
95 of 212
BOBCAT Hardware User’s Manual
C.
Custom GPIO (IN/OUT)
BOBCAT (GigE or CL models) has a provision for a high-speed custom general
purpose I/O – LVTTL (3.3 Volts) compatible. The maximum output current MUST
NOT exceed 8 mA, and the maximum input current MUST NOT exceed 2.0 mA.
This GPIO is not currently enabled. If your application requires such configuration
please contact Imperx for more information.
D.
Custom SPI Interface
BOBCAT (CL models ONLY) has a provision for a high-speed custom SPI
interface – LVTTL (3.3 Volts) compatible. The interface is available via the mini
USB connector on the back of the camera. This SPI interface is not currently
enabled. If your application requires such interface please contact Imperx for more
information.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
96 of 212
BOBCAT Hardware User’s Manual
2.12 TEST IMAGE PATTERNS
2.12.1 Test Image patterns
The camera can output several test images, which can be used to verify the
camera’s general performance and connectivity to the frame grabber. This ensures
that all the major modules in the hardware are working properly and that the
connection between the frame grabber and the camera is synchronized – i.e., the
image frameing, output mode, communication rate, etc. are properly configured.
Please note that the test image patterns do not exercise and verify the CCD’s
functionality.
The following test images are available:
- Black – displays black image (value x0000
- Gray – displays an uniform dark gray image (value x2000)
- White – displays an uniform white image (value 3FFF)
- H Ramp Still – displays a stationary horizontal ramp image
- V Ramp Still – displays a stationary vertical ramp image
- H Ramp Move – displays a moving horizontal ramp image
- V Ramp Move – displays a moving vertical ramp image
- Vertical Bars – displays a set of 8 vertical gray bars with different gray levels.
2.12.2 Image Superimposition
The user has the capabilities to superimpose over a live image the following test
patterns. The user can change the brightness of the superimposed image from black
(invisible) to white. Image superimposition is not available during H & V binning.
- “Crosshair” – Crosshair watermark (2 pixels/ 2 lines thickness) indicating the
absolute image center of the image.
- “H & V Lines” – A pair of Horizontal and Vertical lines can be positioned in
the image. The user can enable the lines in horizontal, vertical or both
directions, and to position them at any pixel/line in the image. Since the H & V
lines can be used as a measuring tool, the pixel and line positions are referenced
to the CCD pixels and lines, not to the image pixels and lines. The spacing
between the lines can be displayed in:
1. Pixels - Natively, the spacing between the lines is shown in pixels
2. Metrical units - In addition, the user can use these lines as a measuring
tool. The user can apply a scale coefficient and thus, to calculate the spacing
in linear measuring units (micrometers, millimeters or meters).
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
97 of 212
BOBCAT Hardware User’s Manual
2.13 DYNAMIC BLACK LEVEL CORRECTION AND TAP BALANCING
Black Level Correction
As was described in the Gain and Offset section, the reference black level on each CCD
output fluctuates around 0V. The AFE offset correction works on the entire image and if
there are noise fluctuations on a line level, the AFE is not capable of correcting them. The
camera has a built in dynamic signal-to-noise correction feature to compensate for this
effect. In the beginning of each line the CCD has several back (masked) columns. The dark
level for each tap is sampled over several of these masked pixels and the average per tap
black level floor is calculated for each frame. The average floor level for each tap is then
subtracted from each incoming pixel (from the corresponding tap) from the next frame.
Tap Balancing
Since the camera has two separate video outputs coming out of the CCD, there is always
some offset misbalance between the video outputs. Thus, changing the AFE gain leads to a
change in the offset level and to a further misbalance between the two video signals. To
correct the balance between two signals at any particular gain, BOBCAT series of cameras
have static and dynamic balancing algorithms implemented in the firmware. The
algorithms compares the black and bright levels of the adjacent pixels around the tap line,
and adjusts the gain and offset for each tap accordingly, until the balance has been reached.
The selection to use static or dynamic balancing depends on the application. Please note,
that if AGC is enabled, it is strongly recommended to use static balancing, because the
dynamic balancing can interfere with the AGC algorithm.
2.14 TRANSFER FUNCTION CORRECTION – USER LUT
The user defined LUT (Lookup Table) feature allows the user to modify and transform the
original video data into any arbitrary value – Figure 2.30. Any 12-bit value can be
transformed into any other 12-bit value. The camera supports two separate lookup tables,
each consisting of 4096 entries, with each entry being 12 bits wide. The LUT is applied to
the entire image unless AOI8 is enabled as “LUT ROI”. In this case the LUT function will
apply only to the selected ROI. The first LUT is factory programmed with a standard
Gamma 0.45. The second LUT is not pre-programmed in the factory. Both LUT’s are
available for modifications, and the user can generate and upload his own custom LUT
using the BOBCAT Configuration software – refer to Appendix B.
12 bit input
data
LUT
12 bit output
data
Figure 2.30 – Look up table
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
98 of 212
BOBCAT Hardware User’s Manual
2.14.1 Standard Gamma Correction
The image generated by the camera is normally viewed on a CRT (or LCD) display,
which does not have a linear transfer function – i.e., the display brightness is not
linearly proportional to the scene brightness (as captured by the camera). As the
object brightness is lowered, the brightness of the display correspondingly lowers.
At a certain brightness level, the scene brightness decrease does not lead to a
corresponding display brightness decrease. The same is valid if the brightness is
increased. This is because the display has a nonlinear transfer function and a
brightness dynamic range much lower than the camera. The camera has a built-in
transfer function to compensate for this non-linearity, which is called gamma
correction. If enabled, the video signal is transformed by a non-linear function close
to the square root function (0.45 power) – formula 2.4. In the digital domain this is
a nonlinear conversion from 12-bit to 12-bit – Figure 2.31.
Output signal [V] = (input signal [V]) 0.45
(2.4)
Figure 2.31 – Gamma corrected video signal
2.14.2 User Defined LUT
The user can define any 12-bit to 12-bit transformation as a user LUT and can
upload it to the camera using the configuration utility software. The user can
specify a transfer function of their choice to match the camera’s dynamic range to
the scene’s dynamic range. There are no limitations to the profile of the function.
The LUT must include all possible input values (0 to 4095) – Figures 2.32.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
99 of 212
BOBCAT Hardware User’s Manual
Output signal
Modified TF
Original TF
Input signal
Figure 2.32 – Custom LUT
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.1
5/4/2010
100 of 212
BOBCAT Hardware User’s Manual
2.15 DEFECTIVE PIXEL CORRECTION
A CCD imager is composed of a two-dimensional array of light sensitive pixels. In
general, the majority of the pixels have similar sensitivity. Unfortunately, there are some
pixels which sensitivity deviates from the average pixel sensitivity. A defective pixel is
defined as a pixel whose response deviates by more than 15% from the average response.
In extreme cases these pixels can be stuck ‘black’ or stuck ‘white’ and are non-responsive
to light. There are two major types of pixel defects – “Defective” and “Hot”.
1. ”Defective” – these are pixels which sensitivity deviates more than 15% due to
fluctuations in the CCD manufacturing process. Two type of defective pixels are
possible:
a. “DARK” is defined as a pixel, whose sensitivity is lower than the sensitivity of
the adjacent pixels. In some cases this pixel will have no response (completely
dark).
b. “BRIGHT” is defined as a pixel, whose sensitivity is higher than the sensitivity
of the adjacent pixels. In some cases this pixel will have full response (completely
bright).
2. “Hot” – these are pixel, which in normal camera operation behaves as normal pixel
(the sensitivity is equal to the one of the adjacent pixels), but during long time
integration behaves as a high intensity bright pixel. In some cases this pixel will have
full response (completely bright).
During factory final testing, our manufacturing engineers run a program specially
designed to identify these ‘defective’ and “hot” pixels. The program creates a file which
lists the coordinates (i.e. row and column) of every defective pixel. This file, called the
Defect Pixel Map, is then downloaded into the camera’s non-volatile memory. Users may
wish, however, to create and to upload their own DPM file because of the uniqueness of their
operating environment or camera use. When ‘Defective Pixel Correction’ is enabled, the
camera will compare each pixel’s coordinates with entries in the ‘defect’ map. If a match
is found, then the camera will ‘correct’ the defective pixel. When ‘Hot Pixel Correction’
is enabled, the camera will compare each pixel’s coordinates with entries in the ‘defect’
map. If a match is found, then the camera will ‘correct’ the hot pixel.
“Defective Pixel Correction” and “Hot Pixel Correction” can be independently enabled.
The "Defective/Hot Pixel Map" can be displayed upon user request.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
101 of 212
BOBCAT Hardware User’s Manual
2.16 FLAT FIELD CORRECTION
A CCD imager is composed of a two dimensional array of light sensitive pixels. Each
pixel within the array, however, has its own unique light sensitivity characteristics. Most
of the deviation is due to the difference in the angle of incidence and to charge transport
artifacts. This artifact is called ‘Shading’ and in normal camera operation should be
removed. The process by which a CCD camera is calibrated for shading is known as ‘Flat
Field Correction’. Refer to Figures 2.33a and 2.33b for images acquired before and after
Flat Field Correction. This feature is available as a standard feature only for cameras with
1.0” optical format or bigger.
The BOBCAT series of cameras incorporate a Flat Field Correction mechanism. The Flat
Field Correction mechanism measures the response of each pixel in the CCD array to
illumination and is used to correct for any variation in illumination over the field of the
array. The optical system most likely introduces some variation in the illumination
pattern over the field of the array. The flat field correction process compensates for
uneven illumination, if that illumination is a stable characteristic of each object exposure.
During factory final testing, our manufacturing engineers run a program specially
designed to identify the shading characteristics of the camera. The program creates a Flat
Field Correction file, which contains coefficients describing these shading characteristics.
This file is then downloaded into the camera’s non-volatile memory. When Flat Field
Correction is enabled, the camera will use the Flat Field Correction coefficients to
compensate for the shading effect.
Each Imperx camera is shipped with the Flat Field Correction file that was created for
that camera during factory final testing. Users may wish, however, to create their own
Flat Field Correction file because of the uniqueness of their operating environment (i.e.
lens, F-stop, lighting, etc.). Therefore, Imperx provides a Flat Field Correction utility that
allows users to generate a Flat Field Correction file. This file can then be downloaded
into the camera. While creating the Flat Field Correction file, it is necessary to illuminate
the CCD with a light pattern that is as representative of the background illumination as
possible. This illumination should be bright enough, or the exposure made long enough,
so that the CCD pixels signals are at least 25 percent of full scale (for 12 bit mode the
level should be at least 1000 ADUs).
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
102 of 212
BOBCAT Hardware User’s Manual
Figure 2.33a – Original image showing ‘shading’ effect
Figure 2.33b – Flat field corrected image
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
103 of 212
BOBCAT Hardware User’s Manual
2.17 NEGATIVE IMAGE
When operating in the negative image mode, the value of each pixel is inverted. The
resultant image appears negative – Figure 2.34. This feature could be useful if the camera
receives a negative image (i.e. image from microfilms, prints or slides). In this mode the
image has a normal vertical and horizontal orientation and full resolution. This feature is
available in both single and dual output modes.
Figure 2.34 – Normal and Negative Image
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
104 of 212
BOBCAT Hardware User’s Manual
2.18 CAMERA INTERFACE
2.18.1 Status LED
The camera has a dual red-green LED, located on the back panel. The LED color
and light patter indicate the camera status and mode of operation:
•
GREEN is steady ON – Normal operation. The user is expected to see a normal
image coming out of the camera.
•
GREEN blinks with frequency ~ 0.5 Hz – indicates triggering mode.
•
GREEN blinks with frequency ~ 2.0 Hz – indicates programmable integration
(line, frame or both) mode.
•
YELLOW is steady ON – Test mode. The user is expected to see one of the test
patterns.
•
YELLOW blinks with frequency ~ 0.5 Hz – the camera is in AGC/AEC mode.
In this mode changing the shutter slider will not affect the image luminance.
•
YELLOW blinks with frequency ~ 2.0 Hz – the camera is in external H or V
sync mode. The camera timing will be slaved to the external pulses. Changing
programmable integration sliders will not affect the image luminance
•
RED is steady ON – RS232 communication error or firmware load error. Repower the camera and load the factory settings. If the condition is still present,
please contact the factory for RMA.
•
LED is OFF – Power not present error. The camera has no power or indicates a
camera power supply failure. A faulty external AC adapter could also cause this.
To restore the camera operation, re-power the camera and load the factory
settings. If the LED is still “OFF”, please contact the factory for RMA.
2.18.2 Temperature Monitor
The camera has a built in temperature sensor which monitors the internal camera
temperature. The sensor is placed on the hottest spot in the camera. The internal
camera temperature is displayed on the Camera Configuration Utility screen and
can be queried by the user at any time – refer to Camera Configuration section.
2.18.3 Exposure Time Monitor
The camera has a built in exposure time monitor. In any mode of operation (i.e.
normal, AOI, binning, etc.) the user can query the camera for the current exposure
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
105 of 212
BOBCAT Hardware User’s Manual
time by issuing a command – refer to the Exposure Control section. The current
camera integration time in units of microseconds will be returned.
2.18.4 Frame Time Monitor
The camera has a built in frame rate monitor. In any mode of operation (i.e.
normal, AOI, binning, etc.) the user can query the camera for the current frame
rate by issuing a command – refer to the Exposure Control section. The current
camera speed in units of frames per second will be returned.
2.18.5 Current image size
The camera image size can change based on a camera feature selected. In any
mode of operation (i.e. normal, AOI, binning, etc.) the user can query the camera
for the current image size by issuing a command – refer to the Image Size section.
The current camera image size in (pixels x lines) will be returned.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
106 of 212
BOBCAT Hardware User’s Manual
Chapter 3 – Digital Image Processing
Digital Image Processing
This chapter discusses built in Digital Image Processing algorithm in the
camera and their implementation and use.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
107 of 212
BOBCAT Hardware User’s Manual
3.1
OVERVIEW
The camera has built-in several basic image processing functions. More functions will be
added later. Please contact Imperx for more information.
3.2
IMAGE ENHANCEMENT
In many imaging applications the user will have a dark object on a bright background,
many dark and bright spots or shadows, or the light will not be sufficient, so the resulting
image will have a low contrast, and/or a vary low dynamic range. To improve the image
quality in such conditions, BOBCAT offers a set of image enhancing features –
thresholding and multi-point image correction. The processing function is applied to the
entire image unless AOI8 is enabled as “Processing ROI”. In this case the processing
function will apply only to the selected ROI.
3.2.1 Threshold Operation
In many applications the binary images are much simpler to analyze that the
original gray scale one. The process, which converts the regular gray scale image
to binary, is called “Thresholding”. Thresholding is a special case of intensity
quantization (binarisation) where the image can be segmented into foreground and
background regions, having only two gray scale levels “white” and “black”.
Selecting the threshold value is very critical for the binary image quality, and it is
to a great extend scene dependent. If a threshold level is chosen correctly, this will
produce a well-defined boundary of the object, which is essential. In some cases it
is desirable if part of the image is binary and some is grayscale image. The
camera has built in four thresholding modes:
3.2.1.1 Single Threshold Binary
If the image is a high contrast scene and has well defined bright and dark
regions a simple binarisation technique can be used for thresholding –
Formula 3.1. The binary image output is converted to “white” for all gray
level values higher or equal to the selected threshold point X1, and to
“black” for all gray levels lower than X1. The user can set the optimal
threshold value. Figure 3.1 shows the original and the processed image
with single threshold.
Output signal
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
=>
“WHITE” if (input signal ≥ X1)
“BLACK” if (input signal < X1)
(3.1)
Rev. 1.0
5/4/2010
108 of 212
BOBCAT Hardware User’s Manual
3.2.1.2 Dual Threshold Binary
If the image has a low contrast and does not have well defined dark and
bright regions, the simple threshold operation does not yield good results.
In such cases a dual (known also as interval or window) thresholding
technique has to be implemented – Formula 3.2. The binary image output
is converted to “white” for all gray level values between the selected
threshold interval X1 and X2, and to “black” for all gray levels outside
(X1, X2) interval. The user can set the optimum X1 (Low) and X2 (High)
threshold values, please note that X2 > X1. Figure 3.2 shows the original a
processed image after a dual threshold operation.
Output signal =>
“BLACK” if (input signal ≤ X1)
“WHITE” if (X1 < input signal < X2)
“BLACK” if (input signal ≥ X2)
(3.2)
Figure 3.1 – Original and processed image with single threshold.
Figure 3.2 – Original and processed image with double threshold.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
109 of 212
BOBCAT Hardware User’s Manual
3.2.1.3 Dual Threshold with Gray Scale
In some low contrast imaging applications, the simple threshold operation
along with a superimposed gray scale image might yield a good result. In
such cases a dual thresholding technique with a gray scale has to be
implemented – Formula 3.3. The image output is a gray scale image for all
gray level values between the selected threshold interval X1 and X2,
“black” for all gray levels lower than X1, and “white” for any gray levels
higher than X2. The user can set the optimum X1 (Low) and X2 (High)
threshold values, please note that X2 > X1. The image gray scale range is
only from values X1 to X2.
Output signal =>
“BLACK”
if (input signal ≤ X1)
“Gray Scale” if (X1 < input signal < X2)
“WHITE”
if (input signal ≥ X2)
(3.3)
3.2.1.4 Dual Threshold with Gray Scale Stretch
In some low contrast applications, the threshold operation along with a
gray scale stretch might yield a good result – Figure 3.3. This is similar to
dual threshold with a gray scale, but the image gray scale is digitally
stretched to full 12 bit gray scale – Formula 3.4. The user can set the
optimum X1 (Low) and X2 (High) threshold values, note that X2 > X1.
Output signal => “BLACK”
if (input signal ≤ X1)
“Full Gray Scale” if (X1 < input signal < X2)
“WHITE”
if (input signal ≥ X2)
(3.4)
Figure 3.3 – Original and processed image with threshold and gray scale stretch.
3.2.2 Multi Point Correction
Multi point correction is a modification of the slope of the camera transfer
function (TF), which results in the suppression or enhancement of certain image
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
110 of 212
BOBCAT Hardware User’s Manual
regions. The original camera transfer function is linear and maps the data 1:1. The
new (corrected) transfer function has one or two sets of variable (X, Y) and based
on the relation between the variables a correction of certain image regions can be
achieved. The camera has two built in correction modes.
3.2.2.1 Single Point Correction
Output signal
The simplest image enhancement can be achieved by a linear modification
of the original transfer function. If the image brightness is weighted
towards a particular region (dark or bright), this region needs to be
suppressed, and the less present (the flat) region needs to be enhanced.
The range of the correction is determined by the location of the break
point (X1, Y1) – Figure 3.4. This point (X1, Y1) divides the camera
transfer function into two regions (two lines). The slope of these lines (the
angle between the X axis and the line) determines the power of the
correction. If the angle is less than 45O degrees, the grayscale range will be
suppressed. If the angle is more than 45O degrees, the grayscale range will
be enhanced. The user can set the optimum (X1, Y1) values.
Ne
wT
Y1
ig
Or
X1
F
TF
al
n
i
Input signal
Figure 3.4 – Single point TF correction.
3.2.2.2 Multi Point Correction
If the image brightness is weighted towards two particular region – dark
and bright, and in the same time mid region has a low dynamic range a
multi point correction will produce much better results compare to the
single point correction. The range of the correction is determined by the
location of a pair of the break point (X1, Y1) and (X2, Y2) – Figure 3.5a.
The camera transfer function is divided into three regions (three lines),
which allows multiple grayscale regions to be corrected independent of
each other. If the angle is less than 45O degrees, the grayscale range will be
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
111 of 212
BOBCAT Hardware User’s Manual
TF
1
2
w
Ne
TF
Y2
TF
Output signal
Output signal
suppressed, if the angle is 45O degrees, the gray scale will not change. If
the angle is more than 45O degrees, the grayscale range will be enhanced.
The user can set the optimum (X1, Y1) and (X2, Y2) values, note that X2
> X1. Figure 3.5b shows some of the most typical correction curves. If the
angle in the mid range (between X1 and X2) is negative, the grayscale
range will be reversed. Curve TF 1 enhances the dark image regions and
suppresses the bright ones. TF 2 – suppresses the dark and bright image
parts and enhances the mid range. TF 3 – enhances the bright image
regions and suppresses the dark ones. TF 4 – enhances the bright and dark
image parts and suppresses the mid range.
TF 4
Y1
in
X2
X1
al
TF
3
a
in
ig
Or
TF
ig
Or
F
lT
Input signal
A
B
Figure 3.5 – Multi point TF correction.
Figure 3.6 shows an original image (left) and processed one (right). The
original image has two dominant regions – predominantly dark subject
with a very bright bottom section and a relatively flat gray region. To
correct the image we will use “TF 1” type correction with points (650,
1950) and (2200,1760).
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
112 of 212
BOBCAT Hardware User’s Manual
Figure 3.6 – Multi point image correction (a – original, b – processed).
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
113 of 212
BOBCAT Hardware User’s Manual
Chapter 4 – Camera Configuration
Camera Configuration
This chapter discusses how to communicate with the camera and configure
the camera’s operating parameters.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
114 of 212
BOBCAT Hardware User’s Manual
4.1
OVERVIEW
The Bobcat series of cameras are highly programmable and flexible. All of the
cameras resources (internal registers, video amplifiers and parameter FLASH) can
be controlled by the user. The user communicates with the camera using a simple,
register-based, command protocol via the Camera Link’s serial interface. The
interface is bi-directional with the user issuing ‘commands’ to the camera and the
camera issuing ‘responses’ (either status or info) to the user. The entire camera
registers and resources can be configured and monitored by the user. The
camera’s parameters can be programmed using the Bobcat Configurator graphical
user interface.
4.2
CAMERA CONFIGURATION
4.2.1 Configuration Memory – parameter FLASH
The camera has a built-in configuration memory divided into 4 segments: ‘workspace’, ‘factory-space’, ‘user-space #1’ and ‘user-space #2’. The ‘work-space’
segment contains the current camera settings while the camera is powered-up and
operational. All camera registers are located in this space. These registers can be
programmed and retrieved via commands issued by the user. The workspace is
RAM based and upon power down all camera registers are cleared. The ‘factoryspace’ segment is ROM based, write protected and contains the default camera
settings. This space is available for read operations only. The ‘user-space #1’ and
‘user-space #2’ are non-volatile, FLASH based and used to store two user defined
configurations. Upon power up, the camera firmware loads the work-space
registers from the factory-space, user-space #1 or user-space #2 as determined by
a ‘boot control’ register located in the configuration memory. The ‘boot control’
register can be programmed by the user (refer to Camera Configuration Section).
The user can, at any time, instruct the camera to loads its workspace with the
contents of either the ‘factory-space’, ‘user-space #1’ or ‘user-space #2’.
Similarly, the user can instruct the camera to save the current workspace settings
into either the ‘user-space #1’ or ‘user-space #2’.
The non-volatile parameter FLASH memory also contains Defective Pixel Map,
Hot Pixel Map, Flat Field Correction Coefficients, LUT 1 and LUT 2, which can
be loaded to the camera internal memory upon enabling the corresponding camera
feature. The user can create its own DPM, HPM, FFCC, and LUT tables and
upload them to the parameter FLASH using the Bobcat Configurator graphical
user interface.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
115 of 212
BOBCAT Hardware User’s Manual
4.2.3 Camera Serial Protocol
In order to access the camera registers and resources a sequence of bytes needs to
be transmitted to the camera via the Camera Link serial interface. This is an
RS232, asynchronous, full-duplex, serial protocol, with 8 data bits, 1 stop bit, and
no parity – Figure 3.1. The default baud rate is configurable (9600, 19200, 38400,
57600 and 115200 – default).
Figure 3.1 – Serial protocol format
Each camera control register can be updated independently. In terms of the serial
protocol, all registers are defined as 16-bit address (hex format), and 32-bit data
(hex format). Camera registers using less than 32-bits in width must be padded
with ‘0’s on writes, and unused bites are ignored on reads. Register data is always
“packed low” within 32-bit data words for registers defined less than 32-bits.
There is a latency delay for each command due to command execution and data
transmission over the serial port. This latency varies from command to command
because of resource location and command response length.
4.2.3.1 Write Operation
In order to write to any given camera register, a sequence of 7 bytes should be
sent to the camera. If there is no error the camera returns one byte
acknowledge for the write command <Ack> - Figure 3.2. If there is an error
the camera returns two bytes not-acknowledge for the write command – the
first byte is <Nac> <Err>, the second is the error code – Figure 3.3a,b:
Write to camera (7 Bytes): <Write_Cmd> <Address> <Data>
st
1 byte: 0x57 (Write Command)
nd
2 byte: <Register Address_High> MSB
rd
3 byte: <Register Address_Low> LSB
th
4 byte: <Register Data Byte 4> MSB
th
5 byte: <Register Data Byte 3> …
th
6 byte: <Register Data Byte 2> …
th
7 byte: <Register Data Byte 1> LSB
Write Acknowledge (1 Byte): <Ack>
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
116 of 212
BOBCAT Hardware User’s Manual
st
1 byte: 0x06 (Acknowledge)
Wr_Cmd
57
Rx
Data
Addr
04
10
11
22
33
44
Ack
Tx
06
Figure 3.2 – Normal write cycle
Write Not-acknowledge (2 Bytes): <Nak> <Error Code>
st
1 byte: 0x15 (Not-acknowledge)
nd
2 byte: <XX> (Nck Error Code. See Error Code Description section)
Cmd
Rx
47
These characters are dropped
04
10
11
Nak Invalid Cmd
Tx
15
01
22
33
44
****
* * * * All subsequent Rx characters are
dropped until the receipt of a valid
( 52 or 57 ) command
Figure 3.3a – Invalid command error
Wr_Cmd
Rx
57
These characters
are dropped
Addr
04
10
11
22
33
t=0
Tx
* * * * All subsequent Rx characters are
dropped until the receipt of a valid
( 52 or 57 ) command
t=100 mS
44
****
Nak
Timeout
15
02
Figure 3.3b – Rx timeout error
Example: Write to register address 0x0410, data value = 0x11223344:
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
117 of 212
BOBCAT Hardware User’s Manual
Camera Write Command : <57> <04> <10> <11> <22> <33> <44>
4.2.3.2 Read Operation
In order to read from any given camera register, a sequence of 3 bytes should
be sent to the camera. If there is no error the camera returns 5 bytes – one byte
acknowledge for the read command <Ack> and four bytes of data <DD>
<DD> <DD> <DD> - Figure 3.4. During read operation the camera does not
return an error or <Nac>. The only exception is the case of invalid command –
Figure 3.3a. If the user specifies a wrong address, the camera returns
acknowledge <06> and four bytes of data <00> <00> <00> <00>.
Read from camera (3 Bytes) : <Read_Cmd> <Address>
st
1 byte: 0x52 (Read Command)
nd
2 byte: <Register Address_Low>
rd
3 byte: <Register Address_High>
The camera returns (5 bytes) : <ACK> <Data>
st
1 byte: 0x06 (Acknowledge)
nd
2 byte: <Register Data Byte 4> MSB
rd
3 byte: <Register Data Byte 3> …
th
5 byte: <Register Data Byte 2> …
th
6 byte: <Register Data Byte 1> LSB
Rd_Cmd
Rx
52
Addr
04
10
Data
Ack
Tx
06
11
22
33
44
Figure 3.4 – Normal read cycle
Example: Read from camera register address 0x0410:
Camera Read Command : <52> <04> <10>
Camera returns register data payload value 0x11223344:
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Register data <06> <11> <22> <33> <44>
Rev. 1.0
5/4/2010
118 of 212
BOBCAT Hardware User’s Manual
4.2.3.3 Error Code Description
To manage camera reliability, not-acknowledge error codes are defined as
follows:
x00 – No error
x01 – Invalid command. An invalid command (not 52 or 57) has been sent to
the camera.
x02 – Time-out.
x03 – Checksum error
x04 – Value less then minimum
x05 – Value higher than maximum
x06 – AGC error
x07 – Supervisor mode error
x08 – Mode not supported error
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
119 of 212
BOBCAT Hardware User’s Manual
4.3
CAMERA CONFIGURATION REGISTER DESCRIPTION
4.3.1 Startup Procedure
Upon power on or receipt of an ‘SW_Reset’ command, the camera performs the
following steps:
1. Boot loader checks Program FLASH memory for a valid Firmware image and
loads it into the FPGA.
2. The camera reads the ‘Boot From’ register from the parameter FLASH and
loads its workspace from one of the configuration spaces as determined by the
‘Boot From’ data. The available configuration spaces are: ‘Factory…’,
‘User #1…’, ‘User #2…’
3. The camera is initialized and ready to accept user commands.
4.3.2 Saving and Restoring Settings
Operational settings for the camera may be stored for later retrieval in its nonvolatile memory. Three separate configuration spaces exist for storing these
settings: ‘factory’ space, ‘user #1’ space and ‘user #2’ space. The factory space is
pre-programmed by factory personnel during the manufacturing process. This
space is write protected and cannot be altered by the user. Two user spaces are
also provided allowing the user to store his/her own preferences. The camera can
be commanded to load its internal workspace, from either of the three
configuration spaces, at any time. The user can also define from which space the
camera should automatically load itself following a power cycle or receipt of a
reset (‘SW_Reset’) command.
4.3.2.1 Boot From
This register determines which configuration space (factory, user#1 or user
#2) should be loaded into the camera following a power cycle or reset
(‘SW_Reset’) command. Upon a power cycle or reset, the camera reads the
‘boot from’ value from non-volatile memory and loads the appropriate
configuration space.
Address
Data (1- 0)
:
:
Data (31- 2)
:
:
0x6000
00 – Boot from Factory
01 – Boot from User #1
10 – Boot from User #2
N/A
4.3.2.2 Load From Factory
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
120 of 212
BOBCAT Hardware User’s Manual
The ‘Load From Factory’ command instructs the camera to load its
workspace from the factory space. All current workspace settings will be
replaced with the contents of the factory space. This is a command, not a
register. The act of writing to this location initiates the load from the factory.
Address
:
0x6060
4.3.2.3 Load From User #1
The ‘Load From User #1’ command instructs the camera to load its
workspace from the user #1 space. All current workspace settings will be
replaced with the contents of the user #1 space. This is a command, not a
register. The act of writing to this location initiates the load from the user #1.
Address
:
0x6064
4.3.2.4 Load From User #2
The ‘Load From User #2’ command instructs the camera to load its
workspace from the user #2 space. All current workspace settings will be
replaced with the contents of the user #2 space. This is a command, not a
register. The act of writing to this location initiates the load from the user #2.
Address
:
0x6068
4.3.2.5 Load MFG Default Gain
The ‘Load MFG Default Gain’ command instructs the camera to load its
default gain and offset settings from the manufacturing space. Different
settings will be loaded for “slow” and “fast” camera speed. This is a
command, not a register. The act of writing to this location initiates the load
the default gain and offset settings.
Address
:
0x606C
4.3.2.6 Save to User #1
The ‘Save To User #1’ command instructs the camera to save its
workspace to the user #1 space. All current workspace settings will be saved
to the user #1 space. This is a command, not a register. The act of writing to
this location initiates the save to user #1 space.
Address
:
0x6074
4.3.2.7 Save to User #2
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
121 of 212
BOBCAT Hardware User’s Manual
The ‘Save To User #2’ command instructs the camera to save its
workspace to the user #2 space. All current workspace settings will be saved
to the user #2 space. This is a command, not a register. The act of writing to
this location initiates the save to user #2 space.
Address
:
0x6078
4.3.2.8 SW_Reset
The ‘SW_Reset’ command instructs the camera to initiate software reset,
which resets the camera and loads its workspace from one of the configuration
spaces as determined by the ‘Boot From’ data. Although, this is a command,
the user MUST write a specific data 0xDEADBEEF in order to initiate the
reset sequence.
Address
:
0x601C
Data
:
0xDEADBEEF
4.3.2.9 BAUD Rate Selector
This register sets the communication baud rate between the camera and
computer.
Address
Data (2:0)
:
:
0x0604
000 – 9600
001 – 19200
010 – 38400
011 – 57600
100 – 115200
Data (31:3)
:
N/A
4.3.3 Retrieving Manufacturing Data
The camera contains non-volatile memory that stores manufacturing related
information. This information is programmed in the factory during the
manufacturing process.
4.3.3.1 Firmware Revision
This register returns the camera main firmware revision.
Address
Data
:
:
0x6004
<FW revision>
4.3.3.2 Firmware Build Number
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
122 of 212
BOBCAT Hardware User’s Manual
This register returns the firmware build number, which tracks custom
firmware for specific applications.
Address
Data
:
:
0x6008
<FBN revision>
4.3.3.3 Assembly Part Number
This register returns the camera assembly part number – the complete
assembly part number is 4 registers.
Address
Data
:
:
0x7004, 0x7008, 0x700C, 0x7010
<Assembly Part Number>
4.3.3.4 Camera Serial Number
This register returns the camera serial number – the complete serial number is
2 registers.
Address
Data
:
:
0x7014, 0x7018
<Camera Serial Number>
4.3.3.5 CCD Serial Number
This register returns the CCD imager number – the complete CCD number is
2 registers.
Address
Data
:
:
0x701C, 0x7020
<CCD Serial Number>
4.3.3.6 Date of Manufacture
This register returns the camera date of manufacture – The complete date of
manufacture is 2 registers.
Address
Data
:
:
0x7024, 0x7028
<Date of Manufacture>
4.3.3.7 Camera Type
This register returns the camera type – The complete assembly is 4 registers.
Address
Data
:
:
0x702C, 0x7030, 0x7034, 0x7038
<Camera Type>
4.3.4 Camera Information Registers
The camera has a set of information registers, which provide information for the
camera current status, frame rate, exposure time, image size, etc.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
123 of 212
BOBCAT Hardware User’s Manual
4.3.4.1 Horizontal Frame Size (Max, Min)
This register returns the minimum/maximum horizontal image frame size in
pixels. The maximum horizontal image size is a dynamic parameter and
changes based on the LVAL selection.
Address
Data (15:0)
Data (31:16)
:
:
:
0x6080
<Minimum Horizontal Size>
<Maximum Horizontal Size>
4.3.4.2 Vertical Frame Size (Max, Min)
This register returns the minimum/maximum vertical image frame size in
lines. The maximum vertical image size is a dynamic parameter and changes
based on the FVAL selection.
Address
Data (15:0)
Data (31:16)
:
:
:
0x6084
<Minimum Vertical Size>
<Maximum Vertical Size>
4.3.4.3 Current Minimum Frame Time
This register returns the current minimum frame time in us.
Address
Data (23:0)
Data (31:24)
:
:
:
0x6088
<Minimum Frame Time>
N/A
4.3.4.4 Current Minimum Line Time
This register returns the current minimum line time in pixels.
Address
Data (15:0)
Data (31- 16)
:
:
:
0x608C
N/A
<Minimum Line Time>
4.3.4.5 Current Minimum Exposure
This register returns the current minimum possible camera exposure time in
us.
Address
Data (23:0)
Data (31:24)
:
:
:
0x6094
<Minimum Camera Exposure>
N/A
4.3.4.6 Current Maximum Exposure
This register returns the current camera maximum exposure time in us. The
maximum camera exposure is a dynamic parameter and changes based on the
camera mode of operation.
Address
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
:
0x6090
Rev. 1.0
5/4/2010
124 of 212
BOBCAT Hardware User’s Manual
Data (23:0)
Data (31:24)
:
:
<Current Maximum Camera Exposure>
N/A
4.3.4.7 Current Camera Exposure
This register returns the current camera exposure time in us.
Address
Data (23:0)
Data (31:24)
:
:
:
0x609C
<Current Exposure Time>
N/A
4.3.4.8 Current Frame Time
This register returns the current camera frame time in us.
Address
Data (23:0)
Data (31:24)
:
:
:
0x60A0
<Current Frame Time>
N/A
4.3.4.9 Current Image Size
This register returns the current image frame size in pixels. The image size is
a dynamic parameter and changes based on the camera mode of operation.
Address
Data (15:0)
Data (31:16)
4.3.4.10
:
:
:
0x60B0
<Current Horizontal Size>
<Current Vertical Size>
Current Gain & Luminance Status
This register returns the current analog gain and the current average image
luminance during normal, AGC and Tap Balance operation.
The Current Analog Gain (register bits D11:D0) displays:
-
The current slider gain for tap 1 during normal operation.
-
The calculated AGC gain for tap1 when AGC/AEC is enabled.
-
The calculated analog gain for tap 2 when tab balancing is enabled.
Address
Data (11:0)
Data (23:12)
Data (24)
Data (25)
Data (27, 26)
Data (28)
Data (29)
Data (31, 30)
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
:
:
:
:
:
:
:
:
:
0x60B4
<Current Analog Gain>
<Current Average Luminance>
<Analog Gain Minimum Limit Reached>
< Analog Gain Maximum Limit Reached>
N/A
<Exposure Minimum Limit Reached>
<Exposure Maximum Limit Reached>
N/A
Rev. 1.0
5/4/2010
125 of 212
BOBCAT Hardware User’s Manual
4.3.4.11
Current Camera Temperature
This register returns the current camera temperature in degrees Celsius. The
temperature resolution is 0.25°C – Table 3.1.
Address
Data (9:0)
Data (31:10)
:
:
:
0x6010
<Current Camera Temperature>
N/A
Temperature
+127.75 °C
...
+0.25 °C
0° C
-0.25 °C
...
-128 °C
Register Value
01 1111 1111
...
00 0000 0001
00 0000 0000
11 1111 1111
...
10 0000 0000
Table 3.1 – Current camera temperature values
4.3.5 Image Size (AOI) Workspace Registers
4.3.5.1 Scan Mode Control
This register sets the current CCD readout (scan) mode. The default CCD
scanning mode for all Bobcat cameras is progressive, where all pixels within
the same exposure period are read out simultaneously. Some CCD imagers
allow a sub-sampled scan (center only), where only a sub-section of the pixels
are readout, thus providing a higher camera frame rate.
Address
:
0x0504
Data (0)
:
0 – normal – progressive scan
1 – center – sub-sampled (partial) scan
Data (31:1)
:
N/A
4.3.5.2 Vertical Binning Mode
This register sets the current binning format in vertical direction. Five possible
vertical binning options are possible.
Address
Data (2:0)
:
:
Data (31:3)
:
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
0x0500
000 – 1x vertical binning
001 – 2x vertical binning
010 – 3x vertical binning
011 – 4x vertical binning
100 – 8x vertical binning
N/A
Rev. 1.0
5/4/2010
126 of 212
BOBCAT Hardware User’s Manual
4.3.5.3 Horizontal Binning Mode
This register sets the current binning format in horizontal direction. Five
possible horizontal binning options are possible.
Address
Data (2:0)
:
:
Data (31:3)
:
0x0204
000 – 1x horizontal binning
001 – 2x horizontal binning
010 – 3x horizontal binning
011 – 4x horizontal binning
100 – 8x horizontal binning
N/A
4.3.5.4 MAOI
This set of register enables MAOI and sets the appropriate window size and
offset in horizontal and vertical direction.
MAOI Enable
Address
Data (0)
:
:
Data (31:1)
:
0x0208
0 – MAOI disable
1 – MAOI enable
N/A
MAOI Horizontal Offset
Address
:
0x0248
Data (11:0)
:
<value> MAOI offset in horizontal direction
Data (31:12)
:
N/A
MAOI Horizontal Width
Address
:
0x0228
Data (11:0)
:
<value> MAOI width in horizontal direction
Data (31:12)
:
N/A
MAOI Vertical Offset
Address
:
Data (11:0)
:
Data (31:12)
:
0x0288
<value> MAOI offset in vertical direction
N/A
MAOI Vertical Height
Address
:
0x0268
Data (11:0)
:
<value> MAOI height in vertical direction
Data (31:12)
:
N/A
4.3.5.5 AOI 1
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
127 of 212
BOBCAT Hardware User’s Manual
This set of register enables AOI #1 and sets the appropriate window size and
offset in horizontal and vertical direction.
AOI 1 Enable
Address
Data (1:0)
:
:
Data (31:2)
:
0x020C
00 – AOI 1 disable
01 – AOI 1 include
10 – AOI 1 exclude
11 – N/A
N/A
AOI 1 Horizontal Offset
Address
:
0x024C
Data (11:0)
:
<value> AOI 1 offset in horizontal direction
Data (31:12)
:
N/A
AOI 1 Horizontal Width
Address
:
0x022C
Data (11:0)
:
<value> AOI 1 width in horizontal direction
Data (31:12)
:
N/A
AOI 1 Vertical Offset
Address
:
Data (11:0)
:
Data (31:12)
:
0x028C
<value> AOI 1 offset in vertical direction
N/A
AOI 1 Vertical Height
Address
:
Data (11:0)
:
Data (31:12)
:
0x026C
<value> AOI 1 height in vertical direction
N/A
4.3.5.6 AOI 2
This set of register enables AOI #2 and sets the appropriate window size and
offset in horizontal and vertical direction.
AOI 2 Enable
Address
Data (1:0)
:
:
Data (31:1)
:
0x0210
00 – AOI 2 disable
01 – AOI 2 include
10 – AOI 2 exclude
11 – N/A
N/A
AOI 2 Horizontal Offset
Address
:
0x0250
Data (11:0)
:
<value> AOI 2 offset in horizontal direction
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
128 of 212
BOBCAT Hardware User’s Manual
Data (31:12)
:
N/A
AOI 2 Horizontal Width
Address
:
0x0230
Data (11:0)
:
<value> AOI 2 width in horizontal direction
Data (31:12)
:
N/A
AOI 2 Vertical Offset
Address
:
Data (11:0)
:
Data (31:12)
:
0x0290
<value> AOI 2 offset in vertical direction
N/A
AOI 2 Vertical Height
Address
:
Data (11:0)
:
Data (31:12)
:
0x0270
<value> AOI 2 height in vertical direction
N/A
4.3.5.7 AOI 3
This set of register enables AOI #3 and sets the appropriate window size and
offset in horizontal and vertical direction.
AOI 3 Enable
Address
Data (1:0)
:
:
Data (31:2)
:
0x0214
00 – AOI 3 disable
01 – AOI 3 include
10 – AOI 3 exclude
11 – N/A
N/A
AOI 3 Horizontal Offset
Address
:
0x0254
Data (11:0)
:
<value> AOI 3 offset in horizontal direction
Data (31:12)
:
N/A
AOI 3 Horizontal Width
Address
:
0x0234
Data (11:0)
:
<value> AOI 3 width in horizontal direction
Data (31:12)
:
N/A
AOI 3 Vertical Offset
Address
:
Data (11:0)
:
Data (31:12)
:
0x0294
<value> AOI 3 offset in vertical direction
N/A
AOI 3 Vertical Height
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
129 of 212
BOBCAT Hardware User’s Manual
Address
Data (11:0)
Data (31:12)
:
:
:
0x0274
<value> AOI 3 height in vertical direction
N/A
4.3.5.8 AOI 4
This set of register enables AOI #4 and sets the appropriate window size and
offset in horizontal and vertical direction.
AOI 4 Enable
Address
Data (1:0)
:
:
Data (31:2)
:
0x0218
00 – AOI 4 disable
01 – AOI 4 include
10 – AOI 4 exclude
11 – N/A
N/A
AOI 4 Horizontal Offset
Address
:
0x0258
Data (11:0)
:
<value> AOI 4 offset in horizontal direction
Data (31:12)
:
N/A
AOI 4 Horizontal Width
Address
:
0x0238
Data (11:0)
:
<value> AOI 4 width in horizontal direction
Data (31:12)
:
N/A
AOI 4 Vertical Offset
Address
:
Data (11:0)
:
Data (31:12)
:
0x0298
<value> AOI 4 offset in vertical direction
N/A
AOI 4 Vertical Height
Address
:
Data (11:0)
:
Data (31:12)
:
0x0278
<value> AOI 4 height in vertical direction
N/A
4.3.5.9 AOI 5
This set of register enables AOI #5 and sets the appropriate window size and
offset in horizontal and vertical direction.
AOI 5 Enable
Address
Data (1:0)
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
:
:
0x021C
00 – AOI 5 disable
01 – AOI 5 include
Rev. 1.0
5/4/2010
130 of 212
BOBCAT Hardware User’s Manual
Data (31:2)
10 – AOI 5 exclude
11 – N/A
N/A
:
AOI 5 Horizontal Offset
Address
:
0x025C
Data (11:0)
:
<value> AOI 5 offset in horizontal direction
Data (31:12)
:
N/A
AOI 5 Horizontal Width
Address
:
0x023C
Data (11:0)
:
<value> AOI 5 width in horizontal direction
Data (31:12)
:
N/A
AOI 5 Vertical Offset
Address
:
Data (11:0)
:
Data (31:12)
:
0x029C
<value> AOI 5 offset in vertical direction
N/A
AOI 5 Vertical Height
Address
:
Data (11:0)
:
Data (31:12)
:
0x027C
<value> AOI 5 height in vertical direction
N/A
4.3.5.10 AOI 6
This set of register enables AOI #6 and sets the appropriate window size and
offset in horizontal and vertical direction.
AOI 6 Enable
Address
Data (1:0)
:
:
Data (31:2)
:
0x0220
00 – AOI 6 disable
01 – AOI 6 include
10 – AOI 6 exclude
11 – N/A
N/A
AOI 6 Horizontal Offset
Address
:
0x0260
Data (11:0)
:
<value> AOI 6 offset in horizontal direction
Data (31:12)
:
N/A
AOI 6 Horizontal Width
Address
:
0x0240
Data (11:0)
:
<value> AOI 6 width in horizontal direction
Data (31:12)
:
N/A
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
131 of 212
BOBCAT Hardware User’s Manual
AOI 6 Vertical Offset
Address
:
Data (11:0)
:
Data (31:12)
:
0x02A0
<value> AOI 6 offset in vertical direction
N/A
AOI 6 Vertical Height
Address
:
Data (11:0)
:
Data (31:12)
:
0x0280
<value> AOI 6 height in vertical direction
N/A
4.3.5.11 Frame Rate Control
This register enables the camera frame rate to stay the same and to be
independent of the AOI vertical window size. If enabled the camera frame rate
will increase when the vertical window size decreases.
Address
Data (0)
:
:
Data (31:1)
:
0x0200
0 – constant frame rate disable
1 – constant frame rate enable
N/A
4.3.5.12 LVAL Size Control
This register sets the number of active image pixels per line (LVAL). Two
possible options are available – “all visible pixels” or “active pixels only”.
Address
Data (0)
:
:
Data (31:1)
:
0x05A8
0 – display active pixels only
1 – display all visible pixels
N/A
4.3.5.13 FVAL Size Control
This register sets the number of active image lines per frame (FVAL). Two
possible options are available – “all visible lines” or “active lines only”.
Address
Data (0)
:
:
Data (31:1)
:
0x05AC
0 – display active lines only
1 – display all visible lines
N/A
4.3.6 Exposure Control Workspace Registers
4.3.6.1 Exposure Control Mode
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
132 of 212
BOBCAT Hardware User’s Manual
This register sets the exposure control mode and for the camera.
Address
Data (1:0)
:
:
Data (31:2)
:
0x0544
00 – off – no exposure control
01 – pulse width – the duration of the selected
trigger pulse determines the exposure during
triggering
10 – internal – exposure control register 0x0548 sets
the camera exposure
11 – external – an external signal via the camera I/O
determines the exposure.
N/A
4.3.6.2 Exposure Time Absolute
This register sets the actual camera exposure time when “Internal” exposure
mode is selected.
Address
Data (23:0)
Data (31:24)
:
:
:
0x0548
<value> – actual exposure time in micro seconds.
N/A
4.3.6.3 Programmable Line Time Enable
This register enables a programmable line time mode. The user can extend the
camera line time beyond the camera free-running line time. This applies to all
lines in the frame.
Address
Data (0)
:
:
Data (31:1)
:
0x054C
0 – disable programmable line time.
1 – enable programmable line time
N/A
4.3.6.4 Programmable Line Time Absolute
This register sets the actual line time in pixels.
Address
Data (12:0)
Data (31:13)
:
:
:
0x0554
<value> – actual line time in pixels.
N/A
4.3.6.5 Programmable Frame Time Enable
This register enables a programmable frame time mode. The user can extend
the camera frame time beyond the camera free-running frame time up to ~ 16
seconds. This is also known as long integration.
Address
Data (0)
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
:
:
0x0550
0 – disable programmable frame time.
1 – enable programmable frame time
Rev. 1.0
5/4/2010
133 of 212
BOBCAT Hardware User’s Manual
Data (31:1)
:
N/A
4.3.6.6 Programmable Frame Time Absolute
This register sets the actual frame time in microseconds.
Address
Data (23:0)
Data (31:24)
:
:
:
0x0558
<value> – actual frame time in micro seconds.
N/A
4.3.6.7 Camera Speed Selection
This register sets the camera speed. Two modes are available – normal and
fast (over-clocked). The free-running frame rate increases in fast mode.
Address
Data (0)
:
:
Data (31:1)
:
0x0608
0 – normal speed.
1 – fast speed.
N/A
4.3.7 AEC, AGC, AIC Workspace Registers
4.3.7.1 Auto Exposure Control (AEC)
This register enables the auto exposure control.
Address
Data (0)
:
:
Data (31:1)
:
0x0150
0 – disable auto exposure control
1 – enable auto exposure control
N/A
4.3.7.2 Maximum Exposure Time Limit
This register sets the maximum exposure time limit during AEC. The
automatic exposure control process will keep the camera exposure always
below the set level. This is to prevent motion smear. The Minimum Exposure
Time Limit is factory preset.
Address
Data (23:0)
Data (31:24)
:
:
:
0x05B0
<value> – maximum exposure time limit
N/A
4.3.7.3 Exposure Correction Speed
This register sets the exposure correction speed during AEC. The automatic
exposure control process can set the algorithm convergence speed, i.e. how
long it takes to reach the desired exposure.
Address
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
:
0x0174
Rev. 1.0
5/4/2010
134 of 212
BOBCAT Hardware User’s Manual
Data (1:0)
:
Data (31:2)
:
00 – 1x speed – slow
01 – 2x speed
10 – 3x speed
11 – 4x speed – fast
N/A
4.3.7.4 Auto Gain Control (AGC)
This register enables the auto gain control.
Address
Data (0)
:
:
Data (31:1)
:
0x0154
0 – disable auto gain control
1 – enable auto gain control
N/A
4.3.7.5 Maximum Gain Limit
This register sets the maximum analog gain limit during AGC. The automatic
gain control process will keep the camera analog gain always below the set
level. The Minimum Analog Gain Limit is factory preset.
Address
Data (9:0)
Data (31:10)
:
:
:
0x0160
<value> – maximum analog gain limit
N/A
4.3.7.6 Gain Correction Speed
This register sets the gain correction speed during AGC. The automatic gain
control process can set the algorithm convergence speed, i.e. how long it takes
to reach the desired gain.
Address
Data (1:0)
:
:
Data (31:2)
:
0x0178
00 – 1x speed – slow
01 – 2x speed
10 – 3x speed
11 – 4x speed – fast
N/A
4.3.7.7 Luminance Level Threshold
This register sets the desired luminance level to be maintained during AEC or
AGC process.
Address
Data (11:0)
Data (31:12)
:
:
:
0x0158
<value> – desired luminance level
N/A
4.3.7.8 Luminance Type Selection
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
135 of 212
BOBCAT Hardware User’s Manual
This register sets the luminance mode to be used during AEC or AGC process.
The correction algorithm can use the average luminance for the entire frame
or the peak luminance in the frame.
Address
Data (1:0)
:
:
Data (31:2)
:
0x017C
00 – average luminance
01 – peak luminance
10 or 11 – reserved
N/A
4.3.7.9 Region of Interest Selection (AOI)
This set of register sets the region of interest to be used during AEC or AGC
process. The correction algorithm can use as a sampling (data collection)
region the entire frame or only a portion (AOI) of it.
AOI Horizontal Offset
Address
:
0x0168
Data (11:0)
:
<value> AOI offset in horizontal direction
Data (31:12)
:
N/A
AOI Horizontal Width
Address
:
0x0164
Data (11:0)
:
<value> AOI width in horizontal direction
Data (31:12)
:
N/A
AOI Vertical Offset
Address
:
Data (11:0)
:
Data (31:12)
:
0x0170
<value> AOI offset in vertical direction
N/A
AOI Vertical Height
Address
:
Data (11:0)
:
Data (31:12)
:
0x016C
<value> AOI height in vertical direction
N/A
4.3.7.10
Auto Iris Control (AIC)
This register enables the auto iris control.
Address
Data (0)
0x014C
0 – disable auto iris control
1 – enable auto iris control
Data (31:1)
:
N/A
Gain and Offset Workspace Registers
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
:
:
Rev. 1.0
5/4/2010
136 of 212
BOBCAT Hardware User’s Manual
4.3.8 Video Amp, Gain and Offset Workspace Registers
4.3.8.1 Pre-amplifier Gain – Channel 1
This register sets the pre-amplifier analog gain for channel 1.
Address
Data (1:0)
:
:
Data (31:2)
:
0x0000
00 – -3.0 dB pre-amplifier gain channel 1
01 – 0.0 dB pre-amplifier gain channel 1
10 – +3.0 dB pre-amplifier gain channel 1
11 – +6.0 dB pre-amplifier gain channel 1
N/A
4.3.8.2 Analog Gain – Channel 1
This register sets the main analog gain for channel 1.
Address
Data (9:0)
Data (31:10)
:
:
:
0x0004
<value> – analog gain channel 1
N/A
4.3.8.3 Analog Offset – Channel 1
This register sets the analog offset for channel 1.
Address
Data (9:0)
Data (31:10)
:
:
:
0x0008
<value> – analog offset channel 1
N/A
4.3.8.4 Pre-amplifier Gain – Channel 2
This register sets the pre-amplifier analog gain for channel 2.
Address
Data (1:0)
:
:
Data (31:2)
:
0x0010
00 – -3.0 dB pre-amplifier gain channel 2
01 – 0.0 dB pre-amplifier gain channel 2
10 – +3.0 dB pre-amplifier gain channel 2
11 – +6.0 dB pre-amplifier gain channel 2
N/A
4.3.8.5 Analog Gain – Channel 2
This register sets the main analog gain for channel 2.
Address
Data (9:0)
Data (31:10)
:
:
:
0x0014
<value> – analog gain channel 2
N/A
4.3.8.6 Analog Offset – Channel 2
This register sets the analog offset for channel 2.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
137 of 212
BOBCAT Hardware User’s Manual
Address
Data (9:0)
Data (31:10)
:
:
:
0x0018
<value> – analog offset channel 2
N/A
4.3.8.7 Digital Gain
This register sets the main digital gain. The digital gain is applied to both
channels. The step is 0.1x
Address
Data (4:0)
Data (31:5)
:
:
:
0x0180
<value> – digital gain
N/A
4.3.8.8 Digital Offset
This register sets the main digital offset. The digital offset is applied to both
cannels.
Address
Data (9:0)
Data (31:10)
:
:
:
0x0184
<value> – digital offset
N/A
4.3.8.9 Black Level Correction
This register enables the black level correction.
Address
Data (0)
:
:
Data (31:2)
:
4.3.8.10
0x0114
0 – disable black level correction
1 – enable black level correction
N/A
Tap Balance
This register enables the tap balance. If the “Tap balance once” is to be used,
the register has to be set every time from “00” to “10”.
Address
Data (1:0)
:
:
Data (31:2)
:
0x0110
00 – no tap balance
01 – dynamic automatic tap balance
10 – dynamic balance taps once
11 – static automatic tap balance
N/A
4.3.9 Triggering Workspace Registers
4.3.9.1 Trigger Input Selector
This register selects the triggering source.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
138 of 212
BOBCAT Hardware User’s Manual
Address
Data (2:0)
:
:
Data (31:3)
:
0x0508
000 – off – no trigger, free running mode – CL only
(this is not available for GigE cameras)
001 – external – the camera expects the trigger to
come from the external source mapped to the
power and I/O connector.
010 – internal – the camera expects the trigger to
come from the programmable pulse generator.
011 – computer – the camera expects the trigger to
come from the camera link cable.
100 – software trigger – expects a one clock cycles
pulse generated by the computer. The trigger
exposure is internal register controlled. Pulse
duration exposure is not allowed.
101 to 111 – N/A
N/A
4.3.9.2 Trigger Input Mode – GigE cameras
This register enables or disables the triggering operation for GigE cameras.
Address
Data (0)
:
:
Data (31:1)
:
0x05BC
1 – trigger is disabled, free running mode
0 – trigger is enabled – camera is in trigger mode
N/A
4.3.9.3 Software Trigger Start
The ‘Start SW Trigger’ command instructs the camera to generate one
short trigger pulse. This is a command, not a register. The act of writing to this
location initiates the pulse generation.
Address
:
0x6030
4.3.9.4 Triggering Edge Selector
This register selects the triggering edge – Rising or Falling.
Address
Data (0)
:
:
Data (31:1)
:
0x050C
0 – rising edge
1 – falling edge
N/A
4.3.9.5 Trigger De-bounce Time
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
139 of 212
BOBCAT Hardware User’s Manual
This register selects the trigger signal de-bounce time. Any subsequent trigger
signals coming to the camera within the de-bounce time interval will be
ignored.
Address
Data (1:0)
:
:
Data (31:2)
:
0x0510
00 – no de-bounce
01 – 0.1 ms de-bounce time
10 – 1.0 ms de-bounce time
11 – 10.0 ms de-bounce time
N/A
4.3.9.6 Trigger Overlap
This register selects the trigger overlap mode. If the camera receives a trigger
pulse while the camera is still processing the previous trigger, the user has the
option to ignore the incoming trigger or to terminate the previous process and
to start a new one.
Address
Data (1:0)
:
:
Data (31:2)
:
0x0514
00 – ignore the next trigger
01 – accept only after the exposure is completed
10 – accept at any time
11 – N/A
N/A
4.3.9.7 Triggering Mode Selection
This register selects the triggering mode.
Address
Data (3:0)
:
:
Data (31:4)
:
0x0518
0x0 – standard triggering
0x1 – fast triggering
0x2 – double triggering
0x3 – frame accumulation
0x4 – asynchronous triggering
0x5 to 0xF – reserved
N/A
4.3.9.8 Number of Frames Captured
This register selects the number of frames captured after each trigger signal.
Address
Data (15:0)
Data (31:16)
:
:
:
0x051C
<value> – # of frames captured
N/A
4.3.9.9 Number of Pulses Used
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
140 of 212
BOBCAT Hardware User’s Manual
This register selects the number of trigger pulses used during a single trigger
sequence in frame accumulation mode.
Address
Data (15:0)
Data (31:16)
4.3.9.10
:
:
:
0x0520
<value> – # of pulses used
N/A
Trigger Exposure Delay
This register selects the delay between the trigger signal and the beginning of
exposure. The actual exposure can set using “Exposure Time Absolute”
register 0x0548.
Address
Data (23:0)
Data (31:24)
4.3.9.11
:
:
:
0x0528
<value> – exposure delay in microseconds
N/A
Trigger Strobe Enable
This register enables a strobe signal synchronous with the trigger pulse. The
strobe signal is mapped to one or both of the available strobe outputs.
Address
Data (1:0)
:
:
Data (31:2)
:
0x0524
00 – no strobe signal
01 – enable Strobe #1
10 – enable Strobe #2
11 – enable Strobe #1 and Strobe #2
N/A
4.3.9.12 Trigger Strobe Position Delay
This register sets the delay between the trigger pulse and the strobe pulse.
Address
Data (23:0)
Data (31:24)
:
:
:
0x052C
<value> – trigger strobe delay
N/A
4.3.9.13 Trigger Strobe Pulse Duration
This register sets the strobe pulse duration.
Address
Data (23:0)
Data (31:24)
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
:
:
:
0x05B8
<value> – trigger strobe duration
N/A
Rev. 1.0
5/4/2010
141 of 212
BOBCAT Hardware User’s Manual
4.3.10 Pulse Generator Workspace Registers
4.3.10.1 Pulse Generator Timing Granularity
This register sets the pulse generator main timing resolution. The main
resolution is in microseconds, and 4 granularity steps are possible – x1, x10,
x100, x1000 (x1000 is equal to 1ms timing resolution).
Address
Data (1:0)
:
:
Data (31:2)
:
0x0530
00 – x1
01 – x10
10 – x100
11 – x1000
N/A
4.3.10.2 Pulse Generator Pulse Width
This register sets the value of the pulse width in microseconds.
Address
Data (18:0)
Data (31:19)
:
:
:
0x0534
<value> – pulse width in microseconds
N/A
4.3.10.3 Pulse Generator Pulse Period
This register sets the value of the pulse period in microseconds.
Address
Data (19:0)
Data (31:20)
:
:
:
0x0538
<value> – pulse width in microseconds
N/A
4.3.10.4 Pulse Generator Number of Pulses
This register sets the number of the pulses generated.
Address
Data (15:0)
Data (16)
Data (31:17)
:
:
:
:
0x053C
<value> – number of discrete pulses
1 – continuous pulse generation
N/A
4.3.10.5 Pulse Generator Enable
This register enables the pulse generator.
Address
Data (0)
:
:
Data (31:1)
:
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
0x0540
0 – disable pulse generator operation
1 – enable pulse generator operation
N/A
Rev. 1.0
5/4/2010
142 of 212
BOBCAT Hardware User’s Manual
4.3.11 Test Pattern Workspace Registers
4.3.11.1 Test Mode Select
This register selects the test mode patter.
Address
Data (3:0)
:
:
Data (31:4)
:
0x012C
0x0 – no test pattern
0x1 – black image – 0x000
0x2 – gray image – 0x1FF
0x3 – white image – 0xFFF
0x4 – steady horizontal image ramp
0x5 – steady vertical image ramp
0x6 – moving horizontal image ramp
0x7 – moving vertical image ramp
0x8 – 8 gray scale vertical bars
0x9 – H & V lines superimposed over live image
0xA to 0xF - reserved
N/A
4.3.11.2 H & V Lines Superimpose Enable
This register enables the H & V lines superimposed over live image.
Address
Data (0)
:
:
Data (31:1)
:
0x0130
0 – disable lines superimposed
1 – enable lines superimposed
N/A
4.3.11.3 H1 Superimposed Line Position
This register set the position of the horizontal line H1 (top) position.
Address
Data (11:0)
Data (31:12)
:
:
:
0x0138
<value> – H1 line position
N/A
4.3.11.4 H2 Superimposed Line Position
This register set the position of the horizontal line H2 (bottom) position.
Address
Data (11:0)
Data (31:12)
:
:
:
0x013C
<value> – H2 line position
N/A
4.3.11.5 V1 Superimposed Column Position
This register set the position of the vertical column V1 (left) position.
Address
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
:
0x0140
Rev. 1.0
5/4/2010
143 of 212
BOBCAT Hardware User’s Manual
Data (11:0)
Data (31:12)
:
:
<value> – V1 column position
N/A
4.3.11.6 V2 Superimposed Column Position
This register set the position of the vertical column V2 (right) position.
Address
Data (11:0)
Data (31:12)
:
:
:
0x0144
<value> – V2 column position
N/A
4.3.11.7 Superimposed Lines Brightness
This register set the brightness of the superimposed cross and H & V lines.
Address
Data (11:0)
Data (31:12)
:
:
:
0x0148
<value> – line brightness
N/A
4.3.11.8 Center Cross Superimpose Enable
This register enables center cross, superimposed over live image. This shows
the optical image center.
Address
Data (0)
:
:
Data (31:1)
:
0x0134
0 – disable cross superimposed
1 – enable cross superimposed
N/A
4.3.12 Input/output Workspace Registers
4.3.12.1 CC1 Input Polarity
This register sets the polarity (active Low or High) for the CC1 input.
Address
Data (0)
:
:
Data (31:1)
:
0x0570
0 – active LOW
1 – active HIGH
N/A
4.3.12.2 CC1 Input Mapping
This register maps the CC1 camera input to various internal signals.
Address
Data (2:0)
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
:
:
0x0574
000 – no mapping
001 – computer trigger
010 – reserved
011 – exposure control
Rev. 1.0
5/4/2010
144 of 212
BOBCAT Hardware User’s Manual
Data (31:3)
100 – H sync
101 – V sync
110, 111 – Reserved
N/A
:
4.3.12.3 CC2 Input Polarity
This register sets the polarity (active Low or High) for the CC2 input.
Address
Data (0)
:
:
Data (31:1)
:
0x0578
0 – active LOW
1 – active HIGH
N/A
4.3.12.4 CC2 Input Mapping
This register maps CC2 camera input to various internal signals.
Address
Data (2:0)
:
:
Data (31:3)
:
0x057C
000 – no mapping
001 – computer trigger
010 – reserved
011 – exposure control
100 – H sync
101 – V sync
110, 111 – Reserved
N/A
4.3.12.5 IN1 Input Polarity
This register sets the polarity (active Low or High) for the IN1 input.
Address
Data (0)
:
:
Data (31:1)
:
0x0580
0 – active LOW
1 – active HIGH
N/A
4.3.12.6 IN1 Input Mapping
This register maps the IN1 camera input to various internal signals.
Address
Data (2:0)
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
:
:
0x0184
000 – no mapping
001 – reserved
010 – external trigger
011 – exposure control
100 – H sync
101 – V sync
110, 111 – Reserved
Rev. 1.0
5/4/2010
145 of 212
BOBCAT Hardware User’s Manual
Data (31:3)
:
N/A
4.3.12.7 IN2 Input Polarity
This register sets the polarity (active Low or High) for the IN2 input.
Address
Data (0)
:
:
Data (31:1)
:
0x0588
0 – active LOW
1 – active HIGH
N/A
4.3.12.8 IN2 Input Mapping
This register maps the IN2 camera input to various internal signals.
Address
Data (2:0)
:
:
Data (31:3)
:
0x058C
000 – no mapping
001 – reserved
010 – external trigger
011 – exposure control
100 – H sync
101 – V sync
110, 111 – Reserved
N/A
4.3.12.9 OUT1 Output Polarity
This register sets the polarity (active Low or High) for the OUT1 output.
Address
Data (0)
:
:
Data (31:1)
:
0x0590
0 – active LOW
1 – active HIGH
N/A
4.3.12.10OUT1 Output Mapping
This register maps the various internal signals to OUT1 camera output.
Address
Data (3:0)
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
:
:
0x0594
0000 – no mapping
0001 – exposure start
0010 – exposure end
0011 – mid exposure
0100 – active exposure window
0101 – H sync
0110 – V sync
0111 – odd/even frame flag
1000 – trigger pulse actual
1001 – trigger pulse delayed
Rev. 1.0
5/4/2010
146 of 212
BOBCAT Hardware User’s Manual
Data (31:4)
:
1010 – camera ready
1011 – pulse generator
1100 – strobe #1
1101 – strobe #2
Others – reserved
N/A
4.3.12.11OUT2 Output Polarity
This register sets the polarity (active Low or High) for the OUT2 output.
Address
Data (0)
:
:
Data (31:1)
:
0x0598
0 – active LOW
1 – active HIGH
N/A
4.3.12.12OUT2 Output Mapping
This register maps the various internal signals to OUT2 camera output.
Address
Data (3:0)
:
:
Data (31:4)
:
0x059C
0000 – no mapping
0001 – exposure start
0010 – exposure end
0011 – mid exposure
0100 – active exposure window
0101 – H sync
0110 – V sync
0111 – odd/even frame flag
1000 – trigger pulse actual
1001 – trigger pulse delayed
1010 – camera ready
1011 – pulse generator
1100 – strobe #1
1101 – strobe #2
Others – reserved
N/A
4.3.12.13 CLSP Output Polarity
This register sets the polarity (active Low or High) for the CLSP (Camera
Link cable Spare) output.
Address
Data (0)
:
:
Data (31:1)
:
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
0x05A0
0 – active LOW
1 – active HIGH
N/A
Rev. 1.0
5/4/2010
147 of 212
BOBCAT Hardware User’s Manual
4.3.12.14 CLSP Output Mapping
This register maps the various internal signals to CLSP camera output.
Address
Data (3:0)
:
:
Data (31:4)
:
0x05A4
0000 – no mapping
0001 – exposure start
0010 – exposure end
0011 – mid exposure
0100 – active exposure window
0101 – H sync
0110 – V sync
0111 – odd/even frame flag
1000 – trigger pulse actual
1001 – trigger pulse delayed
1010 – camera ready
1011 – pulse generator
1100 – strobe #1
1101 – strobe #2
Others – reserved
N/A
4.3.12.15 Strobe #1 Select
This register sets the Strobe #1 mode of operation.
Address
Data (1:0)
:
:
Data (31:2)
:
0x055C
00 – disable Strobe #1
01 – enable Strobe #1 each frame
10 – enable Strobe #1 odd frames only
11 – enable Strobe #1 even frames only
N/A
4.3.12.16 Strobe #1 Position
This register sets the position of the strobe #1 pulse with respect of the end of
the frame.
Address
Data (23:0)
Data (31:24)
:
:
:
0x0568
<value> – strobe #1 pulse positions in microseconds
N/A
4.3.12.17 Strobe #2 Select
This register sets the Strobe #2 mode of operation.
Address
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
:
0x0560
Rev. 1.0
5/4/2010
148 of 212
BOBCAT Hardware User’s Manual
Data (1:0)
:
Data (31:2)
:
00 – disable Strobe #2
01 – enable Strobe #2 each frame
10 – enable Strobe #2 odd frames only
11 – enable Strobe #2 even frames only
N/A
4.3.12.18 Strobe #2 Position
This register sets the position of the strobe #2 pulse with respect of the end of
the frame.
Address
Data (23:0)
Data (31:24)
:
:
:
0x056C
<value> – strobe #2 pulse positions in microseconds
N/A
4.3.12.19 Strobe #1 Duration
This register sets the duration of the strobe pulse (the same for both strobes).
Address
Data (23:0)
Data (31:24)
:
:
:
0x0564
<value> – strobe pulse duration in microseconds
N/A
4.3.12.20 Strobe #2 Duration
This register sets the duration of the strobe pulse (the same for both strobes).
Address
Data (23:0)
Data (31:24)
:
:
:
0x05B4
<value> – strobe pulse duration in microseconds
N/A
4.3.13 Output Data Format
4.3.13.1 Bit Dept Selector
This register selects the bit debt output for the camera.
Address
Data (1:0)
:
:
Data (31:2)
:
0x0100
00 – 8-bit
01 – 10-bit
10 – 12-bit
11 – 14-bit – single tap cameras only
N/A
4.3.13.2 Tap Mode Selector
This register selects the number of imager taps to be displayed.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
149 of 212
BOBCAT Hardware User’s Manual
Address
Data (1:0)
:
:
Data (31:2)
:
0x0108
00 – single
01 – dual
10, 11 – reserved
N/A
4.3.13.3 Data Format Selector
This register selects the tap format for the camera data output.
Address
Data (2:0)
:
:
Data (31:2)
:
0x010C
000 – 1 tap single output
001 – 2 tap interleaved
010 – 2 tap sequential
111 – 3 tap RGB - optional
Others – reserved
N/A
4.3.13.4 Bit Shift Selector
This register selects the bit shift steps for the camera data output.
Address
Data (3:0)
:
:
Data (31:4)
:
0x0104
0x0 – no shift
0x1 – 1 bit left
0x2 – 2 bits left
0x3 – 3 bits left
0x4 – 4 bits left
0x5 – 5 bits left
0x6 – 6 bits left
0x7 – 7 bits left
0x8 – reserved
0x9 – 1 bit right
0xA – 2 bits right
0xB – 3 bits right
0xC – 4 bits right
0xD – 5 bits right
0xE – 6 bits right
0xF – 7 bits right
N/A
4.3.13.5 Negative Image Enable
This register inverts the image from positive to negative.
Address
Data (0)
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
:
:
0x0188
0 – positive image
1 – negative image
Rev. 1.0
5/4/2010
150 of 212
BOBCAT Hardware User’s Manual
Data (31:1)
:
N/A
4.3.14 Data Correction Workspace Registers
4.3.14.1 LUT Select
This register selects which LUT will be used – LUT1 or LUT2.
Address
Data (0)
:
:
Data (31:1)
:
0x0118
0 – LUT #1 selected
1 – LUT #2 selected
N/A
4.3.14.2 LUT Enable
This register enables the selected LUT.
Address
Data (0)
:
:
Data (31:1)
:
0x011C
0 – LUT disable
1 – LUT enable
N/A
4.3.14.3 DPC Enable
This register enables the DPC (Defective Pixel Correction).
Address
Data (0)
:
:
Data (31:1)
:
0x0120
0 – DPC disable
1 – DPC enable
N/A
4.3.14.4 HPC Enable
This register enables the HPC (Hot Pixel Correction).
Address
Data (0)
:
:
Data (31:1)
:
0x0124
0 – DPC disable
1 – DPC enable
N/A
4.3.14.5 FFC Enable
This register enables the FFC (Flat Field Correction).
Address
Data (0)
:
:
Data (31:1)
:
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
0x0128
0 – FFC disable
1 – FFC enable
N/A
Rev. 1.0
5/4/2010
151 of 212
BOBCAT Hardware User’s Manual
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
152 of 212
BOBCAT Hardware User’s Manual
4.4
DATA PROCESSING REGISTER DESCRIPTION
4.4.1 Image Enhancement Workspace Registers
Enhancement Mode Selector
4.4.1.1
This register selects the image enhancement mode of operation.
Address
Data (3:0)
:
:
Data (31:4)
:
4.4.1.2
0x0400
0x0 – enhancement disable
0x1 – single threshold binary
0x2 – dual threshold binary
0x3 – dual threshold with gray scale
0x4 – dual threshold with contrast enhancement
0x5 – single point correction
0x6 – multi point correction
N/A
Point X1 Position
This register selects the position value for point X1.
Address
Data (11:0)
Data (31:12)
4.4.1.3
:
:
:
0x0404
<value> – point X1 position value
N/A
Point X2 Position
This register selects the position value for point X2.
Address
Data (11:0)
Data (31:12)
4.4.1.4
:
:
:
0x0408
<value> – point X2 position value
N/A
Point Y1 Position
This register selects the position value for point Y1.
Address
Data (11:0)
Data (31:12)
4.4.1.5
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
:
:
:
0x040C
<value> – point Y1 position value
N/A
Point Y2 Position
Rev. 1.0
5/4/2010
153 of 212
BOBCAT Hardware User’s Manual
This register selects the position value for point Y2.
Address
Data (11:0)
Data (31:12)
4.4.1.6
:
:
:
0x0410
<value> – point Y2 position value
N/A
Processing and LUT AOI (PAOI)
This set of register enables the processing and/or LUT AOI and sets the
appropriate window size and offset in horizontal and vertical direction. The
processing algorithm or LUT will be implemented ONLY within the selected
AOI.
PAOI Enable
Address
Data (1:0)
:
:
Data (31:2)
:
0x0224
00 – PAOI disable
01 – Reserved
10 – PAOI enbled as processing AOI
11 – PAOI enabled as LUT AOI
N/A
PAOI Horizontal Offset
Address
:
0x0264
Data (11:0)
:
<value> PAOI offset in horizontal direction
Data (31:12)
:
N/A
PAOI Horizontal Width
Address
:
0x0244
Data (11:0)
:
<value> PAOI width in horizontal direction
Data (31:12)
:
N/A
PAOI Vertical Offset
Address
:
Data (11:0)
:
Data (31:12)
:
0x02A4
<value> PAOI offset in vertical direction
N/A
PAOI Vertical Height
Address
:
Data (11:0)
:
Data (31:12)
:
0x0284
<value> PAOI height in vertical direction
N/A
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
154 of 212
BOBCAT Hardware User’s Manual
CHAPTER 5 - Configurator for CameraLink
BOBCAT Configurator for
CameraLink
This chapter provides a quick reference to using the BOBCAT
Configurator camera configuration utility for the Camera Link series of
BOBCAT cameras.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
155 of 212
BOBCAT Hardware User’s Manual
5.1
OVERVIEW
Camera configuration utility software and Bobcat Camera Configurator (CamConfig) are
provided with each camera. After installing the program, the user can program the
camera, change its settings and save the settings in a file or in the camera. The
configuration utility includes an interactive help file, which will guide you through the
camera setup.
5.2
DISCOVERY PROCEDURE
Often times, multiple frame grabbers and cameras may be installed into a computer at the
same time. The CamConfig utility provides an intelligent, automated method of
‘discovering’ and ‘searching’ all available UART components in your PC and allowing
the user to select the one that is connected to Bobcat camera. Bobcat search engine is not
only finding the CamLink DLL port but also looking for any available COM port
installed on the PC as well. It will then communicate with each port (.DLL and COM)
and attempt to query the attached camera. If it finds an attached Imperx Bobcat camera, it
will read the ‘camera type’ information from the camera. Bobcat camera name will be
displayed in the list box, which includes all DLLs, ports and cameras that it discovered.
The user can then select the DLL/port/camera, of interest, by highlighting the entry and
clicking on the ‘OK’ button. Clicking on the ‘Rescan Ports’ button causes the above
discovery procedure to be repeated. Please note the frame grabber has to be Camera Link
v1.0 (or later) compliant.
Figure 5.1 – Discovery procedure – select port
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
156 of 212
BOBCAT Hardware User’s Manual
5.3
GRAPHICAL USER INTERFACE
After having selected the desired camera, the main Bobcat CamConfig dialog will appear –
Figure 5.2. The Graphical User Interface (GUI) is very intuitive and self-explanatory. The
basic features are:
1. Compact Design – small 140x400 (pixels) save space when user display image and
control at the same time
2. Real Time Data – updates camera inform in real time while camera is working. Gives
quick and general information about camera configuration status.
3. Dockable Windows – all configuration windows (Gain, AOI, Trigger…) can be
separated and “docked” in the main GUI with just one click.
4. Configurable – user can customize the main menu by selecting the sub windows and
also memorize the last setting.
Figure 5.2 – CamConfig GUI
The configuration utility includes an interactive help file, which will guide you through the
GUI controls and camera settings. On the main window the user can see useful camera
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 0.3
5/4/2010
157 of 212
BOBCAT Hardware User’s Manual
information – Current Image Size (Size), Number of Frame per second (FPS), the Frame
Time (FTM), Exposure Time (EXP) and Temperature of the CCD sensor (TMP).
Additional information can be obtained by clicking on the buttons shown in the CamConfig
window, such as Video Amp, I/O Control, Trigger, etc. The bottom of the main utility
window is camera name and status of Cam-link connection. If the connection between the
camera and the computer is lost a red cross will appear above the connection icon.
5.4
MAIN GUI MENU
All panels in the Bobcat CamConfig share the same general control options and menus for
“File”, “View” and “Help” – Figure 5.3.
Figure 5.3 – Main Menu
Run Application:
Select and starts other executable file (Frame-Grabber application,
etc.…) that user normally uses. CamConfig will remember the path
of last executable file that you used, so the next time when you start
the application without type-in location.
Load From:
Loads the camera registers from a saved configuration space: File,
Workspace, Factory Space, User Space #1 or User Space #2.
1. File – loads the camera registers from a saved configuration file
2. Workspace – updates the GUI with the current camera
workspace settings
3. Factory – loads the camera registers with the original (factory)
settings.
4. User Space #1 – loads the camera registers with a saved camera
settings in the user space 1.
5. User Space #2 – loads the camera registers with a saved camera
settings in the user space 2.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
158 of 212
BOBCAT Hardware User’s Manual
Save To:
Saves the camera registers to File, User Space #1 or User Space #2.
Factory Space is disabled for regular users and it is available only for
manufacturing technicians.
1. File – saves the current camera settings to a configuration file
2. Factory Space – saves the current camera settings to the camera
Factory space. This is restricted command and is disabled for
regular users.
3. User Space #1 – saves the current camera settings to the camera
User space 1.
4. User Space #2 – saves the current camera settings to the camera
User space 2.
Boot:
This menu selects the ‘Boot From’ source. Upon power up, the
camera will load its registers from the selected ‘Boot From’ source:
Factory, User #1 or User #2. Bobcat camera will be release with
‘Factory” Setting and user can save and boot camera with their own
configurable features.
DPM:
Defect Pixel Map – When selected, the DPM window will show
defected pixels location. The defective pixel map is stored in the
camera’s non-volatile memory and read out when running bad pixel
correction – Figure 5.4. Defected pixels are categorized as:
Figure 5.4 – Defective pixel map
1. Dead Pixels – pixels with sensitivity that deviates more than
15% due to fluctuations in the CCD manufacturing process.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
159 of 212
BOBCAT Hardware User’s Manual
2. Hot Pixels – pixels that during normal camera operation are
normal, but in long integration modes (programmable frame
time) behave as high-intensity bright pixels.
Terminal:
The user can display two submenus: Command Terminal and
Download Terminal.
1. Command Terminal – shows information about all the
commands sent to or received from the camera. User can type in
Bobcat command directly in the text box provided (refer to
chapter 4 for command structure syntax) – Figure 5.5. The
“Disable Polling” check box will turn on/off the polling
commands (such as Frame Time, Exposure time, Frame Rate and
Sensor Temperature) in the dialog windows. The user can change
the polling time by entering the desired number in the window. If
for some reason the camera returns an error, when command was
sent to the camera, the GUI will respond with a pop-up window
displaying an error message. The user has option to disable the
error checking by enabling the “Disable Error Checking” box.
Figure 5.5 – Command terminal
2. Download Terminal – One of the great features in Bobcat
configuration utility is download terminal. User can upgrade the
camera firmware and up-load to the camera any custom LUT,
DPM or FFC – Figure 5.6.
A. File Type – from the pull-down menu the user can select the
appropriate type of file to up-load to the camera.
B. File Path – enter the file path manually into the edit box or
click the ‘…’ button to browse through folders.
C. Load File – after selecting the file, click on “Load File”
button to start the up-load process.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
160 of 212
BOBCAT Hardware User’s Manual
D. Cancel – stops the up-load process.
E. Progress Bar – displays the progress status of the up-load
process.
F. Terminal window – provides information about the
download process (completion, errors, etc.)
Figure 5.6 – Download terminal
Download Procedure:
1. Select correct ‘File Type” before downloading. Several options
are possible: DPM, HPM, LUT1, LUT2, Application FW,
Register space.
2. Type in or select the correct data file of this feature in ‘File Path’
3. Click on ‘Load File’ button to start downloading
4. Wait for the progress bar to finish (100%)
5. Reboot the camera and restart the GUI for the changes to take
into effect.
Connection:
The user can select the connection type between the camera and the
computer:
1. Switch Port – If checked, “Select Port” window will popup. The
user can select new CamLink port, which connect to current
camera.
2. Set Baud Rate – the user can set the communication baud rate:
9600, 19200, 38400, 57600 or 115200 (default value).
Exit:
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Terminates the application.
Rev. 1.0
5/4/2010
161 of 212
BOBCAT Hardware User’s Manual
5.5
VIEW GUI WINDOWS
The ‘View’ menu allows the user to select which camera parameter window to be
displayed on the main CamConfig GUI window – Figure 5.7.
Figure 5.7 – View GUI Windows
Video Amplifier:
Controls the camera analog and digital gain and offset, tap
balancing, black level correction. Optional – controls RGB settings.
Input/output:
Maps the internal input and output signals to the camera external
inputs and outputs.
Trigger:
Controls the camera triggering features.
Pulse Generator:
Enables and controls the internal pulse generator.
Exposure:
Sets the exposure, line and frame time, and AEC, AGC, AIC modes.
Test:
Enables the internal test pattern generator.
AOI:
Sets up to 8 regions of interest, and H and V binning modes.
Strobe:
Enables and controls the camera strobe signals.
Processing:
Enables the built-in basic image processing functions.
Data Out (Settings): Sets for the data format – bit depth, bit shift, output format, camera
speed, LVAL, FVAL size, and DPC, HPC, FFC controls.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
162 of 212
BOBCAT Hardware User’s Manual
Select All:
Enables all camera parameter windows.
Attach Window:
Attaches all camera parameter windows to the main GUI window.
Disable Animation: Disables animated features of windows preview when moving the
mouse cursor over the buttons.
5.6
GUI HELP
The main “Help” menu is shown on Figure 5.8
Figure 5.8 – Help menu
Open Help:
Opens an interactive help file.
Debug:
Puts the GUI in a debug mode for test purposes and troubleshooting.
About:
Provides information about application version and important
camera parameters such as Firmware revision, Assembly Part
Number, etc. – Figure 5.9.
Figure 5.9 – About CamConfig.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
163 of 212
BOBCAT Hardware User’s Manual
5.7
PARAMETER WINDOWS
Bobcat Cameras have many features that can easily be programmed using the Bobcat
graphical user interface (GUI) or via simple register commands using the Command
Terminal. The main parameter windows are described below.
5.7.1 Video Amp
Video Amp window allows the user to adjust the Analog or Digital gain and offset.
Manual entry and sliders are available for adjusting the individual parameters –
Figure 5.10.
Figure 5.10 – Video Amp parameter window
Analog:
The user can set the desired analog gain (0 to 36 dB, 1024
discrete values) and offset (0 to 1023, 1 step increment) for each
channel via the sliders or by entering the desired values. “Link
Gain” and “Link Offset” links the corresponding channels
together (dual tap camera only), and the gain or offset difference
between them will be preserved.
Pre Amp Gain: The user can select the preamplifier gain for the camera (the
same for both channels). 4 options are possible -3 dB, 0, +3 dB,
and +6 dB. The default Pre Amp Gain value is camera dependent
and it is set for the best camera performance.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
164 of 212
BOBCAT Hardware User’s Manual
Digital:
The user can set the desired digital gain (1.0x to 3.0x, 0.1x
increment) and digital offset (-511 to +511, 1 step increment) via
the slider or by entering the desired value. The selected value for
gain or offset is applied to both channels.
Load Defaults:
Loads the Manufacturing default gain and offset settings. The
settings might be different for “Slow” and “Fast” modes.
Corrections:
Tap balance – when selected enables automatic tap balancing.
Four options are available – Off, Auto, Once, Static.
White balance – when selected enables automatic white balance.
This feature is optional.
Black Comp – when selected enables “Black Compensation”
and automatically determines and compensates for black level.
5.7.2 I/O Control
The camera has 2 external inputs end 2 external outputs. In addition to these inputs
and outputs, the cameras with camera link output have two more inputs (CC1 and
CC2) and one output (CL Spare) available. The user can map all available internal
input and output signals to all external camera inputs and outputs – Figure 5.11.
Input:
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
The user can map each of the camera inputs CC1, CC2, IN1 or
IN2 to all available internal input signals. 5 signals are available
for mapping. For each input the user can set the signal level to
active “High” or active “Low”.
1. Computer trigger – maps CC1 or CC2 to the internal (CC)
computer trigger input.
2. External Trigger – maps IN1 or IN2 to the external computer
trigger input.
3. Exposure control – provides an external exposure control
signal. For proper operation set the “Exposure Control
Register” to “External”.
4. H-Sync – synchronizes the camera line timing to the external
pulse. A continuous trail of pulses (one for every line) must
be provided. The camera uses only the pulse edge, but the
duration should be as short as possible. Min. duration - 50 ns.
5. V-Sync – synchronizes the camera frame timing to the
external pulse. A continuous trail of pulses (one for each
frame) must be provided. The camera uses only the pulse
edge, but the duration should be as short as possible. Min.
duration - 2 us.
6. Deselect – no signal is mapped.
Rev. 1.0
5/4/2010
165 of 212
BOBCAT Hardware User’s Manual
Figure 5.11 – I/O control parameter window
Output:
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
The user can map each of the camera outputs to OUT1, OUT2 or
CL Spare to all available internal output signals. 13 signals are
available for mapping. For each input the user can set the signal
level to active “High” or active “Low”.
1. Exposure Start – a short pulse (2 us) indicating the beginning
of the camera exposure in trigger mode.
2. Exposure End – a short pulse (2 us) indicating the end of the
camera exposure in trigger mode.
3. Mid Exposure – a short pulse (2 us) indicating indicates the
middle of the camera exposure in trigger mode.
4. Active Exposure Window – a signal indicating the duration
of the camera exposure in trigger mode.
5. H-Sync – a short pulse (2 us) synchronized with the camera
line timing.
6. V-Sync – a short pulse (2 us) synchronized with the camera
frame timing.
7. Odd/Even Frame Flag – a signal indicating if the frame is
ODD or EVEN. It alternates every frame. When “Active
High” ODD is LOW.
8. Trigger Pulse – maps the input trigger pulse to the output
with no delay (as is).
9. Trigger Pulse Delayed – maps the input trigger pulse to the
output with delay set by the Exposure Delay Register.
10. Camera Ready – a signal indicating when the camera is ready
to accept the next trigger pulse.
11. Pulse Generator – maps the internal pulse generator
waveform to the output.
12. Strobe 1 – maps “Strobe One” signal to the corresponding
external output.
Rev. 1.0
5/4/2010
166 of 212
BOBCAT Hardware User’s Manual
13. Strobe 2 – maps “Strobe Two” signal to the corresponding
external output.
14. Deselect – no signal is mapped.
5.7.3 Trigger
Trigger window is used to set the camera trigger modes and trigger settings –
Figure 5.12. Four control panels are associated with this feature: “Settings”,
“Acquisition Control”, “Exposure control” and “Strobe Control”.
Figure 5.12 – Trigger parameter window
Settings:
Trigger in – selects the active triggering input signal. The
selected trigger signal must be mapped to the corresponding
camera input.
1. Off – the camera is in free-running mode.
2. External – the camera expects a trigger signal coming from
IN1 or IN2 inputs.
3. Pulse Gen – the camera expects a trigger signal coming from
the internal pulse generator.
4. CC – the camera expects a signal coming from CC1 or CC2
inputs.
Mode – selects the desired triggering mode:
1. Standard – in this mode the camera exposes, reads-out the
selected number of frames and waits for the next trigger
signal. In this mode the maximum camera frame rate is LESS
than the free-running one.
2. Fast – in this mode the camera exposes then next frame while
reading the previous. This mode provides the ability to
trigger the camera with its original (free-running) frame rate.
3. Double – this mode is designed for capture fast processes
with short exposure times, and is commonly used in particle
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
167 of 212
BOBCAT Hardware User’s Manual
velocity measurement. It is identical to the Standard mode
but, the camera will capture only 2 frames after each trigger
signal. There is no delay between the frames
4. Frame Accumulation – in this mode, after each trigger signal
the camera starts integration then transfers the information to
the vertical registers and then waits for the next trigger. After
the last trigger has been received the information is being
read out.
5. Asynchronous – in this mode the camera is free running prior
to the trigger. When the trigger is applied, it resets the CCD
timing, flushes the remaining lines and starts the integration.
Trigger Edge – the user can select the active triggering edge:
1. Rising – the rising edge is used for triggering.
2. Falling – the falling edge is used for triggering.
Trigger Overlap – the user can select how to handle the next
trigger pulse if arrives while the previous triggering cycle is in
process:
1. Ignore – the next rigger will be ignored, and the camera will
continue its present operation.
2. Accept – the next trigger will be used.
3. Accept after Exposure – the next rigger will be ignored while
the camera is exposing the image.
De-bounce – the trigger inputs are de-bounced to prevent
multiple triggering from ringing triggering pulses. The user has
four choices of de-bounce interval:
1. Off – No De-bounce.
2. 0.1 ms – 100 us de-bounce interval (by default).
3. 1.0 ms – 1 ms de-bounce interval.
4. 10.0 ms – 10 ms de-bounce interval.
Acquisition:
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Frames per trigger – sets the number of frames captured after
each trigger in “Standard” mode. The user can select from 1 to
65500 discrete frames to be captured. If the value is 65501 or
bigger, the camera is free running after the trigger signal.
Rev. 1.0
5/4/2010
168 of 212
BOBCAT Hardware User’s Manual
Pulses per capture – sets the number of trigger pulses used
during a single acquisition event in “Frame Accumulation”
mode. The user can select from 1 to 65535 discrete pulses.
Exposure Delay: Sets the delay between the trigger pulse active edge and
beginning of the exposure. The user can set the delay from 0 to
16777215 us.
5.7.4 Pulse Generator
In this window the user can configure the parameters of the Internal Pulse
Generator – Figure 5.13.
Figure 5.13 – Pulse generator window
Granularity: Sets the granularity for the internal counters. Granularity can be set
to 1x, 10x, 100x or 1000x.
Period:
Sets the pulse period in microseconds.
Width:
Sets the pulse width in microseconds.
# of Pulses:
Sets the number of pulses generated. Two modes are available:
1. Continuous – provides a continuous operation. To stop the
process you have to press the “Stop” button.
2. Fixed # of pulses – the user can set only a discrete number of
pulses ranging (1 to 65500) to be generated. To stop the process
you have to press the “Stop” button. Otherwise, the process stops
automatically after the last pulse is sent.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
169 of 212
BOBCAT Hardware User’s Manual
Process:
Start – starts and stops the process of Internal Pulse Generator.
When the process is in progress, the ‘Start” button becomes a ‘Stop”
button.
Status – provides the status of the process:
Red – the process is on hold,
Green – the process is working.
5.7.5 Exposure
This window controls the camera exposure, line and frame time, AEC, AGC and
AIC modes of operation – Figure 5.14.
Figure 5.14 – Exposure control window
Exposure Control:
Sets the camera exposure:
4. Off – no exposure control.
5. Pulse Width – the pulse width (duration) determines the
exposure during triggering mode ONLY.
6. Internal – internal camera registers controls the exposure.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
170 of 212
BOBCAT Hardware User’s Manual
7. External – external pulse mapped to the camera input
controls the exposure.
8. Exposure time slider – sets the actual camera exposure in
microseconds. The minimum exposure time adjusts
accordingly, based on the camera mode of operation. The
slider can only be used when “Internal” mode is enabled.
Programmable Integration:
AEC/AGC:
Variable line and frame rate mode provides the
ability to run the camera in full resolution and at a
frame rate slower than the nominal camera frame
rate. The user can change “Line Time” in pixels
or change “Frame Time” in microseconds. The
maximum frame time is ~ 16 seconds.
The camera can be set to automatic exposure and gain control in
order to keep the same image brightness during changing light
conditions.
Enables – enables which feature to be used:
1. AEC – enables Automatic Exposure Control (AEC) mode. The
user can change “Area”, “Exposure” and “Luminance”. “Gain”
cannot be adjusted.
2. AGC – enables Automatic Gain Control (AGC) mode. The user
can change “Area”, “Gain” and “Luminance”. “Exposure”
cannot be adjusted.
3. AIC – enables Automatic Iris Control (AIC). The camera
provides an analog video signal (via 12 pin HIROSE connector),
compatible with “Video” iris lens control.
Area – sets an active region of significance. Only the image inside
the selected region will be used in the data collection AEC/AGC
algorithm. Any brightness changes outside of the region will be
ignored. The changes as determined by the algorithm will apply to
the entire image. The user can enter the region of significance by
setting the active window size (Width, Height) and offset (X, Y).
Image location (1.1) is top left corner. The user can set the desired
window size by typing the numbers directly, or by selecting the
desired size in the provided gay square window. To do this, simply
draw the window with the mouse in the gray square.
Luminance – sets the desired luminance level to be maintained in
the image. The comparison algorithm will adjust the image gain and
exposure accordingly, so the image luminance is always close to the
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
171 of 212
BOBCAT Hardware User’s Manual
desired one. The user can select which luminance type to be used in
the algorithm:
1. Average – the average value of the image luminance will be used
in the comparison algorithm.
2. Peak – the peak luminance value (maximum luminance level)
will be used in the comparison algorithm.
Exposure – sets the maximum exposure time, which can be reached
in the AEC mode in order to avoid motion smear if a fast moving
object is monitored. The user can select the speed of convergence 1x
(slow), 2x, 3x and 4x (fast).
Gain – sets the maximum analog gain, which can be reached in the
AGC mode. The user can select the speed of convergence 1x (slow),
2x, 3x and 4x (fast).
Current – Provides live information about the current value of the
Exposure time, Gain and Luminance. The values will be refreshed
every time polling is done.
5.7.6 Test Image
This window sets the test image mode. Several test images are available for
selection, including pattern superimposing over live image – Figure 5.15.
Ping:
Checks the serial connection status of the camera:
GREEN – followed by a brief “OK”, indicates a successful
connection.
RED – followed by and “ERR”, indicates no connection.
YELLOW – “Ping” command was sent to the camera. A few
seconds after pinging, the indicator becomes gray and the message
disappears.
Test Mode:
Test Patterns – the camera can output eight test patterns:
1. Off – test mode is off.
2. Black – displays black image.
3. Gray Image – displays a uniform dark gray image.
4. White Image – displays a uniform white image.
5. H Ramp – displays a stationary horizontal ramp image.
6. V Ramp – displays a stationary vertical ramp image.
7. H Ramp move – displays a moving horizontal ramp image.
8. V Ramp move – displays a moving vertical ramp image.
9. Vertical Bars – displays a set of 8 vertical gray bars with
different gray levels.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
172 of 212
BOBCAT Hardware User’s Manual
Figure 5.15 – Test image window
Superimposed: This mode superimposes a test pattern over live image (not
available during H & V binning):
1. Crosshair – superimposes a cross, located in the center of the
CCD images. A small cross will appear in the gray square window.
2. H&V Lines – superimposes a pair of H and/or V lines. Dual
sliders are available to select the horizontal and vertical position of
the lines. Each line location will be visible in the gray square
window. The sliders range from 1 to the maximum number of
pixels/lines available on the sensor.
3. Brightness – sets the brightness of the crosshair and H&V lines,
ranges from 0 to 4095.
4. Scale – provides the ability to measure distance between the
lines in pixels or in linear units. The uses must enter a scale
calibration value.
5.7.7 Area of Interest (AOI)
AOI is used to select one or more regions of interest. A total of seven independent
AOIs can be generated, and the user can select the size of each horizontal and
vertical window. Horizontal and Vertical binning is also available to change the H
and V resolution of the image – Figure 5.16.
Window:
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
This sets the portion of the image, which will be displayed and used:
1. Normal – the imager has full resolution as determined by LVAL
and FVAL settings.
2. Center – only a portion or center of the image will be used. This
mode is camera dependent and is not available for all cameras.
Rev. 1.0
5/4/2010
173 of 212
BOBCAT Hardware User’s Manual
Binning:
This sets the camera H & V binning modes:
1. Horizontal – enables the horizontal binning – the image
horizontal resolution is reduced by a factor of 1x, 2x, 3x, 4x or
8x (1x – no binning).
2. Vertical Horizontal – enables the vertical binning – the image
vertical resolution is reduced by a factor of 1x, 2x, 3x, 4x or 8x
(1x – no binning).
Figure 5.16 – AOI window.
Master AOI: Bobcat supports one Master AOI (MAOI). All other AOIs are slave
and they have to be positioned within the MAOI. This MAOI can be
enabled or disabled. When enabled, MAOI determined the current
image size. DVAL is HIGH within the selected area. The camera
frame rate is preserved or changed with “Keep Frame Rate”
selection. When enabled the camera frame rate is preserved
regardless of the AOI selection. When disabled, the frame rate is
determined by the selected vertical height settings. If other AOIs are
used, MAOI Must be enabled.
AOI #:
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Bobcat supports up to six slave independent horizontal and vertical
regions of interest could be enabled. If slave AOIs is to be used
MAOI MUST be enabled. All slave AOIs have to be positioned
within the MAOI. The slave AOIs can be set to be included or
excluded from the MAOI After enabling the selected AOI, the user
can enter the desired region of interest by setting the active window
Rev. 1.0
5/4/2010
174 of 212
BOBCAT Hardware User’s Manual
size (Width, Height) and offset (X, Y). Image location (1.1) is top
left corner. The user can set the desired window size by typing the
numbers directly, or by selecting the desired size in the provided
gray square window. To do this enable the window first, press the
corresponding numerical number on the keyboard, and then draw the
window with the mouse in the gray square. Different AOIs will be
displayed with different colors.
5.7.8 Strobe Control
This window sets the camera strobe signals. Two independently controlled strobe
signals are supported – Figure 5.17.
Figure 5.17 – Strobe Control window
Strobe 1 Mode: Sets the Strobe 1 mode of operation. The strobe can be disabled
or enabled. When enabled the strobe can be set to appear “Each
Frame”, “Odd Frames” only or “Even Frames” only. In addition,
in trigger mode, the user can add a strobe pulse associated with
rising edge of the trigger pulse.
Strobe 2 Mode: Sets the Strobe 2 mode of operation. The strobe can be disabled
or enabled. When enabled the strobe can be set to appear “Each
Frame”, “Odd Frames” only or “Even Frames” only. In addition,
in trigger mode, the user can add a strobe pulse associated with
rising edge of the trigger pulse.
Standard Strobe: Controls the strobe position and pulse duration for Strobe 1 and
Strobe 2. The user can set the individual strobe position relative
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
175 of 212
BOBCAT Hardware User’s Manual
to the beginning of the frame, via the slider or by entering the
desired value. The strobe pulse duration can be set for each
strobe individually. The user can set the strobe position and
duration within the camera frame period with 1 us resolution.
Trigger Strobe: Sets the duration and delay of a strobe sync pulse (with respect to
the trigger pulse) sent to the camera output. The user can set the
strobe duration and the delay from 0 to 16777215 us.
5.7.9 Processing
This window controls the image processing features implemented into the camera.
Currently only one Image Enhancement is implemented – Figure 5.18. More
features will be added later. Please contact Imperx for more information.
Processing AOI: PAOI is multi functional. It can be enabled as:
Disabled – no PAOI functionality.
Processing ROI – the selected processing function will apply
only to the selected ROI, all data outside of the region will not be
processed with the selected function.
LUT ROI – the LUT function will apply only to the selected
ROI, all data outside of the region will not be processed with the
LUT function.
LUT:
LUT Enable – enables the usage of the selected LookUp Table
(LUT).
LUT Select – selects which of the two supported LUTs will be used.
By default LUT #1 is factory programmed with standard Gamma of
0.45. LUT #1 and LUT #2 can be reprogrammed by the user.
Enables the image enhancement processing features. Seven options
Enhancement: are available:
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
176 of 212
BOBCAT Hardware User’s Manual
Figure 5.18 – Processing window
1. Disable – no enhancement operation will be performed.
2. Single Threshold Binary – single point threshold operation
will be performed. Set the desired threshold level X1 using the
horizontal (bottom) slider (left portion).
3. Dual Threshold Binary – two-point threshold operation will
be performed. Set the desired upper threshold level X2 using
the horizontal (bottom) slider (right portion), and the lower one
X1 – horizontal (bottom) slider (left portion).
4. Dual Threshold Gray – two-point threshold operation with
gray scale mid. values will be performed. Set the desired upper
threshold level X2 using the horizontal (bottom) slider (left
portion), and the lower one X1 – horizontal (bottom) slider
(right portion).
5. Dual Threshold Contrast Enhancement – two-point
threshold operation with gray scale stretch will be performed.
Set the desired upper threshold level X2 using the horizontal
(bottom) slider (left portion), and the lower one X1 –
horizontal (bottom) slider (right portion).
6. One Point Correction – single point image enhancement
operation will be performed. Set the desired X1-point level
using the horizontal (bottom) slider (left portion). Set the
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
177 of 212
BOBCAT Hardware User’s Manual
desired Y1-point level using the vertical (side) slider (bottom
portion).
7. Two Point Correction – two-point image enhancement
operation will be performed. Set the desired X1-point level
using the horizontal (bottom) slider (left portion), and X2-point
– the horizontal (bottom) slider (left portion). Set the desired
Y1-point level using the vertical (side) slider (bottom portion),
and Y2-point – the vertical (side) slider (top portion).
Side Slider:
Multi purpose dual slider, controls the Y1 and Y2 positions for
single and two-point image enhancement.
Bottom Slider: Multi purpose dual slider, controls the X1 and X2 positions for
single and two-point image enhancement. Controls the lower and
upper threshold levels for single and dual threshold.
Gray Box:
Multi purpose graphical interface. The user can set the desired X1,
(X1,X2), (X1,Y1) or (X2,Y2) points directly. Grab with the mouse
the yellow dots (dot) and move them in the gray square window
until the desired result is achieved.
5.7.10 Data Output
Data Output window provides full control of the camera digital data output – Figure
5.19.
Figure 5.19 – Data output window
Video Settings:
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Sets the data format and camera speed. Refer to Chapter 2 for
more information.
Rev. 1.0
5/4/2010
178 of 212
BOBCAT Hardware User’s Manual
Taps – sets the number of image taps used in the current
configuration. These are CCD taps, not output taps. In some
camera the tap selection is not available:
1. Single – only one CCD tap is used, the CCD has only one
tap, or one tap operation is available for dual tap CCDs.
2. Dual – two taps CCD operation, the CCD must support dual
tap operation.
Format – sets the output data format, i.e. the number of output
taps used and mapped to the camera link output. A graphical
visualization of the selected output data format is shown in the
center of the window:
1. 1 Tap Single – the output data is mapped to one tap only.
2. 2 Taps Interleaved – the output data is mapped to two taps in
interleaved order.
3. 2 Taps Sequential – the output data is mapped to two taps in
sequential order. This feature is optional.
4. 3 Taps RGB – the Bayer pixel output when color CCD is
used is converted to 3x8 bit RGB format. This feature is
optional.
Speed – controls the camera speed and frame rate. All camera
features are available in both (Slow and Fast) modes.
1. Normal – normal camera operation.
2. Overclock – over-clocked camera operation. The camera
speed (frame rate) significantly increases while preserving
the image frame size noise and overall performance.
FVAL – selects the size of the FVAL signal (valid lines in a
frame) and provides “Full size” or “active size” options. Two
sizes (camera dependent) are available for selection.
LVAL – selects the size of the LVAL signal (valid pixels in a
line) and provides “Full size” or “active size” options. Two sizes
(camera dependent) are available for selection.
Image – converts the image from positive to negative.
Bit Depth:
Sets the camera bit depth, and which bits to be used in the data
output.
Depth – sets the bit depth of the camera output to 8, 10, 12, or 14
bits. All internal camera processing is done in 14 bits. 14 bit
output is available ONLY in 1 Tap Single data format.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
179 of 212
BOBCAT Hardware User’s Manual
Shift – selects which part of the entire 14 bit internal data will be
mapped. Provides up to 7 bits digital shift left or right to
manipulate camera brightness and contrast. A graphical
visualization of the selected bits is shown in the center of the
window
Corrections:
DPC – enables Defective Pixel Correction (DPC). Each camera
comes with a built-in Defective Pixel Map (DPM) to correct for
defective pixels. The user can upload a custom DPM.
HPC – enables Hot Pixel Correction (HPC). Each camera comes
with a built-in Hot Pixel Map (HPM) to correct for hot pixels.
The user can upload a custom HPM
FFC – enables Flat Field Correction (FFC). Only big format
CCD cameras (optical format > 2/3”) have this feature. Each
camera (when available) comes with a built-in Flat Field Map
(FFM) to compensate for shading effect intrinsic to the imager.
The user can upload a custom FFM
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
180 of 212
BOBCAT Hardware User’s Manual
CHAPTER 6 – Gen<i>Cam Reference Manual
Gen<i>Cam Reference Manual
This chapter provides a quick reference to Gen<I>Cam standard.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
181 of 212
BOBCAT Hardware User’s Manual
6.1
INTRODUCTION
The BobCat series of GigE Vision cameras are fully compliant with the Gen<i>Cam
standard. The cameras include an embedded camera description file ( XML ) that contains
all of the information required to automatically map a camera’s features to its internal
registers. The Gen<i>Cam standard defines the syntax and semantics of the camera
description file. It also defines a mechanism for the user to configure the camera by
reading/writing the camera registers associated with the features.
The camera description file ( XML ) contains a set of nodes where each node represents a
feature of the camera. Each node has a set of attributes that define the feature including a
description, type ( ie. integer, boolean, etc. ), register address, minimum value, maximum
value, increment, etc. All of this information is contained in the XML file. The XML file is
transferred from the camera to the host application when a connection is first established.
The host application then parses the XML file and presents the user with a “node tree’
representation.
The BobCat series of cameras include a full-featured host application, called PureGEV,
which allows the user to connect to a camera, view/save images from the camera and
control its features via a “node tree” user interface representation.. Please refer to the
PureGEV Quick Start Guide for details on how to install and use the PureGEV application.
A “node tree” is a tabular list of all of the camera features ( that were described in the XML
file ). The user can control a feature by simply clicking on it with the mouse and editing the
field. Some features provide drop down menu lists, while others support direct data entry.
Features that are read-only ( ie. status indicators ) are de-highlighted and un-editable. Some
features depend on the state of other features. For example, the GainAutoBalance is only
active if the SensorDigitizationTaps is equal to Two. Some features are locked while image
streaming is active. For example, the PixelFormat feature can only be changed while
images are not be streamed.
The following tables illustrate the node tree as it is displayed by the PureGEV application.
For a detailed description of the features, please refer to Chapter 2.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
182 of 212
BOBCAT Hardware User’s Manual
6.2
NODE TREE
6.2.1 Device Information
6.2.2 IP Engine
6.2.3 GigE Vision Transport Layer
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
183 of 212
BOBCAT Hardware User’s Manual
6.2.4 Image Size Control
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
184 of 212
BOBCAT Hardware User’s Manual
6.2.5 Acquisition and Trigger Controls
6.2.6 Counters and Timers Controls
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
185 of 212
BOBCAT Hardware User’s Manual
6.2.7 Analog Controls
6.2.8 Test Mode
6.2.9 User Sets
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
186 of 212
BOBCAT Hardware User’s Manual
6.2.10 Custom Features
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
187 of 212
BOBCAT Hardware User’s Manual
Custom Features ( cont. )
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
188 of 212
BOBCAT Hardware User’s Manual
Custom Features ( cont. )
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
189 of 212
BOBCAT Hardware User’s Manual
Chapter 7 – Bobcat Warranty and
Support
BOBCAT Warranty and Support
This chapter discusses the camera’s warranty and support.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
190 of 212
BOBCAT Hardware User’s Manual
7.1
ORDERING INFORMATION
NOTE: For any other custom camera configurations, please contact Imperx, Inc.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
191 of 212
BOBCAT Hardware User’s Manual
7.2
TECHNICAL SUPPORT
Each camera is fully tested before shipping. If for some reason the camera is not
operational after power up please check the following:
1.
Check the power supply and all I/O cables. Make sure that all the
connectors are firmly attached.
2.
Check the status LED and verify that is steady ON, if not – refer to the
LED section.
3.
Enable the test mode and verify that the communication between the
frame grabber and the camera is established. If the test pattern is not
present, power off the camera, check all the cabling, frame grabber
settings and computer status.
4.
If you still have problems with the camera operation, please contact
technical support at:
Email: [email protected]
Toll Free 1 (866) 849-1662 or (+1) 561-989-0006
Fax: (+1) 561-989-0045
Visit our Web Site: www.imperx.com
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
192 of 212
BOBCAT Hardware User’s Manual
7.3
WARRANTY
Imperx warrants performance of its products and related software to the
specifications applicable at the time of sale in accordance with Imperx’s
standard warranty, which is 1 (one) year parts and labor. FOR GLASSLESS
CAMERAS THE CCD IS NOT COVERED BY THE WARRANTY.
Do not open the housing of the camera. Warranty voids if the housing has
been open or tampered.
IMPORTANT NOTICE
This camera has been tested and complies with the limits of Class A digital
device, pursuant to part 15 of the FCC rules.
Copyright © 2009 Imperx Inc. All rights reserved. All information provided
in this manual is believed to be accurate and reliable. No responsibility is
assumed by Imperx for its use. Imperx reserves the right to make changes to
this information without notice. Redistribution of this manual in whole or in
part, by any means, is prohibited without obtaining prior permission from
Imperx. Imperx reserves the right to make changes to its products or to
discontinue any product or service without notice, and advises its customers to
obtain the latest version of relevant information to verify, before placing
orders, that the information being relied on is current.
IMPERX PRODUCTS ARE NOT DESIGNED, INTENDED,
AUTHORIZED, OR WARRANTED TO BE SUITABLE FOR USE IN
LIFE-SUPPORT APPLICATIONS, DEVICES OR SYSTEMS OR
OTHER CRITICAL APPLICATIONS, WHERE MALFUNCTION OF
THESE PRODUCTS CAN REASONABLY BE EXPECTED TO
RESULT IN PERSONAL INJURY. IMPERX CUSTOMERS USING OR
SELLING THESE PRODUCTS FOR USE IN SUCH APPLICATIONS
DO SO AT THEIR OWN RISK AND AGREE TO FULLY INDEMNIFY
IMPERX FOR ANY DAMAGES RESULTING FROM SUCH
IMPROPER USE OR SALE.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
193 of 212
BOBCAT Hardware User’s Manual
Appendix A – Camera Configuration Reference
Camera Configuration Reference
This appendix provides a quick reference to the camera configuration
workspace registers.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
194 of 212
BOBCAT Hardware User’s Manual
A.0
ABBREVIATIONS
RW – read/write, RO – read only, WO – write only
MAX_HRZ_SZE, MIN_HRZ_SZE – Max. and Min. horizontal image size – camera dependent
MAX_VER_SZE, MIN_VER_SZE – Max. and Min. vertical image size – camera dependent
LIN_TIM_MIN – Minimum Line time – camera dependent
FRM_TIM_MIN – Minimum Frame time – camera dependent
FRM_TIM_ACT – Actual Current Frame time - variable
FRR_EXP_MIN – Minimum Exposure time – camera dependent
A.1
SAVING AND RESTORING REGISTERS
0x6000 Boot From
RW
0x6060
0x6064
0x6068
0x606C
0x6074
0x6078
WO
WO
WO
WO
WO
WO
Usage
00 - Factory,
01 - User 1,
10 - User 2
Command
Command
Command
Command
Command
Command
RW
<BAUD Value>
Address
Register Name
Load From Factory
Load From User1
Load From User2
Load MFG Default Gain
Save to User1
Save to User2
RS-232 Baud Rate
0x0604
Selector
A.2
Type
MIN Value
MAX Value
0x00000000
0x00000002
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000004
CAMERA INFORMATION REGISTERS
Address
0x6004
0x6008
0x600C
0x601C
0x6080
0x6084
0x6088
0x608C
0x6090
0x6094
0x6098
0x609C
0x60A0
0x60B0
0x60B4
0x6010
Register Name
Firmware Revision
Firmware Build Number
Test Register
Soft Reset
Horizontal Frame Size
Vertical Frame Size
Current Minimum Frame Time
Current Minimum Line Time
Current Maximum Exposure
Current Minimum Exposure
Current Frame Number
Current Camera Exposure
Current Frame Duration
Current Image Size
Current AEC/AGC Status
CCD Temperature
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Type
Value
RO
RO
RW
WO
RO
RO
RO
RO
RO
RO
RO
RO
RO
RO
RO
RO
<Firmware Revision>
<Firmware Build Number>
0x76543210
0xDEDBEEF
<MAX_HRZ_SZE, MIN_HRZ_SZE>
<MAX_VER_SZE, MIN_VER_SZE>
<FRM_TIM_MIN>
<LIN_TIM_MIN> , <CLK_PER_PSC>
<FRM_TIM_ACT>
<FRR_EXP_MIN>
<Current Frame Number>
<Current Exposure>
<FRM_TIM_ACT>
<CURT_VER_SZE>, <CRNT_HRZ_SZE>
<Status Values>
<Current CCD Temperature>
Rev. 1.0
5/4/2010
195 of 212
BOBCAT Hardware User’s Manual
A.3
IMAGE SIZE (AOI) REGISTERS
Address
Register Name
Type
0x0500 Vertical Binning Mode
RW
0x0200 Constant Frame Rate
RW
0x0204 Horizontal Binning Mode
RW
0x0208 MAOI Enable
RW
0x020C AOI 1 Enable
RW
0x0210 AOI 2 Enable
RW
0x0214 AOI 3 Enable
RW
0x0218 AOI 4 Enable
RW
0x021C AOI 5 Enable
RW
0x0220 AOI 6 Enable
RW
0x0224 PAOI Enable
RW
0x0228
0x022C
0x0230
0x0234
0x0238
0x023C
0x0240
0x0244
0x0248
0x024C
0x0250
0x0254
0x0258
0x025C
0x0260
0x0264
0x0268
0x026C
0x0270
0x0274
0x0278
0x027C
0x0280
RW
RW
RW
RW
RW
RW
RW
RW
RW
RW
RW
RW
RW
RW
RW
RW
RW
RW
RW
RW
RW
RW
RW
MAOI Horizontal Width
AOI 1 Horizontal Width
AOI 2 Horizontal Width
AOI 3 Horizontal Width
AOI 4 Horizontal Width
AOI 5 Horizontal Width
AOI 6 Horizontal Width
PAOI Horizontal Width
MAOI Horizontal Offset
AOI 1 Horizontal Offset
AOI 2 Horizontal Offset
AOI 3 Horizontal Offset
AOI 4 Horizontal Offset
AOI 5 Horizontal Offset
AOI 6 Horizontal Offset
PAOI Horizontal Offset
MAOI Vertical Height
AOI 1 Vertical Height
AOI 2 Vertical Height
AOI 3 Vertical Height
AOI 4 Vertical Height
AOI 5 Vertical Height
AOI 6 Vertical Height
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Usage
MIN Value
0x0 - 1x, 0x1 - 2x,
0x2 - 3x, 0x3 - 4x,
0x00000000
0x4 - 8x
1 - Enable,
0x00000000
0 - Disable
0x0 - 1x, 0x1 - 2x,
0x2 - 3x, 0x3 - 4x,
0x00000000
0x4 - 8x
0 – Off, 1 - Enable
0x00000000
00 – Off, 01 – Include,
0x00000000
10 - Exclude
00 – Off, 01 – Include,
0x00000000
10 - Exclude
00 – Off, 01 – Include,
0x00000000
10 - Exclude
00 – Off, 01 – Include,
0x00000000
10 - Exclude
00 – Off, 01 – Include,
0x00000000
10 - Exclude
00 – Off, 01 – Include,
0x00000000
10 - Exclude
00 - Off, 11 – LUT AOI
0x00000000
10 – Process. AOI,
<Width Value>
0x00000001
<Width Value>
0x00000001
<Width Value>
0x00000001
<Width Value>
0x00000001
<Width Value>
0x00000001
<Width Value>
0x00000001
<Width Value>
0x00000001
<Width Value>
0x00000001
1
<Offset Value>
0x00000000*
<Offset Value>
0x00000000
<Offset Value>
0x00000000
<Offset Value>
0x00000000
<Offset Value>
0x00000000
<Offset Value>
0x00000000
<Offset Value>
0x00000000
<Offset Value>
0x00000000
<Height Value>
0x00000001
<Height Value>
0x00000001
<Height Value>
0x00000001
<Height Value>
0x00000001
<Height Value>
0x00000001
<Height Value>
0x00000001
<Height Value>
0x00000001
MAX Value
0x00000004
0x00000001
0x00000004
0x00000001
0x00000001
0x00000001
0x00000001
0x00000001
0x00000001
0x00000001
0x00000003
MAX_HRZ_SZE
MAX_HRZ_SZE
MAX_HRZ_SZE
MAX_HRZ_SZE
MAX_HRZ_SZE
MAX_HRZ_SZE
MAX_HRZ_SZE
MAX_HRZ_SZE
MAX_HRZ_SZE - 1
MAX_HRZ_SZE - 1
MAX_HRZ_SZE - 1
MAX_HRZ_SZE - 1
MAX_HRZ_SZE - 1
MAX_HRZ_SZE - 1
MAX_HRZ_SZE - 1
MAX_HRZ_SZE - 1
MAX_VER_SZE
MAX_VER_SZE
MAX_VER_SZE
MAX_VER_SZE
MAX_VER_SZE
MAX_VER_SZE
MAX_VER_SZE
Rev. 1.0
5/4/2010
196 of 212
BOBCAT Hardware User’s Manual
0x0284
0x0288
0x028C
0x0290
0x0294
0x0298
0x029C
0x02A0
0x02A4
PAOI Vertical Height
MAOI Vertical Offset
AOI 1 Vertical Offset
AOI 2 Vertical Offset
AOI 3 Vertical Offset
AOI 4 Vertical Offset
AOI 5 Vertical Offset
AOI 6 Vertical Offset
PAOI Vertical Offset
RW
RW
RW
RW
RW
RW
RW
RW
RW
<Height Value>
<Offset Value>
<Offset Value>
<Offset Value>
<Offset Value>
<Offset Value>
<Offset Value>
<Offset Value>
<Offset Value>
0x00000001
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
MAX_VER_SZE
MAX_VER_SZE - 1
MAX_VER_SZE - 1
MAX_VER_SZE - 1
MAX_VER_SZE - 1
MAX_VER_SZE - 1
MAX_VER_SZE - 1
MAX_VER_SZE - 1
MAX_VER_SZE - 1
*1 In B1920 the minimum “Horizontal Offset” is 10 pixels when “Constant Frame Rate” is
disabled.
A.4
EXPOSURE CONTROL REGISTERS
Address
Register Name
Type
0x0544 Exposure Control Mode
RW
0x0548
0x054C
0x0550
0x0554
0x0558
RW
RW
RW
RW
RW
A.5
Exposure Time
Prog. Line Time Enable
Prog. Frame Time Enable
Line Time
Frame Time
Usage
MIN Value
MAX Value
00 - Off, 01 - PW,
0x00000000
0x00000003
10 - Int, 11 - Ext
<Exposure Value>
FRR_EXP_MIN, FRM_TIM_ACT
1 - Enable, 0 - Disable
0x00000000
0x00000001
1 - Enable, 0 - Disable
0x00000000
0x00000001
<Line Time Value>
LIN_TIM_MIN
0x00001FFF
<Frame Time Value> FRM_TIM_MIN 0x00FFFFFF
VIDEO REGISTERS
Address
Register Name
Type
0x0000 PreAmp Gain Ch. 1
RW
0x0004 Analog Gain Ch. 1
0x0008 Analog Offset Ch. 1
RW
RW
0x0010 PreAmp Gain Ch. 2
RW
0x0014
0x0018
0x0180
0x0184
RW
RW
RW
RW
Analog Gain Ch. 2
Analog Offset Ch. 2
Digital Gain
Digital Offset
0x0110 Tap Balance
RW
0x0114 Black Level Correction
RW
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Usage
00 - -3dB, 01 - 0dB,
10 - +3db, 11 - +6db
<Analog Gain Value>
<Analog Offset Value>
00 - -3dB, 01 - 0dB,
10 - +3db, 11 - +6db
<Analog Gain Value>
<Analog Offset Value>
<Digital Gain Value>
<Digital Offset Value>
00 - Off, 01 – Auto Dyn,
10 – Once Dyn, 11 - Static
1 - Enable, 0 - Disable
MIN Value
MAX Value
0x00000000
0x00000003
0x00000000
0x00000000
0x000003FF
0x000003FF
0x00000000
0x00000003
0x00000000
0x00000000
0x00000000
0x00000000
0x000003FF
0x000003FF
0x00000014
0x000003FF
0x00000000
0x00000002
0x00000000
0x00000001
Rev. 1.0
5/4/2010
197 of 212
BOBCAT Hardware User’s Manual
A.6
AEC, AGC, AIC REGISTERS
Address
Register Name
Type
0x014C Auto Iris Control
RW
0x0150 Auto Exposure Control
RW
0x0154 Auto Gain Control
RW
0x0158 Luminance Level Threshold
RW
0x05B0
0x0160
0x0164
0x0168
0x016C
0x0170
RW
RW
RW
RW
RW
RW
Maximum Exposure Limit
Maximum Gain Limit
AOI Horizontal Width
AOI Horizontal Offset
AOI Vertical Height
AOI Vertical Offset
0x0174 Exposure Correction Speed
RW
0x0178 Gain Correction Speed
RW
0x017C Luminance Type Selection
RW
A.7
Usage
MIN Value
MAX Value
1 - Enable,
0x00000000
0x00000001
0 - Disable
1 - Enable,
0x00000000
0x00000001
0 - Disable
1 - Enable,
0x00000000
0x00000001
0 - Disable
<Luminance
0x00000001
0x00000FFF
Threshold Value>
<Max. Exp. Value> FRR_EXP_MIN
FRM_TIM_ACT
<Max. Gain Value>
0x00000001
0x000003FF
<Width Value>
0x00000001
MAX_HRZ_SZE
<Offset Value>
0x00000000 MAX_HRZ_SZE - 1
<Height Value>
0x00000001
MAX_VER_SZE
<Offset Value>
0x00000000 MAX_VER_SZE - 1
00 - 1x, 01 - 2x,
0x00000000
0x00000003
10 - 3x, 11 - 4x
00 - 1x, 01 - 2x,
0x00000000
0x00000003
10 - 3x, 11 - 4x
00 - Average,
0x00000000
0x00000003
01 - Peak
TRIGGER REGISTERS
Address
Register Name
0x0508 Trigger Input Selector
RW
0x050C Trigger Edge Selector
RW
0x0510 De-bounce Time Selector
RW
0x0514 Trigger Overlap
RW
0x0518
0x05BC
0x6030
0x051C
0x0520
RW
RW
WO
RW
RW
Triggering Mode Selector
Triggering Enable/Disable
Software Trigger Start
Number of Frames Captured
Number of Pulses Used
0x0524 Trigger Strobe Enable
RW
0x0528 Trigger Exposure Delay
RW
0x052C Trigger Strobe Position Delay RW
0x05B8 Trigger Strobe Duration
RW
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Usage
Type
000 - Off, 001 - External
010 - PG, 011 – Computer,
100 - Software
1 - Falling, 0 - Rising
00 - Off, 01 - 0.1ms,
10 - 1ms, 11 - 10ms
00 – Ignore, 10 – Accept,
01 – Accept After Exp.,
<Trigger Mode>
0 – Enable, 1 – Disable
Command
<Number Frames>
<Number Pulses>
00 - Off, 01 – Str1,
10 – Str2, 11 – Str1&2
<Exposure Delay Value>
<Strobe Position Delay>
<Strobe Duration>
MIN Value
MAX Value
0x00000000
0x00000004
0x00000000
0x00000001
0x00000000
0x00000003
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000001
0x00000001
0x00000004
0x00000004
0x0000FFFF
0x0000FFFF
0x00000000
0x00000003
0x00000000
0x00000000
0x00000000
0x00FFFFFF
0x00FFFFFF
0x00FFFFFF
Rev. 1.0
5/4/2010
198 of 212
BOBCAT Hardware User’s Manual
A.8
PULSE GENERATOR REGISTERS
Address
Register Name
0x0530 Pulse Gen. Granularity
RW
0x0534
0x0538
0x053C
0x0540
RW
RO
RW
RW
A.9
Pulse Gen. Pulse Width
Pulse Gen. Pulse Period
Pulse Gen. # of Pulses
Pulse Gen. Enable
Usage
Type
00 - 1x, 01 - 10x, 10 100x, 11 -1000x
<Pulse Width>
<Pulse Period>
<Number of Pulses>
1 - Enable, 0 - Disable
MIN Value
MAX Value
0x00000000
0x00000003
0x00000001
0x00000001
0x00000001
0x00000000
0x0007FFFF
0x000FFFFF
0x0000FFFF
0x00000001
TEST PATTERN REGISTERS
Address
Register Name
Type
0x012C Test Mode Selector
RW
0x0130
0x0134
0x0138
0x013C
0x0140
0x0144
0x0148
RW
RW
RW
RW
RW
RW
RW
H&V Lines Superimpose
Cross Superimpose
H1 Superimpose Line Position
H2 Superimpose Line Position
V1 Superimpose Column Position
V2 Superimpose Column Position
Superimposed Lines Brightness
Usage
0x0 - Off,
0xX - Test Mode
1 - ON, 0 - Off
1 - ON, 0 - Off
<H1 Line Position>
<H2 Line Position>
<V1 Column Position>
<V2 Column Position>
<Brightness Value>
MIN Value
MAX Value
0x00000000
0x00000009
0x00000000
0x00000000
0x00000001
0x00000001
0x00000001
0x00000001
0x00000000
0x00000001
0x00000001
MAX_VER_SZE
MAX_VER_SZE
MAX_HRZ_SZE
MAX_HRZ_SZE
0x00000FFF
A.10 STROBE REGISTERS
Address
Register Name
Type
0x055C Strobe 1 mode selector
RW
0x0560 Strobe 2 mode selector
RW
0x0564
0x05B4
0x0568
0x056C
RW
RW
RW
RW
Strobe 1 duration
Strobe 2 duration
Strobe 1 position
Strobe 2 position
Usage
00 - Off, 01 - Each,
10 - Odd, 11 - Even
00 - Off, 01 - Each,
10 - Odd, 11 - Even
< S1Duration Value>
< S2Duration Value>
<S1 Position Value>
<S2 Position Value>
MIN Value
MAX Value
0x00000000
0x00000003
0x00000000
0x00000003
0x00000001
0x00000001
0x00000001
0x00000001
FRM_TIM_ACT
FRM_TIM_ACT
FRM_TIM_ACT
FRM_TIM_ACT
A.11 INPUT AND OUTPUT REGISTERS
Address
Register Name
0x0570 CC1 Polarity Selector
0x0574 CC1 Input Selector
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Type
Usage
MIN Value
MAX Value
RW
RW
1 - Active H, 0 -Active L
<Input Map>
0x00000000
0x00000000
0x00000001
0x00000005
Rev. 1.0
5/4/2010
199 of 212
BOBCAT Hardware User’s Manual
0x0578
0x057C
0x0580
0x0584
0x0588
0x058C
0x0590
0x0594
0x0598
0x059C
0x05A0
0x05A4
CC2 Polarity Selector
CC2 Input Selector
IN1 Polarity Selector
IN1 Input Selector
IN2 Polarity Selector
IN2 Input Selector
OUT1 Polarity Selector
OUT1 Output Selector
OUT2 Polarity Selector
OUT2 Output Selector
CL Spare Polarity Selector
CL spare Output Selector
RW
RW
RW
RW
RW
RW
RW
RW
RW
RW
RW
RW
1 - Active H, 0 -Active L
<Input Map>
1 - Active H, 0 -Active L
<Input Map>
1 - Active H, 0 -Active L
<Input Map>
1 - Active H, 0 -Active L
<Output Map>
1 - Active H, 0 -Active L
<Output Map>
1 - Active H, 0 -Active L
<Output Map>
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000001
0x00000005
0x00000001
0x00000005
0x00000001
0x00000005
0x00000001
0x0000000F
0x00000001
0x0000000F
0x00000001
0x0000000F
A.12 OUTPUT DATA FORMAT REGISTERS
Address
Register Name
Type
0x0100 Bit Depth Selector
RW
0x0104
0x0108
0x010C
0x0188
0x0504
0x05A8
0x05AC
0x0608
RW
RW
RW
RW
RW
RW
RW
RW
Bit Shift Selector
Tap Mode Selector
Data Format Selector
Negative Image
Scan Mode Control
Camera LVAL Size
Camera FVAL Size
Camera Speed
Usage
00 - 8, 01 -10,
10 - 12, 11 - 14
<Bit Sift>
00 - Single, 01 - Dual
<Format>
1 - Enable, 0 - Disable
1 - Partial/Center, 0 - Full
1 - Full, 0 - Active
1 - Full, 0 - Active
1 - Fast, 0 - Normal
MIN Value
MAX Value
0x00000000
0x00000003
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x0000000F
0x00000003
0x00000007
0x00000001
0x00000001
0x00000001
0x00000001
0x00000001
A.13 DATA CORRECTION REGISTERS
Address
Register Name
Type
Usage
MIN Value
MAX Value
0x0118
0x011C
0x0120
0x0124
0x0128
Look-Up-Table selector
Look-Up-Table
Defective Pixel Correction
Hot Pixel Correction
Flat Field Correction
RW
RW
RW
RW
RW
1 – LUT 2, 0 – LUT 1
1 - Enable, 0 - Disable
1 - Enable, 0 - Disable
1 - Enable, 0 - Disable
1 - Enable, 0 - Disable
0x00000000
0x00000000
0x00000000
0x00000000
0x00000000
0x00000001
0x00000001
0x00000001
0x00000001
0x00000001
A.14 PROCESSING REGISTERS
Address
Register Name
Type
0x0400 Enhancement Mode
RW
0x0404 Point X1 position
0x0408 Point X2 position
0x040C Point Y1 position
RW
RW
RW
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Usage
0000 - Off,
< Mode Select>
<Point X1 Value>
< Point X2 Value >
< Point Y2 Value >
MIN Value
MAX Value
0x00000000
0x00000006
0x00000000
0x00000000
0x00000000
0x00000FFF
0x00000FFF
0x00000FFF
Rev. 1.0
5/4/2010
200 of 212
BOBCAT Hardware User’s Manual
0x0410 Point Y2 position
RW
< Point Y2 Value >
0x00000000
0x00000FFF
A.15 MANUFACTURING DATA REGISTERS
Address
Register Name
0x7004 Assembly Part Number
0x7008 Assembly Part Number
0x700C Assembly Part Number
0x7010 Assembly Part Number
0x7014 Assembly Serial Number
0x7018 Assembly Serial Number
0x701C CCD Serial Number
0x7020 CCD Serial Number
0x7024 Date of Manufacturer
0x7028 Date of Manufacturer
0x702C Camera Type
0x7030 Camera Type
0x7034 Camera Type
0x7038 Camera Type
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Type
Value
RO
RO
RO
RO
RO
RO
RO
RO
RO
RO
RO
RO
RO
RO
<Assembly Part Number_1>
<Assembly Part Number_2>
<Assembly Part Number_3>
<Assembly Part Number_4>
<Assembly Serial Number_1>
Assembly Serial Number_2
<CCD Serial Number_1>
<CCD Serial Number_2>
<Date of Manufacturer_1>
<Date of Manufacturer_2>
<Type of Camera_1>
<Type of Camera_2>
<Type of Camera_3>
<Type of camera_4>
Rev. 1.0
5/4/2010
201 of 212
BOBCAT Hardware User’s Manual
Appendix B – Creating Look Up Tables
Creating Look Up Tables
This appendix provides a reference on how to create a lookup table using
both an ASCII editor and an Excel spreadsheet.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
202 of 212
BOBCAT Hardware User’s Manual
B.1
OVERVIEW
The Lookup Table file can be created using any standard ASCII text editor or by
using Microsoft Excel. Additionally, any spreadsheet or mathematical program
capable of generating a comma delimited (.csv) file can be used.
B.2
USING AN ASCII TEXT EDITOR
A custom LUT (lookup table) can be prepared using any ASCII text editor, such as
“Notepad” or similar. Alternatively, any spreadsheet program (i.e. Microsoft Excel)
can be used by converting the spreadsheet into a comma delimited (.csv) file. In
either case, the file must be renamed to include the .lut extension. The .lut file has
two main sections: a header and a table. The ‘header’ section is a free text area of
up to 256 ASCII characters. Each line of the header section must be terminated in a
comma. The ‘table’ section of the file contains an array of 4096 lines with each line
containing an input value followed by a comma and an output value. The input
values represent incoming pixels and the output values represent what each
incoming pixel should be converted into as an output pixel.
The format of the .LUT file is as follows:
-- Look Up Table input file example,
-- lines beginning with two dashes are comments,
-- and are ignored by parser,
:Header,
-- this is the text that will get displayed with a 'glh' command,
Function is 'Negative Image',
Created by John Doe,
Date 1/14/09,
:Table,
--input output,
0,4095
1,4094
2,4093
3,4092
4,4091
:
4095,0
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
203 of 212
BOBCAT Hardware User’s Manual
B.3
USING MICROSOFT EXCEL
The .LUT file can be created in Excel as follows:
1 - create the spreadsheet as shown below (note that 4096 rows are required in the
table).
2 - add the necessary equations into the output cells to generate the transfer function
required.
3 - save the file as a .csv (comma delimited format).
4 - rename the .csv file to an extension of .lut.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
204 of 212
BOBCAT Hardware User’s Manual
Appendix C – Creating DPC and HPC Tables
Creating DPC and HPC Tables
This appendix provides a reference on how to create a DPC and HPC table
using an ASCII editor.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
205 of 212
BOBCAT Hardware User’s Manual
C.1
OVERVIEW
The Defective Pixel Map (DPM) and Hot Pixel Map (HPM) are provided with each
camera. If the user wants to create its own DPM or HPM file, he/she can use any standard
ASCII text editor or Microsoft Excel. Additionally, any spreadsheet or mathematical
program capable of generating a comma delimited (.csv) file can be used.
C.2
USING AN ASCII TEXT EDITOR
A custom Defective Pixel Map (DPM) and Hot Pixel Map (HPM) can be prepared using
any ASCII text editor, such as “Notepad” or similar. The file must have a .dpm extension
for DPM map and .hpm extension for HPM. The .dpm (or .hpm) file has two main sections:
a header and a table. The ‘header’ section is a free text area of up to 256 ASCII characters.
Each line of the header section must be terminated in a comma. The ‘table’ section of the
file contains an array of lines with each line containing an X (pixel number) value followed
by a comma and a Y (line number) value. All pixels are listed in the DPM (or HPM) in
order of increasing Y location. If the Y location is identical, the listing is in order of
increasing X location. After editing save each file with the appropriate file extension. The
maximum number of pixels in the DMP list is 128, and in HPM list is 1024.
Here is a simple example how to create a DPM. Create the DPM file with extension .dpm
using “Notepad” or any other editing software. Locate the defective pixels in the camera
and enter them in order starting with the smallest pixel number of the line number first. The
file looks like this:
-- Defective Pixel Map,
-- Date: 7/21/2009,
-- Model#: ICL-B0610M,
-- Serial#: 060380,
: Table,
-- Column(X),Row(Y)
4,1
588,1
78,5
82,27
405,300
Note.
In this example the first table entry is pixel 4 from line 1, the next entry is pixel 588 from
line 1, and the next entry is pixel 78 from line 5 and so on.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
206 of 212
BOBCAT Hardware User’s Manual
Appendix D – Software Installation - CL
Software Installation - CL
This appendix explains how to install the Bobcat CamConfig software.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
207 of 212
BOBCAT Hardware User’s Manual
Use the following steps to install the BobCat Configurator software supplied on a CD. Note that
‘click’ refers to the left mouse button.
1. If a version of BobCat Configurator was previously installed on this machine, then you
must first remove it:
To remove the application files:
1.1
Click on “Start”.
1.2
Click on “Settings”.
1.3
Click on “Control Panel”.
Double click on “Add or Remove Programs” for Windows XP or “Programs and
Features” for Windows Vista and Windows 7.
1.5
Click on “BobCat Configurator”.
1.6
Click on “Remove”.
1.7
If the ‘BobCat Configurator – InstallShield Wizard’ pops-up then do the following,
otherwise go to step 1.8:
Click on “Remove”.
Click “Next”.
Click “Yes”.
Click “Finish”.
1.8
Click on “Yes”.
1.9
Click on “Close”.
2. After having removed a previous version or if a version of BobCat Configurator was NOT
previously installed on this machine then:
The first step is to install the application files:
2.1
2.2
2.3
2.4
2.5
Insert the BobCat Configurator CD into the appropriate drive; the setup.exe file will
run automatically. Note: If it does not start automatically, click on “Start”, “Run”,
enter or browse to “(CD drive): setup.exe” and click “OK”.
Wait for the “BobCat Configurator - InstallShield Wizard” screen to appear.
Follow the on-screen instructions.
Click “Finish”. This completes the software installation.
Reboot your computer.
For additional information and the latest updates and downloads, please visit our
website at www.imperx.com
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
208 of 212
BOBCAT Hardware User’s Manual
Appendix E – Firmware Upgrade - CL
Firmware Upgrade - CL
This appendix explains how to upgrade the Bobcat Firmware, DPH, HPM,
FFC, LUT and camera registers for Bobcat CL cameras.
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
209 of 212
BOBCAT Hardware User’s Manual
E.1
OVERVIEW
Bobcat Camera series supports user FirmWare (FW) and Workspace registers upgrade,
along with a custom DPC, HPC, FFC and LUT tables upload. The upload utility software is
provided as a part of CamConfig GUI, shipped with each camera. After installing the
program, the user has access to a ‘download’ utility window, which allows the user to
download newly released firmware or other files into the camera’s non-volatile memory.
To receive the latest FW and RGS files, please contact Imperx. The user Application
Firmware file normally is called “ICL_XXXXX_RU_ABC.rpd” where “XXXXX”
represents the camera type and “ABC” represents the version number. The Factory Space
upgrade file is normally called “ICL_ YYYYY _RU_RA.rgs” where “YYYYY” represents
the camera type and “A” represents the version number.
E.2
BOBCAT UPGRADE
The user can select to upload either new Camera Firmware, Camera Factory Register
Space, a Lookup Table, a Defect Pixels Correction table, a Hot Pixels Correction table or a
Flat Field Correction file by selecting the appropriate path/filename of the file can be
entered manually into the edit box or browsed to by clicking on the ‘…’ button. Clicking
on the ‘Load File…’ button begins the download process. The user must be familiar with
the entire procedure and must follow it precisely. To start a Bobcat upgrade, follow the
described steps:
1. Start Application Bobcat CamConfig go to Main Menu and from submenu “Load
From…” select “Factory Space”. Wait until camera is initialized.
2. Go to Main Menu and from submenu “Terminal”, select Download Terminal.
3. When “Download Terminal” is opened, from File Type, you have to select what file
you want to upload to the Camera: Application Firmware Image (rpd), Factory Space
(rgs) file), DPC, HPC, FFC or LUT – Figure E.1.
4. DPC, HPC, FFC and LUT Upgrade: When you select the appropriate file for this
particular camera you have to press button “Load File” and wait to finish the process of
uploading. This could take few minutes. When everything is done you should get the
message “Done!” Re-power the camera.
5. FW Upgrade: When you select the appropriate Application Firmware Image file for this
particular camera you have to press button “Load File” and wait to finish the process of
uploading. This could take few minutes. When everything is done you should get the
message “Done! Reset FPGA and the current new version of your camera firmware” –
Figure E.2.
6. RGS Upgrade: When you select the appropriate Factory Space file for this particular
camera you have to press button “Load File” and wait to finish the process of
uploading. This could take few minutes. When everything is done you should get the
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
210 of 212
BOBCAT Hardware User’s Manual
message “Uploading is finished successfully”. Please re-power your camera after
Factory Space upgrading –Figure E.2.
Figure E.1
Figure E.2
Imperx, Inc.
6421 Congress Ave.
Boca Raton, FL 33487
+1 (561) 989-0006
Rev. 1.0
5/4/2010
211 of 212
BOBCAT Hardware User’s Manual
Figure E.3
CAUTION NOTE
1.
It is strongly recommended that you DO NOT USE any other communication
software to upgrade the camera FW, RGS, DPC, HPC, FFC and LUT files.
2.
If the user selects to upgrade camera firmware and camera factory register
space, the camera firmware must be upgraded first.
3.
During camera RGS or FW upgrade the camera power must be on all the time,
and the process must not be interrupted. If the camera is disconnected or the
process canceled, this will result in a user application firmware corruption. If
such event occurs start the upload process again until completion. If the upgrade
process cannot be completed, the camera will power with the default Factory
Firmware so you can start the upgrade process again. If you need more
information, please contact Imperx.
4.
During DPC, HPC, FFC or LUT upgrade the camera power must be on all the
time, and the process must not be interrupted. If the camera is disconnected or
the process canceled, start the upload process again until completion. If the
upgrade process cannot be completed, the corresponding camera function will
not work. This will not affect the overall camera performance, so you can start
the upgrade process again. If you need more information, please contact Imperx.
212 of 212
