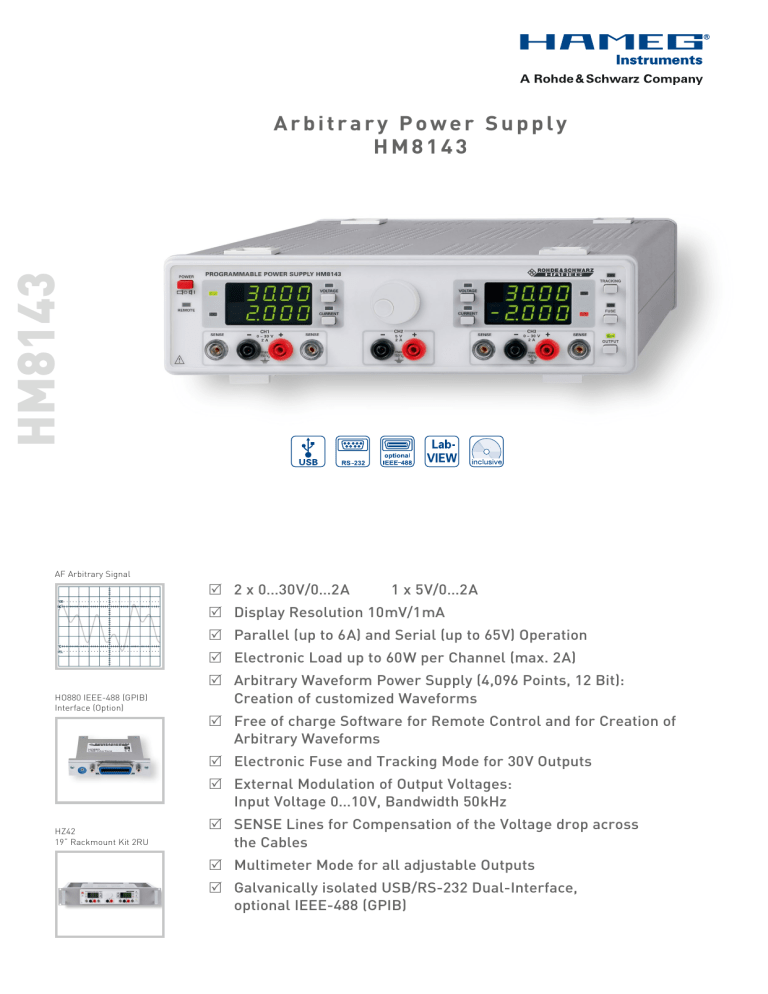

Hameg HM8143 Arbitrary Power Supply

Hameg HM8143 Arbitrary Power Supply
HM8143
Arbitrary Power Supply
HM8143
AF Arbitrary Signal
R 2 x 0…30 V/0…2 A
1 x 5 V/0…2 A
R Display Resolution 10 mV/1 mA
R Parallel (up to 6 A) and Serial (up to 65 V) Operation
R Electronic Load up to 60 W per Channel (max. 2 A)
HO880 IEEE-488 (GPIB)
Interface (Option)
R A
rbitrary Waveform Power Supply (4,096 Points, 12 Bit): Creation of customized Waveforms
R F
ree of charge Software for Remote Control and for Creation of
Arbitrary Waveforms
R Electronic Fuse and Tracking Mode for 30 V Outputs
R E
xternal Modulation of Output Voltages: Input Voltage 0…10 V, Bandwidth 50 kHz
HZ42
19“ Rackmount Kit 2RU
R S
ENSE Lines for Compensation of the Voltage drop across
the Cables
R Multimeter Mode for all adjustable Outputs
R G
alvanically isolated USB/RS-232 Dual-Interface, optional IEEE-488 (GPIB)
Arbitrary Power Supply HM8143
All data valid at 23 °C after 30 minutes warm-up.
Outputs
2 x 0…30 V/2 A
1 x 5 V/2 A
On/off pushbutton control, Floating
outputs (allowing parallel and series
operation), current limit, electronic fuse,
tracking mode
Channels 1+3 (0…30 V)
2 x 0…30 V
Output voltage:
10 mV
Setting resolution:
±3 digits (typ. ±2 digit)
Setting accuracy:
±3 digits (typ. ±2 digit)
Measurement accuracy:
<5 mVrms (3 Hz…300 kHz)
Residual ripple:
Recovery time (10…90 % load variation):
45 µs within ±1 mV of nominal value
16 µs within ±100 mV of nominal value
Max. transient deviation typ. 800 mV
Recovery time (50 % basic load, 10 % load variation):
30 µs within ±1 mV of nominal value
10 µs within ±100 mV of nominal value
Max. transient deviation typ. 120 mV
Compensation of lead
up to 300 mV
resistances (SENSE):
2 x 0…2 A
Output current:
1 mA
Setting resolution:
±3 digits (typ. ±2 digit)
Setting accuracy:
±3 digits (typ. ±2 digit)
Measurement accuracy:
<100 µs
Recovery time:
Channel 2 (5 V)
5 V ±50 mV
Accuracy:
max. 2 A
Output current:
≤100 µVrms (3 Hz…300 kHz)
Ripple:
Recovery time (10…90 % load variation):
30 µs within ±1 mV of nominal value
0 µs within ±100 mV of nominal value
Max. transient deviation typ. 60 mV
Recovery time (50 % basic load, 10 % load variation):
30 µs within ±1 mV of nominal value
0 µs within ±100 mV of nominal value
Max. transient deviation typ. 20 mV
Arbitrary Function (Channel 1 only)
max. 4,096
Number of points:
12 Bit
Resolution:
Dwell time and Voltage
Parameters of points:
100 µs…60 s
Dwell time:
1…255 and continuous
Repetition rate:
Inputs
Modulation input:
(BNC socket):
Accuracy
Modulation bandwidth
(-3 dB)
Slew rate (dV/dt)
Trigger input (BNC socket):
Level
0…10 V
1 % of full scale
>50 kHz
1 V/µs
Triggering the arbitrary function
TTL
Miscellaneous
Max. voltage applicable to output terminals:
30 V
CH 1 + CH 3:
5 V
CH 2:
max. 150 V
Voltage to earth:
4 x 4-digit 7-segment LEDs
Display:
Dual-Interface USB/RS-232 (HO820),
Interface:
IEEE-488 (GPIB) (optional)
I acc. to EN 61010-1 (IEC 61010)
Protection class:
with protective earth
115/230 V ±10 %; 50…60 Hz, CAT II
Power supply:
115 V: 2 x 6 A slow blow 5 x 20 mm
Mains fuse:
230 V: 2 x 3.15 A slow blow 5 x 20 mm
approx. 300 VA
Power consumption:
+5…+40 °C
Operating temperature:
-20…+70 °C
Storage temperature:
5…80 % (non condensing)
Rel. humidity:
285 x 75 x 365 mm
Dimensions (W x H x D):
approx. 9 kg
Weight:
Accessories supplied: Operating manual, line cord, CD, Software
Recommended accessories:
HO880 Interface IEEE-488 (GPIB), galvanically isolated
HZ10S 5 x silicone test lead (measurement connection in black)
HZ10R 5 x silicone test lead (measurement connection in red)
HZ10B 5 x silicone test lead (measurement connection in blue)
HZ13
Interface cable (USB) 1.8 m
HZ14
Interface cable (serial) 1:1
HZ42
19" Rackmount Kit 2RU
HZ72
GPIB-Cable 2 m
