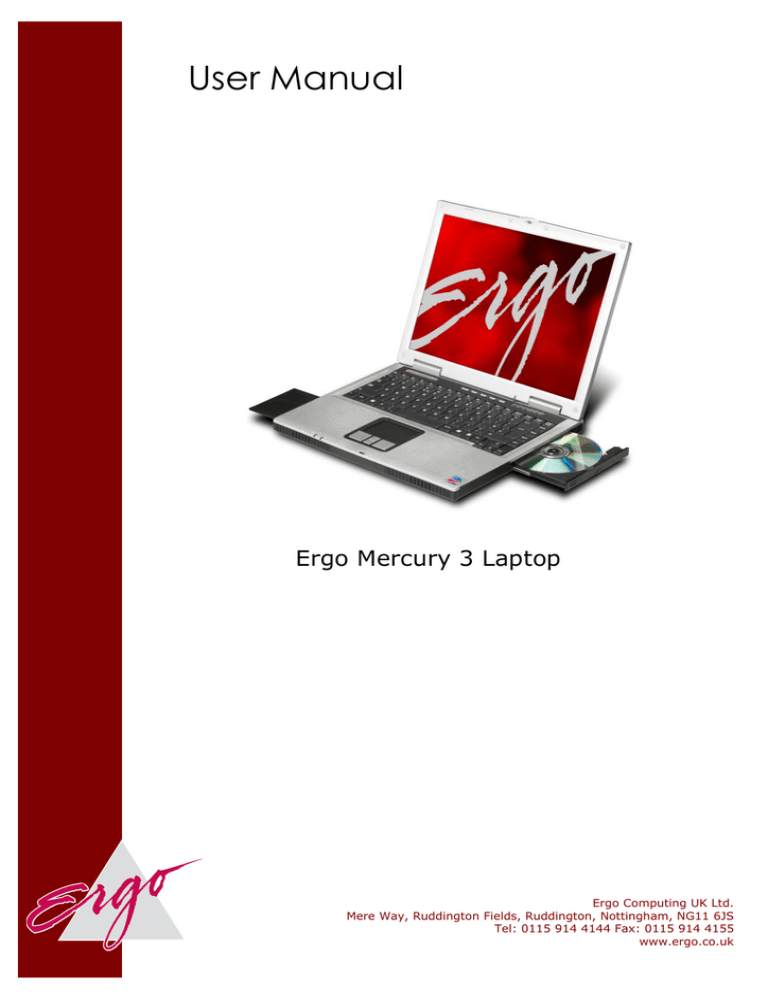

User Manual
Ergo Mercury 3 Laptop
Ergo Computing UK Ltd.
Mere Way, Ruddington Fields, Ruddington, Nottingham, NG11 6JS
Tel: 0115 914 4144 Fax: 0115 914 4155
www.ergo.co.uk
Federal Communications Commission (FCC) Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
•
This device may not cause harmful interference, and
•
This device must accept any interference received; including interference that may cause
undesired operation.
This Equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV technician for help.
CAUTION! Changes or modifications to this unit not expressly approved by the party
responsible for the compliance could void the user's authority to operate this equipment.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device was tested for typical lap held operations with the device contacted
directly to the human body to the back side of the notebook computer. To maintain compliance
with FCC RF exposure compliance requirements, avoid direct contact to the transmitting
antenna during transmitting.
2
CONTENTS
TAKING CARE OF YOUR NOTEBOOK PC ................................................... 5
1 BEFORE YOU START ............................................................................... 9
1-1 Making sure you have everything ................................................... 9
1-2 Finding where everything is located ............................................ 10
2 GETTING STARTED ............................................................................... 19
2-1 Power Sources ............................................................................... 19
2-2 Display Panel .................................................................................. 22
2-3 Starting Your Notebook PC ........................................................... 24
2-4 Status Display Indicators .............................................................. 26
2-5 Using the Keyboard ....................................................................... 29
2-6 Volume Control .............................................................................. 31
2-7 Power Management ........................................................................ 32
3 USING YOUR NOTEBOOK PC ............................................................... 35
3-1 Touchpad Pointing Device ............................................................ 35
3-2 Memory Card Reader .................................................................... 38
3-3 Optical Drive ................................................................................... 39
3-4 PC Cards ......................................................................................... 46
3-5 Memory Upgrade Module .............................................................. 48
4 TROUBLESHOOTING ............................................................................ 53
4-1 Identifying the Problem ................................................................. 53
APPENDIX .................................................................................................... 54
Notebook Specifications ....................................................................... 54
WLAN Specifications ............................................................................. 55
3
This page is intentionally left blank.
4
TAKING CARE OF YOUR
NOTEBOOK PC
To prevent possible overheating of the
computer’s processor, make sure you don’t
block the openings provided for ventilation.
DO NOT press or touch the display panel.
DO NOT place on uneven or unstable work
surfaces.
DO NOT use your notebook computer under
harsh conditions.
DO NOT place or drop objects on the computer and DO NOT apply heavy pressure on it.
DO NOT subject the computer to magnetic
fields.
5
DO NOT expose to direct sunlight.
DO NOT use or store in extreme temperatures.
Avoid sudden changes in temperature or humidity by keeping it away fromA/C and heating vents.
DO NOT expose the computer to rain or moisture.
DO NOT place near fire or other sources of
heat.
DO NOT tamper with the batteries. Keep them
away from children.
6
DO NOT expose to dust and/or corrosive
chemicals.
DO NOT slam your notebook shut and never
pick up or hold your notebook by the display.
DO NOT spray water or any other cleaning fluids directly on the display.
If you are traveling with your computer, remember to carry it as hand luggage. Do not
check it in as baggage.
7
This page is intentionally left blank.
8
1 BEFORE YOU START
1-1
Making sure you have everything
When you receive your notebook PC, unpack it carefully, and check to make sure
you have all the items listed below. For a pre-configured model you should have the
following:
•
•
•
Notebook Computer
Lithium ion battery
AC adapter with AC power cord
•
•
Driver and Applications CD
Getting Started Guide or User Guide
Depending upon the configuration of your notebook, you may have also received
the following items:
• CD-ROM Application CD
• DVD Application CD
• DVD / CD-RW Combo Application CD
Once you have checked and confirmed that your notebook system is complete,
read through the following pages to learn about all of your notebook components.
9
1. BEFORE YOU START
1-2
Finding where everything is located
1-2-1 OPENING THE DISPLAY PANEL
1. Slide the latch located at the top of the display panel to the right. This releases
the locking mechanism and raises the display slightly.
2. Lift the display backwards, being careful not to touch the screen, until it is at a
comfortable viewing angle.
Display
Panel
Latch
10
1. BEFORE YOU START
1-2-2 TOP COMPONENTS
The following is a brief description of your notebook’s top components.
Display Panel
Instant Keys
Suspend/Resume/
Power On Button
Keyboard
Built-in
Speaker
Status Display
Indicators
Built-in
Speaker
Scroll Buttons
TouchPad
Pointing Device
Display Panel
The display panel is a color LCD panel with back lighting for the display of text
and graphics.
Suspend/Resume/Power On Button
This button turns your notebook pc on and off as well as put it to sleep. (See
Suspend/Resume/Power On Button in 2-3-1 Power On for more information.)
Keyboard
A full-size keyboard with dedicated Windows keys.
11
1. BEFORE YOU START
Scroll Buttons
The scroll buttons allow you to scroll up and down documents. It acts similar to a
scroll wheel on a mouse.
Stereo Speakers
The built-in dual speakers allow for stereo sound.
Status Display Indicators
The Status display indicator lights correspond to specific components of your
notebook. (See suspend notebook activity without powering off, resume your
notebook from suspend mode, and power on your notebook when it has been shut
down from Windows. (See Suspend/Resume/Power On Button in 2-3-1 Power On
for more information.)
Touchpad Pointing Device
The Touchpad pointing device is a mouse-like cursor control with four buttons
(left, right, and two scroll buttons).
Instant Keys
The four instant keys allow you to launch your favorite email and internet applications with the touch of a button.
12
1. BEFORE YOU START
1-2-3 FRONT PANEL COMPONENTS
The following is a brief description of your notebook’s front panel components.
Status Display
Indicators
Built-in
Speaker
Display Panel Latch
Hard Disk Drive
Built-in
Speaker
Built-in Stereo Speakers
The built-in dual speakers allow for stereo sound.
Status Display Indicators
The Status display indicator lights correspond to specific components of your
notebook. (See suspend notebook activity without powering off, resume your
notebook from suspend mode, and power on your notebook when it has been shut
down from Windows. (See Suspend/Resume/Power On Button in 2-3-1 Power On
for more information.)
Display Panel Latch
The display panel latch locks and releases the display panel.
13
1. BEFORE YOU START
1-2-4 LEFT-SIDE PANEL COMPONENTS
The following is a brief description of your notebook’s left-side components.
Kensington
Lock Slot
Microphone Jack
Headphone Jack
PC Card
Modem Ethernet
Port Eject Buttons
Port
(RJ-11) (RJ-45)
Memory Card Reader
PC Card
Slots
Kensington Lock Port
The Kensington lock slot allows you to secure your notebook to an immovable
object through an optional security cable.
Modem (RJ-11) Port
The modem (RJ-11) port is used to attach a telephone line to the internal 56K
modem.
LAN Port (RJ-45)
The LAN port is designed to support a 10/100/1000 Base-T standard RJ-45 plug.
Microphone Jack
The microphone jack allows you to connect an external mono microphone.
Headphone Jack
The headphone jack allows you to connect headphones or external speakers with
amplifer.
PC Card Slots
The PC Card Slots allow you to install two Type II or one Type III PC Card.
14
1. BEFORE YOU START
Memory Card Reader
The memory card reader offers the fastest and most convenient method to transfer
pictures, music and data between your notebook PC and flash-compatible devices
such as digital cameras, MP3 players, mobile phones, and PDAs.
1-2-5 RIGHT-SIDE PANEL COMPONENTS
The following is a brief description of your notebook’s right-side components.
Optical
Drive
Lithium ion
Battery Bay
Emergency
Optical Drive
Tray Release
Optical Drive
Eject Button
Lithium ion Battery Bay
The internal battery pack can be removed for installation of a fully charged battery
pack. (See 2-1-3 Replacing the Battery for more information.)
Optical Drive
The Optical Drive allows you to play back a media disc.
Emergency Optical Drive Tray Release
The Emergency Optical Drive Tray Release allows you to open the Optical Drive
tray without powering on your notebook.
Optical Drive Eject Button
The Optical Drive Eject Button allows you to open the Optical Drive tray to
remove or install a DVD, CD-R, or CD-ROM.
15
1. BEFORE YOU START
1-2-6 BACK PANEL COMPONENTS
The following is a brief description of your notebook’s back panel components.
Power
Adapter
Port
Infrared
Port
IEEE
1394
Port
PS/2
Port
Serial
Port
USB
Ports
Parallel (Printer)
Port
External
Monitor
Port
Infrared Port
The fast IrDA-compatible port allows you to communicate wirelessly with another
IrDA-compatible infrared device without a cable.
Power Adapter Port
The power adapter port allows you to plug in the AC adapter to power your notebook and charge the internal Lithium ion battery.
PS/2 Port
The PS/2 port allows you to connect an external PS/2 keyboard, mouse or numeric
keypad. (See 3-6-8 PS/2 Port for more information.)
IEEE 1394 Port
The 1394 port is used to connect between your and a peripheral such as a digital
video camera.
USB Ports (V2.0)
The two USB ports allow you to connect Universal Serial Bus devices.
Serial Port
The serial port allows you to connect serial (RS-232C) devices. (This is also sometimes referred to as a COM port.) (See 3-6-6 Serial Port for more information.)
External Monitor Port
The external monitor port allows you to connect an external monitor.
16
1. BEFORE YOU START
Parallel (Printer) Port
The parallel port allows you to connect parallel devices, such as a printer. (This is also
sometimes referred to as an LPT port.)
1-2-7 BOTTOM COMPONENTS
The following is a brief description of your notebook’s bottom panel components.
Optical
Drive Bay
Mini-PCI
Card
Cover
Battery
Bay
Latch
Memory
Compartment
Hard
Disk
Drive
Bay
Lithium ion
Battery Bay
Hard Disk Drive Bay
The internal hard disk drive is accessible through the hard disk drive bay.
Mini-PCI Card Bay
The mini-PCI card is accessible through the this bay.
Battery Bay Latch
The battery bay latch locks and releases the Lithium ion battery.
Memory Compartment
The memory compartment contains the system RAM.
17
1. BEFORE YOU START
Lithium ion Battery Bay
The battery bay contains the internal Lithium ion battery. It can be opened for the
removal of the battery when stored over a long period of time or for swapping a
discharged battery with a charged Lithium ion battery.
Optical Drive Bay
The internal optical drive is accessible through the optical drive bay.
18
2 GETTING STARTED
2-1
Power Sources
Your notebook PC has two possible power sources: a primary Lithium ion battery or an
AC adapter.
2-1-1 CONNECTING THE POWER ADAPTERS
The AC adapter provides power for operating your notebook PC and charging the
batteries.
Connecting the AC Adapter
1. Plug the DC output cable into the adapter power port of your notebook PC.
2. Plug the AC adapter into an AC electrical outlet.
POINT
The Lithium ion battery is not charged upon purchase. Initially, you
will need to connect the AC adapter to use your notebook PC.
19
2. GETTING STARTED
2-1-2 RECHARGING THE BATTERY
The Lithium ion battery is recharged internally using the AC adapter. To recharge the
battery make sure the battery that needs to be charged is installed in your notebook PC
and connect the AC adapter.
There is no memory effect on the Lithium ion battery, therefore you do not need to
discharge the battery completely before recharging. The charge times will be significantly
longer if your notebook PC is in use while the battery is charging. If you want to charge
the battery more quickly, put your notebook PC into Suspend mode, or turn it off while
the adapter is charging the battery. (See 2-7 Power Management for more information
on Suspend mode and shutdown procedure)
Low Battery State
When the battery is running low, a low battery notification message will appear. If you
do not respond to the low battery message, the battery will continue to discharge until it
is too low to operate. When this happens, your notebook PC will go into Suspend
mode. There is no guarantee that your data will be saved once the notebook reaches
this point.
To protect your notebook PC from damage, use only the power
CAUTION
adapter that came with the notebook PC because each power
adapter has its own power output rating.
Once your notebook PC goes into Dead Battery Suspend mode you will be unable to
resume operation until you provide a source of power either from an adapter, or a
charged battery. Once you have provided power, you will need to press the Suspend/
Resume button to resume operation. In the Dead Battery Suspend mode, your data can
be maintained for some time, but if a power source is not provided promptly, the Power
indicator will stop flashing and go out, meaning that you have lost the data that was not
stored. Once you provide power, you can continue to use your notebook PC while an
adapter is charging the battery.
Shorted Battery
The Status Indicator panel uses a symbol inside the battery outline of the Battery Level
indicator to display the operating level available in that battery. If this display shows a
Shorted Battery, it means that the battery is damaged and must be replaced so it does
not damage any other parts of your notebook PC.
20
2. GETTING STARTED
2-1-3 REPLACING THE BATTERY
This notebook PC features a rechargeable bridge battery that allows for fast warm
swapping of batteries. All you need is an additional battery and you can have a fully
charged spare to swap with one that is not charged without having to close all your
applications and powering down your computer.
1. Have a charged battery ready to install.
2. Press [F1] while holding down [FN] to place your notebook PC in suspend mode
and disconnect the AC adapter.
POINT
The bridge battery maintains memory in suspend mode for up to 5
minutes, more than enough time for you to swap batteries.
Charge your notebook PC for at least 24 hours before using it for
the first time. Doing so insures that the bridge battery is fully
charged so that no data is lost during a warm swap.
3. Slide the battery release latch while pulling the battery from the bay.
4. Remove the battery from the bay.
5. Slide the new battery into the bay. The pins will automatically align with the connector.
6. Press the battery in until the battery release latch snaps into place.
7. Plug in the AC adapter and press the resume/suspend/power on button.
CAUTION
If the Lithium ion battery connector is not fully seated, you may
not be able to use your notebook PC or charge your battery.
21
2. GETTING STARTED
2-2
Display Panel
Your notebook PC contains a display panel that is backlit for easier viewing in bright
environments and maintains top resolution through the use of active-matrix technology.
2-2-1 OPENING THE DISPLAY PANEL
1. Slide the latch located at the top of the display panel to the right. This releases the
locking mechanism and raises the display slightly.
2. Lift the display backwards, being careful not to touch the screen, until it is at a
comfortable viewing angle.
Display
Panel
Latch
22
2. GETTING STARTED
2-2-2 ADJUSTING DISPLAY PANEL BRIGHTNESS
Once you have turned on your notebook PC, you may want to adjust the brightness
level of the screen to a more comfortable viewing level. There are two ways to adjust
the brightness, keyboard and power management utility.
The higher the brightness level, the more power the notebook PC
POINT
will consume and the faster your batteries will discharge. For
maximum battery life, set the brightness to as low a level as
possible.
Keyboard
Adjusting the brightness using the keyboard changes the setting only temporarily.
• [FN+F4]: Pressing repeatedly will lower the brightness of your display.
• [FN+F5]: Pressing repeatedly will increase the brightness of the display.
POINT
If using AC power, your brightness setting is set to its highest level
by default. If using battery power, your brightness settings is set to
approximately mid-level by default.
2-2-3 CLOSING THE DISPLAY PANEL
1. Holding the edge of your display panel, pull it forward until it is flush with the body
of your notebook.
2. Push down until you hear a click. This will engage the locking mechanism and
prevent your display panel from opening unexpectedly.
23
2. GETTING STARTED
2-3
Starting Your Notebook PC
2-3-1 POWER ON
Suspend/Resume/Power On Button
The suspend/resume/power on switch is used to turn on your notebook from its off
state. Once you have connected your AC adapter or charged the internal Lithium ion
battery, you can power on your notebook.
When you turn on your notebook be sure you have a power
POINT
source. This means that either the battery is installed and charged,
or that the AC adapter is connected with AC power.
Press the suspend/resume/on button located above the keyboard to turn on your
notebook. If you need to take an extended break, you may either place it in Suspend
mode (See 2-7-2 Suspend Mode for more information) or turn it off directly (See 27-6 Power Off for more information).
Do not carry your notebook around with the power on or subject
CAUTION
it to shocks or vibration, as you risk damaging your notebook.
When you power on your notebook, it will perform a Power On Self Test (POST) to
check the internal parts and configuration for correct functionality. If a fault is found,
your notebook PC will emit an audio warning and/or an error message will be displayed.
Depending on the nature of the problem, you may be able to continue by starting the
operating system or by entering the BIOS setup utility and revising the settings.
After satisfactory completion of the Power On Self Test (POST), your notebook will
load your operating system.
Never turn off your notebook during the Power On Self Test
CAUTION
(POST) or an unrecoverable error may occur.
24
2. GETTING STARTED
2-3-2 BOOT SEQUENCE
The procedure for starting-up your notebook is termed the Bootup sequence and
involves your notebook’s BIOS. When your notebook is turned on the for the first
time, the main system memory is empty, and it needs to find instructions to start up your
notebook. This information is stored in the BIOS program. Each time you power on or
restart your notebook, it goes through a boot sequence which displays a flash screen
until your operating system is loaded. During booting, your notebook is performing a
standard boot sequence including a Power On Self Test (POST). When the boot
sequence is completed without a failure and without a request for the BIOS Setup
Utility, the system displays the operating system’s opening screen.
The boot sequence is executed when:
• You turn on the power to your notebook.
• You restart your notebook from the Windows Shut Down dialog box.
• The software initiates a system restart. Example: When you install a new application.
2-3-3 BIOS SETUP UTILITY
The BIOS Setup Utility is a program that sets up the operating environment for your
notebook. Your BIOS is set at the factory for normal operating conditions, therefore
there is no need to set or change the BIOS environment to operate your notebook.
The BIOS Setup Utility configures:
• Device control feature parameters, such as changing I/O addresses and boot devices.
•
System Data Security feature parameters, such as passwords.
Entering the BIOS Setup Utility
To enter the BIOS Setup Utility, do the following:
1. Turn on or restart your notebook.
2. Press the [F2] key once the flash screen appears on the screen. This will open the
main menu of the BIOS Setup Utility with the current settings displayed.
3. Press the [RIGHT ARROW] or [LEFT ARROW] key to scroll through the other
setup menus to review or alter the current settings.
25
2. GETTING STARTED
2-4
Status Display Indicators
The Status Display Indicator LEDs correspond to specific components of your notebook. These lights (when visible) tell you that those components are operating. There
are two additional lights on the front edge of the system to indicate battery and power
states.
Floppy
SmartMedia Hard Optical
Drive
Drive
Drive
CapLK NumLK ScrLK Access Access Access
Power
Battery
Indicator Indicator
2-4-1
POWER INDICATOR
The Power indicator symbol states whether your system is powered on. It has several
different states, each state indicates your notebook’s operating mode.
• Steady On: This means that there is power to your notebook and that it is ready for
use.
• Flashing: This means that your notebook is in Suspend mode.
• Steady Off (not visible): This means that your system is either in Save-to-Disk
mode, or that your notebook has been turned off with the power switch.
If you are charging your battery, the Power indicatorsymbol will remain on even if your
notebook is shut off. The Power indicator symbol will also remain on if you have either
adapter connected and are shut down from Windows, but have not turned off the power
switch.
26
2. GETTING STARTED
2-4-2
BATTERY INDICATOR
The Battery indicator tells you whether the primary Lithium ion battery is charging or
fully charged.
POINT
CAUTION
2-4-3
If there is no battery activity, the power adapters are not
connected, or the power switch is Off, the Battery indicator will
also be off.
Batteries subjected to shocks, vibration or extreme temperatures
can be permanently damaged.
CAPSLOCK INDICATOR
The CapsLock indicator states that your keyboard is set to type in all capital letters.
2-4-4
NUMLK INDICATOR
The NumLk indicator states that the internal keyboard is set in ten-key numeric keypad
mode.
POINT
2-4-5
If you are using the optional external numerical keypad, pressing
the [NumLk] key will activate the external keypad. The indicator
will come on, however it will not change any of the functionality of
your keyboard keys.
SCRLK INDICATOR
The ScrLk indicator states that your scroll lock is active.
27
2. GETTING STARTED
2-4-6
FLOPPY/SMARTMEDIA DRIVE ACCESS
INDICATOR
The Floppy/SmartMedia Drive Access indicator states whether your floppy or
SmartMedia drive is being accessed.
2-4-7
HARD DRIVE ACCESS INDICATOR
The Hard Drive Access indicator states whether your internal hard drive is being accessed.
2-4-8
OPTICAL DRIVE ACCESS INDICATOR
The Optical Drive Access indicator states whether your optical drive is being accessed.
28
2. GETTING STARTED
2-5
Using the Keyboard
Your notebook has an integral 87-key keyboard. The keys perform all the standard
functions of a 101-key keyboard, including the Windows keys and other special function
keys. This section describes the following keys.
• Numeric keypad
•
•
•
Cursor keys
Function keys
Windows keys
F1
ESC
F2
Z
~
Z
F4
F5
F6
F7
F8
F9
F10
@
2
#
3
Q
W
$
%
^
&
4
5
6
7
F12
Num Lk
Scr Lk
E
R
T
S
A
Caps
Lock
D
F
Y
G
9
8
U
H
Z
X
C
V
B
Alt
+
-
=
P
L
2
3
:
;
M
. .
Alt
Delete
SysRq
Pause
Break
Backspace
Home
}
[
]
"
PgUp
\
Enter
PgDn
-
?
,
Insert
Prt Sc
{
6
K
0
Ctrl
-
O
5
J
N
9
I
1
Shift
)
0 /
(
8
7
4
Fn
F11
Z
!
1
Tab
F3
Function Keys
Shift
/ +
End
Ctrl
\
Fn
Key
Start
Key
Numeric Application
Keypad
Keys
Cursor
Keys
2-5-1 NUMERIC KEYPAD
Certain keys on the keyboard perform dual functions as both standard character keys
and numeric keypad keys. NumLk can be activated by pressing the [NumLk] keys.
Turning off the NumLk feature is done the same way. Once this feature is activated you
can enter numerals 0 through 9, perform addition ( + ), subtraction ( - ), multiplication (
* ), or division ( / ), and enter decimal points ( . ) using the keys designated as ten-key
function keys. The keys in the numeric keypad are marked on the front edge of the key
to indicate their secondary functions.
If you are using the optional external numerical keypad, pressing
POINT
the [NumLk] key will activate the external keypad. The indicator
will come on, however it will not change any of the functionality of
your keyboard keys.
29
2. GETTING STARTED
2-5-2 WINDOWS KEYS
Your notebook has three Windows keys, consisting of two Start keys and an Application key. The two Start keys display the Start menu. This button functions the same as
your on-screen Start menu button. The Application key functions the same as your right
mouse button and displays shortcut menus for the selected item. (Please refer to your
Windows documentation for additional information regarding the Windows keys.)
2-5-3 CURSOR KEYS
The cursor keys are the four arrow keys on the keyboard which allow you to move the
cursor up, down, left and right in applications. In programs such as Windows Explorer, it
moves the “focus” (selects the next item up, down, left, or right).
2-5-4 FUNCTION KEYS
Your notebook PC has 12 function keys, F1 through F12. The functions assigned to
these keys differ for each application. You should refer to your software documentation
to find out how these keys are used.
The [FN] key provides extended functions for the notebook and is always used in
conjunction with another key.
• [FN+F1]: Pressing [F1] while holding [FN] will toggle the notebook between
suspend mode and active mode
• [FN+F2]: Pressing [F2] while holding down [FN] allows you to toggle between
enabling and disabling wireless network connection.
• [FN+F3]: Pressing [F3] while holding [FN] allows you to change your selection of
where to send your display video. Each time you press the combination of keys you
will step to the next choice. The choices, in order, are: built-in display panel only,
both built-in display panel and external monitor, or external monitor only.
• [FN+F4]: Pressing [F4] repeatedly while holding [FN] will lower the brightness of
your display.
• [FN+F5]: Pressing [F5] repeatedly while holding [FN] will increase the brightness
of the display.
• [FN+F6]: Pressing [F6] while holding [FN] will toggle the Audio Mute on and off.
• [FN+F7]: Pressing [F7] repeatedly while holding [FN] will decrease the volume of
your notebook PC.
30
2. GETTING STARTED
•
•
•
[FN+F8]: Pressing [F8] repeatedly while holding [FN] will increase the volume of
your notebook PC.
[FN+F9]: Pressing [F9] while holding down [FN] allows you to toggle between
playing and pausing your optical drive.
[FN+F10]: Pressing [F10] while holding [FN] stops your optical drive.
[FN+F11]: Pressing [F11] while holding [FN] to go back to the previous file.
•
[FN+F12]: Pressing [F12] while holding [FN] to go to the next file.
•
2-6
Volume Control
Your notebook has multiple volumecontrols which interact with each other.
Any software that contains audio files will also contain a volume
POINT
control of its own. If you install an external audio device that has
an independent volume control, the hardware volume control and
the software volume control will interact with each other. It should
be noted that if you set your software volume to Off, you will
override the external volume control setting.
2-6-1 CONTROLLING THE VOLUME
•
•
•
The volume can be controlled in several different ways:
Volume can be set from within the Volume Control on the Taskbar.
Volume can be controlled with the [F7] and [F8] functions keys. Pressing [F7]
repeatedly while holding [Fn] will decrease the volume of your notebook. Pressing
[F8] repeatedly while holding [Fn] will increase the volume of your notebook.
• Volume can be controlled by many volume controls that are set within individual
applications.
• Certain external audio devices you might connect to your system may have hardware volume controls. Each source discussed above puts an upper limit on the
volume level that must then be followed by the other sources.
We recommend that you experiment with the various volume controls to discover the
optimal sound level.
31
2. GETTING STARTED
2-7
Power Management
Your notebook has many options and features for conserving battery power. Some of
these features are automatic and need no user intervention. However, others depend on
the parameters you set to best suit your operating conditions.
2-7-1 SUSPEND/RESUME/POWER ON BUTTON
When your notebook is active, the Suspend/ Resume/Power On button can be used to
manually put your notebook into Suspend mode. Push the Suspend/Resume/Power On
button when your notebook is active, but not actively accessing anything, and immediately release the button. You will hear two short beeps and your system will enter
Suspend mode.
If your notebook is suspended, pushing the Suspend/Resume/Power On button will
return your notebook to active operation. You can tell whether or not your system is in
Suspend mode by looking at the Power icon on the Status LCD Panel. (See 2-4 Status
Display Indicators for more information.)
If the indicator is visible and not flashing, your notebook is fully operational. If the
indicator is both visible and flashing, your notebook is in Suspend mode. If the indicator
is not visible at all, the power is off or your notebook is in Hibernation (Save-to-Disk)
mode. (See 2-7-3 Hibernation Feature)
2-7-2 SUSPEND MODE
Suspend or Standby mode saves the contents of your notebook’s system memory
during periods of inactivity by maintaining power to critical parts. This mode will turn off
the CPU, the display, the hard drive, and all of the other internal components except
those necessary to maintain system memory and allow for restarting. Your notebook can
be put in Suspend mode by:
• Pressing the Suspend/Resume /Power On button when your system is turned on.
• Selecting Standby from the Windows Shut Down menu.
•
•
32
Timing out from lack of activity.
Allowing the battery to reach the Dead Battery Warning condition.
2. GETTING STARTED
Your notebook’s system memory typically stores the files on which you are working,
opens applications information, and any other data required to support the operations in
progress. When you resume operation from Suspend mode, your notebook will return
to the point where it left off. You must use the Suspend/Resume/Power On button to
resume operation, and there must be an adequate power source available, or your
notebook will not resume.
2-7-3 HIBERNATION (SAVE-TO-DISK) FEATURE
The Hibernation (Save-to-Disk) feature saves the contents of your notebook’s system
memory to the hard drive as a part of the Suspend/Resume mode. You can enable or
disable this feature.
Enable or Disable the Hibernation Feature
The default settings are not enabled for Windows 98 Second Edition or Windows 2000
Professional; Hibernation is the default setting for Windows XP. To enable or disable the
Hibernation feature, follow these steps:
1. From the Start menu, select Settings, and then select Control Panel.
2. From the Control Panel, select Power Options.
3. Select the Hibernation tab. Select the box to enable or disable this feature.
Using the Hibernation Feature
1. From the Start menu, select Settings, then select Control Panel.
2. From the Control Panel, select Power Options.
3. Select the Advanced tab. Select Hibernate from the pull down menu for Power
buttons.
The Suspend or Hibernation (Save-to-Disk) mode should not be
CAUTION
used with certain PC Cards. Check your PC Card documentation
for more information.
33
2. GETTING STARTED
2-7-4 STANDBY MODE
Standby mode is one of the power management parameters. When Standby mode is
activated, your notebook shuts off the display and turns off the hard drive when there is
no activity (keystroke, pointer action, sound generation, video display change, modem
transmission or reception, etc.) on your notebook for the user-selected Standby timeout period. Any activity will cause your notebook to return to normal operation automatically. This feature is independent of the Suspend/Resume/Power On button.
2-7-5 DISPLAY TIMEOUT
The Video Timeout is one of the power management parameters. This feature saves
power by turning off the display if there is no keyboard or pointer activity for the user
selected timeout period. Any keyboard or pointer activity will cause the display to
restart automatically.
2-7-6 POWER OFF
Before turning off the power by choosing Shut Down from Windows, check that the
Hard Drive, optical drive drive, PC Card and Floppy Disk Drive Access indicators are
all OFF. If you turn off the power while accessing a disk or PC Card, there is a risk of
data loss. To ensure that your notebook shuts down without error, use the Windows
shut down procedure.
CAUTION
34
Turning off your notebook without exiting Windows or turning on
your notebook within 10 seconds of the notebook being shut off
may cause an error when you start the next time.
3 USING YOUR NOTEBOOK PC
3-1
Touchpad Pointing Device
The Touchpad pointing device comes built into your notebook PC. It is used to control
the movement of the pointer to select items on your display panel. The Touchpad is
composed of a cursor control, a left and right button, and a scrolling button. The cursor
control works the same way a mouse does, and moves the cursor around the display. It
only requires light pressure with the tip of your finger. The left and right buttons function
the same as mouse buttons. The actual functionality of the buttons may vary depending
on the application that is being used. The scrolling button allows you to navigate quickly
through pages, without having to use the scroll bars.
Touchpad
Left
Button
Scroll
Buttons
Right
Button
35
3. Using Your Notebook PC
3-1-1 CLICKING
Clicking means pushing and releasing a button. To left-click, move the cursor to the item
you wish to select, press the left button once, and then immediately release it. To rightclick, move the mouse cursor to the item you wish to select, press the right button once,
and then immediately release it. You also have the option to perform the clicking operation by tapping lightly on the Touchpad once.
3-1-2 DOUBLE-CLICKING
Double-clicking means pushing and releasing the left button twice in rapid succession.
This procedure does not function with the right button. To double-click, move the
cursor to the item you wish to select, press the left button twice, and then immediately
release it. You also have the option to perform the double-click operation by tapping
lightly on the Touchpad twice.
POINT
If the interval between clicks is too long, the double-click will not
be executed.
Parameters for the Touchpad can be adjusted from the Mouse
Properties dialog box located in the Windows Control Panel.
36
Clicking
Dragging
Double-clicking
Scrolling
3. Using Your Notebook PC
3-1-3
DRAGGING
Dragging means pressing and holding the left button, while moving the cursor. To drag,
move the cursor to the item you wish to move. Press and hold the left button while
moving the item to its new location and then release it. Dragging can also be done using
the Touchpad. First, tap the Touchpad twice over the item you wish to move making
sure to leave your finger on the pad after the final tap. Next, move the object to its new
location by moving your finger across the Touchpad, and then release your finger.
Using the Scrolling button allows you to navigate through a document quickly without
using the window’s scroll bars. This is particularly useful when you are navigating
through on-line pages. To use the Scrolling button, press the top or bottom of the button
37
3. Using Your Notebook PC
3-2
Memory Card Reader
Your notebook PC is equipped with a memory card reader that can read and write to
four different popular digital media - SmartMedia™, Memory Stick™, MultimediaCard™,
and Secure Digital Card™. With this 4-in-1 reader, you can easily transfer data to your
notebook PC from digital cameras, digital camcorders, PDAs, MP3 players, digital
voice recorders and more.
3-2-1
INSERTING A MEMORY CARD
Depending on the type of memory card, you may need to insert it into the reader
conducting plate/label side up or down.
Memory Type
Insert
SmartMedia
conducting plate side up
MemoryStick
label side down
SecureDigital/MultiMedia
label side up
POINT
3-2-2
Inserting your memory card incorrectly may cause your system to
slow down or even hang up. If that happens, restart your system
and insert the card correctly.
REMOVING A MEMORY CARD
To remove the memory card from the reader, follow these simple steps:
1. Locate the drive icon for your memory card reader.
2. Right-click the icon and select Eject.
3. Remove memory card from the reader.
Physically removing the memory card before it is ejected may
CAUTION
result in data loss.
38
3. Using Your Notebook PC
POINT
3-3
Depending on the factory option that is available, the model
might come equipted with Internal Floppy Disk Drive instead of
Card reader.
Optical Drive
Depending upon the configuration of your notebook PC, you may have one of the
following drives:
•
•
•
CD-ROM
DVD
DVD / CD-RW combo
A DVD player gives you access to movie, software, data, and audio DVD/CDs. A CD-RW
player allows you to access software, data, or audio CDs, and to write data onto recordable CDs.
39
3. Using Your Notebook PC
3-3-1
OPTICAL DRIVE SOFTWARE
DVD Model only: With the optical drive and Optical Drive software you can play DVD
movies on your notebook PC. The optical drive includes controls which allow you to
take full advantage of the features of a DVD movie, as well as standard features such as
fast forward, fast reverse, pause, etc.
DVD / CD-RW Model only: With this optical drive, you can read audio CDs, play DVD
movies, and write data onto a recordable CD-R or CD-RW disc. In addition to the
Optical Drive software, you also receive software for burning CDs. If you should need
to install your Optical Drive software, refer to the applicable readme file on the Driver
Applications CD-ROM.
Do not operate your optical drive drive unless your notebook PC
CAUTION
is sitting on a flat surface. Using a drive when the system is not
level may damage the drive or prevent proper operation.
Prolonged use of the optical drive drive, such as watching a DVD
movie, will substantially reduce the battery life if no other power
source is attached.
You should periodically check updated drivers.
POINT
The DVD player is set to play DVD titles with region code number
1 which is specified for the North American market. The region
number is a regional restriction code defined by the DVD Forum
acting on the requirements of Hollywood. Different region codes
are recorded on video DVD titles for publication in different areas
of the world. If the regional code of the DVD player does not
match the regional codes on the titles, then playback is impossible.
40
3. Using Your Notebook PC
3-3-2
LOADING A CD, DVD, CD-R, OR CD-RW
To load a disc into your optical drive drive, follow these steps:
1. Push and release the eject button on the front of the optical drive drive to open the
holder tray. The tray will come out of the notebook PC a short distance.
2. Gently pull the tray out until a media disc can easily be placed in the tray.
3. Place the media into the tray, label side up, with the hole in the center of the disc.
Snap the disc onto the raised circle in the center of the tray.
4. Gently push the holder tray back in until you hear a click.
CAUTION
POINT
There may be a protective sheet in the tray from when it was
shipped; please make sure it is removed before operating the
drive.
If you have disabled the Auto Insert Notification Function, you will
have to start the drive from your desktop, since your notebook
PC will not automatically recognize that media has been loaded.
41
3. Using Your Notebook PC
3-3-3
REMOVING MEDIA
1. Push and release the eject button on the front of the optical drive drive. This will
stop the drive and the holder tray will come out of the notebook PC a short distance.
2. Gently pull the tray out until the disc can easily be removed from the tray.
3. Carefully remove the media disc from the holder tray.
4. Gently push the holder tray back in until you hear a click.
3-3-4
EMERGENCY TRAY RELEASE
In the event the media tray does not open after pressing the Optical Drive Eject button,
it may be necessary to use the emergency tray release button.
3-3-5
USING THE OPTICAL DRIVE SOFTWARE
POINT
Depending upon its configuration, your system may not have the
optical drive software pre-installed. If it is not installed, reference
the documentation that accompanies the media application.
Starting a DVD Movie (DVD Models only)
1. Insert the DVD movie into the optical drive drive of your notebook PC. If the CD
AutoRun feature activates, skip Step 2.
2. From the Start menu, select Programs, then locate the DVD player software that
you installed from the application CD that accompanied your notebook PC.
3. Click OK to close the About DVD Player Performance dialog box, and the movie
will begin.
Opening the Optical Drive Control Panel
With most DVD-ROMs, you have the option of altering how the movie should play and
what you wish to view. You can do this by using the Optical Drive control panel and the
mouse.
1. Right-click on the movie screen to open a dropdown menu for options.
2. Select View, then Player for all the controls available. This will open the control
panel into the bottom of the screen.
42
3. Using Your Notebook PC
3-3-6
USING DOLBY™ HEADPHONE
The Dolby Headphone utility lets you enjoy multi-channel sound sources, such as DVD
movies, with realistic surround sound using your conventional stereo headphones. The
Dolby Headphone is a utility that is available in the DVD player software.
Media discs which do not have the Dolby Surround 5:1 symbol
POINT
will not support Dolby Headphone.
After making changes to the Dolby Headphone feature and
clicking OK, wait at least ten seconds before making another
change in order to allow the system to stabilize.
To use the Dolby Headphone feature, perform the following steps:
1. Double click the DVD player application icon on your desktop.
2. On the toolbar that appears, click the Properties button (the fourth button from the
left, with the image of a wrench).
3. On the Properties window, select the Dolby Headphone tab.
4. To enable Dolby Headphone, check the Enable Dolby Headphone box. To
change the type of surround sound, select one of the radio buttons listed under
Room Filter Setting.
5. Click OK. The Dolby Headphone feature will now be enabled until you disable it by
unchecking Enable Dolby Headphone.
3-3-7
USING THE OPTICAL DRIVE ON BATTERY POWER
Since optical drive drives consume a lot of power, your overall battery life will be
significantly shorter when operating the optical drive drive continuously (such as watching a DVD movie) than during standard operation. Many movies run-times are longer than
your notebook PC can support on a single charged battery. If you are watching a DVD
movie on battery power you may need to swap in an additional, charged battery or
attach AC power during the movie to view it in its entirety.
Prolonged use of the optical drive drive, such as watching a DVD
CAUTION
movie, will substantially reduce your notebook PC’s battery life.
43
3. Using Your Notebook PC
POINT
Many movie run-times are longer than your system can support on
a single battery. If you are watching a DVD movie on battery
power you may need to swap in an additional, charged battery or
attach AC power during the movie to view it in its entirety.
An additional fully-charged battery is highly recommended if you
will be watching DVD movies on battery power.
To Watch a Movie on Battery Power:
1. Have an additional fully-charged battery or your AC adapter ready for use.
2. Start watching your DVD movie.
3. When the low battery warning occurs, immediately stop the movie and exit the
optical drive.
If you do not stop the optical drive quickly and the notebook PC
CAUTION
attempts to auto-suspend (critical battery low state) the notebook
PC will shut down improperly. If this occurs, you will need to
perform a hard reset and follow the instruction, if any, presented
to you before the system will reboot.
4. Manually place your notebook PC into suspend mode by depressing the Suspend
button and replace the discharged battery with an addi-tional full-charged battery.
Or, if you do not have an additional battery, you may attach AC power as soon as
you see the low battery warning.
5. Resume your notebook PC by pressing the Suspend button again. This step is not
required if you attached AC power without entering suspend mode.
6. Restart your optical drive, locate and skip to the chapter of the movie you were last
watching.
7. Continue watching your DVD movie.
POINT
44
Some shorter DVD movies may not require you to swap batteries
or attach AC power to complete them. However, it is best to be
prepared since actual battery life while operating the optical drive
drive cannot be guaranteed.
3. Using Your Notebook PC
3-3-8
AUTO INSERT NOTIFICATION FUNCTION
The Auto Insert Notification function allows your notebook PC to automatically start a
DVD/CD as soon as it is inserted in the optical drive drive and the tray is closed. Your
notebook PC will begin playing an audio DVD/CD or will start an application if the DVD/
CD includes an auto run file.
Disabling Auto Insert Notification Function
To disable the Auto Insert Notification function, follow these easy steps:
1. Save all data and close all open applications.
2. From the Start menu, select Settings, and then select Control Panel.
3. Double-click the System icon. This will open the System Properties dialog box.
4. Select the Device Manager tab to display the device lists for your notebook PC.
5. Click on the + to the left of the CD player drive icon. The treeview will expand to
show the optical drive drive manufacturer’s name and model number.
6. Double-click on the optical drive drive manufacturer’s name and model number.
This will open the optical drive drive manufacturer’s name and model number dialog
box.
7. Select the Settings tab and then remove the check mark in the Auto Insert Notification box to turn it off.
8. Click OK.
9. Click Close in the System Properties dialog box, then click Ye s in the System
Settings Change pop-up window when it asks you to restart your machine and
activate this change.
The Auto Insert Notification function can be re-activated by repeating this process and
placing a check mark in the Auto Insert Notification box to turn it back on.
45
3. Using Your Notebook PC
3-4
PC Cards
Your notebook PC supports Type II PC Cards, which can perform a variety of functions depending on which type of PC Card you install. You can install one PC Card at a
time in your notebook PC. Make sure that the PC Card conforms to PCMCIA 2.1 or
CardBus standards.
For further information, refer to the instructions supplied with your PC Card.
3-4-1
INSTALLING PC CARDS
PC Cards are installed in the PC Card slot. To install a PC Card(s), follow these easy
steps:
WARNING
POINT
46
Installing or removing a PC Card(s) during your notebook PC’s
shutdown or bootup process may damage the card and/or your
notebook PC.
Do not insert a PC Card into a slot if there is water or any other
substance on the card as you may permanently damage the card,
your notebook PC, or both.
You may be required to log on as an Administrator or a member
of the Administrator’s Group to complete this procedure. If your
computer is connected to a network, network policy settings may
also prevent you from completing this procedure.
3. Using Your Notebook PC
1. See your PC Card manual for specific instructions on the installation of your card.
Some PC Cards may require your notebook PC to be OFF while installing them.
2. Make sure there is no PC Card currently in the slot. If there is, see 3-5-2 Removing PC Cards.
3. If the eject button is extended, press it in until it clicks.
4. Insert your PC Card into the slot with the product label facing up.
5. Push the card firmly into the slot until it is seated in the connector.
3-4-2
REMOVING PC CARDS
To remove a PC Card(s), follow these easy steps:
1. See your PC Card manual for specific instructions on removing your card. Some
PC Cards may require your notebook PC to be in Suspend Mode or OFF while
removing them.
Windows has a shutdown procedure for PC Cards that must be
CAUTION
followed before removing a card. (Please review your operating
system manual for the correct procedure.)
POINT
If the dialog box states that the device cannot be removed, you
must save all of your open files, close any open applications and
shut down your notebook. Once your notebook PC has been
shut down, you must turn Off the power using the power switch.
2. Unlock the PC Card from the slot by first pressing the eject button associated with
the slot in which the card is located. When pressed, the button will pop out.
3. Firmly press the button again until it is flush with the notebook PC. This will eject
the card slightly out of the slot allowing you to remove the card.
CAUTION
If the PC Card(s) has an external connector and cable, do not
pull the cable when removing the card.
47
3. Using Your Notebook PC
3-5
Memory Upgrade Module
Your notebook PC comes with either 128MB or 256MB of high speed Synchronous
Dynamic RAM (SDRAM) factory installed. To increase your notebook’s memory
capacity, you may install an additional memory upgrade module. The memory upgrade
must be a dual-in-line (DIMM) SDRAM module.
Do not remove any screws from the memory upgrade module
CAUTION
compartment except the one specifically shown in the directions
for installing and removing the memory upgrade module.
3-5-1
INSTALLING A MEMORY UPGRADE MODULE
To install a memory upgrade module follow these steps:
You must turn off power before installing the memory upgrade
WARNING
module.
1. Turn off power to your notebook PC using the power switch, and remove any
power adapter.
2. Place your notebook PC upside-down on a clean work surface.
3. Open the top cover all the way, so that it is lying flat on the work surface.
4. Remove the screw holding the memory compartment cover.
The memory
CAUTION
upgrade module can
be severely damaged
by electrostatic
discharge (ESD). Be
sure you are
properly grounded
when handling and
installing the module.
48
3. Using Your Notebook PC
5. Align the connector edge of the memory upgrade module, chip side up, with the
connector slot in the compartment.
6. Insert the memory upgrade module at a 45 o angle and press it firmly onto the
connector.
7. Press the memory upgrade module down into the compartment until it locks underneath the retaining clip. You will hear a click when it is properly in place.
8. Replace the cover and screw that were removed previously. Installation of the new
memory module is now complete.
The memory upgrade module is not something you routinely
POINT
remove from your notebook PC. Once it is installed, you should
leave it in place unless you want to increase system memory
capacity.
49
3. Using Your Notebook PC
3-5-2
REMOVING A MEMORY UPGRADE MODULE
1. Perform steps 1 through 4 of 3-6-1 Installing a Memory Upgrade Module.
2. Pull the clips sideways away from each side of the memory upgrade module at the
same time.
3. While holding the clips out, remove the module from the slot by lifting it up and
pulling towards the back of your notebook PC.
4. Store the memory upgrade module in a static guarded sleeve.
5. Replace the memory compartment cover by following step 8 of 3-6-1 Installing a
Memory Upgrade Module.
After changing your memory module configuration, you must
POINT
complete the Resetting the Hibernation (Save-to-Disk)
Parameters procedure in order for the Hibernation (Save-toDisk) mode to operate properly on your notebook PC. (See 2-73 Hibernation (Save-to-Disk) Feature for more information.)
50
3. Using Your Notebook PC
3-5-3
CHECKING NEW MEMORY CAPACITY
Once you have changed the system memory capacity by either adding or removing a
memory upgrade module, be sure to check that your notebook PC has recognized the
change.
You can check the memory capacity by looking at the main menu of the BIOS setup:
1. Turn on the power to your notebook PC using the power switch.
2. Allow the system to start booting and press the [F2] key once the flash screen
appears on the screen. This will open the main menu of the BIOS setup with the
current settings displayed. (See 2-3-3 BIOS Setup Utility for more information)
Use the right arrow key to select Info in the BIOS Setup menu.
The System Memory and the Extended Memory capacity, as detected by your notebook PC during the Power On Self Test (POST), are displayed at the bottom of the
Info menu screen.
If the total memory displayed is incorrect, check that your
POINT
memory upgrade module is properly installed.
51
4 TROUBLESHOOTING
Your notebook PC is sturdy and subject to few problems in the field. However, you
may encounter simple setup or operating problems that you can solve on the spot, or
problems with peripheral devices, that you can solve by replacing the device. The
information in this section helps you isolate and resolve some of these straightforward
problems and identify failures that require service.
4-1
Identifying the Problem
If you encounter a problem, go through the following procedure before pursuing complex troubleshooting:
1. Turn off your notebook PC.
2. Make sure the AC adapter is plugged into your notebook PC and to an active AC
power source.
3. Make sure that any card installed in the PC Card slot is seated properly. You can
also remove the card from the slot, thus eliminating it as a possible cause of failure.
4. Make sure that any devices connected to the external connectors are plugged in
properly. You can also disconnect such devices, thus eliminating them as possible
causes of failure.
5. Turn on your notebook PC. Make sure it has been off at least 10 seconds before
you turn it on.
6. Go through the boot sequence.
7. If the problem has not been resolved, contact your support representative.
Before you place the call, you should have the following information ready so that the
customer support representative can provide you with the fastest possible solution:
• Product name
• Product configuration number
• Product serial number
• Purchase date
• Conditions under which the problem occurred
52
4. Troubleshooting
• Any error messages that have occurred
• Hardware configuration
• Type of device connected, if any
See the Configuration Label on the bottom of your notebook for configuration and serial
numbers.
53
Contact Details
Technical Support
8.00am – 6.00pm
Tel : 0115 914 4160
To email technical support and for more support
options please visit
www.ergo.co.uk/support
Ergo Computing UK Ltd.
Mere Way
Ruddington Fields
Ruddington
Nottingham
NG11 6JS
Tel: 0115 914 4144
Fax: 0115 914 4155
Email: [email protected]
www.ergo.co.uk
Ergo computing UK Ltd.
Mere Way, Ruddington Fields, Ruddington, Nottingham, NG11 6JS
Tel: 0115 914 4144 Fax: 0115 914 4155
www.ergo.co.uk
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
