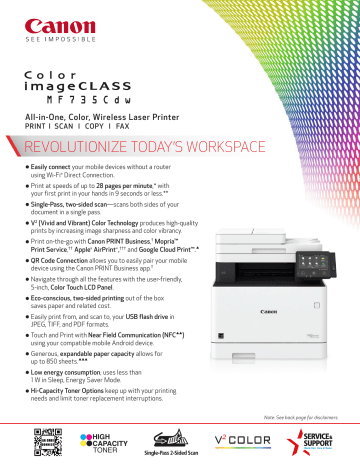

Canon Color imageCLASS MF735Cdw Spec Sheet

Canon Color imageCLASS MF735Cdw Spec Sheet
All-in-One, Color, Wireless Laser Printer
asily connect your mobile devices without a router
• Eusing
Wi-Fi Direct Connection.
Print at speeds of up to 28 pages per minute,* with
• your
first print in your hands in 9 seconds or less.**
ingle-Pass, two-sided scan—scans both sides of your
• Sdocument
in a single pass.
(Vivid and Vibrant) Color Technology produces high-quality
• Vprints
by increasing image sharpness and color vibrancy.
Print on-the-go with Canon PRINT Business, Mopria™
• Print
Service, Apple AirPrint , and Google Cloud Print™.
R Code Connection allows you to easily pair your mobile
• Qdevice
using the Canon PRINT Business app.
Navigate through all the features with the user-friendly,
• 5-inch,
Color Touch LCD Panel.
co-conscious, two-sided printing out of the box
• Esaves
paper and related cost.
asily print from, and scan to, your USB flash drive in
TIFF, and PDF formats.
Touch and Print with Near Field Communication (NFC
• using
your compatible mobile Android device.
Generous, expandable paper capacity allows for
• up
to 850 sheets.
energy consumption; uses less than
• L1 ow
W in Sleep, Energy Saver Mode.
i-Capacity Toner Options keep up with your printing
• Hneeds
and limit toner replacement interruptions.
Note: See back page for disclaimers.
Speed and Versatility
Authorized Send
The MF735Cdw delivers high-speed, color and black-and-
Authorized Send is a server-less application installed and
white output up to 28 ppm* to keep your business running.
operated on a Canon MFP device, which offers users open
With a generous paper capacity of up to 850 sheets
access to everyday walk-up features such as copying but
and high-capacity toner options, the MF735Cdw gives
requires authentication to all send features, Scan-to-Email,
your business the efficiency and support it deserves.
Scan-to-Fax, and Scan-to-Folder. Authorized Send supports
the following key customer requirements:
Print On-the-Go
Print a variety of file types, Web pages, and images on-thego with Canon PRINT Business, † Mopria™ Print Service, ††
Apple® AirPrint®,††† and Google Cloud Print™▲ using your
compatible mobile device. You can also scan hard-copy
originals using Canon PRINT Business. † For more
•Restricting scanning and sending capabilities only to
authorized users by authenticating to a variety of flexible
servers and protocols.
•S implified intuitive workflow for basic Scan-to-Email,
Scan-to-Fax, and Scan-to-Folder.
information on Canon supported apps and compatibility,
•A llow all users to perform everyday walk-up operations
while maintaining authentication during Send activities.
please visit https: //
•Reduce administrative burdens with a server-less solution.
Image Quality
Achieve high-quality printing and sharp, vibrant colors with
V 2 (Vivid and Vibrant) Color Technology. This technology
expands the color gamut of dark areas and shadows, in
NFC Capability
particular, for greater sharpness and detail.
Near Field Communication (NFC )
allows you to easily "touch and print"
to the MF735Cdw using your compatible
mobile Android device.
Color, Touch LCD Panel
The intuitive, customizable, 5-inch, Color
Touch LCD Panel allows you to easily
navigate through the menu. The widescreen display is user friendly, helping
you to complete tasks more quickly.
Application Library
The imageCLASS MF735Cdw allows you to customize the
printer’s interface depending on the functions you need and
use the most. Customize your screensaver, check consumable
status, create your own scan workflow, print template, and
copy settings on your home screen and organize them based
on your business needs and workflow.
Predecessor Canon Product without
V 2 Color Technology
New Canon Product with
V 2 Color Technology
Print images simulated.
Note: See back page for disclaimers.
Color imageCLASS MF735Cdw
Print Speeds
(Default Print Mode: Two-sided)
Operating Systems
Up to 28 ppm** (1-sided, plain paper, Letter)
Up to 23 ppm** (2-sided, plain paper, Letter)
USB 2.0 Hi-Speed, 10/100/1000Base-T Ethernet (Network), Wi-Fi 802.11 b/g/n Wireless•
Windows 10/8.1/8/7, Windows Server 2016/2012 R2/2012/2008 R2/2008, Windows Vista, Mac OS 10.7.5 or Later
(Drivers available for download from
Paper Types
Standard Cassette
Multipurpose Tray
Optional Cassette
Platen Size
Automatic Document Feeder (ADF)
Output Tray
Duty Cycle
Recommended Monthly Print Volume (RMPV)
Letter, Legal, A4, A5,•• B5, Statement, Executive
Up to 250 Sheets (14-43 lb. Bond)▲▲▲
Up to 50 Sheets (16-47 lb. Bond)▲▲▲
Up to 550 Sheets (x1) (14-43 lb. Bond)▲▲▲
Up to 8.5" x 11"
Single-Pass, Duplex ADF
150 Sheets (face-down)
Up to 50,000 Pages per Month
750-4,000 Pages
IP/MAC Address Filtering, HTTPS, SNMPv3, IEEE802.1x, Department ID Management (up to 300 IDs)
First-Print Time
Printer Language
Print Resolution
Print Features
Print Memory
Mobile Print
Black/Color: 9 Seconds or Less (Letter)**
UFR II, PCL (6, 5c), Adobe PostScript
Up to 600 x 600 dpi, 1200 x 1200 dpi Quality
Print from USB Flash Drive (JPEG, TIFF, PDF), Print Modes (Poster, Booklet, Watermark, Toner Saver, Page Composer)
1 GB (Shared)
Canon PRINT Business,† Mopria™ Print Service,†† Apple AirPrint,††† Google Cloud Print™▲
First-Copy Time
Copy Resolution
Max. Number of Copies
Copy Features
Copy Memory
Black: Approx. 10 Seconds▪ (Letter)
Color: Approx. 11 Seconds▪ (Letter)
Up to 600 x 600 dpi
256 Levels
Up to 999 Copies
Zoom 25%-400%, Frame Erase, Collate, 2-on-1, 4-on-1, ID Card Copy, Copy Modes (Text/Photo)
1 GB (Shared)
Scan Type
Scan Speed
Scan Resolution
Output File Formats
Scan Features
Color Contact Image Sensor (CIS); 24-bit Color Depth; TWAIN, WIA, and ICA Compatible
Black and White: Up to 28 ipm;▪▪ Color: Up to 14 ipm ▪▪
Up to 600 x 600 dpi (optical); Up to 9600 x 9600 (software interpolated resolution)
JPEG, TIFF, PDF, PDF Compact/OCR (Text Searchable)
Push (Scan-to-PC) and Pull Scan, Scan-to-USB Flash Drive (PDF, JPEG, TIFF)
Modem Speed
Fax Resolution
Fax Memory
Speed Dialing
Group Dialing
Sequential Broadcasting
Fax Features
Up to 33.6 Kbps (Super G3) ▪▪▪
Up to 406 x 391 dpi (ultra-fine)
Up to 512 Sheets♦
19 One-Touch Speed Dials (Favorites), 262 Coded Dials
199 Destinations
310 Destinations
Fax Forwarding, Dual Access, Remote Reception, PC Fax (TX only), Distinctive Ring Pattern Detection, Error Detection Mode,
Auto Redial, Fax Activity/Activity Result Reports, Fax Activity Management Reports
Package Weight
18.5" (W) x 18.5" (D) x 18.1" (H)
54 lb. (w/o CRG); 58.4 lb. (w/CRG)
Approx. 74.8 lb.
One-Year Limited Exchange/Carry-in ♦♦ (Extended warranty available)
Typical Energy Consumption (TEC)
Power Consumption
Noise Level♦♦♦
1.1 kWh
Operation: Approx. 520 W (during operation); Standby: Approx. 20.6 W;
Energy Saver/Sleep Mode: Approx. 0.8 W (USB/wired/wireless)
Operation: 48 dB in Color/Black Printing (sound pressure) 62 dB or Less in Color/Black Printing (sound power);
Standby: 29 dB (sound pressure) 42dB or Less (sound power)
MF735Cdw Product, Canon Cartridge 046 (Starter CMY Yield: 1,200 Sheets, Standard BLK Yield: 2,200 Sheets),
Power Cord (USB not included), Phone Cable, Starter Guide, User Software DVD-ROM, Warranty Card
Note: See back page for disclaimers.
50-Sheet Duplex Document
Feeder/Single-Pass Duplex
Scan Function
5-Inch, Color
Touch LCD Panel
Near Field
Communication (NFC)
Standard 250-Sheet Cassette
Multipurpose Tray
Optional 550-Sheet Cassette
(Total 850-Sheet Capacity)
MF735Cdw shown with optional
550-sheet cassette.
Color imageCLASS MF735Cdw and Accessories
Barcode Printing Kit-E1
Copy Card Reader-F1
Copy Card Reader Attachment-J1 5140B002
PDF Security-E1
imageCLASS MF735Cdw
Cartridge 046 Black - Full Yield Cartridge; 2,200 Sheets ISO/IEC
Cartridge 046 Cyan - Full Yield Cartridge; 2,300 Sheets ISO/IEC
Cartridge 046 Magenta - Full Yield Cartridge; 2,300 Sheets ISO/IEC
Cartridge 046 Yellow - Full Yield Cartridge; 2,300 Sheets ISO/IEC
Cartridge 046 Hi-Capacity Black - Full Yield Cartridge; 6,300 Sheets ISO/IEC
Exchange/Carry-In eCarePAKs:
Cartridge 046 Hi-Capacity Cyan - Full Yield Cartridge; 5,000 Sheets ISO/IEC
Cartridge 046 Hi-Capacity Magenta - Full Yield Cartridge; 5,000 Sheets ISO/IEC
Tier 4E One-Year eCarePAK
Tier 4E Two-Year eCarePAK
Tier 4E Three-Year eCarePAK
Tier 4E Four-Year eCarePAK
Cartridge 046 Hi-Capacity Yellow - Full Yield Cartridge; 5,000 Sheets ISO/IEC
Cassette Feeding Unit AF-1 (550-sheet capacity)
Control I/F Kit-C1
*Copy/print speeds are measured based on internal testing using letter size paper copied/printed with
100% copy/print ratio to original on one-sided paper. Internal testing involved continuously copying/
printing the same one page of content on plain paper (copy speed is tested by copying on the platen glass).
Copy/print speeds may vary depending on paper type, paper size or paper feeding direction. The device
may automatically pause or slow down in order to adjust printer condition such as controlling temperature
of a certain unit or limiting impact to image quality during continuous copying/printing.
**May vary depending on the output environment.
†Canon PRINT Business is available free on the App Store® and Google Play Store; compatible with iPhone
6 Plus, iPhone 6, iPhone 5S, iPhone 5C, iPhone 5, iPhone 4S, iPhone 4, iPad Air 2, iPad Air, iPad 4, iPad 3,
iPad 2, Original iPad, iPad mini, iPad mini Retina, iPad mini 3 running iOS 7.0 - 8.0. Supports Android Tablets
and Phones running OS 4.0 - 5.0. Canon PRINT Business combines the functions of Canon Mobile Printing
and Canon Mobile Scanning for Business apps into one, streamlining both apps and adds new features and
functionality for users of all types, from small or home offices to large enterprise offices. Users of Canon
Mobile Printing can simply update the app to use Canon PRINT Business. Users who have installed Canon
Mobile Scanning for Business should install Canon PRINT Business. After Canon PRINT Business is installed,
users can reregister their Canon Mobile Scanning for Business device list and local documents.
††Mopria Print Service, available free at the Google Play Store, requires a compatible Android 4.0 - 5.0
smartphone or tablet. The printer must be either wirelessly connected to the network router or with
an Ethernet cable. The mobile device and printermust be connected to the same network.
†††Apple AirPrint functionality requires an iPad, iPad Mini, iPad 2, the new iPad, iPhone 3GS or later, or
iPod touch 3rd generation or later device running iOS 7.0 - 8.0 or later, and an AirPrint-enabled printer
connected to the same network as your iOS device. A printer connected to the USB port of your Mac,
PC, AirPort Base Station, or Time Capsule is not supported.
Google Cloud Print requires an Internet connection and Google Account. Printer firmware update may
be necessary for Google Cloud Print™ function. Certain exceptions may apply. A PC running Windows
XP or later or a Mac running OS 10.4.11 or later and USB cable are required to perform firmware update.
▲▲Requires an Android mobile device with NFC hardware running Android 4.0 or later and the Canon Print
Business app, available for free at Google Play. Canon Print Business app must be open to use tap and
print functionality.
Based on 20 lb. Bond paper.
•Wireless performance may vary based on terrain/distance between printer and wireless network clients.
••A5 paper is supported in Simplex mode only.
■ Letter-sized, after being restored from Energy Saver mode.
■ ■Based on Letter-sized scanning at 300 x 300 dpi.
■ ■ ■The Public Switched Telephone Network currently supports fax modem speeds of 28.8 Kbps or
lower, depending on telephone line conditions. Sending and receiving fax machines need to conform
to ITU-T v.34 guidelines.
Based on ITU-T #1 Chart (standard mode).
u uWarranty program is subject to certain conditions and restrictions. See the warranty card for details.
u uDeclared noise emission in accordance with ISO 9296.
Wi-Fi® is a registered trademark of the Wi-Fi Alliance®. The Wi-Fi CERTIFIED™ Logo is a certification mark of the
Wi-Fi Alliance. As an ENERGY STAR partner, Canon U.S.A., Inc. has certified this model as meeting the ENERGY
STAR energy efficiency criteria through an EPA recognized certification body. ENERGY STAR and the ENERGY
STAR mark are registered U.S. marks. Canon, imageCLASS, the GENUINE Logo, and the Super G3 logo are
registered trademarks of Canon Inc. in the United States and may also be registered trademarks or trademarks
in other countries. Android is a trademark of Google Inc. App Store is a service mark of Apple Inc. iPhone, iPad
Air, iPad, iPad mini are trademarks of Apple Inc., registered in the U.S. and other countries. iOS is a trademark
or registered trademark of Cisco in the United States and other countries and is used under license. All other
referenced product names and marks are trademarks of their respective owners. Specifications and availability
subject to change without notice. Not responsible for typographical errors.
©2017 Canon U.S.A., Inc. All rights reserved.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
