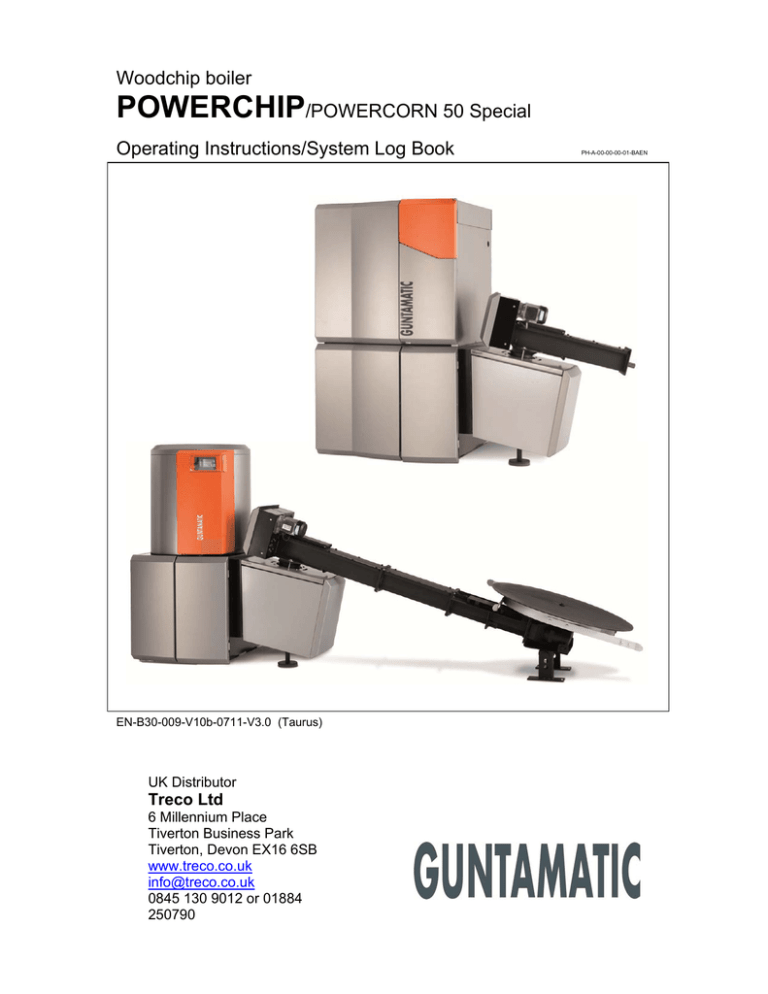

Woodchip boiler POWERCHIP/POWERCORN 50 Special

Woodchip boiler POWERCHIP/POWERCORN 50 Special

Woodchip boiler

POWERCHIP

/POWERCORN 50 Special

Operating Instructions/System Log Book

EN-B30-009-V10b-0711-V3.0 (Taurus)

UK Distributor

Treco Ltd

6 Millennium Place

Tiverton Business Park

Tiverton, Devon EX16 6SB www.treco.co.uk

[email protected]

0845 130 9012 or 01884

250790

PH-A-00-00-00-01-BAEN

POWERCHIP Operating Instructions

BS-B-00-00-00-01-BAEN

Information on this documentation

Please read through this documentation carefully.

It is intended as a reference document and contains important information on the design, safety, operation, maintenance and care of your heating system.

We are always looking to improve our products and documentation. Any ideas and suggestions you may have will be gratefully received.

GUNTAMATIC Heiztechnik GmbH a Georg Fischer Group Company

Bruck 7

A-4722 PEUERBACH

Tel:

0043 (0) 7276 / 2441-0

Fax:

0043 (0) 7276 / 3031

E-mail:

[email protected]

It is important that you pay particular attention to the safety issues highlighted in the text by these symbols.

The entire contents of this document are the property of

GUNTAMATIC and therefore protected by copyright.

Reproduction of any kind, communication to third parties by any means or use for purposes other than those intended without the written consent of the owner is prohibited.

Subject to printing errors and technical amendments.

2

Contents

POWERCHIP Operating Instructions

PH-C-00-00-00-01-BAEN

Page

1 Introduction .......................................................... 5

description

1.2 Type information

5

5

5 use

2.2 Operating the heating system

2.3 Guarantee instructions

6

6

6

7

3.1 Cutaway diagram of POWERCHIP

4 Safety

11

5 Control panel description ................................. 14

6 Overview of menu and levels ........................... 15

6.1 Information level

16

17 level

6.3.1 Heating menu

17

18 menu

18 menu

19 menu

19 menu

20 menu

20 menu

20

21

6.4.1

Service menu

Reset Data

6.4.2

Service menu

Error List

21

21

6.4.3

Service menu

Begin Service 22

6.4.4

Service menu

Heating Circuit/

Screed Drying Programme Parameters

24

6.4.5

Service menu

Hot Water Parameters

6.4.6

Service menu

HP0 Parameters

24

25

6.4.7

Service menu

FP District Heating Pipe Parameters 26

6.4.8

Service menu

TSP District Heating Pipe Parameters 26

6.4.9

Service menu

CP District Heating Pipe Parameters 26

6.4.10

Service menu

System Settings 27

7.1 Activating a heating programme

7.2 Deactivating

7.3 Setting a timer programme

7.3.1 Programming en bloc

7.4 Changing the heating characteristic

7.5 Changing the required hot water temperature

7.6 Analogue

7.7 Digital

28

29

30

30

31

32

33

33

3

Contents

POWERCHIP Operating Instructions

Page

8 Operating the heating system .......................... 34

8.1 Starting up/Shutting down the system

8.2 Heating quality

8.4 Fuels

34

34

35

36

8.4.1 Woodchips

8.4.2 Pellets fuel

8.4.4 Miscanthus storage

8.6 Filling/refilling the fuel store air

8.8 Emptying the ash

36

37

37

38

38

39

40

41

9 Cleaning/care ..................................................... 42

9.1 Cleaning the fuel store cleaning

42

43 cleaning

9.4 Cleaning at end of heating season

44

44

10 Rectifying faults ................................................. 45

11 Information/Fault messages ............................. 46

12 Replacing fuses ................................................. 48

13 Log book ............................................................. 49

13.1 Weekly visual inspection 50 checks

13.3 Servicing

50

50

4

POWERCHIP Operating Instructions

1 Introduction

BS-01-00-00-00-01-BAEN

You have made an excellent choice with the purchase of your

GUNTAMATIC boiler.

It is a product of many year's experience in boiler-making and it is our sincere wish that your heating system provides you with many years of satisfaction.

These instructions are intended as a guide to operation and maintenance. Even the best boiler cannot operate effectively without proper care and maintenance, so please read through these instructions carefully and have your appliance commissioned by an engineer authorised by GUNTAMATIC.

Most importantly, you should follow the safety instructions in

Section 2.

PH-01-01-00-00-01-BAEN

The POWERCHIP is a modern biomass boiler available with power outputs of 30, 50, 75 or 100 kW. The fuel is fed to the boiler from a fuel storeroom by an auger-type conveyor with fuel agitator.

BS-01-02-00-00-01-BAEN

The boiler is designed as a Class 3 appliance as defined by the draft standard ÖNORM EN 303-5 (CEN/TC7/WG 1 – Doc.

N 36-D) of 15/12/1996 and the agreement of the [Austrian]

Federal States according to Art. 15a BVG, in accordance with the Austrian fire safety regulations, safety systems, CE and on safety measures for small combustion heating systems and the combustion heating system approval regulations (LGBl.

33/1992) of the Federal State of Steiermark. The original type approval certificates are available for inspection at the manufacturer's offices.

1.3 Further

BS-01-03-00-00-01-BAEN

The documentation consists of the following documents:

If you have any questions, please consult our Customer

Support.

5

POWERCHIP Operating Instructions

2 Important

2.1 Intended

BS-02-00-00-00-01-BAEN

Your boiler has been designed and produced in accordance with the latest technical advances and all applicable safety regulations. Nevertheless incorrect operation, the use of unapproved fuels or the failure to carry out necessary maintenance and repairs can result in personal injury or damage to property. You will avoid dangerous situations by only using the boiler for the purpose for which it was designed and by operating, cleaning and maintaining it correctly. Only start up the heating system when it is in perfectly safe working order.

BS-02-01-00-00-01-BAEN

The boiler is designed for heating central heating water and for use as a central heating boiler.

Caution:

Do not use the boiler to burn rubbish!

Burning rubbish will cause extensive corrosion and consequently to a substantial reduction in the service life of the boiler.

2.2 Operating the heating system

BS-02-02-00-00-01-BAEN

The heating system may only be operated and cleaned by demonstrably trained persons (as per check-list). Children, unauthorised persons or persons with a mental impairment may only enter the boiler room under the supervision of an authorised person. When unsupervised, the boiler room/fuel store must be locked and the key kept in a place where it is inaccessible to such persons.

Caution:

even if the opposite is requested, servicing and repair work may only be carried out by authorised specialists.

2.3 Guarantee and liability

BS-02-03-00-00-01-BAEN

Guarantee and liability claims for personal injury and/or property damage are inadmissible if they are attributable to one or more of the following causes:

 use of the boiler for purposes other than that intended

 failure to follow the instructions, guidance and safety precautions given in the documentation

 incorrect commissioning, operation, maintenance or repair of the boiler

 operation of the boiler when safety systems are inoperative

6

POWERCHIP Operating Instructions

2.4 Safety

Power switch

Mains plug

Repair work

Fault rectification

Unauthorised modifications

BS-02-04-00-00-01-BAEN

To prevent accidents, small children should not be allowed into the boiler room or the fuel storeroom. Please follow the safety instructions below. By doing so, you will protect yourself and prevent damage to your heating system.

Note:

BS-02-04-00-01-01-BAEN

The power switch must remain switched on at all times and may only be switched off when the system is not in operation.

Danger:

BS-02-04-00-02-01-BAEN

Risk of fatal injury from electric shock.

The mains power supply is brought to the boiler via the plug marked Mains. That plug and other components of the system remain live even when the Power switch on the control panel is switched off.

Danger:

BS-02-04-00-03-01-BAEN

Repair work may only be carried out by authorised technicians.

Touching live electrical components can cause fatal injury.

Even when the Power switch is "OFF" some components of the system are still live.

Therefore, when carrying out repair work it is imperative that the power supply to the heating system is disconnected by means of the "mains plug" or a circuit breaker.

In an emergency: In the event of electric shock, disconnect the power supply immediately.

Administer first aid. Call the duty doctor.

Note:

BS-02-04-00-04-01-BAEN

If faults occur, the causes must first be eliminated on the basis of the information message on the display (F0...) before resuming operation by means of the "Quit" button.

Note:

BS-02-04-00-05-01-BAEN do not make any unplanned changes to the settings or any modifications to the heating system.

Loss of guarantee entitlement

7

POWERCHIP Operating Instructions

Servicing work

Note:

BS-02-04-00-06-01-BAEN

Service the boiler regularly or make use of our Customer Service.

Emptying ash

Boiler cleaning

Flue gas fan

Gaskets

Air supply

BS-02-04-00-07-01-BAEN

Danger: Glowing embers can cause fires.

Only remove the ash from the boiler or store it in non-combustible containers.

Caution:

BS-02-04-00-08-01-BAEN

Touching hot components can cause skin burns.

The boiler must only be cleaned when it is cold (flue gas temperature < 50°C)

BS-02-04-00-09-01-BAEN

Danger: Risk of injury from rotating parts.

The fan must only be removed when it is disconnected from the power supply

(unplugged).

Danger:

BS-02-04-00-10-01-BAEN

Risk of gas poisoning.

It is possible that flue gas could escape if gaskets are damaged.

Have defective gaskets replaced by an authorised technician.

In an emergency: Take the person affected into the open air immediately. Call the duty doctor.

BS-02-04-00-11-01-BAEN

Danger: Risk of suffocation

Inadequate air supply can be fatal.

Make sure there is an adequate supply of air.

Note: If there is more than one boiler in the same room, a greater supply of fresh air must be provided.

8

Flue draught regulator

Safety clearances

POWERCHIP Operating Instructions

BS-02-04-00-12-01-BAEN

Danger: Risk of detonation.

A flue draught regulator with a pressure surge compensator is an essential requirement.

BS-02-04-00-13-01-BAEN

Do not store any flammable items in the close vicinity of the boiler.

Follow the local regulations.

Entering the storeroom

Danger:

PH-02-04-00-01-01-BAEN

Risk of injury!

Only enter the store room when the system is switched off. Always shut off the power supply before entering.

Affix a sign to the storeroom door.

Keep the storeroom doors locked.

Filling the storeroom

PH-02-04-00-02-01-BAEN

Danger: Combustible gases in storeroom!

When filling the fuel storeroom from a tanker truck or using a pressure-filling system, it is imperative that the boiler is shut down.

If this rule is ignored, flammable and poisonous gases can be drawn into the storeroom.

9

POWERCHIP Operating Instructions

Protection against freezing

BS-02-04-00-16-01-BAEN

The system can only perform its freezing prevention function if sufficient fuel is available and there are no faults.

Emergency fire extinguishing system

PH-02-04-00-03-01-BAEN

If the emergency fire extinguishing system has been triggered, it is always due to a fault in the heating system.

Fire extinguisher

Note:

BS-02-04-00-17-01-BAEN

Provide a fire extinguisher.

There must be a fire extinguisher placed immediately outside the boiler room door.

10

POWERCHIP Operating Instructions

3 System

BS-03-00-00-00-01-BAEN

3.1 Cutaway diagram of POWERCHIP

PH-03-01-00-00-01-BAEN

22

23

20

21

19

door

2.) Stepped grate – primary air

3.) Combustion

4.) Fuel spout

5.) Swirl jet – secondary air tube

7.) Inspection

8.) Helix cover baffles

9.) Tube-type heat exchanger

10.) Flue draught fan

11.) Heat exchanger cleaning mechanism

12.) Flue pipe

13.) Oxygen sensor

14.) Flue gas sensor

15.) Grate cleaner motor

16.) Ash auger

17.) Wheeled ash box

18.) Menu-based controller

19.) Drive motor (stoker)

20.) Stoker unit

21.) Burn-back prevention device

Fire safety flap with positioner motor -

Required in all countries

22.) Drive motor (fuel outfeed)

23.) Sprinkler in outfeed auger enclosure -

Required in all countries

24.) Outfeed auger

25.) Temperature monitor/fuel storeroom -

Required in Austria

26.) Manually operated fire extinguishing facility -

Required in Austria

27.) Agitator arms

28.) Agitator

24 26

25

27

28

11

POWERCHIP Operating Instructions

BS-04-00-00-00-01-BAEN

To prevent the boiler overheating, the controller reduces the heat output in certain situations. If the boiler still threatens to overheat, the controller responds according to a set of defined safety levels.

Safety level 1

BS-04-00-00-01-01-BAEN

15°C above specified temperature

The drive motor stops the fuel feed system and the flue draught fan shuts down.

Safety level 2

PH-04-00-00-01-01-BAEN

Boiler temperature above 90°C

All heating pumps and the cylinder charging pump are switched on to carry heat away from the boiler.

Safety level 3

BS-04-00-00-01-03-BAEN

Boiler temperature above 100°C

The STL (safety temperature limiter) trips and switches all boiler control functions off while the heating circulation pumps continue to run. The system remains switched off even if the boiler temperature drops back below 90 °C. The system must not be started up again until any faults have been rectified and the boiler has been checked.

Power failure

BS-04-00-00-04-01-BAEN

The controller, the flue draught fan and all circulation pumps switch off due to lack of electricity if there is a power cut. The glowing fuel bed on the grate continues burn with the natural draught of the flue. As this operating mode is not ideal, a larger amount of ash collects on the grate as well. As soon as the electricity supply is restored, the controller takes control of the heating system again.

Opening ash box or firebox door

PH-04-00-00-02-01-BAEN

 The drive motors stop feeding the boiler with fuel

 The flue draught fan switches to maximum extraction speed

 After the ash box/firebox door is closed, normal operation is resumed

On stoker duct

PH-04-00-00-03-01-BAEN

The stoker duct and feeder box are designed to be completely air-tight as far as the fire safety flap. That means that any burn-back is extinguished by lack of air. The fire safety flap is tested and approved as a burn-back prevention device. A positioner motor opens and closes the flap. Fuel delivery does not start until the flap is completely open. If the event of a fault or a power failure, the flap closes automatically of its own accord. When the boiler is in operation, the controller prevents

12

POWERCHIP Operating Instructions

On the fuel store outfeed unit burn-back into the stoker auger by replenishing the fuel. In addition, a sensor monitors the temperature in the vicinity of the stoker auger. In that way, burning fuel is continually pushed back out of the auger duct. This burn-back prevention system always functions unless the electricity supply to the boiler system is cut off.

Required in all countries

PH-04-00-00-04-01-BAEN

In addition, between the end of the fuel outfeed unit and the burn-back prevention device there is a sprinkler unit that is used instead of the temperature monitor with fuel stores with

a capacity not exceeding 50 m³

and is triggered at 55°C.

When the sprinkler is triggered, the sloping outfeed auger enclosure – which also serves as a burn-back inhibiting device

– is completely flooded. The quantity of water required to do so is at least 20 litres. If the temperature drops back below

55°C, the flooding is stopped.

Note:

The sprinkler system must be connected on all systems regardless of local regulations.

Overfill prevention

PH-04-00-00-05-01-BAEN

The overfill prevention function is triggered by the switch on the overfill cover. The fuel outfeed unit then runs in reverse for

5 seconds and then for 5 seconds forwards. If the cover switch trips again, the outfeed unit immediately stops.

Fuel stores > 50 m³

Requirement in Austria

PH-04-00-00-06-01-BAEN

A temperature monitor connected to a warning device must be installed in the fuel storeroom at the point where the fuel conveyor exits the fuel store and enters the boiler room. The warning device must be triggered when the temperature exceeds 70°C.

Manually operated fire extinguishing facility

This fire extinguishing facility is for the purpose of combating a fire seated in the fuel storeroom/bunker/silo in the area of the outfeed unit and is manually actuated. It consists of conduit piping with a minimum size of DN 20 and is to be fitted in the fuel storeroom immediately above the fuel conveyor close to its exit point through the wall or ceiling and positioned so as to obtain the maximum possible fire extinguishing effect. The conduit piping is to be connected directly to a pressurised water supply and provided with a stop tap located in the boiler room. That tap must be identified by a sign carrying the inscription "Fuel storeroom fire extinguisher". The design of the fire extinguishing facility must be such that it cannot be damaged by the delivery of fuel into the fuel store or by the fuel outfeed equipment.

13

POWERCHIP Operating Instructions

5 Control panel description

BS-05-00-00-00-01-BAEN

The appliance has a large touch-screen control panel with a menu-based interface. All setting and query options are shown on the display. All settings can be entered by pressing the "buttons" on the touch screen. Any system messages are displayed on the screen.

2

3

1

PH-05-00-00-01-01-BADE

Power switch (1)

BS-05-00-00-02-01-BAEN

Normally remains permanently switched on. The power switch may only be switched off when the system is not in operation.

Note:

The system must also be disconnected from the mains by unplugging the power lead when carrying out repairs or servicing work.

(2) STL

BS-05-00-00-03-01-BAEN

Excessive temperature (approx. 100°C) trips the safety temperature limiter (STL) located under the cap (2); → appliance operation is suspended; → if the STL has tripped, identify and eliminate the cause and then press in the STL

(button) with a thin object.

Touch-screen display (3)

Note:

The system must not be started up again until any faults have been rectified and the boiler has been checked. If necessary, a heating engineer must be called in.

BS-05-00-00-04-01-BAEN

Pressing lightly with your fingertip on the relevant buttons on the display opens the various program levels, menus and submenus. All settings are made directly on the touch-screen display.

Note:

Never use sharp objects such as ball-point pens or the like to operate the touch screen.

14

POWERCHIP Operating Instructions

6 Overview of menu and levels

(menu structure)

PH-06-00-00-00-01-BAEN

Information

Off

Normal info

Hot water

MK Controller 0 info

MK Controller 1 info

Heating

Low

MK Controller 2 info

Thermal store HP0 info

Service level

Information level

User Level

User Level

Service level CODE Heating circuit 0

Parameters menu

House level

CODE

Boiler parameters

Reset data

Fault list

Heating circuit 1

Heating circuit 2

Commissioning

Note:

Menus shown with a dashed border only appear if activated on the Commissioning menu.

Changes to the settings on the Service and

Parameters levels may only be made with the agreement of GUNTAMATIC.

HC8

DHW2 Parameters

System cascade

Date/Time

Layout of touch-screen display

BS-06-00-00-01-01-BAEN

Header Scroll bar Scroll buttons

The header contains information about the level or menu selected. Operating statuses, sensor readings and switch conditions can be queried in the Selection window. The various buttons can be used to change and save settings or switch to different levels or menus, for example.

You switch between the levels and menus by touching the buttons directly on the display screen.

15

16

POWERCHIP Operating Instructions

level

PH-06-01-00-00-01-BAEN

You use the "DOWN" and "UP" navigate through the Information Level menu.

buttons to

1)

1)

1)

2)

Only shown if one or more heating circuit controllers are activated.

Fault screen

→ highest priority

Plain-language fault messages are displayed showing date and time of occurrence

Fault is acknowledged by pressing "Quit" button

Information level

→ Only shown if the programme "Low until" has been activated

Disappears after the set time has elapsed

Can be prematurely deactivated by pressing "Quit" button

Info level – Status

→ Standard display on boiler

Shows boiler temperature

Shows boiler operating mode

Shows selected programme

Shows boiler output

Shows outside temperature

→ Figure in brackets = average temperature

Info level – Boiler

→ Shows boiler data

Shows flue gas temperature

Shows CO2 level

Shows efficiency

Shows time in hours until ash warning is triggered

Shows fuel setting

Info level – Controller 0

→ Heating circuit controller 0 (HCC 0)

Shows domestic hot water temperature and operating mode for cylinder 0

Shows operating mode for heating circuit 0

→ pump heating circuit Shows boiler temp.

Shows operating mode for heating circuit 1

→ mixer heating circuit Shows flow temp.

Shows operating mode for heating circuit 2

→ mixer heating circuit Shows flow temp.

Info level – Controller 1

→ Heating circuit controller 1 (HCC 1)

Info level – Controller 2

→ Heating circuit controller 2 (HCC 2)

Thermal store info

→ Shows thermal store data

Shows thermal store temperature at top

Shows thermal store temperature at bottom

Shows thermal store pump operating mode

Shows charging programme

2) Only shown if a thermal store is integrated in the system

POWERCHIP Operating Instructions

3)

3)

3)

3)

3)

3)

level

PH-06-02-00-00-01-BAEN

All heating programmes and menus are listed and described below:

Heating and hot water switched off

→ Anti-freeze function active

Heating and hot water on as per timer programme

Hot water as per timer programme DHW summer

→ Heating mode switched off

Heating mode

→ Day and night (hot water heating as per timer programme)

Low-temperature mode

→ Day and night (hot water heating as per timer programme)

Low-temperature mode until a specified time

→ Hot water as per timer programme

Hot water heating outside programmed charging times

→ Max. duration 90 min

Constant heating to specified boiler temperature

→ Set on User menu

Manual opening of grate for cleaning purposes

→ Takes you to User level

→ Takes you to Service level

→ CODE required

→ Takes you to Parameters level

→ CODE required

Pressing the buttons takes you to the relevant programme/level

6.3 User

(User)

PH-06-03-00-00-01-BAEN

Depending on the system configuration, the menu levels and submenus may contain different items.

4)

5)

6)

7)

4)

5)

6)

7)

User menu

→ User settings

Heating Circuit 0 menu

→ Timer controlled pump heating circuit on HCC 0

Heating Circuit 1 menu

→ Timer controlled pump heating circuit on HCC 0

Heating Circuit 2 menu

→ Timer controlled mixer heating circuit on HCC 0

Hot Water 0 menu

→ on HCC 0

Thermal store pump HP0 menu

→ Thermal store settings

Boiler Cascade menu

→ Settings for sequential boiler control

Detail View menu

→ Boiler data and operating modes are shown

Date/Time menu

Important settings on User menu

Thermal store and charging programme settings

Facility for querying operating modes, sensor readings and switch conditions on Detail View menu

Facility for viewing/setting date and time on Date/Time menu

17

POWERCHIP Operating Instructions

6.3.1 Heating

menu (User)

BS-06-03-01-00-01-BAEN

The Heating Circuit menu allows you to enter the settings for the various heating circuits.

8)

9)

10)

11)

12)

13)

14)

Heating circuit control status

Facility for setting heating and low-temperature times

Facility for setting daytime required temperature

Facility for setting night-time required temperature

Facility for setting room effect/thermostat function

Facility for setting heating characteristic

Changeover from low-temperature mode to night-time set temperature

Outside temperature mode cut-off for heating circuits

Auto

Off

Heating circuit is switched ON/OFF according to demand and timer programme.

The heating circuit is switched off.

Constant The pump runs continuously; with mixer-valve heating circuits, the mixer valve is not operated

8) Options

9) Modulation to "daytime required temperature" is only possible in conjunction with a room stat or room controller; raising or lowering the required temperature shifts the heating curve up or down accordingly.

10) Modulation to "night-time required temperature" is only possible in conjunction with a room stat or room controller; in addition, the outside temperature must be below that set in menu option "Night OFF OT" (hysteresis 2°C)

11) Options → 0%

25%

50%

75%

100%

T 1°C

T 2°C

T 3°C

No room effect programmed

Modulation of room temperature based 25% on room temperature and 75% on outside temperature.

Modulation of room temperature based 50% on room temperature and 50% on outside temperature.

Modulation of room temperature based 75% on room temperature and 25% on outside temperature.

Modulation of room temperature based 100% on room temperature.

If the required room temperature is exceeded by 1°C the heating circuit pump is switched off.

If the required room temperature is exceeded by 2°C the heating circuit pump is switched off.

If the required room temperature is exceeded by 3°C the heating circuit pump is switched off.

12) A higher heating characteristic figure produces a higher required flow temperature at the same outside temperature

13) If the temperature drops below the set temperature during the low-temperature phase, the boiler heats to the required night-time temperature.

14) The set outside temperature is exceeded during the heating phase, the heating circuits are switched off.

6.3.2 Hot

menu (User)

BS-06-03-02-00-01-BAEN

The Hot Water menu allows you to enter the settings for the various domestic hot water circuits.

15)

16)

17)

18)

15) Options → Auto

Off

Hot water circuit control status

Facility for setting hot water charging times

Facility for setting summer hot water charging times

Facility for setting required hot water temperature

Facility for setting hot water priority

Charging pump is switched ON/OFF according to demand and timer programme.

The charging pump is switched off.

Constant The charging pump runs continuously

16) All charging times programmed in the "DHW timer programme" are active when the programme is set to "Normal".

17) All charging times programmed in the "DHW summer timer programme" are active when the programme is set to "Hot Water".

18) Options → No

Yes

During charging of DHW cylinder, heating circuits can be enabled.

During charging of DHW cylinder, heating circuits cannot be enabled (factory setting = recommended).

18

POWERCHIP Operating Instructions

6.3.3 Heating

menu (User)

BS-06-03-03-00-01-BAEN

The Thermal Store HP0 menu allows you to enter settings for thermal store management.

19)

20)

21)

19) Options

Status of special output HP0

Facility for setting thermal store charging programme

Facility for setting thermal store charging times

Auto

Facility for setting the thermal store required temperature

→ Sensor (T3)

Facility for setting the thermal store minimum temperature

→ Sensor (T3)

Thermal store pump is switched ON/OFF according to demand and timer programme.

Off The thermal store pump is switched off

Constant The thermal store pump runs continuously

20) Options → Full

Part

The thermal store is fully charged

Charging switches off when the required thermal store temperature at T3 is reached and also the required thermal store temperature minus the parameter TSbtm-Boff (-10°C) is reached at T2

The thermal store is partially charged

Charging switches off when the required thermal store temperature is reached at T3 (= parameter TS top-B off)

21) Thermal store only charged during charging times enabled in "Thermal store timer programme"

6.3.4 Boiler

menu (User)

PH-06-03-03-00-01-BAEN

On the Boiler Cascade Parameters menu (only visible on boiler "A") you can make settings for sequential boiler control.

Second boiler in the cascade system = boiler "B", third boiler = boiler "C", etc. Boiler "A" must be at address "0" on the router module, boiler "B" at 1, boiler "C" at 2, etc. After reassigning addresses on the router module, the boilers have to be disconnected entirely from the power supply. Only after that are the settings activated on the boiler.

22)

For setting time until boiler changeover

→ 0h = no boiler changeover

For setting time delay before second-stage boiler cuts in

Min. output of 1st stage for cut-in of 2nd stage after delay

Max. output of all stages for cut-out of last stage to cut in

For setting time delay before third-stage boiler cuts in

Min. output of all stages for cut-in of 3rd stage after delay

Max. output of all stages for cut-out of last stage to cut in

For setting time delay before fourth-stage boiler cuts in

Min. output of all stages for cut-in of 4th stage after delay

Max. output of all stages for cut-out of last stage to cut in

For setting time delay before cut-in of EXT boiler stage

Min. output of all stages for cut-in of EXT stage after delay

Max. output of all stages for cut-out of last stage to cut in

Facility for switching off external boiler stage

→ OFF = Ext. boiler stage is switched off

For setting cut-out hysteresis for external boiler stage

22) Example Boiler cascade system with one biomass boiler and one external boiler

10% The external boiler is switched off as soon as the biomass boiler is running at only 90% of its possible total output of 100%

50% The external boiler is switched off as soon as the biomass boiler is running at only 50% of its possible total output of 100%

Example 2: Boiler cascade system with two biomass boilers and one external boiler

→ 10%

50%

The external boiler is switched off as soon as the biomass boilers are running at only 180% of their combined possible total output of 200%

(Possible total output of biomass boilers = 200% minus 2 x 10% for two boilers = 180%)

The external boiler is switched off as soon as the biomass boilers are running at only 100% of their combined possible total output of 200%

(Possible total output of biomass boilers = 200% minus 2 x 50% for two boilers = 100%)

19

POWERCHIP Operating Instructions

6.3.5 User

menu (User)

23)

24)

23) Options

24) Options

PH-06-03-04-00-01-BAEN

Depending on the system configuration, the menus may contain different items.

AUTO

OFF

Menu option Ash emptied

→ Press "YES" to confirm after emptying ash box

Maximum time in hours until ash warning is triggered

→ 0h = Ash warning deactivated

For selecting fuel setting

→ Sets the type of fuel being used

Boiler enabling options

Manual filling of outfeed auger

→ A1 + G1

For activating testing programme

Menu language setting

Boiler enabling dependent on enabling switch 22/23 on the boiler circuit board

(Enabling switch closed > Burner active on demand, heating circuit controller active)

(Enabling switch open > Burner off, heating circuit controller active)

Boiler not enabled regardless of enabling switch 22/23 on the boiler circuit board

(Enabling switch closed > Burner off, heating circuit controller active)

(Enabling switch open > Burner off, heating circuit controller active)

CONSTANT Boiler permanently enabled regardless of enabling switch 22/23 on the boiler circuit board

(Enabling switch closed > Burner active on demand, heating circuit controller active)

(Enabling switch open > Burner active on demand, heating circuit controller active)

OFF

ON

Flue gas testing function switched off

Flue gas testing function switched on

6.3.6 Detail

menu (User)

BS-06-03-05-00-01-BAEN

All possible system operating statuses, sensor readings and switch conditions can be queried in Detail View. No settings can be made on this menu. Its primary purpose is to aid telephone diagnosis of possible fault causes and to assist the

GUNTAMATIC engineer with fault rectification.

6.3.7 Date/Time

menu (User)

BS-06-03-06-00-01-BAEN

20

POWERCHIP Operating Instructions

6.4 Service

(Expert)

BS-06-04-00-00-01-BAEN

CODE entry required.

Changes to the settings on the Service Level may only be made with the agreement of GUNTAMATIC or an authorised

GUNTAMATIC engineer.

Service menu Reset data

Caution: All system settings may be lost.

Service menu Fault screen

→ Fault memory

Service menu Test program

→ Function test of all system components

Service menu Commissioning

→ Activation of all system components

Service menu HC0 Parameters

→ Parameters for HC0

Service menu HC1 Parameters

→ Parameters for HC1

Service menu HC2 Parameters

→ Parameters for HC2

Service menu DHW0 Parameters

→ Parameters for DHW cylinder 0

Service menu HP0 Parameters

→ Parameters for HP0

Service menu System settings

→ System parameters

6.4.1

Service menu

Reset Data

(Expert)

BS-06-04-01-00-01-BAEN

Caution:

If the service menu option "Reset Data" is incorrectly used, reconfiguration of the entire system may be necessary.

25)

26)

For importing stored customer data if necessary

For saving changes to system configuration in customer data

Imports only the modified parameters of a new software version

For resetting duty hours counter is to 0

For resetting service interval timer to 0

Loads factory settings

→ The system then has to be reconfigured!

For resetting calibration after replacing the oxygen sensor

25) After a change of software version, only those parameters that have changed or been added in the new version are imported.

26)

Caution:

All system settings including hours of duty and service interval timer readings are lost;

→ after a controller reset, the system is in the as-delivered condition;

→ the system then has to be reconfigured;

6.4.2

Service menu

Error List

(Expert)

BS-06-04-02-00-01-BAEN

Plain-language fault messages are displayed showing date and time of occurrence

21

POWERCHIP Operating Instructions

28)

31)

30)

27)

32)

29)

28)

29)

28)

28)

28)

29)

28)

29)

30)

27)

27)

6.4.3

Service menu

Begin Service

(Expert)

BS-06-04-03-00-01-BAEN

All system components present can be programmed and activated from the service menu Commissioning.

For setting boiler type

For setting boiler output

→ stated on rating plate

For setting outfeed system type

For activating feed auger

→ available as an option

Only activated if a grain lining is fitted

→ available as an option

For activating automatic ash removal

→ available as an option

For setting fuel type

For activating heating circuit controller 0

→ CAN bus = external wall controller

For activating DHW cylinder 0

For setting the DHW charging time

→ for NORMAL programme

For setting the DHW charging time

→ for HOT WATER programme

For setting required hot water temperature

For setting hot water priority

For activating heating circuit 0

For activating heating circuit 1

Enabling temperature for Heating circuit 1

For setting maximum flow temperature for heating circuit 1

Setting for heating characteristic for heating circuit 1

For setting heating times for heating circuit 1

For activating room stat or room controller for heating circuit 1

For activating heating circuit 2

Enabling temperature for Heating circuit 2

For setting maximum flow temperature for heating circuit 2

Setting for heating characteristic for heating circuit 2

For setting heating times for heating circuit 2

For activating room stat or room controller for heating circuit 2

For activating supplementary function 0

For activating heating circuit controller 1

→ wall controller

For activating DHW cylinder 1

For setting the DHW charging time

→ for NORMAL programme

For setting the DHW charging time

→ for HOT WATER programme

For setting required hot water temperature

For setting hot water priority

For activating heating circuit 3

Enabling temperature for Heating circuit 3

For setting maximum flow temperature for heating circuit 3

Setting for heating characteristic for heating circuit 3

For setting heating times for heating circuit 3

For activating room stat or room controller for heating circuit 3

For activating heating circuit 4

Enabling temperature for Heating circuit 4

For setting maximum flow temperature for heating circuit 4

Setting for heating characteristic for heating circuit 4

For setting heating times for heating circuit 4

For activating room stat or room controller for heating circuit 4

For activating heating circuit 5

For activating district heating pipe function on HCC 1

For activating supplementary output 1 on HCC 1

For activating heating circuit controller 2

→ wall controller

For activating pump output HP0

22

POWERCHIP Operating Instructions

33)

27) Options → No

HCC 1-2 only

Yes

HCC 0 only

HCC 0 only

CAN bus

SY bus

Assignment of thermal store sensor

Manual filling of outfeed auger

→ A1 + G1

For saving user parameters after system configuration

28) Options

29) Options

Heating circuit controller is not activated

Heating circuit controller is activated → external heating circuit controller (wall controller)

Heating circuit controller is activated → external heating circuit controller (wall controller)

Heating circuit controller is activated → internal heating circuit controller

Heating circuit is deactivated

The heating circuit pump will be controlled by the timer programme

The heating circuit pump and the mixer valve will be controlled by the timer programme

No room stat connected

Analogue room stat is connected

Digital room controller is connected (facility for setting all heating circuits)

Digital room controller is connected (facility for setting assigned heating circuit only)

Digital room controller is connected (facility for setting one heating circuit controller) function controller if heating circuit 0 is set to no function by selecting "None"

*

External heating circuit controller the "Supplementary 0" can only be activated on the external heating circuit controller if heating circuit 0 is not set to "Mixed heating circuit"

Options

HWP

External

An additional DHW cylinder is activated

Heat from an external boiler (e.g. oil boiler) can be requested using the Cascade function

31) Options

None

Pump

Mixer

None

RFF

RS Full

RS HC

RS HCC

32) Options

33) Options

FP

TSP

CP

The district heating pipe function is controlled as a feeder pump (for setting see plumbing diagram)

The district heating pipe function is controlled as a thermal store pump (for setting see plumbing diagram)

The district heating pipe function is controlled as a charging pump (for setting see plumbing diagram)

F pump Pump HP0 is operated as a feeder pump (only activate with heating circuit controller)

Th/store pump Pump HP0 is operated as a thermal store pump (only activate with thermal store)

Pump Pump HP0 is operated as a pump (only activate without heating circuit controller)

Boiler

HCC 0

HCC 1

HCC 2

The sensors of thermal store HP0 are connected to the boiler circuit board

The sensors of thermal store HP0 are connected to heating circuit controller 0 (external wall controller)

The sensors of thermal store HP0 are connected to heating circuit controller 1 (external wall controller)

The sensors of thermal store HP0 are connected to heating circuit controller 2 (external wall controller)

23

POWERCHIP Operating Instructions

6.4.4

Service menu

Heating Circuit/Screed Drying Programme Parameters

(Expert)

BS-06-04-04-00-01-BAEN

34)

Options for setting the heating circuit and screed drying parameters:

Heating circuit operating status

Room stat setting

For setting mixer valve running time

For setting minimum flow temperature

For setting maximum flow temperature

For setting boiler overcompensation

→ added to required temp. = required boiler temp.

Enabling temperature for Heating circuit 1

For setting heating characteristic parallel shift

For activating screed drying programme

Screed prog.

For setting the flow temperature increment

Screed prog.

For setting time until next flow temperature increase

Screed prog.

For setting minimum flow temperature

Screed prog.

For setting maximum flow temperature

Screed prog.

For setting holding time for maximum flow temperature

Screed prog.

For starting the screed drying programme

CAUTION: The screed drying parameters must be set in consultation with the floor layer.

Maintaining the specified temperatures is not possible in modulating control mode but only when using automatic mixer valves. Maintenance of the specified temperatures cannot be

100% guaranteed – due to various safety circuits and special boiler functions, in exceptional cases the temperatures can be significantly exceeded. If that is a problem in terms of damage to building work, the screed drying function should be operated manually.

34) After activation of the screed drying programme, the menu expands to reveal the screed programme parameters.

6.4.5

Service menu

Hot water parameters

(Expert)

Facility for setting hot water parameters

BS-06-04-05-00-01-BAEN

35)

Hot water circuit operating mode

Facility for setting hot water hysteresis

→ Hot water cylinder recharging

Enabling temperature for cylinder charging pump

→ CCP 0

For setting boiler overcompensation

→ added to required temp. = required boiler temp.

35) If the temperature in the hot water cylinder falls 10°C (hysteresis) below the required temperature, the hot water cylinder is heated up again; the precondition is that the charging time is enabled in the timer programme on the "Hot water" menu.

24

POWERCHIP Operating Instructions

6.4.6

Service menu

HP0 parameters

(Expert)

PH-06-04-06-00-01-BAEN

Facility for setting the parameters for special output HP0

36)

37)

38)

Operating status of special output HP0

Enabling temperature for special output HP0

For setting for thermal store top charging ON temperature

For setting for thermal store top charging OFF temperature

For setting for thermal store bottom charging OFF temperature

Facility for setting district heating pipe temperature loss

For setting temperature difference between boiler and bottom of thermal store

Thermal store sensor assignment for thermal store HP0

36) Function TS top charge ON The boiler is started up when the thermal store temperature falls below the maximum temperature required by the heating circuit controller minus the temperature set in the parameter

"TS top charge ON"

Example: Maximum temperature required by heating circuit controller

Setting for "TS top charge ON" = 6°C

= 55 °C

The boiler starts up when the temperature at the thermal store top sensor (T3) is 49°C

37) Function TS top charge OFF With the partial charging programme the boiler is shut off when the temperature at the thermal store top sensor (T3) reaches the thermal store required temperature plus the temperature set for the parameter "TS top charge OFF"

Example: Required thermal store temperature

Setting for "TS top charge OFF"

= 70°C

= 5°C

The boiler is shut off when the temperature at the thermal store top sensor (T3) is 75°C

38) Function TS btm charge OFF With full charging programme, the boiler is shut off as soon as the temperature at the bottom of the thermal store (T2) only differs from the temperature at the top of the thermal store (T3) by the amount set for the parameter "TS btm charge OFF"

Example: Temperature at top of thermal store (T3) = 70 °C

Setting for parameter "TS btm-B off" = -10 °C

The boiler is shut off when the temperature at the thermal store bottom sensor (T2) is 60°C

25

POWERCHIP Operating Instructions

6.4.7

Service menu

District heating pipe parameters ZUP

(Expert)

PH-06-04-08-00-01-BAEN

Set the correct district heating pipe function according to the details in the plumbing diagrams.

Operating status of district heating pipe function

Facility for setting district heating pipe temperature loss

6.4.8

Service menu

District heating pipe parameters PUP

(Expert)

PH-06-04-09-00-01-BAEN

Set the correct district heating pipe function according to the details in the plumbing diagrams.

36)

37)

38)

Operating status of district heating pipe function

Facility for setting district heating pipe enabling temperature

For setting for thermal store top charging ON temperature

For setting for thermal store top charging OFF temperature

For setting for thermal store bottom charging OFF temperature

Facility for setting district heating pipe temperature loss

For setting temperature difference between boiler and bottom of thermal store

6.4.9

Service menu

District heating pipe parameters LAP

(Expert)

PH-06-04-10-00-01-BAEN

Set the correct district heating pipe function according to the details in the plumbing diagrams.

36)

37)

38)

Operating status of district heating pipe function

Facility for setting district heating pipe enabling temperature

For setting for thermal store top charging ON temperature

For setting for thermal store top charging OFF temperature

For setting for thermal store bottom charging OFF temperature

Facility for setting the supplying thermal store (source thermal store)

Facility for setting district heating pipe temperature loss

For setting temperature difference between boiler and bottom of thermal store

26

POWERCHIP Operating Instructions

6.4.10

Service menu

System settings

(Expert)

PH-06-04-07-00-01-BAEN

Facility for setting special boiler and system parameters

39)

40)

For setting system type

→ stated on rating plate

For setting boiler type

→ stated on rating plate

Facility for setting fuel outfeed type

For setting speed ratio of A1/G1 when fuel set to pellets

For setting speed ratio of A1/G1 when fuel set to barley

For setting speed ratio of A1/G1 when fuel set to triticale

For setting speed ratio of A1/G1 when fuel set to woodchips

For setting speed ratio of A1/G1 when fuel set to miscanthus

Facility for activation if feed auger A2 used

Facility for activating grain lining

→ only allowed if actually fitted

Facility for activating automatic ash removal

Facility for activating fill-level sensor 1

→ option for storeroom monitoring

Fuel spout activation/deactivation

Facility for activating boiler cascade

→ sequential boiler control

Facility for setting grate drive type

Facility for setting flue draught fan control

Facility for activating heating circuit controller 0

Facility for activating heating circuit controller 1

Facility for activating heating circuit controller 2

Outside-temperature sensor activation/deactivation

Facility for setting oxygen sensor type

Facility for setting oxygen sensor heater control

For activating oxygen sensor calibration

Facility for manual entry of oxygen sensor compensation

Facility for setting oxygen sensor characteristic

→ only during "Controller" mode

Facility for setting BT compensation

Facility for activating monitoring mode

Facility for data recording on SD memory cards

Facility for reading data from SD memory cards

For querying manufacturer code

Network activation option

Activates all pumps once a week for the set amount of time

If boiler or thermal store temperature exceeded

→ switches all heating circuits on

HP0 pumps continue running until temperature at boiler is below set temperature

If the outside temperature falls below "HCP A/F outside", the heating circuit pumps start running

"HCP A/F Flow" = Required flow temperature

→ only in "OFF" mode

Raises boiler temperature until STL trips

→ only in "Controller" mode

Activation/Deactivation of fault messages

→ CAUTION – do not change!

Activation/Deactivation of fault messages

→ CAUTION – do not change!

Activation/Deactivation of fault messages

→ CAUTION – do not change!

Descriptions of the fault messages can be found in the section

Information/Fault messages

39) Options

40) Options

Auto

Constant

The oxygen sensor heater is switched on/off according to operating mode

The oxygen sensor heater is permanently switched on

(Oxygen sensor heater does not switch off until boiler has been in "OFF" mode for more than 50h)

Terminal

DAQ

Data querying via Windows hyper terminal/display

Data querying via online recorder (only usable at factory)

GSM module Data querying, information messages and boiler control via GSM module

27

POWERCHIP Operating Instructions

BS-07-00-00-00-01-BAEN

7.1 Activating a heating programme

BS-07-01-00-00-01-BAEN

To activate the "NORMAL" programme, proceed as set out below, step by step:

1) → Press the "House level" button

The programme currently selected, "Off", is shown in the header

2) → Press the "Normal" button

The new programme selected, "Normal", is now shown in the header

3) → Press the "Info" button

4) → The "Normal" programme is now shown on the "Status information" screen

After activating the "NORMAL" heating programme, check the selected programme on the "Status information" screen. As soon as heat is called for and there is sufficient heat in the thermal store, the heating circuits start up fully automatically.

28

POWERCHIP Operating Instructions

7.2 Deactivating a heating programme

BS-07-02-00-00-01-BAEN

To set the "NORMAL" programme to "OFF", proceed as set out below, step by step:

1) → Press the "House level" button

The programme currently selected, "Normal", is shown in the header

2) → Press the "Off" button

The new programme selected, "Off", is now shown in the header

3) → Press the "Info" button

4) → The "Off" programme is now shown on the "Status information" screen

After deactivating the "NORMAL" heating programme, check the selected programme on the "Status information" screen.

29

POWERCHIP Operating Instructions

7.3 Setting a timer programme

BS-07-03-00-00-01-BAEN

The heating circuits/charging pumps can only be called into action during the times enabled in the timer programme.

The example set out below illustrates programming the timer programme for heating circuit 1:

1) → Press the "House level" button

2) → Press the "User level" button

3) → Press the "Heating circuit 1" button

4) → Press the "Timer programme 1" button

5) → Press the button for the day of the week to be set

6) → Press the "ON" or "OFF" time to be altered

7) → Use the and buttons to set the time

8) → To save the setting, press the button

en

BS-07-03-01-00-01-BAEN

En bloc programming can be used to programme the same on and off times for every day of the week.

To activate programming en bloc, press the same weekday button twice in

succession

; all days are then highlighted and can be programmed collectively to the same times

30

POWERCHIP Operating Instructions

7.4 Changing the heating characteristic

BS-07-04-00-00-01-BAEN

The heating circuits/charging pumps can only be called into action during the times enabled in the timer programme.

The example set out below illustrates programming the heating characteristic for heating circuit 1:

1) → Press the "House level" button

2) → Press the "User level" button

3) → Press the "Heating circuit 1" button

4) → Press the "Heating characteristic 1" button

5) → Use the and buttons to set the heating characteristic

6) → To save the setting, press the button

Heating characteristic graph

80

70

60

50

40

30

20

20 15 10

3,5 3,0 2,5

5 0 -5

Außentemperatur [°C]

2,0

-10 -15

1,5

1,0

0,5

-20

31

POWERCHIP Operating Instructions

7.5 Changing the required hot water temperature

BS-07-05-00-00-01-BAEN

You can change the required hot water temperature on the

Hot Water menu.

The example set out below illustrates programming the required temperature for DHW cylinder 0:

1) → Press the "House level" button

2) → Press the "User level" button

3) → Press the "DHW cylinder 0" button

4) → Press the "DHW required temp 0" button

5) → Use the and buttons to set the required temperature

6) → To save the setting, press the button

32

POWERCHIP Operating Instructions

7.6 Analogue room stat

BS-07-06-00-00-01-BAEN

If your system is fitted with an outside-temperature based heating circuit controller, each heating circuit can be equipped with an analogue room stat if desired.

The control knob on the room stat allows adjustment of the required room temperature preset on the Heating Circuit menu. Setting the control to a position in the positive range (+) raises the room temperature by up to 3°C. Setting it to a position in the negative range (–) lower lowers the room temperature by up to 3°C.

Note:

This means that the room temperature shown in the Detail View will be inaccurate. The room temperature shown will only match the actual temperature when the control knob is in the centre position. mode temperature phase, the outside temperature falls below the temperature set in the parameter

"Night OFF OT", the system heats to the room temperature set in the parameter "Night-time

Required Temperature".

Normal: Heating and low-temperature modes on as per timer programme

Heating: Continuous heating to "Required Daytime

Temperature"

Connection

- 1.5m. The most effective room is the one that is most frequently occupied. In that room, the radiators must not be fitted with thermostatic radiator valves (valves must be fully turned on).

Note:

The room stat should not be fitted in a position where it will be exposed to warm sunshine or the heat from a stove.

Pull off the control knob from the front, undo the fixing screw and remove the casing from the front.

Wire the room stat to terminals 1 and 2.

7.7 Digital room controller

BS-07-07-00-00-01-BAEN

An instruction manual is supplied with the room controller.

A maximum of 3 room controllers can be connected to the system.

Connection is established via the CAN bus.

33

POWERCHIP Operating Instructions

8 Operating the heating system

BS-08-00-00-00-01-BAEN

8.1 Starting up/Shutting down the system

BS-08-01-00-00-01-BAEN

BS-08-01-00-01-01-BAEN

Initial Initial commissioning and basic adjustment of the system may only be carried out by GUNTAMATIC engineers or authorised

GUNTAMATIC agents.

BS-08-01-00-02-01-BAEN

Restarting Before starting up the system again in the autumn/winter, carry out the annual check of the control and safety systems to ensure they are safe and functional. We recommend that you take out a maintenance contract so that the system operates safely and economically.

BS-08-01-00-03-01-BAEN

Day-to-day Clean the heating system precisely according to the instructions in the section Cleaning/Care. The amount of cleaning work required is heavily dependent on the quality of the fuel used and lower-quality fuels may necessitate more cleaning work.

BS-08-01-00-04-01-BAEN

Shutting down the system The system only needs to be shut down at the end of the heating season, if faults occur or in order to refill the fuel store.

To do so, set the system to the programme "OFF" and allow it to cool down for approx. 120 minutes. The system can then be shut down.

If the system is not used for extended periods (summer) also isolate it from the power supply by disconnecting the mains plug in order to prevent unnecessary lightning damage.

system

Checking system pressure

BS-08-02-00-00-01-BAEN

BS-08-02-00-01-01-BAEN

The operating pressure is normally between 1 bar and 2.5 bar.

If the system pressure is too low, malfunctions may result. If necessary top up the water in the heating system.

Note Completely draining and refilling the system or topping up a system filled with anti-freeze or treated water must only be carried out by a heating engineer.

Topping up the heating system water

 The heating system water must be cold when topping up

→ make sure the heating system water temperature is below 40°C.

 Add water slowly until the required system pressure is indicated on the system pressure gauge.

 Bleed the heating system.

 Check the system pressure again and add more water if necessary.

SY-08-02-00-01-01-BAEN

Firmly press in the red knob on the relief valve: → cools the boiler using water from the domestic water system if the boiler overheats; → in the event of malfunctions or leaks, call in your installer or heating engineer.

34

POWERCHIP Operating Instructions

PH-08-02-00-01-01-BAEN

Firmly press in the red knob on the sprinkler: → extinguishes burn-back in the outfeed unit; → in the event of malfunctions or leaks, call in your installer or heating engineer.

Manual fire extinguisher (MFE) Check outfeed unit

PH-08-02-00-02-01-BAEN

BS-08-02-00-02-01-BAEN

Turn the red knob on the safety set; → check for leaks and correct operation; → in the event of malfunctions or leaks, call in your installer or heating engineer.

BS-08-02-00-03-01-BAEN vessel If there are large pressure fluctuations between when the heating system is hot and cold, check the charge pressure in the expansion vessel; → in the event of malfunctions or leaks, call in your installer or heating engineer.

Check that the air supply vents/ducts are clear.

BS-08-02-00-04-01-BAEN

8.3 Fuel

BS-08-03-00-00-01-BAEN

To ensure trouble-free heating with the boiler, the fuel must be of the right quality.

PH-08-03-00-01-01-BAEN

Your GUNTAMATIC heating system is designed for burning

G30 woodchips with a max. moisture rating of W30, and pellets. With the optional lining for grain/miscanthus, the fuels barley, triticale and miscanthus can also be burned.

Our systems can handle fuels with a water content of up to

30% (W30). However, it does not make sense to burn fuels with a significant moisture content as a considerable proportion of the energy has to be used to evaporate the water in the fuel. The amount of ash produced in practical terms essentially depends on how clean the fuel is. With woodchips, the fine ash component increases with higher proportions of rotting wood, needles, etc.

Note:

Dust emission from the flue is related to the quality of the fuel.

Dry fuels enable substantially greater levels of efficiency.

35

8.4 Fuels

8.4.1 Woodchips

POWERCHIP Operating Instructions

BS-08-04-00-00-01-BAEN

PH-08-04-01-00-01-BAEN

Woodchips are made from waste wood from forestry work or from trees. After felling, chipping wood should be left to season for at least one summer in an airy and sunny location.

In sunny spots, the wood can be left lying on the ground among needles so as to make use of the moisture-absorbing effect of the needles. The wood seasoned for at least a few months is shredded into woodchips of the required size by special shredding machines.

Make sure that the average woodchip size of 3 cm (G30) is not exceeded as otherwise the auger conveyors may jam or be noisy in operation. Long thick strips of wood can cause problems on the fuel outfeed system and loss of heat output.

1 cu m bulk volume

1 cu m bulk volume

1 cu m bulk volume

1 cu m bulk volume

1 cu m bulk volume

Spruce

Pine

Larch

Oak

Beech

750 kWh

880 kWh

960 kWh

1050 kWh

1050 kWh

W20 air dried

W30 suitable for storage

W35 restricted suitability for storage

W40 damp (not suitable for storage)

W50 freshly harvested (not suitable for storage)

Water content

< 20%

>20% <30%

>30% <35%

>35% <40%

>40% <50%

Equivalence

120%

110%

100%

85%

65%

Properties

Calorific value

Bulk weight

Woodchip size

Primary energy factor

3.3 – 4.0 kWh/kg

180 kg – 270 kg/cu m bulk volume

G30, up to 30 mm fP = 0.2

36

8.4.2 Pellets

POWERCHIP Operating Instructions

BS-08-04-01-00-01-BAEN

There are a number of points to observe when ordering wood pellets in order to ensure that they are of perfect quality.

Reliable and trouble-free operation of the boiler and the conveying systems can only be guaranteed with high-quality pellets. Therefore we strongly advise that only quality-assured products are used that are guaranteed as such by the manufacturer.

Important quality criteria

Properties

8.4.3 Grain

Properties

 Surface should be shiny and very hard

 No additives or binding agents

 The ideal length is 20 mm

The price should always be a secondary consideration after the quality criteria. If the required quality criteria are not met, problems with combustion or conveying, increased wear and pellet consumption can result. Therefore, you should not accept quality standards that do not meet the above requirements.

Calorific value

Bulk weight

Pellet size (length)

Pellet diameter

Water content

Ash content

4.9 kWh/kg

>650 kg/m³

5 - 30 mm

5 - 6 mm

8 – 10 %

< 0.5%

PC-08-04-01-00-01-BAEN

Advanced cultivation, harvesting and storage methods combined with optimum conveying and metering qualities make grain an economical and convenient fuel.

Fundamentally, all types of feed grain are suitable. The best suited to combustion are grain types with husks and a low protein nitrogen content such as triticale. As the fusion point of grain ash (clinker formation) is around 700°C (wood ash

1200°C), it is advisable to add approx. 0.3 - 0.5% by weight of slaked lime (calcium hydroxide Ca(OH)

2

) to the fuel before use for boilers with ratings up to 50 kW and 0.5 - 0.8% for boilers with ratings over 50 kW. That increases the calcium content of the fuel, thereby raising the ash fusion point.

Note: Must not be stored with a residual moisture content of more than 13%.

Calorific value

Bulk weight

Nitrogen content

Fusion point

Ash content

4.3 – 4.4 kWh/kg

650 – 680 kg/m³

1.4 – 1.6 %

750°C

2.2 – 2.4 %

4.5 – 4.6 kWh/kg

700 – 750 kg/m³

1.5 – 1.7 %

720°C

2.0 – 2.2 %

37

POWERCHIP Operating Instructions

8.4.4 Miscanthus

Properties

PH-08-04-02-00-01-BAEN

The dried straw is harvested annually from the 3rd year on from April to May using a forage harvester. The crop should have a maximum moisture content of 20% when harvested.

Miscanthus has to be stored dry. As the fusion point of miscanthus ash (clinker formation) is around 900°C (wood ash

1200°C), it is advisable to add approx. 0.3 - 0.5% by weight of slaked lime (calcium hydroxide Ca(OH)

2

) to the fuel before use for boilers with ratings up to 50 kW and 0.5 - 0.8% for boilers with ratings over 50 kW. That increases the calcium content of the fuel, thereby raising the ash fusion point.

Note: Miscanthus has to be stored dry.

W20 air dried

W30 suitable for storage

Water content

15%

>15% < 20%

Equivalence

100%

90%

Miscanthus

Calorific value 3.6 – 4.0 kWh/kg

Bulk weight

Fusion point

70 – 90 kg/cu m bulk volume

900°C

8.5 Fuel

BS-08-05-00-00-01-BAEN

As a general rule, wood pellets should be stored in absolutely dry storerooms. Those rooms can be fitted with pressure-filling and air extraction pipes (Type A/110/DIN14309/G4 ½") or be provided with a filling hatch and must be fire-rated to Class

F90. The fire door must be protected by removable wooden boards. The wall opposite the pressure-filling pipe is to be protected by a blast guard. Alternatively, the pellets can be stored in fabric hoppers or plastic outdoor tanks.

Note:

If pellets come into contact with water, they swell up and disintegrate.

Therefore, the storeroom must be absolutely dry.

38

POWERCHIP Operating Instructions

8.6 Filling/refilling the fuel store

BS-08-06-00-00-01-BAEN

BS-08-06-00-01-01-BAEN

Caution:

The heating system must be set to "Off" mode at least one hour before the fuel store is filled.

On no account must the fuel store be filled while the heating system is in operation!

First-time filling

Filling

Refilling

Maximum bulk storage height

PH-08-06-00-01-01-BAEN

When first filling the storeroom and every time it is refilled after being completely emptied, do not immediately fill the store completely.

The fuel store must be absolutely dry; otherwise the fuel cannot be stored in it. Fill the storeroom with fuel to a depth of

50 cm, spreading it evenly over the agitator and agitator arms.

Then select the option Fill Auger from the User menu and run the agitator briefly so that the agitator arms can retract under the agitator cover plate. The fuel storeroom can then be filled up to the maximum permissible bulk storage height.

Before filling, and especially before refilling, the condition of the storeroom/remaining fuel should be examined. Residual fuel should be completely used up and/or dust removed so that old fuel and dust does not accumulate over a period of years. Broken pieces of wall or plaster and foreign objects of any kind (pieces of wood, stone, metal, etc.) can cause faults and/or damage throughout the system.

Woodchips

Pellets

Grain fuel

Miscanthus

Note:

Caution:

max. 5.0 m bulk storage height max. 2.5 m bulk storage height max. 2.5 m bulk storage height max. 5.0 m bulk storage height

Failure to observe the above limit can result in damage to the agitator and the fuel outfeed unit.

All guarantee claims will then be void.

Risk of injury from rotating parts.

Only enter the store room when the system is switched off. Always shut off the power supply before entering.

39

POWERCHIP Operating Instructions

8.7 Combustion air setting

PH-08-07-00-00-01-BAEN

After every change of fuel or after the boiler has not been used for an extended period, the combustion air setting should be checked/reset.

The adjuster lever for the combustion air is located on the right above the right-hand ash box (see illustrations below).

The ratio of primary to secondary air is set according to the fuel using the lever.

Powerchip 20/30

 Woodchips

 Barley

Position 6-7 (> 25% moisture, position 7)

 Pellets

Position 6 (CO2 10-12% at 100% output)

 Miscanthus

Position 6 (CO2 10-12% at 100% output)

Position 8 (CO2 8-10% at 100% output)

 Triticale

Position 5 (CO2 8-10% at 100% output)

(Rod at hole 30)

40/50

 Woodchips

Position 6-7 (> 25% moisture, position 7)

 Pellets

Position 7 (CO2 10-12% at 100% output)

 Miscanthus

Position 6 (CO2 10-12% at 100% output)

 Barley

 Triticale

Position 8

Position 5

(CO2 8-10% at 100% output)

(CO2 8-10% at 100% output)

(Rod at hole 40)

50

 Woodchips

Position 6-7 (> 25% moisture, position 7)

 Pellets

Position 6 (CO2 10-12% at 100% output)

 Miscanthus

Position 6 (CO2 10-12% at 100% output)

 Barley

 Triticale

Position 8

Position 6

(CO2 8-10% at 100% output)

(CO2 8-10% at 100% output)

(Rod at hole 30)

75/100

 Woodchips

Position 4 (> 25% moisture, position 7)

 Pellets

Position 5 (CO2 10-12% at 100% output)

 Miscanthus

Position 5 (CO2 10-12% at 100% output)

 Barley

 Triticale

Position 8

Position 7

(CO2 8-10% at 100% output)

(CO2 8-10% at 100% output)

Setting the air adjuster on the front of the boiler on the right above the small ash box.

40

POWERCHIP Operating Instructions

the

Procedure

PH-08-08-00-00-01-BAEN

The ash boxes have to be emptied at intervals varying from every couple of days to 20 weeks depending on the amount of fuel used, its quality and heat output. The higher the ash content, the shorter the intervals at which the ash must be removed. This is especially the case with lower-quality fuels with a high ash content (e.g. bark) or a significant amount of foreign matter.

The accumulated ash obviously contains the residues of the fuel in concentrated form. If you only use environmentally safe fuels, the grate ash represents a high-quality mineral fertiliser.

Danger: Glowing embers can cause fires.

Only remove the ash from the boiler or store it in non-combustible containers.

Set the system to "Off" mode and wait until the status display changes to "Off" mode. Unlock the left grate ash box and pull it out to the front. You can then wheel the ash box easily to the emptying point by folding the handlebar upwards. The display on the boiler control panel shows the message "Burner door or ash box open (F01)".

Whenever you empty the grate ash box, please also check the fly-ash box for the heat exchanger cleaner on the right-hand side.

After emptying, replace both ash boxes and lock them in position. The message "Burner door or ash box open (F01)" disappears.

Please pay particular attention to ensuring that they are properly sealed.

On the Programme menu, set the system to the desired heating programme (Normal, Heating, etc.) and the system will start up again.

Resetting the ash warning If the ash warning appears on the display, it has to be reset on the "User" menu. To do so, go to the "User" menu and select the option "Ash emptied", change the setting to "YES" and press the "OK" button to confirm. The ash warning has now been reset to the maximum number of hours before it is next triggered. The time until the ash warning is issued is preset and can be adjusted to suit the fuel being used by selecting

"Ash Warning" on the User menu on the User Level.

41

POWERCHIP Operating Instructions

9 Cleaning/Care

BS-09-00-00-00-01-BADE

BS-09-00-00-01-01-BAEN

Note:

For safety reasons you must only carry out servicing and cleaning when the heating system is switched off and disconnected from the mains, and has cooled down.

Servicing work inside the fuel storeroom must only be carried out under the supervision of a second person, who must be outside the storeroom.

There is a risk that accumulation of carbon monoxide in the fuel storeroom could endanger your life.

In particular, you should follow the safety instructions in Section 2.

BS-09-00-00-02-01-BAEN

Cleaning The sophisticated cleaning system on a GUNTAMATIC heating system means that regular cleaning work is substantially reduced. All that is required is regular emptying of the ash.

Care

The flue must be regularly swept. At the same time, the flue connecting pipe, the flue gas box and the boiler heat exchanger should be cleared of fly-ash.

Depending on how dirty the boiler becomes (which is determined by the quality of the fuel burned), interim cleaning may be required, for which the precise procedure is described in the section "Interim cleaning".

Depending on the load on the heating system, complete cleaning – for which the precise procedure is described in the section "Complete cleaning" – may be required twice a year but should be carried out at least once a year.

If the heating system is subject to exceptionally high loads, more extensive cleaning may be required.

BS-09-00-00-03-01-BAEN

If the casing panels or the controls become dirty, they are best cleaned with a soft, damp cloth. Use only gentle, solvent-free cleaners to dampen the cloth. On no account should solvents such as alcohol, white spirit or thinners be used as they will attack the surface of the boiler.

9.1 Cleaning the fuel store

BS-09-01-00-00-01-BAEN

The fuel outfeed auger and the fuel store must be completely emptied (vacuumed out) at least once every 3 years so as to prevent problems with the outfeed system due to dust accumulation.

42

9.2 Interim

A

C

D

D

E

H

B

F G

POWERCHIP Operating Instructions

PH-09-02-00-00-01-BAEN

Interim cleaning must be carried out at intervals of between 1 week and 3 months depending on the fuel burned, the quantity of fuel used and how dirty the boiler is, and involves the following steps:

1. Set the system to the programme "OFF" (see User settings) and allow it to cool down for at least 1 hour.

2. Remove ash from stepped grate (A) using a fire tool.

3. On the User menu, start the function "Clean grate" (see

Section ) and allow the stepped grate (A) to clean itself for a few minutes.

Caution: Risk of injury from moving parts.

Do not carry out any other cleaning operations while the Clean Grate function is active.

4. Clean out the air slots (D) in the grate using a small flatbladed implement such as a screwdriver (E) to clear them of combustion residue.

5. Check and clean the top air vents (B)

(only on systems with outputs > 50 kW).

6. Check that the fuel spout (C) moves freely (move up and down several times).

7. Pull out the ash boxes on the left (F) and right (G) and empty them.

8. Refit and fasten the ash boxes.

9. Unscrew the inspection cover (H) and remove the ash from underneath the grate.

10. Close and tightly reseal firebox door, ash boxes and inspection cover.

11. Reactivate boiler programme, e.g. "NORMAL".

43

9.3 Complete

M

J

G

G

K

M N

O

P

H

L

Q

I

POWERCHIP Operating Instructions

PH-09-03-00-00-01-BAEN

Depending on the load on the system, complete cleaning may be required twice a year but should be carried out at least once a year.

All of the operations described in the section "Interim cleaning" are to be carried out. In addition, complete cleaning also requires the operations listed below.

1. Set the system to the programme "OFF" and allow it to cool down for at least 2 hours.

2. Unplug the flue draught fan (G), lift up and remove the cover panel (H) of the flue draught fan, unscrew the wingnuts on the flue gas box and remove the flue draught fan

(G). Lift up and remove the flue gas box adjuster plate (I).

Check the fan blade for dirt and clean if necessary.

3. Pull out the locking pin (J) of the heat exchanger cleaning mechanism and pull out the lower end plate (L) of the helix baffles by a distance of 1 cm. Open the heat exchanger inspection cover on the top of the boiler and remove the helix baffles (M) from above.

4. Clean out the heat exchanger tubes (N) using the tube brush supplied, then clean all fly-ash from the top of the heat exchanger (O) and the flue gas box (K).

5. Pull the flue gas sensor (Q) out of the flue connecting pipe, clean it and refit it.

6. Clean the oxygen sensor (P) in the flue pipe socket from the inside using a vacuum cleaner, then brush it with a fine brush and vacuum it once again. On the outside of the flue pipe socket, check that the oxygen sensor is firmly fitted (must not be loose) using a size 22 openended spanner. If the sensor is loose, carefully tighten it.

7. Carefully reassemble and refit the boiler components removed and check that all inspection covers are 100% leak-tight.

8. Reactivate boiler programme, e.g. "NORMAL".

9.4 Cleaning at end of heating season

PH-09-04-00-00-01-BAEN

If you shut down the boiler for an extended period in the summer months, complete cleaning must be carried out.

Afterwards, all metallic components of the firebox, heat exchanger and flue gas box must be sprayed with an oilbased corrosion-proofing spray.

44

POWERCHIP Operating Instructions

PH-10-00-00-00-01-BAEN

Control panel cannot be switched on

Smoke escaping into boiler room

Heat output too low

Detonation

Overheating

Fault code F04

STL tripped

Fault Cause/Function

Difficult to limit output

 Power blown

Flue pipe leaking

Flue draught regulator unfavourably positioned

Flue not clear or not providing any draught very

Heating system inadequately balanced

Boiler priority active

Flue draught in chimney flue too low

Detonation is only possible if the firebox is overfilled.

Flue draught is too great

Wide demand fluctuations on the part of heating system components

The amount of heat produced cannot be dissipated – it may be that a heating pump has failed or is not running.

Carry out complete cleaning

Balance heating system and heating pumps

Wait until boiler charging has finished or deactivate boiler priority

Increase flue draught in chimney flue if necessary

Remedy

Check external mains plug and/or power supply lead between circuit boards

Check fuse in supply lead and on the control panel circuit board leaks

 Consult flue

Carry out complete cleaning or consult engineer if necessary

Re-adjust flue draught regulator

Stagger heating system component demand over time

Drive motor too noisy

Fan too noisy

Fan is dirty

Fan or blades loose

Noise created by bends or rigid connecting pipe junctions with chimney flue

 Fan

Ensure heat dissipation by switching on pumps, opening mixer valve or turning on hot water taps.

The cause of the boiler overheating must be identified (if it happens frequently a heating engineer should be called in).

Check fuses on the boiler circuit board

If necessary, place the adjustable feet of the boiler on rubber pads fan cause

 Fit

 Order

45

POWERCHIP Operating Instructions

11 Information/Fault messages

PH-11-00-00-00-01-BAEN

No. Category Origin Message Cancellation

F01 Note

F03 Fault

F04 Fault

F05 Fault

Input TKS1 open longer than "t safe" (door switch)

CO2 check: in "control mode" after time parameter "t reignition" if CO2 is < "CO2 safe" for longer than "t safe min"

Boiler temperature BTactual >

"BTW"

Flue gas check in "control mode" after time param. "X25" if

FGT actual + 0.5xBT actual <

"FGTb" - "FGT safe" for longer that "t safe min"

(when output betw. 30 and

100%)

Firebox door or ash box open

(F01)

Combustion fault

Check fuel, grate or air vent

(F03)

Boiler temperature too high. Check flue draught and boiler sensor.

(F04)

Combustion fault

Check fuel, grate or air vent

(F05)

Automatic

Reset

Reset

Reset

button

button

button

Door switch defective, connector faulty, door or ash box open

No fuel, incorrect air setting, incorrect flue draught, defective oxygen sensor

Boiler or pump malfunction, boiler sensor defective

No fuel, incorrect air setting, incorrect flue draught, defective flue gas sensor

F06 Fault

F07 Fault

F08 Note

Fuel spout "ON" for longer than param. "T overfill"

Firebox overfilled

Check ash box, fuel spout.

(F06)

After 2 reignition cycles another reignition condition is present within time window "t reignition" from start of control cycle

Inactive

Ignition not possible.

Check fuel

(F07)

Reset

button

Ash box full, fuel spout sticking, oxygen sensor defective

Reset

button

No fuel, ignition fan defective, incorrect air setting, defective oxygen sensor

Connection faulty

F09 Note

F10 Fault

F11 Fault

F12 Fault

F13 Fault

F14 Fault

Fuel level in storeroom below fill level sensor (optional)

Fire safety flap fails to open in time "t flap"

No response from Hall-effect sensor A1 within time param. "t safe A1"

Overfill cover "OFF" for longer than "t safe": A1=0%

Check fuel store

(F09)

Fire safety flap not opening.

Check fuel chute.

(F10)

Grate cleaner motor sticking or jammed

(F11)

Outfeed conveyor overfilled, check fuel chute

(F13)

Automatic

Reset

Reset

button

Reset

button

Inactive

button

Inactive

Fill level sensor (optional) defective, no jumper across terminals 28-30

Drop-down blocked, fire safety motor defective

(check in test program)

Ash box full, grate cleaner jammed, grate jammed, motor or lead defective (check in test program)

Fire safety flap closed, fuel chute overfilled

F15 Fault

F16 Fault

F17 Fault

F18 Fault

Fire safety flap fails to close in time "t flap"

Opening angle >5%

Fire safety flap not closing.

Check fuel chute.

(F15)

Reset

button

STL tripped Warning STL hightemperature limiter tripped

(F16)

Press STL,

Reset

button

Maximum number of reversing phases exceeded for G1 excess current

Maximum number of reversing phases exceeded for A1 excess current

Excess current on drive motor G1

(F17)

Excess current on drive motor A1

(F18)

Reset

Reset

button

button

Drop-down blocked fire safety motor defective

(check in test program)

Boiler or pump malfunction, check fuses,

STL test

Stoker labouring – foreign object

Outfeed auger labouring – foreign object

46

F19 Note

F21 Fault

F22 Fault

F23 Fault

F24 Fault

F25 Fault

F26 Fault

F27 Fault

F28 Fault

F29 Fault

F30 Fault

F31 Fault

F32 Fault

F33 Fault

F34 Fault

F35 Fault

POWERCHIP Operating Instructions

Param. "O2 sensor" or adjusted setting above the limits of param. "mV top" or "mV btm"

Oxygen sensor readings above limits. Test oxygen sensor

(F19)

Length of an oxygen sensor pause longer than "t stop"

Oxygen sensor pause timeout. Test oxygen sensor.

(F21)

Reset

button

Reset

button

Inactive

Ash box not emptied within set emptying interval: Fault deactivated = 0h (setting adjustable in system settings)

Stoker temperature higher than

"T stoker"

Ash bin full or ash extractor motor jammed

Temperature in ash bin higher than "T max bin"

Empty ash box

(F23)

Stoker temperature too high.

Check fuel chute.

(F24)

Ash auger not moving freely or jammed

(F25)

Ash bin temperature too high. Check bin

(F26)

Reset

Reset

button

Reset

Reset

button

button

button

Oxygen sensor dirty or defective, carry out oxygen sensor test, clean sensor

Oxygen sensor reading incorrect, connection faulty

(carry out oxygen sensor test), check flue draught (FGT too low)

Ash box not emptied or counter not reset after emptying

Fire safety flap not air-tight, service cover on fuel chute not air-tight

Ash bin full to brim or foreign object blocking ash duct

Glowing embers in ash bin

Ash extraction system not airtight (ash bin, vacuum hoses, inspection covers)

Drop-down overfilled

Foreign object

Overfill cover "OFF" for longer than "t safe"; A1=0%

Feed auger overfilled – check transfer unit

(F27)

Reset

button

Inactive

Maximum number of reversing phases exceeded for A2 excess current

Router module – drive motor

G1 not connected

Router module – drive motor

A1 not connected

Router module – drive motor

A2 not connected

Excess current on drive motor A2

(F29)

Router module – G1 not connected

(F30)

Router module – A1 not connected

(F31)

Router module – A2 not connected

(F32)

Reset

Reset

Reset

Reset

button

button

button

button

Labouring

Foreign object

Motor G1 cut-out tripped

Motor overheated

Jammed

Motor A1 cut-out tripped

Motor A2 cut-out tripped

Router module – motor

G1 cut-out tripped

(F33)

Router module – motor

A1 cut-out tripped

(F34)

Router module – motor

A2 cut-out tripped

(F35)

Reset

button

Reset

button

Reset

button

Motor overheated

Jammed

Motor overheated

Jammed

47

48

POWERCHIP Operating Instructions

BS-12-00-00-00-01-BAEN

Fuse function is indicated on the relevant electrical wiring diagrams in the installation instructions.

Danger: Repair work may only be carried out by authorised technicians.

Touching live electrical components can cause fatal injury.

Even when the Power switch is "OFF" some components of the system are still live.

Therefore, when carrying out repair work it is imperative that the power supply is disconnected by means of the "mains plug" or a circuit breaker.

1. Set the system to the programme "OFF" and allow it to cool down for at least 10 minutes.

2. Switch the Power switch to "0" and unplug the mains plug on the back of the boiler to fully disconnect it from the power supply.

3. Unfasten the controller cover and remove it.

4. Locate the defective fuse with the aid of the wiring diagram in the installation instructions and replace it.

5. Press in the fuse holder 2-3 mm using a mediumsized screwdriver and turn it half a turn anticlockwise to release it. The holder and fuse will then pop out a few mm.

6. Remove the blown fuse and replace with a new one.

7. Insert the fuse holder, press it in 2-3 mm and secure it in position by turning it half a turn clockwise.

POWERCHIP Operating Instructions

BS-13-00-00-00-01-BAEN

13 System log book

LOG BOOK for

AUTOMATIC WOOD-BURNING BOILER SYSTEMS

as required by the Austrian Technical Directive H118 on Preventative Fire Safety

Please note: a log book is not legally required in the UK however it is recommended that one be kept.

System operator:

System installer:

Boiler system:

Make:

Type:

Year manufactured:

Heating output:

……………………………………………………………………....

……………………………………………………………………....

……………………………………………………………………....

……………………………………………………………………....

……………………………………………………………………....

……………………………………………………………………....

………………..

………………………………………………….

………...

…….....………………………………………………….

……………………………………………………………………….

……………………………………………………………………….

49

POWERCHIP Operating Instructions

The following checks are to be carried out regularly on the automatic wood-burning boiler system by the system operator when it is in operation:

visual

Once a week the entire boiler system including the fuel store is to be visually inspected. Any deficiencies identified are to be rectified immediately.

13.2 Monthly

The following monthly checks are to be carried out and, if a log book is maintained, should be recorded in the log book:

 Flue gas passages clean (flue gas channels in boiler, flue connecting pipe and smoke trap)

 Controller functioning properly

 Fault indication/warning system(s) functioning properly

 Combustion air and flue draught fans functioning properly

 Firebox in good order

 Portable fire extinguisher ready for use

 Correct storage of ash

 No combustibles stored in boiler room

 No accumulation of combustible deposits on roof

 Fire safety closures (fire doors self-closing)

13.3 Servicing:

The heating system must be serviced and inspected in accordance with the regional, local and statutory regulations of the country of use.

We recommend that a maintenance contract is taken out providing for annual servicing by an authorised technician.

50

Year:

…………………………….

Monthly

Check

Flue gas passages

Controller

Warning system(s)

Fans

Firebox

Portable fire extinguisher

Ash storage

Items stored in boiler room

Deposits on roof

Fire safety closures

Smoke trap cleaning

Signature/initials

POWERCHIP Operating Instructions

System operator:

……………………………………............................................

Jan Feb Mar Apr May Jun

Serviced by:

……………………………………………………………………………………………..

Jul Aug Sep Oct Nov Dec Remarks

Year:

…………………………….

Monthly

Check

Flue gas passages

Controller

Warning system(s)

Fans

Firebox

Portable fire extinguisher

Ash storage

Items stored in boiler room

Deposits on roof

Fire safety closures

Smoke trap cleaning

Signature/initials

System operator:

……………………………………............................................

Jan Feb Mar Apr May Jun

Serviced by:

……………………………………………………………………………………………..

Jul Aug Sep Oct Nov Dec Remarks

If you require more system log book pages, please photocopy them.

51

POWERCHIP Operating Instructions

BS-E-00-00-00-01-BAEN

UK Distributor

Treco Ltd

6 Millennium Place

Tiverton Business Park

Tiverton, Devon EX16 6SB www.treco.co.uk

[email protected]

0845 130 9012 or 01884 250790

GUNTAMATIC Heiztechnik GmbH

A – 4722 PEUERBACH Bruck 7

Tel: 0043 (0) 7276 / 2441-0

Fax: 0043 (0)7276 / 3031

E-mail: [email protected]

52

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
