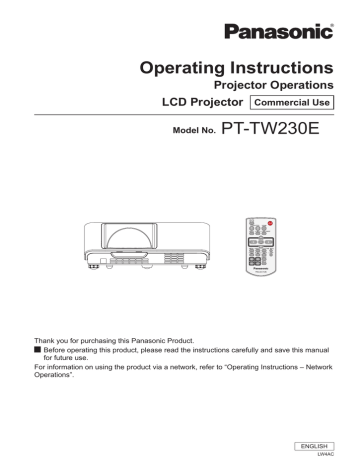

Operating Instructions

Operating Instructions

Operating Instructions

Projector Operations

LCD Projector

Commercial Use

Model No.

PT-TW230E

Thank you for purchasing this Panasonic Product.

J

Before operating this product, please read the instructions carefully and save this manual for future use.

For information on using the product via a network, refer to “Operating Instructions – Network

Operations”.

ENGLISH

LW4AC

Read this first!

WARNING: THIS APPARATUS MUST BE EARTHED.

WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture.

Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator position is equal or less than 70 dB (A) according to ISO 7779.

WARNING:

1. Remove the plug from the mains socket when this unit is not in use for a prolonged period of time.

2. To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

3. Do not remove the earthing pin on the mains plug. This apparatus is equipped with a three prong earthing type mains plug. This plug will only fit an earthing-type mains socket. This is a safety feature. If you are unable to insert the plug into the mains socket, contact an electrician. Do not defeat the purpose of the earthing plug.

CAUTION: To assure continued compliance, follow the attached installation instructions, which includes using the provided power cord and shielded interface cables when connecting to computer or peripheral device. If you use serial port to connect PC for external control of projector, you must use optional

RS-232C serial interface cable with ferrite core. Any unauthorized changes or modifications to this equipment will void the user’s authority to operate.

EEE Yönetmeliğine Uygundur.

EEE Complies with Directive of Turkey.

WARNING:

TURN OFF THE UV LAMP BEFORE OPENING THE LAMP COVER.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT

TO RAIN OR MOISTURE.

WARNING: RISK OF ELECTRIC SHOCK, DO NOT OPEN.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

2

- ENGLISH

Read this first!

WARNING:

„

POWER

The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately.

Continued use of the projector in these conditions will result in fire or electric shock.

z z z

If foreign objects or water get inside the projector, cut off the power supply.

If the projector is dropped or the cabinet is broken, cut off the power supply.

If you notice smoke, strange smells or noise coming from the projector, cut off the power supply.

Please contact an Authorized Service Center for repairs, and do not attempt to repair the projector yourself.

During a thunderstorm, do not touch the projector or the cable.

Electric shocks can result.

Do not do anything that might damage the power cord or the power plug.

If the power cord is used while damaged, electric shocks, short-circuits or fire will result.

z

Do not damage the power cord, make any modifications to it, place it near any hot objects, bend it excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle.

Ask an Authorized Service Center to carry out any repairs to the power cord that might be necessary.

Insert the power plug securely into the wall outlet.

If the plug is not inserted correctly, electric shocks or overheating will result.

z z z

Do not use anything other than the provided power cord.

Do not use the provided power cord for other electrical equipment.

Do not use plugs which are damaged or wall outlets which are coming loose from the wall.

Clean the power plug regularly to prevent it from becoming covered in dust.

Failure to observe this will cause a fire.

z z

If dust builds up on the power plug, the resulting humidity can damage the insulation.

If not using the projector for an extended period of time, pull the power plug out from the wall outlet.

Pull the power plug out from the wall outlet and wipe it with a dry cloth regularly.

Do not handle the power plug with wet hands.

Failure to observe this will result in electric shocks.

Do not overload the wall outlet.

If the power supply is overloaded (ex., by using too many adapters), overheating may occur and fire will result.

„

ON USE/INSTALLATION

Do not place liquid containers on top of the projector.

If water spills onto the projector or gets inside it, fire or electric shocks will result.

If any water gets inside the projector, contact an Authorized Service Center.

Do not place the projector on soft materials such as carpets or sponge mats.

Doing so will cause the projector to overheat, which can cause burns, fire or damage to the projector.

Do not set up the projector in humid or dusty places or in places where the projector may come into contact with oily smoke or steam, ex. a bathroom.

Using the projector under such conditions will result in fire, electric shocks or components deterioration.

Components deterioration (such as ceiling mount brackets) may cause the projector which is mounted on the ceiling to fall down.

Do not install this projector in a place which is not strong enough to take the full weight of the projector or on top of a surface which is sloped or unstable.

Failure to observe this will cause projector to fall down or tip over the projector, and severe injury or damage could result.

Do not place another projector or other heavy objects on top of the projector.

Failure to observe this will cause the projector to become unbalanced and fall, which could result in damage or injury. The projector will be damaged or deformed.

ENGLISH -

3

Read this first!

WARNING:

Installation work (such as ceiling mount bracket) should only be carried out by a qualified technician.

If installation is not carried out and secured correctly it can cause injury or accidents, such as electric shocks.

z z

Do not use anything other than an authorized ceiling mount bracket.

Be sure to use the provided accessory wire with an eye bolt as an extra safety measure to prevent the projector from falling down. (Install in a different location to the ceiling mount bracket)

Do not cover the air inlet port or the air outlet port.

Doing so will cause the projector to overheat, which can cause fire or damage to the projector.

z z

Do not place the projector in narrow, badly ventilated places such as closets or bookshelves.

Do not place the projector on cloth or papers, as these materials could be drawn into the air inlet port.

Do not place your hands or other objects close to the air outlet port.

Doing so will cause burns or damage your hands or other objects.

z

Heated air comes out of the air outlet port. Do not place your hands or face, or objects which cannot withstand heat close to this port.

Do not look and place your skin into the lights emitted from the lens while the projector is being used.

Doing so can cause burns or loss of sight.

z z

Strong light is emitted from the projector’s lens. Do not look or place your hands directly into this light.

Be especially careful not to let young children look into the lens. In addition, turn off the power and disconnect the power plug when you are away from the projector.

Do not insert any foreign objects into the projector.

Doing so will cause fire or electric shocks.

z

Do not insert any metal objects or flammable objects into the projector or drop them onto the projector.

Never attempt to remodel or disassemble the projector.

High voltages can cause fire or electric shocks.

z

For any inspection, adjustment and repair work, please contact an Authorized Service Center.

Do not project an image with the lens cover attached.

Doing so can cause fire.

Do not allow metal objects, flammable objects, or liquids to enter inside of the projector. Do not allow the projector to get wet.

Doing so may cause short circuits or overheating, and result in fire, electric shock, or malfunction of the projector.

z z z

Do not place containers of liquid or metal objects near the projector.

If liquid enters inside of the projector, consult your dealer.

Particular attention must be paid to children.

Use the ceiling mount bracket specified by Panasonic.

Defects in the ceiling mount bracket will result in falling accidents.

z

Attach the supplied safety cable to the ceiling mount bracket to prevent the projector from falling down.

Be sure to ask authorized personnel or your supplier when mounting the product to a ceiling.

This requires an optional ceiling mount bracket.

Model No.: ET-PKV100H (for high ceilings), ET-PKV100S (for low ceilings),

ET-PKT100B (Projector Mount Base).

4

- ENGLISH

Read this first!

WARNING:

„

ACCESSORIES

z z z z z z z

Do not use or handle the batteries improperly, and refer to the following.

Failure to observe this will cause burns, batteries to leak, overheat, explode or catch fire.

z z z z

Do not use unspecified batteries.

Do not disassemble dry cell batteries.

Do not heat the batteries or place them into water or fire.

Do not allow the + and

- terminals of the batteries to come into contact with metallic objects such as necklaces or hairpins.

Do not store batteries together with metallic objects.

Store the batteries in a plastic bag and keep them away from metallic objects.

Make sure the polarities (+ and

-) are correct when inserting the batteries.

Do not use a new battery together with an old battery or mix different types of batteries.

Do not use batteries with the outer cover peeling away or removed.

Remove the empty batteries from the remote control at once.

Insulate the battery using tape or something similar before disposal.

Do not allow children to reach the batteries (AAA/R03 or AAA/LR03 type).

z z

The battery can cause personal injury if swallowed.

If swallowed, seek medical advice immediately.

If the battery fluid leaks, do not touch it with bare hands, and take the following measures if necessary.

z

Battery fluid on your skin or clothing could result in skin inflammation or injury.

z

Rinse with clean water and seek medical advice immediately.

Battery fluid coming in contact with your eyes could result in loss of sight.

In this case, do not rub your eyes. Rinse with clean water and seek medical advice immediately.

Do not disassemble the lamp unit.

If the lamp breaks, it could cause injury.

Lamp replacement

The lamp has high internal pressure. If improperly handled, an explosion and severe injury or accidents will result.

z z

The lamp can easily explode if struck against hard objects or dropped.

z

Before replacing the lamp, be sure to disconnect the power plug from the wall outlet.

Electric shocks or explosions can result if this is not done.

When replacing the lamp, turn the power off and allow the lamp it to cool for at least 1 hour before handling it otherwise it can cause burns.

Do not allow infants or pets to touch the remote control unit.

z

Keep the remote control unit out of the reach of infants and pets after using it.

Do not use the supplied power cord with devices other than this projector.

z

Using the supplied power cord with devices other than this projector may cause short circuits or overheating, and result in electric shock or fire.

Remove the depleted batteries from the remote control promptly.

z

Leaving them in the unit may result in fluid leakage, overheating, or explosion of the batteries.

CAUTION:

„

POWER

When disconnecting the power cord, be sure to hold the power plug and power connector.

If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result.

When not using the projector for an extended period of time, disconnect the power plug from the wall outlet and remove the batteries from the remote control.

Disconnect the power plug from the wall outlet before carrying out any cleaning and replacing the unit.

Electric shocks can result if this is not done.

ENGLISH -

5

Read this first!

CAUTION:

„

ON USE/INSTALLATION

Do not put your weight on this projector.

You could fall or the projector could break, and injury will result.

z

Be especially careful not to let young children stand or sit on the projector.

Do not place the projector in extremely hot locations.

Doing so will cause the outer casing or internal components to deteriorate, or result in fire.

z

Take particular care in locations exposed to direct sunlight or near stoves.

Always disconnect all cables before moving the projector.

Moving the projector with cables still attached can damage the cables, which will cause fire or electric shocks to occur.

Never plug headphones and earphones into AUDIO OUT jack.

Excessive sound pressure from earphones and headphones can cause hearing loss.

„

ACCESSORIES

Do not use the old lamp unit.

If used it could cause lamp explosion.

If the lamp has broken, ventilate the room immediately. Do not touch or bring your face close to the broken pieces.

Failure to observe this will cause the user to absorb the gas which was released when the lamp broke and which contains nearly the same amount of mercury as fluorescent lamps, and the broken pieces will cause injury.

z z

If you believe that you have absorbed the gas or that the gas has got into your eyes or mouth, seek medical advice immediately.

Ask your dealer about replacing the lamp unit and check the inside of the projector.

To remove the battery

Remote Control Battery

1. Press the guide and lift the cover.

2. Remove the batteries.

Trademarks

HDMI, the HDMI logo and High-Definition Multimedia Interface is a trademark or registered trademark of HDMI

Licensing LLC.

• Other names, company names or product names used in these operating instructions are the trademarks or registered trademarks of their respective holders.

Please note that the operating instructions do not include the ® and TM symbols.

Illustrations in these operating instructions

• Note that illustrations of the projector and screens may differ from the ones you actually see.

Page references

• In these instructions, references to pages are indicated as: ( Æ page 00).

Term

• In these instructions, the “Wireless remote control unit” accessory is referred to as the “Remote control”.

6

- ENGLISH

Auto Setup Function

This function enables Input search and Auto PC adj. by pressing the

<AUTO SETUP> button on the remote control.

Direct Power Off Function

With the Direct Power Off function, you can disconnect the power cord from the wall outlet or turn off the breaker even during projection.

Improved connectivity

The inclusion of an HDMI terminal provides support for high quality video and HDMI audio.

Useful Functions for

Presentations

The digital zoom function allows you to focus on the crucial information during a presentation.

J

Quick steps

For details, see the corresponding pages.

1. Set up your projector.

(

Æ

page 19)

2. Connect with other devices.

(

Æ

page 22)

3. Connect the power cord.

(

Æ

page 23)

4. Power on.

(

Æ

page 25)

5. Select the input signal.

(

Æ

page 29)

6. Adjust the image.

(

Æ

page 28)

ENGLISH -

7

Contents

Be sure to read “Read this first!”. ( pages 2 to 6)

Important Information

Read this first! ........................................... 2

Contents ..................................................... 8

Precautions for Use................................. 10

Cautions when transporting .......................................... 10

Cautions when installing ............................................... 10

Security .........................................................................11

Disposal .........................................................................11

Cautions on use ........................................................... 12

Accessories .................................................................. 13

Optional accessories .................................................... 14

Basic operations by using the remote control................................................... 29

Using the Auto setup function ....................................... 29

Switching the input signal ............................................. 29

Using the SCREEN button ........................................... 29

Using the KEYSTONE button ....................................... 30

Using the INFO. button ................................................. 30

Using the FREEZE function ......................................... 30

Using the IMAGE button ............................................... 30

Using the MUTE button ................................................ 30

Using the AV MUTE function ........................................ 31

Using the P-TIMER button ........................................... 31

Using the LAMP button ................................................ 31

Using the D.ZOOM buttons .......................................... 31

Controlling the volume of the speaker .......................... 31

Preparation

About Your Projector .............................. 15

Remote control ............................................................. 15

Projector body .............................................................. 16

Indicators ...................................................................... 16

Control panel ............................................................... 17

Side terminals ............................................................... 17

Using Remote control ............................. 18

Installing and Removing batteries ................................ 18

Setting Remote control ID numbers ............................. 18

Getting Started

Setting up ................................................. 19

Projection method ........................................................ 19

Parts for ceiling mount (Optional) ................................. 19

Screen size and throw distance ................................... 20

Adjusting front adjustable feet ...................................... 21

Connections ............................................. 22

Before connecting to the projector ............................... 22

Connecting example ..................................................... 22

Basic Operation

Powering ON/OFF .................................... 23

Connecting the power cord .......................................... 23

ON(G)/STANDBY(R) indicator...................................... 24

Turning On the Projector .............................................. 25

Enter a PIN code .......................................................... 26

Turning Off the Projector .............................................. 27

Projecting ................................................. 28

Selecting the image ...................................................... 28

How to adjust the state of the image ............................ 28

Settings

Menu Navigation ...................................... 32

Navigating through the menu ....................................... 32

Main menu .................................................................... 33

Sub menu ..................................................................... 33

Input menu ............................................... 35

Computer 1: RGB/Component /RGB (Scart) ............... 35

Computer 2: RGB ......................................................... 35

HDMI ............................................................................ 35

Video ............................................................................ 35

S-video ......................................................................... 35

AUTO PC adjust ....................................... 37

Auto PC adj. ................................................................. 37

Manual PC adjust ..................................... 38

Fine sync ...................................................................... 38

Total dots ...................................................................... 38

Horizontal ..................................................................... 38

Vertical .......................................................................... 38

Current mode ............................................................... 39

Clamp ........................................................................... 39

Display area H .............................................................. 39

Display area V .............................................................. 39

Reset ............................................................................ 39

Mode free ..................................................................... 39

Store ............................................................................. 39

Image select ............................................ 40

Dynamic ....................................................................... 40

Standard ....................................................................... 40

Real .............................................................................. 40

Cinema ......................................................................... 40

Blackboard(Green) ....................................................... 40

Colorboard .................................................................... 40

Image 1-4 ..................................................................... 40

8

- ENGLISH

Image adjust............................................. 41

Contrast ........................................................................ 41

Brightness .................................................................... 41

Color ............................................................................. 41

Tint .............................................................................. 41

Color temp. ................................................................... 41

Red .............................................................................. 42

Green ........................................................................... 42

Blue ............................................................................. 42

Sharpness .................................................................... 42

Gamma ......................................................................... 42

Noise reduction ............................................................ 42

Progressive .................................................................. 43

Reset ............................................................................ 43

Store ............................................................................. 43

Screen ...................................................... 44

Normal .......................................................................... 44

Full .............................................................................. 44

Wide(16:9) .................................................................... 44

Zoom ............................................................................ 44

True .............................................................................. 44

Natural wide ................................................................ 44

Custom ......................................................................... 44

Custom adj. .................................................................. 45

Digital zoom +............................................................... 45

Digital zoom - ............................................................... 45

Keystone ...................................................................... 45

Ceiling .......................................................................... 46

Rear .............................................................................. 46

Screen acpect .............................................................. 46

Reset ............................................................................ 46

Sound ....................................................... 47

Volume ......................................................................... 47

Mute ............................................................................. 47

Setting ...................................................... 48

Language ..................................................................... 48

Menu position ............................................................... 48

Auto setup .................................................................... 48

Background .................................................................. 49

Display .......................................................................... 49

Logo ............................................................................. 49

HDMI setup .................................................................. 50

Terminal ........................................................................ 50

Power management ..................................................... 50

Direct on ....................................................................... 51

Standby mode .............................................................. 51

P-timer .......................................................................... 51

Closed caption .............................................................. 52

Lamp power .................................................................. 52

Remote control ............................................................. 53

Security ........................................................................ 53

Fan .............................................................................. 54

Contents

Fan control ................................................................... 54

Video delay control ....................................................... 54

Lamp runtime ............................................................... 54

Filter counter ................................................................ 55

Warning log .................................................................. 55

Factory default .............................................................. 55

Information ............................................... 56

Input Source Information Display ................................ 56

Maintenance

LAMP and WARNING Indicators ............ 57

Managing the indicated problems ................................ 57

Replacement ............................................ 58

Before replacing the unit .............................................. 58

Maintenance ................................................................. 58

Replacing the unit ......................................................... 59

Attaching the Lens Cover ............................................. 62

Troubleshooting ...................................... 63

Appendix

Technical Information ............................. 65

Serial terminal .............................................................. 65

Other terminals ............................................................. 68

List of compatible signals ............................................. 69

Specifications .......................................... 73

Dimensions ................................................................... 75

Ceiling mount bracket safeguards......... 75

Index ......................................................... 76

ENGLISH -

9

Precautions for Use

Cautions when transporting

z z

When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts.

Doing so may damage the internal parts and result in malfunctions.

Do not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet.

Cautions when installing

J z

Do not set up the projector outdoors.

The projector is designed for indoor use only.

J z z z

Do not use under the following conditions.

Places where vibration and impacts occur such as in a car or vehicle: Doing so may damage the internal parts and result in malfunctions.

Near the exhaust of an air conditioner or near lights (studio lamps, etc.) where temperature changes greatly

(Operating environment

Æ page 74): Doing so may shorten the life of the lamp or result in deformation of the outer case and malfunctions.

Near high-voltage power lines or near motors: Doing so may interfere with the operation of the projector.

J

Do not install the projector at elevations of 2700 m (8858 ft) or higher above sea level.

Failure to do so may shorten the life of the internal parts and result in malfunctions.

J

Do not use the projector installed vertically or tilted right or left (

Æ

page 19 )

Using the projector at a vertical angle that exceeds 20° may reduce product life or result in malfunction.

J

Be sure to ask a specialized technician when installing the product to a ceiling.

If the product is to be installed hanging from the ceiling, purchase an optional Ceiling Mount Attachment

(Optional accessories

Æ page 14).

Please call a specialized technician or contact an Authorized Service Center for installation.

10

- ENGLISH

J

Cautions when setting the projectors

z z

Do not stack the projectors.

Do not block the ventilation ports

(intake and exhaust) of the projector.

Avoid heating and cooling air from the air z

conditioning system directly blow to the ventilation

ports (intake and exhaust) of the projector.

z

You can tile the projector within horizontally.

± 20 degrees over 50 cm

(20") over 50 cm

(20")

Precautions for Use

over 1 m

(40") over 20 cm

(7.8") z

Do not place the projector in an enclosed space.

If you need to place the projector in an enclosed space, additional air conditioning and ventilation system must be equipped. When ventilation is insufficient, remaining heat may trigger the protection circuit of the projector.

Security

J z z z

Take safety measures against following incidents.

Personal information being leaked via this product.

Unauthorized operation of this product by a malicious third party.

Interfering or stopping of this product by a malicious third party.

J z z z z z

Security instruction (

Æ

page 53 )

Make your password as difficult to guess as possible.

Change your password periodically.

Panasonic or its affiliate company never inquires a password directly to a customer. Do not tell your password in case you receive such an inquiry.

The connecting network must be secured by firewall or others.

Set a password and restrict the users who can log in.

Disposal

When disposing of the product, ask your local authority or dealer about the correct methods of disposal.

The lamp contains mercury. When disposing of the used lamp unit, ask your nearest local authorities or dealer about proper disposal of the unit.

Dispose of used batteries according to the instructions or your local disposal rule or guidelines.

ENGLISH -

11

Precautions for Use

Cautions on use

J z z z

In order to get the picture quality

Draw curtains or blinds over windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen.

Depending on where the projector is used, heated air from an exhaust port or warm or cold air from an air conditioner can cause a shimmering effect on screen.

Avoid use in locations where exhaust or streams of air from projector, other devices and air conditioners flow between the projector and the screen.

The lens of projector is affected by the heat from the luminous source. Because of this, the focusing may not be stable right after the power is turned on. Focusing is stabled after projecting image for 30 minutes and longer.

J

Do not touch the surface of the projector lens with your bare hand.

If the surface of the lens becomes dirty from fingerprints or anything else, this will be magnified and projected onto the screen.

J

LCD Panel

The display unit of this projector comprises three LCD panels. Although an LCD panel is a product of highprecision technology, some of the pixels on the projected image may be missing or constantly lit. Please note that this is not a malfunction.

Displaying a still image for a longer time may result in an after-image on the LCD panels. If this happens, display the all white screen in the test pattern for an hour or more.

J

Optical components

Operating the projector in an environment with high temperature or heavy exposure to dust or tobacco smoke will reduce the service life of the optical components, such as the LCD panel and polarizing plate, and may necessitate their replacement within less than one year of use. For details, consult your dealer.

J

Lamp

The luminous source of the projector is a mercury lamp with high internal pressure.

A high pressure mercury lamp has following characteristics.

z z z z z z z z

The brightness of the lamp will decrease by duration of usage.

The lamp may burst with sound or shorten life by shock or chipping.

The life of the lamp varies greatly depending on individual specificities and usage conditions. In particular, continuous use over 6 hours and frequent on/off switching of the power greatly deteriorate the lamp and affect the lamp life.

In rare cases, the lamp burst shortly after the projection.

The risk of bursting increases when the lamp is used beyond its replacement cycle. Make sure to replace the lamp unit consistently. (“When to replace the lamp unit” (

Æ

page 60))

If the lamp bursts, gas contained inside of the lamp is released in a form of smoke.

It is recommended to store replacement lamps for contingency.

It is recommended to have authorized engineer or your dealer replace the lamp unit.

Pursuant to at the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre

Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, F.R. Germany

12

- ENGLISH

Precautions for Use

Accessories

Make sure the following accessories are provided with your projector. Numbers in the brackets ( ) show the number of accessories.

Remote control unit (x1)

(6451053893)

Power cord (x1)

(6103580203)

CD-ROM (x1)

(6103589312)

Batteries (AAA/R03 or

AAA/LR03 type) (x2)

RGB signal cable (x1)

(6103580425)

AC power cord holder

(x1) (6103592442)

(6103592466)

Lens cover (x1)

(6103490106)

(for remote control unit)

String (x1)

(6103504711) z z z z

Attention

After unpacking the projector, discard the power cord cap and packaging material properly.

For lost accessories, consult your dealer.

The part numbers of accessories and separately sold components are subject to change without notice.

Store small parts in an appropriate manner, and keep them away from young children.

ENGLISH -

13

Precautions for Use

J

Contents of the supplied CD-ROM

The contents of the supplied CD-ROM are as follow.

Operating Instructions – Projector Operations

Operating Instructions – Network Operations.

[: Instructions/List (PDF), : Software]

Multi Projector Monitoring & Control Software 2.6(Windows)

• This software allows you to monitor and control multiple projectors connected to the LAN.

Operation Manual Multi Projector Monitoring & Control Software 2.6

Logo Transfer Software 2.0(Windows)

• This software allows you to create original images, such as company logos to be displayed when projection starts, and transfer them to the projector.

Operation Manual Logo Transfer Software 2.0

List of compatible projector models

• This is a list of projectors that are compatible with the software marked with the “

” symbols above, and their restrictions.

Optional accessories

Options

Ceiling Mount Bracket

Projector Mount Base

Replacement Lamp Unit

Replacement Filter Unit

Model No.

ET-PKV100H (for high ceilings), ET-PKV100S (for low ceilings)

ET-PKT100B

ET-LAT100

ET-RFT100

14

- ENGLISH

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

About Your Projector

Remote control

(17)

(9)

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(1) <AUTO SETUP> Button

Execute the setting of Auto setup in the setting menu. (

Æ page 48)

(2) Input Selection Buttons: <COMPUTER 1>,

<COMPUTER 2>, <HDMI>, <VIDEO>,

(

<S-VIDEO>, <COMPONENT>.

These buttons are used to select the input signal.

Æ page 29)

(3) ▲▼◄► Buttons, <ENTER> Button

Navigate the MENU display.(

Æ page 32)

(4) <SCREEN> Button

Select a screen mode. (

Æ page 44-46)

(5) <MENU> Button

Open or close the On-Screen Menu. (

Æ page 32)

(6) <FREEZE> Button

Pauses the projected image and sound tentatively.

(

Æ page 30)

(7) <AV MUTE> Button

Temporarily turn off the image on the screen.

(

Æ page 31)

(8) <D.ZOOM +/- > Buttons

Zoom in and out the images. (

Æ page 31)

(9) <VOLUME +/- > Buttons

Adjusts the volume of the speaker. (

Æ page 31)

(10) < >Button

Turn the projector on or off. (

Æ page 25)

(11) <KEYSTONE> Button

Correct keystone distortion. (

Æ page 30)

(12) <INFO.> Button

Operate the information function. (

Æ page 30)

(13) <LAMP> Button

Select a lamp mode. (

Æ page 31)

(14) <P-TIMER> Button

Operate the P-timer function. (

Æ page 31)

(15) <IMAGE> Button

Select the image mode. (

Æ page 30)

(16) <MUTE> Button

Mute the sound. (

Æ page 30)

(17) Remote control signal emitter

z z z

Attention

Do not drop the remote control.

Avoid contact with liquids.

Do not attempt to modify or disassemble the remote control.

z z z z

Note

The remote control can be used within a distance of about 7 m (22.97 ft) if pointed directly at the remote control signal receiver. The remote control can control at angles of up to ± 30 ° vertically and ± 30 ° horizontally, but the effective control range may be reduced.

If there are any obstacles between the remote control and the remote control signal receiver, the remote control may not operate correctly.

You can operate the projector by reflecting the remote control signal on the screen. The operating range may differ due to the loss of light caused by the properties of the screen.

When the remote control signal receiver is lit with a fluorescent light or other strong light source, the projector may become inoperative. Set the projector as far from the luminous source as possible.

ENGLISH -

15

About Your Projector

Projector body

(1) (2)

(7)

(8) (9)

(3)

(4)

(5)

(6)

Bottom View

(10)

(11) (12)

(1) Control panel ( Æ page 17)

(2) Lamp cover (

Æ page 61

)

The lamp unit is located inside.

(3) Remote control signal receiver

(4) Projection Lens

(5) Speaker

(6) Air outlet port

Hot air is exhausted from the exhaust vent. Do not put heat-sensitive objects near this side.

(7) Air intake port / Air filter cover (

Æ page 59)

(8) Indicators

(9) Foucs Lever

Adjusts the focus.

(10) Security bar

(11) Side terminals ( Æ page 17)

Indicators

(13)

(12) AC IN

(13) Adjustable feet

Adjusts the projection angle.

WARNING:

z z z z

Keep your hands and other objects away from the air exhaust port.

Keep your hand and face away.

Do not insert your finger.

Keep heat-sensitive articles away.

Heated air from the air exhaust port can cause burns or external damage.

(1)

<

ON(G)/STANDBY(R)> indicator

Indicate the power status.

(2)

<

WARNING> indicator

Indicate the abnormal conditions of the projector.

(3)

<

LAMP> indicator

Lights yellow when the projection lamp reaches its end of life.

16

- ENGLISH

(1)

(2)

(3)

Control panel

(1)

(2)

(3) (4)

(6)

Side terminals

(1)

(2)

(5)

(3)

About Your Projector

(1) < >button

Turn the projector on/off.

(2) ▲▼◄► (VOL -/+) buttons

Navigate the MENU screen.

(3) <ENTER> button

Execute the selected item.

(4) <MENU> button

Displays the MENU screen. (

Æ page 32)

(5) <KEYSTONE> button

Correct the keystone distortion. (

Æ page 30)

(6) <INPUT> button

Selects the input signal. (

Æ page 29)

(4) (5)

(6) (7)

(9)

(10) (11)

(8)

(1) LAN

Connects to a LAN cable for network connection.

(2) HDMI

Connects to HDMI input signals.

(3) COMPUTER IN 1/ COMPONENT IN

Connects to COMPUTER IN 1/ COMPONENT IN input signals.

(4) COMPUTER IN 2/ MONITOR OUT

Connects to COMPUTER IN 2/ MONITOR OUT input signals or outputs the analog RGB signals input the projector.

(5) S-VIDEO IN

Connects to S-VIDEO input signals.

(6) AUDIO OUT (VARIABLE)

Outputs the audio signals input to the projector.

(7) CONTROL PORT

Connects to a computer via an RS-232C cable.

(8) Security slot

Attach the commercial shackle lock, manufactured by Kensington, to protect your projector.

Compatible with the Kensington MicroSaver

Security System.

(9) VIDEO IN

Connects to VIDEO input signals.

(10) AUDIO IN

Connects to the audio input signals.

AUDIO IN has right and left (L and R) terminals.

(11) COMPUTER / COMPONENT AUDIO IN

Connects the audio output (stereo) from a computer or video equipment connected to (2),

(3) or (4) to this jack z

Attention

When a LAN cable is directly connected to the projector, the network connection must be made indoors.

ENGLISH -

17

Using Remote control

Installing and Removing batteries

1 ) Open the cover 2 ) Install batteries and close the cover

(Insert the – side first.) z

Remove the batteries in the reverse order of installation.

Setting Remote control ID numbers

When you use the system with multiple projectors, you can operate all the projectors simultaneously or each projector individually using single remote control, if unique ID number is assigned to each projector.

After setting the ID number of the projector, set the same ID number to the remote control.

There are 7 different ID codes (ALL, Code 1~Code 6), the initial ID number is [ALL].

J

Setting the ID number

1) While holding down the <MENU> button, press the <IMAGE> button. The number of times you press the <IMAGE> button corresponds to the desired ID code number.

2) The number of times to press the <IMAGE> button is as follows:

Code 1= Once, Code 2= Twice, Code 3= 3 times, Code 4= 4 times

Code 5= 5 times, Code 6= 6 times

3) The ID code is changed when the <MENU> button is released.

4) The ID code is reset to [ALL] (default) by pressing the <MENU> button and <IMAGE> button at the same time for 5 seconds or more.

z z

Attention

If the <IMAGE> button is pressed 7 times or more, the ID code cannot be changed (the operation is invalid).

The status of the ID code is not stored after replacing batteries

.

z

Note

For details, please refer to the [Remote control] of the [Setting] menu.

( Æ page 53)

MENU button

IMAGE button

18

- ENGLISH

Setting up

Projection method

You can use the projector with any of the following 4 projection methods. To set the desired method in the projector.

J

Mounting on the ceiling and projecting forward

J

Setting on a desk/floor and projecting from rear

(Using translucent screen)

J

Mounting on the ceiling and projecting from rear

(Using translucent screen)

J

Setting on a desk/floor and projecting forward

z z z z

Attention

For optimum viewing quality, install the projector in a location where screen exposure to outside light, light from light fixtures or other light is at a minimum. Also draw the curtains, close blinds and turn off light fixtures.

Do not use the projector installed vertically or tilted right or left. Use under such conditions could result in equipment damage.

The projector must be installed so that its inclination to the horizontal plane is ± 20° or less.

Installing the projector at an inclination that exceeds 20° may reduce product life or result in malfunction.

-20°

Parts for ceiling mount (Optional)

You can install the projector on the ceiling by using the optional ceiling mount bracket (ET-PKV100H: for high ceiling, ET-PKV100S: for low ceiling), and the optional projector mount base ET-PKT100B.

z z

Use only the ceiling mount brackets specified for this projector.

Refer to the installation manual for the ceiling mount bracket when you install the bracket and the projector.

z

Attention

To ensure projector performance and security, installation of the ceiling mount bracket must be carried by your dealer or a qualified technician.

ENGLISH -

19

Setting up

Screen size and throw distance

Place the projector referring to the diagram on the right and the figures of throwing distance. You can adjust the display size.

Projected image

SD

L

SH

SW

SD

SW

Projection distance (m)

Height of the projection area (m)

Width of the projection area (m)

Diagonal length of the projection area (m)

Screen

L

Screen

L z

Attention

Before installing, please read “Precautions for Use” ( Æ pages 10 to 14).

J

Projection distance

(All measurements below are approximate and may differ slightly from the actual measurements.)

For 16:10 aspect ratio For 16:9 aspect ratio Projection size

Screen diagonal (SD)

1.52 m(60")

1.78 m(70")

2.03 m(80")

2.29 m(90")

2.54 m(100")

2.79 m(110")

0.64 m(2.09')

0.75 m(2.46')

0.86 m(2.82')

0.97 m(3.19')

1.08 m(3.56')

1.2 m(3.97')

For 4:3 aspect ratio

Projection distance

0.73 m(2.38')

0.85 m(2.80')

0.98 m(3.21')

1.11 m(3.63')

_

_

0.65 m(2.15')

0.77 m(2.53')

0.89 m(2.90')

1.00 m(3.28')

1.12 m(3.66')

_

Any other projection distance can be obtained according to the screen dimensions (m) using the following calculations.

The distance is shown in units of meters. (The calculated distance may contain a certain error.)

If the screen dimensions are written as “SD",

Screen height (SH)

Screen width (SW)

For 16:10 aspect ratio

= SD(m) × 0.530

= SD(m) × 0.848

For 4:3 aspect ratio

= SD(m) × 0.6

= SD(m) × 0.8

For 16:9 aspect ratio

= SD(m) × 0.490

= SD(m) × 0.872

Projection distance (L) = 0.44157 × SD(m) - 0.036768

= 0.49988 × SD(m) - 0.036768

= 0.45386 × SD(m) - 0.036768

z

Note

Install the projector where the projection distance should be within 63.6cm and 120cm in order to keep the lens performance.

20

- ENGLISH

Setting up

Adjusting front adjustable feet

Projection angle can be adjusted up to 10.0 degrees with the adjustable feet.

Rotate the adjustable feet and tilt the projector to the proper height; to raise the projector, rotate the both feet clockwise.

To lower the projector or to retract the adjustable feet, rotate the both feet counterclockwise.

(You can adjust the projection angle vertically.)

Adjustable range

Front adjustable feet : 43.5 mm(1.713")

Adjustable Feet z z

Attention

Heated air comes out of the air exhaust port while the lamp is lit. Do not touch the air exhaust port directly when you adjust the front adjustable feet.

If keystone distortion occurs on the projected image, perform “KEYSTONE” from the “Screen” menu. (

Æ page 45) z

Note

Screw up the adjustable feet, and an audible click will be heard as the limit.

ENGLISH -

21

Connections

Before connecting to the projector

z z z z z z z z

Read carefully the instruction manual for the device to be connected.

Turn off the power switch of the devices before connecting cables.

If any connection cable is not supplied with the device, or if no optional cable is available for connection of the device, prepare a necessary system connection cable to suit the device.

Video signals containing too much jitter may cause the images on the screen to randomly wobble or wafture.

In this case, a time base corrector (TBC) must be connected.

The projector accepts the following signals: VIDEO, S-VIDEO, analogue-RGB (with TTL sync. Level) and digital signal.

Some computer models are not compatible with the projector.

When using long cables to connect with each of equipment to the projector, there is a possibility that the image will not be output correctly unless a compensator is used.

For details on what video signals the projector supports, see “List of compatible signals”. ( Æ page 69-72)

Connecting example

Computer

Audio system

Video deck (TBC built-in)

Blue ray disk player with

HDMI terminal

Control computer z z

Attention

When connecting with a video deck, be sure to use the one with a built-in time base corrector (TBC) or use a TBC between the projector and the video deck.

If nonstandard burst signals are connected, the image may be distorted. If this is the case, connect a TBC between the projector and the video deck.

z z z z

Note

When using an HDMI cable, check that it is compliant with the HDMI standard. Using a cable that is not compliant with the

HDMI standard may result in problems such as the image cutting out or not appearing.

When connecting the 1080p signal using HDMI, use a cable compliant with 1080p signal.

This projector does not support the Viera link (HDMI).

For the specifications of the RGB signals that can be applied from the PC, refer to “List of compatible signals”. ( between the projector and the computer.

Æ page 69-72)

See “Network operation” in the instruction manual on the supplied CD-ROM for the details of wired LAN communication

22

- ENGLISH

Basic Operation

Powering ON/OFF

Connecting the power cord

Be sure to insert the attached power cord securely to its base to prevent it from coming off.

J

Power cord holder

A power cord holder is designed to prevent the AC power cord from coming off the projector.

Please insert the power cord into the power cord holder correctly as Picture (1) shown:

AC Power cord holder

Clamp

Picture (1)

J

Attaching

Attach the AC power cord with the power cord clamp to the projector by following these steps.

1 ) Plug the power cord with the power cord holder to the projector as Picture (2) shown.

2 ) Push the clamp at the AC Power cord holder downward to secure it to the projector. It is correctly attached until you hear the "CLICK" sound. See Picture (3) for correct attachment.

Bottom view

Picture (3)

Picture (2)

ENGLISH -

23

Powering ON/OFF

ON(G)/STANDBY(R) indicator

The ON(G)/STANDBY(R) indicator informs you the status of the power. Confirm the status of the <ON(G)/

STANDBY(R)> indicator before operating the projector.

ON (G)/STANDBY(R)

indicator

Indicator status

No illumination or flashing The power cord is unplugged.

Lit

The power cord is plugged.

RED

Status

The projector is in stand-by mode, after the cooling is completed.

The projector cannot be turned on until the normal power-off processing for fan cooling is completing and the <ON(G)/STANDBY(R)> indicator stops blinking.

Flashing

The temperature inside the projector is abnormally high. And the <WARNING> indicator also blinks in red ( Æ page 57). The projector cannot be turned on until cooling is completing and the <ON(G)/STANDBY(R)> indicator stops blinking.

GREEN

Lit Projecting.

Flashing The projector is in the Power management mode.

24

- ENGLISH

Powering ON/OFF

Turning On the Projector

(3)

(3)

(3)

(2)

1 )

2 )

3 )

4 )

5 )

Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector.

Connect the projector’s AC power cord into an

AC outlet. The <ON(G)/STANDBY(R)> indicator lights red. Open the lens cover.

Press the

<

> button on the control panel or on the remote control. The <ON(G)/

STANDBY(R)> indicator lights green and the cooling fans start to operate. The preparation display appears on the screen and the count down starts.

After the countdown, the input source that was selected the last time and the lamp power status icon appear on the screen.

If there is no signal input when start on the projector, or the current signal is missed while operating the projector, the Video/Computer selection window will be displayed on the screen, please move the pointer to input source desired by pressing the ▲▼ and the <ENTER> button.

And then follow the input signal guidance window to correct the signal and connection.

If the projector is locked with a PIN code, PIN code input dialog box will appear. Enter the PIN code as instructed on the next page.

z z z z

Note

When the [Direct on] function is set to [On], the projector will be turned on automatically by connecting the AC power cord to an AC outlet.

When the [Logo select] function is set to [Off], the logo will not be shown on the screen (

When [Countdown off] or [Off] is selected in the [Display] function, the preparation display will not be shown on the screen (

Æ page 49).

Æ page 49).

When the [Input search] function is set to [On 2], the input signal will be searched automatically (

Æ page 48).

06

The preparation display will disappear after 30 seconds

.

Selected Input Source and Lamp power

Lamp power status

Video/Computer selection

ENGLISH -

25

Powering ON/OFF

Enter a PIN code

Press ▲▼ to enter a number. Press ► to fix the number and move the red frame pointer to the next box. The number changes to . If you fixed an incorrect number, use the ◄ button to move the pointer to the number you want to correct, and then enter the correct number.

Repeat this step to complete entering a four-digit number.

After entering the four-digit number, move the pointer to “Set”. Press the <ENTER> button so that you can start to operate the projector.

If you entered an incorrect PIN code, PIN code and the number () will turn red for a moment. Enter the correct PIN code all over again.

z z

Note

If the PIN code number is not entered or wrong PIN code number is entered within three minutes after the PIN code dialog box appeared, the projector will be turned off automatically.

The “1234” is set as the initial PIN code at the factory.

PIN Code Input Dialog Box

After the OK icon disappears, you can operate the projector.

26

- ENGLISH

Powering ON/OFF

Turning Off the Projector

1 )

2 )

3 )

Press the

<

> button on the control panel or on the remote control, and Power off? appears on the screen.

Press the

<

> button again to turn off the projector. The <ON(G)/STANDBY(R)> indicator starts to blink red, and the cooling fans keep running. At this time, you can unplug the AC power cord even if the fans are still running.

When the projector has cooled down enough, the

<ON(G)/STANDBY(R)> indicator stops blinking and you can turn on the projecto r.

z z z

Note

Do not put the projector in a case before the projector is cooled enough.

While the <

ON(G)/STANDBY(R) be turned on. Wait until the <

> indicator is blinking, the lamp is being cooled down and the projector cannot

ON(G)/STANDBY(R) indicator stops blinking to turn on the projector again.

The projector can be turned on after the <

>

ON(G)/

STANDBY(R)

> indicator turns red. The waiting time to restart will be shortened when the normal power-off processing for fan cooling is completed, compared with the time the AC power cord is immediately unplugged after the power-off.

J

Direct Power Off function

You can disconnect the power cord from the wall outlet or turn off the breaker even during projection without pressing the < > button.

z

Note

When using the Direct Power Off function, you can not restart the projector immediately after the power is disconnected. The lamp remains high temperature and needs to be cooled, so it sometimes takes longer time than usual for the lamp to light up again.

Power off? disappears after 4 seconds.

ENGLISH -

27

Projecting

Check the connections of the peripheral devices and connection of the power cord ( power (

Æ page 23) and switch on the

Æ page 25) to start the projector. Select the image and adjust the state of the image.

Selecting the image

Select an input signal.

The image selected with the <COMPUTER 1>,

<COMPUTER 2>, <HDMI>, <VIDEO>, <S-VIDEO>, or <COMPONENT> button is projected (

Æ page 29).

z z

Attention

Images may not be projected properly depending on the connected device and DVD, video tape, etc. to be played.

Select a system format that is suitable for the input signal in [Component] or [RGB] in the [Input] menu (

Æ page 44).

Æ page 35).

(

Check the aspect ratio of the screen and the image and select the optimum aspect ratio under the [Screen] menu

How to adjust the state of the image

1 ) Adjust the projection angle.

z

(

For details, see “Adjusting front adjustable feet”.

Æ page 21)

2 ) Adjust the focus.

Turn [Focus lever] to adjust the image.

Focus Lever z z

Note

(

It is recommended that the images are projected continuously for at least 30 minutes before the focus is adjusted.

If keystone distortion occurs, see “KEYSTONE”

Æ page 45).

28

- ENGLISH

Basic operations by using the remote control

HDMI

VIDEO

S-VIDEO

Switches to HDMI input.

Switches to Video input.

Switches to S-video input.

z

Note

Each press of the <INPUT> button on the Control panel

( of the main unit switches the settings as shown below.

Æ page 17)

Using the Auto setup function

This function allows you to automatically adjust Input search and Auto PC adj. during signal input from a computer.

button

Press the <AUTO SETUP> button on the remote control.

z

Note

For details, see “Setting” of Main menu. ( Æ page 48)

Switching the input signal

You can switch the input signals to project.

Computer 1 (RGB)/

Computer 1 (Component)/

Computer 1 (Scart)

*

Computer 2

(RGB)

HDMI

S-video Video

*

[Computer 1] submenu of the [Input] menu.

Using the SCREEN button

This function allows you to select screen mode or change the screen size.

button

Press the <SCREEN> button on the remote control.

z

Note

For details, see “Screen” of Main menu. (

Æ page 44-46)

buttons

Press (<COMPUTER 1>,<COMPUTER

2>, <HDMI>, <VIDEO>, <S-VIDEO>, or

<COMPONENT>) buttons on the remote control.

ENGLISH -

29

Basic operations by using the remote control

Using the KEYSTONE button

This function allows you to correct keystone distortion.

button

Press the <KEYSTONE> button on the remote control or on the control panel. The Keystone dialog box appears. Press ▲▼ to correct keystone distortion.

The keystone adjustment can be stored

(

Æ page 45)

.

Operation

Reduce the upper width with press

.

Screen image

Using the FREEZE function

You can freeze the projected image and stop the sound temporarily, regardless of the playing condition of the connected device.

button

Press the <FREEZE> button on the remote control to freeze the picture on the screen, meanwhile, volume is muted. To cancel the Freeze function, press the

<FREEZE> button again or press any other button.

Fig.1 will appear on the screen while the Freeze function is working.

Fig.1

z

Note

When no signal inputs, mark will appear.

Reduce the lower width with press

.

z z z z z

Note

The white arrows indicate that there is no correction.

A red arrow indicates the direction of correction.

An arrow disappears at the maximum correction.

If you press the <KEYSTONE> button on the remote control or on the control panel once more while the keystone dialog box is being displayed, the keystone adjustment will be canceled ( signal.

Æ page 45).

The adjustable range is limited depending on the input

Using the IMAGE button

This function allows you to select a desired image mode of the screen.

button

Press <IMAGE> button on the remote control to select the desired image mode among [Dynamic], [Standard],

[Real], [Cinema], [Blackboard (Green)], [Colorboard],

[Image 1], [Image 2], [Image 3] and [Image 4].

z

Note

For details, see “Image select” of Main menu.

(

Æ page 40)

Using the INFO. button

This function allows you to display the information menu.

button

Press <INFO.> button on the remote control.

z

Note

For details, see “Input Source Information Display ” in

“Information” under Main menu ( Æ page 56).

Using the MUTE button

Press this button on the remote control to select [On] to temporarily turn off the sound.

button

Press <MUTE> button on the remote control.

z

Note

To turn the sound back on, press this button again to

( select [Off] or press the <VOLUME +/–> buttons.

Æ page 47)

30

- ENGLISH

Basic operations by using the remote control

Using the AV MUTE function Using the LAMP button

This function allows you to select the lamp mode for changing the brightness on the screen.

button

Press the <AV MUTE> button on the remote control to black out the image. To restore to normal, press the

<AV MUTE> button again or press any button. z

When the Logo is not set, the screen changes each time you press the

<AV MUTE> button as follows.

black out projected image

button

Press <LAMP> button on the remote control.

z

Note

For details, see “Lamp Power” of "Setting" under Main menu. ( Æ page 52) z

The projected Logo (the logo can be set according to users’ favorite) is transferred from computer to the projector by “Logo Transfer Software” on the supplied CD-ROM and is set as [User] in the Logo selection(

Æ page 49)

,

the screen changes each time you press the < AV MUTE> button as follows. black out

Logo projected image

Using the D.ZOOM buttons

This function allows you to enter the Digital zoom +/– mode.

buttons

z

Note

When use the <MUTE> button to release the [ function, the mute function can not be operated at the same time.

AV mute]

Press <D.ZOOM +/-> buttons on the remote control.

z

Note

For details, see "Screen" of Main menu.( Æ page 45)

Using the P-TIMER button

Press the <P-TIMER> button on the remote control to operate the Count up/Count down function.

button

Press <P-TIMER> button on the remote control.

Controlling the volume of the speaker

You can control the volume of the projector’s speaker or audio output.

buttons

z

Note

To stop the count time, press the <P-TIMER> button.

To cancel the [P-timer] function, press and hold the

<P-TIMER> button.( Æ page 51)

Press the <VOLUME +/–> buttons on the control panel or on the remote control to adjust the volume.

The volume dialog box appears on the screen for a few seconds.

z

Note

(

For details, see “Volume” of "Sound" under Main menu.

Æ page 47)

ENGLISH -

31

Menu Navigation

Navigating through the menu

J

Operating procedure

1 ) Press the <MENU> button.

The Main Menu screen appears.

z z z

Note

Some items may not be adjusted or used for certain signal formats input to the projector. The MENU items that cannot be adjusted or used are shown in gray characters, and they cannot be selected.

Some items can be adjusted even if signals are not input.

See page 33 and 34 for details on the items of sub-menu.

2 ) Press ▲▼ to select the Main Menu item.

Select the desired item from the 9 items: [Input],

[PC adjust], [Image select], [Image adjust],

[Screen], [Sound], [Setting], [Information] and

[Network]. The selected item is highlighted with an orange cursor and the submenu of the selected item appears on the right.

3 ) Press ► or the <ENTER> button.

The submenu appears so that you can select the sub-menu item.

4 )

5 )

6 )

7 )

Press ▲▼ to select the desired submenu item.

Press the <ENTER> button or press ► to enter the desired item.

Press ▲▼ ◄► to set or adjust the parameter values.

Press ◄ to return the previous menu.

Press the <MENU> button to exit the menu display.

32

- ENGLISH

Main menu

The main menu consists of the following 9 menu items.

When a main menu item is selected, the screen changes to a submenu selection screen.

Input

PC adjust

Image select

Image adjust

Screen

Sound

Setting

Information

Network

Menu Navigation

Sub menu

The sub-menu screen of the selected main menu appears, and you can set and adjust the various items in the submenu.

J

Input [ ]

Sub-menu item

Computer 1

Computer 2

HDMI

Video

S-video

Factory default

RGB

RGB

-

-

-

Page

35

35

35

35

35

J

PC adjust [

Sub-menu item

Auto PC adj.

Fine sync.

Total dots

Horizontal

Vertical

Current mode

Clamp

Display area H

Display area V

Reset

Mode free

Store

]

Factory default

-

-

-

-

-

-

-

-

-

-

-

- z

Note

This function will be available when the input source come from computer.

J

Image select [ ]

Sub-menu item

Dynamic

Standard

Real

Cinema

Blackboard(Green)

Colorboard

Image 1-4

Factory default

-

-

-

-

-

Red

-

Page

40

40

40

40

40

40

40

Page

38

39

39

39

39

39

39

39

37

38

38

38

ENGLISH -

33

Menu Navigation

J

Image adjust [ ]

Blue

*1 :

Sub-menu item

Contrast

Brightness

Color* 1

Tint* 1

Color temp.

Red

Green

Sharpness

Gamma

Noise reduction*

1

Progressive* 1

Reset

Store

Factory default Page

32 41

32

32

32

Mid

41

41

41

41

32

32

32

8

8

L 1

L 1

-

-

42

43

43

43

42

42

42

42

42

When input video signal to the projector, these functions will be available.

J

Screen [ ]

Normal

Full

*1 :

*2 :

Sub-menu item

Wide (16:9)

Zoom

True * 1

Natural wide *

2

Custom

Custom adj.

Digital zoom + *

Digital zoom - * 1

Keystone

Ceiling

Rear

Screen aspect

Reset

1

Factory default Page

- 44

-

-

44

44

-

-

-

-

-

44

44

44

44

45

-

-

Store

Off

Off

Default(16:10)

-

46

46

46

46

45

45

45

When input computer signal to the projector, these functions will be available.

When input video signal to the projector, this function will be available.

J

Sound [

Sub-menu item

Volume

Mute

]

Factory default Page

32 47

Off 47

J

Setting [

Sub-menu item

Language

Menu position

Auto setup

Background

Display

Logo

HDMI setup

Terminal

Power management

Direct on

Standby mode

P-timer

Closed caption

Lamp power

Remote control

Security

Fan

Fan control

Video delay control

Lamp runtime

Filter counter

Warning log

Factory default

]

Factory default Page

English 48

Center

-

48

48

Blue

On

49

49

-

-

Computer 2

Shut down

Off

49

50

50

50

51

Eco

Count up

Off

Normal

ALL

-

L 2

Off

Off

-

-

-

-

53

54

54

54

54

55

55

55

51

51

52

52

53

J

Information [

Input

Sub-menu item

System

H-sync freq.

V-sync freq.

Screen

Language

Lamp power

Lamp runtime

Power management

Key lock

PIN code lock

Remote control

Serial number

]

Factory default Page

56

56

-

56

56

-

-

-

-

56

56

56

56

-

-

-

-

-

56

56

56

56

56

J

Network [ ]

Refer to “Operating Instructions - Network operations”.

34

- ENGLISH

Input menu

Select [Input] from the Main Menu (see

“Navigating through the menu” on page 32), then select the item from the sub-menu.

Remote control Control panel

There is no signal input from the computer.

Check the connection between your

computer and the projector.

The preset system is manually adjusted in

the PC adjust Menu. The adjusted data can

be stored in Mode 1-10.

PC Systems provided in this projector

is chosen. The projector chooses a proper

system provided in the projector and

displays it.

* Mode 1 and SVGA 1 are examples.

Computer 1: RGB/Component

/RGB (Scart)

1 )

2 )

3 )

4 )

Press ▲▼ to select [Computer 1].

Press ► to access the submenu.

Press ▲▼ to select RGB, Component or RGB(Scart).

Press the <ENTER> button.

z

When [Computer 1] is selected, [Component] or

[RGB(Scart)] can be available.

1 )

2 )

Press ▲▼ to select [System].

Press ► or the <ENTER> button to access the submenu.

3 ) Press ▲▼ to select the desired system.

HDMI

Press ▲▼to select [HDMI] and then press the <ENTER> button.

Computer 2: RGB

Press ▲▼ to select [Computer 2 (RGB)] and then press the <ENTER> button.

Video

Press ▲▼ to select [Video] and then press the <ENTER> button.

J

Computer System Selection

This projector automatically tunes to various types of computers with its Multi-scan system and Auto

PC Adjustment. If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings. (Signal formats provided in this projector are shown on pages 69-72.)

AUTO

When the projector can not recognize the

connected signal conforming to the

provided PC Systems, Auto is displayed

on the System Menu box and the Auto PC

adjustment function works to display proper

images. If the image is not projected

properly, a manual adjustment is required.

S-video

Press ▲▼ to select [S-video] and then press the <ENTER> button.

J

Video System Selection

Video or S-video

Auto

The projector automatically detects an incoming video system, and adjusts itself to optimize its performance.

When Video System is [PAL-M] or [PAL-N], select the system manually.

ENGLISH -

35

Input menu

PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N

If the projector cannot reproduce proper video image, select a specific broadcast signal format from among

[PAL], [SECAM], [NTSC], [NTSC 4.43], [PAL-M] and

[PAL-N].

Component

Auto

The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance.

COMPONENT VIDEO SIGNAL FORMAT

If the projector cannot reproduce proper video image, select a specific component video signal format among [480i], [576i], [480p], [576p], [720p], [1035i] and [1080i].

1 )

2 )

3 )

Press ▲▼ to select [System].

Press ► or the <ENTER> button to access the submenu.

Press ▲▼ to select the desired system.

Note

z z

When the [Input Search] function is set to [On 1] or

[On 2] in the [Auto setup] function, the input signal will be searched automatically.

The AV System Menu cannot be selected when selecting [RGB (Scart)].

36

- ENGLISH

AUTO PC adjust

Select [PC adjust] from the Main Menu (see

“Navigating through the menu” on page 32), then select the item from the sub-menu.

Remote control

Control panel

Auto PC adj.

Auto PC adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical positions to conform to your computer.

Press ▲▼ to select [Auto PC adj.] and then press the <ENTER> button.

z

[Please wait...]

appears while the Auto PC adjustment is in process.

To store adjustment parameters

The adjusted parameters from the Auto PC adjustment can be stored in the projector. Once the parameters are stored, the setting can be done just by selecting a

Mode (1–10) in the PC System Menu (see page 35).

See also [Store] on page 39.

Attention

z z

[Fine sync], [Total dots], [Horizontal] and [Vertical] position of some computers cannot be fully adjusted with the Auto PC adjustment function. When the image is not provided properly with this operation, manual adjustments are required ( Æ is selected in the PC System Menu ( pages 38-39).

The Auto PC adjustment cannot be operated when

[480i], [576i], [480p], [576p], [720p], [1035i] or [1080i]

Æ page 35), or when the signal is coming from the HDMI terminal.

ENGLISH -

37

Manual PC adjust

Select [PC adjust] from the Main Menu (see

“Navigating through the menu” on page 32), then select the item from the sub-menu.

Remote control

Control panel

Some computers employ special signal formats which may not be tuned by Multi-scan system of this projector. Manual PC adjustment enables you to precisely adjust several parameters to match those signal formats. The projector has 10 independent memory areas to store those parameters manually adjusted. It allows you to recall the setting for a specific computer.

Horizontal

1 )

2 )

3 )

Press ▲▼ to select [Horizontal].

Press the <ENTER> button to display the adjustment dialog box.

Press ◄► to adjust the horizontal picture position.

J

For horizontal (right and left) adjustment

Operation Adjustment

Press ◄.

The picture position moves to the right.

Press ►.

The picture position moves to the left.

Fine sync

1 )

2 )

3 )

Press ▲▼ to select [Fine sync].

Press the <ENTER> button to display the adjustment dialog box.

Press ◄► to adjust the value.

z

The value can be adjusted from 0 to 31.

Total dots

1 )

2 )

3 )

Press ▲▼ to select [Total dots].

Press the <ENTER> button to display the adjustment dialog box.

Press ◄► to adjust the value.

Vertical

1 )

2 )

3 )

Press ▲▼ to select [Vertical].

Press the <ENTER> button to display the adjustment dialog box.

Press ◄► to adjust the vertical picture position.

J

For vertical (up and down) adjustment

Operation Adjustment

Press

.

The picture position moves up.

Press

.

The picture position moves down.

38

- ENGLISH

Current mode

1 )

2 )

Press ▲▼ to select [Current mode].

Press ► or the <ENTER> button to enter the next submenu to show

H-sync freq. and V-sync freq. of the connected computer

.

Reset

Manual PC adjust

To reset the adjusted data, all adjustments will return to their previous figures.

1 )

2 )

Press ▲▼ to select [Reset].

Press the <ENTER> button.

z

A confirmation box appears and then select [Yes].

Clamp

1 )

2 )

3 )

Press ▲▼ to select [Clamp].

Press the <ENTER> button to display the adjustment dialog box.

Press ◄► to adjust the clamp level.

z

When the image has dark bars, try this adjustment.

Mode free

1 ) Press ▲▼ to select [Mode free].

2 ) Press ► or the <ENTER> button to enter the next submenu.

z

Move the highlight to the mode that you want to clear and then press the <ENTER> button.

Display area H

1 )

2 )

3 )

Press ▲▼ to select [Display area H].

Press the <ENTER> button to display the adjustment dialog box.

Press ◄► to adjust the horizontal area displayed by this projector.

Store

1 )

2 )

Press ▲▼ to select [Store].

Press ► or the <ENTER> button to enter the next submenu.

z

Move the highlight to one of the Modes 1 to 10 in which you want to store, and then press the

<ENTER> button.

Display area V

1 )

2 )

3 )

Press ▲▼ to select [Display area V].

Press the <ENTER> button to display the dialog box.

Press ◄► to adjust the vertical area displayed by this projector.

ENGLISH -

39

Image select

Select [Image select] from the Main Menu (see

“Navigating through the menu” on page 32), then select the item from the sub-menu.

Remote control Control panel

Blackboard(Green)

For the image projected on a blackboard.

Press ▲▼ to select [Blackboard(Green)] and then press the <ENTER> button.

z

This mode helps enhance the image projected on a blackboard. This is mainly effective on a green colored board, not truly effective on a black colored board.

Dynamic

For viewing pictures in a bright room.

Press ▲▼ to select [Dynamic] and then press the <ENTER> button.

Colorboard

For the image projected on a colorboard.

1 )

2 )

Press ▲▼ to select [Colorboard].

Press ► or the <ENTER> button to display the submenu.

z

At the time of simple projection on the colored wall, you can get the close color image to the color image projected on a white screen by selecting the similar color to the wall color from the preset four colors.

Standard

Normal picture mode preset on the projector.

Press ▲▼ to select [Standard] and then press the <ENTER> button.

Image 1-4

For viewing with the user preset image mode in the

Image adjust Menu.

Press ▲▼ to select [Image 1-4] and then press the <ENTER> button.

Real

Picture mode with improved halftone for graphics.

Press ▲▼ to select [Real] and then press the <ENTER> button.

Cinema

Picture mode adjusted with fine tone.

Press ▲▼ to select [Cinema] and then press the <ENTER> button.

40

- ENGLISH

Image adjust

Select [Image adjust] from the Main Menu (see

“Navigating through the menu” on page 32), then select the item from the sub-menu.

Remote control Control panel

Color

1 )

2 )

3 )

Press ▲▼ to select [Color].

Press the <ENTER> button to display the adjustment dialog box.

Press ◄► to adjust the setting value.

Operation

Press ►.

Press ◄.

Adjustment

increase the intensity of the color decrease the intensity of the color

Adjustment range

Maximum value 63

Minimum value 0 z

Note

When input video signal to the projector, [Color] will be available.

Contrast

1 )

2 )

3 )

Press ▲▼ to select [Contrast].

Press the <ENTER> button to display the adjustment dialog box.

Press ◄► to adjust the setting value.

Operation Adjustment

Adjustment range

Press ►.

Press ◄.

decrease the contrast

Minimum value 0

Brightness

1 )

2 )

3 )

Press ▲▼ to select [Brightness].

Press the <ENTER> button to display the adjustment dialog box.

Press ◄► to adjust the setting value.

Operation

Press ►.

Press ◄.

Adjustment

increase the brightness decrease the brightness

Adjustment range

Maximum value 63

Minimum value 0

Tint

1 )

2 )

Press ▲▼ to select [Tint].

Press the <ENTER> button to display the adjustment dialog box.

3 ) Press ◄► to adjust the tint value to get a proper color balance.

z

Adjustments can be made between

0 and 63.

z

Note

When you select [NTSC] or [NTSC4.43] in System menu under Video input signal, [Tint] will be available.

Color temp.

1 )

2 )

3 )

Press ▲▼ to select [Color temp.].

Press the <ENTER> button to display the adjustment dialog box.

Press ◄► to select the desired Color temp. level.

z

You can select the desired [Color temp.] from

[XLow], [Low], [Mid] or [High].

z

Note

[Color temp.] level displays [Blackbord] or [Colorboard] when the [Blackboard(Green)] or [Colorboard] is selected in the [Image select] menu.

ENGLISH -

41

Image adjust

Red

1 )

2 )

3 )

Press ▲▼ to select [Red].

Press the <ENTER> button to display the adjustment dialog box.

Press ◄► to adjust the setting value.

Operation Adjustment

Adjustment range

Press ►.

Press ◄.

lighten red tone

Minimum value 0

Sharpness

1 )

2 )

3 )

Press ▲▼ to select [Sharpness].

Press the <ENTER> button to display the adjustment dialog box.

Press ◄► to adjust the setting value.

Operation

Press ►.

Press ◄.

Adjustment

Adjustment range

increase the sharpness of the image decrease the sharpness of the image

Maximum value 15

Minimum value 0

Green

1 )

2 )

3 )

Press ▲▼ to select [Green].

Press the <ENTER> button to display the adjustment dialog box.

Press ◄► to adjust the setting value.

Operation

Press ►.

Press ◄.

Adjustment

deepen green tone lighten green tone

Adjustment range

Maximum value 63

Minimum value 0

Blue

1 )

2 )

3 )

Press ▲▼ to select [Blue].

Press the <ENTER> button to display the adjustment dialog box.

Press ◄► to adjust the setting value.

Operation Adjustment

Adjustment range

Press ►.

Press ◄.

Gamma

1 )

2 )

3 )

Press ▲▼ to select [Gamma].

Press the <ENTER> button to display the adjustment dialog box.

Press ◄► to adjust the gamma value to obtain a better balance of contrast.

z

Adjustments can be made between 0 and 15.

Noise reduction

1 )

2 )

3 )

Press ▲▼ to select [Noise reduction].

Press the <ENTER> button to display the adjustment dialog box.

Press ◄► to select the desired item.

Off

L 1

L 2

Disabled

Lower reduction

Higher reduction z z

Noise interference on the screen can be reduced. Select one of the above options to get smoother images.

[Noise reduction] cannot be selected when

[480p], [576p], [720p], [1035i], [1080i] or [1080p] is selected.

z

Note

When input video signal to the projector, [Noise reduction] will become available.

42

- ENGLISH

Progressive

1 )

2 )

3 )

Press ▲▼ to select [Progressive].

Press the <ENTER> button to display the dialog box.

Press ◄► to select the desired item.

z z

An interlaced video signal can be displayed in progressive mode. Select one of the following options.

[Progressive] cannot be selected when [480p],

[576p], [720p], [1035i], [1080i] or [1080p] is selected.

Off

L 1

L 2

Film

Disabled

For an active picture

For a still picture

For watching a film z

Note

When input video signal to the projector, [Progressive] will become available.

Reset

To reset the adjusted data, all adjustments will return to their previous figures.

1 )

2 )

Press ▲▼ to select [Reset].

Press the <ENTER> button.

z

A confirmation box appears and then select [Yes].

Store

1 )

2 )

3 )

Press ▲▼ to select [Store].

Press ► or the <ENTER> button.

Press ▲▼ to select one from Image 1 to 4 and press the <ENTER> button.

z

A confirmation box appears and then select [Yes].

Image adjust

ENGLISH -

43

Screen

Select [Screen] from the Main Menu (see

“Navigating through the menu” on page 32), then select the item from the sub-menu.

Remote control Control panel

True

Provide the image in its original size. When the original image size is larger than the panel size (1280 x 800), the projector enters to the panning mode automatically.

1 )

2 )

Press ▲▼ to select [True] and then press the <ENTER> button.

Press ▲▼◄► to pan the image.

z

When adjusted, the arrows will turn red. When reached to the correction limits, the arrows will disappear.

Normal

Provide the image to fit the screen size while maintaining the aspect ratio of the input signal.

Press ▲▼ to select [Normal] and then press the <ENTER> button.

Full

Provide the full screen image.

Press ▲▼ to select [Full] and then press the <ENTER> button.

z z z

Note

When input computer signal to the projector, [True] will be available.

[True] is disabled and cannot be displayed when [480i],

[576i], [480p], [576p], [720p], [1035i] or [1080i] is selected in the PC System Menu.

When [True] is selected in the Screen menu, [Digital zoom +/-] can not be selected.

Natural wide

Modify the 4:3 aspect ratio image to fit the screen size by stretching the image to make it look natural.

Press ▲▼ to select [Natural wide] and then press the <ENTER> button.

z

Note

When input video signal to the projector, [Natural wide] will be available.

Wide(16:9)

Provide the image at the 16:9 wide screen ratio.

Press ▲▼ to select [Wide(16:9)] and then press the <ENTER> button.

Custom

Provide the last stored aspect screen image.

Press ▲▼ to select [Custom] and press the <ENTER> button.

Zoom

Scale the image proportionally to fit the entire screen.

Either side of image may go over the screen.

Press ▲▼ to select [Zoom] and then press the <ENTER> button.

44

- ENGLISH

Custom adj.

Adjust the screen scale and position manually with this function.

1 )

2 )

3 )

Press ▲▼ to select [Custom adj.].

Press ► or the <ENTER> button to enter the next submenu.

Press ▲▼ to choose the item you want to adjust.

z

You can choose one from the items as below:

Scale H/V

H&V

Adjust the Horizontal/Vertical screen scale.

When set to [On], the aspect ratio is fixed.

Screen

To exit the Digital zoom +/– mode, press any button except the <D.ZOOM +/–>, <ENTER> and ▲▼◄► buttons.

(

To return to the previous screen size, select a screen size from the Screen Size Adjustment Menu or select an input source from the Input Source Selection Menu

Æ page 37) again, or adjust the screen size with the

<D.ZOOM +/–> buttons.

z z z z

Note

When input computer signal to the projector,

[Digital zoom +/-] will be available.

[Digital zoom +/-] cannot be selected when [True] is selected in the Screen aspect

.

[Digital zoom +/–] are disabled and cannot be displayed when [480i], [576i], [480p], [576p], [720p], [1035i] or

[1080i] is selected in the PC System Menu

When [Digital zoom +/–] functions are disabled, mark will appear.

(

Æ page 35

)

.

Common

Reset

Save the adjusted scale or position to all the inputs.

Reset the all adjusted values.

Digital zoom +

Zoom in the images.

1 ) Press ▲▼ to select [Digital zoom +] and then press the <ENTER> button.

z

The On-Screen Menu disappears and

[D. zoom + ] appears.

2 ) Press the <ENTER> button to zoom in the image size and press ▲▼ ◄► to move the image to the top/bottom/left/ right of the screen.

z

The Panning function can work only when the image is larger than the screen size. A projected image can be also expanded by pressing the

<D.ZOOM + > or the <ENTER> button.

Digital zoom -

Zoom out the images.

1 ) Press ▲▼ to select [Digital zoom -] and then press the <ENTER> button.

z

The On-Screen Menu disappears and

[D. zoom - ] appears.

2 ) Press the <ENTER> button to zoom out image size.

z

The projected image can be also compressed by pressing the <D.ZOOM – > or the <ENTER> button.

Keystone

This function is used to adjust keystone distortion of the projected image.

1 ) Press ▲▼ to select [Keystone].

2 ) Press ► or the <ENTER> button.

3 ) Press ▲▼ to choose the item you want to adjust.

Keystone

To correct keystone distortion

Store

To store or reset the keystone correction

The following items are the submenus of [Store].

Store

Reset

Keep the keystone correction even when the AC power cord is unplugged or turning off the projector.

Release the keystone correction when the AC power cord is unplugged .

ENGLISH -

45

Screen

Ceiling

This function is used to project the image from a ceiling-mounted projector.

1 )

2 )

Press ▲▼ to select [Ceiling] and then press the <ENTER> button.

Press ▲▼ to change the image.

z

When this function is set to [On], the picture will be top/bottom and left/right reversed.

Reset

To reset the adjusted data, all adjustments will return to their previous figures.

Press ▲▼ to select [Reset] and then press the <ENTER> button.

z

A confirmation box appears and then select

[Yes].

Rear

This function is used to project the image from rear of the screen.

1 )

2 )

Press ▲▼ to select [Rear] and then press the <ENTER> button.

Press ▲▼ to change the image.

z

When this function is set to [On], the picture will be left/right reversed.

Screen acpect

This function is used to project the image to a 4:3 or

16:9 projection screen.

1 )

2 )

Press ▲▼ to select [Screen aspect] and then press the <ENTER> button.

Press ▲▼ to choose one from the items as below.

16:9

4:3

Set to a 16:9 projection screen.

Set to a 4:3 projection screen.

z z z

Attention

When the [4:3] function is selected, [Natural wide] is not available in the AV screen.

When the [16:9] function is selected, [Wide (16:9)] is not available in the screen.

[Natural wide] will grayout when [720p], [1035i], [1080i] or

[1080p] is selected in the AV System Menu.

46

- ENGLISH

Sound

Select [Sound] from the Main Menu (see

“Navigating through the menu” on page 32), then select the item from the sub-menu.

Remote control Control panel

Volume

1 )

2 )

Press ▲▼ to select [Volume] and then

Press the <ENTER> button.

Press ◄► to adjust the volume.

Operation

Press ►.

Press ◄.

Adjustment

turn up the volume turn down the volume

Adjustment range

Maximum value 63

Minimum value 0 z

You can also press <VOLUME +/-> buttons on the remote control or control panel to adjust the volume.

Mute

1 )

2 )

Press ▲▼ to select [Mute] and then

Press the <ENTER> button.

Press the <ENTER> button to switch the mute function On/Off.

z

Press the <MUTE> button on the remote control to temporarily turn off the sound. To turn the sound back on, press the <MUTE> button again or press the <VOLUME +/–> buttons.

ENGLISH -

47

Setting

Select [Setting] from the Main Menu (see

“Navigating through the menu” on page 32), then select the item from the sub-menu.

Remote control

Control panel

Menu position

This function is used to change the position of the On-

Screen Menu.

1 )

2 )

Press ▲▼ to select [Menu position].

Press the <ENTER> button to change the position.

z

The Menu position changes each time you press <ENTER> button as follows: the center the bottom left the bottom right the top left the top right the center......

Language

1 )

2 )

3 )

Press ▲▼ to select [Language].

Press ► or the <ENTER> button.

Press ▲▼ to select the desired language.

z

The language used in the On-Screen Menu is available in English, German, French, Italian,

Spanish, Portuguese, Dutch, Swedish, Finnish,

Norwegian, Danish, Polish, Hungarian, Romanian,

Czech, Russian, Turkish, Arabic, Kazak,

Vietnamese, Chinese, Korean, Japanese and Tha i.

Auto setup

1 )

2 )

3 )

Press ▲▼ to select [Auto setup].

Press ► or the <ENTER> button.

Press ▲▼ to select these functions as follows:

J

Input search

This function detects the input signal

automatically. When a signal is found, the search

will stop.

Off

Input search will not work

On 1

Input search works*

1

On 2

Input search works* 2

*1 :

*2 :

● When pressing the <AUTO SETUP> button on the

remote control.

● When turning on the projector by pressing the

< >

button on the remote control.

When pressing the <AUTO SETUP> button on the

remote control.

When the current input signal is cut off.*

* If the AV mute or Freeze function is active, cancel

it to activate the Input search. It is also unavailable

when On-Screen menu is displayed.

J

Auto PC adj.

On

Off

Enables Auto PC adjustment *

1

Disables Auto PC adjustment

*1 : When pressing the <AUTO SETUP> button on the remote control. z

Note

[Input search] and [Auto PC adj.] cannot be set [Off] at the same time.

48

- ENGLISH

Background

Select the background screen for when no input signal is detected.

1 )

2 )

3 )

Press ▲▼ to select [Background].

Press the <ENTER> button.

Press ▲▼ to switch between each option as below.

Blue

Blue colored background.

User

The logo transferred by "Logo

Transfer Software * 1 " is projected.

Black

Black colored background.

*1 : " Logo Transfer Software" is included on the supplied CD-ROM.

Display

This function decides whether to display On-Screen

Displays.

1 )

2 )

3 )

Press ▲▼ to select [Display].

Press the <ENTER> button.

Press ▲▼ to switch between each option as below.

On

Countdown off

Off

Show all the On-Screen displays * 1

Show the input image instead of the countdown when turning on the projector * 2

Hide the On-Screen Displays * 3

*1 :

*2 :

*3 :

*4 :

*5 :

*6 :

*7 :

Use this function when you want to project images after the lamp becomes bright enough.

The factory default setting is in this option.

Use this function when you want to project the image as early as possible even when the lamp is not bright enough.

Hide the On-Screen Displays except;

● On-Screen Menu.

● [Power off ?]

● [P-timer] display.

● No signal for [Power management]

● [Please wait ...]

● Arrows for the [True] function and the [Digital

Zoom +/-] function in the Screen Menu.

Setting

Logo

This function allows you to customize the screen logo with [Logo select], [Logo PIN code lock] and [Logo

PIN code change] functions.

1 )

2 )

Press ▲▼ to select [Logo].

Press ► or the <ENTER> button.

3 ) Press ▲▼ to choose the desired item.

J

Logo select

This function decides on the starting-up display from among following options.

Off

Show the countdown display only.

Default Show the factory-set logo.

User

The logo transferred by "Logo

Transfer Software * 1 " is projected.

*1 : " Logo Transfer Software" is included on the supplied CD-ROM.

J

Logo PIN code lock

This function prevents an unauthorized person from changing the screen logo.

Off

On

The screen logo can be changed freely from the Logo Menu.

The screen logo cannot be changed without a Logo PIN code.

z

Note

If you want to change the Logo PIN code lock setting, press the <ENTER> button and the Logo PIN code dialog box appears. Enter a Logo PIN code by following the steps below. The initial Logo PIN code is set to “4321” at the factory.

ENGLISH -

49

Setting

J

Logo PIN code change

Logo PIN code can be changed to your desired fourdigit number.

1 )

2 )

Press ▲▼ to select [Logo PIN code change].

Press the <ENTER> button.

z

Current logo PIN code dialog box appears.

3 ) Press ▲▼ to enter the current code.

z

The New Logo PIN code input dialog box appears. Set a new Logo PIN code, a confirmation box appears, choose [Yes] to set the new Logo PIN code.

z

Attention

Be sure to note the new Logo PIN code and keep it on hand. If you lost the number, you could no longer change the Logo PIN code setting.

HDMI setup

This function is only used for HDMI input source.

1 )

2 )

Press ▲▼ to select [HDMI setup].

Press ► or the <ENTER> button.

z

The names for the output setting of Digital R/G/

B vary from equipment to equipment.

J


Normal When the output of Digital R/G/B equipment is set to Standard.

Enhanced When the output of Digital R/G/B equipment is set to Enhanced.

J

Sound

HDMI

When Digital input source is input,

Sound is set to HDMI.

to HDMI input source, Sound is set to Computer .

z

Attention

For details, refer to the operating instructions of your

Digital R/G/B equipment.

Terminal

The COMPUTER IN 2/MONITOR OUT terminal on the back of the projector is switchable for computer 2 input or monitor output.

1 )

2 )

Press ▲▼ to select [Terminal] and then press the <ENTER> button.

Press ▲▼ to switch the item.

Computer 2

Computer input

Monitor out

Monitor out z

Note

Terminal function is not available when selecting

[Computer 2] to the input source. Change the input source to the others (HDMI or Computer 1 or Video) so that the Terminal function will be available.

Power management

For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the projector is not operated for a certain period.

1 )

2 )

Press ▲▼ to select [Power management].

Press ► or the <ENTER> button to access the submenu.

J

Mode

1 ) Press ▲▼ and then press the

<ENTER> button to select one mode among the items as below.

Off

[Power management] function is off.

Ready When the lamp has been fully cooled down, the <ON(G)/STANDBY(R)> indicator changes to green blinking.

In this condition, the projection lamp will be turned on if the input signal is reconnected or any button on the control panel or remote control is pressed.

Shut down

When the lamp has been fully cooled down, the power will be turned off.

J

Timer

1 )

2 )

Press ▲▼ to select [Timer] and then press the <ENTER> button.

Press ▲▼ to set the Timer(1~30min).

50

- ENGLISH

Direct on

1 )

2 )

Press ▲▼ to select [Direct on] and then press the <ENTER> button.

Press ▲▼ to switch between On and

Off.

z z

When this function is set to [On], the projector will be automatically turned on just by connecting the AC power cord to a wall outlet.

Be sure to turn off the projector properly. If the projector is turned off in the incorrect sequence, the Direct On function does not work properly.

Standby mode

This function can set the electric power when the projector is standing by.

1 )

2 )

Press ▲▼ to select [Standby mode] and then press the <ENTER> button.

Press ▲▼ to switch between the items as below.

Eco

Network

Restricts some functions in standby mode to reduce power consumption.

Does not restrict functionality even in standby mode.

z z z z

Note

When selecting [Network], the cooling fans may be running depending on the temperature inside the projector even if the projector is turned off.

Refer to "Operating Instructions - Network Operations

".

If Standby mode is set to [Eco], you cannot use network functions when the projector is standing by. Also, you cannot use some RS-232C protocol commands.

If set to [Network], you can use network functions when the projector is standing by.

Setting

Count up

Count down

The P-timer display 000:00 appears on the screen and the count up starts. (000:00-180:00)

The time set in the Timer setting appears on the screen and the countdown starts.

J

Timer

1 )

2 )

Press ▲▼ to select [Timer] and then press the <ENTER> button.

Press▲▼ to set the [Timer](1-180 Min).

z

Timer is available in [Count down] only. Factory default value is 10 Min.

J

Execute

1 ) Press ▲▼ to select one among the items as below and then press the

<ENTER> button.

Start

It executes the count up or count down function.*

1

Reset

Reset the P-timer values.* 2

Exit

To exit the P-timer operation.

*1 :

*2 :

Press the <ENTER> button at Start and the indication changes into Stop. To stop Count up or

Count down, press the <ENTER> button at Stop on the screen menu, then the indication changes into Restart. Press the <ENTER> button at

Restart to resume Count up or Count down.

Press the <ENTER> button at Reset to return to the following value:

Count up

"000:00"

Count down Timer that you set z z

Attention

To stop the [P-timer] function, press the <P-TIMER> button.

To cancel the [P-timer], press and hold the <P-TIMER> button for a few seconds.

P-timer

This function allows you to change the setting of the

P-timer and execute it.

1 )

2 )

Press ▲▼ to select [P-timer].

Press ► or <ENTER> button to access the submenu.

J

Mode

1 ) Press ▲▼ button to select one mode among the items as below.

ENGLISH -

51

Setting

Closed caption

The closed caption is mainly used in the north

America. This function shows the text information contained in the image signal. Captions may not be displayed on some devices or software.

1 )

2 )

Press ▲▼ to select [Closed caption].

Press ► or the <ENTER> button to enter the submenu.

J

Closed caption

1 )

2 )

Press ▲▼ to select [Closed caption] and then press the <ENTER> button.

Press ▲▼ to select Off, CC1, CC2,

CC3 or CC4.

J

Color

1 )

2 )

Press ▲▼ to select [Color] and then press the <ENTER> button.

Press▲▼ to select Color or White.

z z z

Attention

Closed caption is available only when Video, S-video or Component is selected as the input signal and Auto,

NTST or 480i is selected from the System Menu.

Part of characters may not displayed when high compensation values are set in [Keystone].

Closed captions are not displayed while the menu screen appears.

Lamp power

This function allows you to change brightness of the screen.

1 )

2 )

Press ▲▼ to select [Lamp power] and then press the <ENTER> button .

Press ▲▼ to select one among the modes as below.

z

You can also press the <LAMP> button to display [Lamp power].

Eco

Lower brightness reduces the lamp power consumption and extends the lamp life.

52

- ENGLISH

Remote control

This switching function prevents remote control interference when operating several projectors or video equipment at the same time.

1 )

2 )

3 )

Press ▲▼ to select [Remote control].

Press ► or the <ENTER> button.

Press ▲▼ to select one among the seven codes.

z

This projector provides 7 different remote control codes: [ALL], [Code 1]~[Code 6].

z z z

Attention

When operating the projector under [ALL] code, you can operate several projectors at the same time. If you want to operate the projector independently, you must switch to other code.

When different codes are set on the projector and on the remote control, any operation cannot be made. In that case, switch the code on the remote control to fit the code on the projector.

If the batteries are removed from the remote control for a long period of time, the remote control code will be reset.

Setting

Security

This function allows you to use the Key lock and PIN code lock function to set the security for the projector operation.

1 )

2 )

Press ▲▼ to select [Security].

Press ► or the <ENTER> button to access the submenu.

J

Key lock

This function locks the control panel and remote control buttons to prevent operation by unauthorized persons.

1 ) Press ▲▼ to select the desired items as below.

Unlocked.

Lock the operation of the control panel. To unlock, use the remote control.

Lock the operation of the remote control. To unlock, use the control panel.

J

PIN code lock

This function prevents the projector from being operated by unauthorized persons and provides the following setting options for security.

1 ) Press ▲▼ to select the desired items as below.

Off

On 1

On 2

Unlocked.

Enter the PIN code every time turning on the projector.

Enter the PIN code to operate the projector once the power cord is disconnected; as long as the

AC power cord is connected, the projector can be operated without a PIN code.

z

Attention

Whenever you change the PIN code lock setting or the

PIN code (the four-digit number), you are required to enter the PIN code. The "1234" is set as the initial PIN code at the factory.

ENGLISH -

53

Setting

J

PIN code change

The PIN code can be changed to your desired fourdigit number.

1 ) Press ▲▼ to select [PIN code change] and then Press <ENTER> button.

z

Current Pin code dialog box appears.

2 ) Press ▲▼ to enter the current code.

Press ► button to fix the number and move the red frame pointer to the next box.

z

The New PIN code input dialog box appears.

3 ) Repeat these steps to set a new PIN code.

Fan

1 )

2 )

Press ▲▼ to select [Fan] and then

Press <ENTER> button.

Press ▲▼ to select one option .

z

This function provides the following options in the cooling fans’ operation when the projector is turned off.

L 1

L 2

Normal operation.

The fan speed is the same as

L1, but it takes more time to cool the projector down.

Fan control

1 )

2 )

Press ▲▼ to select [Fan control] and then Press <ENTER > button.

Press ▲▼ to select one among options as below.

z

Choose the running speed of cooling fans from the following options according to the ground elevation under which you use the projector.

Off

On 1

On 2

Normal speed.* 1

Faster than Off mode.*

2

Faster than On 1 mode.* 3

*1 :

*2 :

*3 :

Set this function to [Off] when using the projector in non-high altitude environment.

Select this mode when using the projector in high altitudes (about 1,200 meters or more above the sea level) where the fans have less cooling effect.

Select this mode when using the projector in higher altitudes ( than above where the fans

54

- ENGLISH

have less cooling effect).

z z

Note

Failure to set the running speed of cooling fans properly may affect the projector life.

The fan noise becomes louder in [On 1] and [On 2].

Video delay control

This function allows you to make a digital processing of a projected image faster.

1 )

2 )

Press ▲▼ to select [Video delay control] and then Press the <ENTER> button.

Press ▲▼ to select one item between

On and Off.

z

Note

[Noise reduction] and [Progressive] can not be selected when [Video delay control] function is set to [On].

Lamp runtime

This function is used to display the cumulative lamp operating time and reset the lamp runtime.

Press ▲▼ to select [Lamp runtime] and then press ► or the <ENTER> button to show submenus.

J

Lamp runtime

Show the total accumulated lamp run time.

J

Lamp runtime reset

After replacing the lamp unit, be sure to reset the timer.

Press the <ENTER> button to reset.

z

[Lamp runtime Reset?] appears. Select [Yes] to continue.

Another confirmation dialog box appears, select [Yes] to reset the Lamp runtime.

z

Attention

When the lamp run time is elapsed the estimated duration, the Lamp replacement icon ( Æ page 60) will appear on the screen, indicating that the end of lamp life is reached. When replacing the lamp unit, reset the lamp runtime.

Filter counter

This function is used to set a frequency for the filter replacement.

1 )

2 )

Press ▲▼ to select [Filter counter].

Press ►or the <ENTER> button to access the submenu items.

J

Filter counter

Show the total accumulated time of the filter use timer setting.

J

Timer

To set a timer. When the projector reaches the selected time the filter warning icon appears on the screen.

1 )

2 )

Press ▲▼ to select [Timer] and then press the <ENTER> button .

Press ▲▼ to set the Timer.

z

Select from [Off/1000H/2000H/3000H/4000H] depending on the use environment.

J

Filter counter reset

After replacing the filter, be sure to reset the timer.

1 )

2 )

Press ▲▼ to select [Filter counter reset].

Press the <ENTER> button.

z

[Filter counter Reset?] appears. Select [Yes] to continue. Another confirmation dialog box appears, select [Yes] to reset the [Filter counter].

Warning log

This function records anomalous operations while the projector is in operation and use it when diagnosing faults.

1 )

2 )

Press ▲▼ to select [Warning log].

Press ► or the <ENTER> button to display the latest warning message.

z

Up to 10 warning logs are displayed with the latest warning message at the top of the list, followed by previous warning messages in chronological order.

z

Attention

When the [Factory default] function is executed, all the warning log records will be deleted.

Setting

Factory default

This function returns all setting values except for the

[PIN code lock], [Logo PIN code lock], [Lamp runtime],

[Filter counter] and the logo transferred by "Logo

Transfer Software" to the factory default settings.

1 )

2 )

Press ▲▼ to select [Factory default].

Press the <ENTER> button.

z

[Return to Factory default?] appears. Select

[Yes] to continue. Another confirmation dialog box appears, select [Yes] to return to [Factory default].

ENGLISH -

55

Information

Select [Information] from the Main Menu (see

“Navigating through the menu” on page 32), then select the item from the sub-menu.

Remote control Control panel

Input Source Information

Display

The Information Menu is used for checking the status of the image signal being projected and the operation of the projector.

You can also Press the <INFO.> button on the remote control to display the Information menu.

J

Input

The selected input source is displayed.

J

System

The selected system is displayed.

J

H-sync freq.

The selected H-sync freq. is displayed.

The horizontal frequency of the input signal is displayed in KHz, or - - - - KHz when no signal.

J

V-sync freq.

The selected V-sync freq. is displayed.

The vertical frequency of the input signal is displayed in Hz, or - - - - Hz when no signal. Numbers of Hz doubles during Interlace.

J

Screen

The selected Screen size is displayed.

J

Language

The selected language is displayed.

J

Lamp power

The selected lamp mode is displayed.

J

Lamp runtime

The cumulative lamp operating time is displayed.

J

Power management

[Off] , [Ready] or [Shut down], and [timer] are displayed.

J

Key lock

The selected Key lock icon is displayed.

J

PIN code lock

[Off], [On 1] or [On 2] is displayed.

J

Remote control

The selected remote control code is displayed.

J

Serial number

The serial number of the projector is displayed.

The serial number is used to service the projector.

56

- ENGLISH

LAMP and WARNING Indicators

Managing the indicated problems

If a problem should occur inside the projector, the <ON(G)/STANDBY(R)>, <LAMP> and/or <WARNING> indicators will inform you. Manage the indicated problems as follow.

z z

CAUTION

(

Before you take a remedial measure, follow the procedure of switching the power off indicated in “Turning Off the projector”.

Æ page 27)

If multiple indicators light or blink, verify the status of the projector by looking at each indicator.

z

Note

Confirm the status of the power indicated on the <ON(G)/STANDBY(R)> indicator.

J

LAMP indicator

Indicator

Status

Check

Remedy

Lighting in yellow

The projection lamp reaches its end of life.

Is there a Lamp replacement icon appears on the screen?

Replace the lamp unit. (

Æ page 61) z

Note

Contact your dealer for repair services when <LAMP> indicator persists to light after taking these measurements.

J

WARNING indicator

Indicator

Status

Check

Remedy

Lights in red.

The projector detects an abnormal condition and cannot be turned on.

Unplug the AC power cord and plug it again to turn on the projector.

If the projector is turned off again, unplug the AC power cord and contact the dealer or the service center for service and checkup.

Blinks in red.

The temperature inside the projector is abnormally high.

The projector cannot be turned on. And the <ON(G)/

STANDBY(R)> indicator also blinks in red.

- Did you provide appropriate space for the projector to be

ventilated? Check the installing condition to see if the air

vents of the projector are not blocked.

- Has the projector been installed near an Air-

Conditioning/ Heating Duct or Vent?

- Is the filter clean?

- Provide good installing condition to your projector.

- Move the installation of the projector away from the duct

or vent.

- Replace air filter unit.

z z

Note

If <WARNING> indicator persists to light or blink after taking these measurements, please contact your dealer for repair services. Do not leave the projector on. It may cause an electric shock or a fire hazard.

The projector detects an abnormal condition and cannot be turned on. Unplug the AC power cord and plug it again to turn on the projector. If the projector is turned off again, unplug the AC power cord and contact the dealer or the service center for service and checkup. Do not leave the projector on. It may cause an electric shock or a fire hazard.

ENGLISH -

57

Replacement

Before replacing the unit

z z

When you perform maintenance or replacement of the parts, make sure to turn off the power and disconnect the power plug from the wall outlet. (

Æ pages 23, 27)

Be sure to observe the procedure “Turing Off the projector” ( operation.

Æ page 27) when performing power supply

Maintenance

J

Outer Case

Wipe off dirt and dust using a soft dry cloth.

z

If the dirt is persistent, soak the cloth with water and wring it thoroughly before wiping. Dry off the projector z with a dry cloth.

Do not use benzene, thinner, or rubbing alcohol, other solvents, household cleaners, or chemical treated dusters. Using them may cause deterioration of the outer case.

J

Front glass surface of the lens

Wipe off the dirt and dust off the front surface of the lens with soft clean cloth.

z z

Do not use a cloth that has an abrasive surface or a cloth that is moist, oily, or covered with dust.

Do not use excessive force when wiping the lens as it is fragile.

z

Attention

The lens is made of glass. Impacts or excessive force when wiping may scratch its surface.

Please handle with care.

58

- ENGLISH

Replacement

Replacing the unit

J

Air filter unit

Filter prevents dust from accumulating on the optical elements inside the projector. Should the filter become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and adversely affect the life of the projector.

If a “Filter warning” icon appears on the screen, replace the air filter unit immediately. Replace it with the separately sold ET-RFT100 replacement filter unit. Consult your supplier when you purchase a replacement filter.

J

Replacement of the air filter unit

1 ) Remove the air filter cover.

z

Clean up the dust on the projector and around the air vents. Press and hold the right-hand corner of the filter cover, and then press ◄ leftwards on the filter cover to release the latch and open the filter cover.

2 ) Replace the air filter unit.

z

Put your fingers on the filter tab and then pull the air filter unit out of the projector.

Latch

Filter cover

TOP mark

3 ) Insert a new air filter unit.

z

Insert the new filter completely by following the instructions for step 2) in the reverse order.

Ensure that the area with “TOP” mark is in an upward direction.

4 ) Install the air filter cover.

z

Insert the air filter cover by following the instructions for step 1) in the reverse order.

Pull out and remove

J

Resetting the Filter Counter

Be sure to reset the Filter counter after replacing the filter.(

Æ page 55" Filter counter reset") z z z z z

Attention

Turn off the power before you replace the air filter unit.

When attaching the air filter unit, make sure that the projector is stable, and work in an environment that is safe, even in the event of the air filter unit dropping.

Do not operate the projector with the air filter unit removed. Dust may accumulate on the optical elements degrading picture quality.

Do not put anything into the air vents. Doing so may result in malfunction of the projector.

Do not wash the air filter unit with water or any other liquid matter. Otherwise the air filter unit may be damaged.

ENGLISH -

59

Replacement

J

Lamp unit

The lamp unit is a consumable component. You can check the total usage time using Lamp runtime in the

Information menu on page 56.

It is recommended to ask an authorized engineer to replace the lamp unit. Contact your dealer.

Consult your dealer to purchase a replacement lamp unit (ET-LAT100).

CAUTION:

■ Do not replace the lamp unit when it is hot. (Wait at least 1 hour after use.)

The inside of the cover can become very hot, take care to avoid burn injuries.

J

Notes on the replacement of the lamp unit

z z z z z

The luminous source of the lamp is made of glass and may burst if you hit it against a hard surface or drop it. Please handle with care.

A Phillips screwdriver is required for replacement of the lamp unit.

When replacing the lamp unit, be sure to hold it by the handle.

When replacing the lamp because it has stopped illuminating, there is a possibility that the lamp may be broken. If replacing the lamp of a projector which has been installed on the ceiling, you should always assume that the lamp is broken, and you should stand to the side of the lamp cover, not underneath it. Remove the lamp cover gently. Small pieces of glass may fall out when the lamp cover is opened. If pieces of glass get into your eyes or mouth, seek medical advice immediately.

The lamp contains mercury. Consult your local municipality or your dealer about correct disposal of used lamp units.

z z

Attention

Do not use other than designated lamp units.

The part numbers of accessories and separately sold components are subject to change without notice.

J

When to replace the lamp unit

The lamp unit is a consumable component. Brightness decreases according to duration of usage, so periodical replacement of the lamp unit is necessary.

When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and <LAMP> indicator lights yellow. Replace the lamp with a new one promptly.

Lamp runtime

On screen

Lamp replacement icon

LAMP indicator

Over 3000 hours *

Over 3200 hours *

The message is displayed for 10 seconds. If you press any button within the 10 seconds, the message disappears.

If the power is turned on without replacing the lamp, the power automatically turns off after approximately ten minutes to prevent the malfunction of the projector.

Lights in yellow (even in stand-by mode).

*

3200 hours of use is a rough guideline, but is not a guarantee. The lamp runtime differs depending on the setting of "Lamp power" menu.

z

Note

The Lamp replacement icon will not appear when the [Display] function is set to [Off] (

"Freeze" (

Æ page 30), or "AV mute" (

Æ page 31).

Æ page 49), or during

60

- ENGLISH

Replacement

J

Replacing the Lamp unit

z z z

CAUTION:

When the projector is mounted on a ceiling, do not work with your face close to the projector.

Attach the lamp unit and the lamp cover securely.

When you experience difficulty in installing the lamp, remove it and try again. If you use force to install the lamp, the connector may be damaged.

Lamp cover

1 ) Turn off the Power by following the procedure in "Turning Off the projector" (

Æ

page 27).

Unplug the AC power cord. Wait at least 1 hour and make sure the lamp unit and surroundings are cool.

2 ) Use a Phillips screwdriver to loosen the lamp cover fixing screw and remove the l amp cover.

z

Remove the lamp cover by pulling it slowly

toward the direction of the arrow.

Lamp cover fixing screw

Lamp cover fixing screw

3 ) Use a Phillips screwdriver to loosen the three lamp unit fixing screws until the screws turn freely. Hold the used lamp unit by its handles, and pull it gently from the projector.

4 ) Insert the new lamp unit in correct direction. Tighten the three lamp unit fixing screws securely with a Phillips screwdriver

Handles

5 ) Attach the lamp cover, and tighten the lamp cover fixing screw securely with a Phillips screwdriver.

z

Attach the lamp cover by pushing it slowly opposite the direction of the arrow.

Lamp unit

J z

Resetting the Lamp Runtime

Be sure to reset the [Lamp runtime] after replacing the lamp. ( Æ page 54 " Lamp runtime reset")

ENGLISH -

61

Replacement

Attaching the Lens Cover

When moving this projector or while not using it over an extended period of time, attach the lens cover.

Attach the lens cover according to the following procedures.

1 ) Thread the string through the hole on the lens cover and then tie a knot in the string to secure it in place.

2 ) To pass the other end of the string into the hole on the bottom of the projector and pull at it.

62

- ENGLISH

Troubleshooting

Please check following points. For details, see the corresponding pages.

Problem Cause

Power does not turn on.

No picture appears.

The picture is fuzzy.

The color is pale or grayish.

No sound from the internal speaker

The remote control does not operate.

The control buttons of the projector do not operate.

z

The power cord may not be connected.

z

No electric supply is at the wall outlet.

z

The circuit breakers have tripped.

z

Is the <LAMP> indicator, <ON(G)/STANDBY(R)> indicator, or

<WARNING > indicator lit or blinking?

z

The lamp cover has not been securely installed.

z

The video signal input source may not be connected to a terminal properly.

z

The input selection setting may not be correct.

z

The [Brightness] adjustment setting may be at the minimum setting.

z

The input source which is connected to the projector may have a problem.

z

The [AV mute] function may be in use.

z

The lens focus may not have been set correctly.

z

The projector may not be at the correct distance from the screen.

z

The lens may be dirty.

z

The projector may be tilted too much.

z

[Color] or [Tint] adjustment may be incorrect.

z

The input source which is connected to the projector may not be adjusted correctly.

z

RGB cable is damaged.

z

The input terminals may not have been correctly connected.

z

The volume may have been set to the minimum level.

z

The [AV mute] function may have been turned on.

z

When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.

z

The [Mute] function may have been turned on.

z

The batteries may be weak.

z

The batteries may not have been inserted correctly.

z

The remote control signal receptor on the projector may be obstructed.

z

The remote control unit may be out of the operation range.

z

Strong light such as fluorescent shine onto the signal receptor.

z

When different codes are set on the projector and on the remote contro l

.

z

The control panel is not available if the control panel is locked at [Key lock] under [Security] of [Setting] section.

The picture does not display correctly.

z z

There may be a problem with the VCR or other signal source.

A signal which is not compatible with the projector is being input.

Picture from a computer does not appear.

z

The cable may be longer than the optional cable.

z

The external video output from a laptop computer may not be correct.

Reference page

24, 57

22

29

31

28

20

12

41

22

31

31

17

31

18

15

15

15

53

53

ENGLISH -

63

Troubleshooting

Problem

Picture from a HDMI device does not appear or picture is not stable.

No sound is output from a HDMI device.

Cause

z

Is the HDMI cable securely connected?

z

Turn off the power of the projector and the connected devices. Then turn the power of the projector and the connected devices back on.

z

Isn't unsupported signal cable connected?

z

Set the sound channel of the attached device to Linear PCM.

z

If no audio signal is output during HDMI cable connection, connect the audio cable to COMPUTER/COMPONENT AUDIO IN terminal and set to "Computer" in "Sound" of "Setting" menu. z

Check [PC adj.] or [Screen] and adjust them.

Reference page

22

69

50

38, 44

The image is distorted or runs off.

The exclamation mark appears on the screen.

z

Your operation is invalid. Operate correctly.

— z

Note

If the problem persists, after confirming the contents of the table, please consult your dealer.

64

- ENGLISH

Technical Information

Serial terminal

The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connector.

J

Connection

Connecting terminals on projector

D-Sub 9-pin (male)

Computer

D-Sub 9-pin (female) Communication cable

J

Pin assignments and signal names

D-Sub 9-pin (male)

Outside view

Pin No.

Signal name

RXD

TXD

GND

J

Communication conditions

Signal level

Sync. method

Baud rate

Parity

RS-232C-compliant

Asynchronous

19200 bps

None

Character length

Stop bit

X parameter

S parameter

Contents

NC

Received data

Transmitted data

NC

Earth

NC

NC

NC

NC

8 bits

1 bit

None

None z

Note

When [AMX D. D.] function is set to [On] under the [Network] menu, the Baud rate will change to 9600 bps automatically.

ENGLISH -

65

Technical Information

J

Basic format

Transmission from the computer begins with STX, then the command, parameter, and ETX are sent in this order. Add parameters according to the details of control.

STX C1 C2 C3 : P1 P2 Pn ETX

Start

(1 byte)

Colon

(1 byte)

3 command characters

(3 bytes)

Parameter

(undefined length)

End

(1 byte)

: When sending commands without parameters, a colon (:) is not necessary.

J

Basic format (with sub command)

Same as basic format

STX C1 C2 C3 : ETX

S1 S2 S3 S4 S5 E P1 P2 P3 P4 P5 P6

Sub command (5 bytes) Parameter (6 bytes)

Symbol “+” or “-” (1 byte) and set value or adjustment value (5 bytes)

Operation (1 byte)

“=” (Value specified using parameter is set)

: When transmitting a command which does not need a parameter, the operation (E) and parameter are not necessary.

66

- ENGLISH

Technical Information

J

Cable specifications

[When connected to a computer]

Projector

5

6

7

8

9

3

4

1

2

NC

NC

NC

NC

5

6

7

8

9

3

4

1

2

Computer (DTE specifications)

J

Control commands

When controlling the projector from a computer, the following commands are available:

[Projector control command]

Remarks Command

PON

POF

Control contents

Power [ON]

Power [OFF]

IIS

OSH

INPUT selection

AV mute function

(Parameter)

VID = Video

SVD = S-video

RG1 = Computer 1(RGB)

RG2 = Computer 2(RGB)

HD1 = HDMI

SCT = Computer 1(Scart)

Turning off the projection and sound temporarily.

Sending the command switches ON/OFF.

Do not switch ON/OFF in a short period of time.

Sending the command switches ON/OFF.

OFZ

AUU

AUD

DZU

DZD

Freeze

Volume up

Volume down

D. ZOOM up

D. ZOOM down

QPW

Q$S

Power query

Lamp condition query

000 = Standby

001 = Power on

(Call back)

0 = Stand-by

1 = Lamp ON control active

2 = Lamp ON

3 = Lamp OFF control active

ENGLISH -

67

Technical Information

Other terminals

J

Pin assignments and signal names of <S-VIDEO IN> terminal

Outside view

Pin No.

Signal names

GND (luminance signal)

GND (color signal)

Luminance signal

Color signal

J

Pin assignments and signal names of <COMPUTER IN 1/COMPONENT

IN> terminal

Outside view

Pin No.

Signal names

R/P

R

G/G SYNC/Y

B/P

B

+ 5 V

DDC data

HD/SYNC

VD

DDC clock

: Not assigned

- , , : GND terminals

J

Pin assignments and signal names of <COMPUTER IN 2/MONITOR OUT> terminal

Outside view

Pin No.

Signal names

R

G

B

HD/SYNC

VD

, , , , : Not assigned

- , : GND terminals

J

Pin assignments and signal names of <HDMI> terminal

Outside view

Even-numbered pins to

Odd-numbered pins to

Pin No.

Signal names

T.M.D.S data 2+

T.M.D.S data 2 shield

T.M.D.S data 2-

T.M.D.S data 1+

T.M.D.S data 1 shield

T.M.D.S data 1-

T.M.D.S data 0+

T.M.D.S data 0 shield

T.M.D.S data 0-

T.M.D.S clock +

Pin No.

Signal names

T.M.D.S clock shield

T.M.D.S clock -

CEC

SCL

SDA

DDC/CEC GND

+5V

Hot plug detection

68

- ENGLISH

Technical Information

List of compatible signals

The following table specifies the types of signals compatible with the projectors.

Format : V = VIDEO, S = S-VIDEO, C = COMPUTER, Y = YP

B

P

R

, H = HDMI

Mode

Display resolution *

(dots)

1

Scanning frequency

H (kHz) V (Hz)

Dot clock frequency

(MHz)

Picture quality * 2

PnP

NTSC/NTSC 4.43/

PAL-M/PAL 60

PAL/PAL-N/SECAM

480p

480i

576p

576i

720p

1035i

1080i

VGA

SVGA

MAC

MAC 13

MAC LC13

MAC 16

MAC 19

MAC 21

720 x 480

720 x 576

640 x 480

640 x 480i

768 x 576

768 x 576i

1280 x 720

1920 x 1035i

1920 x 1080i

640 x 480

640 x 400

720 x 400

800 x 600

1280 x 960

1280 x 1024

640 x 480

640 x 480

832 x 624

1024 x 768

1152 x 870

15.7

59.9

85.06

72.19

61.03

55.38

60.51

60.31

51.09

60.51

75.00

85.00

70.09

70.09

56.25

60.32

75.00

75.08

75.08

66.67

66.60

74.55

75.08

75.06

60.0

59.88

60.00

50.00

50.00

50.00

60.00

60.00

50.00

60.00

59.88

74.38

72.81

53.674

48.08

37.90

34.50

38.00

38.60

32.70

38.00

37.50

43.269

31.47

31.47

35.156

37.88

46.875

75.00

80.00

35.00

34.97

49.72

60.24

68.68

15.6

31.47

15.734

31.25

15.625

37.50

45.00

33.75

28.125

33.75

31.47

37.86

37.86

-A

○ 56.25

50.00

40.02

36.432

40.128

38.60

32.70

40.128

31.50

36.00

25.175

28.322

36.00

40.00

49.50

126.00

135.20

30.24

31.33

57.283

80.01

100.00

--

25.2

12.2727

29.5

14.75

74.25

74.25

74.25

74.25

74.25

25.149

31.50

31.50

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

Format

V/S

V/S

C/Y

C

*1 :

*2 :

“i” added to the resolution value indicates an interlaced signal.

Picture quality is indicated by the following symbols.

AA: Maximum picture quality can be obtained.

A: Signals are converted by the image processing circuit.

ENGLISH -

69

Technical Information

Mode

SXGA +

XGA

SXGA

UXGA

Display resolution *

(dots)

1

1400 x 1050

1024 x 768

1024 x 768i

1152 x 864

1152 x 900

1280 x 960

1280 x 1024

1280 x 1024i

1600 x 1200

Dot clock frequency

(MHz)

Picture quality * 2

135.008

108.00

135.00

111.52

130.08

108.19

157.5

80.00

80.00

78.745

162.00

175.50

189.00

202.50

44.90

94.56

92.00

105.10

94.50

108.00

108.00

107.35

108.18

109.497

117.004

107.99

122.85

122.43

65.00

94.504

78.75

75.00

79.252

65.179

59.129

83.41

84.375

81.00

63.03

61.664

74.745

47.30

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

35.522

64.20

61.20

71.40

61.85

60.00

62.50

63.90

63.34

63.74

71.69

50.00

46.43

75.00

81.25

87.5

93.75

81.13

63.98

76.107

60.02

79.976

75.025

63.37

60.01

76.97

63.79

72.00

60.18

91.146

85.024

50.00

86.00

94.00

86.70

60.00

65.00

70.00

75.00

86.96

70.40

65.20

75.60

66.00

60.00

58.60

60.00

59.98

60.01

67.19

56.476

60.31

48.50

44.00

63.48

62.04

61.00

46.90

47.00

58.03

36.00

Scanning frequency

H (kHz) V (Hz)

63.970

60.190

65.350

60.120

65.120

59.900

48.36

60.00

68.677

84.977

60.023

75.03

70.07

74.92

60.02

54.58

79.35

77.07

75.70

58.20

58.30

72.00

87.17

PnP

*1 :

*2 :

“i” added to the resolution value indicates an interlaced signal.

Picture quality is indicated by the following symbols.

AA: Maximum picture quality can be obtained.

A: Signals are converted by the image processing circuit.

70

- ENGLISH

Format

C

Mode

WXGA

WSXGA+

WXGA

WUXGA

D-VGA

D-480p

D-576p

D-720p

D-SVGA

D-XGA

D-SXGA

Technical Information

Display resolution *

(dots)

1

1280 x 768

1280 x 800

1366 x 768

1360 x 768

1376 x 768

1680 x 1050

1440 x 900

1920 x 1200

640 x 480

768 x 576

1280 x 720

800 x 600

1024 x 768

1400 x 1050

Scanning frequency

H (kHz) V (Hz)

Dot clock frequency

(MHz)

47.776

59.870

60.289

74.893

68.633

84.837

55.993

69.991

57.675

72.004

49.600

60.050

79.50

102.25

117.50

94.964

97.817

79.360

41.200

50.000

49.702

59.810

63.980

60.020

68.557

83.500

108.00

58.289

69.975

98.858

60.044

71.995

102.795

62.790

74.928

106.492

71.553

84.879

122.498

48.36

47.70

56.16

60.00

60.00

72.00

48.36

60.00

65.290

59.954

55.935

59.887

74.918

60.000

74.556

59.885

74.038

59.950

31.47

31.47

59.94

59.88

31.25

37.50

45.00

37.879

50.00

50.00

60.00

60.32

43.363

63.97

60.00

60.19

65.350

60.120

65.120

59.900

193.25

154.00

25.175

25.2

29.5

74.25

74.25

40.00

86.67

86.67

100.19

86.67

146.25

106.50

161.85

65.00

107.99

122.85

122.43

Picture quality * 2

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

A

AA

AA

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

PnP

Format

C

H

*1 :

*2 :

“i” added to the resolution value indicates an interlaced signal.

Picture quality is indicated by the following symbols.

AA: Maximum picture quality can be obtained.

A: Signals are converted by the image processing circuit.

ENGLISH -

71

Technical Information

Mode

Display resolution *

(dots)

1

Scanning frequency

H (kHz) V (Hz)

Dot clock frequency

(MHz)

Picture quality * 2

PnP Format

D-WXGA

D-SXGA

D-1035i

D-1080/50i

D-1080/60i

D-1080p

D-WXGA+

D-WSXGA+

D-WUXGA

1360 x 768

1366 x 768

1376 x 768

1280 x 768

1280 x 800

1280 x 768

1280 x 1024

1920 x 1035i

1920 x 1080i

1920 x 1080i

1920 x 1080

1440 x 900

1680 x 1050

1920 x 1200

47.700

60.00

56.160

72.000

46.500

50.000

48.360

60.00

48.360

60.00

47.776

59.870

86.670

100.19

67.40

86.67

86.67

79.50

60.289

74.893

68.633

84.837

49.572

59.870

41.200

50.000

102.25

117.50

83.282

68.557

49.702

59.810

63.980

60.020

83.50

108.00

58.289

69.975

98.858

60.044

71.995

102.795

62.790

74.928

106.492

71.553

84.879

122.498

55.993

69.991

57.675

72.004

94.964

97.817

63.98

60.02

60.276

58.069

31.65

33.75

29.8

60.00

28.125

33.75

67.5

56.25

50.00

60.00

60.00

50.00

55.935

59.887

65.290

59.954

74.038

59.950

108.00

93.067

53.48

74.25

74.25

74.25

148.5

148.5

106.50

146.25

154.00

A

A

A

A

A

A

A

A

A

A

A

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

AA

A

A

A

A

A

AA ○

H

*1 :

*2 :

*3 :

“i” added to the resolution value indicates an interlaced signal.

Picture quality is indicated by the following symbols.

AA: Maximum picture quality can be obtained.

A: Signals are converted by the image processing circuit.

Where marked "○" signals indicates in Plug and Play is compatible with EDID of projector. Unmarked signals in Plug and Play may also be compliant if input terminals are written in the format list. Where Plug and Play is unmarked and nothing is wirtten in the format list, difficulties in projecting image may occur even when computer and projector appear to have same resolution.

z

Note

The number of display dots is 1280 x 800. z

A signal with a different resolution will be projected after converting the resolution to match the projector display.

When interlaced signals are connected, flicker may occur on the projected image.

72

- ENGLISH

Specifications

*

Model No.

Power supply

Power consumption

LCD panel

Lens

Applicable scanning frequency

2

Panel size

Display method

Drive method

Pixels

Luminous lamp

Light output *

1 for RGB signal for YP

B

P

R

signal for Video signal

(including S-video) for HDMI signal

Color system

Projection size

Screen aspect ratio

Projection scheme

Speaker

Maximum usable volume output

Contrast ratio * 1

PT-TW230E

AC100 V - 240 V 50 Hz/60 Hz

100 V - 240 V 3.6 A-1.8 A 310 W

When [Standby mode] of [Setting] is set to [ECO]: 0.42 W

When [Standby mode] of [Setting] is set to [Network]: 9.5 W

1.5 cm (0.59") (aspect ratio 16 : 10)

3 transparent LCD panels (RGB)

Active matrix method

1 024 000(1 280 x 800) x 3 panels

Manual focus

F 1.8 , f 6.68 mm

230 W UHM lamp

2500 lm

Horizontal 15 kHz to 100 kHz, Vertical 50 Hz to 100 Hz

Dot clock frequency: 140 MHz or less

[525i(480i)]

[525p(480p)]

Horizontal 15.75 kHz, Vertical 60 Hz

Horizontal 31.5 kHz, Vertical 60 Hz

[750(720)/60p] Horizontal 45 kHz, Vertical 60 Hz

[1125(1080)/60i] Horizontal 33.75 kHz, Vertical 60 Hz

[625i(576i)]

[625p(576p)]

[750(720)/50p]

[1125(1080)50i]

Horizontal 15.63 kHz, Vertical 50 Hz

Horizontal 31.25 kHz, Vertical 50 Hz

Horizontal 37.5 kHz, Vertical 50 Hz

Horizontal 28.13 kHz, Vertical 50 Hz z

HD/SYNC and V terminals are not compliant with 3 value composite SYNC

Horizontal 15.75 kHz / 15.63 kHz, Vertical 50 Hz / 60 Hz

525p(480p), 625p(576p), 750(720)/60p, 750(720)/50p, 1125(1080)/60p, 1125(1080)/50p,

1125(1080)/60i, 1125(1080)/50i z z

Displayable resolution: VGA to WUXGA (non-interlace)

Dot clock frequency: up to 162 MHz

7 (NTSC, NTSC4.43, PAL, PAL-N, PAL-M, SECAM, PAL60)

1.52 m -2.79 m (60"-110")

16: 10

Front / Rear / Mount on Ceiling / Floor (Menu setting system)

1 (3.7 cm round-type)

10W

500 : 1 (all white / all black)

*1 :

*2 :

(

Measurement, measuring conditions and method of notation all comply with ISO21118 international standards.

For details of video signals that can be projected using this projector, refer to “List of compatible signals”.

Æ page 69-72)

ENGLISH -

73

Specifications

Terminals

CONTROL PORT

LAN

Power cable length

Cabinet

Dimensions

Weight

COMPUTER IN 1/

COMPONENT IN

COMPUTER IN 2/

MONITOR OUT

VIDEO IN

S-VIDEO IN

HDMI IN

Operating environment

Remote control

Model No.

AUDIO IN

AUDIO OUT

Power supply

Operating range

Weight

Dimensions

PT-TW230E

1 (D-sub 15 pin female)

[RGB signal] 0.7 V [p-p] 75 Ω (When G-SYNC: 1.0 [p-p] 75 Ω

HD/SYNC TTL high impedance, automatic positive/negative polarity compatible

VD TTL high impedance, automatic positive/negative polarity compatible

[YP

B

P

R

signal] Y: 1.0 V [p-p] including synchronization signal, P

B

P

R

: 0.7 V [p-p] 75 Ω

[RGB signal] 0.7 V [p-p] 75 Ω (When G-SYNC: 1.0 [p-p] 75 Ω

HD/SYNC TTL high impedance, automatic positive/negative polarity compatible

VD TTL high impedance, automatic positive/negative polarity compatible

1 (RCA pin jack 1.0 V [p-p] 75 Ω)

1 (Mini DIN 4 pin, Y 1.0 V [p-p], C 0.286 V [p-p] 75 Ω, S1 signal compatible)

1 (HDMI 19 pin, HDCP and Deep color compatible)

1 (M3 stereo mini jack, 0.5 V [rms], input impedance 22 kΩ and more)

1 (RCA pin jack x 2 (L-R), 0.5 V [rms], input impedance 22 kΩ and more)

1 (M3 stereo mini jack, stereo monitor output compatible,

0 V [rms] to 2.0 V [rms] valuable, output impedance 2.2 kΩ and less)

1 (D-sub 9 pin, RS-232C compliant, for computer control use

1 (for RJ-45 network connection, PJLink compatible,)

2.0 m(78 3/4")

Molded plastic

Width: 350 mm (13.78") (excluding protractions)

Height: 143.4 mm (5.65") (when front adjustable feet shortened)

Depth: 381.9 mm (15.04") (excluding protractions)

Approx.4.7 kg (10.4 lbs.) * 3

Operating environment temperature : 0°C (32 °F) to 35 °C (95 °F)

Operating environment humidity: 20 % to 80 % (no condensation)

DC 3 V (battery (AAA/R03 or AAA/LR03 Type ) x 2)

Approx. 5 m (196.9") (when operated directly in front of receptor)

67 g (2.36 ozs.) (including batteries)

Width : 52 mm (2.05"), Length : 110 mm (4.33"), Height : 18 mm (0.71")

*3 : This is an average value. It may differ depending on individual product.

z

The part numbers of accessories and separately sold components are subject to change without notice.

74

- ENGLISH

Dimensions

0.55(14)

6.56(166.7)

6.29(159.8)

Specifications

<Unit : inch (mm)>

: Actual dimension may differ by product.

4.33(110)

7.53(191.3)

0.56(14.2)

0.72(18.4)

4.23(115)

3.54(90)

3.94(100)

6.77(172)

5.60(142.2)

15.11(383.9)

Ceiling mount bracket safeguards

z z z z z z z

Installation work of the ceiling mount bracket should only be carried by a qualified technician.

Even if it is during guaranteed period, the manufacturer is not responsible for any hazard or damage caused by using a ceiling mount bracket which is not purchased from an authorized distributors, or environmental conditions.

Remove an unused ceiling mount bracket promptly.

Ensure to use a torque driver and do not use an electrical screwdriver or an impact screwdriver.

For details, see the work instruction manual packed together with the ceiling mount bracket.

The model Nos. of the accessories and the parts sold separately are subject to change without notice.

Make sure the screws on the ceiling mount kit cannot touch the metal parts materials (metallic lath, wire or board) in the ceiling board. Otherwise it may result in fire hazard.

Bottom view

Model No. of ceiling mount bracket:

ET-PKV100H (for high ceilings)

ET-PKV100S (for low ceilings)

Model No. of projector mount base:

ET-PKT100B

M5 x 0.7

12mm (0.47")

Torque:1.2

±

0.1N.m

ENGLISH -

75

Index

A

About Your Projector.......................15

Accessories ....................................13

Adjusting front adjustable feet ........21

Attaching the Lens Cover ...............62

AUTO PC adjust .............................37

Auto setup ......................................48

AV MUTE ........................................31

B

Background ....................................49

Basic operations by using the remote

control .........................................29

Blackboard(Green) .........................40

Brightness.......................................41

C

Cautions on use..............................12

Cautions when installing .................10

Cautions when transporting ............10

CD-ROM .........................................14

Ceiling.............................................46

Cinema ...........................................40

Closed caption ................................52

Color ...............................................41

Colorboard ......................................40

Color temp. .....................................41

Computer System Selection ...........35

Connecting .....................................22

Connecting the power cord.............23

Contrast ..........................................41

Control panel ..................................17

Custom ...........................................44

Custom adj. ....................................45

D

Digital zoom ....................................45

Direct on .........................................51

Direct Power Off function ................27

Display ............................................49

Disposal ..........................................11

Dynamic..........................................40

F

Factory default ................................55

Fan .................................................54

Fan control......................................54

Filter counter...................................55

FREEZE .........................................30

Full ..................................................44

G

Gamma ...........................................42

H

HDMI setup.....................................50

How to adjust the state of

the image ....................................28

I

ID numbers .....................................18

Image adjust ...................................41

Image select ...................................40

Information......................................56

Input menu......................................35

Input search ....................................48

Installing and Removing batteries ..18

K

Keystone...................................30, 45

L

LAMP and WARNING Indicators ....57

LAMP indicator ...............................57

Lamp power ....................................52

Lamp runtime..................................54

Lamp unit ........................................60

Language........................................48

List of compatible signals ...............69

Logo................................................49

M

Main menu ......................................33

Maintenance ...................................58

Managing the indicated problems...57

Manual PC adjust ...........................38

Menu Navigation.............................32

Menu position .................................48

Mute................................................47

N

Natural wide....................................44

Noise reduction...............................42

Normal ............................................44

O

ON(G)/STANDBY(R) indicator ........24

Optional accessories ......................14

Other terminals ...............................68

P

PIN code .........................................26

POWER indicator ...........................24

Power management .......................50

Precautions for Use ........................10

Progressive.....................................43

Projecting........................................28

Projection distance .........................20

Projection method...........................19

Projector body ................................16

P-Timer ...........................................51

R

Read this first!...................................2

Real ................................................40

Rear ................................................46

Rear terminals ................................17

Remote control .........................15, 53

Replacing the Lamp unit .................61

Replacing the unit ...........................59

Resetting the Lamp Runtime ..........61

S

Screen ............................................44

Screen size and throw distance......20

Security.....................................11, 53

Selecting the image ........................28

Serial terminal.................................65

Setting ............................................48

Setting the ID number.....................18

Setting up .......................................19

Sharpness ......................................42

Sound .............................................47

Specifications .................................73

Standard .........................................40

Standby mode ................................51

Sub menu .......................................33

Switching the input signal ...............29

T

Terminal ..........................................50

Tint ..................................................41

Troubleshooting ..............................63

True ................................................44

Turning Off the Projector ................27

Turning On the Projector ................25

V

Video delay control .........................54

Video System Selection ..................35

Volume............................................47

W

WARNING indicator ........................57

Warning log ....................................55

Wide(16:9) ......................................44

Z

Zoom ..............................................44

76

- ENGLISH

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the

Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Panasonic Corporation

Web Site : http://panasonic.net/avc/projector/

© Panasonic Corporation 2012

SS0212-0

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
