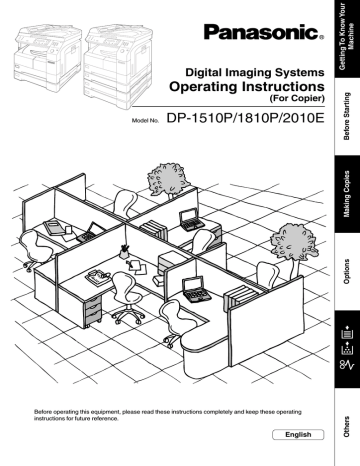

Model No. DP-1510P/1810P/2010E Operating Instructions

Model No. DP-1510P/1810P/2010E Operating Instructions

DP-1810P with Options

DP-2010E with Options

Digital Imaging Systems

Operating Instructions

(For Copier)

Model No.

DP-1510P/1810P/2010E

Before operating this equipment, please read these instructions completely and keep these operating instructions for future reference.

English

J

?

I

IMPORTANT INFORMATION

When requesting information, supplies or service always refer to the model and serial number of your machine. The model and serial number plate (Main Name Plate) is located on the rear side of machine.

For your convenience, space is provided below to record information you may need in the future.

Model No.

Serial No.

Date of Purchase

Dealer

Address

(

Telephone Number

)

(

Supplies Telephone Number

)

(

Service Telephone Number

)

2

(Digital copier with ADF option)

Model and Serial Number

Copyright

2002 by Matsushita Graphic Communication Systems, Inc.

All rights reserved. Unauthorised copying and distribution is a violation of law. Printed in Japan.

The contents of these Operating Instructions are subject to change without notice.

Operation Chart

Common Features and Usage

Basic Operation

Original

Load Paper

Turn the Power

Switch On

1

Place the

Original

2

Original Size

(Reduction/

Enlargement

Only)

3

Copy Size

(Reduction/

Enlargement

Only)

4

Number of Copies

5

Press

START

Position of the Original

From ADF (or i-ADF) From Platen

Original Guide

A5

A4 FLS B4 A3

ADF Tray

Original Guides

Adjust to the original’s width

A5

FLS1

A5

A4

FLS2

B4

A3

C Place originals face down on the platen or face up on the ADF.

C If the original is not positioned properly, a portion of the original may not be copied.

C For originals smaller than A5 size, position the original within the area of A5 and select A5.

Commonly Used Functions and Operating Procedures

Full Size

Makes a copy that is the same size as the original

1 4 5

(See page 12)

Reduction or Enlargement

Copies the original at a fixed reduction or enlargement ratio

1 2 3 4 5

(See page 13)

Memory Capacity

When the memory becomes full during original scanning, the message “OUT OF MEMORY”

“CONTINUE? 1: YES 2: NO” will be displayed in the message display. In this case, follow the operating instruction in the message display.

When additional memory is required, consult with an authorised servicing dealer.

3

4

Energy Star

As an

E

NERGY

S

TAR

® Partner, Panasonic has determined that this product meets the

E

NERGY

S

TAR

®

guidelines for energy efficiency.

This voluntary program specifies certain energy consumption and usage standards. This product will automatically “power down” after a specified period of non-use. The use of this

E

NERGY

S

TAR

® compliant product will reduce energy consumption and ultimately benefit the environment.

The default functions can be adjusted depending on your office requirements.

Please ask your authorised Panasonic dealer for more details.

Table of Contents

Getting To Know Your Machine

Operation Chart .............................................................................................................................. 3

Common Features and Usage .............................................................. 3

Energy Star ..................................................................................................................................... 4

Before Starting

Precautions ..................................................................................................................................... 7

For Your Safety ..................................................................................... 7

Handling ............................................................................................... 8

Toner and Paper ................................................................................... 8

Ventilation ............................................................................................. 8

Installation ............................................................................................ 9

Control Panel ................................................................................................................................ 10

Making Copies

Basic Copy .................................................................................................................................... 12

Full Size Copying ................................................................................ 12

Reduction or Enlargement Copying .................................................... 13

Zoom Copying .................................................................................... 14

Using the Sheet Bypass ..................................................................... 15

Creative Features ......................................................................................................................... 16

2 in 1 Copy ......................................................................................... 16

2 Page Copy ....................................................................................... 17

Book/Edge/Margin .............................................................................. 18

2-Sided/1-Sided Copy ......................................................................... 19

1

\

2/2

\

1/2

\

2 Copy .................................................................... 20

Book

\

2 Copy .................................................................................. 21

Job Memory ....................................................................................... 22

Sort Copy ........................................................................................... 23

Other Features .............................................................................................................................. 24

Energy Saver/Interrupt Mode .............................................................. 24

Skyshot Mode ..................................................................................... 25

Combined Function Table ............................................................................................................ 27

Function ........................................................................................................................................ 28

Checking the Copier’s Total Counter ................................................... 28

General Functions .............................................................................. 29

Copier Settings ................................................................................... 30

General Functions for Key Operator ................................................... 31

Copier Settings for Key Operator ........................................................ 32

Function Setting .................................................................................. 33

Function Setting for Key Operator ....................................................... 34

5

6

Table of Contents

Options

Accessories .................................................................................................................................. 39

Components ....................................................................................... 39

Automatic Document Feeder .............................................................. 40

Problem Solving

Problem Solving ........................................................................................................................... 42

Adding Paper (

J

) ............................................................................... 42

Adding the Toner and Replacing Waste Toner Container (

?

) ............. 43

Removing a Misfed Paper ................................................................... 45

Troubleshooting ........................................................................................................................... 52

Before Calling Service ........................................................................ 52

User Error Codes (U Code) ................................................................ 54

Others

Specifications ............................................................................................................................... 55

Options and Supplies ................................................................................................................... 57

Precautions

For Your Safety

Laser Safety

LASER SAFETY

This unit employs a laser. Only qualified service personnel should attempt to service this device due to possible eye injury.

CAUTION:

USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS RADIATION EXPOSURE.

Caution Label

(Digital copier with ADF option)

7

8

Precautions

Handling

Toner and Paper

Ventilation

Do not look directly at the exposure lamp when copying.

Do not turn the power switch Off or open the front panel during copying.

C Do not drop paper clips or other metal objects into the copier.

Store toner, drum and paper in cool areas with low humidity.

C

Use high quality 60 - 90 g

/m

2

(Sheet Bypass:

56 - 128 g

/m

2

) paper.

C For optimum performance, it is recommended that only Panasonic Brand supplies are used in the copier.

The copier should be installed in a well-ventilated area to minimise the ozone density in the air.

The copier should not be installed in areas with the following conditions:

C

Extremely high or low temperature and humidity.

Ambient conditions

Temperature: 10 – 35°C

Relative humidity: 45 – 80%

C Where temperature and humidity can change rapidly, causing condensation.

C

Direct exposure to sunlight.

C

Directly in the air conditioning flow.

C

In areas of high dust concentration.

C

In areas of poor ventilation.

C In areas with chemical fume concentration.

C

In areas with extreme vibration.

C

With unstable or uneven conditions (floors, etc.).

Precautions

Installation

The maximum power consumption is 1.2 kW.

A properly wired (grounded), dedicated, 6A, 220-240 V AC outlet is required.

Do not use an extension cord.

The power cord on this equipment must be used to disconnect the main power.

Please ensure that the socket outlet is installed near the equipment and is easily accessible.

FOR YOUR SAFETY

Caution Note:

Disconnect from the mains supply before removing covers.

The mains plug on this equipment must be used to disconnect mains power. Please ensure that the socket outlet is installed near the equipment and shall be easily accessible.

For U.K.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 13 amp fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362

Check for the ASTA mark

7

or the BSI mark

6

on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic Dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR OFFICE

THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED

INTO ANY 13 AMP SOCKET.

If a new plug is to be fitted please observe the wiring code as shown below.

If in any doubt please consult a qualified electrician.

WARNING: THIS APPLIANCE MUST BE EARTHED.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

Green and Yellow: Earth

Blue : Neutral

Brown : Live

As the colours of the wires in the main lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by letter E or by the safety Earth symbol “

L

” or coloured GREEN or GREEN-AND-YELLOW.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

How to replace the fuse.

Open the fuse compartment with a screwdriver and replace the fuse.

N

9

Control Panel

10

NOTE

(For DP-2010E only)

+

-

.

/

0

1

No

#

$

%

&

(

)

*

Contents

2 in 1 Key

C

From two 1-sided originals, side by side, to 1-sided copies.

2 Page Copy Key

C

Copying two facing pages on a A3 size original on two separate A4 size sheets.

Sort Key

C

When using Electric Sorting Mode. Optional memory is required.

MARGIN Key

C

Shifts the image to the right or left.

EDGE Key

C

Creates a blank edge.

BOOK Key

C

Eliminates dark inner binding shadows.

Photo; Text/Photo; Text Keys

C Select the type of original(s) for image density adjustment.

PHOTO : Originals are mainly composed of photo.

TEXT/PHOTO : Combined originals with text and photo.

TEXT : Originals are mainly composed of text.

Exposure Keys (DARKER, LIGHTER)

SET Key

C Set the present selection.

FUNCTION Key

C

Use when changing the paper size, initial values for functions (default values) and key operator settings.

CLEAR Key

C

Clears the copy count in the display.

ENERGY-SAVER Key

C

Can save power while the copier is not in use.

RESET Key

C

Resets all features to the initial power-on state.

Refer to

Page 16

Page 17

Page 23

Page 18

Page 18

Page 18

Page 12

Page 12

——

Pages 28 – 37

——

Page 24

——

C

The Control Panel displayed above shows only copier functions. Please refer to the appropriate operating instructions for other control panel functions or in the Panasonic

Document Management System CD-ROM for the Printer control panel functions.

C

The illustration above shows the DP-2010E control panel.

Control Panel

LCD Display

Warning Indications

J

Add Paper

?

Add Toner

I

Misfeed

2

Call Service

8

9

:

5

6

7

For DP-1510P/1810P

No

2

3

4

STOP Key

C

Contents

Stops the copy run.

START Key

C

Used to start an operation.

INTERRUPT Key, MEMORY IN Key, M1/M2 Keys

C

Interrupt Key interrupts other copy or print jobs while making copies.

C

Memory In Key registers two copy jobs for recall at a later time.

C M1/M2 Keys are used to store a Job in Memory or to recall a Job stores in Memory.

Cursor Keys

C

Select copy ratio and function modes using (

G

or

F

).

PAPER TRAY Key

C

Used to select the paper tray manually.

COPY SIZE Key

C Used to select Reduction/Enlargement only. For additional details, see page 13.

ORIGINAL SIZE Key

C

Used to select the original size manually. For additional details, see page 13.

PRINT Key

C

When selecting the Printer ON/OFF Line.

2-Sided/1-Sided Copy Key

C

Used to select 1

\

2, 2

\

2 and 2

\

1, Book

\

2 copying

Refer to

——

——

Pages 22, 24

——

——

——

——

——

——

NOTE

C

The Control Panel displayed above shows only copier functions. Please refer to the appropriate operating instructions for other control panel functions or in the Panasonic Document Management System CD-ROM for the Printer control panel functions.

11

Basic Copy

Full Size Copying

Copying the Same Size Originals (1:1)

Copy size is automatically selected.

1

Place the Original

ORIGINAL SIZE Key

LCD Display (Sample)

READY TO COPY

COPIES:001

CLEAR Key

2

Number of Copies

*

Up to 999

Select the Original Size on units without the ADF/i-ADF Option.

3

Press START

**

Manually Selecting Exposure Control or Original Type

#

Select the Original Type

PHOTO : Originals are mainly composed of photo.

TEXT/PHOTO: Combined originals with text and photo.

TEXT : Originals are mainly composed of text.

$

Select Exposure Control

Press the DARKER/LIGHTER keys to adjust the exposure.

12

NOTE

Use Clear key when cancelling the copy count.

While the copier is warming up, you may position your original on the copier, enter your copy job selections and press the Start key. The COPY JOB RESERVED indicator displays until the warm up cycle is completed and the copy job is automatically started.

Reduction or Enlargement Copying

Copying with Preset Ratios

Basic Copy

RESET

1

Place the

Original

2

Select the

ORIGINAL SIZE

3

Select the COPY

SIZE

4

Number of

Copies

5

Press

START

Example: Reduction

Original size

A3

Copy size

A4

A3 ->A4B [A4B ]

ZOOM: 71% COPIES:001

The correct ratio is automatically selected.

Reduction and enlargement ratios (%)

Original

Size

A3

B4

A4

A5

A3

100

115

141

200

Copy Size

B4 A4

87

100

122

173

71

82

100

141

A5

50

58

71

100

C

When changing the paper tray, press the

Paper Tray key.

NOTE

C

If the desired copy size is different from the paper size loaded in the paper tray, use the sheet bypass. (See page 15)

C

Press the RESET key to cancel all job settings.

13

Basic Copy

Zoom Copying

Zoom

Copies with variable zoom ratios from 50 % to 200 % in 1 % increments.

RESET

1

Place the

Original

2

Select ORIGINAL

SIZE

(without using

ADF/i-ADF)

3

Press Cursor (

G

or

F

) keys to select Zoom Ratio

B

A4 ->A4B [A4B ]

ZOOM:125% COPIES:001

(Example: 125 % Zoom)

4

Number of Copies

5

Press

START

14

ATTENTION

NOTE

C

When changing the paper size after setting the zoom ratio, please use the paper tray key.

C

Press the RESET key to cancel all job settings.

Basic Copy

Using the Sheet Bypass

Copying on Special Paper, etc.

1

Sheet

Bypass

2

Place the original.

Open the sheet bypass.

Pull out the sheet bypass tray until it stops.

(For A3 size only)

3

Side Guides

#

Place the sheets of paper into the tray. (approximately up to

50 A4 size sheets 80 /

g

m

2

)

Do not fill above.

Insert the paper until it stops.

$

Adjust the side guides.

Incorrect adjustment may cause the paper to wrinkle, misfeed or skew.

Press START.

ATTENTION

C

Do not feed curled paper through the sheet bypass to avoid misfeed.

NOTE

C

Adjust the side guides properly to avoid skewing, wrinkling or misfeeding.

15

Creative Features

2 in 1 Copy

2 in 1 Copy

From two 1-Sided originals, side by side, to 1-Sided pages.

1 \ 2 (Layout)

*

2

\

1 (Layout)

*

Landscape (Orientation)

*

Procedure

ADF/i-ADF

1

\

2 (Layout)

*

2

\

1 (Layout)

*

Portrait (Orientation)

*

Face-Up

1

Place the

Originals

2

Press 2

in 1 key

(

3

)

COPY SIZE

(Reduction/

Enlargement

Only)

4

Number of

Copies

5

Press

START

16

NOTE

C

The ADF/i-ADF is required for 2 in 1 copy.

C

Press the RESET key to cancel all job settings.

C

Numbers in parenthesis “ ( ) ” represent that, an additional step is required to activate the feature.

The Orientation and Layout can be set in the Copier Settings function mode.

(See page 30)

Creative Features

2 PAGE COPY

2 PAGE Copy

Copying two facing pages on a A3 size original on two separate A4 size sheets.

Procedure

1

Place the

Originals

2

Press the 2

PAGE COPY

key

3

ORIGINAL SIZE

(A4 or A3 size Only)

Platen

A3 size original

Book Mark

Centre book by length and width according to centre marks.

A4

NOTE

C

To reset all job settings, press the RESET key.

4

Number of

Copies

5

Press

START

17

Creative Features

BOOK/EDGE/MARGIN

BOOK Key

Eliminates dark inner binding shadows when copying from a book.

EDGE Key

Creates a blank edge.

MARGIN Key

Shifts the image to the right or left.

Procedure

1

Place the

Original

3

Press Cursor (

G

or

F

) keys to adjust

2 the void width while the button is blinking. (approx. 5 sec.)

C

Void/Margin width: 5-99 mm

Press BOOK, EDGE or MARGIN key

4

Number of Copies

5

Press

START

Book

BOOK MARGIN

CENTER VOID = 20mm

∨∧

Edge

EQUAL RATE

VOID MARGIN = 5mm

Margin

**

LEFT MARGIN

10mm

∨∧

Initial Book Margin setting (Factory setting): 20 mm

Initial Equal Rate setting (Factory setting): 5 mm

Initial Left Margin setting (Factory setting): 10 mm

18

NOTE

Initial setting (Factory setting) can be changed in the Copier Settings function mode.

(See page 30)

∗∗

If a part of the copied image is missing when using the Margin mode, change the

Frame Reduction setting to ON.

(See page 30)

C

Press the RESET key to cancel all job settings.

Creative Features

2-Sided/1-Sided Copy (For DP-2010E)

Key Operation

Press 2-Sided/1-Sided Copy key (circulation) to select a 2-Sided/1-Sided Copy function.

2-Sided/1-Sided Copy key

1

2

\

\

2

2

From 1-Sided originals to 2-Sided copies.

(See page 20)

From 2-Sided originals to 2-Sided copies.

(See page 20)

Book

\

2 From book originals to 2-Sided copies.

(See page 21)

2

\

1

From 2-Sided originals to 1-Sided copies.

(See page 20)

NOTE

C

2-Sided originals may be handled either manually or automatically using the i-ADF (DA-AR201).

C

2-Sided/1-Sided Copy function is only available for DP-2010E.

19

20

Creative Features

1

\

2 / 2

\

1 / 2

\

2 Copy (For DP-2010E)

1

\

2 Copy

From 1-Sided originals to

2-Sided copies.

(From Copier Platen & i-ADF/

ADF)

2

\

1 Copy

From 2-Sided originals to

1-Sided copies.

(Using i-ADF)

2

\

2 Copy

From 2-Sided originals to

2-Sided copies.

(Using i-ADF)

Long Edge (Binding)

*

Long Edge (Binding)

*

Long Edge (Binding)

Short Edge (Binding)

*

Short Edge (Binding) Short Edge (Binding)

*

Procedure

i-ADF

Face-Up

1

Place the

Originals

2

Press 2-Sided/

1-Sided Copy key

(circulation) to select 1

\

2, 2

\

2 or 2

\

1

(

3

)

COPY SIZE

(Reduction/

Enlargement Only)

4 5

Number of

Copies

Press

START

BINDING:LONG EDGE

PRESS < > TO SELECT

Press the

I

or

H

key to select the binding location.

(When selecting 1

\

2 Copy or 2

\

1 Copy)

NOTE

C

To reset each selection, press the RESET key.

The initial setting of binding location for 1

\

2 Copy and 2

\

1 Copy (Long edge or

Short edge) can be set in function mode. (See page 30)

C

1

\

2, 2

\

2, 2

\

1 Copy function is only available for DP-2010E.

Book

\

2 Copy (For DP-2010E)

Book

\

2 Copy

From book originals to 2-Sided copies.

A3 size originals only.

Creative Features

Facing (Book Format)

*

Flipping (Book Format)

*

1

Place the

Original on the Platen

2

Press 2-Sided/

1-Sided Copy key

(circulation) to select

Book

\

2

(

3

)

COPY SIZE

(Reduction/

Enlargement Only

*

)

4

Number of

Copies

5

Press

START

Platen

A3 size original

Book Mark

A3

Centre book by length and width according to centre marks.

A4

NOTE

C

To reset each selection, press the RESET key.

C

A3 and FLS/B4 copy sizes cannot be selected.

The book format and page order can be set in function mode. (See page 30)

C

Book

\

2 Copy function is only available for DP-2010E.

21

Creative Features

Job Memory

Two Copy Jobs Can Be Programmed in Memory (M1, M2) for recall at a later time.

JOB MEMORY

PRESS M1,M2 TO STORE.

RECALL JOB MEMORY

LOADING...

To Store a Job in Memory

#

Set up the copy job to be stored in memory, by first selecting each function you wish the copier to perform.

$

Press the MEMORY IN (F2) key.

%

Press the M1 (F3) or M2 (F4) key.

To Recall a Job Stored in Memory

&

Place the Original

(

Press the M1 (F3) or M2 (F4) key.

The stored contents will be displayed.

)

Press START

22

NOTE

C

Stored job(s) will not be deleted even if the power switch is turned Off.

C

When storing a new job into programmed memory, the previously stored job will be overwritten.

Creative Features

Sort Copy

Sort Copy

The sort copy has 2 available electronic sorting functions as follows:

Note:

Before using the sort copy, select the desired sorting mode by setting its function first

(See page 29).

Sort Sort-Rotate

1

1

1

Multiple copies sorted automatically.

1

1

Multiple copies sorted automatically and

Stacked in alternate direction.

(Up to A4 size)

Platen Glass ADF/i-ADF

1

ADF/i-ADF: Place the

Originals

Platen: Place the

First Original

From Platen Glass only:

6

ANOTHER ORIGINAL?

1:YES 2:NO

Press “1” key.

9

Repeat steps 6 and 7 until all originals are scanned and stored into the copier’s memory.

2

Select the

SORT

Mode

7

Place next Original

Press “2” key.

(

3

)

COPY SIZE

(Reduction/

Enlargement

Only)

10

ANOTHER ORIGINAL?

1:YES 2:NO

8

4

Number of

Copies

Press

5

Press

START

START

NOTE

C

When the memory becomes full during original scanning, the message

“OUT OF MEMORY” “CONTINUE? 1: YES 2: NO” will be displayed in the message display. If this occurs, follow the instructions in the message display.

For additional memory consult your authorised servicing dealer.

C

To reset all job settings, press the RESET key.

C

Electronic sorting function is available for DP-1810P/2010E.

23

Other Features

Energy Saver/Interrupt Mode

INTERRUPT (F1) Key ENERGY-SAVER Key

ENERGY SAVER

INTERRUPT

These modes can save power while the copier is not in use.

Energy Saver Mode

#

To enter this mode

Press the ENERGY-SAVER key or the copier will automatically enter the ENERGY-SAVER Mode after

15 minutes

*

from the last copy. The indicator will flash.

$

To cancel this mode and make copies

Press the ENERGY-SAVER key again.

Sleep Mode

#

Automatically enters the Sleep Mode after 30 minutes from the last copy. The copier power will drop and the indicator will light.

$

To make copies, press the ENERGY-SAVER key.

Interrupt Mode

C

This mode can interrupt other copy jobs while making copies.

#

Press the INTERRUPT (F1) key, the indicator will light.

$

Make another copy job using the platen glass.

%

Press the INTERRUPT (F1) key again to continue the original job.

Note: The ADF/i-ADF can not be used with interrupt.

(Use only the Platen)

24

NOTE

Energy saver time (15 minutes) and Sleep time (30 minutes) can be changed by the key operator. (See page 31)

Modes

Normal Operation

Energy Saver Mode

Sleep Mode

Power Consumption

Approximately 90 Wh

Approximately 38 Wh

Approximately 2.2 Wh

Warm Up Time

N/A

17 sec. recovery

30 sec. recovery

Other Features

Skyshot Mode

Skyshot allows copying a manuscript without generating dark borders even if the platen cover or ADF/i-ADF is opened.

Skyshot mode eliminates dark borders around the originals, and is especially convenient for copying small-sized originals like bank checks or documents with unusual shapes (round, oval, etc.). These documents can be reproduced without generating any unnecessary black areas simply by making a copy with the cover open.

Two types of Skyshot modes can be selected;

Digital Skyshot Mode : The scanning area (size) is not pre-determined.

Manual Skyshot Mode : The scanning area (size) is pre-registered into memory (M1 and M2) in advance. (See page 30)

Digital Skyshot Mode

1

Place the Original on the platen (Opening the Platen Cover/

ADF/i-ADF)

2

Number of

Copies

3

Press

START Key

Note:The default setting of Digital Skyshot Mode is “NORMAL”. In this setting, the unit scans once.

If there are black areas around the borders in the copies, set the Digital Skyshot Mode to

“QUALITY” to soften the dark borders. In this setting, the unit scans twice.

#

Press the FUNCTION key.

$ Press the 2 key to select COPIER SETTINGS.

FUNCTION MODE (1-2)

ENTER NO. OR

∨ ∧

% Press the SET key.

2:COPIER SETTINGS

PRESS SET TO SELECT

COPIER PARAM. (00-14)

ENTER NO._ OR

∨ ∧

06 DIGITAL SKYSHOT

2:NORMAL

& Press 6 and SET key to select DIGITAL

SKYSHOT.

( Press 1-3 key to select the Digital Skyshot Mode.

1: OFF NONE

2: NORMAL Default setting (usually select this mode).

3: QUALITY For better definition, select the

Quality mode.

)

Press the SET key.

*

Press the RESET key.

NOTE

C

An incorrect exposure may occur when there is a black line at the edge of the original or an image which the copier interprets as a black pattern in the

Skyshot mode.

C

An incorrect position detection of the original may occur when a strong light shines onto the glass during Skyshot mode.

25

Other Features

Skyshot Mode

Manual Skyshot Mode

When using this function, the custom size should be registered into memory (M1, M2) in advance. (See page 32)

Platen

Upperleft corner

1

Place the

Original

2 3

Select the Custom

Size (M1 or M2)

Number of

Copies

4

Press

START

26

2

FUNCTION MODE (1-2)

ENTER NO. OR

∨ ∧

2:COPIER SETTINGS

PRESS SET TO SELECT

COPIER PARAM. (00-14)

ENTER NO._ OR

∨ ∧

07 MANUAL SKYSHOT

1:OFF

#

Press the FUNCTION key.

$

Press the 2 key to select COPIER SETTINGS.

%

Press the SET key.

&

Press 7 and SET key to select MANUAL SKYSHOT.

(

Press 2 or 3 key to select the Custom Size.

1: OFF NONE

2: M1 ON

3: M2 ON

M1 size is ON

M2 size is ON

*

*

4: M1, M2 ON Both sizes are ON

)

Press the SET key.

*

Press the RESET key.

NOTE

The default size for M1 is: 70(X)

×

160(Y) mm, and M2 is: 95(X)

×

220(Y) mm

C

When changing the M1 or M2 size, consult with the key operator.

C

When using the Manual Skyshot mode, M1 and M2 are turned ON and other job memory cannot be used.

C

Press the RESET key to cancel all job settings.

Combined Function Table

2-ORIGINAL

H

COPY

Margin SORT

Other

Functions

Next

Selections

First

Selections

Zoom Copy

2 in 1 Copy

2 Page Copy

1

\

2

2

\

2

Book

\

2

2

\

1

Book

Edge

Margin

Non-Sort

Sort

Sort-Rotate

A O O O O O O O O O O O O

O A A O A A A O O O O O O

O A A A A A A O O O O O O

O O

A A A A A

O O O O O O

O O A A A A A O O O O O O

O O

A A A A A

O O O O O O

O O A A A A A O O O O O O

O O O O O O O

A

O O O O O

O O O O O O O O A O O O O

O O O O O O O O O A O O O

O O O O O O O O O O A A A

O O O O O O O O O O

A A A

O O O O O O O O O O A A A

A

A

A

A

A

A

A

A

A

A

A

A

A

A O

A O

A O

A

O

A O

A

O

A O

A

O

A O

A O

A O

A

O

A O

Manual Skyshot

O

✕ ✕

A A A A

O O O

– – –

Interrupt

A

O

✕ O ✕ ✕ ✕ ✕ O O O

– – –

O : Possible Combined Functions.

: Unavailable Combined Functions.

A : Next Selection is Carried Out.

– : Indicates that SORT mode cannot be used. Non-sort operation is carried out.

A

✕ ✕

Remarks

27

28

Function

Using Function Modes to Change the Initial Copy Modes

Options

General

Functions

Copier

Settings

LAN Settings

Printer

Settings

General

Functions for

Key Operator

Procedure

Input Identification Code

Copier

Settings for

Key Operator

LAN Settings for Key

Operator

FUNCTION Key

RESET Key

Printer

Settings for

Key Operator

COPY SIZE

Key

PAPER

TRAY Key

FUNCTION MODE (1-2)

ENTER NO. OR

∨ ∧

#

Press the FUNCTION Key

$

Press 1 (GENERAL FUNCTIONS) or 2

(COPIER SETTINGS) key. You may also use the ( G or F ) keys.

%

Press the SET key.

&

Press the Keypad to select function modes or use the ( G or F ) keys.

(

Follow the on screen instructions.

)

After setting, press the SET key to set up the function.

Checking the Copier’s Total Counter

To display the copier’s Total Counter, press the COPY SIZE and PAPER TRAY keys simultaneously.

NOTE

C

Please refer to each option’s operating instructions for function settings.

Function

General Functions

No.

00

05

06

08 SORT-ROTATE DEFAULT

09

Modes

SORT MODE DEFAULT

SORT MEMORY USAGE

DEPT. COUNTER

KEY OPERATOR MODE

Function

Selects the sort mode.

C

NON-SORT, SORT (For DP-1810P/2010E)

Displays the amount of sort memory used on the panel.

C OFF, DISPLAY (For DP-1810P/2010E)

Copy usage and copy limit of the selected department and total copy usage will appear on the screen.

Initial

Setting

NON-SORT

OFF

Consult your service technician.

OFF Select Sort-Rotate mode.

C OFF, ON (For DP-1810P/2010E)

Input the key operator ID code.

29

30

Function

Copier Settings

No.

00

01

02

03

04

05

06

07

08

09

10

11

12

MARGIN DEFAULT

EDGE DEFAULT

BOOK MARGIN DEF.

FRAME MARGIN

2-SIDED MODE DEF.

2 in 1 WITH FRAME

DIGITAL SKYSHOT

MANUAL SKYSHOT

AUTO EXPOSURE

1

2

\

\

Modes

2 BINDING DEF.

1 BINDING DEF.

BOOK \ 2 DEFAULT

2 in 1 DEFAULT

13

2 PAGE MODE DEF.

14 KEY OPERATOR MODE

Function

Selects the margin position and shift value.

C

POSITION (Left, Right, Top, Bottom)

C

VALUE (5 - 99 mm)

Selects the edge mode (Equal Rate = set the same value for X & Y or Individual = set the value for X & Y individually) and width.

C EQUAL RATE (X & Y ), INDIVIDUAL

C 5 - 99 mm

Selects the book Centre Void margin width.

C

5- 99 mm

Select the reduction ratio in margin mode.

C INVALID, VALID

Function sets the duplex priority mode.

C

OFF, 1

\

2, 2

\

2, Book

\

2 (For DP-2010E)

Selects whether or not to disable edge deletion.

C INVALID, VALID

Enables or disables the use of skyshot mode.

C

OFF, NORMAL, QUALITY

Initial

Setting

POSITION

10 mm

EQUAL RATE

5 mm

20 mm

INVALID

OFF

INVALID

NORMAL

OFF

Enables or disables the use of Manual

Skyshot.

C OFF; M1 ON; M2 ON; M1, M2 ON

Automatically adjusts the copy density for text and photographic originals.

C

INVALID, VALID

Selects the binding location for 1 \ 2 Copy.

C LONG EDGE, SHORT EDGE (For DP-2010E)

Selects the binding location for 2

\

1 Copy.

C

LONG EDGE, SHORT EDGE (For DP-2010E)

Selects the page order and book format for

Book \ 2 Copy.

1. BOOK FORMAT (1: FACING, 2: FLIPPING)

2. PAGE ORDER (1: L \ R, 2: R \ L) (For DP-2010E)

Selects the orientation and layout for 2 in 1 Copy.

C

ORIENTATION (Portrait, LANDSCAPE)

C

LAYOUT (L

\

R, R

\

L)

Selects the 2 page mode.

C L \ R, R \ L

Input key operator ID code.

VALID

LONG EDGE

LONG EDGE

FLIPPING

L \ R

ORIENTATION

L

L

\

\

R

R

NOTE

C

Certain Functions or Parameters are available for selection only when their respective option is installed.

Function

General Functions for Key Operator

No.

00

Modes

PAPER SIZE

01

02

AUTO RESET TIME

ENERGY SAVER MODE

04

05

06

09

10

LANGUAGE DEFAULT

SPECIAL TRAY 1

SPECIAL TRAY 2

KEY/TOUCH BEEP

BYPASS SET BEEP

11 ORIG. SET BEEP ADF

14 DEPT. COUNTER MODE

15

16

22

TOTAL COUNT

PC PRINT COUNT

TCP/IP ADDRESS

23 TCP/IP SUBNET MSK

24 TCP/IP G/W ADDR.

25 COPY SETTING LIST

Function

Sets the paper size of each paper tray.

C

Tray-1, Tray-2, Tray-3, Tray-4

Selects the Control Panel reset time.

C OFF, 30 sec, 1 min., 2 min., 3 min., 4 min.

Sets the Energy Saver mode and time.

C

INVALID, ENERGY-SAVER, SLEEP

Energy save mode timer : 1-120 minutes

Sleep mode timer : 1-120 minutes

Selects the message language of the display.

C

A-ENGLISH, C-FRENCH, SPANISH

Sets the paper tray for special paper (ex: coloured).

C

NONE, TRAY 1, TRAY 2, BYPASS

Sets the paper tray for special paper.

C

NONE, TRAY 1, TRAY 2, BYPASS

Sets the panel touch sound.

C

OFF, SOFT, LOUD

Sets the sound when put paper(s) on bypass tray.

C

1: INVALID 2: VALID

Sets the sound when put paper(s) on ADF.

C

1: INVALID 2: VALID

Monitors copy usage of each department.

(1) TOTAL COUNTER

(2) DEPT. COUNTER

(3) DEPT. COUNTER LIST

Total print out volume from the main unit.

Initial

Setting

Consult your service technician.

1 min.

SLEEP

A-ENGLISH

NONE

NONE

SOFT

INVALID

VALID

Consult your service technician.

Total print out volume from the PC.

Sets the IP Address assigned to your machine.

C

3 digit × 4 (Use the MEMORY IN key to enter the “.” between each set of 3-digit numbers)

Sets the Subnet Mask.

C

3 digit × 4 (Use the MEMORY IN key to enter the “.” between each set of 3-digit numbers)

Sets the Subnet Mask.

C

3 digit × 4 (Use the MEMORY IN key to enter the “.” between each set of 3-digit numbers)

Prints list containing Current Setting and

Standard Setting.

Contact your

Network

Adminstrator.

Contact your

Network

Adminstrator.

Contact your

Network

Adminstrator.

NOTE

C

It is necessary to input the Key Operator ID code before changing items on this page.

C

The Special Tray 1 and 2 are not auto-selectable in the switching mode.

Not available for plain copier, but will be available when installing options with advanced functions. (See page 57)

31

Function

Copier Settings for Key Operator

No.

01

Modes

ORIGINAL (HOME)

02

03

TEXT CONTRAST

T/P CONTRAST

04

10

PHOTO CONTRAST

MAX. COPY SETTING

12 M1, SIZE

13 M2, SIZE

16 MEM. FULL ACTION

Function

T/P

(Text/Photo)

3

Initial

Setting

Selects original setting

C

TEXT, T/P (Text/Photo), PHOTO

Selects contrast for Text mode

C

1 ~ 5

Selects contrast for Text/Photo mode

C 1 ~ 5

Selects contrast for Photo mode

C

1 ~ 5

Determines whether to limit number of copies

C

1 ~ 999

Input a size in memory 1 for frequent usage size.

C

X: 5~432/Y: 5~297 mm

(See page 22)

Input a size in memory 2 for frequent usage size.

C

X: 5~432/Y: 5~297 mm

(See page 22)

Selects the memory full action

C

PRINT, CANCEL

3

3

999

70

×

160 mm

(X) (Y)

95

×

220 mm

(X) (Y)

Print

32

NOTE

C

It is necessary to input the Key Operator ID code before changing items on this page.

Function

Function Setting

Changing the Auto Exposure Setting

You can select whether the copying density is adjusted automatically for text and photographic originals.

1

Press the FUNCTION key.

FUNCTION Key

2

Proceed as Follows:

FUNCTION MODE (1-2)

ENTER NO. OR

∨ ∧

2:COPIER SETTINGS

PRESS SET TO SELECT

COPIER PARAM. (00-14)

ENTER NO._ OR

∨ ∧

08 AUTO EXPOSURE

2:VALID

#

Press the 2 key to select COPIER SETTINGS.

$

Press the SET key.

%

Press 8 and SET key to select AUTO

EXPOSURE MODE.

&

Press 1 or 2 key to select whether Auto

Exposure is to be carried out or not.

(

Press the SET key to set up the AUTO

EXPOSURE MODE.

)

Press the RESET key to exit the Function mode.

33

34

Function

Function Setting for Key Operator

Changing the Paper Size

The Paper Trays are designed to accommodate A5, A4, A4 R, FLS/B4 and A3 size paper. To change the paper size, perform the steps shown below.

1

Press the FUNCTION key.

FUNCTION Key

2

Proceed as Follows:

FUNCTION MODE (1-2)

ENTER NO. OR

∨ ∧

#

Press the 1 key to select GENERAL

FUNCTIONS.

1:GENERAL FUNCTIONS

PRESS SET TO SELECT

(

Press 00 and 1 or 2 key to select the PAPER SIZE.

00 PAPER SIZE

1:TRAY-1[A3i]

$

Press the SET key.

GENERAL PARAM. (0-9)

ENTER NO._ OR

∨ ∧

)

Press SET to select the paper tray and press (

G

or

F

) keys to set the paper size.

Paper size changes are as follows.

%

Press 9 key.

09 KEY OPERATOR MODE

ENTER PASSWORD=-

■ ■

A3 B4

A4R FLS1 FLS2

A4

A5 B5 B5R

&

Input the Key Operator ID code (3 digit) and the SET key.

KEY OPR. MODE (00-25)

ENTER NO._ OR

∨ ∧

*

Press the SET key to set up the PAPER

SIZE.

+

Press the RESET key to exit the Function mode.

Function

Function Setting for Key Operator

3

Changing the Paper Guide and Paper Size Indicator in the Paper Tray

# Pull the Paper Tray out and remove paper.

Stopper

Paper

Paper

$ Adjust the paper guide a to the required paper length.

% Adjust the Paper Guide b to the required paper width.

Pinch the stopper to move the Paper

Guide b.

& Change the Paper Size Indicator.

Size

Indicator

( Close the Paper Tray.

NOTE

C It is recommended that the paper guide b be fixed in place with screws.

Consult an authorised servicing dealer for details on how to fasten with screws.

35

Function

Function Setting for Key Operator

Department Counter

The Key Operator can manage, limit copies, counters and code numbers for each department.

(Maximum department counters: 50)

1

Press the FUNCTION key.

FUNCTION Key

2

Proceed as Follows:

FUNCTION MODE (1-2)

ENTER NO. OR

∨ ∧

#

Press the 1 key to select GENERAL

FUNCTIONS.

1:GENERAL FUNCTIONS

PRESS SET TO SELECT

$

Press the SET key.

GENERAL PARAM. (0-9)

ENTER NO._ OR

∨ ∧

%

Press 9 key.

09 KEY OPERATOR MODE

ENTER PASSWORD=-

■ ■

&

Press the Key Operator ID code (3 digit) and SET key.

KEY OPR. MODE (00-25)

ENTER NO._ OR

∨ ∧

(

Press 14 and the SET key to select

DEPT. COUNTER MODE.

36

NOTE

C

To reset the function mode, press the RESET key.

C

Contact your authorised servicing dealer to enable the Department Counter feature.

Function

Function Setting for Key Operator

3

Select the Department Counter Mode.

DEPT.COUNTER MODE

1:TOTAL COUNTER

Press 2 and the SET key.

DEPT. CODE (01-50)

ENTER NO. OR

∨ ∧

4

Change the Department ID Code, limit the maximum number of copies and Department Counter number.

ID CODE

01:1234

MAX COPIES

01:123456

DEPT.COUNTER

01:123456

#

Press the Keypad and the SET key to input the

Department ID Code.

01: 1234

Department No.

Department ID Code

$

Press the Keypad and the SET key to input the maximum number of copies.

01: 123456

Department No.

Maximun number of copies (6 digits)

%

Press the Keypad and the SET key (

G

or

F

keys) to select the Department No.

Counter (6 digits) 01: 123456

Department No.

&

Press 0 and the SET key (Input “0”) to clear the counter.

NOTE

C

To reset the function mode, press the RESET key.

37

38

Accessories

Components

i-ADF (Inverting Automatic Document Feeder)

(DA-AR201)

C

Feeds original automatically

C

Duplexing

C

2:1 Copy

C

2 in 1 Copy

ADF (Automatic Document Feeder)

(DA-AS180)

C

Feeds originals automatically.

C

2 in 1 Copy

DP-2010E with Options

DP-2010E

PCL6 Emulation Kit

(DA-PC210)

C

Printer Controller for PCL6

*

10/100 Ethernet Interface/

Internet Fax Kit

(DA-NE200)

C

Network Interface Board

DP-1810P with Options

DP-1510P/1810P

Image Memory

(DA-SM08B/SM16B/SM64B/SM28B)

C

8/16/64/128 MB

C

To increase the memory capacity for electronic sorting and sort printing.

(For DP-1810P/2010E)

C

To increase the memory capacity for sort printing. (For DP-1510P)

2nd/4th Paper Feed Module

(DA-DS182)

C To increase the paper feed sources and capacity.

Paper Feed Module

×

1 (550 sheets)

3rd Paper Feed Module

(DA-DS183)

C

To increase the paper feed sources and capacity.

Paper Feed Module

×

1 (550 sheets)

NOTE

PCL6 is a Page Description Language of the Hewlett-Packard Company.

C The table below shows the options which are required for various functions.

C Contact your authorized servicing dealer for details on combinations of options.

Function

2-ORIGINAL

H

COPY

Margin SORT

Other

Functions

Options

ADF i-ADF

:Required

39

40

Accessories

Automatic Document Feeder

ADF (DA-AS180) / i-ADF (DA-AR201)

1. Features

#

Automatic Original Feeding

C

The ADF/i-ADF tray can hold up to 50 A4 size originals of 80 g

/m

2

paper (up to 30 FLS/B4 or

A3 size originals). It can accommodate from A5 to A3 size originals.

C

Automatic original size detection.

$

2 in 1 Copy

C

To make a 1-Sided copy (full size or reduction), from two 1-Sided originals side-by-side.

%

Duplex Copying (DA-AR201)

C

The i-ADF allows you to copy 2-sided originals either manually or automatically.

2. Components

ADF (DA-AS180)

C Set the originals up to the upper limit arrow.

i-ADF (DA-AR201)

ADF Tray

Original Guides

Adjust to the original’s width

i-ADF Tray

Original Guides

Adjust to the original’s width

Accessories

3. Operation

Operation Procedure

ADF/i-ADF

1

Place the

Original

Face-Up

(

2

)

For Duplex Copy

(If required)

3 4

Number of

Copies

Press

START

Inappropriate Originals

C Paper with a smooth surface such as glossy and coated papers

C Transparencies

C Originals with a lead edge that is “creased”,

“folded”, “punched” or “glued”

C Paste-ups

C Pressure sensitive or carbon backed papers

C Paper with excessive curl

C Stapled originals

C Freshly printed copies from a laser printer

NOTE

C To copy these kinds of originals, use the Platen Glass instead.

41

2

3

Problem Solving

Adding Paper (

J

)

550-Sheet Paper Tray

1

Pull the Paper Tray out.

4

Place the paper with the copying surface facing upward.

Special papers, like glossy paper, mailing labels and transparencies cannot be used in the paper tray.

Use the Sheet Bypass for special paper.

Make sure paper is not loaded above the overfill indicator located in the Paper Tray.

Firmly push the Paper Tray back into the copier.

42

ATTENTION

C

Do not use paper with folds or wrinkles.

Refer to page 35 for details on adjusting the paper tray size.

C

Unused paper should always be placed into a bag and the opening should be sealed for storage.

If the paper is left exposed, problems such as paper curl, paper jams, wrinkles or loss of copied image quality may occur.

Problem Solving/U13

Adding the Toner and Replacing Waste Toner Container (

?

)

1

Open the Front Cover.

2

Remove the Waste Toner Container by slowly pulling it towards the left as illustrated.

3

Seal the container with the enclosed cap and dispose of it properly.

Cap

4

2

1

#

Turn the empty Toner Bottle counter-clockwise until it stops. The

Arrow mark (Unlocked symbol ) visible on the end of the Toner

Bottle is aligned with the Arrow mark on the machine.

Note: To prevent toner spill, ensure

that the key is facing upwards before removing the toner bottle.

$

Pull the empty Toner Bottle out.

Note: If the bottle will not pull out from

the machine, turn the bottle slightly in either direction to release the key and try it again.

Continued on the next page...

ATTENTION

C

For optimum copy quality use the recommended Panasonic toner. Store toner in a cool dark place. Do not unseal toner before use. Use it as fast as possible after unsealing.

C

When U13 is displayed the Add Toner Warning Indicator will begin to flash. This message is to prompt you that the toner bottle is nearly empty (approx. 300-sheets can be printed).

This message will continue to be displayed until the bottle is replaced. When the countdown counter reaches 0, the copier will stop operating. To clear the message and enable the copier to operate, replace the empty toner bottle with a new one.

43

J

?

44

Problem Solving

Adding the Toner and Replacing Waste Toner Container (

?

)

5

2

1

#

Shake the new Toner Bottle four or five times to loosen the contents.

$

Remove the cap from the Toner

Bottle.

6

7

1

2

2-1

2-2

Incorrect

2-3

Correct

#

Align the Key of the bottle, also represented by the Arrow mark

(Unlocked symbol ) visible on the end of the Toner Bottle with the Arrow mark on the machine.

Note: To prevent toner spill,

ensure that the key is facing upwards before installing the bottle.

$

Insert the bottle as far as it will go, then turn it clockwise (160°, approx. 1/2 turn) until it locks

(Locked symbol ).

Note: If the bottle is not inserted

all the way into the machine as illustrated, turn the bottle slightly in either direction to engage the key and try it again.

Install a new Waste Toner

Container.

Close the Front Cover.

8

ATTENTION

C

Do not reuse the toner from the Waste Toner Container.

Problem Solving

Removing a Misfed Paper

Paper Misfeed Indicators and Locations

When a paper misfeed occurs, the misfeed indicator and the misfeed location(s) will be displayed on the panel display.

I

Misfeed Indicator

For DP-1510P/1810P

For DP-2010E

Paper Misfeed Locations

A: ADF (see page 51), i-ADF(see page 50)

(J70, J71)

B: Copier (Paper Exit, Paper Entry/Transport,

ADU) areas (see page 46-48) (J51 - J59,

J80)

C: Paper Feed Module (see page 49)

(J00 - J50, J81-J89)

NOTE

C

Make sure that the misfeed indicator goes off after removing the misfed paper.

C

The misfeed indicator will not go off if the paper is still jammed in the copier.

Check again and remove all misfed paper.

45

I

Problem Solving

Removing a Misfed Paper

Paper Exit Area

C Make sure that the misfeed indicator goes off after removing all misfed paper.

For DP-1510P/1810P

1

For DP-2010E

Remove the misfed paper.

46

ATTENTION

C

Make sure that the misfeed indicator goes off after removing all misfed paper.

2

3

Problem Solving

Paper Entry/Transport Area

C Make sure that the misfeed indicator goes off after removing all misfed paper.

For DP-1510P/1810P

1

For DP-2010E

Open the Right Cover.

Remove the misfed paper.

If copy paper is fed far into the copier:

#

Turn the right paper clearing knob.

$

Remove the misfed paper.

4

Caution heated surface

#

Open the Heat Roller Cover.

$

Remove the misfed paper.

%

Close the Right Cover.

Caution: This fuser area may be hot.

ATTENTION

C

Make sure that the misfeed indicator goes off after removing all misfed paper.

I

47

48

1

2

3

Problem Solving

Removing a Misfed Paper

ADU Area (For DP-2010E only)

C Make sure that the misfeed indicator goes off after removing all misfed paper.

Open the Right Cover.

Remove the misfed paper.

If copy paper is fed far into the copier;

#

Turn the right paper clearing knob.

$

Remove the misfed paper.

4

Close the Right Cover.

Problem Solving

Paper Feed Module

C Make sure that the misfeed indicator goes off after removing all misfed paper.

For DP-1510P/1810P

1

For DP-2010E

#

Pull the paper tray out.

$

Remove the misfed paper.

%

Return the Paper Tray to the original position.

2

#

Open the Feed Cover.

$

Remove the misfed paper.

%

Close the Feed Cover.

ATTENTION

C

Make sure that the misfeed indicator goes off after removing all misfed paper.

I

49

1

2

Problem Solving

Removing a Misfed Paper

i-ADF (For DP-2010E only)

C Make sure that the misfeed indicator goes off after removing all misfed paper.

# Open the Entry Cover.

$ Remove the misfed paper.

% Close the Entry Cover.

3

# Open the ADF Cover.

$ Remove the misfed paper.

% Close the ADF Cover.

& Open and close the Entry Cover to reset the error.

# Lift up the ADF Input Tray.

$ Open the ADF exit cover.

% Remove the misfed paper.

& Close the ADF exit cover.

( Close the ADF Input Tray.

50

ATTENTION

C Push the tab on the centre of the Entry Cover to close it.

C To prevent original(s) damage, please make sure to open the ADF Cover before removing misfed original(s).

1

For DP-1510P/1810P

Problem Solving

ADF

C Make sure that the misfeed indicator goes off after removing all misfed paper.

#

Open the Entry Cover.

$

Remove the misfed paper.

%

Close the Entry Cover.

2

#

Open the ADF Cover.

Note: To prevent damaging the originals, open the ADF Cover before removing the misfed original(s).

$

Remove the misfed paper.

%

Close the ADF Cover.

&

Close the ADF.

ATTENTION

C

To prevent original(s) damage, please make sure to open the ADF Cover before removing misfed original(s).

I

51

52

Troubleshooting

Before Calling Service

Check Action

Unit Does Not Operate

Does the display light?

(No) (Yes)

Check if the Power Switch is turned On and that the power cord is connected into the outlet.

Does the Energy Saver key flash (or light) and displays are turned OFF? (See page

24)

(No)

Does any of the U## codes and messages appear on the display?

(U01, U07, U13, U14, U20 and U21)

(See page 54)

(No)

Does the add paper indicator and message appear on the display? (

J

)

(Yes)

(Yes)

(No)

(Yes)

Press Energy Saver key on the Control

Panel.

Perform actions in accordance with each message.

Add paper. (See page 42)

Does the paper misfeed indicator and message appear on the display? (

I

)

(No)

(Yes)

Remove the misfed paper. (See page 45)

Does E#-## indicator and message appear on the display?

Turn the copier Off, then On. If the Error

Code does not clear, call for service.

(Yes)

When the Add Toner Warning Indicator begins to flash

or is lit, replace the toner bottle with a new one. After this warning is activated, machine operation will begin with the Toner Charging Mode

(approximately 3 minutes to complete) each time the power switch is turned Off then On or if the

Front/Right Cover is opened and then closed.

Note:

When the warning indicator starts flashing, a 300-sheet count-down counter is activated, and upon reaching 0 the machine will stop operating. The 300-sheet counter is based on

6 % fill, depending on the density some pages may print Blank.

Machine operation and displays are as follows:

1. When turning the power switch to On or opening and then closing the Front/Right Cover, the machine starts to warm-up and the LCD displays:

PLEASE WAIT...

Troubleshooting

2. The Toner Charging Mode starts and the LCD displays:

CHARGING TONER

Add Toner Warning Indicator:

C

Flashing = Toner Bottle is nearly empty

C

Lit = Toner Bottle is empty

3. This message is displayed for approximately 200 seconds.

CHARGING TONER

❚ ❚ ❚ ❚ ❚

Each “

” is approximately 10 sec.

4. This massage will continue to be displayed until the warm-up cycle is completed, and if the toner bottle was replaced. Upon completion, the Add Toner Warning Indicator automatically turns Off.

Check

Light Copies

Action

Does the exposure indicator say “Lighter”?

Press the Darker key until the indicator

LED is set to Darker. (See page 12)

(No)

Does the add toner indicator and message appear on the display? (

?

)

(Yes)

(Yes)

Add Toner. (See page 43)

Marked Copies

Is the copier Platen Glass or Platen Cover dirty?

(Yes)

Clean the Glass or Platen Cover.

(See page 54)

53

54

Troubleshooting

User Error Codes (U Code)

The self-diagnostic functions detect troubles in the important components of the copier.

When any trouble occurs, the copier stops.

Code Display Message

U01 CLOSE FRONT/RT COVER

U07 CLOSE FEED COVER

U13

TONER IS RUNNING LOW

NO WASTE TONER BOX

U14 WASTE TONER BOX IS FULL

U20 CLOSE ADF COVER

U21 CLOSE PLATEN COVER

Check Points

Front Cover is open.

Feed Cover is open.

1. Toner Cartridge is incorrectly installed.

2. Low Toner or No Toner Waste Container.

1. Toner Waste Container is incorrectly installed.

2. Toner Waste Container is full of toner.

ADF Cover is open.

While the copier is initializing, the ADF

Cover was opened. (Optional ADF installed)

If the measures outlined above do not solve the problem, call your Service provider.

Copier Care

As a rule, clean weekly.

Platen

Cover

Platen

(Glass)

Platen/Platen Cover

#

Wipe marks off with a cloth and a neutral detergent.

$

Wipe again with a dry cloth.

Specifications

DP-1510P/1810P/2010E (Copier)

Type

Platen Type

Acceptable Originals

Copying Method

Fixing Method

Imaging Method

Resolution

Maximum Copy Size

Void Area

Warm Up Time

First Copy Time

Multi-Copy Speed

Desktop

Fixed

Sheets, Books (max. A3)

Laser Electrophotography

Heat Roller Fixing

Dry-Type Single component imaging

Max. 600 dpi

A3

Max. 5 mm

Approx. 30 seconds (20°C)

Approx. 6.5 seconds (A4 , from 1st tray)

DP-1510P : 15 cpm (A4 size)

DP-1810P : 18 cpm (A4 size)

DP-2010E : 20 cpm (A4 size)

Enlargement Ratios

Reduction Ratios

Paper Feed

Paper Weight

Preset: 115 %, 122 %, 141 %, 173 %, 200 %

Variable: from 101 to 200 % in 1 % increments

Preset: 87 %, 82 %, 71 %, 58 %, 50 %

Variable: from 99 to 50 % in 1 % increments

Paper Tray (550 sheets

×

1) + Sheet Bypass (50 sheets)

2nd Paper Feed Module (550 sheets - option)

3rd Paper Feed Module (550 sheets - option)

4th Paper Feed Module (550 sheets - option)

Paper Tray: 60 - 90 g /m 2

(Sheet Bypass: 56 - 128 g /m 2 )

Max. 999 sheets (Output Tray capacity is 250 sheets)

AC 220 - 224 V, 50/60 Hz, 6.0 A

Quantity Selector

Electrical Consumption

Energy Consumption

Dimensions (W

Weight

×××××

D

×××××

H)

Max. 1.2 kW, 2.2 Wh in Sleep Mode

DP-1510P/1810P: 588

×

605

×

458 mm

DP-2010E: 588

×

605

×

458 mm

DP-1510P/1810P: 41 k g

DP-2010E: 42 k g

Operating Environment

Temperature: 10 - 35°C Relative Humidity: 45 - 85 %

(However, the humidity should be 70 % or less at a temperature of 30°C, and the temperature should be 30°C or less at a humidity level of 85 %.)

C

Specifications are subject to change without notice.

55

Specifications

56

ADF (DA-AS180)

Tray Capacity

Paper Size

Paper Weight

Electrical Requirements

Dimensions (W

×××××

D

×××××

H)

Weight

i-ADF (DA-AR201)

DA-AS180

A4, A5: 50 sheets (70 g

/m

2

)

FLS/B4, A3: 30 sheets (70 g

/m

2

)

A5/A4/FLS/B4/A3

50 – 110 g

/m

2

Supplied from the copier

558

×

501

×

112 mm

5.0 k g

Tray Capacity

Paper Size

Paper Weight

Electrical Requirements

Dimensions (W

×××××

D

×××××

H)

Weight

DA-AR201

A4, A5: 50 sheets (70 g

/m

2

)

FLS/B4, A3: 30 sheets (70 g

/m

2

)

A5/A4/FLS/B4/A3

50 – 110 g

/m

2

Supplied from the copier

552

×

520

×

135 mm

9.3 k g

2nd/4th Paper Feed Module (DA-DS182)

DA-DS182

Paper Size

Paper Weight

Electrical Requirements

Dimensions (W

×××××

D

×××××

H)

Weight

A5/A4/FLS/B4/A3

60 – 90 g

/m

2

Supplied from the copier

550

×

155

×

585 mm

9.5 k g

3rd Paper Feed Module (DA-DS183)

DA-DS183

Paper Size

Paper Weight

Electrical Requirements

Dimensions (W

×××××

D

×××××

H)

Weight

A5/A4/FLS/B4/A3

60 – 90 g

/m

2

Supplied from the copier

550

×

155

×

585 mm

9.5 k g

C

Specifications are subject to change without notice.

Options and Supplies

The DP-1510P/1810P/2010E is a digital photocopier which can produce images with great clarity.

Furthermore, its copying functionality can also be greatly enhanced by the addition of the following options and supplies.

We hope you find that the wide ranging capabilities will make your office-place more productive and efficient.

Options

Part Name Part No.

Remarks

Automatic Document Feeder DA-AS180

Inverting Automatic Document Feeder

2nd/4th Paper Feed Module

DA-AR201

DA-DS182

Also referred as ADF

Also referred as i-ADF (For DP-2010E only)

4th Paper Feed Module is for DP-2010E only

3rd Paper Feed Module

Image Memory (8 MB)

Image Memory (16 MB)

Image Memory (64 MB)

Image Memory (128 MB)

DA-DS183

DA-SM8B

DA-SM16B

DA-SM64B

DA-SM28B

3rd Paper Feed Module is for DP-2010E only

For Electronic Sorting and Sort Printing

(For DP-1810P/2010E)

For Sort Printing (For DP-1510P)

For Electronic Sorting and Sort Printing

(For DP-1810P/2010E)

For Sort Printing (For DP-1510P)

For Electronic Sorting and Sort Printing

(For DP-1810P/2010E)

For Sort Printing (For DP-1510P)

For Electronic Sorting and Sort Printing

(For DP-1810P/2010E)

For Sort Printing (For DP-1510P)

For Printer

Part Name

PCL6 Emulation Kit

Part No.

DA-PC210

Remarks

Printer Controller for PCL6.

(For Network Printing, DA-NE200 is also required)

For Network Printing

Part Name

10/100 Ethernet Interface/

Internet Fax Kit

Part No.

DA-NE200

Supplies

Part Name

Toner Bottle

Part No.

DQ-TU10C

Remarks

Network Interface Board

Remarks

Waste Toner Container included

NOTE

PCL6 is a Page Description Language of the Hewlett-Packard Company.

57

58

59

For Service, Call:

Matsushita Electric Industrial Co., Ltd.

Osaka 542-8588, Japan

S0602-1062

DZSD001730-1

June 2002

Printed in Japan

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
