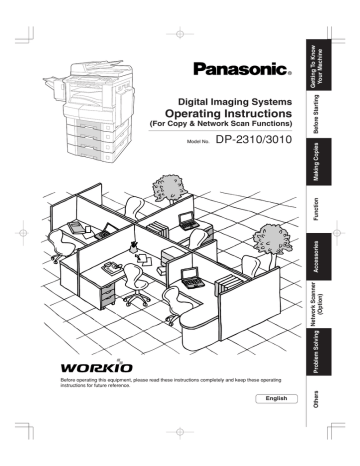

Digital Imaging Systems

Operating Instructions

(For Copy & Network Scan Functions)

Model No.

DP-2310/3010

Before operating this equipment, please read these instructions completely and keep these operating instructions for future reference.

English

2

Getting To Know Your Machine

Useful Office Functions

Copy

• Copy up to A3 size.

Capable of copying text/photos/halftone originals.

Fax/Email

• Plain Paper High-speed Super G3 compatible Fax with JBIG compression when optional Fax Communication Board (DA-

FG300) is installed.

• Quick-Scan

• Quick Memory Transmission

• Email Function can be used when optional Internet Fax/

E-Mail Module (DA-NF600) is installed.

Print

• Digital printer controller standard, printer resolution 300 or 600 dpi.

Scan/File

• Black & White original scanner can be used when optional Network Scanner Module (DA-NS600) is installed.

Scanning resolution up to 600 dpi.

• A document can be saved or retrieved to/from network server via from the digital imaging system.

Application Software

• Document Manager

• Document Viewer

• Document Network Scanner*

• Utilities (Network Status Monitor, Phone Book Editor, Device

Configuration Editor)

∗ Document Network Scanner is only available when the optional

Network Scanner Module (DA-NS600) is installed.

DP-2310/3010 Operating Instructions

This copier includes the following operating instruction manuals, please use the correct manual when an operator intervention is necessary.

<Copy & Network Scan>

Use the information provided in this manual whenever a copier function requires intervention. For example: how to make copies, add paper, replace the toner bottle, etc.

<Fax/Email>

<Print &

Other Advanced Functions>

Use the information provided in the DP-2310/3010 Fax & Email Operating

Instructions manual whenever a fax/internet fax function requires intervention.

For example: how to send/receive a fax/Email, or when a trouble message appears, etc.

Use the information provided on the enclosed CD for an explanation of how to use as a Network Printer, Network Scanner, Edit Directory Dialing Feature,

Device Settings, Network Status Monitor, and/or Document Management System.

Outline of this Operating Instructions

Getting To Know

Your Machine

Before Starting

● Operation Chart for quick operation

(See pages 10, 11)

● Adding Paper, Replacing the Toner Bottle,

Removing Misfed Paper and Error Codes

(See pages 10-17)

● Precautions for your safety

(See pages 7-9)

● Key/Button/Indicator names on the Control Panel

(See pages 19-21)

Making Copies

Function

Operating Instructions for making copies according to Function Categories on the LCD Touch Panel

Display

(See pages 22-49)

Changing the Initial "modes/ defaults"

● Copy, Printer, Scanner (Option) and Fax/Email (Option)

(See pages 50-64)

Options

● Accessories

Components

● Network Scanner

(See page 65)

(See pages 66-69)

Problem Solving

Others

● Troubleshooting

● Replacing the Battery

(See pages 70, 71)

(See pages 72, 73)

Specifications, Options and Supplies and Index

(See pages 74-78)

3

4

Getting To Know Your Machine

Symbol Marks/Icons

Following symbol marks/Icons are used in this operating instructions for your operation.

Place original(s) on the i-ADF/ADF

Place original(s) on the Platen Glass

(Book)

Place original on the Platen Glass

(Sheet)

Press any Hard Key on the control panel or touch any Button on the touch panel display

Press Hard Key

Touch any Button

Getting to know your machine

Before starting

When making copies

When setting the machine modes

When scanning document(s)

Input numerical

● Number of copies, etc.

Input text with keyboard

Options

(ex.: Finisher)

COPY

A3

FLS

B4

A4

A5

5

Go to next step

Go to next step (below)

Setting any function(s) if necessary

Problem solving

Others

Table of Contents

Getting To Know Your Machine

Useful Office Functions .................................................................................................................. 2

DP-2310/3010 Operating Instructions ........................................................................................... 2

Outline of this Operating Instructions .......................................................................................... 3

Symbol Marks/Icons ....................................................................................................................... 4

Precautions ...................................................................................................................................... 7

Operation Chart ............................................................................................................................. 10

■ Basic Operation .............................................................................................. 10

■ Problem Solving ..............................................................................................11

Before Starting

Energy Star .................................................................................................................................... 18

Control Panel ................................................................................................................................. 19

Touch Panel Display ..................................................................................................................... 20

Making Copies

Basic Menu .................................................................................................................................... 22

■ Copying the Same Size Originals (1:1) .......................................................... 22

■ Notice for ADF/i-ADF (Option) ........................................................................ 22

■ Notice for copying on the heavy paper (Postal Card etc.) (maximum 133 g/m

2 ) .. 22

■ Position of the Original(s) ............................................................................... 23

■ Copying with Preset Ratios ............................................................................ 24

■ Proof Copying ................................................................................................ 24

■ Tandem /Remote Copying .............................................................................. 24

■ Tandem/Remote Copy Settings (Registration 1) ............................................ 26

■ Tandem/Remote Copy Settings (Registration 2) ............................................ 26

■ Tandem/Remote Copy Settings (Editing) ....................................................... 26

■ Tandem /Remote Copy Settings (Deleting) .................................................... 26

■ Job Queue ...................................................................................................... 28

■ Completion Notice .......................................................................................... 28

2-Sided/Original Copy .............................................................................................................. 30

■ 1 2, 2 1, 2 2 Copy ............................................................................ 30

■ Book 2 Copy .............................................................................................. 30

■ 2 Page Copy .................................................................................................. 32

■ N in 1 Copy .................................................................................................... 32

■ Booklet Copy .................................................................................................. 32

■ Multi-Size Feeding ......................................................................................... 34

■ JOB BUILD AND SADF Mode ........................................................................ 34

Sort/Finish ..................................................................................................................................... 36

■ When using Sort Mode ................................................................................... 36

Zoom/Effects ................................................................................................................................. 38

■ Zoom .............................................................................................................. 38

■ Auto Zoom ...................................................................................................... 38

■ Edge ............................................................................................................... 38

■ Book ............................................................................................................... 38

■ Margin ............................................................................................................ 40

■ Centering ........................................................................................................ 40

■ Image Repeat ................................................................................................. 40

■ Inverse ........................................................................................................... 40

■ Stamping (Page Numbering) .......................................................................... 42

■ Stamping (Date Stamp) .................................................................................. 42

■ Stamping (Issue Number Stamping) .............................................................. 42

Insertion/Overlay ........................................................................................................................... 44

■ Cover .............................................................................................................. 44

■ Page Insertion ................................................................................................ 44

■ OHP Interleaving ............................................................................................ 44

■ Presentation ................................................................................................... 44

5

6

Table of Contents

Insertion/Overlay/Job Memory ..................................................................................................... 46

■ Overlay ........................................................................................................... 46

■ File Edit .......................................................................................................... 46

■ Form Overlay ................................................................................................. 46

■ Job Memory ................................................................................................... 46

Other Features ............................................................................................................................... 48

■ Concurrent Copying ....................................................................................... 48

■ Energy Saver (Energy Saver Mode, Sleep/Shutdown Mode) ........................ 48

■ Skyshot Mode ................................................................................................ 48

■ Interrupt Mode ................................................................................................ 49

Function

■ Using Function Modes to change the Initial Copy Modes .............................. 50

■ Procedure ....................................................................................................... 50

■ GENERAL SETTINGS ................................................................................... 52

■ COPIER SETTINGS ...................................................................................... 52

■ SCANNER SETTINGS ................................................................................... 53

■ PRINTER SETTINGS .................................................................................... 54

For Key Operator ........................................................................................................................... 55

■ GENERAL SETTINGS ................................................................................... 55

■ COPIER SETTINGS ...................................................................................... 57

■ PRINTER SETTINGS .................................................................................... 58

For example ................................................................................................................................... 60

■ Changing the Auto Contrast Setting ............................................................... 60

■ Changing the Paper Size ............................................................................... 60

■ Weekly Timer ................................................................................................. 60

■ Department Counter ....................................................................................... 62

■ Network Settings ............................................................................................ 62

Combined Function Table ............................................................................................................ 64

Accessories

Components .................................................................................................................................. 65

■ Options ........................................................................................................... 65

■ Supplies ......................................................................................................... 65

Network Scanner (Option)

■ Document Scanning ....................................................................................... 66

■ Adding your PC or DD Server IP Address ...................................................... 66

■ Editing your PC or DD Server IP Address ...................................................... 68

■ Erasing the Address ....................................................................................... 68

Problem Solving

Troubleshooting ............................................................................................................................ 70

Replacing the Battery ................................................................................................................... 72

Others

Specifications ................................................................................................................................ 74

INDEX ............................................................................................................................................. 76

Getting To Know Your Machine

Precautions

For Your Safety

Laser Safety

LASER SAFETY

This unit employs a laser. Only qualified service personnel should attempt to service this device due to possible eye injury.

CAUTION:

USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE PRO-

CEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RE-

SULT IN HAZARDOUS RADIATION EXPOSURE.

Caution Label

7

8

Getting To Know Your Machine

Handling

■ Do not look directly at the exposure lamp when copying.

■ Do not turn the power switches Off or open the front cover/right cover during copying.

● Do not drop paper clips or other metal objects into the copier.

■ If you are not going to use the copier for long periods of time, turn OFF the Power Switch on the Left Side of the machine and wait 10 seconds then, turn OFF the Main Power Switch on the Back Side of the machine.

Toner and Paper

■ Store toner, drum and paper in cool areas with low humidity.

● Use high quality 60 - 90 g/m

2 (Sheet Bypass: 55 - 133 g/m 2 ) paper.

● For optimum performance, it is recommended that only Panasonic Brand supplies are used in the copier.

● Do not unseal toner before use.

● Do not leave bottle opened for prolonged period of time.

● Certain types of transparency film may not be compatible and may damage your machine.

Consult with an authorised Panasonic dealer for advice regarding non-standard paper types.

(Panasonic has tested “3M PP2500” transparency film and found it to be compatible.)

Ventilation

■ The copier should be installed in a well-ventilated area to minimize the ozone density in the air.

Installation

■ The copier should not be installed in areas with the following conditions:

● Extremely high or low temperature and humidity.

Ambient conditions Temperature: 10 – 30°C

Relative humidity: 30 – 80 %

● Where temperature and humidity can change rapidly, causing condensation.

● Direct exposure to sunlight.

● Directly in the air conditioning flow.

● In areas of high dust concentration.

● In areas of poor ventilation.

● In areas with chemical fume concentration.

● In areas with extreme vibration.

● With unstable or uneven conditions (floors, etc.).

FOR YOUR SAFETY

■ The maximum power consumption is 1.5 kW.

A properly wired (grounded), dedicated, 6.5A, 220-240V AC outlet is required. Do not use an extension cord.

Caution Note: Disconnect from the mains supply before removing covers.

CAUTION

● THIS PRODUCT CONTAINS A LITHIUM BATTERY. DANGER OF EXPLOSION IF BATTERY IS

INCORRECTLY REPLACED.

REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE. DISPOSE OF USED BATTERIES

ACCORDING TO THE INSTRUCTIONS OF YOUR LOCAL SOLID WASTE OFFICIALS.

Installation

For U.K.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 13 amp fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic Dealer.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR OFFICE

THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13

AMP SOCKET.

If a new plug is to be fitted please observe the wiring code as shown below.

If in any doubt please consult a qualified electrician.

WARNING: THIS APPLIANCE MUST BE EARTHED.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

Green and Yellow : Earth

Blue

Brown

: Neutral

: Live

As the colours of the wires in the main lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by letter E or by the safety Earth symbol “ “ or coloured GREEN or GREEN-AND-YELLOW.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter

L or coloured RED.

How to replace the fuse.

Open the fuse compartment with a screwdriver and replace the fuse.

N

9

Getting To Know Your Machine

Operation Chart

Basic Operation

Turn the Main

Power Switch

On

(Located on the back of the

Copier)

(See page 8)

Turn the Power

Switch On

(Left side of the copier)

Load Paper

Adding Paper (Paper Tray)

1 2

From i-ADF/

ADF

1

Face Up

2

or

From

Platen

Glass

COPY

Tray

Max. 50 originals*

Original Guides

Adjust to the original’s width

Original Guides

If other function is in use

*30 originals (B4/A3)

Face down

● If the original is not positioned properly, a portion of the original may not be copied.

● For originals smaller than A5 size, position the original within the A5 area and select A5.

3

4

Max Level Indicator

Paper Capacity: 550 Sheets (80 g/m 2 )

4

Paper Weight: 60-90 g/m 2

NOTE:

When changing the paper size, refer to page 60.

Adding Paper (Sheet Bypass)

Copying on Special Paper, etc.

1 2

Until it Stops

3

Face Down

4

Load paper lower than Side Guides

Approximately up to 50

A4 size sheets / 80 g/m 2

Paper Weight: 55-133 g/m 2

10

Sheet Bypass

4

Side Guides

Adjust the side guides.

Incorrect adjustment may cause the paper to wrinkle, misfeed or skew.

NOTE:

When paper size is not detected, remove paper and press Reset Key.

Then, load paper again.

3 4 5

Select the Copy Job(s) if necessary

COPY

SIZE

Reduction/ Enlargement only

(See page 24)

Number of copies

(Max. 999)

Adjust the Manual Exposure

or

Select the Original(s)

Mainly text

Combined with text and photo

Mainly photo

Exit Position of Copies

Inner of machine (bottom) Inner of machine (upper)

Exit tray/finisher (outside)

• INNER 2 and OUTER are only available when the optional Inner Tray or Exit Tray/Finisher is installed.

Copy Jobs

(See pages 22-29) (See pages 30-35) (See pages 36, 37)

(See pages 38-43)

Problem Solving

Adding Paper

(See page 10)

Replacing Toner Bottle

(See page 12)

Replacing Toner Waste

Container

(See page 12)

(See pages 44-47)

Removing Misfed Paper

(See pages 14-17)

(See pages 46, 47)

UXX

EXX

User Error Code

(See page 12)

Machine Error Code

(Call your Service provider)

Replacing Staple

Cartridge

(See page 12)

11

Getting To Know Your Machine

Operation Chart

Problem Solving

Replacing Toner Bottle/Replacing Toner Waste Container

1 2

Toner Waste Container

Replacing Toner Bottle

Replacing Toner Waste

Container

6

Seal

Shake the new Toner

Bottle well to loosen the contents.

7

New Toner Bottle

Replacing the Staple Cartridge

1 2 or

6

Check the operation

7

8

12

U13

U14

U15

U16

U25

User Error Codes (U Code)

U12

U11

U4

U8

U1

U20/U21/U22

U0

U90

U6

U7

U1

U4

U6

U7

U8

Code

U0

Check Points

Contact your Key Operator.

• Key Counter is not installed.

• Department ID Code is not entered.

Front Cover is open.

Finisher is pull out.

Right Cover is open.

Feed Cover 1/2/3 is open.

Transport Cover is open.

3

Cap

4

Toner Bottle

5

Toner Bottle

Toner Waste Container

8

New Toner Bottle

9

New Toner Waste Container

(NEW)

10

Bottle Green Knob

Bottle Green Knob

Replace the Toner Waste Container along with the New Toner Bottle.

3 4

1

Empty

Staple Case

2

New

Staple Cartridge

FQ-SS32

When the Staple is jammed

● Following message will be displayed on the Touch

Panel Display.

"Can Not Complete

Confirm Staple Unit"

Jammed

Staple

2

3

1

5

6

6

Code

U11

U12

U13

U14

U15

U16

U18

Check Points

Paper is remained in the Finisher Bin.

Finisher Staple Cover/Top Cover is open.

Low Toner.

Toner Waste Container is full.

Toner Waste Container is not installed.

Call your Service provider.

Total Copy Count is limit, consult your Key

Operator.

Code

U20

U21

U22

U25

U90

Check Points

ADF cover is open.

ADF is opened while scanning from ADF.

ADF Exit Unit is open.

Shake Toner Bottle well.

Need to replace the battery.

(See page 72)

13

Getting To Know Your Machine

Operation Chart

Problem Solving

(Continued)

Removing Misfed Paper (Paper Entry Area/1st Paper Tray)

1 2

Misfed Paper

6

Right Cover

Right Cover

Removing Misfed Paper (Paper Transport Area)

1

Latch

When the optional finisher/outer tray is installed.

Removing Misfed Paper (Automatic Duplex Unit)

1

1

Push

2

Right Cover

Removing Misfed Paper (2nd and 3rd/4th Paper Tray)

1

1

Feed Cover

2

Options

3rd Paper Tray (DA-DS303)

4th Paper Tray (DA-DS304)

14

2

Misfed Paper

2

Paper Feed Guide

2

1

Paper Tray

2

3

Right Paper Clearing Knob

2

3

1

4

1

Paper Tray

2

Heat Roller Cover

5

6

3 4

Paper Transport Cover

Latch

Misfed Paper

3

Misfed Paper

2

1

Paper Feed Guide

4

Right Cover

3 4

Feed Cover

Check that the latch is securely fastened.

15

Getting To Know Your Machine

Operation Chart

Problem Solving

(Continued)

Removing Misfed Paper (i-ADF)

1 2

6

ADF Cover

7

Misfed Paper

Removing Misfed Paper (ADF)

Exit Unit ADF Tray

2 1

6

ADF Cover

7

Misfed Paper

Removing Misfed Paper (Finisher)

1

Exit Guide

ADF Tray

Finisher

2

Release Button

Misfed Paper

16

3 4

8

ADF Tray

Misfed Paper

1

2

9

Exit Unit

5

Misfed Paper

6

3 4

8

ADF Tray

Misfed Paper

1

2

9

Exit Guide

3

Finisher

5

Misfed Paper

6

NOTE:

If the misfed indication remains, open the upper cover and remove misfed paper.

When using the Staple Sort, Shift-Sort or Shift-Group mode, remove remaining copies on the staple tray.

Then copy job will restart.

Upper Cover

1

3

2

Remaining

Copies

Misfed Paper

17

18

Before Starting

Energy Star

As an

E

NERGY

S

TAR

® Partner, Panasonic has determined that this product meets the

E

NERGY

S

TAR

® guidelines for energy efficiency.

This voluntary program specifies certain energy consumption and usage standards.

This product will automatically “power down” after a specified period of non-use. The use of this

E

NERGY

S

TAR

® compliant product will reduce energy consumption and ultimately benefit the environment.

The default functions can be adjusted depending on your office requirements.

Please ask your authorised Panasonic dealer for more details.

Control Panel

1 2 3 4 5 6 7

ORIGINAL

SIZE Keys

COPY SIZE

Keys

10 8

Touch Panel

Display

9

Keypad START

Key

No.

1

2

3

4

5

6

7

8

9

10

Contents

COPY Key

● Press when using the unit as a photocopier.

ENERGY SAVER Key

● Can save power while the copier is not in use.

INTERRUPT Key

● Interrupts other copy or print jobs while making copies.

FUNCTION Key

● Use when changing the paper size, initial values for functions (default values) and key operator settings.

RESET Key

● Resets all features to the initial power-on state.

CLEAR Key

● Clears the copy count in the display.

STOP Key

● Stops the copy run.

ALARM LED (RED)

● Lights when trouble occurs.∗∗

ACTIVE LED (GREEN)

● Lights when machine is active.

PRINT DATA LED (GREEN)

● Lights when print data receive.

FAX/EMAIL ON LINE LED for optional FAX/Email functions

Print ON LINE LED for Printer function

NOTE

∗∗

When the machine detects a problem or an alarm status is activated, the 8 Alarm LED lights up or begins to flash.

LED Lights: Machine detected a trouble status

• No paper in the selected tray or toner has run out.

• Machine detected trouble, such as paper misfeed or jam.

LED Flashes: Machine detected an alarm status

• No paper in the tray. (tray not selected)

• Running low on toner etc.

● The Control Panel displayed above shows only copier functions. Please refer to the appropriate operating instructions for other control panel functions.

19

Before Starting

Touch Panel Display

29

28

27

26

25

1 2 3 4 5

6 7

8 9 10 11 12 13

14

24 23 22 21

15

16

17

18

19

20

20

NOTE

● Use only soft finger pressure to activate the Touch Panel Display. DO NOT USE SHARP

OBJECTS such as pens, fingernails etc., as this may damage the panel.

● Touch Panel Display Brightness Adjustment:

To adjust the brightness of the Touch Panel display, press and while holding down the "C"

(CLEAR) key, keep pressing the "ORIGINAL SIZE/A3" or the "COPY SIZE/A3" keys until the desired brightness is achieved.

ORIGINAL SIZE/A3 : Dimmer

COPY SIZE/A3 : Brighter

1

24

25

22

23

20

21

18

19

28

29

26

27

16

17

14

15

12

13

10

11

8

9

6

7

4

5

2

3

Touch Panel Display Indications

No.

Contents

Warning Indications

: Add Toner : Add Paper : Call Service (Call your service provider) : Waste Toner

Original Icon

Original Size Indication

Job Build and SADF/Multi-Size Feed Mode Indication

Rotate Mode Indication

Number of Copies

Machine / User Error Code Indication (E1-01, U13, etc.)

Copy Icon

Copy Size Indication

Reserve a Job Button

Finisher Functions Indication

Machine Outline with Tray Selection (Paper Tray and Output Tray)

Paper Level and Size Indication

Paper Tray Selection Button

Tandem/Remote Button Indication

Tandem/Remote Button

Output Tray Indication

Output Tray Button

Density Indicator (7 steps)

Manual Exposure Select Buttons (Lighter and Darker)

Original Mode Select Button (Text; Text / Photo; Photo)

Copy Image and Paper Image Indication

Copy Ratio Indication

Original Image Indication

Completion Notice Button

Job Queue Button

Job Settings Button

Proof Set Button

Function Categories

See Page

10 - 13

11

11, 23

11, 23

11, 23

29

28

25

49

36, 37

25

25

11

34, 35

11 - 13

21

Making Copies

Basic Menu

Copying the Same Size Originals (1:1)

Copy size is automatically selected.

1 or

100%

2

If other function is in used

If original size is not detected

Notice for ADF/i-ADF (Option)

Inappropriate Originals

● Paper with a smooth surface such as glossy and coated papers

● Transparencies

● Originals with a Lead Edge that is “creased”,

“folded”, “punched” or “glued”

● Paste-ups

● Pressure sensitive or carbon backed papers

● Paper with excessive curl

● Stapled originals

● Freshly printed copies from a laser printer

i-ADF(DA-AR250)/ADF(DA-AS200)

ADF Tray

Original Guides

Adjust to the original’s width

Set the originals up to the upper limit arrow

Notice for copying on the heavy paper (Postal Card etc.) (maximum 133 g/m

2

)

1

Load paper on the sheet bypass

2

4

Select the sheet bypass and touch the Size Change button

3 Select the heavy paper

3 4

5

NOTE

● During the copy operation and after making copies, the fan motor may start spinning. This is a normal operation and is used to cool down the copier.

22

3 4

Adjust the Manual Exposure

or

Select the Original(s)

Mainly text

Combined text and Photo

Mainly photo

Number of copies

(Max. 999)

Features

Automatic Original Feeding

Feeds original automatically

Up to 50/A4 size of 75 g/m

2

paper

(up to 30 B4 or A3 size)

Automatic original size detection

A5 to A3

Duplex Copying (DA-AR250)

2-Sided originals

2 or 1-Sided copy automatically

(See pages 30, 32)

Position of the original(s)

From ADF/i-ADF From Platen Glass

Insertion/Overlay

• Cover

• Page Insertion

• OHP Interleaving

• Presentation

• Overlay

(See pages 44-47)

NOTE

● Memory Capacity:

If the memory becomes full during original scanning, the message “Cannot Complete / Job

Exceeds Memory Capacity” will be displayed on the LCD. If this occurs, follow the instructions on the LCD.

When additional memory is required, consult with an authorised servicing dealer.

23

Making Copies

Basic Menu

Copying with Preset Ratios

1

A4

or

A3

or

2

A3 A4

Proof Copying

Allows you to make one proof set, before proceeding to copy a large multi-set with various settings.

100

1

2

Proof copy

Multi copy

1 or

Tandem /Remote Copying

Required installation of optional Hard Disk Drive/

DA-HD30 and Image Memory (DA-SM16B/SM64B/

SM28B), network setup (See pages 56, 62) and registration of parameter of the user machine

(See page 26).

Remote Copying

Other copier

1 or

100 copies

100 copies

Tandem Copying

This copier

+

50 copies

50 copies

Other copier

5

Station

If original size is not detected

2

Set the Copy Job(s) if necessary

2

Set the Copy Job(s) if necessary or

24

NOTE

● If the desired copy size is different from the paper size loaded in the paper tray, use sheet bypass. (See page 10)

The selected Remote printing copier, must be either DP-2310 or DP-3010.

For the copier to function as a Remote/Tandem Copier it has to be setup in advance.

3

The Correct ratio is automatically selected.

Reduction and enlargement ratios (%)

ORIGINAL

SIZE

A3

B4

A4R

A5

A3

100

115

141

200

COPY SIZE

B4

87

100

122

173

A4R

71

82

100

141

A5

50

58

71

100

4

3 4

3

6

Number of copies

(Max. 999)

For Tandem

For Remote

4

Number of copies

(Max. 999)

7

5

Number of copies

(Max. 999) or

If the Proof copy is OK, the remaining number of sets will be printed.

If the Proof Copy is NG, again, place the originals back on the ADF (or Platen

Glass) and try again.

5

NOTE

Press the PROOF SET button again if the Proof Copying mode was reset.

25

Making Copies

Basic Menu

Tandem/Remote Copy Settings (Registration 1)

It is necessary to input the Key Operator

1

ID code.

4

7

Input ID Code

(4-digit)

Enter the key name∗

(up to 15 characters).

Tandem/Remote Copy Settings (Registration 2)

If either DP-2310 or DP-3010 is installed

1 on a network with a different subnet mask, must first register the DP-2310 or DP-3010 before being able to use the

Tandem/Remote Copying function.

5 6

2

By default, the key name will be up to 15 characters of the station’s name.

IP Address

Ex: 123.123.12.1

When entering a one or two digit address, add

“00 “ or “0” in front of the address, or enter “ “ after address.

Scroll to

04/04

Tandem/Remote Copy Settings (Editing)

To edit the registered machine’s settings

1

Open the screen

(IP Address, machine name or key name).

04/04 same as above procedures

(Registrations).

2

Tandem /Remote Copy Settings (Deleting)

To delete the registered machine.

1

Open the screen

04/04 same as above procedures

(Registrations).

26

2

2 3

3

7

5

Button name of Keyboard

To input capital letter.

Scroll to

07/08

To input number and symbol mark.

Scroll to

02/02

4

6

7

Machine name

(up to 15 characters)

To move the cursor (_) to the left or right side.

To erase the character before the cursor.

4

Scroll to

04/04

Input ID Code

(4-digit)

8

Enter the machine and key name same as above procedures (Registration).

5

3

3

Select the registered machine name

Select the registered machine name

4

Enter the new IP Address same as above procedures

(Registration).

5

Enter the machine and key name same as above procedures (Registration).

4

27

Making Copies

Basic Menu

Job Queue

Can refer to a job list waiting for printing, delete or change of priority (only for print job).

Job 3

Job

1

1

Job 1

Job

2

4

Job

3

Job 2

Deleted

Select the job(s)

∗∗

Select the job(s)∗ wish to delete

You can select to delete multiple or all jobs.

∗∗

Priority can be selected for print jobs only when the optional HDD is installed.

Completion Notice

A Job Completion Notice via a pop up screen on the

PC when the Copy Job is completed.

Before using the Completion Notice, install the

Panasonic-DMS included with the machine.

1

Copy is completed.

2

Select the

Pop up Display

Right click the

Status Monitor icon or

Pop up screen

28

NOTE

● The PRINT JOB QUEUE requires the Key Operator’s Password, however, the COPY JOB

QUEUE does not require a password.

The Job Queue selection function is only available when the optional HDD is installed.

2

5

3

3

Input password

(4-digit)

6

4

Select the desired

PC Address

2 times

5

Number of Copies

4

NOTE

● This Completion Notice is available only when connected to the network.

To reset the Completion Notice, press the CANCEL button.

29

Making Copies

2-Sided/Original Copy

1 2, 2 1, 2 2 Copy

1 2 Copy

1

2 1 Copy or

2 2 Copy

(1 2 Copy only)

Duplex Notice function

“2-SIDED PRINT” is printed on the copy.

Bottom right position or

Upper right position

2

Reduction/

Enlargement only

Book 2 Copy

Book 2 Copy

1

30

(1st Page BLANK)

Platen Glass

A3

A4/A3

(1st Page IMAGED)

Duplex Notice function

“2-SIDED PRINT” is printed on bottom right position of the copies.

2

Reduction/

Enlargement only

3

3

4

Bind position

5 or

Number of Copies or or

When clearing the 2-Side Copy:

4 or or

If necessary

6

From Platen:

When "Last Original?" is indicated.

Ex: 2 originals

Touch "NO" button.

Place next original on

3

4 the platen glass.

Press Start Key.

Touch "YES" button.

When DUPLEX NOTICE is selected.

2-SIDED PRINT

4

Original format Copy format

5 or or

If necessary or

Number of Copies

When DUPLEX NOTICE is selected.

2-SIDED PRINT

6

"Last Original?" is indicated.

Ex: 2 originals

Touch "NO" button.

3

4

Place next original on the platen glass.

Press Start Key.

Touch "YES" button.

31

Making Copies

2-Sided/Original Copy

2 Page Copy

Copying two facing pages or a A3 size original on two separate A4 size sheets.

1

Platen Glass

Example: A3 size original

A3

2

N in 1 Copy

From two/four/eight 1-Sided originals, side by side, to 1-Sided pages.

2 in 1 Copy 4 in 1 Copy

1 2

1

8 in 1 Copy

1

2

3

4

3 4

1 2 3 4

1

2

3

4

5

6

7

8

5 6 7 8

2-Sided Copy

From 4/8/16 1-Sided originals, side by side, to

2-Sided copies.

A3/A4 or

2

Reduction/

Enlargement only

When 2 in 1 copying onto a different paper size than the original, select desired copy paper size using

"COPY SIZE" key (and not "PAPER

TRAY" button of LCD touch panel).

Booklet Copy

Prints/Copies output in order so document can be folded like a book.

1

2

3

4

A4 or A5 originals only

1

2 3

4

1 2 3

Reduction/

Enlargement only

Default copy size is Reduce, copy size can be selected with 100 % or Reduce.

32

3

Copy Format or

4

Number of Copies

5

"Last Original?" is indicated.

Ex: 2 originals

Touch "NO" button.

Place next original on the

3

4 platen glass.

Press Start Key.

Touch "YES" button.

3

4

Binding position

4

N in 1 mode

Original direction

Copy layout ex. 2 in 1 or or or or

● Copy is automatically reduced.

2 in 1: 71 %, 4 in 1: 50 %, 8 in 1: 35 %

(ex. A4 to A4- size)

When the N in 1 Copying with 2-Sided copy.

“2-SIDED PRINT” will be printed on the copy.

5

Number of Copies

From Platen Glass:

Same Procedures as for 2 Page

Copy

Binding position or

5

Number of Copies

Cover mode and

Paper Tray or

33

Making Copies

2-Sided/Original Copy

Multi-Size Feeding

Use this function when copying mixed A3/A4 size originals using the i-ADF/ADF. Original size can be detected automatically then can be copied full size or same size.

1

2

A4 + A3 originals

Originals

A3

A4

A4 + A4R Copies

Full Size

A3

A4

Copies

Reduction

A4/A4R

A4/A4R

JOB BUILD AND SADF Mode

Special originals (like thin paper, etc.) can be fed from the i-ADF/ADF Tray and copied continuously using the JOB BUILD AND SADF Mode.

1

Place the original One at a Time or up to 50∗ sheets (80 g/m

2

)

30 sheets/A3, B4

2

Reduction/

Enlargement only

Reduction/

Enlargement only

Example: To make 5 sets of sorted copies of

80 sheets of originals. (A4 size)

50

80

1

1

1

Originals: 50 sheets <1st scan>

80

51

1 st

and 2 nd

Scanned Data are combined into one job.

Originals: Remaining 30 sheets <2nd scan>

5 sets of 80 sheets sorted copies are printed

Place the first 50 sheets of originals on the i-ADF/

ADF Tray.

2

NOTE

● Multi-Size Feeding Function cannot be combined in another 2-sided/original copy function.

● JOB BUILD AND SADF function cannot be combined with 2 1 and 2 2.

● Optional Image Memory or Hard Disk Drive may be required.

34

3

4

Number of Copies

3

4

Number of Copies

3

Desired sorting/finishing or or etc.

4

Number of Copies

(ex. 5)

5 6

Place the next original within 5 sec. of last ejected copy.

If message “Another original?

YES or NO” is shown, touch

“NO” button.

5 6

Place the next original within

5 sec. of last ejected copy.

(30 sheets)

If message “Another original?

YES or NO” is shown, touch

“NO” button.

35

Making Copies

Sort/Finish

When using Sort Mode

Sort

Multiple copy sets are sorted automatically.

1

1

1

Rotate-Sort

1

1

Multiple copy sets are sorted automatically and stacked in alternate direction (rotate).

(A4 size only)

Note: For this function both A4 (portrait) and A4R (landscape) need to be available.

Rotate-Group

Multiple copies of individual pages are stacked in alternate direction (rotate).

(A4 size only)

1

3

Shift-Sort

When optional finisher (DA-FS300) is installed.

Offset using electronic sorting

(A4, A4R, B4, A3)

1

1

1

Shift-Group

When optional finisher (DA-FS300) is installed.

Offset using electronic sorting

(A4, A4R, B4, A3)

1

2

3

Staple Sort

P

P

Non-Sort

When optional finisher (DA-FS300) is installed.

Sort by stapling sets.

Up to 30 sheets.

(A4, A4R, B4, A3)

Copy is stored on the tray.

36

1 or

Staple Position

ADF

Platen Glass

2 3

Reduction/

Enlargement only

Sort mode or or or

1-Bin Finisher (DA-FS300)

4

Number of Copies

When the optional finisher is installed, this screen will be changed as follows:

For DA-FS300

or or

Bin

● Stapling (Up to 30 sheets: A4/A4R,

20 sheets: B4/A3)

● Shift electronic sort

● When copying with B4/A3 size, pull out the bin until it stops.

Paper Capcity (80 g/m

2 Paper)

Paper Size Non-sot/Rotate

A5, A4 500

B4, A3 250

(A5 Size is only available in Non-sort mode)

Shift

500

(Max. 30 Sheets/Shift)

250

(Max. 20 Sheets/Shift)

Staple∗

10 to 30 Sheets: 45 to 16 Sets

2 to 9 Sheets: 70 to 50 Sets

10 to 20 Sheets: 25 to 12 Sets

2 to 9 Sheets: 70 to 28 Sets

Ex: A4 Size

10 Sheets: 45 Sets

30 Sheets: 16 Sets

37

Making Copies

Zoom/Effects

Zoom

Copies with variable zoom ratios from 25 % to 400 % in 1 % increments.

25%

400%

1 or

2

Auto Zoom

The copy Zoom Ratio adjusts automatically to the selected paper size.

1

Fit to paper length or width

Opening the i-ADF/ADF

2

Fit to paper length and width

Edge

Creates a blank edge.

1 2 or

Book

Eliminates dark inner binding shadows.

1 2

Platen Glass

A3

A4/A3

38

ATTENTION

NOTE

● If using the keypad to set the zoom ratio, press the CLEAR key first to reset the zoom ratio.

When changing the paper size after setting the zoom ratio, use the PAPER TRAY button.

● For Auto Zoom

An incorrect exposure may occur when there is a black line at the edge of the original or an image which the copier interprets as a black pattern in the skyshot mode.

An incorrect position detection of the original may occur when a strong light shines onto the glass during skyshot mode.

3

Same ratio of vertical and horizontal or

Different ratio of vertical and horizontal

4

25% - 400% or or Keypad or

25% - 400% or or Keypad

3 4

Paper Size

(Paper tray)

Fit to paper length or width

Right: Fit to paper length and width

3

Same value of vertical and horizontal void or

Different ratio of vertical and horizontal

4

Number of Copies

5

Number of Copies

Number of Copies 5 - 99 mm or or Keypad or

5 - 99 mm or or Keypad

3 4

5 - 99 mm or or Keypad

NOTE

Number of Copies

● Zoom ratio

If using the keypad to set the zoom ratio, press the CLEAR key first to reset the zoom ratio.

39

Making Copies

Zoom/Effects

Margin

Shifts image to right, left, up or down.

1 or

2

Centering

Copy image can be centred automatically on selected paper.

1

Opening the i-ADF/ADF

2

Image Repeat

Create continuous copy image on one sheet.

Minimum original size: 20 x 20 mm

1

Opening the i-ADF/ADF

The dotted line can be selected

“None” or “Print” by Function mode

(See page 53).

2

Inverse

Negative/Positive image can be made for interesting effects.

1 2 or

40

NOTE

● In Centering and Image Repeat mode, make copies with i-ADF/ADF open.

● Remove the originals from the i-ADF/ADF before selecting the Centering and Image Repeat mode.

An incorrect position detection of the original may occur when a strong light shines onto the glass during the Centering and Image Repeat mode.

Also an image which the copier interprets as a black pattern in the Centering and Image

Repeat modes.

3

Paper Size

(Paper tray)

3

Paper Size

(Paper tray)

3

Number of Copies

3 4

Margin area

5 - 99 mm or or Keypad

Number of Copies

4

Number of Copies

4

Number of Copies

If a part of the copied image is missing when using the

Margin mode, change the

Margin Reduction setting to

Yes. (See page 52)

41

Making Copies

Zoom/Effects

Stamping (Page Numbering)

The page number can be automatically printed on each page.

1 i-ADF/ADF only∗

-11/8

The page numbering format can be changed in function mode.

Initial format is "-n-".

(See page 53)

2

Stamping (Date Stamp)

A selected date can be automatically printed on each page.

1 i-ADF/ADF only∗

01/05/2003

2

Stamping (Issue Number Stamping)

The issue number can be automatically printed on each page.

1 i-ADF/ADF only∗

001

2

42

NOTE

When copying the Stamping mode combined with N in 1 mode, the Stamping mode can be used from the platen.

3 4

3

ORIENTATION or

Stamping position

Stamping start page

From 1, 2 or 3

Number of Copies

(Max. 999)

From 3rd page

From 2nd page

From 1st page

● Multiple copy sets will be sorted automatically.

4

3

ORIENTATION or

Stamping position

Stamping date if you change

Number of Copies

(Max. 999)

4

● Multiple copy sets will be sorted automatically.

ORIENTATION or

Stamping position Stamping issue number

Number of Copies

(Max. 999)

● Multiple copy sets will be sorted automatically.

43

Making Copies

Insertion/Overlay

Cover

Adds cover page(s) to the copies.

Blank paper

Original

1

2

+

Blank

Paper

1

2

Copied paper

Original

1

2

3

4

+

Colour

Paper

Colour

Paper

1

2

3

4

1 i-ADF/ADF only

2

Page Insertion

Inserts paper between the copies.

Original Blank

Paper

Blank paper

+

Copied paper

Original

+

Copied

Paper

1 i-ADF/ADF only

2

OHP Interleaving

Inserts paper between OHP film.

Blank paper

Original

1

2

+

Blank

Paper

OHP1

OHP2

Copied paper

Original Copied

Paper

1

2

(1)

(2)

+

OHP1

OHP(1)

OHP2

OHP(2)

1 i-ADF/ADF only

Presentation

Inserts paper between OHP film and make copied sets for hand-outs.

Blank paper

Original Blank

Paper

1

2

+

OHP1

OHP2 +

Handouts

(1)

(2)

1 i-ADF/ADF only

Copied paper

Original Copied

Paper

1

(1)

2

(2)

+

OHP1

OHP(1)

OHP2

OHP(2)

+

Handouts

(1)

(2)

2

2

44

NOTE

● Certain types of transparency film may not be compatible and may damage your machine.

Consult with an authorised Panasonic dealer for advice regarding non-standard paper types.

(Panasonic has tested "3M PP2500" transparency film and found it to be compatible.)

3

3

Cover mode

Cover (Front) Cover (Front+Back)

Blank

Paper Size∗

Paper tray

Copy

4

4

Number of copies

(Max. 999)

5

Insertion mode

Blank

Copy

Paper Size∗

Paper tray

Input insert page position with

Keypad∗∗

If inserting other position, move

Number of copies

(Max. 999) the sheet with / button then, input insert page position with Keypad

5 3

Load OHP film on the sheet bypass

4

Interleaving mode

Blank

Copy

Paper Size∗

Paper tray

Number of copies

(Max. 999)

3

Load OHP film on the sheet bypass

4 5

NOTE

Presentation mode

Blank

Copy

Paper Size∗

Paper tray

Number of copies for hand-outs

(Max. 999)

Paper size/direction for copy and paper should be the same.

∗∗

Blank page to be inserted before indicated selected page number.

45

Making Copies

Insertion/Overlay/Job Memory

Overlay

Overlays a second image onto the first by using a second original.

1st-page

1 or

2

File Edit

There are three File Edit available in the Form Overlay function.

1

Register : To Add a new file∗

(Max. 5 files)

Erase

: To Erase a registered file

Title Edit : To Change the title of a file or

(Register only)

2 3

∗∗

Select a file

Up to 5 image files can be registered.

If the selected File Key already contains a registered file image, the new image will overwrite the current image.

∗∗

When the optional Hard Disk Drive (DA-

HD30) is not installed, next step after "2" skips to step "ERASE " in step 4.

Form Overlay

Overlay an image stored in memory onto the copier.

1

File

2 or

Job Memory

Five Copy Jobs can be stored in Memory

(M1 to M5) for recall at a later time.

Set up the copy job to be stored.

To store a job in memory

1 2

M1, M2, M3, M4, M5

46

NOTE

● Function to select the files is only available when the optional Hard Disk Drive (DA-HD30) is installed.

When the optional Hard Disk Drive is not used, selectable file is only one file.

● When the image is not available in the memory to overlay, Form Overlay function will not be selectable.

3 4 5

Density for second image or

Number of copies

(Max. 999)

From Platen Glass:

Same procedures of

Form Overlay

Select to store the overlay image into memory for later use.

or

5 6 7

REGISTER

4

Density for second image

ERASE

4 or When cancel the registration, touch "CANCEL" button.

4

File name

5

3

FILE NAME EDIT

4

Enter the file name

Select a file

Number of copies

(Max. 999)

To recall a job stored in memory

1 2 or

M1, M2, M3, M4, M5

3

From Platen Glass:

When "Another Original?" is indicated.

Ex: 2 originals

Touch "NO" button.

3

4

Place next original on the platen glass.

Press Start Key.

Touch "YES" button.

Number of copies

(Max. 999)

NOTE

● JOB MEMORY mode will not be deleted even if the power switches are turned Off.

● When storing a new job into a programmed memory location, the previously stored job will be overwritten and erased.

● M1, M2 can use as manual skyshot mode by setting user function mode.

47

Making Copies

Other Features

Concurrent Copying

Next copy job can be reserved even if the current copy job is not completed.

(Requires the optional Hard Disk Drive/DA-HD30 to

be installed.)

1st job

1st job

Copy

1st job

1 or

2nd job Reserve

2nd job

2

Select Function

Energy Saver (Power Save Mode, Sleep/Shutdown Mode)

These modes can save power while the copier is not in use.

1

Power Save Mode

To clear or

Sleep/Shutdown Mode∗∗

Automatically enters the Sleep/

Shutdown Mode after 15 minutes from the last copy.

2

Enter

Indicator

Flash : Power Save Mode

Light : Sleep/Shutdown Mode

Modes

Normal Operation

Power Save

Sleep

Shutdown

Power Consumption

Approx. 140 Wh

Approx. 28 Wh

Approx. 18 Wh

Approx. 4 Wh

Warm Up Time

N/A

Min. 30 sec.

35 sec.

35 sec.

The machine will not go into Sleep/Shutdown Mode when the Weekly

Timer is selected.

Skyshot Mode

Skyshot allows copying a manuscript without generating dark borders even if the platen cover or i-ADF/ADF is opened.

Two types of Skyshot modes can be selected;

Digital Skyshot Mode : The scanning area (size) is not pre-determined.

Manual Skyshot Mode: The scanning area (size) is pre-registered into memory (M1 and M2) in advance.

Digital Skyshot Mode

NORMAL

Default setting (usually select this mode).

QUALITY

For better definition, select the Quality mode.

1 2

The default setting of Digital Skyshot Mode is

“NORMAL”. In this setting, the unit scans once.

If there are black areas around the borders in the copies, set the Digital Skyshot Mode to

“QUALITY” to soften the dark borders. In this setting, the unit scans twice.

(See page 52)

Opening the i-ADF/ADF

Number of copies

(Max. 999)

NOTE

When copying the Quality mode combined with 1 2, BOOK 2, 2PAGE, N in 1, “Quality” mode will be changed to “Normal” mode.

∗∗

Sleep Mode/Shutdown Mode and entering timer can be selected by the key operator.

(See page 55)

● An incorrect exposure may occur when there is a black line at the edge of the original or an image which the copier interprets as a black pattern in the skyshot mode.

48

3 4 or

Scanning is completed

Interrupt Mode

This mode can interrupt other copy jobs while making copies.

1 2

Other Job set

3 or

5

Select

Function

6

Job Waiting List can be confirmed with Job Queue.

(See page 28)

4

Other Job is completed

5

Manual Skyshot Mode

● Set 09 Manual Skyshot Mode in Copier Settings first. (See page 52)

2 1

Platen

Upper-

Left

Corner

Custom size∗

NOTE

3

Number of copies

(Max. 999)

Default M1/M2 size can be changed by Function mode. (See page 57)

● If using i-ADF, place original on the center position of ADF Tray. The i-ADF/ADF can feeds only

50-105 g/m

2

plain paper.

● When using the manual skyshot mode, the M1 and M2 are turned On and other job memory cannot be used.

● An incorrect position detection of the original may occur when a strong light shines onto the glass during skyshot mode.

49

Function

Using Function Modes to change the Initial Copy Modes

Procedure

GENERAL

SETTINGS

COPIER

SETTINGS

PRINTER

SETTINGS

Options

FAX/EMAIL

SETTING

SCANNER

SETTINGS

General

Settings for

Key Operator

Input Identification (Key Operator ID) Code

Copier

Settings for

Key Operator

Printer

Settings for

Key Operator

Fax/Email

Settings for

Key Operator

GENERAL SETTINGS:

Changing the Initial Machine Modes

● Power on default mode, Manuals add toner, etc.

(See page 52)

For Key Operator:

Paper size, Finisher bin/Staple mode, Department

Counter, Network TCP/IP settings, etc.

(See pages 55, 56)

Procedure

1 2 3

Select desired Function Mode Select desired Function

50

NOTE

● Please refer to each operating instructions for options function settings.

COPIER SETTINGS:

Changing the Initial Copy Modes

● Default function of each copy mode

(See pages 52, 53)

For Key Operator:

Paper size priority, Original mode, Contrast, JOB BUILD

AND SADF mode, Original size of Manual Skyshot mode, etc.

(See page 57)

PRINTER SETTINGS:

Changing the Initial Printer Modes

● Default function of each print mode

(See page 54)

For Key Operator:

Job completion time, Page protection, Error page print,

Spool function, PS configuration, Font list print, Mailbox data holding, etc.

(See page 58)

<When Optional accessory is installed>

SCANNER SETTINGS:

Changing the Initial Scanner Modes

● Original mode, Compression mode, Resolution, JOB

BUILD AND SADF mode, Address book, etc.

(See page 53)

● Even if without Scanner Option, Completion Notice for copier function works.

FAX/EMAIL SETTINGS:

Changing the Initial Fax/Email (i-FAX) Modes

Refer to Operating Instructions (For FAX/Email function).

4

When the Key Operator Mode:

5

Setting the function parameter

Identification Code

(4-digit)

Sets desired function parameter(s) according to shown message and image on the touch panel display.

6

51

Function

GENERAL SETTINGS

Screen

No.

Modes

00 Power On Default Mode

01 Manual Copy Quality Adj

01/02

02 Manual Add Toner

03 Sort Memory Status

04 Departmental Counter

02/02

09 Key Operator Mode

Function

Selects mode.

● Copy, Printer, Scanner

Sets to activate the manual density control.

● Off, On

Adds toner manually.

● Off, On

Indicates the sorting memory status.

● Off, On

Indicates the department counter.

Copy

Initial

Setting

Off

Off

Off

Consult with an authorised service provider

Input the Key Operator ID Code.

COPIER SETTINGS

Screen

No.

Modes

00 Margin Value Default

01 Edge Value Default

01/04

02 Book Value Default

03 Margin Reduction Def.

04 2-Sided Mode Default

05 N in 1 Default Mode

06 Reduce N in 1 For Space

02/04

07 Booklet Default Mag.

08 Digital Skyshot Mode

09 Manual Skyshot Mode

Function

Initial

Setting

10 mm Selects the margin shift value.

● 5 mm, 10 mm, 15 mm, 20 mm

Selects the edge width.

● 5 mm, 10 mm, 15 mm, 20 mm

Selects the book void width.

● 15 mm, 20 mm, 25 mm, 30 mm

Selects the reduction ratio in margin mode.

● No, Yes

Function sets the duplex priority mode.

● No, 1 to 2, 2 to 2, Book to 2

5 mm

20 mm

No

No

Selects the N in 1 default mode

● 2 in 1, 4 in 1, 6 in 1

Selects whether to disable edge deletion

● No, Yes

Select the booklet magnification

● 100%, Reduce

2 in 1

No

Reduce

Enables or disables the use of Skyshot mode.

Normal

● No, Normal, Quality

Enables or disables the use of Manual Skyshot. Off

● Off, M1 On, M2 On, M1&M2 On

52

COPIER SETTINGS

Screen

No.

Modes

10 Auto Contrast Adjust.

11 Sort Priority ADF

03/04

12 Sort Priority Glass

13 Stamping Default Mode

14 Page Numbering Style

15 Imag. Repeat Dotted Line

04/04

19 Key Operator Mode

Function

Automatically adjusts the copy density for text, Yes

T/P.

● No, Yes

Sort Selects the sort mode.

● None (Non-Sort), Sort, Staple, Group, Shift

Selects the sort mode.

● None (Non-Sort), Sort, Staple, Group, Shift

None

Page Selects the stamping mode.

● Page, Date, Issue

Selects the page numbering style.

● -n-, n/m

Selects the dotted line.

● None, Print

Input Key Operator ID Code.

-n-

Print

Initial

Setting

SCANNER SETTINGS

Screen

No.

Modes

00 Scanner Settings Print

01 Original Mode Default

01/02

02 Compression Mode Def.

03 Resolution Default

04 Job Build and SADF Mode

05 Bind Posi., 2-Sided Origi.

06 Add New Address

02/02

07 Edit Address Book

08 Delete Address

Function

To print scanner settings print.

● Stop, Start

Sets the original setting.

● Text, T/P (Text/Photo), Photo

Sets the compression mode setting.

● MH, MR, MMR, JBIG

Sets the resolution setting.

● 150 dpi, 300 dpi, 600 dpi

Sets the Job Build and SADF mode initial setting.

● No, Yes

Sets the bind position, 2-sided original initial setting.

● Longedge, Shortedg (Shortedge)

To add new address.

● PC, DD, FTP

To edit address book. (See page 68)

To delete address.

Longedge

0, 0, 0, 0

Start

Initial

Setting

T/P

JBIG

600 dpi

No

53

Function

PRINTER SETTINGS

Screen

No.

Modes

00 Number of Prints

01 Paper Size

01/04

02 Paper Tray

03 Print Direction

04 Auto Tray Selection

05 2-Sided Print

06 Bind Position

02/04

07 Resolution

08 Font (PCL)

09 Symbol Table (PCL)

10 Pitch (PCL)

11 Point Size (PCL)

03/04

12 Lines/Page (PCL)

13 Return Character (PCL)

14 Mutual A4/LTR

15 Mailbox Memory Status

04/04

16 Print Data

19 Key Operator Mode

Function

Sets the initial number of prints.

● 1 ~ 999

Sets the paper size setting.

● A3, B4, A4, B5, A5, LEDGER, LEGAL,

LETTER, INVOICE, 8 x 13, 8.5 x 13

Sets the paper tray setting.

● Auto, Bypass, Tray 1, Tray 2, Tray 3, Tray 4

Sets the print direction setting.

● Portrait, Landscape

Sets the auto tray setting.

● Off, On

Sets the 2-sided print setting.

● Off, On

Sets the bind position.

● Longedge, Shortedge

Sets the resolution setting.

● 1200 x 600, 600 x 600, 300 x 300

Sets the font of PCL.

● 0 ~ 99

Sets symbol table (PCL).

● 0 ~ 35

Sets pitch (PCL).

● 0.44 - 99.99

Sets point size (PCL).

● 4.00 - 999.75

Sets lines/page (PCL).

● 5 - 123

Sets return character (PCL).

● CR, CR + LF

Converts Letter to A4 automatically.

● Off, On

Indicates the memory status of mailbox.

● Memory, Box

Sets print data.

● Stop, Start

Input the Key Operator ID Code.

1

A4

Auto

Initial

Setting

Portrait

On

Off

Longedge

600 x 600

0

11

10.00

012.00

60

CR

Off

Start

54

For Key Operator

GENERAL SETTINGS

Screen

No.

Modes

00 Print General Settings

01/08

01 Paper Size

02 A4R/A5 Size Selection

03 B5R/A5R Size Selection

04 Special Paper Tray 1

05 Special Paper Tray 2

06 Auto Paper Out Rotate

02/08

07 Copy Output Tray

08 Printer Output Tray

09 Fax/Email Output Tray

10 Auto Reset Time

11 Power Save Mode Timer

03/08

12 Sleep/Shutdown Select

13 Sleep/Shutdown Timer

14 Language Sel. Priority

15 Language Default

16 TCH Panel Beep Sound

17 Original Set Beep Sound

04/08

18 Orig. Set In ADF Sound

19 Dept. Counter Mode

Function

Initial

Setting

Sets print of common menu for the user initial setting.

Start

● Stop, Start

Sets the paper size of each paper tray.

● Ledger, Legal, Letter, Letter-R, Invoice,

A3, B4, A4, A4R, B5, B5R, A5, A5R, 8 x 13,

8.5 x 13

Consult with an authorised service provider

Sets initial paper size of sheet bypass.

● A4R, A5

Sets initial paper size of sheet bypass.

● B5R, A5R

Sets the paper tray for special paper

(ex: coloured).

● None, Paper Tray 1, Paper Tray 2, Paper Tray

3, Paper Tray 4, Sheet Bypass

A4R

B5R

None

None Sets the paper tray for special paper

(ex: coloured).

● None, Paper Tray 1, Paper Tray 2, Paper Tray

3, Paper Tray 4, Sheet Bypass

Copier will automatically rotate image and print when selected paper tray is empty.

● Off, On

Sets the output tray for copy.

● Inner 1, Inner 2, Outer

Sets the output tray for PRINTER.

● Inner 1, Inner 2, Outer

Sets the output tray for FAX/EMAIL.

● Inner 1, Inner 2, Outer

Selects the Control Panel reset time.

● None, 30 sec., 1 min., 2 min., 3 min., 4 min.

Sets the Power Save Timer.

● 1 - 240 minutes

Sets the Sleep/Shutdown mode.

● Sleep, Shutdown

Sets the Sleep/Shutdown timer.

● None, 1 - 240 minutes

Selects the message language of the display.

● Off, On

Selects the message language of the display.

● English, French, Spanish

Beep sound when touching the panel.

● Off, Soft, Loud

Beep sound when original is set on the platen.

● No, Yes

Beep sound when original is set in the ADF.

● No, Yes

Monitors copy usage of each department

(1) Printer usage of each document

(2) Print limit of each department

(3) ID code of each department

Off

Inner 1

Inner 1

Inner 1

1 min.

15

Sleep

15

Off

English

Soft

No

Yes

Consult with an authorised service provider

NOTE

● It is necessary to input the Key Operator ID Code before changing items on this page.

55

Function

For Key Operator

GENERAL FUNCTIONS

Screen

No.

Modes

20 Date Time Setting

21 Weekly Timer

05/08

22 Daylight Time

23 DHCP Default

24 TCP/IP Address

25 TCP/IP Subnet Mask

26 TCP/IP Default Gateway

06/08

27 DNS Server Address

28 MAC Address

Function

Sets date time registered.

● Day, Month, Year, Time

Sets the weekly On/Off timer.

● Off, On (Set)

Sets the daylight time.

● No, Yes

Sets the DHCP.

● No, Yes

Sets user IP address.∗∗

● 3 digits x 4

Sets the subnet mask.

● 3 digits x 4

Sets the gateway address.∗∗

● 3 digits x 4

Sets the DNS server.∗∗

● No, Yes

Indicates the MAC address.

29 Hard Disk Format

30 Hard Disk Error Check

31 Address Book Group ID

Selects the hard disk format

● Stop, Start

Select the hard disk error check

● Stop, Start

Input group ID for address book.

● 0 ~ 99

Input parameter of user machine.

32 Tandem User Parameter

07/08

33 Community Name (1)

34 Community Name (2)

35 Device Name

08/08

36 Device Location

Off

Yes

Yes

Initial

Setting

0. 0. 0. 0

0. 0. 0. 0

0. 0. 0. 0

Yes

Stop

Stop

0

Selects to change the SNMP of Community

Name (1).∗∗

● Enables read only.

Selects to change the SNMP of Community

Name (2).∗∗

● Enables read/write.

public public

Input the device name when necessary.∗∗ Panasonic

(For Status Monitor/EtherTalk Machine Name) DP-2310 or DP-3010

Input the device location when necessary.∗∗

(For Status Monitor)

56

NOTE

● It is necessary to input the Key Operator ID Code before changing items on this page.

Not required in copying mode, but needed when installing options with advanced functions

(See page 65).

∗∗

When functions No. 24 to 27 and No. 33 to 36 are set, cycle the power by turning the Power

Switch OFF and ON.

COPIER SETTINGS

Screen

No.

01/04

02/04

Modes

00 Copier Settings Print

01 Paper Size Priority

02 Original Mode Default

03 Text Contrast

04 T/P Contrast

05 Photo Contrast

06 Overlay Contrast

07 Interleaving Default

08 Page Insertion Default

09 Cover Mode Default

03/04

10 Job Build And SADF Mode

11 Maximum Copy Setting

12 M1, Size

13 M2, Size

04/04

14 Memory Overflow Warning

15 Add New Tandem Desti.

16 Edit Tandem Destination

17 Delete Tandem Desti.

Function

Start

Initial

Setting

Print the copier settings.

● Stop, Start

Selects paper size priority

● LEDGER, LEGAL, LETTER, LETTER-R,

INVOICE, A3, B4, A4, A4R, B5, B5R, A5,

A5R, 8 x 13, 8.5 x 13

Selects original setting

● Text, T/P (Text/Photo), Photo

Selects contrast for Text mode

● 1 ~ 7

Selects contrast for Text/Photo mode

● 1 ~ 7

Selects contrast for Photo mode

● 1 ~ 7

Sets the density (transparency) of the page being produced in overlay mode.

● 1 ~ 7

Selects OHP interleaving paper

● Blank, Copy

Selects page insertion

● Blank, Copy

Selects cover paper

● F, Blank, F, Copy

FB, Blank, FB, Copy

(F: Front, FB: Front + Back)

A4

T/P

4

4

4

4

Blank

Blank

F, Blank

Enables or disables the use of SADF function.

Yes

● No, Yes

Determines whether to limit number of copies

(0-99).

0

(No limit)

70 x 160 mm

(X) (Y)

Input a size in job memory 1 for frequently used size.

● X: 5~432/Y: 5~297 mm

(See page 46)

Input a size in job memory 2 for frequently used size.

● X: 5~432/Y: 5~297 mm

(See page 46)

95 x 220 mm

(X) (Y)

Selects the task to perform when memory overflow occurs

● Print, Cancel

Inputs a new destination to split the copy job

Print

Edits a copy destination

Deletes a copy destination

NOTE

● It is necessary to input the Key Operator ID Code before changing items on this page.

57

Function

For Key Operator

PRINTER SETTINGS

Screen

No.

Modes

00 Printer Settings Print

01/03

02 Page Protection

03 Error Page Print

02/03

01 Job Completion Time

04 Spool Function

05 Text Print

06 PS Configuration Print

07 Font List Print (PCL)

08 Font List Print (PS)

09 Mailbox Data Holding

10 Delete Mailbox Data

03/03

11 Print Queue Delete

12 AppleTalk Zone Name

Function

Initial

Setting

Sets the printer status print.

● Stop, Start

Sets the job completion time setting.

● 1~ 999 sec.

Start

180

Compress automatically then print out.

● Off, On

Sets print the error page.

● Off, On

Sets the spool function.

● Off, On

Off

On

On

Prints text page only.

● Off, On

Sets the status page print of PS.

● Stop, Start

Sets the font list print of PCL.

● Stop, Start

Sets the font list of PS.

● Stop, Start

On

Start

Start

Start

Sets the automatic holding function of mailbox 7 days data.

● Infinity, 1 day, 2 days, 3 days, 4 days, 6 days,

7 days

Sets delete the mailbox data.∗

● All, Before

Sets authorization to delete the print queue.

● Free, Key op. (operator)

Input an AppleTalk Zone name.∗∗

● Maximum 32 characters

Before

Key op.

58

NOTE

● It is necessary to input the Key Operator ID Code before changing items on this page.

Functions except 0 and 11 are available when optional accessories are installed.

∗∗

When function No. 12 is set, cycle the power by turning the Power Switch OFF and ON.

MEMO

59

Function

For Example

Changing the Auto Contrast Setting

You can select whether the copying density is adjusted automatically for text and photographic originals.

1 2 3

Scroll to

03/04

Changing the Paper Size

The paper trays are designed to accommodate A5, A4, A4-R, B4/FLS and A3 Size paper.

1 2 3

6 7

Paper tray

Weekly Timer

Key Operator can manage each on/off time in a week.

1 2

Paper size

3

8 9

Scroll to

02/02

Scroll to

02/02

6 7 8

End time

Input time

Ex.: 1700

Start time

60

4 5 or

4 5

6

10

ID Code

(4-digit)

Pull out the paper tray

11 a

12 b

Adjust the paper guide a / b Change the paper size indicator

Note: It is recommended that the paper guide (b) be fixed in place with screws. Consult an authorised servicing dealer for details on how to fasten using screws.

4 5

6

9

ID Code

(4-digit)

10 11

Scroll to

05/08

Input time

Ex.: 0800

61

Function

For example

Department Counter

Department Counter can be managed, limit copies, counters and code numbers for each department.

(Maximum department number: 300)

Contact your authorised servicing dealer to enable the Department Counter feature.

1 2 3

Scroll to

02/02

6

For Total Counter For Identification Code

or or

Displays the sum of all the active department counters.

Prints all the active department counters.

To clear the total counter, touch the INPUT button, enter 0 and touch the OK button.

7

Select Page

Select Department

ID Code

(8-digit)

6

Input a Department Name (up to 25 characters) with the Keyboard and touch the OK button. (How to use the

Keyboard, refer to page 27)

Network Settings

When the Parameter “23 DHCP Default” is set to “No”, the Key Operator must administer the Network settings manually.

1 2 3

5

Scroll to

02/02

6

Scroll to 05/08 or

Scroll to 06/08

Input address

Ex.: 192.168.1.100

When entering a one or two digit address, add “00 “ or “0” in front of the address, or enter “ “ after address.

62

4

ID Code

(4-digit)

For Department Counter

Select Page

Select Department

5

Scroll to

04/08

6

For Maximum Prints

Clear the counter

(8-digit) to “0” or

Select Page

Select Department

Maximum number of Copies (8-digit)

4

7

ID Code

(4-digit)

8

Turn Off and On the power switch

5

63

64

Function

Combined Function Table

Next

Selections

2-SIDED/ORIG.

COPY

SORT/

FINISH

ZOOM/

EFFECTS

INSERTION/

OVERLAY

Others

First

Selections

1 1

1 2

2 1

2 2

Book 2

2 Page

N in 1

Booklet

Multi-Size Feeding

Job Build and SADF

Sort

Shift-Sort

Rotate-Sort

Staple-Sort

Shift-Group

Rotate-Group

Non-Sort

Zoom

Auto Zoom

Edge

Book

Margin

Stamping

Image Repeat

Centering

Inverse

Cover

Insertion

OHP Interleaving

Presentation

Overlay

Form Overlay

File Edit

Interrupt

Proof Copy

Tandem Copy

Concurrent Copying

Manual Skyshot

Digital Skyshot

: Possible Combined Functions.

: Possible Combined Functions without full size copy ratio.

: Unavailable Combined Functions.

: Next Selection is Carried Out.

A

R : When the same function is selected twice, the second selection is ignored.

: Functional combination that cannot be performed.

Accessories

Components

■ The DP-3010/2310 is a digital photocopier which can produce images with great clarity.

Furthermore, its copying functionality can also be greatly enhanced by the addition of the following options and supplies.

We hope you find that the wide ranging capabilities will make your office-place more productive and efficient.

Options

i-ADF

(DA-AR250)

ADF

(DA-AS200)

(See page 22)

Inner Tray

(DA-XN200)

1-Bin Finisher

(DA-FS300)

Exit Tray

(DA-XT200)

3rd Paper Tray

(DA-DS303)

4th Paper Tray

(DA-DS304)

Image Memory

(DA-SM16B/64B/28B)

● 16/64/128 MB

● To increase the memory capacity for electronic sorting.

HDD Unit

(DA-HD30)

● For PS Printing (for Fonts)

Security Print/Mailbox

Tandem copy/Concurrent copy

I-FAX without mail server

1,000 Station registration

Print Job Spooling

OneRIP

Account Management

Expansion Board

(DA-EM600)

● Expansion F-ROM (8 MB)

Network Scanner Module

(DA-NS600)

Printer Controller Module

(DA-PC300)

● Printer Controller for PCL6∗

Multi Page Language

Controller Module

(DA-MC300)

● Printer Controller for PS∗/PCL6

Fax Communication Board

(DA-FG300)

Internet Fax/E-Mail Module

(DA-NF600)

Supplies

Part Name

Staple Cartridge

Toner

Part No.

FQ-SS32

DQ-TU15E

Remarks

Staple Cartridge Refills (3) for DA-FS300

Toner

NOTE

PCL6 is a Page Description Language of the Hewlett-Packard Company.

PS is a Page Description Language of the Adobe Cooperation.

● Contact your authorised servicing dealer for details on combinations of options.

65

Network Scanner (Option)

Document Scanning/Address Book

Document Scanning

When Panasonic Document Management

System (PDMS) is installed and configured onto PC, document(s) can be scanned from the DP-2310/3010 to PC.

1 2 or

5

Adding your PC or DD Server IP Address

1

If the PC or Server is not entered with PDMS software, input the Address with copier touch panel.

2 3

Original Size if original size is not shown

6

Key name

(Max. 15 characters)

Ex.: PC name

Document Save

Docu. Retrieve

12

Port number

Scroll to 02/02

7 8

Assign the address into the Favourite section or

13

(DD Server only)

For saving

For retrieving

For PC

For DD Server

14

(DD Server only)

Making shortcut button

Do not make

Make

66

3

Select a destination (PC)∗

A destination will be indicated

6

PC Screen

7

4

5

Select mode if necessary

Resolution∗

2 Sided Original

Exposure

Original mode

Thin Original

150dpi: Text mode only.

Refer to PDMS operating instructions on the

CD-ROM.

4 5

6

IP address

Ex.: 192.168.1.10∗∗

9

(DD Server only)

10

(DD Server only)

Account name

(Max. 60 characters)

Ex.: Jack

Server name

(Max. 15 characters)

Ex.: SALES DEPT

11

(DD Server only)

12

Password

(Max. 60 characters)

Ex.: Jack

Directory name

(Max. 60 characters)

Ex.: \ddserver\sub01

“\deserver” is must

∗∗

When entering a one or two digit address, add “00” or

“0” in front of the address, or enter “ “ after address.

Button name of Keyboard

To input capital letter.

To input number and symbol mark.

To move the cursor (_) to the left or right side.

To erase the character before the cursor.

67

Network Scanner (Option)

Document Scanning/Address Book

Editing your PC or DD Server IP Address

If you have to change or erase any of the Address Book stations, follow the steps below.

1 2 3

Scroll to 02/02

6 7 8

New name

(Max. 15 characters)

Ex.: SALES DEPT 01

12

(DD Server only)

New key name

(Max. 15 characters)

Ex.: PC name

Document Save

Docu. Retrieve

13

Directory name

(Max. 60 characters)

Ex.: \ddserver\sub01

“\deserver” is must

Port number

Erasing the Address

If you have to delete any of the Address Book entries.

1 2 3

Assign the address into the Favourite section or

14

(DD Server only)

For saving

For retrieving

Scroll to 02/02

68

4 5

6

9

Select the entry you wish to change

New IP address

Ex.: 192.168.1.11∗

10

(DD Server only)

11

(DD Server only)

For PC

For DD Server

15

(DD Server only)

Account name

(Max. 60 characters)

Ex.: Jack

12

Password

(Max. 60 characters)

Ex.: Jack

When entering a one or two digit address, add “00” or “0” in front of the address, or enter “ “ after address.

Making shortcut button

Do not make

Make

5 4

Select the entry you wish to delete

69

70

Problem Solving

Troubleshooting

Check

Unit Does Not Operate

Does the display light?

Does the Energy Saver key flash (or light) and displays are turned OFF?

(See page 48)

Does any of the U## codes and messages appear on the display?

(U1, U4, U6, U7, U11....etc.)

Does the Add Staples indicator and message appear on the display?

Does the Add Paper indicator and message appear on the display? ( )

Does the paper misfeed indicator and message appear on the display? ( )

Does E#-## indicator and message appear on the display?

The machine would not accept the next job during operation, instructed job would not be accepted for long time period or job would not be completed.

Light Copies

Does the exposure indicator say “LIGHTER”?

Does the Add Toner indicator and message appear on the display? ( )

Action

Check if the Power Switches (Main Power

Switch on the back and Power Switch on the

Left Side of the machine) are turned ON and if the power cord is plugged into the AC outlet.

Press Energy Saver key on the control panel.

Perform actions in accordance with each message.

Add Staples (See page 12)

Remove all jammed staples. (See page 13)

Add paper. (See page 10)

Remove the misfed paper. (See pages 14 - 17)

Turn the Main Power Switch on the Back and the Power Switch on the Left Side of the machine to the OFF position, then back ON again. If the error code does not clear, call your Service provider.

Turn the Power Switch Off/On.

Touch the “DARKER” button.

Replace the Toner Bottle.

(See pages 12, 13)

Check

Marked Copies

Is the copier Platen Glass or Platen Sheet dirty?

Is the original an OHP film or a dark original?

Action

Clean the Platen Glass or Sheet.

Cover the original with a sheet of white paper before copying or lighten the exposure setting.

■ If the measures outlined above do not solve the problem, call your Service provider.

Copier Care

■ As a rule, clean weekly.

Platen Sheet

Platen Glass/Platen Sheet

Wipe marks off with a cloth and a neutral detergent.

Wipe again with a dry cloth.

Platen (glass)

71

Problem Solving

Replacing the Battery

The copier has an internal battery (Product No.:

CR2032) which maintains the date and time.

In the event the battery requires replacement, the following message will be displayed.

1

Turn the Power Switch on the

Left Side of the machine to the OFF position.

6

Set the date and time

7

2

10

Scroll to 05/08

72

NOTE

● The service life of the battery is approximately 1 year under normal use.

3 4

5

Turn the Power Switch on the Left Side of the machine to the ON position.

6

11

8 9

ID Code

(Department Code)

12

Day, Month, Year,

Time

Time

Day/Month/Year/Time

10

CAUTION

denotes hazards that could result in minor injury or damage to the machine.

● THIS PRODUCT CONTAINS A LITHIUM BATTERY. DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY

REPLACED.

REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO

THE INSTRUCTIONS OF YOUR LOCAL SOLID WASTE OFFICIALS.

73

Others

Specifications

DP-2310/3010 (Copier)

Type:

Platen Type:

Acceptable Originals:

Copying Method:

Fixing Method:

Imaging Method:

Resolution:

Operation Panel:

Maximum Copy Size:

Void Area:

Warm Up Time:

First Copy Time:

Multi-Copy Speed:

Enlargement Ratios:

Desk Top

Fixed

Sheets, Books (max. A3)

Laser Electrophotography

Heat Roller Fixing

Dry-Type Dual components imaging

Max. 600 dpi

Touch Panel Display

A3 - A5 via paper drawer/tray

Max. 5 mm

Approx. 35 seconds (20°C)

Less than 4.5 seconds (A4 , from 1st tray to inner tray 1)

DP-2310 : 23 cpm (A4 size)

DP-3010 : 30 cpm (A4 size)

Preset: 115%, 122%, 141%, 173%, 200%

Variable: from 101% to 400% in 1% increments

Reduction Ratios:

Paper Feed:

Paper Weight:

Quantity Selector:

Electrical Requirements:

Preset: 87%, 82%, 71%, 58%, 50%

Variable: from 99% to 25% in 1% increments

Paper tray (550 sheets × 2) + Sheet bypass (50 sheets)

Paper drawer/tray: 60 - 90 g/m

2

(Bypass: 55 - 133 g/m

2

)

Max. 999 sheets (output tray capacity is 250 sheets)

AC 220 - 240V, 50Hz, 6.3A

Energy Consumption:

Dimensions:

Max. 1.5 kW, 18 Wh in Sleep Mode

599 (W) × 707 (D) × 697 (H) mm

72 kg Weight:

Operating Environment: Temperature: 10°C - 30°C Relative Humidity: 30% - 80%

(However, the humidity should be 70% or less at a temperature of 30°C, and the temperature should be 27°C or less at a humidity level of 80%.)

● Specifications are subject to change without notice.

74

ADF (DA-AS200), i-ADF (DA-AR250)

Tray Capacity:

Paper Size:

Paper Weight:

Electrical Requirements:

Dimensions:

Weight:

DA-AS200

A4, A5: 50 sheets (75 g/m

2

)

A3, B4·FLS: 30 sheets (75 g/m 2 )

A5, A4, B4·FLS, A3

50 - 110 g/m 2

DA-AR250

Supplied from copier

552 (W) × 520 (D) × 135 (H) mm (without tray)

8.3 kg 9.3 kg

1-Bin Finisher (DA-FS300)

Paper Size:

Paper Weight:

Stacking Capacity:

Staple Sort :

Electrical Requirements:

Dimensions:

Weight:

A5, A4, B4·FLS, A3

60 - 90 g/m

2

A4: 500 sheets, B4·FLS: 250 sheets, A3: 250 sheets

A4: 30 sheets, B4: 20 sheets, A3: 20 sheets

Supplied from copier

182 (W) × 498 (D) × 257 (H) mm

10 kg

3rd/4th Paper Feed Module (DA-DS303/DA-DS304)

DA-DS303

A5, A4, B4·FLS, A3 Paper Size:

Paper Weight: 60 - 90 g/m 2

Supplied from copier Electrical Requirements:

Dimensions:

Weight:

550 (W) × 596 (D) × 155 (H) mm

9.5 kg

● Specifications are subject to change without notice.

DA-DS304

550 (W) × 599 (D) × 174 (H) mm

8.5 kg

75

Others

INDEX

1 2 Copy ································································· 30

2 Page Copy ······························································· 32

2 1 Copy ································································· 30

2 2 Copy ································································· 30

2-Sided/Original Copy ······································· 30-35

A

Accessories (Components) ········································· 65

ACTIVE LED (GREEN) ··············································· 19

Adjust the Manual Exposure ································· 11, 23

ALARM LED (RED) ····················································· 19

Auto Zoom ··································································· 38

B

Basic Menu ···························································· 22-29

Book ············································································ 38

Book 2 Copy ··························································· 30

Booklet Copy ······························································· 32

C

Centering ····································································· 40

Changing the Paper Size ············································ 60

CLEAR Key ································································· 19

Combined Function Table ··········································· 64

Completion Notice ······················································· 28

Completion Notice Button ····································· 20, 29

Concurrent Copying ···················································· 48

Control Panel ······························································ 19

Copier Care ································································· 71

Copy Image and Paper Image Indication ···················· 20

COPY Key ····························································· 10, 19

Copy Ratio Indication ·················································· 20

Copy Size Indication ··················································· 20

Copy SIZE Key ······················································ 19, 24

Copying the Same Size Originals (1:1) ······················· 22

Copying with Preset Ratios ········································· 24

Cover ··········································································· 44

D

Density Indicator (7 steps) ···································· 11, 20

Digital Skyshot Mode ·················································· 48

DP-2310/3010 Operating Instructions ··························· 2

Duplex Notice function ················································ 30

E

Edge ············································································ 38

Energy Saver ······························································ 48

ENERGY SAVER Key ··········································· 19, 48

Energy Star ································································· 18

Exit Position of Copies ················································ 11

F

File Edit ······································································· 46

Finisher

Components ····························································· 65

Function ··································································· 55

76

Functions Indication ················································· 20

Making Copies ························································· 36

Replacing Staple Cartridge ······································ 12

Removing Misfed Paper ··········································· 16

Specifications ··························································· 75

User Error Codes (U11/U12) ···································· 12

Form Overlay ······························································ 46

Function ······································································ 50

Function (COPIER SETTINGS for Key Operator) ······· 57

Function (COPIER SETTINGS) ····························· 52-53

Function (For example:

Changing the Auto Contrast Setting) ······················· 60

Function (For example: Changing the Paper Size) ···· 60

Function (For example: Department Counter) ··········· 62

Function (For example: Network Settings) ·················· 62

Function

(GENERAL FUNCTIONS for Key Operator) ········ 55-56

Function (GENERAL FUNCTIONS) ···························· 52

Function (PRINTER SETTINGS for Key Operator) ····· 58

Function (PRINTER SETTINGS) ································ 54

Function (Procedure) ·················································· 50

Function (SCANNER SETTINGS) ······························ 53

Function Categories ···················································· 20

FUNCTION Key ···················································· 19, 50

H

How to using the Keyboard ··································· 26, 67

I

Image Repeat ······························································ 40

Insertion/Overlay ···················································· 44-47

INTERRUPT Key ·················································· 19, 49

Inverse ········································································ 40

J

JOB BUILD AND SADF Mode ···································· 34

Job Build and SADF/

Multi-Size Feed Mode Indication ························· 20, 34

Job Memory ································································ 46

Job Queue ··································································· 28

Job Queue Button ················································· 20, 28

Job Settings Button ····················································· 20

K

Keypad ········································································ 19

L

Light Copies ································································ 70

Load Paper (Paper Tray) ············································· 10

Load Paper (Sheet Bypass) ········································ 10

M

Machine Outline with Tray Selection ··························· 20

Machine/User Error Code Indication

(U13, E1-01, etc.) ·········································· 12, 20, 70

Manual Exposure Select Buttons

(Lighter and Darker) ······································ 11, 20, 23

Manual Skyshot Mode ················································· 49

Margin ········································································· 40

Marked Copies ···························································· 71

Multi-Size Feeding ······················································ 34

N

N in 1 Copy ································································· 32

Network Scanner (Option) ······································ 66-69

Network Scanner (Option)

(Adding your PC or DD Server IP Address) ·············· 66

Network Scanner (Option) (Document Scanning) ······· 66

Network Scanner (Option)

(Editing your PC or DD Server IP Address) ·············· 68

Network Scanner (Option) (Erasing the Address) ······· 68

Non-Sort ······································································ 36

Notice for ADF/i-ADF (Option) ····································· 22

O

OHP Interleaving ························································· 44

Operation Chart (Basic Operation) ······························ 10

Operation Chart (Load Paper) ····································· 10

Operation Chart (Problem Solving) ····························· 11

Original Image Indication ············································ 20

Original Mode Select Button

(Text; Text / Photo; Photo) ····························· 11, 20, 23

Original Size Indication ··············································· 20

ORIGINAL SIZE Key ··················································· 19

Outline of this Operating Instructions ···························· 3

Output Tray Button ················································ 11, 20

Output Tray Indication ··········································· 11, 20

Overlay ········································································ 46

P

Page Insertion ····························································· 44

Paper Level and Size Indication ································· 20

Paper Tray Selection Button ······································· 20

Position Original(s) ······················································ 10

Precautions

(Handling, Toner and Paper, Ventilation, Installation) ···· 8

Precautions (For Your Safety) ······································· 7

Presentation ································································ 44

PRINT DATA LED (GREEN) ······································· 19

Problem Solving (Replacing the Battery) ···················· 72

Problem Solving (Troubleshooting) ····························· 70

Proof Copying ····························································· 24

Proof Set Button ···················································· 20, 25

R

Removing Misfed Paper

(2nd and 3rd/4th Paper Tray) ···································· 14

Removing Misfed Paper (ADF) ··································· 16

Removing Misfed Paper (Automatic Duplex Unit) ······· 14

Removing Misfed Paper (Finisher) ······························ 16

Removing Misfed Paper (i-ADF) ································· 16

Removing Misfed Paper

(Paper Entry Area/1st Paper Tray) ···························· 14

Removing Misfed Paper (Paper Transport Area) ········ 14

Replacing the Staple Cartridge ··································· 12

Replacing Toner Bottle/

Replacing Toner Waste Container ···························· 12

Reserve a Job Button ··········································· 20, 49

RESET Key ································································· 19

Rotate Mode Indication ··············································· 20

Rotate-Group ······························································ 36

Rotate-Sort ·································································· 36

S

Select the Original(s) ··················································· 23

Shift-Group ·································································· 36

Shift-Sort ····································································· 36

Skyshot Mode ····························································· 48

Sort ·············································································· 36

Sort/Finish ····························································· 36, 37

Specifications ························································ 74, 75

Stamping (Date Stamp) ··············································· 42

Stamping (Issue Number Stamping) ··························· 42

Stamping (Page Numbering) ······································· 42

Staple Sort ·································································· 36

START Key ·································································· 19

STOP Key ··································································· 19

Symbol Marks/Icons ······················································ 4

T

Table of Contents ······················································ 5, 6

Tandem /Remote Copy Settings (Deleting) ················· 26

Tandem /Remote Copying ··········································· 24

Tandem/Remote Button ········································ 20, 25

Tandem/Remote Button Indication ························ 20, 25

Tandem/Remote Copy Settings (Editing) ···················· 26

Tandem/Remote Copy Settings (Registration) ············ 26

Touch Panel Display ···················································· 20

U

Unit Does Not Operate ················································ 70

Useful Office Functions ················································· 2

User Error Codes (U Code) ········································· 12

W

Warning Indications ·········································· 10-13, 20

Z

Zoom ··········································································· 38

Zoom/Effects ·························································· 38-43

77

Others

IMPORTANT INFORMATION

When requesting information, supplies or service always refer to the model and serial number of your machine. The model and serial number plate (Main Name Plate) is located on the rear side of machine.

For your convenience, space is provided below to record information you may need in the future.

Model No.

Serial No.

Date of Purchase

Dealer

Address

Telephone Number

( )

Supplies Telephone Number

( )

Service Telephone Number

( )

78

Model and Serial Number

Factory ID

Manufacturer’s name and address

Copyright © 2003 Panasonic Communications Co., Ltd.

All rights reserved. Unauthorised copying and distribution is a violation of law.

The contents of these Operating Instructions are subject to change without notice.

PEERLESSPAGE™ is a trademark of the PEERLESS Systems Corporation; and,

PEERLESSPrint ® and Memory Reduction Technology ® are registered trademarks PEERLESS

Systems Corporation; and, COPYRIGHT © 2000 PEERLESS Systems Corporation

Universal Font Scaling Technology (UFST) and all typefaces have been licensed from Agfa Monotype

For Service, Call:

For Customer Support:

Panasonic Communications Co., Ltd.

Fukuoka, Japan http://www.panasonic.co.jp/global/

Ko0403-0

DZSD001959-0

April 2003

Printed in Japan

English

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
