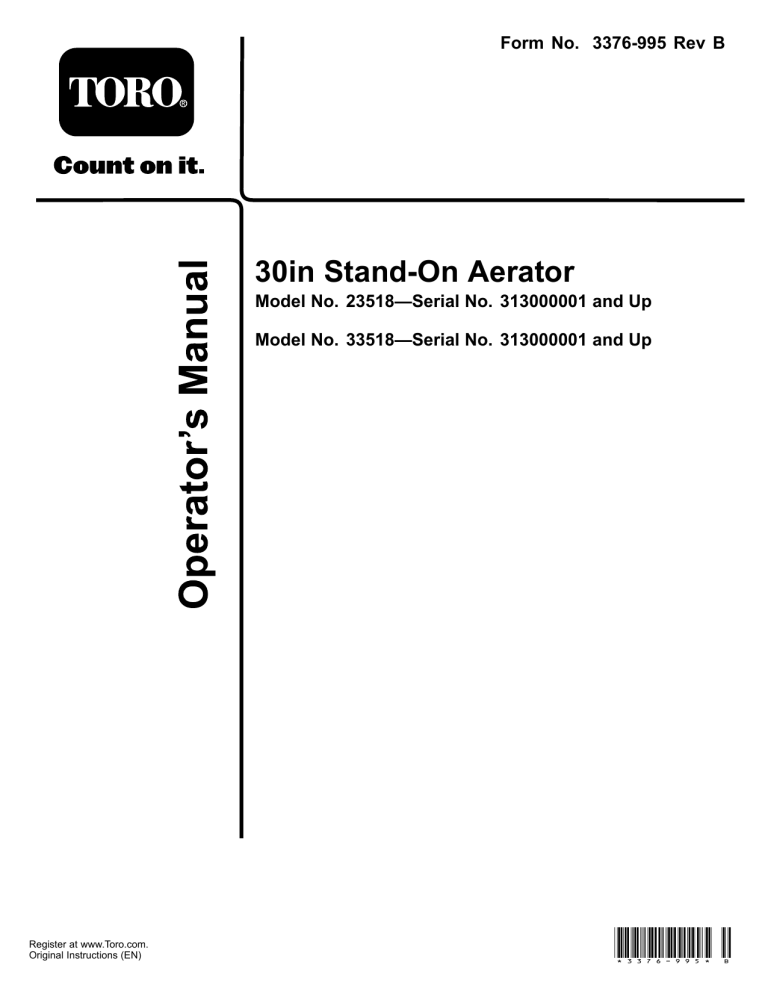

Form No. 3376-995 Rev B
30in Stand-On Aerator
Model No. 23518—Serial No. 313000001 and Up
Model No. 33518—Serial No. 313000001 and Up
Register at www.Toro.com.
Original Instructions (EN)
*3376-995* B
WARNING
CALIFORNIA
Proposition 65 Warning
This product contains a chemical or chemicals
known to the State of California to cause cancer,
birth defects, or reproductive harm.
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
Figure 1
1. Location of the model and serial numbers
This spark ignition system complies with Canadian ICES-002.
Model No.
Important: This engine is not equipped with a spark
arrester muffler. It is a violation of California Public
Resource Code Section 4442 to use or operate the engine
on any forest-covered, brush-covered, or grass-covered
land. Other states or federal areas may have similar laws.
Serial No.
This manual identifies potential hazards and has safety
messages identified by the safety alert symbol (Figure 2),
which signals a hazard that may cause serious injury or death
if you do not follow the recommended precautions.
The enclosed Engine Owner's Manual is supplied for
information regarding the US Environmental Protection
Agency (EPA) and the California Emission Control
Regulation of emission systems, maintenance, and
warranty. Replacements may be ordered through the
engine manufacturer.
Figure 2
1. Safety alert symbol
Introduction
This manual uses 2 words to highlight information.
Important calls attention to special mechanical information
and Note emphasizes general information worthy of special
attention.
This aerator is intended to be used by trained operators
in residential and commercial applications. It is primarily
designed for aerating areas of well-maintained lawns on
residential grounds, parks, sports fields, and on commercial
grounds.
Read this information carefully to learn how to operate and
maintain your product properly and to avoid injury and
product damage. You are responsible for operating the
product properly and safely.
You may contact Toro directly at www.Toro.com for product
and accessory information, help finding a dealer, or to register
your product.
Whenever you need service, genuine Toro parts, or additional
information, contact an Authorized Service Dealer or Toro
Customer Service and have the model and serial numbers of
your product ready. Figure 1 illustrates the location of the
model and serial numbers on the product. Write the numbers
in the space provided.
© 2013—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
2
Contact us at www.Toro.com.
Printed in the USA
All Rights Reserved
Contents
Check Condition and Tension Of Belts ......................31
Transmission Drive Belt Tension ..............................31
Auxiliary Pump Drive Belt Adjustment......................31
Controls System Maintenance .....................................31
Motion Control Linkage Adjustment.........................31
Hydraulic System Maintenance ....................................32
Check Auxiliary Hydraulic Oil Level..........................32
Check Hydraulic Transmission Oil Level....................32
Change Auxiliary Hydraulic Reservoir Fluid and
Filter .................................................................32
Change Hydraulic Transmission Filters and
Fluid .................................................................33
Tine Maintenance ......................................................34
Check Tines...........................................................34
Tine Drive Chain Adjustment ..................................34
Cleaning ...................................................................34
Clean Engine and Exhaust System Area .....................34
Remove Engine Shrouds and Clean Cooling
Fins ..................................................................34
Clean Debris From Machine ....................................34
Waste Disposal.......................................................35
Storage ........................................................................35
Troubleshooting ...........................................................36
Schematics ...................................................................38
Introduction .................................................................. 2
Safety ........................................................................... 4
Safe Operating Practices........................................... 4
Slope Indicator ....................................................... 8
Safety and Instructional Decals ................................. 9
Setup ...........................................................................12
1 Checking Tire Pressure .........................................12
2 Servicing the Battery ............................................12
3 Servicing the Engine ............................................13
4 Servicing the Transmission Hydraulic
Oil ....................................................................13
5 Servicing the Auxiliary Hydraulic Oil ......................14
6 Removing Cylinder Stop (for model
33518)...............................................................14
Product Overview .........................................................15
Controls ...............................................................15
Specifications ........................................................17
Operation ....................................................................17
Checking the Engine Oil Level .................................17
Filling the Fuel Tank with Gasoline ...........................17
Check Safety Interlock System..................................18
Check for Loose Hardware ......................................18
Operating Instructions............................................18
Transporting..........................................................21
Maintenance .................................................................22
Recommended Maintenance Schedule(s) ......................22
Premaintenance Procedures ........................................23
Lubrication ...............................................................23
Lubricate Chains ....................................................23
Lubricate Grease Fittings.........................................23
Lubricate Caster Wheel Hubs...................................24
Engine Maintenance ..................................................25
Service Air Cleaner .................................................25
Change Engine Oil .................................................25
Check Spark Plugs ..................................................26
Check Spark Arrester (if equipped)............................26
Fuel System Maintenance ...........................................26
Change Fuel Filter ..................................................26
Electrical System Maintenance ....................................27
Check Battery Charge .............................................27
Recommended Jump Starting Procedure....................27
Drive System Maintenance .........................................28
Check Tire Pressures...............................................28
Check Wheel Hub Nuts Torque Specification .............28
Check Wheel Lug Nuts Torque Specification ..............28
Check Condition Of Chains .....................................28
Check Condition Of Sprockets .................................28
Check Transmission Output Shaft Nut Torque
Specification ......................................................29
Jackshaft Drive Chain Tension Adjustment ................29
Drive Wheel Chain Tension Adjustment ....................29
Caster Pivot Bearings Pre-Load Adjustment ...............29
Brake Maintenance ....................................................30
Adjusting the Parking Brake .....................................30
Adjusting the Brake Switch ......................................30
Belt Maintenance ......................................................31
3
Safety
CAUTION
This machine produces sound levels in excess
of 85 dBA at the operator’s ear and can cause
hearing loss through extended periods of
exposure.
Improper use or maintenance by the operator or
owner can result in injury. To reduce the potential
for injury, comply with these safety instructions and
always pay attention to the safety alert symbol, which
means Caution, Warning, or Danger—personal safety
instruction. Failure to comply with the instruction may
result in personal injury or death.
Wear hearing protection when operating this
machine.
• Inspect the area where the equipment is to be used and
Safe Operating Practices
remove all rocks, toys, sticks, wires, bones, and other
foreign objects which can be thrown by the machine and
may cause personal injury to the operator or bystanders.
Training
DANGER
• Read the Operator’s Manual and other training material. If
the operator(s) or mechanic(s) can not read English it is
the owner’s responsibility to explain this material to them;
other languages may be available on our website.
In certain conditions gasoline is extremely
flammable and vapors are explosive.
A fire or explosion from gasoline can burn you,
others, and cause property damage.
• Become familiar with the safe operation of the equipment,
operator controls, and safety signs.
– Fill the fuel tank outdoors on level ground, in
an open area, when the engine is cold. Wipe
up any gasoline that spills.
• All operators and mechanics should be trained. The
owner is responsible for training the users.
• Never let children or untrained people operate or service
the equipment. Local regulations may restrict the age of
the operator.
– Never refill the fuel tank or drain the machine
indoors or inside an enclosed trailer.
• Only adults and mature teenagers should operate an
2. is sufficiently mature to use caution; and
– Do not fill the fuel tank completely full. Fill
the fuel tank to the bottom of the filler neck.
The empty space in the tank allows gasoline
to expand. Overfilling may result in fuel
leakage or damage to the engine or emission
system.
3. is of sufficient size and weight to operate the
controls comfortably and to manage the aerator
without taking risks.
– Never smoke when handling gasoline, and
stay away from an open flame or where
gasoline fumes may be ignited by spark.
aerator, and even mature teenagers should have adult
supervision. Be sure a teenager:
1. has read and understands the Operator's Manual and
recognizes the risks involved;
• The owner/user can prevent and is responsible for
– Store gasoline in an approved container and
keep it out of the reach of children.
accidents or injuries occurring to himself or herself, other
people or property.
– Add fuel before starting the engine. Never
remove the cap of the fuel tank or add fuel
when engine is running or when the engine
is hot.
Preparation
• Evaluate the terrain to determine what accessories and
attachments are needed to properly and safely perform
the job. Only use accessories and attachments approved
by Toro.
– If fuel is spilled, Do not attempt to start the
engine. Move away from the area of the spill
and avoid creating any source of ignition
until fuel vapors have dissipated.
• Wear appropriate clothing including safety glasses,
substantial footwear, long trousers, and hearing
protection. Do not operate when barefoot or when
wearing open sandals. Long hair, loose clothing or jewelry
may get tangled in moving parts.
– Do not operate without entire exhaust system
in place and in proper working condition.
4
Operation
DANGER
In certain conditions during fueling, static
electricity can be released causing a spark which
can ignite gasoline vapors. A fire or explosion
from gasoline can burn you and others and
cause property damage.
WARNING
Operating engine parts, especially the muffler,
become extremely hot. Severe burns can occur on
contact and debris, such as leaves, grass, brush, etc.
can catch fire.
– Always place gasoline containers on the
ground away from your vehicle before filling.
• Allow engine parts, especially the muffler, to
cool before touching.
– Do not fill gasoline containers inside a
vehicle or on a truck or trailer bed because
interior carpets or plastic truck bed liners
may insulate the container and slow the loss
of any static charge.
• Remove accumulated debris from muffler and
engine area.
WARNING
– When practical, remove gas-powered
equipment from the truck or trailer and refuel
the equipment with its wheels on the ground.
Engine exhaust contains carbon monoxide, which
is an odorless deadly poison that can kill you.
– If this is not possible, then refuel such
equipment on a truck or trailer from a
portable container, rather than from a
gasoline dispenser nozzle.
Do not run engine indoors or in a small confined
area where dangerous carbon monoxide fumes can
collect.
– If a gasoline dispenser nozzle must be used,
keep the nozzle in contact with the rim of the
fuel tank or container opening at all times
until fueling is complete.
• Operate only in daylight or good artificial light, keeping
away from holes and hidden hazards.
• Lightning can cause severe injury or death. If lightning
is seen or thunder is heard in the area, Do not operate
the machine; seek shelter.
• Be sure all drives are in neutral and parking brake is
engaged before starting engine.
WARNING
• Never operate the machine with damaged guards, shields,
Gasoline is harmful or fatal if swallowed.
Long-term exposure to vapors has caused cancer
in laboratory animals. Failure to use caution
may cause serious injury or illness.
or covers. Always have safety shields, guards, switches and
other devices in place and in proper working condition.
• Do not change the engine governor setting or overspeed
the engine.
– Avoid prolonged breathing of vapors.
• Park machine on level ground. Stop engine, wait for all
– Keep face away from nozzle and gas
tank/container opening.
moving parts to stop, remove key and engage parking
brake:
– Keep away from eyes and skin.
– Before checking, cleaning or working on the machine.
– Never siphon by mouth.
– After striking a foreign object or abnormal vibration
occurs (inspect the machine for damage and make
repairs before restarting and operating the machine).
• Check that the operator's presence controls, safety
switches, and shields are attached and functioning
properly. Do not operate unless they are functioning
properly.
– Before clearing blockages.
– Whenever you leave the machine.
• Stop engine, wait for all moving parts to stop, and engage
parking brake:
– Before refueling.
5
• Remove or mark obstacles such as rocks, tree limbs, etc.
WARNING
from the working area. Tall grass can hide obstacles.
Hands, feet, hair, clothing, or accessories can
become entangled in rotating parts. Contact
with the rotating parts can cause traumatic
amputation or severe lacerations.
• Watch for ditches, holes, rocks, dips and rises that change
the operating angle, as rough terrain could overturn the
machine.
• Avoid sudden starts when aerating uphill because the
– Do Not operate the machine without guards,
shields, and safety devices in place and
working properly.
machine may tip backwards. The machine is more stable
going uphill with the tines disengaged.
• Be aware that operating on wet grass, across steep slopes
– Keep hands, feet, hair, jewelry, or clothing
away from rotating parts.
or downhill may cause the machine to lose traction. Loss
of traction to the drive wheels may result in sliding and a
loss of braking and steering.
• Never carry passengers. Do not operate the machine
• Always avoid sudden starting or stopping on a slope.
when people, especially children, or pets are in the area.
• Follow the manufacturer’s recommendations for wheel
• Be alert, slow down and use caution when making turns.
weights or counter weights to improve stability.
Look behind and to the side before changing directions.
• Use extreme care with attachments. These can change the
• Raise the tines, slow down, and use caution when crossing
stability of the machine and cause loss of control.
surfaces other than grass and when transporting the
machine to and from the work area.
Maintenance and Storage
• Do not operate the machine under the influence of
• Raise the tines, set the parking brake, stop engine and
alcohol or drugs.
remove key or disconnect spark plug wire. Wait for all
movement to stop before adjusting, cleaning or repairing.
• Use extreme care when loading or unloading the machine
into a trailer or truck.
• Keep engine and engine area free from excessive grease
• Use care when approaching blind corners, shrubs, trees,
or oil and other debris which can accumulate in these
areas. These materials can become combustible and may
result in a fire.
or other objects that may obscure vision.
Slope Operation
• Let engine cool before storing and do not store near
flame or any enclosed area where open pilot lights or heat
appliances are present.
Use extreme caution when aerating and/or turning on slopes
as loss of traction and/or tip-over could occur. The operator
is responsible for safe operation on slopes.
• Shut off fuel while storing or transporting. Do not store
fuel near flames or drain indoors.
DANGER
• Park machine on level, hard ground. Never allow
untrained personnel to service machine.
Operating on wet grass or steep slopes can cause
sliding and loss of control. Wheels dropping over
edges, ditches, steep banks, or water can cause
rollovers, which may result in serious injury, death
or drowning.
• Use jack stands to support components when required.
• Carefully release pressure from components with stored
energy.
• Disconnect battery or remove spark plug wire before
• Do not operate on slopes when grass is wet.
making any repairs. Disconnect the negative terminal
first and the positive last. Reconnect positive first and
negative last.
• Do not operate near drop-offs or near water.
• Do not operate on slopes greater than 15 degrees.
• Use care when checking and servicing tines. Wrap the
• Reduce speed and use extreme caution on
slopes.
tine(s) or wear gloves, and use caution when servicing
them. Only replace damaged tines. Never straighten or
weld them.
• Avoid sudden turns or rapid speed changes.
• Keep hands and feet away from moving parts. If possible,
• Reduce tine down pressure to prevent the drive tires from
do not make adjustments with the engine running.
raising off the ground and to prevent the front tires from
raising off of the ground while aerating uphill.
• Charge batteries in an open well ventilated area, away
from spark and flames. Unplug charger before connecting
or disconnecting from battery. Wear protective clothing
and use insulated tools.
• Refer to Figure 3 to determine the approximate slope
angle of the area to be aerated.
6
DANGER
WARNING
Charging or jump starting the battery may
produce explosive gases. Battery gases can
explode causing serious injury.
– Keep sparks, flames, or cigarettes away from
battery.
– Ventilate when charging or using battery in
an enclosed space.
– Make sure venting path of battery is always
open once battery is filled with acid.
– Always shield eyes and face from battery.
Hydraulic fluid escaping under pressure can
penetrate skin and cause injury. Fluid accidentally
injected into the skin must be surgically removed
within a few hours by a doctor familiar with this
form of injury or gangrene may result.
• If equipped, make sure all hydraulic fluid
hoses and lines are in good condition and all
hydraulic connections and fittings are tight
before applying pressure to hydraulic system.
• Keep body and hands away from pinhole leaks or
nozzles that eject high pressure hydraulic fluid.
• Use cardboard or paper, not your hands, to find
hydraulic leaks.
DANGER
Battery electrolyte contains sulfuric acid, which
is poisonous and can cause severe burns.
Swallowing electrolyte can be fatal or if it
touches skin can cause severe burns.
– Wear safety glasses to shield eyes, and rubber
gloves to protect skin and clothing when
handling electrolyte.
– Do not swallow electrolyte.
– In the event of an accident, flush with water
and call a doctor immediately.
•
– Safely relieve all pressure in the ground drive
hydraulic system by placing the motion control
levers in neutral and shutting off the engine.
– Safely relieve all pressure in the auxiliary
hydraulic system by shutting off the engine,
turning the ignition switch to the On position,
and pressing the tine ground engagement
switch. Once the tines have lowered to the
ground, release the tine ground engagement
switch and turn the ignition switch to the Off
position.
CAUTION
If the ignition is in the On position there
is potential for sparks and engagement of
components. Sparks could cause an explosion or
moving parts could accidentally engage causing
personal injury.
Be sure ignition switch is in the Off position
before charging the battery.
• Keep all guards, shields and all safety devices in place and
•
•
Before performing any work on the hydraulic
system:
in safe working condition.
Check all bolts frequently to maintain proper tightness.
Frequently check for worn or deteriorating components
that could create a hazard.
WARNING
Removing standard original equipment parts and
accessories may alter the warranty, traction, and
safety of the machine. Failure to use original Toro
parts could cause serious injury or death. Making
unauthorized changes to the engine, fuel or venting
system, may violate EPA and CARB regulations.
Replace all parts including, but not limited to,
tires, belts, tines, and fuel system components with
original Toro parts.
7
Slope Indicator
G011841
Figure 3
This page may be copied for personal use.
1. The maximum slope you can safely operate the machine on is 15 degrees. Use the slope chart to determine the degree of slope
of hills before operating. Do not operate this machine on a slope greater than 15 degrees. Fold along the appropriate line
to match the recommended slope.
2. Align this edge with a vertical surface, a tree, building, fence pole, etc.
3. Example of how to compare slope with folded edge.
8
Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area of potential
danger. Replace any decal that is damaged or lost.
93–6686
1. Hydraulic oil
2. Read the Operator's
Manual.
116-9391
120-9570
1. Warning—stay away from moving parts, keep all guards
and shields in place.
121–6161
1. Entanglement hazard, belt—stay away from moving parts;
keep all guards in place.
115-2047
1. Warning—do not touch the hot surface.
121–6162
1. Cutting/dismemberment hazard of hand or foot, mower
blade—lower the tines to the ground; read the Operator’s
Manual for disassembly procedure.
117–2718
121–6163
121-6150
1. Press to lower the tines.
1. Cutting hazard of hand and foot–stay away from moving
parts.
9
2. Release to raise the tines.
116-9666
1. Read and understand the Operator’s manual before
servicing this machine.
2. Wheel lug nut torque 122-129 N-m (90-95 ft-lb) (4x) every
100 hours
3. Wheel hub nut torque 285-353 N-m (210-260 ft-lbs) every
100 hours
121–6164
1. Fast
2. Slow
6. Wheels and tines rotate when moving 11. Warning—keep bystanders a safe
backward
distance from the machine.
12. Warning—do not operate the machine
7. Continuous variable setting
unless you are trained.
3. Neutral
8. Choke—on
13. Thrown object hazard—pick up debris
before operating the machine.
4. Reverse
9. Choke—off
14. Warning—keep away from moving
parts; keep all guards in place.
5. Wheels and tines rotate when moving 10. Warning—read the Operator’s Manual. 15. Warning—stop the engine, engage the
forward
parking break, and remove the ignition
key before leaving the machine.
116–9132
1. Rotate counterclockwise to decrease pressure.
4. Parking brake—engage
2. Rotate clockwise to increase pressure.
5. Cutting/dismemberment hazard of hand or foot, tines—stay
away from moving parts; keep all guards in place.
3. Parking brake—release
10
121–6166
1. Tipping hazard—do not turn sharply while travelling fast; slow
down and turn gradually.
3. Warning; tipping hazard—do not use split ramps; use full
width ramps to load a unit for transport; use a loading ramp
at a maximum of 15 degrees.
2. Tipping hazard—do not operate the machine on slopes
greater than 15 degrees; do not operate the machine near
drop-offs.
116–9392
1. Read the instructions before servicing or performing maintenance; read the Operator’s Manual for information on lubricating
the machine.
11
Setup
Media and Additional Parts
Description
Use
Qty.
Manual, Operator's
1
Read before operating the machine.
Key
2
Start the machine.
DANGER
1
Charging or jump starting the battery may produce
explosive gases. Battery gases can explode causing
serious injury.
Checking Tire Pressure
• Keep sparks, flames, or cigarettes away from
battery.
No Parts Required
• Ventilate when charging or using battery in an
enclosed space.
Procedure
1. Check the tire pressure in the drive tires. Proper
inflation for drive tires is 83–97 kPa (12–14 psi).
• Make sure venting path of battery is always open
once battery is filled with acid.
2. Adjust if necessary.
• Always shield eyes and face from battery.
2
DANGER
Battery electrolyte contains sulfuric acid, which is
poisonous and can cause severe burns. Swallowing
electrolyte can be fatal or if it touches skin can
cause severe burns.
Servicing the Battery
No Parts Required
• Wear safety glasses to shield eyes, and rubber
gloves to protect skin and clothing when
handling electrolyte.
Procedure
• Do not swallow electrolyte.
WARNING
• In the event of an accident, flush with water and
call a doctor immediately.
CALIFORNIA
Proposition 65 Warning
Battery posts, terminals, and related
accessories contain lead and lead compounds,
chemicals known to the State of California
to cause cancer and reproductive harm.
Wash hands after handling.
Note: The machine is shipped with a filled lead acid battery.
12
1. Check the voltage of the battery with a digital voltmeter.
Locate the voltage reading of the battery in the table
below and charge the battery for the recommended
time interval to bring the charge up to a full charge of
12.6 volts or greater.
Important: Make sure the negative battery cable
is disconnected and the battery charger used for
charging the battery has an output of 16 volts and
7 amps or less to avoid damaging the battery (see
chart for recommended charger settings).
Voltage
Reading
Percent
Charge
Maximum
Charger
Settings
Charging
Interval
12.6 or greater 100%
16 volts/7
amps
No Charging
Required
12.4 – 12.6
75–100%
16 volts/7
amps
30 Minutes
12.2 – 12.4
50–75%
16 volts/7
amps
1 Hour
12.0–12.2
25–50%
14.4 volts/4
amps
2 Hours
11.7–12.0
0–25%
14.4 volts/4
amps
3 Hours
11.7 or less
0%
14.4 volts/2
amps
6 Hours or
More
Figure 4
1. Screw
4. Negative battery cable
2. Washer
5. Engine
3. Ground wire
Note: If the positive cable is also disconnected,
connect the positive (red) cable to the positive battery
terminal first, then the negative (black) cable to the
negative battery terminal. Slip insulator boot over the
positive terminal.
Note: If time does not permit charging the battery,
or if charging equipment is not available, connect the
negative battery cables and run the vehicle continuously
for 20 to 30 minutes to sufficiently charge the battery.
CAUTION
If the ignition is in the On position there
is potential for sparks and engagement of
components. Sparks could cause an explosion
or moving parts could accidentally engage
causing personal injury.
3
Be sure ignition switch is in the Off position
before charging the battery.
Servicing the Engine
2. Remove the screw, washer, and ground cable from the
engine. Connect the negative battery cable as shown
in Figure 4.
No Parts Required
Procedure
The engine is shipped with oil; check oil level and if necessary
fill to the appropriate level. Refer to Checking the Engine Oil
Level (page 17) for instructions and oil specifications.
13
4
Servicing the Transmission
Hydraulic Oil
No Parts Required
Procedure
The machine is shipped with hydraulic oil in the reservoir.
1. Run the machine for approximately 15 minutes to allow
any extra air to purge out of the hydraulic system.
G018375
2. With the unit cold, check the expansion tank and if
necessary add Toro Hypr-oil 500 hydraulic oil to the
Full Cold line.
Figure 5
3. Replace hydraulic reservoir cap and tighten until snug.
Do not overtighten.
4. Check hydraulic reservoir and if necessary fill the
reservoir to the appropriate level with AW–32 hydro oil.
5. Replace hydraulic reservoir cap and tighten until snug.
Do Not overtighten.
5
6. Install the previously removed rear pad and tighten the
4 bolts securing it to the frame.
Servicing the Auxiliary
Hydraulic Oil
Note: The baffle is labeled Hot and Cold. The oil level
varies with the temperature of the oil. The Hot level shows
the level of oil when it is at 107°C (225°F). The Cold level
shows the level of the oil when it is at 24°C (75°F). Fill to
the appropriate level depending upon the temperature of the
oil. For example: If the oil is about 65°C (150° F). Fill to
halfway between the Hot and Cold levels. If the oil is at room
temperature (about 24°C (75° F)), fill only to the Cold level.
No Parts Required
Procedure
The machine is shipped with hydraulic oil in the reservoir.
6
1. Run the machine for approximately 15 minutes to allow
any extra air to purge out of the hydraulic system.
2. Completely raise and lower tines three times to purge
the air.
Removing Cylinder Stop (for
model 33518)
3. Loosen the 4 bolts inside the frame securing the rear
pad to the unit. Lift the pad up and back to remove
it (Figure 5).
No Parts Required
Procedure
Note: The tines must be in the raised position before
removing the cylinder stop. Running the engine will charge
the hydraulic system and raise the tines.
1. Add a small amount of fuel to the fuel tank. See Filling
the Fuel Tank with Gasoline (page 17).
2. Open the fuel shut-off valve by aligning it with the
fuel line.
14
Product Overview
3. Leave the motion control levers in neutral and engage
the parking brake.
4. Place the throttle midway between the Slow and Fast
positions.
5. Push the choke lever forward into the On position.
6. Turn ignition switch to the Start position. Release the
switch as soon as the engine starts.
Important: Do not crank the engine continuously
for more than ten seconds at a time. If the engine
does not start, allow a 60 second cool-down period
between starting attempts. Failure to follow these
guidelines can burn out the starter motor.
7. Gradually return the choke to the Off position as the
engine warms up. Allow the engine to run an additional
30 seconds, then turn the ignition switch to the Off
position to stop the engine.
Figure 7
8. Remove the key and pull the wires off of the spark
plugs. Push the wires aside so they do not accidentally
contact the spark plugs.
1. Platform
4. Engine controls
2. Parking brake knob
5. Fuel cap
3. Motion control levers
9. Remove and retain the hairpin, clevis pin, and cylinder
stop as shown in Figure 6.
Controls
Motion Control Levers
The motion control levers, located on each side of the top
console, control the forward and reverse motion of the
machine.
Moving the levers forward or backward turns the wheel on
the same side forward or reverse respectively. Wheel speed is
proportional to the amount the lever is moved.
Important: The tines are rotating when the motion
control levers are moved out of the neutral position.
Figure 6
1. Hairpin
3. Cylinder stop
2. Clevis pin
4. Cylinder
10. Replace the spark plug wires.
Figure 8
1. Left hand motion control
lever
2. Right hand motion control
lever
3. Front reference bar
4. Front of unit
15
5. Forward
6. Neutral
7. Reverse
Choke Control
To release, push the handle forward into the detent.
Located on the control console (black lever) (see Figure 9).
When parking on a steep slope, the wheels must be chocked
or blocked in addition to the brake being engaged. The unit
must be tied down and brake engaged when transporting.
The choke is used to aid in starting a cold engine. Moving the
choke lever forward will put the choke in the On position and
moving the choke lever to the rear, to the detent, will put the
choke in the Off position. Do not run a warm engine with
choke in the On position.
Ignition Switch
Located on the right side of the control console (see Figure 9).
The ignition switch is used to start and stop the engine. The
switch has three positions Off, On and Start. Insert key
into switch and rotate clockwise to the On position. Rotate
clockwise to the next position to engage the starter (key must
be held against spring pressure in this position). Allow the
key to return to the On position immediately after the engine
starts.
Figure 10
1. Off
2. On
3. Start
Figure 9
Note: To start the engine, the parking brake must be
engaged. (It is not necessary for the operator to be on the
platform.)
1. Tine down pressure gauge 7. Right hand motion control
lever
2. Tine down pressure
8. Hour meter
control
9. Parking brake
3. Left hand motion control
lever
10. Ignition switch
4. Front reference bar
5. Throttle
Hour Meter
Located above the ignition switch (see Figure 9).
11. Tine ground engagement
foot switch
The hour meter displays the number of hours of operation
that have been logged on the machine.
6. Choke
Throttle Control
Located on the control console (red lever) (see Figure 9).
The throttle is used to control engine speed. Moving the
throttle lever forward will increase engine speed and moving
the throttle lever to the rear will decrease engine speed.
Moving the throttle forward into the detent is full throttle.
Parking Brake Handle
Located on the right side of the ignition switch on the control
console (see Figure 9).
The brake handle engages a parking brake in the transmissions.
To engage the brake, pull handle out and slide rearward.
16
Fuel Shut-Off Valve
Operation
Located under the fuel tank.
Note: Determine the left and right sides of the machine
from the normal operating position.
The fuel shut-off valve is used to shut off the fuel when the
machine will not be used for a few days, during transport to
and from the jobsite, and when parked inside a building.
Checking the Engine Oil Level
Align valve handle with the fuel line to open. Rotate 90° to
close.
Service Interval: Before each use or daily
Use only high-quality SAE 10W-30 weight detergent oil
that has the American Petroleum Institute (API) service
classification SH, SJ, Sl or higher.
Tines Ground Engagement Foot Switch
Keep hands and feet away from the tines. Make sure the
tines area is clear of any obstructions before lowering it.
1. Stop engine and wait for all moving parts to stop. Make
sure unit is on a level surface.
Located on the operator platform (see Figure 9).
2. Check with engine cold.
To lower the tines into the ground, stand on the tine ground
engagement switch. To raise the tines, remove your foot from
the switch.
3. Clean area around dipstick. Remove dipstick and wipe
oil off. Reinsert the dipstick according to the engine
manufacturer's recommendations. Remove the dipstick
and read the oil level.
Tine Down Pressure Control
Located on the left side of the control console (see Figure 9).
4. If the oil level is low, wipe off the area around the oil
fill cap, remove cap and fill to the “FULL” mark on the
dipstick. Do not overfill.
Rotate the control counterclockwise to decrease the pressure
and the length of the aeration plug; rotate clockwise to
increase pressure and increase the length of the aeration plug.
Important: Do not operate the engine with the oil level
below the Low (or Add) mark on the dipstick, or over
the Full mark.
Tine Down Pressure Gauge
Located in the middle of the control console (see Figure 9).
Filling the Fuel Tank with
Gasoline
The gauge displays the tine down pressure when aerating.
Fuel tank capacity: 18.9 l (5 US Gallons)
DANGER
Specifications
Height
132.1 cm (52 inches)
Length
162.6 cm (64 inches)
Width
121.3 cm (47.75 inches)
Aeration Width
76.2 cm (30 inches)
Coring range
5.1–12.7 cm (2–5 inches)
Weight
460 kg (1,015 lb )
In certain conditions, gasoline is extremely
flammable and highly explosive. A fire or explosion
from gasoline can burn you and others and can
damage property.
• Fill the fuel tank outdoors, in an open area, and
when the engine is cold. Wipe up any gasoline
that spills.
• Do not fill the fuel tank completely full. Add
gasoline to the fuel tank until the level is 6 to 13
mm (1/4 to 1/2 inch) below the bottom of the
filler neck. This empty space in the tank allows
the gasoline to expand.
• Never smoke when handling gasoline, and stay
away from an open flame or where a spark may
ignite the gasoline fumes.
• Store gasoline in an approved fuel container and
keep it out of the reach of children.
• Never buy more than a 30-day supply of
gasoline.
17
Check Safety Interlock System
DANGER
When fueling, under certain circumstances, a static
charge can develop, igniting the gasoline. A fire or
explosion from gasoline can burn you and others
and damage property.
Service Interval: Before each use or daily
CAUTION
If safety interlock switches are disconnected or
damaged the machine could operate unexpectedly
causing personal injury.
• Do not tamper with the interlock switches.
• Check the operation of the interlock switches
daily and replace any damaged switches before
operating the machine.
• Always place gasoline containers on the ground
and away from your vehicle before filling.
• Do not fill gasoline containers inside a vehicle or
on a truck or trailer bed because interior carpets
or plastic truck bed liners may insulate the
container and slow the loss of any static charge.
• When practical, remove gasoline-powered
equipment from the truck or trailer and refuel
the equipment with its wheels on the round.
Understanding the Safety Interlock System
The safety interlock system is designed to prevent the engine
from starting unless the motion control levers are in the
neutral position.
• If this is not possible, then refuel such
equipment on a truck or trailer from a portable
container, not from a gasoline dispenser nozzle.
Checking the Safety Interlock System
1. Disconnect the spark plug wires.
• If you must use a gasoline dispenser nozzle,
keep the nozzle in contact with the rim of the
fuel tank or container opening at all times until
fueling is complete.
2. While on level ground, block the wheels of the machine
to prevent unintended movement.
3. Disengage the parking brake.
4. With the motion control levers in the neutral position
turn the key to the start position — the starter must
not crank.
• For best results, use only clean, fresh, unleaded gasoline
with an octane rating of 87 or higher ((R+M)/2 rating
method).
Note: If the machine does not pass this test, do not operate.
Contact your authorized Toro Service Dealer.
• Oxygenated fuel with up to 10% ethanol or 15% MTBE
by volume is acceptable.
Important: It is essential that the operator safety
mechanisms be connected and in proper operating
condition prior to use for aerating.
• Do not use ethanol blends of gasoline (such as E15
or E85) with more than 10% ethanol by volume.
Performance problems and/or engine damage may result
which may not be covered under warranty.
Check for Loose Hardware
• Do not use gasoline containing methanol.
Service Interval: Before each use or daily
• Do not store fuel either in the fuel tank or fuel containers
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
over the winter unless a fuel stabilizer is used.
• Do not add oil to gasoline.
2. Visually inspect machine for any loose hardware or any
other possible problem. Tighten hardware or correct
the problem before operating.
Important: Do not use fuel additives other than a fuel
stabilizer/conditioner. Do not use fuel stabilizers with an
alcohol base such as ethanol, methanol, or isopropanol.
Operating Instructions
1. Clean around the fuel tank cap.
2. Remove the cap from the tank.
Open the Fuel Shut-Off Valve
3. Fill the fuel tank with unleaded gasoline to within 6 to
13 mm (1/4 to 1/2 inch) from the top of the tank. Do
not fill into the filler neck.
Rotate the valve and align with the fuel line to open.
Starting the Engine
Important: Do not fill the tank more than 6 mm
(1/4 inch) from the top of the tank because the
gasoline must have room to expand.
1. Leave the motion control levers in neutral and engage
the parking brake.
4. Install the fuel tank cap and wipe up any spilled
gasoline.
2. Place the throttle midway between the Slow and Fast
positions.
18
2. Lift your foot off of the tine ground engagement foot
switch control to raise the tines.
3. On a cold engine, push the choke lever forward into
the On position. On a warm engine, leave the choke
in the Off position.
3. Place the throttle in the midway between the Slow and
Fast positions.
4. Turn ignition switch to the Start position. Release the
switch as soon as the engine starts.
4. Allow the engine to run for a minimum of 15 seconds,
then turn the ignition switch to the Off position to
stop the engine.
Important: Do not crank the engine continuously
for more than ten seconds at a time. If the engine
does not start, allow a 60 second cool-down period
between starting attempts. Failure to follow these
guidelines can burn out the starter motor
5. Engage the parking brake.
6. Remove the key to prevent children or other
unauthorized persons from starting the engine.
5. If the choke is in the On position, gradually return
choke to the Off position as the engine warms up.
7. Close the fuel shut-off valve when the machine will not
be in use for a few days, when transporting, or when
the unit is parked inside a building.
Lowering the Tines
DANGER
The rotating tines under the engine deck are
dangerous. Tine contact can cause serious injury
or kill you.
Do not put hands or feet under the unit when the
engine is running.
1. Set throttle to the Midway position.
2. Step on the tine ground engagement foot switch to
lower the tines. Stand on the switch and move the
motion control levers forward to aerate.
3. Adjust the throttle for the working conditions.
Adjusting the Tine Down Pressure
Adjust the plug depth by rotating the tine down pressure
control. Rotate the control counterclockwise to decrease the
hydraulic down pressure to remove a shorter plug. Rotate
clockwise to increase pressure and pull a longer plug.
First time use: set the pressure to 24 bar (350 psi).
Ideal plug depth is 7.6–10 cm (3-4 inches). Rotate the plug
depth control to adapt to the soil conditions.
Keep the drive tires on the ground at all times.
Raising the Tines
To raise the tines, remove your foot from the tine ground
engagement foot switch.
Important: The tines are rotating when the motion
control lever is moved out of the neutral position.
Stopping the Engine
1. Move the motion control levers back to the neutral
position and bring the unit to a full stop.
19
Driving the Machine
CAUTION
Machine can spin very rapidly by positioning one
lever too much ahead of the other. Operator may
lose control of the machine, which may cause
damage to the machine or injury.
• Use caution when making turns.
• Slow the machine down before making sharp
turns.
Important: To begin movement (forward or backward),
the brake lever must be disengaged (pushed forward)
before the motion control levers can be moved.
Figure 12
To turn left or right, pull the motion control lever back
toward neutral in the desired turn direction. The tines
can be in the down position when making gradual
turns.
To make zero turns, lift your foot off of the tine
engagement foot switch control to raise the tines. The
head will raise in one second.
Figure 11
1. Left hand motion control
lever
2. Right hand motion control
lever
3. Front reference bar
4. Front of unit
5. Forward
Important: Do not make a zero turn when the
tines are down as turf tearing will result.
6. Neutral
The machine will move faster the farther the motion
control levers are moved from the neutral position.
7. Reverse
4. To stop, position both motion control levers in the
neutral operate position.
Driving Forward
Driving in Reverse
1. Make sure the motion control levers are in the neutral
position.
1. Move the motion control levers to the neutral operate
position.
2. Release the parking brake.
2. To move rearward in a straight line, slowly move both
levers rearward with equal pressure.
3. To move forward in a straight line, move both levers
forward with equal pressure.
20
WARNING
Loading a unit on a trailer or truck increases the
possibility of backward tip-over. Backward tip-over
could cause serious injury or death.
• Use extreme caution when operating a unit on
a ramp.
• Use only a single, full width ramp; Do not use
individual ramps for each side of the unit.
• If individual ramps must be used, use enough
ramps to create an unbroken ramp surface wider
than the unit.
Figure 13
• Do not exceed a 15° angle between ramp and
ground or between ramp and trailer or truck.
To turn left or right, release pressure on the motion
control lever toward the desired turn direction.
• Avoid sudden acceleration while driving unit up
a ramp to avoid tipping backward.
To make zero turns, lift your foot off of the tine ground
engagement foot switch to raise the tines. The head
will raise in half second.
• Avoid sudden deceleration while backing unit
down a ramp to avoid tipping backward.
Important: Do not make a zero turn when the
tines are in the down position.
Loading a Unit
Use extreme caution when loading units on trailers or trucks.
One full width ramp that is wide enough to extend beyond
the rear tires is recommended instead of individual ramps
for each side of the unit. If it is not possible to use one full
width ramp, use enough individual ramps to simulate a full
width continuous ramp.
3. To stop, position both motion control levers in the
neutral operate position.
Transporting
Transporting a Unit
Ramp should be long enough so that the angles between the
ramp and the ground and the ramp and the trailer or truck
do not exceed 15 degrees. Steeper angles may also cause the
unit to tip backward. If loading on or near a slope, position
the trailer or truck so it is on the down side of the slope and
the ramp extends up the slope. This will minimize the ramp
angle. The trailer or truck should be as level as possible.
Use a heavy-duty trailer or truck to transport the machine.
Lock brake and block wheels. Securely fasten the machine to
the trailer or truck with straps, chains, cable, or ropes. Be
sure that the trailer or truck has all necessary lighting and
marking as required by law. Secure a trailer with a safety
chain. Refer to your local ordinances for specific trailer and
tie-down regulations.
Important: Do not attempt to turn the unit while on the
ramp, you may lose control and drive off the side.
CAUTION
Avoid sudden acceleration when driving up a ramp and
sudden deceleration when backing down a ramp. Both
maneuvers can cause the unit to tip backward.
This unit does not have proper turn signals, lights,
reflective markings, or a slow moving vehicle
emblem. Driving on a street or roadway without
such equipment is dangerous and can lead to
accidents causing personal injury. Driving on a
street or roadway without such equipment may also
be a violation of State laws and the operator may be
subject to traffic tickets and/or fines.
Do not drive a unit on a public street or roadway.
21
Maintenance
WARNING
The engine can become very hot. Touching a hot
engine can cause severe burns.
WARNING
While maintenance or adjustments are being made,
someone could start the engine. Accidental starting
of the engine could seriously injure you or other
bystanders.
Allow the engine to cool completely before service
or making repairs around the engine area.
Remove the key from the ignition switch, engage
parking brake, and pull the wire(s) off the spark
plug(s) before you do any maintenance. Also push
the wire(s) aside so it does not accidentally contact
the spark plug(s).
Recommended Maintenance Schedule(s)
Maintenance Service
Interval
Maintenance Procedure
After the first 5 hours
• Change the engine oil.
After the first 100 hours
• Change the auxiliary hydraulic reservoir filter and fluid.
• Change the hydraulic transmission filter and fluid.
Before each use or daily
•
•
•
•
•
•
•
•
•
Check the engine oil level.
Check the safety interlock system.
Check for loose hardware.
Lubricate the chains.
Check the condition and tension of the chains.
Check the condition of the sprockets.
Check the tines.
Clean the engine and exhaust system area.
Clean the grass and debris build-up from the machine.
Every 25 hours
•
•
•
•
Grease
Grease
Grease
Grease
Every 50 hours
•
•
•
•
•
•
Grease the control pivots.
Check spark arrester (if equipped).
Check the tire pressures.
Check the condition and tension of the belts.
Check the auxiliary hydraulic oil level.
Check the hydraulic transmission oil level.
Every 80 hours
• Remove engine shrouds and clean cooling fins.
Every 100 hours
• Change the engine oil. (May need more often under severe conditions.)
Every 160 hours
• Check the spark plugs.
Every 250 hours
• Replace the primary air cleaner element — check secondary air cleaner element;
replace if dirty. (May need more often under severe conditions. See the Engine
manual for additional information.)
• Change the auxiliary hydraulic reservoir filter and fluid.
• Change the hydraulic transmission filter and fluid.
Every 500 hours
• Replace the secondary air cleaner element. (May need more often under severe
conditions. See the Engine manual for additional information.)
Monthly
the
the
the
the
jackshaft bearings.
wheel bearings.
tine shaft bearings.
tine assembly idlers.
• Check the battery charge.
22
Maintenance Service
Interval
Yearly
Yearly or before storage
Maintenance Procedure
•
•
•
•
•
•
Grease the front caster pivots.
Grease the belt idler pivot.
Lubricate the caster wheel hubs.
Check the torque of the wheel hub nuts.
Check the torque on the wheel lug nuts.
Check the transmission output shaft nut torque specification.
• Touch up chipped paint
Premaintenance
Procedures
Lubrication
Lubricate Chains
Note: Shut off engine, wait for all moving parts to stop,
engage parking brake, and remove key before servicing,
cleaning, or making any adjustments to the unit.
Service Interval: Before each use or daily
Important: Do not lubricate chains with penetrating oil
or solvents. Use oil or chain lubricant.
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. Lift the rear of the unit and support using jack stands
or equivalent support.
CAUTION
Raising the unit for service or maintenance relying
solely on mechanical or hydraulic jacks could be
dangerous. The mechanical or hydraulic jacks may
not be enough support or may malfunction allowing
the unit to fall, which could cause injury.
CAUTION
Raising the unit for service or maintenance
relying solely on mechanical or hydraulic
jacks could be dangerous. The mechanical or
hydraulic jacks may not be enough support
or may malfunction allowing the unit to fall,
which could cause injury.
Do not rely solely on mechanical or hydraulic jacks
for support. Use adequate jack stands or equivalent
support.
Do not rely solely on mechanical or hydraulic
jacks for support. Use adequate jack stands
or equivalent support.
3. Start engine and move throttle control ahead to 1/2
throttle position. Disengage parking brake.
WARNING
Engine must be running and drive wheels
must be turning so adjustments can be
performed. Contact with moving parts or hot
surfaces may cause personal injury.
Keep fingers, hands, and clothing clear of
rotating components and hot surfaces.
4. With the engine running, slowly move the motion
control levers forward and lubricate all six chains.
5. Check the condition and tension of the chains (see the
Check Condition Of Chains (page 28) section).
Lubricate Grease Fittings
Note: See chart for service intervals.
23
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. Lubricate fittings with NGLI grade #2 multi-purpose
gun grease.
Refer to the following chart for fitting locations and
lubrication schedule.
Lubrication Chart
Fitting
Locations
Initial
Pumps
Number of
Places
Service
Interval
1. Front Caster
Pivots
*0
2
Yearly
2. Jackshaft
Bearings
1
8
25 hours
3. Wheel
Bearings
1
2
25 hours
4. Tine Shaft
Bearings
1
4
25 hours
5. Tine
Assembly Idlers
1
2
25 hours
6. Control Pivots
1
4
50 hours
7. Belt Idler
Pivot
1
1
Yearly
8. Front Caster
Hubs
*0
2
Yearly
Figure 14
1. Seal guard
2. Spacer nut with wrench
flats
2. Remove caster wheel from caster forks.
3. Remove seal guards from the wheel hub.
4. Remove one of the spacer nuts from the axle assembly
in the caster wheel. Note that thread locking adhesive
has been applied to lock the spacer nuts to the axle.
Remove the axle (with the other spacer nut still
assembled to it) from the wheel assembly.
5. Pry out seals, and inspect bearings for wear or damage
and replace if necessary.
6. Pack the bearings with a NGLI grade #1 multi-purpose
grease.
7. Insert one bearing, one new seal into the wheel.
Note: Replace the seals, part number 103-0063.
8. If the axle assembly has had both spacer nuts removed
(or broken loose), apply a thread locking adhesive
to one spacer nut and thread onto the axle with the
wrench flats facing outward. Do not thread spacer
nut all of the way onto the end of the axle. Leave
approximately 3 mm (1/8 inch) from the outer surface
of the spacer nut to the end of the axle inside the nut.
9. Insert the assembled nut and axle into the wheel on the
side of the wheel with the new seal and bearing.
10. With the open end of the wheel facing up, fill the area
inside the wheel around the axle full of NGLI grade
#1 multi-purpose grease.
11. Insert the second bearing and new seal into the wheel.
*See step 3 for special lubrication instructions on the
front caster pivots.
3. Lubricate front caster pivots once a year. Remove hex
plug and cap. Thread grease fitting in hole and pump
with grease until it oozes out around top bearing.
Remove grease fitting and thread plug back in. Place
cap back on.
12. Apply a thread locking adhesive to the 2nd spacer nut
and thread onto the axle with the wrench flats facing
outward.
13. Torque the nut to 8-9 N-m (75-80 in-lb), loosen, then
re-torque to 2-3 N-m (20-25 in-lb). Make sure axle
does not extend beyond either nut.
14.
Lubricate Caster Wheel Hubs
Service Interval: Yearly
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
Reinstall the seal guards over the wheel hub and insert
wheel into caster fork. Reinstall caster bolt and tighten
nut fully.
Important: To prevent seal and bearing damage, check
the bearing adjustment often. Spin the caster tire. The
24
Engine Maintenance
tire should not spin freely (more than 1 or 2 revolutions)
or have any side play. If the wheel spins freely, adjust
torque on spacer nut until there is a slight amount of
drag. Reapply thread locking adhesive.
Service Air Cleaner
Service Interval: Every 250 hours—Replace the primary air
cleaner element — check secondary air
cleaner element; replace if dirty. (May
need more often under severe conditions.
See the Engine manual for additional
information.)
Every 500 hours— Replace the secondary air
cleaner element. (May need more often under severe
conditions. See the Engine manual for additional
information.)
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. See the Engine Owner's Manual for maintenance
instructions.
Change Engine Oil
Service Interval: After the first 5 hours
Every 100 hours (May need more often under severe
conditions.)
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. Drain oil while engine is warm from operation.
3. The oil drain hose assembly is located on the left side
of the engine.
Place pan under machine to catch oil. Remove oil drain
plug. Allow oil to drain and replace oil drain plug.
Torque plug to 27-33 N-m (20-24 ft-lb).
4. Replace the oil filter per the Engine Owner's Manual.
Clean around the oil filter and carefully remove the
filter by unscrewing it. Make sure no oil drains onto
the belt drives through the holes in the engine deck.
Before the new filter is installed, apply a thin coating
of Toro 4–Cycle Premium Engine Oil on the surface
of the rubber seal. Turn filter clockwise until rubber
seal contacts the filter adapter, then tighten filter an
additional 2/3 to 3/4 turn.
5. Clean around oil fill cap and remove cap. Fill to
specified capacity and replace cap.
6. Use oil recommended in the Checking the Engine Oil
Level (page 17) section. Do not overfill. Start the
engine and check for leaks. Stop engine and recheck
oil level.
7. Wipe up any spilled oil from engine deck mounting
surfaces.
25
Check Spark Plugs
Fuel System
Maintenance
Service Interval: Every 160 hours
Remove spark plugs, check condition and reset gaps, or
replace with new plugs. See the Engine Owner's Manual.
Change Fuel Filter
Check Spark Arrester
(if equipped)
A fuel filter is installed in the fuel line between the fuel tank
and the engine. Replace when necessary.
Replacement Filters
Service Interval: Every 50 hours
Kawasaki
WARNING
Kawasaki
P/N 49019-0014
Note: It is important to reinstall the fuel line hoses and
secure in place, the same way as originally installed at the
factory, to keep the fuel line away from components.
Hot exhaust system components may ignite
gasoline vapors even after the engine is stopped.
Hot particles exhausted during engine operation
may ignite flammable materials. Fire may result in
personal injury or property damage.
Do not refuel or run engine unless spark arrester
is installed.
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. Wait for muffler to cool.
3. If any breaks in the screen or welds are observed,
replace arrester.
4. If plugging of the screen is observed, remove arrester
and shake loose particles out of the arrester and clean
screen with a wire brush (soak in solvent if necessary).
Reinstall arrester on exhaust outlet.
26
Electrical System
Maintenance
DANGER
Jump starting a weak battery that is cracked,
frozen, has low electrolyte level, or an
open/shorted battery cell, can cause an
explosion resulting in serious personal injury.
Check Battery Charge
Service Interval: Monthly
Do not jump start a weak battery if these
conditions exist.
WARNING
2. Make sure the booster is a good and fully charged
lead acid battery at 12.6 volts or greater. Use properly
sized jumper cables (4 to 6 AWG) with short lengths
to reduce voltage drop between systems. Make sure
the cables are color coded or labeled for the correct
polarity.
CALIFORNIA
Proposition 65 Warning
Battery posts, terminals, and related
accessories contain lead and lead compounds,
chemicals known to the State of California
to cause cancer and reproductive harm.
Wash hands after handling.
CAUTION
Connecting the jumper cables incorrectly
(wrong polarity) can immediately damage the
electrical system.
Allowing batteries to stand for an extended period of time
without recharging them will result in reduced performance
and service life. To preserve optimum battery performance
and life, recharge batteries in storage when the open circuit
voltage drops to 12.4 volts.
Be certain of battery terminal polarity and
jumper cable polarity when hooking up
batteries.
Note: The following instructions are adapted from
the SAE J1494 Rev. Dec. 2001 – Battery Booster
Cables – Surface Vehicle Recommended Practice (SAE
– Society of Automotive Engineers).
Note: To prevent damage due to freezing, battery should be
fully charged before putting away for winter storage.
Check the voltage of the battery with a digital voltmeter.
Locate the voltage reading of the battery in the table and
charge the battery for the recommended time interval to
bring the charge up to a full charge of 12.6 volts or greater.
WARNING
Batteries contain acid and produce explosive
gases.
Important: Make sure the negative battery cable is
disconnected and the battery charger used for charging
the battery has an output of 16 volts and 7 amps or
less to avoid damaging the battery (see the chart in
2 Servicing the Battery (page 12) for recommended
charger settings).
• Shield the eyes and face from the batteries
at all times.
• Do not lean over the batteries.
Note: Be sure the vent caps are tight and level. Place
a damp cloth, if available, over any vent caps on both
batteries. Be sure the vehicles do not touch and that
both electrical systems are off and at the same rated
system voltage. These instructions are for negative
ground systems only.
Recommended Jump Starting
Procedure
1. Check the weak battery for terminal corrosion (white,
green, or blue “snow”), it must be cleaned off prior
to jump starting. Clean and tighten connections as
necessary.
3. Connect the positive (+) cable to the positive (+)
terminal of the discharged battery that is wired to the
starter or solenoid as shown in Figure 15.
CAUTION
Corrosion or loose connections can cause
unwanted electrical voltage spikes at anytime
during the jump starting procedure.
Do not attempt to jump start with loose or
corroded battery terminals or damage to the
engine may occur.
27
Drive System
Maintenance
Check Tire Pressures
Service Interval: Every 50 hours
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. Check tire pressure in drive tires.
Figure 15
1. Positive (+) cable on discharged battery
3. Inflate drive tires to 83-97 kPa (12-14 psi).
2. Positive (+) cable on booster battery
4. Semi-pneumatic caster tires do not need to be inflated.
3. Negative (–) cable on the booster battery
4. Negative (–) cable on the engine block
Check Wheel Hub Nuts Torque
Specification
5. Booster battery
6. Discharged battery
7. Engine block
Service Interval: Yearly
Torque the wheel hub nuts to 285–350 N-m (210–260 ft-lb).
4. Connect the other end of the positive cable to the
positive terminal of the booster battery.
Note: Do not use anti-seize compound on the wheel hub.
5. Connect the black negative (–) cable to the other
terminal (negative) of the booster battery.
Check Wheel Lug Nuts Torque
Specification
6. Make the final connection on the engine block of the
stalled vehicle (no to the negative post) away from the
battery. Stand back.
Service Interval: Yearly
7. Start the vehicle and remove the cables in the
reverse order of connection (the engine block (black)
connection is the first to disconnect).
Torque the wheel lug nuts to 122–129 N-m (90–95 ft-lb).
Check Condition Of Chains
Service Interval: Before each use or daily
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. Check the chains on both sides of the unit for proper
tension. The chains should be able to move up and
down 6-12 mm (1/4-1/2 inch).
3. If chains pop or snap see Jackshaft Drive Chain
Tension Adjustment (page 29), Drive Wheel Chain
Tension Adjustment (page 29), or Tine Drive Chain
Adjustment (page 34).
Check Condition Of Sprockets
Service Interval: Before each use or daily
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. Inspect sprockets for wear and replace as required.
28
Check Transmission Output
Shaft Nut Torque Specification
both sides of the adjustment bolts when the chains are
properly tensioned.
6. Tighten hydro mounting bolts.
Service Interval: Yearly
7. Adjust motion controls as stated in the Motion Control
Linkage Adjustment (page 31) section.
Torque the nut on the transmission output tapered shaft to
285-353 N-m (210-260 ft-lb).
Drive Wheel Chain Tension
Adjustment
Jackshaft Drive Chain Tension
Adjustment
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. Lift the rear of the unit and support using jack stands
or equivalent support.
2. Lift the rear of the unit and support using jack stands
or equivalent support.
3. Check the chains on both sides of the unit for proper
tension. The chains should be able to move up and
down 6-12 mm (1/4-1/2 inch).
3. Check the chains on both sides of the unit for proper
tension. The chains should be able to move up and
down 6-12 mm (1/4-1/2 inch).
4. Adjust the idler sprockets.
4. Loosen the nuts on the three hydro mounting bolts
and the two on the adjustment bolt as shown in Figure
16. The nuts on the hydro mounting bolts must be
loosened on both sides of the unit.
5. Recheck the chain tension and tighten the idler bolt.
Caster Pivot Bearings
Pre-Load Adjustment
Remove dust cap from caster and tighten nyloc nut until
washers are flat and back off 1/4 of a turn to properly set
the pre-load on the bearings. If disassembled, make sure the
spring disc washers are reinstalled as shown in Figure 17.
Figure 17
Figure 16
1. Hydro mounting bolts and
nuts
2. Nuts
1. Spring disc washers
4. 6-12 mm (1/4-1/2 inch)
5. Guard removed for clarity
3. Adjustment bolt
5. Turn the adjustment bolt to move transmission
adjustment plates and hydros. Tighten the nuts on
29
Brake Maintenance
4. Engage the parking brake.
5. Check the distance from the parking brake switch
bracket to the hydro brake arm. The distance should
be 3.2 mm (1/8 inch). See Figure 19.
Adjusting the Parking Brake
If the parking brake does not hold securely, an adjustment
is required.
1. Park the machine on a level surface.
2. Shut off engine and wait for all moving parts to stop.
3. Check the air pressure in the drive tires. If needed,
adjust to the recommended inflation; refer to 1
Checking Tire Pressure (page 12).
4. Disengage the parking brake.
5. Loosen the adjustment nut on the brake cable under
the console.
6. Engage the parking brake.
7. Adjust the nut position until 7.9 cm (3–1/8 inch) from
the bottom of the link to the bottom of the spring.
See Figure 18.
Figure 19
1. Parking brake switch
bracket
2. 3.2 mm (1/8 inch) gap
6. If adjustment is required, loosen the bolt holding the
parking brake switch bracket and adjust the distance
between the parking brake switch bracket and the
hydro brake arm to be 3.2 mm (1/8 inch).
7. Tighten the bolt holding the parking brake bracket.
Figure 18
1. 7.9 cm (3–1/8 inch)
8. Tighten the cable adjustment nuts.
9. Check the parking brake; repeat steps 5 through 8 if
necessary.
Adjusting the Brake Switch
1. Park the machine on a level surface.
2. Shut off the engine and wait for all moving parts to
stop.
3. Prior the adjusting the brake switch ensure the parking
brake is properly adjusted. See Adjusting the Parking
Brake (page 30).
30
Belt Maintenance
Controls System
Maintenance
Check Condition and Tension
Of Belts
Motion Control Linkage
Adjustment
Service Interval: Every 50 hours
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
1. Park the machine on a level surface.
2. Shut off engine and wait for all moving parts to stop.
2. Lift the front of the unit and support using jack stands
or equivalent support.
3. Push the control levers all the way forward to the front
reference bar.
3. Check the auxiliary pump drive belt condition and
tension; belt should be snug. See Auxiliary Pump Drive
Belt Adjustment (page 31).
• If the control levers contact the reference bar, allow
the control levers to return to neutral. Remove
the spring clevis pin on the turnbuckle of the
motion control linkage. Rotate the turnbuckle
counterclockwise (as viewed from the top of the
machine). Reinstall the spring clevis pin and move
the control lever forward. Repeat this step until
there is a gap between the control lever and the
front reference bar. Once the gap is achieved,
proceed with step 4
4. Check condition of the transmission drive belt.
Transmission Drive Belt
Tension
Note: No adjustments are required for belt tension.
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. Install the new belt.
3. Make sure the idler arm and pulley can move freely.
Auxiliary Pump Drive Belt
Adjustment
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. To tighten belt, loosen the 3/8 inch nyloc nut on
auxiliary pump belt idler pulley. Slide bolt inward in
slot and retighten nyloc nut.
Figure 20
1. Spring clevis pin
3. When properly adjusted, the belt should have 1.3 cm
(1/2 inch) of deflection with 3 pounds of pressure
on the belt midway between the auxiliary pump and
engine pulley.
3. Turnbuckle
2. Locknut
• If the control levers do not contact the reference
bar, then proceed to step4.
4. Allow the control levers to return to neutral. Remove
the spring clevis pin on the turnbuckle of the motion
control linkage. Rotate the turnbuckle clockwise (as
viewed from the top of the machine). Reinstall the
spring clevis pin and move the control lever forward.
Repeat this step until there is minimal gap or contact
between the control lever and the front reference bar.
5. Remove the spring clevis pin, rotate the turnbuckle
clockwise one more full turn.
6. Reinstall the spring clevis pin. Rotate locknut against
the turnbuckle.
31
Hydraulic System
Maintenance
7. Repeat steps 3 through 6 for other motion control
linkage.
Check Auxiliary Hydraulic Oil
Level
Service Interval: Every 50 hours
1. Lower the tines to the ground.
2. Stop engine and wait for all moving parts to stop, and
remove key. Engage parking brake.
3. Clean area around hydraulic reservoir cap and remove
cap. Oil level should be to the top of the baffle inside
the tank. If not, add oil. Use AW-32 hydro oil. Replace
hydraulic reservoir cap and tighten until snug. Do not
overtighten.
Note: The baffle is labeled Hot and Cold. The oil
level varies with the temperature of the oil. The Hot
level shows the level of oil when it is at 107°C (225°F).
The Cold level shows the level of the oil when it is at
24°C (75°F). Fill to the appropriate level depending
upon the temperature of the oil. For example: If the
oil is about 65°C (150°F), fill to halfway between the
Hot and Cold levels. If the oil is at room temperature
(about 24°C (75°F)), fill only to the Cold level.
Check Hydraulic Transmission
Oil Level
Service Interval: Every 50 hours
1. Stop engine and wait for all moving parts to stop, and
remove key. Engage parking brake.
2. With the unit cold, check the expansion tank and if
necessary add Toro Hypr-oil 500 hydraulic oil to the
Full Cold line.
Change Auxiliary Hydraulic
Reservoir Fluid and Filter
Service Interval: After the first 100 hours
Every 250 hours thereafter
1. Stop engine, wait for all moving parts to stop, and
remove key or spark plug wire(s). Engage parking
brake.
2. Carefully clean area around the front of the auxiliary
pump and fill cap; also clean around the filter. It is
important that no dirt or contamination enter hydraulic
system.
3. Unscrew the suction hose from the pump fitting, clean
around the pump fitting, and allow oil to drain.
4. Unscrew the filter to remove and allow oil to drain.
32
Important: Apply a thin coat of oil on the surface
of the rubber seal.
CAUTION
Raising the unit for service or maintenance
relying solely on mechanical or hydraulic
jacks could be dangerous. The mechanical or
hydraulic jacks may not be enough support
or may malfunction allowing the unit to fall,
which could cause injury.
Turn filter clockwise until rubber seal contacts the
filter adapter, then tighten the filter an additional 2/3
to 3/4 turn.
5. Reinstall the hose and torque to 50 N-m (37 ft-lb).
6. Add AW-32 hydro oil until the level reaches the cold
fill line located on the reservoir tank. Start engine and
raise and lower the tines. Lower the tines to the ground
and refill the reservoir to the cold fill line.
Do not rely solely on mechanical or hydraulic
jacks for support. Use adequate jack stands
or equivalent support.
Change Hydraulic
Transmission Filters and
Fluid
7. Start engine and move throttle control ahead to 1/2
throttle position. Disengage parking brake.
WARNING
Engine must be running and drive wheels
must be turning so motion control adjustment
can be performed. Contact with moving parts
or hot surfaces may cause personal injury.
Service Interval: After the first 100 hours
Every 250 hours thereafter
1. Stop engine, wait for all moving parts to stop, and
remove key or spark plug wire(s). Engage parking
brake.
Keep fingers, hands, and clothing clear of
rotating components and hot surfaces.
2. Locate the two filters under the transmissions. Remove
filter guards.
A. With the engine running, slowly move the
directional control in both forward and reverse
directions (5 to 6 times). Check the oil level, and
add oil as required after stopping the engine.
3. Carefully clean area around filters. It is important that
no dirt or contamination enter hydraulic system.
4. Unscrew filters to remove and allow oil to drain from
drive system.
B.
Important: Before reinstalling new filters, apply
a thin coat of Toro Premium Hydro Oil on the
surface of the filters rubber seal.
Turn the filters clockwise until rubber seal contacts the
filter adapter then tighten the filter an additional 3/4
to 1 full turn.
Note: Do not change the hydraulic system oil (except for
what can be drained when changing filter), unless it is felt the
oil has been contaminated or been extremely hot.
5. Remove the vent plug on each transmission and fill
through expansion reservoir, when oil comes out of
vent reinstall plug.
Changing oil unnecessarily could damage hydraulic system by
introducing contaminants into the system.
Toro Premium Hydro Oil is recommended. Refer to
the chart for an acceptable alternative:
Hydro Oil
Change Interval
Toro Premium Hydro Oil
(Preferred)
500 Hours
Mobil 1 15W50
250 Hours
It may be necessary to repeat step A. until all the
air is completely purged from the system. When
the transaxle operates at normal noise levels and
moves smoothly forward and reverse at normal
speeds, then the transaxle is considered purged.
Torque plugs to 244 N-m (180 in-lb). Continue to add
Toro Premium Hydro Oil until it reaches the full cold
line on the expansion reservoir.
6. Raise the rear of machine up and support with jack
stands (or equivalent support) just high enough to
allow drive wheels to turn freely.
33
Tine Maintenance
Cleaning
Check Tines
Clean Engine and Exhaust
System Area
Service Interval: Before each use or daily
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
Service Interval: Before each use or daily (May be required
more often in dry or dirty conditions.)
2. Lift the rear of the unit and support using jack stands
or equivalent support.
CAUTION
Excessive debris around engine cooling air intake
and exhaust system area can cause engine, exhaust
area, and hydraulic system to overheat which can
create a fire hazard.
CAUTION
Raising the unit for service or maintenance
relying solely on mechanical or hydraulic
jacks could be dangerous. The mechanical or
hydraulic jacks may not be enough support
or may malfunction allowing the unit to fall,
which could cause injury.
Clean all debris from engine and exhaust system
area.
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
Do not rely solely on mechanical or hydraulic
jacks for support. Use adequate jack stands
or equivalent support.
2. Clean all debris from rotating engine air intake screen,
around engine shrouding, and exhaust system area.
3. Wipe up any excessive grease or oil around the engine
and exhaust system area.
3. Remove and retain the two bolts from the rear cover
panel.
4. Remove rocks and other debris from the tines.
Remove Engine Shrouds and
Clean Cooling Fins
5. Inspect the tines and replace as required.
Tine Drive Chain Adjustment
Service Interval: Every 80 hours
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. Lift the rear of the unit and support using jack stands
or equivalent support.
2. Remove cooling shrouds from engine and clean
cooling fins. Also clean dust, dirt, and oil from external
surfaces of engine which can cause improper cooling.
3. Check the chains on both sides of the unit for proper
tension. The chains should be able to move up and
down (6-12 mm 1/4-1/2 inch).
3. Make sure cooling shrouds are properly reinstalled.
Operating the engine without cooling shrouds will
cause engine damage due to overheating.
4. Adjust the idler sprocket.
5. Recheck the chain tension and tighten the idler bolt.
Clean Debris From Machine
Service Interval: Before each use or daily
1. Stop engine, wait for all moving parts to stop, and
remove key. Engage parking brake.
2. Clean off any oil, debris, or grass build-up on the
machine and aerator deck, especially under chain
guards, around the fuel tank, around engine and
exhaust area.
34
Waste Disposal
Storage
1. Raise the tines, stop the machine, stop the engine, set
the parking brake, and remove the key.
Motor Oil Disposal
Engine oil and hydraulic oil are both pollutants to the
environment. Dispose of used oil at a certified recycling
center or according to your state and local regulations.
2. Remove dirt and grime from the entire machine.
Important: You can wash the machine with mild
detergent and water. Do not pressure wash the
machine. Avoid excessive use of water, especially
near the engine and hydrostatic drive.
Battery Disposal
3. Service the air cleaner.
DANGER
4. Lubricate the machine.
Battery electrolyte contains sulfuric acid, which is
poisonous and can cause severe burns. Swallowing
electrolyte can be fatal or if it touches skin can
cause severe burns.
5. Change the engine oil.
6. Check and tighten all bolts, nuts, and screws. Repair or
replace any part that is damaged.
• Wear safety glasses to shield eyes, and rubber
gloves to protect skin and clothing when
handling electrolyte.
7. Paint all scratched or bare metal surfaces. Paint is
available from your Authorized Service Dealer.
8. Store the machine in a clean, dry garage or storage area.
• Do not swallow electrolyte.
9. Cover the machine to protect it and keep it clean.
• In the event of an accident, flush with water and
call a doctor immediately.
Federal law states that batteries should not be placed in the
garbage. Management and disposal practices must be within
relevant federal, state, or local laws.
If a battery is being replaced or if the unit containing the
battery is no longer operating and is being scrapped, take
the battery to a local certified recycling center. If no local
recycling is available return the battery to any certified battery
reseller.
35
Troubleshooting
Important: It is essential that all operator safety mechanisms be connected and in proper operating
condition prior to use.
When a problem occurs, do not overlook the simple causes. For example: starting problems could be caused
by an empty fuel tank.
The following table lists some of the common causes of trouble. Do not attempt to service or replace major
items or any items that call for special timing of adjustments procedures (such as valves, governor, etc.).
Have this work done by your Engine Service Dealer.
Note: When disconnecting electrical connectors Do not pull on the wires to separate the connectors.
Problem
The starter does not crank.
The engine will not start, starts hard, or
fails to keep running.
Possible Cause
1. The parking brake is not engaged.
1. Engage the parking brake.
2. The brake switch is not adjusted
properly.
3. The battery does not have a full charge.
4. The electrical connections are
corroded, loose or faulty.
2. Adjust the brake switch.
5. A fuse is blown.
6. A relay or switch is defective.
3. Charge the battery.
4. Check the electrical connections for
good contact. Clean the connector
terminals thoroughly with electrical
contact cleaner, apply dielectric grease,
and reconnect.
5. Replace the blown fuse.
6. Contact an Authorized Service Dealer.
1. The fuel tank is empty.
1. Fill the fuel tank.
2. The fuel shutoff valve is closed.
3. The throttle and choke are not in the
correct position.
2. Open the fuel shutoff valve.
3. Be sure the throttle control is midway
between the Slow and Fast positions,
and the choke is in the On position for
a cold engine or the Off position for a
warm engine.
4. Replace the fuel filter.
5. Contact an Authorized Service Dealer.
4. There is dirt in the fuel filter.
5. Dirt, water, or stale fuel is in the fuel
system.
6. The air cleaner is dirty.
7. The electrical connections are
corroded, loose or faulty.
8. A elay or switch is defective.
9. The spark plug is faulty.
10. The spark plug wire is not connected.
The engine loses power.
Corrective Action
6. Clean or replace the air cleaner
element.
7. Check the electrical connections
for good contact. Clean connector
terminals thoroughly with electrical
contact cleaner, apply dielectric grease,
and reconnect.
8. Contact an Authorized Service Dealer.
9. Clean, adjust, or replace the spark
plug.
10. Check the spark plug wire connection.
1. The engine load is excessive.
1. Reduce the ground speed or aeration
depth.
2. The air cleaner is dirty.
2. Clean or replace the air cleaner
element.
3. Add oil to the crankcase.
4. Remove the obstructions from the
cooling fins and air passages.
5. Replace the fuel filter.
6. Contact an Authorized Service Dealer.
3. The oil level in the crankcase is low.
4. The cooling fins and air passages for
the engine are plugged.
5. There is dirt in the fuel filter.
6. Dirt, water, or stale fuel is in the fuel
system.
36
Problem
The engine overheats.
The machine pulls left or right (with levers
fully forward).
The machine does not drive.
There is abnormal vibration.
The tines do not raise.
The tines do not engage the ground.
Possible Cause
Corrective Action
1. The engine load is excessive.
1. Reduce the ground speed or aeration
depth.
2. The oil level in the crankcase is low.
3. The cooling fins and air passages for
the engine are plugged.
2. Add oil to the crankcase.
3. Remove the obstructions from the
cooling fins and air passages.
1. The tire pressure in drive tires is not
correct.
1. Adjust the tire pressure in the drive
tires.
2. The tracking needs adjustment.
2. Adjust the motion control linkage.
1. The drive belt or pump belt is worn,
loose or broken.
1. Change the belt.
2. The drive belt or pump belt is off a
pulley.
2. Change the belt.
1. A tine is bent.
1. Install a new tine.
2. The tine mounting bolt is loose.
3. The engine mounting bolts are loose.
4. There is a loose engine pulley or idler
pulley.
5. The engine pulley is damaged.
6. A belt is damaged.
7. The chains are not properly tensioned.
2. Tighten the tine mounting bolt.
3. Tighten the engine mounting bolts.
4. Tighten the appropriate pulley.
1. There is an auxiliary pump belt
problem.
1. Tension or replace the belt.
2. The tine down pressure setting is too
low.
3. There is a short in the harness.
4. The auxiliary reservoir is low on oil.
2. Increase the down pressure.
5. Contact an Authorized Service Dealer.
6. Install a new belt.
7. Check the jackshaft drive chain tension,
the drive wheel chain tension, and the
tine drive chain.
3. Contact an Authorized Service Dealer.
4. Add oil to the reservoir.
1. The tine down pressure setting is too
low.
1. Increase the tine down pressure.
2. The harness/switch is damaged.
3. The auxiliary reservoir is low on oil.
4. The cylinder stop is in place.
2. Contact an Authorized Service Dealer.
3. Add oil to the reservoir.
4. Remove the cylinder stop, clevis pin,
and hair pin.
37
Schematics
Electrical Diagram (Rev. A)
38
Electrical Schematic (Rev. A)
39
Hydraulic Diagram (Rev. A)
40
Notes:
41
Notes:
42
Notes:
43
Toro Compact Utility Equipment Warranty
A One-Year Limited Warranty
Conditions and Products Covered
The Toro® Company and its affiliate, Toro Warranty Company, pursuant
to an agreement between them, jointly warrant your Toro Compact Utility
Equipment (“Product”) to be free from defects in materials or workmanship.
The following time periods apply from the date of purchase:
Items and Conditions Not Covered
Not all product failures or malfunctions that occur during the warranty
period are defects in materials or workmanship. This express warranty
does not cover the following:
•
Product failures which result from the use of non-Toro replacement
parts, or from installation and use of add-on, modified, or unapproved
accessories
•
Product failures which result from failure to perform required
maintenance and/or adjustments
•
Product failures which result from operating the Product in an
abusive, negligent or reckless manner
•
Parts subject to consumption through use unless found to be
defective. Examples of parts which are consumed, or used up, during
normal Product operation include, but are not limited to, teeth, tines,
blades, spark plugs, tires, tracks, filters, chains, etc.
•
Contact any Authorized Toro Compact Utility Equipment (CUE)
Service Dealer to arrange service at their dealership. To locate a
dealer convenient to you, access our website at www.Toro.com.
You may also call our Toro Customer Care Department toll free
at 888-865-5676 (U.S. customers) or 888-865-5691 (Canadian
customers).
Failures caused by outside influence. Items considered to be outside
influence include, but are not limited to, weather, storage practices,
contamination, use of unapproved coolants, lubricants, additives, or
chemicals, etc.
•
Normal “wear and tear” items. Normal “wear and tear” includes, but is
not limited to, worn painted surfaces, scratched decals or windows,
etc.
Bring the product and your proof of purchase (sales receipt) to the
Service Dealer.
•
•
Any component covered by a separate manufacturer’s warranty
Products
Warranty Period
Loaders, Trenchers, Stump Grinders, 1 year or 1000 operating
Chippers, Log Splitters and Attachments hours, whichever occurs first
Kohler Engines
3 years
All other Engines
2 years
Where a warrantable condition exists, we will repair the Product at no cost
to you including diagnosis, labor, and parts.
Instructions for Obtaining Warranty Service
If you think that your Toro Product contains a defect in materials or
workmanship, follow this procedure:
1.
2.
3.
CUE Products
If for any reason you are dissatisfied with the Service Dealer’s
analysis or with the assistance provided, contact us at:
LCB Customer Care Department
Toro Warranty Company
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
Toll Free: 888-865-5676 (U.S. customers)
Toll Free: 888-865-5691 (Canada customers)
Owner Responsibilities
You must maintain your Toro Product by following the maintenance
procedures described in the Operator’s Manual. Such routine
maintenance, whether performed by a dealer or by you, is at your expense.
Parts scheduled for replacement as required maintenance (“Maintenance
Parts”), are warranted for the period of time up to the scheduled
replacement time for that part. Failure to perform required maintenance
and adjustments can be grounds for disallowing a warranty claim.
Pickup and delivery charges
General Conditions
Repair by an Authorized Toro Compact Utility Equipment (CUE) Service
Dealer is your sole remedy under this warranty.
Neither The Toro® Company nor Toro Warranty Company is liable
for indirect, incidental or consequential damages in connection with
the use of the Toro Products covered by this warranty, including
any cost or expense of providing substitute equipment or service
during reasonable periods of malfunction or non-use pending
completion of repairs under this warranty. All implied warranties
of merchantability and fitness for use are limited to the duration
of this express warranty. Some states do not allow exclusions of
incidental or consequential damages, or limitations on how long
an implied warranty lasts, so the above exclusions and limitations
may not apply to you.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Except for the engine warranty coverage and the Emissions warranty
referenced below, if applicable, there is no other express warranty. The
Emissions Control System on your Product may be covered by a separate
warranty meeting requirements established by the U.S. Environmental
Protection Agency (EPA) or the California Air Resources Board (CARB).
The hour limitations set forth above do not apply to the Emissions
Control System Warranty. Refer to the California Emission Control
Warranty Statement supplied with your Product or contained in the engine
manufacturer’s documentation for details.
Countries Other than the United States or Canada
Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain
guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining
guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.
374-0261 Rev B
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
