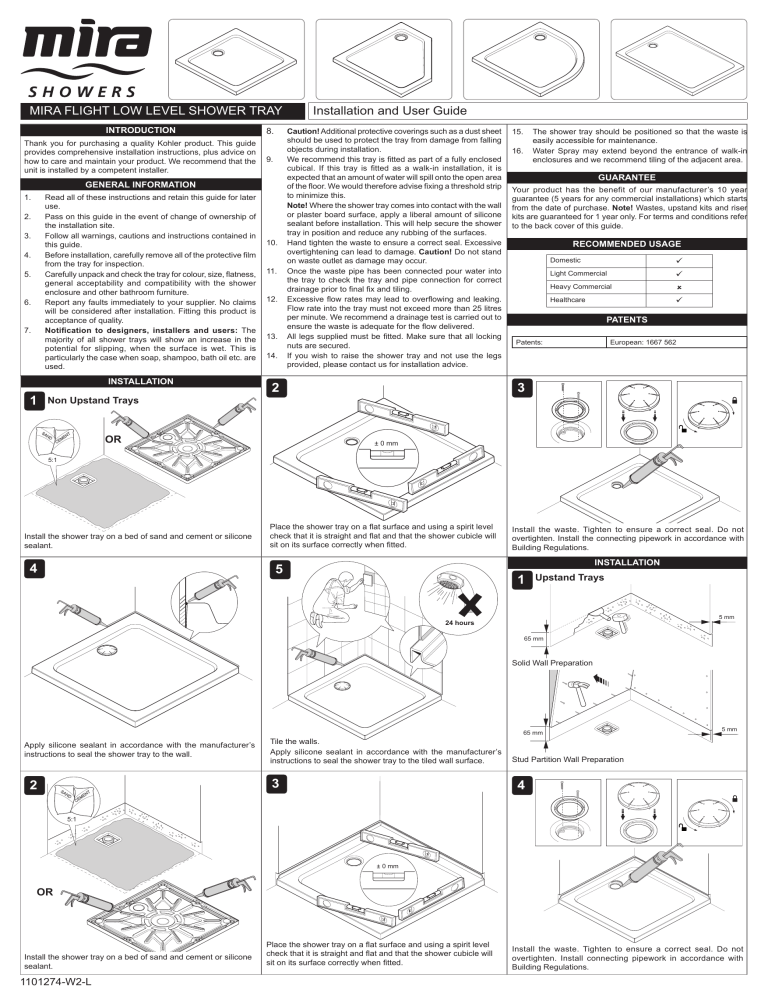

Installation and User Guide MIRA FLIGHT LOW

Installation and User Guide MIRA FLIGHT LOW
MIRA FLIGHT LOW LEVEL SHOWER TRAY
INTRODUCTION
8.
Thank you for purchasing a quality Kohler product. This guide
provides comprehensive installation instructions, plus advice on
how to care and maintain your product. We recommend that the
unit is installed by a competent installer.
9.
GENERAL INFORMATION
1.
Read all of these instructions and retain this guide for later
use.
Pass on this guide in the event of change of ownership of
the installation site.
Follow all warnings, cautions and instructions contained in
this guide.
Before installation, carefully remove all of the protective film
from the tray for inspection.
Carefully unpack and check the tray for colour, size, flatness,
general acceptability and compatibility with the shower
enclosure and other bathroom furniture.
Report any faults immediately to your supplier. No claims
will be considered after installation. Fitting this product is
acceptance of quality.
Notification to designers, installers and users: The
majority of all shower trays will show an increase in the
potential for slipping, when the surface is wet. This is
particularly the case when soap, shampoo, bath oil etc. are
used.
2.
3.
4.
5.
6.
7.
INSTALLATION
1
Non Upstand Trays
10.
11.
12.
13.
14.
Installation and User Guide
Caution! Additional protective coverings such as a dust sheet
should be used to protect the tray from damage from falling
objects during installation.
We recommend this tray is fitted as part of a fully enclosed
cubical. If this tray is fitted as a walk-in installation, it is
expected that an amount of water will spill onto the open area
of the floor. We would therefore advise fixing a threshold strip
to minimize this.
Note! Where the shower tray comes into contact with the wall
or plaster board surface, apply a liberal amount of silicone
sealant before installation. This will help secure the shower
tray in position and reduce any rubbing of the surfaces.
Hand tighten the waste to ensure a correct seal. Excessive
overtightening can lead to damage. Caution! Do not stand
on waste outlet as damage may occur.
Once the waste pipe has been connected pour water into
the tray to check the tray and pipe connection for correct
drainage prior to final fix and tiling.
Excessive flow rates may lead to overflowing and leaking.
Flow rate into the tray must not exceed more than 25 litres
per minute. We recommend a drainage test is carried out to
ensure the waste is adequate for the flow delivered.
All legs supplied must be fitted. Make sure that all locking
nuts are secured.
If you wish to raise the shower tray and not use the legs
provided, please contact us for installation advice.
2
OR
15. The shower tray should be positioned so that the waste is
easily accessible for maintenance.
16. Water Spray may extend beyond the entrance of walk-in
enclosures and we recommend tiling of the adjacent area.
GUARANTEE
Your product has the benefit of our manufacturer’s 10 year
guarantee (5 years for any commercial installations) which starts
from the date of purchase. Note! Wastes, upstand kits and riser
kits are guaranteed for 1 year only. For terms and conditions refer
to the back cover of this guide.
RECOMMENDED USAGE
Domestic
ü
Light Commercial
ü
Heavy Commercial
û
Healthcare
ü
PATENTS
Patents:
European: 1667 562
3
± 0 mm
5:1
Install the shower tray on a bed of sand and cement or silicone
sealant.
4
Place the shower tray on a flat surface and using a spirit level
check that it is straight and flat and that the shower cubicle will
sit on its surface correctly when fitted.
Install the waste. Tighten to ensure a correct seal. Do not
overtighten. Install the connecting pipework in accordance with
Building Regulations.
INSTALLATION
5
1
Upstand Trays
5 mm
5 mm
24 hours
65 mm
65 mm
Solid Wall Preparation
5:1
Apply silicone sealant in accordance with the manufacturer’s
instructions to seal the shower tray to the wall.
Tile the walls.
Apply silicone sealant in accordance with the manufacturer’s
instructions to seal the shower tray to the tiled wall surface.
3
2
65 mm
65 mm
5 mm
5 mm
Stud Partition Wall Preparation
4
5:1
± 0 mm
OR
Install the shower tray on a bed of sand and cement or silicone
sealant.
1101274-W2-L
Place the shower tray on a flat surface and using a spirit level
check that it is straight and flat and that the shower cubicle will
sit on its surface correctly when fitted.
Install the waste. Tighten to ensure a correct seal. Do not
overtighten. Install connecting pipework in accordance with
Building Regulations.
5
6
7
If you want to install your shower tray using a riser
conversion kit, please refer to the Installation and User
Guide packed with the riser kit.
CARE AND MAINTENANCE
24 hours
Apply silicone sealant in accordance with the manufacturer’s
instructions to seal the shower tray to the wall.
Tile the walls.
Apply silicone sealant in accordance with the manufacturer’s
instructions to seal the shower tray to the tiled wall surface.
Warning! The use of grout/tile cleaners, scale removers, abrasive
scourers, drain unblockers and other powerful detergents may lead
to damage of metallic, plated and plastic surfaces, including the
tray and shower waste.
The acrylic ABS surface of this shower tray has good resistance
properties to acids but should not come into contact with alkalis or
organic solvents, such as caustic soda, dry cleaning agents and
paint strippers.
Hot soapy water should be used and then the tray should be wiped
dry with a lint free cloth.
Due to the physical nature of water, small pools may remain on the
shower tray after showering. We recommend that both the tray and
the enclosure are wiped down with a dry lint free cloth after use.
DIMENSIONS
Square Shower Tray - Non Upstand
Quadrant Shower Tray - Non Upstand
50
165
A
A
R5
Rectangle Shower Tray - Non Upstand
165
165
165
=
=
LH
B
B
B
=
=
RH
A
Side Profile of Non Upstand Tray
68
40
D
C
A
B
C
D
Legs
900
760
25
14
9
1000
700
25
12
9
1000
760
25
12
9
1000
800
25
12
9
1100
800
25
12
11
1200
700
25
9
11
1200
760
25
9
11
1200
800
25
9
11
1200
900
25
9
11
1400
700
25
5
13
1400
760
25
5
13
1400
800
25
5
13
1400
900
25
4
13
1500
700
24
3
13
1500
760
24
3
13
1600
700
24
4
13
1600
760
24
4
13
1600
900
24
4
13
1700
700
24
4
13
1700
760
24
4
13
1700
900
24
4
13
All Dimensions in mm
A
B
C
D
Legs
760
760
25
17
9
800
800
25
16
9
900
900
25
14
9
1000
1000
25
12
9
Pentagon Shower Tray - Non Upstand
A
B
C
D
Legs
800
800
25
16
9
900
900
25
14
9
1000
1000
25
12
9
900
1200
25
9
11
1000
1000
25
12
9
Upstand Tray
A
170
400
165
165
=
707
LH
B
B
=
700
RH
Side Profile of Upstand Tray
10
A
A
B
C
D
Legs
900
900
25
14
9
900
1200
25
9
11
62
13
Kohler Mira Limited, Cromwell Road, Cheltenham,
Gloucestershire, GL52 5EP, UK
Mira
Flight Low Shower Tray
Declaration of Performance: CE 0069
EN 14527 - CL1 + CL2
If you need a copy of the Declaration
of Performance, then please contact
Customer Services
72
22
D
C
40
A
B
C
D
Legs
770
770
25
17
9
810
810
25
14
9
910
770
25
14
9
910
910
25
14
9
1010
810
25
12
9
1010
770
25
12
9
1210
770
25
9
11
1210
810
25
9
11
1210
910
25
9
11
1410
810
25
6
13
1410
910
25
6
13
1710
770
25
6
13
1710
910
26
6
13
CUSTOMER SERVICE
Guarantee
Your product has the benefit of our manufacture’s 10 year guarantee (5 years for any commercial installations) which starts from
date of purchase. Note wastes, upstand kits and riser kits are guaranteed for 1 year only.
To activate this guarantee, please return your completed registration card, visit our website or free phone 0800 0731248 within
30 days of purchase (UK only).
Within the guarantee period we will resolve defects in materials or workmanship by either repairing the product, providing new
goods and parts to you in replacement or refunding (up to but not in excess of) the original purchase price, as we may choose.
This guarantee is in addition to your statutory rights and is subject to the following conditions:
● The guarantee applies solely to the original installation under normal use and to the original purchaser only. The product must be
installed and maintained in accordance with the instructions given in this user guide. The product must be inspected and issues
reported before installation.
● Servicing must only be undertaken by us or our appointed representative. Note! if a service visit is required the product must be
fully installed and connected to services.
● Repair under this guarantee does not extend the original expiry date. The guarantee on any replacement parts or product ends
at the original expiry date.
● For trims or consumable items we reserve the right to supply replacement parts only.
The guarantee does not cover:
● Call out charges for damage or defects caused by incorrect installation, frost damage, mildew, limescale, corrosion, lack of
maintenance, improper use, inappropriate cleaning (please refer to our Care and Maintenance Instructions) or where no
fault has been found with the product.
● Compensation for loss of use of the product or consequential loss of any kind.
● Damage or defects caused if the product is repaired or modified by persons not authorised by us or our appointed
representative.
● Wear and tear.
● Accidental or wilful damage.
● Products purchased ex-showroom display.
● Costs of removal of the product following installation and/or reinstallation of any replacement product (or part) including
without limitation, tiling costs.
IMPORTANT! TRAYS MUST BE INSPECTED FOR DEFECTS AND/OR DISTORTION PRIOR TO INSTALLATION. THIS
GUARANTEE DOES NOT COVER THE COSTS OF REMOVAL AND/OR REINSTALLATION WHERE A DEFECT WOULD HAVE
BEEN DISCOVERED BY INSPECTION PRIOR TO INSTALLATION.
1101274-W2-M
What to do if something goes wrong
If your product does not function correctly when you first use it, contact your installer to check that it is installed in accordance
with the instructions in this manual.
If this does not resolve the issue, contact us for help and advice.
Helpdesk Service - Contact our Customer Services Team for product advice, to purchase spare parts or accessories
or to set up service visit. We will need you to have your model name or number and date of purchase.
Mira Showers Website (www.mirashowers.co.uk)
Visit our website to register your guarantee, download user guides, diagnose faults, purchase our full range of
accessories and popular spares, or request a service visit.
Spares and Accessories - We hold the largest stocks of genuine Mira spares and accessories. Contact us for a price
or visit our website to purchase items from our accessory range and popular spares.
To Contact Us: UK
To Contact Us: Eire Only
0844 571 5000
01 531 9337
Fax: 01 242 282595
E-mail: [email protected]
E-mail: Visit www.mirashowers.co.uk/
contactus
Mira Customer Services Dept, Cromwell
Road, Cheltenham, Gloucestershire, GL52
5EP
Mira is a registered trade mark of Kohler Mira Limited.
The company reserves the right to alter product specifications without notice.
©Kohler Mira Limited, November 2013
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
