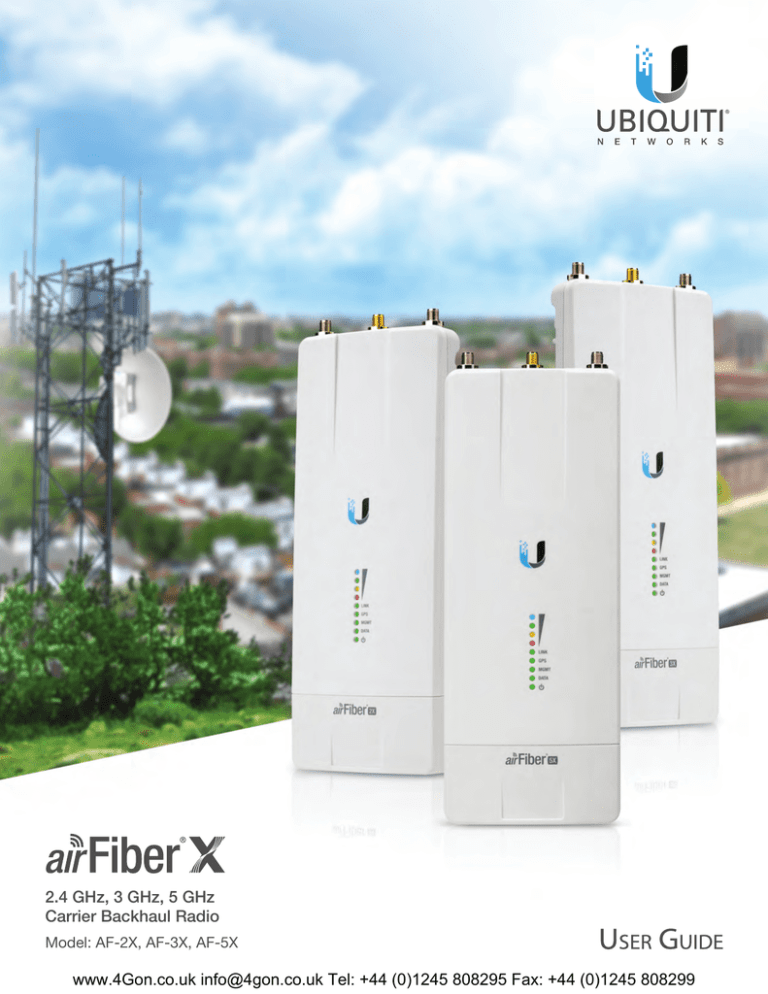

airFiber X User Guide

airFiber X User Guide

2.4 GHz, 3 GHz, 5 GHz

Carrier Backhaul Radio

Model: AF-2X, AF-3X, AF-5X www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

Table of Contents

Chapter 1:

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 airFiber Configuration Interface System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Hardware Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Chapter 2:

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3

Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Connecting Power over Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

airFiber Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installer Compliance Responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Chapter 3:

Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11

Accessing the airFiber Configuration Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Product Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Interface Tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Chapter 4:

Main Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13

Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Chapter 5:

Wireless Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17

Basic Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Frequency Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Chapter 6:

Network Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20

Management Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Chapter 7:

Advanced Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22

Wireless Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

DATA Port Ethernet Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

MGMT Port Ethernet Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Table of Contents

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299 i

Table of Contents airFiber

®

X User Guide

Chapter 8:

Services Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25

Ping Watchdog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

SNMP Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Telnet Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

NTP Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Dynamic DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

System Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Device Discovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Chapter 9:

System Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

29

Firmware Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Date Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

System Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Device Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Configuration Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Chapter 10:

Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

32

Align Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Discovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Ping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Traceroute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

airView . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Appendix A:

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

37

Appendix B:

Listen Before Talk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

40

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Unrestricted Protocol Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Threshold Detection To Determine Occupancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Action Taken When Occupancy is Determined . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Opportunities for Other Transmitters to Operate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Appendix C:

Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

42

Electrical Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Appendix D:

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

43

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

ii Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

Appendix E:

Compliance Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

45

Installer Compliance Responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

airFiber AF-2X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

airFiber AF-3X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

airFiber AF-5X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Frequency Ranges and Power Levels per Country/Region . . . . . . . . . . . . . . . . . . . . . . . .50

RoHS/WEEE Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Appendix F:

Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . .

57

Appendix G:

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

58

Ubiquiti Networks Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Table of Contents

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299 iii

Table of Contents airFiber

®

X User Guide iv Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

Chapter 1: Overview

Introduction

Thank you for purchasing the Ubiquiti Networks® airFiber® X Carrier Backhaul Radio. This User Guide is for use with the following models:

Model Description

AF-2X 2.4 GHz Carrier Backhaul Radio

AF-3X 3 GHz Carrier Backhaul Radio

AF-5X 5 GHz Carrier Backhaul Radio

Operating Frequency*

2400 - 2500 MHz

3300 - 3900 MHz

5150 - 5925 MHz

* Depends on Regulatory Region. Refer to “Specifications”

on page 37 for more information.

This User Guide provides installation instructions, explains how to set up an airFiber link, and shows how to access and use the airFiber Configuration Interface.

Note: Throughout this User Guide, airFiber X radio refers to all models listed above. Unless noted otherwise, illustrations for a specific model are applicable to all airFiber X radio models and accessories.

Package Contents

Hardware Overview

Connects to

External GPS

Antenna

Chain 0:

Connects to

+45° on airFiber Antenna

Chapter 1: Overview

Chain 1:

Connects to

-45° on airFiber Antenna

LED

Panel

airFiber AF-2X,

AF-3X, or AF-5X

GPS Antenna

Mount

External GPS Antenna Metal Strap

LINK

GPS MGMT

DATA

Cable Ties

(Qty. 2) airFiber PoE (24V, 1A) with Mounting Bracket

Power Cord

Model: AF-5X

DATA

MGMT

LINK GPS

Quick Start Guide

TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ is designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements.

airFiber Configuration Interface

System Requirements

• Microsoft Windows 7, Windows 8; Linux; or Mac OS X

• Java Runtime Environment 1.6 (or above)

• Web Browser: Mozilla Firefox, Apple Safari, Google

Chrome, or Microsoft Internet Explorer 8 (or above)

Port Cover

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

1

Chapter 1: Overview

Ports

Management

Port

Reset

Button

Data

Port

Management Port

10/100 Mbps, secured Ethernet port for configuration. In-Band Management is enabled by default in the airFiber Configuration Interface. When

In-Band Management is disabled, the MGMT port is the only port that can monitor, configure, and/or update firmware.

Reset Button

To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is already powered on.

Data Port

Gigabit PoE port for handling all user traffic and powering the device.

LEDs

Signal LEDs

Signal 4

LED will light blue when on.

Signal 3

LED will light green when on.

Signal 2

LED will light yellow when on.

Signal 1

LED will light red when on.

Bootup to airOS

When powering on, the Power, GPS,

LINK, and Signal 1-4 LEDs light on. Once the CPU code takes over, the GPS, LINK, and Signal 1-3 LEDs turn off.

Signal 4 LED remains on to indicate the boot sequence is underway.

Initializing airFiber Software

When the airFiber application begins to boot under airOS, the Signal 4 LED goes from solidly on to a 2.5 Hz flash. This continues until the airFiber X radio is fully booted.

airFiber

®

X User Guide

Signal Level

Once fully booted, the Signal 1-4 LEDs act as a bar graph showing how close the airFiber X radio is to ideal aiming. This is auto-scaled based on the link range, the antenna gains, and the configured TX power of the remote airFiber X radio. Each Signal LED has three possible states: On, Flashing, and Off. All Signal LEDs would be solidly on in an ideal link. If the link has a 1 dB loss, the

Signal 4 LED will flash; a 2 dB loss and the Signal 4 LED will turn off. The full bar graph LED states are shown below.

dB loss

0 -1 -2 -3 -4 -5 -6 -7 -8 -9 -10 -11 -12 -13

1 F 0 0 0 0 0 0 0 0 0 0 0 0

1 1 1 F 0 0 0 0 0 0 0 0 0 0

1 1 1 1 1 F F 0 0 0 0 0

1 1 1 1 1 1 1 1 1 1 F F

0

F

0

0

0 = Off, 1 = On, F = Flashing

Additional LEDs

LED

LINK

GPS

MGMT

DATA

State

Off

Short Flash*

Normal Flash*

Long Flash*

On

Off

Normal Flash*

On

Off

On

Status

RF Off

Syncing

Beaconing

Registering

Operational

No GPS Synchronization

Non-Operational (Weak Signal)

Operational (Strong Signal)

No Ethernet Link

Ethernet Link Established

Random Flashing Ethernet Activity

Off No Ethernet Link

On Ethernet Link Established

Random Flashing Ethernet Activity

Off

On

No Power

Powered On

* Short Flash (1:3 on/off cycle)

Normal Flash (1:1 on/off cycle)

Long Flash (3:1 on/off cycle)

2 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

Chapter 2: Installation

Installation Requirements

The airFiber radio operates only with the antennas listed below.

airFiber Radio

AF-2X

AF-3X

AF-5X airFiber X Antenna RocketDish + Conversion Kit

AF-2G24-S45 n/a n/a AF-3G26-S45

AF-5G23-S45

AF-5G30-S45

AF-5G34-S45

RD-5G30 + AF-5G-OMT-S45

RD-5G34 + AF-5G-OMT-S45

Chapter 2: Installation

Connecting Power over Ethernet

1. Lift the release latch on the bottom of the airFiber X radio and slide the Port Cover off.

See the antenna’s Quick Start Guide for antenna installation instructions.

Other Requirements

• Clear line of sight between airFiber X radios

• Clear view of the sky for proper GPS operation

• Vertical mounting orientation

• Mounting point:

• At least 1 m below the highest point on the structure

• For tower installations, at least 3 m below the top of the tower

• Ground wires – min. 10 AWG (5 mm

2

) and max. length:

1 m. As a safety precaution, ground the airFiber X radio to grounded masts, poles, towers, or grounding bars.

WARNING: Failure to properly ground your

airFiber X radio will void your warranty.

• (Recommended) 2 Outdoor Gigabit PoE surge protectors

Note: For guidelines about grounding and lightning protection, follow your local electrical regulatory codes.

• Outdoor, shielded Category 6 (or above) cabling and shielded RJ-45 connectors are required for all wired

Ethernet connections.

Installation Overview

We recommend to configure your paired airFiber X radios before site installation. The overview below summarizes the installation procedure, and the subsequent sections provide detailed installation information:

• Connect the airFiber PoE Adapter to the DATA port, and connect your computer and the MGMT port.

• Configure the airFiber X radio.

• Install a ground wire and mount the airFiber X radio on an airFiber X antenna.

• At the installation site, install the airFiber X antenna with the mounted airFiber X radio (see the antenna’s Quick

Start Guide for installation instructions).

• Secure the ground wire and mount the GPS antenna.

• Establish and optimize the RF link.

2. Connect an Ethernet cable to the DATA port.

3. Connect the Ethernet cable from the DATA port to the

Ethernet port labeled POE on the airFiber PoE Adapter.

WARNING:

Use only the included airFiber PoE adapter, Model: GP-H240-100G-4. Failure to do so can damage the unit and void the product warranty.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

3

Chapter 2: Installation

4. Connect the Power Cord to the power port on the

airFiber PoE Adapter. Connect the other end of the

Power Cord to a power source.

airFiber

®

X User Guide

4. The login screen will appear. Enter ubnt in the

Username and Password fields. Select your Country and

Language. You must agree to the Terms of Use to use the product. Click Login.

airFiber Configuration

The instructions in this section explain how to access the airFiber Configuration Interface and configure the following settings:

Wireless Mode

Configure one airFiber X radio as the

Master and the other as the Slave.

Frequency Setting

The operating Frequency must be the same on both the Master and the Slave.

1. Connect an Ethernet cable from your computer to the

MGMT port on the airFiber X radio.

Note: U.S. product versions are locked to the U.S.

Country Code to ensure compliance with FCC regulations.

5. The Main tab will appear. Click the Tools drop-down and select Link Calculator. This tool will guide you on how to best minimize bandwidth and power/ interference issues.

6. Enter the requirements of your link, and then click

Calculate. Adjust the values as needed to get the optimal result, and then write down the settings needed for your configuration.

7. Click the Wireless tab.

2. Configure the Ethernet adapter on your computer with a static IP address on the 192.168.1.x subnet.

3. Launch your web browser. Type http://192.168.1.20 in the address field and press enter (PC) or return (Mac).

8. Configure the Basic Wireless Settings: a. For one airFiber X radio, select Master as the

Wireless Mode. For the other airFiber X radio, keep the default, Slave.

b. Enter a name in the Link Name field. This should be the same on both the Master and the Slave.

c. If needed, change the Channel Bandwidth, (Master)

Duty Cycle, Output Power and/or Maximum

Modulation Rate settings.

9. Configure the Frequency Settings. The selected

Frequency must be the same on both airFiber X radios.

4 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

10. Configure the Wireless Security: a. Select the AES Key Type, HEX or ASCII.

b. For the Key field:

-

HEX

Enter 16 bytes (eight, 16-bit HEX values: 0-9,

A-F, or a-f). You can omit zeroes and use colons, similar to the IPv6 format.

Note: The airFiber Configuration Interface supports IPv6 formats excluding dotted quad and “::” (double-colon) notation.

-

ASCII

Enter a combination of alphanumeric characters (0-9, A-Z, or a-z).

11. Click Change and then click Apply.

12. In-Band Management is enabled by default, so each airFiber X radio must have a unique IP Address. (If the airFiber X radios use the same IP Address, you may lose access to the airFiber X radios via the DATA ports.) Click the Network tab.

Chapter 2: Installation

Hardware Installation

Install a Ground Wire

1. Remove the nut from the Ground Bonding Point located on the back of the airFiber X radio.

Ground

Bonding

Point

2. Attach a ground wire (min. 10 AWG or 5 mm

2

) to the lug and replace the nut to secure the wire.

a. For the Management IP Address option:

-

DHCP

Keep the default, DHCP, to use DHCP reservation on your router to assign a unique

IP Address.

-

Static

Change the IP Address, Netmask, and other settings to make them compatible with your network.

b. Click Change and then click Apply.

Repeat the instructions in the airFiber Configuration section on your other airFiber X radio. After you have configured the airFiber X radios, disconnect them and move them to your installation site.

3. At the installation site, secure the other end of the ground wire to a grounded mast, pole, tower, or grounding bar.

WARNING: Failure to properly ground your

airFiber X radio will void your warranty.

Note: The ground wire should be as short as possible and no longer than one meter in length.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

5

Chapter 2: Installation

Mount to an Antenna

The airFiber X radio can be mounted to the antenna(s)

listed in “Installation Requirements” on page 3.

The airFiber X Antenna (AF-5G30-S45) is shown in the following steps:

1. Attach the airFiber X radio to the mounting bracket.

a. Align the mounting tabs on the back of the airFiber X radio with the mounting bracket.

b. Slide the airFiber X radio down to lock it into place.

airFiber

®

X User Guide

3. Attach the External GPS Antenna to the RF connector labeled GPS. Then, place the magnetic External GPS

Antenna on the bracket (this is temporary; you will mount the External GPS Antenna on the GPS Antenna

Mount at the site).

2. Attach the RF cables from the antenna feed to the RF connectors on the airFiber X radio in this combination:

+45° to Chain 0 and -45° to Chain 1.

4. Attach the protective shroud.

a. Align the hash mark on the top of the shroud with the notch on the dish antenna.

b. Rotate the shroud clockwise until it locks into place.

6 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

Mount the External GPS Antenna

Locate a mounting point that has a clear view to the sky, and is above and as far away as possible from the

AirFiber X radio.

1. Attach the GPS Antenna Mount to the pole using the metal strap, or attach it to a wall using the appropriate fasteners (not included).

Chapter 2: Installation

Connecting Power over Ethernet

1. Lift the release latch on the bottom of the airFiber X radio and slide the Port Cover off.

2. Place the External GPS Antenna on the mount.

2. Connect an outdoor, shielded Ethernet cable to the

DATA port.

3. Secure the cable of the External GPS Antenna to the mount with a Cable Tie.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

7

Chapter 2: Installation

3. Connect the other end of the cable from the DATA port to the Ethernet port labeled POE on the airFiber PoE

Adapter.

WARNING:

Use only the included airFiber PoE

Adapter, Model: GP-H240-100G-4. Failure to do so can damage the unit and void the product warranty.

airFiber

®

X User Guide

Mount the PoE Adapter (Optional)

1. Remove the Mounting Bracket from the adapter by sliding the bracket downward.

4. Connect an Ethernet cable from your network to the

Ethernet port labeled LAN on the airFiber PoE Adapter.

2. Place the Mounting Bracket at the desired location and mark the holes for the fasteners. Pre-drill the holes if necessary, then secure the bracket to the wall using two fasteners (not included).

5. Connect the Power Cord to the power port on the

airFiber PoE Adapter. Connect the other end of the

Power Cord to a power source.

3. Attach the airFiber PoE Adapter to the bracket by aligning the four slots and tabs, and then slide the adapter downward.

8 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

Surge Protection

For added protection, install two surge suppressors, such as the Ubiquiti Ethernet Surge Protector, model ETH-SP, at the end of each link. Install the first surge protector within one meter of the airFiber DATA port, and install the second surge protector at the ingress point of the location housing the wired network equipment.

GPS Antenna

Chapter 2: Installation

Establishing a Link

Adjust the positions of the Master and the Slave to establish a link.

Note: The Master must be aimed first at the Slave because the Slave does not transmit any RF signal until it detects transmissions from the Master.

1. Master Visually aim the Master at the Slave. To adjust the Master’s position: a. Loosen the four pole clamp nuts, and rotate the airFiber antenna on the pole to align the azimuth.

AF-5X

Mounted on

AF-5G30-S45

Ground to Pole, Tower, or Grounding Block:

Max. 1 m from AF-5X

ETH-SP

EdgeRouter

ETH-SP airFiber

PoE Adapter

Power Source

Alignment

Tips

• To accurately align the airFiber X radios for best performance, you MUST align only one end of the link at a time.

• You may need to use additional hardware to compensate for issues such as the improper orientation of a mounting pole or significant elevation differences between airFiber X radios.

b. Loosen the six elevation bolts, and use the hex nut on the elevation rod to adjust the elevation.

Note: Do NOT make simultaneous adjustments on the Master and Slave.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

9

Chapter 2: Installation

2. Slave Visually aim the Slave at the Master. To adjust the

Slave’s position: a. Loosen the four pole clamp nuts, and rotate the airFiber antenna on the pole to align the azimuth.

b. Loosen the six elevation bolts, and use the hex nut on the elevation rod to adjust the elevation.

3. Check to see if a link is established. Ensure that the LINK

LED is solidly lit green and the Signal LEDs of the Slave are displaying signal levels.

airFiber

®

X User Guide

Installer Compliance Responsibility

Devices must be professionally installed and it is the professional installer’s responsibility to make sure the device is operated within local country regulatory requirements.

4. Slave Aim the Slave at the Master to achieve the strongest signal level on the Master.

Note:

Refer to “Signal LEDs” on page 2 for

details on the signal values.

Note: Maximum signal strength can best be achieved by iteratively sweeping through both azimuth and elevation.

5. Master Aim the Master at the Slave to achieve the strongest signal level on the Slave.

6. Repeat steps 4 and 5 until you achieve an optimal link, with all four Signal LEDs solidly lit. This ensures the best possible data rate between the airFiber X radios.

7. Lock the alignment on both airFiber antennas by tightening all the nuts and bolts.

8. Observe the Signal LEDs of each airFiber X radio to ensure that the values remain constant while tightening the nuts and bolts. If any LED value changes during the locking process, loosen the nuts and bolts, finalize the alignment of each airFiber antenna again, and retighten the nuts and bolts.

Refer to the following chapters of this User Guide for details on the airFiber Configuration Interface:

“Main Tab” on page 13

“Wireless Tab” on page 17

“Network Tab” on page 20

“Advanced Tab” on page 22

“Services Tab” on page 25

“System Tab” on page 29

“Tools” on page 32

The Output Power, Antenna Gain, Cable Loss, and Frequency fields are provided to the professional installer to assist in meeting regulatory requirements.

10 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide Chapter 3: Navigation

Chapter 3: Navigation

The airFiber Configuration Interface is an advanced operating system capable of powerful wireless and routing features, built upon a simple and intuitive user interface foundation.

The airFiber X radio uses the airFiber Configuration

Interface for easy configuration and management via a web browser.

There are two ways to access the airFiber Configuration

Interface:

Management Port

Enabled by default. Use a direct connection to the Management port for out-of-band management.

In-Band Management

Enabled by default. In-band management is available through the local Data port or the Data port at the other end of the link. You can

disable it on the Network tab. (See “Management

Network Settings” on page 20 for more details.)

Accessing the airFiber Configuration

Interface

Connect to the airFiber Configuration Interface.

1. Make sure that your host machine is connected to the

LAN that is connected to the Management port on the airFiber X radio.

2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet (for example, 192.168.1.100).

3. Launch your web browser. Type http://192.168.1.20 in the address field and press enter (PC) or return (Mac).

4. Upon initial login, the Terms of Use appear on the login screen. Enter ubnt in the Username and Password fields, and select the appropriate choices from the Country and Language drop-down lists. Check the box next to

I agree to these terms of use, and click Login.

Note: U.S. product versions are locked to the U.S.

Country Code to ensure compliance with FCC regulations.

5. The airFiber Configuration Interface will appear, allowing you to customize your settings as needed.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

11

Chapter 3: Navigation

Product Verification

The airFiber Configuration Interface will verify whether a product is genuine or counterfeit.

For a genuine airFiber airFiber X radio, the airFiber

Configuration Interface will display a Genuine Product logo in the lower left corner of the screen.

airFiber

®

X User Guide

Each page also contains network administration and monitoring tools:

“Align Antenna” on page 32

“Discovery” on page 33

“Ping” on page 33

“Traceroute” on page 33

“airView” on page 33

For any product that is not an official Ubiquiti product, the airFiber Configuration Interface will display a counterfeit warning. Please contact Ubiquiti at

[email protected]

regarding this product.

Note: For product models introduced prior to 2012, the airFiber Configuration Interface will NOT display any logo in the lower left corner of the screen.

Interface Tabs

The airFiber Configuration Interface contains six main tabs, each of which provides a web-based management page to configure a specific aspect of the airFiber X radio.

This User Guide covers each tab with a chapter. For details on a specific tab, refer to the appropriate chapter.

Main

The “Main Tab” on page 13 displays device

status, statistics, and network monitoring links.

Wireless

The “Wireless Tab” on page 17 configures

basic wireless settings, including the wireless mode, link name, frequency, output power, speed, and wireless security.

Network

The “Network Tab” on page 20 configures

the management network settings, Internet Protocol (IP) settings, management VLAN, and automatic IP aliasing.

Advanced

The “Advanced Tab” on page 22

provides more precise wireless interface controls, including advanced wireless settings and advanced

Ethernet settings.

Services

The “Services Tab” on page 25 configures

system management services: Ping Watchdog, Simple

Network Management Protocol (SNMP), servers (web,

SSH, telnet), Network Time Protocol (NTP) client,

Dynamic Domain Name System (DDNS) client, system log, and device discovery.

System

The “System Tab” on page 29 controls

system maintenance routines, administrator account management, location management, device customization, firmware update, and configuration backup. You can also change the language of the web management interface.

12 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide Chapter 4: Main Tab

Chapter 4: Main Tab

The Main tab displays a summary of the link status information, current values of the basic configuration settings, network settings and information, and traffic statistics.

Status

Device Name

Displays the customizable name or identifier of the device. The Device Name (also known as host name) is displayed in registration screens and discovery tools.

Operating Mode

Displays the mode of the AirFiber X radio: Slave, Master, or Reset.

RF Link Status

Displays the status of the AirFiber X radio:

RF Off, Syncing, Beaconing, Registering, Enabling, Listening,

Operational, DFS CAC, or RADAR Detected.

Note: Most of the RF Link Statuses map to specific

flash rates of the Link Status LED (See “LEDs” on

page 2 for more details.)

Flash Rate of LED

Off

Status

RF Off

Syncing

DFS countries only:

• DFS CAC

• RADAR Detected

Beaconing

Registering

Operational

Short Flash (1:3 on/off cycle)

Normal Flash (1:1 on/off cycle)

Long Flash (3:1 on/off cycle)

On

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

13

Chapter 4: Main Tab

The following applies to the AF-5X only:

When the AF-5X operates in a DFS country and within a valid DFS band for that country, it performs a Channel

Availability Check (CAC) before operating. The rules vary by country and frequency, but in general:

-

FCC domains

If the AF-5X operates in a DFS band

(5.2 GHz or 5.4 GHz band), the AF‑5X performs a

60-second check on the Master only.

-

ETSI domains

For most frequencies, the AF-5X performs a 60-second check on the Master and Slave; however, if it operates in the 5600‑5650 MHz range, then the AF-5X performs a 10-minute check.

While the AF-5X is performing this check, the RF Link

Status displays DFS CAC, and the RF Link Timeout is displayed.

If radar is detected, the RF Link Status displays RADAR

Detected, and the RF Link Timeout is displayed.

RF Link Timeout

(Available only if the RF Link Status is DFS CAC or RADAR Detected.) During the DFS CAC or

RADAR Detected state, the RF Link Timeout counts down the time remaining before the AirFiber X radio can move to the next RF link state.

Link Name

Displays the name of your link.

Security

AES-128 is enabled at all times.

Version

Displays the airFiber Configuration Interface software version.

Uptime

This is the total time the device has been running since the latest reboot (when the device was powered up) or software upgrade. The time is displayed in days, hours, minutes, and seconds.

Link Uptime

This is the total time the airFiber link has been continuously operational. The time is displayed in days, hours, minutes, and seconds.

Remote MAC

Displays the Management Ethernet MAC address of the remote AirFiber X radio.

Remote IP

Displays the Management Ethernet IP address of the remote airFiber X radio.

Date

Displays the current system date and time. The date and time are displayed in YEAR‑MONTH‑DAY

HOURS:MINUTES:SECONDS format. The system date and time is retrieved from the Internet using NTP (Network

Time Protocol). The NTP Client is enabled by default on the

Services tab. The AirFiber X radio doesn’t have an internal clock, and the date and time may be inaccurate if the

NTP Client is disabled or the device isn’t connected to the

Internet.

Frequency

(Available if split frequencies are not enabled.)

Displays the current frequency. The AirFiber X radio uses the radio frequency specified to transmit and receive data.

TX Frequency

(Available if split frequencies are enabled.)

Displays the frequency that the airFiber X radio uses to transmit data. airFiber

®

X User Guide

RX Frequency

(Available if split frequencies are enabled.)

Displays the frequency that the airFiber X radio uses to receive data.

Channel Width

Size of the channel in MHz.

Frame Length

Displays the currently configured frame length of the radio: 2.0ms, 2.5ms, 4.0ms, or 5ms. Longer frame lengths result in higher throughput for a given configuration, but also result in slightly higher latency.

Duty Cycle

Displays the duty cycle.

Regulatory Domain

Displays the regulatory domain

(FCC/IC, ETSI, or Other), as determined by country selection.

Chain 0/1 (Actual/Ideal)

Displays the actual and ideal power levels (in dBm) of the received signal for each chain.

The actual number indicates the current RX signal strength. The ideal number is the RX signal strength of a perfectly aligned link. These two numbers indicate exactly how many dB out of alignment the system is.

When the link is aimed correctly, the bar graphs are fullscale. If the bar graphs are not full-scale, they indicate that your link is not optimally aimed.

Rem Chain 0/1 (Actual/Ideal)

Displays the actual and ideal power levels (in dBm) of the received signal for each chain of the remote airFiber X radio. The bar graphs will display as full-scale once the link is aimed correctly.

Local Modulation Rate

Displays the modulation rate:

• 8x (256QAM MIMO)

• 6x (64QAM MIMO)

• 4x (16QAM MIMO)

• 2x (QPSK MIMO)

• 1x (½ Rate QPSK xRT

*)

• ¼x (¼ Rate QPSK xRT)

*xtreme Range Technology

If Automatic Rate Adaptation is enabled on the Wireless tab, then Local Modulation Rate displays the current speed in use and depends on the Maximum Modulation Rate specified on the Wireless tab and current link conditions.

Remote Modulation Rate

Displays the modulation rate of the remote airFiber X radio:

• 8x (256QAM MIMO)

• 6x (64QAM MIMO)

• 4x (16QAM MIMO)

• 2x (QPSK MIMO)

• 1x (½ Rate QPSK xRT)

• ¼x (¼ Rate QPSK xRT)

TX Capacity

Displays the potential TX throughput, how much the airFiber X radio can send, after accounting for the modulation and error rates.

14 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

RX Capacity

Displays the potential RX throughput, how much the airFiber X radio can receive, after accounting for the modulation and error rates.

TX Power (EIRP)

Displays the current average transmit output power (in dBm) of the airFiber X radio.

Note: If “(Limited)” is displayed, the transmit output power has been limited to a value less than the selected value, to comply with regulatory region requirements. For a list of maximum output power

values by country and region, refer to “Frequency

Ranges and Power Levels per Country/Region” on

page 50.

Conducted TX Power

Displays the conducted transmit power out of the radio before any antenna gain.

Net Gain

Displays the airFiber X radio’s net antenna gain, which is the antenna gain minus cable loss. Antenna gain (the gain of the antenna being used) and cable loss

(the loss in the cable from the radio to the antenna) are set using the Antenna Gain and Cable Loss fields on the

Wireless tab.

Remote TX Power (EIRP)

Displays the current average transmit output power (in dBm) of the remote airFiber X radio.

Distance

Displays the distance between the airFiber X radios.

GPS Signal Quality

Displays Global Positioning System

(GPS) signal quality as a percentage value on a scale of

0-100%.

Latitude/Longitude

Based on GPS tracking, reports the device’s current latitude and longitude. Clicking the link opens the reported latitude and longitude in a browser using Google Maps ™ (

http://maps.google.com

).

Altitude

Based on GPS tracking, reports the device’s current altitude relative to sea level.

Synchronization

airFiber uses GPS to synchronize the timing of its transmissions. By default, this option is disabled.

Ethernet

MGMT MAC

Displays the MAC address of the

Management port.

MGMT

Displays the speed and duplex of the

Management port.

DATA

Displays the speed and duplex of the Data port.

DATA Cable Length

Displays the Ethernet cable length from radio to remote port. This is displayed only for cables longer than 20 m.

Chapter 4: Main Tab

DATA Pair 0 (Pins 1,2)

If the cable is functioning properly, displays the SNR of the twisted pair; if the cable has a fault, displays the fault (“open” or “short”) and the distance at which the fault has occurred. If the remote port is administratively shut down, this field displays “normal”.

DATA Pair 1 (Pins 3,6)

If the cable is functioning properly, displays the SNR of the twisted pair; if the cable has a fault, displays the fault (“open” or “short”) and the distance at which the fault has occurred. If the remote port is administratively shut down, this field displays “normal”.

DATA Pair 2 (Pins 4,5)

If the cable is functioning properly, displays the SNR of the twisted pair; if the cable has a fault, displays the fault (“open” or “short”) and the distance at which the fault has occurred. If the remote port is administratively shut down, this field displays “normal”.

DATA Pair 3 (Pins 7,8)

If the cable is functioning properly, displays the SNR of the twisted pair; if the cable has a fault, displays the fault (“open” or “short”) and the distance at which the fault has occurred. If the remote port is administratively shut down, this field displays “normal”.

Monitor

There are two monitoring tools accessible via the links on the Main tab. The default is Performance, which is displayed when you first open the Main tab.

Performance

Throughput and Capacity charts display the current and potential data traffic.

Throughput

Throughput displays the current data traffic on the Data port in both graphical and numerical form. The chart scale and throughput dimension (Bps, Kbps, Mbps) change dynamically depending on the mean throughput value.

The statistics are updated automatically.

Capacity

Capacity displays the potential data traffic on the Data port in both graphical and numerical form. The chart scale and throughput dimension (Bps, Kbps, Mbps) change dynamically depending on the mean throughput value.

The statistics are updated automatically.

Refresh

If there is a delay in the automatic update, click

Refresh to manually update the statistics.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

15

Chapter 4: Main Tab

Log

When logging is enabled (see “System Log” on page

27 to enable logging), this option lists all registered

system events. By default, logging is not enabled.

Clear

To delete all entries in the system log, click Clear.

Refresh

To update the log content, click Refresh.

airFiber

®

X User Guide

16 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide Chapter 5: Wireless Tab

Chapter 5: Wireless Tab

The Wireless tab contains options to set up the wireless part of the link. This includes wireless mode, link name, frequencies, output power, speed, and wireless security.

Change

To save or test your changes, click Change.

A new message appears. You have three options:

Apply

To immediately save your changes, click Apply.

Test

To try the changes without saving them, click Test.

To keep the changes, click Apply. If you do not click

Apply within 180 seconds (the countdown is displayed), the airFiber X radio times out and resumes its earlier configuration.

Discard

To cancel your changes, click Discard.

Write down the settings you configure on the Wireless tab.

You will need to enter the same settings on the airFiber X radio at the other end of your PtP link. The exceptions are as follows:

Wireless Mode

Configure one airFiber X radio as the

Master and the other as the Slave.

Basic Wireless Settings

In this section, configure the basic wireless settings, such as wireless mode, link name, country code, frequencies, output power, speed, and gain.

Wireless Mode

By default, the Wireless Mode is Slave. You must configure one airFiber X radio as Master because each PtP link must have one Master.

Link Name

Enter a name for your PtP link. This name must be the same on both Master and Slave radios in order for them to connect.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

17

Chapter 5: Wireless Tab

Country Code

Each country has its own power level and frequency regulations. To ensure the airFiber X radio

operates under the necessary regulatory compliance rules,

you must select the country where your device will be used.

The frequency settings and output power limits will be tuned according to the regulations of the selected

country. For details, refer to this table, “Frequency Ranges

and Power Levels per Country/Region” on page 50.

This radio is restricted to use with a license and to use only in certain EU countries or geographical areas of EU countries.

Change

To select a new country, click Change.

Note: U.S. product versions are locked to the U.S.

Country Code to ensure compliance with FCC regulations.

-

Country

Select the new country.

-

I agree to these terms of use

Check this box; you must agree to the Terms of Use to use the product.

-

Accept

Saves your change.

-

Cancel

Discards your change.

Channel Bandwidth

Select the appropriate channel size:

• AF-2X and AF-3X: 3.5, 5, 7, 10, 14, 20, 28, 30, 40, 50, or 56 MHz

• AF-5X only: 5, 10, 20, 30, 40, or 50 MHz

Note: . The available channel bandwidths depend on the regulatory requirements of the currently selected country or region.

Frame Length

(Available on AF-2X and AF-3X only.) Use this to specify the frame length of the radio: default,

2.0ms, 2.5ms, 4.0ms, or 5ms. The frame length must be the same on both Master and Slave radios. The default value corresponds to 5ms for the 3.5 MHz and 5 MHz bandwidths, or 2.0ms for all other bandwidths.

Note: . The AF-5X uses a frame length of 2.0ms (this value cannot be changed).

Master TX Duty Cycle

Use this to change the duty cycle of the RF link (the Master’s TX percentage). Choose one of the following values: 25%, 33%, 50%, 67%, or 75%. airFiber

®

X User Guide

Output Power (EIRP)

Defines the maximum average transmit output power (in dBm) of the airFiber X radio.

To specify the output power, use the slider or manually enter the output power value. The transmit power level maximum is limited according to country regulations.

Note: The Antenna Gain and Cable Loss should be configured before the Output Power. This is because the range of the Output Power field is affected by the Antenna Gain and Cable Loss values – changing the antenna gain or cable loss adjusts the maximum and minimum values you can select using the

Output Power slider. Since the Output Power already includes the antenna gain and cable loss, it represents EIRP; therefore, the value of Output Power is actually the total power the radio is transmitting over the air. The current transmit power is displayed by the TX Power EIRP setting on the Main tab.

Note: The airFiber X radio may limit the output power to a value less than the value specified by this field, to comply with regulatory region requirements. For a list of maximum output power

values by country and region, refer to “Frequency

Ranges and Power Levels per Country/Region” on

page 50.

Antenna Gain

Enter the gain in dBi of the antenna that is used in your installation. An improper value could cause

DFS false detections when operating on DFS frequencies.

Cable Loss

Enter the cable loss in dB of the cable that is used in your installation. An improper value could cause

DFS false detections when operating on DFS frequencies.

Maximum Modulation Rate or Modulation Rate

Higher modulations support greater throughput but generally require stronger RF signals and a higher Signal-to-Noise

Ratio (SNR). By default, Automatic Rate Adaptation is enabled, and Maximum Modulation Rate is displayed. This allows the airFiber X radio to automatically adjust the modulation rate to changing RF signal conditions. Under certain conditions, you may prefer to lock the Maximum

Modulation Rate to a lower setting to improve link performance.

When Automatic Rate Adaptation is disabled, Modulation

Rate is displayed. Lock the Modulation Rate to the setting of your choice.

Select one of the available modulation rates:

8x (256QAM MIMO)

6x (64QAM MIMO)

4x (16QAM MIMO)

2x (QPSK MIMO)

1x (½ Rate QPSK xRT)

¼x (¼ Rate QPSK xRT)

18 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

Frequency Settings

The Valid Frequencies for your Country Code selection are displayed. Ensure that you use frequencies that comply with the local country regulations.

TDD Split Frequency Mode

This option lets you configure separate frequencies for TX and RX. To configure split frequencies, enable this option and select a different

RX frequency on each side of the link. This feature is useful if both sides of the link do not have a common, clean frequency. It is important for the RX frequency to be clean; if different frequencies are clean on each end of the link, select the clean RX frequency on each end.

AF-2X Split Frequency Settings

Chapter 5: Wireless Tab

Wireless Security

airFiber uses 128-bit, AES (Advanced Encryption Standard) encryption at all times.

Key Type

Specifies the character format.

HEX

By default, this option uses hexadecimal characters. 0-9, A-F, or a-f are valid characters.

ASCII

ASCII uses the standard English alphabet and numeric characters (0-9, A-Z, or a-z).

Key

Select the format of the MAC address.

HEX

Enter 16 bytes (eight, 16-bit HEX values). You can omit zeroes and use colons, similar to the IPv6 format.

The default is:

0000:0000:0000:0000:0000:0000:0000:0000

Note: The airFiber Configuration Interface supports IPv6 formats excluding dotted quad and

“::” (double-colon) notation.

ASCII

Enter a combination of alphanumeric characters.

Using 128-bit SHA1 (Secure Hash Algorithm 1), the airFiber X radio hashes the ASCII key to create a 128-bit key for AES.

AF-3X Split Frequency Settings

AF-5X Split Frequency Settings

Note for AF-5X only: Split frequency mode is not available in DFS bands because the RX frequency must match the TX frequency to allow the receiver to scan for DFS on the TX frequency. In regions where both DFS and non-DFS frequencies are available, enabling split frequencies will disable any

DFS band frequencies. In regions where only DFS frequencies are available, there will be no option to turn on split frequencies.

Frequency

Enter a valid frequency. The current state is displayed.

Note: The Master and Slave should have the same

Frequency setting.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

19

Chapter 6: Network Tab airFiber

®

X User Guide

Chapter 6: Network Tab

The Network tab allows you to configure settings for the management network. There are two ways to access the airFiber Configuration Interface:

Management Port

Enabled by default. Use a direct connection to the Management port for out-of-band management.

In-Band Management

Enabled by default. In-band management is available through the local Data port or the Data port at the other end of the link.

The Management port and in-band management share the default IP address of 192.168.1.20.

Change

To save or test your changes, click Change.

A new message appears. You have three options:

Apply

To immediately save your changes, click Apply.

Test

To try the changes without saving them, click Test.

To keep the changes, click Apply. If you do not click

Apply within 180 seconds (the countdown is displayed), the airFiber X radio times out and resumes its earlier configuration.

Discard

To cancel your changes, click Discard.

Management Network Settings

In-Band Management

Enabled by default. In-band management is available through the local Data port or the Data port at the other end of the link.

Note: If In-Band Management is enabled, ensure that each airFiber X radio in a link has a unique

IP Address. If the airFiber X radios use the same IP

Address, you may lose access via the Data ports.

Management IP Address

The airFiber X radio can use a static IP address or obtain an IP address from its DHCP server.

DHCP

Keep the default, DHCP, to use DHCP reservation on your router to assign a unique IP Address. The local

DHCP server assigns a reserved IP address, gateway IP address, and DNS address to the airFiber X radio.

Note: If you select the DHCP option, ensure that you use DHCP reservation because if you do not know the IP address, then the only way to manage the airFiber X radio is to reset the airFiber X radio to its factory default settings. (Press and hold the Reset button for more than five seconds.)

Its default Management IP Address is reset to

192.168.1.20.

-

DHCP Fallback IP

Specify the IP address the airFiber X radio should use if a DHCP server is not found.

-

DHCP Fallback Netmask

Specify the netmask the airFiber X radio should use if a DHCP server is not found.

Static

Assign static IP settings to the airFiber X radio.

Note: IP settings should be consistent with the address space of the airFiber X radio’s network segment.

20 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide Chapter 6: Network Tab

airView Port

The port number associated with the airView spectrum analyzer tool. The default value is 18888.

For detailed information on the airView tool, refer to

“airView” on page 33.

-

IP Address

Specify the IP address of the airFiber X radio. This IP will be used for device management purposes.

-

Netmask

When the netmask is expanded into its binary form, it provides a mapping to define which portions of the IP address range are used for the network devices and which portions are used for host devices. The netmask defines the address space of the airFiber X radio’s network segment. The 255.255.255.0

(or “/24”) netmask is commonly used on many Class C

IP networks.

-

Gateway IP

Typically, this is the IP address of the host router, which provides the point of connection to the

Internet. This can be a DSL modem, cable modem, or

WISP gateway router. The airFiber X radio directs data packets to the gateway if the destination host is not within the local network.

-

Primary DNS IP

Specify the IP address of the primary

DNS (Domain Name System) server.

-

Secondary DNS IP

Specify the IP address of the secondary DNS server. This entry is optional and used only if the primary DNS server is not responding.

Management VLAN

If enabled, automatically creates a management Virtual Local Area Network (VLAN).

VLAN ID

Enter a unique VLAN ID from 2 to 4094.

Auto IP Aliasing

If enabled, automatically generates an

IP address for the corresponding WLAN/LAN interface.

The generated IP address is a unique Class B IP address from the 169.254.X.Y range (netmask 255.255.0.0), which is intended for use within the same network segment only. The Auto IP always starts with 169.254.X.Y, with X and Y as the last two octets from the MAC address of the airFiber X radio. For example, if the MAC address is

00:15:6D:A3:04:FB, then the generated unique Auto IP will be 169.254.4.251. (The hexadecimal value, FB, converts to the decimal value, 251.)

The Auto IP Aliasing setting can be useful because you can still access and manage devices even if you lose, misconfigure, or forget their IP addresses. Because an

Auto IP address is based on the last two octets of the MAC address, you can determine the IP address of a device if you know its MAC address.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

21

Chapter 7: Advanced Tab airFiber

®

X User Guide

Chapter 7: Advanced Tab

The Advanced tab handles advanced wireless and Ethernet settings. These settings should not be changed unless you understand how the changes will affect the airFiber X radio.

Change

To save or test your changes, click Change.

A new message appears. You have three options:

Apply

To immediately save your changes, click Apply.

Test

To try the changes without saving them, click Test.

To keep the changes, click Apply. If you do not click

Apply within 180 seconds (the countdown is displayed), the airFiber X radio times out and resumes its earlier configuration.

Discard

To cancel your changes, click Discard.

Wireless Settings

GPS Clock Sync

The airFiber uses GPS to synchronize the timing of its transmissions. By default, this option is disabled.

Automatic Power Backoff

This feature allows the radio to automatically adjust the maximum TX power per modulation so that the radio never transmits at a higher power than each modulation rate can decode. The default values in the Max 8x/6x/4x Conducted Power fields are values determined to work at all temperatures and all frequencies supported by the radio.

It may, however, be possible to increase the maximum

TX power for one or more modulations based on your radio’s operating environment. For example, if a radio is running at 6x and trying to switch into 8x operation, you can increase the Max 8x Conducted Power value 1 dB at at time to see if the radio can maintain 8x operation

(Automatic Power Backoff must be enabled to allow the

Max Conducted Power fields to be edited). The same can be done with 6x and 4x up to the maximum conducted power of the radio.

Max 8x/6x/4x Conducted Power

The maximum conducted power for the 8x/6x/4x modulation rates. Each field is editable only if Automatic Power Backoff is enabled.

22 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

DATA Port Ethernet Settings

Chapter 7: Advanced Tab

Use Timeout Duration

This option is designed for use by operators who are using in-band management. Two timers control the Data port’s Ethernet link.

RF Link

Goes down for the first time

Ethernet Link

The Ethernet link goes down and remains down for the number of seconds specified by the Link Off Duration timer.

The Ethernet link will then come back up so that the airFiber X radio can be managed even when the RF link is down.

The Ethernet link remains up as long as time remains on the

Link Off Spacing timer.

When the Link Off

Spacing timer elapses, then the Ethernet link goes down again for the number of seconds specified by the Link

Off Duration timer. (This happens only if the RF link is still down.)

Notes

Even if the RF link goes back up before the

Link Off Duration timer elapses, the Ethernet link remains down.

The Ethernet link’s downtime is long enough to signal to the customer’s routing equipment that the path is lost.

DATA Speed

This is the speed of the Data port.

The default is Auto. The airFiber X radio automatically negotiates transmission parameters, such as speed and duplex, with its counterpart. In this process, the networked devices first share their capabilities and then choose the fastest transmission mode they both support.

To manually specify the maximum transmission link speed and duplex mode, select one of the following options: 100 Mbps‑Full, 100 Mbps‑Half, 10 Mbps‑Full, or

10 Mbps‑Half.

To disable the Ethernet data port, select Disabled.

Note: If Disabled is selected, ensure that the radio is accessible using the Management Ethernet port or over the RF link (with in-band management enabled), or all communication with the radio will be lost.

Full-duplex mode allows communication in both directions simultaneously. Half-duplex mode allows communication in one direction at a time, alternating between transmission and reception.

Flow Control

If enabled, the airFiber X radio generates and responds to Ethernet layer PAUSE frames. The airFiber X radio regulates inbound traffic from the customer’s network to avoid buffer overflows within the airFiber X radio. Flow control has the effect of controlling the inter-packet spacing of packets headed into the airFiber Data interface.

Multicast Filter

If enabled, the filter blocks multicast traffic from overloading the CPU when in-band management is enabled. This allows the airFiber X radio to be managed in-band when the customer’s network is carrying large volumes of multicast traffic, such as IPTV.

The filter does not block multicast traffic going over the radio; it simply blocks it from reaching the airFiber’s management interface CPU.

Track Radio Link

If this option is enabled, the airFiber X radio disconnects the Data port’s Ethernet link when the

RF link is lost (The Management port is never disabled by this option). The Track Radio Link option is useful because it quickly indicates a “link lost” condition to the customer’s routing equipment (such as a direct connection to

OSPF-enabled routers).

Disabled

The Track Radio Link option is disabled by default. The Data port’s Ethernet link will always remain up regardless of the RF link state.

Goes down for the second time

The Ethernet link’s uptime is long enough so the operator has enough time to access the airFiber X radio, make configuration changes, and save those changes.

Sufficient Ethernet link uptime is vital when a

RF link is constantly up and down.

If the Use Timeout Duration option is enabled, the Track

Radio Link option and the following timers are enabled:

-

Link Off Duration

The Link Off Duration timer controls the length of time the Data port’s Ethernet link will be down if the RF link goes down. Enter the number of seconds that the Ethernet link should be offline. For example, if this is set to 10 seconds, then when the RF link goes down, the Ethernet link will go down and remain down for 10 seconds (regardless of the RF link state), and then it will go back up.

-

Link Off Spacing

The Link Off Spacing timer controls the length of time the airFiber X radio will wait before allowing the Data port’s Ethernet link to go down for a second time if the RF link goes down again. Enter the minimum interval (in seconds) between offline events of the Ethernet link, regardless of the RF link status.

The value for Link Off Spacing should be larger than the value for Link Off Duration, and it should be enough time for the operator to access the airFiber X radio, make any configuration changes, and apply those changes.

Note: If the Link Off Spacing timer is set to

0 seconds, then the Ethernet link will only use the

Link Off Duration timer. If the Link Off Duration timer is set to 10 seconds and the RF link goes down, then the Ethernet link will go down for

10 seconds and then go back up regardless of the

RF link state. If the RF link is still down, then the

Ethernet link will not go down again until the RF link goes back up and then down again.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

23

Chapter 7: Advanced Tab

Here are a couple of examples involving the use of the

Use Timeout Duration option.

• Example #1

Link Off Duration

5 seconds

Link Off Spacing

60 seconds

The Data port’s Ethernet link will be initially disconnected when the RF link first goes down. That event will start a 60-second timer. The Ethernet link will remain offline for 5 seconds (regardless of the RF link status) and then come back online. The Ethernet link will remain online (regardless of the RF link state) until the 60-second timer expires.

• Example #2

Link Off Duration

20 seconds

Link Off Spacing

120 seconds

The Data port’s Ethernet link will be initially disconnected when the RF link first goes down. That event will start a 120-second timer. The RF link goes back up after 10 seconds; however, that does not affect the Ethernet link. The Ethernet link will remain offline for 20 seconds and then come back online.

The RF link goes down again after 60 seconds; however, that does not affect the Ethernet link.

The Ethernet link will then remain online until the

120-second timer expires.

Enabled

This option is designed for use by operators who are not using in-band management. The Track

Radio Link option is enabled without timers, so the Data port’s Ethernet link follows the RF link state exactly. If the RF link goes down, then the Ethernet link goes down and remains down until the RF link goes back up.

Minimum TX Capacity

This is the minimum allowable TX capacity before the link is dropped. If the capacity drops below this threshold, the Ethernet link will be dropped.

If set to 0, then capacity will not be used; only the RF link state will be used.

Minimum RX Capacity

This is the minimum allowable RX capacity before the link is dropped. If the capacity drops below this threshold, the Ethernet link will be dropped.

If set to 0, then capacity will not be used; only the RF link state will be used.

Capacity Window

This is the number of continuous seconds that the radio must remain under the minimum

TX or RX capacity before the link is dropped. If set to

0, then as soon as capacity drops below a set limit, the

Ethernet link will be dropped.

airFiber

®

X User Guide

MGMT Port Ethernet Settings

MGMT Speed

This is the speed of the Management port. By default, the option is Auto. The airFiber X radio automatically negotiates transmission parameters, such as speed and duplex, with its counterpart. In this process, the networked devices first share their capabilities and then choose the fastest transmission mode they both support.

To manually specify the maximum transmission link speed and duplex mode, select one of the following options: 100 Mbps‑Full, 100 Mbps‑Half, 10 Mbps‑Full, or 10 Mbps‑Half. If you are running extra long Ethernet cables, a link speed of 10 Mbps could help to achieve better stability.

Full-duplex mode allows communication in both directions simultaneously. Half-duplex mode allows communication in one direction at a time, alternating between transmission and reception.

24 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide Chapter 8: Services Tab

Chapter 8: Services Tab

The Services tab configures system management services:

Ping Watchdog, SNMP Agent, Web Server, SSH Server, Telnet

Server, NTP Client, Dynamic DNS, System Log, and Device

Discovery.

Change

To save or test your changes, click Change.

A new message appears. You have three options:

Apply

To immediately save your changes, click Apply.

Test

To try the changes without saving them, click Test.

To keep the changes, click Apply. If you do not click

Apply within 180 seconds (the countdown is displayed), the airFiber X radio times out and resumes its earlier configuration.

Discard

To cancel your changes, click Discard.

the user-defined constraints, the airFiber X radio will automatically reboot. This option creates a kind of

“fail-proof” mechanism.

Ping Watchdog is dedicated to continuous monitoring of the specific connection to the remote host using the Ping tool. The Ping tool works by sending ICMP echo request packets to the target host and listening for ICMP echo response replies. If the defined number of replies is not received, the tool reboots the airFiber X radio.

Ping Watchdog

Ping Watchdog sets the airFiber X radio to continuously ping a user-defined IP address (it can be the Internet gateway, for example). If it is unable to ping under

Ubiquiti Networks, Inc.

Ping Watchdog

Enables use of Ping Watchdog.

IP Address To Ping

Specify the IP address of the target host to be monitored by Ping Watchdog.

25 www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Chapter 8: Services Tab

Ping Interval

Specify the time interval (in seconds) between the ICMP echo requests that are sent by Ping

Watchdog. The default value is 300 seconds.

Startup Delay

Specify the initial time delay (in seconds) until the first ICMP echo requests are sent by Ping

Watchdog. The default value is 300 seconds.

The Startup Delay value should be at least 60 seconds as the network interface and wireless connection initialization takes a considerable amount of time if the airFiber X radio is rebooted.

Failure Count to Reboot

Specify the number of ICMP echo response replies. If the specified number of ICMP echo response packets is not received continuously,

Ping Watchdog will reboot the airFiber X radio. The default value is 3.

Save Support Info

This generates a support information file.

SNMP Agent

Simple Network Monitor Protocol (SNMP) is an application layer protocol that facilitates the exchange of management information between network devices. Network administrators use SNMP to monitor network-attached devices for issues that warrant attention.

The airFiber X radio contains an SNMP Agent, which does the following:

• Provides an interface for device monitoring using SNMP

• Communicates with SNMP management applications for network provisioning

• Allows network administrators to monitor network performance and troubleshoot network problems airFiber

®

X User Guide

Location

Specify the airFiber X radio’s physical location.

Web Server

The following Web Server parameters can be set:

Secure Connection (HTTPS)

If enabled, the Web Server uses secure HTTPS mode.

Secure Server Port

If secure HTTPS mode is used, specify the TCP/IP port of the Web Server.

Server Port

If HTTP mode is used, specify the TCP/IP port of the Web Server.

Session Timeout

Specifies the maximum timeout before the session expires. Once a session expires, you must log in again using the username and password.

SSH Server

The following SSH Server parameters can be set:

SSH Server

This option enables SSH access to the airFiber X radio.

Server Port

Specify the TCP/IP port of the SSH Server.

Password Authentication

If enabled, you must authenticate using administrator credentials to grant

SSH access to the airFiber X radio; otherwise, an authorized key is required.

Authorized Keys

Click Edit to import a public key file for SSH access to the airFiber X radio instead of using an admin password.

For the purpose of equipment identification, configure the

SNMP Agent with contact and location information:

SNMP Agent

Enables the SNMP Agent.

SNMP Community

Specify the SNMP community string. It is required to authenticate access to

Management Information Base (MIB) objects and functions as an embedded password. The airFiber X radio also supports a read-only community string; authorized management stations have read access to all the objects in the MIB except the community strings, but do not have write access. The airFiber X radio supports SNMP v1. The default SNMP Community is

public.

Contact

Specify the contact who should be notified in case of emergency.

-

Choose File

Click Choose File to locate the new key file. Select the file and click Open.

-

Import

Imports the file for SSH access.

-

Enabled

Enables the specific key. All the added keys are saved in the system configuration file; however,

26 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide only the enabled keys are active on the airFiber X radio.

-

Type

Displays the type of key.

-

Key

Displays the key.

-

Comment

You can enter a brief description of the key.

-

Action

You have the following options:

Add

Adds a public key file.

Edit

Make changes to a public key file. Click Save to save your changes.

Del

Deletes a public key file.

-

Save

Saves your changes.

-

Close

Discards your changes.

Telnet Server

Chapter 8: Services Tab

Dynamic DNS

If enabled, the airFiber X radio allows communications with the DDNS server.

Host Name

Enter the host name of the DDNS server.

Username

Enter the user name of the DDNS account.

Password

Enter the password of the DDNS account.

Show

Check the box to display the password characters.

System Log

The following Telnet Server parameters can be set:

Telnet Server

This option activates Telnet access to the airFiber X radio.

Server Port

Specify the TCP/IP port of the Telnet Server.

NTP Client

Network Time Protocol (NTP) is a protocol for synchronizing the clocks of computer systems over packet-switched, variable-latency data networks. You can use it to set the system time on the airFiber X radio. If the

Log option is enabled, then the system time is reported next to every log entry that registers a system event.

NTP Client

Enables the airFiber X radio to obtain the system time from a time server on the Internet.

NTP Server

Specify the IP address or domain name of the NTP server.

Dynamic DNS

Domain Name System (DNS) translates domain names to IP addresses; Each DNS server on the Internet holds these mappings in its respective DNS database. Dynamic

Domain Name System (DDNS) is a network service that notifies the DNS server in real time of any changes in the airFiber X radio’s IP settings. Even if the airFiber X radio’s IP address changes, you can still access the airFiber X radio through its domain name.

System Log

This option enables the registration routine of system log (syslog) messages. By default it is disabled.

Remote Log

Enables the syslog remote sending function. System log messages are sent to a remote server, which is specified in the Remote Log IP Address and Remote Log Port fields.

-

Remote Log IP Address

The host IP address that receives syslog messages. Properly configure the remote host to receive syslog protocol messages.

-

Remote Log Port

The TCP/IP port that receives syslog messages. 514 is the default port for the commonly used system message logging utilities.

Every logged message contains at least a system time and host name. Usually a specific service name that generates the system event is also specified within the message.

Messages from different services have different contexts and different levels of detail. Usually error, warning, or informational system service messages are reported; however, more detailed debug level messages can also be reported. The more detailed the system messages reported, the greater the volume of log messages generated.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

27

Chapter 8: Services Tab

Device Discovery

Discovery

Enables device discovery, so the airFiber X radio can be discovered by other Ubiquiti devices through the Discovery tool.

CDP

Enables Cisco Discovery Protocol (CDP) communications, so the airFiber X radio can send out CDP packets to share its information.

airFiber

®

X User Guide

28 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide Chapter 9: System Tab

Chapter 9: System Tab

The System tab contains administrative options. This page enables the administrator to reboot the airFiber X radio, reset it to factory defaults, upload new firmware, back up or update the configuration, and configure the administrator account.

Change

To save or test your changes, click Change.

A new message appears. You have three options:

Apply

To immediately save your changes, click Apply.

Test

To try the changes without saving them, click Test.

To keep the changes, click Apply. If you do not click

Apply within 180 seconds (the countdown is displayed), the airFiber X radio times out and resumes its earlier configuration.

Discard

To cancel your changes, click Discard.

Firmware Update

The controls in this section manage firmware maintenance.

Firmware Version

Displays the current firmware version.

Build Number

Displays the build number of the firmware version.

Check for Updates

By default, the firmware automatically checks for updates. To manually check for an update, click

Check Now.

Upload Firmware

Click this button to update the airFiber X radio with new firmware.

The airFiber X radio firmware update is compatible with all configuration settings. The system configuration is preserved while the airFiber X radio is updated with a new firmware version. However, we recommend that you back up your current system configuration before updating the firmware.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

29

Chapter 9: System Tab

This is a three-step procedure:

1. Click Choose File to locate the new firmware file. Select the file and click Open.

2. Click Upload to upload the new firmware to the airFiber X radio.

3. The Uploaded Firmware Version is displayed. Click

Update to confirm.

If the firmware update is in process, you can close the firmware update window, but this does not cancel the firmware update. Please be patient, as the firmware update routine can take three to seven minutes. You cannot access the airFiber X radio until the firmware update routine is completed.

WARNING:

Do not power off, do not reboot, and do not disconnect the airFiber X radio from the power supply during the firmware update process as these actions will damage the airFiber X radio!

Device

The Device Name (host name) is the system-wide device identifier. The SNMP agent reports it to authorized management stations. The Device Name will be used in popular router operating systems, registration screens, and discovery tools.

Device Name

Specifies the host name.

Interface Language

Allows you to select the language displayed in the web management interface. English is the default language.

Date Settings

airFiber

®

X User Guide

System Accounts

You can change the administrator password to protect your device from unauthorized changes. We recommend that you change the default administrator password when initially configuring the device.

Administrator Username

Specifies the name of the administrator.

Key icon

Click this icon to change the administrator password.

Current Password

Enter the current password for the administrator account. It is required to change the

Password or Administrator Username.

New Password

Enter the new password for the administrator account.

Verify New Password

Re-enter the new password for the administrator account.

Note: The password length is 8 characters maximum; passwords exceeding 8 characters will be truncated.

Read-Only Account

Check the box to enable the read-only account, which can only view the Main tab.

Configure the username and password to protect your device from unauthorized changes.

Read-Only Account Name

Specifies the name of the system user.

Key icon

Click this icon to change the read-only password.

-

New Password

Enter the new password for the read-only account.

-

Show

Check the box to display the read-only password characters.

Miscellaneous

Time Zone

Specifies the time zone in relation to

Greenwich Mean Time (GMT).

Startup Date

When enabled, you are able to change the airFiber X radio’s startup date.

Startup Date

Specifies the airFiber X radio’s startup date. Click the Calendar icon or manually enter the date in the following format: 2-digit month/2-digit day/4-digit year. For example, for January 5, 2014, enter

01/05/2014 in the field.

Reset Button

To allow use of the airFiber X radio’s physical reset button, check the box. To prevent an accidental reset to default settings, uncheck the box.

Note: You can reset the airFiber X radio to default settings via the airFiber Configuration Interface. Go to the System tab > Reset to Defaults.

30 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

Location

After the on-board GPS determines the location of the airFiber X radio, its latitude and longitude are displayed.

If the GPS does not have a fix on its location, then

“Searching for Satellites” will be displayed.

Latitude

The latitude of the airFiber X radio’s location is displayed.

Longitude

The longitude of the airFiber X radio’s location is displayed.

Device Maintenance

The controls in this section manage the airFiber X radio maintenance routines: reboot and support information reports.

Chapter 9: System Tab

We recommend that you back up your current system configuration before uploading the new configuration.

Upload

Click this button to upload the new configuration file to the airFiber X radio. Click Apply to confirm.

After the airFiber X radio reboots, the settings of the new configuration are displayed in the Wireless, Network,

Advanced, Services, and System tabs of the airFiber

Configuration Interface.

Reset to Factory Defaults

Resets the airFiber X radio to the factory default settings. This option will reboot the airFiber X radio, and all factory default settings will be restored. We recommend that you back up your current system configuration before resetting the airFiber X radio to its defaults.

Reboot Device

Initiates a full reboot cycle of the airFiber X radio. Reboot is the same as the hardware reboot, which is similar to the power-off and power-on cycle. The system configuration stays the same after the reboot cycle completes. Any changes that have not been applied are lost.

Support Info

This generates a support information file that the Ubiquiti support engineers can use when providing customer support. This file only needs to be generated at their request.

Configuration Management

The controls in this section manage the airFiber X radio configuration routines and the option to reset the airFiber X radio to factory default settings.

The airFiber X radio configuration is stored in a plain text file (.cfg file). You can back up, restore, or update the system configuration file:

Back Up Configuration

Click Download to download the current system configuration file.

Upload Configuration

Click Choose File to locate the new configuration file. Select the file and click Open.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

31

Chapter 10: Tools airFiber

®

X User Guide

Chapter 10: Tools

Each tab of the airFiber Configuration Interface contains network administration and monitoring tools. Click the

Tools drop‑down list at the top right corner of the page.

Align Antenna

Use the Align Antenna tool to point and optimize the antenna in the direction of maximum link signal. The

Antenna Alignment window is designed to refresh every

250 milliseconds.

Chain 0/1 (Actual/Ideal)

Displays the absolute power level (in dBm) of the received signal for each chain.

Note: If “Overload” is displayed to indicate an overload condition, identify and eliminate any sources of strong in‑band interference.

Remote Chain 0/1 (Actual/Ideal)

Displays the absolute power level (in dBm) of the received signal for each chain of the remote airFiber X radio.

Max Signal

Displays the maximum signal strength (in dBm). To adjust the range of the Max Signal meter, use the slider or manually enter the new value. If you reduce the range, the color change will be more sensitive to signal fluctuations, indicating the offset of the maximum indicator value and the scale itself.

32 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

Discovery

The Device Discovery tool searches for all Ubiquiti devices on your network. The Search field automatically filters devices containing specified names or numbers as you enter them.

Chapter 10: Tools

Packet Count

Enter the number of packets to send for the ping test.

Packet Size

Specify the size of the packet.

Start

Click this button to start the test.

Packet loss statistics and latency time evaluation are displayed after the test is completed.

Traceroute

The Traceroute tool traces the hops from the airFiber X radio to a specified outgoing IP address. Use this tool to find the route taken by ICMP packets across the network to the destination host.

It reports the MAC Address, Device Name, Mode, SSID,

Product type, Firmware version, and IP Address for each

Ubiquiti device. To access a device configuration through its web management interface, click the device’s IP address.

To refresh the window, click Scan.

Ping

You can ping other devices on the network directly from the airFiber X radio. The Ping tool uses ICMP packets to check the preliminary link quality and packet latency estimation between two network devices.

Destination Host

Enter the IP address of the destination host.

Resolve IP Addresses

Select this option to resolve the IP addresses symbolically rather than numerically.

Start

Click this button to start the test.

Responses are displayed after the test is completed.

airView

Use the airView Spectrum Analyzer to analyze the noise environment of the radio spectrum and intelligently select the optimal frequency to install a PtP airFiber link.

There are two system requirements for the airView

Spectrum Analyzer:

• Your system is connected to the device via Ethernet.

Launching airView will terminate all wireless connections on the device.

• Java Runtime Environment 1.6 (or above) is required on your client machine to use airView.

On first use, the following window appears.

Network Ping

Select Destination IP

You have two options:

• Select a remote system IP from the drop‑down list, which is generated automatically.

• Select specify manually and enter the IP address in the field displayed below the option.

Do NOT warn me about this in the future

Check the box to bypass this window in future launches of the airView Spectrum Analyzer.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

33

Chapter 10: Tools

Launch airView

Click Launch airView to download the

Java Network Launch Protocol (jnlp) file and complete the launch of airView.

View Menu

airFiber

®

X User Guide

Main View

Device

Displays the device name, MAC (Media Access

Control) address, and IP address of the device running airView.

Total RF Frames

Displays the total number of Radio

Frequency (RF) frames gathered since the start of the airView session or since the Reset All Data button was last clicked.

FPS

Displays the total number of frames per second (FPS) gathered since the start of the airView session or since the Reset All Data button was last clicked. The wider the interval amplitude, the fewer the FPS will be gathered.

Reset All Data

Click to reset all gathered data. Use this option to analyze the spectrum for another location or address.

File Menu

Click Exit to end the airView session.

Enable Chart Panel 1 (top)

Displays the Waterfall or

Channel Usage chart in Chart Panel 1, depending on which option you have selected in Preferences. This time‑based graph shows the aggregate energy collected or channel usage for each frequency since the start of the airView session.

Enable Chart Panel 2 (middle)

Displays the Waveform chart in Chart Panel 2. This time‑based graph shows the RF signature of the noise environment since the start of the airView session. The energy color designates its amplitude.

Cooler colors represent lower energy levels (with blue representing the lowest levels) in that frequency bin, and warmer colors (yellow, orange, or red) represent higher energy levels in that frequency bin.

Enable Chart Panel 3 (bottom)

Displays the Real‑time chart (traditional spectrum analyzer) in Chart Panel 3.

Energy (in dBm) is shown in real time as a function of frequency.

Note: Energy is the power ratio in decibels (dB) of the measured power referenced to one milliwatt (mW).

Clear All Markers

Resets all previously assigned markers. Markers are assigned by clicking a point, which corresponds with a frequency on the Real‑time chart.

Preferences

Changes airView settings, such as enabling or disabling charts and traces, or specifying the frequency interval.

Preferences

Select View > Preferences to display the Preferences -

airView Spectrum Analyzer window.

34 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

Charts

Chapter 10: Tools

Enable Waveform chart (middle)

Check the box to enable the middle chart. This time‑based graph shows the RF signature of the noise environment since the start of the airView session. The energy color designates its amplitude. Cooler colors represent lower energy levels (with blue representing the lowest levels) in that frequency bin, and warmer colors (yellow, orange, or red) represent higher energy levels in that frequency bin.

The spectral view over time will display the steady‑state RF energy signature of a given environment.

Enable Real-time chart (bottom)

Check the box to enable the bottom chart. This graph displays a traditional spectrum analyzer in which energy (in dBm) is shown in real time as a function of frequency. There are three traces in this view:

Current

(Yellow) Shows the real‑time energy seen by the device as a function of frequency.

Average

(Green) Shows the running average energy across frequency.

Maximum

(Blue) Shows updates and maximum power levels across frequency.

Real-Time Traces

Enable top chart

Check the box to enable the top chart.

Select the desired chart to display in the top chart panel on the main view. There are two options:

Waterfall

This time‑based graph shows the aggregate energy collected for each frequency since the start of the airView session. The energy color designates its amplitude. Cooler colors represent lower energy levels (with blue representing the lowest levels) in that frequency bin, and warmer colors (yellow, orange, or red) represent higher energy levels in that frequency bin.

The Waterfall View’s legend (top‑right corner) provides a numerical guide associating the various colors to power levels (in dBm). The low end of that legend (left) is always adjusted to the calculated noise floor, and the high end (right) is set to the highest detected power level since the start of the airView session.

Channel Usage

For each channel, a bar displays a percentage showing the relative “crowdedness” of that specific channel. To calculate this percentage, the airView Spectrum Analyzer analyzes both the popularity and strength of RF energy in that channel since the start of an airView session.

Note: airFiber X radio channels are not related to Wi‑Fi channels which are determined by IEEE standards. airFiber X radio channels are numbered consecutively starting with 0 and are 28 MHz in width.

The following settings apply only to the Real-time chart:

Current Real-time Trace

Check the Enable box to enable the real‑time trace. When enabled, the yellow outline on the Real-time chart represents the real‑time power level of each frequency. The refresh speed depends on the FPS.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

35

Chapter 10: Tools

Averages Trace

Check the Enable box to enable the averages trace. When enabled, the averages trace is represented by the green area on the Real-time chart, which displays the average received power level data since the start of the airView session. To enable a shaded green area, check the Shaded Area box. To display only a green outline without the shaded area, uncheck the

Shaded Area box.

Maximum Power Levels Trace

Check the Enable box to enable the maximum power trace. When enabled, the maximum power trace is represented by the blue area on the Real-time chart, which displays the maximum received power level data since the start of the airView session. To enable a shaded blue area, check the Shaded Area box.

To display only a blue outline without the shaded area, uncheck the Shaded Area box.

Frequency Range

Select the amplitude of the frequency interval to be scanned from the Frequency

Range drop‑down list. Available frequencies are device‑ dependent. There are pre‑defined ranges for the most popular bands. You can enter a custom range; select

Custom Range from the Frequency Range drop‑down list and enter the desired values in the Start and End fields.

airFiber

®

X User Guide

36 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Dimensions

Weight

RF Connectors

GPS Antenna

Max. Conducted TX Power

Power Supply

Power Method

Mounting

Certifications

Operating Temperature

Networking Interface

Data Port

Management Port

System

Maximum Throughput

Encryption

OS

Wireless Modes

Radio

Operating Frequency

Frequency Accuracy

Channel Bandwidth airFiber ® X User Guide

Appendix A: Specifications

Appendix A: Specifications airFiber AF‑2X

224 x 82 x 48 mm (8.82 x 3.23 x 1.89")

0.35 kg (0.77 lb)

(2) RP‑SMA Weatherproof (CH0, CH1)

(1) SMA Weatherproof (GPS)

External, Magnetic Base

29 dBm

(Depends on Regulatory Region)

24V, 1A PoE Gigabit Adapter (Included)

Passive Power over Ethernet

Rocket Mount Compatible

GPS Pole Mount (Included)

FCC Part 15.247

CE EN 300328 v1.8.1

‑40 to 55° C (‑40 to 131° F)

(1) 10/100/1000 Ethernet Port

(1) 10/100 Ethernet Port

500 Mbps

128‑bit AES airOS F

Master/Slave

2400‑2500 MHz

(Depends on Regulatory Region)

± 2.5 ppm without GPS Synchronization

± 0.2 ppm with GPS Synchronization

3.5 MHz, 5 MHz, 7.0 MHz, 10 MHz, 14 MHz, 20 MHz, 28 MHz, 30 MHz, 40 MHz, 50 MHz, and 56 MHz Selectable

Programmable Uplink and Downlink Duty Cycles

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

37

Appendix A: Specifications

Dimensions

Weight

RF Connectors

GPS Antenna

Max. Conducted TX Power

Power Supply

Power Method

Mounting

Certifications

Operating Temperature

Networking Interface

Data Port

Management Port

System

Maximum Throughput

Encryption

OS

Wireless Modes

Radio

Operating Frequency

Frequency Accuracy

Channel Bandwidth airFiber

®

X User Guide airFiber AF‑3X

224 x 82 x 48 mm (8.82 x 3.23 x 1.89")

0.35 kg (0.77 lb)

(2) RP‑SMA Weatherproof (CH0, CH1)

(1) SMA Weatherproof (GPS)

External, Magnetic Base

29 dBm

(Depends on Regulatory Region)

24V, 1A PoE Gigabit Adapter (Included)

Passive Power over Ethernet

Rocket Mount Compatible

GPS Pole Mount (Included)

FCC Part 90 Z

CE EN 302 217‑2‑2

‑40 to 55° C (‑40 to 131° F)

(1) 10/100/1000 Ethernet Port

(1) 10/100 Ethernet Port

500 Mbps

128‑bit AES airOS F

Master/Slave

3300‑3900 MHz

(Depends on Regulatory Region)

± 2.5 ppm without GPS Synchronization

± 0.2 ppm with GPS Synchronization

3.5 MHz, 5 MHz, 7.0 MHz, 10 MHz, 14 MHz, 20 MHz, 28 MHz, 30 MHz, 40 MHz, 50 MHz, and 56 MHz Selectable

Programmable Uplink and Downlink Duty Cycles

38 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

Dimensions

Weight

RF Connectors

GPS Antenna

Max. Conducted TX Power

Power Supply

Power Method

Mounting

Certifications

Operating Temperature

Networking Interface

Data Port

Management Port

System

Maximum Throughput

Encryption

OS

Wireless Modes

Radio

Operating Frequency

Frequency Accuracy

Channel Bandwidth

Appendix A: Specifications airFiber AF‑5X

224 x 82 x 48 mm (8.82 x 3.23 x 1.89")

0.35 kg (0.77 lb)

(2) RP‑SMA Weatherproof (CH0, CH1)

(1) SMA Weatherproof (GPS)

External, Magnetic Base

26 dBm

(Depends on Regulatory Region)

24V, 1A PoE Gigabit Adapter (Included)

Passive Power over Ethernet

Rocket Mount Compatible

GPS Pole Mount (Included)

FCC Part 15.407

CE EN 302502 v1.2.1, EN 301 893 v1.7.1

‑40 to 55° C (‑40 to 131° F)

(1) 10/100/1000 Ethernet Port

(1) 10/100 Ethernet Port

500 Mbps

128‑bit AES airOS F

Master/Slave

5150‑5950 MHz

(Depends on Regulatory Region)

± 2.5 ppm without GPS Synchronization

± 0.2 ppm with GPS Synchronization

10 MHz, 20 MHz, 30 MHz, 40 MHz, 50 MHz Selectable

Programmable Uplink and Downlink Duty Cycles

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

39

Appendix B: Listen Before Talk airFiber

®

X User Guide

Appendix B: Listen Before Talk

40

Note: This appendix applies to the airFiber AF-3X radio only.

Introduction

Listen Before Talk (LBT) is a requirement for the 3.6 GHz band in North America and Canada.

Because exclusive licenses for the 3650-3700 MHz band are not granted within the United States, operators must take steps to minimize potential interference in this band.

LBT refers to a contention-based protocol (CBP) that requires a device to check if the transmission channel is in use (listen) before it can initiate a transmission (talk). FCC standards that relate to LBT include the following:

• FCC Part 90, Subpart Z requires 3.6 GHz systems to implement a contention-based protocol to provide

LBT capability. This same requirement has also been adopted by Industry Canada (IC).

• FCC Part 90, Subpart Z defines two categories of contention-based protocols, restricted and unrestricted:

-

Restricted contention-based protocol

This is a protocol that can detect interference from products that use a similar contention technology. Systems using a restricted contention-based protocol operate in the lower 25 MHz of the frequency band (3650-

3675 MHz).

-

Unrestricted contention-based protocol

This is a protocol that can detect interference from products that use a dissimilar contention technology. Systems using an unrestricted contention-based protocol use the full 50 MHz (3650-3700 MHz) of the frequency band.

Unrestricted Protocol Description

The AF-3X Master/Slave system uses dedicated logic for the LBT protocol, which is embedded into a TDD frame structure. Energy detection is done at the beginning of the TX defined by the frame structure of the air interface, at intervals of 2.0, 2.5, 4.0, or 5.0 ms for compatibility between various other Part 90Z radio devices.

Threshold Detection To Determine

Occupancy

The AF-3X averages the energy detected over a fixed listen time and compares it to a preconfigured threshold value.

This threshold is configured for values that are within the linear portion of the radio’s Receive Signal Strength

Indicator (RSSI) dynamic range.

The energy detection threshold is proportional to the transmitter’s maximum transmit power. For example, if the transmitter’s EIRP is 23 dBm, then the detection threshold at the receiver’s input (assuming antenna gain of 0 dBi) is

-73 dBm/MHz.

The detection threshold is adjusted as follows: where:

DT = -73 dBm/MHz + 10log

10

(B) + 23 – P

T

+ A

DT = Detection Threshold in dBm

B = Monitored bandwidth in MHz

P

T

= Maximum transmit power in dBm EIRP

A = Receive antenna gain in dBi

The receive antenna gain A is set equal to the external antenna gain. The following are set by the operator during the configuration of the AF-3X radio:

• maximum desired EIRP power P

T

• external antenna gain A

• channel bandwidth B

The AF-3X ensures that the sum of the actual conducted power and the external antenna gain used to calculate P

T does not exceed the regulatory EIRP limit.

The Master/Slave device makes an average measurement during its Tx and samples the channel every frame

(typically 2.0 ms) to accumulate a co-channel signal measurement. A typical accumulation period is 5 µs.

The bandwidth used for all channel occupancy measurements is the same bandwidth used for system operation and is configurable for values that range from

3.5 MHz to 40 MHz.

The detection threshold is configured to scale automatically based on the in-use modulation level that the system negotiates. The threshold level is automatically set by the radio to meet regulatory requirements. All threshold levels are normalized to a 0 dBi reference level.

The detection system uses the same hardware as the actual radio lower-level software code and is therefore operational over the same power range.

The AF-3X point-to-point system employs a proprietary media access layer (MAC) that utilizes a TDD scheduled transmission which is synchronized. Both the Master and Slave employ a threshold detection mechanism to monitor for other systems running within a selected channel.

Action Taken When Occupancy is

Determined

Upon detection of occupancy, the Master will cease transmission. It will continue to monitor the channel to see if at any point that it becomes available.

Hidden-node problems are avoided by the AF-3X system’s proprietary media access control (MAC) layer that utilizes a TDD scheduled transmission (a synchronized framed transmission). The Slave device cannot transmit until it is allocated bandwidth from the Master device. If the

Master device detects co-channel signals, the uplink for the scheduled slot allocation is not granted to the Slave, preventing the Slave from transmitting. Since permission to transmit is granted by the Master, there is no hidden node problem like that experienced by Wi-Fi systems which employ a contention-based protocol.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

Opportunities for Other Transmitters to Operate

No differences are performed between start-up mode and operational mode. The Master/Slave device goes into an energy scanning mode where it is allowed to do one full cycle of energy detection before it is allowed to transmit. The scan is a mode where the average energy is accumulated to compare against the programmed detection threshold. If the energy detected is less than the detection threshold, the Master/Slave device is allowed to make a transmission.

In normal operational mode the system does not allow any transmission once the threshold has been detected.

Once the energy is no longer present will the system begin to transmit again.

The Master and Slave uses the energy detected prior to each transmit frame to control the muting of the transmit function.

At any load level (no load, typical, or overload), the system transmits data based on the configuration for the uplink/downlink ratio The same amount of bandwidth is reserved for channel detection, so performance remains unaffected.

If there are two AF-3X systems on a co-channel, they would share the spectrum as follows:

• Since the system is a synchronized frame-based system, both systems would operate effectively with each other because each system can be configured to transmit and receive at the same point in time. The system uses a

GPS synchronization to time-align the start-of-frame for all systems deployed.

• If the users configure the number of uplink and downlink slots and the duty cycle (uplink/downlink ratio) in an identical manner and each system uses the same set of uncommitted uplink slots for the detection sampling interval, then the two systems will co-exist with no knowledge of the others presence.

• Each system listens prior to transmit and if it detects activity yields to the other system.

• The system will shut down when the accumulated energy is above the detection threshold and will continue to transmit if it is below the detection threshold. When the co-channel system is clear of the channel then the target system will go back into regular operation. Regular operation will consist of a constant averaging of the energy detected in the uplink slots.

Appendix B: Listen Before Talk

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

41

Appendix C: Safety Notices

Appendix C: Safety Notices

1. Read, follow, and keep these instructions.

2. Heed all warnings.

3. Only use attachments/accessories specified by the manufacturer.

WARNING:

Do not use this product in location that can be submerged by water.

WARNING:

Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.

Electrical Safety Information

1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.

2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician.

3. This equipment is provided with a detachable power cord which has an integral safety ground wire intended for connection to a grounded safety outlet.

a. Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire. b. The equipment requires the use of the ground wire as a part of the safety certification, modification or misuse can provide a shock hazard that can result in serious injury or death.

c. Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equipment.

d. Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate short-circuit backup protection.

e. Protective bonding must be installed in accordance with local national wiring rules and regulations.

airFiber

®

X User Guide

42 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

Appendix D: Warranty

Limited Warranty

UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) warrants that the product(s) furnished hereunder (the

“Product(s)”) shall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and exclusive obligation and liability under the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion, to repair or replace any Product that fails to conform to the above warranty during the above warranty period. The expense of removal and reinstallation of any Product is not included in this warranty. The warranty period of any repaired or replaced Product shall not extend beyond its original term.

Warranty Conditions

The above warranty does not apply if the Product:

(I) has been modified and/or altered, or an addition made thereto, except by Ubiquiti Networks, or

Ubiquiti Networks’ authorized representatives, or as approved by Ubiquiti Networks in writing;

(II) has been painted, rebranded or physically modified in any way;

(III) has been damaged due to errors or defects in cabling;

(IV) has been subjected to misuse, abuse, negligence, abnormal physical, electromagnetic or electrical stress, including lightning strikes, or accident;

(V) has been damaged or impaired as a result of using third party firmware;

(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or

(VII) has not been received by Ubiquiti within 30 days of issuance of the RMA.

In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation; all Ethernet cabling runs use CAT5 (or above), and for outdoor installations, shielded Ethernet cabling is used, and for indoor installations, indoor cabling requirements are followed.

WARNING: Failure to properly ground your

airFiber units will void your warranty. (Please

follow the instructions on “Install a Ground Wire”

on page 5 for installation of the ground wires.)

Appendix D: Warranty

Returns

No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI

NETWORKS’ facility freight prepaid in accordance with the

RMA process of UBIQUITI NETWORKS. Products returned without an RMA number will not be processed and will be returned freight collect or subject to disposal. Information on the RMA process and obtaining an RMA number can be found at:

www.ubnt.com/support/warranty

.

Disclaimer

EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED

HEREIN, UBIQUITI NETWORKS, ITS AFFILIATES, AND ITS

AND THEIR THIRD PARTY DATA, SERVICE, SOFTWARE AND

HARDWARE PROVIDERS HEREBY DISCLAIM AND MAKE

NO OTHER REPRESENTATION OR WARRANTY OF ANY

KIND, EXPRESS, IMPLIED OR STATUTORY, INCLUDING,

BUT NOT LIMITED TO, REPRESENTATIONS, GUARANTEES,

OR WARRANTIES OF MERCHANTABILITY, ACCURACY,

QUALITY OF SERVICE OR RESULTS, AVAILABILITY,

SATISFACTORY QUALITY, LACK OF VIRUSES, QUIET

ENJOYMENT, FITNESS FOR A PARTICULAR PURPOSE AND

NON-INFRINGEMENT AND ANY WARRANTIES ARISING

FROM ANY COURSE OF DEALING, USAGE OR TRADE

PRACTICE IN CONNECTION WITH SUCH PRODUCTS

AND SERVICES. BUYER ACKNOWLEDGES THAT NEITHER

UBIQUITI NETWORKS NOR ITS THIRD PARTY PROVIDERS

CONTROL BUYER’S EQUIPMENT OR THE TRANSFER OF

DATA OVER COMMUNICATIONS FACILITIES, INCLUDING

THE INTERNET, AND THAT THE PRODUCTS AND SERVICES

MAY BE SUBJECT TO LIMITATIONS, INTERRUPTIONS,

DELAYS, CANCELLATIONS AND OTHER PROBLEMS

INHERENT IN THE USE OF COMMUNICATIONS FACILITIES.

UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR

THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY

INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY

FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET

LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE

FOREGOING. In addition, UBIQUITI NETWORKS does not warrant that the operation of the Products will be errorfree or that operation will be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible for damages or claims of any nature or description relating to system performance, including coverage, buyer’s selection of products (including the Products) for buyer’s application and/or failure of products (including the Products) to meet government or regulatory requirements.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

43

Appendix D: Warranty

Limitation of Liability

EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO

EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR

SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL,

CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST

PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING

OUT OF THE USE, INABILITY TO USE, OR THE RESULTS OF

USE OF THE PRODUCT, WHETHER BASED IN WARRANTY,

CONTRACT, TORT OR OTHER LEGAL THEORY, AND

WHETHER OR NOT ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES.

Note

Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you. EXCEPT TO THE

EXTENT ALLOWED BY LOCAL LAW, THESE WARRANTY

TERMS DO NOT EXCLUDE, RESTRICT OR MODIFY, AND

ARE IN ADDITION TO, THE MANDATORY STATUTORY

RIGHTS APPLICABLE TO THE LICENSE OF ANY SOFTWARE

(EMBEDDED IN THE PRODUCT) TO YOU. The United

Nations Convention on Contracts for the International Sale of Goods shall not apply to any transactions regarding the sale of the Products.

airFiber

®

X User Guide

44 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

Appendix E: Compliance

Information

Installer Compliance Responsibility

Devices must be professionally installed and it is the professional installer’s responsibility to make sure the device is operated within local country regulatory requirements.

airFiber AF-2X

FCC

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions.

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This radio transmitter (FCC: SWX-AF2X) has been approved by FCC to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

• Dish antenna, gain: 6 dBi

• Dish antenna, gain: 24 dBi

Appendix E: Compliance Information

Industry Canada

CAN ICES-3(B)/NMB-3(B)

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.

This device complies with Industry Canada licence-exempt

RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that may cause undesired operation of the device.

This radio transmitter (IC: 6545A-AF2X) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

• Dish antenna, gain: 6 dBi

• Dish antenna, gain: 24 dBi

CAN ICES-3(B)/NMB-3(B)

Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne et son gain doivent être choisies de façon que la puissance isotrope rayonnée équivalente

(PIRE) ne dépasse pas ce qui est nécessaire pour une communication réussie.

Cet appareil est conforme à la norme RSS Industrie Canada exempts de licence norme(s). Son fonctionnement est soumis aux deux conditions suivantes:

1. Cet appareil ne peut pas provoquer d’interférences et

2. Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du dispositif.

Cet émetteur radio (IC: 6545A-AF2X) a été approuvée par

Industrie Canada pour l’exploitation avec l’antenne types

énumérés ci-dessous avec le gain maximal admissible et requis l’impédance de l’antenne pour chaque type d’antenne indiqué. Types d’antenne non inclus dans cette liste, ayant un gain supérieur au gain maximal indiqué pour ce type, sont strictement interdits pour une utilisation avec cet appareil. Immédiatement suite à la remarque, le fabricant doit fournir une liste de tous les types d’antenne approuvé pour une utilisation avec l’émetteur, ce qui indique le gain maximal d’antenne permis (en dBi) et requis d’impédance pour chacun.

• Antenne parabolique, gain: 6 dBi

• Antenne parabolique, gain: 24 dBi

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

45

Appendix E: Compliance Information

RF Exposure Warning

The antennas used for this transmitter must be installed to provide a separation distance of at least 126 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter.

Les antennes utilisées pour ce transmetteur doivent être installé en considérant une distance de séparation de toute personnes d’au moins 126 cm et ne doivent pas être localisé ou utilisé en conflit avec tout autre antenne ou transmetteur.

Australia and New Zealand

Warning: This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

CE Marking

CE marking on this product represents the product is in compliance with all directives that are applicable to it.

airFiber

®

X User Guide

airFiber AF-3X

FCC

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions.

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This radio transmitter (FCC: SWX-AF3X) has been approved by FCC to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

• Dish antenna, gain: 12 dBi

• Dish antenna, gain: 26 dBi

• Dish antenna, gain: 29 dBi

46 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

Industry Canada

CAN ICES-3(B)/NMB-3(B)

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.

This device complies with Industry Canada licence-exempt

RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that may cause undesired operation of the device.

This radio transmitter (IC: 6545A-AF3X) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

• Dish antenna, gain: 12 dBi

• Dish antenna, gain: 26 dBi

• Dish antenna, gain: 29 dBi

CAN ICES-3(B)/NMB-3(B)

Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne et son gain doivent être choisies de façon que la puissance isotrope rayonnée équivalente

(PIRE) ne dépasse pas ce qui est nécessaire pour une communication réussie.

Cet appareil est conforme à la norme RSS Industrie Canada exempts de licence norme(s). Son fonctionnement est soumis aux deux conditions suivantes:

1. Cet appareil ne peut pas provoquer d’interférences et

2. Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du dispositif.

Cet émetteur radio (IC: 6545A-AF3X) a été approuvée par

Industrie Canada pour l’exploitation avec l’antenne types

énumérés ci-dessous avec le gain maximal admissible et requis l’impédance de l’antenne pour chaque type d’antenne indiqué. Types d’antenne non inclus dans cette liste, ayant un gain supérieur au gain maximal indiqué pour ce type, sont strictement interdits pour une utilisation avec cet appareil. Immédiatement suite à la remarque, le fabricant doit fournir une liste de tous les types d’antenne approuvé pour une utilisation avec l’émetteur, ce qui indique le gain maximal d’antenne permis (en dBi) et requis d’impédance pour chacun.

• Antenne parabolique, gain: 12 dBi

• Antenne parabolique, gain: 26 dBi

• Antenne parabolique, gain: 29 dBi

Appendix E: Compliance Information

RF Exposure Warning

The antennas used for this transmitter must be installed to provide a separation distance of at least 126 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter.

Les antennes utilisées pour ce transmetteur doivent être installé en considérant une distance de séparation de toute personnes d’au moins 126 cm et ne doivent pas être localisé ou utilisé en conflit avec tout autre antenne ou transmetteur.

Australia and New Zealand

Warning: This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

CE Marking

CE marking on this product represents the product is in compliance with all directives that are applicable to it.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

47

Appendix E: Compliance Information

airFiber AF-5X

FCC

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions.

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This radio transmitter (FCC: SWX-AF5X) has been approved by FCC to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

• Dish antenna, gain: 23 dBi

• Dish antenna, gain: 30 dBi

• Dish antenna, gain: 34 dBi

DFS Regulatory Regions

Operation in DFS regulatory regions requires an antenna with minimum gain of 23 dBi.

airFiber

®

X User Guide

Industry Canada

CAN ICES-3(B)/NMB-3(B)

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.

This device complies with Industry Canada licence-exempt

RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that may cause undesired operation of the device.

This radio transmitter (IC: 6545A-AF5X) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

• Dish antenna, gain: 23 dBi

• Dish antenna, gain: 30 dBi

• Dish antenna, gain: 34 dBi

CAN ICES-3(B)/NMB-3(B)

Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne et son gain doivent être choisies de façon que la puissance isotrope rayonnée équivalente

(PIRE) ne dépasse pas ce qui est nécessaire pour une communication réussie.

Cet appareil est conforme à la norme RSS Industrie Canada exempts de licence norme(s). Son fonctionnement est soumis aux deux conditions suivantes:

1. Cet appareil ne peut pas provoquer d’interférences et

2. Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du dispositif.

Cet émetteur radio (IC: 6545A-AF5X) a été approuvée par

Industrie Canada pour l’exploitation avec l’antenne types

énumérés ci-dessous avec le gain maximal admissible et requis l’impédance de l’antenne pour chaque type d’antenne indiqué. Types d’antenne non inclus dans cette liste, ayant un gain supérieur au gain maximal indiqué pour ce type, sont strictement interdits pour une utilisation avec cet appareil. Immédiatement suite à la remarque, le fabricant doit fournir une liste de tous les types d’antenne approuvé pour une utilisation avec l’émetteur, ce qui indique le gain maximal d’antenne permis (en dBi) et requis d’impédance pour chacun.

• Antenne parabolique, gain: 23 dBi

• Antenne parabolique, gain: 30 dBi

• Antenne parabolique, gain: 34 dBi

48 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

RF Exposure Warning

The antennas used for this transmitter must be installed to provide a separation distance of at least 126 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter.

Les antennes utilisées pour ce transmetteur doivent être installé en considérant une distance de séparation de toute personnes d’au moins 126 cm et ne doivent pas être localisé ou utilisé en conflit avec tout autre antenne ou transmetteur.

Australia and New Zealand

Warning: This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

CE Marking

CE marking on this product represents the product is in compliance with all directives that are applicable to it.

Alert sign! follows CE marking

Alert sign must be indicated if a restriction on use applied to the product and it must follow the CE marking.

Appendix E: Compliance Information

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

49

Argentina

Australia

Bahrain

Brazil

Canada

Chile

China

Colombia

Ecuador

Ghana

Guam

Hong Kong

Indonesia

India

Kenya

Korea Republic

Kyrgyzstan

Malaysia

Mexico

New Zealand

Nigeria

Peru

Philippines

Puerto Rico

(U.S. territory)

Singapore

South Africa

Taiwan

Tajikistan

Thailand

Turkmenistan

Uganda

United States

Uzbekistan

Venezuela

Appendix E: Compliance Information airFiber

®

X User Guide

Frequency Ranges and Power Levels per Country/Region

airFiber AF-2X

The product can be operated in the countries and regions listed in the following table, within the stated frequency ranges and output power (EIRP) limits.

Each country has its own power level and frequency regulations. To ensure the product operates under the necessary regulatory compliance rules, the country where the device will be used must be selected during installation. The frequency settings and output power (EIRP) limits will be tuned according to the regulations of the selected country/region:

Country/Region

Frequency Range

(Band Edges in MHz)

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

Max. EIRP (dBm)

36

36

36

36

36*

36

36

36

36

36*

36

36

36

36

36

36

Not applicable

36

36

36

36

36

36

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

2400-2483

36*

36

36

36

Not applicable

20

Not applicable

Not applicable

36*

Not applicable

36

50 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber

®

X User Guide Appendix E: Compliance Information

Country/Region

Frequency Range

(Band Edges in MHz)

Max. EIRP (dBm)

Virgin Islands

(U.S. territory)

Vietnam

2400-2483 36*

2400-2483 36

* A higher EIRP is possible based on FCC Part 15 requirements of reduction of conducted power by 1 dBm per 3 dBi increase of antenna gain beyond 6 dBi.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

51

Appendix E: Compliance Information airFiber

®

X User Guide

airFiber AF-3X

The product can be operated in the countries and regions listed in the following table, within the stated frequency ranges and output power (EIRP) limits.

Each country has its own power level and frequency regulations. To ensure the product operates under the necessary regulatory compliance rules, the country where the device will be used must be selected during installation. The frequency settings and output power (EIRP) limits will be tuned according to the regulations of the selected country/region:

Country/Region

Austria

Belgium

Bulgaria

Canada

Croatia

Cyprus

Czech Republic

Denmark

Estonia

Finland

France

Germany

Greece

Guam

(U.S. territory)

Hungary

Ireland

Italy

Latvia

Lithuania

Malta

Netherlands

Poland

Portugal

Puerto Rico

(U.S. territory)

Romania

Slovakia

Spain

Sweden

United Kingdom

United States

Virgin Islands

(U.S. territory)

Frequency Range

(Band Edges in MHz)

3410-3900

3410-3900

3410-3900

3450-3650

3650-3700

3410-3900

3410-3900

3410-3900

3410-3900

3410-3900

3410-3900

3410-3900

3410-3900

3410-3900

3650-3700

3410-3900

3410-3900

3410-3900

3410-3900

3410-3900

3410-3900

3410-3900

3410-3900

3410-3900

3650-3700

3410-3900

3410-3900

3410-3900

3410-3900

3410-3900

3650-3700

3650-3700

Max. EIRP (dBm)

66

66

66

66

66

66

66

66

66

66

66

66

66

66

44

66

66

66

66

66

66

66

57

44

66

66

66

66

66

44

44

44

52 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber

®

X User Guide Appendix E: Compliance Information

Germany

Greece

Grenada

Guatemala

Honduras

Hong Kong

Iceland

India

Iraq

Ireland

Italy

Jamaica

Kenya

airFiber AF-5X

The product can be operated in the countries and regions listed in the following table, within the stated frequency ranges and output power (EIRP) limits.

Each country has its own power level and frequency regulations. To ensure the product operates under the necessary regulatory compliance rules, the country where the device will be used must be selected during installation. The frequency settings and output power (EIRP) limits will be tuned according to the regulations of the selected country/region:

Country/Region

Argentina

Australia

5.1 GHz

Frequency Range

(Band Edges in

MHz)

5150-5250

Max.

EIRP

(dBm)

49

5.2 GHz

Frequency Range

(Band Edges in

MHz)

Max.

EIRP

(dBm)

5.4 GHz

Frequency Range

(Band Edges in

MHz)

5470-5725

5470-5600,

5650-5725

Max.

EIRP

(dBm)

30

30

5.8 GHz

Frequency Range

(Band Edges in

MHz)

5725-5850

5725-5855

Max.

EIRP

(dBm)

36

36

Bahrain

Barbados

Belize

Bolivia

Brazil

Brunei

Darussalam

5470-5725 30

5735-5835

5725-5850

5735-5835

5735-5835

5725-5850

5735-5835

20

36

30

30

53

20

Canada 5250-5350 30

5470-5600,

5650-5725

30 5725-5850 60

Chile

China

Colombia

Costa Rica

Denmark

5250-5350

5250-5350

30

30

5470-5725 30

5735-5835

5735-5835

5735-5835

5735-5835

5725-5795,

5815-5850

20

30

30

30

36

Dominican

Republic

Ecuador

El Salvador

5150-5250 49 5250-5350 30

5735-5835 30

30

30

Finland

5250-5350 30

5470-5725

5470-5725

5470-5725

5470-5725

5470-5725

5470-5725

5470-5725

30

30

30

30

30

30

30

5735-5835

5735-5835

5725-5795,

5815-5850

5755-5875

5725-5795

5725-5850

5735-5835

5725-5850

5725-5850

5725-5875

5825-5875

5735-5835

5725-5875

36

5250-5350 30

5470-5725

5470-5725

5470-5725

30

30

30 5725-5850

5735-5835

36

36

36

30

36

36

36

36

36

33

36

30

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

53

Appendix E: Compliance Information airFiber

®

X User Guide

Norway

Oman

Pakistan

Panama

Papua New

Guinea

Peru

Philippines

Portugal

Puerto Rico

(U.S. territory)

Qatar

Russia

Singapore

South Africa

Spain

Country/Region

5.1 GHz

Frequency Range

(Band Edges in

MHz)

Max.

EIRP

(dBm)

Korea Republic

Lebanon

Liechtenstein

Macau

Malaysia

Mexico

Morocco

Nepal

New Zealand

5150-5250 49

5150-5250

5150-5250

5150-5350

49

49

43

Switzerland

Taiwan

Thailand

Trinidad And

Tobago

United

Kingdom

United States

Uruguay

Uzbekistan

Venezuela

5150-5250

5150-5250

49

49

5.2 GHz

Frequency Range

(Band Edges in

MHz)

Max.

EIRP

(dBm)

5.4 GHz

Frequency Range

(Band Edges in

MHz)

5490-5710

Max.

EIRP

(dBm)

30

5250-5350

5250-5350

5250-5350

5250-5350

5250-5350

5250-5350

5250-5350

5250-5350

30

30

30

30

30

30

30

30

5470-5725

5470-5725

5470-5725

5470-5725

5470-5725

5470-5725

5470-5725

5470-5600,

5650-5725

5470-5650

5470-5725

5470-5725

5470-5725

5490-5710

5470-5725

5470-5725

5470-5725

5470-5600,

5650-5725

5470-5725

5470-5725

30

30

30

30

30

30

30

30

23

30

30

30

30

30

30

30

30

30

30

5725-5850

5725-5850

5725-5875

5725-5850

5735-5835

5650-5950

5735-5835

5725-5850

5725-5795,

5815-5855

5725-5795,

5815-5855

5735-5815

5725-5850

5.8 GHz

Frequency Range

(Band Edges in

MHz)

5735-5815

5735-5835

5725-5795,

5815-5875

5725-5850

5735-5835

5735-5835

5735-5835

5735-5835

5725-5850

5725-5795,

5815-5850

5725-5850

5735-5835

5735-5835

5735-5835

Max.

EIRP

(dBm)

30

30

53

36

36

30

30

20

30

53

36

30

30

30

60

30

53

30

60

36

36

36

36

36

30

36

36 5725-5850

5725-5790,

5815-5850

5725-5850

5725-5850

5725-5850

5735-5835

36

60

36

36

30

54 Ubiquiti Networks, Inc.

www.4Gon.co.uk i[email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber

®

X User Guide

The following table lists the maximum transmit output power (EIRP) for the 5.1 GHz band.

5.1 GHz Band

Channel Bandwidth

Frequency Range

(Band Edges in MHz)

Maximum Transmit

Output Power (EIRP) in dBm

10 MHz

20 MHz

30 MHz

40 MHz

50 MHz

5155-5175

5166-5186

5177-5250

5156-5180

5161-5185

5166-5209

5190-5250

5155-5192

5163-5202

5173-5211

5182-5250

5155-5204

5165-5219

5180-5228

5189-5250

5155-5214

5165-5233

5184-5242

5193-5250

37

39

44

49

37

39

44

49

37

39

44

49

39

44

49

37

39

44

49

Appendix E: Compliance Information

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

55

Appendix E: Compliance Information

RoHS/WEEE Compliance Statement

English

European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/ or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

Deutsch

Die Europäische Richtlinie 2002/96/EC verlangt, dass technische Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem Symbol versehen ist , nicht zusammen mit unsortiertem Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf hin, dass das

Produkt von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische und elektronische Geräte über die dafür zuständigen und von der Regierung oder örtlichen

Behörden dazu bestimmten Sammelstellen zu entsorgen.

Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei, potentielle negative Folgen für Umwelt und die menschliche Gesundheit zu vermeiden. Wenn Sie weitere

Informationen zur Entsorgung Ihrer Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das Produkt erworben haben.

airFiber

®

X User Guide

Español

La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación. Es responsabilidad suya desechar este y cualesquiera otros aparatos eléctricos y electrónicos a través de los puntos de recogida que ponen a su disposición el gobierno y las autoridades locales. Al desechar y reciclar correctamente estos aparatos estará contribuyendo a evitar posibles consecuencias negativas para el medio ambiente y la salud de las personas. Si desea obtener información más detallada sobre la eliminación segura de su aparato usado, consulte a las autoridades locales, al servicio de recogida y eliminación de residuos de su zona o pregunte en la tienda donde adquirió el producto.

Français

La directive européenne 2002/96/CE exige que l’équipement sur lequel est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté avec les autres ordures ménagères. Ce symbole indique que le produit doit être éliminé dans un circuit distinct de celui pour les déchets des ménages. Il est de votre responsabilité de jeter ce matériel ainsi que tout autre matériel électrique ou électronique par les moyens de collecte indiqués par le gouvernement et les pouvoirs publics des collectivités territoriales. L’élimination et le recyclage en bonne et due forme ont pour but de lutter contre l’impact néfaste potentiel de ce type de produits sur l’environnement et la santé publique. Pour plus d’informations sur le mode d’élimination de votre ancien

équipement, veuillez prendre contact avec les pouvoirs publics locaux, le service de traitement des déchets, ou l’endroit où vous avez acheté le produit.

Italiano

La direttiva europea 2002/96/EC richiede che le apparecchiature contrassegnate con questo simbolo sul prodotto e/o sull’imballaggio non siano smaltite insieme ai rifiuti urbani non differenziati. Il simbolo indica che questo prodotto non deve essere smaltito insieme ai normali rifiuti domestici. È responsabilità del proprietario smaltire sia questi prodotti sia le altre apparecchiature elettriche ed elettroniche mediante le specifiche strutture di raccolta indicate dal governo o dagli enti pubblici locali. Il corretto smaltimento ed il riciclaggio aiuteranno a prevenire conseguenze potenzialmente negative per l’ambiente e per la salute dell’essere umano. Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti pubblici di competenza, il servizio di smaltimento rifiuti o il negozio nel quale avete acquistato il prodotto.

56 Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

airFiber ® X User Guide

Appendix F: Declaration of

Conformity

Česky

[Czech]

Dansk

[Danish]

Nederlands

[Dutch]

English

Eesti

[Estonian]

Suomi

[Finnish]

Français

[French]

Deutsch

[German]

Ελληνική

[Greek]

Magyar

[Hungarian]

Íslenska

[Icelandic]

Italiano

[Italian]

Latviski

[Latvian]

Lietuviškai

[Lithuanian]

Malti

[Maltese]

Norsk

[Norwegian]

Slovensky

[Slovak]

Svenska

[Swedish]

UBIQUITI NETWORKS tímto prohlašuje, že toto UBIQUITI

NETWORKS zařízení, je ve shod se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.

Hermed, UBIQUITI NETWORKS, erklærer at denne UBIQUITI

NETWORKS enhed, er i overensstemmelse med de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.

Hierbij verklaart UBIQUITI NETWORKS, dat deze UBIQUITI

NETWORKS apparaat, in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EC.

Hereby, UBIQUITI NETWORKS, declares that this UBIQUITI

NETWORKS device, is in compliance with the essential requirements and other relevant provisions of Directive

1999/5/EC.

Käesolevaga UBIQUITI NETWORKS kinnitab, et antud UBIQUITI

NETWORKS seade, on vastavus olulistele nõuetele ja teistele asjakohastele sätetele direktiivi 1999/5/EÜ.

Täten UBIQUITI NETWORKS vakuuttaa, että tämä UBIQUITI

NETWORKS laite, on yhdenmukainen olennaisten vaatimusten ja muiden sitä koskevien direktiivin 1999/5/EY.

Par la présente UBIQUITI NETWORKS déclare que l’appareil

UBIQUITI NETWORKS, est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.

Hiermit erklärt UBIQUITI NETWORKS, dass sich dieses UBIQUITI

NETWORKS Gerät, in Übereinstimmung mit den grundlegenden

Anforderungen und den anderen relevanten Vorschriften der

Richtlinie 1999/5/EG befindet.

Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η

συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις

βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας

1995/5/ΕΚ.

Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI

NETWORKS készülék megfelel az alapvető követelményeknek és más vonatkozó 1999/5/EK irányelv rendelkezéseit.

Hér, UBIQUITI NETWORKS, því yfir að þetta UBIQUITI NETWORKS tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipun 1999/5/EC.

Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo UBIQUITI NETWORKS, è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti della direttiva

1999/5/CE.

Ar šo, UBIQUITI NETWORKS, deklarē, ka UBIQUITI NETWORKS ierīce, ir saskaņā ar būtiskajām prasībām un citiem attiecīgiem noteikumiem Direktīvā 1999/5/EK.

UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB

Direktyvos nuostatas.

Hawnhekk, UBIQUITI NETWORKS, tiddikjara li dan il-mezz

UBIQUITI NETWORKS huwa konformi mar-rekwiżiti essenzjali u dispożizzjonijiet rilevanti oħrajn ta ‘Direttiva 1999/5/EC.

Herved UBIQUITI NETWORKS, erklærer at denne UBIQUITI

NETWORKS enheten, er i samsvar med de grunnleggende kravene og andre relevante bestemmelser i direktiv 1999/5/EF.

Týmto UBIQUITI NETWORKS, prehlasuje, že toto UBIQUITI

NETWORKS zariadenie, je v súlade so základnými požiadavkami a ďalšími relevantnými ustanoveniami smernice 1999/5/ES.

Härmed UBIQUITI NETWORKS, intygar att denna UBIQUITI

NETWORKS enhet är i överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

Appendix F: Declaration of Conformity

Español

[Spanish]

Polski

[Polish]

Português

[Portuguese]

Română

[Romanian]

Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

Niniejszym, Ubiquiti Networks, oświadcza, że urządzenie

UBIQUITI NETWORKS, jest zgodny z zasadniczymi wymaganiami oraz pozostałymi stosownymi postanowieniami Dyrektywy

1999/5/EC.

UBIQUITI NETWORKS declara que este dispositivo UBIQUITI

NETWORKS, está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.

Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv

UBIQUITI NETWORKS este în conformitate cu cerințele esențiale și alte prevederi relevante ale Directivei 1999/5/CE.

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

57

Appendix G: Contact Information

Appendix G: Contact

Information

Ubiquiti Networks Support

Ubiquiti Support Engineers are located around the world and are dedicated to helping customers resolve software, hardware compatibility, or field issues as quickly as possible. We strive to respond to support inquiries within a 24-hour period.

Ubiquiti Networks, Inc.

2580 Orchard Parkway

San Jose, CA 95131

www.ubnt.com

Online Resources

Support:

support.ubnt.com

Community:

community.ubnt.com

Downloads:

downloads.ubnt.com

airFiber

®

X User Guide

58

AI080615

Ubiquiti Networks, Inc.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

w w w . u b n t . c o m

©2015 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airFiber, airOS, RocketDish,

TOUGHCable, and xRT are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.

www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
