Product guarantee
Your Marks & Spencer Product is covered by a warranty for 2 years from the date of
purchase.
Please retain your till receipt as this will validate your date of purchase. If a
fault develops during this period call our customer service centre on
0845 671 0665, who will advise you on the best course of action. This may be to
return it with original packaging to any M&S store (except Outlets and Simply
Food stores) along with your receipt. If it’s within 90 days of purchase we
will offer an exchange for a new product or a full refund. After 90 days and for the
remainder of the guarantee period, we will arrange for the product to be repaired.
Once the tamperproof seal on your technology product is broken, refunds
can only be given in accordance with your legal rights. Remember you are
not entitled to a refund if you simply change your mind, or if you damage the
goods after you buy them. Should a repair not be possible, we will exchange
the product for a new or nearest equivalent product. In the likely event of being
unable to exchange, we will offer a full refund. This warranty is only valid within
the United Kingdom, Republic of Ireland and/or Channel Islands. This warranty
excludes faults caused by accident, neglect, misuse, not following the instructions
or normal wear and tear.
telephone
This warranty is in addition to your legal rights and supersedes any guarantee or
warranty that is with the product.
T04/8811/6080
T04/8811/6079
T04/8811/6081
© Marks and Spencer plc
PO Box 3339 Chester CH99 9QS
www.marksandspencer.com
instruction manual
M&S customer services: tel 0845 671 0665 e-mail [email protected]
Ver1 May 08

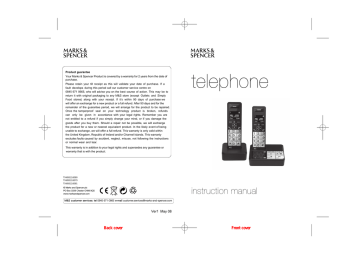

Back cover
Front cover
Table of Contents
1
IMPORTANT SAFETY INSTRUCTIONS............................................................................................................ 1
2
INSTALL YOUR PHONE .................................................................................................................................... 2
2.1
2.2
3
3.1
3.2
3.3
3.4
4
CONNECT THE BASE STATION ............................................................................................................................. 2
INSTALL AND CHARGE THE BATTERIES ................................................................................................................ 2
GET TO KNOW YOUR PHONE ......................................................................................................................... 3
HANDSET OVERVIEW ..........................................................................................................................................
BASE STATION WITH TELEPHONE ANSWERING MACHINE (TAM) CONTROL ........................................................
HANDSET LCD DISPLAY .....................................................................................................................................
MENU STRUCTURE .............................................................................................................................................
USE YOUR PHONE ............................................................................................................................................ 7
4.1 MAKE AN EXTERNAL CALL ..................................................................................................................................
4.1.1 PREPARATORY DIALING .....................................................................................................................................
4.1.2 DIRECT DIALING ................................................................................................................................................
4.1.3 CALL FROM THE PHONEBOOK ............................................................................................................................
4.1.4 CALL FROM THE CALL LIST .................................................................................................................................
4.1.5 CALL FROM THE REDIAL LIST ..............................................................................................................................
4.1.6 CALL TIMER ......................................................................................................................................................
4.2 ANSWER A CALL ................................................................................................................................................
4.3 END A CALL .......................................................................................................................................................
4.4 ADJUST EARPIECE AND HANDSFREE VOLUME .....................................................................................................
4.5 MUTE A CALL .....................................................................................................................................................
4.6 SET THE SILENT MODE .......................................................................................................................................
4.7 REDIAL ..............................................................................................................................................................
4.7.1 REDIAL A NUMBER FROM THE REDIAL LIST ..........................................................................................................
4.7.2 SAVE A REDIAL NUMBER INTO THE PHONEBOOK ..................................................................................................
4.7.3 DELETE A REDIAL NUMBER ................................................................................................................................
4.7.4 DELETE THE ENTIRE REDIAL LIST .......................................................................................................................
4.8 KEYPAD LOCK ....................................................................................................................................................
4.9 FIND HANDSET ...................................................................................................................................................
4.10 ACCESS INBOX .................................................................................................................................................
4.11 MAKE AN INTERNAL CALL .................................................................................................................................
4.11.1 INTERCOM ANOTHER HANDSET ........................................................................................................................
4.11.2 TRANSFER AN EXTERNAL CALL TO ANOTHER HANDSET ......................................................................................
4.11.3 MAKE A 3-WAY CONFERENCE CALL ..................................................................................................................
5
3
4
5
6
7
7
7
7
7
7
7
7
7
7
7
8
8
8
8
8
8
8
8
8
9
9
9
9
PHONEBOOK ..................................................................................................................................................... 10
5.1 ADD A NEW ENTRY ............................................................................................................................................. 10
5.2 EDIT AN ENTRY................................................................................................................................................... 10
5.3 VIEW AN ENTRY .................................................................................................................................................. 10
5.4 COPY AN ENTRY ................................................................................................................................................. 10
5.5 COPY ALL ENTRIES ............................................................................................................................................. 10
5.6 DELETE AN ENTRY .............................................................................................................................................. 11
5.7 DELETE THE ENTIRE PHONEBOOK ....................................................................................................................... 11
5.8 VIEW PHONEBOOK CAPACITY ............................................................................................................................. 11
5.9 EDIT CALL GROUP .............................................................................................................................................. 11
5.9.1 EDIT CALL GROUP NAME .................................................................................................................................... 11
5.9.2 CHANGE CALL GROUP RINGTONE ....................................................................................................................... 11
5.10 SPEED DIAL ..................................................................................................................................................... 11
5.10.1 EDIT A SPEED DIAL .......................................................................................................................................... 11
5.10.2 DELETE A SPEED DIAL ..................................................................................................................................... 11
6
CALL LIST .......................................................................................................................................................... 12
VIEW THE CALL LIST ........................................................................................................................................... 12
STORE A CALL LIST NUMBER INTO THE PHONEBOOK ........................................................................................... 12
DIAL A CALL LIST NUMBER ................................................................................................................................. 12
DELETE AN ENTRY IN THE CALL LIST ................................................................................................................... 12
DELETE THE ENTIRE CALL LIST ........................................................................................................................... 12
STORE ALL CALLS OR ONLY UNANSWERED CALLS IN THE CALL LIST .................................................................. 12
TURN ON OR OFF THE NEW CALL ALERT ............................................................................................................ 12
6.1
6.2
6.3
6.4
6.5
6.6
6.7
7
SOUND................................................................................................................................................................ 13
HANDSET RINGER............................................................................................................................................... 13
TONES ............................................................................................................................................................... 13
7.1
7.2
8
SETTINGS........................................................................................................................................................... 14
8.1
8.1.1
8.1.2
8.1.3
8.1.4
8.1.5
8.1.6
8.1.7
8.1.8
8.1.9
8.2
8.2.1
8.2.2
8.2.3
8.2.4
8.2.5
8.2.6
8.2.7
8.3
8.3.1
8.3.2
HANDSET SETTINGS ........................................................................................................................................... 14
ENABLE THE DIRECT CALL ................................................................................................................................ 14
DISABLE THE DIRECT CALL ............................................................................................................................... 14
SELECT BASE STATION ...................................................................................................................................... 14
ADJUST THE DISPLAY CONTRAST ....................................................................................................................... 14
RENAME THE HANDSET ..................................................................................................................................... 14
TURN ON OR OFF THE AUTO ANSWER ................................................................................................................. 15
REGISTER AN ADDITIONAL HANDSET................................................................................................................... 15
DE-REGISTER A HANDSET ................................................................................................................................. 15
RESTORE THE HANDSET TO DEFAULT SETTINGS ................................................................................................ 15
BASE SETTINGS ................................................................................................................................................. 15
SET THE BASE RINGER ...................................................................................................................................... 15
SET THE HANDSET PRIORITY .............................................................................................................................. 16
SET THE DIAL MODE .......................................................................................................................................... 16
SET THE FLASH TIME ......................................................................................................................................... 16
CHANGE THE SYSTEM PIN ................................................................................................................................ 16
SET AN EXCHANGE CODE .................................................................................................................................. 16
RESET THE BASE SETTINGS TO DEFAULT SETTINGS ............................................................................................. 17
SET THE DATE, TIME AND ALARM/TIME/ALARM ................................................................................................... 17
SET DATE AND TIME .......................................................................................................................................... 17
SET AN ALARM .................................................................................................................................................. 17
9 ANSWERING MACHINE .................................................................................................................................... 18
9.1 USE THE ANSWERING MACHINE FROM THE HANDSET ............................................................................................. 18
9.1.1 MESSAGE PLAYBACK ........................................................................................................................................ 18
9.1.2 DELETE ALL OLD MESSAGES .............................................................................................................................. 18
9.1.3 SWITCH THE ANSWERING MACHINE ON / OFF....................................................................................................... 19
9.1.4 SET THE OUTGOING MESSAGES ......................................................................................................................... 19
9.1.5 SET THE ANSWERING MACHINE .......................................................................................................................... 19
9.2 USE THE ANSWERING MACHINE FROM THE BASE ................................................................................................. 19
9.2.1 SWITCH ON/OFF THE ANSWERING MACHINE ........................................................................................................ 19
9.2.2 MESSAGE PLAYBACK ........................................................................................................................................ 19
9.3 CALL SCREENING ............................................................................................................................................... 20
9.4 REMOTE ACCESS ............................................................................................................................................... 20
9.4.1 ENABLE/DISABLE REMOTE ACCESS .................................................................................................................... 20
9.4.2 OPERATING YOUR ANSWERING MACHINE REMOTELY ........................................................................................... 20
10
TROUBLESHOOTING...................................................................................................................................... 22
1
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always be
followed to reduce the risk of fire, electric shock and injury, including the following:
1) Read and understand all the instructions.
2) Follow all warnings and instructions marked on the product.
3) Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners
or aerosol cleaners. Use a damp cloth for cleaning.
4) Do not use this product near water (for example, near a bath tub, kitchen sink,
swimming pool).
5) Do not overload wall outlets and extension cords as this can result in the risk of fire
or electric shock.
6) Unplug this product from the wall outlet and refer servicing under the following
conditions:
• When the power supply cord or plug is damaged or frayed.
• If the product does not operate normally by following the operating instructions.
• If the product has been dropped and the cabinet has been damaged.
• If the product exhibits a distinct change in performance.
7) Avoid using a telephone (other than a cordless type) during an electrical storm.
There may be a remote risk of electric shock from lightning.
8) Do not use the telephone to report a gas leak in the vicinity of the leak.
9) Use only the supplied NiMH (Nickel Metal Hydride) batteries! The operation periods
for the handsets are only applicable with the default battery capacities
10) The use of other battery types or non-rechargeable batteries/primary cells can be
dangerous. These may cause interference and/or unit damages. The manufacturer
will not be held liable for damage arising from such non-compliance.
11) Do not use third party charging bays. The batteries may be damaged.
12) Please note the correct polarity while inserting the batteries.
13) Do not immerse batteries in water, do not place in fire.
Package contents
The package contains the following items:
Single
• 1 Handset
• 1 Base station
• 1 mains power adapter
• 1 Telephone line cord
• 1 rechargeable battery pack
• 1 User manual
Triple
• 3 Handsets
• 1 Base station
• 3 mains power adapters
• 1 Telephone line cord
• 3 rechargeable battery pack
• 1 User manual
• 2 Charger pods
Twin
• 2 Handsets
• 1 Base station
• 2 mains power adapters
• 1 Telephone line cord
• 2 rechargeable battery pack
• 1 User manual
• 1 Charger pod
Quad
• 4Handsets
• 1 Base station
• 4 mains power adapters
• 1 Telephone line cord
• 4 rechargeable battery pack
• 1 User manual
• 3 Charger pods
The maximum range between the base station and the handset is approximately
300 meters. Depending on the surrounding conditions as well as spatial and structural
factors, the range may be reduced. The range indoors is normally less than outdoors.
1
2
2.1
INSTALL YOUR PHONE
Connect the Base Station
1) Plug the power supply
&
line cord
into the base station.
2) Plug the power supply & line cord
into the wall socket.
3) The base indicator lights up.
The answering machine is switched on.
4) Always use the cables provided in the box.
Warning: Use only the provided
adaptor, using other power supply
may case hazardd
Warning: The power adaptor shall
be installed near the equipment
and shall be easily accessible.
2.2
Install and Charge the Batteries
1) Place the supplied
battery pack as indicated.
Locate the battery
lead and connector and
plug it into the socket inside
the battery compartment
(the red wire should be on the
left). Tuck the battery leads in
the space above the battery.
2) Slide the battery compartment
cover back.
3) Put the handset on the base and charge the battery for
15 hours first time. A beep indicates that the handset is
properly placed on the base or charger.
2
3
3.1
GET TO KNOW YOUR PHONE
Handset Overview
RECALL / FLASH
In idle / predialing mode:
Press to insert a flash
During a call: Press to dial a flash
UP/REDIAL
In idle mode:
Press to access the redial list
In menu mode:
Press to scroll up the menu items
In Phonebook list / Redial list / Call List:
Press to scroll up the list
During a call: Press to increase the volume
In editing mode:
Press to go one line upwards
EARPIECE
RIGHT
In Idle:
Press to access the status summary of call list
and answering machine messages.
In sub-menu mode:
Press to go to next menu level
In Call list: Press to view the details of the
selected call list entry
In predialling / editing mode: Press to move
the cursor one character to the right
During answering machine message playback:
Press to skip forward to next message
LEFT SOFT KEY
In idle mode:
Press to select a handset to
make an internal call
In sub-menu mode:
Press to go back to previous level
In contextual menu during a call:
Press to go back previous level
In editing / predialing mode:
Press to clear a character / digit
In editing / predialing mode:
Long press to delete all the characters/ digit
During answering machine message playback:
Press to delete the current message
DOWN / CALL LIST
In idle mode: Press to access the call list
In menu mode:
Press to scroll down the menu items
In Phonebook list / Redial list / Call List:
Press to scroll down the list
During a call: Press to decrease the volume
In editing mode:
Press to go one line downwards
LEFT/ PHONEBOOK
In idle mode: Press to access phonebook
In main menu mode:
Press to go back to idle
In sub-menu mode:
Press to go back to previous level
During a call: Press to mute / unmute
the microphone
In predialling mode: Press to move
the cursor one character to the left
During answering machine
message playback: During announcing
the message number, press once to
skip backward to play the previous message.
After message number is announced,
press once to repeat playing the
current message at the beginning.
TALK ON
In idle / predialing mode :
tPress to make a call
In Redial list / Call List/ Phonebook entry:
Press to make a call
o the selected entry in the list
During ringing: Press to answer a call
During call screening:
Press to intercept a call
RIGHT SOFT KEY
In idle mode: Press to access the main menu
In sub-menu mode:
Press to confirm the selection
During call screening:
Press to activate call screening on handset
During answering machine message playback:
Press to play or pause the message playback
TALK OFF
During a call:
Press to end a call and go back to idle screen
In menu / editing mode:
Press to go back to idle screen
In Idle: Press and hold to choose to power off
the handset
When the handset is power off:
Press to power on the handset
MICROPHONE
SPEAKERPHONE
During a call: Press to turn on / off the speakerphone.
Call List / Phonebook entry: Press to make a call with speakerphone
During ringing: Press to answer a call with speakerphone
During answering machine message playback/call screening:
Press to play the message via speaker
ALPHANUMERIC KEYPAD,
* (STAR), # (HASH)
Press to insert a digit / character / * / #
* key in idle mode:
Long press to turn on the ringer
# key in editing mode:
Press to toggle between uppercase or
lowercase character input
# key in Idle mode:
Long press to turn on / off the keypad lock
0 key in idle / predialing / number editing mode:
Long press to insert a pause
In Idle: Press and hold any digit key
(except 1, *, #) to access the
number stored in the respective digit key
(applicable if user has stored numbers in
the speed dial locations)
3
3.2 Base Station with Telephone Answering Machine (TAM) Control
VOLUME Decrease the volume.
ANSWER ON/OFF
Press to turn on or off
the answering machine.
PAGE
Press to ring all registered
handsets.You can make
use of this to find the missing
handset. Long press to enter
into registration mode.
VOLUME +
Increase volume.
Charging Contacts
Place the handset on
the charging cradle
for charging.
PAGE
Message Indicator
-- : Answer Machine is off.
0 to 99: Answer Machine is
On and display the number
of messages. Flashes when
there are new messages.
rA:Remote access is in progress.
rE:Recording message is in progress.
Ao: Answer only is select.
CHARGING LED
Steadily on while
the handset is charging.
In Use LED
Flash when the phone is ringing.
Flash during call connection.
4
SPEAKERPHONE
During answering
machine message
playback, the message
can be played through
the speakerphone.
PLAY/STOP
DELETE
Delete the current
message palayback.
Press twice
consecutively to
delete all old
messages.
PLAY / STOP
Play the message.
Stop the current
message playback.
SKIP
Skip forward to next
message
REPEAT
During announcing the message number, press once
to skip backward to play the previous message.
After message number is announced, press once to
repeat playing the current message at the begining
3.3 Handset LCD Display
Icons
Description
Steady when the handset is in range of the base.
Flash when the handset is in marginal range of the base.
Off when the handset is not registered to the base or out of range
Indicate when missed call is received (Network Subscription is required).
Turn off when at least one missed call has been read.
Indicate when new answering machine message is received.
Flash when the answering machine memory is full.
Turn off when no new answering machine message.
Indicate a call is in progress.
Flash when ringing.
Indicate that handsfree is being used.
Indicate the answering machine is turned on.
Turn off if the answering machine is turned off.
Indicate that the alarm is set.
Flash when the alarm time is reached.
Turn off when the alarm is off.
Indicate that the ringer is switched off.
Indicate that the keypad is locked.
Indicate when the battery is fully charged.
Indicate when the battery is ¾ charged.
Indicate when the battery is 1/2 charged.
Indicate when the battery is 1/4 charged.
Flash when low battery is detected and indicate that it needs charging.
Animate during charging
5
3.4 Menu Structure
In idle mode, press <MENU> will firstly access the Answer Machine menu.
Press <DOWN> will access the Call List. Press <UP> will access the Redial List.
<UP/DOWN>
<MENU>
Key Press
Main Menu
Sub menu
< UP/ DOWN>
Answer Machine
Play Messages
Delete Msg
Answer On/Off
Outgoing Msg
Ans. Settings
Remote access
Sound
Ringer
Tones
<UP/DOWN>
Settings
H/Set Settings
Base Settings
Date / Time /Alam
The following menus can be accessed by pressing relevant keys in idle mode:
Keys
Sub menu
6
UP/REDIAL
List Empty or
Display Redial List
Delete
Delete All
Call Number
Store number
Down / Call List
List Empty or
Display Call List
Details
Delete
Delete All
Call Number
Store Number
Settings
Left / Phonebook or
List Empty
New Entry
Capacity
Left / Phonebook
Display Phonebook
entries
New Entry
Edit Entry
View
Copy
Copy All
Delete Entry
Delete All
Capacity
Edit Call Grp
Speed Dial
4
4.1
USE YOUR PHONE
Make an External Call
4.1.1
Preparatory dialing
Enter the phone number and press <TALK ON> or <SPEAKERPHONE> to dial the number.
Press <Clear> to clear the entry.
4.1.2
Direct dialing
Press <TALK ON> or <SPEAKERPHONE> to take the line and enter the phone number.
4.1.3
Call from the phonebook
Press <LEFT> to access the phonebook and press <UP/DOWN> to select the desired phonebook
entry. Press <TALK ON> or <SPEAKERPHONE> to dial out to the selected phonebook entry.
4.1.4
Call from the call list
Press <DOWN> to access the call list and press <UP/DOWN> to select the desired call list entry.
Press <TALK ON> or <SPEAKERPHONE> to dial out to the selected call list entry.
4.1.5
Call from the redial list
Press <UP> to access the redial list and press <UP/DOWN> to select the desired redial number.
Press <TALK ON> or <SPEAKERPHONE> to dial out to the selected redial number.
4.1.6
Call timer
Your handset automatically times the duration of every call. The call timer will display a few
seconds after the call has made. It is shown in hours, minutes and seconds format (HH:MM:SS).
4.2
Answer a Call
When the phone rings, press <TALK ON> / <SPEAKERPHONE> to answer a call.
If auto answer is turned on and
When the phone rings, pick up the handset to answer a call.
4.3
End a Call
During a call connection, press <TALK OFF> to end the call.
OR
Put the handset on the base station to end the call.
4.4
Adjust Earpiece and Handsfree Volume
5 volume levels (Level 1 to Level 5) to choose from for each of earpiece and handsfree volume.
During a call:
Press <UP> or <DOWN> to increase or decrease the volume level respectively. The current
setting is shown.
When you end the call, the settings will remain at the last selected level.
4.5
Mute a Call
You can talk to someone nearby without letting the caller hear you during a call.
During a call:
Press <LEFT> to mute the microphone and “Mute On” is displayed on the LCD. Your caller
cannot hear you.
Press <LEFT> again to unmute the microphone.
7
4.6
Set the Silent Mode
In idle, press and hold <STAR> to turn off the ringer. The “RINGER OFF” icon is displayed
on the LCD.
4.7
Redial
You can redial up to 5 of the last numbers called. If you have stored a name in the phonebook
to go with the number, the name will be displayed instead.
Note: After making a call, further key input after call timer is displayed will not be stored in the
redial list.
4.7.1
Redial a number from the redial list
1. Press <UP> to access the redial list.
2. Press <UP/DOWN> to browse the redial list.
3. Press <TALK ON> to dial to the selected redial number.
Note: If there are no numbers in the redial list, the display shows “List Empty”.
4.7.2
Save a redial number into the phonebook
1. Follow steps 1 and 2 in section 4.7.1.
2. Press <Option> and <UP/DOWN> to select Store Number.
3. Press <OK> to enter the name, edit the number and select the group if necessary.
4. Press <OK> to save the redial number into the phonebook.
4.7.3
Delete a redial number
1. Follow steps 1 and 2 in section 4.7.1.
2. Press <Option> and <UP/DOWN> to select Delete.
3. Press <OK> to confirm.
4.7.4
Delete the entire redial list
1. Follow steps 1 and 2 in section 4.7.1.
2. Press <Option> and <UP/DOWN> to select Delete all .
3. Press <OK> to confirm.
4.8
Keypad Lock
You can lock the keypad so that it cannot be used accidentally while carrying it around.
1. To lock the keypad: In idle mode, press and hold <#> key, the <Keypad lock icon>will display
and “Keypad Locked” will display.
2. To unlock the keypad: In idle mode, press and hold <#> key, the <keypad lock icon> will
disappear and “Keypad Unlocked” will display for 2 seconds before returning to standby.
4.9
Find Handset
You can locate the handset by pressing <PAGE> on the base station. All the handsets registered
to the base will ring up for 60 seconds and “Paging” is displayed on the LCD. You can stop the
paging by pressing <TALK OFF> or <Back> on the handset or <PAGE> on the base again.
4.10
Access Inbox
You can press <RIGHT> to review the summary of missed calls and answering machine
messages. New event is indicated by “New”.
In Idle:
1. Press <RIGHT> to access the Inbox.
2. Press <UP/DOWN> to select Calls, Msg.
3. Press <OK> to view the Call List, play answering machine message.
4. Press <Back> or <TALK Off> to return to Idle.
8
4.11
Make an Internal Call
This feature is only applicable when there are at least two registered handsets. It allows you to
make internal calls, transfer external calls from one handset to another handset and make
conference calls.
4.11.1
1.
2.
3.
Intercom another handset
Press <Int> and <RIGHT/LEFT> to select the handset that you want to make an internal
call with.
Press <OK>.
The called handset rings and press <TALK ON> on the called handset to establish the
internal call.
4.11.2 Transfer an external call to another handset
During a call:
1. Follow steps 1 and 2 in section 4.11.1.
2. The external call is put on hold automatically and the called handset rings.
3. Press <TALK ON> on the called handset to establish an internal call.
4. Press <TALK OFF> on the calling handset to end the current call with the external party.
5. The external call is transferred to the called handset.
4.11.3 Make a 3-way conference call
The conference call feature allows one external call to be shared with two handsets (in intercom).
The three parties can share the conversation and no network subscription is required.
During an external call:
1. Follow Steps 1 to 3 in section 4.11.2.
2. Press <Conf> to establish the 3-way conference.
Any handset hangs up during a conference call will leave the other handset still in connection
with the external call.
During the conference call:
1. Press <Single> on the calling handset to select Single call.
2. The calling handset talks to the internal party and the external party is put on hold
automatically.
During an external call:
1. Follow steps 1 to 3 in section 4.11.2
2. Press <Intern> on the calling handset to switch calls.
3. The calling handset talks to the called handset and the external call is put on hold
automatically.
4. Press <Intern> again on the calling handset to switch calls.
5. The calling handset is switched to talk to the external party and the internal call is put on
hold automatically.
9
5
PHONEBOOK
Your phone can store up to 100 private phonebook entries with names and numbers. Each
phonebook entry can have a maximum of 24 digits for the phone number and 15 characters for
the name. You can categorize your phonebook entry into one of the seven call groups.
5.1
Add a New Entry
In idle:
1. Press <LEFT> to access the phonebook.
Note: If no entry is found in the phonebook, “List Empty” will display.
2. Press <UP/DOWN> to select the desired phonebook entry.
3. Press <Option> and <UP/DOWN> to select New Entry.
4. Press <OK> and <UP/DOWN> to enter the name, number and call group.
Note: You can press <#> to toggle between the uppercase and lowercase letters.
Phone number is mandatory to enter in order to save it as a phonebook entry.
5. Press <OK> to save the phonebook entry.
Note: One a new entry is added, the phonebook entry will be displayed in alphabetical order.
5.2
Edit an Entry
5.3
View an Entry
5.4
Copy an Entry
5.5
Copy all Entries
In idle:
1. Press <LEFT> to access the phonebook.
2. Press <UP/DOWN> to select the desired phonebook entry.
3. Press <Option> and <UP/DOWN> to select Edit Entry.
4. Press <OK> and <UP/DOWN> to enter the revised name, phone number and call group .
5. Press <OK> to confirm.
In idle:
1. Press <LEFT> to access the phonebook.
2. Enter the first character of the name by multi-tap.
OR
2. Press <UP/DOWN> to select the desired phonebook entry.
3. Press <Option> and <UP/DOWN> to select View.
4. Press <OK> and <UP/DOWN> to view details.
In idle:
1. Press <LEFT> to access the phonebook and press <UP/DOWN> to select the desired entry.
2. Press <Option> and <UP/DOWN> to select Copy.
3. Press <OK> and <LEFT/RIGHT> to select the handset you want to copy.
Note: if no base "Not Possible" will display on the screen, If no other handsets are registered,
"Not Handset ! " will display on the screen. At the receiving handset:
4. Display shows “Receive dir. entries?” Press <Yes> to confirm or <No> to cancel.
5. Upon successful copying, the display will show “Copied”.
Note: The PB entries in the initiating handset are copied and appended to existing PB entries in
the receiving handset and are sorted in alphabetical order.
In idle:
1. Press <LEFT> to access the phonebook. The first entry is displayed.
2. Press <Option> and <UP/DOWN> to select Copy All.
3. Press <OK> and <LEFT/RIGHT> to select the handset you want to copy.
Note: if no base "Not Possible" will display on the screen, If no other handsets are registered,
"Not Handset ! " will display on the screen. At the receiving handset:
4. Display shows Receive dir. entries? Press <Yes> to confirm or <No> to cancel.
5. Upon successful copying, the display will show “Copied”.
Note: The PB entries in the initiating handset are copied and appended to existing PB entries in
the receiving handset and are sorted in alphabetical order.
10
5.6
Delete an Entry
5.7
Delete the Entire Phonebook
5.8
View Phonebook Capacity
5.9
Edit Call Group
5.10
Speed Dial
In idle:
1. Press <LEFT> to access the phonebook.
2. Press <UP/DOWN> to select the desired phonebook entry.
3. Press <Option> and <UP/DOWN> to select Delete entry.
4. Press<OK> and <Yes> to confirm or <No> to cancel.
In idle:
1. Press <LEFT> to access the phonebook.
2. Press <UP/DOWN> to select the desired phonebook entry.
3. Press <Option> and <UP/DOWN> to select Delete All.
4. Press <OK> and <Yes> to confirm or <No> to cancel.
In idle:
1. Press <LEFT> to access the phonebook.
2. Press <Option> and <UP/DOWN> to select Capacity.
3. Press <OK> to display the number of entries remaining in the phonebook memory.
5.9.1
Edit call group name
In idle:
1. Press <LEFT> to access the phonebook.
2. Press <Option> and <UP/DOWN> to select Edit Call Grp.
3. Press <OK> and <UP/DOWN> to the desired call group
4. Press <OK> to select Rename Group.
5. Press <OK> and <Clear> to delete the current name and enter a new name.
6. Press <OK> to save.
5.9.2
Change call group ringtone
In idle:
1. Press <LEFT> to access the phonebook.
2. Press <Option> and <UP/DOWN> to select Edit Call Grp.
3. Press <OK> and <UP/DOWN> to the desired call group.
4. Press <OK> and <UP/DOWN> to select Ringtone.
5. Press <OK> and <LEFT/RIGHT> to choose the desired melody. Corresponding melody is
played while browsing the melody list. A total of 15 melodies are provided for your selection.
6. Press OK to confirm.
5.10.1 Edit a speed dial
In idle:
1. Press <LEFT> to access the phonebook.
2. Press <Option> and <UP/DOWN> to select Speed Dial.
3. Press <OK> and <UP/DOWN> to select the speed dial location(Number 2 to 9).
4. Press <OK> to display the details of the speed dial location.
5. Press <Option> and <UP/DOWN> to select Edit.
6. Press <OK> to display the phonebook entries.
7. Press <UP/DOWN> to select your desired phonebook entry that you want to store in the
selected speed dial ocation.
8. Press <OK> to confirm.
Note: If no number is stored in the selected speed dial location, “No Number” will display 2s in
the screen and show phonebook entry.
5.10.2 Delete a speed dial
In idle:
1. Repeat steps 1 to 4 in Section 5.10.1
2. Press <Option> and <UP/DOWN> to select Delete
3. Press <OK> to confirm.
11
6
CALL LIST
This feature is available if you have subscribed the Caller Line Identification service with your
network service provider. Your phone can store up to 20 calls with date/time information in the
call list. The number will be shown on the LCD when the phone is ringing. If the number
matches with one of the entries in your private phonebook, the caller’s name stored in the private
phonebook will be displayed alternatively with the number.
If the caller number is withheld, “Withheld” will display.
If the caller number is unavailable, “Unavailable” will display.
6.1
View the Call List
6.2
Store a Call List Number into the Phonebook
All unanswered calls are saved in calls log with the latest call putting at the top of the list. When
the call list is full, the oldest call will be replaced by a new call. The unanswered call which has
not been read is marked with “New” at the bottom of the unanswered call entry.
1. Press <DOWN> to access the call list.
2. Press <UP/DOWN> to select the desired entry.
3. Press <Option> and <UP/DOWN> to select Details.
4. Press <OK> to view the date and time information of the selected call list entry.
1.
2.
3.
4.
Follow steps 1 and 2 in Section 6.1.
Press <Option> and <UP/DOWN> to select Store Number.
Press <OK> and <UP/DOWN> to enter the name, number and call group if necessary.
Press <OK> to confirm.
6.3
1.
2.
3.
4.
Dial a Call List Number
Follow steps 1 and 2 in Section 6.1.
Press <Option> and <UP/DOWN> to select Call Number.
Press <OK> and you can edit the selected call list number.
Press <TALK ON> to dial out to the call list number.
6.4
Delete an Entry in the Call List
1. Follow steps 1 and 2 in Section 6.1.
2. Press <Option> and <UP/DOWN> to select Delete.
3. Press <OK> to confirm.
6.5
Delete the Entire Call List
6.6
Store All Calls or Only Unanswered Calls in the Call List
1.
2.
3.
4.
Follow steps 1 and 2 in Section 6.1.
Press <Option> and <UP/DOWN> to select Delete All.
Press <OK> to confirm.
Press <Yes> to reconfirm.
If All Calls is selected, answered and unanswered calls are stored in the call list. If Missed
Calls is selected, only unanswered calls are stored in the call list.
1. Follow steps 1 and 2 in Section 6.1.
2. Press <Option> and <UP/DOWN> to select Settings.
3. Press <OK> and <LEFT/RIGHT> to choose All Calls or Missed Calls.
4. Press <OK> to confirm.
6.7
Turn On or Off the New Call Alert
If New Call Alert is turned on, you will hear a beep when there is a missed call and <Missed Call
icon> will display .
1. Follow steps 1 and 2 in Section 6.1.
2. Press <Option> and <UP/DOWN> to select Settings.
3. Press <OK> and <UP/DOWN> to go to New Call Alert.
4. Press <LEFT/RIGHT> to turn on or off the new call alert.
5. Press <OK> to confirm.
12
7
SOUND
You can set different melodies to personalize your external and internal ringer. A total of
15 melodies are provided for your selection.
7.1
Handset Ringer
In Idle:
1. Press <Menu> and <UP/DOWN> to select Sound.
2. Press <OK> and <UP/DOWN> to select Ringer.
3. Press <OK> and <LEFT/RIGHT> to select your desired melody for your external ringer.
4. Press <DOWN> and <LEFT/RIGHT> to select your desired melody for your internal ringer.
5. Press <DOWN> and <LEFT/RIGHT> to select your desired ringer volume from Level 1 to
Level 5 or Off .
Note: If the ringer volume is set to Off, <Ringer off icon> will display in idle.
6. Press <DOWN> and <LEFT/RIGHT> to set Silent to Beep.
Note: When you set the ringer to Off, you can still hear a beep when there is an incoming call
by setting the Silent to Beep. If you set the Silent to Off, you cannot hear any tone when there
is an incoming and the ringer is set to Off.
7. Press <OK> to confirm.
7.2
Tones
Your handset can give a beep to you when an action is confirmed to be successful, out of range
is detected, a key is pressed or low battery is detected.
In Idle:
1. Press <Menu> and <UP/DOWN> to select Sound.
2. Press <OK> and <UP/DOWN> to select Tones.
3. Press <OK> and <LEFT/RIGHT> to turn on or off the Key Beeps.
4. Press <DOWN> and <LEFT/RIGHT> to turn on or off the Confirmation tone.
5. Press <DOWN> and <LEFT/RIGHT> to turn on or off the Battery Low alert tone.
6. Press <DOWN> and <LEFT/RIGHT> to turn on or off the Out of Range alert tone.
7. Press <OK> to confirm.
13
8
SETTINGS
Your phone comes with a selection of settings that you can change to personalize your phone
the way you like it to work.
8.1
8.1.1
Handset Settings
Enable the Direct Call
When activated, the direct call feature enables you to dial the selected number by pressing any
key on your handset. This feature is very useful for direct access to emergency service.
1.
2.
3.
4.
5.
6.
7.
Press <MENU> and <UP/DOWN> to select Settings.
Press <OK> and <UP/DOWN> to select H/Set settings.
Press <OK> and <UP/DOWN> to select Direct Call.
Press <OK> to enter the 4-digit system PIN. (Default 4-digit system PIN is 0000)
Press <OK> and <LEFT/RIGHT> to select
Press <OK> to enter the number for direct call.
Press <OK> to return to Idle displaying with “Direct Call”.
8.1.2
Disable the Direct Call
1. Press <Option> to enter the 4-digit system PIN(Default 4-digit system PIN is 0000 )
2. Press <OK> and <LEFT/RIGHT> to select Off to disable the direct call.
3. Press <OK> to confirm.
8.1.3
Select base station
If your handset is registered to more than one base stations, you can select which base station
to use.
1. Press <MENU> and <UP/DOWN> to select Settings.
2. Press <OK> and <UP/DOWN> to select H/Set Settings.
3. Press <OK> and < UP/DOWN> to choose Select Base.
4. Press <OK> and <LEFT/RIGHT> to select your desired base station.
5. Press <OK> to confirm.
8.1.4
Adjust the display contrast
1. Repeat steps 1 to 2 in section 8.1.1 .
2. Press <OK> and <UP/DOWN> to choose Display.
3. Press <OK> and <LEFT/RIGHT> to select the contrast level from 1 to 8.
4. Press <OK> to confirm.
8.1.5
Rename the handset
1. Repeat steps 1 to 2 in section 8.1.4 .
2. Press <OK> and <UP/DOWN> to enter your desired name for your handset.
3. Press <Clear> to delete one character.
4. Press <OK> to confirm.
14
8.1.6
Turn on or off the auto answer
1. Repeat steps 1 to 2 in section 8.1.1 .
2. Press <OK> and <UP/DOWN> to select Auto Answer.
3. Press <OK> and <LEFT/RIGHT> to turn on or off the Auto Answer feature.
4. Press <OK> to confirm.
8.1.7
Register an additional handset
You can register up to 5 handsets per base station.
1. Repeat steps 1 to 2 in section 8.1.1 .
2. Press <OK> and <UP/DOWN> to select Register.
3. Press <OK> and <LEFT/RIGHT> to select the desired base station that you want your handset
to register to.
4. Press <OK> to enter the 4-digit system PIN.
Note: 4-digit PIN is entered in **** . Once 4 digits are entered, the right soft key will become OK.
5. Press and hold <PAGE> on the base station until the Base emit a beep and IN-USE LED flash.
6. Press <OK> on the handset to confirm.
Note: “Registering…” will display. A beep tone is emitted from the handset to indicate successful
registration and the screen returns to idle mode.
If the base is found and the PIN is correct, an unused handset number will be assigned
automatically.
If the PIN is incorrect, “Incorrect PIN” will display with an error tone, and the handset returns
to idle.
If no base is found within a certain period, “No Base Found” will display with an error tone, and
the handset returns to idle..
8.1.8
De-Register a handset
1. Repeat steps 1 to 2 in section 8.1.1 .
2. Press <OK> and <UP/DOWN> to select De-register.
3. Press <OK> to enter the 4-digit System PIN.
Note: 4-digit PIN is entered in **** . Once 4 digits are entered, the right soft key will become OK.
4. Press <OK> and <LEFT/RIGHT> to select the handset that you want to de-register.
5. Press <OK> to de-register the handset.
6. “De-registered” will display and go back to idle.
8.1.9
Restore the handset to default settings
1. Repeat steps 1 to 2 in section 8.1.1 .
2. Press <OK> and <UP/DOWN> to select Handset Reset.
3. Press <OK> and <YES> to confirm resetting the handset to default settings.
Note: Phonebook and speed dial entries will not be deleted after handset reset.
8.2
8.2.1
Base Settings
Set the base ringer
In Idle:
1. Press <Menu> and <UP/DOWN> to select Settings.
2. Press <OK> and <UP/DOWN> to select Base Settings.
3. Press <OK> and <UP/DOWN> to select Ringer.
4. Press <OK> and <LEFT/RIGHT> to select your desired melody for your base ringer. (A total of
five melodies for base ringer are provided.)
5. Press < DOWN> and <LEFT/RIGHT> to select your desired ringer volume from Level 1 to
Level 5 or Off .
6. Press <OK> to confirm.
15
8.2.2
Set the handset priority
When you have more than one handset registered to the base station, you can set which
handset to ring first before the others.
In Idle:
1. Repeat steps 1 and 2 in section 8.2.1.
2. Press <OK> and <UP/DOWN> to select H/Set Priority.
3. Press <OK> and <UP/DOWN> to choose Select Handset.
4. Press <OK> and <LEFT/RIGHT> to select which handset to get the priority to ring first.
Note: If All Handsets is chosen, all the registered handsets will ring at the same time and press
<OK> to confirm.
5. Press <OK> and <LEFT/RIGHT> to select the number of ring delay (2 Rings / 4 Rings /
6 Rings / 8 Rings).
6. Press <OK> to confirm.
8.2.3
Set the dial mode
In Idle:
1. Repeat steps 1 and 2 in section 8.2.1.
2. Press <OK> and <UP/DOWN> to select Dial Mode.
3. Press <OK> and <LEFT/RIGHT> to select Tone or Pulse.
4. Press <OK> to confirm.
8.2.4
Set the flash time
In Idle:
1. Repeat steps 1 and 2 in section 8.2.1.
2. Press <OK> and <UP/DOWN> to select Flash Time.
3. Press <OK> and <UP/DOWN> to select the desired flash time.
Note:Flash time options are country dependent. Possible options are
80/100/120/180/250/300/600/800ms.
4. Press <OK> to confirm.
8.2.5
Change the system PIN
In Idle:
1. Repeat steps 1 and 2 in section 8.2.1.
2. Press <OK> and <UP/DOWN> to select System PIN.
3. Press <OK> to enter the old 4-digit system PIN.
4. Press <OK> to enter the new 4-digit system PIN.
5. Press <OK> to enter the new 4-digit system PIN.
6. Press <OK> to reconfirm and save the new 4-digit PIN.
Note: If the PIN is incorrect, “INCORRECT PIN” will display with an error tone in the screen.
8.2.6
Set an exchange code
You can set an exchange code for your handset such that a pause will be inserted after the first
digit if it matches with the exchange code. This feature is especially useful for PBX systems.
In Idle:
1. Repeat steps 1 and 2 in section 8.2.1.
2. Press <OK> and <UP/DOWN> to select PBX access.
3. Press <OK> to enter the exchange code.
4. Press <OK> to confirm.
Note: Only one digit is allowed to enter for the exchange code.
16
8.2.7
Reset the base settings to default settings
After system reset, the phone will return to its original settings.
In Idle:
1. Repeat steps 1 and 2 in section 8.2.1.
2. Press <OK> and <UP/DOWN> to select System Reset.
3. Press <OK> to enter the 4-digit System PIN.
Note: 4-digit PIN is entered in ****. Once 4 digits are entered, the right soft key will become OK.
4. Press <OK> and <YES> to confirm resetting the base settings to default settings.
The base will restore to default settings and return to standby.
8.3
Set the Date, Time and Alarm/Time/Alarm
8.3.1
Set date and time
In Idle:
1. Press <Menu> and <UP/DOWN> to select Settings.
2. Press <OK> and <UP/DOWN> to select Date /Time/Alarm.
3. Press <OK> and <UP/DOWN> to select Date/Time.
4. Press <OK> and <LEFT/RIGHT> to select 12 hour or 24 hour format.
5. Press <DOWN> and <LEFT/RIGHT> to select dd/mm or mm/dd date format.
6. Press <DOWN> to enter the time.
7. Press <DOWN> to enter the date.
8. Press <OK> to confirm.
8.3.2
Set an alarm
In Idle:
1. Press <Menu> and <UP/DOWN> to select Settings.
2. Press <OK> and <UP/DOWN> to select Date/Time/Alarm.
3. Press <OK> and <UP/DOWN> to select Alarm.
4. Press <OK> to enter the alarm time using the 24 hour format.
5. Press <DOWN> and <LEFT/RIGHT> to select once /Daily/off.
6. Press <DOWN> and <LEFT/RIGHT> to select the alarm melody.
7. Press <OK> to confirm.
17
9
ANSWERING MACHINE
Your phone can digitally record up to 15 minutes of messages or up to 60 messages.
You can operate your answering machine from:
• the handset.
9.1
9.1.1
• the base
• remotely
Use the answering machine from the handset
Message playback
1. Press <MENU> and <UP/DOWN> to select Answer Machines.
2. Press <OK> and <UP/DOWN> to select Play Message.
3. Press <OK> to start playing new message (if there are new message received).
Note:The handset displays the number or name of the caller if available, and the date and time
it was received.
During playback, you have the following options:
Key
Function
<Speakerphone> Playback the message through the speakerphone.
<UP/DOWN>
Increase or decrease the playback volume.
<2>
Press once to stop the message playback and go back to previous screen.
<4> or <LEFT>
During announcing the message number, press once to skip backward
to play the previous message.
After message number is announced, press once to repeat playing the
current message at the beginning.
<5> or <Delete>
Delete the current message.
<6> or <RIGHT>
Skip forward to play the next message.
<Pause>
Pause the message playback.
<Play>
Resume message playback.
<TALK OFF>
Stop the curent message playback and return to standby.
At the end of playback the handset go back to previous screen.
Note:If there are no messages in the answer machine, "No Message" will display on the
handset and the handset will return to previous screen.
9.1.2
Delete all old messages
1. Press <MENU> and <UP/DOWN> to select Answer Machine.
2. Press <OK> and <UP/DOWN> to select Delete Msg.
If there are no old messages, the display shows “No Old Messages”.
If there are old messages, the display shows “Delete All?”
3. Press <Yes> to confirm.
Note:
When TAM memory is full:
If the phone is currently in Answer and Record mode and if a call is received, after seizing the
line and playing the relevant voice prompt, the unit will wait for 8 seconds to enter into remote
access. If TAM messages are deleted to free some space during remote access, when the call
ends, the unit will return to answer and record mode.
If the phone is currently in Answer Only mode, if a call is received, after seizing the line and
playing the relevant voice prompt, the unit will wait for 8 seconds to enter into remote access.
If no instruction of remote access is received, it will return to answer only mode.
18
9.1.3
Switch the answering machine on / off
1. Press <MENU> and <UP/DOWN> to select Answer Machine.
2. Press <OK> and <UP/DOWN>to select Answer On/Off.
3. Press <LEFT/RIGHT> to switch on/off answering machine. When switched on the handset
display shows <TAM> icon.
9.1.4
Set the outgoing messages
The outgoing message is the message a caller first hears when the answering machine picks up
his/her call. There are two pre-recorded outgoing messages. One for each of Ans & Record
mode of Answer Only mode to choose from or you can record your own.
9.1.4.1
Record your own outgoing message
1. Press <MENU> and <UP/DOWN> to select Answer Machine.
2. Press <OK> and <UP/DOWN> to select Outgoing Msg.
3. Press <OK> and <UP/DOWN> to select Record Message.
4. Press<OK> and <UP/DOWN> to select Ans & Rec or Answer only.
5. Press<OK> to Speak your announcement after the long beep.
6. Press <Save> to stop recording.
7. Your message is then played back automatically. If you want to delete it, press <Delete>
during playback or press <OK> to stop the outgoing message playback.
9.1.4.2
Play and delete outgoing message
1. Press <MENU> and <UP/DOWN> to select Answer Machine.
2. Press <OK> and <UP/DOWN> to select Outgoing Msg.
3. Press <OK> and <UP/DOWN> to select Play Message.
4. Press<OK> and <UP/DOWN> to select Ans&Record or Answer only.
5. Your message is then played back automatically. If you want to delete it, press <Delete>
during playback or press <OK> to stop the outgoing message playback.
9.1.5
Set the answering machine
1. Press <MENU> and <UP/DOWN> to select Answer Machine.
2. Press <OK> and <UP/DOWN> to select Ans. Settings.
3. Press <OK> and <LEFT/RIGHT> to select Ans & Rec or Answer Only as the answer mode.
4. Press <DOWN> and <LEFT/RIGHT> to set the number of rings for answer delay (Available
options:Time Saver, 2 Rings, 4 Rings, 6 Rings and 8 Rings).
5. Press <DOWN> and <LEFT/RIGHT> to set the incoming message recording time (Available
options: 30s, 60s, 120s and 180s).
6. Press <DOWN> and <LEFT/RIGHT> to turn on or off the call screening feature.
7. Press <OK> to confirm.
9.2
Use the Answering Machine from the Base
9.2.1
Switch on/off the answering machine
Press <Answer On/Off> to turn on or off the answering machine.
9.2.2
Message playback
Press <Play>. New messages are played first.
During playback, you have the following options:
Key
Function
Press once to delete the current message.
<Del>
Play or stop message playback.
<Play/stop>
<Skip Backward> During announcing the message number, press once to skip backward to
play the previous message.
After message number is announced, press once to repeat playing the
current message
Skip forward to play the next message.
<Skip Forward>
Increase or decrease the speaker volume from Vol 1 to Vol 5 during
<Vol + / Vol - >
message playback.
19
During standby mode,Press<Del> twice consecutively to delete all old messages.
Note: In standby mode or during call screening Press<Vol + / Vol - > on the base to
increase or decrease the speaker volume from Vol 0 to Vol 5.
9.3
Call Screening
When the answering machine is on and takes a call, you can listen to the caller leaving a
message. You can then identify the caller and decide whether to take the call in person.
The call can be heard through the base speaker, or the handset as follows:
1. When your handset rings, wait for the answering machine to take the call. When the caller
starts to leave a message, the display shows “Screening?” Press <Yes> to hear the caller
or press <Talk Off> to stop screening without talking to the caller.
2. During call screening, press <<UP/DOWN> key to adjust the speaker volume level from
level 1 to level 5.
3. Press <TALK ON> key to interrupt and speak to the caller directly.
9.4
Remote Access
You can operate your answering machine from any phone by calling your phone and entering
a 4-digit security code.
9.4.1
Enable/Disable remote access
1. Press <MENU> and <UP/DOWN> to select Answer Machine.
2. Press <OK> and <UP/DOWN> to select Remote Access.
3. Press <OK> and <LEFT/RIGHT> to disable or enable the remote access.
4. If you select Enable, the display asks you to enter the Remote access PIN. Enter the current
4-digit PIN. The default remote access PIN is 0000. **You have to change the remote access
PIN from 0000 in order to use this feature**. If you select Disable, skip steps 7.
5. Enter a new 4-digit PIN and press <OK>.
6. Enter the new 4-digit PIN again.
7. Press <OK> to reconfirm.
9.4.2
Operating your answering machine remotely
When the answering machine is switched on, the user can call in remotely. After the number of
rings set in answer delay, user will then hear the outgoing message playing, press * to enter the
remote access PIN and proceed the remote operation.
When the answering machine is switched off, the user can still call in remotely after 20 rings, the
answering machine will answer the call and the user can enter their security code and proceed
the remote operation.
1. Dial your phone number. When you hear your outgoing message, press <*>. You will hear
“Please enter your security code”.
2. Enter your 4 digit Remote Access PIN. You will hear, “You have X new messages”. If you only
have old messages, you will hear “You have X messages” followed by “To hear main menu,
press 1”.
Note: If you enter the incorrect PIN code you will be allowed one further attempt. If it is still
incorrect, you will hear “Thank you for calling”, and your phone will hang up.
When you have accessed your phone, you can use the keypad to operate your answering machine.
Follow the announcements and instructions you hear.
20
Key
Function
1
2
3
4
5
6
7
8
9
0
Play the remote access menu
Play all messages
Play new messages
Skip backward to previous message
Delete current message
Skip forward to next message
Access answer mode
Play OGM
Record OGM
*
Turn on or off the answering machine
Enter the remote access code if the answering machine is
on and outgoing message is playing
#
Stop recording outgoing message or stop messsage play back
Note: If no button is pressed for 8 seconds or more, your phone will hang up.
21
10
TROUBLESHOOTING
If you have difficulty with your phone, please try the suggestions listed below.
Problem
Cause
a.
No dialing tone when pressing
<TALK ON> key
b.
c.
d.
Solutions
a. Check the connections.
Unplug and plug back in the
mains.
The connection cord of the
Check that the telephone line
base station is not plugged in.
cord has been plugged into
The adapter cord is not
the base station and the
plugged in correctly in the
base station.
phone socket.
The line is busy, as another b. Check the base station plug
handset is used.
and the 220V plug (remove
Wrong connection cord
and plug- in).
(no Euro AS)
c. Wait until the line is unoccupied.
d. Use the original connection
cord. (no Euro AS)
When connect to a PBX,
no and/or wrong connection
after dialing.
Dialing prefix is needed.
Insert the dialing prefix
"Searching" is displayed.
Base station out of range.
Base station not connected
to mains.
Reduce the range.
Connect base station to mains.
The call does not work.
Service not activated or wrong
operator or wrong setting
Check your Subscription with
network or change the dial mode.
No display.
Empty battery
Recharge battery
Please contact the technical support of the network provider for further information.
This telephone is not equipped with a grounding function! Therefore some of the functions
may be limited when used in PBX systems.
Technical Support
Please read out the serial number of this telephone to Technical Center.
The serial number can be found in the battery compartment after having the batteries removed.
For technical support, call M&S customer services: tel 0845 671 0665
CONFORMITY
This unit conforms to the following rules and regulations:
1995/5/EC Radio frequency and telecommunication equipment and the mutual acceptance of
conformity.
The CE mark proves the above.
Produced after 13 August 005�� Waste electrical should not
be disposed of with household waste�� Please recycle where
facilities exist�� Check with your local authority or retailer for
recycling advice��
22
Power Adapter Information
Base Adapter
INPUT: AC 100-240V 50/60Hz 150mA
Rating
OUTPUT: DC 6V 600mA
Charger Adapter
INPUT: AC 100-240V 50/60Hz 100mA
OUTPUT: DC 6V 300mA
Battery Information
Battery Type
NiMH (Rechargeable battery pack)
Voltage Rating
600mAh 2.4V
Technical details
Standard
Frequency range
Channel bandwidth
Operating range
Operating time
Temperature range
Digital Enhanced Cordless
Telecommunications (DECT)
1.88 to 1.9 GHz (bandwidth = 20MHz)
1.728 MHz
up to 300 m outdoors; up to 50 m indoors
standby: 100 hours approx.
talking: 10 hours approx.
battery charge time: 15 hours
Operating 0 C to 40 C
Storage -20 C to 60 C
Declaration of conformity
The telephone complies with the essential protective requirements and
objectives of:
■
EC R&TTE Directive 1999/5/EC
■
EC Low Voltage Directive 2006/95/EC
■
EC EMC Directive 89/336/EEC
and conforms to the following relevant harmonised
standards:
■
Radio: EN 301406
■
EMC: EN 301489-1, EN 301489-6
■
Safety: EN 60950-1: 2006
23
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
