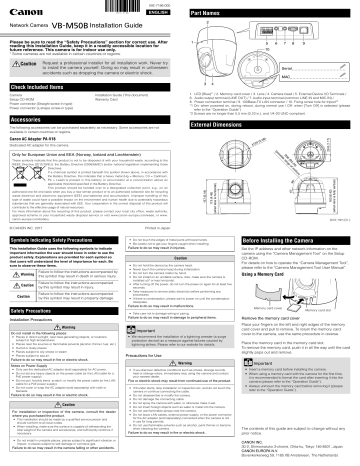

Canon VB-M50B Installation guide

Canon VB-M50B Installation guide
Part Names
Installation Guide
Network Camera
Please be sure to read the “Safety Precautions” section for correct use. After
reading this Installation Guide, keep it in a readily accessible location for
future reference. This camera is for indoor use only.
* Some cameras are not available in certain countries or regions.
Caution Request a professional installer for all installation work. Never try
to install the camera yourself. Doing so may result in unforeseen
accidents such as dropping the camera or electric shock.
Serial_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
MAC_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Check Included Items
1. LED (Blue)*1 / 2. Memory card cover / 3. Lens / 4. Camera head / 5. External Device I/O Terminals /
6. Audio output terminal (LINE OUT) / 7. Audio input terminal (common LINE IN and MIC IN) /
8. Power connection terminal / 9. 100Base-TX LAN connector / 10. Fixing screw hole for tripod*2
*1On: when powered on, during reboot, during normal use / Off: when [Turn Off] is selected (please
refer to the “Operation Guide”)
*2Screws are no longer than 5.5 mm (0.22 in.), and 1/4-20 UNC-compliant.
Installation Guide (This document)
Warranty Card
External Dimensions
Canon AC Adapter PA-V18
Dedicated AC adapter for this camera.
20 o
2. f m
(R o
6 nge
R5 ra
Only for European Union and EEA (Norway, Iceland and Liechtenstein)
113 (4.45)
(when lens is horizontal)
157 (6.18)
These symbols indicate that this product is not to be disposed of with your household waste, according to the
WEEE Directive (2012/19/EU), the Battery Directive (2006/66/EC) and/or national legislation implementing those
If a chemical symbol is printed beneath the symbol shown above, in accordance with
the Battery Directive, this indicates that a heavy metal (Hg = Mercury, Cd = Cadmium,
Pb = Lead) is present in this battery or accumulator at a concentration above an
applicable threshold specified in the Battery Directive.
This product should be handed over to a designated collection point, e.g., on an
authorized one-for-one basis when you buy a new similar product or to an authorized collection site for recycling
waste electrical and electronic equipment (EEE) and batteries and accumulators. Improper handling of this
type of waste could have a possible impact on the environment and human health due to potentially hazardous
substances that are generally associated with EEE. Your cooperation in the correct disposal of this product will
contribute to the effective usage of natural resources.
For more information about the recycling of this product, please contact your local city office, waste authority,
approved scheme or your household waste disposal service or visit, or www.
Unit: mm (in.)
Printed in Japan
© CANON INC. 2017
Symbols Indicating Safety Precautions
This Installation Guide uses the following symbols to indicate
important information the user should know in order to use the
product safely. Explanations are provided for each symbol so
that users will understand the level of importance for each. Be
sure to observe these items.
Failure to follow the instructions accompanied by
this symbol may result in death or serious injury.
Failure to follow the instructions accompanied
by this symbol may result in injury.
29.8 (1.17)
The following accessories can be purchased separately as necessary. Some accessories are not
available in certain countries or regions.
163 (6.42)
(when lens is fully vertical)
Setup CD-ROM
Power connector (Straight screw-in type)
Power connector (L-shape screw-in type)
Failure to follow the instructions accompanied
by this symbol may result in property damage.
• Do not touch the edges of metal parts with bare hands.
• Be careful not to get your fingers caught when installing.
Failure to do so may result in injuries.
• Do not hold the device by the camera head.
• Never touch the camera head during initialization.
• Do not turn the camera rotator by hand.
• Do not install on an unstable surface. Also, make sure the camera is
installed ±5° or less horizontal.
• After turning off the power, do not turn the power on again for at least five
• Take measures to remove static electricity before performing any
• If there is condensation, please wait to power on until the condensation
Failure to do so may result in malfunctions.
Safety Precautions
Before Installing the Camera
Set the IP address and other network information on the
camera using the “Camera Management Tool” on the Setup
For details on how to operate the “Camera Management Tool”,
please refer to the “Camera Management Tool User Manual”.
Using a Memory Card
Memory card cover
• Take care not to damage wiring or piping.
Failure to do so may result in damage to peripheral items.
Installation Precautions
Do not install in the following places:
• Places in direct sunlight, near heat-generating objects, or locations
subject to high temperatures
• Places near fire sources or flammable solvents (alcohol, thinner, fuel, etc.)
• Humid or dusty places
• Places subject to oily smoke or steam
• Places subject to sea air
Failure to do so may result in fire or electric shock.
Notes on Power Supply
• Only use the dedicated AC adapter (sold separately) for AC power.
• Do not set any heavy objects on the power cable (or the LAN cable for a
PoE power supply).
• Do not pull, forcibly bend, scratch, or modify the power cable (or the LAN
cable for a PoE power supply).
• Do not cover or wrap the AC adapter (sold separately) with cloth or
Failure to do so may result in fire or electric shock.
For installation or inspection of this camera, consult the dealer
where you purchased the product.
• This installation should be made by a qualified service person and
should conform to all local codes.
• When installing, make sure the surface is capable of withstanding the
total weight of the camera and accessories, and sufficiently reinforce if
• Do not install in unstable places, places subject to significant vibration or
impact, or places subject to salt damage or corrosive gas.
Failure to do so may result in the camera falling or other accidents.
•We recommend the installation of a lightning arrester (a surge
protection device) as a measure against failures caused by
lightning strikes. Please refer to our website for details.
Precautions for Use
• If you discover defective conditions such as smoke, strange sounds,
heat or strange odors, immediately stop using the camera and contact
your nearest dealer.
Fire or electric shock may result from continued use of the product.
• If thunder starts, stop installation or inspection etc. and do not touch the
camera or continue connecting the cable.
• Do not disassemble or modify the camera.
• Do not damage the connecting cable.
• Do not spray the camera with water, or otherwise make it wet.
• Do not insert foreign objects such as water or metal into the camera.
• Do not use flammable sprays near the camera.
• Do not leave LAN cables, external power supply, or the power connector
for the AC adapter (sold separately) connected when the camera is not
in use for long periods.
• Do not use flammable solvents such as alcohol, paint thinner or benzine
when cleaning the camera.
Failure to do so may result in fire or electric shock.
Memory card slot
Remove the memory card cover
Place your fingers on the left and right edges of the memory
card cover and pull to remove. To return the memory card
cover to the camera, use the same procedure in reverse.
Place the memory card in the memory card slot.
To remove the memory card, push it in all the way until the card
slightly pops out and remove.
•Insert a memory card before installing the camera.
•When using a memory card with the camera for the first time,
it is recommended to format the card after inserting it into the
camera (please refer to the “Operation Guide”).
•Always unmount the memory card before removing it (please
refer to the “Operation Guide”).
The contents of this guide are subject to change without any
prior notice.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands
Rebooting/Resetting the Camera
 Rebooting
To reboot the camera by turning its power off and on, remove the
memory card cover and press the reboot switch.
Recommended Power Cables [Reference]
Cable (AWG)
Rebooting can be done in the Setting Page as well (please refer to
the “Operation Guide”).
 Resetting
Reboot switch
24 V AC maximum cable lengthm
 AC Adapter
Please use the dedicated AC Adapter (sold separately). When using the AC Adapter, remove the attached
power connector, and attach the power connector included in the package.
External Device I/O Terminals
External device I/O terminals consist of two input and output systems each. Viewer can be used to check
external device input status and control output to an external device (please refer to the “Operation Guide”).
 External Device Input Terminals (IN1, IN2)
Connecting the Camera
External device input terminals consist of two sets (IN1, IN2) of two terminals, with the negative terminals
connected to the camera interior GND. Connecting cables to the positive and negative terminals and
opening or closing the circuit notifies the Viewer.
Power Connection
Power can be supplied to the camera in the three ways described below. Please be sure to read the user
manual for the dedicated power supply before use.
•When connecting sensors and switches, connect terminals that are electrically isolated from the
respective power and GND.
•Do not push the external device I/O terminal button with too much force. Doing so may cause the
button to remain pushed-in.
•Power supply should conform to all local codes.
•The power supply should also comply with IEC/UL60950-1(SELV/LPS) standards.
 External Device Output Terminals (OUT1, OUT2)
 PoE (Power over Ethernet)
External device output terminals consist of two sets (OUT1, OUT2) of two terminals. The sets have no
polarity. Controls from the Viewer can be used to open and close the circuit between the terminals. Using
optical couplers, the output terminals are isolated from the camera’s internal circuit.
The camera supports PoE functions. Power can be supplied to the camera by using a LAN cable
connected to a PoE HUB that conforms to the IEEE802.3at Type1 standard.
•Check with your dealer for more information about PoE HUB and Midspan technology.
Midspan (a LAN cable power supply device) is a device that, like a PoE HUB, supplies power to the
camera via a LAN cable.
•Some PoE HUBs allow the limitation of power for each port, but applying limits may interfere with
performance. If using this type of PoE HUB, do not limit the operating power.
•Some PoE HUBs have limits for the total power consumption for the ports, which can interfere with
performance when multiple ports are in use. For more information, check the instruction guide for
your PoE HUB.
•When the camera is connected to both a PoE HUB and an external power supply (12 V DC or
24 V AC), power from the power supply first connected is given priority. But when both power
supplies are connected, according to the combination, problems such as failure of the network
connection may occur. If a problem arises, disable one of the power supplies.
 External Power Supply
12 V DC or 24 V AC input can be used.
Connect the power connector included in the package, as shown below.
12 V DC can be connected in a non-polar configuration.
The load connected to the output terminals should be within the following rating range.
Rating between output terminals:
Internal Connection Diagram
Maximum voltage 50 V DC
Continuous load current at or below 100 mA
On resistance: Max. 30 Ω
Adaptive wiring for external device cables
Solid wire/Stranded wire AWG: No. 26 – 20
Cable strip should be approx. 11 mm (0.43 in.).
10 kΩ
10 kΩ
+3.3 V
1 kΩ
External device
0.1 µF
Input terminal
IN1, IN2
External device
Output terminal
Audio Input/Output Terminals
Each audio input/output terminal has one input system and one output system.
Connecting the camera to an audio input/output device such as a microphone or a speaker with an
amplifier allows you to send/receive audio through the Viewer.
Use the 3.5 mm ( 0.14 in.) monaural mini-jack connector to connect an audio input/output device.
 Audio Input Terminal Common LINE IN/MIC IN (monaural input)
Although the camera has a single audio input system, it supports two types of microphone input: LINE IN
and MIC IN. Before using the audio input, please confirm the [Audio Input] in the Setting Page (please refer
to the “Operation Guide”). LINE IN is selected by default.
Input terminal: 3.5 mm ( 0.14 in.) mini jack (monaural)
•Dynamic MIC IN
Input impedance: 1.5 kΩ ±5%
Using the power connector included in the package (horizontal or vertical wiring)
Tightening torque:
0.3 N·m (max.)
Horizontal wiring:
9 mm (0.35 in.)
Vertical wiring:
7 mm (0.28 in.)
Tightening torque:
0.25 N·m (max.)
Straight screw-in type
Use UL cable (UL-1015 or equivalent) for 12 V DC or 24 V AC wiring.
To reset the camera to its factory default settings, press the reset
switch and reboot switch while checking the LED in the following
1) H
old the reset switch down, and press the reboot switch with a
pointed object.
2) After holding down the reset switch for at least three seconds,
release the reboot switch.
3) A
fter the LED starts to blink, release the reset switch.
When the blinking has stopped, the unit has finished resetting.
Reset switch
12 V DC maximum cable lengthm
Internal controller
•12 V DC: Voltage fluctuation within ±10% of 12 V DC
Current supply capacity of at least 1.5 A per camera
•When using a 12 V DC battery power supply, be sure to connect resistors of at least 0.5 – 1.0 Ω /20 W
in series to the power line.
•For an external power supply, use a double-insulated device.
* Supported microphones: Output impedance: 400 – 600 Ω
•Condenser MIC IN
Input impedance (microphone bias resistance): 2.2 kΩ ±5%
Microphone power supply: plug-in power (voltage: 2.3 V)
* Supported microphones: Condenser microphones with plug-in power support
Input level: Max. 1 Vp-p
L-shape screw-in type
* Use a microphone with an amplifier.
 Audio Output Terminal LINE OUT (monaural output)
•The power supply should be within the following voltage range.
• 24 V AC: Voltage fluctuation within ±10% of 24 V AC (50 Hz or 60 Hz ±0.5 Hz or less)
Current supply capacity of at least 1.0 A per camera
Connect the camera to a speaker with an amplifier. Audio can be sent to the speaker from the Viewer.
Output terminal: 3.5 mm ( 0.14 in.) mini jack (monaural)
Output level: Max. 1 Vp-p
* Use a speaker with an amplifier.
Please refer to the installation procedures or the Appendix – Specifications for specifications not listed below.
Viewing Angle
Min. Subject Illumination
Pan Angle Range
Tilt Angle Range
5x optical zoom (20x digital zoom) lens with auto focus
For 16:9 aspect ratios
Horizontal: 15.6° (W) – 3.2° (T)
Vertical: 8.8° (W) – 1.8° (T)
For 4:3 aspect ratios
Horizontal: 15.6° (W) – 3.2° (T)
Vertical: 11.7° (W) – 2.4° (T)
Day Mode (color):
0.04 lux (F1.8, shutter speed 1/30 sec., when smart
shade control is off, 50IRE)
Night Mode (monochrome):
0.002 lux (F1.8, shutter speed 1/30 sec., when smart
shade control is off, 50IRE)
348° (±174°)
105° (ceiling-mounted position: -90° – +15°)
– When the horizontal direction of the camera is 0°
Network Terminal*
LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex))
* Use a category 5 or better LAN cable, 100 m (328 ft.) or
less in length.
Audio Input Terminal
(Common for LINE IN & MIC IN)
Audio Output Terminal (LINE OUT)
External Device I/O Terminal
Memory Card*
3.5 mm ( 0.14 in.) mini-jack connector (monaural)
LINE IN (connect to an amplifier microphone) or
MIC IN (connect to a microphone w/o amplifier)
– Switch LINE IN/MIC IN in the Setting Page.
3.5 mm ( 0.14 in.) mini-jack connector (monaural)
LINE OUT (connect to an amplifier speaker)
Input x 2, Output x 2
SD Memory Card, SDHC Memory Card, SDXC Memory
Card Compatible.
* To insure reliability in the recording speed, it is
recommended to use CLASS 10 rated products.
Even when using CLASS 10 products, reliability cannot
be guaranteed during heavy access loads (e.g., when
recording and deleting data at the same time).
Operating Environment
Storage Environment
AC, DC, PoE: -10°C – +50°C (+14°F – +122°F)
Humidity: 5% – 85% (without condensation)
Temperature: -30°C – +60°C (-22°F – +140°F)
Humidity: 5% – 90% (without condensation)
Installation Method
Ceiling mount
Canon will not guarantee proper operation if the cameras
are installed on surfaces where the angle is more than ±5°
from horizontal or on walls, because this will put a heavy
load onto sliding mechanical parts and may affect durability.
Power Supply
PoE: PoE power supply via LAN connector (IEEE802.3at
Type1 Class compliant)
AC Adapter: PA-V18 (100 – 240 V AC) (sold separately)
External power source: 24 V AC/12 V DC
Power Consumption
PoE: Max. approx. 9.8 W*
AC Adapter PA-V18: Max. approx. 11.2 W (100 V AC)
Max. approx. 11.2 W (240 V AC)
DC: Max. approx. 10 W
AC: Max. approx. 9.6 W
* Class 0 power sourcing equipment (requests 15.4 W)
Approx. 1170 g (2.58 lb.)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
