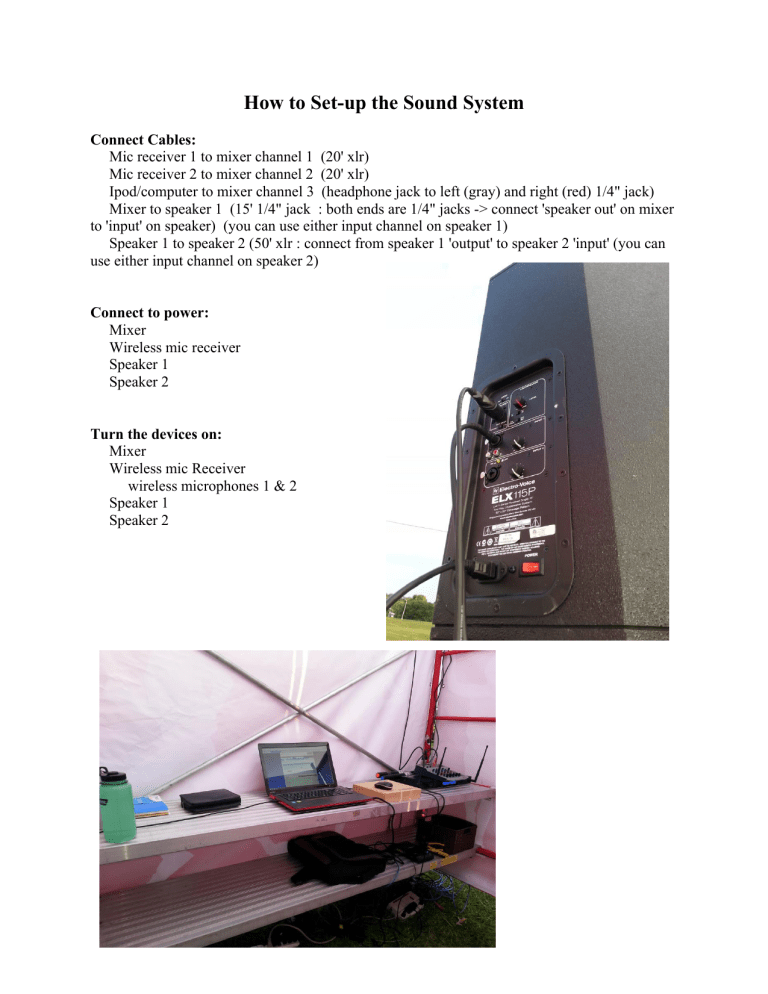

How to Set-up the Sound System
Connect Cables:
Mic receiver 1 to mixer channel 1 (20' xlr)
Mic receiver 2 to mixer channel 2 (20' xlr)
Ipod/computer to mixer channel 3 (headphone jack to left (gray) and right (red) 1/4" jack)
Mixer to speaker 1 (15' 1/4" jack : both ends are 1/4" jacks -> connect 'speaker out' on mixer
to 'input' on speaker) (you can use either input channel on speaker 1)
Speaker 1 to speaker 2 (50' xlr : connect from speaker 1 'output' to speaker 2 'input' (you can
use either input channel on speaker 2)
Connect to power:
Mixer
Wireless mic receiver
Speaker 1
Speaker 2
Turn the devices on:
Mixer
Wireless mic Receiver
wireless microphones 1 & 2
Speaker 1
Speaker 2
