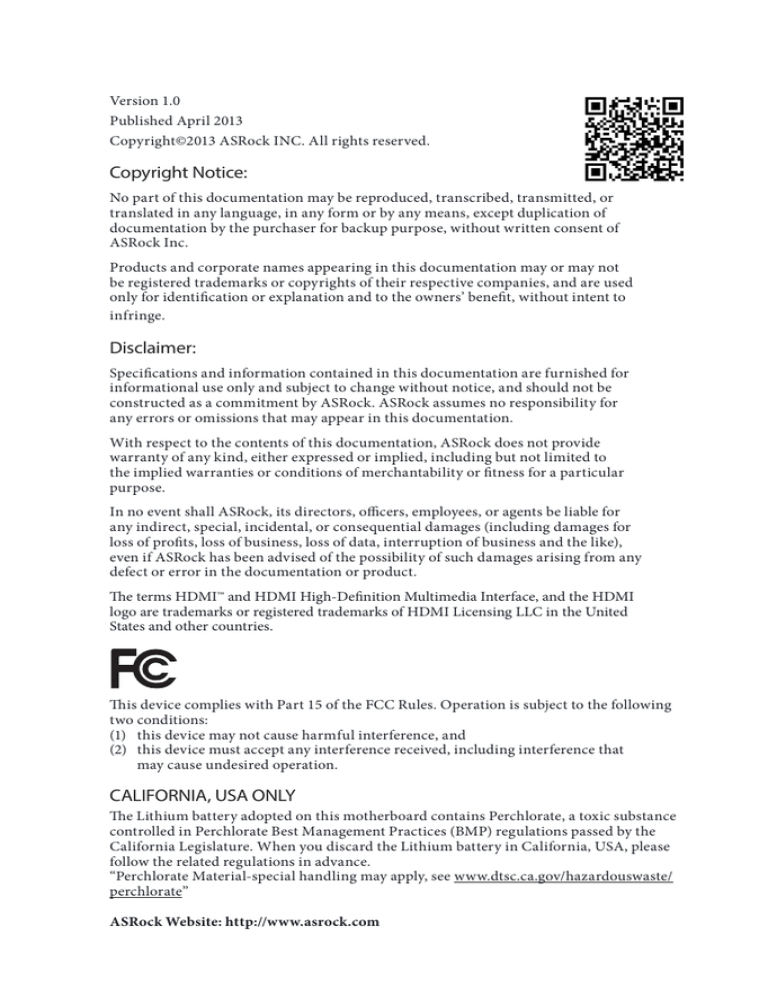

Copyright©2013 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identification or explanation and to the owners’ benefit, without intent to
infringe.
Disclaimer:
Specifications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or fitness for a particular
purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of profits, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
The terms HDMI™ and HDMI High-Definition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com
H87M-ITX
Motherboard Layout
1
2
PS2
Keyboard
/Mouse
USB 2.0
T: USB2
B: USB3
ATX12V1
CLRCMOS1
DVI
1
4
CPU_FAN1
Intel
H87
7
PCIE1
9
PANEL1
Super
I/O
14 13
12
11
10
English
15
PLED PWRBTN
1
USB_10_11
HDLED RESET
H87M-ITX
1
SATA_3_ 0
SATA_3_1
SATA_3_ 2
8
SATA_3_3
Center:
FRONT
Top:
LINE IN
1
Top:
CTR BASS
Bottom:
MIC IN
AUDIO
CODEC
16
6
USB3_5_6
64Mb
BIOS
1
Center:
REAR SPK
Bottom:
Optical
SPDIF
HD_AUDIO1
TPMS1
Top:
RJ-45
CMOS
Battery
5
CHA_FAN1
USB 3.0
T: USB3
B: USB4
USB 3.0
DDR3_B1 (64 bit, 240-pin module)
RoHS
eSATA1
USB 3.0
T: USB1
B: USB2
Fast RAM
ATXPWR1
HDMI1
X
DDR3_A1 (64 bit, 240-pin module)
1
CI1
VGA1
3
1
No. Description
English
2
1
ATX 12V Power Connector (ATX12V1)
2
2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)
3
Clear CMOS Jumper (CLRCMOS1)
4
Chassis Intrusion Header (CI1)
5
ATX Power Connector (ATXPWR1)
6
CPU Fan Connector (CPU_FAN1)
7
USB 3.0 Header (USB3_5_6)
8
USB 2.0 Header (USB10_11)
9
System Panel Header (PANEL1)
10
SATA3 Connector (SATA3_0)
11
SATA3 Connector (SATA3_1)
12
SATA3 Connector (SATA3_2)
13
SATA3 Connector (SATA3_3)
14
Chassis Fan Connector (CHA_FAN1)
15
TPM Header (TPMS1)
16
Front Panel Audio Header (HD_AUDIO1)
H87M-ITX
1
2
15
14
13
3
4
5
6
7
8
12
11
10
9
No. Description
No. Description
1
USB 2.0 Ports (USB_23)
9
Microphone (Pink)
2
VGA Port
10
Optical SPDIF Out Port
3
eSATA Connector***
11
USB 3.0 Ports (USB_01)
4
LAN RJ-45 Port*
12
USB 3.0 Ports (USB3_12)
5
Central / Bass (Orange)
13
HDMI Port
6
Rear Speaker (Black)
14
DVI-D Port
7
Line In (Light Blue)
15
PS/2 Keyboard/Mouse Port
8
Front Speaker (Lime)**
English
I/O Panel
3
* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
SPEED LED
LAN Port
Activity / Link LED
Speed LED
Status
Description
Status
Description
Off
Blinking
On
No Link
Data Activity
Link
Off
Orange
Green
10Mbps connection
100Mbps connection
1Gbps connection
** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below
for connection details in accordance with the type of speaker you use.
Audio Output
Channels
Front Speaker
(No. 8)
Rear Speaker
(No. 6)
Central / Bass
(No. 5)
Line In
(No. 7)
2
4
6
8
V
V
V
V
-V
V
V
--V
V
---V
To enable Multi-Streaming, you need to connect a front panel audio cable to the front
panel audio header. After restarting your computer, you will find the “Mixer” tool on your
system. Please select “Mixer ToolBox”
, click “Enable playback multi-streaming”, and
click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select
“Realtek HDA Primary output” to use the Rear Speaker, Central/Bass, and Front Speaker,
or select “Realtek HDA Audio 2nd output” to use the front panel audio.
*** The eSATA connector supports SATA with cables within 1 meters.
English
4
H87M-ITX
Chapter 1 Introduction
Thank you for purchasing ASRock H87M-ITX motherboard, a reliable motherboard
produced under ASRock’s consistently stringent quality control. It delivers excellent
performance with robust design conforming to ASRock’s commitment to quality
and endurance.
Because the motherboard specifications and the BIOS software might be updated, the
content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock’s
website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You
may find the latest VGA cards and CPU support list on ASRock’s website as well. ASRock
website http://www.asrock.com.
1.1 Package Contents
ASRock H87M-ITX Motherboard (Mini-ITX Form Factor)
ASRock H87M-ITX Quick Installation Guide
ASRock H87M-ITX Support CD
2 x Serial ATA (SATA) Data Cables (Optional)
1 x I/O Panel Shield
English
•
•
•
•
•
5
1.2 Specifications
English
6
Platform
• Mini-ITX Form Factor
• All Solid Capacitor design
A-Style
• Home Cloud
CPU
• Supports 4th Generation Intel® CoreTM i7 / i5 / i3 / Xeon® /
Pentium® / Celeron® in LGA1150 Package
• 4 Power Phase Design
• Supports Intel® Turbo Boost 2.0 Technology
Chipset
• Intel® H87
• Supports Intel® Small Business Advantage 2.0
Memory
• Dual Channel DDR3 Memory Technology
• 2 x DDR3 DIMM slots
• Supports DDR3 1600/1333/1066 non-ECC, un-buffered
memory
• Max. capacity of system memory: 16GB
(see CAUTION)
• Supports Intel® Extreme Memory Profile (XMP)1.3/1.2
Expansion
Slot
• 1 x PCI Express 3.0 x16 slot
Graphics
• Intel® HD Graphics Built-in Visuals and the VGA outputs can
be supported only with processors which are GPU integrated.
• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick
Sync Video with AVC, MVC (S3D) and MPEG-2 Full
HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD
Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600
• Pixel Shader 5.0, DirectX 11.1
• Max. shared memory 1792MB
• Three VGA Output options: D-Sub, DVI-D and HDMI
• Supports Triple Monitors
• Supports HDMI Technology with max. resolution up to
1920x1200 @ 60Hz
• Supports DVI-D with max. resolution up to 1920x1200 @
60Hz
H87M-ITX
• Supports D-Sub with max. resolution up to 1920x1200 @
60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
HBR (High Bit Rate Audio) with HDMI (Compliant HDMI
monitor is required)
• Supports HDCP function with DVI-D and HDMI ports
• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D
and HDMI ports
Audio
• 7.1 CH HD Audio with Content Protection (Realtek ALC892
Audio Codec)
• Premium Blu-ray audio support
LAN
• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Qualcomm® Atheros® AR8171
• Supports Qualcomm® Atheros® Security Wake On Internet
Technology
• Supports Wake-On-LAN
• Supports Energy Efficient Ethernet 802.3az
• Supports PXE
Rear Panel
I/O
•
•
•
•
•
•
•
•
•
English
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
1 x Optical SPDIF Out Port
1 x eSATA Connector
2 x USB 2.0 Ports
4 x USB 3.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
• HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front
Speaker / Microphone
7
English
8
Storage
• 4 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,
RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology
12 and Intel Smart Response Technology), NCQ, AHCI and
“Hot Plug” functions
• 1 x eSATA connector, supports NCQ, AHCI and “Hot Plug”
functions
Connector
•
•
•
•
•
•
•
•
•
1 x Chassis Intrusion header
1 x TPM header
1 x CPU Fan connector (4-pin)
1 x Chassis Fan connector (4-pin)
1 x 24 pin ATX power connector
1 x 4 pin 12V power connector
1 x Front panel audio connector
1 x USB 2.0 header (supports 2 USB 2.0 ports)
1 x USB 3.0 header (supports 2 USB 3.0 ports)
BIOS
Feature
•
•
•
•
64Mb AMI UEFI Legal BIOS with Multilingual GUI support
ACPI 1.1 Compliance Wake Up Events
SMBIOS 2.3.1 Support
CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment
Support
CD
• Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and
Toolbar, Start8 (30 days trial)
Hardware Monitor
• CPU/Chassis Temperature Sensing
• CPU/Chassis Tachometer
• CPU/Chassis Quiet Fan (Allow Chassis Fan Speed AutoAdjust by CPU Temperature)
• CPU/Chassis Fan Multi-Speed Control
• CASE OPEN detection
• Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
• Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit compliant
Certifications
• FCC, CE, WHQL
• ErP/EuP Ready (ErP/EuP ready power supply is required)
H87M-ITX
* For detailed product information, please visit our website: http://www.asrock.com
English
Due to limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit operating systems. Windows® 64-bit operating systems
do not have such limitations. You can use ASRock XFast RAM to utilize the memory that
Windows® cannot use.
9
1.3 Unique Features
ASRock A-Tuning
A-Tuning is ASRock’s multi purpose software suite with a new interface, more new
features and improved utilities, including XFast RAM, Dehumidifier, Good Night
LED, FAN-Tastic Tuning, OC Tweaker and a whole lot more.
ASRock Instant Flash
ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM. This convenient BIOS update tool allows you to update the system BIOS in a few clicks without
preparing an additional floppy diskette or other complicated flash utility. Just save
the new BIOS file to your USB storage and launch this tool by pressing <F6> or
<F2> during POST to enter the BIOS setup menu to access ASRock Instant Flash.
Please be noted that the USB flash drive or hard drive must use FAT32/16/12 file
system.
ASRock APP Charger
Simply by installing the ASRock APP Charger makes your iPhone/iPad/iPod Touch
charge up to 40% faster than before on your computer. ASRock APP Charger allows
you to quickly charge many Apple devices simultaneously and even supports
continuous charging when your PC enters into Standby mode (S1), Suspend to RAM
(S3), hibernation mode (S4) or power off (S5).
ASRock XFast USB
ASRock XFast USB can boost the performance of your USB storage devices. The
performance may depend on the properties of the device.
ASRock XFast LAN
ASRock XFast LAN provides faster internet access, which includes the benefits
listed below. LAN Application Prioritization: You can configure your application’s
priority ideally and add new programs to the list. Lower Latency in Game: After
setting online game’s priority higher, it can lower the latency in games. Traffic
Shaping: You can watch Youtube HD videos and download simultaneously. RealTime Analysis of Your Data: With the status window, you can easily recognize
which data streams you are currently transferring.
English
10
H87M-ITX
ASRock XFast RAM
ASRock XFast RAM is included in A-Tuning. It fully utilizes the memory space
that cannot be used under Windows® 32-bit operating systems. ASRock XFast RAM
shortens the loading time of previously visited websites, making web surfing faster
than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another
advantage of ASRock XFast RAM is that it reduces the frequency of accessing your
SSDs or HDDs in order to extend their lifespan.
ASRock Crashless BIOS
ASRock Crashless BIOS allows users to update their BIOS without fear of failing. If
power loss occurs during the BIOS updating process, ASRock Crashless BIOS will
automatically finish the BIOS update procedure after regaining power. Please note
that BIOS files need to be placed in the root directory of your USB disk. Only USB 2.0
ports support this feature.
ASRock OMG (Online Management Guard)
Administrators are able to establish an internet curfew or restrict internet access
at specified times via OMG. You may schedule the starting and ending hours of
internet access granted to other users. In order to prevent users from bypassing
OMG, guest accounts without permission to modify the system time are required.
ASRock Internet Flash
ASRock Internet Flash downloads and updates the latest UEFI firmware version
from our servers for you without entering Windows® OS. Please setup network
configuration before using Internet Flash.
ASRock UEFI System Browser
ASRock System Browser shows the overview of your current PC and the devices
connected.
ASRock Dehumidifier Function
Users may prevent motherboard damages due to dampness by enabling
“Dehumidifier Function”. When enabling Dehumidifier Function, the computer
will power on automatically to dehumidify the system after entering S4/S5 state.
ASRock Easy RAID Installer
English
ASRock Easy RAID Installer can help you to copy the RAID driver from the
support CD to your USB storage device. After copying the RAID driver to your
USB storage device, please change “SATA Mode” to “RAID”, then you can start
installing the OS in RAID mode.
11
ASRock Easy Driver Installer
For users that don’t have an optical disk drive to install the drivers from our support
CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver
to your system via an USB storage device, then downloads and installs the other
required drivers automatically.
ASRock Interactive UEFI
ASRock Interactive UEFI is a blend of system configuration tools, cool sound effects
and stunning visuals. The unprecedented UEFI provides a more attractive interface
and more amusment.
ASRock Fast Boot
With ASRock’s exclusive Fast Boot technology, it takes less than 1.5 seconds to
logon to Windows 8 from a cold boot. No more waiting! The speedy boot will
completely change your user experience and behavior.
ASRock Restart to UEFI
Windows® 8 brings the ultimate boot up experience. The lightning boot up speed
makes it hard to access the UEFI setup. ASRock Restart to UEFI allows users to
enter the UEFI automatically when turning on the PC. By enabling this function,
the PC will enter the UEFI directly after you restart.
ASRock Good Night LED
ASRock Good Night LED technology offers you a better sleeping environment by
extinguishing the unessential LEDs. By enabling Good Night LED in the BIOS, the
Power/HDD LEDs will be switched off when the system is powered on. Good Night
LED will automatically switch off the Power and Keyboard LEDs when the system
enters into Standby/Hibernation mode as well.
ASRock USB Key
In a world where time is money, why waste precious time everyday typing
usernames to log in to Windows? Why should we even bother memorizing those
foot long passwords? Just plug in the USB Key and let your computer log in to
windows automatically!
ASRock Home Cloud
English
This motherboard supports Security Wake On Internet Technology with the
onboard Qualcomm® Atheros® LAN, so you can connect with your PC from
anywhere in the world. You will be able to power your PC on or turn it off, monitor
and take control of it remotely with another smartphone, tablet or computer.
12
H87M-ITX
ASRock FAN-Tastic Tuning
English
ASRock FAN-Tastic Tuning is included in A-Tuning. Configure up to five different
fan speeds using the graph. The fans will automatically shift to the next speed level
when the assigned temperature is met.
13
Chapter 2 Installation
This is an Mini-ITX form factor motherboard. Before you install the motherboard,
study the configuration of your chassis to ensure that the motherboard fits into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard.
Failure to do so may cause physical injuries to you and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not overtighten the screws! Doing so may damage the motherboard.
14
H87M-ITX
2.1 Installing the CPU
1. Before you insert the 1150-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
A
B
English
2
15
English
16
4
3
5
H87M-ITX
English
Please save and replace the cover if the processor is removed. The cover must be placed if
you wish to return the motherboard for after service.
17
2.2 Installing the CPU Fan and Heatsink
2
CP
U_
FA
N
1
English
18
H87M-ITX
2.3 Installing Memory Modules (DIMM)
This motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM slots,
and supports Dual Channel Memory Technology.
1. For dual channel configuration, you always need to install identical (the same brand,
speed, size and chip-type) DDR3 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory module
installed.
3. It is not allowed to install a DDR or DDR2 memory module into a DDR3 slot; otherwise,
this motherboard and DIMM may be damaged.
English
The DIMM only fits in one correct orientation. It will cause permanent damage to the
motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.
19
1
2
3
English
20
H87M-ITX
2.4 Expansion Slots (PCI and PCI Express Slots)
There is 1 PCI Express slot on this motherboard.
Before installing an expansion card, please make sure that the power supply is switched off
or the power cord is unplugged. Please read the documentation of the expansion card and
make necessary hardware settings for the card before you start the installation.
PCIe slots:
English
PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
21
2.5 Jumpers Setup
The illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”
when a jumper cap is placed on these 2 pins.
Clear CMOS Jumper
(CLRCMOS1)
(see p.1, No. 3)
Default
Clear CMOS
CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system
parameters to default setup, please turn off the computer and unplug the power
cord from the power supply. After waiting for 15 seconds, use a jumper cap to
short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear
the CMOS right after you update the BIOS. If you need to clear the CMOS when
you just finish updating the BIOS, you must boot up the system first, and then shut
it down before you do the clear-CMOS action. Please be noted that the password,
date, time, and user default profile will be cleared only if the CMOS battery is
removed.
If you clear the CMOS, the case open may be detected. Please adjust the BIOS option “Clear
Status” to clear the record of previous chassis intrusion status.
English
22
H87M-ITX
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
headers and connectors. Placing jumper caps over the headers and connectors will cause
permanent damage to the motherboard.
System Panel Header
(9-pin PANEL1)
(see p.1, No. 9)
GND
GND
RESET#
GND
PWRBTN#
HDLED-
PLEDPLED+
HDLED+
1
Connect the power
switch, reset switch and
system status indicator on
the chassis to this header
according to the pin
assignments below. Note
the positive and negative
pins before connecting
the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may configure the way to turn
off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset switch to restart the
computer if the computer freezes and fails to perform a normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED is on when the
system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The
LED is off when the system is in S4 sleep state or powered off (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED is on when the
hard drive is reading or writing data.
English
The front panel design may differ by chassis. A front panel module mainly consists of power
switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the
pin assignments are matched correctly.
23
USB 2.0 Headers
(9-pin USB10_11)
(see p.1, No. 8)
These four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
SATA3_0
SATA3_1
SATA3_2
SATA3_3
Serial ATA3 Connectors
(SATA3_0:
see p.1, No. 10)
(SATA3_1:
see p.1, No. 11)
(SATA3_2:
see p.1, No. 12)
(SATA3_3:
see p.1, No. 13)
DUMMY
GND
GND
P+7
P+6
P-7
P-6
USB_PWR
USB_PWR
1
USB 3.0 Headers
(19-pin USB3_5_6)
(see p.1, No. 7)
1
Dummy
IntA_PA_D+
IntA_PB_D+
IntA_PA_D-
IntA_PB_D-
GND
GND
IntA_PA_SSTX+
IntA_PB_SSTX+
IntA_PA_SSTX-
IntA_PB_SSTX-
GND
GND
IntA_PA_SSRX+
IntA_PB_SSRX+
IntA_PA_SSRX-
IntA_PB_SSRX-
Vbus
Vbus
GN D
Front Panel Audio Header
(9-pin HD_AUDIO1)
PRESENCE#
MIC_RET
(see p.1, No. 16)
OUT_RET
OUT2_L
J_SENSE
OUT2_R
MIC2_R
MIC2_L
1
English
24
Besides two USB 2.0 ports
on the I/O panel, there
are one header on this
motherboard. Each USB
2.0 header can support
two ports.
Besides four USB 3.0 ports
on the I/O panel, there
are one header on this
motherboard. Each USB
3.0 header can support
two ports.
This header is for
connecting audio devices
to the front audio panel.
H87M-ITX
1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis
manual to install your system.
2. If you use an AC’97 audio panel, please install it to the front panel audio header by the
steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don’t need to connect
them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and
adjust “Recording Volume”.
CPU Fan Connectors
(4-pin CPU_FAN1)
(see p.1, No. 6)
ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 5)
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
GN D
+ 12V
CPU_ FAN_SPEED
FAN_SPEED_CONTROL
12
24
1
13
Please connect fan cable
to the fan connector and
match the black wire to
the ground pin.
This motherboard provides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
This motherboard provides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
English
Chassis Fan Connector
(4-pin CHA_FAN1)
(see p.1, No. 14)
25
ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.1, No. 1)
This motherboard provides an 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
Chassis Intrusion Header
(2-pin CI1)
(see p.1, No. 4)
TPM Header
(17-pin TPMS1)
(see p.1, No. 15)
GND
Signal
1
F_CLKRUN#
GND
+3VSB
SERIRQ#
S_PWRDWN#
LAD0_L
GND
LAD1_L
+3V
LAD2_L
LAD3_L
TPM_RST#
SMB_DATA_MAIN
SMB_CLK_MAIN
LFRAME#_L
GND
CK_33M_TPM
1
English
26
This motherboard supports
CASE OPEN detection feature
that detects if the chassis cove
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
This connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certificates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
H87M-ITX
1 Einleitung
Vielen Dank, dass Sie sich für das H87M-ITX von ASRock entschieden haben – ein
zuverlässiges Motherboard, das konsequent unter der strengen Qualitätskontrolle von
ASRock hergestellt wurde. Es liefert ausgezeichnete Leistung mit robustem Design,
das ASRocks Streben nach Qualität und Beständigkeit erfüllt.
In dieser Anleitung enthalten Kapitel 1 und 2 die Motherboard-Vorstellung sowie
Schritt-für-Schritt-Installationsanleitungen. Kapitel 3 enthält die Bedienungsanleitung
von Software und Dienstprogrammen. Kapitel 4 enthält die Konfigurationsanleitung
der BIOS-Einrichtung.
Da die technischen Daten des Motherboards sowie die BIOS-Software aktualisiert werden
können, kann der Inhalt dieser Dokumentation ohne Ankündigung geändert werden.
Falls diese Dokumentation irgendwelchen Änderungen unterliegt, wird die aktualisierte
Version ohne weitere Hinweise auf der ASRock-Webseite zur Verfügung gestellt. Sollten
Sie technische Hilfe in Bezug auf dieses Motherboard benötigen, erhalten Sie auf unserer
Webseite spezifischen Informationen über das von Ihnen verwendete Modell. Auch finden
Sie eine aktuelle Liste unterstützter VGA-Karten und Prozessoren auf der ASRockWebseite: ASRock-Webseite http://www.asrock.com.
1.1 Lieferumfang
ASRock H87M-ITX-Motherboard (Mini-ITX-Formfaktor)
ASRock H87M-ITX-Schnellinstallationsanleitung
ASRock H87M-ITX-Support-CD
2 x Serial-ATA- (SATA) Datenkabel (optional)
1 x E/A-Blendenabschirmung
Deutsch
•
•
•
•
•
27
1.2 Technische Daten
Plattform
• Mini-ITX-Formfaktor
• Vollständig solides Kondensatordesign
Prozessor
• Unterstützt Intel® CoreTM i7 / i5 / i3 / Xeon® / Pentium® /
Celeron® der 4. Generation im LGA1150-Paket
• 4-Leistungsphasendesign
• Unterstützt Intel® Turbo Boost 2.0-Technologie
Chipsatz
• Intel® H87
• Unterstützt Intel® Small Business Advantage 2.0
Speicher
• Dualkanal-DDR3-Speichertechnologie
• 2 x DDR3-DIMM-Steckplätze
• Unterstützt DDR3 1600/1333/1066 non-ECC, ungepufferter
Speicher
• Systemspeicher, max. Kapazität: 16 GB
(siehe ACHTUNG)
• Unterstützt Intel® Extreme Memory Profile (XMP)1.3/1.2
Erweiterungssteckplatz
• 1 x PCI-Express 3.0-x16-Steckplatz
Grafikkarte
• Integrierte Intel® HD Graphics-Visualisierung und VGAAusgänge können nur mit Prozessoren unterstützt werden, die
GPU-integriert sind.
• Unterstützt integrierte Intel® HD Graphics-Visualisierung:
Intel® Quick Sync Video mit AVC, MVC (S3D) und MPEG-2
Full HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD
Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600
• Pixel Shader 5.0, DirectX 11.1
Deutsch
•
•
•
•
Max. geteilter Speicher: 1792 MB
Drei VGA-Ausgangsoptionen: D-Sub, DVI-D und HDMI
Unterstützt drei Monitore
Unterstützt HDMI-Technologie mit maximaler Auflösung von
1920 x 1200 bei 60 Hz
• Unterstützt DVI-D mit maximaler Auflösung von 1920 x 1200
bei 60 Hz
28
H87M-ITX
• Unterstützt D-Sub mit maximaler Auflösung von 1920 x 1200
bei 60 Hz
• Unterstützt Auto-Lippensynchronizität, hohe Farbtiefe (12
bpc), xvYCC und HBR (Audio mit hoher Bitrate) mit HDMI
(konformer HDMI-Monitor erforderlich)
• Unterstützt HDCP-Funktion mit DVI-D- und HDMI-Ports
• Unterstützt Blu-ray- (BD) Wiedergabe (Full HD/1080p) mit
DVI-D- und HDMI-Ports
Audio
• 7.1-Kanal-HD-Audio mit Inhaltsschutz (Realtek ALC892Audiocodec)
• Erstklassige Blu-ray-Audiounterstützung
LAN
• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Qualcomm® Atheros® AR8171
• Unterstützt Qualcomm® Atheros® Security Wake On InternetTechnologie
• Unterstützt Wake-On-LAN
• Unterstützt energieeffizientes Ethernet 802.3az
• Unterstützt PXE
Rückblende,
E/A
•
•
•
•
•
•
•
•
•
Deutsch
1 x PS/2-Mausanschluss/Tastaturanschluss
1 x D-Sub-Port
1 x DVI-D-Port
1 x HDMI-Port
1 x Optischer SPDIF-Ausgang
1 x eSATA-Anschluss
2 x USB 2.0-Ports
4 x USB 3.0-Ports
1 x RJ-45-LAN-Port mit LED (Aktivität/Verbindung-LED und
Geschwindigkeit-LED)
• HD-Audioanschluss: Hintere Lautsprecher / Zentral / Bass /
Line-in / Vorderer Lautsprecher / Mikrofon
29
Deutsch
30
Speicher
• 4 x SATA-III-6,0-Gb/s-Anschlüsse, unterstützt RAID (RAID
0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology
12 und Intel Smart Response Technology), NCQ, AHCI und
„Hot-Plugging“-Funktionen
• 1 x eSATA-Anschluss, unterstützt NCQ, AHCI und „HotPlugging“-Funktionen
Anschluss
•
•
•
•
•
•
•
•
•
BIOS-Funktion
• 64-Mb-AMI-UEFI-Legal-BIOS mit Unterstützung
mehrsprachiger grafischer Benutzerschnittstellen
• ACPI 1.1-konforme Aufweckereignisse
• SMBIOS 2.3.1-Unterstützung
• CPU, DRAM, PCH 1,05 V, PCH 1,5 V /
Mehrfachspannungsanpassung
Support-CD
• Treiber, Dienstprogramme, Antivirensoftware (Testversion),
CyberLink MediaEspresso 6.5-Testversion, Google Chrome
Browser und Toolbar, Start8 (30-Tage-Testversion)
Hardwareüberwachung
• CPU-/Gehäusetemperaturerkennung
• CPU-/Gehäusetachometer
• Lautloser CPU-/Gehäuselüfter (ermöglicht automatische
Anpassung der Geschwindigkeit des Gehäuselüfters über die
CPU-Temperatur)
• CPU/Gehäuselüfter-Mehrfachgeschwindigkeitssteuerung
• Gehäuse-offen-Erkennung
• Spannungsüberwachung: +12 V, +5 V, +3,3 V, CPU Vcore
Betriebssystem
• Konform mit Microsoft® Windows® 8 / 8, 64 Bit / 7 / 7, 64 Bit
1 x Gehäuseeingriff-Stiftleiste
1 x TPM-Stiftleiste
1 x CPU-Lüfteranschluss (4-polig)
1 x Gehäuselüfteranschluss (4-polig)
1 x 24-poliger ATX-Netzanschluss
1 x 4-poliger 12-V-Netzanschluss
1 x Audioanschluss an Frontblende
1 x USB 2.0-Stiftleiste (unterstützt zwei USB 2.0-Ports)
1 x USB 3.0-Stiftleiste (unterstützt zwei USB 3.0-Ports)
H87M-ITX
Zertifizierungen
• FCC, CE, WHQL
• ErP/EuP ready (ErP/EuP ready-Netzteil erforderlich)
* Detaillierte Produktinformationen finden Sie auf unserer Webseite: http://www.asrock.com
Deutsch
Aufgrund von Beschränkungen kann die Größe des tatsächlich für die Systemnutzung
reservierten Speichers unter Windows®-Betriebssystemen mit 32 Bit weniger als 4 GB
betragen. Windows®-Betriebssysteme mit 64 Bit haben keine derartigen Beschränkungen.
Mit ASRock XFast RAM können Sie den Speicher einsetzen, den Windows® nicht nutzen
kann.
31
1.3 Jumpereinstellung
Die Abbildung zeigt, wie die Jumper eingestellt werden. Wenn die Jumper-Kappe auf
den Kontakten angebracht ist, ist der Jumper „kurzgeschlossen“. Wenn keine JumperKappe auf den Kontakten angebracht ist, ist der Jumper „offen“. Die Abbildung zeigt
einen 3-poligen Jumper, dessen Kontakt 1 und Kontakt 2 „kurzgeschlossen“ sind,
wenn eine Jumper-Kappe auf diesen 2 Kontakten angebracht ist.
CMOS-löschen-Jumper
(CLRCMOS1)
(siehe S. 1, Nr. 3)
Standard
CMOS löschen
CLRCMOS1 ermöglicht Ihnen die Löschung der Daten im CMOS. Zum Löschen
und Rücksetzen der Systemparameter auf die Standardeinrichtung schalten Sie
den Computer bitte ab und ziehen das Netzkabel aus der Steckdose. Warten Sie 15
Sekunde, schließen Sie dann Kontakt 2 und Kontakt 3 an CLRCMOS1 5 Sekunden
lang mit einer Jumper-Kappe kurz. Löschen Sie den CMOS jedoch nicht direkt nach
der BIOS-Aktualisierung. Falls Sie den CMOS direkt nach Abschluss der BIOSAktualisierung löschen müssen, starten Sie das System zunächst; fahren Sie es dann
vor der CMOS-Löschung herunter. Bitte beachten Sie, dass Kennwort, Datum, Zeit
und Benutzerstandardprofil nur gelöscht werden, wenn die CMOS-Batterie entfernt
wird.
Falls Sie den CMOS löschen, wird möglicherweise ein Gehäuseeingriff erkannt. Bitte
passen Sie die BIOS-Option „Status löschen“ zur Löschung der Aufzeichnung des
vorherigen Gehäuseeingriffstatus an.
Deutsch
32
H87M-ITX
1.4 Integrierte Stiftleisten und Anschlüsse
Integrierte Stiftleisten und Anschlüsse sind KEINE Jumper. Bringen Sie KEINE JumperKappen an diesen Stiftleisten und Anschlüssen an. Durch Anbringen von JumperKappen an diesen Stiftleisten und Anschlüssen können Sie das Motherboard dauerhaft
beschädigen.
Systemblende-Stiftleiste
(9-polig, PANEL1)
(siehe S. 1, Nr. 9)
GND
GND
RESET#
GND
PWRBTN#
HDLED-
PLEDPLED+
HDLED+
1
Verbinden Sie
Netzschalter, Reset-Taste
und Systemstatusanzeige
am Gehäuse entsprechend
der nachstehenden
Pinbelegung mit dieser
Stiftleiste. Beachten Sie vor
Anschließen der Kabel die
positiven und negativen
Kontakte.
PWRBTN (Ein-/Austaste):
Mit der Ein-/Austaste an der Frontblende des Gehäuses verbinden. Sie können die
Abschaltung Ihres Systems über die Ein-/Austaste konfigurieren.
RESET (Reset-Taste):
Mit der Reset-Taste an der Frontblende des Gehäuses verbinden. Starten Sie den Computer
über die Reset-Taste neu, wenn er abstürzt oder sich nicht normal neu starten lässt.
PLED (Systembetriebs-LED):
Mit der Betriebsstatusanzeige an der Frontblende des Gehäuses verbinden. Die LED
leuchtet, wenn das System läuft. Die LED blinkt, wenn sich das System im S1/S3Ruhezustand befindet. Die LED ist aus, wenn sich das System im S4-Ruhezustand befindet
oder ausgeschaltet ist (S5).
HDLED (Festplattenaktivitäts-LED):
Mit der Festplattenaktivitäts-LED an der Frontblende des Gehäuses verbinden. Die LED
leuchtet, wenn die Festplatte Daten liest oder schreibt.
Deutsch
Das Design der Frontblende kann je nach Gehäuse variieren. Ein Frontblendenmodul
besteht hauptsächlich aus Ein-/Austaste, Reset-Taste, Betrieb-LED, FestplattenaktivitätLED, Lautsprecher etc. Stellen Sie beim Anschließen Ihres Frontblendenmoduls an diese
Stiftleiste sicher, dass Kabel- und Pinbelegung richtig abgestimmt sind.
33
USB 2.0-Stiftleisten
(9-polig, USB10_11)
(siehe S. 1, Nr. 8)
Diese vier SATA-IIIAnschlüsse unterstützen
SATA-Datenkabel für
interne Speichergeräte mit
einer Datenübertragungsge
schwindigkeit bis 6,0 Gb/s.
SATA3_0
SATA3_1
SATA3_2
SATA3_3
Serial-ATA-III-Anschlüsse
(SATA3_0:
siehe S. 1, Nr. 10)
(SATA3_1:
siehe S. 1, Nr. 11)
(SATA3_2:
siehe S. 1, Nr. 12)
(SATA3_3:
siehe S. 1, Nr. 13)
DUMMY
GND
GND
P+7
P+6
P-7
P-6
USB_PWR
USB_PWR
1
USB 3,0-Stiftleisten
(19-polig, USB3_5_6)
(siehe S. 1, Nr. 7)
1
Dummy
IntA_PA_D+
IntA_PB_D+
IntA_PA_D-
IntA_PB_D-
GND
GND
IntA_PA_SSTX+
IntA_PB_SSTX+
IntA_PA_SSTX-
IntA_PB_SSTX-
GND
GND
IntA_PA_SSRX+
IntA_PB_SSRX+
IntA_PA_SSRX-
IntA_PB_SSRX-
Vbus
Vbus
Audiostiftleiste
(Frontblende)
(9-polig, HD_AUDIO1)
(siehe S. 1, Nr. 16)
Deutsch
34
GN D
OUT2_L
J_SENSE
PRESENCE#
MIC_RET
OUT2_R
MIC2_R
OUT_RET
MIC2_L
1
Neben zwei USB 2.0-Ports
an der E/A-Blende befindet
sich eine Stiftleiste an
diesem Motherboard. Jede
USB 2.0-Stiftleiste kann
zwei Ports unterstützen.
Neben vier USB 3.0-Ports
an der E/A-Blende befindet
sich eine Stiftleiste an
diesem Motherboard. Jede
USB 3.0-Stiftleiste kann
zwei Ports unterstützen.
Diese Stiftleiste dient
dem Anschließen von
Audiogeräten an der
Frontblende.
H87M-ITX
1. High Definition Audio unterstützt Anschlusserkennung, der Draht am Gehäuse muss
dazu jedoch HDA unterstützt. Bitte befolgen Sie zum Installieren Ihres Systems die
Anweisungen in unserer Anleitung und der Anleitung zum Gehäuse.
2. Bei Nutzung eines AC’97-Audiopanels dieses bitte anhand folgender Schritte an der
Audiostiftleiste der Frontblende installieren:
A. Mic_IN (Mikrofon) mit MIC2_L verbinden.
B. Audio_R (RIN) mit OUT2_R und Audio_L (LIN) mit OUT2_L verbinden.
C. Erde (GND) mit Erde (GND) verbinden.
D. MIC_RET und OUT_RET sind nur für das HD-Audiopanel vorgesehen. Sie müssen
sie nicht für das AC’97-Audiopanel verbinden.
E. Rufen Sie zum Aktivieren des vorderen Mikrofons das „FrontMic (Vorderes
Mikrofon)“-Register in der Realtek-Systemsteuerung auf und passen „Recording Volume
(Aufnahmelautstärke)“ an.
CPU-Lüfteranschlüsse
(4-polig, CPU_FAN1)
(siehe S. 1, Nr. 6)
ATX-Netzanschluss
(24-polig, ATXPWR1)
(siehe S. 1, Nr. 5)
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
GN D
+ 12V
CPU_ FAN_SPEED
FAN_SPEED_CONTROL
12
24
1
13
Bitte verbinden Sie das
Lüfterkabel mit dem
Lüfteranschluss; der
schwarze Draht gehört
zum Erdungskontakt.
Dieses Motherboard bietet
einen 4-poligen CPULüfteranschluss (lautloser
Lüfter). Falls Sie einen
3-poligen CPU-Lüfter
anschließen möchten,
verbinden Sie ihn bitte mit
Kontakt 1 bis 3.
Dieses Motherboard
bietet einen 24-poligen
ATX-Netzanschluss.
Bitte schließen Sie es zur
Nutzung eines 20-poligen
ATX-Netzteils entlang
Kontakt 1 und Kontakt 13
an.
Deutsch
Gehäuselüfteranschluss
(4-polig, CHA_FAN1)
(siehe S. 1, Nr. 14)
35
ATX-12-V-Netzanschluss
(8-polig, ATX12V1)
(siehe S. 1, Nr. 1)
GehäuseeingriffStiftleiste(2-polig, CI1)
(siehe S. 1, Nr. 4)
TPM-Stiftleiste
(17-polig, TPMS1)
(siehe S. 1, Nr. 15)
Dieses Motherboard bietet
einen 8-poligen ATX12-V-Netzanschluss.
Bitte schließen Sie es zur
Nutzung eines 4-poligen
ATX-Netzteils entlang
Kontakt 1 und Kontakt 5
an.
GND
Signal
1
F_CLKRUN#
GND
+3VSB
SERIRQ#
S_PWRDWN#
LAD0_L
GND
LAD1_L
+3V
LAD2_L
LAD3_L
TPM_RST#
SMB_DATA_MAIN
SMB_CLK_MAIN
LFRAME#_L
GND
CK_33M_TPM
1
Deutsch
36
Dieses Motherboard
unterstützt die Gehäuseoffen-Erkennung, die erkennt,
wenn die Gehäuseabdeckung
entfernt wurde. Diese
Funktion setzt ein Gehäuse mit
Gehäuseeingrifferkennungsdesign
voraus.
Dieser Anschluss unterstützt das
Trusted Platform Module- (TPM)
System, das Schlüssel, digitale
Zertifikate, Kennwörter und Daten
sicher aufbewahren kann. Ein
TPM-System hilft zudem bei der
Stärkung der Netzwerksicherheit,
schützt digitale Identitäten
und gewährleistet die
Plattformintegrität.
H87M-ITX
1 Introduction
Nous vous remercions d’avoir acheté cette carte mère ASRock H87M-ITX, une carte
mère fiable fabriquée conformément au contrôle de qualité rigoureux et constant
appliqué par ASRock. Elle vous offre de performances élevées associées à une
conception robuste, dignes de l’engagement de qualité et de durabilité qui font la
réputation de ASRock.
Dans ce manuel, les Chapitres 1 et 2 sont consacrés à la présentation de la carte mère
et à son installation étape par étape. Le Chapitre 3 contient le guide d’utilisation du
logiciel et des utilitaires. Le Chapitre 4 contient le guide de configuration du BIOS.
Les spécifications de la carte mère et du logiciel BIOS pouvant être mises à jour, le contenu
de ce document est soumis à modification sans préavis. En cas de modifications du
présent document, la version mise à jour sera disponible sur le site Internet ASRock sans
notification préalable. Si vous avez besoin d’une assistance technique pour votre carte
mère, veuillez visiter notre site Internet pour plus de détails sur le modèle que vous utilisez.
La liste la plus récente des cartes VGA et des processeurs pris en charge est également
disponible sur le site Internet de ASRock. Site Internet ASRock http://www.asrock.com.
1.1 Contenu de l’emballage
Carte mère ASRock H87M-ITX (facteur de forme Mini-ITX)
Guide d’installation rapide ASRock H87M-ITX
CD d’assistance ASRock H87M-ITX
2 x câbles de données Serial ATA (SATA) (Optionnel)
1 x panneau de protection E/S
Français
•
•
•
•
•
37
1.2 Français
38
Spécifications
Plateforme
• Facteur de forme Mini-ITX
• Conception à condensateurs solides
Processeur
• Prend en charge les processeurs de 4ème Génération Intel®
CoreTM i7 / i5 / i3 / Xeon® / Pentium® / Celeron® en package
LGA1150
• Alimentation à 4 phases
• Prend en charge la technologie Intel® Turbo Boost 2.0
Chipset
• Intel® H87
• Prend en charge Intel® Small Business Advantage 2.0
Mémoire
• Technologie mémoire double canal DDR3
• 2 x fentes DIMM DDR3
• Prend en charge les mémoires sans tampon non ECC DDR3
1600/1333/1066
• Capacité max. de la mémoire système : 16Go (voir
AVERTISSEMENT)
• Prend en charge Intel® Extreme Memory Profile (XMP)1.3/1.2
Fente
d’expansion
• 1 x fente PCI Express 3.0 x16
Graphiques
• La technologie Intel® HD Graphics Built-in Visuals et les sorties
VGA sont uniquement prises en charge par les processeurs
intégrant un contrôleur graphique.
• Prend en charge la technologie Intel® HD Graphics Built-in
Visuals : Intel® Quick Sync Video avec AVC, MVC (S3D) et
MPEG-2 Full HW Encode1, Intel® InTruTM 3D, technologie
Intel® Clear Video HD, Intel® InsiderTM, Intel® HD Graphics
4400/4600
• Pixel Shader 5.0, DirectX 11.1
• Mémoire partagée max. 1792Mo
• Trois options de sortie VGA : D-Sub, DVI-D et HDMI
• Prend en charge la configuration à triple moniteurs
• Prend en charge la technologie HDMI avec une résolution
maximale de 1920x1200 @ 60Hz
• Prend en charge le mode DVI-D avec une résolution maximale
de 1920x1200 @ 60Hz
H87M-ITX
• Prend en charge le mode D-Sub avec une résolution maximale
de 1920x1200 @ 60Hz
• Prend en charge les technologies Auto Lip Sync, Deep Color
(12bpc), xvYCC et HBR (High Bit Rate Audio) avec HDMI (un
écran compatible HDMI est requis)
• Prend en charge la fonction HDCP via ports DVI-D et HDMI
• Prend en charge la lecture Blu-ray (BD) Full HD 1080p via
ports DVI-D et HDMI
Audio
• Audio 7.1 CH HD avec protection du contenu (codec audio
Realtek ALC892)
• Compatible audio Blu-ray Premium
Réseau
• PCIE x1 Gigabit LAN 10/100/1000 Mo/s
• Qualcomm® Atheros® AR8171
• Prend en charge la technologie Qualcomm® Atheros® Security
Wake On sur Internet
• Prend en charge la fonction Wake-On-LAN
• Prend en charge la fonction d’économie d’énergie Ethernet
802.3az
• Prend en charge PXE
Connectique
du panneau
arrière
•
•
•
•
•
•
•
•
•
Français
1 x port clavier/souris PS/2
1 x port D-Sub
1 x port DVI-D
1 x port HDMI
1 x port sortie optique SPDIF
1 x connecteur eSATA
2 x ports USB 2.0
4 x ports USB 3.0
1 x port RJ-45 LAN avec LED (LED ACT/LIEN et LED
VITESSE)
• Connecteurs jack audio HD : Haut-parleur arrière / central /
basses / entrée ligne / haut-parleur avant / microphone
39
• 4 x connecteurs SATA3 6,0 Go/s, compatibles RAID (RAID 0,
RAID 1, RAID 5, RAID 10, technologies Intel Rapid Storage
12 et Intel Smart Response), et fonctions NCQ, AHCI et « Hot
Plug »
• 1 x connecteur eSATA, compatible avec les fonctions NCQ,
AHCI et « Hot Plug »
Connectique
•
•
•
•
•
•
•
•
•
BIOS
• BIOS UEFI AMI 64Mo avec prise en charge d’interface
graphique multilingue
• Compatible ACPI 1.1 Wake Up Events
• Prend en charge SMBIOS 2.3.1
• Réglage de la tension CPU, DRAM, PCH 1,05V, PCH 1,5V
CD inclus
• Pilotes, utilitaires, logiciel AntiVirus (version d’évaluation),
version d’essai CyberLink MediaEspresso 6.5, navigateur
Google Chrome et barre d’outils, Start8 (30 jours d’évaluation)
Surveillance
du matériel
• Détection de la température du processeur/châssis
• Tachéomètre processeur/châssis
• Fonction ventilateur silencieux processeur/châssis Quiet
Fan (permet au ventilateur du châssis d’adapter sa vitesse de
rotation automatiquement en fonction de la température du
processeur)
• Contrôle simultané des vitesse du ventilateur processeur/
châssis
• Détection CHASSIS OUVERT
• Surveillance de la tension d’alimentation : +12V, +5V, +3,3V,
CPU Vcore
Système
d’exploitation
• Compatible Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bits
Français
Stockage
40
1 x embase d’intrusion châssis
1 x embase TPM
1 x connecteur pour ventilateur de CPU (4 broches)
1 x connecteur pour ventilateur de châssis (4 broches)
1 x connecteur d’alimentation ATX 24 broches
1 x connecteur d’alimentation 12V 4 broches
1 x connecteur audio panneau frontal
1 x embase USB 2.0 (pour 2 ports USB 2.0)
1 x embase USB 3.0 (pour 2 ports USB 3.0)
H87M-ITX
Certifications
• FCC, CE, WHQL
• ErP/EuP Ready (alimentation ErP/EuP ready requise)
* pour des informations détaillées de nos produits, veuillez visiter notre site : http://www.asrock.com
Français
En raison de limitations dues au système d'exploitation, la capacité de mémoire utilisée
sous Windows® 32-bit peut être inférieure à 4 Go. Cette limitation ne concerne pas les
systèmes d'exploitation Windows® 64-bit. Vous pouvez utiliser ASRock XFast RAM pour
utiliser la mémoire dont Windows® ne peut se servir.
41
1.3 Configuration des cavaliers (jumpers)
L’illustration ci-dessous vous renseigne sur la configuration des cavaliers (jumpers).
Lorsque le capuchon du cavalier est installé sur les broches, le cavalier est ‘court-circuité’.
Si le capuchon du cavalier n’est pas installé sur les broches, le cavalier est ‘ouvert’.
L’illustration représente un cavalier à 3 broches dont les broches 1 et 2 sont « courtcircuitées » si un capuchon de cavalier est posé sur ces 2 broches.
Cavalier Clear CMOS
(CLRCMOS1)
(voir p.1, No. 3)
Par défaut
Fonction Clear CMOS
CLRCMOS1 vous permet d’effacer les donnés de la CMOS. Pour effacer les
paramètres du système et rétablir les valeurs par défaut, veuillez éteindre votre
ordinateur et débrancher son cordon d’alimentation. Patientez 15 secondes, puis
utilisez un capuchon de cavalier pour court-circuiter la broche 2 et la broche 3 sur
CLRCMOS1 pendant 5 secondes. Toutefois, n’effacez pas la CMOS immédiatement
après avoir mis à jour le BIOS. Si vous avez besoin d’effacer les données CMOS
après une mise à jour du BIOS, vous devez tout d’abord redémarrer le système,
puis l’éteindre avant de procéder à l’effacement de la CMOS. Veuillez noter que
les paramètres mot de passe, date, heure et profil par défaut de l’utilisateur seront
uniquement effacés en cas de retrait de la pile de la CMOS.
Français
Si vous effacez la CMOS, l’alerte de châssis ouvert peut se déclencher. Veuillez régler l’option
du BIOS sur « Effacer » pour supprimer l’historique des intrusions de châssis précédentes.
42
H87M-ITX
1.4 Embases et connecteurs de la carte mère
Les embases et connecteurs situés sur la carte NE SONT PAS des cavaliers. Ne placez
JAMAIS de capuchons de cavaliers sur ces embases ou connecteurs. Placer un capuchon de
cavalier sur ces embases ou connecteurs endommagera irrémédiablement votre carte mère.
Embase du panneau système
(PANNEAU1 à 9 broches)
(voir p.1, No. 9)
GND
GND
RESET#
GND
PWRBTN#
HDLED-
PLEDPLED+
HDLED+
1
Branchez le bouton de
mise en marche/arrêt, le
bouton de réinitialisation
et le témoin d’état du
système présents sur le
châssis sur cette embase en
respectant la configuration
des broches illustrée
ci-dessous. Repérez
les broches positive et
négative avant de brancher
les câbles.
PWRBTN (bouton d’alimentation):
pour brancher le bouton d’alimentation du panneau frontal du châssis. Vous pouvez
configurer la façon dont votre système doit s’arrêter à l’aide du bouton de mise en marche.
RESET (bouton de réinitiélisation):
pour brancher le bouton de réinitialisation du panneau frontal du châssis. Appuyez
sur le bouton de réinitialisation pour redémarrer l’ordinateur en cas de plantage ou de
dysfonctionnement au démarrage.
Français
PLED (LED d’alimentation du système) :
pour brancher le témoin d’état de l’alimentation du panneau frontal du châssis. Le LED
est allumé lorsque le système fonctionne. Le LED clignote lorsque le système se trouve en
mode veille S1/S3. Le LED est éteint lorsque le système se trouve en mode veille S4 ou hors
tension (S5).
HDLED (LED d’activité du disque dur) :
pour brancher le témoin LED d’activité du disque dur du panneau frontal du châssis. Le
LED est allumé lorsque le disque dur lit ou écrit des données.
La conception du panneau frontal peut varier en fonction du châssis. Un module de
panneau frontal est principalement composé d'un bouton de mise en marche, bouton
de réinitialisation, LED d’alimentation, LED d’activité du disque dur, haut-parleur etc.
Lorsque vous reliez le module du panneau frontal de votre châssis sur cette embase, veillez
à parfaitement faire correspondre les fils et les broches.
43
Embases USB 2,0
(USB10_11 à 9 broches)
(voir p.1, No. 8)
SATA3_0
SATA3_1
SATA3_2
SATA3_3
Connecteurs Serial ATA3
(SATA3_0:
voir p.1, No. 10)
(SATA3_1:
voir p.1, No. 11)
(SATA3_2:
voir p.1, No. 12)
(SATA3_3:
voir p.1, No. 13)
DUMMY
GND
GND
P+7
P+6
P-7
P-6
USB_PWR
USB_PWR
1
Embases USB 3,0
(USB3_5_6 à 19 broches)
(voir p.1, No. 7)
1
Dummy
IntA_PA_D+
IntA_PB_D+
IntA_PA_D-
IntA_PB_D-
GND
GND
IntA_PA_SSTX+
IntA_PB_SSTX+
IntA_PA_SSTX-
IntA_PB_SSTX-
GND
GND
IntA_PA_SSRX+
IntA_PB_SSRX+
IntA_PA_SSRX-
IntA_PB_SSRX-
Vbus
Vbus
Français
Embase audio du panneau
frontal
(HD_AUDIO1 à 9
broches)
(voir p.1, No. 16)
44
GN D
OUT2_L
J_SENSE
PRESENCE#
MIC_RET
OUT2_R
MIC2_R
OUT_RET
MIC2_L
1
Ces quatre connecteurs
SATA3 sont compatibles
avec les câbles de données
SATA pour les appareils de
stockage internes avec un
taux de transfert maximal
de 6,0 Go/s.
En plus des deux ports
USB 2.0 sur le panneau
E/S, cette carte mère
est dotée d’une embase
supplémentaire. Chaque
embase USB 2.0 peut
prendre en charge deux
ports.
En plus des quatre ports
USB 3.0 sur le panneau
E/S, cette carte mère
est dotée d’une embase
supplémentaire. Chaque
embase USB 3.0 peut
prendre en charge deux
ports.
Cette embase sert au
branchement des appareils
audio au panneau audio
frontal.
H87M-ITX
1. L’audio haute définition prend en charge la technologie Jack Sensing (détection de la
fiche), mais le panneau grillagé du châssis doit être compatible avec la HDA pour
fonctionner correctement. Veuillez suivre les instructions figurant dans notre manuel et
dans le manuel du châssis pour installer votre système.
2. Si vous utilisez un panneau audio AC’97, veuillez le brancher sur l’embase audio du
panneau frontal en procédant comme suit :
A. branchez Mic_IN (MIC) sur MIC2_L.
B. branchez Audio_R (RIN) sur OUT2_R et Audio_L (LIN) sur OUT2_L.
C. branchez la mise à terre (GND) sur mise à terre (GND).
D. MIC_RET et OUT_RET sont exclusivement réservés au panneau audio HD. Il est
inutile de les brancher avec le panneau audio AC’97.
E. Pour activer le micro frontal, sélectionnez l’onglet « FrontMic » du panneau de
contrôle Realtek et réglez le paramètre « Volume d’enregistrement ».
Connecteurs du
ventilateur du processeur
(CPU_FAN1 à 4 broches)
(voir p.1, No. 6)
Connecteur d’alimentation
ATX
(ATXPWR1 à 24 broches)
(voir p.1, No. 5)
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
GN D
+ 12V
CPU_ FAN_SPEED
FAN_SPEED_CONTROL
12
24
1
13
Veuillez brancher les
câbles du ventilateur sur le
connecteur du ventilateur,
puis reliez le fil noir à la
broche de mise à terre.
Cette carte mère est
dotée d’un connecteur à 4
broches pour ventilateur
de processeur (Quiet
Fan). Si vous envisagez de
connecter un ventilateur
de processeur à 3 broches,
veuillez le brancher sur la
Broche 1-3.
Français
Connecteur du ventilateur
du châssis
(CHA_FAN1 à 4 broches)
(voir p.1, No. 14)
Cette carte mère est
dotée d’un connecteur
d’alimentation ATX à 24
broches. Pour utiliser une
alimentation ATX à 20
broches, veuillez effectuer
les branchements sur la
Broche 1 et la Broche 13.
45
Connecteur d’alimentation
ATX 12V
(ATX12V1 à 8 broches)
(voir p.1, No. 1)
Embase d’intrusion
châssis( CI1 à 2 broches)
(voir p.1, No. 4)
Embase TPM
(TPMS1 à 17 broches)
(voir p.1, No. 15)
Cette carte mère est
dotée d’un connecteur
d’alimentation ATX 12V
à 8 broches. Pour utiliser
une alimentation ATX à 4
broches, veuillez effectuer
les branchements sur la
Broche 1 et la Broche 5.
GND
Signal
1
F_CLKRUN#
GND
+3VSB
SERIRQ#
S_PWRDWN#
LAD0_L
GND
LAD1_L
+3V
LAD2_L
LAD3_L
TPM_RST#
SMB_DATA_MAIN
SMB_CLK_MAIN
LFRAME#_L
GND
CK_33M_TPM
1
Français
46
Cette carte mère prend en charge
la fonction de détection CHASSIS
OUVERT qui alerte l’utilisateur
en cas de retrait du boîtier du
châssis. Cette fonction requiert un
châssis à conception intégrant la
détection d’intrusion.
Ce connecteur prend en charge
un module TPM (Trusted
Platform Module – Module de
plateforme sécurisée), qui permet
de sauvegarder clés, certificats
numériques, mots de passe et
données en toute sécurité. Le
système TPM permet également
de renforcer la sécurité du
réseau, de protéger les identités
numériques et de préserver
l'intégrité de la plateforme.
H87M-ITX
1 Introduzione
Grazie per aver acquistato la scheda madre H87M-ITX ASRock, una scheda madre
affidabile prodotta secondo i costanti e rigorosi controlli di qualità di ASRock.
La scheda madre offre eccellenti prestazioni con un design robusto che si adatta
all'impegno di ASRock di offrire sempre qualità e durata.
In questo manuale, i capitoli 1 e 2 contengono un'introduzione alla scheda madre
e le guide di installazione passo passo. Il capitolo 3 contiene la guida operativa del
software e le utility. Il capitolo 4 contiene la guida alla configurazione BIOS.
Dato che le specifiche della scheda madre e del software BIOS possono essere aggiornate,
il contenuto di questa documentazione sarà soggetto a variazioni senza preavviso. Nel
caso di eventuali modifiche della presente documentazione, la versione aggiornata sarà
disponibile sul sito Web di ASRock senza ulteriore preavviso. Per il supporto tecnico
correlato a questa scheda madre, visitare il nostro sito Web per informazioni specifiche
relative al modello attualmente in uso. È possibile trovare l'elenco di schede VGA più
recenti e di supporto di CPU anche sul sito Web di ASRock. Sito Web di ASRock
http://www.asrock.com.
1.1 Contenuto della confezione
Scheda madre H87M-ITX ASRock (fattore di forma Mini-ITX)
Guida rapida di installazione H87M-ITX ASRock
CD di supporto H87M-ITX ASRock
2 x cavi dati Serial ATA (SATA) (opzionali)
1 x mascherina metallica posteriore I/O
Italiano
•
•
•
•
•
47
1.2 Specifiche
Italiano
Piattaforma
• Fattore di forma Mini-ITX
• Design di condensatore solido
CPU
• Supporta Intel® CoreTM i7 / i5 / i3 di 4^ generazione / Xeon® /
Pentium® / Celeron® in LGA1150 Package
• 4 Power Phase Design
• Supporta la tecnologia Intel® Turbo Boost 2.0
Chipset
• Intel® H87
• Supporta Intel® Small Business Advantage 2.0
Memoria
• Tecnologia con memoria DDR3 a doppio canale
• 2 x slot DIMM DDR3
• Supporta la memoria DDR3 1600/1333/1066 non ECC, senza
buffer
• Capacità max. della memoria di sistema: 16 GB (si veda la
sezione ATTENZIONE)
• Supporta Intel® Extreme Memory Profile (XMP)1.3/1.2
Slot di
espansione
• 1 x PCI Express 3.0 x16 slot
Grafica
• La videografica integrata della scheda video HD Intel® e le
uscite VGA possono essere supportate soltanto con processori
con GPU integrata.
• Supporta la videografica integrata della scheda video HD Intel®:
Intel® Quick Sync Video con AVC, MVC (S3D) e MPEG-2
Full HW Encode1, Intel® InTruTM 3D, tecnologia Intel® Clear
Video HD, Intel® InsiderTM, Intel® HD Graphics 4400/4600
• Pixel Shader 5.0, DirectX 11.1
•
•
•
•
Memoria condivisa max. 1792 MB
Tre opzioni uscita VGA: D-Sub, DVI-D e HDMI
Supporta il triplo monitor
Supporta la tecnologia HDMI con una risoluzione max. fino a
1920 x 1200 a 60 Hz
• Supporta DVI-D con una risoluzione max. fino a 1920 x 1200 a
60 Hz
48
H87M-ITX
• Supporta D-Sub con una risoluzione max. fino a 1920 x 1200 a
60 Hz
• Supporta Auto Lip Sync, Deep Color (12 bpc), xvYCC e HBR
(High Bit Rate Audio) con HDMI (è necessario un monitor
conforme ad HDMI)
• Supporta la funzione HDCP con porte DVI-D e HDMI
• Supporta Blu-ray (BD) Full HD 1080p, riproduzione con porte
DVI-D e HDMI
Audio
• Audio HD a 7.1 canali con Content Protection (codec audio
Realtek ALC892)
• Supporto audio Blu-ray Premium
LAN
• PCIE x 1 LAN Gigabit 10/100/1000 Mb/s
• Qualcomm® Atheros® AR8171
• Supporta la tecnologia Qualcomm® Atheros® Security Wake On
Internet
• Supporta Wake-On-LAN
• Supporta Energy Efficient Ethernet 802.3az
• Supporta PXE
I/O pannello
posteriore
•
•
•
•
•
•
•
•
•
Italiano
1 x porta PS/2 per mouse/tastiera
1 x porta D-Sub
1 x porta DVI-D
1 x porta HDMI
1 x porta uscita SPDIF ottico
1 x connettore eSATA
2 x porte USB 2.0
4 x porte USB 3.0
1 x porta LAN RJ-45 con LED (ACT/LINK LED e SPEED
LED)
• Jack audio HD: altoparlante posteriore/centrale/basso/ingresso
linea/altoparlante anteriore/microfono
49
Archiviazione
• 4 x connettori SATA3 6,0 Gb/s, supporta RAID (RAID 0,
RAID 1, RAID 5, RAID 10, tecnologia Intel Rapid Storage 12 e
tecnologia Intel Smart Response), funzioni NCQ, AHCI e “Hot
Plug”
• 1 x connettore eSATA, supporta le funzioni NCQ, AHCI e “Hot
Plug”
Italiano
50
Connettore
•
•
•
•
•
•
•
•
•
1 x header di intrusione nello chassis
1 x header TPM
1 x connettore ventola CPU (4 pin)
1 x connettore ventola chassis (4 pin)
1 x connettore alimentazione ATX a 24 pin
1 x connettore alimentazione da 12 V a 4 pin
1 x connettore audio pannello anteriore
1 x header USB 2.0 (supporta 2 porte USB 2.0)
1 x header USB 3.0 (supporta 2 porte USB 3.0)
Caratteristiche
del BIOS
•
•
•
•
BIOS legale 64 Mb AMI UEFI con supporto GUI multilingue
Eventi di wake up conformi ad ACPI 1.1
Supporto SMBIOS 2.3.1
Multiregolazione tensione CPU, DRAM, PCH 1,05 V, PCH 1,5
V
CD di
supporto
• Driver, Utilità, software antivirus (versione di prova), versione
di prova di CyberLink MediaEspresso 6.5, browser e barra degli
strumenti Google Chrome, Start8 (30 giorni di prova)
Hardware
Monitor
• Sensore temperatura CPU/chassis
• Tachimetro CPU/chassis
• Ventola silenziosa CPU/chassis (consente l'autoregolazione
della velocità della ventola dello chassis mediante la
temperatura della CPU)
• Controllo multivelocità della ventola di CPU/chassis
• Rilevamento CASE OPEN
• Monitoraggio tensione: +12 V, +5 V, +3,3 V, CPU Vcore
SO
• Microsoft® Windows® 8/8 a 64-bit/7/conforme a 7 a 64-bit
H87M-ITX
Certificazioni
• FCC, CE, WHQL
• ErP/EuP Ready (è necessaria alimentazione ErP/EuP ready)
* Per informazioni dettagliate sul prodotto, visitare il nostro sito Web: http://www.asrock.com
Italiano
A causa della limitazione, l'effettiva dimensione della memoria può essere inferiore a 4
GB per riservare l'uso del sistema ai sistemi operativi di Windows® a 32 bit. I sistemi operativi Windows® a 64 bit non possiedono tali limitazioni. È possibile utilizzare la RAM
XFast di ASRock per utilizzare la memoria che Windows® non può utilizzare.
51
1.3 Impostazione jumper
L'illustrazione mostra in che modo vengono impostati i jumper. Quando il cappuccio
del jumper è posizionato sui pin, il jumper è "cortocircuitato". Se sui pin non è
posizionato alcun cappuccio del jumper, il jumper è "aperto". L'illustrazione mostra
un jumper a 3 pin i cui pin1 e pin2 sono "cortocircuitati" quando un cappuccio del
jumper è posizionato su questi 2 pin.
Jumper per azzerare la
CMOS
(CLRCMOS1)
(vedere pag. 1, n. 3)
predefinito Azzerare la CMOS
Italiano
CLRCMOS1 consente di azzerare i dati presenti nella CMOS. Per azzerare e
reimpostare i parametri del sistema alla configurazione predefinita, spegnere il
computer e scollegare il cavo di alimentazione dalla rete. Dopo aver atteso 15
secondi, utilizzare un cappuccio del jumper per cortocircuitare il pin2 e il pin3
su CLRCMOS1 per 5 secondi. Tuttavia, non azzerare la CMOS subito dopo aver
aggiornato il BIOS. Se è necessario azzerare la CMOS dopo l'aggiornamento del
BIOS, è necessario riavviare prima il sistema e in seguito spegnerlo prima di eseguire
l'operazione di azzeramento della CMOS. La password, la data, l'ora e il profilo
predefinito dell'utente saranno azzerati solo se viene rimossa la batteria della CMOS.
Se si azzera la CMOS, può essere rilevato il case aperto. Regolare l'opzione del BIOS
"Azzerare stato" per azzerare il registro del precedente stato di intrusione nello chassis.
52
H87M-ITX
1.4 Header e connettori sulla scheda
Gli header e i connettori sulla scheda NON sono jumper. NON posizionare cappucci del
jumper su questi header e connettori. Il posizionamento di cappucci del jumper su header
e connettori provocherà danni permanenti alla scheda madre.
Header sul pannello del
sistema
(PANEL1 a 9 pin)
(vedere pag. 1, n. 9)
GND
GND
RESET#
GND
PWRBTN#
HDLED-
PLEDPLED+
HDLED+
1
Collegare l'interruttore
dell'alimentazione,
l'interruttore di reset e
l'indicatore dello stato del
sistema sullo chassis su
questo header secondo
la seguente assegnazione
dei pin. Annotare i pin
positivi e negativi prima di
collegare i cavi.
PWRBTN (interruttore di alimentazione):
collegare all'interruttore dell'alimentazione sul pannello anteriore dello chassis. È possibile
configurare il modo in cui spegnere il sistema utilizzando l'interruttore dell'alimentazione.
RESET (interruttore di reset):
collegare all'interruttore di reset sul pannello anteriore dello chassis. Premere l'interruttore
di reset per riavviare il computer se il computer si blocca e non riesce ad eseguire un
normale riavvio.
Italiano
PLED (LED alimentazione del sistema):
collegare all'indicatore di stato dell'alimentazione sul pannello anteriore dello chassis. Il
LED è acceso quando il sistema è in funzione. Il LED continua a lampeggiare quando il
sistema si trova nello stato di sospensione S1/S3. Il LED è spento quando il sistema si trova
nello stato di sospensione S4 o quando è spento (S5).
HDLED (LED di attività disco rigido):
collegare al LED di attività disco rigido sul pannello anteriore dello chassis. Il LED è acceso
quando il disco rigido sta leggendo o scrivendo dati.
Il design del pannello anteriore può cambiare a seconda dello chassis. Un modulo
di pannello anteriore è composto principalmente da interruttore di alimentazione,
interruttore di reset, LED di alimentazione, LED di attività disco rigido, altoparlante, ecc.
Quando si collega il modulo del pannello anteriore dello chassis a questo header, accertarsi
che le assegnazioni del filo e le assegnazioni del pin corrispondano correttamente.
53
Header USB 2.0
(USB10_11 a 9 pin)
(vedere pag. 1, n. 8)
Questi quattro connettori
SATA3 supportano cavi
dati SATA per dispositivi
di archiviazione interna,
con una velocità di
trasferimento dati fino a 6,0
Gb/s.
SATA3_0
SATA3_1
SATA3_2
SATA3_3
Connettori Serial ATA3
(SATA3_0:
vedere pag.1, n. 10)
(SATA3_1:
vedere pag.1, n. 11)
(SATA3_2:
vedere pag.1, n. 12)
(SATA3_3:
vedere pag.1, n. 13)
DUMMY
GND
GND
P+7
P+6
P-7
P-6
USB_PWR
USB_PWR
1
Header USB 3.0
(USB 3_5_6 a 19 pin)
(vedere pag. 1, n. 7)
1
Dummy
IntA_PA_D+
IntA_PB_D+
IntA_PA_D-
IntA_PB_D-
GND
GND
IntA_PA_SSTX+
IntA_PB_SSTX+
IntA_PA_SSTX-
IntA_PB_SSTX-
GND
GND
IntA_PA_SSRX+
IntA_PB_SSRX+
IntA_PA_SSRX-
IntA_PB_SSRX-
Vbus
Vbus
Italiano
Header audio pannello
anteriore
(AUDIO1_HD a 9 pin)
(vedere pag. 1, n. 16)
54
GN D
OUT2_L
J_SENSE
PRESENCE#
MIC_RET
OUT2_R
MIC2_R
OUT_RET
MIC2_L
1
Oltre alle due porte USB
2.0 sul pannello I/O, su
questa scheda madre vi è
un header. Ciascun header
USB 2.0 può supportare
due porte.
Oltre alle quattro porte
USB 3.0 sul pannello I/O,
su questa scheda madre
vi è un header. Ciascun
header USB 3.0 può
supportare due porte.
Questo header serve a
collegare i dispositivi
audio al pannello audio
anteriore.
H87M-ITX
1. L'audio ad alta definizione supporta le funzioni Jack sensing, ma il filo del pannello
sullo chassis deve supportare HDA per funzionare correttamente. Seguire le istruzioni
presenti nel nostro manuale e nel manuale dello chassis per installare il sistema.
2. Se si utilizza un pannello audio AC’97, installarlo sull'header audio del pannello
anteriore seguendo le fasi di seguito:
A. Collegare Mic_IN (MIC) a MIC2_L.
B. Collegare Audio_R (RIN) a OUT2_R e Audio_L (LIN) a OUT2_L.
C. Collegare Ground (GND) a Ground (GND).
D. MIC_RET e OUT_RET servono soltanto per il pannello audio HD. Non è necessario
collegarli per il pannello audio AC’97.
E. Per attivare il microfono anteriore, andare alla scheda “MicAnt” nel pannello di
controllo Realtek e regolare il “Volume di registrazione”.
Connettori della ventola
della CPU
(CPU_FAN1 a 4 pin)
(vedere pag. 1, n. 6)
Connettore di
alimentazione ATX
(ATXPWR1 a 24 pin)
(vedere pag. 1, n. 5)
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
GN D
+ 12V
CPU_ FAN_SPEED
FAN_SPEED_CONTROL
12
24
1
13
Collegare il cavo della
ventola al connettore della
ventola e far corrispondere
il filo nero al pin di terra.
Questa scheda madre è
dotata di un connettore
per la ventola della CPU
(Ventola silenziosa) a 4 pin.
Se si decide di collegare
una ventola della CPU a 3
pin, collegarla al pin 1-3.
Italiano
Connettore della ventola
dello chassis
(CHA_FAN1 a 4 pin)
(vedere pag. 1, n. 14)
Questa scheda madre è
dotata di un connettore
di alimentazione ATX
a 24 pin. Per utilizzare
un'alimentazione ATX a
20 pin, collegarla lungo il
pin1 e il pin 13.
55
Connettore di
alimentazione ATX da 12 V
(ATX12V1 a 8 pin)
(vedere pag. 1, n. 1)
Header di intrusione nello
chassis (CI1 a 2 pin)
(vedere pag. 1, n. 4)
Header TPM
(TPMS1 a 17 pin)
(vedere pag. 1, n. 15)
Questa scheda madre è
dotata di un connettore
di alimentazione ATX da
12 V a 8 pin. Per utilizzare
un'alimentazione ATX a
4 pin, collegarla lungo il
pin1 e il pin 5.
GND
Signal
1
F_CLKRUN#
GND
+3VSB
SERIRQ#
S_PWRDWN#
LAD0_L
GND
LAD1_L
+3V
LAD2_L
LAD3_L
TPM_RST#
SMB_DATA_MAIN
SMB_CLK_MAIN
LFRAME#_L
GND
CK_33M_TPM
1
Italiano
56
Questa scheda madre supporta la
funzionalità di rilevamento CASE
OPEN che rileva se il coperchio
dello chassis è stato rimosso.
Questa funzione richiede uno
chassis con caratteristiche di
rilevamento di intrusione nello
chassis.
Questo connettore supporta il
sistema Trusted Platform Module
(TPM), che può archiviare in
modo sicuro chiavi, certificati
digitali, password e dati. Un
sistema TPM permette anche di
potenziare la sicurezza della rete,
di proteggere identità digitali
e di garantire l'integrità della
piattaforma.
H87M-ITX
1 Introducción
Gracias por comprar la placa base ASRock H87M-ITX, una placa base fiable fabricada
según el rigurosísimo control de calidad de ASRock. Ofrece un rendimiento excelente
con un diseño resistente de acuerdo con el compromiso de calidad y resistencia de
ASRock.
En este manual, los capítulos 1 y 2 contienen la introducción de la placa base y las
guías de instalación paso a paso. El capítulo 3 contiene la guía de funcionamiento
del software y las utilidades. El capítulo 4 contiene la guía de configuración de la
instalación del BIOS.
Ya que las especificaciones de la placa base y el software del BIOS podrán ser actualizados,
el contenido que aparece en esta documentación estará sujeto a modificaciones sin
previo aviso. Si esta documentación sufre alguna modificación, la versión actualizada
estará disponible en el sitio web de ASRock sin previo aviso. Si necesita asistencia técnica
relacionada con esta placa base, visite nuestro sitio web para obtener información
específica sobre el modelo que esté utilizando. Podrá encontrar las últimas tarjetas VGA,
así como la lista de compatibilidad de la CPU, en el sitio web de ASRock. Sitio web de
ASRock http://www.asrock.com.
1.1 Contenido del paquete
Placa base ASRock H87M-ITX (Factor de forma Mini-ITX)
Guía de instalación rápida de ASRock H87M-ITX
CD de soporte de ASRock H87M-ITX
2 cables de datos Serie ATA (SATA) (Opcional)
1 escudo panel I/O
Español
•
•
•
•
•
57
1.2 Especificaciones
Español
58
Plataforma
• Factor de forma Mini-ITX
• Diseño de los Condensadores: All Solid
CPU
• Compatible con 4.ª Generación de Intel® CoreTM i7 / i5 / i3 /
Xeon® / Pentium® / Celeron® en Paquete LGA1150
• Diseño de 4 fases de alimentación
• Compatible con la tecnología de Intel® Turbo Boost 2.0
Conjunto de
chips
• Intel® H87
• Compatible con Intel® Small Business Advantage 2.0
Memoria
• Tecnología de memoria de Doble Canal DDR3
• 2 ranuras DDR3 DIMM
• Compatible con memoria no-ECC, sin búfer DDR3
1600/1333/1066
• Capacidad máxima de la memoria del sistema: 16GB
(consulte la ADVERTENCIA)
• Compatible con Extreme Memory Profile (XMP)1.3/1.2
de Intel®
Ranura de
expansión
• 1 ranura PCI Express 3.0 x16
Gráficos
• La Tecnología visual integrada de gráficos HD de Intel® y las
salidas de VGA son compatibles únicamente con procesadores
con GPU integrado.
• Compatible con la Tecnología visual integrada de gráficos HD
de Intel®: Intel® Quick Sync Video con AVC, MVC (S3D) y
MPEG-2 Full HW Encode1, Intel® InTruTM 3D, Intel® Clear
Video HD Technology, Intel® InsiderTM, Intel® HD Graphics
4400/4600
• Pixel Shader 5.0, DirectX 11.1
• Memoria compartida máxima: 1792MB
• Tres opciones de salida VGA: D-Sub, DVI-D y HDMI
• Compatible con monitores triples
• Compatible con Tecnología HDMI con máxima resolución
hasta 1920x1200 @ 60Hz
• Compatible con DVI-D con máxima resolución hasta
1920x1200 @ 60Hz
H87M-ITX
• Compatible con D-Sub con máxima resolución hasta
1920x1200 @ 60Hz
• Compatible con Auto Lip Sync, Deep Color (12bpc), xvYCC y
HBR (audio de alta velocidad de bits) con HDMI (requiere un
monitor compatible con HDMI)
• Compatible con función HDCP con puertos DVI-D y HDMI
• Compatible con reproducción Blu-ray (BD) Full HD de 1080p
con puertos DVI-D y HDMI
Audio
• 7.1 Audio CH HD con Protección de contenido (Realtek
ALC892 Audio Codec)
• Compatible con audio Blu-ray Premium
LAN
• 1 LAN Gigabit PCIE 10/100/1000 Mb/s
• Qualcomm® Atheros® AR8171
• Compatible con la Tecnología de seguridad en internet Wake
On Qualcomm® Atheros®
• Compatible con Wake-On-LAN
• Compatible con Ethernet de consumo eficiente de energía
802.3az
• Compatible con PXE
Panel trasero
I/O
•
•
•
•
•
•
•
•
•
•
Español
1 puerto de ratón/teclado PS/2
1 puerto D-Sub
1 puerto DVI-D
1 puerto HDMI
1 puerto de salida SPDIF óptica
1 conector eSATA
2 puertos USB 2.0
4 puertos USB 3.0
1 puerto LAN RJ-45 con LED (ACT/LINK LED y SPEED LED)
Conector de audio HD: Altavoz trasero / Central / Graves /
Entrada de línea / Altavoz frontal / Micrófono
59
Español
60
Almacenamiento
• Los 4 conectores SATA3 de 6,0 Gb/s, compatibles con RAID
Conectores
•
•
•
•
•
•
•
•
•
Características
del BIOS
• BIOS legal UEFI AMI de 64Mb compatible con interfaz gráfica
de usuario multilingüe
• Eventos de reactivación conformes con ACPI 1.1
• Compatible con SMBIOS 2.3.1
• Multiajuste de voltaje de CPU, DRAM, PCH 1,05V, PCH 1,5V
CD de soporte
• Controladores, Utilidades, Software AntiVirus (Versión de
prueba), Versión de prueba de CyberLink MediaEspresso 6.5,
Explorador y Barra de herramientas de Google Chrome, Start8
(Versión de prueba de 30 días)
Monitor del
hardware
• Método de sensor de temperatura de la CPU/Chasis
• Tacómetro de la CPU/Chasis
• Ventilador silencioso de la CPU/Chasis (permite ajustar
automáticamente la velocidad del ventilador del chasis
mediante la temperatura de la CPU)
• Control multivelocidad del ventilador de la CPU/Chasis
• Detección de CUBIERTA ABIERTA
• Control del voltaje: +12V, +5V, +3,3V, CPU Vcore
SO
• Compatible con Microsoft® Windows® 8 / 8 de 64 bits / 7 / 7 de
64 bits
(RAID 0, RAID 1, RAID 5, RAID 10, Tecnología Rapid Storage
12 de Intel y Tecnología Smart Response de Intel), NCQ, AHCI
y funciones “Hot Plug”
• 1 conector eSATA, compatible con las funciones NCQ, AHCI y
“Hot Plug”
1 cabezal de intrusión de chasis
1 cabezal TPM
1 conector de ventilador de la CPU (de 4 pines)
1 conector de ventilador de chasis (de 4 pines)
1 conector de alimentación ATX de 24 pines
1 conector de alimentación de 12V de 4 pines
1 conector de audio del panel frontal
1 cabezal USB 2.0 (compatible con 2 puertos USB 2.0)
1 cabezal USB 3.0 (compatible con 2 puertos USB 3.0)
H87M-ITX
Certificaciones
• FCC, CE, WHQL
• Compatible con ErP/EuP (requiere toma de alimentación
compatible con ErP/EuP)
* Para obtener más información acerca del producto, visite nuestro sitio web: http://www.asrock.com
Español
Debido a las limitaciones, el tamaño real de la memoria podrá ser inferior a 4GB para
reservar espacio para el uso del sistema en sistemas operativos Windows® de 32 bits. Los
sitemas operativos Windows® de 64 bits no tienen estas limitaciones. Podrá utilizar XFast
RAM de ASRock para usar la memoria que Windows® no puede utilizar.
61
1.3 Instalación de los puentes
La instalación muestra cómo deben instalarse los puentes. Cuando la tapa de puente
se coloca en los pines, el puente queda “Corto”. Si no coloca la tapa de puente en los
pines, el puente queda “Abierto”. La ilustración muestra un puente de 3 pines cuyo pin
1 y pin 2 son “Cortos” cuando se coloca una tapa de puente en estos 2 pines.
Puente de borrado de
CMOS
(CLRCMOS1)
(consulte la pág.1, N.º 3)
Predeterminado
Borrado de CMOS
Español
CLRCMOS1 le permite borrar los datos del CMOS. Para borrar y restablecer los
parámetros del sistema a los valores predeterminados de instalación, apague el
ordenador y desenchufe el cable de alimentación de la toma de alimentación.
Después de esperar 15 segundos, utilice un tapa de puente para acortar el pin2 y
el pin3 en el CLRCMOS1 durante 5 segundos. Sin embargo, no borre el CMOS
justo después de que haya actualizado el BIOS. Si necesita borrar el CMOS cuando
acabe de actualizar el BIOS, deberá arrancar el sistema primero y, a continuación,
deberá apagarlo antes de que realice el borrado del CMOS. Tenga en cuenta que la
contraseña, la fecha, la hora y el perfil de usuario predeterminado serán eliminados
únicamente si se retira la pila del CMOS.
Si borra el CMOS, podrá detectarse la cubierta abierta. Ajuste la opción del BIOS “Clear
Status” (Borrar estado) para borrar el registro del estado de intrusión anterior del chasis.
62
H87M-ITX
1.4 Conectores y cabezales incorporados
Los cabezales y conectores incorporados NO son puentes. NO coloque tapas de puente
sobre estos cabezales y conectores. Si coloca tapas de puente sobre los cabezales y conectores
dañará de forma permanente la placa base.
Cabezal del panel del sistema
(PANEL1 de 9 pines)
(consulte la pág.1, N.º 9)
GND
GND
RESET#
GND
PWRBTN#
HDLED-
PLEDPLED+
HDLED+
1
Conecte el interruptor de
alimentación, restablezca el
interruptor y el indicador
del estado del sistema del
chasis a los valores de este
cabezal, según los valores
asignados a los pines como
se indica a continuación.
Cerciórese de cuáles son
los pines positivos y los
negativos antes de conectar
los cables.
PWRBTN (Interruptor de alimentación):
Conéctelo al interruptor de alimentación del panel frontal del chasis. Deberá configurar
la forma en la que su sistema se apagará mediante el interruptor de alimentación.
RESET (Interruptor de reseteo):
Conéctelo al interruptor de reseteo del panel frontal del chasis. Pulse el interruptor de
reseteo para resetear el ordenador si éste está bloqueado y no se puede reiniciar de forma
normal.
Español
PLED (Indicador LED de la alimentación del sistema):
Conéctelo al indicador de estado de la alimentación del panel frontal del chasis. El indicador LED permanece encendido cuando el sistema está funcionando. El indicador LED
parpadea cuando el sistema se encuentra en estado de suspensión S1/S3. El indicador
LED se apaga cuando el sistema se encuentra en estado de suspensión S4 o está apagado
(S5).
HDLED (Indicador LED de actividad en el disco duro):
Conéctelo al indicador LED de actividad en el disco duro del panel frontal del chasis. El
indicador LED permanece encendido cuando el disco duro está leyendo o escribiendo
datos.
El diseño del panel frontal puede ser diferente dependiendo del chasis. Un módulo de panel frontal consta principalmente de: interruptor de alimentación, interruptor de reseteo,
indicador LED de alimentación, indicador LED de actividad en el disco duro, altavoz,
etc. Cuando conecte su módulo del panel frontal del chasis a este cabezal, asegúrese de
que las asignaciones de los cables y los pines coinciden correctamente.
63
Cabezales USB 2.0
(USB10_11 de 9 pines)
(consulte la pág.1, N.º 8)
Estos cuatro conectores
SATA3 son compatibles
con cables de datos SATA
para dispositivos de
almacenamiento interno
con una velocidad de
transferencia de datos de
hasta 6,0 Gb/s.
SATA3_0
SATA3_1
SATA3_2
SATA3_3
Conectores Serie ATA3
(SATA3_0:
consulte la pág.1, N.º 10)
(SATA3_1:
consulte la pág.1, N.º 11)
(SATA3_2:
consulte la pág.1, N.º 12)
(SATA3_3:
consulte la pág.1, N.º 13)
DUMMY
GND
GND
P+7
P+6
P-7
P-6
USB_PWR
USB_PWR
1
Cabezales USB 3,0
(USB3_5_6 de 19 pines)
(consulte la pág.1, N.º 7)
1
Dummy
IntA_PA_D+
IntA_PB_D+
IntA_PA_D-
IntA_PB_D-
GND
GND
IntA_PA_SSTX+
IntA_PB_SSTX+
IntA_PA_SSTX-
IntA_PB_SSTX-
GND
GND
IntA_PA_SSRX+
IntA_PB_SSRX+
IntA_PA_SSRX-
IntA_PB_SSRX-
Vbus
Además de dos puertos
USB 2.0 en el panel I/O,
esta placa base contiene un
cabezal. Cada cabezal USB
2.0 admite dos puertos.
Además de cuatro puertos
USB 3.0 en el panel I/O,
esta placa base contiene un
cabezal. Cada cabezal USB
3.0 admite dos puertos.
Vbus
Español
Cabezal de audio del panel
GN D
frontal
PRESENCE#
(HD_AUDIO1 de 9 pines) MIC_RET
OUT_RET
(consulte la pág.1, N.º 16)
64
OUT2_L
J_SENSE
OUT2_R
MIC2_R
MIC2_L
1
Este cabezal se utiliza para
conectar dispositivos de
audio al panel de audio
frontal.
H87M-ITX
1. El Audio de Alta Definición (HDA, en inglés) es compatible con el método de sensor de
conectores, sin embargo, el cable del panel del chasis deberá ser compatible con HDA
para que pueda funcionar correctamente. Siga las instrucciones que se indican en
nuestro manual y en el manual del chasis para instalar su sistema.
2. Si utiliza un panel de audio AC’97, colóquelo en el cabezal de audio del panel frontal
siguiendo los pasos que se describen a continuación:
A. Conecte Mic_IN (MIC) a MIC2_L.
B. Conecte Audio_R (RIN) a OUT2_R y Audio_L (LIN) a OUT2_L.
C. Conecte Ground (Conexión a tierra) (GND) a Ground (GND).
D. MIC_RET y OUT_RET se utilizan únicamente con el panel de audio HD. No es
necesario que los conecte en el panel de audio AC’97.
E. Para activar el micrófono frontal, vaya a la ficha “micrófono frontal” (FrontMic) en el
panel de control de Realtek y ajuste el “Volumen de grabación” (Recording Volume).
Conectores del ventilador
de la CPU
(CPU_FAN1 de 4 pines)
(consulte la pág.1, N.º 6)
Conector de alimentación
ATX
(ATXPWR1 de 24 pines)
(consulte la pág.1, N.º 5)
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
GN D
+ 12V
CPU_ FAN_SPEED
FAN_SPEED_CONTROL
12
24
1
13
Conecte el cable del
ventilador al conector del
ventilador y haga coincidir
el cable negro con el pin de
conexión a tierra.
Esta placa base contiene
un conector de ventilador
(ventilador silencioso) de
CPU de 4 pines. Si tiene
pensando conectar un
ventilador de CPU de 3
pines, conéctelo al Pin 1-3.
Español
Conector del ventilador
del chasis
(CHA_FAN1 de 4 pines)
(consulte la pág.1, N.º 14)
Esta placa base contiene un
conector de alimentación
ATX de 24 pines. Para
utilizar una toma de
alimentación ATX de 20
pines, conéctela en los
Pines del 1 al 13.
65
Conector de alimentación
ATX de 12V
(ATX12V1 de 8 pines)
(consulte la pág.1, N.º 1)
Cabezal de intrusión de
chasis
(CI1 de 2 pines)
(consulte la pág.1, N.º 4)
Cabezal TPM
(TPMS1 de 17 pines)
(consulte la pág.1, N.º 15)
Esta placa base contiene un
conector de alimentación
ATX de 12V y 8 pines.
Para utilizar una toma
de alimentación ATX de
4 pines, conéctela en los
Pines del 1 al 5.
GND
Signal
1
F_CLKRUN#
GND
+3VSB
SERIRQ#
S_PWRDWN#
LAD0_L
GND
LAD1_L
+3V
LAD2_L
LAD3_L
TPM_RST#
SMB_DATA_MAIN
SMB_CLK_MAIN
LFRAME#_L
GND
CK_33M_TPM
1
Español
66
Esta placa base es compatible
con la función de detección de
CUBIERTA ABIERTA que detecta
si se ha retirado la cubierta del
chasis. Esta función requiere un
chasis diseñado para la detección
de intrusión del chasis.
Este conector es compatible con
el sistema Módulo de Plataforma
Segura (TPM, en inglés), que
puede almacenar de forma segura
claves, certificados digitales,
contraseñas y datos. Un sistema
TPM también ayuda a aumentar
la seguridad en la red, protege las
identidades digitales y garantiza la
integridad de la plataforma.
H87M-ITX
1 Введение
Благодарим вас за приобретение надежной материнской платы ASRock H87MITX, выпускаемой под постоянным строгим контролем компании ASRock.
Эта материнская плата обеспечивает великолепную производительность
и характеризуется прочной конструкцией в соответствии с требованиями
компании ASRock в отношении качества и долговечности.
Разделы 1 и 2 настоящего руководства содержат общие сведения о материнской
платы и пошаговые инструкции по установке. Раздел 3 содержит инструкции
по использованию программного обеспечения и утилит. Раздел 4 содержит
инструкции по настройке BIOS.
По причине обновления спецификации на материнскую платформу и
программного обеспечения BIOS содержимое настоящей документации может
быть изменено без предварительного уведомления. При изменении содержимого
настоящего документа его обновленная версия будет доступна на веб-сайте
ASRock без предварительного уведомления. При необходимости технической
поддержки, связанной с материнской платой, посетите веб-сайт и найдите на
нем информацию о модели используемой вами материнской платы. На веб-сайте
ASRock также можно найти самый последний перечень поддерживаемых VGAкарт и ЦП. Веб-сайт ASRock http://www.asrock.com.
1.1 Комплект поставки
Материнская плата ASRock H87M-ITX (форм-фактор Mini-ITX)
Краткое руководство по установке ASRock H87M-ITX
Диск с ПО для ASRock H87M-ITX
2 х кабеля передачи данных Serial ATA (SATA) (приобретаются отдельно)
1 х экран панели с портами ввода-вывода
Русский
•
•
•
•
•
67
1.2 Спецификация
Русский
68
Платформа
• Форм-фактор Mini-ITX
• Использование только твердотельных конденсаторов
ЦП
• Поддержка процессоров 4-го поколения Intel® CoreTM i7 /
i5 / i3 / Xeon® / Pentium® / Celeron® в исполнении LGA1150
• Система питания 4
• Поддержка технологии Intel® Turbo Boost 2.0
Чипсет
• Intel® H87
• Поддержка Intel® Small Business Advantage 2.0
Память
• Двухканальная память DDR3
• 2 х гнездо DDR3 DIMM
• Поддержка модулей памяти DDR3 1600/1333/1066 NonECC Unbuffered
• Максимальный объем системной памяти: 16 Гб (см.
«ПРЕДОСТЕРЕЖЕНИЕ»)
• Поддержка Intel® Extreme Memory Profile (XMP)1.3/1.2
Гнезда
расширения
• 1 x PCI Express 3.0 x16
Графическая
система
• Поддержка выходных сигналов Intel® HD Graphics Builtin Visuals и VGA возможна только при использовании
процессоров со встроенными графическими
процессорами.
• Поддержка встроенных технологий визуализации Intel®
HD Graphics: Intel® Quick Sync Video с AVC, MVC (S3D) и
MPEG-2 Full HW Encode1, Intel® InTruTM 3D, Intel® Clear
Video HD Technology, Intel® InsiderTM, Intel® HD Graphics
4400/4600
• Pixel Shader 5.0, DirectX 11.1
• Максимальный объем совместно используемой памяти:
1792 Мб
• Три выхода VGA: D-Sub, DVI-D и HDMI
• Поддержка работы с тремя мониторами
• Поддержка технологии HDMI с максимальным
разрешением до 1920x1200 при 60 Гц
• Поддержка DVI-D с максимальным разрешением до
1920x1200 при 60 Гц
H87M-ITX
• Поддержка D-Sub с максимальным разрешением до
1920x1200 при 60 Гц
• Поддержка Auto Lip Sync, Deep Color (12bpc), xvYCC и
HBR (High Bit Rate Audio) по HDMI (необходим HDMIсовместимый монитор)
• Поддержка функции HDCP через порты DVI-I и HDMI
• Поддержка воспроизведения Full HD 1080p Blu-ray (BD)
через порты DVI-D и HDMI
Аудио
• 7.1-канальный звук высокой четкости HD Audio с защитой
данных (аудиокодек Realtek ALC892)
• Поддержка Premium Blu-ray Audio
ЛВС
• PCIE x1 Gigabit LAN 10/100/1000 Мб/с
• Qualcomm® Atheros® AR8171
• Поддержка технологии Qualcomm® Atheros® Security Wake
On Internet Technology
• Поддержка Wake-On-LAN
• Поддержка Energy Efficient Ethernet 802,3az
• Поддержка PXE
Порты вводавывода
на задней
панели
•
•
•
•
•
•
•
•
•
•
Русский
1 x порт мыши/клавиатуры PS/2
1 x D-Sub
1 x DVI-D
1 x HDMI
1 x оптический выходной SPDIF
1 x eSATA
2 x USB 2.0
4 x USB 3.0
1 x RJ-45 для ЛВС с СИД (СИД ACT/LINK и МИД SPEED)
Разъемы HD Audio: задние динамики / центральный
динамик / сабвуфер / линейный вход / передние динамики
/ микрофон
69
Русский
70
Запоминающие устройства
• 4 x разъем SATA3 6,0 Гб/с, поддержка RAID (RAID 0, RAID
1, RAID 5, RAID 10, Intel Rapid Storage Technology 12 и
Intel Smart Response Technology), функции NCQ, AHCI и
«горячая» замена
• 1 x разъем eSATA, поддержка функций NCQ, AHCI и
«горячей» замены
Разъемы
•
•
•
•
•
•
•
•
•
Особенности
BIOS
• 64 Мб AMI UEFI Legal BIOS с поддержкой многоязычного
ГИП
• Совместимость с управлением энергопотреблением по
ACPI 1.1
• Поддержка SMBIOS 2.3.1
• Регулировка напряжений ЦП, DRAM, PCH 1,05 В, PCH 1,5 В
Диск с ПО
• Драйвера, утилиты, антивирусное ПО (демоверсия),
CyberLink MediaEspresso 6.5 (демоверсия), браузер и
панель инструментов Google Chrome, Start8 (демоверсия
на 30 дней)
Контроль
оборудования
• Датчик температуры ЦП/корпуса
• Тахометр вентиляторов ЦП/корпуса
• Малошумящий вентилятор ЦП/корпуса (с автоматической
регулировкой оборотов по температуре ЦП)
• Управление оборотами вентилятора ЦП/корпуса
• Технология определения вскрытия корпуса
• Контроль напряжения: +12 В, +5 В, +3,3 В, ЦП Vcore
ОС
• Microsoft® Windows® 8 / 8 64-разрядная / 7 / 7 64-разрядная
1 x колодка для датчика вскрытия корпуса
1 x колодка ТРМ
1 x разъем для вентилятора ЦП (4-контактный)
1 x разъем для вентилятора корпуса (4-контактный)
1 х разъем питания АТХ (24-контактный)
1 x 4-контактный разъем питания 12 В
1 x аудиоразъем на передней панели
1 x колодка USB 2.0 (поддержка 2 портов USB 2.0)
1 x колодка USB 3.0 (поддержка 2 портов USB 3.0)
H87M-ITX
Сертификация
• FCC, CE, WHQL
• Совместимость с ErP/EuP (необходим блок питания,
соответствующий стандарту ErP/EuP)
* Для получения дополнительной информации об изделии посетите наш веб-сайт:
http://www.asrock.com
Русский
В связи с ограничением при работе под 32-разрядной ОС Windows® фактический
объем памяти может быть меньше 4 Гбайт. Для 64-разрядных ОС Windows®
таких ограничений нет. Для использования той памяти, которую ОС Windows®
не может использовать, используйте ASRock XFast RAM.
71
1.3 Установка перемычек
Установка перемычек показана на рисунке. При установке колпачковой
перемычки на контакты перемычка «замкнута». Если колпачковая перемычка
на контакты не установлена, перемычка «разомкнута». На рисунке показана
3-контактная перемычка с замкнутыми контактами 1 и 2 при установке на них
колпачковой перемычки.
Перемычка сброса
настроек CMOS
(CLRCMOS1)
(См. стр. 1, № 3)
по умолчанию
Сброс настроек CMOS
Русский
CLRCMOS1 используется для удаления данных CMOS. Чтобы сбросить
и обнулить параметры системы на настройки по умолчанию, выключите
компьютер и извлеките отключите кабель питания от источника питания.
Подождите 15 секунд и перемычкой замкните контакты 2 и 3 на CLRCMOS1
на 15 секунд. Не сбрасывайте настройки CMOS сразу после обновления BIOS.
При необходимости сбросить настройки CMOS сразу после обновления BIOS
сначала перезагрузите систему, а затем выключите компьютер перед сбросом
настроек CMOS. Учтите, что пароль, дата, время и профиль пользователя по
умолчанию сбрасываются только в том случае, если извлечь батарею CMOS.
Сброс настроек CMOS может привести к определению вскрытию корпуса. Чтобы
обнулить запись предыдущего определения вскрытия корпуса, используйте
параметр Clear Status (Обнулить состояние) BIOS.
72
H87M-ITX
1.4 К
олодки и разъемы, расположенные на материнской
плате
Расположенные на материнской плате колодки и разъемы перемычками
НЕ являются. НЕ устанавливайте на эти колодки и разъемы колпачковые
перемычки. Установка колпачковых перемычек на эти колодки и разъемы может
вызвать неустранимое повреждение материнской платы.
Колодка системной
панели
(9-контактная, PANEL1)
(См. стр. 1, № 9)
GND
GND
RESET#
GND
PWRBTN#
HDLED-
PLEDPLED+
HDLED+
1
Подключите
расположенные на
корпусе выключатель
питания, кнопку
перезагрузки и
индикатор состояния
системы к этой колодке
в соответствии с
распределением
контактов,
приведенным ниже.
Перед подключением
кабелей определите
положительный
и отрицательный
контакты.
Русский
PWRBTN (кнопка питания):
Подключение кнопки питания, расположенной на передней панели корпуса. Можно
настроить порядок выключения системы с использованием кнопки питания.
RESET (кнопка перезагрузки):
Подключение кнопки перезагрузки системы, расположенной на передней панели
корпуса. Нажмите кнопку перезагрузки, чтобы перезапустить компьютер, если
он завис и нормальный запуск невозможен.
PLED (светодиодный индикатор питания системы):
Подключение индикатора состояния, расположенного на передней панели
корпуса. Светодиодный индикатор горит, когда система работает. Когда
система находится в режиме ожидания S1/S3, светодиод мигает. Когда система
находится в режиме ожидания S4 или выключена (S5), светодиод не горит.
HDLED (светодиодный индикатор работы жесткого диска):
Подключение светодиодного индикатора работы жесткого диска, расположенного
на передней панели Светодиодный индикатор горит, когда жесткий диск
выполняет считывание или запись данных.
Передняя панель может быть разной на разных корпусах. В основном передняя
панель включает в себя кнопку питания, кнопку перезагрузки, светодиодный
индикатор питания, светодиодный индикатор работы жесткого диска, динамик
и т. д. При подключении передней панели к этой колодке правильно подключайте
провода к контактам.
73
Колодки USB 2.0.
(9-контактная,
USB10_11)
(См. стр. 1, № 8)
Русский
Колодки USB 3,0.
(19-контактная,
USB3_5_6)
(См. стр. 1, № 7)
Эти четыре
разъема SATA3
предназначены для
подключения кабелей
SATA внутренних
запоминающих
устройств для передачи
данных со скоростью до
6,0 Гб/с.
SATA3_0
SATA3_1
SATA3_2
SATA3_3
Разъемы Serial ATA3
(SATA3_0:
см. стр.1, № 10)
(SATA3_1:
см. стр.1, № 11)
(SATA3_2:
см. стр.1, № 12)
(SATA3_3:
см. стр.1, № 13)
DUMMY
GND
GND
P+7
P+6
P-7
P-6
USB_PWR
USB_PWR
1
1
Dummy
IntA_PA_D+
IntA_PB_D+
IntA_PA_D-
IntA_PB_D-
GND
GND
IntA_PA_SSTX+
IntA_PB_SSTX+
IntA_PA_SSTX-
IntA_PB_SSTX-
GND
GND
IntA_PA_SSRX+
IntA_PB_SSRX+
IntA_PA_SSRX-
IntA_PB_SSRX-
Vbus
Vbus
Аудиоколодка передней
панели
(9-контактная, HD_
AUDIO1)
(См. стр. 1, № 16)
74
GN D
OUT2_L
J_SENSE
PRESENCE#
MIC_RET
OUT2_R
MIC2_R
OUT_RET
MIC2_L
1
Кроме двух портов USB
2.0 на панели вводавывода на материнской
плате также есть
одна колодка. Каждая
колодка USB 2.0 может
поддерживать два порта.
Кроме четырех портов
USB 3.0 на панели вводавывода на материнской
плате также есть
одна колодка. Каждая
колодка USB 3.0 может
поддерживать два порта.
Эта колодка
предназначена
для подключения
аудиоустройств к
передней аудиопанели.
H87M-ITX
1. Аудиосистема высокого разрешения поддерживает функцию распознавания
разъема, но для е правильной работы необходимо, чтобы провод панели корпуса
поддерживал передачу сигналов HDA. Инструкции по установке системы см. в
этом руководстве и руководстве на корпус.
2. При использовании аудиопанели AC’97 подключите ее к аудиоколодке передней
панели, как указано далее:
A. Подключите Mic_IN (MIC) к MIC2_L.
B. Подключите Audio_R (RIN) к OUT2_R, Audio_L (LIN) к OUT2_L.
C. Подключите провод заземления (GND) к контакту заземления (GND).
D. Контакты MIC_RET и OUT_RET используются только для аудиопанели
высокого разрешения. При использовании аудиопанели AC’97 их подключать
не нужно.
E. Чтобы активировать передний микрофон, перейдите на вкладку FrontMic
панели управления Realtek и отрегулируйте параметр Recording Volume
(Громкость записи).
Разъемы
вентиляторов ЦП
(4-контактный,
CPU_FAN1)
(См. стр. 1, № 6)
Разъем питания АТХ
(24-контактный,
ATXPWR1)
(См. стр. 1, № 5)
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
GN D
+ 12V
CPU_ FAN_SPEED
FAN_SPEED_CONTROL
12
24
1
13
Предназначен для
подключения кабеля
разъема вентилятора и
подключения черного
провода к заземлению.
Эта материнская
плата снабжена
4-контактным разъемом
для малошумящего
вентилятора ЦП. Если вы
собираетесь подключить
3-контактный
вентилятор охлаждения
процессора, подключайте
его к контактам 1-3.
Русский
Разъем вентилятора
корпуса
(4-контактный,
CHA_FAN1)
(См. стр. 1, № 14)
Эта материнская плата
снабжена 24-контактным
разъемом питания АТХ.
Чтобы использовать
20-контактный
разъем питания ATX,
подключите его вдоль
контакта 1 и контакта 13.
75
Разъем питания АТХ 12 В
(8-контактный,
ATX12V1)
(См. стр. 1, № 1)
Колодка для датчика
вскрытия корпуса
(2-контактная, CI1)
(См. стр. 1, № 4)
Колодка ТРМ
(17-контактная, TPMS1)
(См. стр. 1, № 15)
Эта материнская плата
снабжена 8-контактным
разъемом питания АТХ
12 В. Чтобы использовать
4-контактный
разъем питания ATX,
подключите его вдоль
контакта 1 и контакта 5.
GND
Signal
1
F_CLKRUN#
GND
+3VSB
SERIRQ#
S_PWRDWN#
LAD0_L
GND
LAD1_L
+3V
LAD2_L
LAD3_L
TPM_RST#
SMB_DATA_MAIN
SMB_CLK_MAIN
LFRAME#_L
GND
CK_33M_TPM
Русский
1
76
Эта материнская плата
поддерживает технологию
определения вскрытия корпуса
по снятию верхней части
корпуса. Для этой технологии
необходим корпус с функцией
определения вскрытия.
Этот разъем обеспечивает
поддержку системы Trusted
Platform Module (TPM), которая
способна обеспечить надежное
хранение ключей, цифровых
сертификатов, паролей и
данных. Система ТРМ также
повышает уровень сетевой
безопасности, защищает
цифровые идентификаторы
и обеспечивает целостность
платформы.
H87M-ITX
1 Introdução
Obrigado por ter comprado a placa principal ASRock H87M-ITX, uma placa principal
fiável produzida sob os rigorosos critérios de controlo de qualidade da ASRock.
Esta placa principal oferece um excelente desempenho com um design robusto em
conformidade com o compromisso da ASRock em fabricar produtos de qualidade e
resistentes.
Neste manual, o Capítulo 1 e 2 contêm a apresentação e guias de instalação da placa
principal. O Capítulo 3 contém o guia de utilização do software e utilitários. O
Capítulo 4 contém o guia de configuração do BIOS.
Dado que as especificações da placa principal e o software do BIOS poderão ser
actualizados, o conteúdo desta documentação estará sujeito a alterações sem aviso prévio.
Caso ocorram modificações a esta documentação, a versão actualizada estará disponível
no Web site da ASRock sem aviso prévio. Se necessitar de assistência técnica relacionada
com esta placa principal, visite o nosso Web site para obter informações específicas acerca
do modelo que está a utilizar. Também poderá encontrar a lista de placas VGA e CPU
mais recentes suportadas no Web site da ASRock. Web site da ASRock
http://www.asrock.com.
•
•
•
•
•
Português
1.1 Conteúdo da embalagem
Placa principal ASRock H87M-ITX (Formato Mini-ITX)
Guia de instalação rápida da placa ASRock H87M-ITX
CD de suporte ASRock H87M-ITX
2 x Cabos de dados Serial ATA (SATA) (Opcional)
1 x Painel de E/S
77
1.2 Especificações
Português
Plataforma
• Formato Mini-ITX
• Design de condensador sólido
CPU
• Suporta processadores Intel® CoreTM i7 / i5 / i3 / Xeon® /
Pentium® / Celeron® de 4ª geração em socket LGA1150
• Design com 4 fases de alimentação
• Suporta a tecnologia Intel® Turbo Boost 2.0
Chipset
• Intel® H87
• Suporta a tecnologia Intel® Small Business Advantage 2.0
Memória
• Tecnologia de memória DDR3 de dois canais
• 2 x ranhuras DIMM DDR3
• Suporta memória DDR3 1600/1333/1066, não ECC, sem
memória intermédia
• Capacidade máxima da memória do sistema: 16GB
(consultar AVISO)
• Suporta Extreme Memory Profile (XMP)1.3/1.2 da Intel®
Ranhuras de
Expansão
• 1 x ranhura PCI Express 3.0 x16
Gráficos
• Os gráficos incorporados Intel® HD e as saídas VGA apenas
podem ser suportados com processadores com GPU integrada.
• Suporta gráficos incorporados Intel® HD: Intel® Quick Sync
Video com AVC, MVC (S3D) e MPEG-2 Full HW Encode1,
Intel® InTruTM 3D, Tecnologia Intel® Clear Video HD, Intel®
InsiderTM, Intel® HD Graphics 4400/4600
• Pixel Shader 5.0, DirectX 11.1
• Memória partilhada máxima de 1792MB
• Três opções de saída VGA: D-Sub, DVI-D e HDMI
• Suporta configuração com três monitores
• Suporta tecnologia HDMI com resolução máxima de até
1920x1200 @ 60Hz
• Suporta DVI-D com resolução máxima de até 1920x1200 @
60Hz
78
H87M-ITX
Áudio
• Áudio HD de 7.1 canais com protecção de conteúdo (Codec de
áudio Realtek ALC892)
• Suporte áudio Blu-ray superior
LAN
• LAN Gigabit 10/100/1000 Mb/s PCIE x1
• Qualcomm® Atheros® AR8171
• Suporta a tecnologia Qualcomm® Atheros® Security Wake On
Internet
• Suporta Wake-On-LAN
• Suporta IEEE 802.3az
• Suporta PXE
E/S do painel
traseiro
•
•
•
•
•
•
•
•
•
Português
• Suporta D-Sub com resolução máxima de até 1920x1200 @
60Hz
• Suporta Auto sincronização labial, Deep Color (12bpc), xvYCC
e HBR (High Bit Rate Audio) com HDMI (É necessário um
monitor compatível com HDMI)
• Suporta a função HDCP com portas DVI-D e HDMI
• Suporta reprodução Blu-ray (BD) Full HD a 1080p com portas
DVI-D e HDMI
1 x porta para mouse/teclado PS/2
1 x Porta D-Sub
1 x Porta DVI-D
1 x porta HDMI
1 x Porta de saída SPDIF óptica
1 x Conector eSATA
2 x portas USB 2.0
4 x portas USB 3.0
1 x Porta LAN RJ-45 com LED (LED ACT/LIGAÇÃO e LED
DE VELOCIDADE)
• Ficha de áudio HD: Altifalante traseiro / Central / Graves /
Entrada de linha / Altifalante frontal / Microfone
79
Português
80
Armazenamento
• 4 x conectores SATA3 a 6,0 Gb/s, com suporte para RAID
(RAID 0, RAID 1, RAID 5, RAID 10, tecnologia Intel Rapid
Storage 12 e tecnologia Intel Smart Response), NCQ, AHCI e
funções “Hot Plug”
• 1 x conector eSATA, com suporte para as funções NCQ, AHCI
e “Hot Plug”
Conector
•
•
•
•
•
•
•
•
•
Funcionalidades da BIOS
• BIOS UEFI oficial da AMI com 64Mb com suporte de interface
multilíngue
• Eventos de reactivação compatíveis com ACPI 1.1
• Suporta SMBIOS 2.3.1
• Multi-ajuste de tensão de CPU, DRAM, PCH 1,05V, PCH 1,5V
CD de suporte
• Controladores, Utilitários, Software antivírus (versão de
avaliação), CyberLink MediaEspresso 6.5 - Versão de avaliação,
Navegador e Barra de Ferramentas Google Chrome, Start8 (30
dias de avaliação)
Monitor de
hardware
• Sensor de temperatura de CPU/Chassis
• Taquímetro de CPU/Chassis
• Ventoinha de CPU/Chassis silenciosa (Permite o ajuste
automático da velocidade da ventoinha do chassis através da
temperatura da CPU)
• Controlo de velocidade da ventoinha de CPU/Chassis
• Detecção de ABERTURA da CAIXA
• Monitorização da tensão: +12V, +5V, +3,3V, CPU Vcore
Sistema
Operativo
• Compatível com Microsoft® Windows® 8 / 8 64-bits / 7 / 7 64bits
1 x Terminal de intrusão no chassis
1 x Terminal TPM
1 x Conector da ventoinha da CPU (4 pinos)
1 x Conector da ventoinha do chassis (4 pinos)
1 x conector de alimentação de 24 pinos ATX
1 x conector de alimentação de 12V de 4 pinos
1 x conector de áudio do painel frontal
1 x terminal USB 2.0 (suporte para 2 portas USB 2.0)
1 x terminal USB 3.0 (suporte para 2 portas USB 3.0)
H87M-ITX
Certificações
• FCC, CE, WHQL
• Preparada para ErP/EuP (é necessária uma fonte de
alimentação preparada para ErP/EuP)
* Para obter informações detalhadas acerca do produto, visite o nosso Web site: http://www.asrock.com
Português
Devido às limitações, o tamanho real da memória de 4GB reservada para utilização
em sistemas operativos Windows® 32-bits poderá ser inferior. Os sistemas operativos
Windows® 64-bits não possuem essas limitações. Pode utilizar o ASRock XFast RAM
para dar uso à memória que o Windows® não utiliza.
81
1.3 Configuração dos jumpers
A imagem abaixo ilustra como os jumpers são configurados. Quando a tampa do
jumper é colocada nos pinos, o jumper é "Curto". Se não for colocada uma tampa de
jumper nos pinos, o jumper é "Aberto". A imagem ilustra um jumper de 3 pinos cujos
pino1 e pino2 estão "Curtos" quando a tampa do jumper é colocada nestes 2 pinos.
Jumper para limpar o
CMOS
(CLRCMOS1)
(consultar p.1, N.º 3)
Predefinição
Limpar CMOS
Português
CLRCMOS1 permite-lhe limpar os dados no CMOS. Para limpar e repor os
parâmetros do sistema para os valores predefinidos, encerre o computador e desligue
a ficha da tomada. Depois de aguardar 15 segundos, utilize uma tampa de jumper
para ligar o pino2 e o pino3 no CLRCMOS1 durante 5 segundos. No entanto, não
limpe o CMOS logo após ter efectuado a actualização da BIOS. Se precisar de limpar
o CMOS logo após ter terminado uma actualização da BIOS, deverá primeiro iniciar
o sistema e voltar a encerrá-lo antes de efectuar a acção de limpeza do CMOS. Tenha
em atenção que a palavra-passe, data, hora e perfil predefinido de utilizador apenas
serão limpos se a pilha do CMOS for retirada.
Se limpar o CMOS, poderá ser detectada a abertura da caixa. Ajuste a opção do BIOS
"Limpar estado" para limpar o registo anterior de estado de intrusão no chassis.
82
H87M-ITX
1.4 Terminais e conectores integrados
Os terminais e conectores integrados NÃO são jumpers. NÃO coloque tampas de jumpers
sobre estes terminais e conectores. Colocar tampas de jumpers sobre os terminais e
conectores irá causar danos permanentes à placa principal.
Terminal do painel de
sistema
(PAINEL1 de 9 pinos)
(consultar p.1, N.º 9)
GND
GND
RESET#
GND
PWRBTN#
HDLED-
PLEDPLED+
HDLED+
1
Ligue o botão de
alimentação, o botão de
reposição e o indicador
do estado do sistema no
chassis a este terminal de
acordo com a descrição
abaixo. Tenha em atenção
os pinos positivos e
negativos antes de ligar os
cabos.
Português
PWRBTN (Botão de alimentação):
Ligue ao botão de alimentação no painel frontal do chassis. Pode configurar a forma para
desligar o seu sistema através do botão de alimentação.
RESET (Botão de reposição):
Ligue ao botão de reposição no painel frontal do chassis. Prima o botão de reposição para
reiniciar o computador caso este bloqueie e não seja possível reiniciar normalmente.
PLED (LED de alimentação do sistema):
Ligue ao indicador do estado da alimentação no painel frontal do chassis. O LED ficará
acesso quando o sistema estiver em funcionamento. O LED ficará intermitente quando o
sistema estiver nos estados de suspensão S1/S3. O LED ficará desligado quando o sistema
estiver no estado de suspensão S4 ou desligado (S5).
HDLED (LED de actividade do disco rígido):
Ligue ao LED de actividade do disco rígido no painel frontal do chassis. O LED ficará
acesso quando o disco rígido estiver a ler ou a escrever dados.
O design do painel frontal poderá variar dependendo do chassis. Um módulo de painel
frontal consiste principalmente em um botão de alimentação, um botão de reposição, um
LED de alimentação, um LED de actividade do disco rígido, um altifalante, etc. Ao ligar
o seu módulo de painel frontal do chassis a este conector, certifique-se de que os fios e os
pinos têm uma correspondência exacta.
83
Terminais USB 2.0
(USB10_11 de 9 pinos)
(consultar p.1, N.º 8)
Estes quatro conectores
SATA3 suportam
cabos de dados SATA
para dispositivos de
armazenamento interno
com uma velocidade de
transferência de dados de
até 6,0 Gb/s.
SATA3_0
SATA3_1
SATA3_2
SATA3_3
Conectores ATA3 de série
(SATA3_0:
consultar p.1, Nº. 10)
(SATA3_1:
consultar p.1, Nº. 11)
(SATA3_2:
consultar p.1, Nº. 12)
(SATA3_3:
consultar p.1, N.º 13)
DUMMY
GND
GND
P+7
P+6
P-7
P-6
USB_PWR
USB_PWR
1
Português
Terminais USB 3.0
(USB3_5_6 de 19 pinos)
(consultar p.1, N.º 7)
1
Dummy
IntA_PA_D+
IntA_PB_D+
IntA_PA_D-
IntA_PB_D-
GND
GND
IntA_PA_SSTX+
IntA_PB_SSTX+
IntA_PA_SSTX-
IntA_PB_SSTX-
GND
GND
IntA_PA_SSRX+
IntA_PB_SSRX+
IntA_PA_SSRX-
IntA_PB_SSRX-
Vbus
Vbus
GN D
Terminal de áudio do
painel frontal
PRESENCE#
MIC_RET
(HD_AUDIO1 de 9 pinos) OUT_RET
(consultar p.1, N.º 16)
84
OUT2_L
J_SENSE
OUT2_R
MIC2_R
MIC2_L
1
Para além das duas portas
USB 2.0 no painel de E/S,
existe um terminal nesta
placa principal. Cada
terminal USB 2.0 é capaz
de suportar duas portas.
Para além das quatro
portas USB 3.0 no painel
de E/S, existe um terminal
nesta placa principal. Cada
terminal USB 3.0 é capaz
de suportar duas portas.
Este terminal destina-se
à ligação de dispositivos
áudio ao painel de áudio
frontal.
H87M-ITX
1. O Áudio de alta definição suporta Detecção de ficha, mas o cabo de painel no chassis
deverá suportar HDA para funcionar correctamente. Siga as instruções no nosso
manual e no manual do chassis para instalar o seu sistema.
2. Se utilizar um painel de áudio AC’97, instale-o no terminal de áudio do painel frontal
de acordo com os passos abaixo:
A. Ligue Mic_IN (MIC) a MIC2_L.
B. Ligue Audio_R (RIN) a OUT2_R e Audio_L (LIN) a OUT2_L.
C. Ligue Terra (GND) a Terra (GND).
D. MIC_RET e OUT_RET destinam-se apenas ao painel de áudio HD. Não precisa de
os ligar para o painel de áudio AC’97.
E. Para activar o microfone frontal, aceda ao separador “Microfone Frontal” no painel
de controlo Realtek e ajuste o “Volume de gravação”.
Conectores da ventoinha
da CPU
(CPU_FAN1 de 4 pinos)
(consultar p.1, N.º 6)
Conector de alimentação
ATX
(ATXPWR1 de 24 pinos)
(consultar p.1, N.º 5)
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
GN D
+ 12V
CPU_ FAN_SPEED
FAN_SPEED_CONTROL
12
24
1
13
Ligue o cabos da
ventoinha aos conectores
da ventoinha colocando
o cabo preto no pino de
ligação à terra.
Português
Conector da ventoinha do
chassis
(CHA_FAN1 de 4 pinos)
(consultar p.1, N.º 14)
Esta placa principal inclui
um conector de ventoinha
de CPU (Ventoinha
silenciosa) de 4 pinos.
Se pretender ligar uma
ventoinha de CPU de 3
pinos, ligue-a ao Pino 1-3.
Esta placa principal
inclui um conector de
alimentação de ATX de 24
pinos. Para utilizar uma
fonte de alimentação ATX
de 20 pinos, introduza-a
no Pino 1 e Pino 13.
85
Conector de alimentação
de 12V ATX
(ATX12V1 de 8 pinos)
(consultar p.1, N.º 1)
Terminal de intrusão do
chassis(CI1 de 2 pinos)
(consultar p.1, N.º 4)
Português
Terminal TPM
(TPMS1 de 17 pinos)
(consultar p.1, N.º 15)
Esta placa principal
inclui um conector de
alimentação de 12V ATX
de 8 pinos. Para utilizar
uma fonte de alimentação
ATX de 4 pinos,
introduza-a no Pino 1 e
Pino 5.
GND
Signal
1
F_CLKRUN#
GND
+3VSB
SERIRQ#
S_PWRDWN#
LAD0_L
GND
LAD1_L
+3V
LAD2_L
LAD3_L
TPM_RST#
SMB_DATA_MAIN
SMB_CLK_MAIN
LFRAME#_L
GND
CK_33M_TPM
1
86
Esta placa principal suporta
a função de detecção de
ABERTURA da CAIXA que
detecta se a tampa do chassis foi
removida. Esta função requer um
chassis com design de detecção de
intrusão.
Este conector suporta um sistema
com Módulo de Plataforma
Confiável (TPM), que pode
armazenar com segurança chaves,
certificados digitais, palavraspasse e dados. Um sistema TPM
também ajuda a melhorar a
segurança de rede, a proteger
identidades digitais e a garantir a
integridade da plataforma.
H87M-ITX
1 Giriş
ASRock'ın zorlu kalite kontrol süreçlerinden geçmiş olan ASRock H87M-ITX
anakartını satın aldığınız için teşekkür ederiz. Sağlam tasarımı ile ASRock'ın kalite ve
dayanıklılık taahhüdüne uygun şekilde mükemmel performans sağlar.
Bu kılavuzda, Bölüm 1 ve 2'de anakart tanıtımı ve adım adım kurulum kılavuzları
bulunmaktadır. Bölüm 3'de yazılım ve yardımcı programların kullanım kılavuzu
bulunmaktadır. Bölüm 4'de BIOS kurulumu yapılandırma kılavuzu bulunmaktadır.
Anakart özellikleri ve BIOS yazılımı güncellenebileceğinden, bu dokümantasyonun içeriği
herhangi bir bildirimde bulunulmaksızın değiştirilebilir. Bu dokümantasyon üzerinde
herhangi bir değişiklik yapılması halinde, güncellenmiş sürüm, herhangi bir bildirim
yapılmaksızın ASRock'ın web sitesinde yer alacaktır.. Bu anakart ile ilgili olarak teknik
destek almak istiyorsanız, lütfen kullandığınız model hakkında özel bilgiler için web
sitemizi ziyaret edin. En güncel VGA kartları ve CPU destek listelerini de ASRock'ın web
sitesinden bulabilirsiniz. ASRock web sitesi http://www.asrock.com.
•
•
•
•
•
Türkçe
1.1 Ambalaj İçeriği
ASRock H87M-ITX Anakartı (Mini-ITX Form Faktörü)
ASRock H87M-ITX Hızlı Kurulum Kılavuzu
ASRock H87M-ITX Destek CD'si
2 x Seri ATA (SATA) Veri Kablosu (İsteğe Bağlı)
1 x I/O Panel Kalkanı
87
1.2 Özellikler
• Mini-ITX Form Faktörü
• Tam Katı Bağlayıcı tasarımı
CPU
• 4ncü Nesil Intel® CoreTM i7 / i5 / i3 / Xeon® / Pentium® /
Celeron®, LGA1150 Paketinde desteklemektedir
• 4 Güç Safhası Tasarımı
• Intel® Turbo Boost 2.0 Teknolojisini destekler
Yonga kümesi
• Intel® H87
• Intel® Küçük İşletme Avantaj 2.0 özelliğini destekler
Bellek
• Çift Kanallı DDR3 Bellek Teknolojisi
• 2 x DDR3 DIMM yuvaları
• DDR3 1600/1333/1066 ECC olmayan, ara belleğe alınmamış
belleği destekler
• Maksimum sistem belleği kapasitesi: 16GB
(bkz. DİKKAT)
• Intel® Üstün Bellek Profili (XMP)1.3/1.2 özelliğini destekler
Genişletme
Yuvası
• 1 x PCI Express 3.0 x16 yuva
Grafikler
• Intel® HD Graphics Dahili Görselleri ile VGA çıktıları, yalnızca
GPU entegre edilmiş işlemciler ile desteklenir.
• Intel® HD Graphics Dahili Görsellerini destekler : AVC, MVC
(S3D) ve MPEG-2 Full HW Encode1, Intel® InTruTM 3D,
Intel® Net Video HD Teknolojisi, Intel® InsiderTM, Intel® HD
Graphics 4400/4600 ile Intel® Quick Sync Video
• Pixel Shader 5.0, DirectX 11.1
• Maksimum paylaşılan bellek 1792MB
Türkçe
Platform
• Üç VGA Çıkışı seçeneği: D-sub, DVI-D ve HDMI
• Üçlü Monitör Desteği
• 1920x1200 @ 60Hz'ye kadar çözünürlükte HDMI Teknolojisini
destekler
• 1920x1200 @ 60Hz'ye kadar DVI-D işlevini destekler
88
H87M-ITX
Ses
• İçerik Koruma Özelliği ile 7.1 CH HD Ses (Realtek ALC892 Ses
Codec Bileşeni)
• Üstün Blu-ray ses desteği
LAN
• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Qualcomm® Atheros® AR8171
• Qualcomm® Atheros® Güvenli İnternet Açışı Teknolojisini
destekler
• LAN Açılışını Destekler
• Enerji Verimliliğine Sahip Ethernet 802,3az işlevini destekler
• PXE özelliğini destekler
Arka Panel I/O
•
•
•
•
•
•
•
•
•
Türkçe
• 1920x1200 @ 60Hz'ye kadar çözünürlükle D-Sub işlevini
destekler
• HDMI ile Otomatik Dudak Senkronizasyonu (12bpc, xvYCC
ve HBR (Yüksek Bit Hızında Ses) özelliklerini destekler
(Uyumlu bir HDMI monitörü kullanılmalıdır)
• DVI-D ve HDMI bağlantı noktaları ile HDCP işlevini destekler
• DVI-D, ve HDMI bağlantı noktalarıyla, Full HD 1080p Blu-ray
(BD) kayıttan yürütme özelliklerini destekler
1 x PS/2 Fare/Klavye Portu
1 x D-Sub Bağlantı Noktası
1 x DVI-D Bağlantı Noktası
1 x HDMI Bağlantı Noktası
1 x Optik SPDIF Çıkışı Bağlantı Noktası
1 x eSATA Bağlayıcısı
2 x USB 2.0 Bağlantı noktası
4 x USB 3.0 Bağlantı noktası
LED'e sahip 1 x RJ-45 LAN Bağlantı Noktası (ACT/LINK LED
ve SPEED LED)
• HD Ses Jakı: Arka Hoparlör / Merkezi / Bas / Hat Girişi / Ön
Hoparlör / Mikrofon
89
Depolama
• 4 x SATA3 6,0 Gb/s bağlayıcıları, RAID (RAID 0, RAID 1,
RAID 5, RAID 10, Intel Hızlı Depolama Teknolojisi 12 ve Intel
Akıllı Yanıt Teknolojisi), NCQ, AHCI ve “Hot Plug” işlevlerini
destekler
• 1 x eSATA bağlayıcısı, NCQ, AHCI ve “Hot Plug” işlevlerini
destekler
Türkçe
90
Bağlayıcı
•
•
•
•
•
•
•
•
•
1 x Kasa Yetkisiz Erişim bağlantısı
1 x TPM bağlantısı
1 x CPU Fan bağlayıcısı (4-pin)
1 x Kasa Fanı bağlayıcısı (4-pin)
1 x 24 pin ATX güç bağlayıcısı
1 x 4 pin 12V güç bağlayıcısı
1 x Ön panel ses bağlayıcısı
1 x USB 2.0 bağlantısı (2 USB 2.0 bağlantı noktasını destekler)
1 x USB 3.0 bağlantısı (2 USB 3.0 bağlantı noktasını destekler)
BIOS Özelliği
•
•
•
•
Çok dilli GUI Desteği ile 64Mb AMI UEFI Legal BIOS
ACPI 1.1 Uyumluluğu Uyandırma Olayları
SMBIOS 2.3.1 Desteği
CPU, DRAM, PCH 1,05V, PCH 1,5V Voltaj Çoklu Ayarı
Destek CD'si
• Sürücüler, Yardımcı Yazılımlar, AntiVirüs Yazılımı (Deneme
Sürümü), CyberLink MediaEspresso 6.5 Deneme Sürümü,
Google Chrome Tarayıcı ve Araç Çubuğu, Start8 (30 günlük
deneme)
Donanım
Monitörü
• CPU/Kasa Sıcaklığı Tespiti
• CPU/Kasa Devirölçer
• CPU/Kasa Sessiz Fan (Kasa Fan Hızının CPU Sıcaklığına Göre
Otomatik olarak Ayarlanmasını Sağlar)
• CPU/Kasa Fanı Çoklu Hız Kontrolü
• KASA AÇIK algılaması
• Voltaj İzleme: +12V, +5V, +3,3V, CPU Vcore
OS
• Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit ile uyumlu
H87M-ITX
Belgeler
• FCC, CE, WHQL
• ErP/EuP için hazır (ErP/EuP için hazır güç beslemesi
gereklidir)
* Detaylı ürün bilgisi için, lütfen web sitemizi ziyaret edin: http://www.asrock.com
Türkçe
Sınırlamalar nedeniyle, gerçek bellek boyutu Windows® 32-bit işletim sistemleri
çerçevesinde sistem kullanımına ayrıldığı için 4GB'den az olabilir. Windows® 64-bit
işletim sistemlerinde bu tür sınırlamalar yoktur. Windows® tarafından kullanılmayan
bellekten faydalanmak için ASRock XFast RAM'i kullanabilirsiniz.
91
1.3 Bağlantı Teli Kurulumu
Çizim, bağlantı tellerinin kurulumunu göstermektedir. Tel kapağı, pimlerin üzerine
yerleştirildiğinde, tel "Kısa" olur. Pimlerin üzerinde tel kapağı bulunmadığında, tel
"Kısa" olur. Çizim, pin1 ve pin2 alanları "Kısa" olan ve bu iki pim üzerinde bir bağlantı
teli kapağı bulunan 3-pin bağlantı telini göstermektedir.
CMOS'u Temizle Bağlantı
Teli
*(CLRCMOS1)
(bkz. sf.1, No. 3)
Varsayılan
CMOS'u Temizle
Türkçe
CLRCMOS1, CMOS verilerini temizlememizi sağlar. Sistem parametrelerini
temizlemek ve varsayılan kurulum ayarlarına sıfırlamak için, lütfen bilgisayarı
kapatın ve güç kablosunu güç beslemesinden çekin. 15 saniye bekledikten
sonra, CLRCMOS1 üzerindeki pin2 ve pin3'ü 5 saniye boyunca kısaltmak için
bir bağlantı teli kullanın. Ancak, CMOS'u lütfen BIOS'u güncelledikten hemen
sonra temizlemeyin. BIOS'u güncelledikten hemen sonra CMOS'u temizlemeniz
gerekirse, önce sistemi başlatın ve ardından CMOS temizleme işlemi öncesinde
yeniden kapatın. Lütfen, parola, tarih, saat ve varsayılan kullanıcı profilinin yalnızca
CMOS bataryası çıkarıldığında temizleneceğini unutmayın.
CMOS'u temizlerseniz, kasa açık uyarısı alabilirsiniz. Önceki kasa yetkisiz erişim durumu
kaydını silmek için lütfen BIOS durumunu "Durumu Temizle" olarak belirleyin.
92
H87M-ITX
1.4 Ekli Bağlantılar ve Bağlayıcılar
Ekli bağlantılar ve bağlayıcılar bağlantı teli değildir. Bağlantı teli kapaklarını bu
bağlantı ve bağlayıcılar üzerine yerleştirmeyin. Bağlantı teli kapaklarının bağlantılar ile
bağlayıcılar üzerine yerleştirilmesi, anakarta kalıcı hasar verebilir.
GND
GND
RESET#
GND
PWRBTN#
HDLED-
PLEDPLED+
HDLED+
1
Güç anahtarını bağlayın,
kasa üzerindeki anahtar ile
sistem durumu belirtecini
aşağıdaki pim düzenine
göre sıfırlayın. Kabloları
bağlarken pozitif ve negatif
pimleri not edin.
Türkçe
Sistem Paneli Bağlantısı
(9-pin PANEL1)
(bkz sf.1, No. 9)
PWRBTN (Güç Anahtarı):
Güç anahtarını kasa ön paneline bağlayın. Güç anahtarını kullanarak sistemin hangi
yöne hareketle kapanacağını seçebilirsiniz.
RESET (Sıfırlama Anahtarı):
Sıfırlama anahtarını kasa ön paneline bağlayın. Bilgisayarın kilitlenmesi ve normal şekilde
yeniden başlatılamaması halinde reset (sıfırla) düğmesine basın.
PLED (Sistem Güç LED'i):
Güç durumu göstergesini kasa ön paneline bağlayın. Sistem çalışırken LED ışığı
yanacaktır. Sistem S1/S3 uyku durumdayken LED ışığı yanıp söner. Sistem S4 uyku
durumunda ya da kapalıyken (S5) LED ışık kapanır.
HDLED (Sabit Disk Etkinlik LED'i):
Sabit sürücü etkinlik LED'ini kasa ön paneline bağlayın. Sabit sürücü veri okur ya da
yazarken LED ışığı yanar.
Ön panel tasarımı kasaya göre değişiklik gösterebilir. Bir ön panel modülü, temel olarak
bir güç anahtarı, sıfırlama anahtarı, güç LED'i, sabit sürücü aktivitesi LED'i, hoparlör gibi
birimlerden oluşur. Kasanızın ön panel modülünü bu bağlantıya takmadan önce, kablo
düzenlemeleri ile pin düzenlemelerinin düzgün şekilde yapıldığından emin olun.
93
USB 2.0 Bağlantıları
(9-pin USB10_11)
(bkz. sf.1, No. 8)
Bu dört SATA3 bağlayıcısı,
veri aktarım hızı 6,0 Gb/
sn'ye kadar olan dahili
depolama aygıtları için
tasarlanmış SATA veri
kablolarını destekler.
SATA3_0
SATA3_1
SATA3_2
SATA3_3
Seri ATA3 Bağlayıcıları
(SATA3_0:
bkz. s.1, No. 10)
(SATA3_1:
bkz. s.1, No. 11)
(SATA3_2:
bkz. s.1, No. 12)
(SATA3_3:
bkz. sf.1, No. 13)
DUMMY
GND
GND
P+7
P+6
P-7
P-6
USB_PWR
USB_PWR
1
Türkçe
USB 3.0 Bağlantıları
(19-pin USB3_5_6)
(bkz. sf.1, No. 7)
1
Dummy
IntA_PA_D+
IntA_PB_D+
IntA_PA_D-
IntA_PB_D-
GND
GND
IntA_PA_SSTX+
IntA_PB_SSTX+
IntA_PA_SSTX-
IntA_PB_SSTX-
GND
GND
IntA_PA_SSRX+
IntA_PB_SSRX+
IntA_PA_SSRX-
IntA_PB_SSRX-
Vbus
Vbus
Ön Panel Ses Bağlantısı
(9-pin HD_AUDIO1)
(bkz. sf.1, No. 16)
GN D
OUT2_L
J_SENSE
PRESENCE#
MIC_RET
OUT2_R
MIC2_R
OUT_RET
MIC2_L
1
94
Bu anakart üzerinde, I/O
paneli üzerindeki iki USB
2.0 bağlantı noktasının
yanı sıra, bir adet bağlantı
bulunmaktadır. Her
USB 2.0 bağlantısı, iki
adet bağlantı noktasını
destekleyebilir.
Bu anakart üzerinde, I/O
paneli üzerindeki dört
USB 3.0 bağlantı
noktasının yanı sıra,
bir adet bağlantı
bulunmaktadır. Her
USB 3.0 bağlantısı, iki
adet bağlantı noktasını
destekleyebilir.
Bu bağlantı, ses aygıtlarının
ön ses paneline bağlanması
içindir.
H87M-ITX
1. Yüksek Tanımlı Ses, Jak Algılama özelliğini destekler, ancak bu işlevin düzgün
çalışabilmesi için kasa üzerindeki panel kablosunun HDA işlevini desteklemesi
gerekmektedir. Sisteminizi kurarken, lütfen kılavuzumuzdaki talimatlar ile kasa
kılavuzundaki talimatları izleyin.
2. AC'97 ses paneli kullanıyorsanız, lütfen aşağıdaki adımları uygulayarak ön panel ses
bağlantısına takın:
A. Mic_IN'i (MIC) MIC2_L'ye bağlayın.
B. Audio_R'yi (RIN) OUT2_R'ye ve Audio_L'yi (LIN) OUT2_L'ye bağlayın.
C. Toprak'ı (GND) Toprak'a (GND) bağlayın.
D. MIC_RET ve OUT_RET yalnızca HD ses paneli içindir. AC'97 ses paneli için bunları
bağlamanıza gerek yoktur.
E. Ön mikrofonu etkinleştirmek için, Realtek Kontrol panelinde “FrontMic” sekmesine
gidin ve “Kayıt Ses Seviyesi”ni ayarlayın.
CPU Fan Bağlayıcıları
(4-pin CPU_FAN1)
(bkz sf.1, No. 6)
ATX Güç Bağlayıcısı
(24-pin ATXPWR1)
(bkz. sf.1, No. 5)
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
GN D
+ 12V
CPU_ FAN_SPEED
FAN_SPEED_CONTROL
12
24
1
13
Lütfen fan kablosunu fan
konektörüne takın ve siyah
teli topraklama pinine
bağlayın.
Türkçe
Kasa Fanı Konektörü
(4-pin CHA_FAN1)
(bkz sf.1, No. 14)
Bu anakart, 4-Pin CPU
fan (Sessiz Fan) bağlayıcısı
sağlamaktadır. 3-Pin CPU
fan bağlamak istiyorsanız,
lütfen Pin 1-3'ü kullanın.
Bu anakart, 24-pin
ATX güç bağlayıcısı
sağlamaktadır. 20-pin ATX
güç beslemesi kullanmak
için, lütfen Pin 1 ve Pin13'e
bağlayın.
95
ATX 12V Güç Bağlayıcısı
(8-pin ATX12V1)
(bkz. sf.1, No. 1)
Kasa Yetkisiz Erişim
Bağlantısı
(2-pin CI1)
(bkz. sf.1, No. 4)
TPM Bağlantısı
(17-pin TPMS1)
(bkz. sf.1, No. 15)
Bu anakart, 8-pin ATX
12V güç bağlayıcısı
sağlamaktadır. 4-pin ATX
güç beslemesi kullanmak
için, lütfen Pin 1 ve Pin13'e
bağlayın.
GND
Signal
1
F_CLKRUN#
GND
+3VSB
SERIRQ#
S_PWRDWN#
LAD0_L
GND
Türkçe
LAD1_L
+3V
LAD2_L
LAD3_L
TPM_RST#
SMB_DATA_MAIN
SMB_CLK_MAIN
LFRAME#_L
GND
CK_33M_TPM
1
96
Bu anakartın kasa kapağının açılıp
açılmadığını tespit eden bir KASA
AÇIK özelliği bulunmaktadır. Bu
özelliğin kullanılabilmesi için kasa
yetkisiz erişim tasarımına sahip
bir kasa kullanılmalıdır.
Bu bağlayıcı, anahtarlar, dijital
sertifikalar, parolalar ve verileri
güvenli bir şekilde saklama
özelliği bulunan Güvenilir
Platform Modülü (TPM) sistemini
destekler. TPM sistemleri,
aynı zamanda ağ güvenliğinin
artırılması, dijital kimliklerin
korunması ve platform
bütünlüğünün sağlanmasına da
yardımcıdır.
H87M-ITX
1 개요
ASRock H87M-ITX 마더보드를 구입해 주셔서 감사합니다 . 이 마더보드는
ASRock 의 일관되고 엄격한 품질관리 하에 생산되어 신뢰성이 우수하며 , 품질
과 내구성에 대한 ASRock 의 기준에 부합하는 우수한 성능과 견고한 설계를 제
공합니다 .
이 설명서에서 1 장과 2 장에서는 마더보드를 소개하고 단계적 설치 지침을 설
명합니다 . 3 장에서는 소프트웨어 및 유틸리티의 사용 지침을 설명합니다 . 4 장
에서는 BIOS 설정의 구성 지침을 설명합니다 .
한국어
마더보드 규격과 BIOS 소프트웨어를 업데이트할 수도 있기 때문에 , 이 문서의 내
용은 예고 없이 변경될 수 있습니다 . 이 설명서가 변경될 경우 , 업데이트된 버전
은 ASRock 의 웹사이트에서 추가 통지 없이 제공됩니다 . 이 마더보드와 관련하여
기술적 지원이 필요한 경우 , 당사의 웹사이트를 방문하여 사용 중인 모델에 대한
구체적 정보를 구하십시오 . ASRock 의 웹사이트에서는 최신 VGA 카드와 CPU 지
원 목록도 찾을 수 있습니다 . ASRock 웹사이트 http://www.asrock.com.
1.1 포장 내용물
•
•
•
•
•
ASRock H87M-ITX 마더보드 (Mini-ITX 폼팩터 )
ASRock H87M-ITX 간편 설치 안내서
ASRock H87M-ITX 지원 CD
시리얼 ATA (SATA) 데이터 케이블 2 개 ( 선택 품목 )
I/O 패널 실드 1 개
97
1.2 규격
• Mini-ITX 폼 팩터
• 모든 솔리드 콘덴서 구조
CPU
• LGA1150 패키지로 제공되는 4 세대 Intel® CoreTM i7 / i5 /
i3 / Xeon® / Pentium® / Celeron® 지원
• 4 개 전원 위상 구조
• Intel® Turbo Boost 2.0 기술 지원
칩세트
• Intel® H87
• Intel® Small Business Advantage 2.0 지원
메모리
•
•
•
•
확장 슬롯
• PCI Express 3.0 x16 슬롯 1 개
그래픽
• Intel® HD 그래픽스 빌트 - 인 비주얼과 VGA 출력은 GPU
통합 프로세서로만 지원할 수 있습니다 .
• Intel® HD 그래픽스 빌트 - 인 비주얼 지원 : AVC, MVC (S3D)
및 MPEG-2 풀 HW Encode1 지원 Intel® Quick Sync Video,
Intel® InTruTM 3D, Intel® 클리어 비디오 HD 기술 , Intel®
InsiderTM, Intel® HD 그래픽스 4400/4600
• Pixel Shader 5.0, DirectX 11.1
• 최대 공유 메모리 1792MB
• VGA 출력 옵션 세 개 : D-Sub, DVI-D 및 HDMI
• 삼중 모니터 지원
• HDMI 기술 지원 ( 최대 해상도 1920x1200 @ 60Hz)
• DVI-D 지원 ( 최대 해상도 1920x1200 @ 60Hz)
한국어
플랫폼
98
듀얼 채널 DDR3 메모리 기술
DDR3 DIMM 슬롯 2 개
DDR3 1600/1333/1066 비 -ECC, 비버퍼링 메모리 지원
시스템 메모리 최대 용량 : 16GB
( 주의 참조 )
• Intel® Extreme Memory Profile (XMP)1.3/1.2 지원
H87M-ITX
• D-Sub 지원 ( 최대 해상도 1920x1200 @ 60Hz)
• Auto Lip Sync, Deep Color (12bpc), xvYCC 및 HBR (High Bit
Rate Audio)(HDMI 포함 ) 지원 (HDMI 호환 모니터 필요 )
• DVI-D 및 HDMI 포트를 이용한 HDCP 기능 지원
• DVI-D 및 HDMI 포트를 이용한 Full HD 1080p Blu-ray (BD)
재생 지원
오디오
• 콘텐츠 보호를 이용한 7.1 CH HD 오디오 지원 (Realtek
ALC892 오디오 코덱 )
• 프리미엄 Blu-ray 오디오 지원
LAN
•
•
•
•
•
•
후면 패널 I/O
•
•
•
•
•
•
•
•
•
저장 장치
• SATA3 4 Gb/s 커넥터 6 개가 RAID (RAID 0, RAID 1, RAID 5,
RAID 10, Intel 빠른 저장 기술 12 및 Intel 스마트 응답 기술 ),
NCQ, AHCI 및 “핫 플러그” 기능 지원
• eSATA 커넥터 1 개 , NCQ, AHCI 및 “핫 플러그” 기능 지원
한국어
PCIE 1 개 , Gigabit LAN 10/100/1000 Mb/s
Qualcomm® Atheros® AR8171
Qualcomm® Atheros® 보안 웨이크 온 인터넷 기술 지원
Wake-On-LAN 지원
절전형 이더넷 802.3az 지원
PXE 지원
1 개 PS/2 마우스 / 키보드 포트
D-Sub 포트 1 개
DVI-D 포트 1 개
HDMI 포트 1 개
광학 SPDIF 출력 포트 1 개
eSATA 커넥터 1 개
USB 2.0 포트 2 개
USB 4 포트 3.0 개
LED 장착 RJ-45 LAN 포트 1 개 (ACT/LINK LED 및 SPEED
LED)
• HD 오디오 잭 : 후면 스피커 / 중앙 / 베이스 / 라인 입력 / 전
면 스피커 / 마이크
99
한국어
100
커넥터
•
•
•
•
•
•
•
•
•
섀시 침입 헤더 1 개
TPM 헤더 1 개
CPU 팬 커넥터 1 개 (4 핀 )
섀시 팬 커넥터 1 개 (4 핀 )
24 핀 ATX 전원 커넥터 1 개
4 핀 12V 전원 커넥터 1 개
전면 패널 오디오 커넥터 1 개
USB 2.0 헤더 1 개 (USB 2.0 포트 2 개 지원 )
USB 3.0 헤더 1 개 (USB 3.0 포트 2 개 지원 )
BIOS 기능
•
•
•
•
다국어 GUI 지원을 제공하는 64Mb AMI UEFI 적합형 BIOS
ACPI 1.1 준수 웨이크 업 이벤트
SMBIOS 2.3.1 지원
CPU, DRAM, PCH 1,05V, PCH 1,5V 전압 다중 조정
지원 CD
• 드라이버 , 유틸리티 , 백신 소프트웨어 ( 시험판 ),
CyberLink MediaEspresso 6.5 시험판 , Google Chrome 브라
우저 및 툴바 , Start8 (30 일 시험판 )
하드웨어 모니
터
• CPU/ 섀시 온도 감지
• CPU/ 섀시 타코미터
• CPU/ 섀시 저소음 팬 (CPU 온도에 의한 섀시 팬 속도 자동
조정 )
• CPU/ 섀시 팬 다중 속도 조절
• 케이스 열림 감지
• 전압 모니터링 : +12V, +5V, +3.3V, CPU Vcore
OS
• Microsoft® Windows® 8 / 8 64 비트 / 7 / 7 64 비트 호환
H87M-ITX
인증
• FCC, CE, WHQL
• ErP/EuP 사용 가능 (ErP/EuP 사용 가능 전원공급장치 필요 )
* 자세한 제품 정보에 대해서는 당사 웹사이트를 참조하십시오 : http://www.asrock.com
한국어
제한 때문에 실제 메모리 크기는 Windows® 32 비트 운영체제 하의 시스템 사용
을 위한 예비 메모리용 4GB 보다 더 적을 수 있습니다 . Windows® 64 비트 운영체
제에는 그러한 제한이 없습니다 . ASRock XFast RAM 을 사용하여 Windows® 가
사용할 수 없는 메모리를 이용할 수 있습니다 .
101
1.3 점퍼 설정
그림은 점퍼를 어떻게 설정하는지 보여줍니다 . 점퍼 캡을 핀에 씌우면 점퍼가
“단락”됩니다 . 점퍼 캡을 핀에 씌우지 않으면 점퍼가 “단선”됩니다 . 그림은 3
핀 점퍼를 보여주며 핀 1 과 핀 2 는 점퍼 캡을 씌울 때 “단락”됩니다 .
Clear CMOS 점퍼
(CLRCMOS1)
(1 페이지 , 3 번 항목 참조 )
기본값
Clear CMOS
한국어
CLRCMOS1 을 사용하여 CMOS 에 저장된 데이터를 지울 수 있습니다 . 시스
템 파라미터를 지우고 기본 설정으로 초기화하려면 컴퓨터를 끄고 전원 코
드를 전원공급장치에서 빼십시오 . 15 초 동안 기다린 후 점퍼 캡을 사용하여
CLRCMOS1 의 핀 2 와 핀 3 을 5 초 동안 단락시키십시오 . 그러나 BIOS 업데
이트 직후에는 CMOS 를 삭제하지 마십시오 . BIOS 업데이트를 완료한 직후
CMOS 를 지워야 할 경우 , 우선 시스템을 부팅한 후 바이오스 업데이트를 종
료한 다음 CMOS 지우기 작업을 해야 합니다 . CMOS 배터리를 제거할 경우에
만 암호 , 날짜 , 시간 , 사용자 기본 프로파일이 지워집니다 .
CMOS 를 지울 경우 케이스 열림이 감지될 수도 있습니다 . BIOS 옵션 “Clear
Status( 상태 지우기 )”를 조절하여 이전의 섀시 침입 상태에 대한 기록을 지우십
시오 .
102
H87M-ITX
1.4 온보드 헤더 및 커넥터
온보드 헤더와 커넥터는 점퍼가 아닙니다 . 점퍼 캡을 온보드 헤더와 커넥터에 씌
우지 마십시오 . 점퍼 캡을 온보드 헤더와 커넥터에 씌우면 마더보드가 영구적으
로 손상됩니다 .
GND
GND
RESET#
GND
PWRBTN#
HDLED-
PLEDPLED+
HDLED+
1
섀시의 전원 스위치 ,
리셋 스위치 , 시스템
상태 표시등을 아래의
핀 할당에 따라 이 헤더
에 연결합니다 . 케이블
을 연결하기 전에 양극
핀과 음극 핀을 기록합
니다 .
한국어
시스템 패널 헤더
(9 핀 PANEL1)
(1 페이지 , 9 번 항목 참조 )
PWRBTN( 전원 스위치 ):
섀시 전면 패널의 전원 스위치에 연결합니다 . 전원 스위치를 이용해 시스템을 끄
는 방법을 구성할 수 있습니다 .
RESET( 리셋 스위치 ):
섀시 전면 패널의 리셋 스위치에 연결합니다 . 컴퓨터가 정지하고 정상적 재시작
을 수행하지 못할 경우 리셋 스위치를 눌러 컴퓨터를 재시작합니다 .
PLED( 시스템 전원 LED):
섀시 전면 패널의 전원 상태 표시등에 연결합니다 . 시스템이 작동하고 있을 때는
LED 가 켜져 있습니다 . 시스템이 S1/S3 대기 상태에 있을 때는 LED 가 계속 깜박
입니다 . 시스템이 S4 대기 상태 또는 전원 꺼짐 (S5) 상태에 있을 때는 LED 가 꺼
져 있습니다 .
HDLED( 하드 드라이브 동작 LED):
섀시 전면 패널의 하드 드라이브 동작 LED 에 연결합니다 . 하드 드라이브가 데이
터를 읽거나 쓰고 있을 때 LED 가 켜져 있습니다 .
전면 패널 디자인은 섀시별로 다를 수 있습니다 . 전면 패널 모듈은 주로 전원 스
위치 , 리셋 스위치 , 전원 LED, 하드 드라이브 동작 LED, 스피커 등으로 구성되어
있습니다 . 섀시 전면 패널 모듈을 이 헤더에 연결할 때 와이어 할당과 핀 할당이
정확히 일치하는지 확인합니다 .
103
USB 2.0 헤더
(9 핀 USB10_11)
(1 페이지 , 8 번 항목 참조 )
SATA3_0
SATA3_1
SATA3_2
SATA3_3
시리얼 ATA3 커넥터
(SATA3_0:
1 페이지 , 10 번 항목 참조 )
(SATA3_1:
1 페이지 , 11 번 항목 참조 )
(SATA3_2:
1 페이지 , 12 번 항목 참조 )
(SATA3_3:
1 페이지 , 13 번 항목 참조 )
DUMMY
GND
GND
P+7
P+6
P-7
P-6
USB_PWR
USB_PWR
한국어
1
USB 3.0 헤더
(19 핀 USB3_5_6)
(1 페이지 , 7 번 항목 참조 )
1
Dummy
IntA_PA_D+
IntA_PB_D+
IntA_PA_D-
IntA_PB_D-
GND
GND
IntA_PA_SSTX+
IntA_PB_SSTX+
IntA_PA_SSTX-
IntA_PB_SSTX-
GND
GND
IntA_PA_SSRX+
IntA_PB_SSRX+
IntA_PA_SSRX-
IntA_PB_SSRX-
Vbus
Vbus
전면 패널 오디오 헤더
(9 핀 HD_AUDIO1)
(1 페이지 , 16 번 항목 참조 )
GN D
OUT2_L
J_SENSE
PRESENCE#
MIC_RET
OUT2_R
MIC2_R
OUT_RET
MIC2_L
1
104
이들 네 개의 SATA3 커
넥터는 최대 6.0 Gb/s
데이터 전송 속도를 제
공하는 내부 저장 장치
용 SATA 데이터 케이
블을 지원합니다 .
I/O 패널에 USB 2.0 포
트 두 개가 탑재되어 있
을 뿐 아니라 마더보드
에 헤더 한 개가 탑재되
어 있습니다 . 각 USB
2.0 헤더는 포트 두 개
를 지원할 수 있습니
다.
I/O 패널에 USB 3.0 포
트 네 개가 탑재되어 있
을 뿐 아니라 마더보드
에 헤더 한 개가 탑재되
어 있습니다 . 각 USB
3.0 헤더는 포트 두 개
를 지원할 수 있습니
다.
이 헤더는 오디오 장치
를 전면 오디오 패널에
연결하는 데 사용됩니
다.
H87M-ITX
1. 고음질 오디오는 잭 감지를 지원하지만 올바르게 작동하려면 섀시의 패널 와이
어가 HDA 를 지원해야 합니다 . 설명서 및 섀시 설명서에 나와 있는 지침을 따
라 시스템을 설치하십시오 .
2. AC’97 오디오 패널을 사용할 경우 아래와 같은 절차를 따라 전면 패널 오디오
헤더에 설치하십시오 :
A. Mic_IN (MIC) 를 MIC2_L 에 연결합니다 .
B. Audio_R (RIN) 을 OUT2_R 에 연결하고 Audio_L (LIN) 을 OUT2_L 에 연결합
니다 .
C. 접지 (GND) 를 접지 (GND) 에 연결합니다 .
D. MIC_RET 및 OUT_RET 는 HD 오디오 패널에만 사용됩니다 . AC’97 오디오
패널용으로 연결할 필요가 없습니다 .
E. 전면 마이크를 활성화하려면 Realtek 제어판에서 “FrontMic” 탭으로 가서
“Recording Volume( 녹음 볼륨 )”을 조정합니다 .
CPU 팬 커넥터
(4 핀 CPU_FAN1)
(1 페이지 , 6 번 항목 참조 )
ATX 전원 커넥터
(24 핀 ATXPWR1)
(1 페이지 , 5 번 항목 참조 )
1
2
3
4
GN D
+ 12V
CPU_ FAN_SPEED
FAN_SPEED_CONTROL
12
24
1
13
팬 케이블을 팬 커넥
터에 연결하고 검은색
와이어를 접지핀에 연
결하십시오 .
한국어
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
섀시 팬 커넥터
(4 핀 CHA_FAN1)
(1 페이지 , 14 번 항목 참조 )
이 마더보드에는 4 핀
CPU 팬 ( 저소음 팬 )
커넥터가 탑재되어 있
습니다 . 3 핀 CPU 팬
을 연결하려는 경우
핀 1-3 에 연결하십시
오.
이 마더보드에는 24
핀 ATX 전원 커넥터가
탑재되어 있습니다 .
20 핀 ATX 전원공급장
치를 사용하려면 핀 1
과 핀 13 을 따라 연결
하십시오 .
105
ATX 12V 전원 커넥터
(8 핀 ATX12V1)
(1 페이지 , 1 번 항목 참조 )
섀시 침입 헤더
(2 핀 CI1)
(1 페이지 , 4 번 항목 참조 )
한국어
TPM 헤더
(17 핀 TPMS1)
(1 페이지 , 15 번 항목 참조 )
이 마더보드에는 8 핀
ATX 12V 전원 커넥터
가 탑재되어 있습니
다 . 4 핀 ATX 전원공
급장치를 사용하려면
핀 1 과 핀 5 을 따라 연
결하십시오 .
GND
Signal
1
F_CLKRUN#
GND
+3VSB
SERIRQ#
S_PWRDWN#
LAD0_L
GND
LAD1_L
+3V
LAD2_L
LAD3_L
TPM_RST#
SMB_DATA_MAIN
SMB_CLK_MAIN
LFRAME#_L
GND
CK_33M_TPM
1
106
이 마더보드는 섀시 커버가
제거될 경우 이를 감지하는
케이스 열림 감지 기능을 지
원합니다 . 이 기능을 사용하
려면 섀시 침입 감지 설계가
적용된 섀시를 사용해야 합
니다 .
이 커넥터는 키 , 디지털
인증서 , 암호 및 데이터
를 안전하게 보관할 수 있
는 TPM(Trusted Platform
Module) 시스템을 지원합니
다 . TPM 시스템은 네트워크
보안을 강화하고 , 디지털 신
원을 보호하며 플랫폼 무결
성을 유지합니다 .
H87M-ITX
1
H87M-ITX
1
2
3
4
BIOS
日本語
BIOS
VGA
CPU
http://www.asrock.com.
1.1 パッケージの内容
•
•
•
• 2 x
• 1 x I/O
H87M-ITX
H87M-ITX
H87M-ITX
ATA SATA
ITX
CD
107
1.2 仕様
•
•
CPU
ITX
Intel® CoreTM i7 / i5 /
• LGA1150
4
i3 / Xeon® / Pentium® / Celeron®
• 4
• Intel®
2.0
• Intel® H87
• Intel®
2.0
日本語
•
DDR3
• 2 x DDR3 DIMM
• DDR3 1600/1333/1066 ECC
•
• Intel®
16GB
XMP 1.3/1.2
• 1 x PCI Express 3.0 x16
• Intel®HD
VGA
GPU
• Intel®HD
AVC
MVC (S3D) MPEG-2
HW
1 Intel®
Quick Sync Video Intel® InTruTM 3D Intel®
HD
Intel®
TM Intel® HD
4400/4600
•
5.0 DirectX 11.1
•
1792MB
• 3
VGA
• 3
• HDMI
@60Hz
• DVI-D
108
D-Sub DVI-D HDMI
1920x1200
1920x1200 @60Hz
H87M-ITX
• D-Sub
• HDMI HDMI
1920x1200 @60Hz
12bpc
• DVI-D
• DVI-D
HDMI
HDMI
xvYCC HBR
HDCP
HD 1080p
(BD)
LAN
• PCIE x1
•
•
®
®
LAN 10/100/1000 Mb/
® AR8171
®
•
•
• PXE
I/O
•
•
•
•
•
•
•
•
•
PS/2
/
1 x D-Sub
1 x DVI-D
1 x HDMI
1 x SPDIF
1 x eSATA
2 x USB 2.0
4 x USB 3.0
LED 1 x RJ-45 LAN
LED
• HD
/
日本語
• 7.1 CH HD
Realtek ALC892
•
802.3az
x1
ACT/LINK LED
/
SPEED
/
/
/
109
• 4 x SATA3 6.0 Gb/
RAID RAID 0 RAID 1
RAID 5 RAID 10 Intel
12 Intel
• 1 x eSATA
日本語
•
•
•
•
•
•
•
•
•
BIOS
NCQ AHCI
1x
1 x TPM
1 x CPU
1x
1 x 24
ATX
1x4
12V
1x
1 x USB 2.0
1 x USB 3.0
4
2
2
USB 2.0
USB 3.0
•
Google Chrome
• CPU/
• CPU /
• CPU/
• CPU/
•
•
110
4
•
GUI
64Mb AMI UEFI Legal BIOS
• ACPI 1.1
• SMBIOS 2.3.1
• CPU DRAM PCH 1.05V PCH 1.5V
CD
OS
NCQ AHCI
CyberLink MediaEspresso 6.5
Start8 30
CPU
+12V +5V +3.3V CPU Vcore
• Microsoft® Windows® 8 / 8 64
/ 7 / 7 64
H87M-ITX
• FCC CE WHQL
• ErP/EuP Ready ErP/EuP ready
*
http://www.asrock.com
Windows® 32
4GB
Windows® 64
Windows®
日本語
XFast RAM
111
1.3 ジャンパー設定
3
1
2
日本語
CMOS
(CLRCMOS1)
p.1 No. 3
CLRCMOS1
2
CMOS
CMOS
15
5
3
CLRCMOS1
BIOS
BIOS
CMOS
CMOS
CMOS
CMOS
CMOS
BIOS
112
Clear Status
H87M-ITX
1.4 オンボードのヘッダーとコネクター
GND
9
p.1 No. 9
1
GND
RESET#
GND
PWRBTN#
HDLED-
PLEDPLED+
HDLED+
日本語
1
PWRBTN
RESET
PLED
LED
LED
S1/S3
LED
S4
S5
LED
HDLED
LED
LED
LED
LED
LED
113
6.0 Gb/
SATA
日本語
USB 2.0
9
USB10_11
p.1 No. 8
I/O
2.0
DUMMY
GND
GND
P+7
P+6
P-7
P-6
USB_PWR
USB 3.0
USB_PWR
IntA_PA_D+
IntA_PA_D-
IntA_PB_D-
GND
GND
IntA_PA_SSTX+
IntA_PB_SSTX+
IntA_PA_SSTX-
IntA_PB_SSTX-
GND
GND
IntA_PA_SSRX+
IntA_PB_SSRX+
IntA_PA_SSRX-
IntA_PB_SSRX-
Vbus
OUT2_L
J_SENSE
PRESENCE#
MIC_RET
OUT2_R
MIC2_R
OUT_RET
MIC2_L
1
114
2
4
USB
3.0
Vbus
9
HD_AUDIO1
p.1 No. 16
USB
USB 2.0
I/O
1
Dummy
IntA_PB_D+
GN D
2
1
1
19
USB3_5_6
p.1 No. 7
SATA3
SATA3_0
SATA3_1
SATA3_2
SATA3_0
p.1 No. 10
SATA3_1
p.1 No. 11
SATA3_2
p.1 No. 12
SATA3_3
p.1 No. 13
4
SATA3_3
ATA3
1
USB 3.0
2
H87M-ITX
1.
HDA
AC97
Mic_IN (MIC) MIC2_L
B. Audio_R (RIN) OUT2_R
Audio_L (LIN)
C.
(GND)
(GND)
D. MIC_RET OUT_RET HD
E.
AC97
RealtekFrontMic
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
4
CHA_FAN1
p.1 No. 14
CPU
4
CPU_FAN1
p.1 No. 6
OUT2_L
日本語
2.
1
2
3
4
GN D
+ 12V
CPU_ FAN_SPEED
FAN_SPEED_CONTROL
4
CPU
3
CPU
1-3
ATX
24
ATXPWR1
p.1 No. 5
12
24
24
ATX
20
ATX
1
1
13
13
115
ATX12V
8
8
ATX12V1
p.1 No. 1
ATX12V
4
ATX
1
5
GND
2
CI1
p.1 No. 4
Signal
1
日本語
TPM
17
TPMS1
p.1 No. 15
F_CLKRUN#
GND
S_PWRDWN#
LAD0_L
GND
LAD1_L
+3V
LAD2_L
LAD3_L
TPM_RST#
SMB_DATA_MAIN
SMB_CLK_MAIN
LFRAME#_L
GND
CK_33M_TPM
1
116
TPM
+3VSB
SERIRQ#
TPM
H87M-ITX
1 简介
感谢您购买 ASRock H87M-ITX 主板,这是按照 ASRock 一贯严格质量控制标准
生产的性能可靠的主板。它提供符合 ASRock 质量和耐久性承诺的精良设计和
卓越性能。
在本手册中,第 1 章和第 2 章介绍主板并详细介绍如何安装它。第 3 章包含软
件和实用程序的操作指南。第 4 章包含 BIOS Setup 的配置指南。
�简体中文
由于主板规格和 BIOS 软件可能已更新,因此,本文档的内容可能会随时更改,
恕不另行通知。如果本文档有任何修改,则更新的版本将发布在 ASRock 网站上,
我们不会另外进行通知。如果您需要与此主板相关的技术支持,请访问我们的网
站以具体了解所用型号的信息。您也可以在 ASRock 网站上找到最新 VGA 卡和
CPU 支持列表。ASRock 网站 http://www.asrock.com。
1.1 包装清单
•
•
•
•
•
ASRock H87M-ITX 主板(Mini-ITX 规格尺寸)
ASRock H87M-ITX 快速安装指南
ASRock H87M-ITX 支持光盘
2 x 串行 ATA (SATA) 数据线(选购)
1 x I/O 面板
117
1.2 规格
�简体中文
平台
• Mini-ITX 规格尺寸
• 全固态电容器设计
CPU
• 支持 LGA1150 封装第 4 代 Intel® CoreTM i7 / i5 / i3 / Xeon® /
Pentium® / Celeron®
• 4 电源相设计
• 支持 Intel® Turbo Boost 2.0 技术
芯片集
• Intel® H87
• 支持 Intel® Small Business Advantage 2.0
内存
•
•
•
•
•
扩充槽
• 1 x PCI Express 3.0 x16 槽
图形
• 只有 GPU 集成的处理器才支持 Intel® HD Graphics 内置视
效和 VGA 输出。
• 支持 Intel® HD Graphics 内置视效 :Intel® 快速同步视频,
采用 AVC、MVC (S3D) 和 MPEG-2 Full HW Encode1、
Intel® InTruTM 3D、Intel® Clear Video HD 技术、Intel®
InsiderTM、Intel® HD Graphics 4400/4600
• Pixel Shader 5.0、DirectX 11.1
• 最大共享内存 1792MB
• 三个 VGA 输出选项:D-Sub、DVI-D 和 HDMI
• 支持三台监视器
双通道 DDR3 内存技术
2 x DDR3 DIMM 槽
支持 DDR3 1600/1333/1066 非 ECC,非缓冲内存
支持系统内存容量:16GB(见“注意”)
支持 Intel® Extreme Memory Profile (XMP)1.3/1.2
• 支持 HDMI 技术,60Hz 时最大分辨率达 1920x1200
• 支持 DVI-D,60Hz 时最大分辨率达 1920x1200
118
H87M-ITX
音频
• 具有内容保护功能的 7.1 CH 高清音频(Realtek ALC892 音
频编解码器)
• 优质 Blu-ray 音频支持
LAN
•
•
•
•
•
•
后面板 I/O
•
•
•
•
•
•
•
•
•
�简体中文
• 支持 D-Sub,60Hz 时最大分辨率达 1920x1200
• 通过 HDMI(需要符合规格的 HDMI 监视器)支持 Auto
Lip Sync、Deep Color (12bpc), xvYCC 和 HBR(高位速率音
频)
• 通过 DVI-D and HDMI 端口支持 HDCP 功能
• 通过 DVI-D 和 HDMI 端口支持全高清 1080p Blu-ray (BD)
播放。
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Qualcomm® Atheros® AR8171
支持 Qualcomm® Atheros® 网上安全唤醒技术
支持 Wake-On-LAN(网上唤醒)
支持高能效以太网 802.3az
支持 PXE
1 個 PS/2 鼠標 / 鍵盤接口
1 x D-Sub 端口
1 x DVI-D 端口
1 x HDMI 端口
1 x 光学 SPDIF 输出端口
1 x eSATA 接口
2 x USB 2.0 端口
4 x USB 3.0 端口
1 x RJ-45 LAN 端口,带 LED(ACT/LINK LED 和 SPEED
LED)
• 高清音频插孔 : 后扬声器 / 中央 / 低音 / 线路输入 / 前扬声
器 / 麦克风
119
• 4 x SATA3 6.0 Gb/s 接口,支持 RAID(RAID 0、RAID 1、
RAID 5、RAID 10、Intel Rapid Storage Technology 12 和
Intel Smart Response Technology)、NCQ、AHCI 和“热插
拔” 功能
• 1 x eSATA 接口,支持 NCQ、AHCI 和 “热插拔” 功能
接口
•
•
•
•
•
•
•
•
•
1 x 机箱侵入接脚
1 x TPM 接脚
1 x CPU 风扇接口 (4 针 )
1 x 机箱风扇接口 (4 针 )
1 x 24 针 ATX 电源接口
1 x 4 针 12V 电源接口
1 x 前面板音频接口
1 x USB 2.0 接脚(支持 2 个 USB 2.0 端口)
1 x USB 3.0 接脚(支持 2 个 USB 3.0 端口)
BIOS 功能特点
•
•
•
•
64Mb AMI UEFI Legal BIOS,具有多语言 GUI 支持
ACPI 1.1 兼容唤醒事件
SMBIOS 2.3.1 支持
CPU、DRAM、PCH 1.05V、PCH 1.5V 电压多次调整
(Voltage Multi-adjustment)
支持光盘
• 驱动程序、实用程序、防病毒软件(试用版)、CyberLink
MediaEspresso 6.5 试用版、Google Chrome 浏览器和工具
栏、Start8(30 天试用版 )
硬件监控
• CPU/ 机箱温度感测
• CPU/ 机箱转速计
• CPU/ 机箱静音风扇(可以按照 CPU 温度自动调整机箱风
扇速度)
• CPU/ 机箱风扇多种速度控制
• CASE OPEN(机箱打开)检测
• 电压监控:+12V、+5V、+3.3V、CPU Vcore
操作系统
• Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit 兼容
�简体中文
存储
120
H87M-ITX
认证
• FCC、CE、WHQL
• ErP/EuP 支持(需要支持 ErP/EuP 的电源)
* 有关详细产品信息,请访问我们的网站:http://www.asrock.com
�简体中文
由于限制原因,实际内存容量可能会小于 4GB,以保留给 Windows® 32-bit 操
作系统下的系统使用。Windows® 64-bit 操作系统没有此类限制。您可以使用
ASRock XFast RAM 来利用 Windows® 不能使用的内存。
121
1.3 跳线设置
此图显示如何设置跳线。将跳线帽装到这些针脚上时,跳线 “短接”。如果这
些针脚上没有装跳线帽,跳线 “开路”。此图显示 3 针跳线,当跳线帽装在针
脚 1 和针脚 2 上,它们“短接”。
�简体中文
清除 CMOS 跳线
(CLRCMOS1)
( 见第 1 页,第 3 个)
默认
清除 CMOS
CLRCMOS1 允许您清除 CMOS 中的数据。要清除和重置系统参数到默认设
置,请关闭计算机,从电源上拔下电源线插头。等候 15 秒后,使用跳线帽将
CLRCMOS1 上的针脚 2 和针脚 3 短接 5 秒。但是,请勿在更新 BIOS 后立即
清除 CMOS。如果您需要在刚完成 BIOS 更新后清除 CMOS,则必须先启动系
统,并在关闭后再执行清除 CMOS 操作。请注意,密码、日期、时间和用户
默认配置文件只在卸下 CMOS 电池后才会被清除。
如果您清除 CMOS,机箱打开会被检测到。请将 BIOS 选项“Clear Status”(清
除状态)调整为清除前一个机箱侵入状态的记录。
122
H87M-ITX
1.4 板载接脚和接口
板载接脚和接口不是跳线。不要将跳线帽装到这些接脚和接口上。将跳线帽装到
这些接脚和接口上将会对主板造成永久性损坏。
GND
GND
RESET#
GND
PWRBTN#
HDLED-
PLEDPLED+
HDLED+
1
按照下面的针脚分配,
将机箱上的电源开关、
重置开关和系统状态指
示灯连接到此接脚。在
连接线缆前请记下正负
针脚。
�简体中文
系统面板接脚
(9 针 PANEL1)
( 见第 1 页, 第 9 个)
PWRBTN(电源开关):
连接到机箱前面板上的电源开关。您可以配置使用电源开关关闭系统的方式。
RESET(重置开关):
连接到机箱前面板上的重置开关。如果计算机死机,无法执行正常重新启动,按
重置开关重新启动计算机。
PLED(系统电源 LED):
连接到机箱前面板上的电源状态指示灯。系统操作操作时,此 LED 亮起。系统
处在 S1/S3 睡眠状态时,此 LED 闪烁。系统处在 S4 睡眠状态或关机 (S5) 时,此
LED 熄灭。
HDLED(硬盘活动 LED):
连接到机箱前面板上的硬盘活动 LED 指示灯。硬盘正在读取或写入数据时,此
LED 亮起。
前面板设计根据机箱不同而有所差异。前面板模块主要包括电源开关、重置开
关、电源 LED、硬盘活动 LED 指示灯、扬声器等。将机箱前面板模块连接到此
接脚时,确保连线分配和针脚分配正确匹配。
123
�简体中文
USB 2.0 接脚
(9 针 USB10_11)
( 见第 1 页,第 8 个)
这四个 SATA3 接口支持
最高 6.0 Gb/s 数据传输
速率的内部存储设备的
SATA 数据线。
SATA3_0
SATA3_1
SATA3_2
SATA3_3
串行 ATA3 接口
(SATA3_0:
见第 1 页 , 第 10 个)
(SATA3_1:
见第 1 页 , 第 11 个)
(SATA3_2:
见第 1 页 , 第 12 个)
(SATA3_3:
见第 1 页, 第 13 个)
DUMMY
GND
GND
P+7
P+6
P-7
P-6
USB_PWR
USB_PWR
1
USB 3.0 接脚
(19 针 USB3_5_6)
( 见第 1 页,第 7 个)
1
Dummy
IntA_PA_D+
IntA_PB_D+
IntA_PA_D-
IntA_PB_D-
GND
GND
IntA_PA_SSTX+
IntA_PB_SSTX+
IntA_PA_SSTX-
IntA_PB_SSTX-
GND
GND
IntA_PA_SSRX+
IntA_PB_SSRX+
IntA_PA_SSRX-
IntA_PB_SSRX-
Vbus
除 I/O 面板上的两个 USB
2.0 端口外,此主板上还
有两个接脚。每个 USB
2.0 接脚可以支持两个端
口。
除 I/O 面板上的四个 USB
3.0 端口外,此主板上还
有一个接脚。每个 USB
3.0 接脚可以支持两个端
口。
Vbus
前面板音频接脚
(9 针 HD_AUDIO1)
( 见第 1 页,第 16 个)
GN D
OUT2_L
J_SENSE
PRESENCE#
MIC_RET
OUT2_R
MIC2_R
OUT_RET
MIC2_L
1
124
此接脚用于将音频设备
连接到前音频面板。
H87M-ITX
2.
高清音频支持插孔感测,但机箱上的面板连线必须支持 HDA 才能正常工作。
请按照我们的手册和机箱手册的说明安装系统。
如果您使用 AC' 97 音频面板,请按照以下步骤将它安装到前面板音频接脚:
A. 将 Mic_IN (MIC) 连接到 MIC2_L。
B. 将 Audio_R (RIN) 连接到 OUT2_R,将 Audio_L (LIN) 连接到 OUT2_L。
C. 将接地端 (GND) 连接到接地端 (GND)。
D. MIC_RET 和 OUT_RET 只用于高清音频面板。您不需要针对 AC' 97 音频
面板连接它们。
E. 要启用前麦克风,请转到 Realtek 控制面板上的“FrontMic”(前麦克风)
选项卡,调整 “Recording Volume”(录音音量)。
机箱风扇接口
(4 针 CHA_FAN1)
( 见第 1 页, 第 14 个 )
CPU 风扇接口
(4 针 CPU_FAN1)
( 见第 1 页, 第 6 个 )
ATX 电源接口
(24 针 ATXPWR1)
( 见第 1 页,第 5 个 )
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
GN D
+ 12V
CPU_ FAN_SPEED
FAN_SPEED_CONTROL
12
24
1
13
�简体中文
1.
请将风扇线连接到风扇
接口并使黑线匹配接地
针脚。
此主板提供 4 针 CPU 风
扇(静音风扇)接口。如
果您打算连接 3 针 CPU
风扇,请将它连接到针
脚 1-3。
此主板提供 24 针 ATX
电源接口。要使用 20 针
ATX 电源,请沿针脚 1
和针脚 13 插接它。
125
ATX 12V 电源接口
(8 针 ATX12V1)
( 见第 1 页,第 1 个 )
机箱侵入接脚 (2 针 CI1)
( 见第 1 页,第 4 个 )
�简体中文
TPM 接脚
(17 针 TPMS1)
( 见第 1 页,第 15 个 )
此主板提供 8 针 ATX
12V 电源接口。要使用 4
针 ATX 电源,请沿针脚
1 和针脚 5 插接它。
GND
Signal
1
F_CLKRUN#
GND
+3VSB
SERIRQ#
S_PWRDWN#
LAD0_L
GND
LAD1_L
+3V
LAD2_L
LAD3_L
TPM_RST#
SMB_DATA_MAIN
SMB_CLK_MAIN
LFRAME#_L
GND
CK_33M_TPM
1
126
此主板支持 CASE OPEN(机箱
打开)检测功能 - 检测机箱盖
是否拆下。此功能需要采用侵
入检测设计的机箱。
此接口支持 Trusted Platform
Module(信任平台模块,
TPM)系统,可以安全地存储
密钥、数字证书、密码和数据。
TPM 系统也可以帮助增强网络
安全,保护数字身份和确保平
台完整性。
H87M-ITX
電子信息產品污染控制標示
�简体中文
依據中國發布的「電子信息產品污染控制管理辦法」及 SJ/T 11364-2006「電
子信息產品污染控制標示要求」,電子信息產品應進行標示,藉以向消費者揭
露產品中含有的有毒有害物質或元素不致發生外洩或突變從而對環境造成污染
或對人身、財產造成嚴重損害的期限。依上述規定,您可于本產品之印刷電路
板上看見圖一之標示。圖一中之數字為產品之環保使用期限。由此可知此主板
之環保使用期限為 10 年。
圖一
有毒有害物質或元素的名稱及含量說明
若您慾了解此產品的有毒有害物質或元素的名稱及含量說明,請參照以下表格
及說明。
有害物質或元素
部件名稱
鉛 (Pb) 鎘 (Cd) 汞 (Hg) 六价鉻 (Cr(VI)) 多溴聯苯 (PBB) 多溴二苯醚 (PBDE)
印刷電路板
X
O
O
O
O
O
及電子組件
外部信號連
X
O
O
O
O
O
接頭及線材
O: 表示該有毒有害物質在該部件所有均質材料中的含量均在 SJ/T 11363-2006 標準規定
的限量要求以下。
X: 表示該有毒有害物質至少在該部件的某一均質材料中的含量超出 SJ/T 11363-2006 標準
規定的限量要求,然該部件仍符合歐盟指令 2002/95/EC 的規範。
備註 : 此產品所標示之環保使用年限,系指在一般正常使用狀況下。
127
1 簡介
感謝您購買 ASRock H87M-ITX 主機板,本主機板經 ASRock 嚴格品管製作,
是一套讓人信賴的可靠產品。本產品採耐用設計所展現的優異效能,完全符合
ASRock 對品質及耐用度的承諾。
在本手冊中,第 1 章及第 2 章包含主機板的簡介及逐步安裝指南。第 3 章包含
軟體及公用程式的操作指南。第 4 章包含 BIOS 組態設定指南。
繁體中文
由於主機板規格及 BIOS 軟體可能會更新,所以本文件內容如有變更,恕不另行
通知。如本文件有任何修改,可至 ASRock 網站逕行取得更新版本,不另外通知。
若您需要與本主機板相關的技術支援,請上我們的網站瞭解有關您使用機型的特
定資訊。您也可以在 ASRock 網站找到最新的 VGA 卡及 CPU 支援清單。ASRock
網站 http://www.asrock.com
1.1 包裝內容
•
•
•
•
•
128
ASRock H87M-ITX 主機板 (Mini-ITX 尺寸 )
ASRock H87M-ITX 快速安裝指南
ASRock H87M-ITX 支援光碟
2 x Serial ATA (SATA) 資料纜線(選用)
1 x I/O 面板外罩
H87M-ITX
平台
• Mini-ITX 尺寸
• 全固態電容設計
CPU
• 支援第 4 代 Intel® CoreTM i7 / i5 / i3 / Xeon® / Pentium® /
Celeron® (LGA1150 封裝 )
• 4 電源相位設計
• 支援 Intel® Turbo Boost 2.0 技術
晶片組
• Intel® H87
• 支援 Intel® Small Business Advantage 2.0
記憶體
•
•
•
•
•
擴充插槽
• 1 x PCI Express 3.0 x16 插槽
顯示卡
• 僅限整合 GPU 的處理器才可支援 Intel® HD Graphics Builtin Visuals 及 VGA 輸出。
• 支援 Intel® HD Graphics Built-in Visuals:轉換 AVC、
MVC (S3D) 及 MPEG-2 Full HW Encode1 的 Intel® 高速影
像同步轉檔技術、Intel® InTruTM 3D、Intel® Clear Video
HD Technology、Intel® InsiderTM、Intel® HD Graphics
4400/4600
• Pixel Shader 5.0,DirectX 11.1
• 最大共用記憶體 1792MB
• 三個 VGA 輸出選項:D-Sub、DVI-D 及 HDMI
繁體中文
1.2 規格
雙通道 DDR3 記憶體技術
2 x DDR3 DIMM 插槽
支援 DDR3 1600/1333/1066 非 ECC、無緩衝記憶體
最大系統記憶體容量:16GB ( 請參閱「注意」)
支援 Intel® Extreme Memory Profile (XMP)1.3/1.2
• 支援三台顯示器
• 支援最高達 1920x1200 @ 60Hz 解析度的 HDMI 技術
• 支援最高達 1920x1200 @ 60Hz 解析度的 DVI-D
129
繁體中文
• 支援最高達 1920x1200 @ 60Hz 解析度的 D-Sub
• 支援使用 HDMI(需相容於 HDMI 監視器)的 Auto Lip
Sync、Deep Color (12bpc)、xvYCC 及 HBR(高位元率音訊)
• 支援含 DVI-D 及 HDMI 連接埠的 HDCP 功能
• 支援透過 DVI-D 及 HDMI 連接埠的 Full HD 1080p Blu-ray
(BD) 播放
130
音訊
• 7.1 CH HD 音訊含內容保護(Realtek ALC892 音訊轉碼器)
功能
• 高階藍光音訊支援
LAN
• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Qualcomm® Atheros® AR8171
• 支援 Qualcomm® Atheros® Security Wake On Internet
Technology
• 支援網路喚醒
• 支援 Energy Efficient Ethernet 802.3az
• 支援 PXE
後面板 I/O
•
•
•
•
•
•
•
•
•
1 個 PS/2 滑鼠 / 鍵盤接口
1 x D-Sub 連接埠
1 x DVI-D 連接埠
1 x HDMI 連接埠
1 x 光纖 SPDIF 輸出連接埠
1 x eSATA 接頭
2 x USB 2.0 連接埠
4 x USB 3.0 連接埠
1 x RJ-45 LAN 連接埠,含 LED(ACT/LINK LED 及 SPEED
LED)
• HD 音訊插孔:後置喇叭 / 中置 / 低音 / 線路輸入 / 前置喇
叭 / 麥克風
儲存裝置
• 4 x SATA3 6.0 Gb/s 接頭支援 RAID(RAID 0、RAID 1、
RAID 5、RAID 10、Intel 快速儲存技術 12 及 Intel 智慧反
應技術)、NCQ、AHCI 及「熱插拔」功能
• 1 x eSATA 接頭,支援 NCQ、AHCI 及「熱插拔」功能
接頭
•
•
•
•
•
•
•
•
•
1 x 機殼防護標頭
1 x TPM 標頭
1 x CPU 風扇接頭 (4-pin)
1 x 機殼風扇接頭 (4-pin)
1 x 24 pin ATX 電源接頭
1 x 4 pin 12V 電源接頭
1 x 前面板音訊接頭
1 x USB 2.0 排針 ( 支援 2 USB 2.0 連接埠 )
1 x USB 3.0 排針 ( 支援 2 USB 3.0 連接埠 )
BIOS 功能
•
•
•
•
64Mb AMI UEFI Legal BIOS 含 多語 GUI 支援
ACPI 1.1 符合喚醒自動開機
支援 SMBIOS 2.3.1
CPU、DRAM、PCH 1.05V、PCH 1.5V 電壓多重調整
支援 CD
• 驅動程式、公用程式、防毒軟體 ( 試用版 )、CyberLink
MediaEspresso 6.5 Trial、Google Chrome 瀏覽器及工具列、
Start8 (30 天試用 )
硬體監視器
• CPU /機殼溫度感應
• CPU /機殼轉速計
• CPU /機殼靜音風扇(允許按照 CPU 溫度自動調整機殼
風扇速度)
• CPU /機殼風扇多重速度控制
• 機殼開啟偵測
• 電壓監控:+12V、+5V、+3.3V、CPU Vcore
作業系統
• 相容 Microsoft® Windows® 8 / 8 64 位元 / 7 / 7 64 位元
認證
• FCC、CE、WHQL
• ErP/EuP Ready(需具備 ErP/EuP ready 電源供應器)
繁體中文
H87M-ITX
131
* 如需產品詳細資訊,請上我們的網站:http://www.asrock.com
繁體中文
在 Windows® 32 位元作業系統下,因有保留供系統使用記憶體的限制,所以實
際記憶體大小可能低於 4GB。Windows® 64 位元作業系統則沒有此類限制。您
可使用 ASRock XFast RAM 運用 Windows® 無法使用的記憶體。
132
H87M-ITX
1.3 跳線設定
繁體中文
圖例顯示設定跳線的方式。當跳線帽套在針腳上時,該跳線為「短路」。若沒
有跳線帽套在針腳上,該跳線為「開啟」。圖例顯示當 3-pin 跳線的跳線蓋套
在 pin1 及 pin2 時,這兩個針腳皆為「短路」。
清除 CMOS 跳線
(CLRCMOS1)
( 請參閱第 1 頁,編號 3)
預設
清除 CMOS
您可利用 CLRCMOS1 清除 CMOS 中的資料。若要清除及重設系統參數為預
設設定,請先關閉電腦電源,再拔下電源供應器的電源線。在等待 15 秒後,
請使用跳線帽讓 CLRCMOS1 上的 pin2 及 pin3 短路約 5 秒。不過,請不要在
更新 BIOS 後立即清除 CMOS。若您需在更新 BIOS 後立即清除 CMOS,則必
須先重新啟動系統,然後於進行清除 CMOS 動作前關機。請注意,只有在取
出 CMOS 電池時才會清除密碼、日期、時間及使用者預設設定檔。
若您清除 CMOS,可能會偵測到機殼開啟。請調整 BIOS 選項「清除狀態」,清
除先前機殼防護狀態的紀錄。
133
1.4 板載排針及接頭
板載排針及接頭都不是跳線。請勿將跳線帽套在這些排針及接頭上。將跳線帽套
在排針及接頭上,將造成主機板永久性的受損。
繁體中文
系統面板排針
(9-pin PANEL1)
( 請參閱第 1 頁, 編號 9)
GND
GND
RESET#
GND
PWRBTN#
HDLED-
PLEDPLED+
HDLED+
1
請依照以下的針腳排
列將機殼上的電源開
關、重設開關及系統
狀態指示燈連接至此
排針。在連接纜線之
前請注意正負針腳。
PWRBTN ( 電源開關 ):
連接至機殼前面板上的電源開關。您可設定使用電源開關關閉系統電源的方式。
RESET ( 重設開關 ):
連接至機殼前面板上的重設開關。若電腦凍結且無法執行正常重新啟動,按下重
設開關即可重新啟動電腦。
PLED ( 系統電源 LED):
連接至機殼前面板上的電源狀態指示燈。系統正在運作時,此 LED 會亮起。系
統進入 S1/S3 睡眠狀態時,LED 會持續閃爍。系統進入 S4 睡眠狀態或關機 (S5)
時,LED 會熄滅。
HDLED ( 硬碟活動 LED):
連接至機殼前面板上的硬碟活動 LED。硬碟正在讀取或寫入資料時,LED 會亮
起。
各機殼的前面板設計各有不同。前面板模組主要是由電源開關、重設開關、電源
LED、硬碟活動 LED、喇叭及其他裝置組成。將機殼前面板模組連接至此排針時,
請確定佈線及針腳指派皆正確相符。
134
USB 2.0 排針
(9-pin USB10_11)
( 請參閱第 1 頁,編號 8)
這四組 SATA3 接頭皆
支援內部儲存裝置的
SATA 資料纜線,最
高可達 6.0 Gb/s 資料
傳輸率。
繁體中文
SATA3_0
SATA3_1
SATA3_2
Serial ATA3 接頭
(SATA3_0:
請參閱第 1 頁,編號 10)
(SATA3_1:
請參閱第 1 頁,編號 11)
(SATA3_2:
請參閱第 1 頁,編號 12)
(SATA3_3:
請參閱第 1 頁,編號 13)
SATA3_3
H87M-ITX
DUMMY
GND
GND
P+7
P+6
P-7
P-6
USB_PWR
USB_PWR
1
除了 I/O 面板上的兩
個 USB 2.0 連接埠外,
在本主機板上還有另
外一組排針。各 USB
2.0 排針皆可支援兩個
連接埠。
1
USB 3.0 排針
(19-pin USB3_5_6)
( 請參閱第 1 頁,編號 7)
Dummy
IntA_PA_D+
IntA_PB_D+
IntA_PA_D-
IntA_PB_D-
GND
GND
IntA_PA_SSTX+
IntA_PB_SSTX+
IntA_PA_SSTX-
IntA_PB_SSTX-
GND
GND
IntA_PA_SSRX+
IntA_PB_SSRX+
IntA_PA_SSRX-
IntA_PB_SSRX-
Vbus
Vbus
前面板音訊排針
(9-pin HD_AUDIO1)
( 請參閱第 1 頁,編號 16)
GN D
OUT2_L
J_SENSE
PRESENCE#
MIC_RET
OUT2_R
MIC2_R
OUT_RET
MIC2_L
除了 I/O 面板上的四
個 USB 3.0 連接埠外,
在本主機板上還有另
外一組排針。各 USB
3.0 排針皆可支援兩個
連接埠。
本排針適用於連接音
訊裝置至前面板音
訊。
1
135
1.
2.
繁體中文
高解析度音訊支援智慧型音效介面偵測 (Jack Sensing),但機殼上的面板線必
須支援 HDA 才能正確運作。請依本手冊及機殼手冊說明安裝系統。
若您使用 AC' 97 音訊面板,請按照以下步驟安裝至前面板音訊排針:
A. 將 Mic_IN (MIC) 連接至 MIC2_L。
B. 將 Audio_R (RIN) 連接至 OUT2_R 且將 Audio_L (LIN) 連接至 OUT2_L。
C. 將接地 (GND) 連接至接地 (GND)。
D. MIC_RET 及 OUT_RET 僅供 HD 音訊面板使用。您不需要在 AC' 97 音訊
面板上連接。
E. 若要啟動前側麥克風,請前往 Realtek 控制面板中的「FrontMic」標籤調整
「錄音音量」。
機殼風扇接頭
(4-pin CHA_FAN1)
( 請參閱第 1 頁, 編號 14)
CPU 風扇接頭
(4-pin CPU_FAN1)
( 請參閱第 1 頁, 編號 6)
ATX 電源接頭
(24-pin ATXPWR1)
( 請參閱第 1 頁,編號 5)
136
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
GN D
+ 12V
CPU_ FAN_SPEED
FAN_SPEED_CONTROL
12
24
1
13
請將風扇纜線連接至
風扇接頭,並比對黑
線及接地針腳。
本主機板配備 4-Pin
CPU 風扇 ( 靜音風扇 )
接頭。若您計畫連接
3-Pin CPU 風扇,請
接至 Pin 1-3。
本主機板配備一組
24-pin ATX 電源接
頭。若要使用 20-pin
ATX 電源供應器,請
插入 Pin 1 及 Pin 13。
H87M-ITX
ATX 12V 電源接頭
(8-pin ATX12V1)
( 請參閱第 1 頁,編號 1)
TPM 標頭
(17-pin TPMS1)
( 請參閱第 1 頁,編號 15)
GND
Signal
1
F_CLKRUN#
GND
+3VSB
SERIRQ#
S_PWRDWN#
LAD0_L
GND
LAD1_L
+3V
LAD2_L
LAD3_L
TPM_RST#
SMB_DATA_MAIN
SMB_CLK_MAIN
LFRAME#_L
GND
CK_33M_TPM
本主機板支援「機殼開啟」
偵測功能,可偵測機殼外蓋
是否遭移除。若要使用本功
能,機殼必須採用機殼防護
偵測設計。
繁體中文
機殼防護排針
(2-pin CI1)
( 請參閱第 1 頁,編號 4)
本主機板配備一組
8-pin ATX 12V 電源
接頭。若要使用 4-pin
ATX 電源供應器,請
插入 Pin 1 及 Pin 5。
此接頭支援信賴平台模組
(TPM) 系統,可確保儲存金
鑰、數位憑證、密碼及資料
的安全。TPM 系統也能強化
網路安全、保護數位身分並
確定平台完整性。
1
137
1 Pendahuluan
Bahasa Indonesia
Terima kasih telah membeli motherboard ASRock H87M-ITX, yakni motherboard
andal yang diproduksi di bawah kendali mutu ketat yang sejalan dengan ASRock.
Motherboard ini memberikan performa luar biasa dengan desain canggih yang
meneguhkan komitmen ASRock terhadap kualitas dan ketahanan.
Dalam panduan pengguna ini, Bab 1 dan 2 berisi pendahuluan tentang motherboard
dan panduan pemasangan langkah demi langkah. Bab 3 berisi panduan pengoperasian
perangkat lunak dan utilitas. Bab 4 berisi panduan konfigurasi BIOS setup.
Karena spesifikasi motherboard dan perangkat lunak BIOS dapat di-update, maka isi
dokumentasi ini akan berubah sewaktu-waktu tanpa pemberitahuan sebelumnya. Jika
terdapat perubahan pada dokumentasi ini, maka versi baru akan tersedia di situs web
ASRock tanpa pemberitahuan lebih lanjut. Jika Anda memerlukan dukungan teknis
terkait motherboard ini, kunjungi situs web kami untuk mendapatkan informasi khusus
tentang model yang Anda gunakan. Anda juga dapat menemukan kartu VGA dan daftar
dukungan CPU terkini di situs web ASRock. Situs web ASRock http://www.asrock.com.
1.1 Isi Kemasan
•
•
•
•
•
138
Motherboard ASRock H87M-ITX (Bentuk dan Ukuran Mini-ITX)
Panduan Ringkas ASRock H87M-ITX
CD Dukungan ASRock H87M-ITX
2 x Kabel Data SATA (Serial ATA) (Opsional)
1 x Pelindung Panel I/O
H87M-ITX
Platform
• Bentuk dan Ukuran Mini-ITX
• Desain Kapasitor Solid
CPU
• Mendukung Intel® CoreTM i7 / i5 / i3 Generasi Ke-4 / Xeon® /
Pentium® / Celeron® dalam Paket LGA1150
• Desain 4 Fase Daya
• Mendukung Teknologi Intel® Turbo Boost 2.0
Chipset
• Intel® H87
• Mendukung Intel® Small Business Advantage 2.0
Memori
• Teknologi Memori DDR3 Kanal Ganda
• 2 x Slot DDR3 DIMM
• Mendukung DDR3 1600/1333/1066 non-ECC, memori tanpa
buffer
• Kapasitas maksimum memori sistem: 16GB
(lihat PERHATIAN)
• Mendukung Intel® Extreme Memory Profile (XMP)1.3/1.2
Slot Ekspansi
• 1 x Slot PCI Express 3.0 x16
Grafis
• Intel® HD Graphics Built-in Visuals dan output VGA hanya
didukung dengan prosesor yang terintegrasi GPU.
• Mendukung Intel® HD Graphics Built-in Visuals: Intel® Quick
Sync Video dengan AVC, MVC (S3D), dan MPEG-2 Full HW
Encode1, Intel® InTruTM 3D, Teknologi Intel® Clear Video HD,
Intel® InsiderTM, Intel® HD Graphics 4400/4600
• Pixel Shader 5.0, DirectX 11.1
• Memori bersama maksimum 1792MB
• Tiga pilihan output VGA: D-Sub, DVI-D, dan HDMI
Bahasa Indonesia
1.2 Spesifikasi
• Mendukung Tiga Monitor
• Mendukung Teknologi HDMI dengan resolusi maksimum
hingga 1920x1200 @ 60Hz
• Mendukung DVI-D dengan resolusi maksimum hingga
1920x1200 @ 60Hz
139
Bahasa Indonesia
• Mendukung D-Sub dengan resolusi maksimum hingga
1920x1200 @ 60Hz
• Mendukung Auto Lip Sync, Deep Color (12bpc), xvYCC, dan
HBR (High Bit Rate Audio) dengan HDMI (memerlukan
monitor HDMI yang kompatibel)
• Mendukung fungsi HDCP dengan port DVI-D dan HDMI
• Mendukung pemutaran Full HD 1080p Blu-ray (BD) dengan
port DVI-D dan HDMI
Audio
• Audio HD 7.1 CH dengan Perlindungan Konten (Realtek
ALC892 Audio Codec)
• Mendukung audio Blu-ray premium
LAN
• PCIE x1 Gigabit LAN 10/100/1000 Mb/s
• Qualcomm® Atheros® AR8171
• Mendukung Teknologi Qualcomm® Atheros® Security Wake
On Internet
• Mendukung Wake-On-LAN
• Mendukung Energy Efficient Ethernet 802,3az
• Mendukung PXE
Panel I/O
Belakang
•
•
•
•
•
•
•
•
•
1 x Port Mouse/Keyboard PS/2
1 x Port D-Sub
1 x Port DVI-D
1 x Port HDMI
1 x Port SPDIF Out Optik
1 x Konektor eSATA
2 x Port USB 2.0
4 x Port USB 3.0
1 x Port LAN RJ-45 dengan LED (ACT/LINK LED dan
SPEED LED)
• Soket Audio HD: Speaker Belakang/Tengah/Bas/Saluran
masuk/Speaker Depan/Mikrofon
140
H87M-ITX
Penyimpanan
• 4 x Konektor SATA3 6,0 Gb/s, mendukung RAID (RAID 0,
Konektor
•
•
•
•
•
•
•
•
•
Fitur BIOS
• 64Mb AMI UEFI Legal BIOS dengan dukungan GUI
Multibahasa
• ACPI 1.1 Kompatibel dengan Aktivitas Pengaktifan
• Dukugan SMBIOS 2.3.1
• Multipengatur Tegangan CPU, DRAM, PCH 1,05V, PCH 1,5V
Dukungan CD
• Driver, Utilitas, Perangkat Lunak AntiVirus (Versi Uji Coba),
CyberLink MediaEspresso 6.5 Uji Coba, Google Chrome
Browser dan Toolbar, Start8 (uji coba 30 hari)
Perangkat
Keras Monitor
• Sensor Suhu CPU/Chassis
• Takometer CPU/Chassis
• Kipas Hening CPU/Chassis (Memungkinkan Penyesuaian
Otomatis Kecepatan Kipas Chassis Berdasarkan Suhu CPU)
• Kontrol Multikecepatan Kipas CPU/Chassis
• Deteksi CASE OPEN
• Pemantauan Tegangan: +12V, +5V, +3,3V, CPU Vcore
OS
• Kompatibel dengan Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64bit
Bahasa Indonesia
RAID 1, RAID 5, RAID 10, Teknologi Intel Rapid Storage 12,
dan Teknologi Intel Smart Response), fungsi NCQ, AHCI, dan
“Hot Plug”
• 1 x Konektor eSATA, mendukung fungsi NCQ, AHCI, dan “Hot
Plug”
1 x Header Intrusi Chassis
1 x Header TPM
1 x Konektor kipas CPU (4-pin)
1 x Konektor kipas chassis (4-pin)
1 x Konektor daya ATX 24 pin
1 x Konektor daya 12V 4 pin
1 x Konektor audio panel depan
1 x Header USB 2.0 (mendukung 2 port USB 2.0)
1 x Header USB 3.0 (mendukung 2 port USB 3.0)
141
Sertifikasi
• FCC, CE, WHQL
• Siap untuk ErP/EuP (memerlukan catu daya untuk ErP/EuP)
Bahasa Indonesia
* Untuk informasi tentang produk rinci, kunjungi situs web kami: http://www.asrock.com
Karena keterbatasan, ukuran memori sebenarnya mungkin kurang dari 4GB karena
akan digunakan sistem berdasarkan sistem operasi Windows® 32-bit. Sistem operasi
Windows® 64-bit tidak memiliki keterbatasan tersebut. Anda dapat menggunakan
ASRock XFast RAM untuk memanfaatkan memori yang tidak dapat digunakan
Windows® tersebut.
142
H87M-ITX
1.3 Konfigurasi Jumper
Clear CMOS Jumper
(CLRCMOS1)
(lihat hal. 1, No. 3)
Default
Bahasa Indonesia
Gambar menunjukkan cara mengkonfigurasi jumper. Bila penutup jumper diletakkan
pada pin, maka jumper akan “Pendek”. Jika tidak ada penutup jumper yang diletakkan
pada pin, maka jumper akan “Terbuka”. Gambar menunjukkan jumper 3-pin, yakni
pin1 dan pin2 menjadi "Pendek" bila penutup jumper diletakkan pada 2 pin tersebut.
Clear CMOS
CLRCMOS1 memungkinkan Anda mengosongkan data di CMOS. Untuk
mengosongkan dan mengatur ulang parameter sistem ke konfigurasi default,
matikan komputer, lalu lepas kabel daya dari catu daya. Setelah menunggu selama
15 detik, gunakan penutup jumper untuk memendekkan pin2 dan pin3 pada
CLRCMOS1 selama 5 detik. Namun, jangan kosongkan CMOS tepat setelah Anda
meng-update BIOS. Jika Anda harus mengosongkan CMOS setelah selesai mengupdate BIOS, boot up dulu sistem, lalu matikan sebelum melakukan tindakan clearCMOS. Perhatikan bahwa sandi, tanggal, waktu, dan profil default pengguna akan
dikosongkan hanya jika baterai CMOS dikeluarkan.
Jika Anda mengosongkan CMOS, maka rangka terbuka mungkin akan terdeteksi. Atur
pilihan “Clear Status” BIOS untuk mengosongkan data status intrusi chassis sebelumnya.
143
1.4 Header dan Konektor Onboard
Bahasa Indonesia
Header dan konektor terpasang BUKANLAH jumper. JANGAN letakkan penutup
jumper pada header dan konektor tersebut. Meletakkan penutup jumper pada header dan
konektor akan mengakibatkan kerusakan permanen pada motherboard.
Header Panel Sistem
(PANEL1 9-pin)
(lihat hal. 1, No. 9)
GND
GND
RESET#
GND
PWRBTN#
HDLED-
PLEDPLED+
HDLED+
1
Sambungkan switch daya,
atur ulang indikator status
sistem dan switch daya
pada chassis ke header
tersebut berdasarkan
penetapan pin di bawah
ini. Perhatikan pin positif
dan negatif sebelum
menyambungkan kabel.
PWRBTN (Switch Daya):
Sambungkan ke switch daya pada panel depan chassis. Anda dapat mengkonfigurasi cara
mematikan sistem menggunakan switch daya.
RESET (Switch Atur Ulang):
Sambungkan ke switch atur ulang pada panel depan chassis. Tekan switch atur ulang
untuk mengatur ulang komputer jika komputer tidak merespons dan gagal melakukan
pengaktifan ulang normal.
PLED (LED Daya Sistem):
Sambungkan ke indikator status daya pada panel depan chassis. LED akan menyala bila
sistem sedang beroperasi. LED akan terus berkedip bila sistem dalam kondisi tidur S1/S3.
LED akan mati bila sistem dalam kondisi tidur S4 atau mati (S5).
HDLED (LED Aktivitas Hard Drive):
Sambungkan ke LED aktivitas hard drive pada panel depan chassis. LED akan menyala
bila hard drive sedang membaca atau menulis data.
Desain panel depan dapat berbeda menurut chassis. Modul panel depan biasanya terdiri
atas switch daya, switch atur ulang, LED daya, LED aktivitas hard drive, speaker, dll. Bila
menyambungkan modul panel depan chassis ke header, pastikan penetapan kabel dan pin
disesuaikan dengan benar.
144
Header USB 2.0
(USB10_11 9-pin)
(lihat hal. 1, No. 8)
DUMMY
GND
GND
P+7
P+6
P-7
P-6
USB_PWR
USB_PWR
1
Header USB 3.0
(USB3_5_6 19-pin)
(lihat hal. 1, No. 7)
1
Dummy
IntA_PA_D+
IntA_PB_D+
IntA_PA_D-
IntA_PB_D-
GND
GND
IntA_PA_SSTX+
IntA_PB_SSTX+
IntA_PA_SSTX-
IntA_PB_SSTX-
GND
GND
IntA_PA_SSRX+
IntA_PB_SSRX+
IntA_PA_SSRX-
IntA_PB_SSRX-
Vbus
Vbus
Header Audio Panel
Depan
(HD_AUDIO1 9-pin)
(lihat hal. 1, No. 16)
GN D
OUT2_L
J_SENSE
PRESENCE#
MIC_RET
OUT2_R
MIC2_R
OUT_RET
MIC2_L
1
Bahasa Indonesia
Keempat konektor SATA3
ini mendukung kabel data
SATA untuk perangkat
penyimpanan internal
dengan kecepatan transfer
data hingga 6,0 Gb/s.
SATA3_0
SATA3_1
SATA3_2
Konektor Serial ATA3
(SATA3_0:
lihat hal. 1, No. 10)
(SATA3_1:
lihat hal. 1, No. 11)
(SATA3_2:
lihat hal. 1, No. 12)
(SATA3_3:
lihat hal. 1, No. 13)
SATA3_3
H87M-ITX
Selain dua port USB
2.0 pada panel I/O,
terdapat satu header pada
motherboard ini. Masingmasing header USB 2.0
dapat mendukung dua
port.
Selain empat port USB
3.0 pada panel I/O,
terdapat satu header pada
motherboard ini. Masingmasing header USB 3.0
dapat mendukung dua
port.
Header ini untuk
menyambungkan
perangkat audio ke panel
audio depan.
145
Bahasa Indonesia
1. Audio Definisi Tinggi mendukung Sensor Soket, namun kabel panel pada chassis
harus mendukung HDA agar berfungsi dengan benar. Ikuti petunjuk dalam panduan
pengguna ini dan panduan pengguna chassis untuk menginstal sistem.
2. Jika Anda menggunakan panel audio AC’97, pasang ke header audio panel depan
dengan melakukan langkah-langkah di bawah ini:
A. Sambungkan Mic_IN (MIC) ke MIC2_L.
B. Sambungkan Audio_R (RIN) ke OUT2_R dan Audio_L (LIN) ke OUT2_L.
C. Sambungkan Ground (GND) ke Ground (GND).
D. MIC_RET dan OUT_RET hanya untuk panel audio HD. Anda tidak perlu
menyambungkannya untuk panel audio AC’97.
E. Untuk mengaktifkan mikrofon depan, buka tab “FrontMic” pada Panel kontrol
Realtek, lalu sesuaikan “Volume Perekaman”.
Konektor Kipas Chassis
(CHA_FAN1 4-pin)
(lihat hal. 1, No. 14)
Konektor Kipas CPU
(CPU_FAN1 4-pin)
(lihat hal. 1, No. 6)
Konektor Daya ATX
(ATXPWR1 24-pin)
(lihat hal. 1, No. 5)
146
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
GN D
+ 12V
CPU_ FAN_SPEED
FAN_SPEED_CONTROL
12
24
1
13
Sambungkan kabel kipas
ke konektor kipas, lalu
cocokkan kabel hitam
dengan pin ground.
Motherboard ini
memberikan konektor
kipas CPU 4-Pin
(Kipas Hening). Jika
Anda berencana untuk
menyambungkan kipas
CPU 3-Pin, sambungkan
ke Pin 1-3.
Motherboard ini
memberikan konektor
daya ATX 24-pin. Untuk
menggunakan catu daya
ATX 20-pin, pasang
bersama Pin 1 dan Pin 13.
H87M-ITX
Header
Intrusi Chassis (CI1
2-pin)
(lihat hal. 1, No. 4)
Header TPM
(TPMS1 17-pin)
(lihat hal. 1, No. 15)
Motherboard ini
memberikan konektor
daya ATX 12V 8-pin.
Untuk menggunakan catu
daya ATX 4-pin, pasang
bersama Pin 1 dan Pin 5.
GND
Signal
1
F_CLKRUN#
GND
+3VSB
SERIRQ#
S_PWRDWN#
LAD0_L
GND
LAD1_L
+3V
LAD2_L
LAD3_L
TPM_RST#
SMB_DATA_MAIN
SMB_CLK_MAIN
LFRAME#_L
GND
CK_33M_TPM
1
Bahasa Indonesia
Konektor Daya ATX 12V
(ATX12V1 8-pin)
(lihat hal. 1, No. 1)
Motherboard ini mendukung
fitur deteksi CASE OPEN yang
mendeteksi jika celah chassis telah
dilepas. Fitur ini memerlukan
chassis dengan desain deteksi
intrusi chassis.
Konektor ini mendukung sistem
TPM (Trusted Platform Module),
yang dapat menyimpan kode
kunci, sertifikat digital, sandi, dan
data secara aman. Sistem TPM
juga membantu meningkatkan
keamanan jaringan, melindungi
identitas digital, dan memastikan
integritas platform.
147
Contact Information
If you need to contact ASRock or want to know more about ASRock, you’re welcome
to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer
for further information. For technical questions, please submit a support request
form at http://www.asrock.com/support/tsd.asp
ASRock Incorporation
2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,
Taipei City 112, Taiwan (R.O.C.)
ASRock EUROPE B.V.
Bijsterhuizen 3151
6604 LV Wijchen
The Netherlands
Phone: +31-24-345-44-33
Fax: +31-24-345-44-38
ASRock America, Inc.
13848 Magnolia Ave, Chino, CA91710
U.S.A.
Phone: +1-909-590-8308
Fax: +1-909-590-1026
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
