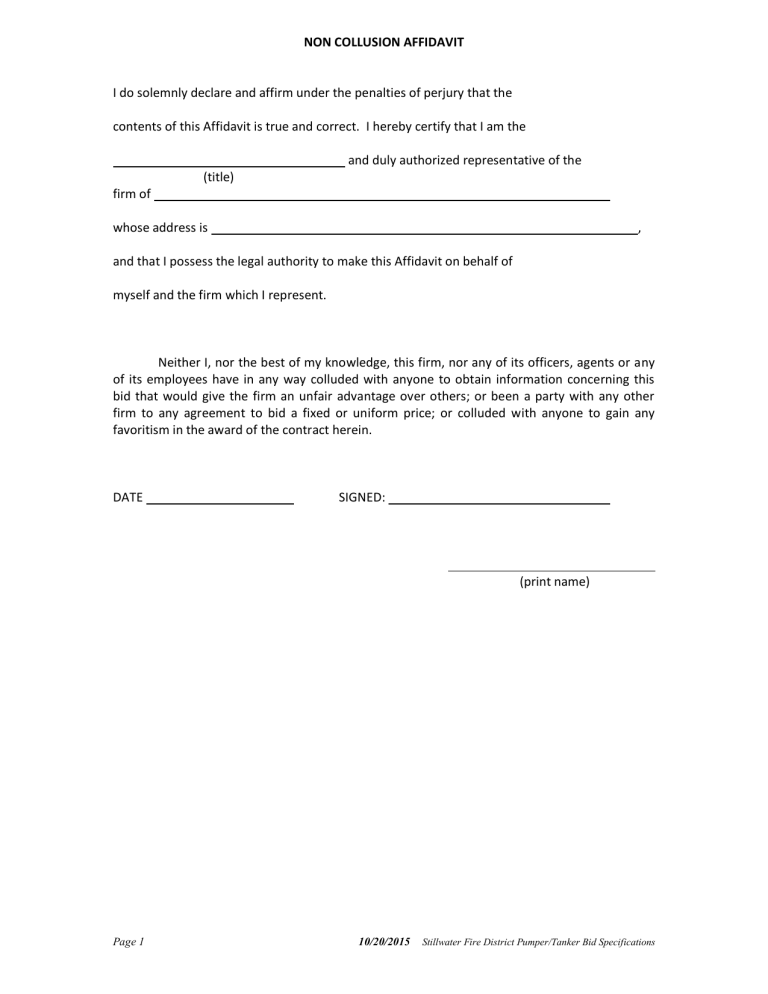

NON COLLUSION AFFIDAVIT

I do solemnly declare and affirm under the penalties of perjury that the contents of this Affidavit is true and correct. I hereby certify that I am the

and duly authorized representative of the

(title) firm of whose address is and that I possess the legal authority to make this Affidavit on behalf of myself and the firm which I represent.

,

Neither I, nor the best of my knowledge, this firm, nor any of its officers, agents or any of its employees have in any way colluded with anyone to obtain information concerning this bid that would give the firm an unfair advantage over others; or been a party with any other firm to any agreement to bid a fixed or uniform price; or colluded with anyone to gain any favoritism in the award of the contract herein.

DATE SIGNED:

(print name)

Page 1 10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

STILLWATER FIREDISTRICT



Arvin Hart Fire Company

Service Since 1954

PO BOX 28

AN ALL VOLUNTEER ORGANIZATION

1O CAMPBELL ROAD STILLWATER, NY 12170

Dear Potential Fire Apparatus Bidder,

The Stillwater Fire District is requesting bids on the purchase of a new piece of fire apparatus, locally classified as a combination pumper/tanker. We intend to replace a 20 year old unit with a new unit which is very similar to the last engine purchased in 2007 designated as ETA

10-2 a KME/Spartan. Using the attached performance based specifications; we are inviting you to submit a bid to the Board of Fire Commissioners of the Stillwater Fire District. It is the intent of the

Board of Fire Commissioner’s Apparatus Committee to thoroughly examine the proposals to determine the apparatus that is the best value, compliant with the intent of the specifications, while meeting the needs of the Fire District, its firefighters and residents. The performance specification is based on needs determined by the apparatus planning committee and any significant deviation is unacceptable. The apparatus purchasing committee will consider all of the proposals using a comparison matrix with the expectation that they are based on sound engineering, compliance with all applicable standards including but on exclusively NFPA related to type one structural firefighting engines, current safety principles as well as ergonomic design in consideration of the fire fighters utilizing the equipment. If our expectations or needs cannot be fulfilled, we expect the bidder to present clearly priced options based on safe and proven engineering principles or generally accepted standards. Once we review the matrix, consider all of the options and designs, the committee will make a bid award recommendation to the Board in

February of 2016. The Fire District will award the bid in compliance with all applicable laws and regulations which govern fire districts in the State of New York.

Five copies of the bid documents shall be provided and shall address each item in the

District’s specifications. Bid documents shall include a total of five sets of drawings showing all 5 sides of the proposed vehicle. Proposals must be submitted to The Board of Fire Commissioners,

Stillwater Fire District, at Station #1 district office, located at 10 Campbell Road, Stillwater, New

York 12170, or to Fire District Secretary Barbara Comitale care of PO Box 28, Stillwater, New York

12170 between the hours of 9 and Noon daily. Bids shall be received at the Fire District Offices

no later than Noon, January 11 th

, 2016.

Envelopes shall state clearly the following;

the name of the bidding manufacturer

name of manufacturer’s representative plus their email address and phone number

The Fire District’s Secretary shall stamp the date and time received/submitted on the envelope containing the submittal documents. Note that any meetings scheduled to review proposals with manufacturer’s representatives shall be scheduled on weekday evenings after

6:00 P.M. or Saturday mornings.

Thomas J. Rinaldi

Apparatus Committee Chairman

Board of Fire Commissioners

Stillwater Fire District [email protected] cc: Committee members

Page 2 10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

General Provisions, Executive Summary

It is the intent of the Stillwater Fire District to purchase a new custom fire apparatus capable of transporting 1250 gallons of water and pumping 1500 gallons per minute. The custom raised roof cab shall be capable of safely transporting 5 fire fighters and carrying the equipment identified in these specifications. Great consideration was given to ergonomic design intended to limit accidents and injuries to the firefighters using the apparatus. The apparatus shall be designed and built with consideration for the most current safety standards and generally accepted standards applicable to fire apparatus. Any exceptions or deviations from the performance specifications shall be duly noted in a clear manner by function and shall be accompanied by the corresponding cost.

Needs Assessment:

A needs assessment was performed by a stakeholders group comprised of commissioners, chiefs and line officers. The purpose of the needs assessment was to determine the type of fire apparatus that is needed in the Stillwater Fire District for use by the members of the Arvin Hart

Fire Company. The needs assessment and subsequent bid was prompted by the vehicle replacement plan developed by the Fire District Commissioners indicating the need to replace a

20 year old engine/tanker currently in the inventory.

Methodology:

The needs assessment was conducted with a group of members representing line officers and commissioners. A set of criteria was used to arrive at a consensus on future apparatus needs based on facts, needs and assumptions. The group used several factors to determine the best piece of fire apparatus that could be procured at a reasonable cost, which would perform the necessary response functions within the fire district in the most efficient manor.

Assumptions:

o This piece of apparatus will meet the needs of the district for 20 years subsequent to purchase. o The fire district will continue to grow in density. o Any new major (20+ homes) subdivisions will serviced by a public water system. o Some areas of the district will remain less dense and will not be provided with a municipal or private water system according to the Town’s Master Plan. o Commercial and residential growth will occur in the town, where public utilities are provided. o Roads will continue to be improved in the town and unpaved roads will be minimal. o More residential occupancies will be built with longer driveways based on current zoning regulations. o The Apparatus Committee expects that any bid presented by apparatus manufacturers shall meet sound engineering standards and generally accepted safety standards such as but not exclusively NFPA. If sound engineering standards for a system or item can not be achieved, the committee expects to be presented with alternatives meeting sound engineering and generally accepted safety standards. o The entire apparatus will be ergonomically designed to minimize falls, injuries and to allow frequently used equipment to be capable of being removed from the apparatus with minimum staffing. o There will continue to be fewer fire fighters available for response at certain times of the day and night. o Ergonomically designed fire apparatus will require fewer staff to operate most functions and will be more efficient when operational.

Page 3 10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

Minimum Standards for Apparatus in the Fire District as of October 2015

P

ROVISIONS MARKED WITH

[*]

SHALL BE SIGNED OFF BY THE APPARATUS PURCHASING

COMMITTEE

PRIOR TO BEING CONSTRUCTED

AND THE REQUIRED SUBMITTALS ARE

LISTED ON THE LAST PAGE OF THIS DOCUMENT

.

General Provisions

o The Board of Fire Commissioners of the Stillwater Fire District shall have the right to reject any or all bids. o The final decision shall be based on function and best value of the proposed apparatus which best complies with the performance based specifications contained herein. o The apparatus bidder shall furnish a performance bond in an amount equal to the full value of the apparatus being bid. o Bidders shall specify the number of calendar days it will take to build and deliver the apparatus calculated from the time the contract is signed. o Apparatus that is delivered later than the date specified by the successful

bidder or is not in compliance with specifications delaying delivery by the bidder or is incomplete as compared with the specifications delaying delivery; the bidder shall be liable for liquidated damages in the amount of $500.00 per day for each day delivery is delayed.

o A bid bond will be furnished by each bidder. o The intended apparatus shall be used primarily as a first line attack pumper with

1500 gallons of water on board, with a secondary use to shuttle water to the scene of fires outside of the primary response area in support of the district’s other first-line apparatus or in support of mutual aid departments. o Any deviations or exceptions taken from these specifications;

1. shall be outlined in a separate section clearly entitled “Exceptions” with an explanation of the options being offered and

2. shall clearly list the cost of such options separately and individually o The fire district specifications will prevail over any proposal submitted unless a properly defined exception/option is approved. o The apparatus will be accepted at Station #1 at 10 Campbell Road Stillwater,

New York. o Payments shall be based on a single final payment upon successful testing, delivery, inspection and approval by the Fire District representatives. o There shall be two sets of engineered blueprints provided with each bid showing apparatus elevations from right side, left side, front, rear and top and shall be compared to the average height fire fighter (5’9”). The drawings shall accurately portray the vehicle which is being bid not a generic model. o Bidders shall have been building apparatus of the type requested for a minimum of 15 years and shall furnish as a bid document, a financial statement from a nationally recognized financial rating service. o The Fire District will not be willing to accept a “prototype” or first of its kind apparatus built by any manufacturer. o Bids shall be written with provisions organized under the following main headings for ease of comparison by the purchasing committee,

 general provisions including all warranties,

 cab and chassis,

 engine, transmission and drive train,

Page 4 10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

 apparatus body, tank, hose bed, and compartments to include shelving/drawers/trays etc.

 drop tank apparatus and container,

 ladders,

 scene lights,

 warning lights,

 audible devices,

 foam system,

 pump, pump panel, discharges and intakes, and pre-connected lines

 miscellaneous lights if applicable,

 graphics o The chassis manufacturer shall warrant the apparatus bumper to bumper to the original purchaser for a period for a minimum of one year, except for the frame which shall carry a lifetime warranty. o The cab shall be warranted by the manufacturer for a minimum period of 10 years. o Paint shall be warranted for a period of 7 years. o The fire apparatus body shall be modular in construction, with separate and distinct pump, cab and body modules. o Apparatus shall be third party tested and certified as a class A triple combination pumper. o Performance Requirements shall be clearly stated and be able to maintain at least 40 MPH on a grade up to and including 6% from a standing stop. o Fluid quantities and types shall be programmed into the multiplex displays in the cab. o Height and Length will be on a nameplate in the cab visible to the driver and officer. o All appropriate operators manuals for major components shall be supplied with apparatus, 2 sets. o The bids shall be accompanied by a Weight Analysis Calculation Form showing the weight on the front axle and the weight on the rear axle based on best engineering practices with a break out for each component in the calculation. o The bids shall be accompanied by a Vertical Center of Gravity Analysis Form, indicating the calculations for the center of gravity for the vehicle and showing the calculated center of gravity compared to the Maximum center of gravity height of the vehicle as designed and specified.

Engine/Drive train

o Cummins ISL 9 with a minimum of 450HP diesel engine of the appropriate capacity with an Allison EVS 3000 transmission programmed to accomplish the desired grade capabilities as stated. o The engine shall have a minimum 5 year or 100,000 mile warranty. o The engine shall have a heated fuel filter for cold weather reliability. o A fuel water separator shall be provided in the fuel system, with indication on dash. o A primary and secondary electric fuel pump for re-priming shall be furnished in the fuel line. o Chassis exhaust shall terminate on the right side of the apparatus with a straight pipe able to connect to the Stillwater Fire District’s Magnegrip vehicle exhaust system. o A three position Jacobs engine auxiliary braking system shall be provided.

Page 5 10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

Page 6

o The manufacturer shall supply and install the appropriate Allison automatic transmission with electronic controls sized appropriately for the engine and appropriately programmed. o The transmission upon application of the parking brake shall automatically shift into neutral. o The transmission shall have a minimum 5 year warranty including parts and labor. o Transmission shall be filled with a synthetic fluid. o Transmission cooler shall be of appropriate size and design but with no less than

135 square inch core. o Locking, automatic unlocking rear differential is required for winter traction enhancement. o All drive lines shall be heavy duty Dana 1710 and appropriate to the specifications of the chassis, engine, pump, expected load and transmission. o Apparatus to be governed at the limited as outlined in NFPA 1901. o The cooling system shall be equipped with an accessible appropriately sized filter. o The radiator and the complete cooling system shall meet or exceed NFPA standards and engine manufacturer cooling system standards o The cooling system fan shall be appropriately sized and thermostatically controlled. o The air cleaner shall be appropriate for the engine and shall have an indicator light showing if it requires servicing. o Apparatus shall be engineered and built to meet current generally accepted standards including but not exclusively NFPA 1901, through sound engineering practices for a response based on expected grades, loads including water, equipment and staff, and pump capacity. Enhanced hill climbing capabilities are essential. o The entire frame and chassis under carriage including all attachments shall be coated with an appropriate industrial coating prior to the application of air lines and electrical wiring to preserve the color coding of the air lines and electrical wiring. o The frame rails shall be black powder coated. o Suspension to be determined by sound engineering principles for apparatus operating conditions and of the weight and capacity being specified. o Front and rear shall have the appropriate Radial tires for the load rating of the apparatus fully loaded. o Front axle shall have a minimum capacity of 20,000 pounds. o Rear axle shall be a minimum of 31,000 pounds GAWR. o All wheels shall be DuraBright aluminum disc type of the appropriate size and capacity for the apparatus being specified. o Steering shall be dual hydraulic power steering, the steering system shall be designed to maximize the turning capabilities of the front axle no matter the rating and tire size. The use of a power assist cylinder on the officer side of the chassis shall NOT BE ACCEPTABLE on front axles of this capacity o Front springs shall be taper, 3 leaf type with Magnum shocks. o Chassis alignment shall be certified in writing by the builder of the apparatus and the front and rear axles shall be laser aligned. o Tires and wheels shall be properly aligned upon delivery. o Steering wheel shall be tilt, telescopic type. o The front axle shall be equipped with a minimum of 17” disc brakes.

10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

o Rear brakes shall be equipped with dust shields. o Rear brakes shall be a minimum of 16.5” X 7 S-cam type with slack adjusters. o Rear tires shall be radial with aggressive mud/snow tread appropriate for severe winter conditions and shall be of appropriate size and weight capacity for fully loaded apparatus. o Front and rear axles shall have oil lubricated wheel bearings. o Crossfire dual tire equalization system shall be provided for the dual wheels on the rear axle of the vehicle. o Rear suspension shall be vari-rate, captive slipper type. o On Spot tire chains shall be installed on rear axle, and shall be activated with a spring covered activation switch accessible to the driver. o A rapid build up air brake system shall be supplied. o A Meritor Wabco ABS system shall be provided and shall be integrated with other operational systems as necessary for proper operation. o Parking brake activation valve shall be clearly distinguishable and located within easy reach of the apparatus driver. o There shall be at least three air reservoirs for a minimum total air brake capacity of 4700 cu inches. o Air brake system shall be supplied with an air dryer system, heated automatic moisture ejectors and shall be equipped with manual drains on the air tanks. o Air lines shall be nylon color coded by system. o The air compressor shall have a 5 year warranty and capable of producing at

minimum 18.7 cfm at 1250 rpms.

Pump/Pump Panel

o The pump panel module shall be located on left side, just to rear of cab.[traditional location] o The pump panels shall be covered with a silver/light grey spray on vinyl type material to be specified by the manufacturer, stainless steel or black vinyl is not acceptable. o Apparatus shall be equipped with a Class 1, Captain engine/pump governor/throttle system similar to the system currently used on Engine 10-2.

*The pump panel lay out shall be submitted for sign off by the apparatus purchasing committee.

o Pump size shall be capable of developing 1500 GPM. o To be consistent with other apparatus in the fleet, pump shall be a single stage

Q Max Hale pump with a minimum of a two year warranty. NO EXCEPTIONS o Unless otherwise noted all pump control valves shall be operated by manual chrome plated controls or equivalent. o Apparatus shall be equipped with a Hale 3.3 or equivalent foam system capable of applying foam from a single tank (Universal Foam) from individually designated attack lines, a total of three (3) lines, two (2) attack lines on the front bumper extension, one 2 1/2” cross lay at the pump module. o Foam tank LED indicator level lights shall be installed adjacent to the foam system controls at the pump panel. o Foam tank shall be no less than 30 gallon and be capable of being filled from the ground using a Hale refill system or equivalent. The foam tank shall not be filled from the top of the apparatus for safety reasons

 The foam fill system shall be capable of being easily flushed with clean water to prevent clogging. o The foam tank shall have a minimum 1” drain at the bottom of the tank.

Page 7 10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

Page 8

o A high level of LED lighting shall be provided at the pump panel for maximum visibility and color rendering for the operator and shall be switched at the pump panel. A portion of the pump panel lighting shall activate when the apparatus parking brake is set for immediate illumination on the pump panel. o Suction Intakes, shall all be controlled from pump panel

 Two (2) - 6” suction intake one on each side of apparatus

 One (1) - 6” suction intake terminating at the driver’s side rear of the apparatus no more than 4’ 6” off ground level.

 All three (3) 6” suctions shall be equipped with Master Intake Valves which shall be electrically operated from the pump panel.

 One (1) – Auxiliary 2.5” manually gated suction on the driver side pump panel. o All Discharges, shall be controlled from pump panel o All discharges where appropriate shall have Kocheck 45 degree drop elbows which are color coded to match the pump panel and shall have color coded tethered caps. o Pump module cross lays shall be designed wide enough to hold a pistol grip nozzle with D handle bale.

 2½” gated NSTM discharges a total of (6) six;

Two (2) at the driver’s side pump panel

One (1) on the officer’s side pump panel

One (1) at the driver’s side rear just below the hose bed

One (1)-2½” gated discharge to the pump module crosslay

 4” gated discharge, total of(1) one:

One (1) 4” gated discharge with 45 degree drop elbow to supply a 5” LDH supply line and shall terminate with a 5” stortz connection with tethered cap.

 1 ½” Gated Discharges, total of (3) three:

One (1)-1½” gated discharge to the pump module crosslays

Two (2)-1½” gated discharges to the front bumper extension hose lines

 3” slow close gated discharge to the master stream device total of (1) one:

The Master Stream device shall NOT be centered over the pump panel, it shall be moved as much as possible toward the officer’s side, to the rear of the pump module and shall be operated electronically from the officer’s pump panel, or from the device itself and/or from a remote control device.

Solid stream nozzle with stack tips and stream straightener, shall be provided with the remote control module to be located in compartment L-1.

Master stream device and accessories are to be supplied by the apparatus manufacturer. o Pump shift shall be an air operated shift mounted to the left of the steering column with indicator. o At minimum pump shift indicator lights shall be located in the cab and on the operator’s pump panel to indicate that the pump is in gear. o Priming system shall be a Trident manual/automatic air primer with the capability to prime each of the 6” suction intakes.

 Each 6” suction shall have a master intake valve equipped with the capability to pre-prime each suction location.

10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

o The pump shall be equipped with a Thermal relief valve to prevent pump overheat. o The pump shall be equipped with a 3/8” circulating valve capable of keeping the pump cool when lines are shut down and the system shall be installed in the pump module. o All lines will be equipped with drains at the pump panel as appropriate and the pump shall be equipped with a master drain valve. o The pump will be equipped with a Class One stainless steel intake relief valve.

*Lighting for the pump panel shall be signed off by the apparatus purchasing committee to provide maximum sufficient lighting under all weather and lighting conditions.

o Mini Water level indicators shall be located in the cab, at the operator’s pump panel, at the rear step, and large LED water level indicators on each side of the cab.

Cab/Chassis

o To ensure the safety of the cab occupants and cab integrity, proof of third party testing shall be provided. The cab shall be certified for SAEJ2422 side impact standard, SAEJ2420 with ECER29 cab front impact standard, and ECER29 cab roof strength standard. o The roll sensor continually monitors the roll rate and angle of the vehicle, and deploys safety devices when a roll event occurs. Deployment determination is made by a combination of vehicle angle and angular rate. Vehicle deployment angle shall never exceed 60 degrees. o The cab shall be of aluminum alloy and shall be an all welded assembly with a sub frame of structural aluminum alloy. o The total overall height of the apparatus shall not exceed 130” o 12 Volt wiring shall be multiplexed, with two sets of as-built wiring diagrams provided upon delivery by the manufacturer.

 The control modules shall be located for ease of diagnostics and service.

 The body shall be fabricated to provide for wiring raceways.

 A diagnostic display module shall be provided in the cab.

 A diagnostic modem module shall be provided for diagnostics via phone/or data lines.

 There shall be two multiplex touch screens accessible; one to the driver and one to the officer. o Front Bumper Extension:

*The front bumper extension shall be clearly shown on a separate print for review and sign off by the apparatus purchasing committee.

 The front bumper extension shall include the following;

Two (2) 1 ¾” cross lays, both capable of holding 1 ¾” lightweight attack line, one (1) with 150’ of 1 ¾” hose plus a TFT fog nozzle with bale, one (1) with 200’ of 1 ¾” hose with a smooth bore nozzle with pistol grip handle and bale. o Both crosslays shall be covered and secured (similar to

Rochester NY Fire Department et. al. apparatus) a diamond plate cover shall open toward the cab.

Two (2) 24” air horns with shielding from damage.

Page 9 10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

Page 10

o The air horns shall be activated from the driver’s and from the officer’s position with an elevated floor mounted switch that only operates when the parking brake is released.

 Air horns shall also operate at all times with a separate activation device from the pump panel intended to be used as a fire ground warning device.

One (1) 100 watt electronic siren speaker

One (1) Federal 2Qb siren semi-flush mounted within bumper. o 2Qb Siren shall be foot switch activated with switches on a raised platform in the driver’s and officer’s position, with a siren brake reachable by the driver or the officer but not necessarily both. o Floor mounted switched shall only be activated upon release of the parking brake.

The floor mounted air horn and Federal Q siren controls shall be raised off the floor at an angle to prevent short circuits when/if the floor is wet. o Front bumper shall be a polished stainless steel 12” high and shall appropriately fit the cab. o Front and Rear mud flaps shall be furnished and shall be appropriate in size to accomplish their intended purpose. o Rear tow eyes to be painted, while front tow eyes shall be chromed. o Any post manufacturer frame rail modifications are unacceptable. o The frame shall include an integrated frame liner due to the weight and length of the apparatus. o Batteries shall be mounted in a fixed 3/16” stainless steel tray with protective non-ferrous metal cover. o A polished stainless steel trim plate shall be provided on each cab door opening at the striker post to protect the cab when exiting and entering the cab with air packs on. o A polished stainless steel trim plate shall run the full height of each back corner of the cab to prevent damage from hose being pulled from the crosslays at the pump module and forward past the cab. o Cab shall be at a minimum 10” raised roof, four door tilt cab. o The entire cab shall tilt 45 degrees for maintenance. o The electro/mechanical cab lift shall have an interlock to prevent movement of the vehicle if the cab is not locked down. o A single starting system shall be installed per NFPA 1901 standards. o The system shall be 12 volt suppressed per SAE J551 standard specifications. o All wires in the chassis shall be circuit numbered and function coded where possible. In addition the SAE wiring shall be color coded. o All chassis wiring shall be protected by fire resistant loom. o Battery studs shall be provided in an easily accessible location to allow the vehicle to be jump started without the cab having to be raised.

*A Weldon V-mux display in the cab shall distinctly denote warning and scene lighting in a configuration to be signed off by the apparatus purchasing committee.

o Fixed cab windows shall be installed to the rear of the front doors on both sides of the cab and shall be dark automotive tint.

10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

Page 11

o The roll down windows in the rear cab doors shall be dark automotive tint, all remaining glass shall be standard automotive tint, o Sufficient hand rails shall be ergonomically placed to assist in safe entry and exit from the cab including at the lower section of the widow of the rear cab doors. o Grab handles shall be installed on both A-posts of the cab to assist entry. o The interior of the door panels shall be covered in full height brushed aluminum panels for ease of maintenance. o Interior LED lighting shall be white and red and capable of being individually switched and shall illuminate when any cab door is opened. o A total of five (5) seating locations manufactured by USSC Valor Seating; four seats including the officer’s seat shall be capable of holding MSA, 4.5, 45 minute

SCBA of the type operated by the Stillwater Fire District. All SCBA seats shall have a quick release type air pack system.

 Straps to hold in the air packs are not acceptable.

 The two seats in the crew area shall be angled toward the center of the crew cab area to provide additional space around the seats. o Any outboard seats in the cab shall have side curtain airbags. o The driver's seat shall be a USSC Group Valor, high back bucket seat with Side

Curtain Airbag, or equivalent. o The cab shall have mirrors that are remotely adjustable and heated Lang Mekra

300 series Aero style mirrors, NO EXCEPTIONS. o All seats shall be equipped with a seatbelt system in excess of the NFPA standards of 22”.

 Seatbelts shall be long enough to fit around firefighters with full protective clothing on plus 6”. o

Color of the cab shall be white over red (color to match current R-10-3 heavy rescue apparatus).

*Colors shall be signed off by members of the apparatus committee.

*Reflective striping shall be two colors, gold and white in a design to be signed off by the apparatus committee.

o The cab will be a medium four door cab similar to ETA 10-2 capable of carrying a maximum of 5 personnel, with a minimum of 4 able to don SCBA.

 Seating shall be arranged for adequate shoulder and knee room in the crew compartment.

 It is preferred that two seats in the rear of the cab face rearward with one facing forward.

 The seat base on the rear cab wall shall be capable of safely stowing a set of irons (36” halligan tool with flat head axe) and shall have access doors on the left and right side accessible from the crew cab opened doors. Tools will be supplied by the manufacturer.

*Seating configuration shall be signed off by the apparatus purchasing committee and provided on a separate print.

o Adjacent to the officer’s position Two (2) 12v DC power outlets shall be provided. o A computer tray in front of the officer’s position, with available 12v DC power shall be available for the installation of an in truck computer pad device. The

12v power supply must be live at all times. o A radio control head shall be capable of being installed on the dash area and connected to a immediately adjacent 12v power supply.

 Fire Service Radio equipment to be provided by others.

10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

Page 12

o One (1) David Clark 9900 series wireless intercom system with all associated hardware and cables shall be located so as to enable the driver of the apparatus to move freely around the outside of the vehicle while parked. System shall consist of wireless transmitter, one wireless headset and associated cables required to attach to customer's public safety radio. o An area in the cab shall be constructed to safely file paperwork and hold a log book and other ringed binders and shall be reachable by the officer and/or driver. o The Cab of the vehicle will be expected to safely carrying the following equipment in addition to the equipment that is necessary to operate the vehicle.

 One (1) 12v DC power supply to power a thermal imaging camera.

Thermal imaging unit to be provided by fire district and charger to be installed by manufacturer.

 Five (5) hand lights, one for each seated position, Streamlight LED

Survivor model with 12v power supply shall be mounted in the cab and attached to the shore line power for charging.

Lights and chargers to be provided and installed by apparatus manufacturer.

 Three (3) antenna leads shall be supplied to the cab roof, terminal location to be determined and installed by the manufacturer.

 A total of three (3) 12v power supply lines for at least three (3) portable radios with chargers, the location to be determined in the cab.

Radios and chargers to be provided and installed by others.

 A total of two (2) 12v power supply lines for at least 2 mobile radios with remote speaker’s location to be determined.

Mobile radios to be provided and installed by others.

 One (1) 12v power supply for a multi gas monitor shall be provided in the cab.

Gas monitor charging unit to be supplied by fire district and installed by manufacturer, gas monitor to be supplied by fire district.

 An enclosed compartment in the cab with roll up door to carry an AED and other appropriate supplies shall be located to the rear of the engine doghouse.

AED to be provided by fire district.

 An AM/FM/CD weather band radio shall be installed and shall be wired to hold programmed functions when the apparatus is off.

*Switch configuration for the warning lights on the V-Mux screen shall be signed off by the apparatus purchasing committee.

 Lights shall be separated in groups. The following is a minimum

Master Warning

Rear of bar light

Each individual warning light group

Scene lights

*Switch configuration for the scene lights one the V-mux screen shall be signed off by the apparatus purchasing committee.

 LED Scene lights shall be switched by groups. The following is a minimum

Brow Lights two Fire Research Spectra LED Scene Light with

20,000 lumen output each.

10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

Page 13

Left Body, front and rear two (2) Fire Research Spectra LED

Scene Light with 20,000 lumen output each.

Right Body, front and rear two (2) Fire Research Spectra LED

Scene Light with 20,000 lumen output each.

Left Cab one (1) Fire Research Spectra LED 900

Right Cab one (1) Fire Research Spectra LED 900 o Cab scene lights shall also activate when any of the doors are opened

Rear Scene two (2) Fire Research Spectra LED 900 o Rear scene lights shall also activate when unit placed in reverse gear. o All turn signals shall be sequential LED type. o All headlights shall be LED lamps. o The load manager system will be replaced with a multiplexed electrical system. o Apparatus shall be equipped with a 320amp Leece Neville alternator or size as recommended, NO EXCEPTIONS.

O Apparatus shall be equipped with a Kussmaul air compressor and battery conditioner located in a weather resistant location with auto eject plug mounted on the left side of the apparatus adjacent to the driver’s door. NO

EXCEPTIONS. o The Climate Control system will be appropriately sized and be capable of producing a minimum of total of 85,000 btus of heat and a minimum total of

71,000 btus of cooling in the cab.

 Controls shall be mounted above the driver and not on the V-Mux system NO EXCEPTIONS . o A Weldon V-Mux Vista display shall be provided and installed on the driver and officer side, with a V-mux rear vision camera installed at the rear of the apparatus with the output capable of being displayed on both Vista display panels. o Door handles on the interior and exterior shall be capable of being opened with the average firefighters gloved hand. o Windows shall be electrically controlled from each outboard seating position with master control for all opening windows at the driver’s position. o Doors shall have reflective stripping installed on the inside to be visible when opened to on coming vehicles in compliance with NFPA standard. o The engine cover shall provide a heavy sound barrier and insulated to reduce heat entering the cab. o Multiple crew assist hand rails shall be strategically located to assist fire fighters to safely enter and exit the cab with gloved hands. o All interior Cab lights shall be activated upon opening any one of the cab doors. o Full width aluminum wheel well liners shall be installed on the cab to limit road splash and to provision cleaning. o A Kussmaul auto charge 1200 shall be installed to maintain the vehicle battery system, and a Kussmaul make up air compressor shall be installed to maintain vehicle air system. An LED bar graph display shall be located near the shoreline to monitor the battery status NO EXCEPTIONS. o A 120V, 20amp connector with red cover shall be located on the cab to the rear of the driver’s door for the attachment of a shoreline to the Kussmaul units. o Two, six inch, two-speed defogger fans shall be provided in the addition to the standard windshield defroster and shall be located at the upper section of the

A-posts.

10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

Body

o Body shall be of welded construction and be a minimum of 3/16” 5052-H32 aluminum or better. o Compartments shall be high side, both sides with three (3) ladders, four (4) pike poles and three (3) hard suctions to be stored in the body and reachable by the average firefighter standing on the ground. o There shall be a minimum of three compartments per side and shall be configured similar to the department’s ETA-102 o There shall be one compartment with a hinged door at the back step level, under the rear 10” dump chute. o The drop tank container shall be manufactured of diamond plate and shall rise on a single arm electric/hydraulic apparatus up over the hose bed for storage.

 The container shall have a vinyl cover securely attached with Velcro straps.

 The container shall be of sufficient size to effortlessly load a drop tank with minimal effort and shall be test loaded and unloaded prior to leaving the factory.

 Switches to operate the swing arm shall be located adjacent to the left side pump panel at the front of the body or the front of compartment L-

1.

 LED strip lighting shall be mounted on the hose bed side of the drop tank container in order to illuminate the hose bed for night operations and safety. The lighting shall be switched from the pump panel. o A speedy dry hopper shall be located in an appropriate location to minimize space taken up within a compartment and shall store approximately 100 pounds

(2 bags) of material. o Roof compartments shall NOT be required, the hose bed may be of a full width design so that the outer wall of the hose bed is the outer wall of the apparatus o Water tank and foam tank shall be lifetime poly and capable of holding a minimum of 1250 gallons of water and 30 gallons of foam respectively. o One (1) , direct to the tank, Fireman’s Friend, with one (1) 2 1/2” FNST, tank fill with tethered cap, capable of flowing 1000gpm shall be located at the officer’s side rear of the body in the area of the back step, no more than 4’6” from level ground. o The vehicle must be capable of carrying a minimum of 4 spare MSA 4.5 45 minute SCBA cylinders in an enclosed wheel well compartment(s).

 Air cylinders to be provided by fire district. o Full length nylon sills shall be located between the frame rails and the body. o Each main frame rail shall be a minimum of 10-1/4" x 4" x 3/8", fabricated from

110,000 PSI minimum yield steel, with a minimum section modulus of 17.97 cu in and a resisting bending moment (RBM) of 1,976,700 inch pounds. o A full length inner frame liner shall be installed. Total section modulus of each rail, with liner, shall be a minimum of 31.20 cu in and the total resisting bending moment (RBM) shall be a minimum of 3,432,000 in-lbs, per rail. No exceptions. o The frame shall consist of a minimum of two (2) channels fastened together by cross members. All structural fasteners used in the frame shall be Grade 8 hardware. Hardened steel washers shall be used under all bolt heads and nuts to avoid stress concentrations. Top flange shall be free of bolt heads. All spring hangers shall be machined steel castings. Weldment type chassis and the use of

Huck bolts shall not be used.

Page 14 10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

Page 15

o The chassis frame shall be fabricated in its entirety at the manufacturer's facility. This shall prevent any split responsibility in warranty or service. o Front and rear fenderettes shall be polished stainless steel. o The rear of the body shall be of a flat back design similar to a rescue/pumper style. o The rear compartments shall intrude into the rear step of the apparatus so that the interior of the left and right rear compartments shall be entirely full depth. o Door ajar warning light shall be located in the cab and visible to driver and officer. o All compartments shall utilize unpainted natural finish Amdor roll up doors and

Amdor LED light strips where appropriate to be incorporated into the roll up door frames.

 Door rolls in the compartments shall have protective covers to prevent damage to the roll up doors by objects in the compartments.

*All compartment shelves shall be adjustable and shall be similar to the shelving in the department’s ETA 10-2 and shall be documented on a print supplied by successful bidder to be signed off by the purchasing committee

. o For safety all roll out trays and tool boards shall have reflective material applied for visibility when extended beyond the body. o All compartments shall be properly vented to prevent water from entering. o Compartment floors shall be sweep out type, with no lip to hold dirt or water. o Compartments, trays and shelves will be spray coated with a Line-x type material in light grey. o The compartments shall be capable of carrying at a minimum, a gas powered

PPV fan, one gas powered portable pump, one gas powered chain saw, one 6” floating dock strainer, 6” low profile strainer, 2.5” barrel strainer, 2.5” low profile strainer, and 250’ of 2.5” hose for a high rise pack. o There shall be one (1) 120v duplex receptacle powered off the shoreline installed in the officer’s side front compartment to power chargers for the portable pump and an LED scene light.

*Roll out boards for large and small hand tools shall be installed as in the department’s ETA 10-2.

o There shall be three 10” Newton Quick Dump Chutes and valves.

 A rear step swivel dump chute is NOT acceptable.

 All Dump chutes shall be electro/mechanically extended

 All Dump valves shall be electro/mechanically opened/closed

 Dumps to the rear and on each side of the body are to be controlled in the following manner;

Rear dump valve; from right and left in the rear step area.

Right side chute from right front of body adjacent to the pump panel area on the front wall of the compartment (R-1).

Left side chute from left front of body adjacent to the pump panel area on the front wall of the compartment (L-1).

*Dump chute and valve switch locations shall be reviewed and signed off by the apparatus purchasing committee.

 All dump chutes shall be capable of being fully extended and opened from the driver’s seat of the cab. o The body be capable of holding 4 pike poles not more than 7’ 6” off the ground, all pike poles shall be of the New York Hooks type with chisel end in an appropriately sized and slotted tube and shall be supplied by the manufacturer of the apparatus.

10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

Page 16

o Two (2) sets of standard spanner wrenches shall be installed in compartment L-

1 to the right of the pump panel and one adjacent to the rear step. The set at the rear step shall include an adjustable hydrant wrench. o Two (2) sets of stortz 5” spanner wrenches shall be provided for mounting in the

L-1 compartment.

 Spanner wrenches and mounting brackets shall be provided and mounted by the apparatus manufacturer. o One compartment shall be capable of holding a portable electric PPV fan, on a role out tray of proper dimension and weight capacity.

 Fan to be provided by the fire district. o One compartment shall be capable of holding a 300 gpm gas powered portable pump on a role out tray of proper dimensions and weight capacity. o The compartment designed to carry the portable pump shall be pre wired with a

110v outlet for the battery charger for the electric start portable pump which will be charged from the shore line.

 The portable pump shall be provided by the fire district. o Plywood mounting shall not be acceptable.

 Tools and equipment shall be mounted on a flexible system manufactured by PAC, Performance Advantage NO EXCEPTIONS. o The following is an example of equipment that is expected to be mounted in compartments on roll out boards:

 2 closet hooks up to 4’

 1 sledge hammer

 1 bolt cutter, 2’

 1 straight pry bar 4’

 An assortment of small hand tools such as wrenches, screw drivers, pliers, cable cutters etc.

 Spanner wrenches

 Pipe wrench

Tools shall be provided by the fire district. o Standard hose fittings to be carried in two roll out drawer plus a shelf, in the left front compartment (L-1) adjacent to the pump panel. The upper 6” drawer is where hose fittings will be held or a similar design to keep fittings organized and identifiable, the bottom 10” drawer shall be a deep design with no dividers.

Drawer design shall be similar to the department’s ETA 102. o Pac Trac shall be mounted on the back wall of compartment L-1 o Bidder shall provide a compartment tool installation layout and will work in conjunction with the purchasing committee members. o Tool mounting shall be performed by the manufacturer and a price for tool mounting shall be included as a separate line item in the bid. o One remote controlled TFT master stream monitor shall be installed to the right side, over the right pump panel module, and be equipped with stack tips as well as a fog nozzle.

 Master stream device and accessories shall be provided and installed by the equipment manufacturer.

 A battery powered wireless remote control unit shall be included with the master stream device.

 Operation of the remote control master stream device shall be from the right side pump module as well as a control on the master stream itself. o One pair of wheel chocks shall be mounted to the underside of the body on the left side of the apparatus forward of the rear wheels.

10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

 Wheel chocks and mounting bracket shall be provided and mounted by the apparatus manufacturer. o Apparatus shall be equipped with an electronic back up alarm. o Apparatus shall be provided with a red hose bed cover attached by Velcro, lettered to the rear, ETA-11-1 o Cross lays shall be appropriately covered with red vinyl covers and Velcro straps. o Cross lays shall be wide enough to accommodate fire department nozzles.

*Access to the hose bed shall be via a step pattern approved by the committee.

o A 14 gauge baffled Fuel tank shall carry a minimum of 50 gallons. o Fuel fill shall be on the left side of the apparatus with a covered door. o Rear spring shackles shall have accessible grease fittings positioned for easy maintenance. o The compete apparatus body shall be painted to match the cab in compliance with the paint manufacturer’s specifications for preparation and application.

 Two Tone paint, White Color 2185, Red Color 73632

*A 41/2 X 5” Stortz mounting bracket provided by the fire district shall be mounted on the back step of the apparatus by the manufacturer to be connected to the supply hose line, in a location approved by the apparatus committee.

Aluminum Ladders

o Shall be mounted through tank and for accessibility from ground level with rear access door.

 1-14’ roof ladder

 1-24’ extension ladder

 1-10’ folding attic ladder o Ladders shall be provided by the apparatus manufacturer.

Portable Folding tank

o Aluminum frame portable tank with a capacity of 1500 gallons.

 The preferred location of the portable tank is that it shall be mounted on a mechanical device which shall lower the tank to a position to be taken off without the average fire fighter reaching over one’s head.

 Fold a Tank Model FDTA 1500 shall be provided by the manufacturer with closed dimensions being, 10’5” x 10” x 31”, NO EXCEPTIONS.

Hose

o There shall be one adjustable hose bed divider.

 Hose Bed shall be capable of carrying 1500’ of 5”supply line hose

Supply line to be provided by fire district.

 Hose bed capable of carrying a minimum of 400’ of 2.5” hose on the right side of the apparatus to be connected to the rear 2.5” discharge.

Hose lines to be provided by fire district. o There shall be location in the compartments to mount a TFT Blitzfire Monitor.

The TFT Blitzfire and mounting bracket shall be provided by the apparatus manufacturer and shall include both fog and stack tip nozzles.

 A model XXC52 TFT Blitzfire and mounting bracket shall be provided by the manufacturer and mounted at the direction of the fire district. o The body shall be capable of carrying (2) two sections of: Kocheck brand lightweight 6” hard suction no shorter than 12’ long in a location not over 5’6” off ground to highest hose. NO EXCEPTION

Page 17 10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

 Hard suction to be provided by apparatus manufacturer. o The body shall also be capable of carrying (2) two sections of: 2½” Kocheck brand lightweight hard suction no shorter than 10’ long in a location not over

5’6” off ground to the highest hose. They can be stored inside the 6” suction hose, in the same compartment.

 Hard suction to be provided by apparatus manufacturer o The body shall be capable of carrying 25’ of 5” supply line with stortz couplings manufactured by Mercedes Hose (NO EXCEPTION), which is immediately accessible for hydrant connection, no more than 4’ off ground on both sides of the apparatus, in trays below the pump panels.

 Manufacturer shall provide supply hose as specified above. o One compartment on the apparatus shall be capable of carrying High Rise pack of 250’ of 2 1/2” lightweight hose with nozzle and gated wye in a location where it can be easily shoulder loaded and unloaded.

 High rise pack to be provided by the fire district. o Attack Lines

 Foam must be able to be supplied to a total of three (3) attack lines.

Both attack lines on the front bumper extension and One (1) 2

½” cross lay on the pump module.

 The height to the highest attack line mounted over the pump panel shall not exceed 6’ so that it can be removed from ground level.

One (1) double cross lay capable of holding 200’ of 1 3/4” lightweight hose with smooth bore nozzle on the pump module.

(no foam)

One (1) double cross lay capable of holding 250’ of 2 1/2” lightweight hose with a smooth bore nozzle and will be supplied with foam at the pump module.

 The hose in the crosslays shall be capable of being reloaded at the pump panel from ground level.

Attack line hose and nozzles will be provided by the fire district.

Warning Lights

o All warning lights shall be depicted on the engineered drawings o Warning and scene lighting shall be supplied by Whelen and shall be LED. o All warning lights shall be LED type with clear lenses. o The light bar shall be a Whelen Freedom Series LED Model FN72VLED with one front facing module consisting of white lights. o Warning lights shall comply with or exceed NFPA specifications and shall be

Super LED’s. o Upper Rear Zone - There shall be at least one blue rear facing light on the left side of the apparatus body and one amber rear facing light on the right rear side o Lower Rear Zone – There shall be two LED red warning lights one on each side of the truck o Lower mid truck zone, shall have Amber LED lights. o There shall be no more than a total of 4 warning lights on the rear of the truck.

Scene Lights

o All scene lights shall be depicted on the engineered drawings. o Two Fire Research Spectra LED scene lights SPA830-Q15 or equivalent newer model shall be mounted at the front of the cab as a brow light which can be activated by a switch in the cab at any time.

Page 18 10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

o Four Fire Research Spectra LED scene lights SPA830-Q15 or equivalent newer model shall be mounted on the apparatus body, two on each side, one toward the front, one toward the rear. o Two (2) Fire Research Spectra LED 900 scene lights shall be mounted, one on each side of the cab activated by a cab mounted switch and with the opening of any cab door. o Two (2) Fire Research Spectra LED 900 scene lights shall be mounted on the rear of the vehicle high on the body which can be activated by a cab mounted switch and when the vehicle is placed in reverse. o Under body 12” LED strip ground lights at each cab door which activate with opening any door for a total of four. o Additional underbody 12” LED strip ground lights shall be located:

 under the front bumper extension one on each side

 under the rear step one on each side

 under each pump panel

 all under body lights shall activate with the application of the parking brake o LED strip lighting shall be mounted on the hose bed side of the swing arm mounted drop tank compartment to illuminate the hose bed and shall be activated by a switch at the left side pump panel

General Lighting:

o Running lights and clearance lights shall be LED type. o Amber Marker and directional lights shall be provided at the rear wheel wells and shall be LED type. o Headlights shall be LED type. o Stop and tail lights shall be LED type o Turn signals shall be sequential LED type. o A red flashing door ajar indicator light shall be cab mounted and visible to the driver and officer. This light shall be visible but shall not be a distraction while driving when malfunctions occur. o Mini LED Step lights shall be provided to illuminate the rear step surface, and on each side to illuminate the running board surface and shall be operated the application of the parking break. Step light shall be miniature, high output

Whelen clear lights o Tank fill indicators, LED

 Mini in cab

 Mini on rear of body adjacent to fireman’s friend tank inlets.

 Large LED strip lights on both sides of cab o Foam Tank level indicator

 Mounted on pump panel adjacent to foam pump controls o LED lighting shall be installed in the engine compartment and activated by a conveniently located switch which shall be appropriately labeled. o LED lighting shall be installed in the pump module and activated by a conveniently located switch which shall be appropriately labeled. o Amdor LED lighting shall be installed in all body compartments as appropriate and activated by opening the compartment doors. o LED dome lights in the cab shall include a red, night lighting mode

 One red/white light shall be mounted over each seating position plus one light mounted in the center over the engine doghouse between the driver and passenger seating positions.

Page 19 10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

Audible Warning Devices

o Air horns

 Foot controls for driver and foot control for officer’s position which shall cease to operate upon activation of the parking brake.

 Push button control at pump panel which shall operate at all times, whether the parking brake is engaged or not. This is used as an emergency warning device on the fireground. o Electronic Siren with control box within easy reach of the officer’s position. o Federal Q mounted flush with bumper, foot switch for driver, foot switch for officer, shall cease to operate upon activation of the parking brake.

Lettering/Striping:

o Lettering, stripping, graphics, and rear chevron color shall match current R-103 which is yellow/red, including the added flag graphics the same exact graphic as the department’s R-103 and ETA-102.

*All striping and lettering shall be approved by the apparatus committee and shall match current apparatus.

o Stripping is a 4” white reflective stripping boarded top and bottom by a ½” gold

reflective stripping.

o Lettering shall include Arvin Hart Volunteer Fire Company, Stillwater Fire

District, ETA 11-1, and shall include ETA 11-1 on the roof to be visible from above. o A red reflective ETA 11-1 graphic shall be included on the front bumper. o Retro reflective Company seals shall be applied to the rear cab doors to match the department’s R-10-3.

A list of the review Items to be signed off by the Apparatus Committee.

1. *The pump panel lay out shall be approved by the apparatus committee

2. *Lighting for the pump panel shall be approved by the committee to provide maximum sufficient lighting under all weather and lighting conditions.

3. *A switch layout on the v-mux vista panels shall be provided in the cab and shall distinctly denote warning and scene lighting in a configuration to be approved by the committee.

4. *Seating configuration shall be approved by the committee.

5. *Compartment configuration and roll out boards or trays for large and small hand tools shall be installed where appropriate and shall be approved by the committee.

6. *Dump chute and valve switch locations shall be approved by the committee.

7. *All striping and lettering shall be approved by the apparatus committee.

Page 20 10/20/2015

Stillwater Fire District Pumper/Tanker Bid Specifications

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
