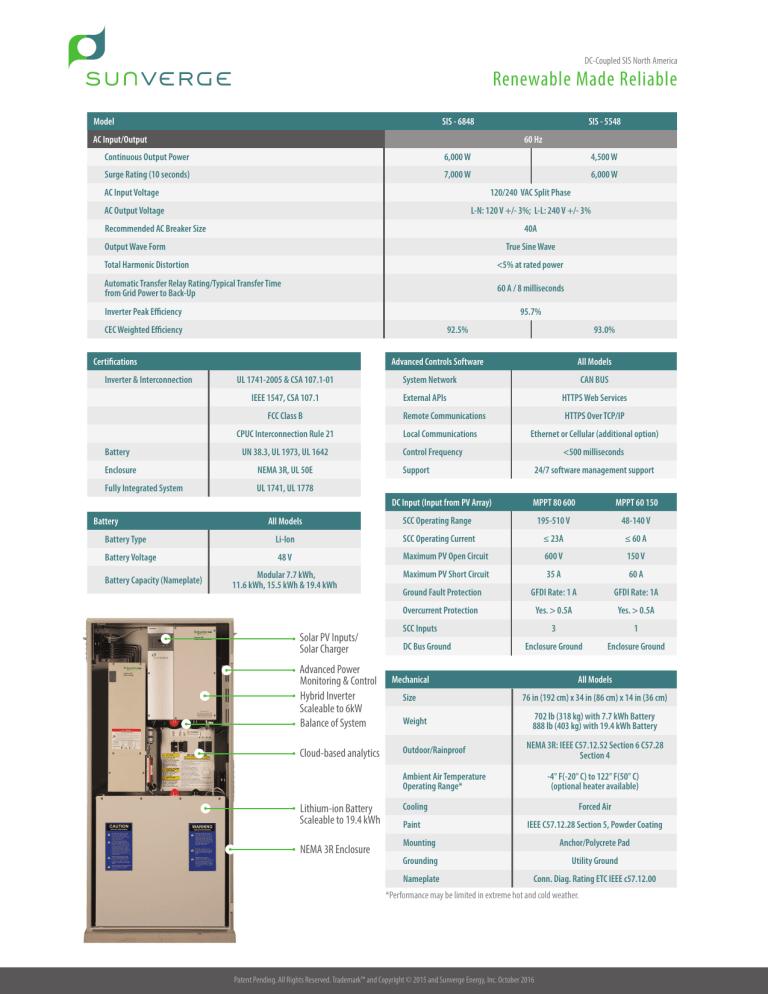

Renewable Made Reliable
DC-Coupled SIS North America
Renewable Made Reliable
Model
SIS - 6848
SIS - 5548
AC Input/Output
60 Hz
Continuous Output Power
6,000 W
4,500 W
Surge Rating (10 seconds)
7,000 W
6,000 W
AC Input Voltage
120/240 VAC Split Phase
AC Output Voltage
L-N: 120 V +/- 3%; L-L: 240 V +/- 3%
Recommended AC Breaker Size
40A
Output Wave Form
True Sine Wave
Total Harmonic Distortion
<5% at rated power
Automatic Transfer Relay Rating/Typical Transfer Time
from Grid Power to Back-Up
60 A / 8 milliseconds
Inverter Peak Efficiency
95.7%
CEC Weighted Efficiency
92.5%
Certifications
Inverter & Interconnection
Advanced Controls Software
UL 1741-2005 & CSA 107.1-01
IEEE 1547, CSA 107.1
FCC Class B
CPUC Interconnection Rule 21
Battery
93.0%
UN 38.3, UL 1973, UL 1642
Enclosure
NEMA 3R, UL 50E
Fully Integrated System
UL 1741, UL 1778
All Models
System Network
CAN BUS
External APIs
HTTPS Web Services
Remote Communications
HTTPS Over TCP/IP
Local Communications
Ethernet or Cellular (additional option)
Control Frequency
<500 milliseconds
Support
DC Input (Input from PV Array)
24/7 software management support
MPPT 80 600
MPPT 60 150
All Models
SCC Operating Range
195-510 V
48-140 V
Battery Type
Li-Ion
SCC Operating Current
≤ 23A
≤ 60 A
Battery Voltage
48 V
Maximum PV Open Circuit
600 V
150 V
Battery
Battery Capacity (Nameplate)
Modular 7.7 kWh,
11.6 kWh, 15.5 kWh & 19.4 kWh
Solar PV Inputs/
Solar Charger
Advanced Power
Monitoring & Control
Hybrid Inverter
Scaleable to 6kW
Balance of System
Cloud-based analytics
35 A
60 A
Ground Fault Protection
Maximum PV Short Circuit
GFDI Rate: 1 A
GFDI Rate: 1A
Overcurrent Protection
Yes. > 0.5A
Yes. > 0.5A
3
1
Enclosure Ground
Enclosure Ground
SCC Inputs
DC Bus Ground
Mechanical
All Models
Size
76 in (192 cm) x 34 in (86 cm) x 14 in (36 cm)
Weight
Outdoor/Rainproof
702 lb (318 kg) with 7.7 kWh Battery
888 lb (403 kg) with 19.4 kWh Battery
NEMA 3R: IEEE C57.12.52 Section 6 C57.28
Section 4
Ambient Air Temperature
Operating Range*
Lithium-ion Battery
Scaleable to 19.4 kWh
NEMA 3R Enclosure
-4° F(-20° C) to 122° F(50° C)
(optional heater available)
Cooling
Paint
Forced Air
IEEE C57.12.28 Section 5, Powder Coating
Mounting
Anchor/Polycrete Pad
Grounding
Utility Ground
Nameplate
Conn. Diag. Rating ETC IEEE c57.12.00
*Performance may be limited in extreme hot and cold weather.
Patent Pending. All Rights Reserved. Trademark™ and Copyright © 2015 and Sunverge Energy, Inc. October 2016
