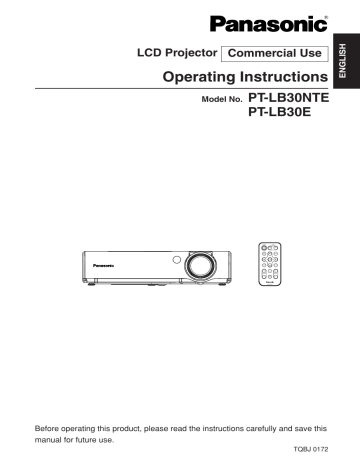

LCD Projector Commercial Use

Operating Instructions

Model No.

PT-LB30NTE

PT-LB30E

R

POWER

VIDEO

INPUT

RGB

MENU

ENTER

FREEZE SHUTTER

VOLUME

STD

D.ZOOM

PROJECTOR

Before operating this product, please read the instructions carefully and save this manual for future use.

TQBJ 0172

Dear Panasonic Customer:

This instruction booklet provides all the necessary operating information that you might require. We hope it will help you to get the most out of your new product, and that you will be pleased with your Panasonic LCD projector.

The serial number of your product may be found on its bottom. You should note it in the space provided below and retain this booklet in case service is required.

Model number: PT-LB30NTE / PT-LB30E

Serial number:

IMPORTANT SAFETY NOTICE

WARNING: THIS APPARATUS MUST BE EARTHED.

WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture.

Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator position is equal or less than 70 dB

(A) according to ISO 7779.

WARNING:

1) Remove the plug from the wall outlet when this unit is not in use for a prolonged period of time.

2) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

3) Do not remove the earthing pin on the power plug. This apparatus is equipped with a three prong earthing-type power plug. This plug will only fit an earthing-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician. Do not defeat the purpose of the earthing plug.

2-E

NGLISH

WARNING:

B For permanently connected equipment, a readily accessible disconnect device shall be incorporated in the building installation wiring;

B For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.

CAUTION:

To assure continued compliance, follow the attached installation instructions, which includes using the provided power cord and shielded interface cables when connecting to computer or peripheral device.

If you use serial port to connect PC for external control of projector, you must use optional RS-232C serial interface cable with ferrite core. Any unauthorized changes or modifications to this equipment will void the user’s authority to operate.

E

NGLISH

-3

Contents

Preparation

IMPORTANT SAFETY NOTICE ...2

Precautions with regard to safety .........................................5

Accessories .................................9

Before use ..................................10

Location and function of each part...........................................12

Getting started

Setting-up ...................................18

Projection methods, Projector position, Projection distances

Connections ...............................20

Connecting to computer,

Connecting to video equipment(1),

Connecting to video equipment(2)

Preparation for the remote control unit..............................23

Basic operation

Turning on the power ................24

Turning off the power................26

Useful functions

Correcting keystone distortion and automatic positioning.....28

Turning off the picture and sound momentarily ............................29

Pausing a picture.......................29

Enlarging the picture.................30

Adjusting the volume ................30

Displaying two screens.............31

Adjustments and settings

On-screen menus ......................32

Menu screens, Menu operation guide, Returning a setting to the factory default

Correcting keystone distortion .................................36

Adjusting the picture.................37

PICTURE MODE, CONTRAST,

BRIGHT, COLOR, TINT,

SHARPNESS, COLOR TEMP.,

White balance R/G/B,

4-E

NGLISH

DAYLIGHTVIEW, AI,

TV-SYSTEM, STILL MODE,

SIGNAL MODE, Projecting sRGBcompatible pictures

Adjusting the position...............41

POSITION, DOT CLOCK, CLOCK

PHASE, ASPECT, RESIZING,

FRAME LOCK

Changing the display language..................................44

Option settings ..........................45

OSD, AUTO SEARCH, AUTO

SIGNAL, AUTO KEYSTN, RGB2

SELECT, RGB/YP

B

P

R

, VGA60/480p,

SXGA MODE, Noise Reduction (NR),

BLACKBOARD, BACK COLOR,

FRONT/REAR, DESK/CEILING, FAN

CONTROL, LAMP POWER, LAMP

RUNTIME, FUNC 1, CONTROL KEY,

AUTO POW.OFF, POWER

MEMORY

Setting up the security function ...................................49

INPUT PASSWD, AMEND

PASSWD, TEXT DISPLAY, TEXT

CHANGE

Network setup ............................51

Care and maintenance

When the TEMP indicator and the

LAMP indicator are illuminated...............................52

Cleaning and replacing the air filter ..............................54

Replacing the lamp unit ............55

Before calling for service..........58

Cleaning and maintenance .......59

Others

Specifications ............................60

Appendix ....................................62

List of compatible signals, Projection dimensions calculation methods,

Using the SERIAL connector

Dimensions ................................66

Trademark acknowledgements ................66

Precautions with regard to safety

WARNING

If you notice smoke, strange smells or noise coming from the projector, disconnect the mains plug from the mains socket.

B Do not continue to use the projector in such cases, otherwise fire or electric shocks could result.

B Check that no more smoke is coming out, and then contact an Authorised

Service Centre for repairs.

B Do not attempt to repair the projector yourself, as this can be dangerous.

Do not install this projector in a place which is not strong enough to take the full weight of the projector.

B If the installation location is not strong enough, it may fall down or tip over, and severe injury or damage could result.

Installation work (such as ceiling suspension) should only be carried out by a qualified technician.

B If installation is not carried out correctly, there is the danger that injury or electric shocks may occur.

If foreign objects or water get inside the projector, or if the projector is dropped or the cabinet is broken, disconnect the mains plug from the mains socket.

B Continued use of the projector in this condition may result in fire or electric shocks.

B Contact an Authorised Service Centre for repairs.

Do not overload the mains socket.

B If the power supply is overloaded (for example, by using too many adapters), overheating may occur and fire may result.

Do not remove the cover or modify it in any way.

B High voltages can cause fire or electric shocks.

B For any inspection, adjustment and repair work, please contact an

Authorised Service Centre.

Clean the mains plug regularly to prevent it from becoming covered in dust.

B If dust builds up on the mains plug, the resulting humidity can damage the insulation, which could result in fire. Pull the mains plug out from the mains socket and wipe it with a dry cloth.

B If not using the projector for an extended period of time, pull the mains plug out from the mains socket.

E

NGLISH

-5

Do not do anything that might damage the mains lead or the mains plug.

B Do not damage the mains lead, make any modifications to it, place it near any hot objects, bend it excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle.

B If the mains lead is used while damaged, electric shocks, short-circuits or fire may result.

B Ask an Authorised Service Centre to carry out any repairs to the mains lead that might be necessary.

Do not handle the mains plug with wet hands.

B Failure to observe this may result in electric shocks.

Insert the mains plug securely into the mains socket.

B If the plug is not inserted correctly, electric shocks or overheating could result.

B Do not use plugs which are damaged or mains sockets which are coming loose from the wall.

Do not place the projector on top of surfaces which are unstable.

B If the projector is placed on top of a surface which is sloped or unstable, it may fall down or tip over, and injury or damage could result.

Do not place the projector into water or let it become wet.

B Failure to observe this may result in fire or electric shocks.

Do not place the projector on soft materials such as carpets or sponge mats.

B Doing so may cause the projector to overheat, which can cause burns, fire or damage to the projector.

Do not place liquid containers on top of the projector.

B If water spills onto the projector or gets inside it, fire or electric shocks could result.

B If any water gets inside the projector, contact an Authorised Service

Centre.

Do not insert any foreign objects into the projector.

B Do not insert any metal objects or flammable objects into the projector or drop them onto the projector, as doing so can result in fire or electric shocks.

Keep the batteries out of the reach of infants.

B If the batteries are swallowed, death by suffocation may result. If you believe that the batteries may have been swallowed, seek medical advice immediately.

Do not allow the + and - terminals of the batteries to come into contact with metallic objects such as necklaces or hairpins.

B Failure to observe this may cause the batteries to leak, overheat, explode or catch fire.

B Store the batteries in a plastic bag and keep them away from metallic objects.

6-E

NGLISH

During a thunderstorm, do not touch the projector or the cable.

B Electric shocks can result.

Do not use the projector in a bath or shower.

B Fire or electric shocks can result.

Do not look into the lens while the projector is being used.

B Strong light is emitted from the projector’s lens. If you look directly into this light, it can hurt and damage your eyes.

B Be especially careful not to let young children look into the lens. In addition, disconnect the mains plug when you are away from the projector.

Do not place your hands or other objects close to the air outlet port.

B Heated air comes out of the air outlet port. Do not place your hands or face, or objects which cannot withstand heat close to this port [allow at least 10cm (4”) of space], otherwise burns or damage could result.

Replacement of the lamp should only be carried out by a qualified technician.

B The lamp has high internal pressure. If improperly handled, explosion might result.

B The lamp can easily become damaged if struck against hard objects or dropped, and injury or malfunctions may result.

When replacing the lamp, allow it to cool for at least one hour before handling it.

B The lamp cover gets very hot, and touching it can cause burns.

Before replacing the lamp, be sure to disconnect the mains plug from the mains socket.

B Electric shocks or explosions can result if this is not done.

Caution

Do not cover the air inlet port or the air outlet port.

B Doing so may cause the projector to overheat, which can cause fire or damage to the projector.

B Do not place the projector in narrow, badly ventilated places such as closets or bookshelves.

B Do not place the projector on cloth or papers, as these materials could be drawn into the air inlet port.

Do not set up the projector in humid or dusty places or in places where the projector may come into contact with smoke or steam.

B Using the projector under such conditions may result in fire or electric shocks.

When disconnecting the mains lead, hold the plug, not the lead.

B If the mains lead itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks may result.

E

NGLISH

-7

Always disconnect all cables before moving the projector.

B Moving the projector with cables still attached can damage the cables, which could cause fire or electric shocks to occur.

Do not place any heavy objects on top of the projector.

B Failure to observe this may cause the projector to become unbalanced and fall, which could result in damage or injury.

Do not short-circuit, heat or disassemble the batteries or place them into water or fire.

B Failure to observe this may cause the batteries to overheat, leak, explode or catch fire, and burns or other injury may result.

When inserting the batteries, make sure the polarities (+ and -) are correct.

B If the batteries are inserted incorrectly, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

Use only the specified batteries.

B If incorrect batteries are used, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

Insulate the battery using tape or similar before disposal.

B If the battery comes into contact with metallic objects or other batteries, it may catch fire or explode.

Do not put your weight on this projector.

B You could fall or the projector could break, and injury may result.

B Be especially careful not to let young children stand or sit on the projector.

If not using the projector for an extended period of time, disconnect the mains plug from the mains socket.

B If dust builds up on the mains plug, the resulting humidity may damage the insulation, which could result in fire.

B This projector continues to draw approximately 3 W of power even when the power is turned off.

Disconnect the mains plug from the mains socket as a safety precaution before carrying out any cleaning.

B Electric shocks can result if this is not done.

Ask an Authorised Service Centre to clean inside the projector at least once a year.

B If dust is left to build up inside the projector without being cleaned out, it can result in fire or problems with operation.

B It is a good idea to clean the inside of the projector before the season for humid weather arrives. Ask your nearest Authorised Service Centre to clean the projector when required. Please discuss with the Authorised

Service Centre regarding cleaning costs.

We are constantly making efforts to preserve and maintain a clean environment. Please take non repairable units back to your dealer or a recycling company.

8-E

NGLISH

Accessories

Check that all of the accessories shown below have been included with your projector.

Card remote control unit

(N2QADC000008 x1)

Lithium battery for remote control unit

(CR-2025/1F x1)

POWER

VIDEO

INPUT

RGB

AUTO

SETUP

MENU

ENTER

FREEZE SHUTTER

RGB signal cable

[1.8 m (5´10˝),

K1HA15DA0002 x1]

Mains lead

(K2CM3DR00002 x 1)

Carrying bag

(TPEP014 x 1)

STD

VOLUME

INDEX

WINDOW

D.ZOOM

PROJECTOR

CD-ROM*

(TQBH9007 x1)

*PT-LB30NTE only

E

NGLISH

-9

Before use

Caution when moving the projector

Be sure to attach the lens cover before moving the projector.

The projection lens is extremely susceptible to vibration and shocks. When moving the projector, use the accessory carrying bag. When placing the projector inside the carrying bag, position it so that the lens is facing upward.

Do not put anything else in the bag other than the projector and the cables.

Cautions regarding setting-up

Avoid setting up in places which are subject to vibration or shocks.

The internal parts can be damaged, which may cause malfunctions or accidents.

Avoid setting up in places which are subject to sudden temperature changes, such as near an air conditioner.

The life of the lamp may be shortened.

Do not set up the projector near high-voltage power lines or near motors.

The projector may be subject to electromagnetic interference.

If installing the projector to the ceiling, ask a qualified technician to carry out all installation work.

You will need to purchase the separate installation kit (Model No.ET-PKB30).

Furthermore, all installation work should only be carried out by a qualified technician.

If using this projector at high elevations (above 1 400 m), set the “FAN

CONTROL” to “HIGH”. (Refer to page 47.)

Failure to observe this may result in malfunctions.

10-E

NGLISH

Notes on use

In order to get the best picture quality

Draw curtains or blinds over any windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen.

Do not touch the surfaces of the lens with your bare hands.

If the surface of the lens becomes dirty from fingerprints or anything else, this will be magnified and projected onto the screen. Moreover, when not using the projector, retract the lens and then cover it with the lens cover.

Screen

Do not apply any volatile substances which may cause discolouration to the screen, and do not let it become dirty or damaged.

Lamp

The lamp may need to be replaced earlier due to variables such as individual lamp characteristics, usage conditions and the installation environment, especially when the projector is subjected to continuous use for more than

10 hours or the power is frequently turned on and off.

Liquid crystal panel

The liquid crystal panel of the projector is built with very high precision technology to provide fine picture details. Occasionally, a few non-active pixels may appear on the screen as fixed points of blue, green or red.

Please note that this does not affect the performance of your LCD.

E

NGLISH

-11

Location and function of each part

Projector

<Top, right and front>

# $ %

'

*

)

&

'

(

# Projector control panel (page 16)

$ Zoom ring (page 25)

% Focus ring (page 25)

& Security lock

This can be used to connect a commercially-available theft-prevention cable (manufactured by Kensington). This security lock is compatible with the Microsaver Security System from Kensington.

' Leg adjuster buttons (L/R) (page 25)

These buttons are used to unlock the front adjustable legs. Press to adjust the angle of tilt of the projector.

( Lens cover

) Projection lens

* Remote control signal receptor (page 23)

12-E

NGLISH

Projector

<Back and bottom>

#

$ %

(

'

&

# Connector panel (page 14)

$ Air outlet port

Do not cover this port.

% Speaker

& Front adjustable legs (L/R) (page 25)

' Air inlet port, Air filter (page 54)

Do not cover this port.

( Lamp unit cover (page 55)

NOTE:

B During projection of an image, the cooling fan will operate, emitting a small noise as it operates. This noise may change depending on the ambient temperature. Turning the lamp on or off will cause this noise to increase a little.

B By using the “OPTION” menu to set “LAMP POWER” to “LOW”, the operating sound of the fan can be reduced. (Refer to page 47.)

WARNING

Do not place your hands or other objects close to the air outlet port.

B Heated air comes out of the air outlet port. Do not place your hands or face, or objects which cannot withstand heat close to this port [allow at least 10cm (4”) of space], otherwise burns or damage could result.

E

NGLISH

-13

Connector panel

# $ % & ' (

, + * )

# SERIAL connector (pages 20, 21, 22 and 64)

This connector is used to connect a personal computer to the projector in order to control the projector externally. (RS-232C compatible)

$ RGB1 IN connector (pages 20 and 21)

This connector is used to input RGB signals and YP

B

P

R signals.

% RGB2 IN/1 OUT connector (pages 20, 21 and 46)

This connector is used to input or output RGB signals and YP

B

P

R signals.

Adjust “RGB2 SELECT” in the “OPTION” menu to select whether you want input or output with this connector.

& S-VIDEO IN connector (pages 22 and 42)

This connector is used to input signals from S-VIDEO-compatible equipment such as a video deck. The connector is S1 signal compatible, and it automatically switches between 16:9 and 4:3 aspect ratios in accordance with the type of signal being input.

' AUDIO IN L-R connectors (for S-VIDEO/VIDEO) (page 22)

Only one system is provided, so connect the appropriate connectors when using S-VIDEO or VIDEO.

( Menu operation (page 16)

) VIDEO IN connector (page 22)

This connector is used to input video signals from video equipment such as a video deck.

* AUDIO OUT connector (pages 20, 21, and 22)

This connector is used to output the audio signals which are input to the

14-E

NGLISH

projector. If audio equipment is connected to this connector, no sound will be output from the built-in speakers.

+ RGB AUDIO 1IN/2IN connectors (pages 20 and 21)

These connectors are used to input audio signals, and they correspond to the RGB1 IN/2 IN connectors respectively.

, Power input socket (AC IN) (page 24)

The accessory mains lead is connected here.

Do not use any mains lead other than the accessory mains lead.

E

NGLISH

-15

Projector control panel

# $ % &

' (

Menu operation

<on connector panel:page 14>

*

)

+,

Remote control unit

'

)

+

POWER

VIDEO

INPUT

RGB

AUTO

SETUP

MENU

-

/

FREEZE

ENTER

SHUTTER

(

*

,

.

0

STD

VOLUME

INDEX

WINDOW

D.ZOOM

1

PROJECTOR

2

# RGB INPUT indicator

This indicator illuminates when a signal is being input to the connector

(RGB1 IN or RGB2 IN) selected using the input select buttons.

$ LAMP indicator (page 53)

This indicator illuminates when it is time to replace the lamp unit. It flashes if a circuit abnormality is detected.

% TEMP indicator (page 52)

This indicator illuminates if an abnormally high temperature is detected inside

16-E

NGLISH

the projector or around it. If the temperature rises above a certain level, the power supply will be turned off automatically and the indicator will flash.

& Illumination sensor (page 39)

This sensor detects the luminance when the “DAYLIGHTVIEW” function is operating. Do not cover the projector and do not place any object on the projector when using it.

' POWER button (pages 24, 26 and 27)

This button is used to turn the power on and off. This button on the projector illuminates red when the projector is in standby mode, and it illuminates green when a picture starts to be projected.

( INPUT buttons (page 25)

These buttons are used to switch the input signals from the connected equipment.

) AUTO SETUP button (pages 25 and 28)

If this button is pressed while a picture is being projected, the projection settings will be adjusted automatically in accordance with the signal being input. In addition, the angle of tilt of the projector will be automatically detected and adjusted in order to correct any keystone distortion.

* MENU button (pages 32 and 34)

This button is used to display the “MAIN MENU”. When a menu screen is being displayed, this button can be used to return to a previous screen or to clear the screen.

+ Arrow (F I and H

These buttons are used to select and adjust items in the on-screen menus.

, ENTER button (page 34)

This button is used to accept and to activate items selected in the on-screen menus.

- FREEZE button (page 29)

This button is used to momentarily freeze projection so that a still picture is displayed.

. SHUTTER button (page 29)

This button is used to momentarily turn off the picture and sound.

/ VOLUME +/- buttons (page 30)

These buttons are used to adjust the volume of the sound that is output from the projector’s built-in speakers and AUDIO OUT connector. Refer to page 33 for details on how to adjust the volume without using the remote control unit.

0 STD (standard) button (page 35)

This button is used to reset the projector adjustment values to the factory default settings.

1 INDEX WINDOW button (page 31)

This button can be used to split the image projection area into a still picture and a moving picture. When NETWORK is selected, the screen display will be switched between four window style, index style, and 16 Index style.

(PT-LB30NTE only. Refer to the accessory CD-ROM for details.)

2 D.ZOOM +/- buttons (page 30)

These buttons are used to enlarge the projected image.

E

NGLISH

-17

Setting-up

Projection methods

In way of installing projector, any one of the following four projection methods are used. Select whichever projection method matches the setting-up method. (The projection method can be set from the “OPTION” menu. Refer to pages 46 and 47 for details.)

BFront-desk projection BFront-ceiling projection

Menu items

FRONT/REAR

DESK/CEILING

Setting

FRONT

DESK

BRear-desk projection

(Using a translucent screen)

Menu items

FRONT/REAR

DESK/CEILING

Setting

FRONT

CEILING

BRear-ceiling projection

(Using a translucent screen)

Menu items

FRONT/REAR

DESK/CEILING

Setting

REAR

DESK

Menu items

FRONT/REAR

DESK/CEILING

Setting

REAR

CEILING

NOTE:

B You will need to purchase the separate ceiling bracket (ET-PKB30) when using the ceiling installation method.

B Do not set up the projector vertically or tilted horizontally, otherwise it may cause damage to the projector.

B It is recommended that you set up the projector in a place that is tilted at less than ±30° vertically. Setting up the projector in places that are tilted at more than ±30° vertically may shorten component life.

18-E

NGLISH

Projector position

Top edge of screen

Screen

L

Bottom edge of screen

L: Projection distance

SH: Image height

SW: Image width

H1: Distance from centre of lens to bottom edge of projected image

Screen

L

Projection distances

4:3 Screen size

(diagonal)

0.84 m(33˝)

1.02 m(40˝)

1.27 m(50˝)

1.52 m(60˝)

1.78 m(70˝)

2.03 m(80˝)

2.29 m(90˝)

2.54 m(100˝)

3.05 m(120˝)

3.81 m(150˝)

5.08 m(200˝)

6.35 m(250˝)

7.62 m(300˝)

Projection distance (L)

Wide (LW) Telephoto (LT)

1.2 m(3´11˝)

1.5 m(4´11˝)

1.8 m(5´10˝)

2.1 m(6´10˝)

2.4 m(7´10˝)

2.7 m(8´10˝)

3.0 m(9´10˝)

3.6 m(11´9˝)

4.6 m(15´1˝)

6.1 m(20´)

7.6 m(24´11˝)

9.1 m(29´10˝)

1.1 m(3´7˝)

1.4 m(4´7˝)

1.7 m(5´6˝)

2.1 m(6´10˝)

2.5 m(8´2˝)

2.8 m(9´2˝)

3.2 m(10´5˝)

3.5 m(11´5˝)

4.3 m(14´1˝)

5.4 m(17´8˝)

7.2 m(23´7˝)

9.0 m(29´6˝)

10.8 m(35´5˝)

Height position

(H1)

0.07 m(2-3/4˝)

0.08 m(3-1/8˝)

0.11 m(4-5/16˝)

0.13 m(5-3/32˝)

0.15 m(5-7/8˝)

0.17 m(6-11/16˝)

0.19 m(7-15/32˝)

0.21 m(8-1/4˝)

0.25 m(9-13/16˝)

0.32 m(12-19/32˝)

0.42 m(16-17/32˝)

0.53 m(20-27/32˝)

0.63 m(24-25/32˝)

NOTE:

B The dimensions in the table above are approximate.

B If you use the projection distance for the 16:9 screen, the 4:3 projection image overflows the screen at the top and bottom.

B For details about projected image distances, refer to page 63.

E

NGLISH

-19

Connections

Notes on connections

B Read the instruction manual for each peripheral device carefully before connecting it.

B Turn off the power supply for all peripheral devices before making any connections.

B If the cables necessary for connection are not included with the peripheral device or available as an option, you may need to prepare a proper cable for the device concerned.

B If there is a lot of jitter in the video signal, the projected image may flicker. In such cases, it will be necessary to connect a TBC (time base corrector).

B Refer to the list on page 62 for details on compatible signals which can be input to the projector.

B Only one audio system circuit is available for the AUDIO IN L-R connectors, so if you change the audio input source, you will need to remove and insert the appropriate plugs.

Connecting to computer

Computer for control use

Computer

Serial adapter

(ET-ADSER : sold separately)

Monitor

RGB signal cable

DIN 8-pin

(male)

RGB signal cable

(accessory)

Computer

Audio system

Refer to the accessory CD-

ROM for details on the wireless network that can be used for controlling the projector with a personal computer.

(PT-LB30NTE only)

20-E

NGLISH

Connecting to video equipment (1)

D-sub15-pin (male) - BNCx5 (male) adapter cable

Red (connect to P

R signal connector)

Blue (connect to P

B signal connector)

Green (connect to Y signal connector)

Computer for control use

DVD player

(with component video connectors)

BNC/RCA adapter

DIN 8-pin

(male)

Serial adapter

(ET-ADSER : sold separately)

Audio system

NOTE:

B Do not input the signal to the RGB2 IN/1 OUT connector when “RGB2

SELECT” in the “OPTION” menu is set to “OUTPUT”. (page 46)

B If the signal cables are disconnected or if the power supply for the computer or video deck is turned off while “D.ZOOM”(digital zoom) or

“INDEX WINDOW” is being used, these functions will be cancelled.

E

NGLISH

-21

Connecting to video equipment (2)

Computer for control use

Serial adapter

(ET-ADSER : sold separately)

DVD player

DIN 8-pin

(male)

Video deck

Audio system

22-E

NGLISH

Preparation for the remote control unit

Insert the accessory lithium battery while making sure that the polarities are correct.

# While pushing the battery holder tab to the right, pull out the battery

holder.

Back side

Push the tab

Pull out

$ Insert the battery into the battery holder so that the + side is facing

upward.

Match the “+” surface of the battery with the “+” marked side of the battery holder.

% Insert the battery holder.

NOTE:

B Do not drop the remote control unit.

B Keep the remote control unit away from liquids.

B Remove the battery if not using the remote control unit for long periods.

B Use only CR2025 batteries as replacement batteries.

B If the remote control unit is held so that it is facing directly in front of the remote control signal receptor, the operating range is within approximately 7 m (23´) from the surfaces of the receptor. Furthermore, the remote control unit can be operated from an angle of ±30° to the left or right and ±15° above or below the receptor.

B If the buttons on the remote control unit are kept pressed, the battery power will be consumed rapidly.

B If there are any obstacles in between the remote control unit and the receptor, the remote control unit may not operate correctly.

B If strong light is allowed to shine onto the remote control signal receptor, correct projector operation may not be possible. Place the projector as far away from light sources as possible.

B If facing the remote control unit toward the screen to operate the projector, the operating range of the remote control unit will be limited by the amount of light reflection loss caused by the characteristics of the screen used.

E

NGLISH

-23

Turning on the power

Before turning on the power

1. Ensure that all peripheral devices are connected properly.

2. Remove the lens cover.

POWER

VIDEO

INPUT

RGB

AUTO

SETUP

$

&

MENU

ENTER

FREEZE SHUTTER

VOLUME

STD

INDEX

WINDOW

D.ZOOM

(

POWER button

#

Mains lead

)

*

PROJECTOR

Lens cover

'

#

Connect the accessory mains lead to the AC IN socket.

BThe POWER button on the projector will illuminate red.

$

Press the POWER button.

BThe POWER button on the projector will flash green. After a short period, it will illuminate green, and a picture will be projected.

%

Turn on the power of all connected devices.

BStart the play function of a device such as a DVD player.

NOTE:

B If the mains lead was disconnected during projection when the projector was used the last time, projection will start after the mains lead is connected (when “POWER MEMORY” in the “OPTION” menu is set to

“ON”). Refer to page 48 for details.

B A tinkling sound may be heard when the lamp unit is turned on, but this is not a sign of a malfunction.

24-E

NGLISH

&

Press the input select button to select the input signal.

Input select button

Control panel

Changing signals

RGB1 RGB2 NETWORK

S-VIDEO VIDEO

Input select buttons

VIDEO RGB

Remote control unit

Changing signals

VIDEO RGB1 RGB2

S-VIDEO NETWORK

BA picture will be projected in accordance with the selected input signal.

BWhen a YP

B

P

R signal is being input, “YP

B

P

R

” will be displayed instead of “RGB”.

B“NETWORK” is for PT-LB30NTE only.

Follow the procedure below when you set the projector up first, and when you change the setup place.

'

Adjusting the angle

BWhile pressing the adjuster buttons, adjust the forward/back angle of tilt of the projector. Adjust so that the projected image is placed at the centre of the screen.

(

Press the AUTO SETUP button to initiate automatic positioning.

BThe tilt of the projector and the input signal will be detected and keystone distortion and the position of the image will be corrected.

(Refer to page 28 for details.)

AUTO SETUP

)

Adjusting the size

BTurn the zoom ring to adjust the size of the projected image.

*

Adjusting the focus

BTurn the focus ring to adjust the focus of the projected image.

E

NGLISH

-25

Turning off the power

POWER button

#

$

POWER

VIDEO

INPUT

RGB

AUTO

SETUP

MENU

ENTER

FREEZE SHUTTER

STD

VOLUME

INDEX

WINDOW

D.ZOOM

PROJECTOR

%

Mains lead

#

Press the POWER button.

B“POWER OFF” is displayed on the screen.

P O W E R O F F

O K C A N C E L

$

then press the ENTER button.

BThe lamp unit will switch off and the picture will stop being projected.

(The POWER button on the projector will illuminate orange while the cooling fan is still operating.)

%

Disconnect the mains lead after the POWER button on the projector illuminates red.

NOTE:

B You can also turn off the power by pressing the POWER button twice or by holding it down for at least 0.5 seconds.

B When the projector is in standby mode (the POWER button on the projector is illuminated red), the projector continues to draw approximately

3 W of power even when the cooling fan has stopped.

26-E

NGLISH

Direct power off function

You can disconnect the mains lead during projection or immediately after use and move the projector. The cooling fan will operate by the internal power supply to cool down the lamp.

B When this function is used, it may take more time for the lamp to turn back on again compared to when the lamp cools down with the mains lead connected.

B Do not put the projector in a bag while the POWER button on the projector is illuminated.

CAUTION

If not using the projector for an extended period of time, disconnect the mains plug from the mains socket.

B If dust builds up on the mains plug, the resulting humidity may damage the insulation, which could result in fire.

B This projector continues to draw approximately 3 W of power even when the power is turned off.

POWER button on the projector

POWER button status

Red

Green

Orange

Illuminated

Flashing

Illuminated

Illuminated

Flashing

Projector status

The projector is in standby mode and image projection is possible by pressing the POWER button.

The projector is preparing for projection after the power has been turned on while the POWER button on the projector is illuminated red. (After a short period, a picture will be projected.)

A picture is being projected.

The lamp is cooling down after the power has been turned off or while direct power off function is operating.

The projector is preparing for projection after the power has been turned on while the POWER button on the projector is illuminated orange. (After a short period, a picture will be projected.)

E

NGLISH

-27

Correcting keystone distortion and automatic positioning (AUTO SETUP)

This projector detects its degree of tilt and the input signal. Keystone distortion and the position of the image can then be corrected automatically in accordance with the input signal.

POWER

VIDEO

INPUT

RGB

Press the AUTO SETUP button.

(When the projected image has caused keystone distortion)

AUTO

SETUP

MENU

Screen

ENTER

Projected image

FREEZE SHUTTER

STD

VOLUME

INDEX

WINDOW

D.ZOOM

B Automatic positioning will be carried out.

[

PROJECTOR

Projector control panel

NOTE:

B “AUTO SEARCH” will also be carried out. (When “AUTO SEARCH” is set to “ON”, refer to page 45 for details.)

B When RGB signals are being input, “DOT CLOCK”, and “CLOCK

PHASE” will be adjusted automatically in addition to keystone distortion and the position of the image being corrected (except when the dot clock frequency is 100 MHz or higher). Refer to page 41 for details.

B If the edges of the projected image are indistinct, or if a dark picture is being projected, the automatic setup processing may stop automatically before it is complete. If this happens, project a different picture and then press the AUTO SETUP button again.

B Set “AUTO KEYSTN” in the “OPTION” menu to “OFF” to prevent any deterioration of the picture as a result of keystone correction.

(Refer to page 45.)

28-E

NGLISH

Turning off the picture and sound momentarily (SHUTTER)

The “SHUTTER” function can be used to momentarily turn off the picture and sound from the projector when the projector is not being used for short periods of time, such as during breaks in meetings or when carrying out preparation. The projector uses less power in “SHUTTER” mode than it does in normal projection mode.

POWER

AUTO

SETUP

VIDEO

INPUT

RGB

MENU

Press the SHUTTER button.

B The picture and sound will be turned off.

B Press any button on either the projector or remote control unit to return to normal operating mode.

ENTER

FREEZE SHUTTER

NOTE:

B “SHUTTER” on the “MAIN MENU” is the same function.

STD

VOLUME D.ZOOM

INDEX

WINDOW

PROJECTOR

Pausing a picture (FREEZE)

Press the FREEZE button.

POWER

INPUT

VIDEO RGB

AUTO

SETUP

MENU

Still picture

ENTER

FREEZE SHUTTER

STD

VOLUME

INDEX

WINDOW

D.ZOOM

PROJECTOR

B The picture being projected will be paused.

B Press the FREEZE button again to cancel the still picture.

NOTE:

B The FREEZE button will be disabled when

NETWORK is selected. (PT-LB30NTE only)

E

NGLISH

-29

Enlarging the picture (D.ZOOM)

Press the D.ZOOM +/- button.

POWER

VIDEO

INPUT

RGB

AUTO

SETUP

MENU

ENTER

FREEZE SHUTTER

STD

VOLUME

INDEX

WINDOW

D.ZOOM

B The picture will then be enlarged to 1.5

times the normal size.

[

PROJECTOR

The remote control unit functions during D.ZOOM (digital zoom)

Press the D.ZOOM +/- buttons to change the enlargement ratio.

Press the F,G,IandHbuttons to move the enlarged area which you want to project.

Press the MENU button to return to the normal screen.

NOTE:

B The enlargement ratio can be changed within the range of x1 to x2, in steps of 0.1. When RGB signals are being input, the enlargement ratio can be changed within the range of x1 to x3, except when the “FRAME

LOCK” is set to “ON”.

B If the type of signal being input changes while the digital zoom function is being used, the digital zoom function will be cancelled.

Adjusting the volume (VOLUME)

STD

Press the VOLUME +/- button.

B Press the + button to raise the volume.

B Press the - button to lower the volume.

VOLUME D.ZOOM

INDEX

WINDOW

NOTE:

B You can also select “VOLUME” from the

“MAIN MENU” to adjust the volume.

PROJECTOR

30-E

NGLISH

Displaying two screens (INDEX WINDOW)

This function lets you store a picture which is being projected into memory, so that you can display a still picture and a moving picture on the screen.

AUTO

SETUP

FREEZE

VOLUME

ENTER

STD

INDEX

WINDOW

PROJECTOR

MENU

SHUTTER

D.ZOOM

Press the INDEX WINDOW button.

B The aspect ratio of the screen changes and the image is vertically elongated in comparison to a normal image.

B When NETWORK is selected, the screen

Still picture

Moving picture

display will be switched between four window style, index style, and 16 Index style. (PT-LB30NTE only.

Refer to the accessory CD-ROM for details.)

The remote control unit functions during INDEX WINDOW

Press the

F

or

G

button to select a screen size.

It can switch to three stages.

Still picture

Moving picture

Still picture

Moving picture

Still picture

Moving picture

and moving picture screen.

Still picture

Moving picture

Moving picture

Still picture

Press the ENTER button to capture the present moving picture in a still window.

Press the MENU button to return to the previous screen.

NOTE:

B When the screen size is changed, the picture’s aspect ratio will also change. Make sure that you fully understand the notes on “ASPECT” on page 43 before using the “INDEX WINDOW” function.

B “INDEX WINDOW” on the “MAIN MENU” is the same function.

E

NGLISH

-31

On-screen menus

Menu screens

The various settings and adjustments for this projector can be carried out by selecting the operations from on-screen menus.

The general arrangement of these menus is shown below.

MAIN MENU

M E N U

K E Y S T O N E

P I C T U R E

P O S I T I O N

I N D E X W I N D O W

S H U T T E R

V O L U M E

L A N G U A G E

O P T I O N

S E C U R I T Y

N E T W O R K

S E L E C T E N T E R E X I T

B Press the MENU button to display the “MAIN MENU”.

Refer to page 34 for details on how to operate the on-screen menus.

KEYSTONE correction (page 36)

K E Y S T O N E 0

PICTURE menu (page 37)

When an RGB signal is being input or NETWORK is selected

P I C T U R E

P I C T U R E M O D E D Y N A M I C

C O N T R A S T 3 2

B R I G H T 3 2

S H A R P N E S S 0

C O L O R T E M P . S T A N D A R D

W - B A L R 3 2

W - B A L G 3 2

W - B A L B 3 2

D A Y L I G H T V I E W

A I O N

S I G N A L M O D E X G A

S T A N D A R D

S E L E C T A D J R E T R N

B When NETWORK is selected, “W-BAL R/G/B” settings will not be displayed.

(PT-LB30NTE only)

When a YP

B

P

R signal is being input

P I C T U R E

P I C T U R E M O D E S T A N D A R D

C O N T R A S T 3 2

B R I G H T 3 2

C O L O R 3 2

T I N T 3 2

S H A R P N E S S 6

C O L O R T E M P . S T A N D A R D

D A Y L I G H T V I E W

A I O N

S I G N A L M O D E 4 8 0 p

S T A N D A R D

S E L E C T A D J R E T R N

When an S-VIDEO/VIDEO signal is being input

P I C T U R E

P I C T U R E M O D E S T A N D A R D

C O N T R A S T 3 2

B R I G H T 3 2

C O L O R 3 2

T I N T 3 2

S H A R P N E S S 8

C O L O R T E M P . S T A N D A R D

D A Y L I G H T V I E W

A I O N

T V - S Y S T E M A U T O

S T I L L M O D E O F F

S T A N D A R D

S E L E C T A D J R E T R N

32-E

NGLISH

POSITION menu (page 41)

P O S I T I O N

P O S I T I O N

D O T C L O C K 3 2

C L O C K P H A S E 1 6

A S P E C T 4 : 3

R E S I Z I N G O N

F R A M E L O C K O F F

S T A N D A R D

S E L E C T E N T E R R E T R N

B When an S-VIDEO/VIDEO signal is being input, “DOT CLOCK”,

“CLOCK PHASE” and “FRAME

LOCK” settings will not be displayed.

INDEX WINDOW function

(page 31)

SHUTTER function (page 29)

VOLUME adjustment

Press the ENTER button, and then press the I or H button to adjust the volume.

LANGUAGE menu (page 44)

L A N G U A G E E N G L I S H

D E U T S C H

F R A N Ç A I S

E S P A Ñ O L

I T A L I A N O

P O R T U G U Ê S

S V E N S K A

N O R S K

D A N S K

P O L S K I

C

E

S

T I N A

M A G Y A R

                    ▼

S E L E C T E N T E R R E T R N

L A N G U A G E E N G L I S H

                    ▲

E N G L I S H

中文

日本語

S E L E C T E N T E R R E T R N

OPTION menu (page 45)

O P T I O N

O S D O N

A U T O S E A R C H O N

A U T O S I G N A L O N

A U T O K E Y S T N O N

R G B 2 S E L E C T I N P U T

R G B / Y P

B

P

R

A U T O

V G A 6 0 / 4 8 0 p 4 8 0 p

S X G A M O D E S X G A

N R O F F

B L A C K B O A R D O F F

                    ▼

S E L E C T A D J R E T R N

O P T I O N

                    ▲

B A C K C O L O R B L U E

F R O N T / R E A R F R O N T

D E S K / C E I L I N G D E S K

F A N C O N T R O L S T A N D A R D

L A M P P O W E R H I G H

L A M P R U N T I M E 1 0 H

F U N C 1 D A Y L I G H T

C O N T R O L K E Y O N

A U T O P O W . O F F D I S A B L E

P O W E R M E M O R Y O N

S E L E C T A D J R E T R N

SECURITY menu (page 49)

S E C U R I T Y

I N P U T P A S S W D O F F

A M E N D P A S S W D

T E X T D I S P L A Y O F F

T E X T C H A N G E

S E L E C T A D J R E T R N

NETWORK menu (page 51)

(PT-LB30NTE only)

N E T W O R K

N E T W O R K 1

N A M E C H A N G E L B 3 0 N T

I N P U T P A S S W D O F F

A M E N D P A S S W D

W E B C O N T R O L O N

S T A T U S

D E F A U L T

S E L E C T E N T E R R E T R N

E

NGLISH

-33

Menu operation guide

POWER

VIDEO

INPUT

RGB

AUTO

SETUP

FREEZE

ENTER

MENU

SHUTTER

STD

VOLUME

INDEX

WINDOW

D.ZOOM

# Press the MENU button.

The “MAIN MENU”

M E N U will be displayed.

K E Y S T O N E

P I C T U R E

P O S I T I O N

I N D E X W I N D O W

S H U T T E R

V O L U M E

L A N G U A G E

O P T I O N

S E C U R I T Y

N E T W O R K

S E L E C T E N T E R E X I T

PROJECTOR

Menu operation

(on connector panel)

Selected item will be displayed in blue.

M E N U

K E Y S T O N E

P I C T U R E

P O S I T I O N

I N D E X W I N D O W

S H U T T E R

V O L U M E

L A N G U A G E

O P T I O N

S E C U R I T Y

N E T W O R K

S E L E C T E N T E R E X I T

NOTE:

B Press the MENU button to return to the previous screen.

34-E

NGLISH

% Press the ENTER button to accept the

selection.

P I C T U R E

The selected

P I C T U R E M O D E S T A N D A R D menu screen or

C O N T R A S T 3 2 adjustment

B R I G H T 3 2 screen will then be displayed.

C O L O R 3 2

T I N T 3 2

S H A R P N E S S 8

(Example:

“PICTURE”

C O L O R T E M P . S T A N D A R D

D A Y L I G H T V I E W menu)

A I O N

T V - S Y S T E M A U T O

S T I L L M O D E O F F

S T A N D A R D

S E L E C T A D J R E T R N

setting.

An individual adjustment screen such as the one shown below will be displayed for bar scale items.

B R I G H T 3 2

The bar scale will turn green when any adjustment changes the setting from the factory set value.

Unavailable on-screen menu items

This projector has unadjustable items and unusable functions depending on the signal being input.

When an item cannot be adjusted or a function cannot be used, the corresponding on-screen menu display does not appear, and the item or function will not work even if the ENTER button is pressed.

Returning a setting to the factory default

If you press the STD (standard) button on the remote control unit, you can return settings to the factory default settings. However, the operation of this function varies depending on which screen is being displayed.

B When a menu screen is being

displayed

B When an individual adjustment

screen is being displayed

B R I G H T 3 2

P I C T U R E S T D

P I C T U R E M O D E S T A N D A R D

C O N T R A S T 3 2

B R I G H T 3 2

C O L O R 3 2

T I N T 3 2

S H A R P N E S S 8

C O L O R T E M P . S T A N D A R D

D A Y L I G H T V I E W

A I O N

T V - S Y S T E M A U T O

S T I L L M O D E O F F

S T A N D A R D

S E L E C T E N T E R R E T R N

All items displayed will be returned to their factory default settings,

“STD” will be displayed in the topright screen and the bar scale will appear white.

Only the item displayed will be returned to the factory default setting, and the bar scale will appear white.

NOTE:

B Triangle symbols above and below the bar scale indicate the factory default setting. Items which do not have these triangle symbols cannot be returned to the factory default setting.

Indicates the standard factory default setting

NOTE:

B You can also select

“STANDARD” from the menu screen and then press the

ENTER button.

Indicates the current adjustment value

B The positions of triangle symbols vary depending on the type of signal being input.

E

NGLISH

-35

Correcting keystone distortion

Keystone distortion is corrected automatically when the projector’s automatic setup function is used, but this correction will not apply if the screen itself is tilted. In such cases, you can correct the keystone distortion manually with the following procedure.

Vertical keystone distortion correction only.

K E Y S T O N E 0

Vertical keystone distortion correction

Operation

NOTE:

B If you press the AUTO SETUP button after correcting the keystone distortion manually, the automatic keystone correction function will operate and the corrected picture will return to its previous incorrect condition. To prevent this from happening, you can set “AUTO

KEYSTN” in the “OPTION” menu to “OFF”. (Refer to page 45.)

B Vertical keystone distortion can be corrected to ±30° of the angle of tilt.

However, the greater the correction amount, the more the picture quality will deteriorate, and the harder it will become to achieve a good level of focus. To obtain the best picture quality, set up the projector and screen in such a way that the amount of keystone correction required is as minimal as possible.

B The picture size will also change when correction of keystone distortion is carried out.

B The ratio of length and width of an image may become incorrect depending on the amount of the keystone correction.

B Keystone distortion of the on-screen display will not be corrected.

36-E

NGLISH

Adjusting the picture

Press the F or G button on the projector or remote control unit to select an item, and then press the

I or H button to change the setting.

For items with bar scales, press the

ENTER button or the I or H button to display the adjustment screen, and then press the I or H button to make the adjustment.

When an S-VIDEO/VIDEO signal is being input

P I C T U R E

P I C T U R E M O D E S T A N D A R D

C O N T R A S T 3 2

B R I G H T 3 2

C O L O R 3 2

T I N T 3 2

S H A R P N E S S 8

C O L O R T E M P . S T A N D A R D

D A Y L I G H T V I E W

A I O N

T V - S Y S T E M A U T O

S T I L L M O D E O F F

S T A N D A R D

S E L E C T A D J R E T R N

When an RGB signal is being input or NETWORK is selected

P I C T U R E

P I C T U R E M O D E D Y N A M I C

C O N T R A S T 3 2

B R I G H T 3 2

S H A R P N E S S 0

C O L O R T E M P . S T A N D A R D

W - B A L R 3 2

W - B A L G 3 2

W - B A L B 3 2

D A Y L I G H T V I E W

A I O N

S I G N A L M O D E X G A

S T A N D A R D

S E L E C T A D J R E T R N

When NETWORK is selected,

“W-BAL R/G/B” settings will not be displayed. (PT-LB30NTE only)

When an YP

B

P

R signal is being input

P I C T U R E

P I C T U R E M O D E S T A N D A R D

C O N T R A S T 3 2

B R I G H T 3 2

C O L O R 3 2

T I N T 3 2

S H A R P N E S S 6

C O L O R T E M P . S T A N D A R D

D A Y L I G H T V I E W

A I O N

S I G N A L M O D E 4 8 0 p

S T A N D A R D

S E L E C T A D J R E T R N

PICTURE MODE

P I C T U R E M O D E N A T U R A L

[

S T A N D A R D

[

D Y N A M I C

[

B L A C K - B D

Select the picture mode that best matches the image source and room conditions.

The mode best used in dark rooms is “NATURAL”. For rooms having regular lighting conditions in use, select “STANDARD”. For exceptionally bright rooms, use

“DYNAMIC”.

“BLACK-BD” is available only when

“BLACKBOARD” in the “OPTION” menu is set to “ON”.

Select “BLACK-BD” when projecting onto blackboards.

E

NGLISH

-37

CONTRAST

This adjusts the contrast of the picture. (Adjust the “BRIGHT” setting first if required before adjusting the “CONTRAST” setting.)

The picture is bright: I button

The picture is dark:

H button

BRIGHT

This adjusts the darker areas (black areas) in the picture.

Black areas are too light: I button

Dark areas are too solid: H button

COLOR

(S-VIDEO/VIDEO/YP

B

P

R only)

The colour is too deep: I button

The colour is too pale: H button

TINT

(NTSC/NTSC 4.43/YP

B

P

R only)

This adjusts the flesh tones in the picture.

The flesh tones are greenish:

I button

The flesh tones are reddish:

H button

SHARPNESS

To soften the picture details:

I button

To sharpen the picture details:

H button

COLOR TEMP.

C O L O R T E M P . S T A N D A R D

[

H I G H

[

L O W

This is used to adjust the white areas of the picture if they appear bluish or reddish.

White balance R/G/B

(W-BAL R/G/B)

(RGB only)

This is used to adjust the white areas of the picture if they appear colourised.

To make the selected colour lighter:

I button

To make the selected colour stronger:

H button

38-E

NGLISH

DAYLIGHTVIEW

This adjusts the vividness of the projected images when the projector is used under bright lighting.

Press the ENTER button to display the “DAYLIGHTVIEW” screen.

D A Y L I G H T V I E W

M O D E A U T O

W - B A L

S E L E C T A D J R E T R N

MODE

M O D E A U T O

[

O N

[

O F F

AUTO

The vividness of the projected images will be adjusted according to the lighting condition of the room.

ON

The projected images will have the highest vividness regardless of the lighting condition of the room.

OFF

“DAYLIGHTVIEW” is disabled.

NOTE:

B “AUTO” may not function correctly if any objects are placed on the projector.

B “AUTO” will be disabled when

“FRONT/REAR” in the

“OPTION” menu is set to

“REAR”.

W-BAL

W - B A L

[

When fluorescent lamps are used for room lighting.

When incandescent lamps are used for room lighting.

NOTE:

B “W-BAL” is disabled when

“MODE” in “DAYLIGHTVIEW” is set to “OFF”.

AI

ON

The lamp is controlled according to the input signals to project images with the best quality.

OFF

“AI” is disabled.

NOTE:

B “AI” is disabled when “LAMP

POWER” is set to “LOW”.

(Refer to page 47.)

E

NGLISH

-39

TV-SYSTEM

(S-VIDEO/VIDEO only)

T V - S Y S T E M A U T O

[

N T S C

[

N T S C 4 . 4 3

[

P A L

[

P A L - M

[

P A L - N

[

S E C A M

This should normally be set to

“AUTO”. If the signal is of such poor quality that the correct format cannot be automatically distinguished, change the setting manually to the required TV system.

NOTE:

B When set to “AUTO”, the projector automatically distinguishes between

NTSC/NTSC 4.43/PAL/PAL60/

PAL-M/PAL-N/SECAM signals.

STILL MODE

(S-VIDEO/VIDEO only)

To reduce flickering of still images

(vertical flicker), set “STILL MODE” to “ON”.

NOTE:

B Set to “OFF” when playing back moving images.

SIGNAL MODE

(RGB/YP

B

P

R

/NETWORK only)

This displays the type of signal which is currently being projected.

Refer to the list on page 62 for details on each type of signal.

Projecting sRGBcompatible pictures

sRGB is an international colour reproduction standard (IEC61966-2-

1) established by the International

Electrotechnical Commission (IEC).

If you would like the colours in sRGB-compatible pictures to be reproduced more faithfully, make the following settings.

# Press the F or G

select “PICTURE MODE”, and

then press the I

or H

to select “NATURAL”.

button on the remote control unit.

% Press the F or G

select “COLOR TEMP.”, and

then press the I

H

to select “STANDARD”.

NOTE:

B sRGB is only enabled when

RGB signals are being input

(when “LAMP POWER” is set to “HIGH”, “AI” is set to “OFF”, and “MODE” in

“DAYLIGHTVIEW” is set to

“OFF”).

40-E

NGLISH

Adjusting the position

When an RGB signal is being input, press the AUTO SETUP button first to initiate automatic positioning. If the optimum setting is not obtained when “AUTO

SETUP” is carried out, adjust by the following procedure.

Press the F or G button on the projector or remote control unit to select an item, and then press the I or H button to change the setting.

For items with bar scales, press the

ENTER button or the I or H button to display the adjustment screen, and then press the I or H button to make the adjustment.

POSITION

Moves the picture position.

Press the ENTER button to display the

“POSITION” screen.

Press the I or H button to move the picture horizontally.

Press the F or G button to move the picture vertically.

P O S I T I O N H 6 4

V 3 2

DOT CLOCK

(RGB only)

Periodic striped pattern interference

(noise) may occur when a striped pattern such as the one below is projected. If this happens, press the

I or H button to adjust so that any such noise is minimised.

When an RGB/YP

B

P

R signal is being input

P O S I T I O N

P O S I T I O N

D O T C L O C K 3 2

C L O C K P H A S E 1 6

A S P E C T 4 : 3

R E S I Z I N G O N

F R A M E L O C K O F F

S T A N D A R D

S E L E C T E N T E R R E T R N

When an S-VIDEO/VIDEO signal is being input

CLOCK PHASE

(RGB/YP

B

P

R only)

Adjust the “DOT CLOCK” setting first before carrying out this adjustment. Press the I or H button to adjust so that the noise level is least noticeable.

P O S I T I O N

P O S I T I O N

A S P E C T 4 : 3

R E S I Z I N G O N

S T A N D A R D

S E L E C T E N T E R R E T R N

NOTE:

B If signals with a dot clock frequency of 100 MHz or higher are being input, interference may not be completely eliminated when the “DOT CLOCK” and

“CLOCK PHASE” adjustments are carried out.

E

NGLISH

-41

ASPECT

(S-VIDEO/VIDEO/480i, 576i, 480p and 576p YP

B

P

R only)

A S P E C T A U T O

[

4 : 3

[

1 6 : 9

[

S 4 : 3

AUTO

(S-VIDEO only)

When an S1 video signal is being input, the aspect ratio is changed automatically to project a 16:9 picture.

4:3

The input signal is projected without change.

16:9

The picture is compressed to a ratio of 16:9 and projected.

S4:3

The size of the input signal is compressed to 75% and projected.

(This is useful for projecting a picture with a 4:3 aspect ratio onto a

16:9 screen.)

When a 4:3 signal is being input.

[

42-E

NGLISH

When using the 16:9 screen

When a horizontally squeezed signal is being input.

[

S1 video signals

B S1 video signals are a type of video signal with an aspect ratio of 16:9 which include a detector signal. This detector signal is output by some sources such as wide-vision video decks.

B When “ASPECT” is set to

“AUTO”, the projector recognizes the detector signal and automatically switches the aspect ratio to 16:9.

NOTE:

B If using this projector in places such as cafes or hotels to display programmes for a commercial purpose or for public presentation, note that if the aspect ratio (16:9) selection function is used to change the aspect ratio of the screen picture, you may be infringing the rights of the original copyright owner for that programme under copyright protection laws.

B If a 4:3 picture is projected onto a 16:9 screen, distortion may occur around the edges of the picture so that part of the picture is no longer visible.

Programmes which have 4:3 aspect ratios should be viewed in 4:3 mode to give proper consideration to the aims and intentions of the original programme’s creator.

RESIZING

This should normally be set to “ON”.

(This setting is only for signals which have lower resolutions than the LCD panels. Refer to page 62 for details.)

ON

The pixel resolution of the input signal is converted to the same resolution as the LCD panels before being projected.

This may sometimes cause problems with the quality of the picture.

OFF

The input signal is projected at its original resolution, with no pixel conversion. The projected picture will be smaller than normal, so adjust the zoom setting or move the projector forwards or backwards to adjust the picture size if necessary.

If set to “OFF”, some features, such as “D.ZOOM” (digital zoom),

“KEYSTONE” or “INDEX WINDOW” will not function.

FRAME LOCK

If the picture’s condition is bad while a RGB moving picture is projected, set “FRAME LOCK” to “ON”. Refer to page 62 for compatible RGB signals.

E

NGLISH

-43

Changing the display language

Press the F or G button on the projector or remote control unit to select a language, then press the ENTER button to accept the setting.

Indicates the language which is currently set.

L A N G U A G E E N G L I S H

D E U T S C H

F R A N Ç A I S

E S P A Ñ O L

I T A L I A N O

P O R T U G U Ê S

S V E N S K A

N O R S K

D A N S K

P O L S K I

C

E

S

T I N A

M A G Y A R

                    ▼

S E L E C T E N T E R R E T R N

L A N G U A G E E N G L I S H

                    ▲

E N G L I S H

中文

日本語

S E L E C T E N T E R R E T R N

44-E

NGLISH

Option settings

Press the F or G button on the projector or remote control unit to select an item, then press the I or

H button to change the setting.

O P T I O N

O S D O N

A U T O S E A R C H O N

A U T O S I G N A L O N

A U T O K E Y S T N O N

R G B 2 S E L E C T I N P U T

R G B / Y P

B

P

R

A U T O

V G A 6 0 / 4 8 0 p 4 8 0 p

S X G A M O D E S X G A

N R O F F

B L A C K B O A R D O F F

                    ▼

S E L E C T A D J R E T R N

O P T I O N

                    ▲

B A C K C O L O R B L U E

F R O N T / R E A R F R O N T

D E S K / C E I L I N G D E S K

F A N C O N T R O L S T A N D A R D

L A M P P O W E R H I G H

L A M P R U N T I M E 1 0 H

F U N C 1 D A Y L I G H T

C O N T R O L K E Y O N

A U T O P O W . O F F D I S A B L E

P O W E R M E M O R Y O N

S E L E C T A D J R E T R N

OSD

ON

The signal name is displayed in the top-right corner of the screen when the input signal is changed.

OFF

Use this setting when you do not want the signal name to be displayed.

NOTE:

B The setting for “TV-SYSTEM” will also be displayed when an

S-VIDEO/VIDEO signal is being input.

AUTO SEARCH

This should normally be set to “ON”

ON

When the power is turned on and

“AUTO SETUP” is running, the projector detects which signals are being input, and uses these signals for projection.

(If a picture is being projected, the signal source is not automatically changed.)

OFF

Use this setting when you do not want the signal source to be changed automatically when the power is turned on and “AUTO

SETUP” is running.

AUTO SIGNAL

This should normally be set to “ON”.

ON

“AUTO SETUP” will be carried out automatically when the input signal is changed.

OFF

“AUTO SETUP” will not function when the input signal is changed.

AUTO KEYSTN

This should normally be set to “ON”.

ON

During “AUTO SETUP”, the angle of tilt of the projector is detected and keystone distortion is corrected automatically.

OFF

Use this setting when you do not want automatic keystone correction to be carried out during “AUTO

SETUP”, such as when the screen itself is at an angle.

E

NGLISH

-45

RGB2 SELECT

This setting is used to select the function of the RGB2 IN/1 OUT connector.

RGB/YP

B

P

R

R G B / Y P

B

P

R

A U T O

[

R G B

[

Y P

B

P

R

This should normally be set to

“AUTO”. RGB or YP

B

P

R is selected automatically depending on the synchronising signal status.

When 480i, 576i, 480p, 576p,

1 080/60i, 1 080/50i, 720/60p and some VGA480 signals are being input, select “RGB” or “YP

B

P

R

” in accordance with the input signal.

VGA60/480p

V G A 6 0 / 4 8 0 p 4 8 0 p

[

V G A 6 0

Set to “VGA60” when 59.9Hz

VGA480 signals are being input

(refer to page 62 for details). Set to

“480p” when 480p RGB signals are being input.

SXGA MODE

S X G A M O D E S X G A

[

S X G A +

This setting is only for an SXGA signal.

SXGA

Select this item normally.

SXGA+

When the edges of the projected image are not visible, select this item.

46-E

NGLISH

Noise Reduction (NR)

(S-VIDEO/VIDEO only)

If the signal is of such poor quality that picture interference appears, set “NR” to “ON”. To turn off the

“NR” feature, set to “OFF”.

BLACKBOARD

Set to “ON” when “PICTURE

MODE” is set to “BLACK-BD”.

(Refer to page 37.)

BACK COLOR

B A C K C O L O R B L U E

[

B L A C K

This sets the colour which is projected onto the screen when no signal is being input to the projector.

FRONT/REAR

F R O N T / R E A R F R O N T

[

R E A R

This setting should be changed in accordance with the projector setting-up method.

(Refer to page 18.)

FRONT

When the projector is placed in front of a screen.

REAR

When using a translucent screen.

DESK/CEILING

D E S K / C E I L I N G D E S K

[

C E I L I N G

This setting should be changed in accordance with the projector setting-up method.

(Refer to page 18.)

DESK

When the projector is placed on a desk or similar.

CEILING

When the projector is suspended from a ceiling using the ceiling bracket (sold separately).

FAN CONTROL

F A N C O N T R O L S T A N D A R D

[

H I G H

Set “FAN CONTROL” to “HIGH”, when using this projector at high elevations (above 1 400 m) only.

LAMP POWER

L A M P P O W E R H I G H

[

L O W

This setting changes the lamp brightness. When set to “LOW”, the luminance of the lamp is reduced, but the projector uses less power, and the operating noise is also reduced. This can help to extend the lamp’s operating life. If using the projector in small rooms where high luminance is not required, it is recommended that you set the

“LAMP POWER” to “LOW”.

NOTE:

B “LAMP POWER” cannot be set when no signal is being input.

LAMP RUNTIME

This setting displays the usage time for the lamp unit which is currently being used. When replacing the lamp unit, follow the instructions on page 56, and reset “LAMP

RUNTIME” to “0”.

NOTE:

B The lamp’s operating life varies depending on the usage conditions (such as the “LAMP

POWER” setting and the number of times the power is turned on and off).

FUNC 1

F U N C 1 D A Y L I G H T

[

K E Y S T O N E

This assigns a function to the

FUNC1 button of the ET-RM300 wireless remote control unit (sold separately).

DAYLIGHT

Functions in the same way as when

“DAYLIGHTVIEW” is selected from the “PICTURE” menu. (page 39)

KEYSTONE

Functions in the same way as when

“KEYSTONE” is selected from the

“MAIN MENU”. (page 36)

E

NGLISH

-47

CONTROL KEY

To disable the buttons on the projector, set “CONTROL KEY” to

“OFF”. A confirmation screen will then be displayed. Select “OK” by using I or H button. To use the buttons on the projector, set to “ON” by using the remote control unit.

AUTO POW.OFF

If no signal is input to the projector for the duration of the period you set, the projector will return to standby mode. The period can be set from 15 minutes to 60 minutes in 5 minute intervals. If you don’t use this feature, set it to “DISABLE”.

This feature will not function when using the “FREEZE” function.

POWER MEMORY

This sets the projector’s start up status for when the mains lead is connected.

ON

The projector will start from the same status as when the mains lead was disconnected. If the mains lead was disconnected during projection when the projector was used the last time, projection will start after the mains lead is connected.

OFF

The projector will be in standby mode.

48-E

NGLISH

Setting up the security function

This projector is equipped with a security function. A password input screen can be displayed, or a company URL can be set up and displayed at the bottom of the projected image.

Press the F or G button on the projector or remote control unit to select “SECURITY”, then press the

ENTER button.

M E N U

K E Y S T O N E

P I C T U R E

P O S I T I O N

I N D E X W I N D O W

S H U T T E R

V O L U M E

L A N G U A G E

O P T I O N

S E C U R I T Y

N E T W O R K

S E L E C T E N T E R E X I T

INPUT PASSWD

The password input screen can be displayed when the power is turned on. All of the controls other than the

POWER button are disabled unless the password is entered correctly.

ON

“INPUT PASSWD” is enabled.

OFF

“INPUT PASSWD” is disabled. The password input screen will not be displayed when the power is turned on.

AMEND PASSWD

Passwords can be changed. Press the ENTER button to display the

“AMEND PASSWD” screen.

P A S S W O R D

A M E N D P A S S W D

N E W

O K R E T U R N

(When you use the “SECURITY” function for the first time)

Press the F, H, G, I, F, H, G and I buttons in order, then press the ENTER button.

(When a password change has been made before)

Type in the changed password, then press the ENTER button.

C O N F I R M

O K R E T U R N

#

Set a password by pressing the

F,G,I, and H buttons.

(A maximum of 8 buttons can be set.)

$

Press the ENTER button.

%

Enter the password again for confirmation.

& Press the ENTER button.

Password change will be completed.

S E C U R I T Y

I N P U T P A S S W D O F F

A M E N D P A S S W D

T E X T D I S P L A Y O F F

T E X T C H A N G E

S E L E C T A D J R E T R N

E

NGLISH

-49

NOTE:

B The entered password will appear as . It will not be displayed on the screen.

B If you enter the wrong password, the letters

“PASSWORD” and “NEW” will become red. Enter the correct password again.

TEXT DISPLAY

You can set text to be displayed at the bottom of the projected image at all times.

ON

“TEXT DISPLAY” is enabled.

OFF

“TEXT DISPLAY” is disabled.

TEXT CHANGE

The text which is displayed when

“TEXT DISPLAY” is set to “ON” can be changed.

Press the ENTER button to display the “TEXT CHANGE” screen.

          T E X T C H A N G E

    A B C D E F G H I J K L M N O

    P Q R S T U V W X Y Z ; : , .

    a b c d e f g h i j k l m n o

    p q r s t u v w x y z / + − *

    0 1 2 3 4 5 6 7 8 9   _ @ [ ]

B S O K

Cancel

#

Press the F, G, I and H buttons to select the characters, then press the ENTER button.

(You can enter 22 characters continuously.)

C Select “BS” to delete a character.

$

Press the F, G, I and H buttons to select “OK”, then press the ENTER button.

C Select “Cancel” to cancel the change.

50-E

NGLISH

Network setup

(PT-LB30NTE only)

You need to make adjustments on some items when controlling the projector with a personal computer by means of the wireless network. Refer to the accessory CD-ROM for details.

N E T W O R K

N E T W O R K 1

N A M E C H A N G E L B 3 0 N T

I N P U T P A S S W D O F F

A M E N D P A S S W D

W E B C O N T R O L O N

S T A T U S

D E F A U L T

S E L E C T E N T E R R E T R N

NETWORK

Select the network setting you want to use.

NAME CHANGE

The name for this projector can be set.

INPUT PASSWD

Set to “ON” if you want password confirmation to be used when controlling the projector with a personal computer by means of the wireless network.

AMEND PASSWD

Passwords can be changed.

WEB CONTROL

To control the projector with a personal computer by means of the wireless network, set the “WEB

CONTROL” to “ON”.

STATUS

The network settings will be displayed.

DEFAULT

Network settings can be returned to the factory default settings.

E

NGLISH

-51

When the TEMP indicator and the

LAMP indicator are illuminated

There are two indicators on the control panel of the projector which give information about the operating condition of the projector. These indicators illuminate or flash to warn you about problems that have occurred inside the projector, so if you notice that one of the indicators is on, turn off the power and check the table below for the cause of the problem.

LAMP indicator

TEMP indicator

TEMP indicator

Indicator display

Problem

Illuminated (red)

(Lamp unit on)

The surrounding temperature or the temperature inside the projector has become unusually high.

Flashing (red)

(Lamp unit off)

The surrounding temperature or the temperature inside the projector has become dangerously high, causing the lamp unit to automatically shut off.

Possible cause

B The ventilation holes may be covered.

B The ambient temperature in the place of use may be too high.

B The air filter may be blocked.

Remedy

B Uncover the ventilation holes.

B Set up the projector in a place where the temperature is between 0 °C (32 °F) and 40 °C (104 °F) and the humidity is between 20% and 80% (with no condensation). [If you set the

“FAN CONTROL” to “HIGH” (page 47), set up the projector in a place where the temperature is between 0 °C (32 °F) and 35 °C

(95 °F) and the humidity is between 20% and 80% (with no condensation).]

B Disconnect the mains lead by following the procedure on page

26, and then clean the air filter. (Refer to page 54.)

52-E

NGLISH

Indicator display

Illuminated (red)

Problem

It is nearly time to replace the lamp unit.

Possible cause

B Does “REPLACE

LAMP” appear on the screen after the projector is turned on?

LAMP indicator

circuit.

Flashing (red)

An abnormality has been detected in the lamp

B The power may have been turned on straight away after it was turned off.

B There may be an abnormality in the lamp circuit.

Remedy

B This occurs when the operation time for the lamp unit is nearing 1 800 hours (when

“LAMP POWER” has been set to

“HIGH” and when

“AI” has been set to “OFF”). Ask your dealer or an

Authorised

Service Centre to replace the lamp unit. (page 55)

B Wait for a while until the lamp unit cools down before turning the power back on again.

B Disconnect the mains lead by following the procedure on page 26, and then contact an

Authorised

Service Centre.

NOTE:

B Be sure to disconnect the mains lead by following the procedure given in “Turning off the power” on page 26 before carrying out any of the procedures in the “Remedy” column.

B If the TEMP indicator is illuminated and the power turns off after the procedures in the “Remedy” column have been carried out, it means an abnormality has occurred. Please contact an Authorised Service Centre so that the necessary repairs can be made.

E

NGLISH

-53

Cleaning and replacing the air filter

If the air filter becomes clogged with dust, the internal temperature of the projector will rise, the TEMP indicator will illuminate and the projector’s power will turn off (the TEMP indicator will flash after the power is turned off).

The air filter should be cleaned every 100 hours of use.

Cleaning

Use a vacuum cleaner to clean off any accumulated dust.

Replacement procedure

# Turn off the power and

disconnect the mains lead.

Be sure to disconnect the mains lead by following the procedure given on page 26.

$ Gently turn the projector

upside down, and then remove the air filter cover.

Air filter cover

NOTE:

B If the dust cannot be cleaned by a vacuum cleaner, remove the air filter and soak it in water, and then wash out the dust by hand. Be sure to install the air filter after it has dried.

B Do not use detergent when washing the air filter.

B If the dust cannot be removed by cleaning, it is time to replace the air filter. Please consult your dealer.

Furthermore, if the lamp unit is being replaced, replace the air filter at this time also.

Air filter cover

% Replace the air filter, and then

install the air filter cover.

Air filter

NOTE:

B Be sure to install the air filter before using the projector. If the projector is used without the air filter installed, dust and other foreign particles will be drawn into the projector, and malfunctions will result.

54-E

NGLISH

Replacing the lamp unit

Warning

When replacing the lamp, allow it to cool for at least one hour before handling it.

B The lamp cover gets very hot, and touching it can cause burns.

Notes on replacing the lamp unit

B The light generating lamp is made of glass, so dropping it or allowing it to hit hard objects may cause it to burst. Be careful when handling the lamp.

B Dispose of the removed old lamp with the same care that would be taken with a fluorescent light.

B A Phillips screwdriver is necessary for removing the lamp unit.

NOTE:

B The projector is not supplied with a replacement lamp unit.

Please ask your dealer for details. Lamp unit product no.: ET-LAB30

CAUTION:

B Do not use any lamp unit other than the one with the product number indicated above.

Lamp unit replacement period

The lamp is a consumable product.

Even when the full life of the bulb has not been exhausted, the brightness of the light will gradually decline. Therefore periodic replacement of the lamp is necessary.

The intended lamp replacement interval is 2 000 hours, but it is possible that the lamp may need to be replaced earlier due to variables such as a particular lamp’s characteristics, usage conditions and the installation environment.

Early preparation for lamp replacement is encouraged.

The lamp will automatically shut off after approximately 10 minutes when 2 000 hours of use have been reached because of a much greater chance of it exploding after this time.

NOTE:

B The usage hours explained above are for when “LAMP

POWER” in the “OPTION” menu has been set to “HIGH” and when “AI” in the

“PICTURE” menu has been set to “OFF”. If “LAMP POWER” is set to “LOW”, or “AI” is set to

“ON”, the life of the lamp can be extended.

B While 2 000 hours is the intended replacement interval, it is not a period of time covered by warranty.

E

NGLISH

-55

On-screen display LAMP indicator

More than 1 800 hours

Displayed for 30 seconds. Pressing any button will clear the display.

More than 2 000 hours

Remains displayed until any button is pressed.

Illuminates red during image projection and standby mode.

Lamp unit replacement procedure

NOTE:

B If the lamp usage time has passed 2 000 hours (when “LAMP POWER” has been set to “HIGH” and when “AI” has been set to “OFF”), the projector will switch to standby mode after approximately 10 minutes of operation. The steps ) to - on the next page should thus be completed within 10 minutes.

# Disconnect the mains lead

from the projector by following the procedure on page 26, and check that the area around the lamp unit has cooled down.

$ Use a Phillips screwdriver to

turn the lamp unit cover fixing screws at the bottom of the projector, and then remove the lamp unit cover.

% Use a Phillips screwdriver to

loosen the two lamp unit fixing

A

screws until the screws turn freely. Then hold the handles of the lamp unit and gently pull the lamp unit out from the projector.

Handles

B

Lamp unit cover

Lamp unit cover fixing screws

Lamp unit fixing screws

& Insert the new lamp unit while

making sure that the direction of insertion is correct, and then use a Phillips screwdriver to securely tighten the lamp unit fixing screws.

When inserting the new lamp unit, be sure to push it in at the point A and B.

56-E

NGLISH

' Install the lamp unit cover, and

then use a Phillips screwdriver to securely tighten the lamp unit cover fixing screws.

NOTE:

B Be sure to install the lamp unit and the lamp unit cover securely. If they are not securely installed, it may cause the protection circuit to operate so that the power cannot be turned on.

( Connect the mains lead.

) Press the POWER button so

that a picture is projected onto the screen.

NOTE:

B If the mains lead was disconnected during projection when the projector was used the last time, projection will start after the mains lead is connected (when “POWER

MEMORY” in the “OPTION” menu is set to “ON”). Refer to page 48 for details.

* Press the MENU button to

display the “MAIN MENU”, and

then press the F or G button

to select “OPTION”.

M E N U

K E Y S T O N E

P I C T U R E

P O S I T I O N

I N D E X W I N D O W

S H U T T E R

V O L U M E

L A N G U A G E

O P T I O N

S E C U R I T Y

N E T W O R K

S E L E C T E N T E R E X I T

+ Press the ENTER button to

display the “OPTION” menu, and

then press the F or G button to

select “LAMP RUNTIME”.

O P T I O N

                    ▲

B A C K C O L O R B L U E

F R O N T / R E A R F R O N T

D E S K / C E I L I N G D E S K

F A N C O N T R O L S T A N D A R D

L A M P P O W E R H I G H

L A M P R U N T I M E 1 8 2 0 H

F U N C 1 D A Y L I G H T

C O N T R O L K E Y O N

A U T O P O W . O F F D I S A B L E

P O W E R M E M O R Y O N

S E L E C T R E T R N

, Press and hold the ENTER

button for approximately 3 seconds.

O P T I O N

                    ▲

B A C K C O L O R B L U E

F R O N T / R E A R F R O N T

D E S K / C E I L I N G D E S K

F A N C O N T R O L S T A N D A R D

L A M P P O W E R H I G H

T I M E R E S E T [ P O W E R O F F ]

F U N C 1 D A Y L I G H T

C O N T R O L K E Y O N

A U T O P O W . O F F D I S A B L E

P O W E R M E M O R Y O N

S E L E C T R E T R N

The “LAMP RUNTIME” will change to “TIME RESET

[POWER OFF]”.

NOTE:

B If the MENU button is pressed, the lamp time resetting screen will be cancelled.

-

Turn off the power and disconnect the mains lead.

This will reset the cumulative usage time for the lamp unit to “0”.

Refer to page 26 for details on how to turn off the power.

E

NGLISH

-57

Before calling for service

Before calling for service, check the following points.

Problem

Power does not turn on.

Possible cause

B The mains lead may not be connected.

B The main power supply is not being supplied to the mains socket.

B TEMP indicator is illuminated or flashing.

B LAMP indicator is illuminated or flashing.

B The lamp unit cover has not been securely installed.

No picture appears.

The picture is fuzzy.

B The video signal input source may not be connected properly.

B The input selection setting may not be correct.

B The “BRIGHT” adjustment setting may be at the minimum possible setting.

B The “SHUTTER” function may be in use.

B The lens cover may still be attached to the lens.

B The lens focus may not have been set correctly.

B The projector may not be at the correct distance from the screen.

B The lens may be dirty.

B The projector may be tilted too much.

The colour is pale or grayish.

B “COLOR” or “TINT” adjustment may be incorrect.

B The input source which is connected to the projector may not be adjusted correctly.

No sound can be heard.

B The audio signal source may not be connected properly.

B The volume adjustment may be at the lowest possible setting.

B A cable may be connected to the AUDIO OUT connector.

Page

52

53

25

38

The remote control unit does not operate.

The buttons on the projector do not function.

B The battery may be weak.

B The battery may not be inserted correctly.

B The remote control signal receptor on the projector may be obstructed.

B The remote control unit may be out of the operation range.

B The “CONTROL KEY” may be set to “OFF”.

In order to set the “CONTROL KEY” to “ON” without using the remote control unit, keep holding down the ENTER button on the projector and press the MENU button for more than 2 seconds.

29

25

19

18

38

30,

33

20,

21,

22

23

23

23

48

58-E

NGLISH

Problem

The picture does not display correctly.

Picture from computer does not appear.

Possible cause

B The signal format (“TV-SYSTEM”) may not be set correctly.

B There may be a problem with the video tape or other signal source.

B A signal which is not compatible with the projector may be being input.

B The cable may be too long.

B The external video output for the laptop computer may not be set correctly.

(You may be able to change the external output settings by pressing the [Fn]+[F3] or [Fn]+[F10] keys simultaneously. The actual method varies depending on the type of computer, so refer to the documentation provided with your computer for further details.)

B If an RGB INPUT indicator is turned off, the video signals may not be output from the computer.

B “RGB2 SELECT” in the “OPTION” menu is set to

“OUTPUT” when the signals are input to RGB2

IN/1 OUT connector.

Page

40

62

16

46

Cleaning and maintenance

Before carrying out cleaning and maintenance, be sure to disconnect the mains plug from the mains socket.

Wipe the cabinet with a soft, dry cloth.

If the cabinet is particularly dirty, soak the cloth in water with a small amount of neutral detergent in it, squeeze the cloth very well, and then wipe the cabinet. After cleaning, wipe the cabinet dry with a dry cloth. If using a chemically-treated cloth, read the instructions supplied with the cloth before use.

Do not wipe the lens with a cloth that is dusty or which produces lint.

If any dust or lint gets onto the lens, such dust or lint will be magnified and projected onto the screen. Use a blower to clean any dust and lint from the lens surface, or use a soft cloth to wipe off any dust or lint.

E

NGLISH

-59

Specifications

Power supply:

Power consumption:

Amps:

100 V - 240 V ~, 50 Hz/60 Hz

300 W [During standby (when fan is stopped): Approx. 3 W]

3.5 A - 1.8 A

LCD panel:

Panel size (diagonal):

Aspect ratio:

Micro lens array:

Display method:

Drive method:

Pixels:

Lens:

Colour system:

Projection size:

0.8 type (20.32mm)

4:3

Available

3 transparent LCD panels (RGB)

Active matrix method

786 432 (1 024 x 768) x 3 panels

Manual zoom (1 - 1.2) / Manual focus

F 1.7 - 1.8 f 24.0 mm - 28.8 mm

UHM lamp (220 W) Lamp:

Luminosity: 3 000 lm

Scanning frequency (for RGB signals):

Horizontal scanning frequency: 15 kHz - 91 kHz

Vertical scanning frequency: 50 Hz - 85 Hz

Dot clock frequency: Less than 100 MHz

YP

B

P

R signals: 480i, 576i, 480p, 576p, 1 080/60i,

1 080/50i, 720/60p

7 (NTSC/NTSC 4.43/PAL/PAL-M/PAL-N/

PAL60/SECAM)

838.2 mm - 7 620 mm (33˝ - 300˝)

Throw distance:

Optical axis shift:

Screen aspect ratio:

Installation:

1.1 m - 10.8 m (3´7˝ - 35´5˝)

6:1 (fixed)

4:3

Front/Rear/Ceiling/Desk (menu selection)

Speaker:

Max. usable volume output:

4 cm x 3 cm oval x 1

1 W (mono)

Wireless LAN (PT-LB30NTE only): IEEE802.11 b/g

Connectors

RGB IN/OUT: Dual line, D-sub HD 15-pin (female)

(One line is available for input and output, selectable using an on-screen menu)

During YP

B

P

R input/output:

Y:

P

B

, P

R

:

During RGB input/output:

R.G.B.:

G.SYNC:

HD, VD:

1.0 V [p-p] (Including sync), 75

0.7 V [p-p], 75

0.7 V [p-p], 75

1.0 V [p-p], 75 compatible

TTL, automatic positive/negative polarity

60-E

NGLISH

VIDEO IN:

S-VIDEO IN:

Single-line, RCA pin jack, 1.0 V [p-p], 75

Single-line, Mini DIN 4-pin

Y 1.0 V [p-p], C 0.286 V [p-p], 75

AUDIO IN (for S-VIDEO/VIDEO): Single-line, 0.5 V [rms] RCA pin jack x 2 (L-R)

RGB AUDIO IN:

AUDIO OUT:

Dual-line, 0.5 V [rms] M3 jack (Stereo MINI)

Single-line, 0.5 V [rms] M3 jack (Stereo MINI)

SERIAL:

(Monitor output/stereo compatible)

0 V [rms]-1.0 V [rms] (variable)

DIN 8-pin RS-232C compatible

Moulded plastic (PC/ABS) Cabinet:

Dimensions:

Width:

Height:

Length:

327 mm (12-27/32˝)

83 mm (3-1/4˝)

233 mm (9-5/32˝) (without lens cover)

Weight:

PT-LB30NTE:

PT-LB30E:

Operating environment:

Temperature:

2.6 kg (5.7 lbs.)

2.5 kg (5.5 lbs.)

Humidity:

Certifications:

0 °C - 40 °C (32 °F - 104 °F)

[When the “FAN CONTROL” is set to

“HIGH” (page 47): 0 °C - 35 °C (32 °F - 95 °F)]

20% - 80% (no condensation)

EN60950, EN55022, EN61000-3-2,

EN61000-3-3, EN55024

<Remote control unit>

Power supply:

Operating range:

3 V DC (Lithium CR2025 battery x1)

Approx. 7 m (23´) (when operated directly in front of signal receptor)

18 g (0.6 ozs.) (including battery) Weight:

Dimensions:

Width:

Length:

Height:

<Options>

Ceiling bracket

Wireless remote control unit

Serial adapter

(DIN 8-pin/D-sub 9-pin)

40 mm (1-9/16˝)

6.5 mm (-1/4˝)

86 mm (3-3/8˝)

ET-PKB30

ET-RM300

ET-ADSER

E

NGLISH

-61

Appendix

List of compatible signals

Mode

Display resolution

(dots)* 1

Scanning frequency

Dot clock frequency

(MHz)

Picture quality* 2

Resizing* 3 Format

H

(kHz)

V

(Hz)

NTSC/NTSC4.43/

PAL-M/PAL60

PAL/PAL-N/SECAM

480i

576i

480p

576p

1 080/60i

1 080/50i

720/60p

VGA400

VGA480

SVGA

MAC16

XGA

MXGA

MAC21

MSXGA

SXGA

UXGA

*

*

*

*

*

4

4

4

4

4

*

4

*

4

*

4

720 x 480i 15.7

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

832 x 624

1 024 x 768

1 024 x 768

1 024 x 768

1 024 x 768

1 024 x 768i

1 152 x 864

1 152 x 864

1 152 x 864

1 152 x 870

1 280 x 960

720 x 576i

720 x 480i

720 x 576i

15.6

15.7

15.6

720 x 483

720 x 576

31.5

31.3

1 920 x 1 080i 33.8

1 920 x 1 080i 28.1

1 280 x 720

640 x 400

640 x 400

640 x 480

640 x 480

640 x 480

640 x 480

640 x 480

45.0

31.5

37.9

31.5

35.0

37.9

37.5

43.3

1 280 x 1 024 64.0

1 280 x 1 024 80.0

1 280 x 1 024 91.1

1 400 x 1 050 64.0

1 400 x 1 050 65.1

1 600 x 1 200 75.0

60.0

68.7

35.5

64.0

67.5

76.7

68.7

60.0

35.2

37.9

48.1

46.9

53.7

49.7

48.4

56.5

59.9

75.0

85.0

87.0

71.2

74.9

85.0

75.1

60.0

56.3

60.3

72.2

75.0

85.1

74.6

60.0

70.1

60.0

75.0

85.0

60.0

59.9

60.0

60.0

70.1

85.1

59.9

66.7

72.8

75.0

85.0

50.0

59.9

50.0

59.9

50.0

60.0

50.0

A OK Video/S-Video

*1 The “i” appearing after the resolution indicates an interlaced signal.

B

B

B

B

AA

AA

AA

A

A

A

AA

AA

A

A

A

A

B

B

B

B

B

B

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

44.9

94.2

108.0

121.5

100.0

108.0

108.0

135.0

50.0

49.5

56.3

57.3

65.0

75.0

78.8

94.5

157.5

108.0

122.4

162.0

31.5

25.2

30.2

31.5

31.5

36.0

36.0

40.0

13.5

13.5

27.0

27.0

74.3

74.3

74.3

25.2

OK

OK

OK

OK

OK

OK

OK

OK

OK

OK

OK

OK

OK

OK Video/S-Video

OK

OK

YP

YP

B

B

P

P

R

R

/RGB

/RGB

OK

OK

YP

YP

B

B

P

P

R

R

/RGB

/RGB

YP

B

P

R

/RGB

YP

B

P

R

/RGB

YP

B

P

R

/RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

RGB

*2 The following symbols are used to indicate picture quality.

AA Maximum picture quality can be obtained.

A Signals are converted by the image processing circuit before picture is projected.

B Some loss of data occurs to make projection easier.

*3 Signals with “OK” are compatible with the “RESIZING” function. (page 43)

*4 Signals that are compatible with the “FRAME LOCK” function. (page 43)

62-E

NGLISH

Projection dimensions calculation methods

If the screen size (diagonal) is SD (m), then the following formula is used to calculate the projection distance for the wide lens position (LW) and the projection distance for the telephoto lens position (LT).

4:3

SD

LW/LT SW

Minimum Projection Distance

Maximum Projection Distance

LW=0.030xSD/0.0254-0.044

LT=0.036xSD/0.0254-0.044

For 16:9 aspect ratios, the following formula can be used to calculate the projection distance.

Minimum Projection Distance

Maximum Projection Distance

LW=0.033xSD/0.0254-0.044

LT=0.040xSD/0.0254-0.044

*The values obtained from the formulas above are approximate.

E

NGLISH

-63

Using the SERIAL connector

The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connector.

Connection

SERIAL(female)

Computer

DIN 8-pin (male)

Serial adapter

(ET-ADSER : sold separately)

NOTE:

B You must use only RS-232C

Serial Interface Cable with ferrite core, type ET-ADSER.

Communications settings

Signal level

Sync. method

Baud rate

RS-232C

Asynchronous

9 600 bps

Parity None

Character length 8 bits

Stop bit

X parameter

1 bit

None

S parameter None

Basic format

The data sent from the computer to the projector is transmitted in the format shown below.

STX Command : Parameter ETX

Pin assignments and signal names

1

2

3 5

6

8

DIN 8-pin

Appearance

Pin

No.

Signal name

Contents

%

RXD Received data

&

GND Earth

'

TXD Transmitted data

#

$

(

)

*

Connected internally

NC

NC

Start byte

(02h)

3 bytes

1 byte End byte

1 byte-5 bytes

(03h)

NOTE:

B The projector can not receive the command for 10 seconds after the lamp is switched on.

Wait 10 seconds before sending the command.

B If sending multiple commands, check that a response has been received from the projector for one command before sending the next command.

B When a command which does not require parameters is sent, the colon (:) is not required.

B If an incorrect command is sent from the personal computer, the

“ER401” command will be sent from the projector to the personal computer.

64-E

NGLISH

Control commands

The commands which the personal computer can use to control the projector are shown in the following table.

Command

Control

Contents

Remarks

PON

POF

AVL

IIS

Q$S

OSH

Power ON

Power OFF

Volume

Input signal selection

Lamp ON condition query

Shutter function

In standby mode, all commands other than the PON command are ignored.

B The PON command is ignored during lamp ON control.

B If a PON command is received while the cooling fan is operating after the lamp has switched off, the lamp is not turned back on again straight away, in order to protect the lamp.

Parameter

000-063 (Adjustment value 0-63)

Parameter

VID=VIDEO SVD=S-VIDEO

RG1=RGB1 RG2=RGB2

NWP=NETWORK (PT-LB30NTE only)

Callback

0 = Standby

1 = Lamp ON control active

2 = Lamp ON

3 = Lamp OFF control active

Operation will be switched between ON and

OFF each time the command is sent. Do not switch operation ON and OFF after only short periods of time.

Cable specifications

(When connected to a personal computer)

At the projector

3

4

5

1

2

6

7

8

At the computer

(DTE specifications)

7

6

1

4

9

8

3

5

2

E

NGLISH

-65

Dimensions

<Units: mm (inch)>

96.2(3-25/32)

327(12-27/32) 211.4(8-5/16)

Trademark acknowledgements

B VGA and XGA are trademarks of International Business Machines

Corporation.

B Macintosh is a registered trademark of Apple Computer, Inc.

B S-VGA is a registered trademark of the Video Electronics Standards

Association.

All other trademarks are the property of the various trademark owners.

66-E

NGLISH

These Operating Instructions are printed on recycled paper.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
