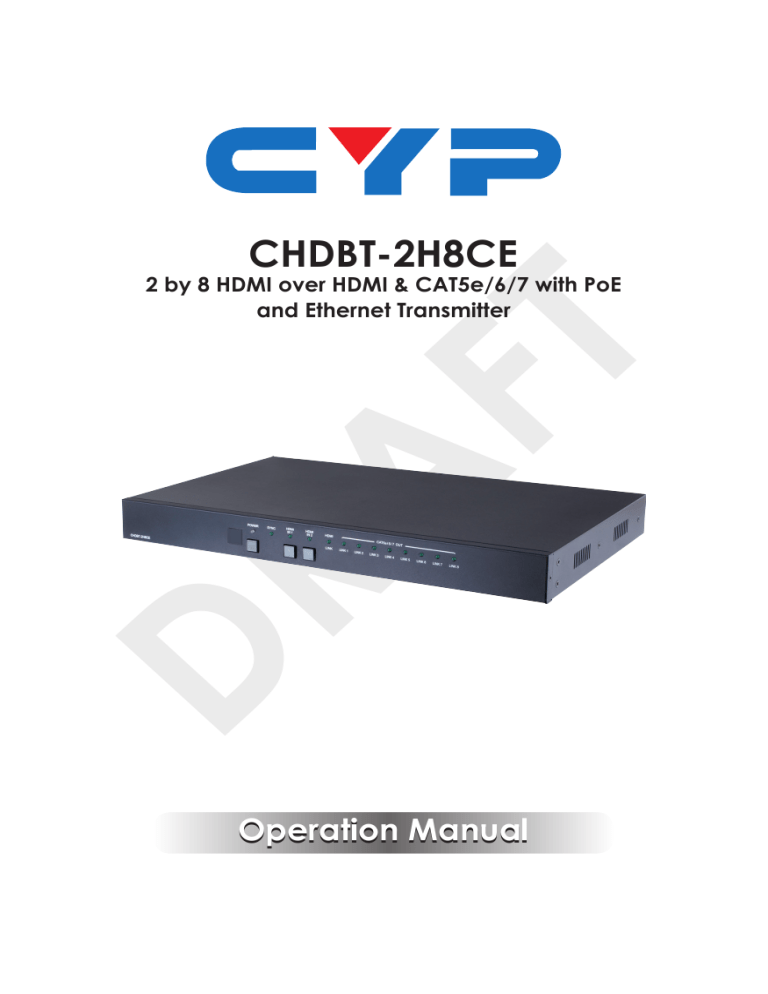

CHDBT-2H8CE

2 by 8 HDMI over HDMI & CAT5e/6/7 with PoE and Ethernet Transmitter

DRAFT

DRAFT

DISCLAIMERS

The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.

Cypress Technology reserves the right to make improvements to this document and/or product at any time and without notice.

COPYRIGHT NOTICE

No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated into any language or computer file, in any form or by any means— electronic, mechanical, magnetic, optical, chemical, manual, or otherwise—without express written permission and consent from

Cypress Technology.

© Copyright 2014 by Cypress Technology. All Rights Reserved.

Version 1.0 February 2014

DRAFT

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this equipment:

• Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.

• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO.

RDV1

DRAFT

CONTENTS

1. Introduction ............................................ 1

2. Applications ........................................... 1

3. Package Contents ................................ 1

4. System Requirements ............................ 1

5. Features .................................................. 2

6. Operation Controls and Functions ....... 3

6.1 Front Panel ........................................3

6.2 Rear Panel .........................................4

6.3 IR Cable Pin Assignment ..................5

6.4 Remote Control ................................6

6.5 RS-232 Pin Definition .........................6

6.6 RS-232 Commands ...........................7

7. Connection Diagram ............................ 8

8. Specifications ........................................ 9

8.1 CAT5e/6/7 Cable Specification ...10

9. Acronyms ............................................. 10

DRAFT

1

1. INTRODUCTION

The HDMI over HDMI and CAT5e/6/7 Transmitter can support resolutions up to 1080p Full HD, 4Kx2K timing, 3D and multi-channel digital audio formats to one HDTV and eight CAT5e/6/7 outputs.

The HDMI can be connected to HDMI display for instant nearby display and the CAT5e/6/7 can be connected to CAT5e/6/7 to HDMI

Receivers for distance up to 100 meters. Further, a total of 100Mbps

Ethernet transmission rate allows all connected device to share the

Ethernet service and the PoE function free the power shortage issue from the Receiver end.

2. APPLICATIONS

• Household entertainment sharing and control

• Lecture room display and control

• Showroom display and control

• Meeting room presentation and control

• Classroom display and control

3. PACKAGE CONTENTS

• HDMI over HDMI & CAT5e/6/7 with PoE and Ethernet Transmitter

• IR Receiver x 1

• IR Blaster x 1

• Remote Control x 1

• Power Cord

• Operation Manual

DRAFT

4. SYSTEM REQUIREMENTS

• Source equipment with HDMI output connector

• Display TV/Monitor with HDMI input connector

• HDMI over CAT5e/6/7 Receivers with industry CAT5e/6/7 cables

5. FEATURES

• HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant

• The HDMI and CAT5e/6/7 outputs are playing the same source simultaneously

• Supports one HDMI and eight CAT5e/6/7 outputs

• Supports data rate from 250Mbps up to 3Gbps

• Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4Kx2K ([email protected]/25/30Hz and

[email protected])

• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD

Master Audio transmission (32-192kHz sample rate)

• Supports distances up to 100 meters through CAT5e/6/7 cables

• Supports Ethernet transmission rate up to 100Mbps

• Can select Standard or TV EDID

• Supports USB service port

• The 3D signal display follow by display TV’s EDID

• Supports PoE with capable Receiver units

• Supports Bi-directional IR control

Note:

1. This system was tested with CAT6/23AWG cables, results may vary with cables of a different specification.

2. The PoE function is designed for powering compatible Receiver units

DRAFT

2

3

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

POWER SYNC

HDMI

IN 1

HDMI

IN 2

HDMI

CAT5e/ 6 / 7 OUT

LINK LINK 1 LINK 2 LINK 3 LINK 4 LINK 5 LINK 6 LINK 7 LINK 8

CHDBT-2H8CE

1 2 3 4 5

1

IR Window: Receive IR signal from the package included remote control only.

2

POWER Button & LED: Press this button to switch ON or set the device to standby mode and the LED will illuminate in Green and

Red.

3

SYNC: This LED will illuminate when the HDMI input port connected to the source.

4

HDMI IN 1/2: Press the button to selection HDMI input source 1 or 2.

The LED will illuminate according to the selection.

5

HDMI & CAT OUT LINK 1~8: These link LEDs will illuminate when

HDMI or CAT5e/6/7 output(s) has been connected to the Display/

Receiver(s) and the Receiver(s) has connected with display that shows image on screen.

DRAFT

6.2 Rear Panel

2 11

8 7 6 5

CAT5e/ 6 / 7 OUT

4 3 2 1

IR OUT

LAN

L/R OUT

OPTICAL

OUT

HDMI

OUT

IR IN

HDMI

IN 2

HDMI

IN 1

RS-232

EDID SERVICE

STD TV

1 3 4 5 6 7 8 9 10 12

1

CAT5e/6/7 OUT 1~8: Connect these ports to CAT5e/6/7 to HDMI

Receivers (with or without PoE function) with CAT5e/6/7 cable to extend the signal up to 100m.

2

IR OUT: Connect with IR Blaster to blast out the IR signal received from the Receiver side. Place the IR Blaster in direct line-of-sight of the equipment to be controlled.

3

IR IN: Connect with IR Extender to receive IR signal from Transmitter side and blast out at Receiver side. Ensure that remote controller being used is within the direct line-of-sight of the IR Extender.

4

LAN: Connect to intranet or internet service system for a total sharing rate of 100Mbps within the link of Transmitter.

Warning: DO NOT connect this slot with any of the CAT5e/6/7 port, doing so may trigger a power shot down and ruin the device.

5

L/R OUT: Connect to active speaker or audio equipment for audio signal output.

6

OPTICAL OUT: Connect to active speaker or audio equipment for audio signal output.

7

HDMI OUT: Connect to HDMI display for instant image display or cascade with another family type Transmitter.

8

HDMI IN1/2: Connect with source equipment such as DVD/Blu-ray or PS3 player.

9

EDID STD/TV: The default factory setting is on TV, leave as it is when the display is properly. The unit will detect first the HDMI output’s

EDID and send out the signal accordingly to other output ports. If the HDMI output port is not connected the device will detect the

1st CAT5e/6/7 output's EDID and send out the signal accordingly to all outputs.

This device obtain the last memory function therefore, the device

4

5

will use the last HMDI output port/the 1st CAT5e/6/7's output EDID after power cycling or switch in between the EDID setting.

Switch to STD to use build-in EDID if the display has problem. STD

EDID's video at [email protected] and audio at LPCM 2CH.

10

SERVICE: This slot is reserved for factory service only.

11

RS-232: Connect this slot from PC/Laptop for RS-232 command sending.

12

DC 24V: Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet.

6.3 IR Cable Pin Assignment

IR Blaster

1

2

3

Power 3.3V

IR Blaster Signal

NC

IR Extender

DRAFT

6.4 Remote Control

1

Power: Press the button to turn

On/Off the unit.

2

Input Selection 1/2: Press 1/2 to select HDMI input sources 1 or 2.

POWER

1

2

CR-37

6.5 RS-232 Pin Definition

Pin

7

8

5

6

9

3

4

1

2

Define TX / RX

N/C

TxD/RxD

NC

NC

NC

Baud Rate: 115200bps

Data bit: 8 bits

Parity: None

Flow Control: None

Stop Bit: 1

6

7

6.6 RS-232 Commands

COMMAND

POWER 00

POWER 01

PORT 01

PORT 02

DESCRIPTION

Power Off (Standby)

Power On

Select Input 1

Select Input 2

Note:

1. All the RS-232 command will be not executed unless followed with carriage return and LF (Line Feed).

2. Commands are case-insensitive.

DRAFT

7. CONNECTION DIAGRAM

1.5m

60°

Blu-ray or PS3 Player

HDMI

8 7 6 5

CAT5e/ 6 / 7 OUT

4 3 2 1

IR OUT

LAN

L/R OUT

OPTICAL

OUT

HDMI

OUT

IR IN

HDMI

IN 2

HDMI

IN 1

RS-232

EDID SERVICE

STD TV

HDMI

Router (with Internet

Connection)

P e

IR2 e

IR1 E e e

L

CAT5e/6 I

3D TV/Display

3D TV/Display

8

9

8. SPECIFICATIONS

Video Bandwidth

Input ports

Output ports

Resolution

340Mbps/10.2Gbps

2 x HDMI,

1 x IR IN, 1 x LAN,

1 x USB (Service only)

1 x RS-232

1 x HDMI,

8 x CAT5e/6/7,

1 x IR OUT,

1 x L/R OUT,

1 x Optical OUT

Up to 4Kx2K ([email protected]/25/30Hz/40

[email protected])

HDMI Input Cable Distance N/A

CAT5e/6/7 Output

Cable Distance

Up to 100m

IR Frequency

30~50kHz

ESD Protection

Power Supply

Dimensions (mm)

Weight(g)

Chassis Material

Silkscreen Color

Human body model:

±8kV (air-gap discharge)

±4kV (contact discharge)

DRAFT

3114

Metal

Black

Operating Temperature

Storage Temperature

0˚C ~ 40˚C / 32 ˚F ~ 104 ˚F

-20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F

Relative Humidity

Power Consumption

20 ~ 90% RH (non-condensing)

105W

8.1 CAT5e/6/7 Cable Specification

Cable

Type

Range Pixel clock rate

Video Data

Rate

CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps

(HD Video)

70 m >225 MHz > 5.3 Gbps

(Ultra HD

Video)

CAT6A/7 100 m >225 MHz > 5.3 Gbps

(Ultra HD

Video)

Supported Video

Up to 1080p, 60 Hz, 36 bits, 3D (data rates lower than 5.3 Gbps or below 225 MHz

TMDS clock).

4K2K, 30Hz video formats

4K2K, 30Hz video formats

HDMI

HDTV

9. ACRONYMS

ACRONYM

4Kx2K

DTS

EDID

HDCP

COMPLETE TERM

DRAFT

High-Definition Multimedia Interface

High-Definition Television

10

DRAFT

CYPRESS TECHNOLOGY CO., LTD

Home page: http://www.cypress.com.tw

MPM-CHDBT2H8CE
