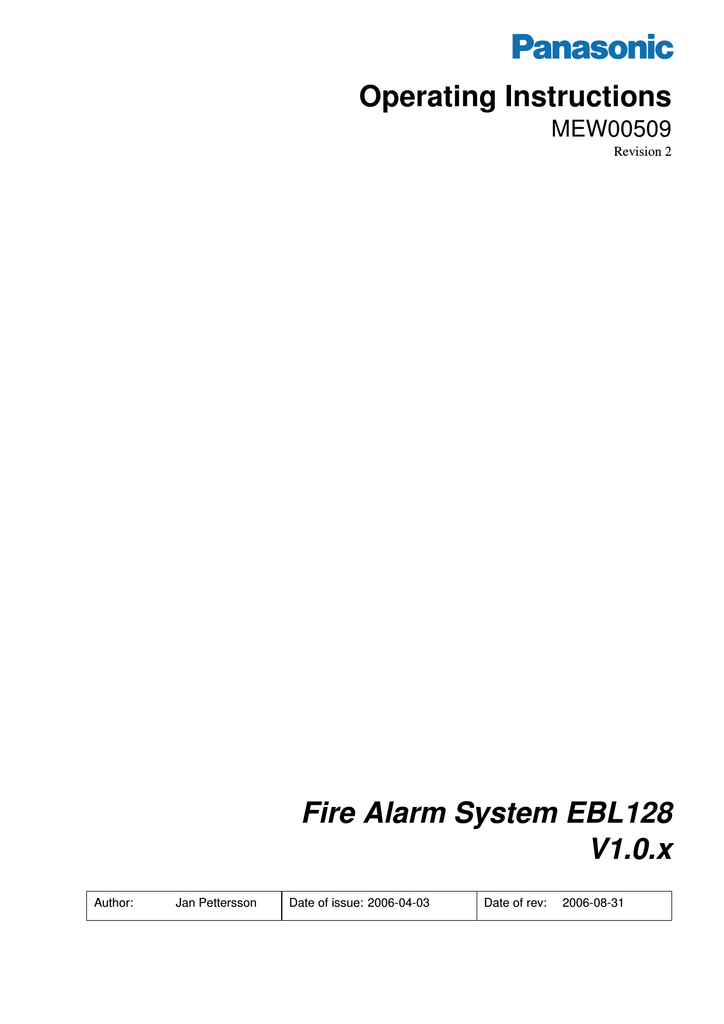

Operating Instructions Fire Alarm System EBL128

Operating Instructions
MEW00509
Revision 2
Fire Alarm System EBL128
V1.0.x
Author:
Jan Pettersson
Date of issue: 2006-04-03
Date of rev:
2006-08-31
This page has deliberately been left blank.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
Table of contents
1
2
Introduction________________________________ 5
Definitions / Explanations ____________________ 7
2.1
2.2
PEWF&STE AB ___________________________________ 7
Alarm point _______________________________________ 7
2.2.1
Smoke detector _______________________________ 7
2.2.2
Sensor ______________________________________ 7
2.2.3
Analog detector _______________________________ 7
2.2.4
(Analog) Sensor Base (ASB) ____________________ 7
2.2.5
Conventional detector __________________________ 7
2.2.6
Conventional Detector Base (CDB) _______________ 7
2.2.7
Addressable __________________________________ 7
2.2.8
Old detector __________________________________ 8
2.2.9
Conventional zone line _________________________ 8
2.2.10
Addressable zone interface ______________________ 8
2.3
Output unit _______________________________________ 8
2.4
Output / Control output ______________________________ 8
2.5
Short circuit isolator ________________________________ 8
2.6
Display unit _______________________________________ 8
2.7
COM loop ________________________________________ 8
2.8
Control Unit (C.U.) / C.I.E.___________________________ 8
2.9
Fire Brigade Panel (FBP) ____________________________ 8
2.10 Control panel (CP) _________________________________ 9
2.11 LED_____________________________________________ 9
2.12 External Indicator (LED) ____________________________ 9
2.13 Display / LCD _____________________________________ 9
2.14 Door open / Key switch______________________________ 9
2.15 SSD / Site Specific Data _____________________________ 9
2.16 S/W / Software / System program______________________ 9
3
Overview _________________________________ 10
3.1
3.2
3.3
3.4
3.5
The EBL128 c.i.e. _________________________________ 10
S/W versions _____________________________________ 10
Documents ______________________________________ 10
Applications _____________________________________ 10
PC S/W _________________________________________ 10
4
5
6
Control & Indicating Equipment _____________ 11
LED indicators and push buttons _____________ 13
Normal operation __________________________ 17
6.1
The display in EBL128 _____________________________ 17
7
Access levels_______________________________ 18
7.1
7.2
Access level 1 ____________________________________ 18
Access level 2A___________________________________ 18
1
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
7.3
7.4
7.5
7.6
Access level 2B ___________________________________ 19
Access level 3A___________________________________ 20
Access level 3B ___________________________________ 20
Access level 4 ____________________________________ 21
8
"Silence Alarm devices"_____________________ 22
8.1
Disable / Re-enable alarm devices ____________________ 22
9
"Silence buzzer" ___________________________ 23
10
Disable / Re-enable all control, extinguishing and
ventilation outputs_______________________________ 24
11
Evacuate, LED Test, Alert Annunciation
Acknowledge and Disable_________________________ 25
11.1
11.2
11.3
11.4
Evacuate ________________________________________ 25
LED Test ________________________________________ 25
Alert Annunciation Acknowledge_____________________ 25
Disable _________________________________________ 25
12
Door open ________________________________ 26
12.1
12.2
12.3
LED "Door open" _________________________________ 26
Outputs for routing equipment (Fire brigade tx and Fault tx) 26
Silence buzzer ____________________________________ 26
13
Technical address / Presentation number ______ 27
13.1
13.2
Technical address for COM loop units _________________ 27
Presentation number _______________________________ 27
14
Alarm types _______________________________ 28
14.1 Pre-warning______________________________________ 28
14.2 Fire alarm _______________________________________ 29
14.2.1
Fire alarm menu (X1-X9) ______________________ 31
14.2.2
Alert Annunciation alarm (AA alarm) ____________ 34
14.2.3
Co-incidence alarm (two-unit / -zone dependence)___ 35
14.3 Heavy smoke alarm / Heavy heat alarm ________________ 35
14.4 Key cabinet alarm _________________________________ 37
14.4.1
Key cabinet opened before a fire alarm____________ 37
14.4.2
Key cabinet opened in conjunction with a fire alarm _ 37
14.4.3
Key cabinet alarm, Danish (DBI) convention _______ 37
15
Alarm reset _______________________________ 38
15.1 Pre-warning reset _________________________________ 38
15.2 Fire alarm reset ___________________________________ 38
15.2.1
Multiple reset________________________________ 38
15.2.2
Single encapsulated reset_______________________ 38
15.2.3
Alert Annunciation ___________________________ 39
15.2.4
Co-incidence alarm ___________________________ 39
15.3 Heavy smoke / heat alarm reset ______________________ 40
15.4 Key cabinet alarm reset_____________________________ 40
16
Fault _____________________________________ 41
2
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
16.1
16.2
Fault messages ___________________________________ 42
Fault acknowledge ________________________________ 52
17
18
Commissioning an EBL128 __________________ 53
SSD programming & download ______________ 54
18.1
18.2
18.3
18.4
SSD programming_________________________________ 54
Auto generating SSD_______________________________ 54
SSD download____________________________________ 54
Download of Alarm texts ___________________________ 55
19
Software (S/W) download ___________________ 56
19.1
19.2
19.3
Download of S/W in EBL128 (c.i.e.) __________________ 56
Earlier S/W version download _______________________ 57
S/W download in Display Units ______________________ 57
20
Restart ___________________________________ 58
20.1
Boot menu _______________________________________ 60
21
22
23
Access ____________________________________ 62
Perform monthly test (H1)___________________ 63
Disable or re-enable (H2) ____________________ 65
23.1 Disable zone (H2/B1) ______________________________ 65
23.2 Disable zone / address (H2/B2)_______________________ 67
23.3 Disable output (H2/B3) _____________________________ 68
23.4 Disable all control, extinguishing, ventilation and alarm device
outputs (H2/B4)_________________________________________ 69
23.5 Re-enable zone (H2/B5) ____________________________ 70
23.6 Re-enable zone / address (H2/B6)_____________________ 71
23.7 Re-enable output (H2/B7) ___________________________ 72
23.8 Re-enable all control, extinguishing, ventilation or alarm
device outputs (H2/B8) ___________________________________ 74
23.9 Disable or re-enable outputs for routing equipment (H2/B9) 75
23.10
De-activate alert annunciation function (H2/B10)______ 76
24
25
Set calendar and clock (H3)__________________ 77
Present system status on display (H4)__________ 78
25.1 Disablement (H4/U1) ______________________________ 78
25.2 Disablement by time channel (H4/U2) _________________ 79
25.3 Sensor values (H4/U3) _____________________________ 80
25.3.1
Reset of a week average sensor value _____________ 82
25.4 Sensors activating SERVICE signal (H4/U4)____________ 83
25.5 Event log (H4/U5)_________________________________ 84
25.6 Show configuration (H4/U6)_________________________ 85
26
Service (H5) _______________________________ 86
26.1 Access code for service and maintenance _______________ 87
Disconnect / Re-connect COM loop (H5/A1)__________________ 88
26.2 Disconnect / Re-connect zone line (H5/A2) _____________ 89
26.3 Calibration of supervised outputs (H5/A3) ______________ 90
3
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
26.4
26.5
26.6
26.7
26.8
26.9
Sensitive fault detection mode (H5/A4) ________________ 91
Service mode for COM-loop (H5/A5) _________________ 92
Show information about Site Specific Data (H5/A6) ______ 94
Display current consumption on COM loop (H5/A7)______ 95
Display statistics for COM loop (H5/A8) _______________ 96
Activate address setting mode for DU (H5/A9) __________ 97
27
28
29
Acknowledge FAULTS (H6) _________________ 98
Perform ZONE TEST (test mode) (H7) ________ 99
Maintenance (H8) _________________________ 101
29.1
29.2
29.3
29.4
29.5
29.6
29.7
29.8
Access code for service and maintenance ______________ 101
Acknowledge SERVICE signal (H8/S1)_______________ 102
Clear weekly average (H8/S2) ______________________ 103
Test alarm devices (H8/S3)_________________________ 104
Safe shut down of control unit (H8/S4) _______________ 105
Activate address in alarm mode (H8/S5) ______________ 106
Change access code for service and maintenance (H8/S6) _ 108
Change access code for PC-communication (H8/S7) _____ 109
30
Interlocking outputs and inputs (H9) _________ 110
30.1
30.2
30.3
30.4
30.5
Activated interlocking outputs/inputs (H9/C1) __________ 110
Activate interlocking output (H9/C2) _________________ 111
Reset interlocking output (H9/C3) ___________________ 112
Disable interlocking output (H9/C4)__________________ 113
Re-enable interlocking output (H9/C5)________________ 114
31
32
33
34
35
Change access code for daily duties (H10) _____ 115
Annual control ___________________________ 116
Battery maintenance_______________________ 117
How to avoid unnecessary (nuisance) fire alarms 118
Revision history___________________________ 120
4
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
1
Introduction
EBL128 Operating Instructions is a document1 with information of
special interest for the end user and the fire brigade personnel, as
well as service / commissioning engineers, who should read this
document in conjunction with the EBL128 Planning Instructions,
since most of the information in one of the documents is not found in
the other document and vice versa.
A Product Leaflet and the EBL128 drawings2, according to the valid
Table of drawings, are also available.
Due to continual development and improvement, different S/W
versions are to be found. This document is valid for S/W version
1.0.x. On the date of the document is x=3.
EBL128 is produced for many countries, accordingly the look, the
texts, the functions, etc. might vary.
Products
Consists of one or more parts (H/W) according to a Product Parts
List. A product has:
•
a type number (e.g. 4550)
•
an article number, often = the type no. but sometimes is a
country code added (e.g. 4550SE)
•
a product name (e.g. EBL128 Control & Indicating
Equipment, 128 addresses)
H/W
A H/W (e.g. a printed circuit board) has:
• a type number (e.g. 1556)
• an article number, often = the type no. but sometimes is a
country code added (e.g. 1556SE)
• a product name (e.g. Main Board 128 addr.)
• a p.c.b. number (e.g. 9261-3A) and can also have a configuration
(e.g. CFG: 1) and a revision (e.g. REV: 2)
• sometimes a S/W
S/W
A S/W has:
• a version number (e.g. V1.0 or V1.0.x)
• sometimes additional information, such as Convention (different
functions / facilities), Language, etc.
1
2
File name: K:\PRO\FIRE\128\Doc\V1.0.x\MEW00509.doc
Dimensions & overviews, connection diagrams, etc.
5
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
PC S/W
A PC S/W is a program used for programming, commissioning, etc. It
has a version number.
6
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
2
Definitions / Explanations
Definitions / explanations / abbreviations / etc. frequently used or not
explained elsewhere in the document.
2.1
PEWF&STE AB
Panasonic Electric Works Fire & Security Technology Europe AB
2.2
Alarm point
Unit, which can generate a fire alarm in EBL128, i.e. a sensor, a
conventional detector, a manual call point, etc.
2.2.1
Smoke detector
Two types of analog and conventional smoke detectors are available:
photo electric (optical) and ionization.
2.2.2
Sensor
Sensor = Analog detector
2.2.3
Analog detector
Contains an A/D-converter. EBL128 pick up the digital values
("sensor values") for each detector individually. All evaluations and
"decisions" are then made in EBL128. Analog detectors are
addressable – an address setting tool is used. An analog detector has
to be plugged in an ASB.
2.2.4
(Analog) Sensor Base (ASB)
A sensor is plugged in an ASB, which is connected to a COM loop
(see below).
2.2.5
Conventional detector
Detector with two states, normal or fire alarm. The detector contains a
closing contact and a series alarm resistor. Some types are plugged in
a CDB (see below) but some types are water proof and are not
plugged in any base.
(Conventional detectors are normally plugged in a CDB (see below)
and connected to a conventional zone line with end-of-line device.)
2.2.6
Conventional Detector Base (CDB)
A conventional detector is plugged in a CDB and connected to a
conventional zone line input.
2.2.7
Addressable
A unit with a built-in address device (e.g. a manual call point). Each
unit is individually identified, handled and indicated in EBL128
(The unit can consequently be an I/O unit, to which one or more
conventional "alarm points" can be connected on the zone line.).
7
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
2.2.8
Old detector
Conventional detector with a closing contact (short circuit; no alarm
resistor), or detector with two breaking contacts.
2.2.9
Conventional zone line
Zone line input on an I/O unit, intended for one or more conventional
alarm points. End-of-line dive in the last alarm point.
2.2.10
Addressable zone interface
Unit with a zone line input, intended for one or more conventional
alarm points. End-of-line device in the last alarm point.
2.3
Output unit
Addressable unit with programmable control outputs (e.g. an I/O unit).
To be connected to a COM loop (see below).
2.4
Output / Control output
Defined or programmable function. Relay or (supervised / monitored)
voltage output, in EBL128 or an output unit.
2.5
Short circuit isolator
Addressable unit for automatic disconnection of a part of a COM loop
(see below) in case of a short circuit on the loop.
2.6
Display unit
Unit for fire alarm presentation (incl. alarm texts, if programmed).
Connected to an RS485 line.
2.7
COM loop
Loop = a cable with two wires, to which all the addressable MFSTech
units can be connected. It starts in EBL128 and it returns back to
EBL128
2.8
Control Unit (C.U.) / C.I.E.
Control Unit = C.U. = Control and Indicating Equipment = A unit,
e.g. EBL128, to which the alarm points are connected. Indicates fire
alarm, fault condition, etc. on the front, i.e. the Fire Brigade & Control
Panel (see below).
2.9
Fire Brigade Panel (FBP)
The Fire Brigade Panel is a part of the EBL128 front, intended for fire
alarm presentation, etc. for the fire brigade personnel. A separate unit;
an external FBP, can also be connected to EBL128
In the ext. FBP a printer can be included.
8
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
2.10
Control panel (CP)
The Control Panel is a part of the EBL128 front, intended for the
building occupier, service personnel, etc. to "communicate" with
EBL128
2.11
LED
LED (Light Emitting Diode) = Yellow, green or red optical indicator
("lamp").
2.12
External Indicator (LED)
A unit with an LED. Connected to an ASB, CDB or a detector with a
built-in LED, for external indication. Lit when the built-in LED is lit.
2.13
Display / LCD
LCD (Liquid Crystal Display) = Display for presentation of fire
alarms, fault messages, etc. Normally alphanumeric characters and
backlight.
2.14
Door open / Key switch
A door / key switch, which has to be activated in order to get access to
the push buttons on the front. Indicated by the LED "Door open".
2.15
SSD / Site Specific Data
This data is unique for each installation. All alarm points,
presentation numbers, alarm texts, programmable outputs, etc. are
programmed (configured) in the PC program Win128 and has to be
downloaded in EBL128.
2.16
S/W / Software / System program
The S/W makes the microprocessor in EBL128 work. It is factory
downloaded but a new version can be downloaded on site.
9
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
3
Overview
3.1
The EBL128 c.i.e.
EBL128 is a microprocessor controlled intelligent fire alarm c.i.e.
intended for analog addressable smoke and heat detectors. Also
conventional detectors and manual call points can be used.
Programmable inputs, control outputs and I/O units are available. Up
to 128 addresses can be connected to EBL128.
EBL128 is fully compliant with the European standard EN54 parts 2
and 4 and the front is fully SS3654 compliant.
3.2
S/W versions
Due to continual development and improvement, different S/W
versions can be found. You can update the S/W in EBL128 on site.
3.3
Documents
The following documents are available:
• Planning instructions
• Drawings
• Operating instructions
Normally information that is found in one document is not to be found
in another document, i.e. the documents complement each other. Also
a Product Leaflet is available: http://www.mfstech.com/news.html
3.4
Applications
EBL128 is intended for small and medium installations. The
intelligent c.i.e. offer the system designer and end user a technically
sophisticated range of facilities and functions. Programming and
commissioning is very easy via the PC S/W Win128.
3.5
PC S/W
Win128 is used for programming and commissioning, i.e. to:
•
create / download / upload (backup) the site specific data (SSD)
•
download new S/W version / settings / conventions /
configurations / EBL128 data / etc.
•
create / download the alarm texts shown in the display in EBL128
/ ext. FBP and/or AA units.
Win128 shall have the same version number as the EBL128 S/W
version number, e.g. 1.0.x. Only x may be different. Old SSD files
can be used with a newer EBL128 S/W version. Open and save the
old SSD file in the new Win128 version before the download. If a
backup is required, use the same Win128 version as the EBL128
version.
10
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
4
Control & Indicating Equipment
Figure 1. The EBL128 Control & Indicating Equipment (4550).
Depending on country, convention, configuration, etc. the look,
language and functions might vary. Figure 1 shows an EBL128 with a
Swedish front. EBL128 is housed in a grey metal cabinet. The door
has a Plexiglas ahead of the front, see Figure 1. A key is required to
open the door to get full access to the push buttons on the front, i.e.
the Fire Brigade Panel (FBP) and the Control Panel (CP).
FBP
CP
Figure 2. The EBL128 front. The look might vary depending on
the country (language) configuration, etc. (shown here is a front
with English texts). See also chapter "LED indicators and push
buttons", page 13.
11
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
The fire brigade personnel can use the FBP to see which alarm point /
zone having activated the fire alarm(s). In the display (LCD, 2x40
alphanumeric characters), the information displayed on the first row is
depending on how many alarm points / zones having activated fire
alarm (and also convention). On the second row is, for the activated
alarm point / zone, an alarm text shown, if programmed. See chapter
"Fire alarm", page 29.
Required fire brigade personnel manoeuvres are performed via the
FBP in EBL128 or via external FBPs 1826 / 1828.
The CP is used to "communicate" with EBL128, e.g. for
commissioning, monthly tests and maintenance. Access codes for
different access levels are required. A keypad is used to get access to
the menu tree, i.e. the main and sub menus for the different
manoeuvres, etc. The CP holds several system status LEDs.
12
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
5
LED indicators and push buttons
LEDs and push buttons can vary according to configuration /
convention / country / language.
See also Figure 2, page 11.
LED indicators on the Fire Brigade Panel (FBP)
LED indicator
Indicating
L1
Fire (5 red)
Fire alarm (also pre-warning, heavy smoke/heat alarm, key
cabinet alarm & co-incidence alarm3)
L2
Alarms queued (2 red)
More than one unit / zone have generated fire alarm.
L3
Extinguishing (red)
Output(s) for extinguishing equipment activated.
L4
Ventilation (yellow)
Output(s) for fire/smoke ventilation equipment activated.
L5
Fire brigade tx (red)
Output for fire brigade tx (routing equipment) and/or
corresponding programmable output(s) (i.e. type 4 = routing
equipment) activated. 4
Test of routing equipment in progress (see menu H1).
L6
Operation (green)
Power on, i.e. the power supply (rectifier and/or battery are
connected and working properly.
(FBP push buttons on next page)
3
Co-incidence alarm = two-unit-dependent alarm.
L5 can be programmed to indicate when its normal trigger condition is met
or when a programmable input is activated (e.g. L5 can be turned on when an
input is activated by a Fire brigade tx output.
4
13
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
Push buttons on the Fire Brigade Panel (FBP)
Push button
Operation/function
P1
Alarms queued (black)
Used, when LEDs "Alarms queued" (L2) are lit, to
scroll/browse through the queued alarms (zones).
P2
Silence buzzer
(yellow)
Used to silence the buzzer in EBL128
P3
Silence Alarm devices
(red)
Used to silence the sounders (i.e. to "reset" outputs for alarm
devices).
P4
Reset (green)
Used to reset the fire alarm(s).5 Has to be pressed for > 0.5
sec.
P5
Evacuate (green) 6
Used to activate the sounders (i.e. the outputs for alarm
devices).
Led test (green) 7
Used to activate all LEDs on the front for a short while
Alert Annunciation
Acknowledge (green) 8
Used to acknowledge alert annunciation signal
Disable (yellow) 9
Used to disables all zones in alarm state
(CP LED indicators on next page)
5
Multiple reset (Default): All fire alarms will be reset simultaneously.
Single encapsulated reset: The fire alarm displayed in the LCD (first row to
the left) will be reset. When more than one fire alarm is activated (LEDs
"Alarms queued" are lit) each fire alarm has to be individually reset. The
encapsulation function is described in chapter "Single encapsulated reset",
page 38.
NOTE (1)! When "Multiple reset" is used, encapsulated reset can be done
by pressing "Reset" (P4) and 0.1 sec. later also press "Alarms queued" (P1)
and hold them pressed for > 0.5 sec. The fire alarm displayed in the LCD
(first row to the left) will be encapsulated or the points in alarm status within
one zone will be encapsulated or the whole zone (conventional) will be
encapsulated.
NOTE (2)! When "Single encapsulated reset" is used, you can make a
"Multiple reset" by pressing "Reset" (P4) and 0.1 sec. later also press "A" (in
the keypad) and hold them pressed for > 0.5 sec.
6
"Evacuate" is only valid in the "Belgian" and "Ukrainian" conventions.
7
"LED test" is only valid in the "Czech" convention.
8
"Alert Annunciation Acknowledge" is only valid in the "Polish"
convention.
9
"Disable" is only valid in the "Australian" convention.
14
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
LED indicators on the Control Panel (CP)
LED indicator
Indicating
L7
General fault (yellow)
Fault(s), i.e. not acknowledged fault(s) and/or
acknowledged but not corrected fault(s).
L8
Disablements (yellow)
Something is disabled / disconnected via a menu or
automatically via "Single encapsulated reset" 5.
L9
Test mode (yellow)
One or more zones are in "test mode".
L10
Door open (yellow)
A door is open (in EBL128 or an ext. FBP).10
L11
Fault tx activated (yellow)
One or more not acknowledged faults.
Output for fault tx (routing equipment) is also
activated, if not disabled before.
Test of routing equipment in progress (see menu H1).
L12
Service (yellow)
One or more sensors have reached the service level.
See menu H4/U6.
L13
Fault / Disablements
Alarm devices (yellow)
One or more outputs (type 3 = alarm device) are
disabled.
Blinking: One or more supervised outputs (type 3 =
alarm device) have generated fault(s).11
L14
System fault (yellow)
EBL128 is not running (because of S/W / CPU /
memory fault).12
L15
Fault / Disablements
Fire brigade tx (yellow)
Output for fire brigade tx (routing equipment) is
disabled via menu (H2/B3) or via an open door.10
Blinking: Routing equipment power supply output13
or one or more supervised outputs (type 4 = routing
equipment) have generated fault(s).14
L16
Fire brigade tx delay
(yellow)
The alert annunciation function is enabled, i.e. the time
channel controlling this function is "on".15
10
See also chapter "Door open", page 26.
This is also valid when EBL128 has no "contact" with a unit with such an
output, e.g. a 3377, 3378, 3361, etc.
12
The LED is turned on during restart and stays on for restart code other
than 00 and 03 until the fault is acknowledged.
13
Main board terminal block "J1:11-12".
14
This is also valid when EBL128 has no "contact" with a unit with such an
output, e.g. an I/O unit 3361, etc.
15
The Alert Annunciation function is described in the EBL128 Planning
Instructions, chapter "Alert annunciation". The LED "L16" will be "on" if
the AA function is enabled for at least one alarm point / zone. Normally is
only one time channel used for this function but two or more channels can be
used. The AA function can, as an alternative, be continuously "on".
11
15
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
Push buttons / Keypad on the Control Panel (CP)
Key/push button
Operation/function
P6
Fault acknowledge
(yellow)
Used to acknowledge the faults shown in menu H6. Also used
to acknowledge SERVICE signal, see menu H8/S1.
P7
Paper feed (white)
Not used in EBL128.
P8
Access (white)
Used to log on, i.e. to get access to the menu tree (via an access
code) to carry out disablements, etc. In conjunction with fire
alarm, some information is available and some actions are
possible to perform via the "Fire alarm menu" (X1-X9) without
log on, see chapter "Fire alarm", page 29.
P9
Return (white)
Used to stop input of data, leave a menu ("one step up") and to
log off.
1 – 9 and 0
Numeric keys for the figures 0-9.
C
Used to clear /delete just written data.
A
Used to accept a menu and accept input of data.
← →
↑ ↓
Left / right keys are used to move the cursor in a menu.
Up / down keys are used to scroll between the menus.
16
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
6
Normal operation
When EBL128 is in normal operation, i.e. no fire alarms and normally
no faults, no disablements, no service signal, no zones in test mode, no
activated interlocking in / outputs and/or no open doors, only the LED
"Operation" (L6) is to be lit.
6.1
The display in EBL128
The display will in normal operation show the following information:
*** EBL128 ***
Date: YYYY-MM-DD
Time: hh:mm:ss
YYYY = Year, e.g. 2005
hh = hours, e.g. 21
MM = Month, 02
mm = minutes, e.g. 45
DD = Day, e.g. 28
ss = seconds, e.g. 45
The above information might be replaced with some other
information. The type of information and the priority order are as
follows:
1. Fire alarms 16
2. Co-incidence alarms
3. Pre-warnings
4. Evacuate information (only valid in some conventions)
5. Faults (not acknowledged)
6. Disablements
7. Zones in Test mode
8. Interlocking inputs / outputs active
NOTE!
The different type of alarms, faults, etc. are described in other parts of
this document.
16
Fire alarm have a "log off function", i.e. if a menu window is open when a
fire alarm is activated, an automatic menu log off will take place and the fire
alarm will be presented in the display instead.
Some information is available and some actions are possible to perform via
the "Fire alarm menu" (X1-X9), see chapter "Fire alarm", page 29.
17
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
7
Access levels
EBL128 has five access levels for different kind of users.
Access level
1
Required action
None
(Door closed).
Users
Anybody.
Action
Scroll / browse through the
queued alarms
2A
Fire brigade key. Fire brigade personnel.
Fire alarm handling
2B
Fire brigade key Building occupier.
+ access code for
level 2B (or 3A).
Installation handling (daily
duties), e.g. monthly tests,
disablements, etc.
3A
Fire brigade key Service / maintenance Service, maintenance.
+ access code for personnel.
level 3A.
3B
PC (Win128)
connected + PC
access code for
level 3B.
Service / maintenance / Service, maintenance,
commissioning
commissioning the system,
engineer.
etc. via Win128.
4
PC (Win128)
connected + PC
access code for
level 3B.
Service / maintenance / Service, maintenance,
commissioning
commissioning the system,
engineer.
etc. via Win128.
The access codes can be changed. To change a code you have to
know the valid code or use a code for a higher access level.
7.1
Access level 1
With the door closed, anybody has access to the push button "Alarms
queued" (P1) to scroll / browse through the queued alarms.
7.2
Access level 2A
When the door has been opened / the fire brigade key switch has been
activated (LED "Door open" is lit), the fire brigade personnel have
access to the push buttons / keypad to:
(P2) Silence the buzzer in EBL128
(P3) Silence the alarm devices (sounders) in the system.
(P4) Reset fire alarm(s).
(P5) Evacuate (start the sounders).17
(P7) Paper feed (not used in EBL128).
(P8) Access, in conjunction with a fire alarm: The fire brigade
17
Only valid in the "Belgian" convention. See chapter "LED indicators and
push buttons", page 13, for explanation of use in other conventions.
18
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
personnel can use "P8" (without any access code) to get access to
the menu X1-X9), i.e. to scroll through all the fire alarms (see all
point alarms), etc.
7.3
Access level 2B
When the door has been opened / the fire brigade key switch has been
activated (LED "Door open" is lit), the building occupier has access
like in access level 2A and after access code for level 2B (or 3A) the
following menus:
H1 Perform monthly test.
H2 Disable or re-enable.
B1 Disable zone
B2 Disable zone / address
B3 Disable output
B4 Disable all control, ventilation, exting or alarm devices outputs
B5 Re-enable zone
B6 Re-enable zone / address
B7 Re-enable output
B8 Re-enable all control, ventil, exting or alarm devices outputs
B9 Disable / Re-enable outputs for routing equipment
B10 De-activate alert annunciation function
H3 Set calendar and clock.
H4 Present system status on display.
U1 Disablement
U2 Disablement by time channel.
U3 Show values.
U4 Sensors activating SERVICE signal
U5 Show event log
U6 Show configuration
H6 Acknowledge FAULTS.
H7 Perform ZONE TEST (Test mode).
H9 Interlocking outputs and inputs
C1 Activated interlocking outputs/inputs
C2 Activate interlocking output
C3 Reset interlocking output
19
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
C4 Disable interlocking output
C5 Re-enable interlocking output
H10 Change access code for daily duties (access level 2B).
7.4
Access level 3A
When the door has been opened / the fire brigade key switch has been
activated (LED "Door open" is lit), the service / maintenance
personnel have access like in access level 2A and 2B and after access
code for level 3A18 the following menus:
H5 Service
A1 Disconnect / Re-connect COM loop
A2 Disconnect/Re-connect zone line input
A3 Calibration of supervised outputs
A4 Sensitive fault detection mode
A5 Service mode for COM-loop
A6 Show information about site specific data
A7 Display current consumption on COM loop
A8 Display statistics for COM loop
A9 Activate address setting mode for DU
H8 Maintenance
S1 Acknowledge SERVICE signal.
S2 Clear weekly average.
S3 Test alarm devices.
S4 Safe shut down of control unit.
S5 Activate address in alarm mode.
S6 Change access code for service and maintenance (access level
3A).
S7 Change access code for PC-communication.
7.5
Access level 3B
Used by Service / maintenance / commissioning engineers when a PC
(i.e. Win128) is to be connected to EBL128 for backup / download of
site specific data.
18
If the code for access level 3A has already been used to logon to access
level 2B, a new logon to access level 3A is not required.
20
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
Connect the PC and logon to EBL128 from the PC.
7.6
Access level 4
Used by Service / maintenance / commissioning engineers when a PC
(i.e. Win128) is to be connected to EBL128 for download of new S/W
/ settings / configurations / C.U. data, on-line status checking, etc.
Connect the PC and logon to EBL128 from the PC.
21
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
8
"Silence Alarm devices"
In EBL128, on the FBP, there is a push button (P3) "Silence Alarm
devices".
If the push button "Silence Alarm devices" is pressed during a prewarning, a fire alarm or a Co-incidence alarm, the following will
happen:
• LEDs "Fire" (L1) and "Alarms queued" (L2)19 changes from
blinking (0.4 / 0.4) to steady (continuous).
• Activated outputs20, programmed for sounders (type 3 =
alarm devices), will be silenced.
In case of a new alarm, or if the push button "Silence Alarm devices"
is pressed again, the sounders will automatically sound again and the
LEDs "Fire" and "Alarms queued" starts blinking.
NOTE! This is also valid for Pre-warning and Co-incidence alarm.
8.1
Disable / Re-enable alarm devices
All outputs20 programmed for sounders (type 3 = alarm devices) can
via menu H2/B4 be collectively disabled. This is indicated by LED
"Disablements" (L8) and LED Fault / Disablements "Alarm devices"
(L13) steady (continuous).
NOTE! They will remain disabled until they are re-enabled again via
menu H2/B8.
See also chapter "Disable all control, extinguishing, ventilation and
alarm device outputs (H2/B4)", page 69.
19
20
When more than one fire alarm is activated.
Including Addressable siren 3377 and Addressable sounder base 3378.
22
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
9
"Silence buzzer"
The buzzer in EBL128 will sound for:
•
pre-warning (0.8 / 5 sec.)
•
co-incidence alarm: When only one zone / address (alarm point)
is in alarm status (0.8 / 5 sec.)
•
fire alarm (0.4 / 0.4 sec.)
•
fault (continuous)
•
disablements and faults (2 sec. directly after the door to EBL128
is closed.)
•
activated interlocking input (0.8 / 0.8 sec.), if this option is
selected via Win128.
Press "Silence buzzer" (P2) to silence the buzzer.
In case of a new alarm or if the push button "Silence buzzer" is
pressed again, the buzzer will automatically sound again.21
NOTE! This is also valid for pre-warning, co-incidence alarm, etc.
Silence buzzer by open door
In Win128 can the function "Silence Buzzer by Door Switch" be
selected. The buzzer will then be turned off as long as the EBL128
door is open. (This function is a violation to the EN54-2 standard.)
21
Not valid if the buzzer is silenced by the open door.
23
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
10
Disable / Re-enable all control,
extinguishing and ventilation
outputs
All control outputs programmed as type:
0 = control (general)
1 = fire ventilation
2 = extinguishing system
… can via menu H2/B4 be collectively disabled. This is indicated by
the LED "Disablements" (L8).
They will remain disabled until they are re-enabled again via menu
H2/B8.
See also chapter "Disable all control, extinguishing, ventilation and
alarm device outputs (H2/B4)", page 69.
24
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
11
Evacuate, LED Test, Alert
Annunciation Acknowledge and
Disable
This function is only valid in some conventions.
A front with the push button (P5) is required.
11.1
Evacuate
When the push button "Evacuate" (P5) is pressed, all outputs
programmed for sounders (type 3 = alarm devices)20 will be
collectively turned ON steady (continuous). This is indicated by the
following information in the EBL128 display:
Evacuate in progress
The sounders will remain ON until they are turned OFF by pressing
the push button "Evacuate" (P5) again.
NOTE! The alarm devices (sounders) will in this case be activated
steady (continuous) irrespective of the fact that the outputs can be set
to something else for fire alarm (e.g. intermittent).
11.2
LED Test
When the push button "LED Test" (P5) is pressed, all LEDs on the
front, the LCD back light and all LCD pixels are lit.
11.3
Alert Annunciation Acknowledge
The button "Alert Annunciation Acknowledge" (P5) has the same
function as the Acknowledge button on an AA unit 1735 / 1736.
11.4
Disable
When the push button "Disable" (P5) is pressed, all zones in fire
condition will disabled.
25
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
12
Door open
A special key is used to open the EBL128 door to get access to the
front, see chapter "Access levels", page 18. The same type of key is
also used to open the ext. FBP door / the key switch. Door open is
indicated by LED "Door open" (L10)22.
12.1
LED "Door open"
Valid for the door in EBL128 or an external FBP connected to
EBL128: Door open in EBL128 is indicated by LED "Door open" in
EBL128 and all ext. FBPs connected to EBL128. Door open in an
ext. FBP is indicated by LED "Door open" in EBL128 and all ext.
FBPs connected to EBL128.
12.2
Outputs for routing equipment (Fire
brigade tx and Fault tx)
In Win128 the following can be programmed:
Disable by door in the control unit: Door open in EBL128 will
disable the output(s) for routing equipment (Fire brigade and fault
tx).
Disabled outputs for routing equipment are indicated by the LED
"Disablements" (L8) and "Fault / Disablements Fire brigade tx"
(L15) and listed in menu H4/U1.
In the display is shown:
Fire alarm routing disabled
(by open door in CU)
12.3
Silence buzzer
In Win128 the following can be programmed:
Silence buzzer by door switch: The buzzer will be turned off
as long as the EBL128 door is open.
(This function is a violation to the EN54-2 standard.)
22
In the ext. FBP 1828: when the key is turned to the "position open /
access".
26
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
13
Technical address / Presentation
number
13.1
Technical address for COM loop units
The technical address in EBL128 is used when programming (via
Win128) all units connected to the COM loop.
The technical address is also used to identify which unit has generated
a fault.
The technical address is equal to the address that is set in each unit
connected to the COM loop.
Regarding the Address setting tool 3314: Addresses 001 – 127 can be
set (not 000).
13.2
Presentation number
For each fire alarm point / zone line input, a presentation number,
NN-NN, has to be programmed. The presentation number is shown in
the display in EBL128 and in Ext. FBP 1826 / 1828, Alert
Annunciation unit 1735 / 1736 and Ext. Presentation unit 1728, to
identify the point / zone generating a fire alarm. It is also used to
disable / re-enable fire alarm points / zones and in control conditions /
expressions to activate the programmable outputs.
Together with the presentation number, an alarm text with up to 40
alphanumeric characters can be displayed (if programmed via
Win128).
NN – NN
00 – 99
01 – 99 = The adress within the zone.
00 = Zone number only will be displayed.
E.g. for a one or more conventional detectors
connected to a MIO (3361) or an zone line
input (4580)
01 – 32
Zone number
NOTE! Only the zone numbers 01-32 can be used.
27
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
14
Alarm types
In case of a fire, analog detectors (sensors), conventional smoke
and/or heat detectors, manual call points and programmable inputs can
generate fire alarm. If somebody illegally breaks into a key cabinet,
this will also generate a "fire alarm" (a key cabinet alarm).23
The analog detectors can also generate other type of "alarms", i.e.
Pre-warning, Heavy smoke alarm / Heavy heat alarm and a twounit / -zone dependent alarm point / zone can generate a Co-incidence
alarm.24
EBL128 can handle and present up to 128 fire alarms (alarm points
and/or zones). Zone numbers 01-32 can be used and in each zone the
alarm point (address) numbers 01-99 can be used. The fire alarms
will be shown in the EBL128 display and in Ext. FBP 1826 / 1828,
Alert Annunciation unit 1735 / 1736 and Ext. Presentation unit 1728.
14.1
Pre-warning
An analog detector will generate a pre-warning for a lower alarm level
than the fire alarm level.25 Pre-warning can be used when an early
alarm and/or an early action is required (e.g. a "soft" computer shut
down). Normal alarm devices, routing equipment, etc. will not be
activated.
In case of a pre-warning, the following will happen:
• The buzzer in EBL128 sounds 0.8 sec. each 5th sec. (0.8 / 5
sec.).
• LEDs "Fire" (L1) are blinking (0.4 / 0.4 sec.).
• Outputs programmed for pre-warning are activated.26
• On the first row in the EBL128 display, the presentation
number (zone-address) is shown (for the first pre-warning).
• On the second row, an alarm text (= the fire alarm message)
will be shown (if programmed).
Example; pre-warning zone 12, address 45 (within zone 12):
Pre-warning detector 12-45
(alarm text)
Example; pre-warning zone 12:
Pre-warning zone 12
(alarm text)
23
This is done via a programmable input.
This function is normally used only for smoke detectors.
25
See EBL128 Planning Instructions. Any programmable input can also be
used to activate a pre-warning.
26
Outputs programmed for General pre-warning and outputs programmed
for the activated pre-warning(s).
24
28
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
LEDs "Alarms queued" (L2) blinking are indicating more than
one pre-warning and they will be automatically scrolled (each
5th second).
Pre-warning is automatically reset see chapter "Alarm reset", page 38.
14.2
Fire alarm
128 alarms (points or zones) can be presented in the EBL128 display.
See also chapter "The display in EBL128", page 17. According to the
EN54-2 standard, in case of a fire alarm, the following will happen:
• The buzzer in EBL128 sounds 0.4 sec. each 0.4th sec. (0.4 /
0.4 sec.).
• LEDs "Fire" (L1) are blinking (0.4 / 0.4 sec.).
• Output for routing equipment (Fire brigade tx).
• Outputs for fire alarm are activated.27
• In the EBL128 display (and ext. FBP display), the fire
alarm(s) will be presented. See below.
Fire alarm presentation in the EBL128 display:
B
123456 789012345678901234567890 1234567890
C
A
D
A: Field for the first alarm point or zone in alarm.
By scrolling each alarm will be shown in this field.
B: Field for the most recent zone in alarm.
C: Field for total number of zones in alarm.
D: Field for alarm text. (User definable.)
Comments to the different fields:
The information in the field A:
NNN ZONE-ADDR ZZ-AA
or
NNN ZONE ZZ
NNN = a serial number for the displayed alarm, i.e. 001 for the first
activated alarm (ZZ-AA), 002 for the second alarm and so on.
ZZ = zone number 01 – 32. AA = address 01 – 99
The information in the field B:
LAST ZONE zz
27
Outputs programmed for General fire alarm and outputs programmed for
the activated fire alarm(s).
29
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
zz = zone number 01 – 32 for the most recent zone in alarm.
Displayed also if only one alarm point is in alarm.
The information in the field C:
No. nn
nn = 01 – 32 = the total number of zones (not alarm points) in alarm.
The information in the field D:
A user definable alarm text (max. 40 characters) for the alarm
displayed in the field "A".
Some Fire alarm examples:
One alarm point (e.g. detector 12-45)
001 ZONE-ADDR 12-45 LAST ZONE 12
"Alarm text for 12-45"
No. 01
One zone (e.g. zone 14; a conventional zone line input)
001 ZONE 14
LAST ZONE 14
"Alarm text for zone 14"
No. 01
More than one alarm point in one zone (e.g. detectors 12-45 & -46)
001 ZONE-ADDR 12-45 LAST ZONE 12
"Alarm text for 12-45"
No. 01
The LED:s "Alarms queued" (L2) are indicating that more than one
alarm point is in alarm. Press the button "Alarms queued" (P1) to see
the other alarm:
002 ZONE-ADDR 12-46 LAST ZONE 12
"Alarm text for 12-46"
No. 01
One alarm point in two zones (e.g. detectors 12-45 & 13-02)
001 ZONE-ADDR 12-45 LAST ZONE 13
"Alarm text for 12-45"
No. 02
The LED:s "Alarms queued" (L2) are indicating that more than one
alarm point is in alarm. Press the button "Alarms queued" (P1) to see
the other alarm:
002 ZONE-ADDR 13-02 LAST ZONE 13
"Alarm text for 13-02"
More than one alarm point / zone
30
No. 02
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
LED:s "Alarms queued" (L2) are blinking (0.4 / 0.4 sec.), indicating
more than one fire alarm.28 To scroll through the alarms, use the push
button "Scroll" (P1). The fire alarms are stored in a circular buffer
and when scrolling from the last to the first alarm, the LEDs "Alarms
queued" will be turned off for approx. three seconds.
When the "Scroll" button has been used the first alarm will be
automatically displayed again after 20 seconds.
If an ext. FBP 1826 with a built-in printer is connected, the printer
will print each fire alarm29, e.g.:
*** Fire Alarm ***
ZONE-ADDR: 12-45 Time HH.MM
Alarm text for 12-45
Date MM-DD
or
*** Fire Alarm ***
ZONE: 14
Time HH.MM
Alarm text for zone 14
Date MM-DD
Reset of the fire alarms, see chapter "Alarm reset", page 38.
14.2.1
Fire alarm menu (X1-X9)
During the fire alarm presentation, a special fire alarm menu can be
used. (If this menu / option is excluded, via Win128, it is a violation
to the EN54-2 standard).
Fire alarms can be displayed via this menu but first of all it can be
used to display faults and disablements in the system.
Alarm points, zones, control outputs and alarm devices can also be
disabled / re-enabled via this menu.
During the fire alarm presentation press button "Access" 30 and the
alarm text will be replaced with the following:
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
Display alarms
ACCEPT? X1
"A", "", "", "", "" and "Return" can be used like in the normal
menu tree, see chapter "Access", page 62. The original presentation
(the alarm text) will be automatically displayed again approx. 20
seconds after the push buttons "A", "", "", "", "" or "Return"
are no longer used.
Press "A" or scroll ("", "") to the wanted menu and press "A".
28
Up to 128 alarms can be presented in the display. Alarm = ZONE and/or
ZONE-ADDRESS.
29
The alarms will be printed like they are presented in the display, i.e. as an
alarm point (ZZ-AA) or a zone (ZZ) and alarm text if programmed.
30
Access code is not required.
31
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
14.2.1.1
Display alarms (X1)
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
Display alarms
ACCEPT? X1
Press "A"
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
ZONE-ADDR: 12-45
001 of 003
First row: Explanations in chapter "Fire alarm", page 29.
Second row: All fire alarms (up to 128 alarms) will be displayed one
at a time in chronological order, i.e. the first alarm (001) will be the
same alarm as displayed on the first row.
001 of 003 = alarm number one of three alarms in the system is
displayed to the left.
One alarm is an alarm point (ZZ-AA) or a zone (ZZ).
Press "" (to see the next alarm).
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
ZONE-ADDR: 12-46
002 of 003
002 of 003 = alarm number two of three alarms in the system is
displayed to the left.
Press "" (to see the next alarm).
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
ZONE-ADDR: 12-47
003 of 003
003 of 003 = alarm number three of three alarms in the system is
displayed to the left.
14.2.1.2
Display faults (X2)
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
Display faults
ACCEPT? X2
Press "A"
001 ZONE-ADDR 12-45 LAST ZONE 12
FAULT: Battery not connected CU
No. 01
Only the fault message for the fault respectively, will be displayed
here, not date, time and "status" information.
Press "" (to see the next fault).
14.2.1.3
Display disablements (X3)
NOTE! Also zones in "Test mode" will be displayed via this menu.
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
Display disablements
ACCEPT? X3
Press "A"
32
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
001 ZONE-ADDR 12-45 LAST ZONE 12
Zone XX address XX disabled
No. 01
Press "" (to see the next disablement).
NOTE! After all disablements will zones in "Test mode" be
displayed.
001 ZONE-ADDR 12-45 LAST ZONE 12
Zone in TEST MODE: 01
14.2.1.4
02
03
No. 01
04
Disable zone (X4)
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
Disable zone
ACCEPT? X4
Press "A"
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
Disable zone: 00
ACCEPT?
Write a zone number (01 – 32) and press "A". If more zones are to be
disabled, repeat the procedure.
14.2.1.5
Disable zone / address (X5)
This function is useful e.g. for a manual call point not to continue to
generate alarms because of a broken glass.
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
Disable zone / address
ACCEPT? X5
Press "A". E.g.:
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
Disable zone: 00 Address: 00
ACCEPT?
Write a zone-address and press "A". If more zone-addresses are to be
disabled, repeat the procedure.
14.2.1.6
Re-enable zone (X6)
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
Re-enable zone
ACCEPT? X6
Press "A". E.g.:
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
Re-enable zone: ZZ
ACCEPT?
This is a list of disabled zones. Scroll to or write the wanted zone
number and press "A". If more zones are to be re-enabled, repeat the
procedure.
33
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
14.2.1.7
Re-enable zone / address (X7)
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
Re-enable zone / address
ACCEPT? X7
Press "A". E.g.:
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
Re-enable zone: ZZ Address: 00
ACCEPT?
This is a list of disabled zone-addresses. Scroll to or write the wanted
zone-address and press "A". If more zone-addresses are to be reenabled, repeat the procedure.
14.2.1.8
Disable / Re-enable control (X8)
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
Disable/Re-enable control
ACCEPT? X8
Press "A". E.g.:
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
Dis(=0) or re-en(=1) control? 1 ACCEPT?
To disable, press "0" and "A". (To re-enable, press "1" and "A".). For
more information, see chapter "Disable all control, extinguishing,
ventilation and alarm device outputs (H2/B4), page 69.
14.2.1.9
Disable / Re-enable alarm devices (X9)
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
Disable/Re-enable alarm dev. ACCEPT? X9
Press "A". E.g.:
001 ZONE-ADDR 12-45 LAST ZONE 12 No. 01
Dis(=0) or re-en(=1) alarm dev?1 ACCEPT?
To disable, press "0" and "A". (To re-enable, press "1" and "A".). For
more information, see chapter "Re-enable all control, extinguishing,
ventilation or alarm device outputs (H2/B8), page 74.
14.2.2
Alert Annunciation alarm (AA alarm)
Indications, actions etc. as for a normal fire alarm except that
EBL128 output for routing equipment (Fire brigade tx) will not be
activated directly. An AA alarm is indicated by the LED "Fire
brigade tx delay" (L16). The AA alarm has to be acknowledged
within an acknowledge time and reset within and an investigation
time, otherwise will the output for routing equipment (Fire brigade tx)
be activated. See EBL128 Planning Instructions for more information
regarding the AA function. Acknowledgement31 and reset of the AA
31
In "Polish" (CNBOP) convention, the push button "Evacuate" (P5) can be
used for "AA Acknowledge".
34
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
alarm can be done on an AA unit 1735 / 1736 (or an AA controller
1740). See also chapter "Alarm reset", page 38.
14.2.3
Co-incidence alarm (two-unit / -zone dependence)
When only one two-unit dependent alarm point, (i.e. one zone –
address) is in alarm status32 or when only one two-zone dependent
zone is in alarm status33, the LEDs "Fire" (L1) are blinking (0.4 / 0.4
sec.), the buzzer sounds (0.8 / 5 sec.) and there is a Co-incidence
alarm presentation in the display.
Co-incidence alarm detector ZZ/AA
or
Co-incidence alarm zone ZZ
If there are Co-incidence alarms generated in other zones, the LEDs
"Alarms queued" (L2) are blinking and the Co-incidence alarms will
be automatically scrolled (each 5th second).
Co-incidence alarm is automatically reset (i.e. when the alarm point /
zone is no longer in alarm status), see chapter "Alarm reset", page 38.
14.3
Heavy smoke alarm / Heavy heat alarm
An analog detector generates heavy smoke / heat alarm for a higher
alarm level34 than the fire alarm level, i.e. fire alarm is already
activated by the same detector.
Heavy smoke / heat alarm is a confirmation on that the smoke or heat
is increasing and can be used for special actions, e.g. activation of
smoke ventilation, etc.
In case of a heavy smoke / heat alarm, the following will happen:
• Outputs programmed for heavy smoke / heat alarm are
activated.35
• If an ext. FBP with a built-in printer (1826) is connected, the
printer will print36 each heavy smoke / heat alarm, e.g.:
32
If two or more two-unit dependent alarm points (zone - addresses) in the
same zone are in alarm status at the same time, normal fire alarms will be
activated in EBL128. See also EBL128 Planning Instructions.
33
If two or more two-zone dependent zones in the same group are in alarm
status at the same time, normal fire alarms will be activated in EBL128. See
also EBL128 Planning Instructions.
34
See EBL128 Planning Instructions.
35
General heavy smoke / heat alarm and individual alarm points / zones.
36
The alarms will be printed like they are presented in the display, i.e. as
ZONE-ADDR or ZONE.
35
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
*** Heavy smoke ***
ZONE-ADDR: 12-45 Time HH.MM
Alarm text for 12-45
Date MM-DD
or
*** Heavy smoke ***
ZONE: 14
Time HH.MM
Alarm text for zone 12
Date MM-DD
*** Heavy heat ***
ZONE-ADDR: 12-45 Time HH.MM
Alarm text for 12-45
Date MM-DD
or
*** Heavy heat ***
ZONE: 14
Time HH.MM
Alarm text for zone 14
Date MM-DD
Heavy smoke / heat alarm will be reset when the fire alarm
respectively is reset, see chapter "Alarm reset", page 38.
36
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
14.4
Key cabinet alarm
One programmable input37 can be used to connect a key cabinet.
The fire brigade uses a key cabinet to store a key to the building.
NOTE! In the Danish (DBI) convention the key cabinet alarm
function is a little different, see below.
14.4.1
Key cabinet opened before a fire alarm
If the key cabinet is opened before a fire alarm (e.g. if somebody
illegally breaks into the key cabinet), a key cabinet alarm, i.e. a "fire
alarm" will be generated.
Example; Key cabinet alarm:
ZONE: KE
Alarm from key cabinet
No. 01
It will be printed like a normal fire alarm if an ext. FBP with printer is
available, see chapter "Fire alarm", page 29.
Key cabinet alarm is reset like a normal fire alarm, see chapter "Fire
alarm reset, page 38.
This alarm will also generate a fault message, see chapter "Key
cabinet alarm reset", page 40. It is indicated by LED "Fault" (L8).
NOTE! The "Fault tx" output will not be activated by this fault.
14.4.2
Key cabinet opened in conjunction with a fire alarm
The fire brigade personnel can open the key cabinet if a fire alarm
already is activated in EBL128 In this case there will be no key
cabinet alarm or fault generated when the key cabinet is opened.
14.4.2.1
Restoring the key after a fire alarm
When all fire alarms are reset (see chapter "Alarm reset", page 38),
the key has to be restored in the key cabinet within 5 minutes. If not,
a fault will be generated, see chapter "Key cabinet alarm reset", page
40.
14.4.3
Key cabinet alarm, Danish (DBI) convention
NOTE! Only valid for the Danish (DBI) convention.
When the key cabinet is opened, the "Fault tx" output will be activated
and a "key cabinet fault" will be generated:
FAULT: Key cabinet
Date: MM-DD
Time: HH:MM
(In Danish: "FEJL: Nøgleskab")
When this fault is acknowledged (see chapter "Acknowledge
FAULTS (H6)", page 98), there is a 5 minutes delay before a new
"key cabinet fault" can be generated again.
37
Input I0 or COM loop I/O unit 3361 can be used.
37
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
15
Alarm reset
15.1
Pre-warning reset
Pre-warning is automatically reset.
15.2
Fire alarm reset
NOTE! The detectors having activated the fire alarms shall, after
reset, be inspected, tested and replaced when required.
One of the following alarm reset alternatives is valid. This is selected
via Win128. "Multiple reset" is default.
15.2.1
Multiple reset
All the fire alarms will be reset by pressing "Reset" (P3). (According
to the EN54-2 standard).
NOTE! The push button has to be pressed in for min. 0.5 sec.
When all fire alarms are reset, LEDs "Fire" (L1) and "Alarms
queued" (L2) are turned OFF and the display is empty.38
All outputs (for fire alarm) have also been reset, i.e. de-activated.
If a key cabinet is installed, the key (to the building) has to be put
back into the key cabinet within 5 minutes. If not, a fault will be
generated and a fault message will be shown in the display, see
chapter "Key cabinet alarm reset, page 40.
15.2.2
Single encapsulated reset
This function, set in Win128, is a violation to the EN54-2 standard.)39
Fire alarm reset
Each fire alarm has to be reset one by one.
Press "Reset" (P3) to reset the fire alarm, shown in the display, on the
first row to the left
NOTE! The push button has to be pressed in for min. 0.5 sec.
Output(s) programmed for this fire alarm will also be reset, i.e. deactivated.
If more than one fire alarm is activated (i.e. if LED:s "Alarms queued"
(L2) are lit) the next fire alarm in the queue is now shown in the
display, on the first row to the left. It has to be reset the same way as
the first one.
38
If there is a fault condition (e.g. caused by the fire), a fault message will
now be shown in the display.
39
When "Single encapsulated reset" is used, you can make a "Multiple reset"
by pressing "Reset" (P4) and 0.1 sec. later also press "A" (in the keypad) and
hold them pressed for > 0.5 sec.
38
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
When all fire alarms are reset, LED:s "Fire" (L1) and "Alarms
queued" (L2) are turned OFF and the display is empty.38
All outputs (for fire alarm) are now also reset, i.e. de-activated.
If a key cabinet is installed, the key (to the building) has to be put
back into the key cabinet within 5 minutes. If not, a fault will be
generated and a fault message will be shown in the display, see
chapter "Key cabinet alarm reset, page 40.
Encapsulation function
Normally if an alarm point or zone is reset while still in alarm status40,
it will activate a new fire alarm within 20 seconds. (According to the
EN54-2 standard.)
When "Single encapsulated reset" is performed, an alarm point or
zone still in alarm status will not activate a new fire alarm. It becomes
encapsulated, i.e. automatically disabled and has to be re-enabled via
menu H2/B4 or B5 before it can activate a new fire alarm again.
LED "Disablements" (L8) is indicating that one or more zones / alarm
points have been encapsulated (automatically disabled).
NOTE!
When "Multiple reset" is used, encapsulated reset can be done by
pressing "Reset" (P4) and 0.1 sec. later also press "Alarms queued"
(P1) and hold them pressed for > 0.5 sec. The fire alarm displayed in
the LCD (first row to the left) will be encapsulated or the whole zone
(conventional) will be encapsulated.
15.2.3
Alert Annunciation
Regarding the function, see chapter "Alert Annunciation alarm (AA
alarm)", page 34 and EBL128 Planning Instructions, chapter "Alert
Annunciation".
Reset of the AA alarm can be done via push button "Reset" on an AA
unit 1735 / 1736 (an AA controller 1740) or in EBL128. AA alarms
will be reset all at a time.
NOTE! Reset via an external unit is only possible during the
investigation time and only AA alarm(s) can be reset, not normal fire
alarms.
15.2.4
Co-incidence alarm
Co-incidence alarm is automatically reset (i.e. when the alarm point is
no longer in alarm status). See also chapter "Co-incidence alarm
(two-unit / -zone dependence)", page 35.
40
E.g. a manual call point with a broken glass.
39
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
15.3
Heavy smoke / heat alarm reset
If a heavy smoke / heat alarm has been activated, it will be reset at the
same time as the corresponding fire alarm is reset. Also the output(s)
will be reset, i.e. de-activated.
15.4
Key cabinet alarm reset
Not valid for the Danish (DBI) convention, see chapter "Key cabinet
alarm, Danish (DBI) convention", page 37.
After reset of the key cabinet alarm ("fire alarm"), a fault message is
shown in the display to inform the user that the key cabinet has been
opened.
FAULT: Key cabinet
Date: MM-DD
Time: HH:MM
If the key cabinet is closed again, the "status" information
"Serviced" is added.
FAULT: Key cabinet
Date: MM-DD
Time: HH:MM
Serviced
This key cabinet fault message is to be acknowledged the same way as
a "normal" fault, see chapter "Fault acknowledge", page 52.
When the key cabinet fault is acknowledged, the LED "General fault"
(L7) will be turned OFF (if the key cabinet is closed and if there are
no other faults in the system).
40
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
16
Fault
In case of a fault condition, the following has happened / will happen
in EBL128:
• The buzzer in EBL128 sounds steady (continuous).
• Output "R1" for routing equipment (Fault tx) is activated.
• Programmable output for general fault is activated
• Programmable output for general charge fault is activated if
it is a charge fault.
• LED "Fault tx activated" (L11) is turned ON.
• LED "General fault" (L7) is turned ON.
• LEDs "Fault / Disablements Alarm devices" (L13),
"System fault" (L14) and/or "Fault / Disablements Fire
brigade tx" (L15) might be turned ON as well (depending on
the type of fault).
• A fault message incl. date and time is shown in the display.
Example of a fault message:
FAULT: No reply xx-xx
Date: MM-DD
Time: HH:MM
Press "" to see the technical address:
FAULT: No reply techn. address xxx
Date: MM-DD
Time: HH:MM

Press "" to see the zone-address:
• If more than one fault is activated, the text:
"More faults" is added after the time.
• If a fault has been corrected before it has been
acknowledged, the "status" text: "Serviced" is added
after the time.
• Fire alarm presentation has higher priority than the fault
messages. During fire alarm presentation the faults can be
shown via the special fire alarm menu X2, see page 32.
All faults are latched and have to be acknowledged, which is done via
menu H6 (see page 98). In this menu (H6) can up to 100 faults be
listed:
• Not corrected and not acknowledged faults
• Not corrected but acknowledged faults
• Corrected (serviced) but not acknowledged faults
If a fault can not be corrected, it is important to contact service
personnel / engineer immediately.
NOTE!
As a warning, faults (and disablements) are also indicated by a 2-sec.
beep when an open c.i.e. door is being closed.
41
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
16.1
Fault messages
Below follows a list of all fault messages, in alphabetical order:
FAULT: 24 V for external equipment
The output is turned off because the current output limit is exceeded.
FAULT: 24 V for routing equipment
The output is turned off because the current output limit is exceeded.
Also indicated by LED "L15" blinking.
FAULT: 24 V output, techn address xxx
This is valid for an external power supply (e.g. 3366) connected on the
COM loop. The output might be turned off. The current output limit
is exceeded.
FAULT: AAU x
AAU=1735 / 1736 (Alert Annunciation Unit)
The unit is programmed as another type of unit than the SSD says or
fault in the unit.
FAULT: Battery
• Batteries (2 x 12 V) are missing or not correctly connected.
• Fuse F2 on the main board is blown.
• Another battery fuse is blown (e.g. if the batteries are placed
outside EBL128).
FAULT: Battery charging
The battery charging function is not working all right. The main
board 4556 may have to be replaced.
FAULT: Battery, techn address xxx
This is valid for an external power supply (e.g. 3366) connected on the
COM loop.
• Batteries (2 x 12 V) are missing or not correctly connected.
• Battery fuse is blown.
42
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
FAULT: Cables mixed COM-loop
The two wires L (SA) and C (SB) have been mixed (alternated). Check
so that the wire connections are correct (according to drawing 128-21).
FAULT: Charging ext. power supply
The fault is to be found in the external power supply equipment. A
fault output is connected to a programmable input in the EBL128
system. Check the input as well.
FAULT: Charging, techn addr xxx
This is valid for an external power supply (e.g. 3366) connected on the
COM loop.
The battery charging function is not working all right. The charger
board (3367) may have to be replaced.
FAULT: Checksum system program
A fault in the EBL128 S/W. This is very serious. Call for service
personnel / engineer immediately.
FAULT: Cut-off SCI n <-> SCI n
This fault is indicating a cut-off (break) on the loop or that the COM
loop voltage is too low at the end of the loop (i.e. < 12 V DC).
SCI n <->SCI n describes between which Short Circuit Isolators
(SCI:s) the cut-off is located.
n = A, B, 0, 1, 2, 3, 4, 5, 6 or 7. A & B is the built-in isolator in the
EBL128 A-direction and B-direction respectively, i.e. if no SCI
(4370) is used the information will always be: SCI A <-> SCI B.
If one SCI (4370 no. 0) is used, the information will be:
SCI A <-> SCI 0 or SCI 0 <-> SCI B
...and so on.
If it is a single break (cut-off) on the loop there will be no other fault
messages.
If there are several breaks on the loop the message shows the last
isolator before the break in the A-direction (incl. the following
isolator). There will also be a "FAULT: No reply ….." message for
each unit that EBL128 can not find and "FAULT: Several faults …".
NOTE! Each 10th minute a new attempt is made to communicate in
the A-direction only.
When the breaks are repaired (corrected) the communication
43
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
automatically returns to communicate in the A-direction only.41
FAULT: Earth fault (minus)
FAULT: Earth fault (plus)
Earth fault is detected. The system voltage is normally 24 V DC.
+24 V to earth is normally 12.5 V. 0 V to earth is normally 11.5 V.
Voltage to earth < 3.4 V = Earth fault (minus).
Voltage to earth > 18.3 V = Earth fault (plus).
Check all cables (for damage, etc.). The function can not be
guaranteed. Call for service personnel/engineer.
FAULT: Earth fault, techn address xxx
This is valid for an external power supply (e.g. 3366) connected on the
COM loop. Check all cables connected to the unit.
FAULT: EPU x
EPU=1728. (Ext. Presentation Unit)
The unit is programmed as another type of unit than the SSD says or a
faulty unit.
FAULT: Expansion board x
Valid for the 8 zones exp. board 4580 and the 8 relays exp. board
4581 mounted in the c.i.e. (EBL128).
Internal fault on the board and it has probably to be replaced.
FAULT: External fuses
The fault is to be found in the external power supply (blown fuses,
etc.). A fault output is connected to a programmable input in the
EBL128 system. Check the input as well.
FAULT: External power supply
The fault is to be found in the external power supply. A fault output is
connected to a programmable input in the EBL128 system. Check the
41
The fault has to be acknowledged and it can last up to 10 minutes before
the communication returns to communicate in the A-direction only.
44
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
input as well.
FAULT: Factory settings
The fault has to do with the battery charging accuracy. The main
board has to be replaced relatively soon in order to keep the batteries
fully charged.
FAULT: FBP x
FBP=1826 / 1828 (Ext. Fire Brigade Panel)
The ext. FBP is programmed as another type of unit than the SSD says
or a faulty unit.
FAULT: Fuse on COM-loop
The fuse is not replaceable. More components might also be broken.
The main board has to be replaced.
FAULT: High current consumption in CU
EBL128 current consumption, including battery charging, is over 1.8
A, and because of this, the battery charging is turned off. Normally
this fault only appears when starting up / expanding an EBL128.
FAULT: Interlocking input AA/PP
An interlocking input is not activated within the time set for fault
activation (5-255 seconds). The time is counted from the activation of
the output (in the interlocking combination, area / point).
FAULT: Key cabinet
The key cabinet has been opened without a prior fire alarm (i.e.
somebody has opened the key cabinet illegally).
or
The key cabinet has not been closed within 5 minutes after reset of all
fire alarms.
FAULT: Loop unit xx-xx
Press "" to see the technical address.
45
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
FAULT: Loop unit techn. address xxx

The communication with the unit is not all right, i.e. the unit is out of
order / faulty.
For detector types 33xx / 43xx (in NORMAL mode): The built-in self
verification function has reported a fault status.
FAULT: Low battery capacity
Battery voltage < 21.9 V. The battery is presumably too old.
FAULT: Low mains
• Mains voltage below 187 V AC. Blown fuse (230 V AC) or
no voltage.
• Rectifier voltage below 21 V DC. Fuse F1 on the main
board might be blown.
FAULT: Low voltage
System voltage < 21 V DC.
FAULT: Low voltage, techn address xxx
This is valid for an external power supply (e.g. 3366) connected on the
COM loop. The power output is turned off because the unit's internal
voltage is < 19 V DC.
FAULT: Mains
• Loss of mains, i.e. no 230 V AC (the fault is activated after
1-300 minutes).42
• Blown fuse (230 V AC).
FAULT: Mains, external power supply
Loss of mains, i.e. no 230 V AC to the ext. power supply equipment
(the fault is activated after 1-300 minutes).42 Check 230 V AC fuses.
A fault output is connected to a programmable input in the EBL128
system. Check the input as well.
42
The time is programmable in Win128. Max. 30 min. according to the
EN54-2 standard. Default value depending convention.
46
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
FAULT: Mains, techn address xxx
This is valid for an external power supply (e.g. 3366) connected on the
COM loop.
• Loss of mains, i.e. no 230 V AC in the loop unit (the fault is
activated after 1-300 minutes).43
• Blown fuse (230 V AC).
FAULT: No reply xx-xx
Press "" to see the technical address.
FAULT: No reply techn. address xxx

In spite of communication in both directions (COM loop A-direction
and B-direction), the unit can not be found.
•
•
•
•
Check the unit's address (with the programming tool 3314).
Faulty unit.
Detector might be removed (un-plugged) from its base.
Double break or short-circuit on the COM loop.
(Note! There will also be a fault message "FAULT: Cut-off
loop…." or "FAULT: Short-circuit loop….".).
FAULT: No reply AAU x
AAU=1735 / 1736. (Alert Annunciation Unit)
EBL128 can not communicate with the unit. Check / edit the address
and the S/W mode in the unit (or edit the SSD).
FAULT: No reply EPU x
EPU=1728. (Ext. Presentation Unit)
EBL128 can not communicate with the unit. Check / edit the address
and the S/W mode in the unit (or edit the SSD).
FAULT: No reply, expansion board x
Valid for the 8 zones exp. board 4580 and the 8 relays exp. board
4581 mounted in the c.i.e. (EBL128).
EBL128 can not communicate with the board.
address. Check the ribbon cable / connections.
43
Check / edit the
The time is programmable in Win128. Max. 30 min. according to the
EN54-2 standard. Default value depending convention.
47
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
FAULT: No reply FBP x
FBP=1826 / 1828. (Ext. Fire Brigade Panel)
EBL128 can not communicate with the unit. Check / edit the address
and the S/W mode in the unit (or edit the SSD).
FAULT: Read/write site data (SSW)
Some external influence has caused a fault in the SSW (the data that is
changed during operation, i.e. sensor values, access codes, etc.). This
is very serious. Call for service personnel / engineer immediately.
FAULT: Restart, code xx addr yyyyyyyyyyy
C.i.e. (EBL128) restart has occurred. See also page 58.
xx=00:
Power up Restart. (Power supply connected)
xx=01:
Watchdog Reset.
xx=02:
Accidental jump to reset vector.
xx=03:
Restart after SSD / Software / text file download
xx=04-19: Unexpected interrupt.
xx=20:
S/W monitoring fault
NOTE!
xx=00 and 03 are normal. Only acknowledge the "fault".
xx=01, 02 or 04-20 appearing often: call for service personnel /
engineer.
yy…y = memory address (before restart). Write down the
address and inform the service personnel/engineer.
FAULT: Several faults on COM-loop
Two breaks (cut-offs) or two short-circuits or one break + one shortcircuit on the loop.
First correct the presented fault and the next fault will be presented.
FAULT: Short-circuit, internal COM-loop
Short-circuit on the connection (ribbon cable) to or between the
expansion boards (458x) in the c.i.e. (EBL128).
FAULT: Short-circuit SCI n <-> SCI n
48
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
SCI n <-> SCI n describes between which Short Circuit
Isolators (SCI:s) the short-circuit is located.
n = A, B, 0, 1, 2, 3, 4, 5, 6 or 7. A & B is the built-in isolator in the
EBL128 A-direction and B-direction respectively, i.e. if no SCI
(4370) is used the information will always be: SCI A <-> SCI B.
If one SCI (4370 no. 0) is used, the information will be:
SCI A <-> SCI 0 or SCI 0 <-> SCI B
...and so on.
There will also be a "FAULT: No reply ….." message for each unit
that EBL128 can not find.
If there are several short-circuits on the loop the message shows the
last isolator before the break in the A-direction (incl. the following
isolator). There will also be shown "FAULT: Several faults …".
NOTE! Each 10th minute a new attempt is made to communicate in
the A-direction only.
When the short-circuits are repaired (corrected) the communication
automatically returns to communicate in the A-direction only.44
FAULT: Site specific data (SSD)
The Site Specific Data (SSD) is not downloaded correctly (a
checksum fault, etc.). A new SSD download (via Win128) is
required. If the fault can not corrected it is very serious. Call for
service personnel / engineer immediately.
FAULT: Site specific data (SSD), AAU x
AAU=1735 / 1736 (Alert Annunciation Unit)
There is no SSD (Site Specific Data) downloaded to the unit or
something is wrong in the downloaded SSD.
FAULT: Site specific data (SSD), EPU x
EPU=1728 (Ext. Presentation Unit)
There is no SSD (Site Specific Data) downloaded to the unit or
something is wrong in the downloaded SSD.
FAULT: Site specific data (SSD), FBP x
44
The fault has to be acknowledged and it can last up to 10 minutes before
the communication returns to communicate in the A-direction only.
49
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
FBP=1826 / 1828 (Ext. Fire Brigade Panel)
There is no SSD (Site Specific Data) downloaded to the unit or
something is wrong in the downloaded SSD.
FAULT: Output Sx
This is valid for the EBL128 voltage outputs S0 and S1.
If the output is programmed for sounders (type 3 = alarm devices), it
is also indicated by LED "Fault / Disablements Alarm devices" (L13)
blinking.
If the output is programmed for fire brigade tx (type 4 = routing
equipment), it is also indicated by LED "Fault / Disablements Fire
brigade tx" (L15) blinking.
•
•
•
•
Calibration not performed via menu H5/A3.
Short-circuit / break on the connected cable / equipment.
Connected equipment might be "stolen".
End-of-line capacitor(s) missing or not correct value (see
drawing 128-22).
NOTE! The calibrated value has to be in the range 470 nF – 5 x
470 nF (2350 nF).
FAULT: Output x, techn addr xxx
This is valid for COM loop output unit outputs.
If the output is programmed for sounders (type 3 = alarm devices), it
is also indicated by LED "Fault / Disablements Alarm devices" (L13)
blinking.
If the output is programmed for fire brigade tx (type 4 = routing
equipment), it is also indicated by LED "Fault / Disablements Fire
brigade tx" (L15) blinking.
•
•
•
•
Calibration not performed via menu H5/A3.
Short-circuit / break on the connected cable / equipment.
Connected equipment might be "stolen".
End-of-line capacitor(s) missing or not correct value (see
drawing 128-28).
NOTE! The calibrated value has to be in the range 470 nF – 5 x
470 nF (2350 nF).
FAULT: Wrong type, expansion board x
Valid for the 8 zones exp. board 4580 and the 8 relays exp. board
4581 mounted in the c.i.e. (EBL128).
The board is not the same type as programmed in the SSD. Change the
programming (via Win128) or the board.
50
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
FAULT: Wrong type of unit xx-xx
Press "" to see the technical address.
FAULT: Wrong type of unit t.addr xxx
The unit is not the same type as programmed in the SSD. Change the
programming (via Win128) or the unit.
FAULT: Zone line input xx-xx
Press "" to see the technical address or the expansion board (4580)
number and input number.
FAULT: Zone line input t.addr xxx
FAULT: Zone line input x exp board x
a. Valid for the Multi purpose I/O unit 3361, connected on the COM
loop, monitored zone line input Z: Break on the zone line or wrong /
no end-of-line capacitor / short-circuit (if not programmed for fire
alarm at short-circuit).
b. Valid for the 8 zones exp. board 4580, mounted in the c.i.e.
(EBL128): Break on the zone line, wrong / no end-of-line capacitor /
short-circuit (if not programmed for fire alarm at short-circuit). .
(User programmable fault text; External fault)
A programmable input is used for an external fault to be presented in
EBL128 with a fault message.
51
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
16.2
Fault acknowledge
The LEDs "Fault tx activated" (L11) and "General fault" (L7) are
turned ON.
(LEDs "Fault / Disablements Alarm devices" (L13), "System fault"
(L14) and/or "Fault / Disablements Fire brigade tx" (L15) might be
turned ON as well.
Output for routing equipment (Fault tx) is activated.
Output for general fault is activated.
Output for general charge fault might be activated.
A fault message, date and time, is shown in the EBL128 display.
After the time might be shown "More faults" = more than one
fault is generated.
After the time might be shown "Serviced" = the fault is already
serviced / corrected.
• Login, according to chapter "Access", page 62.
• Use menu H6 (access code for level 2B required) for fault
acknowledge, see chapter "Acknowledge FAULTS (H6)",
page 98. Menu H6 is a list showing a maximum of 100
faults (not acknowledged faults and/or acknowledged but not
corrected faults). The first fault in the list is the most recent
fault. When a fault is acknowledged and corrected it will be
removed from the list (and a new fault can be shown, if there
are more than 100). Corrected faults are shown in the event
log (menu H4/U5).
• All faults have to be individually acknowledged one by one
(push button "Fault acknowledge" (P6)). Use ↑ or ↓ keys to
scroll.
• If a fault has been serviced / corrected before it has been
acknowledged, the text "Serviced" is added after the
time. It still has to be acknowledged.
• When a fault is corrected and acknowledged, it will
disappear from the list (H6).
• When all faults have been acknowledged, the LED "Fault tx
activated" (L11) will be turned off and output for routing
equipment (Fault tx) is "reset" (as in normal operation).
• As long as there are faults (not acknowledged faults and/or
acknowledged but not corrected faults) the LED "General
fault" (L7) will be lit and general fault (and maybe general
charge fault) output(s) are activated.
52
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
17
Commissioning an EBL128
Before you connect any power to EBL128 all other cable connections
shall be made. Check, once more, that the connections are correct.
1. Remove the rectifier (power supply) fuse (F1) and the battery fuse
(F2) on the main board (or the fuse between the batteries).
2. Connect the batteries to the main board.
3. Connect the rectifier to the mains (230 V AC).
4. Put back the rectifier fuse (F1) on the main board.45
5. Put back the battery fuse.
6. LED "Operation" (L6) indicates that the 24 V DC power supply
(rectifier and/or battery) is okay.
7. An automatic restart will now take place (see chapter "Restart",
page 58.
8. The site specific data (SSD) is now to be downloaded, see chapter
"SSD programming & download", page 54.
See also chapter "Calibration of supervised outputs (H5/A3)", page
90.
45
If a lot of units (especially units with high internal capacitance) are
connected to EBL128, the total momentary inrush current
consumption for these units might be too high for the power supply's
electronic short circuit protection and EBL128 will not start working
properly. In such a case, put back the battery fuse before the rectifier
fuse (i.e. the batteries have to be reasonably charged) or temporarily
disconnect some of the units in order to reduce the current
consumption while EBL128 is powered.
53
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
18
SSD programming & download
The Site Specific Data (SSD) for an installation is created
(programmed) via the PC program Win128, which also is used to
download the SSD into the EBL128 c.i.e. and/or 1728, 1735 / 1736 &
1826 / 1828 units. The SSD will be saved in a file named
xxxxx.Win128.46
18.1
SSD programming
The SSD programming can be made "in your office" and afterwards
be downloaded to EBL128 on site.
18.2
Auto generating SSD
If you are on site, the Auto generate function can be used to create
the SSD. Open a new installation in Win128, connect the PC to the
RS232 connector J3 in EBL128 (on the main board) and log on.47 In
"Tools" menu select "Auto generate…". The COM loop units48 and
the FBP/AAU units connected to EBL128, will now be identified and
listed in Win128, i.e. the SSD will be auto generated with default
settings for all units. Save the installation (SSD). The SSD can be
downloaded (see below) to EBL128 directly or be edited before the
download.
18.3
SSD download
The PC with Win128 has to be connected to the RS232 connector J3
in EBL128 (on the main board). Open the wanted installation
(xxxxx.Win128) and log on to EBL128.47 In "Tools" menu select
"Download SSD…" to open the dialog box.
Mark the required checkbox(es).
Click "Start download".
Information will be shown in the dialog box (progress bar) and in the
display in EBL128:
46
xxxxx = A suitable name of the installation.
Access code for level 4 shall be entered via the PC (i.e. via Win128).
48
Each unit have to be running i.e. be connected, power supplied and the
address, mode etc. have to be set. NOTE! During this check the COM loop
will be disconnected (disabled) and no alarms or faults can be activated.
Disconnected COM loop is indicated by the LED "Disablements" (L8).
47
54
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
Download in progress......
▪▪▪▪▪▪▪▪
When the download is completed in a correct way, the following text
message will be shown:
Download completed successfully.
Control unit will now restart
Now, an automatic warm restart will take place (see chapter "Restart",
page 58).
If the download was not completed or incorrect, the following text
message will be shown:
Checksum fault in downloaded data.
Control unit will now restart
Now, an automatic warm restart will take place (see chapter "Restart",
page 58.
After the restart another text message will be shown in the display:
FAULT: Site specific data (SSD)
Date: MM-DD
Time: HH:MM
This text message means that the SSD have not been downloaded
correctly, i.e. try to download the SSD once more.
18.4
Download of Alarm texts
When a fire alarm is activated (i.e. an addressable alarm point), the
presentation number (Zone - Address) is shown on the first row in the
EBL128 display and in any ext. FBP display.49 On the second row is
a user definable alarm text shown, if programmed. See also chapter
"Fire alarm", page 29.
Each alarm point can have a unique text message. When several
alarms are activated (in one or more zones) and only the zone numbers
are shown, each zone can have a unique text message.
Each zone line input can have a unique text message.
The alarm texts will be printed out if an ext. FBP 1826 with a printer
is connected.
All alarm texts, up to 40 alphanumeric characters each, are created and
downloaded via Win128. See Planning Instructions, chapter "Alarm
texts".
See also the Win128 help chapters (help topics), e.g. "Download" and
the "Display unit menu" respectively.
49
Also valid for the Ext. Presentation unit 1728 and the Alert Annunciation
units 1735 / 1736.
55
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
19
Software (S/W) download
The latest version of the EBL128 software50 is factory downloaded
before the delivery. Due to continual development and improvement,
different S/W versions can be found. A new S/W version can be
downloaded via Win128, on site. The valid S/W version can be read
in menu H3 or via Win128.
See also the Win128 help chapter (help topic) "Download Software".
19.1
Download of S/W in EBL128 (c.i.e.)
To download new software (S/W), a PC and Win128 are used. Before
download, the PC has to be connected to the RS232 connector J3 in
EBL128 (on the main board).
1. Start Win128. Log on to EBL128. In the "Tools" menu select
"Download Software…" to open the dialog box and do the
required settings, i.e. mark the checkbox "Download software",
select the path and the S/W file, e.g. EBL128_V.V.bin.
(V.V = version number, e.g. 1.1.)
If also a text file51 shall be downloaded do not forget to mark the
checkbox "Download texts" and select the path and the text file,
e.g. English_texts_EBL128_V.V.sst).
2. Select "Port" (on the PC) and baud rate. (If the download is not
successful it might depend on to high baud rate.)
3. Start the download, i.e. click "Start". The download status is
indicated in the progress bar. LED "Operation" (L6) will be
turned off. LED "General fault" (L7) is indicating that EBL128 is
in the so called "Boot mode". LEDs "Alarms queued" (L2) are
50
Makes the microprocessor work.
Normally a new text file will come together with a new S/W file. NOTE!
Only a text file can be downloaded. If so, do not mark the checkbox
"Download software".
51
56
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
indicating the Flash memory programming.
display is the following information shown:
In the EBL128
Software download in progress......
4. To the left of the progress bar is a "% indicator". It will show
approx. 90 % when the download is ready and EBL128 will
automatically do a restart.
5. After the restart the "% indicator" will show 100 %. Close the
dialog box. Regarding the restart, see also chapter "Restart", page
58.
6. LED "Operation" (L6) will be turned on and LED "General fault"
(L7) and LEDs "Alarms queued" (L2) will be turned off.
19.2
Earlier S/W version download
For some reason it might by required to download an earlier S/W
version. The procedure is the same as for a new S/W.
19.3
S/W download in Display Units
New S/W for the 1728, 1735 / 1736 & 1826 / 1828 units can also be
downloaded via Win128. The PC has to be connected to the RS232
connector "J2" in the unit respectively.
See the Win128 help chapter (help topic) "Display unit menu" and the
"Technical Description" for the unit respectively.
57
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
20
Restart
A restart will delete or not delete the data in EBL128. Here follows
an explanation of the different data, abbreviations and a table showing
how the data respectively is affected (cold or warm restart).
FF = Fire alarms and Faults.
D = Disablements
FFD = Fire alarms, Faults and Disablements.
SSW = Sensor values, access codes, supervised output calibration
values, log buffers and in some conventions the alarm counter.
SSD = Site Specific Data, i.e. all the installation programming created
and downloaded via Win128.
S/W = Software, i.e. the EBL128 system program.
WASV = Week Average Sensor Values
Safe shut down of control unit (menu H8/S4) will save the SSW data
(except the week average sensor values) in a Flash ROM before you
power off EBL128. Before the first "Safe shut down" this memory is
empty. After each "Safe shut down" the latest SSW data is saved.
When EBL128 is powered up, the RAM (working memory) will, after
the restart, read the SSW data saved in the Flash ROM.
NOTE! After any restart a new week average sensor value will be
calculated within two minutes, for all the analog smoke detectors.52
Thereafter a new average sensor value will be calculated each week.
Here follows a table describing different reset alternatives and how the
data respectively is affected:
52
During these two minutes all fire alarms from analog smoke detectors will
be suppressed.
58
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
Action
Data, etc.
which will be
deleted
Data, etc.
which will be
not deleted
Restart code
Power down 53 and then power
up again. ("Cold restart")
SSW
FFD, WASV
SSD,
S/W
Via menu H8/S4 Safe shut down
of control unit. ("Cold restart")
FFD, WASV
SSD,
S/W, SSW
00 alt. 03
Automatically after download of
site specific data (SSD) via a PC
& Win128. ("Warm restart")
FF, WASV
SSD,
S/W, SSW
D54
03
Automatically after download of
S/W or text file via a PC &
Win128. ("Cold restart")
FFD, WASV
SSD,
S/W, SSW
00 alt. 03
Automatically due to external
disturbance.55 ("Cold restart")
FFD, WASV
SSD,
S/W, SSW
01, 02 alt.
04-20
00
NOTE! During the restart, the Fault tx output will be "activated", the
supervised 24 V DC outputs S0-S1 will be not supervised and S0-S1
programmed as normally high will be low for a few seconds.
During the "restart", no fire alarm can be activated and the buzzer will
sound until the following text messages is show in the display:
*** EBL128 ***
Checking program memory......
And for a second (if everything is all right, else see Memory fault
below):
Booting......
A fault is now generated and the following text message will be
shown in the display:
FAULT: Restart code xx addr yyyy
Date: MM-DD
Time: HH:MM
53
Both rectifier and battery disconnected.
All alarm points, zones, units, outputs, COM loop etc. that were disabled
(disconnected) before a warm restart will remain disabled after the restart
provided it was not removed in the new downloaded SSD. If removed, this
disablement will be terminated.
55
If this happens often, call for service personnel / engineer.
54
59
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
Regarding code xx and yyyy, see page 48. This fault is also indicated
by LEDs "Fault tx activated" (L11) and "General fault" (L7).
After the fault is acknowledged (via menu H6), the LEDs will be
turned OFF if there are no other faults.
After a "cold restart", required disablements have to be done.
Memory fault
In case of a fault in the S/W (system program) the following text
message will be shown in the display:
Memory fault in program area: xxx
This is also indicated by LED "System fault" (L14) and the buzzer
sounds steady (continuous). The Fault tx output is "activated".
A new download of the S/W (system program) is required.
NOTE! After SSD download (see chapter "SSD programming &
download", page 54), the following messages might be shown:
Checksum fault in downloaded data.
Control unit will now restart
FAULT: Restart code 03 addr yyyy
Date: MM-DD
Time: HH:MM
Serviced
FAULT: Site specific data (SSD)
Date: MM-DD
Time: HH:MM
The last one means that the SSD have not been (correctly)
downloaded. A new SSD download has to be performed.
20.1
Boot menu
The Boot menu should be used by authorised personnel only!
NOTE! Vital data can be erased via this menu.
The Boot menu is opened as follows:
Perform a "cold restart", i.e. Power down / power up EBL128:
The following text messages will be shown in the EBL128 display:
*** EBL128 ***
Checking program memory......
And after that, for a second:
Booting......
When the text "Booting……" appears, press "Access" and 0.1 sec.
later also press "1" and the Boot menu will be shown:
60
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
1:Restart, 2:Erase memory
Press "1" to perform a restart (you will also leave the Boot menu).
Press "2" to open the Erase memory menu, see below.
The Erase memory menu:
1 = SSD, 2 = SSW, 3 = Texts
Press "1" to erase the SSD memory.
Press "2" to erase the SSW memory.
Press "3" to erase the texts memory.
"Erasing SSD", "Erasing SSW" and "Erasing texts" respectively will
be shown and then the Erase memory menu will be shown again.
Press "Return" to go back to the Boot menu.
NOTE! After erasing the SSW, perform a "Power down / power up"
restart directly.
NOTE! All other alternatives are strictly forbidden to use. These are
only for use at trouble shooting controlled by Panasonic personal.
61
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
21
Access
To use the key pad in EBL128 (to get access to the menu tree), it is
necessary to log on with an access code for level 2B or 3A.
See also chapter "Access levels", page 18.
Open the EBL128 door (= level 2A), press the "Access" button (P8)
and continue as follows:
Action
Text in display
Comments
"Access"
Access code: _
Enter code for level 2B
or 3A (four digits).
Access code: ∗∗∗∗
The digits are replaced
(∗∗∗∗) in the display.
NO ACCESS!
Wrong access code was
entered. Try again.
Perform monthly test
Correct access code was
entered. Menu H1 is
shown. Press "A" to accept
(to perform monthly test)
or scroll / jump to the next
menu (H2-H10).
ACCEPT? H1
Explanations:
Action (in the table) = use push button / key (e.g. signed "Access").
Text in display (in the table) = what is shown in the display in
EBL128 (c.i.e.).
Comments (in the table) = Comments to the text in the "Action" and
"Text in display" columns.
Use "↑" and "↓" to scroll between the main menus H1-H10.
Use "A" to accept.
Some main menus have sub menus. Use "↑" and "↓" to scroll
between the sub menus (e.g. B1-B10). Use "A" to accept.
NOTE! The menus are circular, i.e. if you scroll with "↓" and the last
menu is reached, the first menu comes up next. It is also possible to
make "quick jumps" within each menu, e.g. in menu H1 press "6" for
a quick jump to menu H6. ("0" = menu H10).
Instead of a menu identification (e.g. B1), the letter L can be shown,
which means that it is a List. Use "↑" and "↓" to scroll in the list.
If ← or → is shown in a menu, use "←" or "→" to get more
information.
Use "←" and "→" to move the cursor in a menu.
Use "Return" to return from a sub menu to the main menu (H1-H10).
Use "Return" to log off from a main menu (H1-H10).
There will be an automatic log off 60 minutes after the last action (i.e.
if the key pad / push buttons have not been used for 60 min.).
62
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
22
Perform monthly test (H1)
EBL128 and the installation shall be tested on a regular basis. If one
twelfth of the alarm points are tested each month, the whole
installation will be tested after one year.
In test mode, only the alarm points are tested, i.e. no outputs (no
sounders) will be activated during the test. (Alarm devices can be
tested via menu H8/S3.)
If a real fire alarm is activated by an alarm point not in test mode,
the normal fire alarm functions will be activated, i.e. fire alarm
presentation, outputs (sounders) activated, routing equipment (fire
brigade tx) activated, etc. but the zone(s) in test mode will remain in
test mode until the test mode is ended. During the fire alarm the
zone(s) in test mode can be displayed via menu X3, see chapter
"Display disablements (X3)", page 32.
See also chapter "The display in EBL128", page 17.
NOTE! If the EBL128 door is left open, the output(s) for routing
equipment (fire brigade tx) might be disabled (if set so in Win128).
There will be an automatic ending of the test mode one hour after the
latest tested alarm point / zone.
See also chapter "Perform ZONE TEST (test mode) (H7)", page 99.
Action
Text in display
Comments
"Access"
According to chapter
"Access", see page 62.
Perform monthly test
ACCEPT? H1
"A"
Check that all LEDs light up!
ACCEPT
▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒
▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒
The buzzer (in EBL128)
sounds and all dots in the
display are shown for 3
seconds.
Zone to be set in TEST MODE:
?? ?? ?? ??
Start test:
ACCEPT
NOTE! In Danish (DBI)
convention, only one zone.
Write zone numbers
(e.g. 01, 02, 03, 04)
Zone to be set in TEST MODE:
01 02 03 04
Start test:
ACCEPT
Press "A" to start the test
mode.
"A"
Zones are set in test mode
wait....
LED "Test mode" (L9)
will light up.
Zone in TEST MODE:
01 02 03 04
Perform the tests.
"A"
End test:
ACCEPT
The zone(s) will stay in test mode until the test mode is ended but after 60 minutes or if you press
63
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
"Return" two times, you will be logged out from menu H1.
Perform the test as quickly as possible, since the output(s) for routing equipment (fire brigade tx) are disabled
(also the parts of the zones in test mode, not visible for the test personnel, are disabled).
In order to shorten the testing time, any time delay for the detectors / zones in test mode will be "disabled",
i.e. fire alarm will be detected faster than normally.
In the tested alarm point, the LED will light up, and the LEDs "Fire" (L1) in EBL128 will light up, about ten
seconds, then the alarm point will be automatically reset.
A detector in test mode will not be able to activate fault.
After 60 minutes or
"Return"
"Return"
(When required:
"Access", "code")
Zones in test mode: 01,
02,
03,
04
You are no longer in menu
H1 but still in test mode.
NOTE! See chapter "The display in EBL128", page 17
regarding priority order.
Zone in TEST MODE:
01 02 03 04
End test:
ACCEPT
Press "A" to end the test
mode.
ACCEPT
The LED "Test mode" is
turned OFF.
"A"
"A"
Test of routing equipment? 0
(1 = Yes, 0 = No)
Some national regulations also require a routine test of the routing equipment. Press "A" for no test or press
"1" and "A" to start such a test. The following will happen:
• EBL128 "Fault tx" output will be de-activated56, indicated by the LED "Fault tx activated" (L11).
A 60 seconds count-down starts.
• After 30 seconds, EBL128 "Fire brigade tx" output (and corresponding programmable outputs type 4 =
routing equipment) will be activated as well, indicated by the LED "Fire brigade tx" (L15).
• After another 30 seconds, the test will be ended and all the outputs and LEDs will return to "normal".
"1", "A"
Test of routing equipment in progress.
nn seconds left.
"nn" starts at 60 and will
count down to 00.
Monthly test is completed!
ACCEPT
"A"
Perform monthly test
ACCEPT? H1
56
NOTE! This output is activated in normal state.
64
Scroll or press "Return" to
log off.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
23
Disable or re-enable (H2)
A whole zone, one or more alarm points within a zone and/or control
outputs can be disabled via menus H2/B1-B3. This possibility can be
used when a temporary disablement is wanted (e.g. craftsmen working
in the premises, etc.).
A disabled alarm point will not activate Pre-warning, fire alarm or
fault.
Addressable manual call points can be disabled when required but
shall normally not be disabled.
NOTE! When a whole zone is disabled also the addressable manual
call points will be disabled.
• Zones 01-32 can be disabled via menu H2/B1.
• All alarm points (zone / address) can be individually disabled
via menu H2/B2.
• All outputs can be individually disabled via menu H2/B3.
Disabled output will stay in (or return to) the normal condition
for the output respectively.
NOTE!
• All Interlocking outputs can be individually disabled via
menu H9/C4.
• The COM loop can be disabled via menu H5/A1.
• A zone line input can be disabled via menu H5/A2.
Don't forget to re-enable (via menus H2/B4-B9) or use automatic reenablement for zones and alarm points.
Disablements are indicated by LED "Disablements" (L8) and are also
shown in the display57. An example:
Zone 01 is disabled
More...
More… is indicating two or more disablements.
Disablements (and faults) are indicated by a 2-sec. beep when an open
EBL128 door is being closed.
23.1
Disable zone (H2/B1)
When a whole zone is disabled, all alarm points within the zone are
disabled including the addressable manual call points.
All zones can be disabled. Disabled zones are listed in menu H4/U1.
Disabled zones can be automatically re-enabled or they have to be reenabled via menu H2/B5.
57
See chapter "The display in EBL128", page 17 regarding priority order.
65
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
Action
Text in display
Comments
"Access"
Scroll to menu H2.
According to chapter
"Access", see page 62.
Disable or re-enable
ACCEPT? H2
"A"
Disable zone
ACCEPT? B1
"A"
Disable zone: 00
ACCEPT?
Write zone number (e.g.
01)
Disable zone: 01
"A"
Automatic re-enabling:0 (0=No,1=Yes)
Press "A" to accept.
ACCEPT?
Time: HH:MM
ACCEPT?
(Default is current time + 3 hours)
"A"
Disable zone: 00
ACCEPT?
66
Press "1" for aut. reenabling and accept or
change the time (max. 24
hours). Press "A" to
accept. LED
"Disablements" (L8) will
light up.
If more disablements shall
be done, continue like
above. If not, press
"Return" to menu B1.
Scroll or press "Return" to
menu H2. Scroll or press
"Return" to log off.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
23.2
Disable zone / address (H2/B2)
All addressable alarm points (also addressable manual call points),
connected to the COM loop, can be individually disabled.
Disabled alarm points (zone – address) are listed in menu H4/U1.
Disabled alarm points (zone – address) can be automatically reenabled or they have to be re-enabled via menu H2/B6.
Action
Text in display
Comments
"Access"
Scroll to menu H2.
According to chapter
"Access", see page 62.
Disable or re-enable
ACCEPT? H2
"A"
Disable zone
ACCEPT? B1
Scroll to menu B2.
Disable zone / address
ACCEPT? B2
"A"
Disable zone: 00 Address: 00
ACCEPT?
Write zone number and
address
(e.g. 01 - 01)
Disable zone: 01 Address: 01
"A"
Automatic re-enabling:0 (0=No,1=Yes)
Press "A" to accept.
ACCEPT?
Time: HH:MM
ACCEPT?
(Default is current time + 3 hours)
"A"
Disable zone: 00 Address: 00
ACCEPT?
67
Press "1" for aut. reenabling and accept or
change the time (max. 24
hours). Press "A" to
accept. LED
"Disablements" (L8) will
light up.
If more disablements
shall be done, continue
like above. If not, press
"Return" to menu B2.
Scroll or press "Return"
to menu H2. Scroll or
press "Return" to log off.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
23.3
Disable output (H2/B3)
Control outputs can be individually disabled. Disabled output will
stay in (or return to) the normal condition for the output respectively.
Disabled outputs are listed in menu H4/U1.
Action
Text in display
Comments
"Access"
Scroll to menu H2.
According to chapter
"Access", see page 62.
Disable or re-enable
ACCEPT? H2
"A"
Disable zone
ACCEPT? B1
Scroll to menu B3.
Disable output
ACCEPT? B3
"A"
"A"
Depending on the
chosen type, 0, 1, 2 or 3
the following will be
shown:
Disable output: Type: 0
0=Loop unit 1=S 2=R0 3=RE
ACCEPT?
Disable technical address 000 output 0
ACCEPT?
Disable S0
ACCEPT?
Disable R0
ACCEPT?
Disable relay board 0 output 0
ACCEPT?
"A"
Disable output: Type: 0
0=Loop unit 1=S 2=R0 3=RE
58
Relay board 0-1. Relay output 0-7.
68
ACCEPT?
Press:
"0"=MIO (3361) or
ASI (3377) or
ASB (3378) or
AOU (3364)
"1"=C.i.e. output S0-S1
"2"=C.i.e. output R0
"3"=C.i.e. exp. board
58
relay output.
Press "A" to accept.
Regarding the ASI
(3377) & ASB (3378)
unit outputs:
0=high priority
1=low priority
Write the data.
Press "A" to accept.
LED "Disablements"
(L8) will light up.
If more disablements
shall be done, continue
like above. If not, press
"Return" to menu B3.
Scroll or press "Return"
to menu H2. Scroll or
press "Return" to log off.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
23.4
Disable all control, extinguishing, ventilation and alarm device outputs (H2/B4)
Outputs programmed as type 0 = control (general), type 1 = fire
ventilation, type 2 = extinguishing system and type 3 = alarm devices
can for the type respectively be disabled all at the same time.
Disabled output means that even if the control expression (trigger
condition) for the output respectively is fulfilled, the output will not be
activated. Disabled outputs are shown in menu H4/U1.
The outputs will be disabled until re-enabled again (via H2/B8).
NOTE! This function for alarm devices is not the same as push
button "Silence alarm devices" (P3), see chapter "Silence Alarm
devices", page 22. This function has higher priority than "Silence
alarm devices".
Action
Text in display
Comments
"Access"
Scroll to menu H2.
According to chapter
"Access", see page 62.
Disable or re-enable
ACCEPT? H2
"A"
Disable zone
ACCEPT? B1
Scroll to menu B4.
Disable all control, exting, ventilation
or alarm device outputs
ACCEPT? B4
"A"
Disable type of output: 0
0=control
1=exting 2=ventilation 3=alarm
ACCEPT?
Press:
"0"=control output
"1"=extinguishing output
"2"=ventilation output
"3"=alarm devise output.
Press "A" to accept.
"A"
Depending on the
chosen type, 0, 1, 2 or 3
the following will be
shown:
Disable all control outputs
Press "A" to accept.
LED "Disablements" (L8)
will light up.
If type 3 = alarm devices
are disabled also the LED
"Fault / Disablements
Alarm devices" (L13) will
light up.
ACCEPT?
Disable all extinguishing outputs
ACCEPT?
Disable all ventilation outputs
ACCEPT?
Disable all alarm device outputs
ACCEPT?
"A"
Disable type of output: 0
0=control
1=exting 2=ventilation 3=alarm
ACCEPT?
Press "0", "1", "2" or "3"
and press "A" to accept or
"Return" to menu B4.
"Return"
Disable all control, exting, ventilation
or alarm device outputs
ACCEPT? B4
Scroll or press "Return" to
menu H2. Scroll or press
"Return" to log off.
69
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
23.5
Re-enable zone (H2/B5)
Disabled zones are listed in menu H4/U1.
Re-enabling via this menu has higher priority than automatic reenabling.
Zones disabled via the "Encapsulation function", see chapter "Single
encapsulated reset" page 38, have to be re-enabled via this menu
before they can activate a new alarm.
When all zones have been re-enabled, the LED "Disablements" (L8)
will be turned OFF, if there are no other disablements.
NOTE! It is not possible to collectively re-enable a number of alarm
points that have been individually disabled via menu H2/B2.
Action
Text in display
Comments
"Access"
Scroll to menu H2.
According to chapter
"Access", see page 62.
Disable or re-enable
ACCEPT? H2
"A"
Disable zone
ACCEPT? B1
Scroll to menu B5.
Re-enable zone
ACCEPT? B5
"A"
Re-enable zone: 00
ACCEPT?
"A"
L
Re-enable zone
ACCEPT? B5
70
If there are no zones to reenable, menu B5 will be
shown again.
L=a list in which you can
scroll.
If it's the correct zone to
re-enable, press "A" to
accept. If not, scroll or
write the wanted zone and
press "A" to accept.
If more re-enablements
shall be done, continue like
above. If not, scroll or
press "Return" to menu
H2. Scroll or press
"Return" to log off.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
23.6
Re-enable zone / address (H2/B6)
Disabled alarm points (zone – address) are listed in menu H4/U1.
Re-enabling via this menu has higher priority than automatic reenabling.
Alarm points disabled via the "Encapsulation function", see chapter
"Single encapsulated reset" page 38, have to be re-enabled via this
menu before they can activate a new alarm.
When all alarm points have been re-enabled, the LED "Disablements"
(L8) will be turned OFF, if there are no other disablements.
Action
Text in display
Comments
"Access"
Scroll to menu H2:
According to chapter
"Access", see page 62.
Disable or re-enable
ACCEPT? H2
"A"
Disable zone
ACCEPT? B1
Scroll to menu B6.
Re-enable zone / address
ACCEPT? B6
"A"
Re-enable zone: 00 Address: 00
ACCEPT?
"A"
L
Re-enable zone / address
ACCEPT? B6
71
If there are no zone addresses to re-enable,
menu B6 will be shown
again.
L=a list in which you can
scroll.
If it's the correct zone address to re-enable, press
"A" to accept. If not, scroll
or write the wanted zone address and press "A" to
accept.
If more re-enablements
shall be done, continue like
above. If not, scroll or
press "Return" to menu
H2. Scroll or press
"Return" to log off.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
23.7
Re-enable output (H2/B7)
Disabled outputs are listed in menu H4/U1.
When all outputs have been re-enabled, the LED "Disablements" (L8)
will be turned OFF, if there are no other disablements.
When all outputs type 3 = alarm devices have been re-enabled, the
LED "Fault / Disablements Alarm devices" (L13) will be turned
OFF.
Action
Text in display
Comments
"Access"
Scroll to menu H2.
According to chapter
"Access", see page 62.
Disable or re-enable
ACCEPT? H2
"A"
Disable zone
ACCEPT? B1
Scroll to menu B7.
Re-enable output
ACCEPT? B7
"A"
"A"
Depending on the
chosen type, 0, 1, 2 or 3
the following will be
shown:
Re-enable output: 0
0=Loop unit 1=S 2=R0 3=RE
Press:
"0"=MIO (3361) or
ASI (3377) or
ASB (3378) or
AOU (3364)
"1"=C.i.e. output S0-S1
"2"=C.i.e. output R0
"3"=C.i.e. exp. board relay
59
output.
Press "A" to accept.
ACCEPT?
Re-enable technical address 000 output 0
ACCEPT? L
Re-enable S0
ACCEPT?
L
ACCEPT?
L
Re-enable relay board 0 output 0
ACCEPT?
L
Re-enable R0
59
Relay board 0-1. Relay output 0-7.
72
If there are no outputs to
re-enable, menu B7 will be
shown again.
L=a list in which you can
scroll. Regarding the ASI
(3377) & ASB (3378) unit
outputs:
0=high priority
1=low priority
If it's the correct output to
re-enable, press "A" to
accept. If not, scroll or
write the wanted output
and press "A" to accept.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
"A"
Re-enable output: 0
0=Loop unit 1=S 2=R0 3=RE
73
ACCEPT?
If more re-enablements
shall be done, continue like
above. If not, press
"Return" to menu B7.
Scroll or press "Return" to
menu H2. Scroll or press
"Return" to log off.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
23.8
Re-enable all control, extinguishing, ventilation or alarm device outputs (H2/B8)
Disabled outputs are listed in menu H4/U1.
When all outputs have been re-enabled, the LED "Disablements" (L8)
will be turned OFF, if there are no other disablements.
When all outputs type 3 = alarm devices have been re-enabled, the
LED "Fault / Disablements Alarm devices" (L13) will be turned
OFF.
Action
Text in display
Comments
"Access"
Scroll to menu H2.
According to chapter
"Access", see page 62.
Disable or re-enable
ACCEPT? H2
"A"
Disable zone
ACCEPT? B1
Scroll to menu B8.
Re-enable all control, exting, ventil
or alarm device outputs
ACCEPT? B8
"A"
Re-enable type of output: 0
0=control
1=exting 2=ventilation 3=alarm
ACCEPT?
Press:
"0"=control output
"1"=extinguishing output
"2"=ventilation output
"3"=alarm devise output.
Press "A" to accept.
"A"
Depending on the
chosen type, 0, 1, 2 or 3
the following will be
shown:
Re-enable all control outputs
Press "A" to accept.
LED "Disablements" (L8)
will turned off.
If type 3 = alarm devices
are re-enabled also the
LED "Fault /
Disablements Alarm
devices" (L13) will be
turned off.
ACCEPT?
Re-enable all extinguishing outputs
ACCEPT?
Re-enable all ventilation outputs
ACCEPT?
Re-enable all alarm device outputs
ACCEPT?
"A"
"Return"
Re-enable type of output: 0
0=control
1=exting 2=ventilation 3=alarm
ACCEPT?
Re-enable all control, exting, ventil
or alarm device outputs
ACCEPT? B8
74
Press "0", "1", "2" or "3"
and press "A" to accept or
"Return" to menu B4.
Scroll or press "Return" to
menu H2. Scroll or press
"Return" to log off.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
23.9
Disable or re-enable outputs for routing
equipment (H2/B9)
Disabled outputs are listed in menu H4/U1.
Outputs for routing equipment (fire brigade tx / fault tx) can be
disabled and re-enabled via this menu. Disabled output will stay
disabled, until re-enabled again via this menu. Can be useful during
an installation and test period, when only local alarms are required.
Disabled output is indicated by LEDs "Disablements" (L8) and "Fault
/ Disablements Fire brigade tx" (L15).
Action
Text in display
Comments
According to chapter
"Access", see page 62.
"Access"
Scroll to menu H2.
Disable or re-enable
ACCEPT? H2
"A"
Disable zone
ACCEPT? B1
Scroll to menu B9
Disable or re-enable outputs for
routing equipment
ACCEPT?
B9
"A"
Routing equipment for FIRE:1, FAULT:1
(1=enabled, 0=disabled)
ACCEPT?
To move the cursor, press
"→". Edit and/or press "A"
to accept.
"A"
Disable or re-enable outputs for
routing equipment
ACCEPT?
Scroll or press "Return" to
return to H2. Scroll or
press "Return" to log off.
75
B9
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
23.10
De-activate alert annunciation function
(H2/B10)
Normal function (1):
For alarm points / zones programmed for Alert Annunciation (via
Win128) is normally the AA function enabled via a time channel, e.g.
enabled daytime (during working hours) and disabled night time.
As an alternative, the AA function can be continuously enabled.
Off (0)
Via this menu (H2/B10) it is possible to de-activate (disable) the AA
function, i.e. the AA function will be disabled for the alarm points /
zones programmed for Alert Annunciation in spite of the time channel
is "on" or if they are programmed to be continuously enabled.
The AA function will stay de-activated (disabled) until re-activated
(re-enabled) again via this menu.
Action
Text in display
Comments
According to chapter
"Access", see page 62.
"Access"
Scroll to menu H2.
Disable or re-enable
ACCEPT? H2
"A"
Disable zone
ACCEPT? B1
Scroll to menu B10.
De-activate alert annunciation function
ACCEPT? B10
"A"
Alert annunciation function? 1
(1 = Normal, 0 = Off)
ACCEPT?
Write "0" or "1" and press
"A" to accept.
"A"
De-activate alert annunciation function
ACCEPT? B10
Scroll or press "Return" to
menu H2. Scroll or press
"Return" to log off.
76
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
24
Set calendar and clock (H3)
When required, the clock can be corrected, so that the "time stamps"
for fire alarms, faults, etc. will be correct.
NOTE! The RTC component has no built-in battery, i.e. if EBL128 is
out of power (no mains and no battery backup), the date, day of the
week and time have to be set when EBL128 is powered-up again.
In this menu is also the S/W (system program) version shown.
NOTE! The information shown in the display will be saved when
you press "A". If you don't want to change anything (e.g. if you
only want to see the S/W version), press "Return" instead of "A" to
return to menu H3.
Action
Text in display
Comments
"Access"
Scroll to menu H3.
According to chapter
"Access", see page 62.
Set calendar and clock
ACCEPT? H3
"A"
Date: YY-MM-DD Time: hh:mm:ss
Weekday:W (1=M, 7=S)
VER:vvvvvvvvvvvv
Here is the S/W version
shown (e.g. VER: 1.0).
The time shown is the time
when "A" was pressed (in
menu H3).
When required, edit the
date, time and/or weekday.
Press "A". The "clock"
starts again from the date,
time, etc. shown in the
display.
NOTE! Press "Return"
(instead of "A") to return
to menu H3 if no changes
are to be done.
"A" or
"Return"
Set calendar and clock
ACCEPT? H3
77
Scroll or press "Return" to
log off.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
25
Present system status on display
(H4)
25.1
Disablement (H4/U1)
A list of all disablements (done via menu H2/Bx).
NOTE! Disablements by time channel(s) are listed in menu H4/U2.
Action
Text in display
Comments
"Access"
According to chapter
"Access", see page 62.
Scroll to menu H4.
Present system status on display
ACCEPT? H4
"A"
Disablement
U1
"A"
When "A" is pressed, the disablements will be shown in the
display. Some examples:
Zone XX address XX disabled
60
L
Press "A" for presentation
in the display.
L = a list in which you can
scroll. If there are no
disablements and if
"Return" is pressed, menu
U1 will be shown again.
or
Zone XX is disabled
60
"Return"
L
Disablement
U1
60
Scroll or press "Return" to
menu H4. Scroll or press
"Return" to log off.
On this row can also be shown adding information, e.g.:
• Automatic re-enablement HH:MM
• (by open door in CU)
78
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
25.2
Disablement by time channel (H4/U2)
A list of all disablements by time channel(s).
NOTE! Other disablements are listed in menu H4/U1.
Action
Text in display
Comments
"Access"
According to chapter
"Access", see page 62.
Scroll to menu H4.
Present system status on display
ACCEPT? H4
"A"
Disablement
U1
Scroll to menu U2.
Disablement by time channel
U2
"A"
When "A" is pressed, the disablements will be shown in the
display, e.g:
Zone XX address XX disabled
(by time channel)
"Return"
L
Disablement by time channel
U2
Press "A" for presentation
in the display.
L = a list in which you can
scroll. If there are no
disablements and if
"Return" is pressed, menu
U2 will be shown again.
Scroll or press "Return" to
menu H4. Scroll or press
"Return" to log off.
When scrolling in the list the message "No more zone/addresses disabled by time channel found in the
system" can be shown.
79
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
25.3
Sensor values (H4/U3)
The very first week average sensor value is calculated within 2
minutes after SSD download & restart. During these 2 minutes, fire
alarm from analog smoke detectors are suppressed and the sensor
value "000" will be shown.
The "Performance factor" and "Min. / Max." values are updated each
night (00:00), i.e. the values shown are from the previous day.
Text in display
Comments
"Access"
According to chapter
"Access", see page 62.
Scroll to menu H4.
Present system status on display
ACCEPT? H4
"A"
Disablement
U1
Scroll to menu U3.
Sensor values
Press "A" to accept.
U3
"A"
E.g: "01-01"
Depending on
the type, the
following will
be shown
(examples):
"A"
Start Sensor : 00-00
Write the presentation
number and/or press "A"
to accept.
Type 4301:
This is a list in which
you can scroll or use
"" to see the next
information window for
the selected sensor.
Sensor: 01-01 (technical address 001)
Momentary: XX.X%/m
Weekly: XX.X%/m
""
""
"A"
Sensor: 01-01
Perf Factor: X.XX%/m
Min: XX.X%/m
Max: XX.X%/m
Sensor: 01-01
Current algorithm: nnnnnn
Type 3308/3309:
Sensor: 01-02 (technical address 002)
Momentary: XX°C
Min: XX°C
Max: XX°C
""
Sensor: 01-02
Current algorithm: nnnnnn
"A"
Type 4300:
Press "Return" back to
"Start Sensor...".
Scroll or write a new
presentation number or
press "Return" to menu
U3.
NOTE!
XX.X%/m = XX.X %
obscuration per meter".
Perf. Factor: see below
this table.
Sensor: 01-03 (technical address 003)
Momentary: XX.X%/m
Weekly: XX.X%/m
""
Sensor: 01-03
Perf Factor: X.XX%/m
""
Sensor: 01-03
Current algorithm: nnnnnn
80
Min: XX.X%/m
Max: XX.X%/m
nnnnnn = algorithm short
name, see separate table,
page 81.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
""
""
Sensor: 01-03 (technical address 003)
Momentary: XX°C
Min: XX°C
Max: XX°C
Sensor: 01-03
Current algorithm: nnnnnn
"Return"
Start Sensor : 00-00
"Return"
Sensor values
Write the presentation
number and/or press "A"
to accept or press
"Return" to menu U3.
U3
Scroll or press "Return"
to menu H4. Scroll or
press "Return" to log off.
When scrolling the message "Please Wait….." might be shown for "a second" and "No more sensors
found in the system" (before lowest and after highest possible number respectively).
Perf. Factor = Performance factor:
Low (min. 0) = The detector is mounted in a "stable" environment.
High (max. 2.55) = The detector is mounted in an "unstable" environment.
See also Planning Instructions, chapter "Performance factor".
Table showing the algorithms and the shortenings respectively:
Algorithm
Short name
(nnnnnn)61
Normal sensitivity & Normal detection (15 s)
N-15
High sensitivity & Normal detection (15 s)
H-15
Low sensitivity & Normal detection (15 s)
L-1562
Normal sensitivity & Slow detection (35 s)
N-3562
High sensitivity & Slow detection (35 s)
H-3562
Low sensitivity & Slow detection (35 s)
L-3562
Heat algorithm, Class A1
A1
Heat algorithm, Class A2 (S)
A2
Heat algorithm, Class B (S)
B
Decision algorithm
Dec63
Default is N-15 and A1 respectively.
61
If some other short name is wanted, it can be changed in Win128. Up to
six characters can be used. In the DBI (Danish) convention, up to five
characters.
62
Low sensitivity and/or slow detection (35 s) might not fulfil the EN54-7
specifications.
63
Analog multi detector 4300 only.
81
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
25.3.1
Reset of a week average sensor value
If a sensor (analog smoke detector) is replaced without having
generated SERVICE signal, its week average sensor value has to be
set to the default value. If not, the new / clean sensor will inherit the
old sensor's week average sensor value.
It is possible to clear the week average sensor value for each sensor
individually, see chapter "Clear weekly average (H8/S2)", page 103.
See also chapter "Acknowledge SERVICE signal (H8/S1)", page 102.
NOTE! Authorised service personnel only, must do the reset to
default value. Used incorrectly it can cause nuisance fire alarms.
82
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
25.4
Sensors activating SERVICE signal (H4/U4)
Service signal is indicated by LED "Service" (L12). The week
average sensor value is over the service level respectively for one or
more sensors. (Regarding the service signal levels, see Planning
Instructions, chapter "Service signal".
Menu H4/U4 is a list of the sensor(s) activating service signal.
NOTE! Service signal is only information that a sensor has to be
cleaned / replaced soon. The service signal has to be acknowledged,
see chapter "Acknowledge SERVICE signal (H8/S1)", page 102.
Action
Text in display
Comments
"Access"
According to chapter
"Access", see page 62.
Scroll to menu H4.
Present system status on display
ACCEPT? H4
"A"
Disablement
U1
Scroll to menu U4.
Press "A" to accept.
Sensors activating SERVICE signal
U4
"A"
Sensor : ZZ-AA (technical address aaa)
needs service
L
L = a list in which you
can scroll. Press "Return"
to menu U4. (If there are
no sensors in the list,
menu U4 will be shown
again.)
"Return"
Sensors activating SERVICE signal
Scroll or press "Return"
to menu H4. Scroll or
press "Return" to log off.
U4
83
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
25.5
Event log (H4/U5)
This is a list of the latest events in EBL128. The event list can also be
read via Win128.
NOTE! The event logging is disabled as long as menu H4/U5 is
open.
Action
Text in display
Comments
"Access"
According to chapter
"Access", see page 62.
Scroll to menu H4.
Present system status on display
ACCEPT? H4
"A"
Disablement
U1
Scroll to menu U5.
Press "A" to accept.
Event log
U5
"A"
When "A" is pressed, an event will be shown in the display,
e.g:
FIRE ALARM zone 12 address 45
MM-DD HH:MM
X
or
FIRE ALARM zone 32
64
Many alarms in zone
"Return"
MM-DD
HH:MM
X
Show event log
U5
64
The most recent event
will be shown, i.e. use
"" to scroll upwards in
the list. Press "Return"
to menu U5.
X = 0 = EBL128
X = 1 = Win128
X = 2 = Web128
Scroll or press "Return"
to menu H4. Scroll or
press "Return" to log off.
More than one alarm point in zone 32 have activated fire alarm.
84
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
25.6
Show configuration (H4/U6)
Menu H4/U6 can be used to see the settings (done via Win128).
Language The language for the texts shown in the EBL128 display.
The text (language) file (nnnn.sst) is selected and downloaded via the
Win128 menu "Download software/texts to control unit" dialog box.65
Convention Because of country specific functions, etc. different
conventions have to be used. The default convention is selected the
first time Win128 is opened but can, if required, be changed in the
"Win128 Settings" dialog box).66
Action
Text in display
Comments
"Access"
According to chapter
"Access", see page 62.
Scroll to menu H4.
Present system status on display
ACCEPT? H4
"A"
Disablement
U1
Scroll to menu U6.
Press "A" to accept.
Show configuration
U6
"A"
Language:nnnnnnnnnn
Conv.:cccccccccc
Press "Return" to menu
U6.
"Return"
Show configuration
Scroll or press "Return"
to menu H4. Scroll or
press "Return" to log off.
U6
65
In order to present all language specific characters correct, also the
"Control unit language" has to be set to the correct language. This is done in
the "Win128 settings" dialog box.
66
To set (change) the convention in Win128, Level 2 has to be selected and
to do this a password is required.
85
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
26
Service (H5)
When commissioning an installation (at power-up etc.) and by
maintenance (programming etc.), menu H5 can be used to get certain
information and help.
Only authorised personnel have access to the level 3A menus. Access
code for level 3A is required.
Via a PC67 and Win128 (+ access code 3B for levels 3B and 4) you
can:
•
download / upload (backup) Site Specific Data (SSD)
•
download new S/W, text file, settings, configuration, etc.
•
create and download the alarm texts shown in the display in
EBL128 / ext. FBP / AAU / EPU.
67
Connected to the "D" connector J3 (RS232) on the main board.
86
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
26.1
Access code for service and maintenance
Access code to level 3A is required.
If logon to level 2B was made with level 3A code, no code is required
here.
Action
Text in display
Comments
"Access"
According to chapter
"Access", page 62
Perform monthly test
ACCEPT? H1
Scroll to menu H5
Service
ACCEPT? H5
"A"
Access code service and maintenance
(Level 3): _
If logon was made with
code for level 3A, no
code is needed.
Enter code for level
3A (four digits)
Access code service and maintenance
(Level 3): ****
The digits are replaced
(****) in the display
NO ACCESS!
Wrong access code was
entered. Try again.
Disconnect / Re-connect COM loop
ACCEPT? A1
Correct access code
was entered. Sub menu
H5/A1 is shown. Press
"A" to accept, scroll or
press "Return" to menu
H5.
87
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
Disconnect / Re-connect COM loop (H5/A1)
To avoid damage on the units and EBL128 during physical connection
/ disconnection of loop units, it is highly recommended to have the
loop disconnected (disabled), i.e. the loop is voltage free (dead).
Disconnected (disabled) loop is indicated by LED "Disablements" and
is listed in menu H4/U1.
NOTE! When you disconnect and re-connect the COM loop, all the
statistics shown in menu H5/A8 will be erased and set to "0".
Action
Text in display
Comments
"Access"
According to chapter
"Access code for service
and maintenance", see
page 87.
Disconnect / Re-connect COM loop
ACCEPT? A1
"A"
Disconnect (=0) or Re-connect (=1)
COM loop? 1
E.g. "0", "A"
ACCEPT?
Disconnect / Re-connect COM loop
ACCEPT? A1
88
Scroll or press "Return" to
H5. Scroll or press
"Return" to log off.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
26.2
Disconnect / Re-connect zone line (H5/A2)
To avoid damage on the units and EBL128 during physical connection
/ disconnection of units, it is highly recommended to have the zone
line disconnected (disabled), i.e. voltage free (dead).
Disconnected (disabled) zone line is indicated by LED "Disablements" and is listed in menu H4/U1.
Action
Text in display
Comments
"Access"
According to chapter
"Access code for service
and maintenance", see
page 87.
Disconnect / Re-connect COM loop
ACCEPT? A1
Scroll to menu A2
Disconnect / Re-connect zone line
ACCEPT? A2
"A"
Disconnect (=0) or Re-connect (=1)
COM loop? 1
Depending on if "0" or
"1" is chosen, one of
the following will be
shown:
ACCEPT?
Disconnect zone line board 0 input 0
ACCEPT?
Re-connect zone line board 0 input 0
ACCEPT?
Disconnect (=0) or Re-connect (=1)
COM loop? 1
"A"
ACCEPT?
Disconnect / Re-connect zone line
ACCEPT? A2
89
Write "0" or "1" and press
"A" to accept.
Write the 4580 board no.
(0-3) and the zone line
input no. (0-7). Press "A"
to accept.
Write "0" or "1" and press
"A" to accept or press
"Return" menu A1.
Scroll or press "Return" to
H5. Scroll or press
"Return" to log off.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
26.3
Calibration of supervised outputs (H5/A3)
The voltage outputs (S0-S1 in EBL128 and VO0-VO1 in 3364) are
supervised / monitored.
When all the units (sounders, etc.) have been connected, including
required capacitors68 and when the SSD download is ready, a
calibration has to be done.
Function: If the actual value differs from the calibrated value ± a
small tolerance or if the calibrated value is outside the calibration
range 470nF – 5x470nF, a fault will be generated.
NOTE!
Each output's logic is programmable (via Win128) to be normally low
(default) or normally high (24V). Only outputs programmed to be
normally low, can be supervised / monitored.
Action
Text in display
Comments
"Access"
According to chapter
"Access code for service
and maintenance", see
page 87.
Disconnect / Re-connect COM loop
ACCEPT? A1
Scroll to menu A3
Calibration of supervised outputs
ACCEPT? A3
"A"
Calibration in progress
Please wait......
Calibration of supervised outputs
ACCEPT? A3
Calibration is ready.
Scroll or press "Return" to
H5. Scroll or press
"Return" to log off.
NOTE! After the calibration it is recommended to do a "Safe
shutdown of control unit" (see menu H8/S4). This will save the SSW
data (e.g. the calibration values) in a Flash ROM (see page 58).
68
An end-of-line capacitor (470nF) in the last unit or a capacitor (470nF) in
up to five units. As an alternative, an output can (via Win128) be set to not
supervised.
90
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
26.4
Sensitive fault detection mode (H5/A4)
"Sensitive fault detection mode" means that the time delay is reduced
for all type of faults, which makes it possible find faults during the
commissioning instead of later.
NOTE! Don't forget to turn this mode off after the commissioning.
Action
Text in display
Comments
"Access"
According to chapter
"Access code for service
and maintenance", see
page 87.
Disconnect / Re-connect COM loop
ACCEPT? A1
Scroll to menu A4
Sensitive fault detection mode
ACCEPT? A4
"A"
Sensitive fault detection mode: 0
(0 = off, 1 = on)
Press "A" or "1" and "A"
to accept. ON is indicated
by LED "Fault tx
activated" (L11) and the
"Fault" output for routing
equipment. This mode is
ON until turned OFF in
this menu (A4).
E.g. "1", "A"
Sensitive fault detection mode
Scroll or press "Return" to
H5. Scroll or press
"Return" to log off.
ACCEPT? A4
NOTE! Don't forget to turn this mode off after the commissioning.
91
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
26.5
Service mode for COM-loop (H5/A5)
This mode can be used when commissioning an installation and by
maintenance. The COM loop communication (polling) will be turned
off but there will still be voltage (24 V DC) on the loop in the Adirection only, in the B-direction only or in both directions at the
same time, depending on if 1, 2 or 3 is selected in this menu.
A volt meter can be used, e.g. to check the voltage / voltage drop on
different places on the loop. It is recommended to do this check also
when EBL128 is power supplied via the backup battery only, since the
voltage can be up to 3 V lower (compared with when it is power
supplied via the rectifier, i.e. via 230 V AC) due to the battery
condition, backup duration, etc.
NOTE! If short-circuit is detected on the loop when in service mode,
the loop will be disabled and a fault message will be displayed:
FAULT: SHORT CIRCUIT SCI A <-> SCI B
…independent of where on the loop the short-circuit is situated.
Action
Text in display
Comments
"Access"
According to chapter
"Access code for service
and maintenance", see
page 87.
Disconnect / Re-connect COM loop
ACCEPT? A1
Scroll to menu A5
Press "A" to accept.
Service mode for COM-loop
ACCEPT? A5
"A"
E.g. "1", "A"
Service mode for COM-loop: 0
0=Off 1=A-dir 2=B-dir 3=Both
Service mode for COM-loop: 1
0=Off 1=A-dir 2=B-dir 3=Both
92
ACCEPT?
ACCEPT?
Press:
0=Service mode is off.
1=Voltage in A-direction.
2=Voltage in B-direction.
3=Voltage in both directions.
1, 2 or 3 selected is
indicated by LED
"Disablements" (L8)
The communication is now
turned off on the COM
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
loop but there is still
voltage in the A-direction.
This state will last until
another alternative is
selected or the service
mode is turned off.69
E.g. "0", "A"
Service mode for COM-loop
ACCEPT? A5
69
Scroll or press "Return" to
H5. Scroll or press
"Return" to log off.
The service mode can also be turned off via menu H5/A1, i.e. Re-connect
(=1) COM loop.
93
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
26.6
Show information about Site Specific Data
(H5/A6)
Information about the latest downloaded Site Specific Data (SSD) is
shown. New SSD can be downloaded via a PC and Win128.
Action
Text in display
Comments
"Access"
According to chapter
"Access code for service
and maintenance", see
page 87.
Disconnect / Re-connect COM loop
ACCEPT? A1
Scroll to menu A6
Show information about
site specific data
"A"
ACCEPT? A6
70
Name: xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
Downloaded: YY-MM-DD hh:mm
ACCEPT?
YY=year, MM=month,
DD=day.
hh=hour, mm=minute
"A"
Show information about
site specific data
ACCEPT? A6
70
Scroll or press "Return" to
H5. Scroll or press
"Return" to log off.
As written in the field "Name" in the Win128 dialog box "Control Unit
Properties". If there is no SSD downloaded to EBL128 the following text
message will be shown: "No SSD downloaded".
94
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
26.7
Display current consumption on COM loop
(H5/A7)
An average current consumption value can be displayed for the COM
loop.
NOTE! No or very small current consumption will not be presented
correctly / precisely.
Action
Text in display
Comments
"Access"
According to chapter
"Access code for service
and maintenance", see
page 87.
Disconnect / Re-connect COM loop
ACCEPT? A1
Scroll to menu A7
Display current consumption on
COM loop
ACCEPT? A7
"A"
Wait......
"Return"
Current consumption on COM-loop
is xxxx mA
The accuracy is ±5 mA.
Display current consumption on
COM loop
ACCEPT? A7
Scroll or press "Return" to
H5. Scroll or press
"Return" to log off.
95
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
26.8
Display statistics for COM loop (H5/A8)
The statistics can be used during commissioning, service, etc.
Pollings are the number of pollings ("questions") sent out by EBL128
to the units connected on the COM loop.
Parity is the received number of parity faults and % parity faults in
relation to the pollings.
Bit length is the received number of bit length faults and % bit length
faults in relation to the pollings.
No. of bits is the number of bit faults and % bit faults in relation to the
pollings. (Bit fault / incomplete answer.)
The Parity, Bit length and No. of bits values shall normally be "0" or
as close to "0" as possible. If not, there are some communication
problems that have to be investigated. Check the COM loop
connections and the loop units. Check so that the COM loop cable is
not placed too close to high voltage cables, etc. that might cause
communication disturbance / problems.
NOTE! All values are set to "0" after a restart and when you reconnect the COM loop (via menu H5/A1).
Action
Text in display
Comments
"Access"
According to chapter
"Access code for service
and maintenance", see
page 87.
Disconnect / Re-connect COM loop
ACCEPT? A1
Scroll to menu A8
Display statistics for COM loop
ACCEPT? A8
"A"
Wait......
"A"
Pollings 1234567
Parity 000000 00.0%
No reply 000000 00.0%
-->
71
Bit length 000000 00.0%
No. of bits 000000 00.0%
Press "" to go back. or
press "A" to menu A8.
<--
Display statistics for COM loop
ACCEPT? A8
71
Press "" to go forward.
Scroll or press "Return" to
H5. Scroll or press
"Return" to log off.
Note! The values are not updated continuously, i.e. the shown values
were valid when "A" was pressed in menu A8. To see the new actual values,
go back to menu A8 and then press "A" again. Normally only the "Pollings"
value should be changed.
96
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
26.9
Activate address setting mode for DU
(H5/A9)
This function can be used by commissioning / service engineer to
activate the address setting mode in the following Display Units
connected to the RS485 interface in EBL128:
• Ext. Presentation unit (EPU) 1728
• Alert Annunciation unit (AAU) 1735 / 1736
• Ext. Fire Brigade Panel (FBP) 1826 / 1828
A specific unit or all units can be activated for address setting.
NOTE! The units have to be in operation and in quiescent condition,
i.e. the units have to have an address set already.
Action
Text in display
Comments
"Access"
According to chapter
"Access code for service
and maintenance", see
page 87.
Disconnect / Re-connect COM loop
ACCEPT? A1
Scroll to menu A9
Activate address setting mode for DU
ACCEPT? A9
"A"
Activate address setting mode for
DU 0 (9 = All)
ACCEPT?
Write the unit's address.
9 = All units.
Press "A" to accept.
"A"
Activate address setting mode for DU
ACCEPT? A9
Scroll or press "Return" to
H5. Scroll or press
"Return" to log off.
The address has thereafter to be edited in the unit respectively.
97
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
27
Acknowledge FAULTS (H6)
Regarding fault indication, etc., see chapter "Fault", page 41.
All faults are latched, i.e. all faults have to be acknowledged. See also
chapter "Fault acknowledge", page 52.
All fault events are stored in the event log and can be listed. See also
chapter "Event log (H4/U5)", page 84.
In this menu (H6) are up to 100 faults listed:
• Not corrected and not acknowledged faults
• Not corrected but acknowledged faults
• Corrected (serviced) but not acknowledged faults
Action
Text in display
Comments
"Access"
Scroll to menu H6.
According to chapter
"Access", see page 62.
Acknowledge FAULTS
ACCEPT? H6
"A"
FAULT: Xxxxxxxx............
Date: MM-DD
Time: HH:MM
See comments
This is a list in which
you can scroll. The first
fault in the list is the
most recent fault. If a
fault is corrected, the
text: Serviced is
shown. To acknowledge
the fault shown in the
display, press "Fault
acknowledge" (P6).
"Fault acknowledge"
FAULT: Xxxxxxxx............
Date: MM-DD
Time: HH:MM
Acknowledged
The fault is now
Acknowledged. When
the fault is corrected it
will be removed from the
list.72 Scroll in the list
e.g. to acknowledge
more faults or press
"Return" to menu H6.
"Return"
Acknowledge FAULTS
Scroll or press "Return"
to log off.
ACCEPT? H6
72
When the list is empty, i.e. when all faults are acknowledged and
corrected, you will automatically return to menu H6:
98
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
28
Perform ZONE TEST (test mode)
(H7)
Normally, zones are tested during the monthly test via menu H1, see
page 63. Via menu H7 it is possible to perform the zone test solely.
In test mode, only the alarm points are tested, i.e. no outputs (no
sounders) will be activated during the test. (Alarm devices can be
tested via menu H8/S3.)
If a real fire alarm is activated by an alarm point not in test mode,
the normal fire alarm functions will be activated, i.e. fire alarm
presentation, outputs (sounders) activated, routing equipment (fire
brigade tx) activated, etc. but the zone(s) in test mode will remain in
test mode until the test mode is ended. During the fire alarm the
zone(s) in test mode can be displayed via menu X3, see chapter
"Display disablements (X3)", page 32.
See also chapter "The display in EBL128", page 17.
There will be an automatic ending of the test mode one hour after the
latest tested alarm point / zone.
NOTE! If the door in EBL128 is left open, the output(s) for routing
equipment (fire brigade tx) might be disabled (if set so in Win128).
Action
Text in display
Comments
"Access"
Scroll to menu H7.
According to chapter
"Access", see page 62.
Perform ZONE TEST
ACCEPT? H7
"A"
Zone to be set in TEST MODE:
?? ?? ?? ??
Start test:
ACCEPT
NOTE! In Danish (DBI)
convention, only one zone.
Write zone numbers
(e.g. 01, 02, 03, 04).
Zone to be set in TEST MODE:
01 02 03 04
Start test:
ACCEPT
Press "A" to start the test
mode.
"A"
Zones are set in test mode
wait….
Zone in TEST MODE:
01 02 03 04
LED "Test mode" (L9)
will light up.
Perform the tests.
End test:
ACCEPT
The zone(s) will stay in test mode until the test mode is ended but after 60 minutes or if you press
"Return" two times you will be out-logged from menu H7.
Perform the test as quickly as possible, since the output(s) for routing equipment (fire brigade tx) are disabled
(also the parts of the zones in test mode, not visible for the test personnel, are disabled).
In order to shorten the testing time, any time delay for the detectors / zones in test mode will be "disabled",
i.e. fire alarm will be detected faster than normally.
In the tested alarm point, the LED will light up, and the LED:s "Fire" (L1) in EBL128 will light up, about ten
99
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
seconds, then the alarm point will be automatically reset.
A sensor in test mode will not be able to activate fault.
After 60 minutes or
"Return"
"Return"
Zones in test mode: 01,
02,
03,
04
NOTE! See chapter "The display in EBL128", page 17
regarding priority order.
(When required:
"Access", "code")
Scroll to menu H7,
"A"
Zone in TEST MODE:
01 02 03 04
"A"
Perform ZONE TEST
End test:
ACCEPT
ACCEPT? H7
100
You are now out-logged
from menu H7 but the
zones are still in test mode.
Press "A" to end the test
mode.
The LED "Test mode" is
turned OFF.
If more zones are to be
tested, continue as above.
If not, scroll or press
"Return" to log off.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
29
Maintenance (H8)
29.1
Access code for service and maintenance
Access code to level 3A is required.
If log on to level 2B was made with code for level 3A, no code is
required here.
Action
Text in display
Comments
"Access"
According to chapter
"Access", page 62
Perform monthly test
ACCEPT? H1
Scroll to menu H8
Maintenance
ACCEPT? H8
"A"
Access code service and maintenance
(Level 3): _
If log on was made
with code for level 3A,
no code is needed.
Enter code for level
3A (four digits)
Access code service and maintenance
(Level 3): ****
The digits are replaced
(****) in the display
NO ACCESS!
Wrong access code was
entered. Try again.
Acknowledge SERVICE signal
Correct access code
was entered. Sub menu
H8/S1 is shown. Press
"A" to accept, scroll or
press "Return" to menu
H8.
ACCEPT? S1
101
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
29.2
Acknowledge SERVICE signal (H8/S1)
See chapter "Sensors activating SERVICE signal (H4/U4)", page 83.
When a sensor (analog smoke detector) that has generated SERVICE
signal is acknowledged, the sensor will be given a default sensor value
as for a new / clean sensor, i.e. first replace the sensor then
acknowledge the service signal as soon as possible.
The very first week average sensor value after the SERVICE signal is
acknowledged will be calculated within one hour. Thereafter a new
week average sensor value will be calculated each week.
NOTE! If a sensor is replaced without activating service signal, it has
to be reset to the default sensor value via menu H8/S2, see chapter
"Clear weekly average (H8/S2)", page 103.
Action
Text in display
Comments
"Access"
According to chapter
"Access code for service
and maintenance", see
page 101.
Acknowledge SERVICE signal
ACCEPT? S1
"A"
Sensor : xx-xx (technical address xxx)
needs service
L
If there are no sensors to
acknowledge, menu S1
will be shown again.
L = a list in which you can
scroll. If it is the correct
sensor to acknowledge,
press "Fault acknowledge".
If not, scroll or write the
wanted sensor and press
"Fault acknowledge" or
press "Return" to S1.
"Fault acknowledge"
The service signal for that sensor is now acknowledged and
the next sensor will be shown in the display.
If more service signal
acknowledgements shall
be done, continue like
above. If not, press
"Return" to menu S1.
Sensor : yy-yy (technical address yyy)
needs service
L
"Return"
Acknowledge SERVICE signal
ACCEPT? S1
Scroll or press "Return" to
menu H8. Scroll or press
"Return" to log off.
LED "Service" (L12) will be turned off when all sensors have been
acknowledged.
102
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
29.3
Clear weekly average (H8/S2)
If a sensor (analog smoke detector) is replaced without having
generated SERVICE signal, its week average sensor value has to be
cleared and set to a default value. If not, the new / clean sensor will
inherit the old sensor's value. The week average sensor value has to
be cleared for each replaced sensor individually. First replace the
sensor then clear the week average sensor value as soon as possible.
The very first week average sensor value after clearing will be
calculated within one hour. Thereafter a new average sensor value
will be calculated each week.
NOTE! Authorised service personnel only, must use this menu.
Used incorrectly it can cause nuisance fire alarms from a sensor or no
fire alarm at all.
Action
Text in display
Comments
"Access"
According to chapter
"Access code for service
and maintenance", see
page 101.
Acknowledge SERVICE signal
ACCEPT? S1
Scroll to menu S2.
Clear weekly average
ACCEPT? S2
"A"
Enter zone-Address to clear: 00-00
ACCEPT?
Write the wanted zoneaddress and/or press "A" to
accept.
"A"
Clear weekly average
Scroll or press "Return" to
return to menu H8. Scroll
or press "Return" to log
off.
ACCEPT? S2
103
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
29.4
Test alarm devices (H8/S3)
The programmable outputs73 of type "Alarm device" can be
collectively activated via this sub menu (S3), which makes it possible
to test the alarm devices without to much disturbance on site.
The test can not be started if fire alarm is already activated in EBL128
When the test starts, the alarm devices will sound for approx. 5
seconds, be silent for approx. 25 seconds, sound for approx. 5 seconds
and so on.74
NOTE! Also disabled (and silenced) alarm devices will be tested.
Action
Text in display
Comments
"Access"
According to chapter
"Access code for service
and maintenance", see
page 101.
Acknowledge SERVICE signal
ACCEPT? S1
Scroll to menu S3.
Test alarm devices
ACCEPT? S3
"A"
E.g. "1", "A"
Test alarm devices ? 0
(1=Start test, 0=Stop test)
ACCEPT?
Test alarm devices
ACCEPT? S3
"A"
"0", "A"
Test alarm devices ? 1
(1=Start test, 0=Stop test)
The test will now
continue until stopped
via this sub menu (S3)
or automatically after
one hour or if a fire
alarm is activated.
ACCEPT?
Test alarm devices
ACCEPT? S3
73
Write "1" or "0" and press
"A" to accept.
Scroll or press "Return" to
return to menu H8. Scroll
or press "Return" to log
off.
Including Addressable siren 3377 and Addressable sounder base 3378.
The output activation will be steady (continuous). For the alarm devices
3377 and 3378, the tone with the highest priority level (and type "alarm
device") will be automatically selected.
74
104
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
29.5
Safe shut down of control unit (H8/S4)
It's not recommended to power down EBL128 without first doing a
safe shut down. Safe shut down will save the SSW in a Flash memory
and also put the CPU at rest.75 See also chapter "Restart", page 58.
It's recommended to do a safe shut down after commissioning the
installation and after calibration of supervised outputs, change of
access code etc.
NOTE! By restart and power down, the Fault tx relay, which is
powered in quiescent/normal state, will be powerless, i.e. the relay
contacts will alternate.
Action
Text in display
Comments
"Access"
According to chapter
"Access code for service
and maintenance", see
page 101.
Acknowledge SERVICE signal
ACCEPT? S1
Scroll to menu S4.
Safe shut down of control unit
ACCEPT? S4
"A"
For safe shut down control unit
press ACCEPT
"A"
Control unit ready for power down. To
restart without power down press ACCEPT.
The SSW is now saved,
the CPU is at rest and the
CU is ready to be powered
down.
NOTE! If you change
your mind regarding power
down, press "A" to restart
the CU (or wait 5 min. for
an aut. restart). When the
CU is powered up again
there will be a restart.
Power down – up
or
"A"
or
after 5 min.
Normal restart indication,
see page 58
After the restart / power up
there will be a fault, which
has to be acknowledged,
see chapter "Acknowledge
FAULTS (H6)", page 98.
Restart = code 03) / power
up = code 00.
FAULT: Restart code 0x addr 0
Date: mm-dd
Time: hh:mm
Serviced
75
All LEDs, incl. "Operation" (L6), will be turned off as well as the communication on the COM loop, RS232 / -485 serial lines and the input "I0".
105
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
29.6
Activate address in alarm mode (H8/S5)
One alarm point (zone-address), not a whole zone, can be manually
activated, i.e. be set in alarm status.
NOTE! All outputs, standard and programmable, which would have
been activated by a real fire alarm from the same alarm point, will be
activated by this "manually activated" alarm as well.
Action
Text in display
Comments
"Access"
According to chapter
"Access code for service
and maintenance", see
page 101.
Acknowledge SERVICE signal
ACCEPT? S1
Scroll to menu S5.
"A"
Activate address in alarm mode
ACCEPT?
Select zone: 00
S5
address: 00
ACCEPT?
Write the zone and
address.
Select zone: 12
"A"
POINT: 12-45
Alarm text, if programmed
"Return"
Select zone: 00
address: 45
ACCEPT?
No.: 001
Press "A" to accept /
activate the fire alarm.
Normal fire alarm
presentation in the
EBL128 / FBP display.
If more alarm points have
to be set in alarm status,
press "Return" to select
another zone - address and
continue as above.
address: 00
ACCEPT?
Write the zone and
address.
Select zone: 12
"A"
POINT: 12-45 LAST: 12-34
Alrm text, if programmed
address: 34
ACCEPT?
106
No.: 002
Press "A" to accept / start
the fire alarm.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
What happens by reset of the fire alarm(s) is depending on:
a) if you still are in menu H8/S5 and single encapsulated reset is used
b) if you still are in menu H8/S5 and multiple reset is used or if you are logged out (by
pressing "Return" two times or automatically after 10 minutes).
Alternative a)
"Reset"
Alternative b)
Activate address in alarm mode
ACCEPT?
S5
Scroll or press "Return" to
menu H8. Scroll or press
"Return" to log off.
(Blank)
"Reset"
NOTE!
Multiple reset is default.76
By Single encapsulated reset each point has to be reset individually.
See also chapter "Alarm reset", page 38.
76
Alarm reset is selected via Win128, "Control Unit Properties", tab
"Advanced".
107
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
29.7
Change access code for service and
maintenance (H8/S6)
For security reasons, the default code should be changed.
Action
Text in display
Comments
"Access"
According to chapter
"Access code for service
and maintenance", see
page 101.
Acknowledge SERVICE signal
ACCEPT? S1
Scroll to menu S6.
Change access code for service and
maintenance (Level 3)
ACCEPT? S6
"A"
Access code: _
New code:
Enter the old code, the
new code and the new
code again.
Verify:
Access code: ****
New code: ****
Verify: ****
The digits are replaced
(****) in the display.
Incorrect access code, NO change
Wrong access code was
entered. Try again.
Change access code for service and
maintenance (Level 3)
ACCEPT? S6
Correct access code was
entered. The access code is
now changed and the sub
menu H8/S6 is shown.
Scroll or press "Return" to
menu H8. Scroll or press
"Return" to log off.
NOTE! After change of access code it is recommended do a "Safe
shutdown" of EBL128 (see menu H8/S4). This will save the SSW
data (e.g. the new code) in a Flash ROM (see page 58).
108
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
29.8
Change access code for PCcommunication (H8/S7)
As a protection against unauthorised personnel programming the
system (via Win128), an access code 3B (for levels 3B and 4) for PCconnection is required. For security reasons, the default code should
be changed.
NOTE! This code requires eight (8) digits.
Action
Text in display
Comments
"Access"
According to chapter
"Access code for service
and maintenance", see
page 101.
Acknowledge SERVICE signal
ACCEPT? S1
Scroll to menu S7
Change access code for PC-communication
ACCEPT? S7
"A"
Access code: _
New code: ********
Verify: ********
The digits are replaced
(********) in the display.
Incorrect access code, NO change
Wrong access code was
entered. Try again.
Change access code for PC-communication
ACCEPT? S7
Correct access code was
entered. The access code is
now changed and the sub
menu H8/S7 is shown.
Scroll or press "Return" to
menu H8. Scroll or press
"Return" to log off.
NOTE! After change of access code it is recommended do a "Safe
shutdown" of EBL128 (see menu H8/S4). This will save the SSW
data (e.g. the new code) in a Flash ROM (see page 58).
109
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
30
Interlocking outputs and inputs
(H9)
30.1
Activated interlocking outputs/inputs
(H9/C1)
Action
Text in display
Comments
"Access"
According to chapter
"Access", see page 62.
Scroll to menu H9.
Interlocking outputs and inputs
ACCEPT? H9
"A"
Activated interlocking outputs/inputs
ACCEPT? C1
"A"
Output AA/PP activated at HH:MM
Alarm text (if progr.)
This is a list in which you
can scroll.
Output AA/PP act HH:MM, input act HH:MM
Alarm text (if progr.)
AA = interlocking
combination Area
PP = interlocking
combination Point (within
the area).
Depending on activated
output and/or input, the
following will be
shown:
Input AA/PP activated at HH:MM
Alarm text (if progr.)
Press "Return" to menu
C1.
"Return"
Activated interlocking outputs/inputs
ACCEPT? C1
110
Scroll or press "Return" to
menu H9. Scroll or press
"Return" to log off.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
30.2
Activate interlocking output (H9/C2)
The output in each interlocking combination (area / point) can be
manually activated via this menu. The corresponding interlocking
input will be "monitored" in the same way as if the output was
activated by its control expression.
Reset has to be performed via menu H9/C3.
Action
Text in display
Comments
"Access"
According to chapter
"Access", see page 62.
Scroll to menu H9.
Interlocking outputs and inputs
ACCEPT? H9
"A"
Activated interlocking outputs/inputs
ACCEPT? C1
Scroll to menu C2.
Activate interlocking output
ACCEPT? C2
"A"
Activate interlocking output
area 00 point 00
ACCEPT?
Write the area and point,
e.g.: "01", "01"
Activate interlocking output
area 01 point 01
ACCEPT?
Press "A" to accept and/or
"Return" to menu C2.
"A"
Activate interlocking output
Scroll or press "Return" to
menu H9. Scroll or press
"Return" to log off.
ACCEPT? C2
111
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
30.3
Reset interlocking output (H9/C3)
All activated interlocking outputs are listed in this menu.
Interlocking output activated via its control expression and with
latching output selected (in Win128): The output has to be reset via
this sub menu (C3).
Interlocking output activated via its control expression and with
latching output not selected: The output can be reset via this sub
menu (C3).
Interlocking output activated via menu H9/C2: The output has to be
reset via this sub menu (C3).
Action
Text in display
Comments
"Access"
According to chapter
"Access", see page 62.
Scroll to menu H9.
Interlocking outputs and inputs
ACCEPT? H9
"A"
Activated interlocking outputs/inputs
ACCEPT? C1
Scroll to menu C3.
Reset interlocking output
ACCEPT? C3
"A"
Reset interlocking output
area 00 point 00
ACCEPT?
This is a list in which you
can scroll. If there are no
activated outputs, menu C3
will be shown again.
Press "A" (for reset) or
"Return" (no reset) to
menu C3.
"A"
or
"Return"
Reset interlocking output
ACCEPT? C3
112
Scroll or press "Return" to
menu H9. Scroll or press
"Return" to log off.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
30.4
Disable interlocking output (H9/C4)
Interlocking outputs (Type = Interlocking) will be disabled via this
menu but not via menu H2/B3.
The "Interlocking Combination" (Area / Point) is to be entered to
disable the output. If "00/00" is entered, all interlocking outputs will
be disabled at the same time.
All interlocking outputs can be disabled.
Disabled interlocking outputs are listed in menu H4/U1.
The LED "Disablements" (L8) is also indicating one or more disabled
interlocking outputs.
Action
Text in display
Comments
"Access"
According to chapter
"Access", see page 62.
Scroll to menu H9.
Interlocking outputs and inputs
ACCEPT? H9
"A"
Activated interlocking outputs/inputs
ACCEPT? C1
Scroll to menu C4.
Disable interlocking output
ACCEPT? C4
"A"
Disable interlocking output
area 00 point 00
ACCEPT?
Write the area and point,
e.g.: "01", "01"
Disable interlocking output
area 01 point 01
ACCEPT?
Press "A" to accept and/or
"Return" to menu C4.
"A"
Disable interlocking output
Scroll or press "Return" to
menu H9. Scroll or press
"Return" to log off.
ACCEPT? C4
113
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
30.5
Re-enable interlocking output (H9/C5)
Disabled interlocking outputs are listed in menu H4/U1.
Interlocking outputs (Type = Interlocking) will be re-enabled via this
menu but not via menu H2/B7.
If "00/00" is entered, all interlocking outputs, disabled via "00/00" in
menu H9/C4, will be re-enabled at the same time.
Action
Text in display
Comments
"Access"
According to chapter
"Access", see page 62.
Scroll to menu H9.
Interlocking outputs and inputs
ACCEPT? H9
"A"
Activated interlocking outputs/inputs
ACCEPT? C1
Scroll to menu C5.
Re-enable interlocking output
ACCEPT? C5
"A"
Re-enable interlocking output
area 00 point 00
ACCEPT?
This is a list in which you
can scroll. If there are no
disabled outputs, menu C5
will be shown again.
Press "A" (for re-enable)
or "Return" (not re-enable)
to menu C5.
"A"
or
"Return"
Re-enable interlocking output
ACCEPT? C5
114
Scroll or press "Return" to
menu H9. Scroll or press
"Return" to log off.
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
31
Change access code for daily
duties (H10)
For security reasons, the default code should be changed.
Action
Text in display
Comments
"Access"
According to chapter
"Access", see page 62.
Scroll to menu H10.
Change access code for daily duties
(Level 2B)
ACCEPT? H10
"A"
Access code: _
New code:
Verify:
Enter the old code, the Access code: ****
new code and the new New code: ****
code again.
Verify: ****
The digits are replaced
(****) in the display.
Incorrect access code, NO change
Wrong access code was
entered. Try again.
Change access code for daily duties
(Level 2B)
ACCEPT? H10
Correct access code was
entered. The access code is
now changed and the menu
H10 is shown. Scroll or
press "Return" to log off.
NOTE! After change of access code it is recommended do a "Safe
shutdown" of EBL128 (see menu H8/S4). This will save the SSW
data (e.g. the new code) in a Flash ROM (see page 58).
115
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
32
Annual control
The building occupier is highly recommended, once a year, to do
some tests, beside the monthly tests. To avoid the Fault tx output to
be activated, it can be disabled via menu H2/B9 (or via an open door,
se chapter "Door open", page 26.).
Regarding the fault condition, see chapters "Fault", page 41 and "Fault
messages", page 42.
NOTE! Most faults have a time delay.
EBL128 should be tested as follows:
• Perform monthly test (menu H1).
• Remove the battery fuse "F2" on the main board 4556. The
following fault message is to be shown:
FAULT: Battery not connected CU
• Put back the fuse and acknowledge the fault (Menu H6).
• Check the manual call point glasses. Take required
measures. Use the manual call point alarm test key to
activate some fire alarms.
• Check that the control outputs that should be activated really
are activated according to programmed control expressions?
• Reset the fire alarms.
116
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
33
Battery maintenance
The batteries (2 x 12 V, 15-18 Ah) are placed inside EBL128. (Larger
batteries have to be placed outside.)
EBL128 supervises the batteries and a fault will be activated if
something goes wrong.
They are rechargeable sealed Lead-Acid batteries and maintenancefree but the producer's instructions are always to be followed.
The ambient temperature affects the battery capacity, self discharge
and life span. It should if possible not be higher than normal room
temperature. For highest safety, batteries used in a fire alarm
installation should never be older than four years.
117
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
34
How to avoid unnecessary
(nuisance) fire alarms
We all realise, when life, buildings, production facilities, etc. shall be
saved, it is of utmost importance that an initial fire is detected as soon
as possible. That's why more and more automatic fire alarm systems
are installed.
In an automatic fire alarm installation, especially if smoke detectors
(sensors) are used, everybody in the building needs to be informed
how to avoid so called unnecessary (nuisance) fire alarms.
To avoid trouble and unnecessary expenses there are a couple of
things to bear in mind. Here are some advice and tips.
Tobacco smoke
The detectors (sensors) can not sense the difference between "smoke"
and "smoke". They can not separate tobacco smoke from smoke from
a fire. Intensive tobacco smoking in connection with bad ventilation
can cause a fire alarm.
Welding, grinding, cutting, sawing & drilling
This kind of jobs cause smoke.
Carpet welding
Welding of plastic carpets causes a smoke that can be almost invisible,
but it still influences the smoke detectors (sensors).
Cooking fumes, toasting & candles
It is not only "normal smoke" that influences smoke detectors
(sensors). It is all kinds of "combustion products", caused by cooking
(frying/grilling), toasting, etc. Warning! Be careful when there are
smoke detectors (sensors) near such activity.
Special environments
Certain premises and environments can influence smoke detectors
(sensors) and cause alarms. It can be ions (from plastics), flour dust,
oil haze, aerosols, strong perfumes, strong ventilation, insecticides,
disinfecting sprays, etc. If many odd and unnecessary alarms occur,
the environment must be examined and perhaps other detector types
have to be chosen.
Steam / hot air
Smoke and heat detectors are influenced by steam and hot air, e.g.
from an oven, dry-blower, heater, etc.
118
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
Exhausts
Exhausts from cars / trucks, lift trucks, lawn mowers, etc. influences
smoke detectors (sensors). If windows and doors are open, exhausts
can "slip in" that way.
Lack of maintenance
Smoke detectors (sensors) are influenced by their environment and
become "dirty". In an analog system (like EBL128) a Service signal is
given when it is time to clean or exchange the smoke detectors
(sensors). The alternative is to exchange detectors at even intervals, to
be on the safe side.
Change in activities or wrong choice of detector
If the activities in the premises are altered, the detector choice might
also need altering. Due to special environments, see above, an inappropriate detector type might have been chosen from the beginning
and thus cause unnecessary alarms.
Miscellaneous
Choosing another type of detector, e.g. a multi detector (with both
heat and smoke detection), can solve certain problems. Note that the
coverage area can be different for different types of detectors.
It is however not always the best action to change detector type. Here
is a list of other actions, programmed via Win128, which can be used:
• Another alarm algorithm can be used, e.g. during working
hours.
• Co-incidence (two units) fire alarm activation can be used.
• In an installation with addressable detectors / sensors (e.g.
EBL128), the affected detectors can be individually disabled
(or whole zones) when the work is in progress. Bear in mind
that the smoke spreads, and consideration must be taken to
adjacent detectors/zones. Disablements can be done
automatically via a time channel (built-in or external) or via
menu (H2/B1-B3). Automatic re-enabling can be used.
• If there is an alarm organisation for the on site personnel, the
alert annunciation function can be used.
• Pre-warning can be used.
119
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
35
Revision history
Revision 1
Information added / revised in the following chapters / paragraphs:
14.2, 14.2.1.3, 16.1, 17, 22, 26.2, 26.5 and 28.
Revision 2
Information added / revised in the following chapters / paragraphs:
7, 2.3, 7.4, 7.5, 7.6, 21, 26, 26.1, 29.1, and 29.8.
120
Panasonic Electric Works Fire & Security Technology Europe AB
MEW00509
Rev: 2
EBL128 Operating Instructions V1.0.x
121
This page has deliberately been left blank.
Panasonic Electric Works Fire & Security Technology Europe AB
Citadellsvägen 23, SE-211 18 Malmö, Sweden
Tel: +46 (0)40 697 70 00 • Fax: +46 (0)40 697 70 99
[email protected] • www.panasonic-fire-security.com
