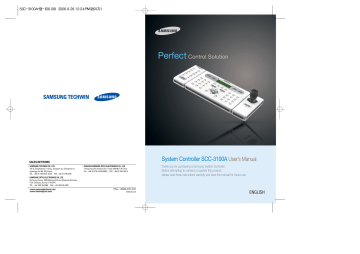

System Controller SCC-3100A User’s Manual

Thank you for purchasing a Samsung System Controller.

Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use.

ENGLISH

Contents

Safety caution

Major Functions and Features

1. Overview

2. Features

3. Controller Button Layout

Product Components

System Overview

1. System Connections

1-1. Connecting Controller and Junction Box

1-2. Connecting Junction Box and External Devices

2. RS-485/422 Pin Layout

3. RS-232C Pin Layout

4. Junction Box DIP Switch

5. General Connection

6. Connection Through SVR-1650/1640/950/440

Names and Functions of Each Part

1. Camera Setup Section

2. Number Pad

3. External Device Selectors

4. Universal Controller

5. DVR Controller

6. Camera Controller

7. Junction Box

PTZ Control

1. Power-On

2. Initial Screen Display

3. Camera ID Setup

4. Joystick/Camera Control Button

5. Camera Movement Speed Control

6. Camera Zoom Control

7. Camera Focus Control

PTZ Mode

1. PTZ Setup Mode

2. PRESET

2-1. PRESET Setup

2-2. PRESET Movement

3. SWING

3-1. SWING Setup

3-2. SWING Operation

4. GROUP

4-1. GROUP Setup

4-2. GROUP Operation

5. TOUR.

5-1. TOUR Setup

5-2. TOUR Operation

17

17

17

18

19

19

19

11

12

13

13

14

16

16

22

22

21

23

23

20

21

21

21

22

24

24

24

4

8

8

8

8

9

7

7

6

6

10

10

9

9

6. MODEL

7. TRACE

7-1. TRACE Memory

7-2. TRACE Operation

8. AF

9. OSD

DVR Mode

CONTROLLER Mode

1. Setup Mode

2. ID Setup

3. SERIAL Setup

4. DATA COPY

5. RESPONSE

5-1. SPD-3300/3000/2300 DIP Setup

5-2. SPD-2500 DIP Setup

5-3. SPD-2200 DIP Setup

5-4. SPD-1600 DIP Setup

6. PASSWORD

6-1. PASSWORD Setup

6-2. Applying Password-Setup Mode

6-3. Applying Password-Power

6-4. Entering Password

7. PRIORITY

8. DEFAULT

MATRIX Mode (SMX-25632)

1. Selection of camera and monitor

2. Joystick for Camera Controls

3. AUTO SELECT

3-1. AUTO SELECT Setup

3-2. AUTO SELECT Cancellation

3-3. AUTO SELECT Elimination

3-4. AUTO SELECT RUN/HOLD FUNCTION

4. ID SET

4-1. ID SET Setup

4-2. ID SET ON/OFF Setup

4-3. DISPLAY POSITION Setup

5. TIME/DATE SET

5-1. TIME/DATE Setup

5-2. ON/OFF Setup

5-3. DISPLAY POSITION Setup

REFERENCE

Swing, Group Movement Speed

What to do when the product malfunctions

Appearance

Controller Specifications

42

43

43

43

44

44

41

41

41

42

42

40

40

40

40

45

46

46

47

37

37

37

38

39

35

35

35

36

36

31

32

32

33

34

35

28

29

30

26

27

27

27

Safety caution

Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products.The Eco mark represents Samsung Techwin s will to create environment-friendly products, and indicates that the product satisfies the EU RoHS Directive.

Warning

• All work related to the installation of this appliance must be performed by qualified service personnel or system installers.

- If the product is connected or installed improperly, electric shock, fire, severe injury, and/or damage can result.

• Please install the product on a completely flat floor.

- Always check the strength and stability of the installation location.

- Do not drop the appliance on the floor. This may result in damage or injury.

Do not attempt to disassemble the appliance. To prevent electric shock, do not remove screws or covers.

- There are no user-serviceable parts inside. Contact qualified service personnel for maintenance.

• Never use the appliance in places where there are flammable materials.

- Never use the appliance in places where flammable materials such as gas are used.

• This may result in fire, explosion, and other serious accidents.

• Never touch un-insulated parts with wet hands.

- Touching un-insulated parts with wet hands may result in serious electric shock.

• Never expose the appliance to water or moisture.

- If the appliance gets wet, immediately turn the power off.

- Stop using the appliance if it gets wet. Contact the manufacturer immediately.

• Stop using the appliance if there appears to be any operational problem.

- Immediately turn the power off to the appliance if there is any abnormal condition such as smoke or unusual smells.

- Continuing to use the appliance under abnormal conditions may result in serious damage.

• Always use the recommended power.

- Using incorrect power source ratings may result in fire, electric shock, or damage.

• Always handle the connection cable with care.

- Never damage or modify the connection cable.

- Do not pull, expose to heat, or place heavy objects on the connection cable.

- Non-observance of these warnings may result in fire, electric shock or damage.

SYSTEM CONTROLLER

4

User’s Manual

Safety caution

Caution

• Use the appliance indoors only.

- Do not place the appliance outdoors or expose it to rain or moisture.

- If dropped in water, the appliance may be corroded and damaged.

• Do not use the appliance where there is excessive dust, smoke, or moisture.

- Using the appliance under such conditions may result in fire, electric shock or serious damage.

• Do not operate the appliance in temperatures beyond those specified.

- Excessive heat or cold may damage the appliance.

- Always operate the appliance within the recommended temperature range of 0˚C ~ 40˚C.

• Do not place the appliance in direct sunlight.

- This may discolor the appliance.

• Do not apply excessive shock to the appliance.

- Excessive shock may damage the appliance.

Maintenance and Repair

If the controller body gets dirty, turn the power off and wipe the surface with a soft cloth.

- Do not use chemical agents such as alcohol or benzene. For detailed information on upgrading the firmware, please direct your inquiries to the installation vendor.

Refer all work related to the installation of this appliance to qualified service personnel or system installers.

For U.S.A

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercialenvironment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

SYSTEM CONTROLLER

5

User’s Manual

Major Functions and Features

3. Controller Button Layout

Major Functions and Features

1. Overview

This product is designed for use only with the Speed Dome camera, CCTV receiver, and

Samsung Digital Video Recorder.

• Speed Dome camera : Samsung Techwin (SPD-3300/3000/2300/2500/2200/1600)

PELCO-D, PANASONIC (WV-CS854A), SAMSUNG ELECTRONICS (SCC-643-641)

• CCTV Receiver : SRX-100B

• DVR : Samsung Techwin (SVR-1650/1640/950/1630/430/440, SVR-5416/5116)

• MATRIX : Samsung Techwin (SMX-25632)

2. Features

- It is possible to totally control the 255 Speed Dome camera, CCTV Receiver, Samsung

Matrix and Samsung Digital Video Recorder.

- If the Speed Dome is set to one-way reception (RESPONSE OFF), it is possible to connect a maximum of 16 subcontrollers, including the master controller.

- If the Speed Dome is set to two-way reception (RESPONSE ON), it is possible to connect a maximum of 12 subcontrollers, including the master controller.

- Camera control with the joystick, zoom buttons, and focus buttons

- Easy camera preset location setup and movement

- Camera control without an operator through automatic operation mode

The SPD-2500/1600 is set to two-way reception and the SPD-3300/3000/2300/2200 is set to one-way reception by factory default.

If the Speed Dome (SPD-2500/2200/1600) DIP switch is set to one-way reception, each sub-controller can be controlled independently. If it is set to two-way reception, subcontrollers cannot be controlled independently.

Sub-controllers cannot be controlled if the master controller is in use.

SYSTEM CONTROLLER

6

User’s Manual

Caution

• Different surveillance cameras may have different names for the same functions, depending on the manufacturer.Some functions may not be available for certain models.

Product Components

SCC-3100A

SCC-3100A Controller

Junction Box

Controller Connection Cable

Power Adaptor (DC 12V)

User's Manual

SYSTEM CONTROLLER

7

User’s Manual

System Overview

1. System Connections

1-1 Connecting Controller and Junction Box

System Overview

2. RS-485/422 Pin Layout (D_SUB_FEMALE)

1-2 Connecting Junction Box and External Devices

3.RS-232C Pin Layout (D_SUB_MALE)

[SVR-1630 connection]

[SVR-1650/1640/950/1630/430/440 connection]

[PTZ connection]

(SPD-3300/3000/2300,

SPD-2500/2200/1600)

* RX+ and TX+ / RX- and TX- must be shortcircuited.

* RX+=DATA+

RX- =DATA

• All supported SPEED DOME functions can be controlled when the PTZ camera is connected through the SVR-1650/1640/950.

• When connecting with an SVR-1630, only SPD series PTZ cameras can be employed.

• When controlling a PTZ camera via an SVR-1630 there is a delay, and the response may be slow.

• When controlling a PTZ camera with a sub-controller there is a delay, and the response may be slow.

SYSTEM CONTROLLER

8

User’s Manual

4. Junction Box DIP Switch

• RS-485 Termination ON • RS-422 Termination ON

• RS-485 Termination OFF • RS-422 Termination OFF

SYSTEM CONTROLLER

9

User’s Manual

System Overview

5. General Connection

PTZ

Dome Camera

DVR

Dome Camera + DVR: 255 max.

Junction Box Junction Box

Master Controller Sub-Controller

(a maximum of 15 connections allowed)

• SVR-1630 cannot use general connection.

6. Connection Through SVR-1650/1640/950/440

CCD Camera

Remarks

: Controller Connection Cable

: RS-485/422

: Video Cable

Junction Box Junction Box

PTZ

Dome Camera

SVR-1650/1640/950/440 : 255 max.

Master Controller Sub-Controller

(a maximum of 15 connections allowed)

PTZ

Dome Camera

SYSTEM CONTROLLER

10

User’s Manual

Names and Functions of Each Part

1.Camera Setup Section

RESET : Resets camera power.

PRESET : Moves camera to the preset location (see p.21).

SWING : Continuously travels between two assigned locations horizontally (pan) or vertically (tilt) (see p.22).

AUX 1 : Toggles the camera's external device AUX1 on and off.

GROUP : Repeats sequential surveillance of assigned preset locations

AUX 2

TOUR with preset movement rates and intervals (see p.23).

: Toggles the camera's external device AUX2 on and off.

: Sets more than 1 group for tour and performs continuous group action (see p.24).

AUX 3

AF

: Toggles the lights around the camera on and off.

: Sets the focus to automatic or manual after operating

OSD the camera (see p.28).

: Displays the camera OSD menu (see p. 29).

FUNCTION: Used to perform 2 functions or more at the same time (see p.12).

Buttons supported by different manufacturers

RESET

PRESET

TOUR

SWING

GROUP

AF

OSD

AUX 1

AUX 2

AUX 3

SPD-3300

O

O

O

O

O

O

O

SPD-3000

O

O

O

O

O

O

SPD-2300

O

O

O

O

O

O

SPD-2500

O

O

O

O

O

O

SPD-2200

O

O

O

O

O

O

SPD-1600

O

O

O

O

O

O

PELCO-D

O

O

X

X

X

O

PANASONIC

(WV-CS854A)

O

O

X

O(AUTO-PAN)

SAMSUNG

ELECTRONICS

(SCC-643/641)

X

O

X

O(AUTO-PAN)

O

O(SCAN)

O

O

O O O O O O

Applies only to systems with AUX 1 terminals. (SRX-100B only)

Applies only to systems with AUX 2 terminals. (SRX-100B only)

O

Applies only to systems with housing and receivers that support the light function. (SRX-100B only)

Caution

• Some buttons in the camera setup section may not be supported or may be used differently depending on the camera manufacturer.

SYSTEM CONTROLLER

11

User’s Manual

Names and Functions of Each Part

2. Number Pad

0 ~ 9 : Used for entering camera ID, channel number, monitor number, DVR ID, etc. (see p.26).

MONITOR : Select a monitor for matrix output

CAMERA : Enter camera number and press the CAMERA button to set the camera ID (PTZ mode) or set the channel (DVR mode).

F+1

F+2

F+3

F+4

F+5

F+6

F+7

SPD-3300

TRACE RUN

SPD-3000

TRACE RUN

SPD-2300

TRACE RUN

SPD-2500

TRACE RUN

SPD-2200

TRACE RUN

SPD-1600

TRACE RUN

TRACE

MEMORY

TRACE

MEMORY

TRACE

MEMORY

TRACE

MEMORY

TRACE

MEMORY

TRACE

MEMORY

TRACE TRACE TRACE TRACE TRACE TRACE

MEMORY STOP MEMORY STOP MEMORY STOP MEMORY STOP MEMORY STOP MEMORY STOP

AUTO POWER

ON

AUTO POWER

OFF

AUTO POWER

ON

AUTO POWER

OFF

AUTO POWER

ON

AUTO POWER

OFF

AUTO POWER

ON

AUTO POWER

OFF

AUTO POWER

ON

AUTO POWER

OFF

AUTO POWER

ON

AUTO POWER

OFF

PELCO-D

TRACE RUN

(PATTERN)

PANASONIC

(WV-CS854A)

TRACE RUN

(PATTERN)

F2

(SPECIAL 2)

F3

SAMSUNG

ELECTRONICS

(SCC-643/641)

TRACE RUN

(PATTERN 1)

TRACE RUN

(PATTERN 2)

TRACE RUN

(PATTERN 3)

AUTO-SORT

SRX-100B POWER ON

SRX-100B POWER OFF

Caution

• When using functions that are performed by a combination of the function button and numeric keys, the setup may be different depending on the camera manufacturer.

• Use the AUTO POWER ON setting to allow the camera to resume the tasks in its memory upon power supply, even if they were previously aborted as a result of power failure, etc.

SYSTEM CONTROLLER

12

User’s Manual

Names and Functions of Each Part

3.External Device Selectors

PTZ : Selects the PTZ mode (see p.20~29).

MATRIX : Selects the MATRIX mode(see p. 40~44)

DVR : Selects the DVR mode(see p. 30)

SETUP : Activates the system setup menu(see p. 27)

4. Universal Controller

ZOOM W/T : Performs camera zoom action (wide and telephoto).

FOCUS -/+ : Used for manual focus adjustment.

: Used for moving the menu cursor up (when menu is active), pausing DVR playback, or playing stills.

: Used for moving the menu cursor down (when menu is active) or stopping DVR playback.

: Used for moving the menu cursor left (when

ESC menu is active) or playing recorded video in the reverse direction.

: Used for moving the menu cursor right (when menu is active) or Fast Playback.

: Used for playing recorded video.

: canceling entered values, or moving to the previous stage.

Note

• 4-way button and Esc/Enter button are used to control Speed-Dome OSD menu of the SPD-3000/2300 version 2.04 and SPD-3000 version 6.4.

SYSTEM CONTROLLER

13

User’s Manual

Names and Functions of Each Part

5. DVR Controller

QUICK SET : The Quick Setup menu is displayed in the

DVR monitor.

STATUS : The current DVR status is displayed in the

DVR monitor.

SEARCH

REC

MENU

MULTI

: Used for searching the DVR recording list.

: Used to start recording the surveillance screen.

: The DVR menu is displayed in the DVR monitor.

: Used for switching the DVR monitor from single screen playback mode to multiple screen playback mode.

AUTO : displays the sequence of cameras connected to the DVR on the monitor.

ALRAM RESET : Used for resetting the alarm and event display, turning the relay on and off, and closing the event notification window.

PIP : Used for performing the PIP (Picture In Picture) function.

DVR FUNCTION : Used for displaying DVR (SVR-1650/1640/950) function menu.

DIGITAL ZOOM : Used for zooming in the monitor screen when in single screen playback mode.

COPY : Used for copying, backing up, or deleting saved video.

-

+

RELAY : Used for manual control of replay output. (only SVR-1630)

LIVE / PLAY BACK : Used for toggling the surveillance screen and playback screen.

(only SVR-430)

: Used for decreasing menu values in detailed setup menus

: Used for increasing menu values in detailed setup menus

SYSTEM CONTROLLER

14

User’s Manual

Names and Functions of Each Part

MENU

MULTI

AUTO

ALARM RESET

DVR FUNCTION

PIP

DIGITAL ZOOM

COPY

LIVE/PLAY BACK

RELAY

-/+

Buttons supported by different manufacturers

QUICK SET

STATUS

SEARCH

FOCUS -

FOCUS +

SVR-1650

O

O

O

SVR-1640

O

O

O

ENTER

ESC

REC

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

SVR-950

O

O

O

O

SVR-1630

O

O

O

O

SVR-430

O

O

O

O

O

O

SVR-5416/5116

O

O

O

O

O

O JOG

O

O

O

O

O

O

O

JOG

O

O

Record function for

O

Record function for

Surveillance (LIVE) screen Surveillance (LIVE) screen

O

O

(Play back)

O

O

O

O

O

O

O

O

O

O

O

O

O

O O

SVR-440

O

O

O

O

O

O

O

O

O

O

O

O

Caution

• Some DVR controller buttons may not be supported or may be used differently than as described in this manual, depending on the DVR model. Please refer to the table below for the buttons supported by major DVR model manufacturers.

The DVR button with multiple functions works in the same way on the controller.

SYSTEM CONTROLLER

15

User’s Manual

Names and Functions of Each Part

6. Camera Controller

Joystick : Used for moving the camera up, down, left, and right, and for zoom control (see p.18).

1) Tilt up (Up button) : Moves the camera up.

2) Tilt down (Down button) : Moves the camera down.

3) Tilt left (Left button) : Moves the camera left.

4) Tilt right (Right button) : Moves the camera right.

5) Turn stick clockwise : Performs telephoto-zoom.

6) Turn stick counter-clockwise : Performs wide zoom.

ESC(PTZ) : Same as ESC in SPEED DOM OSD MENU.

ENTER(PTZ) : Same as ENTER in SPEED DOM OSD MENU.

[ Joystick ]

7. Junction Box

[Front]

Power Input

Connector

Junction Box Connector

[Back]

DIP Switch

PTZ/DVR Connector

Sub-Controller

Connector

MATRIX Connector

SYSTEM CONTROLLER

16

User’s Manual

PTZ CONTROL

1. Power-On

Power on the connected external devices before turning the controller on.

Press the power button at the back of the controller to power on the controller.

The [SYSTEM Controller] message and F/W version will be displayed in the LCD monitor, and the message will disappear when the controller is ready for use.

• The [JOYSTICK ERROR] error will be displayed in the LCD monitor if the joystick is not placed in the center during power-on.

[ power button ]

2. Initial Screen Display

CAM ID : Shows the currently selected camera ID.

SPD

Default is 1.

: Shows the currently selected camera model name. Default is SPD.

MONITOR : Shows the currently selected monitor.

Default is 1.

[- - -] : Shows the numbers (ID) entered when entering numbers with the number pad.

ID : Shows the current controller ID. If the ID is 1, it acts as the master controller. If the ID is 2 or higher, it acts as a sub -controller. Sub-controllers cannot be used independently without a master controller.

• Always assign a unique ID to ensure that the controller IDs do not conflict with each other.

• SPD : SPD-3300/SPD-3000/SPD-2300/SPD-2500/SPD-2200/SPD-1600(Samsung Techwin Co., Ltd.)

3. Camera ID Setup

Enter a number using the number pad.

The number entered will be shown in the [- - -] display.

Press the CAMERA or ENTER button to set the camera ID with the number entered.

• Any number from 1 to 255 can be selected. If the number entered is not within the selectable range, the last entered number is taken as the first number.

SYSTEM CONTROLLER

17

User’s Manual

PTZ CONTROL

4. Joystick/Camera Control Button

The joystick can be used to control the camera s left and right (pan) and up and down

(tilt) movements.

The joystick can be used to control camera zoom functions.

[ Camera wide zoom ]

SYSTEM CONTROLLER

18

User’s Manual

[ Camera telephoto zoom ]

PTZ CONTROL

5. SPEED DOME OSD Menu Control

This is the ENTER/ESC button for SPEED DOME OSD

MENU

ESC : ESC button for PTZ CAMERA OSD menu.

ENTER : ENTER button for PTZ CAMERA OSD menu.

Remarks

• Press the Esc (PTZ)/Enter (PTZ) button for 2 sec. or longer, then let go to adjust the movement speed of the camera manually.

• The Esc button must be pressed again after setting the movement speed.

6. Camera Zoom Control

Press the ZOOM W/T button to control zoom wide and zoom telephoto.

ZOOM W : Zoom Wide

ZOOM T : Zoom Telephoto

7. Camera Focus Control

Press the FOCUS -/+ button to control camera focus.

FOCUS - : Focus gets nearer.

FOCUS + : Focus gets further.

• The FOCUS -/+ button can be used as the ENTER/ESC button for the SVR-1650/1640/950/1630 and SPD series.

[ZOOM W/T button]

[FOCUS -/+ button]

SYSTEM CONTROLLER

19

User’s Manual

[CLR/SET button]

PTZ Mode

1. PTZ Setup Mode

This menu is for setting up the PTZ camera function. It is impossible to operate Speed

Dome and DVR by sub-controllers when the master controller is set to on.

Press the SETUP button on the initial screen to display the [SETUP SYSTEM] menu.

Press the 1 button to activate the [PTZ SETUP 1 ] menu.

Press the

2] menu.

button to activate the [ PTZ SETUP

Reference

The menu may be different depending on the PTZ camera model.

Menu Menu

PRESET

GROUP

TOUR

Models supported

SPD series, PELCO-D, PANASONIC,

SAMSUNG ELECTRONICS

SPD series

SPD series

MODEL

AF

-

Models supported

SPD series, PELCO-D, PANASONIC,

SAMSUNG ELECTRONICS

SPD series, PELCO-D,

PANASONIC

SPD series, PELCO-D, PANASONIC,

SAMSUNG ELECTRONICS

-

• Press the ESC button to move to an upper setup mode.

SYSTEM CONTROLLER

20

User’s Manual

PTZ Mode

2. PRESET

This menu is for setting the camera to move to preset locations.

2-1. PRESET Setup

At the [PTZ SETUP 1 ] menu, press the 1 button

(see p.21).

Use the joystick or camera control button (SCC-3100 model) to move the camera to the desired location

(move up, down, left, and right, and control zoom).

Enter a preset number.

Press the Enter button to assign the number to the current location.

2-2. PRESET Movement

In the initial screen, enter an assigned preset number.

The selected number will be shown in the [- - -] display.

Press the Preset button to move the camera to the preset location.

If the number entered is not within the selectable range, the last entered number is taken as the first number. The selectable range for each camera model is as follows.

• SPD-3300/3000/2300: 1~128

• SPD-2500/2200/1600: 1 ~ 64

• PELCO-D : 1 ~ 80

Certain numbers have special functions other than preset.

33 + PRESET - FLIP COMMAND

97 + PRESET - RANDOM SCAN

98 + PRESET - FRAME SCAN

99 + PRESET - AUTO SCAN

See the camera manual for more information.

• PANASONIC (WV-CS854A) : 1 ~ 64

• Samsung (SCC-641/643) : 1 ~ 127

Preset setup is also available in the OSD menu of the connected camera.

SYSTEM CONTROLLER

21

User’s Manual

PTZ Mode

3. SWING

This menu is for setting the camera to alternate between two assigned locations horizontally (pan) or vertically (tilt). Setting the SWING SETUP menu by controllers is only possible in the SPD series. In case of products by other manufacturers, the setting has to be done by the OSD menu of the camera. See the camera manual for more information.

3-1. SWING Setup

At the [PTZ SETUP 1 ] ] menu, press the 2 button

(see p.19).

Press the 1 or 2 button to select a horizontal (pan) or vertical (tilt) cycle.

Set starting point, ending point, movement speed, and stop time.

- / button: Moves between items.

- 1ST : Starting point. Can be set for Preset 1 ~ 64.

- 2ND : Ending point. Can be set for Preset 1 ~ 64.

- SPEED : Movement speed. Can be set for 1 ~ 64 (see p.45).

- STOP : Stop time at the starting point and ending point. Can be set to 1 ~ 99 (seconds).

Press the ENTER button to finish the setup (takes 2 or 3 seconds to finish).

• The Swing function cannot be set if an unassigned number or a number outside the selectable range is entered.

• Over 2 PRESET locations have to be set before setting SWING.

3-2. SWING Operation

At the initial screen, press the Swing button.

Press the 1 and 2 buttons to perform the Swing function.

- 1 button: Performs the horizontal cycle (pan).

- 2 button: Performs the vertical cycle (tilt).

• Move the joystick or press a controller button during the Swing operation to stop the operation.

• AUTO-PAN is performed automatically when the SWING button of PANASONIC(WV-

CS854A) and SAMSUNG ELECTRONICS (SCC-641/643) cameras is pressed.

SYSTEM CONTROLLER

22

User’s Manual

PTZ Mode

4. GROUP

This menu is for setting repeated sequential surveillance of assigned locations with assigned speed and intervals. Setting the GROUP SETUP menu by controllers is only available for an SPD series. In case of products by other manufacturers, the setting has to be done by the OSD menu of the camera. See the camera manual for more information.

4-1. GROUP Setup

At the [PTZ SETUP 1 ] menu, press the 3 button

(see p.20).

Enter a Group number.

• Any number between 1 and 6 can be selected.

Set each location's Preset ID, area movement speed, and stop time.

- / button: Moves between items.

- NO : Setup sequence. Up to 64 can be selected.

- PRESET : Camera Preset ID for assigned location.

- SPEED : Area movement speed. Can be set from 1 ~ 64 (see p.44).

1~128(SPD-3300/3000/2300)

- STOP : Stop time at the starting point and ending point. Can be set to 1 ~ 99 (seconds).

Press the ENTER button to move to the setup page for the next location.

Press the Group button to finish the Group Setup.

• The Group function cannot be set if an unassigned number or a number outside the selectable range is entered.

• Over 2 PRESET locations have to be set before setting GROUP.

4-2. GROUP Operation

At the initial screen, press the Group button.

Press the Group button to execute the operation.

The Group function is performed.

• AUTO-SEQ and SCAN functions are performed when the

GROUP button is pressed (for PANASONIC(WV-CS854A) and SAMSUNG ELECTRONICS (SCC-641/643 only).

SYSTEM CONTROLLER

23

User’s Manual

PTZ Mode

5. TOUR

This menu is for setting one or more Groups for Tour so that continuous Group operations can be carried out. The TOUR SETUP menu is only available for an SPD series.

5-1. TOUR Setup

At the [PTZ SETUP 1 ] menu, press the 4 button

(see p.21).

Press a Group number to add to the Tour.

• Up to 6 Groups can be added.

Press the ENTER button to finish the setup.

5-2. TOUR Operation

At the initial screen, press the Tour button.

The Tour function is performed.

• The TOUR operation is only available for an SPD series.

SYSTEM CONTROLLER

24

User’s Manual

PRESET

PRESET

PTZ Mode

GROUP 1

PRESET

TOUR

GROUP 2

PRESET

GROUP 3

PRESET

PRESET

PRESET

PRESET

PRESET

PRESET PRESET PRESET

SYSTEM CONTROLLER

25

User’s Manual

PTZ Mode

6. MODEL

This menu is for setting the PTZ camera ID and camera type.

At the [PTZ SETUP 1 ] menu, press the

(see p.21).

button

Press the 1 button to move to the Model Setup screen.

Press a number in the number pad to set the PTZ camera ID.

The camera model type saved in EEPROM is displayed on the LCD monitor when changing camera ID.

When entering '1'

Press the + and - buttons on the number pad to change the camera type. SPD-

3300/3000/2300, SPD-1600/2200/2500, PELCO-D, PANASONIC(WV-CS854A) and

SAMSUNG ELECTRONICS (SCC-643) types can be selected.

Press the ENTER button to finish the setup.

SYSTEM CONTROLLER

26

User’s Manual

PTZ Mode

7. TRACE

This menu is for inputting camera movements, through joystick or camera control buttons, into the memory for a certain period of time, to allow repeating of stored movements when performing the Trace (PATTERN) function.

Setting the TRACE SETUP menu by controller is only available for an SPD series.

In case of products by other manufacturers, the setting has to be done by the OSD menu of the camera. See the camera manual for more information.

7-1. TRACE Memory

At the [PTZ SETUP 1 ] menu, press the button

(see p.20).

Press the 2 button to move to the Trace Setup screen.

Press the 1 button.

Use the joystick or camera control buttons to perform the camera movement to input. Allowed movements are horizontal movements (pan), vertical movements

(tilt), zoom, and focus controls.

Press the ENTER button to stop camera movement input.

• Maximum length for movement memory is approximately 60 ~ 105 seconds. This may vary according to free memory space.

• Movement memory length may be shorter if the camera movement is more complicated.

• Press the FUNCTION button and the 2 button to start TRACE memory.Press the FUNCTION button and the 3 button to stop TRACE memory. For more information, see p.12

7-2.TRACE Operation

At the Trace Setup screen, press the 2 button.

SYSTEM CONTROLLER

27

User’s Manual

PTZ Mode

8. AF

This menu is for adjusting camera focus manually or automatically after camera operation. If AF is set to OFF in the camera setup menu, set the AF of the controller to

ON and then automatic adjustment is performed after camera operation.

At the [PTZ SETUP 1 ] menu, press the

(see p.21).

button

Press the 3 button to move to the AF Setup screen.

Press the 1 button to automatically adjust the focus after camera operation. Press the 2 button to disable automatic focus adjustment after camera operation.

• Auto Focus Setup is also available in the OSD menu of the camera connected.

• It is recommended that you set up the AF function through the camera OSD menu.

SYSTEM CONTROLLER

28

User’s Manual

PTZ Mode

9. OSD

This is used for displaying the camera menu on the monitor.

Press the OSD button from the PTZ or DVR mode. (Warning: Execute only from the Master controller).

Use the controller buttons to set up the camera menu.

- OSD : SPD-3300/3000/2300/2500/2200/1600 - Toggle camera menu on/off (hold down for 2 seconds)

PELCO-D - Toggle camera menu on/off

PANASONIC (WV-CS854A) - Toggle camera menu on/off (press ESC(PTZ))

Samsung (SCC-643/641) - Toggle camera menu on/off (press ESC(PTZ))

-

-

- ESC(PTZ) : Cancels the menu selection.

- ENTER(PTZ) : Selects the menu.

-

: Moves the menu cursor right.

: Moves the menu cursor left.

: Moves the menu cursor up.

only panasonic model

- : Moves the menu cursor down.

- Joystick : Use the joystick to move the menu cursor up, down, left, and right.(Applies to SPD, PELCO-D and

Samsung models only:)

• Joystick or other button inputs cannot be used for camera operation when the camera menu is displayed on the monitor.

• PRESET, SWING, GROUP, and TRACE functions can be set in the OSD menu of the camera.

• Please refer to the camera manual for more information on the camera menu.

• When operating the PTZ camera OSD menu while the controller and SVR-

1650/1640/950/1630/430/440 are connected, the ENTER and ESC functions can only be performed by the FOCUS -/+ button.

SYSTEM CONTROLLER

29

User’s Manual

DVR Mode

DVR MODEL Setup

This menu is for setting the DVR ID and model for operation by a controller. Sub-controllers cannot be used if the master controller is in Setup mode.

Press the SETUP button on the initial screen to display the

[SETUP SYSTEM] menu.

Press the 2 button to activate the [DVR SETUP] menu.

Press the 1 button to activate the [DVR Model SETUP] menu.

Press a number on the number pad to set the DVR ID.

The DVR model name saved in EEPROM will be displayed on the LCD monitor when changing DVR ID.

Press the + and - buttons to change the DVR model name

(SVR-1650/1640/950 SVR-1630 SVR-430).

Press the ENTER button to finish the setup.

When entering '1'

SVR-430

Model

SVR-1650/1640/950

SVR-1630

Contents

• When connecting to an SVR-1650/1640/950, the SYSTEM ID must set equal to the Controller

DVR ID (Menu Network RS422/485 SYSTEM ID).

• When connecting the SVR-1650/1640/950 to the controller, use Port A on the left of RS422/485 located on the back side. Port B is for SPEED DOME connection. For RS485 connection, press the

TERM switches 1 & 2 down to the ON position (located next to the RS422/485 PORT).

It unifies the model of the SVR-1650/1640/950/440 with the SVR-1650.

• When connecting to an SVR-1630, the SVR-1630 keyboard control address must be set to be the same as the controller DVR ID (Menu System Setup Misc.).

• For the SVR-1630 COM2 RS422/485 menu (Menu System Setup Serial Port), Device must be set to SCC-3000 and Interface to RS-485, and for the COM4 RS422/485 menu (Menu System Setup

Serial Port), Device must be set to SPD2500 (if an SPD2500 is connected) and Interface to RS-485.

• When controlling a PTZ camera via an SVR-1630, connect the SVR-1630 and the controller to

COM2 RX+/RXand connect the SVR-1630 and PTZ camera to COM4 RX+/RX-. Also, at the SVR-

1630 channel setup menu, set the PTZ port of each channel to COM4 and set the PTZ address to be the same as the PTZ camera ID.

• When connecting to an SVR-430, the SVR-430 system ID must be set to be the same as the controller DVR ID (Menu Network/Communication RS422/485 SYSTEM ID).

SYSTEM CONTROLLER

30

User’s Manual

Model

SVR-5416/5116

Contents

• To connect to the SVR-5416/5116: System Remote Controller setup Serial (RS232/RS485) check on Serial setup Communication Port 1/Equipment Number setup (Port setting must be identical to controller’s communication settings. Default (9600, 8, N, 1))

Controller Mode

1. Setup Mode

Press the SETUP button on the initial screen to display the

[SETUP SYSTEM] menu.

Press the 3 button to activate the [CONTROLLER

SETUP 1 ] menu.

Press the button to activate the [ CONTROLLER

SETUP 2 ] menu.

Press the button to activate the [

CONTROLLER SETUP 3] menu.

At the [CONTROLLER SETUP 1 ], [ CONTROLLER

SETUP 2 ] or [ CONTROLLER SETUP 3] menu, press a menu number to open a setup menu.

Reference

• Press the ESC button to move to the upper setup mode.

• The Controller Setup menu can be added to enhance controller functionality.

SYSTEM CONTROLLER

31

User’s Manual

Controller Mode

2. ID Setup

This menu is for setting controller ID.

At the [Controller SETUP 1 ] menu, press the 1 button

(see p.31).

Press a number on the number pad to enter a controller ID.

Press the ENTER button to set the controller ID.

• Assign number 1 for setting the controller ID for the master controller.

• The lower the ID number, the higher the controller priority.

• Sub-controllers can be operated only when connected to a master controller; Sub-controllers cannot be operated independently.

3. SERIAL Setup

This menu is for setting the serial port for connecting external devices to the controller.

At the [CONTROLLER SETUP 1 ] menu, press the 2 button (see p.31).

Press the 1 button to activate the Serial 1 PORT Setup screen

(PTZ camera/DVR connection PORT). Press the 2 button to activate the Serial 2 PORT Setup screen (reserved PORT).

• The value displayed at step indicates the current setup value.

• The BAUD RATE/ DATA BIT/ STOP BIT/ PARATY BIT for PORT 2, which connects to the sub-controller, are fixed and cannot bechanged.

The PORT Setup screen will be displayed. Press the number for a setup menu.

1: Sets the BAUD RATE. (4800, 9600, 19200, 38400)

2: Sets the DATA BIT. (8BIT, 7BIT)

3: Sets the STOP BIT. (1BIT, 2BIT)

4: Sets the PARITY BIT. (NONE, ODD, EVEN)

• Default values for controller SERIAL are 9600 (BAUD RATE), 8BIT (DATA BIT), 1BIT (STOP

BIT) and NONE (PARITY BIT).

SYSTEM CONTROLLER

32

User’s Manual

Controller Mode

4. DATA COPY

This menu is for copying master controller menu data to a sub-controller.

The controller ID value is not copied.

At the [CONTROLLER SETUP 1 ] menu, press the 3 button (see p.31).

Press a number on the number pad to enter the ID number for the subcontroller where the data will be copied.

Press the ENTER button to set the controller ID.

Press the 1 button to start coping data.

Press the 2 button to return to the previous menu.

The [DATA COPYING SUCCESS] message appears when data copying is complete.

The [DATA COPYING FAIL] message appears if data copying failed.

[DATA COPY SUCCESSFUL] [DATA COPY FAILURE]

• Data copy takes approximately 7~10 seconds.

This menu is available only for the master controller (ID: 1).

SYSTEM CONTROLLER

33

User’s Manual

Controller Mode

5. RESPONSE

This menu is for setting RESPONSE function of the camera which is connected Controller.

At the [CONTROLLER SETUP 1 ] menu, press the button (see p.31).

Press the 1 button to open the Response Setup screen.

Press the 1 button to set the controller RESPONSE setting to ON. The controller automatically restarts to apply the change.Press the 2 button to set the controller RESPONSE setting to OFF. The master controller display shows the setup screen for the number of the connected subcontroller.

Press the 1 ~ 4 button to set the number of the desired sub controller. The controller automatically restarts to apply the changed settings after entering the number.

- 1: Sets the number of sub-controllers to 4 including the master controller.

- 2: Sets the number of sub-controllers to 8 including the master controller.

- 3: Sets the number of sub-controllers to 12 including the master controller.

- 4: Sets the number of sub-controllers to 16 including the master controller.

• Set the maximum number of sub-controllers, to shorten the sub controller data loading time by making the master controller memorize the number of sub-controllers.

• If Response is set as ON, a maximum of 12 sub-controllers only can be selected.

Caution

• If the camera RESPONSE is set to two-way reception (RESPONSE ON), the controller

RESPONSE menu must be set to ON. If the camera RESPONSE is set to one-way reception

(RESPONSE OFF), the controller RESPONSE menu must be set to OFF.If this is not followed, the system may have a configuration conflict. For more information on the camera RESPONSE settings, direct your inquiries to the installation vendor. If the DIP switch for the camera connected to the controller is set to two-way reception (RESPONSE ON), this menu can be used to set up the RESPONSE value for the controller and the number of sub-controllers.

SYSTEM CONTROLLER

34

User’s Manual

Controller Mode

For information on camera RESPONSE settings (DIP switch settings), refer to the camera manual.

5-1. SPD-3300/3000/2300 DIP Setup

RESPONSE Setup

ON

HALF DUPLEX

OFF

FULL DUPLEX DIP-SW 1

DIP-SW 2

DIP-SW 3

DIP-SW 4

DIP-SW 5

DIP-SW 6

DIP-SW 7

DIP-SW 8

Termination setting Refer to the camera user manual

Communication method

Factory regulation

PC Communication

RS-422 RS-485

Always OFF

RS-232Communication OFF

[RESPONSE ON Setup]

5-2. SPD-2500 DIP Setup

DIP-SW 1

DIP-SW 2

DIP-SW 3

DIP-SW 4

Not used

Reserved

RESPONSE Setup

Factory default

ON OFF

Always OFF

Always OFF

HALF DUPLEX FULL DUPLEX

Always OFF

[RESPONSE ON Setup]

5-3. SPD-2200 DIP Setup

DIP-SW 1

DIP-SW 2

DIP-SW 3

DIP-SW 4

RESPONSE Setup

Reserved

Termination setting

ON

HALF DUPLEX

Always OFF

OFF

FULL DUPLEX

Refer to the camera user manual

[RESPONSE ON Setup]

5-4. SPD-1600 DIP Setup

DIP-SW 1

DIP-SW 2

DIP-SW 3

DIP-SW 4

Not used

Reserved

RESPONSE Setup

Factory default

ON OFF

Always OFF

Always OFF

HALF DUPLEX FULL DUPLEX

Always OFF

[RESPONSE ON Setup]

SYSTEM CONTROLLER

35

User’s Manual

Controller Mode

6. PASSWORD

This menu is for setting the password to enter when changing controller setup values upon power-on.

6-1. PASSWORD Setup

At the [CONTROLLER SETUP 1 ] menu, press the button (see p.31).

Press the 2 button to activate the Password Setup screen.

Press the 1 button to activate the Password Setup screen.

Use the number pad to enter a 6-digit password.

The password verification screen will appear.

Re-enter the same password. The password will be saved.

Caution

• The factory default password is 000000.

Please change the password after installation.

Controller Mode

6-2. Applying Password - Setup Mode

At the Password Setup screen, press the 2 button.

Press the 1 button to ask for a password every time the setup mode is selected. Press the 2 button to skip asking for a password.

6-3. Applying Password - Power

At the Password Setup screen, press the 3 button.

Press the 1 button to ask for a password every time the appliance is powered on. Press the 2 button to skip asking for a password.

6-4. Entering Password

If a password is set, the password has to be entered every time the appliance is powered on or before entering the setup menu. At the screen as illustrated on the right, enter the password set at step (6-1).

SYSTEM CONTROLLER

36

User’s Manual SYSTEM CONTROLLER

37

User’s Manual

Controller Mode

7. PRIORITY

This menu is for setting the connected sub-controller to use a PTZ camera or DVR within the specified restrictions. This menu is available for master controller (ID: 1) only.

At the [CONTROLLER SETUP 1 ] menu, press the button twice. (see p.31).

Press the 1 button to activate the Priority Setup screen.

Press the 1 button to activate the PTZ Camera

Restriction Setup menu.

Press the 2 button to activate the DVR Restriction

Setup menu.

Use the controller button to set the menu.

[ID]: ID of the assigned sub-controller.

Left [000-255] : The currently selected restriction ID.

Right [000-000] : ID to be assigned.

- / : Moves items left and right.

- 2 ~ 16 : Enters ID number.

- ESC : Moves to the upper menu.

- ENTER : Finishes setup.

[PTZ Camera Restriction Setup Menu]

[DVR Restriction Setup Menu]

Controller Mode

8. DEFAULT

This menu is for resetting the changed controller setup values to the default values.

At the [CONTROLLER SETUP 1 ] menu, press the button twice. (see p.31).

Press the 2 button to open the Default Setup screen.

Press the 1 button to change the controller setup values to the default values and restart the controller.

Press the 2 button to cancel the process.

SYSTEM CONTROLLER

38

User’s Manual SYSTEM CONTROLLER

39

User’s Manual

MATRIX Mode

MATRIX is another name for SAMSUNG SMX-25632.

1. Selection of Camera and Monitor

This is a manual function to display the cameras connected to the MATRIX SYSTEM on the monitor.

Select Monitor : Select a monitor number between 1 and 32. Press MONITOR.

Select Camera : Select a camera number between 1 and 255. Press CAMERA.

• Monitor must be selected before the camera. Default is 1, and up to 255 cameras can be selected by connecting up to 3 input MATRIX extensions.

2. Joystick for Basic Camera Controls

JOYSTICK : Used for moving the PAN/TILT up/down/left/right/diagonal.

ZOOM : Use the TELE button for Telephoto view

(Turn the TELE button or the Joystick clockwise for Telephoto view)

Use the WIDE button for WIDE view

(turn the WIDE button or the Joystick counterclockwise for WIDE view)

FOCUS : + button to focus away

- button to focus closer

3. AUTO SELECT

3-1. AUTO SELECT Setup

This is a function to select cameras to be displayed on the monitor in AUTO RUN.

From the initial screen, press the MATRIX button and then press the MENU button to display the [MATRIX

CONTROL] menu.

Press button 1 to display the [AUTO SELECT SET] menu. (In MATRIX, wait for data loading completion.)

Select a number between 1 and 32, and then press the

ENTER button to select the corresponding monitor.

SYSTEM CONTROLLER

40

User’s Manual

MATRIX Mode

Select a number between 1 and 255, and then press the CAMERA button to select the corresponding camera.

Select a number between 1 and 60, and then press the ENTER button to select the corresponding HOLD

TIME.

3-2 Cancel AUTO SELECT

This is a function to cancel AUTO RUN

Press the MENU button, and then press the 1 button.

(In MATRIX, wait for data loading completion.)

Press the ESC or the SET button to exit the corresponding setting.

3-3. Delete AUTO SELECT

This is a function to delete each AUTO RUN setting.

Press the MENU button, and then press button 2.

Select a number between 1 and 32, and then press the ENTER button to select the monitor to be canceled.

3-4. AUTO SELECT RUN/HOLD

Press the AUX2 button to RUN all MATRIX channels.

Press the AUX3 button to HOLD all MATRIX channels.

Select a number between 1 and 32, and then press the AUX2 button to RUN the corresponding MATRIX channel.

Select a number between 1 and 32, and then press the AUX3 button to HOLD the corresponding MATRIX channel.

SYSTEM CONTROLLER

41

User’s Manual

MATRIX Mode

4. ID SET

This is a function to enter text on the corresponding camera.

[MATRIX screen]

4-1 Select ID SET

From the initial screen, press the MATRIX button, and then press the MENU button to display the [MATRIX

CONTROL] menu.

Press button 3 to display the [CAMERA ID SET] menu.

(In MATRIX, wait for data loading completion.)

Move the joystick to select the ID CHANGE SET from the

MATRIX screen, and then press the “FOCUS +“ button.

[MATRIX screen]

Move the joystick up/down to change letters or numbers, use the joystick's ZOOM to change letters/numbers/vowels/consonants.

Press the “FOCUS +“ button to save.

4-2. Setting ID SET ON/OFF

From the initial screen, press the MATRIX button, and then press the MENU button to display the [MATRIX

CONTROL] menu.

Press the 3 button to display the [CAMERA ID SET] menu. (In MATRIX, wait for data loading completion.)

Move the joystick to select the DISPLAY POSITION from the

MATRIX screen, and then press the “FOCUS +“button.

Move the joystick up/down to select a monitor, move it left/right to select ON/OFF.

Press the “FOCUS +“button to save.

[MATRIX screen]

SYSTEM CONTROLLER

42

User’s Manual

MATRIX Mode

4-3. Setting the DISPLAY POSITION

From the initial screen, press the MATRIX button, and then press the MENU button to display the [MATRIX

CONTROL] menu.

Press the 3 button to display the [CAMERA ID SET] menu. (In MATRIX, wait for data loading completion.)

Move the joystick to select the DISPLAY POSITION from the MATRIX screen, and then press the “FOCUS

+“button.

Move the joystick up/down/left/right to move the ID location.

Press the “FOCUS +“button to save.

[MATRIX screen]

5. TIME/DATE SET

This is a function to modify the TIME and DATE on the corresponding camera.

[MATRIX screen]

5-1. Setting TIME/DATE

From the initial screen, press the MATRIX button, and then press the MENU button to display the [MATRIX

CONTROL] menu.

Press the 4 button to display the [TIME SET] menu. (In

MATRIX, wait for data loading completion.)

Move the joystick to select the TIME/DATE SET from the

MATRIX screen, and then press the “FOCUS +“button.

[MATRIX screen]

Move the joystick up/down to change the TIME or

DATE, move it left/right to move the location.

Move the joystick to select the “SAVE?” and wait for it to blink, and then press the

“FOCUS +“ button to save.

SYSTEM CONTROLLER

43

User’s Manual

MATRIX Mode

5-2. Setting ON/OFF

From the initial screen, press the MATRIX button, and then press the MENU button to display the [MATRIX

CONTROL] menu.

Press the 4 button to display the [TIME SET] menu. (In

MATRIX, wait for data loading completion.)

Move the joystick to select the TIME/DATE ON/OFF from the MATRIX screen, and then press the “FOCUS

+“ button.

[MATRIX screen]

Move the joystick up/down to select a monitor, move it left/right to select ON/OFF.

Press the “FOCUS +“ button to save.

5-3. Setting DISPLAY POSITION

From the initial screen, press the MATRIX button, and then press the MENU button to display the [MATRIX

CONTROL] menu.

Press the 4 button to display the [TIME SET] menu. (In

MATRIX, wait for data loading completion.)

Move the joystick to select the DISPLAY POSITION from the MATRIX screen, and then press the “FOCUS

+“ button.

Move the joystick up/down/left/right to move the display position.

Press the “FOCUS +“ button to save.

[MATRIX screen]

Caution

• ERROR may occur if operated before data is fully loaded.

SYSTEM CONTROLLER

44

User’s Manual

REFERENCE

1. Swing, Group Movement Speed

For Swing setup, the speed setup value can be 240 /second for pan, and 180 /second for tilt.

SYSTEM CONTROLLER

45

User’s Manual

What to do when the product malfunctions

• Power button is pressed, but nothing is happening

Check if the Adapter is connected to its proper location on the Junction Box.

Check the cable that connects the Controller to the Junction Box.

• System is not operating

If the Initial Setup menu does not display correctly, update the firmware.

• Joystick and/or keys are not working

There might be a problem with the Controller, please contact our agency nearby.

Appearance

402.9

Controller Specifications

Control

MODEL

Connector

LCD Display

PTZ Operation

Sub Keyboard

Control Quantity

Auto Surveillance

Remote Control

RS-485/422 Spec.

Power (Consumption)

Operating Temperature/

Humidity

Size

Weight

SCC-3100A

3 Port

20 x 4 Character LCD

Joystick (3 axis Twist Zoom)

Max. 16 things connection

Speed Dome

SPD-3300/3000/2300,SPD-2500/2200/1600,

PELCO-D, PANASONIC (WV-CS854),

DVR

Receiver

MATRIX

PTZ & DVR Max. 255

SAMSUNG ELECTRONICS (SCC-643/641)

SVR-1650/1640/950, SVR-1630/430/440, SVR-5416/5116

SRX-100B

SMX-25632

- Tour, Group, Swing, Preset etc.

- Selection of PTZ, DVR: Each ID input

RS-485/ RS-422 (Remote control 1.2km above possibility)

Communication set Asynchronism SERIAL, 1 Start Bit, No Parity, 1 Stop Bit

Transmission method Half Duplex / Full Duplex

- 4,800~38,400 bps (9,600 bps Promotion)

Baud Rate (bps)

- Sub-controller communication 56,400bps fixation

12V DC, 700mA

0~40˚C / 10~75%

400(W) x 180(H) x 88(D)mm

About 1.5kg (Adapter Exclusion)

SYSTEM CONTROLLER

46

User’s Manual SYSTEM CONTROLLER

47

User’s Manual

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
