Product Specifications

Product Specifications

Product Specifications

Fiber Distribution Unit

Your Partner For

Network Optimization

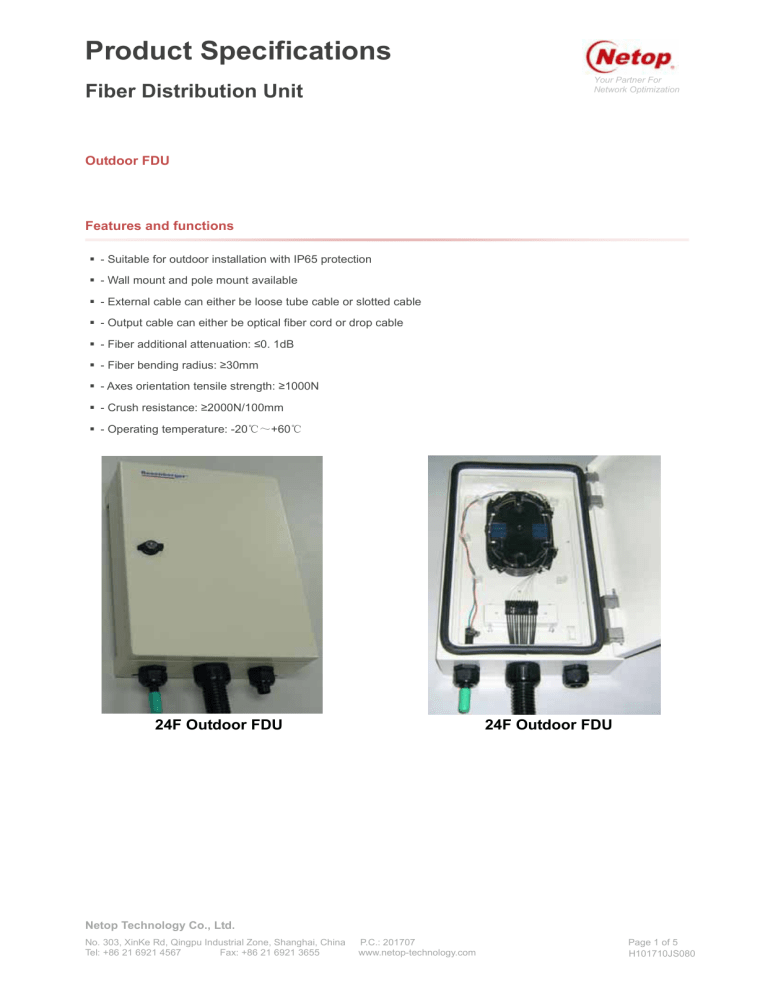

Outdoor FDU

Features and functions

ƒ - Suitable for outdoor installation with IP65 protection

ƒ - Wall mount and pole mount available

ƒ - External cable can either be loose tube cable or slotted cable

ƒ - Output cable can either be optical fiber cord or drop cable

ƒ - Fiber additional attenuation: ≤0. 1dB

ƒ - Fiber bending radius: ≥30mm

ƒ - Axes orientation tensile strength: ≥1000N

ƒ - Crush resistance: ≥2000N/100mm

ƒ - Operating temperature: -20℃~+60℃

24F Outdoor FDU 24F Outdoor FDU

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 1 of 5

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

H101710JS080

Product Specifications

Fiber Distribution Unit

Outdoor FDU with Adapter

Features and functions

ƒ -Suitable for outdoor installation with IP65 protection

ƒ

- Wall mount and pole mount available

ƒ - Various interface available SC, FC or LC

ƒ - Fiber additional attenuation: ≤0. 1dB

ƒ - Fiber bending radius: ≥30mm

ƒ - Axes orientation tensile strength: ≥1000N

ƒ - Crush resistance: ≥2000N/100mm

ƒ - Operating temperature: -20℃~+60℃

4F Outdoor FDU-SC

Your Partner For

Network Optimization

24F Outdoor FDU-SC 12F Outdoor FDU-LC 8F Outdoor FDU-LC

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 2 of 5

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

H101710JS080

Product Specifications

Fiber Distribution Unit

Indoor FDU

Features and functions

ƒ - Wall mount,dust preventable

ƒ

- Made of high quality steel sheet, surface plastic spray

ƒ - Fiber additional attenuation: ≤0. 1dB

ƒ - Fiber bending radius: ≥30mm

ƒ - Operating temperature: -20℃~+60℃

24F Indoor FDU-SC

Your Partner For

Network Optimization

12F Indoor FDU-SC

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 3 of 5

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

H101710JS080

Product Specifications

Fiber Distribution Unit

Part Number

Dimension

P/N Description

W x H x D(mm)

N-FDU-1001012B 12F Outdoor FDU, SPCC

N-FDU-1001024B 24F Outdoor FDU, SPCC

N-FDU-1001048B 48F Outdoor FDU, SPCC

N-FDU-1121004D 4F Outdoor FDU,SC/APC simplex, SPCC

N-FDU-1411012D 12F Outdoor FDU,LC/UPC duplex, SPCC

230 x 350 x 100

230 x 350 x 100

230 x 350 x 110

200 x 250 x 55

230 x 290 x 70

N-FDU-1111024D 24F Outdoor FDU,SC/UPC simplex, SPCC

N-FDU-1111048D 48F Outdoor FDU,SC/UPC simplex, SPCC

N-FDU-1121096D 96F Outdoor FDU,SC/APC simplex, SPCC

N-FDU-2111012D 12F Indoor FDU,SC/UPC simplex, SPCC

N-FDU-2411012D 12F Indoor FDU,LC/UPC duplex, SPCC

N-FDU-2111024D 24F Indoor FDU,SC/UPC simplex, SPCC

N-FDU-2111048D 48F Indoor FDU,SC/UPC simplex, SPCC

N-FDU-1411008A 8F Outdoor FDU,LC/UPC duplex, SPCC

N-FDU-1412024A 24F Outdoor FDU,LCD/UPC, stainless steel

N-FDU-2411024A 24F Indoor FDU,LCD/UPC, SPCC

N-FDU-2411024C 24F Indoor FDU,LCD/UPC, SPCC, with pigtail

N-FDU-2411048C 48F Indoor FDU,LCD/UPC, SPCC, with pigtail

230 x 350 x 110

350 x 380 x 110

500 x 480 x 200

190 x 290 x 80

190 x 290 x 80

190 x 290 x 100

250 x 200 x 70

230 x 290 x 70

300 x 310 x 85

300 x 310 x 100

240 x 290 x 70

240 x 290 x 80

240 x 290 x 80

240 x 290 x 80

250 x 350 x 90

Your Partner For

Network Optimization

Splice tray counts(Max)

4

1

1

2

1

0

0

2

4

0

1

2

2

4

1

8

1

2

4

4

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 4 of 5

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

H101710JS080

Product Specifications

Fiber Distribution Unit

Your Partner For

Network Optimization

Ordering Information



Netop

ID

Environment Adapter type Interface

N-FDU- X

Cabinet

Max. capacity material

X X X XXX

1: Outdoor 0: no adapter 1: SPCC 002: 2cores

Splice tray/pigtail

X

A: no splice tray

2: Indoor 1: SC simplex

0: no adaptor

1: UPC 004: 4cores B: no pigtail

2: SC duplex 2: APC

2: Stainless steel

3: SMC 008: 8cores C: with 0.9mm pigtail 2m

3: LC simplex 012: 12cores

4: LC duplex 024: 24cores

D: with 2.0mm pigtail 2m

E: with 3.0mm pigtail 2m

5: FC simplex

6: ST simplex

7: MPO adaptor





Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 5 of 5

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

H101710JS080

Product Specifications

Cross Connection Cabinet

Your Partner For

Network Optimization



Stainless Cabinet

Optical Cable Cross Connecting Cabinet (hereafter named OCC) is used to connect the fiber trunk cable and the distribution cable between  the interface devices, which has the import of cable, fastness, grounding protection, welding, jumping (distribution), storage, switching and  other functions. With a high versatility in the optical route, especially for fiber optical communication system into a central office trunk  cable and distribution side, can achieve the fiber optic lines linked, distributed and transited easily.

Product feature

·Cabinet is made of high strength stainless steel, protection class IP65, high intension,corrosion‐resistant, all weatherproof and can resist  accidental damage or malignant destruction. With double‐layer structure, filled with non‐combustible and a better insulation effect of the  molding quartz glass wool in the middle, greatly enhanced the cabinet effect of heat insulation, and flame‐retardant properties

·All cabinet corners using a dedicated rounded mold forming, surface treatment using drawing or electrostatic spray, aesthetic appearance.

·The special cabinet inside and outside gas convection channel can prevent water vapor coagulation effectively

·Three‐point locking pins, safety and reliability.

·Closed cabinet structure, supply the cable terminal and distribution with physical protection, prevent the optical fiber cable from  accidental damage.

·Cable entrance from the rack at the bottom and be fixed, grounding and protection.

·Equipped with an integrated fiber‐optic splice wiring module set fiber fusion welding, pigtail to accommodate and distribution all in one,  easy to use and maintain. Card installed FC, SC adapter, the adapter was 30 ° row of cloth, which ensures that the fiber bending and a half  by ≥ 40mm, avoiding the laser burns the human eye and optical fiber connectors to be injured when scheduling the roots. with a clear  fiber‐optic distribution sign.

Applications

·FTTX

·Fiber interface system

·Fiber transmission system

Accessories name

OCC User manual

Certification

Expansion Screw

Nylon ties

Key

Fiber protecting tube

Fiber heat‐shrinkable tube

3M tape

Table 1 Table of Accessories configuration

Qty. Unit

1 ea

1 ea

4 set

20 ea

1 ea

1 set

1 set

1 ea

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 1 of 7

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

F100110LZ001

1



Product Specifications

Cross Connection Cabinet



Your Partner For

Network Optimization



Double‐layer stainless steel cabinet

Optical Fiber Fusion and DistributionIntegrated Module

Optical splice Unit

Cable import Unit

Double‐layer stainless steel front door

Cabinet bottom

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 2 of 7

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

F100110LZ001

2

Product Specifications

Cross Connection Cabinet

Your Partner For

Network Optimization



144F Stainless cabinet

Specification

z

Comply with YD/T998‐2007  z

Connecter loss(including insertion, Changeability and Durability)≤0.5dB  z

Insert loss≤0.2dB  z

Return loss:PC≥40dB    UPC≥50dB    APC≥60dB  z

Connector life>1000 times  z

Insulation resistance (between frame and protection grounding)>20000MΩ/500V(DC)  z

Dielectric strength (between frame and protection grounding)>3000V(DC)/1min no breakdown, no arc.  z

Dimension:1350×650×320(mm)  z

Installation dimension:600×200(mm)  z

Single side operation  z

Weight:150 Kg  z

Working environment:

Environment temperature:‐40℃~80℃

Relative humidity:≤85%(40℃)

Atmosphere pressure:70~106kpa



Installation  z

Frame, floor, wall mounted  z

The series OCC bottom has four φ13 holes, which can be pre‐installed into the M10 expansion bolts on the base  z

Put on the OCC with the fastening nuts

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 3 of 7

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

F100110LZ001

3

Product Specifications

Cross Connection Cabinet



288F Stainless cabinet

Specification

z

OCC standard:YD/T988‐2007  z

Connecter loss(including insertion, Changeability    and Durability)≤0.5dB  z

Insert loss≤0.2dB  z

Return loss:PC≥40dB    UPC≥50dB    APC≥60dB  z

Connector life>1000 times  z

Insulation resistance (between frame and    protection grounding)>20000MΩ/500V(DC)  z

Dielectric strength (between frame and protection    grounding)>3000V(DC)/1min no breakdown,    no arc  z

Dimension:1450×750×320(mm)  z

Installation dimension:700×200(mm)  z

Single side operation  z

Weight:185 Kg  z

Working environment:

Environment temperature:‐40℃~80℃

Relative humidity:≤85%(40℃)

Atmosphere pressure:70~106kpa

Your Partner For

Network Optimization

Installation

z

Frame, floor, wall mounted  z

The series OCC bottom has four φ13 holes, which can be pre‐installed into the M10 expansion bolts on the base.    z

Put on the OCC with the fastening nut.

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 4 of 7

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

F100110LZ001

4

Product Specifications

Cross Connection Cabinet

Your Partner For

Network Optimization



576F Stainless cabinet

Specification

z

OCC standard:YD/T988‐2007  z

Connecter loss(including insertion,Changeability and Durability)≤0.5dB  z

Insert loss≤0.2dB  z

Return loss:PC≥40dB    UPC≥50dB    APC≥60dB  z

Connector life>1000 times  z

Insulation resistance (between frame and protection grounding)>20000MΩ/500V(DC)  z

Dielectric strength (between frame and protection grounding)>3000V(DC)/1min no breakdown, no arc  z

Dimension:1450×750×320(mm)  z

Installation dimension:700×460(mm)  z

Double side operation  z

Weight:225 KG  z

Working environment:  z

Environment temperature:‐40℃~80℃  z

Relative humidity:≤85%(40℃)  z

Atmosphere pressure:70~106kpa

Installation

z

Frame, floor, wall mounted  z

The series OCC bottom has four φ13 holes, which can be pre‐installed into the M10 expansion bolts on the base. Put on the

OCC with the fastening nut.

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 5 of 7

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

F100110LZ001

5

Product Specifications

Cross Connection Cabinet

Your Partner For

Network Optimization



N-OCC-76801B

768F Outdoor SMC Double-Side OCC



Applications

The advanced design of double‐sided operation and divided management make the operation and maintenance very  easy. So it’s easy to update the network.





Features and functions

1. Cabinet material SMC reinforced thermoplastic material anti septic, anti corrosive and preservative up to 50    years. Size1450 x 750 x 360(mm)

2. Capacity ‐ 8 drawers house 2 groups of 4 splice trays per stack. Expandable to 3 groups

3. Splice tray accommodate minimum 12/24 splices

4. Cable entry from front and back for easy access and cable management

5. Both doors front and back accessible during maintenance and servicing

6. Electronic 3 point linkage locking on both doors

7. Cable entry fixed system ‐ up to minimum 32 cablesEach side 18 cables fasteners.

8. 2 group of splice tray accommodate minimum 700 fiber splices per cabinet Additional 1 group splice tray accommodate up to 350 fiber  splices (optional)

9. Sliding splice tray drawer for easy access

10. Cable entry fixed system ‐ up to minimum 32 cables Each side 18 cables fasteners

11. Suitable for outdoor installation with IP65 protection

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 6 of 7

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

F100110LZ001

6

Product Specifications

Cross Connection Cabinet



Ordering Information



Netop

ID

Max. distribution capacity

N- OCC- XXX

Adapter type

X

Interface

X

144

1: SC

288

Simplex

2: SC

576

0:

Null

Optical Cross Connection Cabinet

Duplex

3: FC

768

Simplex

4:LC duplex

0:

Null

1:

UPC

2:

APC

Body material

X

1:

SMC

2:

Stainless steel

3:

SPCC

Operation type

X

A:

Single face

B:

Double face

Core number require

Pigtail

Loaded

XXX X

0:

024:

24cores

072:

72cores

192:

192cores

384:

384cores

Full loaded

Or customerized without pigtail

1: with 0.9mm pigtails customerized pigtails

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 7 of 7

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

F100110LZ001

Product Specifications

N-ODF-XXXXXXXXX

Optical Distribution Frame

Your Partner For

Network Optimization

Features

„

Long-term layout for future optical distribution system expansion

„

Modular design makes capacity increasing easily

„

Excellent fiber cord management with excess cable storage

„

Adapt to optic access networks cosmically with enormous core capacities

„

High density design with good maneuverability

„

Suitable for ribbon fanout or breakout cable assembly

„

Various interface available SC, ST, FC or LC

„

Empty frame with splice tray or pre-install adapters and pigtails

„

Critical elements control of cable bending radius, cable routing paths, cable access and physical protection

„

High-quality steel sheet frame with surface plastic spray

„

ABS plastic cable splice tray with cover

„

Comply with MII standard YD/T778-1999 and relevant international standards

Applications

„

FTTx central office

„

Long-distance optical transmission network

„

Video transmission network

„

Data communication network

Operation Conditions

Transport and Storage temperature:-40℃ ~ +70℃

Operation temperature:-10℃ ~ +50℃

Relative humidity:≤85%(+30℃)

Atmosphere pressure:70 kPa ~106 kPa

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 1 of 3

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

H101310GM001

Product Specifications

N-ODF-XXXXXXXXX

Optical Distribution Frame

Figures

Your Partner For

Network Optimization

A Type



B Type



























C Type

    D Type



E Type 12-Fiber Splice Tray

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 2 of 3

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

H101310GM001

Product Specifications

N-ODF-XXXXXXXXX

Optical Distribution Frame

Your Partner For

Network Optimization

Specifications

Item Type

1 N-ODF-A20XXXXXX

2 N-ODF-A22XXXXXX

3 N-ODF-A26XXXXXX

4 N-ODF-B20XXXXXX

Size(mm) Capacity(fiber)

2000×860×320

2200×860×320

2600×860×320

2000×800×320

≤576

≤624

≤792

≤696

5 N-ODF-B22XXXXXX

6 N-ODF-B26XXXXXX

7 N-ODF-C20XXXXXX

8 N-ODF-C22XXXXXX

9 N-ODF-C26XXXXXX

10 N-ODF-D20XXXXXX

11 N-ODF-D22XXXXXX

12 N-ODF-D26XXXXXX

13 N-ODF-E20XXXXXX

14 N-ODF-E22XXXXXX

15 N-ODF-E26XXXXXX

2200×800×320

2600×800×320

2000×600×320

2200×600×320

2600×600×320

2000×240×320

2200×240×320

2600×240×320

2000×650×320

2200×650×320

2600×650×320

≤792

≤936

≤288

≤288

≤384

≤144

≤144

≤192

≤648

≤696

≤792

Ordering Information

Netop ID Frame type Frame high Adapter type Interface Port counts Pigtail Loaded

X

N-ODF- A:A series

B:B series

C:C series

XX X X XXX X

20:2000mm

22:2200mm

26:2600mm

0:Null

1:SC

2:FC

0: Null

1: UPC

2: APC

000:Null 0: without pigtail

1: with 0.9mm pigtails

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 3 of 3

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

H101310GM001

Product Specifications

N-ODU-XXXXXX

Optical Distribution Unit

Features

‹ ODF and IDF installable

‹ 19” rack mountable

„

Flexible cell capacity (24F, 36F, 48F, 72F, 96F)

„ Optional interface (SC/PC, SC/APC, FC/PC, FC/APC, ST/PC,

LC/UPC, MU/UPC)

„

Sliding splice tray configuration

„

Cable patching guider

„

Easy-access design (All-front operation)

Applications

„

FTTx central office

„

Long-distance optical transmission network

„

Optical aaccess network

„

Video transmission network

„

Data communication network

Operation Conditions

Transport and Storage temperature:-40℃ - +70℃

Operation temperature:-10℃ - +50℃

Relative humidity:≤85%(+30℃)

Atmosphere pressure:70 kPa -106 kPa

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Your Partner For

Network Optimization

Page 1 of 5

H101310GM006

Product Specifications

N-ODU-XXXXXX

Optical Distribution Unit

Figures

24-Fiber ODU

Your Partner For

Network Optimization

36-Fiber ODU

48-Fiber ODU

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 2 of 5

H101310GM006

Product Specifications

N-ODU-XXXXXX

Optical Distribution Unit

Your Partner For

Network Optimization

72-Fiber ODU

Outlet cable

Protection-slot Stainless steel gemel

96-Fiber ODU

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 3 of 5

H101310GM006

Product Specifications

N-ODU-XXXXXX

Optical Distribution Unit

Cable central strength member holder

Your Partner For

Network Optimization

Inlet cable fixer

Side-glance figure

12-Fiber Splice Tray

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Front door locker

Page 4 of 5

H101310GM006

Product Specifications

N-ODU-XXXXXX

Optical Distribution Unit

Your Partner For

Network Optimization

Specifications

Item P/N Size(mm) Capacity(fiber)

1 N-ODU-2024XXX 483×300×88(2HU)

≤24

≤36

≤48

≤72

≤96

Ordering Information

Netop ID

Tray counts Port counts Adapter type Interface Pigtail Loaded

X XXX X

N-ODU- 2: 2pcs 000:Null 0: Null

1: SC

0: Null

1: UPC

0: without pigtail

1: with 0.9mm pigtails

FC APC

3: LC Duplex

8: 8pcs 4: ST

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 5 of 5

H101310GM006

Product Specifications

FBT Splitter Module

Your Partner For

Network Optimization

Product Summary

Fused splitter is built by asymmetric coupling technique. The operating bandwidth of this normal coupler is expanding to ±40nm, and the ultra broadband coupler is expanding to ±80nm. The fused splitter has the same coupling ratio on both 1310nm and 1550nm communication windows, and with low excess loss and low PDL. Fused splitters are widely used for communication systems, CATV, and FTTH.

Features

Low excess loss

Low PDL

Dual operating window

High stability and reliability

Multiple Splitting ratio for select

Fused Splitter

Applications

Optical communication systems

DWDM Network

High-speed LAN

Optical Fiber Sensor

CATV

FTTH

Fused Splitter Module

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 1 of 3

H101710DF070

Product Specifications

FBT Splitter Module

Your Partner For

Network Optimization

Specifications

SM Dual/Triple Window Fused Splitter

Grade P A

Excess Loss(Typ.)(dB)

I.L max.(dB)

0.10

3.6

0.15

3.8

Uniformity(dB) 0.7 1.0

PDL(dB) 0.10 0.15

Operating

Wavelength(nm)

Ratio(%)

Directivity(dB)

Operating Temp.(℃)

Storage Temp. (℃)

I/O Window

Package Size(mm)

1310/1550±40,1310±40&1490±10,

1310/1550±40 &1490±10

or Customized

50/50

≥55

A:3mm x 35mm Stainless steel tube

B:5mm x 70mm Stainless steel tube

C:3mm x 35mm Stainless steel tube

D:90mm x 20mm x 9.5mm Plastic box

E:100mm x 80mm x 10mm Plastic box

F:141mm x 115mm x 18mm Plastic box

M:3mm x 35mm Stainless steel tube

-20~+70

-40~+85

1x2 or 2x2

A ,B,C,D,M

Ratio / Insertion Loss

Ratio (%) Insertion Loss(dB)

Grade P A

40/60 4.7/2.7 5.0/2.9

30/70 6.0/1.9 6.4/2.1

20/80 7.9/1.2 8.5/1.4

10/90 11.3/0.6 12.7/0.8

05/95 14.0/0.45 17.5/0.5

01/99 19~21/0.1~0.2 21.5/0.25

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 2 of 3

H101710DF070

Product Specifications

FBT Splitter Module

Your Partner For

Network Optimization

Order Information

FBT Splitter

FBT Splitter Input Port Output Port _ Fiber Type Coupling Ratio Pigtail Type Fiber Length

N-FS X XX

1: 1port 02: 2ports 1: 50/125um

2: 2port 03: 3ports 2: 62.5/125um

8ports

9ports

10ports

3: 9/125um

10: 10:90

20: 20:80

30: 30:70

1: 250um

2: 900um

10: 1.0m

15: 1.5m

Customized

40:60

50:50

Customized

FBT Splitter Module

Input

Port

Output

Port _ Fiber Type Wavelength

Coupling

Ratio

Pigtail

Type

Fiber

Length

Connector/ adaptor

Connector

Surface Module type

FBT

Splitter

Module

1:

02:

1port

2:

2ports

03:

2ports 3ports

04:

4ports

08:

8ports

09:

9ports

10:

10ports

X XX XX X XX X X X

1:

08: 850nm

50/125um

2:

13: 1310nm

62.5/125um

3: 9/125um 14: 1490nm

15: 1550nm

10: 10:90

20: 20:80

30: 30:70

40: 40:60

0: adaptor

1:

900um

2:

2.0mm

3:

3.0mm

00: Null

10: 1.0m

15: 1.5m

Customized

0: Null

1: SC

2: FC

3: LC

0: Null

1: UPC

2: APC

A: Plastic

Module

B: Metal

Module

C: 19" rack-mount

D: wall-mount

34:

1310/1490nm

35:

1310/1550nm

45: 45:55

50: 50:50

Customized

Customized

4: ST



Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 3 of 3

H101710DF070

Product Specifications

Splitter Distribution Cabinet

Your Partner For

Network Optimization

Applications

These series products provide a high density splitting and distribution management of optical fiber cable. The advanced design of double-sided operation and divided management make the operation and maintenance very easy. The modularization-design supports the splitter-module for 2x16, 2x32 and more splitting-rate module. So it’s easy to update the network.

384F Double-Side Outdoor SDC

Features and functions

- Body case is made of high-quality steel sheet, surface plastic spray

- Double-sided operation(front and rear), divided management

- Suitable for outdoor installation with IP65 protection

- Whole hinge lock, fixed with three points

- Various interface available SC, FC or LC

- Max fiber capacity: 384

- Supports up to 12pcs 1×32 (2×32) splitter modules or 24pcs 1×16 splitter modules

- Parking lot accommodates up to 288 splitter output ports

- Supports pre-connected cable or splicing cable

- Provides the fixture and grounding device for 6 outdoor cables

- Dimension(mm): 1200×600×320

SDC-111B384

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 1 of 5

H101310XD064

Product Specifications

Splitter Distribution Cabinet

192F Double-Side Outdoor SDC

Features and functions

- Body case is made of high-quality steel sheet, surface plastic spray

- Double-sided operation(front and rear), divided management

- Suitable for outdoor installation with IP65 protection

- Whole hinge lock, fixed with three points

- Various interface available SC, FC or LC

- Max fiber capacity: 192

- Supports up to 6pcs 1×32 (2×32) splitter modules or 12pcs 1×16 splitter modules

- Parking lot accommodates up to 144 splitter output ports

- Supports pre-connected cable or splicing cable

- Provides the fixture and grounding device for 6 outdoor cables

- Dimension(mm): 900×600×300

SDC-111B192

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Your Partner For

Network Optimization

Page 2 of 5

H101310XD064

Product Specifications

Splitter Distribution Cabinet

144F Single-Side Outdoor SDC

Features and functions

- Body case is made of high-quality steel sheet, surface plastic spray

- Single-sided operation with middle activity operation panel

- Suitable for outdoor installation with IP65 protection

- Whole hinge lock, fixed with three points

- Various interface available SC, FC or LC

- Max fiber capacity: 144

- Supports up to 5pcs 1×32 (2×32) splitter modules or 9pcs 1×16 splitter modules

- Parking lot accommodates up to 48 splitter output ports

- Supports pre-connected cable or splicing cable

- Provides the fixture and grounding device for 12 outdoor cables Max.

- Dimension(mm): 1000×600×300

Splitter Module

Splitter Distribution

Parking Lot

Middle Activity

Operation Panel



Splice Tray Box with SC Adaptors

SDC-111A144

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Your Partner For

Network Optimization

Page 3 of 5

H101310XD064

Product Specifications

Splitter Distribution Cabinet

32F Single-Side Outdoor SDC

Features and functions

- Body case is made of high-quality steel sheet, surface plastic spray

- Single door, front operation, divided management

- Wall mount and pole mount available

- Suitable for outdoor installation with IP65 protection

- Various interface available SC, FC or LC

- Max fiber capacity: 32

- Supports up to 1pc 1×32 (2×32) splitter modules or 2pcs 1×16 splitter modules

- Parking lot accommodates up to 32 splitter output ports

- Supports pre-connected cable or splicing cable

- Provides the fixture and grounding device for 4 outdoor cables

- Dimension(mm): 500×480×110

Your Partner For

Network Optimization

SDC-111A032

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 4 of 5

H101310XD064

Product Specifications

Splitter Distribution Cabinet

Your Partner For

Network Optimization

Ordering Information

Netop ID Environment

N-SDC- X

Adapter type

X

Interface

X

Cabinet material

X

Operation

Type

X

Installation

X

Max. distribution capacity

XXX

Pigtail Loaded

X

1: 1: UPC 1:SPCC simplex

2: 2: APC 2:Stainless duplex steel

A: Single face

B: Double face

1: Wall mount 032

0: without pigtail

2: 072

1: with 0.9mm pigtails

Free-standing

144

With customerized pigtails simplex

192 duplex

288

Simplex

384

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 5 of 5

H101310XD064

Product Specifications

Fast Termination Connector

Application

FTTH, FTTD, FTTO

Rebuilding the wiring in optical equipment rooms

Core Splice Technology

Your Partner For

Network Optimization

Pluggable non-preset stub technology Coaxial aligning of precision ceramics

Axial elastically fitting of optical fiber Multi-point fastener

Inner structure

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 1 of 5

H101710DF099

Product Specifications

Fast Termination Connector

Your Partner For

Network Optimization

Field Assembly Connector Construction

Features

Based on the unique Rosenberger pluggable non-preset tube technology

Precision ceramic components with co-axial self centering, excellent and durable optical property

Optical fiber fits axially in elastic way and avoids completely any false connect

Triple clamping through the naked fiber, tight buffer and cable, etc., can be used as patchcord

High on-line tensile strength of Optical Fast Connector after terminating, always keep connecting under the force from cabling and drawing

Integrated protection of the casing to withstand harsh user environment

Directly connectable with ONU without any optical socket which reduces FTTH cost

High success rate and easiness in installation with average splicing time 100 sec

Lower requirement for the habit working and work environment call for to the builder

Visible Installation quality; independent from any far end light source and special device satisfying cabling construction in any sectioned way.

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 2 of 5

H101710DF099

Product Specifications

Fast Termination Connector

SC Series

Your Partner For

Network Optimization

N-FC-C2SCUA N-FC-C9SCUA

N-FC-C3SCUA N-FC-SFSCUA

FC Series

N-FC-C2FCUA N-FC-C9FCUA

N-FC-SFFCUA N-FC-C3FCUA

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 3 of 5

H101710DF099

Product Specifications

Fast Termination Connector

Installation Tool

Figure -8 drop cable stripper P250 Coat Stripper

Clamp for N-FC-SFSCUA Clamp for RFT-SC

Clamp for N-FC-SFFCUA Clamp for RFT-FC

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Your Partner For

Network Optimization

Page 4 of 5

H101710DF099

Product Specifications

Fast Termination Connector

Specification

Fiber mode

Operation time

Insert loss

Return loss

Fastening strength of naked fiber

Fastening strength of naked fiber holder

Tensile strength

Operating temperature

On-line tensile strength (20 N)

Mechanical durability (500 times)

Drop-off test (drop-off height 4m, once per direction, totally 3 times)

Single-mode & Multi-mode

About 120s (no fiber cut)

≤ 0.3dB (1310nm & 1550nm)

≤ -40dB

> 5 N

> 10 N

> 50 N

-40~+75℃

IL ≤ 0.2dB △ RL ≤ 5dB

IL ≤ 0.2dB △ RL ≤ 5dB

△ IL ≤ 0.2dB △ RL ≤ 5dB

Ordering Information

Part Number

N-FC-C2SCUA

N-FC-C9SCUA

Description

Fast-Termination Connector, SC, for 250um buffered fiber

Fast-Termination Connector, SC, for 900um buffered fiber

N-FC-C3SCUA

N-FC-C2FCUA

N-FC-C9FCUA

Fast-Termination Connector, SC, for 3.0mm/2.0mm drop cable

Fast-Termination Connector, FC, for 250um fiber

Fast-Termination Connector, FC, for 900um fiber

N-FC-C3FCUA Fast-Termination Connector, FC, for 3.0mm/2.0mm drop cable

Your Partner For

Network Optimization

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 5 of 5

H101710DF099

Product Specifications

Fiber Optic Adapter/Coupler

FC Adapter

Features

ƒ Comply with IEC 61754-13

ƒ Adapter housing material:

Nickel-plated metal

ƒ Adapter C-sleeve material:

Ceramic

ƒ Installation:

Square or D-D mounting flange

ƒ Key dimension:

Wide-key (2.15mm) or narrow-key (2.05mm)

Performance

ƒ Insertion Loss:

<= 0.2dB against reference connectors

ƒ Operating Temperature:

-40℃ ~ +70℃

Your Partner For

Network Optimization

Square Flange

Round Flange

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Hexagonal Flange

Page 1 of 4

H101710DF043

Product Specifications

Fiber Optic Adapter/Coupler

Your Partner For

Network Optimization

Square Flange

Round Flange

Ordering Information

Part Number

N-98E-14

N-98E-15

N-98E-39

N-98E-53

Description

FC/PC simplex adapter, D-D style, round flange

FC/PC simplex adapter, square flange

FC/APC simplex adapter, narrow key 2.03~2.08mm

FC/PC simplex adapter, D-D style, 6-sides

Hexagonal Flange

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 2 of 4

H101710DF043

Product Specifications

Fiber Optic Adapter/Coupler

Your Partner For

Network Optimization

SC Adapter

Features

ƒ Comply with IEC 61754-4, 60874-14

ƒ Adapter variants: simplex and duplex

ƒ Adapter housing material: Composite plastic or nickel-plated metal

ƒ Adapter C-sleeve material: Ceramic

ƒ Color rule for composite plastic adapter: blue - SM, beige – MM, green – SM APC

ƒ Installation: with or without mounting flange

Performance

ƒ Insertion Loss: <= 0.2dB against reference connectors

ƒ Operating Temperature: -40℃ ~ +70℃

Ordering Information

Part Number

N-98E-08

N-98E-09

N-98E-10

N-98E-11

N-98E-23

Description

SC/PC MM simplex adapter, beige

SC/PC MM simplex adapter, blue

Part Number

98E-36

98E-40

Description

SC SM/MM duplex adapter, metal house

SC/APC simplex adapter, green

SC/PC MM duplex adapter, beige

SC/PC SM duplex adapter, blue

98E-46

98E-47

SC/PC,SM duplex adapter without flange

SC/PC,MM duplex adapter without flange

SC/PC SM simplex adapter, round flange 98E-65 SC/PC simplex adapter, metal housing

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 3 of 4

H101710DF043

Product Specifications

Fiber Optic Adapter/Coupler

Your Partner For

Network Optimization

LC Adapter

Features

ƒ Comply with IEC 61754-20,GR-326-CORE,

ƒ Adapter variants: simplex and duplex and quad

ƒ Adapter housing material: Composite plastic or nickel-plated metal

ƒ Adapter C-sleeve material: Ceramic

ƒ Color rule for composite plastic adapter: blue - SM, beige – MM,

Green – SM APC

ƒ Installation: With or without mounting flange

Performance

ƒ Insertion Loss: <= 0.2dB against reference connectors

ƒ Operating Temperature: -40℃ ~ +75℃

Ordering Information

Part Number

N-98E-01

N-98E-02

N-98E-32

N-98E-31

Description

LC/PC MM duplex adapter, beige

LC/PC SM duplex adapter, blue

LC MM duplex adapter, snap-latch fixing

LC SM duplex adapter, snap-latch fixing

Part Number

98E-48

98E-49

Description

LC/PC,SM simplex adapter, blue

LC/PC,MM simplex adapter, beige

98E-50 LC/PC,SM duplex adapter, hole fixing

98E-66 LC, MM, Quad adapter

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 4 of 4

H101710DF043

Product Specifications

Fiber Optic Patchcord & Pigtail

Features

„

Available for all common types of connectivity systems

0.9mm buffered fiber

1.6-2.0mm simplex/duplex cable

2.9mm simplex/duplex cable

Other cable adoptions upon request

„

Connector options: Simplex and duplex

Single-mode 9/125um, multi-mode 50/125um, 62.5/125um and OM3/OM4 (LOF 50/125um)

„

LC comply with IEC 61754-20

„

SC comply with TIA/EIA 568, IEC 874-10

„

FC comply with IEC 60874-7

„

ST comply with TIA/EIA 568, IEC 874-14

„

MU comply with IEC 61754-6

„

MTRJ comply with TIA/EIA-604-12 and IEC61754-18

„

DIN comply with IEC 61754-3

„

ESCON is a registered trademark of IBM

„

Insertion loss test acc. to IEC 61300-3-4

„

Return loss test acc. to IEC 61300-3-6

„

Operation temperature: -20℃ ~ +70℃

Single-Mode Connector Endface

Angle (APC)

IL Typical

0.25 dB

0.25 dB

MTRJ

MTP

Ultra (UPC)

Angle (APC)

Multi-Mode Connector Endface

SC/FC/ST/LC/MU/DIN Ultra (UPC)

MTRJ

MTP

Ultra (UPC)

Super (SPC)

0.35 dB

0.25 dB

0.25 dB

0.35 dB

0.25 dB

IL Maximum

0.40 dB

0.40 dB

0.60 dB

0.60 dB

0.40 dB

0.60 dB

0.45 dB

Your Partner For

Network Optimization

RL Typical

-55 dB

-65 dB

-55dB

RL Maximum

-45dB

-60dB

-35dB

-55dB

Netop Technology Co., Ltd.

No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 1 of 4

H101710DF031

Product Specifications

Fiber Optic Patchcord & Pigtail

Delivery Form

Single item in foil bag

Your Partner For

Network Optimization

One product ID label with measurement values per patchcord

Serial number label on patchcord

Ordering Information

Netop fiber optic patchcords and pigtails are ordered with part number “N-98C” by following additional eight characters as defined by digit 1 through digit 8: Digit 1 - Fiber cable type, Digit 2 - Cable diameter, Digit 3 – Cable structure, Digit 4 - Polished connector endface for SM or core diameter for MM, Digit 5 & Digit 6 - Connector type, Digit 7 - Unit of Measurement and Digit 8 -

Cable assembly length.

Single-mode Patch cord or Pigtail

N-98C X X X X X X X XXXX

Digit1 Digit2 Digit3 Digit4 Digit5 Digit6 Digit7 Digit8

X X X X X X X XXXX

S : SM Riser

E : SM LSZH

I : SM Plenum

P : SM G655

(Riser)

2 : 2mm

3 : 3mm

6 : 1.6mm

8 : 1.8mm

0 : pigtail

1 : patchcord

2 : Duplex pigtail

1 : UPC-UPC 1 : ST

2 : Null 2 : SC

3 : APC-APC 3 : FC

3 : Duplex patchcord 4 : PC-APC 4 : LC

1 : ST

2 : SC

3 : FC

4 : LC

M : meter

F : feet

Cable length

XXX.X meter

Cable length

XXX.X feet

9 : 0.9mm

4 : Duplex pigtail

(separately)

5 : APC-PC 5 : MU

6 : MT-RJ(F)

5 : MU

6 : MT-RJ(F)

N-98C

Z : SM G657A

(LSZH)

5 : Duplex patchcord

(separately)

7 : MT-RJ(M) 7 : MT-RJ(M)

8 : MTP(F) 8 : MTP(F)

9 : E2000

A : FSMA

B : MTP(M)

C : ESCON

D : SCDC

E : DIN

9 : E2000

A : FSMA

B : MTP(M)

C : ESCON

D : SCDC

E : DIN

Netop Technology Co., Ltd.

No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 2 of 4

H101710DF031

Product Specifications

Fiber Optic Patchcord & Pigtail

Multi-mode Patch cord or Pigtail

Your Partner For

Network Optimization

N-98C X X X X X X X XXXX

Digit1 Digit2 Digit3 Digit4 Digit5 Digit6 Digit7 Digit8

X X X X X X X XXXX

M : MM Riser

F : MM LSZH

2 : 2mm

3 : 3mm

J : MM Plenum 6 : 1.6mm

G : 10G Riser 8 : 1.8mm

(LT=300m)

9 : 0.9mm

0 : pigtail

1 : patchcord

5 : 50/125

6 : 62.5/125

2 : Duplex pigtail

3 : Duplex patchcord

7 : 100/140

4 : Duplex pigtail

(separately)

1 : ST

2 : SC

3 : FC

4 : LC

5 : MU

1 : ST

2 : SC

3 : FC

4 : LC

5 : MU

M : meter

F : feet

Cable length

XXX.X meter

Cable length

XXX.X feet

N-98C

H : 10G LSZH

(LT=300m)

N : 10G Plenum

(LT=300m)

5 : Duplex patchcord

(separately)

6 : MT-RJ(F) 6 : MT-RJ(F)

7 : MT-RJ(M) 7 : MT-RJ(M)

Q : 10G Riser

(LT=150m)

R : 10G LSZH

(LT=150m)

8 : MTP(F)

9 : E2000

A : FSMA

B : MTP(M)

C : ESCON

D : SCDC

8 : MTP(F)

9 : E2000

A : FSMA

B : MTP(M)

C : ESCON

D : SCDC

T : 10G Plenum E : DIN E : DIN

(LT=150m)

Single-mode Patch cord or Pigtail (Multi-fiber)

N-98C X X X X X X X XXXX

Digit1 Digit2 Digit3 Digit4 Digit5 Digit6 Digit7 Digit8

X X X X X X X XXXX

A : SM ribbon A : 2 core 0 : pigtail

C :SM breakout B : 4 core 1 : patchcord

C : 6 core 2 : Duplex pigtail

D : 8 core

1 : UPC-UPC 1 : ST

2 : Null 2 : SC

3 : APC-APC 3 : FC

3 : Duplex patchcord 4 : PC-APC 4 : LC

1 : ST

2 : SC

3 : FC

4 : LC

M : meter

F : feet

Cable length

XXX.X meter

Cable length

XXX.X feet

N-98C

E : 12 core

F : 24 core

G :36 core

H :48 core

4 : Duplex pigtail

(separately)

5 : Duplex patchcord

(separately)

5 : APC-PC 5 : MU

6 : MT-RJ(F)

5 : MU

6 : MT-RJ(F)

7 : MT-RJ(M) 7 : MT-RJ(M)

8 : MTP(F) 8 : MTP(F)

9 : E2000

A : FSMA

B : MTP(M)

9

A

B

: E2000

: FSMA

: MTP(M)

C : ESCON

D : SCDC

E : DIN

C : ESCON

D : SCDC

E : DIN

Netop Technology Co., Ltd.

No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 3 of 4

H101710DF031

Product Specifications

N-98C

Fiber Optic Patchcord & Pigtail

Your Partner For

Network Optimization

Multi-mode Patch cord or Pigtail (Multi-fiber)

N-98C X X X X X X X XXXX

Digit1 Digit2 Digit3 Digit4 Digit5 Digit6 Digit7 Digit8

X X X X X X X XXXX

B : MM ribbon A : 2 core 0 : pigtail

D :MM breakout B : 4 core 1 : patchcord

C

D

: 6 core

: 8 core

2

3

: Duplex pigtail

: Duplex patchcord

5

6

: 50/125

: 62.5/125

7 : 100/140

1 : ST

2 : SC

3 : FC

4 : LC

1 : ST

2 : SC

3 : FC

4 : LC

M : meter

F : feet

Cable length

XXX.X meter

Cable length

XXX.X feet

E : 12 core

F : 24 core

G :36 core

H :48 core

4 : Duplex pigtail

(separately)

5 : Duplex patchcord

(separately)

5 : MU 5 : MU

6 : MT-RJ(F) 6 : MT-RJ(F)

7 : MT-RJ(M) 7 : MT-RJ(M)

8 : MTP(F)

9 : E2000

A : FSMA

B : MTP(M)

C : ESCON

D : SCDC

E : DIN

8

9

A

B

C

D

E

: MTP(F)

: E2000

: FSMA

: MTP(M)

: ESCON

: SCDC

: DIN

Netop Technology Co., Ltd.

No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 4 of 4

H101710DF031

Product Specifications

Fixed Fiber Optic Attenuator

Properties

Your Partner For

Network Optimization

Stable attenuation

High return loss

Environmentally stable

Easy installation

Customer designed attenuation specifications

All fiber construction

Build-out and in-line type available

Low attenuation tolerance

Low wavelength dependency

Performance

Plug type Attenuator

Male/Female Type

Return loss: UPC>55dB, APC>65dB

Attenuation Tolerance: ±0.45dB(<5dB) / ±9%(≥5dB)

Operating Wavelength: Dual-window 1310/1550±25nm

Connector type: FC, SC, ST, MU, LC

In-line Attenuator (Attenuated Patch Cord)

Fiber Type: Single Mode

Attenuation: 5~20 dB

Bandwidth: ±40nm(at 1310nm and 1550nm window)

Attenuation tolerance (without connectors):

±0.5dB(5-10dB) at 1310nm and 1550nm window

±0.8dB(11-20dB) at 1310nm and 1550nm window

Connector loss: 0.20dB typical

Return loss (without connectors): ≥50dB

Connector Type: FC, SC, ST, LC, MU

Cable type: 250um, 900um, 2.0mm, 3.0mm PVC or LSZH

Cable Length: Customer specified

Metal tube dimension: Diameter≤4mm, Length≤80mm.

Netop Technology Co., Ltd.

No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 1 of 2

H101710DF044

Product Specifications

Fixed Fiber Optic Attenuator

Ordering Information

Your Partner For

Network Optimization

Part Type

0= Plug type

0=

Cable type

Build-out-attenuator

1= In-line type 1=250um SM

Wavelength Connector Cable Length Attenuation

0=

Build-out-attenuator 1=SC/UPC XX.X Meter 001=1 dB

1=850nm 2=FC/UPC

N-98D

Eg: N-98D0001-001 is the Order Number for 1dB SC/UPC Build-out-attenuator

010=10 dB

……

015= 15 dB

Netop Technology Co., Ltd.

No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 2 of 2

H101710DF044

Product Specifications

N-10xabc-1A

Fiber Distribution Panel

Features

ƒ Suitable for all common types of factory or on-site assembled OF cables with excellent performance and easy installation

ƒ Compatible with all factory assembled

P

RE

Connect

®

cabling system

ƒ High reliability

ƒ High flexibility

ƒ High integrated design

Applications

ISO / IEC 8802-3: FOIRL

ISO / IEC 8802-3: 10BASE-FL, FP & FB

ISO / IEC TR 11802-4: 4 & 16 Mbit/s Token Ring

ISO / IEC 8802-5t: 100 Mbit/s Token Ring

ISO / IEC 8802-12: Demand Priority

ATM at 52Mbit/s

ATM at 155Mbit/s

ATM at 622Mbit/s

DIS 14165-111: Fibre Channel (FC-PH) at 133 Mbit/s

DIS 14165-111: Fibre Channel (FC-PH) at 266 Mbit/s

DIS 14165-111: Fibre Channel (FC-PH) at 531 Mbit/s

DIS 14165-111: Fibre Channel (FC-PH) at 1062 Mbit/s

ISO / IEC 8802-3: 1000BASE-SX

ISO / IEC 8802-3: 1000BASE-LX

ISO / IEC 9314-9: FDDI LCF-PMD

ISO / IEC 9314-4: FDDI SMF-PMD

EN ISO / IEC 9314-3: FDDI PMD

ISO / IEC 8802-3: 100BASE-FX

IEEE 802.3: 10GBASE-LX4

IEEE 802.3: 10GBASE-ER/EW

IEEE 802.3: 10GBASE-SR/SW

IEEE 802.3: 10GBASE-LR/LW

Your Partner For

Network Optimization

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 1 of 3

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

H101310JS021

Product Specifications

N-10xabc-1A

Fiber Distribution Panel



Specifications

Dimensions:

1HU Fixed Distribution Panel 483 x 250 x 1HU

2HU Fixed Distribution Panel 483 x 250 x 2HU

1HU Telescopic Distribution Panel 483 x 300 x 1HU

2HU Telescopic Distribution Panel 483 x 300 x 2HU

Twist and pull secure cable supports for P

RE

Connect

®

trunk cable dividers

2 PG21 (29mm) cable inputs

Cable guidance 45°slant backwards and lead-way choice

4 cable clamping slot cap and divider slot cap

2 universal supports for simplex, duplex and break-out-cables mountable

Mountable Screen print front plate labeling:

1 to 4 or 1 to 12 or 1 to 16 or 1 to 24 or 1 to 32 or 1 to 48 for 1HU

1 to 24 or 1 to 32 or 1 to 36 or 1 to 48 or 1 to 64 for 2HU

Outline Drawing

Your Partner For

Network Optimization

Fixed Distribution Panel Telescopic Distribution Panel



Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 2 of 3

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

H101310JS021

Product Specifications

N-10xabc-1A

Fiber Distribution Panel

Your Partner For

Network Optimization

Ordering Information

Fixed Distribution Panel

N-101165-1A 1 HU Fixed Distribution Panel, SC/SC simplex SM, 8 Fibers, Black

N-101125-1A 1 HU Fixed Distribution Panel, SC/SC simplex SM, 12 Fibers, Black

N-101135-1A 1 HU Fixed Distribution Panel, SC/SC simplex SM, 24 Fibers, Black

N-105145-1A 2 HU Fixed Distribution Panel, SC/SC simplex SM, 48 Fibers, Black

N-105175-1A 2 HU Fixed Distribution Panel, SC/SC simplex SM, 32 Fibers, Black

Telescopic Distribution Panel

N-103165-1A 1 HU Telescopic Distribution Panel, SC/SC simplex SM, 8 Fibers, Black

N-103125-1A 1 HU Telescopic Distribution Panel, SC/SC simplex SM, 12 Fibers, Black

N-103135-1A 1 HU Telescopic Distribution Panel, SC/SC simplex SM, 24 Fibers, Black

N-103G65-1A 1 HU Telescopic Distribution Panel, SC/SC/APC simplex SM, 8 Fibers, Black

N-103G25-1A 1 HU Telescopic Distribution Panel, SC/SC/APC simplex SM, 12 Fibers, Black

N-103G35-1A 1 HU Telescopic Distribution Panel, SC/SC/APC simplex SM, 24 Fibers, Black

N-107G75-1A 2 HU Telescopic Distribution Panel, SC/SC/APC simplex SM, 32 Fibers, Black

N-107G45-1A 1 HU Telescopic Distribution Panel, SC/SC/APC simplex SM, 48 Fibers, Black

Part Number Options: N-10xabc-1A x-Height

1 - 1HU Fixed, 3 - 1HU Telescopic, 5 - 2HU Fixed, 7 - 2HU Telescopic

a-Adaptor

1: SC/SC Simplex SM, 2: ST/ST Simplex SM, 3: ST/ST Duplex SM, 4: SC/SC Simplex MM,

5: SC/SC Duplex SM, 6: SC/SC Duplex MM, 7: SC/ST Duplex SM, 8: SC/ST Duplex MM,

9: ESCON/ST MM, A: MT-RJ/MT-RJ SM, B: MT-RJ/MT-RJ MM, C: LC/LC Duplex SM,

D: LC/LC Duplex MM, E: FC/FC Simplex, G: SC/APC Simplex, H: DIN/DIN, K: E2000/APC

b-Fibers c-Color

1: 0 Fiber, 2: 12 Fibers, 3: 24 Fibers, 4: 48 Fibers, 5: 16 Fibers, 6: 8 Fibers, 7: 32 Fibers, 8: 4 Fibers,

9: 256 Fibers, A: 288 Fibers, B: 512 Fibers, C: 6 Fibers, D: 36 Fibers, E: 72 Fibers, F: 96 Fibers

5: Black

1A-Meterial

Steel body & front plate structure

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 3 of 3

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

H101310JS021

Product Specifications

N-10xabc-1A

Fiber Splice Panel

Your Partner For

Network Optimization

Features

ƒ Suit for all common types of factory or on-site assembled OF cables with excellent performance and easy installation

ƒ High reliability

ƒ High flexibility

ƒ High integrated design

Applications

ISO / IEC 8802-3:FOIRL

ISO / IEC 8802-3:10BASE-FL, FP & FB

ISO / IEC TR 11802-4: 4 & 16 Mbit/s Token Ring

ISO / IEC 8802-5t: 100 Mbit/s Token Ring

ISO / IEC 8802-12: Demand Priority

ATM at 52Mbit/s

ATM at 155Mbit/s

ATM at 622Mbit/s

DIS 14165-111:Fibre Channel (FC-PH) at 133 Mbit/s

DIS 14165-111:Fibre Channel (FC-PH) at 266 Mbit/s

DIS 14165-111:Fibre Channel (FC-PH) at 531 Mbit/s





DIS 14165-111:Fibre Channel (FC-PH) at 1062 Mbit/s

Specifications



ISO / IEC 8802-3:1000BASE-SX

ISO / IEC 8802-3: 1000BASE-LX

ISO / IEC 9314-9:FDDI LCF-PMD

ISO / IEC 9314-4:FDDI SMF-PMD

EN ISO / IEC 9314-3: FDDI PMD

ISO / IEC 8802-3: 100BASE-FX

IEEE 802.3: 10GBASE-LX4

IEEE 802.3: 10GBASE-ER/EW

IEEE 802.3: 10GBASE-SR/SW

IEEE 802.3: 10GBASE-LR/LW

Dimensions:

1HU Fixed Splice Panel

2HU Fixed Splice Panel

483 x 250 x 1HU

483 x 250 x 2HU

1HU Telescopic Splice Panel 483 x 300 x 1HU

2HU Telescopic Splice Panel 483 x 300 x 2HU

Twist secure supports for max. 2 splice cassettes (1HU)

Twist secure supports for max. 4 splice cassettes (2HU)

4 cable clamping slot cap and divider slot cap

2 PG21 (29mm) cable inputs

Cable guidance 45°slant backwards and lead-way choice

2 universal supports for simplex, duplex and break-out-cables

Mountable Screen print front plate labeling:

1 to 4 or 1 to 12 or 1 to 16 or 1 to 24 or 1 to 32 or 1 to 48 for 1HU

1 to 24 or 1 to 32 or 1 to 36 or 1 to 48 or 1 to 64 for 2HU ,

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 1 of 3

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

H101310JS022

Product Specifications

N-10xabc-1A

Fiber Splice Panel

Outline Drawing

Your Partner For

Network Optimization

Fixed Splice Panel Telescopic Splice Panel



Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 2 of 3

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

H101310JS022

Product Specifications

N-10xabc-1A

Fiber Splice Panel

Your Partner For

Network Optimization

Ordering Information

Fixed Splice Panel

N-102165-1A 1 HU Fixed Splice Panel, SC/SC simplex SM, 8 Fibers, Black

N-102125-1A 1 HU Fixed Splice Panel, SC/SC simplex SM, 12 Fibers, Black

N-102135-1A 1 HU Fixed Splice Panel, SC/SC simplex SM, 24 Fibers, Black

N-106175-1A 2 HU Fixed Splice Panel, SC/SC simplex SM, 32 Fibers, Black

N-106145-1A 2 HU Fixed Splice Panel, SC/SC simplex SM, 48 Fibers, Black

Telescopic Splice Panel

N-104165-1A 1 HU Telescopic Splice Panel, SC/SC simplex SM, 8 Fibers, Black

N-104125-1A 1 HU Telescopic Splice Panel, SC/SC simplex SM, 12 Fibers, Black

N-104135-1A 1 HU Telescopic Splice Panel, SC/SC simplex SM, 24 Fibers, Black

N-104G65-1A 1 HU Telescopic Splice Panel, SC/SC/APC simplex SM, 8 Fibers, Black

N-104G25-1A 1 HU Telescopic Splice Panel, SC/SC/APC simplex SM, 12 Fibers, Black

N-104G35-1A 1 HU Telescopic Splice Panel, SC/SC/APC simplex SM, 24 Fibers, Black

N-108G75-1A 2 HU Telescopic Splice Panel, SC/SC/APC simplex SM, 32 Fibers, Black

N-108G45-1A 1 HU Telescopic Splice Panel, SC/SC/APC simplex SM, 48 Fibers, Black

Part Number: N-10xabc-1A x-Height

2: 1HU Fixed, 4: 1HU Telescopic, 6: 2 HU Fixed, 8: 2HU Telescopic, A: 3 HU Fixed, H: 4HU Fixed

a-Adaptor b-Fibers c-Color

1: SC/SC Simplex SM, 2: ST/ST Simplex SM, 3: ST/ST Duplex SM, 4: SC/SC Simplex MM,

5: SC/SC Duplex SM, 6: SC/SC Duplex MM, 7: SC/ST Duplex SM, 8: SC/ST Duplex MM,

9: ESCON/ST MM, A: MT-RJ/MT-RJ SM, B: MT-RJ/MT-RJ MM, C: LC/LC Duplex SM,

D: LC/LC Duplex MM, E FC/FC Simplex, F: Blank, G: SC/APC Simplex, H: DIN/DIN, K: E2000/APC

1: 0 Fiber, 2: 12 Fibers, 3: 24 Fibers, 4: 48 Fibers, 5: 16 Fibers, 6: 8 Fibers, 7: 32 Fibers, 8: 4 Fibers,

9: 256 Fibers, A: 288 Fibers, B: 512 Fibers, C: 6 Fibers, D: 36 Fibers, E: 72 Fibers, F: 96 Fibers

5: Black

1A-Meterial

1A: Steel body & front plate

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 3 of 3

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

H101310JS022

Product Specifications

Ultra-Flexible Fiber Patch Cord

Your Partner For

Network Optimization

Overview

Netop ultra-flexible fiber patch cord features small bending radius and super flexible and durable cables, which is specifically suitable for FTTH applications.

Cable Sstructure

Mechanical and Transmission Data

Netop Technology Co., Ltd.

No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 1 of 2

H101310DF110

Product Specifications

Ultra-Flexible Fiber Patch Cord

Connector Performance

LC comply with IEC 61754-20

SC comply with TIA/EIA 568, IEC 874-10

Insertion loss tested acc. to IEC 61300-3-4

Return loss tested acc. to IEC 61300-3-6

Operation temperature: -25℃ ~ +70℃

Single Mode IL Typical

SC, LC Ultra (UPC) < 0.20 dB

Angle (APC) < 0.20 dB

IL Maximum

0.30 dB

0.30 dB

Delivery Form

Single item in foil bag

One product ID label with measurement values per patch cord

Serial number label on patch cord

Ordering Information

Your Partner For

Network Optimization

RL Typical RL Maximum

< -55 dB -45 dB

< -65 dB -60 dB

N-SPC-

Netop ID Fiber Type

X

A: G652D

B: G657A

C: G657B

Fiber Cable Diameter Product Type

X

A: 2.0mm armorerd cable

X

1: pigtail

B: 3.0mm armorerd cable 2: patchcord

C: 4.0mm Ultru-flexible cable

D: figure-8 drop cable

E: figure-8 aerial drop cable

Interface A

X

0: Null

Interface B

X

0: Null

1: SC/APC 1: SC/APC

2: SC/UPC 2: SC/UPC

3: LC/APC 3: LC/APC

4: LC/UPC 4: LC/UPC

5: FC/APC 5: FC/APC

6: FC/UPC 6: FC/UPC

Units Length

X XXX

M: meter XX.X

F: feet

Netop Technology Co., Ltd.

No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 2 of 2

H101310DF110

Netop Fttx-oDN techNologies

MISSION STATEMENT

Design, manufacture and deploy worldwide RF and fiber optic total solutions for telecommunication networks

Create value for our customers through innovative products, customized services and cost effective solutions

Highest quality standards, state-of-the-art manufacturing facilities and reliable supply chain management to achieve and exceed customer expectations

Socially responsible to our community and environment we do business in and committed to employee's personnel development

CORE VALUE

Value Innovation

Customer Focus

Sustainable Growth

Social Responsibility

NETOP COMPANY OVERVIEW

Netop is an international company devoted to providing the total "end-to-end" solution for enabling wireless coverage & optimizing telecommunication networks. We are a modern and dynamic company involved in both site and in-building wireless coverage business, as well as the fiber optic infrastructure business. Netop has capabilities in R&D, manufacturing, logistics and on-site services.

Netop provides both off-the-shelf and customized products for our customers.

Our major offerings include:

1) Total Site Solutions

2) In-building Wireless Coverage Solutions

3) Customized Components for OEM Customers

4) Microwave and Satellite Communication Systems

5) Netop Cable Systems

6) FTTx-ODN Technologies

7) Telecom/OSP Fiber Solutions

Our technical competencies are protected with patents and our products adhere to the highest technical standards.

Netop production base is located in Qingpu Industrial Park, Shanghai. The factory has over 14,000 sqm production facilities with more than 800 employees.

To keep up with technological advancements, our R&D center in the United States is at the heart of technical innovations. We strive to be at the forefront of technology.

Netop also has an expansive sales and marketing network throughout the world. We have over 20 subsidiaries covering Asia Pacific, the Middle East, Africa, Europe and the Americas. Hence, we are able to be in constant contact with our local customers providing them with timely and quality services.

Netop eNd-to-eNd Fttx-odN SolutioN

CeNtral oFFiCe SyStem

Optical Distribution Frame

Fiber Splicing and Distribution Patch Panel

Feeder CaBle SyStem

Feeder Cable

Fiber Joint Enclosure

Fiber Joint Enclosure for Splitter

Optical Cable Cross Connecting Cabinet

FiBer diStriButioN SyStem

Splitter Distribution Cabinet

Distribution Cable

drop CaBle SyStem

Optical Fiber Distribution Unit

Drop Cable for FTTH

FiBer termiNatioN SyStem

Outdoor Optical Terminal Box

Fiber Faceplate Box

Field-installable Fiber Optic Connector

paSSiVe optiCal CompoNeNt

Optical Splitter

Optical Fiber Patch Cord

Optical Fiber Adapter and Connector

CONTENT

6

8

9

13

16

17

24

28

32

36

37

41

46

47

51

64

65

68

71

56

57

59

62

NETOP ENd-TO-ENd FTTx-OdN SOLUTION

Along with the fast deployment of fiber-to-the-x technology and its application worldwide Netop Technology offers an end-to-end infrastructure solution for central office (CO), optical distribution network (ODN) and last-mile architecture.

Netop’s broad selection of optical fiber products and end-toend EPON, BPON and GPON solutions can be customized for your specific next-generation network requirements.

Netop’s structural and modular products and configurations can not only meet your present demand, but also support your future life needs in a cost-effective way.

Optical Distribution Network (ODN) is a physical connectivity platform for next-generation broadband and gigabit access network. Netop Technology provides diversified products to build an ODN of high performance and reliability, as well as to provide service of network planning and consultation, and installation supports. Netop offers the highest quality products including Netop fiber optical cables, optical distribution frames (ODF), splitter distribution cabinets (SDC), passive splitters and fiber optic jumpers, specialized drop fiber cable and customer interface box.

End-to-end FTTx-ODN Solutions

End-to-end FTTx-ODN Solutions

CENTRAL OFFICE SYSTEM

The System of Central Office Includes the Following Products:

Optical Distribution Frame

Fiber Splicing and Distribution Patch Panel

9

13

1

OPTICAL dISTRIbUTION FRAME

Product Overview

The optical distribution frame (ODF) is applied in the center office, optical cross connection point and network access point in fiber access network projects. It provides such functions as leading in, fixing and splicing, protecting optical cables, storing and managing pigtails, fixing and crossconnecting optical fibers, Meanwhile, enabling safe and reliable routing for connection, distribution and scheduling between optical systems in telecom networks.

Order Information

Netop id Frame type Frame Height Adapter Type Interface

X XX X X

N-ODFA:A series 20:2000mm 0:Null 0: Null

B:B series

C:C series

D:CⅡ series

E:Open frame

22:2200mm

26:2600mm

1:SC

2:FC

3:LC

1: UPC

2: APC

Port Count

XXX

000:Null

Pigtail Loaded

X

0: Without pigtail

1: With 0.9mm pigtail

10

Optical Distribution Frame A

Feature

Suit for connect outside optical cables with optical transmission equipment

Convenient operation, double side operating

Ability to reconfigure and expand your network

Various interface available SC, FC or LC

Specification

High termination density, maximum 792 fibers

Superior cable management ensure 40mm minimum bend radius

Connector life>1000 times

Connector loss (including Insertion, Change ability and Durability) ≤0.5dB

Change ability≤0.2dB

Durability≤0.1dB

Return loss: PC≥40dB, UPC≥50dB, APC≥60dB

Insulation resistance (between frame and protection grounding)>1000MΩ/500V (DC)

Dielectric strength (between frame and protection grounding)>3000V (DC) / min, no spark-over and no flashover

Operation temperature: -5

~+40

Relative humidity: 85% (+30

)

Atmosphere pressure: 70kPa~106kPa

item

1

2

3

type

N-ODF-A26XXXX

N-ODF-A22XXXX

N-ODF-A20XXXX

Size mm

2600×860×300

2200×860×300

2000×860×300

Capacity fiber

≤792

≤648

≤576

Structural Drawing

Optical Distribution Frame B

Feature

Suit for central offices and cross connection points in the OAN

Convenient operation, double side operating

Ability to reconfigure and expand your network

Various interface available SC, FC or LC

Specification

High termination density, maximum 936 fibers

Superior cable management ensure 40mm minimum bend radius

Connector life>1000 times

Connector loss (including Insertion, Change ability and Durability) ≤0.5dB

Change ability≤0.2dB

Durability≤0.1dB

Return loss: PC≥40dB, UPC≥50dB, APC≥60dB

Insulation resistance (between frame and protection grounding)>1000MΩ/500V (DC)

Dielectric strength (between frame and protection grounding)>3000V (DC) / min, no spark-over and no flashover

Operation temperature: -5

~+40

Relative humidity: 85% (+30

)

Atmosphere pressure: 70kPa~106kPa

item

1

2

3

type

N-ODF-B26XXXX

N-ODF-B22XXXX

N-ODF-B20XXXX

Size mm

2600×800×300

2200×800×300

2000×800×300

Capacity fiber

≤936

≤792

≤660

11

12

Optical Distribution Frame C

Feature

Suit for trunk transmission and cross connection points of lower capacity all front access

Convenient operation, double side operating

Ability to reconfigure and expand your network

• Various interface available SC, FC or LC

Specification

High termination density, maximum 384 fibers

Superior cable management ensure 40mm minimum bend radius

Connector life>1000 times

Connector loss (including Insertion, Change ability and

Durability) ≤0.5dB

Change ability≤0.2dB

Durability≤0.1dB

Return loss: PC≥40dB, UPC≥50dB, APC≥60dB

Insulation resistance (between frame and protection grounding)>1000MΩ/500V (DC)

Dielectric strength (between frame and protection grounding)>3000V (DC) /min, no spark-over and no flashover

Operation temperature: -5

~+40

Relative humidity: 85% (+30 ℃ )

Atmosphere pressure: 70kPa~106kPa

item

1

2

3

type Size mm

N-ODF-C26XXXX 2600×600×300

N-ODF-C22XXXX 2200×600×300

N-ODF-C20XXXX 2000×600×300

Capacity fiber

≤384

≤288

≤288

Optical Distribution Frame C

Feature

• Suit for trunk transmission and cross connection points of lower capacity

Convenient operation, double side operating

Ability to reconfigure and expand your network

Various interface available SC, FC or LC

Specification

High termination density, maximum 192 fibers

Superior cable management ensure 40mm minimum bend radius

Connector life>1000 times

Connector loss (including Insertion, Change ability and

Durability) ≤0.5dB

Change ability≤0.2dB

Durability≤0.1dB

Return loss: PC≥40dB, UPC≥50dB, APC≥60dB

Insulation resistance (between frame and protection grounding)>1000MΩ/500V (DC)

Dielectric strength (between frame and protection grounding)>3000V (DC) /min, no spark-over and no flashover

Operation temperature: -5

~+40

Relative humidity: 85% (+30 ℃ )

Atmosphere pressure: 70kPa~106kPa

item

1

2

3

type Size mm

N-ODF- CⅡ26XXXX 2600×240×300

N-ODF- CⅡ22XXXX 2200×240×300

N-ODF- CⅡ20XXXX 2000×240×300

Capacity fiber

≤192

≤144

≤144

2

FIbER SPLICING ANd dISTRIbUTION PATCH PANEL

Product Overview

Fiber splicing and distribution patch panel supports the splicing connection, termination and storage of fiber optic cables. Netop supplies various patch panel in both telescopic-type and fixed-type structure by the same time providing all industry-standard coupler interface including SC, FC, ST, LC,

MU, MT-RJ, E2000, DIN and etc. The Netop fiber optic patch panel can be integrated into the EIA 19” rack or multi-media cabinet.

Order Information

Netop id X-Height and Type

N-10 X

1: 1HU fixed distribution panel

2: 1HU fixed splice panel

3: 1HU telescopic distribution panel

4: 1HU telescopic splice panel

5: 2HU fixed distribution panel

6: 2HU fixed splice panel

7: 2HU telescopic distribution panel

8: 2HU telescopic splice panel

A: 3HU telescopic splice panel

B: 3HU modular splice panel

C: 1HU modular distribution panel

D: 1HU modular splice panel

E: 1HU modular splice panel w/label

F: 2HU modular splice panel w/label



Adapter Type

X

Fiber Count panel Color Structure Code

X X X

1A: Steel body & front 1: SC/SC simplex SM 1: 0 fiber

2: ST/ST simplex SM 2: 12 fibers

3: ST/ST duplex SM 3: 24 fibers

0: Metal

2: Grey

3: White



4: Beige

5: Black





4: SC/SC simplex MM 4: 48 fibers

5: SC/SC duplex SM 6: 8 fibers

6: SC/SC duplex MM

7: SC/ST duplex SM

7: 32 fibers

8: 4 fibers

8: SC/ST duplex MM

9: ESCON/ST MM

9: 256 fibers

A: 288 fibers

A: MT-RJ/MT-RJ SM B: 512 fibers

B: MT-RJ/MT-RJ MM, C: 6 fibers

C: LC/LC duplex SM

D: LC/LC duplex MM

E: FC/FC simplex

G: SC/APC simplex

H: DIN/DIN

K: E2000/APC

D: 36 fibers

E: 72 fibers

F: 96 fibers



















































14

Fiber Distribution Panel

Feature

Compatible with all factory assembled Pre-terminated cabling system

High reliability

High flexibility

• Maximally integrated designing

Application

ISO / IEC 8802-3: FOIRL

ISO / IEC 8802-3: 10BASE-FL, FP & FB

ISO / IEC TR 11802-4: 4 & 16 Mbit/s Token Ring

ISO / IEC 8802-5t: 100 Mbit/s Token Ring

ISO / IEC 8802-12: Demand Priority

ATM at 52Mbit/s

ATM at 155Mbit/s

ATM at 622Mbit/s

DIS 14165-111: Fibre Channel (FC-PH) at 133 Mbit/s

DIS 14165-111: Fibre Channel (FC-PH) at 266 Mbit/s

DIS 14165-111: Fibre Channel (FC-PH) at 531 Mbit/s

DIS 14165-111: Fibre Channel (FC-PH) at 1062 Mbit/s

ISO / IEC 8802-3:1000BASE-SX

ISO / IEC 8802-3: 1000BASE-LX

ISO / IEC 9314-9: FDDI LCF-PMD

ISO / IEC 9314-4: FDDI SMF-PMD

EN ISO / IEC 9314-3: FDDI PMD

ISO / IEC 8802-3: 100BASE-FX

IEEE 802.3: 10GBASE-LX4

IEEE 802.3: 10GBASE-ER/EW

IEEE 802.3: 10GBASE-SR/SW

IEEE 802.3: 10GBASE-LR/LW

Specification

• Dimensions:

1HU Fixed Splice panel

2HU Fixed Splice panel

1HU Telescopic Splice panel

2HU Telescopic Splice panel

483 x 250 x 1HU

483 x 250 x 2HU

483 x 300 x 1HU

483 x 300 x 2HU

Twist and pull secure cable supports for Pre-terminated trunk cable dividers

2 PG21 (29mm) cable inputs

Cable guidance 45°slant backwards, lead-way choice

4 cable clamping slot cap and divider slot cap

2 universal supports for simplex, duplex and break-out-cables

Screen print front plate labeling

Outline Drawing

Fixed Distribution Panel

Telescopic Distribution Panel

Fiber Splice Panel

Feature

• Suit for all common types of factory or on-site assembled OF cables with excellent performance and easy installation

High reliability

High flexibility

Maximally integrated designing

Application

ISO / IEC 8802-3: FOIRL

ISO / IEC 8802-3: 10BASE-FL, FP & FB

ISO / IEC TR 11802-4: 4 & 16 Mbit/s Token Ring

ISO / IEC 8802-5t: 100 Mbit/s Token Ring

ISO / IEC 8802-12: Demand Priority

ATM at 52Mbit/s

ATM at 155Mbit/s

ATM at 622Mbit/s

DIS 14165-111: Fibre Channel (FC-PH) at 133 Mbit/s

DIS 14165-111: Fibre Channel (FC-PH) at 266 Mbit/s

DIS 14165-111: Fibre Channel (FC-PH) at 531 Mbit/s

DIS 14165-111: Fibre Channel (FC-PH) at 1062 Mbit/s

ISO / IEC 8802-3: 1000BASE-SX

ISO / IEC 8802-3: 1000BASE-LX

ISO / IEC 9314-9: FDDI LCF-PMD

ISO / IEC 9314-4: FDDI SMF-PMD

EN ISO / IEC 9314-3: FDDI PMD

ISO / IEC 8802-3: 100BASE-FX

IEEE 802.3: 10GBASE-LX4

IEEE 802.3: 10GBASE-ER/EW

IEEE 802.3: 10GBASE-SR/SW

IEEE 802.3: 10GBASE-LR/LW

Specification

• Dimensions:

1HU Fixed Splice panel

2HU Fixed Splice panel

1HU Telescopic Splice panel

2HU Telescopic Splice panel

483 x 250 x 1HU

483 x 250 x 2HU

483 x 300 x 1HU

483 x 300 x 2HU

Twist secure supports for max. 2 splice cassettes (1HU)

Twist secure supports for max. 4 splice cassettes (2HU)

4 cable clamping slot cap and divider slot cap

2 PG21 (29mm) cable inputs

Cable guidance 45°slant backwards, lead-way choice

2 universal supports for simplex, duplex and break-out-cables

Screen print front plate labeling

Outline Drawing

Fixed Splice Panel

Telescopic Splice Panel

15

FEEdER CAbLE SYSTEM

The System of Feeder Cable Includes the Following Products:

Feeder Cable 17

Optical Fiber Joint Enclosure 24

Fiber Joint Enclosure for Splitter 28

Optical Cable Cross Connecting Cabinet 32

1

FEEdER CAbLE

Product Overview

Feeder fiber optical feeder cable is usually used to connect the optical distribution frame (ODF) in central office (CO) and the splitter distribution cabinet (SDC). The feeder cable can be direct burial, duct installable or aerial fiber optical cable according to different installation and environment conditions. Netop designs, manufactures and supplies all kinds of standard feeder fiber optic cables or per specific customer requirements.

Order Information

Netop id

N-

FO Cable Type

Fiber Structure type

X X

F: Fiber

A: Outdoor

1: 250μm bunchy fiber

2: Ribbon fiber

U: Outdoor & Indoor 3: Buffered fiber

I: Indoor 4: No fiber

S:Special

001

002

003

Sequence

No.

XXX

Cable

Structure

Information

Detail according to catalogue

Fiber No.

XXX

Fiber Type

XXXXX

002: 2 cores

004: 4 cores

012: 12 cores

024: 24 cores

9OS1B: SM 9/125

9OS2D: G.652D

62OM1: MM62.5/125

50OM2: MM50/125

192: 192 cores …

Other see <Netop

Cable Systems>

Extended

Information

Detail according to customer's request

18

Armored Direct-burial Fiber Optical Cable a-WSQ(ZN)(l)2yW2y

Feature

Light armored stranded gel-filled loose tube cable

With dual plastic steel tape

Comply with DIN VDE 0888-3 and IEC 60794-1

Application:

Duct or cable trays

Aerial (Lashed)

Direct buried

Higher mechanical properties and other options on request

LSZH jacket or dielectric strength member is available on request

Specification

Loose Tube

Central Member

Cable Core

Waterproof Element

Aluminum Tape

Corrugated Steel Tape

Ripcord

Cable Jacket

Color of Jacket

Standard loose tube size with color-coated fibers and gel-filled results in economical use and facilitates installation

Steel wire or FRP as the dielectric member for central strength element with no bonding

Central member with loose tube SZ stranded and if necessary fillers isolates fibers from installation

The filling compound around the cable core and if necessary water-swellable tape

Excellent humidity-resistant

Provide rodent resistance for direct buried application

Easily ripping the cable jacket and aluminum tape and steel tape

Double PE jacket strengths the mechanical capability and excellent UV-resistance and provides superior protection against abrasion

Black

Fiber

Count

2~36

38~72

74~96

98~120

122~144

Tube

Count

6

6

8

10

12

Max. Fiber per Tube

6

12

12

12

12

Nominal Cable

Diameter mm

14.0

15.7

17.4

19.0

20.0

Nominal Cable

Weight Kg/Km

210

250

290

345

420

Tensile Strength

Long/Short N

1000/3000

1000/3000

1000/3000

1000/3000

1000/3000

Crush Resistance

Long/Short N/10cm

1000/3000

1000/3000

1000/3000

1000/3000

1000/3000

Ordering Information

NA1005 - □ □ - □□ □□ - □ - □□□ - □□□□□

1 2 3 4 5 6 7 8

1 product type

NA1005 = Product No.

5 Jacket material

01 = PE

02 = LSZH

2 Center Strength member

0 = FRP Strength Member

1 = Steel Wire Strength Member

3 Water-Swellable tape

0 = No Water-Swellable Tape

1 = Water-Swellable Tape

6 length marking

M = Markings in Meters (Standard)

F = Markings in Feet

7 Fiber Count

002 = 2 Cores

…Others (004 to 144)

4 Jacket Color

BK = Black

…See Netop Color Code on Page 6 of <Netop Cable Systems>

8 Fiber Symbol

9OS2D = Fiber G.652D

…See Fiber Indicate Symbol on Page 12 of <Netop Cable System>

19

20

Figure-8 Type Aerial Fiber Optical Cable a-WSQ(ZN)2y

Feature

Non-armored stranded gel-filled loose tube cable

Fig-8 type

With stranded steel wires as the self-support unit

Comply with IEC 60794-1

Application:

Aerial with self-support

Higher mechanical properties and other options on request

Dielectric strength member is available on request

Specification

Loose Tube

Central Member

Cable Core

Waterproof Element

Self-Support Unit

Ripcord

Cable Jacket

Color of Jacket

Standard loose tube size with color-coated fibers and gel-filled results in economical use and facilitates installation

Steel wire or FRP as the dielectric member for central strength element with no bonding

Central member with loose tube SZ stranded and if necessary fillers isolates fibers from installation

The filling compound around the cable core and if necessary water-swellable tape

Stranded steel wires with different size

Easily ripping the cable jacket

PE jacket and excellent UV-resistance and provides superior protection against abrasion

Black

Fiber

Count

2~36

38~60

62~72

74~96

Tube

Count

6

12

12

12

Max. Fiber per Tube

6.0

6.0

6.0

6.0

Nominal Cable

Diameter mm

9.6*17.8

10.2*18.2

10.7*18.7

12.0*20.0

Nominal Cable

Weight Kg/Km

150

157

167

198

Tensile Strength

Long/Short N

1000/3000

1000/3000

1000/3000

1000/3000

98~120 12 6.0

13.7*21.7

229 1000/3000

122~144 12 6.0

15.1*23.1

269

*Provide different size steel wires (1.0mm, 1.2mm, 1.6mm) according to client different mechanical request.

1000/3000

Crush Resistance

Long/Short N/10cm

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

Ordering Information

NA1011 - □ □ - □□ □□ - □ - □□□ - □□□□□

1 2 3 4 5 6 7 8

1 product type

NA1011 = Product No.

5 Jacket material

01 = PE

02 = LSZH

2

Center Strength member

0 = FRP Strength Member

1 = Steel Wire Strength Member

3

Water-Swellable tape

0 = No Water-Swellable Tape

1 = Water-Swellable Tape

6 length marking

M = Markings in Meters (Standard)

F = Markings in Feet

7

Fiber Count

002 = 2 Cores

…Others (004 to 144)

4 Jacket Color

BK = Black

…See Netop Color Code on Page 6 of <Netop Cable Systems>

8 Fiber Symbol

9OS2D = Fiber G.652D

…See Fiber Indicate Symbol on Page 12 of <Netop Cable System>

21

22

Ribbon Fiber Cable a-WQ(ZN)2y

Feature

Non-armored stranded gel-filled loose tube cable

Ribbon fiber cable

Comply with IEC 60794-1

Application:

Duct or cable Trays

Aerial (Lashed)

Ribbons are individually numbered for easy identification

Higher mechanical properties and other options on request

LSZH jacket or dielectric strength member is available on request

• Can provide ribbon with 4 or 8 fibers structure cable

Specification

Loose Tube

Central Member

Cable Core

Waterproof Element

Ripcord

Cable Jacket

Color of Jacket

Standard loose tube size with color-coated ribbon fibers and gel-filled results in economical use and facilitates installation

Steel wire or FRP as the dielectric member for central strength element with no bonding

Central member with loose tube SZ stranded and if necessary fillers isolates fibers from installation

The filling compound around the cable core and if necessary water-swellable tape

Easily ripping the cable jacket

PE jacket and excellent UV-resistance and provides superior protection against abrasion

Black

Fiber

Count

2~36

38~72

74~96

98~120

122~144

146~192

194~216

218~240

242~288

12

16

18

20

24

Tube

Count

6

6

8

10

Fiber Count per Tube

6

12

12

12

12

12

12

12

12

Nominal Cable

Diameter mm

10.8

12.6

13.2

15.6

17.5

17.8

18.1

19.5

22.2

Nominal Cable

Weight Kg/Km

91

114

132

170

185

200

225

253

302

Tensile Strength

Long/Short N

600/1500

600/1500

1000/3000

1000/3000

1000/3000

1000/3000

1000/3000

1000/3000

1000/3000

Crush Resistance

Long/Short N/10cm

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

Ordering Information

NA1001 - 0 □ - □□ □□ - □ - □□□ - □□□□□

1 2 3 4 5 6 7 8

1 product type

NA1001 = Product No.

5 Jacket material

01 = PE

02 = LSZH

2

Center Strength member

0 = FRP Strength Member

3

Water-Swellable tape

0 = No Water-Swellable Tape

1 = Water-Swellable Tape

6 length marking

M = Markings in Meters (Standard)

F = Markings in Feet

7

Fiber Count

002 = 2 Cores

…Others (004 to 288)

4 Jacket Color

BK = Black

…See Netop Color Code on Page 6 of <Netop Cable Systems>

8 Fiber Symbol

9OS2D = Fiber G.652D

…See Fiber Indicate Symbol on Page 12 of <Netop Cable System>

23

2

Order Information

Netop id

N-98G

Shape

X

1: Horizontal

2: Dome

3: Mussel

Sealing Structure of Box

X

1: Sticky cincture

2: Silicon gum

Cable Type

X

1: Bunchy

2: Ribbon

entry type

X

0: Standard

1: Multi-cables/ per entry

Max. Inlet Cable Port

X(<10)

1: 1 inlet port

2: 2 inlet ports

3: 3 inlet ports

4: 4 inlet ports

Max. Outlet Cable Port

X(<10)

1: 1 outlet port

2: 2 outlet ports

3: 3 outlet ports

4: 4 outlet ports

Max Tray Capacity

X

2: 2 trays

4: 4 trays

5: 5 trays

8: 8 trays

A: 40 trays

Splicing Tray Count

X

1: 1 tray

2: 2 trays

3: 3 trays

A: 10 trays

B: 12 trays

C: 14 trays

D: 16 trays

E: 18 trays

F: 20 trays

H: 24 trays

M: 30 trays

K: 36 trays

S: 40 trays

Splicing Tray Type

XX

06: 6 cores

12: 12 cores

16: 16 cores

24: 24 cores

4R: 4c ribbon

8R: 8c ribbon

AR: 12c ribbon

FIbER JOINT ENCLOSURE

Product Overview

Fiber joint enclosure is used for jointing the fiber optical cables which are laid directly underground, in duct or aerial. Netop supplies various types of joint enclosure in different structure and with highest-quality mechanical and environment performance.

Netop id

N-98G

Shape

X

1: Horizontal

2: Dome

3: Mussel

Sealing Structure of Box

X

1: Sticky cincture

2: Silicon gum

Cable Type

X

1: Bunchy

2: Ribbon

entry type

X

0: Standard

1: Multi-cables/ per entry

Max. Inlet Cable Port

X(<10)

1: 1 inlet port

2: 2 inlet ports

3: 3 inlet ports

4: 4 inlet ports

Max. Outlet Cable Port

X(<10)

1: 1 outlet port

2: 2 outlet ports

3: 3 outlet ports

4: 4 outlet ports

Max Tray Capacity

X

2: 2 trays

4: 4 trays

5: 5 trays

8: 8 trays

A: 40 trays

Splicing Tray Count

X

1: 1 tray

2: 2 trays

3: 3 trays

A: 10 trays

B: 12 trays

C: 14 trays

D: 16 trays

E: 18 trays

F: 20 trays

H: 24 trays

M: 30 trays

K: 36 trays

S: 40 trays

Splicing Tray Type

XX

06: 6 cores

12: 12 cores

16: 16 cores

24: 24 cores

4R: 4c ribbon

8R: 8c ribbon

AR: 12c ribbon

26

In-line Type Fiber Joint Enclosure

Feature

For aerial, direct burial and duct installation

Sealing structure: silicon gum or sticky cincture

Ribbon and loose tube fiber splicing

High mechanical strength against impact and compression

Level of protect: IP68

Specification

Fiber additional attenuation: ≤0.1dB

Fiber bending radius: ≥30mm

Axes orientation tensile strength: ≥1000N

Crush resistance: ≥2000N/100mm (Direct burial),

≥1000N/100mm (Aerial and duct)

Operating temperature: -40

~+85

5

5

4

4

max tray

Capacity

2

8

Splicing Tray type

12 cores/tray

12 cores/tray

12 cores/tray

24 cores/tray

72c ribbon/tray

12 cores/tray

24 cores/tray

72c ribbon/tray

Inlet/Outlet port

4 in 4 out

2 in 2 out

2 in 2 out

4 in 4 out

Cable Diameter mm

Φ

5-Φ14

Φ

7-Φ18

Φ

7-Φ25

Outside Dimension

(l×W×H) mm

390x180x88

460x180x108

492x202x104

Sealing Structure

Sticky cincture or silicon gum

Sticky cincture or silicon gum

Sticky cincture

Φ

7-Φ25 492x200x175 Sticky cincture

Dome Type Fiber Joint Enclosure

Feature

For aerial, and duct installation

Sealing structure: silicon gum or sticky cincture

Ribbon and loose tube fiber splicing

High mechanical strength against impact and compression

Level of protect: IP68

Specification

Fiber additional attenuation: ≤0.1dB

Fiber bending radius: ≥30mm

Axes orientation tensile strength: ≥1000N

Crush resistance:≥1000N/100mm (Aerial and duct)

Operating temperature: -40

~+85

max tray

Capacity

2

2

4

4

Splicing Tray type

6 cores/tray

12 cores/tray

12 cores/tray

16 cores/tray

72c ribbon/tray

12 cores/tray

24 cores/tray

Inlet/Outlet port

2 in 2 out

2 in 3 out

3 in 3 out

3 in 3 out

Cable Diameter mm

Φ

7-Φ18

Φ

7-Φ18

Φ

7-Φ22

Outside Dimension

(l×W×H) mm

Φ

85x330

Φ

100x340

Φ

210x440

Sealing Structure

Silicon gum

Silicon gum

Silicon gum

Φ

7-Φ22

Φ

210x440 Silicon gum

27

3

Order Information

Netop id Shape

N-98G X

Sealing Structure of Box

X

1: Horizontal 1: Sticky cincture

Cable Type entry type

X

1: Bunchy

X

0: Standard

2: Dome

3: Mussel

2: Silicon gum 2: Ribbon

Max. Inlet Cable Port Max. Outlet Cable Port

X(<10)

1: 1 inlet port

1: Multi-cables/ per entry 2: 2 inlet ports

3: 3 inlet ports

4: 4 inlet ports

X(<10)

1: 1 outlet port

2: 2 outlet ports

3: 3 outlet ports

4: 4 outlet ports

Max Tray Capacity

X

2: 2 trays

3: 3 trays

4: 4 trays

5: 5 trays

6: 6 trays

8: 8 trays

A: 40 trays

B: 20 trays

C: 16 trays

Splicing Tray Count Splicing Tray Type Function

X XX X

1: 1 tray 06: 6 cores A: Optical distribute with SC/APC adaptors

2: 2 trays

3: 3 trays

A: 10 trays

B: 12 trays

C: 14 trays

D: 16 trays

E: 18 trays

F: 20 trays

H: 24 trays

M: 30 trays

Q: 36 trays

S: 40 trays

12: 12 cores

16: 16 cores

24: 24 cores

4R: 4c ribbon

8R: 8c ribbon

AR: 12c ribbon

B: With 1pc 1x8 splitter and splice

C: With 1pc 1x8 splitter and SC/APC distribution

D: With 2pcs 1x8 splitter and splice

E: With 2pcs 1x8 splitter and SC/APC distribution

F: With 1pc 1x16 splitter and splice

G: With 1pc 1x16 splitter and SC/APC distribution

H: Splice and SC/APC distribution

K: Optical distribute with SC/UPC adaptors

L: With 1pc 1x8 splitter and splice

M: With 1pc 1x8 splitter and SC/UPC distribution

M: With 2pcs 1x8 splitter and splice

P: With 2pcs 1x8 splitter and SC/UPC distribution

Q: With 1pc 1x16 splitter and splice

R: With 1pc 1x16 splitter and SC/UPC distribution

S: Splice and SC/UPC distribution

Core Number

XX

02: 2 cores

04: 4 cores

08: 8 cores

16: 16 cores

18: 18 cores

20: 20 cores

FIbER JOINT ENCLOSURE

FOR SPLITTER

Product Overview

Splitter joint enclosure is pre-assembled and tested with optical splitters inside enclosure for distributing the power transmitted from feeder cable to distribution cables. Netop’s unique design includes the features of high capacity and easy installation.

Netop id

N-98G

Shape

X

Sealing Structure of Box

X

1: Horizontal 1: Sticky cincture

Cable Type entry type

X

1: Bunchy

X

0: Standard

2: Dome

3: Mussel

2: Silicon gum 2: Ribbon

Max. Inlet Cable Port Max. Outlet Cable Port

X(<10)

1: 1 inlet port

1: Multi-cables/ per entry 2: 2 inlet ports

3: 3 inlet ports

4: 4 inlet ports

X(<10)

1: 1 outlet port

2: 2 outlet ports

3: 3 outlet ports

4: 4 outlet ports

Max Tray Capacity

X

2: 2 trays

3: 3 trays

4: 4 trays

5: 5 trays

6: 6 trays

8: 8 trays

A: 40 trays

B: 20 trays

C: 16 trays

Splicing Tray Count Splicing Tray Type Function

X XX X

1: 1 tray 06: 6 cores A: Optical distribute with SC/APC adaptors

2: 2 trays

3: 3 trays

A: 10 trays

B: 12 trays

C: 14 trays

D: 16 trays

E: 18 trays

F: 20 trays

H: 24 trays

M: 30 trays

Q: 36 trays

S: 40 trays

12: 12 cores

16: 16 cores

24: 24 cores

4R: 4c ribbon

8R: 8c ribbon

AR: 12c ribbon

B: With 1pc 1x8 splitter and splice

C: With 1pc 1x8 splitter and SC/APC distribution

D: With 2pcs 1x8 splitter and splice

E: With 2pcs 1x8 splitter and SC/APC distribution

F: With 1pc 1x16 splitter and splice

G: With 1pc 1x16 splitter and SC/APC distribution

H: Splice and SC/APC distribution

K: Optical distribute with SC/UPC adaptors

L: With 1pc 1x8 splitter and splice

M: With 1pc 1x8 splitter and SC/UPC distribution

M: With 2pcs 1x8 splitter and splice

P: With 2pcs 1x8 splitter and SC/UPC distribution

Q: With 1pc 1x16 splitter and splice

R: With 1pc 1x16 splitter and SC/UPC distribution

S: Splice and SC/UPC distribution

Core Number

XX

02: 2 cores

04: 4 cores

08: 8 cores

16: 16 cores

18: 18 cores

20: 20 cores

30

Dome Fiber Joint Enclosure for Splitter

Feature

For aerial, direct burial and duct installation

Sealing structure: silicon gum or sticky cincture

Ribbon and loose tube fiber splicing

High mechanical strength against impact and compression

Level of protect: IP68

Specification

Fiber additional attenuation: ≤0.01dB

Fiber bending radius: ≥30mm

Axes orientation tensile strength: ≥1000N

Crush resistance:≥1000N/100mm (Aerial and duct)

Outside dimension: Φ278 x560mm

Suitable for Ф7-Ф25mm cable

Compatible with 2pcs 1×8 splitter or 1pc 1×16 splitter

6 cable entry ports

6 cores and 12 cores splicing tray available

Max. tray capacity: 20

Up to splice 240 fiber counts

Typical Product Description

98G221166C-D12E18

98G221166C-D12G18

98G221166C-D12H18

192F, Dome, Fiber Joint Closure, with 1x8 splitter*2 & 18pcs SC/APC adapters

192F, Dome, Fiber Joint Closure, with 1x16 splitter*1 & 18pcs SC/APC adapters

192F, Dome, Fiber Joint Closure, with 20xSC/APC termination panel

In-line Fiber Joint Enclosure for Splitter

Feature

For aerial, direct burial and duct installation

Sealing structure: silicon gum or sticky cincture

Ribbon and loose tube fiber splicing

High mechanical strength against impact and compression level of protect: IP68

Specification

Fiber additional attenuation: ≤0.01dB

Fiber bending radius: ≥30mm

Axes orientation tensile strength: ≥1000N

Crush resistance: ≥2000N/100mm (Direct burial),

≥1000N/100mm (Aerial and duct)

Operating temperature: -40

~+60

Outside dimension: 490x200x140mm

Suitable for Ф7-Ф25mm cable

Compatible with 2pcs 1×8 splitter or 1pc 1×16 splitter

6 cable entry ports

6 cores and 12 cores splicing tray available

Max. tray capacity: 6

Up to splice 72 fiber counts

Typical Product Description

98G1211663-324E18

98G1211663-324G18

98G1211663-324H18

72F, Horizontal, Fiber Joint Closure, with 1x8 splitter*2 & 18pcs SC/APC adapters

72F, Horizontal, Fiber Joint Closure, with 1x16 splitter*1 & 18pcs SC/APC adapters

72F, Horizontal, Fiber Joint Closure, with 20xSC/APC termination panel

31

4

Order Information

N-Netop id

OCC-

Max. Distribution Capacity

XXX

144

288

576

768

Adapter Type

X

0: Null

1: SC simplex

2: SC duplex

3: FC simplex

4: LC duplex

Interface

X

0: Null

1: UPC

2: APC

Body Material

X

1: SMC

2: Stainless steel

3: SPCC

Operation Type

X

A: Single face

B: Double face

Core Number Require

XXX

024: 24 cores

072: 72 cores

192: 192 cores

384: 384 cores

Full loaded or customerized

Pigtail Loaded

X

0: Without pigtail

1: With 0.9mm pigtails

2: With customerized pigtails

N-Netop id

OCC-

Max. Distribution Capacity

XXX

144

288

576

768

Adapter Type

X

0: Null

1: SC simplex

2: SC duplex

3: FC simplex

4: LC duplex

Interface

X

0: Null

1: UPC

2: APC

OPTICAL CAbLE CROSS

CONNECTING CAbINET

Product Overview

Optical Cable Cross Connecting Cabinet (hereafter named OCC) is used to connect the fiber trunk cable and the distribution cable between the interface device, which has the import of cable, fastness, grounding protection, welding, jumping (distribution), storage, switching and other functions. With a high versatility in the optical route, especially for fiber optical communication system into a central office trunk cable and distribution side, can achieve the fiber optic lines linked, distributed and transited easily.

Body Material

X

1: SMC

2: Stainless steel

3: SPCC

Operation Type

X

A: Single face

B: Double face

Core Number Require

XXX

024: 24 cores

072: 72 cores

192: 192 cores

384: 384 cores

Full loaded or customerized

Pigtail Loaded

X

0: Without pigtail

1: With 0.9mm pigtails

2: With customerized pigtails

34

144F Stainless Cabinet 288F Stainless Cabinet

Feature

• Cabinet is made of high strength stainless steel, protection class IP65, high intension, corrosion-resistant, all-weather

• protection and can resist accidental damage or malignant destruction.

Closed cabinet structure, supply the cable terminal and distribution with physical protection, prevent the optical fiber

• cable from accidental damage.

Cable entrance from the rack at the bottom and be fixed, grounding and protection.

The series OCC bottom has four φ13 holes, which can be pre-installed into the M10 expansion bolts on the base. Put on the OCC with the fastening nut.

Specification

Comply with YD/T998-2007

Connecter loss(including insertion, Changeability and

Durability)≤0.5dB

Insert loss≤0.2dB

Return loss: PC≥40dB UPC≥50dB APC≥60dB

Connector life>1000 times

Insulation resistance (between frame and protection

• grounding)>20000MΩ/500V(DC)

Dielectric strength (between frame and protection grounding)

3000V(DC)/1min no breakdown, no arc.

Dimension: 1350×650×320 mm

Installation dimension: 600×200 mm

Single side operation

• Weight: 150 Kg

Feature

• Cabinet is made of high strength stainless steel, protection class IP65, high intension, corrosion-resistant, all-weather protection and can resist accidental damage or malignant destruction.

• Closed cabinet structure, supply the cable terminal and distribution with physical protection, prevent the optical fiber

• cable from accidental damage.

Cable entrance from the rack at the bottom and be fixed,

• grounding and protection.

The series OCC bottom has four φ13 holes, which can be pre-installed into the M10 expansion bolts on the base. Put on the OCC with the fastening nut.

Specification

OCC standard: YD/T988-2007

Connecter loss(including insertion, Changeability and

Durability)≤0.5dB

Insert loss≤0.2dB

Return loss: PC≥40dB UPC≥50dB APC≥60dB

Connector life>1000 times

Insulation resistance (between frame and protection grounding)>20000MΩ/500V(DC)

Dielectric strength (between frame and protection grounding)

3000V(DC)/1min no breakdown, no arc

Dimension: 1450×750×320 mm

Installation dimension: 700mm×200 mm

Single side operation

Weight: 185 Kg

576F Stainless Cabinet

Feature

Cabinet is made of high strength stainless steel, protection class IP65, high intension, corrosion-resistant, all-weather protection and can resist accidental damage or malignant destruction.

Closed cabinet structure, supply the cable terminal and distribution with physical protection, prevent the optical fiber cable from accidental damage.

Cable entrance from the rack at the bottom and be fixed, grounding and protection.

The series OCC bottom has four φ13 holes, which can be pre-installed into the M10 expansion bolts on the base. Put on the OCC with the fastening nut.

Specification

OCC standard: YD/T988-2007

Connecter loss(including insertion, Changeability and

Durability)≤0.5dB

Insert loss≤0.2dB

Return loss: PC≥40dB UPC≥50dB APC≥60dB

Connector life>1000 times

Insulation resistance (between frame and protection grounding)>20000MΩ/500V(DC)

Dielectric strength (between frame and protection grounding)

3000V(DC)/1min no breakdown, no arc

Dimension: 1450×750×320 mm

Installation dimension: 700×460 mm

Double side operation

Weight: 225 Kg

A: Double-layer stainless steel cabinet

B: Optical Fiber Fusion and Distribution Intergrated Module

C: Optical splice Unit

D: Cable import Unit

E: Double-layer stainless steel front door

F: Cabinet bottom

Accessories Name

Occ User Manual

Proved Certification

Expansion Screw

Nylon Ties

Key

Fiber Protecting Tube

Fiber Heat-shrinkable Tube

3M Tape

Qty

1

1

1

1

1

4

20

1

Unit

ea set set ea ea set ea set

35

FIbER dISTRIbUTION SYSTEM

The system of Fiber Distribution Includes the Following Products:

Splitter Distribution Cabinet 37

Distribution Cable 41

1

SPLITTER dISTRIbUTION CAbINET

Product Overview

Netop splitter distribution cabinet (SDC) can provide extreme-high distribution capacity by applying high split-ratio components and stateof-art mechanical design techniques. The double-sided operation and modular design make the SDC installation and maintenance very easily, as well that it is convenient for future system expansion.









Order Information

Netop id

N-SDCX



1: Outdoor



2: Indoor









X X

1: SC simplex 1: UPC

2: SC duplex 2: APC

3: LC simplex

4: LC duplex



5: FC Simplex



X

1: SPCC

Operation type

2: Stainless steel B: Double face 2: Free-standing 072

3: SMC

X

Installation

X

A: Single face 1: Wall mount



max.

Distribution

Capacity

Pigtail

Loaded

XXX X

032

144

0: Without pigtail

1: With 0.9mm pigtails

With customerized pigtails



192





288





384



38

384-fiber Splitter Distribution Cabinet

Feature

Body case is made of high-quality steel sheet, surface plastic spray

Double-sided operation(front and rear), divided management

Suitable for outdoor installation with IP65 protection

Whole hinge lock, fixed with three points

Various interface available SC, FC or LC

Specification

Max fiber capacity: 384

Suitable for Ф7-Ф25mm cable

Fiber bending radius: ≥30mm

Provides the fixture and grounding device for 6 outdoor cables

Supports up to 12pcs 1×32 (2×32) splitter modules or 24pcs 1×16 splitter modules

Parking lot accommodates up to 288 splitter output ports

6 cores and 12 cores splicing tray available

Max. tray capacity: 6

Supports pre-terminated cable or splicing cable

Dimension mm: 1200×600×320

Operating temperature: -40

~+60

Splitter Module

Splice Tray

Splitter Distribution

Cable Distribution

Parking Lot

Earthing Sheet Copper

Pre-terminated Cable

Front

Rear

192-fiber Splitter Distribution Cabinet

Feature

Body case is made of high-quality steel sheet, surface plastic spray

Double-sided operation(front and rear), divided management

Suitable for outdoor installation with IP65 protection

Whole hinge lock, fixed with three points

Various interface available SC, FC or LC

Specification

Max fiber capacity: 192

Suitable for Ф7-Ф25mm cable

Fiber bending radius: ≥30mm

Provides the fixture and grounding device for 6 outdoor cables

Supports up to 6pcs 1×32 (2×32) splitter modules or 12pcs

1×16 splitter modules

Parking lot accommodates up to 144 splitter output ports

6 cores and 12 cores splicing tray available

Max. tray capacity: 6

Supports pre-terminated cable or splicing cable

Dimension mm: 900×600×300

Operating temperature: -40

~+60

Splitter Module

Splitter Distribution

Parking Lot

Splice Tray

Cable Distribution

Pre-terminated Cable

39

40

144-fiber Splitter Distribution

Cabinet

32-fiber Splitter Distribution

Cabinet

Feature

Body case is made of high-quality steel sheet, surface plastic spray

Single-sided operation, divided management

Suitable for outdoor installation with IP65 protection

• Whole hinge lock, fixed with three points

Feature

Body case is made of high-quality steel sheet, surface plastic spray

Single door, front operation, divided management

Wall mount and pole mount available

Suitable for outdoor installation with IP65 protection

Various interface available SC, FC or LC

Specification

Max fiber capacity: 144

Suitable for Ф7-Ф25mm cable

Fiber bending radius: ≥30mm

Provides the fixture and grounding device for 6 outdoor cables

Supports up to 6pcs 1×32 (2×32) splitter modules or 12pcs

1×16 splitter modules

Parking lot accommodates up to 64 splitter output ports

Modular structure: 12pcs termination and splicing modules

Supports pre-terminated cable or splicing cable

Dimension mm: 1000×600×300

• Operating temperature: -40

~+60

Specification

Max fiber capacity: 32

Suitable for Ф7-Ф25mm cable

Fiber bending radius: ≥30mm

Provides the fixture and grounding device for 4 outdoor cables

Supports up to 1pc 1×32 (2×32) splitter modules or 2pcs

1×16 splitter modules

Parking lot accommodates up to 32 splitter output ports

6 cores and 12 cores splicing tray available

Modular structure: 12pcs termination and splicing modules

Dimension mm: 500×480×110

Operating temperature: -40

~+60

Splice Tray

Earthing Sheet Copper

Inlet Cable

Outlet Cable

Left area for Splicing and cabling

Right area for splitting and parking

Parking Lot

Splitter Module

2

dISTRIbUTION CAbLE

Product Overview

Fiber optic distribution cable can be made of indoor or outdoor sheathed jackets for different environment conditions, and which function is to get the splitter distribution cabinet (SDC) and fiber distribution (FDU) linked. Netop is able to design and make it to the specific configuration requirements.

Order Information

Netop id

FO Cable type

NX

F: Fiber

A: Outdoor

U: Outdoor

&Indoor

I: Indoor

S: Special



Fiber Structure type

X

Sequence

No.

XXX

Cable Structure

Information

Detail according to catalogue

Fiber No.

Fiber Type

XXX XXXXX

1: 250μm bunchy fiber 001 002: 2 cores 9OS1B: SM 9/125

2: Ribbon fiber 002 004: 4 cores 9OS2D: G.652D

3: Buffered fiber 003 012: 12 cores 62OM1: MM62.5/125

Extended

Information

Detail according to customer's request

4: No Fiber





024: 24 cores 50OM2: MM50/125

192: 192 cores …



Detail according to

Catalogue

(Other see <Netop

Cable Systems>)

42

0.9mm Distribution Cable

I-V(ZN)HH -L-Distribution

Feature

Large cores distribution indoor cable

With aramid yarn as strength member

Halogen-free jacket

Comply with DIN VDE 0888-6 and IEC 60794-2

Application:

Premises distribution system

Horizontal backbone cabling

Indoor LAN

Interconnect

Higher mechanical properties and other options on request

Dielectric strength member is available on request

Specification

Buffer

Buffer Color

Strength Member

Subunit

Subunit Jacket

Central Member

Ripcord

Cable Jacket

Color of Jacket and Subunit Jacket

0.9mm tight buffer or semi-tight buffer

The standard color refer to color code on page 6 of <Netop Cable Systems>

Aramid yarn

6 cores of 0.9mm buffers

Flame-retardant and low smoke halogen-free jacket

FRP as the dielectric member for central strength element with no bonding

Easily ripping the cable jacket

Flame-retardant and low smoke halogen-free jacket and excellent UV-resistance

Yellow for single mode

Orange for multi mode

Aqua for OM3

Other standard color on request on page 6 of <Netop Cable Systems>

48

60

72

24

36

42

8

10

12

4

6

7

Nominal Cable

Diameter mm

10.4

13.5

14.6

15.7

18.2

20.5

Nominal Cable

Weight Kg/Km

85

95

185

265

320

440

Tensile Strength

Long/Short N

400/1300

400/1300

400/1300

400/1300

400/1300

400/1300

Crush Resistance

Long/Short N/10cm

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

Ordering Information

NI3013 - □□ 0 2 - RD □ - □ - □□□ - □□□□□

1 2 3 4 5 6 7 8

1 product type

NI3013 = Product No.

2

Jacket Color

YL = Yellow

…See Netop Color Code on Page 6 of <Netop Cable Systems>

3

Jacket material

02 = LSZH

04 = PVC <OFNR>

05 = PVC <OFNP>

4 Fan-out unit diameter

RD = Round Cable

5 Buffer type

T = Tight Buffer

S = Semi-Tight Buffer

L = Loose Buffer

6 length marking

M = Markings in Meters (Standard)

F = Markings in Feet

7

Fiber Count

024 = 24 Cores

…Others (036 to 072)

8 Fiber Symbol

9OS2D = Fiber G.652D

…See Fiber Indicate Symbol on Page 12 of <Netop Cable System>

43

44

2.0mm Distribution Cable

I-V(ZN)HH -BREAK-OUT

Feature

Multi cores breatout cable with 2.0mm and 3.0mm subunits

With aramid yarn as strength member

Halogen-free jacket

Comply with DIN VDE 0888-6 and IEC 60794-2

Application:

Premises distribution system

Horizontal backbone cabling

Indoor LAN

Interconnect

Higher mechanical properties and other options on request

Dielectric strength member is available on request

Specification

Buffer

Buffer Color

Strength Member

Subunit

Subunit Jacket

Central Member

Ripcord

Cable Jacket

Color of Jacket and Subunit Jacket

0.9mm tight buffer or semi-tight buffer

White or other standard color on page 6 of <Netop Cable Systems>

Aramid yarn

2.0mm or 3.0mm

Flame-retardant and Low Smoke Halogen-free jacket

FRP as the dielectric member for central strength element with no bonding

Easily ripping the cable jacket

Flame-retardant and Low Smok Halogen-free jacket and excellent UV-resistance

Yellow for Single Mode

Orange for Multi Mode

Aqua for OM3

Other standard color on request on page 6 of <Netop Cable Systems>

4

6

8

12

16

24

2

16

24

2

4

6

8

12

3.0

3.0

3.0

3.0

2.0

2.0

3.0

3.0

3.0

2.0

2.0

2.0

2.0

2.0

Nominal Cable

Diameter mm

5.9

7.7

10.4

12.3

13.5

15.5

19.3

5.9

8.3

8.1

10.4

11.3

13.9

7.7

Nominal Cable

Weight Kg/Km

28

59

88

122

128

185

288

39

70

76

80

103

160

50

Tensile Strength

Long/Short N

250/800

250/800

250/800

300/1000

300/1000

500/1500

500/1500

250/800

250/800

250/800

300/1000

300/1000

500/1500

500/1500

Crush Resistance

Long/Short N/10cm

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

Ordering Information

NI3014 - □□ 0 2 - □□ □ - □ - □□□ - □□□□□

1 2 3 4 5 6 7 8

1 product type

NI3014 = Product No.

2 Jacket Color

YL = Yellow

…See Netop Color Code on Page 6 of <Netop Cable Systems>

3 Jacket material

02 = LSZH

04 = PVC <OFNR>

05 = PVC <OFNP>

4 Sub unit diameter

20 = 2.0mm

30 = 3.0mm

5 Buffer type

T = Tight Buffer

S = Semi-Tight Buffer

L = Loose Buffer

6 length marking

M = Markings in Meters (Standard)

F = Markings in Feet

7 Fiber Count

002 = 2 Cores

…Others (004 to 024)

8 Fiber Symbol

9OS2D = Fiber G.652D

…See Fiber Indicate Symbol on Page 12 of <Netop Cable System>

45

dROP CAbLE SYSTEM

The System of Drop Cable Includes the Following Products:

Optical Fiber Distribution Unit 47

Drop Cable for FTTH 51

1

OPTICAL FIbER dISTRIbUTION UNIT

Product Overview

Distribution cable and drop cable is connected in between the optical fiber distribution unit (FDU), which is an important part of the whole optical distribution network (ODN). Netop’s FDU is very flexible on capacity and coupling interface configuration requirements. Both indoor and outdoor applicable FDU are available from Netop Technologies.









N-FDU-











Order Information

Envirement Adapter Type Interface Cabinet Material

X X X X

1: Outdoor

2: Indoor

0: No adapter

1: SC simplex

0: No adaptor 1: SPCC

1: UPC 2: Stainless steel





2: APC



3: SMC











2: SC duplex

3: LC simplex

4: LC duplex

5: FC simplex

6: ST simplex

7: MPO adaptor



















Max. Capacity

XXX

002: 2 cores

004: 4 cores

008: 8 cores

012: 12 cores

024: 24 cores

036: 36 cores

048: 48 cores

072: 72 cores

096: 96 cores

Splice Tray/Pigtail

X

A: No splice tray

B: No pigtail

C: With 0.9mm pigtail 2m

D: With 2.0mm pigtail 2m

E: With 3.0mm pigtail 2m









48

Outdoor FDU

Feature

Body case is made of high-quality steel sheet, surface plastic spray

Wall mount and pole mount available

Inlet cable can either be loose tube cable or slotted cable

Outlet cable can either be optical fiber cord or drop cable

Specification

Max fiber capacity: 72

Fiber bending radius: ≥30mm

Suitable for Ф7-Ф25mm cable

6 cores and 12 cores splicing tray available

Modular structure: 6pcs termination and splicing modules

Suitable for outdoor installation with IP65 protection

Operating temperature: -40

~+85

Splice Tray

Inlet Cable

Drop Cable

Outdoor FDU with Adapter

Feature

Body case is made of high-quality steel sheet, surface plastic spray

Wall mount and pole mount available

Inlet cable can either be loose tube cable or slotted cable

Outlet cable can either be optical fiber cord or drop cable

Specification

Max fiber capacity: 24

Fiber bending radius: ≥30mm

Suitable for Ф7-Ф25mm cable

6 cores and 12 cores splicing tray available

Modular structure: 6pcs termination and splicing modules

Suitable for outdoor installation with IP65 protection

Operating temperature: -40

~+85

49

50

Indoor FDU

Feature

Body case is made of high-quality steel sheet, surface plastic spray

Wall mount and pole mount available

Inlet cable can either be loose tube cable or slotted cable

Outlet cable can either be optical fiber cord or drop cable

Specification

Max fiber capacity: 72

Fiber bending radius: ≥30mm

Suitable for Ф7-Ф25mm cable

6 cores and 12 cores splicing tray available

Modular structure: 6pcs termination and splicing modules

Suitable for outdoor installation with IP65 protection

Operating temperature: -40

~+85

Splice Tray

Inlet Cable

Drop Cable

P/N

N-FDU-1001012B

N-FDU-1001024B

N-FDU-1001048B

N-FDU-1111024D

N-FDU-1111048D

N-FDU-1121004D

N-FDU-1121096D

N-FDU-1411008A

N-FDU-1411012D

N-FDU-1412024A

N-FDU-2001012B

N-FDU-2001024B

N-FDU-2001048B

N-FDU-2111012D

N-FDU-2111024D

N-FDU-2111048D

N-FDU-2411012D

N-FDU-2411024A

N-FDU-2411024C

N-FDU-2411048C

Description

12F Outdoor FDU, SPCC

24F Outdoor FDU, SPCC

48F Outdoor FDU, SPCC

24F Outdoor FDU,SC/UPC simplex, SPCC

48F Outdoor FDU,SC/UPC simplex, SPCC

4F Outdoor FDU,SC/APC simplex, SPCC

96F Outdoor FDU,SC/APC simplex, SPCC

8F Outdoor FDU,LC/UPC duplex, SPCC

12F Outdoor FDU,LC/UPC duplex, SPCC

24F Outdoor FDU,LCD/UPC, stainless steel

12F Indoor FDU, SPCC

24F Indoor FDU, SPCC

48F Indoor FDU, SPCC

12F Indoor FDU,SC/UPC simplex, SPCC

24F Indoor FDU,SC/UPC simplex, SPCC

48F Indoor FDU,SC/UPC simplex, SPCC

12F Indoor FDU,LC/UPC duplex, SPCC

24F Indoor FDU,LCD/UPC, SPCC

24F Indoor FDU,LCD/UPC, SPCC, with pigtail

48F Indoor FDU,LCD/UPC, SPCC, with pigtail

Dimension W x H x D mm Splice Tray Counts Max.

230 x 350 x 100 1

230 x 350 x 100

230 x 350 x 110

230 x 350 x 110

350 x 380 x 110

200 x 250 x 55

500 x 480 x 200

240 x 290 x 70

230 x 290 x 70

240 x 290 x 80

190 x 290 x 80

190 x 290 x 80

190 x 290 x 100

250 x 200 x 70

300 x 310 x 85

300 x 310 x 100

230 x 290 x 70

240 x 290 x 80

240 x 290 x 80

250 x 350 x 90

2

4

4

1

0

1

2

2

4

1

0

0

1

1

8

2

4

2

4

2

dROP CAbLE FOR FTTH

Product Overview

Netop offers the compact, durable and self-supporting micro FTTH fiber cable in full-dry construction, and which supports the last-mile of the passive optical distribution network (ODN). The Netop micro FTTH cable can be for direct burial, duct or aerial installation as options.

Order Information

Netop id

N-

FO Cable Type

Fiber Structure type

X X

F: Fiber

A: Outdoor

1: 250μm bunchy fiber

2: Ribbon fiber

U: Outdoor & Indoor 3: Buffered fiber

I: Indoor 4: No fiber

S:Special

001

002

003

Sequence

No.

XXX

Cable

Structure

Information

Detail according to catalogue

Fiber No.

XXX

Fiber Type

XXXXX

002: 2 cores

004: 4 cores

012: 12 cores

024: 24 cores

9OS1B: SM 9/125

9OS2D: G.652D

62OM1: MM62.5/125

50OM2: MM50/125

192: 192 cores …

Other see <Netop

Cable Systems>

Extended

Information

Detail according to customer's request

52

Drop Cable i-(ZN)H -drop

Feature

Micro cable for FTTH

With FRP as strength member

Halogen-free jacket

Comply with IEC 60794-2

Application:

Installation in small bending environment indoor

FTTx project for Indoor cable

Bending radius can be achieved up to 15mm

G.657 fiber is recommended for this cable

Higher mechanical properties and other options on request

• Dielectric strength member is available on request

Specification

Fiber Type

Fiber Color

Strength Member

Cable Jacket

Color of Jacket

250μm fiber or ribbon fiber

Standard color on page 6 of <Netop Cable Systems>

Two parallel FRPs as the dielectric members for strength element with no bonding

Flame-retardant and Low Smoke Halogen-free jacket and excellent UV-resistance

Black or other standard color on request on page 6 of <Netop Cable Systems>

Fiber

Count

1

2

4

Nominal Cable

Diameter mm

2.0*3.0

2.0*3.4

2.0*4.0

Fiber Structure

0.25mm

0.25mm*2

Ribbon fiber

Nominal Cable

Weight Kg/Km

8.1

8.5

9.8

Tensile Strength

Long/Short N

30/60

30/60

30/60

Crush Resistance

Long/Short N/10cm

300/1000

300/1000

300/1000

Ordering Information

NS1001 - □□ 02 - □ □ - □ - □□□ - □□□□□

1 2 3 4 5 6 7 8

1 product type

NS1001 = Product No.

5

Buffer type

F = Fiber

R = Ribbon Fiber

2 Jacket Color

BK = Black

…See Netop Color Code on Page 6 of <Netop Cable Systems>

3 Jacket material

02 = LSZH

4 Strength member

0 = FRP Strength Member

1 = Steel Wire Strength Member

6 length marking

M = Markings in Meters (Standard)

F = Markings in Feet

7 Fiber Count

001 = 1 Core

…Others (002 to 004)

8 Fiber Symbol

9OS2D = Fiber G.652D

…See Fiber Indicate Symbol on Page 12 of <Netop Cable System>

53

54

Aerial Drop Cable i-(ZN)H –Fly

Feature

Drop micro cable for FTTH with steel for drag

With FRP as strength member

Helogen-free jacket

Comply with IEC 60794-2

Application:

Installation in small bending environment indoor/outdoor

FTTx project for indoor cable

G.657 fiber is recommended for this cable

Higher mechanical properties and other options on request

Dielectric strength member is available on request

Specification

Fiber Type

Fiber Color

Strength Member

Drag Member

Cable Jacket

Color of Jacket

250μm fiber or ribbon fiber

Standard color on page 6 of <Netop Cable Systems>

Two parallel FRPs as the dielectric members for strength element with no bonding

Steel

Flame-retardant and Low Smoke and Halogen-free jacket and excellent UV-resistance

Black or other standard color on request on page 6 of <Netop Cable Systems>

Fiber

Count

1

2

4

Nominal Cable

Diameter mm

2.0*5.0

2.0*5.0

2.0*5.6

Fiber Structure

0.25mm

0.25mm*2

Ribbon fiber

Nominal Cable

Weight Kg/Km

19.1

20.1

22.5

Tensile Strength

Long/Short N

60/120

60/120

60/120

Crush Resistance

Long/Short N/10cm

300/1000

300/1000

300/1000

Ordering Information

NS1002 - □□ 02 - □ □ - □ - □□□ - □□□□□

1 2 3 4 5 6 7 8

1 product type

NS1002 = Product No.

5 Buffer type

F = Fiber

R = Ribbon Fiber

2

Jacket Color

BK = Black

…See Netop Color Code on Page 6 of <Netop Cable Systems>

3

Jacket material

02 = LSZH

6 length marking

M = Markings in Meters (Standard)

F = Markings in Feet

7

Fiber Count

001 = 1 Core

…Others (002 to 004)

4 Strength member

0 = FRP Strength Member

1 = Steel Wire Strength Member

8 Fiber Symbol

9OS2D = Fiber G.652D

…See Fiber Indicate Symbol on Page 12 of <Netop Cable System>

55

FIbER TERMINATION SYSTEM

The System of Fiber Termination Includes the Following Products:

Outdoor Optical Terminal Box 57

Fiber Faceplate Box 59

Fast Field-assembly Splicing and Connecting Product 62

1

OUTdOOR OPTICAL TERMINAL bOx

Product Overview

Outdoor optical terminal box is used for terminating drop cable in outdoor environment. Working as the customer FTTH application interface,

Netop optical terminal box is applicable for site-splicing, field-installable connector termination or mechanical splice installation.















N-FDU-





Order Information













Envirement

X

1: Outdoor

2: Indoor



Adapter Type Interface Cabinet Material Max. Capacity Splice Tray/Pigtail

X X X XXX X

0: No adapter

1: SC simplex

2: SC duplex

3: LC simplex

4: LC duplex

5: FC simplex

6: ST simplex

7: MPO adaptor

0: No adaptor 1: SPCC

1: UPC 2: Stainless steel

2: APC 3: SMC

























002: 2 cores

004: 4 cores

008: 8 cores

012: 12 cores

024: 24 cores

036: 36 cores

048: 48 cores

072: 72 cores

096: 96 cores

A: No splice tray

B: No pigtail

C: With 0.9mm pigtail 2m

D: With 2.0mm pigtail 2m

E: With 3.0mm pigtail 2m









58

Outdoor Optical Terminal Box

Feature

Suitable for the protective connection between cables and pigtails

Suitable for simplex and duplex different adapter.

• Lockable door providing good security

Specification

Suitable for 4 fibers indoor drop cable

Fiber bending radius: ≥30mm

Products classification: pole mounted, wall mount.

IP65 protection for outdoor environment

Dimension: 200 x 250 x 55

Operating temperature: -40

~+85

Hinge

Splice Tray

2

FIbER FACEPLATE bOx

Product Overview

Netop fiber faceplate box works as the customer Fiber To The Desk (FTTD) application interface, which is specially designed to adopt the drop cable installations by having unique structure inside for excessive cable storage by maintaining good bending radius of the cable. The box is applicable for site-splicing, field-installable connector termination or mechanical splice installation.

Order Information

Netop id Adapter Type

N-FFBX

1: SC/APC simplex

2: SC/UPC simplex

3: SC/APC duplex

4: SC/UPC duplex

5: LC/APC duplex

6: LC/UPC duplex

7: FC/APC simplex

8: FC/UPC simplex

Fiber Number

X

0: without pigtail

1: 1 fiber

2: 2 fiber

4: 4 fiber

Series

X

A: A type

B: B type

C: C type

Customer ID

X: First letter of customer's name

N: Netop standard

Fiber Faceplate Box -Type A Fiber Faceplate Box- Type B

Feature

Top and bottom cable entry hold available

With hinge and lock protection

Compatible with three connect methods a. Directly connect drop cable with field assembled fast connector b. Connect drop cable and pigtail with mechanical splice unit c. Connect drop cable and pigtail by using heat splicing method

Specification

Suitable for 2 fibers indoor drop cable

Dimension: 160mmX96mmX30mm

1 2 3 4

Feature

Top and bottom cable entry hold available

Compatible with three connect methods a. Directly connect drop cable with field assembled fast connector b. Connect drop cable and pigtail with mechanical splice unit c. Connect drop cable and pigtail by using heat splicing method

Specification

• Suitable for 2 fibers indoor drop cable

• Dimension: 86mmX86mmX30mm

60

5

1. Fixing slot for fusion splicer protection tube: 2 places

2. Wall installation hole: 4 places

3. Fiber entry hole: 2 places

4. Fiber holder: 2 places

5. Fixing slot for adaptor: 2 places

Fiber Entry Hole

Fixing Slot for Fusion Splicer Protection Tube

Drop Cable

Wall Installation Hole

Spring Shutter

Fiber Faceplate Box- Type C

Feature

FFB type C are used to connect workplace computers with the horizontal fiber-optic installation

Connectivity system ST, SC-duplex, LC-duplex and MT-RJ are supported

Fit with standard 86x86mm wall back box

45 degree angled outlet without coupler / keystone attached

Fiber optic adapters or modules available

Delivered with installation screws and labeling system

Specification

Suitable for 2 fibers indoor drop cable

Dimension: 86mmX86mmX30mm

61

3

FIELd-INSTALLAbLE FIbER OPTIC

CONNECTOR

Product Overview

Netop field-installable fiber optic Connector includes both SC and

FC types, which take the advantage of the latest Netop rapid readytermination technology. The Netop field-installable fiber optic connector provides high-quality mechanical and optical performance which meet or exceed the factory-installed fiber optic connectors.

Order Information

Netop id Fiber Type

N-FCX

Cable Type

X

C: SingleMode & MultiMode 2: 250 µm

S: SigleMode 9: 900 µm

M: MultiMode 3: 2.0 mm & 3.0 mm

F: 3.1x2.0mm figure-8 drop cable

Connector Type Interface Type Series

XX X X

SC: SC connector

FC: FC connector

LC: LC connector

U: UPC

A: APC

A: A type

Fast Termination Connector

Feature

Based on the unique Netop pluggable non-preset tube technology.

Precision ceramic components with co-axial self centering, excellent and durable optical property.

Optical fiber fits axially in elastic way and avoids completely any false connect.

Triple clamping through the naked fiber, tight buffer and cable, etc., can be used as patchcord.

High on-line tensile strength of optical fast connector after terminating, always keep connecting

Under the force from cabling and drawing.

Integrated protection of the casing to withstand harsh user environment.

Directly connectable with ONU without any optical socket, which reduces FTTH cost.

High success rate and easiness in installation with average splicing time 100 sec.

Lower requirement for the habit working and work environment call for to the builder .

Visible Installation quality; independent from any far end light source and special device satisfying

Cabling construction in any sectioned way

SC series:

Specification item

Fiber Mode

Operation Time

Insert Loss

Return Loss

Fastening Strength of Naked Fiber

Fastening Strength of Naked Fiber

Holder

Tensile Strength

Using Temperature

On-line Tensile Strength (20 N)

Mechanical Durability (500 Times)

Drop-off Test (Drop-off Height 4m,

Once per Direction, Totally 3 Times)

Technical Parameters

Single & multi mode

About 120s(no fiber cut)

≤ 0.3dB(1310nm & 1550nm)

≤ -40dB

>5 N

>10 N

>50 N

-40~+75℃

IL ≤ 0.2dB △ RL ≤ 5dB

IL ≤ 0.2dB △ RL ≤ 5dB

IL ≤ 0.2dB △ RL ≤ 5dB

FC series:

N-FC-CxSCUA

Related tools:

N-FC-CxFCUA

Figure -8 drop cable stripper Coat Stripper

Field Assembly Connector Construction

Clamp Clamp for N-FC-CxSCUA

63

PASSIVE OPTICAL COMPONENT

The System of Passive Optical Component Includes the Following Products:

Optical Splitter 65

Optical Fiber Patch Cord 68

Optical Fiber Adapter and Connector 71

Order Information

Netop id

N-RPS

Input Port

X

1: 1 port

2: 2 port

Output Port

XX

02: 2 ports

03: 3 ports

04: 4 ports

06: 6 ports

08: 8 ports

12: 12 ports

16: 16 ports

24: 24 ports

32: 32 ports

64: 64 ports

0A: 128 ports

Fiber Length

XX

10: 1.0m

15: 1.5m

Customized

Grade

X

1: Grade P

2: Grade S

Fiber Type

X

1: 250μm

2: 900μm

1

OPTICAL SPLITTER

Product Overview

Netop fiber optical splitter can be supplied in different forms, and which provides function of distributing down-link data and converge up-link data.

It adopts TDM technology on the down-link and implements RDM-related access protocols on the up-link. To satisfy the requirements of the different application scenarios Netop designs, produces and supplies 19” rackmountable, modular or individual packed splitter products by applying the most compact integration techniques.

N-PSM X

1: 1 port

2: 2 port

XX

02: 2 ports

03: 3 ports

04: 4 ports

06: 6 ports

08: 8 ports

12: 12 ports

16: 16 ports

24: 24 ports

32: 32 ports

64: 64 ports

0A: 128 ports

X

0: Adapter

1: 900μm

2: 2.0mm

3: 3.0mm

XX

00-Null

10: 1.0m

15: 1.5m

Customized

X

0: Null

1: SC

2: FC

3: LC

4: ST

Connector

Surface

X

0: Null

1: UPC

2: APC

Module type

X

A: Plastic module

B: Metal module

C: 19" rack-mount

D: Wall-mount

66

Optical Splitter

Feature

Low insertion loss and PDL

FBT and PLC technology

Wide operation wavelength and temperature

High reliability and stability

1 or 2 input channel

4, 8, 16, 32 and 64 output channel available

Flexible fanout length and various connector type available

Specification

4

5

6

7

8

2

3

parameter

1 Operating Wavelength nm

Insertion Loss dB

Loss Uniformity dB

Return Loss dB

PDL dB

Directivity dB

Operating Temperature ℃

Storage Temperature ℃

Max.

Max.

Min.

Max.

Min.

1x4

1260-1650

7.2

0.6

55

0.2

55

-40~85

-40~85

1x8

10.5

0.8

55

0.3

55

1x16

13.5

1.2

55

0.3

55

Note: All measurements were done at room temperature and specifications exclude connectors.

1x32

16.5

1.7

55

0.3

55

1x64

20

2.5

50

0.4

55

Splitter Module

Feature

Made of high quality steel sheet or ABS, surface plastic spray

Modularized design, convenient for installation and maintenance

Fiber additional attenuation: ≤0. 1dB

Coiling radius of internal ribbon fiber: >30mm

Operating temperature: -40

~+80

Fiber riveted by crimp body at root

Fiber protected by strain relief at root

1 or 2 input channel

4, 8, 16, 32 and 64 output channel available

Multi-interface and length to be chosen

Specification parameter

1 Operating Wavelength nm

1x4

1260-1650

1x8 1x16

6

7

8

4

5

2

3

Insertion Loss dB

Loss Uniformity dB

Return Loss dB

PDL dB

Directivity dB

Operating Temperature ℃

Storage Temperature ℃

Max.

Max.

Min.

Max.

Min.

7.2

0.6

55

0.2

55

-40~85

-40~85

10.7

0.8

55

0.3

55

13.7

1.2

55

0.3

55

9 Packaging Size(L x W x H) mm 40x4x4 40x4x4 40x4x4

Note: All measurements were done at room temperature and specifications exclude connectors.

50x7x4

1x32

16.9

1.7

55

0.3

55

1x64

21

2.5

50

0.4

55

60x12x4

67

2

Order Information

Single-mode Patch cord or Pigtail

Netop id Fiber Type

N-98C X

S: SM riser

E: SM LSZH

I: SM plenum

P: SM G655 riser

Diameter Product Type Interface A Interface A Interface B Unit

X X X X X X

2: 2mm

3: 3mm

6: 1.6mm

8: 1.8mm

Z: SM G657A LSZH 9: 0.9mm

0: Pigtail

1: Patchcord

2: Duplex pigtail

1: UPC-UPC

2: Null

3: APC-APC

3: Duplex patchcord 4: PC-APC

4: Duplex pigtail

(separately)

5: Duplex patchcord

(separately)

5: APC-PC

1: ST

2: SC

3: FC

4: LC

5: MU

6: MT-RJ(F)

1: ST

2: SC

3: FC

4: LC

5: MU

6: MT-RJ(F)

M: Meter

F: Feet



7: MT-RJ(M)

8: MTP(F)

7: MT-RJ(M)

8: MTP(F)

9: E2000

A: FSMA

B: MTP(M)

C: ESCON

D: SCDC

E: DIN

9: E2000

A: FSMA

B: MTP(M)

C: ESCON

D: SCDC

E: DIN

Length

XXXX

Cable length

XXX.X meter

Cable length

XXX.X feet

OPTICAL FIbER PATCH CORd

Product Overview

Netop fiber optic patchcord and pigtails, in simplex, duplex or other customized forms are mainly used to link up patch panels and to interconnect the work outlets. Netop supplies all industry-standard connector and cable assemblies which comply with and tested to TIA/IEC standards. The products are 100% tested and individually packed.

Special Patch Cord & Pigtail

Netop id Fiber Type Diameter

N-SPCX X

A: G.652D

A: 2.0mm armorerd cable

B: G.657A

C: G.657B

B: 3.0mm armorerd cable

C: 4.0mm Ultru-flexible cable

D: Figure-'8' drop cable

E: Figure-'8' aerial drop cable

Product Type Interface A Interface B Unit

X X X X

1: Pigtail 0: Null 0: Null M: Meter

2: Patchcord F: Feet 1: SC/APC

2: SC/UPC

3: LC/APC

4: LC/UPC

5: FC/APC

6: FC/UPC

1: SC/APC

2: SC/UPC

3: LC/APC

4: LC/UPC

5: FC/APC

6: FC/UPC

Length

XXX

XX.X meter

XX.X feet

70

Optical Fiber Patch Cord / Pigtail

Feature

Available for all common types of connectivity systems

Cable option:

0.9mm buffered fiber

1.6-2.0mm simplex/duplex cable

3.0mm simplex/duplex cable

Other cable type upon request

Fiber option:

SM G.652D, G.657A and G.657B

Connector option:

LC, FC, SC, ST, MU, MT-RJ, MTP

UPC & APC polishing available

OFNR, OFNP, LSZH outer sheath available

Specification

Number of fiber

Cable Construction

Cable Cross Section

Max. Tensile Strength

Max. Crush Resistance N/cm

Min. Bending Radius mm

Temperature Range

Storage

In Operation

1

Simplex

2.9mm

400

15

30

-25 ~ +70

-5 ~ +70

2

Duplex

5.8*2.9mm

400

30

30

2

Mini-Zip-Cord

1.8*3.7mm

400

30

30

Ultra-flexible patch cord

Feature

15mm and 7.5mm small bending radius

No permanent deformation after bending

LC comply with IEC 61754-20

SC comply with TIA/EIA 568, IEC 874-10

The insertion loss test acc.to IEC 61300-3-4

The return loss test acc.to IEC 61300-3-6

SC/UPC and SC/APC connector available

Specification

Single Mode

SC; LC

Ultra UPC

Angle APC

IL Typical

0.20 dB

0.20 dB

type

GJFJH-1

Working Temperature

Outer

Diameter Weight

4.0mm

19Kg/Km

Transmission Index

Short term

200

@1310nm

≤ 0,38dB/Km

IL Maximum

0.30 dB

0.30 dB

Long term

100 short term

3000

-20~+60

RL Typical

-55 dB

-70 dB

Long term

1000

@1550nm

≤ 0,25dB/Km

RL Maximum

-45dB

-60dB

Min Bending Radius

Installation

60mm

Working

30mm

3

OPTICAL FIbER AdAPTER ANd

CONNECTOR

Product Overview

The fiber-optic couplers are used to link fiber-optic connectors terminated on a fiber-optic cable and are usually mounted in 19” patch panels and fiber face box. Netop couplers provide a saving through low insertion loss interconnection because the fiber is precisely aligned by a ceramic sleeve. The metal body ST- and SC-couplers guarantee a high mechanical long-term stability and reproducible mating. The Small-Form-

Factor LC and MT-RJ-coupler enable an increase of density by 100% through interconnecting two fibers provided by the referring MT-RJ and

LC-duplex connector.

72

Optical Fiber Adapter

Feature

Comply with international standards

Low coupling loss

Single mode or multimode or both

Metal or plastic housing

Bronze or ceramic alignment sleeves

Simplex or duplex

Flange-less or w/ flange

Hybrids

Specification

Adapter C-sleeve material:

Ceramic

Color rule for composite plastic adapter:

Blue: SM, Beige: MM, Green: SM APC

Installation:

With or without mounting flange/ square or D-D mounting flange

Insertion loss:

<= 0.2dB against reference connectors

Operating temperature:

-40

~ +75

Fiber Optic Connector

SC Fiber Optic Connector

Feature

EN 50173 recommended connector

With push-pull-locking mechanism

SC specification according to TIA/EIA 568 AND IEC874-14

Materials:

Ferrule: zirconia ceramic

Connector body: composite plastic

Specification

Insertion loss (typical): 0.20dB

Fiber types: G62.5/125um, G50/125um,E9/125um

Cable adaption: 0.9mm, 2.0mm, 2.9mm

Other cable adaptions upon request

FC Fiber Optic Connector

Feature

FC specification according to IEC60874-7

Twist protection pin

End face geometry ferrule: convex

Materials:

Ferrule: zirconia ceramic

Connector body: brass, nickel plated

Specification

Insertion loss (typical): 0.20dB

Fiber types: G62.5/125um, G50/125um,E9/125um

Cable adaption: 0.9mm, 2.0mm, 2.9mm

Other cable adaptions upon request

FC Fiber Optic Connector

LC Fiber Optic Connector

Feature

Small form factor connectivity system, high end cabling for telecomand LAN, within single-mode application

Materials:

Ferrule: zirconia ceramic, diameter 1.25mm

Connector body: composite plastic

Specification

Insertion loss (typical) : 0.1dB

Cable adaption:

0.9mm buffered fiber

1.6 ~ 2.0mm simplex/duplex cable

2.9mm simplex/duplex cable

Other cable adaptions upon request

Other fiber optic connector

Other Connector Can Be Provided upon Request.

73

74

NETOP SERVICE

Netop offers professional services that improve network design, reliability, scalability and efficiency.

Our service core competences include:

Network optimization

Technical consultation

Customized product design

Installation & commissioning

Onsite training & supervision

System troubleshooting

• After-sales services

In addition, we also offer professional training, technical support and workshops for distributors and agents. We are committed to offering our services in anyway, anywhere and at anytime.

Netop is much more than just a supplier – Netop is a valued development partner and we will strive to devote all effort to meet new challenges in order to scale to new heights.

75

Netop Technology Co., Ltd.

B2, No. 303, Xinke Road, Qingpu

Industrial Zone, Shanghai, China

Post Code: 201707

Tel: (+8621) 69214567

Fax: (+8621) 69214018 www.netop-technology.com

Product Specifications

N-10xabc-1A

3HU Fiber Optic Splice Panel

Your Partner For

Network Optimization

Features

ƒ Suit for all common types of factory or on-site assembled OF cables with excellent performance and easy installation

ƒ High reliability, High flexibility, High integrated design

ƒ Integration cable management panel, easy to support and fix fiber optic cables

ƒ Modular design, detachable front plate, with good versatility

ƒ Simultaneity satisfies 9 indoor or outdoor cable entry by using new cable entry structure





Applications

ISO / IEC 8802-3:FOIRL

ISO / IEC 8802-3:10BASE-FL, FP & FB

ISO / IEC TR 11802-4: 4 & 16 Mbit/s Token Ring

ISO / IEC 8802-5t: 100 Mbit/s Token Ring

ISO / IEC 8802-12: Demand Priority

ATM at 52Mbit/s

ATM at 155Mbit/s

ATM at 622Mbit/s

DIS 14165-111:Fibre Channel (FC-PH) at 133 Mbit/s

DIS 14165-111:Fibre Channel (FC-PH) at 266 Mbit/s

DIS 14165-111:Fibre Channel (FC-PH) at 531 Mbit/s



DIS 14165-111:Fibre Channel (FC-PH) at 1062 Mbit/s

Specifications



ISO / IEC 8802-3:1000BASE-SX

ISO / IEC 8802-3: 1000BASE-LX

ISO / IEC 9314-9:FDDI LCF-PMD

ISO / IEC 9314-4:FDDI SMF-PMD

EN ISO / IEC 9314-3: FDDI PMD

ISO / IEC 8802-3: 100BASE-FX

IEEE 802.3: 10GBASE-LX4

IEEE 802.3: 10GBASE-ER/EW

IEEE 802.3: 10GBASE-SR/SW

IEEE 802.3: 10GBASE-LR/LW

Dimensions:

3HU Fixed Splice Panel

3HU Sliding Splice Panel

Twist secure supports for max. 8 splice cassettes

Simultaneity satisfies for 9 cables clamping

Inputs cables protected by soft plastic bellows

Replaceable front plate, easy for various of adaptors

Support up to 96 fibers for FC, ST simplex adaptors

Support up to 96 fibers for SC simplex adaptors

Support up to 96 fibers for SC duplex adaptors

520 x 400 x 3HU

520 x 400 x 3HU

Support up to 192 fibers for LC duplex adaptors

Support up to 96 fibers for DIN simplex adaptors

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 1 of 3

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

H103410JS023

Product Specifications

N-10xabc-1A

3HU Fiber Optic Splice Panel



Outline Drawing

Your Partner For

Network Optimization

Label panel

Replaceable front plate



Cable management panel



Cable fixed panel

19" Frame mounting hole Cable entrance

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 2 of 3

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

H103410JS023

Product Specifications

N-10xabc-1A

3HU Fiber Optic Splice Panel

Your Partner For

Network Optimization

Ordering Information

Fixed Splice Panel

Examples

N-10A574-1A 3 HU Fixed Splice Panel, SC/SC Duplex SM, 32 Fibers, Beige

N-10A5D4-1A 3 HU Fixed Splice Panel, SC/SC Duplex SM, 36 Fibers, Beige

N-10A5G4-1A 3 HU Fixed Splice Panel, SC/SC Duplex SM, 64 Fibers, Beige

N-10A5E4-1A 3 HU Fixed Splice Panel, SC/SC Duplex SM, 72 Fibers, Beige

N-10A5F4-1A 3 HU Fixed Splice Panel, SC/SC Duplex SM, 96 Fibers, Beige

Sliding Splice Panel

Examples

N-10G574-1A 3 HU Sliding Splice Panel, SC/SC Duplex SM, 32 Fibers, Beige

N-10G5D4-1A 3 HU Sliding Splice Panel, SC/SC Duplex SM, 36 Fibers, Beige

N-10G5G4-1A 3 HU Sliding Splice Panel, SC/SC Duplex SM, 64 Fibers, Beige

N-10G5E4-1A 3 HU Sliding Splice Panel, SC/SC Duplex SM, 72 Fibers, Beige

N-10G5F4-1A 3 HU Sliding Splice Panel, SC/SC Duplex SM, 96 Fibers, Beige

Part Number: N-10xabc-1A

N- x-Height

A:3HU Fixed Splice Panel; B:3HU Modular Splice Panel; G: 3HU sliding splice panel;

a-Adaptor

1: SC/SC simplex SM, 2: ST/ST simplex SM, 3: ST/ST Duplex SM, 4: SC/SC simplex MM,

5: SC/SC Duplex SM,6: SC/SC Duplex MM, 7: SC/ST Duplex SM, 8: SC/ST Duplex MM,

9: ESCON/ST MM, A: MT-RJ/MT-RJ SM, B: MT-RJ/MT-RJ MM, C: LC/LC Duplex SM,

D: LC/LC Duplex MM, E FC/FC simplex, F: Blank, G: SC/APC simplex; H: DIN/DIN;

K: E2000/APC; L: MPO/MPO

c-Color 0: Metal, 2: Grey, 3: White, 4: Beige, 5: Black

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707 Page 3 of 3

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

H103410JS023

Product Specifications

N-10xabc-d

Swing Splice Fiber Optic Panel

Main Features

ƒ Integration cable management panel, easy to support and fix fiber optic cables

ƒ

Changeable adaptor panel (FC, SC, LC)

ƒ Modular design, detachable front plate, has good versatility

ƒ Simultaneity satisfies 36 fibers or 48 fibers outdoor cable entry by using new cable entry structure

ƒ Swing structure is better protected in coming cable and out-going cable

Your Partner For

Network Optimization

Application

ƒ FTTH

ƒ Central office

ƒ Broadband fiber-optics network

Technical Performance

ƒ The outer shape of CPL (Center Patching Location) patch panel complies with standard 19” Integration cable management panel, easy to support and fix fiber optic cables

ƒ Beige powder coating for CPL patch panel meets RoHS requirements

ƒ Storage temperature:-40℃~+70℃

ƒ Operation temperature: -20℃~+60℃

ƒ

Relative humidity:≤85%(+30℃)

ƒ Atmospheric pressure:70kPa~106kPa

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 1 of 3

H103410CP024

Product Specifications

N-10xabc-d

Swing Splice Fiber Optic Panel

Your Partner For

Network Optimization

Mechanical Performance

ƒ Fixed installation with 19” EIA rack

ƒ

Dimensions: 436x 310x 2HU (2HU Swing Splice panel)

ƒ Max capacity of different types:

FC, ST simplex

SC duplex

LC duplex/MT-RJ

DIN simplex

Outline Drawing

1HU 2HU 3HU 4HU

24 48 72 96

12 32 48 64

24 64 96 128

48 96 144 192

24 64 96 128

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com



Page 2 of 3

H103410CP024

Product Specifications

N-10xabc-d

Swing Splice Fiber Optic Panel

Your Partner For

Network Optimization

Part Number Options:

ƒ x-Height ƒ K:1HU Swing Splice panel; L:2HU Swing Splice Panel; M:3HU Swing Splice Panel;

ƒ N:4HU Swing Splice Panel

ƒ 1: SC/SC simplex SM, 2: ST/ST simplex SM, 3: ST/ST Duplex SM, 4: SC/SC simplex MM, 5: SC/SC

Duplex SM,6: SC/SC Duplex MM, 7: SC/ST Duplex SM, 8: SC/ST Duplex MM, 9: ESCON/ST MM,

ƒ a-Adaptor

ƒ A: MT-RJ/MT-RJ SM, B: MT-RJ/MT-RJ MM, C: LC/LC Duplex SM, D: LC/LC Duplex MM, E FC/FC simplex, F: Blank, G: SC/APC simplex; H: DIN/DIN; K: E2000/APC; L: MPO/MPO

ƒ b-Fibers

ƒ 1: 0 Fiber, 2: 12 Fibers, 3: 24 Fibers, 4: 48 Fibers, 6: 8 Fibers, 7: 32 Fibers, 8: 4 Fibers,

ƒ C: 6 Fibers; D: 36 Fibers. E: 72 Fibers. F: 96 Fibers. G: 64 Fibers. H: 144 Fibers.

ƒ c-Color ƒ 0: Metal, 2: Grey, 3: White, 4: Beige, 5: Black

ƒ

d-Material ƒ 1: Aluminum body & front plate, 1A: Steel body & front plate

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 3 of 3

H103410CP024

Fiber Faceplate Box

Fiber Optic Faceplate Box- Type A

Features

„ Suitable for 1-4 cores indoor drop cable

„ Various connector interface available

„ Top and bottom cable entry hold available

„ With hinge and lock protection

„ Dimension: 160mm x 96mm x 30mm

„

Compatible with three connection methods

‹ Directly terminate drop cable with field installable FO connector

‹ Connect drop cable and FO pigtail with mechanical splice kit

‹ Connect drop cable and FO pigtail by fusion splicing

„ As option a 0.5 meter length Singlemode FO pigtail can be included

Installation Instruction



1 2 3 4

1. Fixing slot for fusion splice

protection tube: 2 places

2. Wall mounting hole: 4 places

3. Fiber entry hole: 2 places

4. Fiber holder: 2 places

5. Fixing slot for adapter: 2 places







3 5

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Your Partner For

Network Optimization



Page 1 of 4

H110130YW08

Fiber Faceplate Box

Fiber Optic Faceplate Box- Type B



Features

„ Suitable for 1-4 cores indoor drop cable

„ Various interface available

„ Rear and bottom cable entry hold available

„ Dimension: 86mm x 86mm x 27.5mm

„ Compatible with three connect methods

‹

Directly connect drop cable with field installable FO connector

‹ Connect drop cable and FO pigtail with mechanical splice kit

‹ Connect drop cable and FO pigtail by fusion splicing

„ As option a 0.5 meter length Singlemode FO pigtail can be included

Installation Instruction

Your Partner For

Network Optimization

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com



Page 2 of 4

H110130YW08

Fiber Faceplate Box

Fiber Optic Faceplate Box- Type C

Features

Suitable for 1-2 cores indoor drop cable and various FO interfaces available. With exchangeable port adapter, clear concise labeling makes 45 degree faceplates more flexible and professional, together with attached mounting screws, individual package and standard beige color provide you the excellent solution for the working area.

Fiber Optic Faceplate Box- Type D











Features



„ Suitable for 1-4 cores indoor drop cable

„ Various interface available

„ Dimension: 150mm x 30mm x 110mm

„

Compatible with three connect methods

‹ Directly connect drop cable with field installable FO connector

‹ Connect drop cable and FO pigtail with mechanical splice kit

‹ Connect drop cable and FO pigtail by fusion splicing

„ As option a 0.5 meter length Singlemode FO pigtail can be included

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Your Partner For

Network Optimization

Page 3 of 4

H110130YW08

Your Partner For

Network Optimization

Fiber Faceplate Box



Ordering Information

Adapter Type Connectivity Ports

N-FFB- X

0: Without adapter 0: Null

Pigtail Type Series

X X

0: without pigtail

X

A: A Type

1: SC/APC simplex

2: SC/UPC simplex

3: LC/APC duplex

4: LC/UPC duplex

1: 1 port and 1 pigtail

2: 2 ports and 2 pigtails

4: 4 ports and 4 pigtails

Customized

1: Φ2.0mm, G.652D pigtail B: B Type

2: Φ2.0mm, G.657A pigtail C: C Type

3: Φ0.9mm, G.652D pigtail D: D Type

4: Φ0.9mm, G.657A pigtail

Netop Technology Co., Ltd.



No. 303, XinKe Rd, Qingpu Industrial Zone, Shanghai, China P.C.: 201707

Tel: +86 21 6921 4567 Fax: +86 21 6921 3655 www.netop-technology.com

Page 4 of 4

H110130YW08

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
