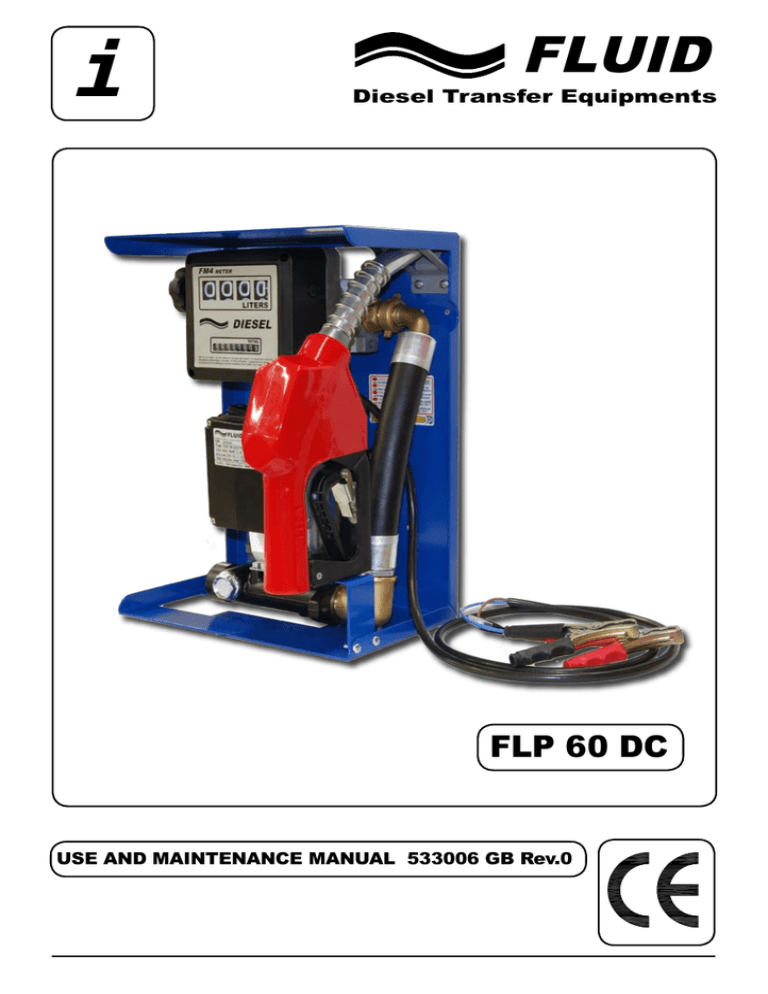

i
FLUID
Diesel Transfer Equipments
FLP 60 DC
USE AND MAINTENANCE MANUAL 533006 GB Rev.0
INDEX
Safety Information _________________________________________________ pag. 2
Declaration of Conformity ___________________________________________ pag. 3
Technical Specifications ____________________________________________ pag. 3
Installation _______________________________________________________ pag. 4
Use ____________________________________________________________ pag. 6
Maintenance _____________________________________________________ pag. 6
Troubleshooting __________________________________________________ pag. 7
Parts ___________________________________________________________ pag. 7
Warranty ________________________________________________________ pag. 8
SAFETY INFORMATION
The following safety alert symbols are used in this manual. Obey all safety messages that
follow this symbol to avoid possible injury or death.
indicates an imminently hazardous situation which will result in
DANGER!
death or serious injury if not avoided.
indicates a potentially hazardous situation which will result in
WARNING!
death or serious injury if not avoided.
It is responsibility of the person that use the pump to:
-) Know and follow applicable national and local safety rules pertaining to installing and operating electrical equipment for use with petroleum fluids.
-) Know and follow adequate safety precautions when handling petroleum fluids.
-) Insure that all operators -must be adults only, children cannot use the pump- have access
to adequate instructions concerning safe operating and maintenance procedures
This pump is designed for automotive Diesel fuel only. The pump is
DANGER! not suitable for food substances transferring. The motor of the
pump is not explosion proof, do NOT USE the pump in ambient with flammable vapours. Do
NOT USE the pump whit gasoline, petrol or other flammable liquids with flash points less
than 55°C (131°F), DO NOT use this pump to transfer Diesel fuel when ambient temperature exceeds the Diesel flash point temperature 55°C (131°F). DO NOT operate the pump in
the presence of any source of ignition including running or hot engines, lighted cigarettes or
gas or electric heaters. For safe operations, the diesel fuel transfer system must be properly
grounded, this means a continuous metal to metal contact between components, supply
tanks, pump, hose, metal nozzle and receiving tank. Failure to follow the above mentioned
instructions may result in death or serious injury from fire or explosion.
.
This manual is integrating part of the pump. Before starting,
WARNING!
in the way to get the best results and the maximum performance from the pump, please read
carefully these operating instructions and store the manual in a safe place. Don’t leave the
running pump unwatched, when the pump is not in use, store it in a safe place out of reach
of children. When the pump is not in use and before of any maintenance, installation or
inspection, disconnect the pump from the power supply. To disconnect the plug do not pull
the cable, but remove directly the plug/clamps; don’t touch plug/clamps/switches with wet
hands. It’s forbidden modify any part of the pump. Prevent any injury observing the basic
safety rules. Use the pump for Diesel transferring only: a misuse of the pump can results
dangerous for people, wares and/or animals. During the transferring operation, pay attention
to avoid any splash of Diesel; avoid prolonged contact with Diesel fuel. It’s recommendet
the use of protective glasses, gloves and aprons in case of splashing or spiling.
2
Before of use, chek always that the pump is in order: if any problem is found don’t use the
pump and solve the problem and, if necessary, contact the service. Never point the Diesel
jet at electrical equipment, cables, open flames, hot object, persons, animals, wares or
other place different from the receiving tank.
DECLARATION OF CONFORMITY
We:
FLUID s.r.l.
via G. Fucà, 119
41100 Modena - ITALIA
herewith declare that the construction of the pumps
FLP 60 DC
complies with the following relevant regulations:
98/37 CEE - 73/23 CEE - 89/336 CEE
complies with the following relevant standards:
EN 292/1
EN 6100-6-1
EN 60335-1
EN 292/2
EN 6100-6-3
EN 294
EN 60204-1
complies with the following national standards:
DPR 547/55
Modena, lì 15/09/2008
Legal Rappresentative
Giovanni Bedoni
TECHNICAL SPECIFICATIONS
FLP 60 DC: Mobile dispenser with self- priming rotary vane pump, equipped with by-pass
valve and filter integreted in the pump body, driven by a brush DC low tension motor, in
protection class IP 55, designed for the transfer of Diesel fuel.
The pump is designed for an intermittent use, with a working cycle of 40 minutes (40 min
ON / 40 min OFF)
The mobile dispenser FLP 60 has shell in painted steel, it’s available at 12 V or 24 V and
it is equipped with 4 digit flow meter, nozzle holder, ON/OFF switch, cable with fuse and
clamps suitable for a quick connection to the battery, 3/4” delivery rubber hose 4 mt.
long and nozzle with swivle connector.
Tension
Power
max
W
Current
nom.
A
Current
max. A
(by-pass)
Fuse
Port
Weight
Kg
FLP 60-12 DC
12
336
19
28
●
1”
20,4
FLP 60-24 DC
24
432
11
28
●
1”
20,4
Type
V
(+/-5%)
Noise level
Under normal working conditions, the noise emission pression do not exceed the value of
70 dB at the distance of 1 meter from pump.
3
Diesel fuel flow
Flow (Liters/min)
Autom Nozzle
Autom. Nozzle
+
Meter
Delivery hose lenght (meters)
To get the maximun pump flow rate it’s necessary:
-) Minimize lenght of suction and discharge lines;
-) Avoid, if possible, elbow and throttling along the line;
-) Use tubing with diameter equal or grater than 3/4”;
-) Keep clean the strainer regularly;
-) Use extension cable only if necessary (5 mt. lenght , minimum section 2x4 mmq).
Product identification
Date of Production
Serial Number
Product Code
Product Description
Technical Data
190
300
Delivery
Port
425
Dimensions
FLP 60 DC
Suction
Port
~284
INSTALLATION
If the application is for gasoline, petrol or fluids that require an exploDANGER!
sion-proof product, DO NOT INSTALL THIS ELECTRIC PUMP.
4
Preliminary operations:
-) Check that the product has not suffered any damage during transport or storage, in case
of damages or missing parts, please contact immediately the dealer.
-) Remove the protection plugs on inlet and outlet of the pump;
-) Fix the pump on a firm, level and no slithery wall surface, by the holes provided on the
rear of the shell.
Tubing connection
FLP 60 DC: Before connection make sure that the tubing, the inlet - outlet of the pump and
the suction tank are not clogged and free of dirt, rust, etc. that could damage the pump
and/or clog the retainer. The threaded connections must be 1” BSP type (do not use conical
threaded joints that could damage the threaded pump bores), the pipes connections must
be leakage-proof, to avoid air or fuel leakage and pump trouble.
When the hoses are not supplied, it is consiled minimize the lenght of both suction and
discharge hoses, use hoses with adequate characteristics for diesel fuel, antistatic, with diameter equal or greater than ¾” and working pressure equal or grater than10 bar, in addition
the suction hose shall be suitable for functioning under suction pressure. Connect the pump,
observing the right fuel flow, like indicated by the arrows on the pump body.
WARNING! The use of tubing unsuitable for use with Diesel fuel can damage the
pump, injury persons and produce pollution, because of diesel fuel splashing/spilling.
WARNING! The discharge hose and the accessories (nozzle, meter, etc.) must be
grounded (to dissipate the electrostatic currents), alternatively the hoses must be of antistatic type). It is installer responsability to use tubing with adequate characteristics.
Electrical connections
WARNING! It’s responsibility of the installer to perform the electrical connections
with respect for the applicable local or national regulations. Check that the suppling electrical
specifications correspond to those shown on the plate.Failure in the electrical specifications
respect could damage the electrical pump. Check the fuse efficency on the supply cable.
Preserve the supply cable from oil, high temperatures and cutting
WARNING!
edges. Inspect always the supply cable against damages: in case of damage replace immediatly the supply cable with an original one. Avoid that cables, electrical receptacle, clamps
and switches have contact with water or flammable fluids and avoid high moisture ambient
for the pump. If necessary, use extension cable 5 meters lenght with minimum section 2x4
mmq, unwinding completely the extension cable.
All metal parts must be always grounded.
Before of electrical connection of the pump, be sure that the swicht is in OFF position, than
wire the 2 clamps: red clamp at positive pole (+) and black clamp at negative pole (-) of the
battery.
USE
DANGER! To prevent injury, observe precautions against electrical shock, fire or
explosion when dispensing fuel. Do not operate switch with wet hands. Do not operate the
pump in presence of any source of ignition including running or hot engines, lighted cigarettes or gas or electric heater.
Start the diesel fuel dispensing turning ON the switch on the pump and opening the delivery
valve (the lever of the nozzle) solidly grasping the end of the hose; at the end of the diesel
fuel dispensing turn OFF the switch on the pump and disconnect the main power
supply.
5
WARNING! Operate the pump in ambient with temperature between -15°C and
+40°C. Serious or fatal shock can result from operating electrical equipment in dump or wet
locations.
WARNING! Avoid prolonged contact with petroleum fuels. Use protective goggles,
gloves and aprons in case of splashing or spills. Change saturated clothing and wash skin
promptly with soap and water.
This pump is designed for the transfer of diesel fuel with flash point at or above 55 °C
(131°F). DO NOT USE this pump for other types of fluid. Use of this pump with other types
of fluid may damage components and will void the warranty. The pump in not suitable with
alimentary or food fluids.
Operation without fluid
WARNING! DO NOT LEAVE the pump running without fuel. Dry running (even for
few minutes only) can damage the pump.
Operation in by-pass mode
Pump is equipped with an automatic by-pass valve. Pump wil go into by-pass mode when
the discharge line is close. To prolong the life of the pump, minimize time spent in by-pass
..
DANGER! Operation with the discharge line closed -by-pass mode- is allowed for
maximum 3 minutes only. Longer pump running in by-pass mode produce abnormal diesel
fuel temperature raising, with all the diesel fuel spilling, fire or explosion risks connected.
MAINTENANCE
WARNING! Observe precaution against electrical shock when servicing the pump!
Always disconnect power before attempting any service. Never apply electrical power to
the pump when any of the cover plates are removed. The mobile dispenser is designed for
minimal maintenance, it is recommended observe the following indications:
Daily:
Keep pump and pipes clean to help identify leaks, check the connection/joints sealing and
repair immediatly any leakage, if necessary. Check the electrical cable conditions: if damages/cuts or other defects are recognized, it is necessary replace the cable with an original
one, this operation must be performed by an expert technician, accordingly with local regulations.
Check the conditions of suction and discharge hoses: if fissures, cuts, bulges or other damages are recognized, it is necessary replace the hose with an original one.
Weekly or every 5 hours of work:
Inspect and/or clean the strainer integrated in the body pump: a clogged retainer reduce the
fuel flow delivery and the pump lifetime; to disassemble the retainer unscrew the plug on
the pump body (2, pag. 7) and remove the strainer from its seat, clean it by air-blast spray,
then reassemble the strainer and the plug and chek about leakage.
Every 2 years it’s recommended replace the discharge rubber hoses.
Transport
Switch off the pump, disconnect the electrical wiring, disconnect the lines and flush the
pump. Package properly the dispenser unit and be care to avoid shocks during the transportation.
Disposing of contamined materials
Don’t disperse contamined parts into the environment. Refer to local regulations for proper
disposal of the product.
6
TROUBLESHOOTING
Troubles
Possible Cause
Corrective Action
Motor does not run
No electrical power to
pump
Check electrical connections, extension
cable and fuse.
Chek for possible locking of rotating shaft
Motor runs slowly and low
fuel flow
Low voltage in the
electric line
Bring the voltage in the corrrcts limits
IUsing extension cable, cable sections
shall be at least 2x4 mmq, max. 5mt long
Motor runs, but no fuel
delivery
Tank level low
Clogged suction line
Air leak in system
Add fuel to tank
Clean suction line
Check all joints
PARTS
D
F
E
Pos.
A
B
C
D
E
F
G
C
FLP 60 12V-24V DC PARTS
Q.ty Description
1 FLP steel shell
1 FLP nozzle holder
1 FM4 flow meter
1 Nozzle seat
2 Elbow 90° 1 "
1 FLP 60 hose + connectors
1 FLC 60 DC pump
P/N
200031
200030
320701
200011
-------------
G
A
B
11
12
9
9
9
13
8
2
2
6
14
5
15
16
1
1
2
3
3
3
2
10
4
5
5
7
Pos.
1
2
3
4
5
6
7
7
8
9
10
11
12
13
13
14
15
15
16
FLC 60 12V-24V DC PARTS
Q.ty Description
1 Bracket + screws kit
1 Gaskets kit
1 Rotor + vanes kit
1 Pump body 60lt.
1 60 lt. by-pass valve kit
1 Strainer
1 24Vcc motor
1 12Vcc motor
1 Cover FLC 60 DC kit
1 Electrical box kit
1 FLC 60 DC holder kit
1 ON/OFF switch
1 Cord 2x4 4mt + clamps
1 25A fuse (12Vcc motor)
1 15A fuse (24Vcc motor)
1 Suction hose
1 Autom. nozzle 60 Lt/min
1 Man. nozzle 80 Lt/min
1 Delivery hose 1"-4 mt
P/N
695005
695001
695002
210002
695016
217001
460102
460101
695017
695006
695018
425001
400003
450001
450002
990201
320601
321601
990104
7
WARRANTY
The product is guaranteed in accordance with statutory/country-specific regulations, only
when it is used for the designed purpose. The warranty period shall begin on the date of
purchase with an original sales receipt. The warranty is limited to demostrable defects that
can be attributed to workmanship and/or material; the buyer will pay for any transport costs
and will bear any transporting risks responsibilty. Failure/defects resulting from normal wear,
incorrect and/or improper use, erroneus connections of the device, manomissions or modifications (without our written authorization) are not covered by the warranty. The manufacturer
exclude any additional liability, in particular for subsequent ware or persons damages arising
from the use of the product.
Dealer’s stamp
FLUID
s.r.l.
Fuel Transfer Equipments
via G. Fucà, 119 ZI Torrazzi Sud
41100 Modena (MO) Italy
Tel. +39 059 250307
Fax +39 059 250307
e-mail: [email protected]fluiditalia.it
www.fluiditalia.it
Pictures and descriptions are FLUID srl properties. Technical datas and characteriscs indicated are
intended not binding and FLUID srl could change them without any advanced notice.
Printed in Italy
-
03 /09
Timbro Rivenditore
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
