Diesel fuel transfer station-pump for drums FLD

Diesel fuel transfer station-pump for drums FLD

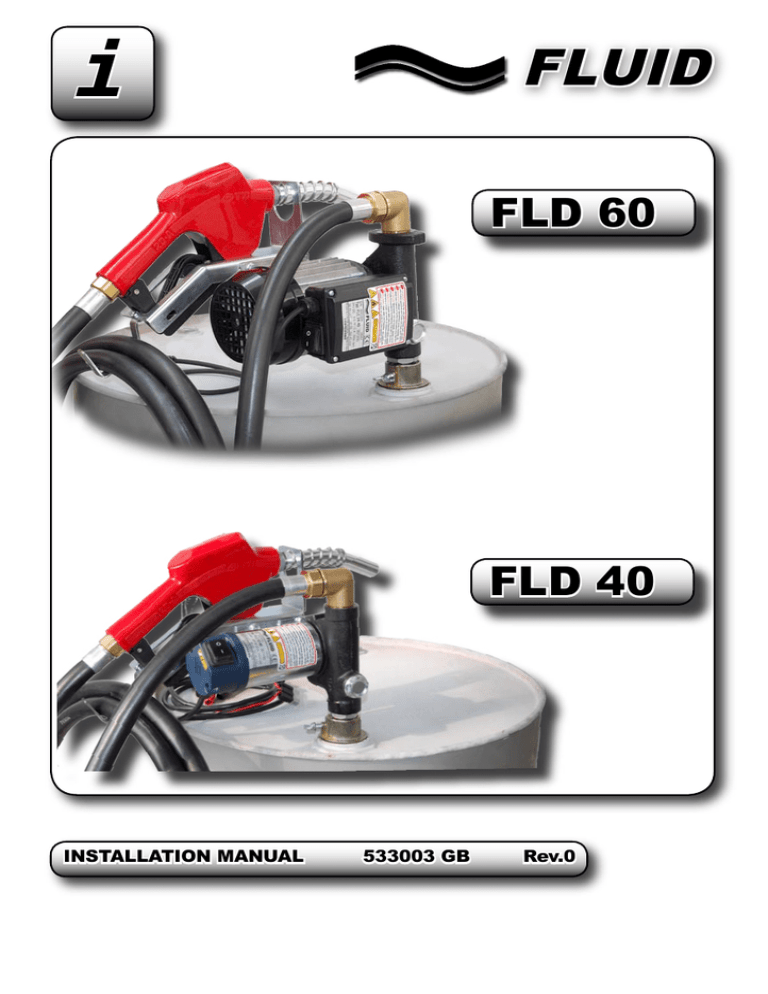

i
FLUID
FLD 60
FLD 40
INSTALLATION MANUAL
533003 GB
Rev.0
1
ATTENTION!
Before start-up, in order to install correctly the FLD kit, we advise you to carefully follow the
instructions contained in this manual and read it carefully. Incorrect installation could be
results dangerous for objects or people; in addition, the installation must be carried out by
people with adequate knowledge. Store this manual togheter at the manual of the pump in a
safe place. Intructions concerning installation of the pump are indicated on the manual of the
pump, please note that the safety rules/prescriptions forseen on the manual of the pumps
are extended also at the FLD kit.
CONTENTS
In the FLD kit are supplied the following items:
-) Telescopic hose, with hub and adaptor (T);
-) Pump with 90° connector;
-) Nozzle holder (S) + N° 2 M5 screws;
-) Hose with nozzle on one side and connector on the other side.
-) Sealing tape (teflon)
INSTALLATION
Install the FLD kit following the indication (see page 3, pictures 1,2,3,4)
1) Extend the telescopic hose (T), insert the telescopic hose in the 2” threated hole on the
drum and screw the hub (B);
2) Apply the inlet of the pump on the adaptor and before, to avoid any leakage, apply on the
thread of the adaptor at least 5 layers of sealing tape (teflon, supplied with the FLD kit).
3) Assemble the nozzle holder (S) on the bracket of the pump, using the two M5 screws
supplied with FLD kit.
4) Screw the hose (H) on the outlet of the pump, put up the nozzle on its holder and the hose
on its hook.
WARNING! To avoid any inversion drum risks, especially when the drum is nearly empty, it
is necessary observe the following precautions:
a) During the assembling of the FLD kit, take care that the pump profile is inside the drum
profile: with this preset the weight of the pump works against the inverting of the drum (see
page 3, pictures 3 and 4).
b) Ensure an adequate stability of the drum, fixing it with appropriate devices.
2
FLD 40
1
3
2
2N°
x M5
N°
viti M5
M5
22 viti
4
FLD 60
1
3
2
2N°
x M5
2 viti M5
4
3
Timbro Rivenditore
-
Dealer’s stamp
FLUID
s.r.l.
via G. Fucà, 119 ZI Torrazzi Sud
41100 Modena (MO) Italy
Tel. +39 059 250307
Fax +39 059 250307
e-mail: [email protected]fluiditalia.it
www.fluiditalia.it
Pictures and descriptions are FLUID srl properties. Technical datas and characteriscs indicated are
intended not binding and FLUID srl could change them without any advanced notice.
4
05/08 Printed in Italy
