operating instructions

operating instructions

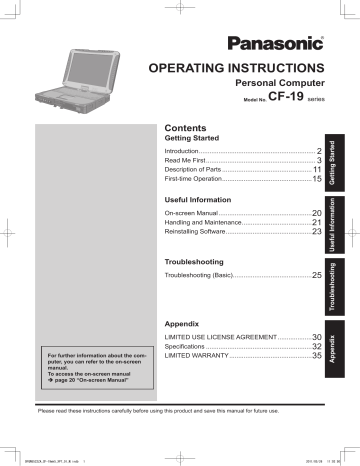

OPERATING INSTRUCTIONS

Personal Computer

Model No.

CF-19

series

Contents

Getting Started

Introduction..................................................................

Read.Me.First..............................................................

Description.of.Parts...................................................

11

First-time.Operation...................................................

2

3

15

Useful Information

On-screen.Manual.....................................................

Handling.and.Maintenance........................................

Reinstalling.Software.................................................

20

21

23

Troubleshooting

Troubleshooting.(Basic).............................................

25

For further information about the computer, you can refer to the on-screen manual.

To access the on-screen manual

è

page 20 “On-screen Manual”

Appendix

LIMITED.USE.LICENSE.AGREEMENT....................

Specifications............................................................

LIMITED.WARRANTY...............................................

30

32

35

Please.read.these.instructions.carefully.before.using.this.product.and.save.this.manual.for.future.use.

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 1 2011/05/26 11:03:50

Introduction

Thank.you.for.purchasing.this.Panasonic.product..For.optimum.performance.and.safety,.please.read.these.instructions.

carefully.

n

Terms and illustrations in these instructions

CAUTION

NOTE

Enter.:.

.:.

.:.

Conditions.that.may.result.in.minor.or.moderate.injury.

Useful.and.helpful.information.

Press.[Enter].key.

Press.and.hold.[Fn].key,.and.then.press.[F5].key.

Fn.

+.F5.:.

.(Start).-.[All.Programs].:.

Click. .(Start),.and.then.click.[All.Programs].

[start].-.[Run].:.

è

.:.

Click.[start],.and.then.click.[Run]..You.may.need.to.double-click.in.some.cases.

Page.in.these.Operating.Instructions.or.in.the.Reference.Manual.

.:.

Reference.to.the.on-screen.manuals.

l

.

l

.

.indicates.Genuine.Windows

Microsoft

®

.Windows

®

®

.7.Professional.Operating.System.

..indicates.Genuine.Microsoft

®

.Windows

®

.XP.Professional.Operating.System.or.indicates.Genuine.

.XP.Tablet.PC.Edition.Operating.System.

l

. Some.illustrations.are.simplified.to.help.your.understanding.and.may.look.different.from.the.actual.unit.

l

. If.you.do.not.log.on.as.an.administrator,.you.cannot.use.some.functions.or..cannot.display.some.screens.

l

. Refer.for.the.latest.information.about.optional.products.to.the.catalogs,.etc.

l

. In.these.instructions,.the.names.and.terms.are.referred.as.follows.

Ÿ

.“Genuine.Windows

®

.7.Professional.32-bit.Service.Pack.1”.and.“Genuine.Windows

®

.7.Professional.64-bit.Service.

Pack.1”.as.“Windows”.or.“Windows.7”

Ÿ

.“Genuine.Microsoft

®

.Windows

®

.XP.Professional.Service.Pack.3”.as.“Windows”,.“Windows.XP”.or.“Windows.XP.

Professional”

Ÿ

.“Genuine.Microsoft

®

.Windows

®

.XP.Tablet.PC.Edition.Service.Pack.3”.as.“Windows”,.“Windows.XP”.or..“Windows.

XP.Tablet.PC.Edition”

Ÿ

.DVD.MULTI.drive.as.“CD/DVD.drive”

Ÿ

.Circular.media.including.DVD-ROM.and.CD-ROM.as.“discs” n

Disclaimer

Computer.specifications.and.manuals.are.subject.to.change.without.notice..Panasonic.Corporation.assumes.no.liability.for.damage.incurred.directly.or.indirectly.from.errors,.omissions.or.discrepancies.between.the.computer.and.the.

manuals.

n

Trademarks

Microsoft

®

,.Windows

®

,.Windows.7,.and.the.Windows.logo.are.registered.trademarks.of.Microsoft.Corporation.of.the.

United.States.and/or.other.countries.

Intel,.Core,.Centrino.and.PROSet.are.either.registered.trademarks.or.trademarks.of.Intel.Corporation.

SDXC.Logo.is.a.trademark.of.SD-3C,.LLC.......

Adobe,.the.Adobe.logo.and.Adobe.Reader.are.either.registered.trademarks.or.trademarks.of.Adobe.Systems.Incorporated.in.the.United.States.and/or.other.countries.

Bluetooth™.is.a.trademark.owned.by.Bluetooth.SIG,.Inc.,.U.S.A..and.licensed.to.Panasonic.Corporation.

Names.of.products,.brands,.etc.,.appearing.in.this.manual.are.trademarks.or.registered.trademarks.of.their.respective.

own.companies.

2

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 2 2011/05/26 11:03:51

Read Me First

Models for U.S.A.

Federal Communications Commission Radio Frequency Interference Statement

Note:.This.equipment.has.been.tested.and.found.to.comply.with.the.limits.for.a.Class.B.digital.device,.pursuant.

to.Part.15.of.the.FCC.Rules..These.limits.are.designed.

to.provide.reasonable.protection.against.harmful.interference.in.a.residential.installation..This.equipment.generates,.uses.and.can.radiate.radio.frequency.energy.and,.if.

not.installed.and.used.in.accordance.with.the.instructions,.

may.cause.harmful.interference.to.radio.communications..

However,.there.is.no.guarantee.that.interference.will.not.

occur.in.a.particular.installation..If.this.equipment.does.

cause.harmful.interference.to.radio.or.television.reception,.which.can.be.determined.by.turning.the.equipment.

off.and.on,.the.user.is.encouraged.to.try.to.correct.the.

interference.by.one.or.more.of.the.following.measures: l

. Reorient.or.relocate.the.receiving.antenna.

l

. Increase.the.separation.between.the.equipment.and.

receiver.

l

. Connect.the.equipment.into.an.outlet.on.a.circuit.different.from.that.to.which.the.receiver.is.connected.

l

. Consult.the.Panasonic.Service.Center.or.an.experienced.radio/TV.technician.for.help.

Warning

To.assure.continued.compliance,.use.only.shielded.interface.cables.when.connecting.to.a.computer.or.peripheral...

Also,.any.changes.or.modifications.not.expressly.approved.by.the.party.responsible.for.compliance.could.void.

the.user’s.authority.to.operate.this.equipment.

FCC.RF.Exposure.Warning: l

. This.equipment.is.provided.with.PC.Card.slot.that.could.

be.used.with.wireless.transmitters,.which.will.be.specifically.recommended.when.they.become.available.

Other.third-party.wireless.transmitters.have.not.been.

RF.exposure.evaluated.for.use.with.this.computer.and.

may.not.comply.with.FCC.RF.exposure.requirements.

<Only.for.model.with.wireless.LAN/wireless.WAN/Bluetooth> l

. This.equipment.complies.with.FCC.radiation.exposure.

limits.set.forth.for.an.uncontrolled.environment.

l

. This.equipment.has.been.approved.for.portable.operation,.and.does.not.require.any.minimum.spacing.be.

provided.between.antennas.and.all.person’s.body.

If.provided.with.wireless.WAN.transmitter,.requires.LCD.

side.panel.spacers.to.provide.minimum.1.5.cm.spacing.

between.antenna.located.within.the.LCD.side.panel,.

and.all.person’s.body.(excluding.extremities.of.hands,.

wrist.and.feet).during.wireless.modes.of.operation.

l

. This.equipment.may.not.be.co-located.or.operated.

with.any.other.antenna.or.transmitter.

<Optional.Car.Mounter./.Port.Replicator> l

. This.equipment.is.provided.with.external.antenna.

connector(s).for.connection.to.optional.Car.Mounter.or.Port.Replicator.for.mobile.external.mounted.

antenna(s)..External.antenna(s).must.be.professionally.installed.and.cannot.exceed.recommended.maximum.antenna.gain.as.described.in.individual.provided.

supplement.instructions.for.wireless.transmitters.

. For.WLAN,.the.Car.Mounter.should.be.used.

with.Radiall/Larsen.WLAN.whip.antenna,.type.

NMO5E2400BKTNC.with.5.dBi.antenna.gain.or.less..

Also,.user.must.maintain.minimum.20.cm.spacing.

between.external.antenna(s).and.all.person’s.body.

(excluding.extremities.of.hands,.wrist.and.feet).during.

wireless.modes.of.operation.

25-M-1

.

.

<Only.for.model.with.wireless.LAN>

This.product.is.restricted.to.indoor.use.due.to.its.operation.

in.the.5.15.to.5.25.GHz.frequency.range..FCC.requires.this.

product.to.be.used.indoors.for.the.frequency.range.5.15.to.

5.25.GHz.to.reduce.the.potential.for.harmful.interference.

to.co-channel.Mobile.Satellite.systems..High.power.radars.

are.allocated.as.primary.users.of.the.5.25.to.5.35.GHz.and.

5.65.to.5.85.GHz.bands..These.radar.stations.can.cause.

interference.with.and/or.damage.this.product.

.

25-M-W-1

This.device.complies.with.Part.15.of.the.FCC.Rules..

Operation.is.subject.to.the.following.two.conditions:

(1).This.device.may.not.cause.harmful.interference,.and

(2).This.device.must.accept.any.interference.received,.including.interference.that.may.cause.undesired.operation.

Responsible.Party:..Panasonic.Corporation.of.North.America

One.Panasonic.Way

Secaucus,.NJ.07094

Tel.No:1-800-LAPTOP5.

(1-800-527-8675)

6-M-1

FCC Regulation Notice for modem

This equipment contains a FCC approved modem.

1.. This.equipment.complies.with.CFR47.Part.68.rules..On.

the.computer.is.a.label.that.contains,.among.other.information,.the.FCC.registration.number.and.ringer.equivalence.number.(REN).for.this.equipment..If.required,.this.

information.must.be.provided.to.the.telephone.company.

2.. An.FCC.compliant.telephone.cord.and.modular.plug.is.

provided.with.this.equipment..This.equipment.is.designed.

to.be.connected.to.the.telephone.network.or.premises.

wiring.using.a.compatible.modular.jack.which.is.Part.68.

compliant..See.Installation.Instructions.for.details.

3.. The.REN.is.used.to.determine.the.quantity.of.devices.

which.may.be.connected.to.the.telephone.line..Excessive.RENs.on.the.telephone.line.may.result.in.the.

devices.not.ringing.in.response.to.an.incoming.call..In.

most,.but.not.all.area,.the.sum.of.RENs.should.not.exceed.five.(5.0)..To.be.certain.of.the.number.of.devices.

that.may.be.connected.to.a.line,.as.determined.by.the.

total.RENs,.contact.the.local.telephone.company.

3

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 3 2011/05/26 11:03:51

Read Me First

.4..If.your.telephone.equipment.cause.harm.to.the.telephone.network,.the.telephone.company.will.notify.you.

in.advice.that.temporary.discontinuance.of.service.

may.be.required..But.if.advice.notice.isn’t.practical,.the.

telephone.company.will.notify.the.customer.as.soon.as.

possible..Also,.you.will.be.advised.of.your.right.to.file.a.

complaint.with.the.FCC.if.you.believe.it.is.necessary.

5.. The.telephone.company.may.take.changes.in.its.facilities,.equipment,.operations.or.procedures.that.could.

affect.the.operation.of.the.equipment..If.this.happens.

the.telephone.company.will.provide.advance.notice.

in.order.for.you.to.make.necessary.modifications.to.

maintain.uninterrupted.service.

6.. If.trouble.is.experienced.with.this.equipment,.for.repair.

or.warranty.information,.please.contact.Panasonic.

Corporation.of.North.America.at.DIAL.TOLL.FREE.

1-800-LAPTOP5.(1-800-527-8675)..If.the.equipment.is.

causing.harm.to.the.telephone.network,.the.telephone.

company.may.request.that.you.disconnect.the.equipment.until.the.problem.is.resolved.

7.. There.are.no.user.serviceable.parts.contained.in.this.

equipment.

8.. This.equipment.may.not.be.used.on.coin.service.provided.by.the.telephone.company..Connection.to.party.

lines.is.subject.to.state.tariffs.

9.. The.Telephone.Consumer.Protection.Act.of.1991.makes.

it.unlawful.for.any.person.to.use.a.computer.or.other.

electronic.device.to.send.any.message.via.a.telephone.

fax.machine.unless.such.message.clearly.contains.in.a.

margin.at.the.top.or.bottom.of.each.transmitted.page.or.

on.the.first.page.of.the.transmission,.the.date.and.time.

it.is.sent.and.an.identification.of.the.business.or.other.

entry,.or.other.individual.sending.the.message.and.

the.telephone.number.of.the.sending.machine.or.such.

business,.other.entity,.or.individual..In.order.to.program.

this.information.into.your.fax.software,.you.should.refer.

to.the.manual.of.the.Fax.software.being.used.

10..According.to.the.FCC’s.electrical.safety.advisory,.we.

recommend.that.you.may.install.an.AC.surge.arrestor.

in.the.AC.outlet.to.which.this.equipment.is.connected..

Telephone.companies.report.that.electrical.surges,.

typically.lightning.transients,.are.very.destructive.to.

customer.terminal.equipment.connected.to.AC.power.

sources.and.that.this.is.a.major.nationwide.problem.

. “Caution.:.To.reduce.the.risk.of.fire,.use.only.No.26.AWG.or.

larger.(e.g.,.24.AWG).UL.listed.or.CSA.certified.telecommunication.line.cord.”

. “ATTENTION.:.Pour.réduire.le.risque.d’incendie,.utiliser.

uniquement.des.conducteurs.de.télécommunications.26.

AWG.ou.de.section.supérieure.(p.ex..24.AWG).UL.énumérés.ou.CSA.certifié.”

16-M-1

USA.Only:.Disposal.may.be.regulated.in.your.community.

due.to.Environmental.considerations..For.disposal.or.recycling.information,.please.visit.Panasonic.website:.http:// www.panasonic.com/environmental.or.call.1-888-769-0149

65-M-2

<For.USA-California.Only>

This product contains a Coin Cell Lithium Battery which contains Perchlorate Material - special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate/

38-M-1

4

Models for Canada

Industry Canada (IC) Notice for modem

This.equipment.contains.an.Industry.Canada.approved.

modem.unit.

The.Industry.Canada.label.is.affixed.on.the.modem.unit.

EQUIPMENT ATTACHEMENT LIMITATIONS

“NOTICE:.The.Industry.Canada.label.identifies.certified.

equipment..This.certification.means.that.the.equipment.

meets.telecommunications.network.protective,.operational.and.safety.requirements.as.prescribed.in.the.appropriate.Terminal.Equipment.Technical.Requirements.

document(s)..The.Department.does.not.guarantee.the.

equipment.will.operate.to.the.user’s.satisfaction.

Before.installing.this.equipment,.users.should.ensure.that.

it.is.permissible.to.be.connected.to.the.facilities.of.the.

local.telecommunications.company..The.equipment.must.

also.be.installed.using.an.acceptable.method.of.connection..The.customer.should.be.aware.that.compliance.with.

the.above.conditions.may.not.prevent.degradation.of.

service.in.some.situations.

Repairs.to.certified.equipment.should.be.coordinated.by.a.

representative.designated.by.the.supplier..Any.repairs.or.alterations.made.by.the.user.to.this.equipment,.or.equipment.

malfunctions,.may.give.the.telecommunications.company.

cause.to.request.the.user.to.disconnect.the.equipment.

Users.should.ensure.for.their.own.protection.that.the.electrical.

ground.connections.of.the.power.utility,.telephone.lines.and.

internal.metallic.water.pipe.system,.if.present,.are.connected.

together..This.precaution.may.be.particularly.important.in.

rural.areas..Caution:.Users.should.not.attempt.to.make.such.

connections.themselves,.but.should.contact.the.appropriate.

electric.inspection.authority,.or.electrician,.as.appropriate.”

“NOTICE:.The.Ringer.Equivalence.Number.(REN).assigned.to.each.terminal.device.provides.an.indication.of.

the.maximum.number.of.terminals.allowed.to.be.connected.to.a.telephone.interface..The.termination.on.an.interface.may.consist.of.any.combination.of.devices.subject.

only.to.the.requirement.that.the.sum.of.the.Ringer.Equivalence.Numbers.of.all.the.devices.does.not.exceed.5.”

REN:.See.bottom.of.the.computer

RESTRICTIONS CONCERNANT LE RACCORDEMENT

DE MATÉRIEL

“AVIS:.L’étiquette.d’Industrie.Canada.identifie.le.matériel.

homologué..Cette.étiquette.certifie.que.le.matériel.est.

conforme.aux.normes.de.protection,.d’exploitation.et.de.

sécurité.des.réseaux.de.télécommunications,.comme.

le.prescrivent.les.documents.concernant.les.exigences.

techniques.relatives.au.matériel.terminal..Le.Ministère.

n’assure.toutefois.pas.que.le.matériel.fonctionnera.à.la.

satisfaction.de.l’utilisateur.

Avant.d’installer.ce.matériel,.l’utilisateur.doit.s’assurer.qu’il.est.

permis.de.le.raccorder.aux.installations.de.l’entreprise.locale.

de.télécommunication..Le.matériel.doit.également.être.installé.

en.suivant.une.méthode.acceptée.de.raccordement.

L’abonné.ne.doit.pas.oublier.qu’il.est.possible.que.la.

conformité.aux.conditions.énoncées.ci-dessus.n’empêche.

pas.la.dégradation.du.service.dans.certaines.situations.

Les.réparations.de.matériel.homologué.doivent.être.coordonnées.par.un.représentant.désigné.par.le.fournisseur.

L’entreprise.de.télécommunications.peut.demander.à..

l’utilisateur.de.débrancher.un.appareil.à.la.suite.de.réparations.ou.de.modifications.effectuées.par.l’utilisateur.ou.

à.cause.de.mauvais.fonctionnement.

Pour.sa.propre.protection,.l’utilisateur.doit.s’assurer.que.tous.

les.fils.de.mise.à.la.terre.de.la.source.d’énergie.électrique,.des.

lignes.téléphoniques.et.des.canalisations.d’eau.métalliques,.s’il.

y.en.a,.sont.raccordés.ensemble..Cette.précaution.est.particulièrement.importante.dans.les.régions.rurales..Avertissement:.

L’utilisateur.ne.doit.pas.tenter.de.faire.ces.raccordements.luimême;.il.doit.avoir.recours.à.un.service.d’inspection.des.installations.électriques,.ou.à.un.électricien,.selon.le.cas.”

“AVIS:.L’indice.d’équivalence.de.la.sonnerie.(IES).assigné.

à.chaque.dispositif.terminal.indique.le.nombre.maximal.

de.terminaux.qui.peuvent.être.raccordés.à.une.interface..

La.terminaison.d’une.interface.téléphonique.peut.consister.en.une.combinaison.de.quelques.dispositifs,.à.la.

seule.condition.que.la.somme.d’indices.d’équivalence.de.

la.sonnerie.de.touts.les.dispositifs.n’excède.pas.5.”

IES:.Voir.sous.le.fond.de.l’ordinateur

17-Ca-1

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 4 2011/05/26 11:03:51

Canadian ICES-003

This.Class.B.digital.apparatus.complies.with.Canadian.

ICES-003.

Cet.appareil.numérique.de.la.classe.B.est.conforme.à.la.

norme.NMB-003.du.Canada.

7-M-2

<Only.for.model.with.wireless.LAN/Bluetooth>

Industry Canada

This.product.complies.with.RSS210.Industry.Canada.

Operation.is.subject.to.the.following.two.conditions;

(1).this.device.may.not.cause.interference,.and

(2).this.device.must.accept.any.interference,.including.interference.that.may.cause.undesired.operation.of.the.device.

<Ne.s’applique.qu’aux.modèles.avec.technologie.Bluetooth/LAN.sans.fil>

Industrie Canada

Cet.équipement.est.conforme.à.la.norme.CNR-210..

d’Industrie.Canada..Son.fonctionnement.est.soumis.aux.

deux.conditions.suivantes.:

(1).ce.dispositif.ne.peut.produire.de.brouillage,.et

(2).ce.dispositif.doit.accepter.le.brouillage,.y.compris.le.

brouillage.pouvant.entraîner.le.fonctionnement.non.

désiré.de.l’appareil.

30-Ca-1-1

<Only.for.model.with.wireless.LAN>

This.product.(local.network.devices).for.the.band.5150-.

5250.MHz.is.only.indoor.usage.to.reduce.potential.for.harmful.interference.to.co-channel.Mobile.Satellite.systems.

High.power.radars.are.allocated.as.primary.users.(meaning.they.have.priority).of.5250-5350.MHz.and.5650-

5850.MHz.and.these.radars.could.cause.interference.

and/or.damage.to.LELAN.devices.

<Ne.s’applique.qu’aux.modèles.avec.technologie.LAN.

sans.fil>

Cet.appareil.(pour.réseaux.locaux.radioélectriques).dans.

les.bandes.de.fréquences.5150-5250.MHz.est.réservé.à.

une.utilization.à.l’intérieur.afin.de.réduire.le.risque.d’interférence.avec.les.systèmes.satellites.mobiles.bicanaux.

Les.radars.forte.puissance.sont.désignés.comme.étant.

les.premiers.utilisateurs.(c’est-à-dire.qu’ils.ont.la.priorité).

des.bandes.de.fréquences.5250-5350.MHz.et.5650-5850.

MHz..Ces.stations.radars.peuvent.provoquer.des.interférences.et/ou.des.dommages.à.ce.périphérique.

30-Ca-2-1

This.device.has.been.designed.to.operate.with.the.Radiall/Larsen.whip.antenna,.type.NMO5E2400BKTNC.

WLAN.antenna.having.a.maximum.gain.of.5dB..A.WLAN.

Antenna.having.a.higher.gain.is.strictly.prohibited.per.

regulations.of.Industry.Canada..The.Required.antenna.

impedance.is.50.ohms.

To.reduce.potential.radio.interference.to.other.users,.the.

antenna.type.and.its.gain.should.be.so.chosen.that.the.

equivalent.isotropically.radiated.power.(EIRP).is.not.more.

than.that.required.for.successful.communication.

Cet.appareil.est.conçu.pour.opérer.avec.l’antenne-fouet.

Radiall/Larsen,.type.WLAN.NMO5E2400BKTNC,.ayant.

un.gain.maximum.de.5.dB..Les.règlements.d’Industrie.

Canada.interdisent.l’utilisation.d’une.antenne.WLAN.dont.

le.gain.serait.supérieur.à.cette.limite..L’antenne.doit.avoir.

une.impédance.de.50.ohms.

Afin.de.réduire.le.risque.d’interférence.radioélectrique.

aux.autres.utilisateurs.des.bandes.de.fréquences,.le.type.

d’antenne.et.son.gain.doivent.être.tels.que.la.puissance.

isotrope.rayonnée.équivalente.(PIRE).n’est.pas.plus.

élevée.que.le.niveau.requis.pour.assurer.la.communication.

25-Ca-1-1

Models for Europe

<Only for model with a “CE” mark on the bottom of the computer>

Declaration of Conformity (DoC)

“Hereby,.Panasonic.declares.that.this.Personal.Computer.is.in.compliance.with.the.essential.requirements.and.other.relevant.provisions.of.the.Directive.1999/5/EC.”

Hint:

If.you.want.to.get.a.copy.of.the.original.DoC.of.our.above.mentioned.products, please.contact.our.web.address:.http://www.doc.panasonic.de

Authorized.Representative:

Panasonic.Testing.Centre

Panasonic.Marketing.Europe.GmbH

Winsbergring.15,.22525.Hamburg,.Germany

Network.connection.of.Wired.Modem.

The.terminal.equipment.is.intended.for.connection.to.the.following.public.network;

In.all.the.countries.of.European.Economical.Area.and.Turkey;

-.Public.Switched.Telephony.Networks

Technical.Features.of.Wired.Modem.

The.terminal.equipment.includes.the.following.features;

-.DTMF.dialing

-.Maximum.bitrate.receiving.mode:.56.kbit/s

-.Maximum.bitrate.sending.mode:.33.6.kbit/s

18-E-1.

5

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 5 2011/05/26 11:03:51

Read Me First

Important Safety Instructions / Importantes Mesures De Sécurité

When.using.your.telephone.equipment,.basic.safety.

precautions.should.always.be.followed.to.reduce.the.risk.

of.fire,.electric.shock.and.injury.to.persons,.including.the.

following:.

1.. Do.not.use.this.product.near.water,.for.example,.near.

a.bath.tub,.wash.bowl,.kitchen.sink.or.laundry.tub,.in.a.

wet.basement.or.near.a.swimming.pool.

2.. Avoid.using.a.telephone.(other.than.a.cordless.type).

during.an.electrical.storm..There.may.be.a.remote.risk.

of.electric.shock.from.lightning.

3.. Do.not.use.the.telephone.to.report.a.gas.leak.in.the.

vicinity.of.the.leak.

4.. Use.only.the.power.cord.and.batteries.indicated.in.this.

manual..Do.not.dispose.of.batteries.in.a.fire..They.may.

explode..Check.with.local.codes.for.possible.special.

disposal.instructions.

SAVE.THESE.INSTRUCTIONS

19-E-1

Certaines.mesures.de.sécurité.doivent.être.prises.pendant.l’utilisation.de.matérial.téléphonique.afin.de.réduire.

les.risques.d’incendie,.de.choc.électrique.et.de.blessures..

En.voici.quelquesunes:

1.. Ne.pas.utiliser.l’appareil.près.de.l’eau,.p.ex.,.près.d’une.

baignoire,.d’un.lavabo,.d’un.évier.de.cuisine,.d’un.bac.à.

laver,.dans.un.sous-sol.humide.ou.près.d’une.piscine.

2.. Éviter.d’utiliser.le.téléphone.(sauf.s’il.s’agit.d’un.appareil.

sans.fil).pendant.un.orage.électrique..Ceci.peut.présenter.un.risque.de.choc.électrique.causé.par.la.foudre.

3.. Ne.pas.utiliser.l’appareil.téléphonique.pour.signaler.

une.fuite.de.gaz.s’il.est.situé.près.de.la.fuite.

4.. Utiliser.seulement.le.cordon.d’alimentation.et.le.type.de.

piles.indiqués.dans.ce.manual..Ne.pas.jeter.les.piles.

dans.le.feu:.elles.peuvent.exploser..Se.conformer.aux.

règlements.pertinents.quant.à.l’élimination.des.piles.

CONSERVER.CES.INSTRUCTIONS

19-F-1

Information to the User

<Only.for.model.with.wireless.LAN/Bluetooth>

This product and your Health

This.product,.like.other.radio.devices,.emits.radio.frequency.electromagnetic.energy..The.level.of.energy.

emitted.by.this.product.however.is.far.much.less.than.the.

electromagnetic.energy.emitted.by.wireless.devices.like.

for.example.mobile.phones.

Because.this.product.operates.within.the.guidelines.found.

in.radio.frequency.safety.standards.and.recommendations,.we.believe.this.product.is.safe.for.use.by.consumers..These.standards.and.recommendations.reflect.the.

consensus.of.the.scientific.community.and.result.from.

deliberations.of.panels.and.committees.of.scientists.who.

continually.review.and.interpret.the.extensive.research.

literature.

In.some.situations.or.environments,.the.use.of.this.product.may.be.restricted.by.the.proprietor.of.the.building.or.

responsible.representatives.of.the.organization..These.

situations.may.for.example.include: l

. Using.this.product.on.board.of.airplanes,.or

l

. In.any.other.environment.where.the.risk.of.interference.

to.other.devices.or.services.is.perceived.or.identified.

as.harmful.

If.you.are.uncertain.of.the.policy.that.applies.on.the.use.

of.wireless.devices.in.a.specific.organization.or.environment.(e.g..airports),.you.are.encouraged.to.ask.for.authorization.to.use.this.product.prior.to.turning.on.the.product.

Regulatory Information

We.are.not.responsible.for.any.radio.or.television.interference.caused.by.unauthorized.modification.of.this.product..

The.correction.of.interference.caused.by.such.unauthorized.modification.will.be.the.responsibility.of.the.user..We.

and.its.authorized.resellers.or.distributors.are.not.liable.

for.damage.or.violation.of.government.regulations.that.

may.arise.from.failing.to.comply.with.these.guidelines.

26-M-1

Informations destinées aux utilisateurs

<Uniquement.les.modèles.avec.réseau.local.sans.fil.et/ou.

Bluetooth>

Ce produit et votre santé

Ce.produit,.comme.tout.autre.appareil.radio,.émet.de..

l’énergie.radioélectrique..Toutefois,.la.quantité.d’énergie.

émise.par.ce.produit.est.beaucoup.moins.importante.que.

l’énergie.radioélectrique.émise.par.des.appareils.sans.

fil.tels.que.les.téléphones.portables..L’utilisation.de.ce.

produit.ne.comporte.aucun.risque.pour.le.consommateur.

du.fait.que.cet.appareil.opère.dans.les.limites.des.directives.concernant.les.normes.et.les.recommendations.de.

sécurité.sur.les.fréquences.radio..Ces.normes.et.recommandations.reflètent.le.consensus.de.la.communauté.

scientifique.et.résultent.de.délibérations.de.jurys.et.comités.de.scientifiques.qui.examinent.et.interprètent.continuellement.les.nouveautés.de.la.vaste.littérature.sur.les.

recherches.effectuées..Dans.certaines.situations.ou.environnements,.l’utilisation.de.ce.produit.peut.être.restreinte.

par.le.propriétaire.du.bâtiment.ou.par.les.représentants.

responsables.de.l’organisation..Ces.situations.peuvent.

être.les.suivantes.par.exemple.: l

. A.bord.d’un.avion,.ou

l

. Dans.tout.autre.environnement.où.les.risques.d’interférence.sur.d’autres.appareils.ou.services.sont.perçus.

ou.identifiables.comme.dangereux.

Si.vous.n’êtes.pas.sûr.de.la.réglementation.applicable.à..

l’utilisation.d’appareils.sans.fil.dans.une.organization.ou.

un.environnement.spécifique,.(par.exemple.dans.un.aéroport).nous.vous.invitons.à.demander.l’autorisation..

d’utiliser.ce.produit.avant.sa.mise.en.marche.

Informations concernant la réglementation

Nous.déclinons.toute.responsabilité.pour.toute.interférence.radio.ou.télévision.causée.par.des.modifications.non.

autorisées.apportées.à.ce.produit..La.correction..

d’interférences.causées.par.de.telles.modifications.non.

autorisées.sera.la.seule.responsabilité.de.son.utilisateur..

Nousmêmes,.les.revendeurs.officiels.et.les.distributeurs.

ne.sommes.pas.responsable.de.tout.dégât.ou.de.toute.

violation.des.règlements.de.l’État.pouvant.découler.du.

non-respect.de.ces.directives.

26-F-1

6

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 6 2011/05/26 11:03:52

Safety Precautions

.

.

.

<Only.for.model.with.wireless.WAN>

The.following.safety.precautions.must.be.observed.during.all.phases.of.the.operation,.usage,.service.or.repair.of.any.

Personal.Computer.or.Handheld.Computer.incorporating.wireless.WAN.modem..Manufacturers.of.the.cellular.terminal.are.advised.to.convey.the.following.safety.information.to.users.and.operating.personnel.and.to.incorporate.these.

guidelines.into.all.manuals.supplied.with.the.product..Failure.to.comply.with.these.precautions.violates.safety.standards.of.design,.manufacture.and.intended.use.of.the.product..Panasonic.assumes.no.liability.for.customer.failure.to.

comply.with.these.precautions.

. When.in.a.hospital.or.other.health.care.facility,.observe.the.restrictions.on.the.use.of.mobiles..Switch.Personal.Computer.or.Handheld.Computer.incorporating.wireless.WAN.modem.off,.if.instructed.to.do.so.by.the.

guidelines.posted.in.sensitive.areas..Medical.equipment.may.be.sensitive.to.RF.energy..

The.operation.of.cardiac.pacemakers,.other.implanted.medical.equipment.and.hearing.aids.can.be.affected.

by.interference.from.Personal.Computer.or.Handheld.Computer.incorporating.wireless.WAN.modem.placed.

close.to.the.device..If.in.doubt.about.potential.danger,.contact.the.physician.or.the.manufacturer.of.the.device.to.verify.that.the.equipment.is.properly.shielded..Pacemaker.patients.are.advised.to.keep.their.Personal.

Computer.or.Handheld.Computer.incorporating.wireless.WAN.modem.away.from.the.pacemaker,.while.it.is.

on.

. Switch.off.Personal.Computer.or.Handheld.Computer.incorporating.wireless.WAN.modem.before.boarding.

an.aircraft..Make.sure.it.cannot.be.switched.on.inadvertently..The.operation.of.wireless.appliances.in.an.aircraft.is.forbidden.to.prevent.interference.with.communications.systems..Failure.to.observe.these.instructions.

may.lead.to.the.suspension.or.denial.of.cellular.services.to.the.offender,.legal.action,.or.both.

. Do.not.operate.Personal.Computer.or.Handheld.Computer.incorporating.wireless.WAN.modem.in.the.presence.of.flammable.gases.or.fumes..Switch.off.the.cellular.terminal.when.you.are.near.petrol.stations,.fuel.

depots,.chemical.plants.or.where.blasting.operations.are.in.progress..Operation.of.any.electrical.equipment.

in.potentially.explosive.atmospheres.can.constitute.a.safety.hazard.

. Your.Personal.Computer.or.Handheld.Computer.incorporating.wireless.WAN.modem.receives.and.transmits.radio.frequency.energy.while.switched.on..Remember.that.interference.can.occur.if.it.is.used.close.to.

TV.sets,.radios,.computers.or.inadequately.shielded.equipment..Follow.any.special.regulations.and.always.

switch.off.Personal.Computer.or.Handheld.Computer.incorporating.wireless.WAN.modem.wherever.forbidden,.or.when.you.suspect.that.it.may.cause.interference.or.danger.

. Road.safety.comes.first!.Do.not.use.a.Personal.Computer.or.Handheld.Computer.incorporating.wireless.

WAN.modem.while.driving.a.vehicle..Do.not.place.the.computer.with.wireless.WAN.modem.in.an.area.where.

it.could.cause.personal.injury.to.the.driver.or.passengers..It.is.recommended.to.stow.the.unit.in.the.boot.or.

secure.stowage.area.while.driving..

Do.not.place.the.computer.with.wireless.WAN.modem.in.an.area.over.an.air.bag.or.in.the.vicinity.where.an.

air.bag.may.deploy..

Air.bags.inflate.with.great.force.and.if.the.computer.with.wireless.WAN.modem.is.placed.in.the.air.bag.deployment.area.may.be.propelled.with.great.force.and.cause.serious.injury.to.occupants.of.the.vehicle.

. IMPORTANT!

Personal.Computer.or.Handheld.Computer.incorporating.wireless.WAN.modem.operate.using.radio.signals.

and.cellular.networks.cannot.be.guaranteed.to.connect.in.all.conditions..Therefore,.you.should.never.rely.

solely.upon.any.wireless.device.for.essential.communications,.for.example.emergency.calls.

Remember,.in.order.to.make.or.receive.calls,.Personal.Computer.or.Handheld.Computer.incorporating.wireless.WAN.modem.must.be.switched.on.and.in.a.service.area.with.adequate.cellular.signal.strength.

Some.networks.do.not.allow.for.emergency.calls.if.certain.network.services.or.phone.features.are.in.use.(e.g..

lock.functions,.fixed.dialing.etc.)..You.may.need.to.deactivate.those.features.before.you.can.make.an.emergency.call.

Some.networks.require.that.a.valid.SIM.card.be.properly.inserted.in.Personal.Computer.or.Handheld.Computer.incorporating.wireless.WAN.modem.

27-1-2

Lithium Battery / Pile au lithium

Lithium Battery!

This.computer.contains.a.lithium.battery.to.enable.the.

date,.time,.and.other.data.to.be.stored..The.battery.should.

only.be.exchanged.by.authorized.service.personnel.

Warning!

A.risk.of.explosion.from.incorrect.installation.or.misapplication.may.possibly.occur.

15-E-1

Pile au lithium!

Le.micro-ordinateur.renferme.une.pile.au.lithium.qui.

permet.de.sauvegarder.certaines.données,.notamment.la.

date.et.l’heure..La.pile.ne.doit.être.remplacée.que.par.un.

technicien.qualifié.

Danger.!.Risque.d’explosion.en.cas.de.non.respect.de.

cette.mise.en.garde!

15-F-1

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 7

7

2011/05/26 11:03:52

Read Me First

For Used in Motor Vehicle /Pour L’utilisation Dans Un Véhicule Motorisé

Warning:.Notebook.Computer.may.be.installed.in.a.motor.vehicle.and.visible.to.the.driver.only.if.used.to.support.

vehicle.related.functions.such.as.vehicle.information,.

system.control,.rear.or.side.observation.and.navigation..

If.used.for.entertainment.purpose,.such.as.television.

reception.or.video.play,.it.must.be.installed.to.the.rear.

of.the.driver’s.seat.where.it.will.not.be.visible,.directly.or.

indirectly,.to.the.operator.of.the.motor.vehicle..Check.with.

individual.state/provincial.laws.to.determine.lawful.use.of.

this.product.while.operating.within.a.motor.vehicle.

Avertissement.:.L’ordinateur.bloc-notes.peut.être.installé.

dans.un.véhicule.motorisé.et.dans.le.champ.de.vision.du.

conducteur.uniquement.en.tant.que.dispositif.d’aide.aux.

fonctions.du.véhicule,.comme.par.exemple.pour.fournir.des.

informations.sur.le.véhicule,.comme.dispositif.de.contrôle.

de.système,.pour.l’observation.à.l’arrière.ou.sur.les.côtés.

du.véhicule,.ainsi.que.pour.fournir.de.l’information.routière..

Pour.toute.utilisation.à.fin.de.divertissement,.comme.par.exemple.pour.regarder.la.télévision.ou.jouer.à.des.jeux.vidéo,.

il.doit.être.installé.à.l’arrière.du.siège.du.conducteur,.en.un.

emplacement.où.il.ne.sera.pas.visible,.ni.directement.ni.

indirectement,.pour.le.conducteur.du.véhicule.motorisé..Vérifiez.les.lois.fédérales.et.nationales.qui.régissent.l’utilisation.

légale.de.cet.appareil.à.l’intérieur.d’un.véhicule.motorisé.

35-M-1

Information on Disposal in other Countries outside the European Union

These.symbols.are.only.valid.in.the.European.Union.

If.you.wish.to.discard.this.product,.please.contact.your.local.authorities.or.dealer.and.ask.

for.the.correct.method.of.disposal.

53-M-1

8

Camera Light

<For.model.with.camera>

CAUTION

Camera Light

-.This.equipment.uses.LED.(Light.Emitting.Diode).technology.that.complies.with.IEC60825-1:1993+A1:1997+A2:2001

-.CLASS.1.LED.PRODUCT

-.The.light.from.the.LED.is.strong.and.can.injure.human.eyes..Do.not.look.directly.at.the.LEDs.with.naked.eyes.

-.Caution-Use.of.controls.or.adjustments.or.performance.of.procedures.other.than.those.specified.herein.may.result.in.

hazardous.radiation.exposure.

Specification

-.Max.Power. .

0.873.mW

57-E-1

External Antenna

FCC RF Exposure Warning:

Ÿ

. This.equipment.is.provided.with.external.antenna.connector(s).

for.connection.to.optional.Car.Mounter.or.Port.Replicator.for.

mobile.external.mounted.antenna(s)..External.antenna(s).

must.be.professionally.installed.and.cannot.exceed.recommended.maximum.antenna.gain.as.described.in.individual.

provided.supplement.instructions.for.wireless.transmitters.

The.maximum.allowable.antenna.gain.for.the.external.WWAN.

base.whip.antenna.for.the.cellular.band.is.7.0.dBi.and.PCS.

band.is.3.5.dBi..Also,.user.must.maintain.minimum.20.cm.

spacing.between.external.antenna(s).and.all.person’s.body.

(excluding.extremities.of.hands,.wrist.and.feet).during.wireless.modes.of.operation.

32-M-1-1

<For.Canada>

This.device.has.been.designed.to.operate.with.the.WWAN.

antenna.having.a.maximum.gain.of.7.0.dB.for.the.cellular.band.

and.3.5.dB.for.the.PCS.band..WWAN.Antenna.having.a.higher.

gain.is.strictly.prohibited.per.regulations.of.Industry.Canada..

The.Required.antenna.impedance.is.50.ohms.

To.reduce.potential.radio.interference.to.other.users,.the.antenna.type.and.its.gain.should.be.so.chosen.that.the.equivalent.

isotropically.radiated.power.(EIRP).is.not.more.than.that.required.for.successful.communication.

<Utilisation.au.Canada>

Cet.appareil.est.conçu.pour.opérer.avec.une.antenne.WWAN.

(réseau.étendu.sans.fil).dont.le.gain.maximum.est.fixé.à.7.0.

pour.la.bande.cellulaire.et.à.3.5.pour.la.bande.de.service.de.

communications.personnelles.(PCS)..Les.règlements.d’Industrie.

Canada.interdisent.l’utilisation.d’une.antenne.WWAN.dont.le.

gain.serait.supérieur.à.cette.limite..L’antenne.doit.avoir.une.

impédance.de.50.ohms.

Afin.de.réduire.le.risque.d’interférence.radioélectrique.aux.

autres.utilisateurs.des.bandes.de.fréquences,.le.type.d’antenne.

et.son.gain.doivent.être.tels.que.la.puissance.isotrope.rayonnée.

équivalente.(PIRE).n’est.pas.plus.élevée.que.le.niveau.requis.

pour.assurer.la.communication.

32-Ca-1-1

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 8 2011/05/26 11:03:52

Precautions

THIS.PRODUCT.IS.NOT.INTENDED.FOR.USE.AS,.OR.

AS.PART.OF,.NUCLEAR.EQUIPMENT/SYSTEMS,.AIR.

TRAFFIC.CONTROL.EQUIPMENT/SYSTEMS,.AIRCRAFT.

COCKPIT.EQUIPMENT/SYSTEMS

*1

,.MEDICAL.DEVICES.

*2

,.LIFE.SUPPORT.SYSTEMS.OR.

OR.ACCESSORIES

OTHER.EQUIPMENTS/DEVICES/SYSTEMS.THAT.ARE.

INVOLVED.WITH.ENSURING.HUMAN.LIFE.OR.SAFETY..

PANASONIC.WILL.NOT.BE.RESPONSIBLE.FOR.ANY.

LIABILITY.RESULTING.FROM.THE.USE.OF.THIS.PROD-

UCT.ARISING.OUT.OF.THE.FOREGOING.USES.

..

*1

. AIRCRAFT.COCKPIT.EQUIPMENT/SYSTEMS.include.

Class2.Electrical.Flight.Bag.(EFB).Systems.and.Class1.

EFB.Systems.when.used.during.critical.phases.of.flight.

(e.g.,.during.take-off.and.landing).and/or.mounted.on.to.

the.aircraft..Class1.EFB.Systems.and.2.EFB.Systems.are.

defined.by.FAA:.AC.(Advisory.Circular).120-76A.or.JAA:.

..

*2

JAA.TGL.(Temporary.Guidance.Leaflets).No.36.

. As.defined.by.the.European.Medical.Device.Directive.

(MDD).93/42/EEC..

Panasonic.cannot.guarantee.any.specifications,.technologies,.reliability,.safety.(e.g..Flammability/Smoke/Toxicity/

Radio.Frequency.Emission,.etc).requirements.related.to.

aviation.standards.and.medical.equipment.standards.that.

differ.from.the.specifications.of.our.COTS.(Commercial-

Off-The-Shelf).products.

Panasonic.cannot.guarantee.any.specifications,.technologies,.reliability,.safety.(e.g..Flammability/Smoke/Toxicity/Radio.Frequency.Emission,.etc).requirements.related.

to.aviation.standards.that.exceed.the.specifications.of.our.

COTS.(Commercial-Off-The-Shelf).products.

39-E-1

This.computer.is.not.intended.for.use.in.medical.equipment.

including.life-support.systems,.air.traffic.control.systems,.or.

other.equipment,.devices.or.systems.that.are.involved.with.

ensuring.human.life.or.safety..Panasonic.cannot.be.held.responsible.in.any.way.for.any.damages.or.loss.resulting.from.

the.use.of.this.unit.in.these.types.of.equipment,.devices.or.

systems,.etc.

The.CF-19.was.developed.based.on.thorough.research.into.

the.real-world.portable.computing.environments..Exhaustive.

pursuit.of.usability.and.reliability.under.harsh.conditions.led.

to.innovations.such.has.the.magnesium.alloy.exterior,.vibration.damped.hard.disk.drive.and.floppy.disk.drive,.flexible.

internal.connections..The.CF-19’s.outstanding.engineering.

has.been.tested.using.the.strict.MIL-STD-.810F.(for.vibration.

and.shock).and.IP.(for.dust.and.water).based.procedures.

As.with.any.portable.computer.device.precautions.should.be.

taken.to.avoid.any.damage..The.following.usage.and.handling.procedures.are.recommended..

Before.putting.the.computer.away,.be.sure.to.wipe.off.any.

moisture.

If a Malfunction or Trouble Occurs, Immediately Stop Use

If a Malfunction Occurs, Immediately Unplug the AC Plug and the Battery Pack

Ÿ

. This.product.is.damaged

Ÿ

. Foreign.object.inside.this.product

Ÿ

. Smoke.emitted

Ÿ

. Unusual.smell.emitted

Ÿ

. Unusually.hot

Continuing.to.use.this.product.while.any.of.the.above.conditions.are.present.may.result.in.fire.or.electric.shock.

Ÿ

. If.a.malfunction.or.trouble.occurs,.immediately.unplug.the.

AC.plug.and.remove.the.unit.from.this.product..Then,.contact.your.technical.support.office.for.repair.

Do Not Touch This Product and Cable When It Starts

Thundering

Electric.shock.may.result.

Do Not Connect the AC Adaptor to a Power Source

Other Than a Standard Household AC Outlet

Otherwise,.a.fire.due.to.overheating.may.result..Connecting.

to.a.DC/AC.converter.(inverter).may.damage.the.AC.adaptor..On.an.airplane,.only.connect.the.AC.adaptor/charger.to.

an.AC.outlet.specifically.approved.for.such.use.

Do Not Do Anything That May Damage the AC Cord, the

AC Plug, or the AC Adaptor

Do.not.damage.or.modify.the.cord,.place.it.near.hot.tools,.bend,.

twist,.or.pull.it.forcefully,.place.heavy.objects.on.it,.or.bundle.it.tightly.

Continuing.to.use.a.damaged.cord.may.result.in.fire,.short.circuit,.or.

electric.shock.

Do Not Pull or Insert the AC Plug If Your Hands Are Wet

Electric.shock.may.result.

Clean Dust and Other Debris of the AC Plug Regularly

If.dust.or.other.debris.accumulates.on.the.plug,.humidity,.etc..

may.cause.a.defect.in.the.insulation,.which.may.result.in.a.fire.

Ÿ

. Pull.the.plug,.and.wipe.it.with.a.dry.cloth.

Pull.the.plug.if.the.computer.is.not.being.used.for.a.long.

period.of.time.

Insert the AC Plug Completely

If.the.plug.is.not.inserted.completely,.fire.due.to.overheating.

or.electric.shock.may.result.

Ÿ

. Do.not.use.a.damaged.plug.or.loose.AC.outlet.

Close the Connector Cover Tightly When Using This Product

Where Is a Lot of Water, Moisture, Steam, Dust, Oily Vapors, etc.

The.entry.of.foreign.matter.may.cause.a.fire.or.electric.shocks.

Ÿ

. If.foreign.matter.has.found.its.way.inside,.immediately.turn.

the.power.off.and.unplug.the.AC.cord,.and.then.remove.the.

battery.pack..Then.contact.your.technical.support.office.

Do Not Disassemble This Product

The.high-voltage.areas.inside.may.give.you.an.electric.

shock,.or.foreign.matter.may.enter.and.result.in.a.fire.

Keep SD Memory Cards Away from Infants and Small Children

Accidental.swallowing.will.result.in.bodily.injury.

Ÿ

. In.the.event.of.accidental.swallowing,.see.a.doctor.immediately.

Do Not Place This Product on Unstable Surface

If.balance.is.lost,.this.product.may.fall.over.or.drop,.resulting.

in.an.injury.

Avoid Stacking

If.balance.is.lost,.this.product.may.fall.over.or.drop,.resulting.

in.an.injury.

Do Not Leave This Product in High Temperature Environment for a Long Period of Time

Leaving.this.product.where.it.will.be.exposed.to.extremely.

high.temperatures.such.as.near.fire.or.in.direct.sunlight.may.

deform.the.cabinet.and/or.cause.trouble.in.the.internal.parts..

Continued.use.in.such.a.resulting.condition.may.lead.to.

short-circuiting.or.insulation.defects,.etc..which.may.in.turn.

lead.to.a.fire.or.electric.shocks.

Hold the Plug When Unplugging the AC Plug

Pulling.on.the.cord.may.damage.the.cord,.resulting.in.a.fire.

or.electric.shock.

Do Not Move This Product While the AC Plug Is Connected

The.AC.cord.may.be.damaged,.resulting.in.fire.or.electric.shock.

Ÿ

. If.the.AC.cord.is.damaged,.unplug.the.AC.plug.immediately.

Use Only the Specified AC Adaptor With This Product

Using.an.AC.adaptor.other.than.the.one.supplied.(supplied.

with.the.unit.or.one.sold.separately.as.an.accessory).may.

result.in.a.fire.

Do Not Subject the AC Adaptor to Any Strong Impact

Using.the.AC.adaptor.after.a.strong.impact.such.as.being.

dropped.may.result.in.electric.shock,.short.circuit,.or.fire.

Take a Break of 10-15 Minutes Every Hour

Using.this.product.for.long.periods.of.time.may.have.detrimental.health.effects.on.the.eyes.or.hands.

9

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 9 2011/05/26 11:03:52

Read Me First

Do Not Turn the Volume Up to Loud When Using Headphones

Listening.at.high.volumes.that.overstimulate.the.ear.for.long.

periods.of.time.may.result.in.loss.of.hearing.

Use the Modem with a Regular Telephone Line

Connection.to.an.internal.phone.line.(on-premise.switches).

of.a.company.or.business.office,.etc..or.to.a.digital.public.

phone.or.use.in.a.country.or.area.not.supported.by.the.computer.may.result.in.a.fire.or.electric.shocks.

Do Not Connect a Telephone Line, or a Network Cable

Other Than the One Specified, into the LAN Port

If.the.LAN.port.is.connected.to.a.network.such.as.the.ones.

listed.below,.a.fire.or.electric.shock.may.result.

Ÿ

. Networks.other.than.1000BASE-T,.100BASE-TX.or.10BASE-T

Ÿ

. Phone.lines.(IP.phone.(Internet.Protocol.Telephone),.Telephone.lines,.internal.phone.lines.(on-premise.switches),.

digital.public.phones,.etc.)

Do Not Use with Exposing the Skin to This Product for a

Long Period of Time

Using.this.product.with.exposing.the.skin.to.the.heat.source.

of.this.product.or.AC.adaptor.for.a.long.period.of.time.can.

cause.a.low-temperature.burn.

Do Not Expose the Skin to This Product When Using the

Product In a Hot or Cold Environment.

Burns,.low-temperature.burns.or.frostbite.may.result.

•. When.it.is.necessary.to.expose.the.skin.to.this.product.

such.as.to.scan.a.fingerprint,.perform.the.operation.in.the.

shortest.time.possible.

l

.Do.not.place.the.computer.near.a.television.or.radio.receiver.

l

.Keep.the.computer.away.from.magnets..Data.stored.on.

the.hard.disk.may.be.lost.

l

.This.computer.is.not.intended.for.the.display.of.images.for.

use.in.medical.diagnosis.

l

.This.computer.is.not.intended.for.a.use.with.connection.of.

medical.equipment.for.the.purpose.of.medical.diagnosis.

l

.Panasonic.shall.not.be.liable.for.loss.of.data.or.other.incidental.

or.consequential.damages.resulting.from.the.use.of.this.product.

10

Precautions (Battery Pack)

Do Not Use with Any Other Product

The.battery.pack.is.rechargeable.and.was.intended.for.the.

specified.product..If.it.is.used.with.a.product.other.than.the.

one.for.which.it.was.designed,.electrolyte.leakage,.generation.of.heat,.ignition.or.rupture.may.result.

Do Not Charge the Battery Using Methods Other Than

Those Specified

If.the.battery.is.not.charged.using.one.of.the.specified.methods,.electrolyte.leakage,.generation.of.heat,.ignition.or.rupture.may.result.

Do Not Throw the Battery Pack into a Fire or Expose It to Excessive Heat

Generation.of.heat,.ignition.or.rupture.may.result.

Avoid Extreme Heat (Near the Fire, in Direct Sunlight, for Example)

Electrolyte.leakage,.generation.of.heat,.ignition.or.rupture.may.result.

Do Not Insert Sharp Objects into the Battery Pack, Expose It to Bumps or Shocks, Disassemble, or Modify It

Electrolyte.leakage,.generation.of.heat,.ignition.or.rupture.may.result.

Ÿ

. If.this.product.is.subjected.to.a.strong.impact,.stop.using.it.

immediately.

Do Not Short the Positive (+) and Negative (-) Contacts

Generation.of.heat,.ignition.or.rupture.may.result.

Ÿ

. Do.not.place.the.battery.pack.together.with.articles.such.

as.necklaces.or.hairpins.when.carrying.or.storing.

Do Not Use This Product with a Battery Pack Other Than the One Specified

Use.only.the.specified.battery.pack.(

è

.

page.11).with.your.

product..Use.of.battery.packs.other.than.those.manufactured.

and.supplied.by.Panasonic.may.present.a.safety.hazard.

(generation.of.heat,.ignition.or.rupture).

When the battery pack has become degraded, replace it with a new one

Continued.use.of.a.damaged.battery.pack.may.result.in.heat.

generation,.ignition.or.battery.rupture.

l

. Do.not.touch.the.terminals.on.the.battery.pack...The.battery.pack.may.no.longer.function.properly.if.the.contacts.

are.dirty.or.damaged.

l

. Do.not.expose.the.battery.pack.to.water,.or.allow.it.to.become.wet.

l

. If.the.battery.pack.will.not.be.used.for.a.long.period.of.

time.(a.month.or.more),.charge.or.discharge.(use).the.

battery.pack.until.the.remaining.battery.level.becomes.

30%.to.40%.and.store.it.in.a.cool,.dry.place.

l

. This.computer.prevents.overcharging.of.the.battery.by.

recharging.only.when.the.remaining.power.is.less.than.

approx..95%.of.capacity.

l

. The.battery.pack.is.not.charged.when.the.computer.is.

first.purchased..Be.sure.to.charge.it.before.using.it.for.

the.first.time..When.the.AC.adaptor.is.connected.to.the.

computer,.charging.begins.automatically.

l

. Should.the.battery.leak.and.the.fluid.get.into.your.eyes,.do.not.

rub.your.eyes...Immediately.flush.your.eyes.with.clear.water.

and.see.a.doctor.for.medical.treatment.as.soon.as.possible.

CAUTION:

Risk.of.Explosion.if.Battery.is.replaced.by.an.Incorrect.Type..

Dispose.of.Used.Batteries.According.to.the.Instructions.

58-E-1

A

TTENTI

ON:

Il.y.a.risque.d’explosion.si.la.batterie.est.remplacée.par.une.

batterie.de.type.incorrect.

Mettre.au.rebut.les.batteries.usagées.conformément.aux.instructions.

58-F-1

NOTE

l

. The.battery.pack.may.become.warm.during.recharging.or.normal.use..This.is.completely.normal.

l

. Recharging.will.not.commence.if.internal.temperature.

of.the.battery.pack.is.outside.of.the.allowable.temperature.range.(0.°C.to.50.°C.{32°F.to.122.°F})...

(è.

.Reference Manual.“Battery.Power”).Once.the.

allowable.range.requirement.is.satisfied,.charging.begins.

automatically...Note.that.the.recharging.time.varies.based.

on.the.usage.conditions..(Recharging.takes.longer.than.

usual.when.the.temperature.is.10.°C.{50.°F}.or.below.) l

. If.the.temperature.is.low,.the.operating.time.is.shortened..Only.

use.the.computer.within.the.allowable.temperature.range.

l

. This.computer.has.a.high.temperature.mode.function.

that.prevents.the.degradation.of.the.battery.in.high.temperature.environments..(è.

.Reference Manual.“Battery.Power”).A..level.corresponding.to.a.100%.charge.

for.high.temperature.mode.is.approximately.equivalent.

to.an.80%.charge.level.for.normal.temperature.mode.

l

. The.battery.pack.is.a.consumable.item...If.the.amount.

of.time.the.computer.can.be.run.by.using.a.particular.

battery.pack.becomes.dramatically.shorter.and.repeated.recharging.does.not.restore.its.performance,.

the.battery.pack.should.be.replaced.with.a.new.one.

l

. When.transporting.a.spare.battery.inside.a.package,.

briefcase,.etc.,.it.is.recommended.that.it.be.placed.in.

a.plastic.bag.so.that.its.contacts.are.protected.

l

. Always.power.off.the.computer.when.it.is.not.in.use..

Leaving.the.computer.on.when.the.AC.adaptor.is.not.

connected.will.exhaust.the.remaining.battery.capacity.

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 10 2011/05/26 11:03:52

Description of Parts

<Model.without.WWAN.Antenna>

A: Wireless LAN Antenna

. <Only.for.model.with.wireless.LAN>

è

.

.Reference Manual.“Wireless.LAN”

. The.wireless.LAN.switch.may.turn.off.depending.on.

the.reception.

B: Stylus/Digitizer pen Holder

C: Touch Pad

D: LED Indicator

.

.:. Wireless.ready

This.indicator.lights.when.Wireless.LAN,.Bluetooth,.and/or.Wireless.WAN.are.connected.and.

.

ready..It.does.not.necessarily.indicate.the.On/Off.

condition.of.the.wireless.connection.

è

.

.Reference Manual.“Disabling/Enabling.

Wireless.Communication”

... .:. Wireless.WAN.status

<Only.for.model.with.wireless.WAN>

è

.Refer.to.the.instruction.manual.of.the.wireless.

device.

.:.Caps.lock

.

.

.:.Numeric.key.(NumLk)

.:.Scroll.lock.(ScrLk)

.

.:. Hard.disk.drive.status

E: Tablet Buttons

è

.

.Reference Manual.“Tablet.Buttons”

F: LCD

. <Only.for.model.with.touchscreen>

. è.

.Reference Manual.“Touchscreen”

. <Only.for.model.with.dual.touch>

. è.

.Reference Manual.“Dual.Touch”

<Model.with.WWAN.Antenna>

G: Display Release Latch

è

.page.13.“Switching.to.the.Tablet.mode”.

H: Bluetooth Antenna

. <Only.for.model.with.Bluetooth>

è

.

.Reference Manual.“Bluetooth”

I: Speaker

è

.

.Reference Manual.“Key.Combinations”

J: Function Key

è

.

.Reference Manual.“Key.Combinations”

K: Keyboard

L: Hard Disk Drive

è

.

.Reference Manual.“Hard.Disk.Drive”

M: Battery Pack

. Specified.Battery.pack:.CF-VZSU48U

N: Power Switch

O: LED Indicator

.

.

.:. Battery.status

è

.

.Reference Manual.“Battery.Power”

.:. Power.status

(Off:.Power.off/Hibernation,.Green:.Power.on,.

Blinking.green:.

.Sleep/

Standby,.Blinking.green.rapidly:.Cannot.power.on.or.

.

resume.due.to.low.temperature.)

P: Wireless WAN Antenna

. <Only.for.model.with.Wireless.WAN>

A.lithium.ion.battery.that.is.recyclable.powers.the.product.you.have.purchased.

Please.call.1-800-8-BATTERY.for.information.on.how.to.recycle.this.battery.

L’appareil.que.vous.vous.êtes.procuré.est.alimenté.par.une.batterie.au.lithium-ion.

Pour.des.renseignements.sur.le.recyclage.de.la.batterie,.veuillez.composer.le.

1-800-8-BATTERY.

48-M-1

11

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 11 2011/05/27 13:47:03

Description of Parts

Left side

Rear side Bottom

T

Q R S

<Only.for.model.

with.Camera>

K L M N O P

<Only.for.model.

without.Camera>

12

A: DC-IN Jack

B: USB Port

è

.

.Reference Manual.“USB.Devices”

C: IEEE 1394 Interface Connector

è

.

.Reference Manual.“IEEE.1394.Devices”

D: Modem Port

è

.

.Reference Manual.“Modem”

E: LAN Port

è

.

.Reference Manual.“LAN”

F: SD Memory Card Indicator

(Blinking:.During.access)

è

.

.Reference Manual.“SD.Memory.Card”

G: SD Memory Card Slot

è

.

.Reference Manual.“SD.Memory.Card”

H: Wireless Switch

è

.

.Reference Manual.“Disabling/Enabling.Wireless.

Communication”

I: <For.model.without.Smart.Card.Slot>

PC Card Slot (PC)

è

.

.Reference Manual.“PC.Card./.ExpressCard”

. <For.model.with.Smart.Card.Slot>

Smart Card Slot (SCR)

è

.

.Reference Manual.“Smart.Card”

J: <For.model.without.Smart.Card.Slot>

ExpressCard Slot (EX)

è

.

.Reference Manual.“PC.Card./.ExpressCard”

. <For.model.with.Smart.Card.Slot>

PC Card Slot (PC)

è

.

.Reference Manual.“PC.Card./.ExpressCard”

K: Headphone Jack

. You.can.connect.headphones.or.amplified.speakers..

When.they.are.connected,.audio.from.the.internal.

speakers.is.not.heard.

L: SIM Card Slot

. <Only.for.model.with.wireless.WAN>

. Insert.the.SIM.card.into.the.SIM.card.slot.with.the.

contact.side.facing.down.and.the.cut.corner.facing.

forward.

M: Microphone Jack

. A.condenser.microphone.can.be.used..If.other.types.

of.microphones.are.used,.audio.input.may.not.be.possible,.or.malfunctions.may.occur.as.a.result.

N: Security Lock

. A.Kensington.cable.can.be.connected.

. For.further.information,.read.the.manual.that.comes.

with.the.cable.

O: External Display Port (VGA)

è

.

.Reference Manual.“External.Display”

P: Serial Port

Q: RAM Module Slot

<For.model.without.Camera>

è

.

.Reference Manual.“RAM.Module”

R: External Antenna Connector

S: Expansion Bus Connector

*1

è

.

.Reference Manual.“Port.Replicator./.Car.Mounter”

T: Camera

<For.model.with.Camera>

. Remove.the.protection.seal.on.the.camera.before.using.the.camera.

*1

. If.you.connect.this.computer.to.CF-VEB181.series.or.

CF-WEB182.series,.you.cannot.use.a.keyboard.port..

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 12 2011/05/27 13:54:49

l

. This.computer.contains.a.magnet.and.magnetic.products.at.the.locations.

circled.in.the.illustration.at.right..Avoid.leaving.metallic.object.or.magnetic.media.in.contact.with.these.areas.

Switching to the Tablet mode

A

.Lift.up.the.display.so.it.stands.perpendicular.to.the.body.

B

.Slide.the.display.release.latch.(A),.and.rotate.the.display.clockwise.

until.it.clicks.

C

.Close.as.the.display.faces.up.and.fix.it.using.the.latch.(B).

Attaching the stylus to the computer

Use.the.tether.to.attach.the.stylus.to.the.computer.so.you.will.not.lose.it..

There.are.holes.(A).to.attach.it.

Ÿ

.For.model.with.dual.touch,.the.tether.and.digitizer.pen.are.already.attached.

to.the.computer.at.purchase.

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 13

13

2011/05/26 11:03:55

Description of Parts

Attaching the hand strap and the shoulder strap (option)

Attach.the.hand.strap.to.any.two.of.the.corners.(A).using.the.screws.

You.can.connect.the.shoulder.strap.(B).to.the.hand.strap.

(The.illustration.is.an.example.)

CAUTION

l

. Do.not.use.the.strap.to.carry.a.heavier.weight.than.the.computer..Otherwise.the.strap.may.become.loose.by.itself.

l

. Do.not.use.the.strap.if.it.becomes.worn.or.damaged.

14

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 14 2011/05/26 11:03:56

First-time Operation

n

Preparation

A

.Check.and.identify.the.supplied.accessories.

If.you.do.not.find.the.described.accessories,.contact.Panasonic.Technical.Support.(è.page.36).

• AC Adaptor . . . . . 1 • AC Cord . . . . . . . 1 • Battery Pack . . . 1

<Only.for.model.with.touchscreen>

• Stylus . . . . . . . . . . . . . . . . . . . 1

.

Model.No:.CF-AA6503A2.or..

CF-AA5713A

• Tether . . . . . . . . . 1 • Soft Cloth . . . . . . 1

Model.No:.CF-VZSU48U

Model.No:.CF-VNP003U.

<Only.for.model.with.dual.touch>

• Digitizer pen . . . . . . . . . . . . . . 1

Model.No:.CF-VNP012U

è

.

.Reference Manual.“Touchscreen”,.“Dual.Touch”

• OPERATING INSTRUCTIONS (This book) . . . . . . . . . . . . . . . . . . . 1

l

..For.model.with.dual.touch,.the.tether.and.digitizer.pen.are.already.attached.to.the.computer.at.purchase.

B

.Read.the.LIMITED.USE.LICENSE.AGREEMENT.before.breaking.the.seal.on.the.computer’s.packaging.

(è.page.30).

1 Inserting the Battery Pack

A

.Slide.the.latch.(A).to.the.right.to.unlock.the.cover.

B

.Slide.the.latch.(A).down,.and.open.the.cover.

C

.Insert.the.battery.pack.until.it.securely.fits.the.connector.

D

.Close.the.cover.

E

.Slide.the.latch.(B).to.the.left.to.lock.the.cover.

CAUTION

l

. Make.sure.the.latch.is.securely.locked..Otherwise.the.battery.pack.may.fall.

when.you.carry.the.computer.

l

. Do.not.touch.the.terminals.of.the.battery.pack.and.the.computer..Doing.so.can.

make.the.terminals.dirty.or.damaged,.and.may.cause.malfunction.of.the.battery.

pack.and.the.computer.

NOTE

l

. Note.that.the.computer.consumes.electricity.even.when.the.computer.power.is.

off..If.the.battery.pack.is.fully.charged,.the.battery.will.fully.discharge.in.the.following.period.of.time:.

•. When.power.is.off:.Approx..4.weeks

*1.*2

):.Approx..4.days

*1.*2

•. In.sleep.( )/standby.(

•. In.hibernation:.Approx..7.days

*1.*2

*1

*2

. If.“Wake.Up.from.wired.LAN”.is.disabled,.the.period.of.time.in.sleep.will.

become.slightly.longer,.and.the.period.of.time.in.hibernation.will.become.

about.the.same.as.during.power-off..

. If.“Wake.Up.from.wireless.LAN”.is.enabled,.the.period.of.time.in.sleep.will.

become.shorter,.and.the.period.of.time.in.hibernation.will.become.about.

the.same.as.during.power-off..

2 Attaching the Stylus (included)

Attach.the.stylus.(included).to.the.computer..To.attach.the.stylus,.refer.to.”Attaching.

the.stylus.to.the.computer”(è.page.13)..

15

2011/05/26 16:17:24 DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 15

First-time Operation

3 Opening the Display

A

.Pull.up.the.part.(A).and.release.the.latch.

B

.Lift.open.the.display.

4 Connect your computer to a power outlet.

. The.battery.charging.starts.automatically.

CAUTION

l

. Do.not.disconnect.the.AC.adaptor.and.do.not.switch.the.wireless.switch.to.on.

until.the.first-time.operation.procedure.is.completed.

l

. When.using.the.computer.for.the.first.time,.do.not.connect.any.peripheral.device.

except.the.battery.pack.and.AC.adaptor.

l

Handling the AC adaptor

Ÿ

.Problems.such.as.sudden.voltage.drops.may.arise.during.periods.of.thunder.and.

lightning..Since.this.could.adversely.affect.your.computer,.an.uninterruptible.power.

source.(UPS).is.highly.recommended.unless.running.from.the.battery.pack.alone.

5 Turn on the computer.

A

.Slide.and.hold.the.power.switch.(B).until.the.power.indicator. .lights.

CAUTION

l

. Do.not.slide.the.power.switch.repeatedly.

l

. The.computer.will.forcibly.be.turned.off.if.you.slide.and.hold.the.power.switch.for.

four.seconds.or.longer.

l

. Once.you.turn.off.the.computer,.wait.for.ten.seconds.or.more.before.you.turn.on.

the.computer.again.

l

. Do.not.perform.the.following.operation.until.the.hard.disk.drive.indicator. .turns.off.

Ÿ

.Connecting.or.disconnecting.the.AC.adaptor

Ÿ

.Sliding.the.power.switch

Ÿ

.Touching.the.keyboard,.touch.pad,.tablet.buttons,.touchscreen.(only.for.model.

with.touchscreen),.dual.touch.(only.for.model.with.dual.touch).or.external.mouse

Ÿ

.Closing.the.display

Ÿ

.Turn.on/off.the.wireless.switch

l

. When.the.CPU.temperature.is.high,.the.computer.may.not.start.up.to.prevent.

overheating.of.the.CPU..Wait.until.the.computer.cools.down,.and.then.turn.the.

power.on.again..If.the.computer.does.not.power.on.even.after.cooling.down,.

contact.Panasonic.Technical.Support.(è.page.36).

l

. Any.changes.from.the.default.setting.of.the.Setup.Utility.must.not.be.made.until.

the.First-time.Operation.is.completed.

6 Setup Windows.

Follow.the.on-screen.instructions.

l

.The.computer.restarts.several.times..Do.not.touch.the.keyboard.or.touch.

pad,.and.wait.until.the.hard.disk.drive.indicator. .has.turned.off.

l

.After.the.computer.is.turned.on,.the.screen.remains.black.or.unchanged.for.

a.while,.but.this.is.not.a.malfunction..Wait.for.a.moment.until.the.Windows.

setup.screen.appears.

l

.During.setup.of.Windows,.use.the.touch.pad.and.clicking.to.move.the.cursor.

and.to.click.an.item.

l

.Setup.of.Windows.will.take.approximately.20.minutes.

Go.to.the.next.step,.confirming.each.message.on.the.display.

l

..“Join.a.wireless.network”.screen.may.not.appear.

. You.can.set.the.Wireless.Network.after.the.setup.of.Windows.is.complete.

16

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 16 2011/05/26 11:03:57

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 17

CAUTION

l

. You.can.change.the.user.name,.password,.image.and.security.setting.after.

setup.of.Windows.

l

. Remember.your.password..If.you.forget.the.password,.you.cannot.use.Windows..Creating.a.password.reset.disk.beforehand.is.recommended.

l

. Wait.until.the.hard.disk.drive.indicator. .has.turned.off.

l

. Do.not.use.the.following.words.for.user.name:.CON,.PRN,.AUX,.CLOCK$,.NUL,.

COM1.to.COM9,.LPT1.to.LPT9,[email protected],.if.you.create.a.user.name.(account.name).that.includes.the.“@”.mark,.a.password.will.be.requested.at.the.

log-on.screen,.even.if.no.password.has.been.set..If.you.try.to.log.on.without.entering.a.password,.“The.user.name.or.password.is.incorrect.”.may.be.displayed.

and.you.will.not.be.able.to.log.on.to.Windows.(è.page.27).

l

. You.cannot.choose.the.following.words.for.user.name.and.password:.CON,.

PRN,.AUX,.CLOCK$,.NUL,.COM1.to.COM9,.LPT1.to.LPT9.

l

. When.you.set.date/time/time.zone.and.click.[Next],.the.screen.may.not.go.to.the.

next.step.for.a.few.minutes..Do.not.touch.the.keyboard.or.touch.pad,.and.wait.

until.the.screen.changes.

l

. If.“An.unexpected.error.has.occurred....”.(or.a.similar.message).is.displayed,.

click.[OK]..This.is.not.a.malfunction.

7 Perform the touchscreen calibration.

<Only.for.model.with.touchscreen>

NOTE

l

. At.first,.log.on.to.Windows.as.an.administrator,.and.perform.this.calibration.

l

. Return.the.rotated.display.to.[Primary.Landscape].before.the.touchscreen.calibration.

A

.Click. .(Start).-.[Control.Panel].-.[Hardware.and.Sound].-.[Tablet.PC.Setting].

B

.Click.[Calibrate].

C

.Using.the.stylus,.touch.each.of.the.“+”.target.marks.one.by.one.

NOTE

l

. Perform.the.following.calibration.for.each.user.

A

.Click. .(Start).-.[Control.Panel].-.[Hardware.and.Sound].-.[Tablet.PC.Setting].

B

.Click.[Calibrate].

C

.Using.the.stylus,.touch.each.of.the.“+”.target.marks.one.by.one,.and.then.click.[Yes].

l

.Perform.the.calibration.for.the.orientation.to.be.used.

A

.Click.[start].-.[All.Programs].-.[Fujitsu.Touch.Panel.(USB)].-.[Touch.Screen.

Calibration.Utility].

B

.Using.the.stylus,.touch.each.of.the.12.“+”.target.marks.one.by.one.until.it.

blinks,.and.then.press.

Enter.

C

.Press.

Enter.

<Only.for.model.with.Dual.Touch>

NOTE

l

. Perform.these.calibration.for.each.user.

l

. If.you.cannot.touch.the.desired.position,.perform.Digitizer.Calibration.again.and.

restart.the.computer.

17

2011/05/26 11:03:57

First-time Operation

A

.Run.[Calibration.Utility].

Click. .(Start)

*3

-.[All.Programs].-.[Panasonic].-.[Calibration.Utility]..

B

.Select.[Pen.input.(Digitizer)].

l

. To.calibrate.more.accurate,.add.a.check.mark.for.[Advanced.calibration].

C

.Using.your.finger,.touch.each.of.the.“+”.target.marks.one.by.one.

l

. Perform.the.calibration.for.the.orientation.to.be.used.

*3

. .Windows.XP.:[start]

8 Restart the computer.

9 Create a new account.

Click.[start].-.[Control.Panel].-.[User.Accounts].-.[Create.a.new.account].

CAUTION

l

. Remember.your.password..If.you.forget.the.password,.you.cannot.use.the.Windows.

operation.system..Creating.a.password.reset.disk.beforehand.is.recommended.

NOTE

l

PC Information Viewer

. This.computer.periodically.records.the.management.information.of.the.hard.disk,.etc..The.maximum.data.volume.for.each.

record.is.1024.bytes...

This.information.is.only.used.for.estimating.the.cause.when.the.hard.disk.goes.down.by.any.possibility..They.are.never.

sent.to.outside.via.network.nor.used.for.any.other.purpose.except.for.the.purpose.described.the.above.

. To.disable.the.function,.add.the.check.mark.for.[Disable.the.automatic.save.function.for.management.information.history].

in.[Hard.Disk.Status].of.PC.Information.Viewer,.and.click.[OK]...

(è.

.Reference Manual.“Checking.the.Computer’s.Usage.Status”) n

Precaution against Starting Up/Shutting Down

l

. Do.not.do.the.following

Ÿ

.Connecting.or.disconnecting.the.AC.adaptor

Ÿ

.Sliding.the.power.switch

Ÿ

.Touching.the.keyboard,.touch.pad,.touchscreen,.dual.touch.or.external.mouse

Ÿ

.Closing.the.display

Ÿ

.Turn.on/off.the.wireless.switch

NOTE

l

. To.conserve.power,.the.following.power.saving.methods.are.set.at.the.time.of.purchase.

Ÿ

.The.screen.automatically.turns.off.after.10

*4

Ÿ

.The.computer.automatically.enters.sleep

*4

.Windows.XP.:15.minutes

*5

(

.minutes.of.inactivity.

)/standby

*5

( ).after.20.minutes.of.inactivity.

*5

.Refer.to.

.Reference Manual.“Sleep.or.Hibernation.Functions”.about.resuming.from.sleep/standby.

18

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 18 2011/05/26 11:03:57

n

To change the partition structure

You.can.shrink.a.part.of.an.existing.partition.to.create.unallocated.disk.space,.from.which.you.can.create.a.new.partition..This.computer.has.a.single.partition.in.the.default.setting.

A

. Click. .(Start).and.right-click.[Computer],.then.click.[Manage].

l

. A.standard.user.needs.to.enter.an.administrator.password.

B

. Click.[Disk.Management].

C

. Right-click.the.partition.for.Windows.(“c”.drive.in.the.default.setting),.and.click.[Shrink.Volume].

l

. The.partition.size.depends.on.the.computer.specifications.

D

. Input.the.size.in.[Enter.the.amount.of.space.to.shrink.in.MB].and.click.[Shrink].

l

. You.cannot.input.a.larger.number.than.the.displayed.size.

l

. To.select.[Reinstall.to.the.first.3.partitions.].in.reinstalling.Windows.7.(è.page.23),.30000.MB.or.more.is.necessary.for.[Total.size.after.shrink.in.MB].

E

. Right-click.[Unallocated].(the.shrunk.space.in.the.step.D).and.click.[New.Simple.Volume].

F

. Follow.the.on-screen.instructions.to.make.the.settings,.and.click.[Finish].

Wait.until.formatting.is.completed.

NOTE

l

. You.can.create.an.additional.partition.using.remaining.unallocated.space.or.newly.creating.unallocated.space.

l

. To.delete.a.partition,.right-click.the.partition.and.click.[Delete.Volume].in.the.step.C.

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 19

19

2011/05/26 11:03:58

On-screen Manual

You.can.access.the.Reference.Manual.and.the.Important.Tips.on.the.computer.screen.

When.you.access.the.Reference.Manual.and.the.Important.Tips.for.the.first.time,.the.License.Agreement.of.the.Adobe.

Reader.may.be.displayed..Read.it.carefully.and.select.[Accept].to.proceed.

n

Reference Manual

The.Reference.Manual.contains.the.practical.information.to.help.you.fully.enjoy.the.computer’s.performance.

To access the Reference Manual:

.Double-click.

.on.the.desktop.

l

. Alternatively.click. .(Start).-.[All.Programs].-.[Panasonic].-.[On-Line.Manuals].-.[Reference.Manual].

.Click.[start].-.[Reference.Manual].

l

. Alternatively.click.[start].-.[All.Programs].-.[Panasonic].-.[On-Line.Manuals].-.[Reference.Manual].

n

Important Tips

The.Important.Tips.will.provide.you.with.the.battery.information.so.that.you.can.use.the.battery.pack.in.the.optimum.

condition.to.obtain.longer.operation.time.

To access the Important Tips:

.Double-click.

.on.the.desktop.

l

. Alternatively.click. .(Start).-.[All.Programs].-.[Panasonic].-.[On-Line.Manuals].-.[Important.Tips].

.Double-click.

.on.the.desktop.

l

. Alternatively.click.[start].-.[All.Programs].-.[Panasonic].-.[On-Line.Manuals].-.[Important.Tips].

NOTE

l

. When.Adobe.Reader.update.notice.is.displayed,.we.recommend.you.follow.the.on-screen.procedure.and.update.

See.http://www.adobe.com/.for.the.latest.version.of.Adobe.Reader.

CAUTION

l

. Do.not.remove.the.check.mark.for.[IntelliMouse.Wheel.mode].in.[Scroll.Configuration].of.[Touch.Pad].in.[Mouse].of.

[Control.Panel]..The.Adobe.Reader.scrolling.function.may.not.work.correctly.

20

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 20 2011/05/26 11:03:58

Handling and Maintenance

Operation environment

l

. Place.the.computer.on.a.flat.stable.surface..Do.not.place.the.computer.upright.or.turn.it.over..If.the.computer.is.

exposed.to.an.extremely.strong.impact,.it.may.become.damaged.

l

. Temperature:.Operation.:.-10.°C.to.50.°C.{14.°F.to.122.°F}.(IEC60068-2-1,.2)

*1

. .

Storage.:.-20°C.to.60.°C.{-.4.°F.to.140.°F}

. Humidity:.

Operation.:.30%.to.80%.RH.(No.condensation)

. .

Storage.:.30%.to.90%.RH.(No.condensation)

Even.within.the.above.temperature/humidity.ranges,.using.for.a.long.time.in.an.extreme.environment.will.result.in.

*1 the.product.deterioration.and.will.shorten.the.product.life.

. Do.not.expose.the.skin.to.this.product.when.using.the.product.in.a.hot.or.cold.environment..(èpage.10)

If.the.computer.is.wet.in.temperatures.of.0.°C.{32.°F}.or.below,.freeze.damage.may.occur..Make.sure.to.dry.off.the.

computer.in.such.temperatures.

l

. Do.not.place.the.computer.in.the.following.areas,.otherwise.the.computer.may.be.damaged.

Ÿ

.Near.electronic.equipment..Image.distortion.or.noise.may.occur.

Ÿ

.In.extremely.high.or.low.temperature.

l

. As.the.computer.can.become.hot.during.operation,.keep.it.away.from.items.that.are.sensitive.to.heat.

Handling cautions

This.computer.is.designed.to.minimize.shock.to.parts.such.as.the.LCD.and.the.hard.disk.drive.and.equipped.with.a.

drip-proof.keyboard,.but.no.warranty.is.provided.against.any.trouble.caused.by.shock..Be.extremely.careful.when.handling.the.computer.

l

. When.carrying.the.computer:

Ÿ

.Turn.off.the.computer.

Ÿ

.Remove.all.external.devices,.cables,.PC.Cards.and.other.protruding.objects.

Ÿ

.Do.not.drop.or.hit.the.computer.against.solid.objects.

Ÿ

.Do.not.leave.the.display.open.

Ÿ

.Do.not.grip.the.display.part.

l

. Do.not.put.anything.(e.g.,.a.piece.of.paper).between.the.display.and.keyboard.

l

. When.you.board.an.airplane,.take.the.computer.with.you.and.never.put.it.in.your.checked.luggage..When.using.the.

computer.on.airplane,.follow.the.airline’s.instructions.

l

. When.carrying.a.spare.battery,.put.it.in.a.plastic.bag.to.protect.its.terminals.

l

. The.touch.pad.is.designed.to.be.used.by.a.finger.tip..Do.not.place.any.object.on.its.surface.and.do.not.press.down.

strongly.with.sharp-pointed.or.hard.objects.that.may.leave.marks.(e.g.,.nails,.pencils.and.ball.point.pens).

l

. Avoid.any.harmful.substances.such.as.oil.from.getting.into.the.touch.pad..The.cursor.may.not.work.correctly.

l

. Be.careful.not.to.get.injured.by.dropping.or.getting.hit.when.carrying.the.computer.

l

. Use.only.the.included.stylus/digitizer.pen.to.touch.the.touchscreen..Do.not.place.any.object.on.its.surface.and.do.

not.press.down.strongly.with.sharp-pointed.or.hard.objects.that.may.leave.marks.(e.g.,.nails,.pencils.and.ball.point.

pens).

l

. Do.not.use.the.touchscreen.when.dust.or.dirt.(e.g.,.oil).is.on.the.screen..Otherwise.foreign.particles.on.the.screen/ stylus/digitizer.pen.can.scratch.the.screen.surface.or.obstruct.the.stylus/digitizer.pen.operation.

l

. Use.the.stylus/digitizer.pen.only.for.touching.the.screen..Using.it.for.any.other.purpose.may.damage.the.stylus/digitizer.pen.and.result.in.scratches.on.the.screen.

<Only.for.model.with.dual.touch> l

. The.dual.touch.uses.electromagnetic.induction.and.may.not.work.properly.near.strong.electrical.field.or.magnetic.

field.such.as:

Ÿ

.Near.AM.radio.base.station.or.relay.station.antennas

Ÿ

.Near.CRT.displays.that.generate.strong.electromagnetic.field.noise

. Move.the.dual.touch.away.from.such.locations.so.it.will.work.properly.

l

. The.cursor.cannot.follow.the.digitizer.pen.movement.if.you.move.the.digitizer.pen.too.quickly.

n

When using peripheral devices

Follow.these.instructions.and.the.Reference.Manual.to.avoid.any.damage.to.the.devices..Carefully.read.the.instruction.

manuals.of.the.peripheral.devices.

l

. Use.the.peripheral.devices.conforming.to.the.computer’s.specifications.

l

. Connect.to.the.connectors.in.the.correct.direction.

l

. If.it.is.hard.to.insert,.do.not.try.forcibly.but.check.the.connector’s.shape,.direction,.alignment.of.pins,.etc.

l

. If.screws.are.included,.fasten.them.securely.

l

. Remove.the.cables.when.you.carry.the.computer..Do.not.pull.the.cables.forcibly.

21

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 21 2011/05/26 11:03:58

Handling and Maintenance

n

Preventing your computer from unauthorized use via wireless LAN/Bluetooth/Wireless WAN

<Only.for.model.with.wireless.LAN/Bluetooth/Wireless.WAN> l

. Before.using.wireless.LAN/Bluetooth/Wireless.WAN,.make.the.appropriate.security.settings.such.as.data.encryption.

Maintenance

To clean the LCD panel

Use.the.soft.cloth.included.with.the.computer..(For.further.information,.refer.to.“Suggestions.About.Cleaning.the.LCD.

Surface”.è.

.Reference Manual.“Touchscreen”./.“Dual.Touch”.)

To clean areas other than the LCD panel

Wipe.with.a.soft.dry.cloth.such.as.gauze..When.using.detergent,.dip.a.soft.cloth.in.water-diluted.detergent.and.wring.it.

thoroughly..

CAUTION

l

. Do.not.use.benzene,.thinner,.or.rubbing.alcohol.since.it.may.adversely.affect.the.surface.causing.discoloration,.etc..

Do.not.use.commercially-available.household.cleaners.and.cosmetics,.as.they.may.contain.components.harmful.to.

the.surface.

l

. Do.not.apply.water.or.detergent.directly.to.the.computer,.since.liquid.may.enter.inside.of.the.computer.and.cause.

malfunction.or.damage.

22

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 22 2011/05/26 11:03:58

Reinstalling Software

Reinstalling.software.will.return.the.computer.to.the.default.condition..When.you.reinstall.the.software,.the.hard.disk.

data.will.be.erased.

Back.up.important.data.to.other.media.or.an.external.hard.disk.before.reinstallation.

n

Hard Disk Recovery

CAUTION

l

. You.can.reinstall.Windows.7.only.

l

. Do.not.delete.the.partition.with.boot.files.on.the.hard.disk.

The.disk.space.in.the.partition.is.not.available.to.store.data.

Hard disk

HDD Recovery partition 10GB

Recovery partition 300MB

Area usable by Windows

Preparation

l

. Remove.all.peripherals.

l

. Connect.the.AC.adaptor.and.do.not.remove.it.until.reinstallation.is.complete.

1 Turn on the computer, and press

F2

or

Del

while [Panasonic] boot screen is displayed.

The.Setup.Utility.starts.up.

l

. If.the.password.is.requested,.enter.the.Supervisor.Password.

2 Write down all of the contents of the Setup Utility and press

F9

.

At.the.confirmation.message,.select.[Yes].and.press.

Enter.

3 Press

F10

.

At.the.confirmation.message,.select.[Yes].and.press.

Enter.

Computer.will.restart.

4 Press

F2

or

Del

while [Panasonic] boot screen is displayed.

The.Setup.Utility.starts.up.

l

. If.the.password.is.requested,.enter.the.Supervisor.Password.

5 Select the [Exit] menu, then select [Repair Your Computer] and press

Enter

.

6 Click [Reinstall Windows] and click [Next].

The.License.Agreement.screen.appears.

7 Click [Yes, I agree to the provisions above and wish to continue!] and click [Next].

8 Select the settings and click [Next].

l

. [Reinstall.Windows.to.the.whole.Hard.Disk.to.factory.default.]

Select.this.option.when.you.want.to.reinstall.Windows.to.the.factory.default..After.reinstallation,.you.can.create.

a.new.partition..For.how.to.create.a.new.partition,.refer.to.“To.change.the.partition.structure”.(è.page.19).

l

. [Reinstall.to.the.System.and.OS.partitions.]

*1

Select.this.option.when.the.hard.disk.has.already.been.divided.into.several.partitions..For.how.to.create.a.

new.partition,.refer.to.“To.change.the.partition.structure”.(è.page.19).

You.can.keep.the.partition.structure.

*1

.This.does.not.appear.if.Windows.cannot.be.reinstalled.to.the.partition.containing.boot.files.and.the.area.usable.by.Windows.

9 At the confirmation message, click [OK].

10 Select OS (32bit or 64bit) and click [OK].

11 At the confirmation message, click [OK].

Reinstallation.starts.according.to.the.instructions.on.the.screen.

l

. Do.not.interrupt.reinstallation,.for.example.by.turning.off.the.computer..Otherwise.reinstallation.may.become.

unavailable.as.Windows.may.not.start.up.or.the.data.may.be.corrupted.

12 When termination screen is displayed, click [OK] to turn off the computer.

13 Turn on the computer.

l

. If.the.password.is.requested,.enter.the.Supervisor.Password.

14 Perform the “First-time Operation” (è page 16).

15 Start the Setup Utility and change the settings as necessary.

16 Perform Windows Update.

23

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 23 2011/05/26 11:03:58

Reinstalling Software

n

Using Recovery Disc

Use.the.Recovery.Disc.for.reinstallation.in.the.following.conditions.

Ÿ

. You.have.forgotten.the.administrator.password.

Ÿ

. Reinstallation.is.not.complete..The.recovery.partition.may.be.broken.

NOTE

l

. To.change.OS.from.32.bit.to.64.bit,.or.vice.versa,.reinstall.OS.using.the.recovery.partition.in.the.hard.disk.

Preparation

l

. Prepare.the.Recovery.Disc.(è.

.Reference Manual.“Recovery.Disc.Creation.Utility”) l

. Remove.all.peripherals.

l

. Connect.the.AC.adaptor.and.do.not.remove.it.until.reinstallation.is.complete.

1

Turn off the computer and connect the CD/DVD drive to the USB port (è page 12).

2 Turn on the computer, and press

F2

or

.Del

while [Panasonic] boot screen is displayed.

The.Setup.Utility.starts.up.

l

. If.the.password.is.requested,.enter.the.Supervisor.Password.

3 Write down all of the contents of the Setup Utility and press

F9

.

At.the.confirmation.message,.select.[Yes].and.press.

Enter.

4 Press

F10

.

At.the.confirmation.message,.select.[Yes].and.press.

Enter.

Computer.will.restart.

5 Press

F2

or

.Del.

while [Panasonic] boot screen is displayed.

The.Setup.Utility.starts.up.

l

. If.the.password.is.requested,.enter.the.Supervisor.Password.

6 Set the Recovery Disc into the CD/DVD drive.

7 Select the [Exit] menu, then select your CD/DVD drive.

8 Press

.Enter.

The.computer.will.restart.

9 Click [Reinstall Windows] and click [Next].

The.License.Agreement.screen.appears.

10 Click [Yes, I agree to the provisions above and wish to continue!] and click [Next].

11 Select the settings and click [Next].

l

. [Reinstall.Windows.to.the.whole.Hard.Disk.to.factory.default.]

Select.this.option.when.you.want.to.reinstall.Windows.to.the.factory.default..After.reinstallation,.you.can.create.

a.new.partition..For.how.to.create.a.new.partition,.refer.to.“To.change.the.partition.structure”.(è

page.19).

l

. [Reinstall.to.the.first.3.partitions.] *2

Select.this.option.when.the.hard.disk.has.already.been.divided.into.several.partitions..For.how.to.create.a.

new.partition,.refer.to.“To.change.the.partition.structure”.(è page.19).

You.can.keep.the.partition.structure.

*2

.This.does.not.appear.if.Windows.cannot.be.reinstalled.to.the.partition.containing.boot.files.and.the.area.usable.by.Windows.

12 At the confirmation message, click [YES].

Reinstallation.starts..(It.will.take.approximately.30.minutes.)

According.to.the.screen,.replace.the.Recovery.Disc.

l

. Do.not.interrupt.reinstallation,.for.example.by.turning.off.the.computer..Otherwise.reinstallation.may.become.

unavailable.as.Windows.may.not.start.up.or.the.data.may.be.corrupted.

13 When termination screen is displayed, remove the Recovery Disc, and then click [OK] to turn off the computer.

14 Turn on the computer.

l

. If.the.password.is.requested,.enter.the.Supervisor.Password.

15 Perform the “First-time Operation” (è page 16).

16 Start the Setup Utility and change the settings as necessary.

17 Perform Windows Update.

24

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 24 2011/05/30 11:25:00

Troubleshooting (Basic)

Follow.the.instructions.below.when.a.problem.has.occurred..There.is.also.an.advanced.troubleshooting.guide.in.the.

“Reference.Manual”..For.a.software.problem,.refer.to.the.software’s.instruction.manual..If.the.problem.persists,.contact.

Panasonic.Technical.Support.(è.page.36)..You.can.also.check.the.computer’s.status.in.the.PC.Information.Viewer.

(è.

.Reference Manual “Troubleshooting.(Advanced)”).

n

Starting Up

Cannot.start.up.

The.power.indicator.or.battery.indicator.is.not.lit.

The.power.is.turned.on.but.

“Warming.up.the.system”.

appears.

l

. Connect.the.AC.adaptor.

l

. Insert.a.fully.charged.battery.

l

. Remove.the.battery.pack.and.the.AC.adaptor,.then.connect.them.again..

l

. If.a.device.is.connected.to.the.USB.port,.disconnect.the.device,.or.set.[USB.Port].or.

[Legacy.USB.Support].to.[Disable].in.the.[Advanced].menu.of.the.Setup.Utility.

l

. If.a.device.is.connected.to.the.ExpressCard.slot,.disconnect.the.device,.or.set.

[ExpressCard.Slot].to.[Disable].in.the.[Advanced].menu.of.the.Setup.Utility.

l

. Press .

Fn .

+ .

F8 .

to.turn.off.the.concealed.mode.

l

. The.computer.is.warming.up.before.start.up..Wait.for.the.computer.to.start.up.(the.maximum.waiting.time.will.be.displayed.on.the.screen)..If,.“Cannot.warm.up.the.system”.is.

displayed,.the.computer.failed.to.warm.up.and.does.not.start..In.this.case,.turn.off.the.

computer,.leave.it.in.an.environment.of.5.°C.{41.°F}.or.higher.temperature.for.about.an.

hour,.and.then.turn.on.the.power.again.

l

. Leave.it.in.an.environment.of.5.°C.{41.°F}.or.higher.temperature.for.about.an.hour,.then.

turn.on.the.power.again.

Cannot.turn.on.the.computer.

The.computer.does.not.re-

( sume.from.sleep

(

)/standby.

).

(The.power.indicator.blinks.

quickly.in.green.)

The.computer.does.not.

enter.sleep.mode.while.the.

screen.saver.is.running..(The.

screen.stays.black.)

You.have.forgotten.the.password.

l

. Slide.and.hold.the.power.switch.for.four.seconds.or.longer.to.shut.down.the.computer.

forcibly..(Data.not.saved.will.be.lost.).Then.disable.the.screen.saver.

“Remove.disks.or.other.

media..Press.any.key.to.

restart”.or.a.similar.message.

appears.

l

. Supervisor.Password.or.User.Password:.Contact.Panasonic.Technical.Support.

(è.page.36).

l

. Administrator.password:.

Ÿ

. If.you.have.a.password.reset.disk,.you.can.reset.the.administrator.password..Set.the.

disk.and.enter.any.wrong.password,.then.follow.the.on-screen.instructions.and.set.a.

new.password.

Ÿ

. If.you.do.not.have.a.password.reset.disk,.reinstall.(è.page.23).and.set.up.Windows,.

and.then.set.a.new.password.

l

. A.floppy.disk.is.in.the.drive.and.it.does.not.contain.system.startup.information..Remove.

the.floppy.disk.and.press.any.key.

l

. If.a.device.is.connected.to.the.USB.port,.disconnect.the.device,.or.set.[USB.Port].or.

[Legacy.USB.Support].to.[Disable].in.the.[Advanced].menu.of.the.Setup.Utility.

l

. If.a.device.is.connected.to.the.ExpressCard.slot,.disconnect.the.device,.or.set.

[ExpressCard.Slot].to.[Disable].in.the.[Advanced].menu.of.the.Setup.Utility.

l

. If.the.problem.persists.after.removing.the.disk,.it.may.be.a.hard.disk.failure..Contact.

Panasonic.Technical.Support.(è.page.36).

Windows.startup.and.operation.is.slow.

l

. Press.

F9

.in.the.Setup.Utility.(è.

.Reference Manual.“Setup.Utility”).to.return.the.

Setup.Utility.settings.(excluding.the.passwords).to.the.default.values..Start.the.Setup.

Utility.and.make.the.settings.again..(Note.that.the.processing.speed.depends.on.the.application.software,.so.this.procedure.may.not.make.Windows.faster.) l

. If.you.installed.a.resident.software.after.purchase,.turn.off.the.residence.

l

.

.Disable.Indexing.Service.in.the.following.menu.

Click.[start].-.[Search].-.[Change.preferences].-.[With.Indexing.Service.(for.faster.local.

service)].

25

2011/05/26 11:03:59 DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 25

Troubleshooting (Basic)

n

Starting Up

The.date.and.time.are.incorrect.

[Executing.Battery.Recalibration].screen.appears.

[Enter.Password].does.not.

appear.when.resuming.from.

( sleep.( )/standby.

)/hibernation.

l

. Make.the.correct.settings.

..Click.

.(Start) and.Time].

.-.[Control.Panel].-.[Clock,.Language,.and.Region].-.[Date.

..Click.[start].-.[Control.Panel].-.[Date,.Time,.Language,.and.Regional.

Options].-.[Date.and.Time].

l

. If.the.problem.persists,.the.internal.clock.battery.may.need.to.be.replaced..Contact.

Panasonic.Technical.Support.(è.page.36).

l

. When.the.computer.is.connected.to.LAN,.check.the.date.and.time.of.the.server.

l

. The.2100.A.D..or.later.year.will.not.be.correctly.recognized.on.this.computer.

l

. The.Battery.Recalibration.was.canceled.before.Windows.was.shut.down.last.time..To.

start.up.Windows,.turn.off.the.computer.by.the.power.switch,.and.then.turn.on.

l

. Select.[Enabled].in.[Password.On.Resume].in.the.[Security].menu.of.the.Setup.Utility.

(è.Reference Manual.“Setup.Utility”).

l

. The.Windows.password.can.be.used.instead.of.the.password.set.in.the.Setup.Utility.

A

. Click.

B

. Click.

word].

.(Start) move.user.accounts].and.select.the.account,.and.set.the.password.

.(Start)

.-.[Control.Panel].-.[User.Accounts.and.Family.Safety].-.[Add.or.re-

.-.[Control.Panel].-.[System.and.Security].-.[Power.Option].-.[Require.

a.password.when.the.computer.wakes].and.add.a.check.mark.for.[Require.a.pass-

Cannot.resume.

Other.startup.problems.

A

. Click.[start].-.[Control.Panel].-.[User.Accounts].and.select.the.account,.and.set.the.

password.

B

. Click.[start].-.[Control.Panel].-.[Performance.and.Maintenance].-.[Power.Options].-.

[Advanced].and.add.a.check.mark.for.[Prompt.for.password.when.computer.resumes.

from.standby].

l

. One.of.the.following.operations.may.have.been.carried.out.

Ÿ

. In.sleep.( )./.standby.( ).mode,.the.AC.adaptor.or.battery.

pack.was.disconnected,.or.a.peripheral.was.connected.or.disconnected.

Ÿ

. The.power.switch.was.slid.for.four.seconds.or.longer.to.forcibly.turn.off.the.computer.

Slide.the.power.switch.to.turn.on.the.computer..Data.not.saved.will.be.lost.

l

. An.error.may.occur.when.the.computer.automatically.enters.the.sleep.( standby.(

)./.

).or.hibernation.mode.while.the.screensaver.is.active..In.this.

case,.turn.off.the.screensaver.or.change.the.pattern.of.the.screensaver.

l

. Press.

F9

.in.the.Setup.Utility.(è.

Setup.Utility.settings.(excluding.the.passwords).to.the.default.values..Start.the.Setup.

Utility.and.make.the.settings.again.

l

. Remove.all.peripheral.devices.

.Reference Manual.“Setup.Utility”).to.return.the.

l

. Check.to.see.if.there.was.a.disk.error.

A

. Remove.all.peripheral.devices.including.an.external.display.

B

. Click.

.(Start)

.-.[Computer].and.right-click.[Local.Disk.(C:)],.and.click.[Properties].

C

. Click.[Tools].-.[Check.Now...].

Ÿ

. A.standard.user.needs.to.enter.an.administrator.password.

D

. Select.the.option.in.[Check.disk.options].and.click.[Start].

E

. Click.[Schedule.disk.check].and.restart.the.computer.

A

. Click.[start].-.[My.Computer].and.right-click.[Local.Disk(C:)],.and.click.[Properties].

B

. Click.[Tools].-.[Check.Now].

C

. Select.the.option.in.[Check.disk.options].and.click.[Start].

l

. Start.the.computer.in.Safe.Mode.and.check.the.error.details..When.the.[Panasonic].boot.

screen.disappears

*1

.at.startup,.press.and.hold.

F8

.until.the.Windows.Advanced.Options.

Menu.is.displayed..Select.the.Safe.Mode.and.press.

Enter

.

*1

. When.[Password.on.boot].is.set.to.[Enabled].in.the.[Security].menu.of.the.Setup.Utility,.

[Enter.Password].appears.after.the.[Panasonic].boot.screen.disappears..As.soon.as.you.

enter.the.password.and.press.

Enter

,.press.and.hold.

F8

.

26

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 26 2011/05/26 11:03:59

n

Entering Password

Even.after.entering.the.password,.password.input.screen.

is.displayed.again.

Cannot.log.on.to.Windows..

(“The.user.name.or.password.is.incorrect.”.is.displayed.) l

. The.computer.may.be.in.ten-key.mode.

If.the.NumLk.indicator. .lights,.press.

NumLk input.

l

. The.computer.may.be.in.Caps.Lock.mode.

If.the.Caps.Lock.indicator. .lights,.press.

mode,.and.then.input.

.to.disable.the.ten-key.mode,.and.then.

Caps Lock .to.disable.the.Caps.Lock.

l

. The.user.name.(account.name).includes.an.“@”.mark.

-..If.another.user.account.name.exists:.

Log.on.to.Windows.using.another.user.account.name,.and.delete.the.account.name.

that.includes.“@”..Then.create.a.new.account.name.

-..If.no.other.account.name.exists:.

You.need.to.reinstall.Windows.(è.page.23).

n

Shutting down

Windows.does.not.shut.

down.

l

. Remove.the.USB.device.and.the.ExpressCard.

l

. Wait.one.or.two.minutes..It.is.not.a.malfunction.

n

Display

No.display.

l

. The.external.display.is.selected..Press.

Fn

.+.

F3

.or. .+.

P

*2

.to.switch.the.display..Wait.

until.the.display.has.been.switched.completely.before.pressing.

Ctrl .

Fn .+.

F3 .or. .+.

P

*2

.

again.

l

. When.using.an.external.display,

Ÿ

. Check.the.cable.connection.

Ÿ

. Turn.on.the.display.

Ÿ

. Check.the.settings.of.external.display.

l

. The.display.is.turned.off.by.the.power-saving.function..To.resume,.do.not.press.the.

direct.selection.keys,.but.press.any.other.key.like.

l

. The.computer.entered.sleep.( ).or.hibernation.by.

*2

. Windows.7.only

)./standby.( the.power-saving.function..To.resume,.press.the.power.switch.

The.screen.is.dark.

The.screen.is.disordered.

l

. The.screen.is.darker.when.the.AC.adaptor.is.not.connected..Press.

Fn .+.

F2 .and.adjust.

the.brightness..As.you.increase.the.brightness,.battery.consumption.increases.

You.can.separately.set.the.brightness.for.when.the.AC.adaptor.is.connected.and.when.

not.connected.

l

. Press .

Fn .

+ .

F8 .

to.turn.off.the.concealed.mode.

l

. Changing.the.number.of.display.colors.and.resolution.may.affect.the.screen..Restart.the.

computer.

l

. Connecting/disconnecting.an.external.display.may.affect.the.screen..Restart.the.computer.

During.Simultaneous.display,.

one.of.the.screens.becomes.

disordered.

The.external.display.does.

not.work.normally.

l

. When.using.the.Extended.Desktop,.use.the.same.display.colors.for.the.external.display.

as.those.used.by.the.LCD.

l

.

.When.the.[Command.Prompt].is.set.to.“Full.Screen”.by.pressing.

+ Enter is.restored.by.pressing.

Alt

,.the.picture.is.displayed.on.one.of.the.screens.only..When.the.window.display.

Alt + Enter ,.the.picture.is.displayed.on.both.screens.

l

. Simultaneous.display.cannot.be.used.until.Windows.startup.is.complete.(during.Setup.

Utility,.etc.).

l

. If.the.external.display.does.not.support.the.power.saving.function,.it.may.not.work.normally.when.the.computer.enters.the.power.saving.mode..Turn.off.the.external.display.

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 27

27

2011/05/26 11:03:59

28

Troubleshooting (Basic)

n

Display

<Only.for.model.with.GPS>

The.cursor.cannot.be.controlled.properly.

l

. Operate.the.following.steps.

A

. .Set.[GPS].to.[Disable].in.the.[Advanced].-.[Serial.Port.Settings].of.the.Setup.Utility.

B

. .Press

F10 .and.select.[Yes].at.the.confirmation.message,.and.press.

The.computer.will.restart.

F2 .while.[Panasonic].boot.screen.is.displayed.

F10

Enter .

.and.select.[Yes].at.the.confirmation.message,.and.press.

Enter

Enter .

.

C

. .Log.on.to.Windows.as.an.administrator.

D

. .Click. (Start).and.input.“c:\util\drivers\gps\GPS.reg”.in.[Search.programs.and.files],.

and.press.

E

. .Click.[Yes],.click.[Yes].and.click.[OK].

Then.restart.the.computer.

F

. .Press.

G

. .Set.[GPS].to.[Enable].in.the.[Advanced].-.[Serial.Port.Settings].

H

. .Press.

n

Touch Pad / Touchscreen (only for model with touchscreen)/Dual Touch (only for model with dual touch)

The.cursor.does.not.work.

l

. When.using.the.external.mouse,.connect.it.correctly.

l

. Restart.the.computer.using.the.keyboard..

Press. .and.press.è.two.times,.and.press.  .to.select.[Restart].and.press.

Enter

.

Cannot.input.using.the.touch.

pad.

Press. ,.

U

(è.page.29).

,.and.

R

.to.select.[Restart].

l

. If.the.computer.does.not.respond.to.keyboard.commands,.read.“No.response” l

. Set.[Touch.Pad].to.[Enable].in.the.[Main].menu.of.the.Setup.Utility.

l

. The.drivers.for.some.mice.may.disable.the.touch.pad..Check.your.mouse’s.operating.

instructions.

<Only.for.model.with.touchscreen>

Cannot.input.using.the.

touchscreen.

l

. Set.[Touchscreen.Mode].to.[Auto].or.[Tablet.Mode].in.the.[Main].menu.of.the.Setup.Utility.

Cannot.point.the.correct.

position.using.the.included.

stylus/digitizer.pen.

l

. Set.[Touchscreen.Mode].to.[Auto].or.[Touchscreen.Mode].in.the.[Main].menu.of.the.

Setup.Utility.

<Only.for.model.with.touchscreen> l

. Perform.the.touchscreen.calibration.(è.page.17).

<Only.for.model.with.dual.touch> l

. Perform.the.digitizer.calibration.and.Touchscreen.calibration.(è.page.17).

l

. Use.the.included.digitizer.pen.

l

. On.the.Windows.logon.screen.or.the.Welcome.screen,.you.may.not.be.able.to.point.the.

correct.position.using.the.included.digitizer.pen..Use.the.keyboard.or.the.touch.pad.to.

log.on.

n

Reference Manual

The.Reference.Manual.is.

not.displayed.

l

. Install.Adobe.Reader.

A

. Log.on.to.Windows.as.an.administrator.

B

. Click.

.(Start).and.input.“c:\util\reader\Setup.exe”.in.[Search.programs.and.files].

then.press

.

Enter .

C

. Update.Adobe.Reader.to.its.latest.version.

If.your.computer.is.connected.to.the.internet,.start.up.Adobe.Reader.and.click.[Help].

-.[Check.for.Updates...].

B

. Click.[start].-.[Run],.input.[c:\util\reader\Setup.exe],.then.click.[OK].

C

. Update.Adobe.Reader.to.its.latest.version.

If.your.computer.is.connected.to.the.internet,.start.up.Adobe.Reader.and.click.[Help].

-.[Check.for.updates.now].

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 28 2011/05/26 11:03:59

n

Others

No.response.

l

. Press.

Ctrl + Shift

Alt

+

+ Esc

Tab

.to.open.Task.Manager.and.close.the.software.application.

.to.check.

l

. Slide.the.power.switch.for.four.seconds.or.longer.to.shut.down.the.computer,.and.then.

slide.the.power.switch.to.turn.it.on..If.the.application.program.does.not.work.normally,.

uninstall.and.reinstall.the.program..To.uninstall, that.is.not.responding.

l

. An.input.screen.(e.g.,.password.input.screen.at.startup).may.be.hidden.behind.another.

window..Press.

click. .(Start).-.[Control.Panel].-.[Program].-.[Uninstall.a.program].

click.[start].-.[Control.Panel].-.[Add.or.Remove.Programs].

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 29

29

2011/05/26 11:03:59

30

LIMITED USE LICENSE AGREEMENT

THE.SOFTWARE.PROGRAM(S).(“PROGRAMS”).FURNISHED.WITH.THIS.PANASONIC.PRODUCT.(“PRODUCT”).

ARE.LICENSED.ONLY.TO.THE.END-USER.(“YOU”),.AND.MAY.BE.USED.BY.YOU.ONLY.IN.ACCORDANCE.WITH.

THE.LICENSE.TERMS.DESCRIBED.BELOW..YOUR.USE.OF.THE.PROGRAMS.SHALL.BE.CONCLUSIVELY.

DEEMED.TO.CONSTITUTE.YOUR.ACCEPTANCE.OF.THE.TERMS.OF.THIS.LICENSE.

Panasonic.Corporation.has.developed.or.otherwise.obtained.the.Programs.and.hereby.licenses.their.use.to.you..You.

assume.sole.responsibility.for.the.selection.of.the.Product.(including.the.associated.Programs).to.achieve.your.intended.results,.and.for.the.installation,.use.and.results.obtained.therefrom.

LICENSE

A.. Panasonic.Corporation.hereby.grants.you.a.personal,.non-transferable.and.non-exclusive.right.and.license.to.use.

the.Programs.in.accordance.with.the.terms.and.conditions.stated.in.this.Agreement..You.acknowledge.that.you.are.

receiving.only.a.LIMITED.LICENSE.TO.USE.the.Programs.and.related.documentation.and.that.you.shall.obtain.

no.title,.ownership.nor.any.other.rights.in.or.to.the.Programs.and.related.documentation.nor.in.or.to.the.algorithms,.

concepts,.designs.and.ideas.represented.by.or.incorporated.in.the.Programs.and.related.documentation,.all.of.

which.title,.ownership.and.rights.shall.remain.with.Panasonic.Corporation.or.its.suppliers.

B.. You.may.use.the.Programs.only.on.the.single.Product.which.was.accompanied.by.the.Programs.

C.. You.and.your.employees.and.agents.are.required.to.protect.the.confidentiality.of.the.Programs..You.may.not.distribute.or.otherwise.make.the.Programs.or.related.documentation.available.to.any.third.party,.by.time-sharing.or.otherwise,.without.the.prior.written.consent.of.Panasonic.Corporation.

D.. You.may.not.copy.or.reproduce,.or.permit.to.be.copied.or.reproduced,.the.Programs.or.related.documentation.for.

any.purpose,.except.that.you.may.make.one.(1).copy.of.the.Programs.for.backup.purposes.only.in.support.of.your.

use.of.the.Programs.on.the.single.Product.which.was.accompanied.by.the.Programs..You.shall.not.modify,.or.attempt.to.modify,.the.Programs.

E.. You.may.transfer.the.Programs.and.license.them.to.another.party.only.in.connection.with.your.transfer.of.the.single.

Product.which.was.accompanied.by.the.Programs.to.such.other.party..At.the.time.of.such.a.transfer,.you.must.also.

transfer.all.copies,.whether.in.printed.or.machine.readable.form,.of.every.Program,.and.the.related.documentation,.

to.the.same.party.or.destroy.any.such.copies.not.so.transferred.

F.. You.may.not.remove.any.copyright,.trademark.or.other.notice.or.product.identification.from.the.Programs.and.you.

must.reproduce.and.include.any.such.notice.or.product.identification.on.any.copy.of.any.Program.

YOU.MAY.NOT.REVERSE.ASSEMBLE,.REVERSE.COMPILE,.OR.MECHANICALLY.OR.ELECTRONICALLY.TRACE.

THE.PROGRAMS,.OR.ANY.COPY.THEREOF,.IN.WHOLE.OR.IN.PART.

YOU.MAY.NOT.USE,.COPY,.MODIFY,.ALTER,.OR.TRANSFER.THE.PROGRAMS.OR.ANY.COPY.THEREOF,.IN.

WHOLE.OR.IN.PART,.EXCEPT.AS.EXPRESSLY.PROVIDED.IN.THE.LICENSE.

IF.YOU.TRANSFER.POSSESSION.OF.ANY.COPY.OF.ANY.PROGRAM.TO.ANOTHER.PARTY,.EXCEPT.AS.PER-

MITTED.IN.PARAGRAPH.E.ABOVE,.YOUR.LICENSE.IS.AUTOMATICALLY.TERMINATED.

TERM

This.license.is.effective.only.for.so.long.as.you.own.or.lease.the.Product,.unless.earlier.terminated..You.may.terminate.this.license.at.any.time.by.destroying,.at.your.expense,.the.Programs.and.related.documentation.together.with.

all.copies.thereof.in.any.form..This.license.will.also.terminate.effective.immediately.upon.occurrence.of.the.conditions.

thereof.set.forth.elsewhere.in.this.Agreement,.or.if.you.fail.to.comply.with.any.term.or.condition.contained.herein..Upon.

any.such.termination,.you.agree.to.destroy,.at.your.expense,.the.Programs.and.related.documentation.together.with.all.

copies.thereof.in.any.form.

YOU.ACKNOWLEDGE.THAT.YOU.HAVE.READ.THIS.AGREEMENT,.UNDERSTAND.IT.AND.AGREE.TO.BE.BOUND.

BY.ITS.TERMS.AND.CONDITIONS..YOU.FURTHER.AGREE.THAT.IT.IS.THE.COMPLETE.AND.EXCLUSIVE.STATE-

MENT.OF.THE.AGREEMENT.BETWEEN.US,.WHICH.SUPERSEDES.ANY.PROPOSAL.OR.PRIOR.AGREEMENT,.

ORAL.OR.WRITTEN,.AND.ANY.OTHER.COMMUNICATIONS.BETWEEN.US,.RELATING.TO.THE.SUBJECT.MAT-

TER.OF.THIS.AGREEMENT.

GOVERNMENT RESTRICTED RIGHTS.

The.Software.is.provided.with.“RESTRICTED.RIGHTS.”.Use.duplication.or.disclosure.by.the.government.is.subject.

to.restrictions.as.set.forth.in.FAR52.227-14.and.DFAR252..227-7013.et.seq..or.their.successors.

Use.of.the.Software.by.the.government.constitutes.acknowledgement.of.Intel’s.proprietary.rights.therein.

Contractor.or.Manufacturer.is.Intel.Corporation,.2200.Mission.College.Blvd.,.Santa.Clara,.CA.95052.

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 30 2011/05/26 11:04:00

Contrat de licence d’usage limité

Le(s).logiciel(s).(les.“Logiciels”).fournis.avec.ce.produit.Panasonic.(le.“Produit”).sont.exclusivement.concédés.en.

licence.à.l’utilisateur.ultime.(“vous”),.et.ils.ne.peuvent.être.utilisés.que.conformément.aux.clauses.contractuelles.cidessous..En.utilisant.les.logiciels,.vous.vous.engagez.de.manière.définitive.à.respecter.les.termes,.clauses.et.conditions.

des.présentes.

Panasonic.Corporation.a.mis.au.point.ou.obtenu.les.Logiciels.et.vous.en.concède.l’utilisation.par.les.présentes..Vous.

assumez.l’entière.responsabilité.du.choix.de.ce.Produit.(y.compris.des.Logiciels.associés).pour.obtenir.les.résultats.

escomptés,.ainsi.que.de.l’installation,.de.l’utilisation.et.des.résultats.obtenus.

Licence

A.. Panasonic.Corporation.vous.octroie.par.les.présentes.le.droit.et.la.licence.personnels,.non.cessibles.et.non.exclusifs.d’utiliser.les.Logiciels.conformément.aux.termes,.clauses.et.conditions.de.ce.contrat..Vous.reconnaissez.ne.

recevoir.qu’un.droit.limité.d’utiliser.les.Logiciels.et.la.documentation.les.accompagnant.et.vous.vous.engagez.à..

n’obtenir.aucun.droit.de.titre,.propriété.ni.aucun.autre.droit.vis-à-vis.des.Logiciels.et.de.la.documentation.les.accompagnant.ni.vis-à-vis.des.algorithmes,.concepts,.dessins,.configurations.et.idées.représentés.par.ou.incorporés.

dans.les.Logiciels.et.la.documentation.les.accompagnant,.dont.les.titres,.propriété.et.droits.resteront.tous.à.Panasonic.Corporation.ou.à.leurs.propriétaires.

B.. Vous.ne.pouvez.utiliser.les.Logiciels.que.sur.le.Produit.unique.qui.est.accompagné.par.les.Logiciels.

C.. Vous.et.vos.employés.ou.agents.êtes.requis.de.protéger.la.confidentialité.des.Logiciels..Vous.ne.pouvez.ni.distribuer.ni.mettre.les.Logiciels.et.la.documentation.les.accompagnant.à.la.disposition.d’un.tiers,.par.partage.de.

temps.ou.de.quelque.autre.manière.que.ce.soit,.sans.l’autorisation.écrite.préalable.de.Panasonic.Corporation.

D.. Vous.ne.pouvez.ni.copier.ni.reproduire.ni.permettre.la.copie.ni.la.reproduction.des.Logiciels.ni.de.la.documentation.les.accompagnant.pour.quelque.fin.que.ce.soit,.à.l’exception.d’une.(1).copie.des.Logiciels.à.des.fins.de.sauvegarde.uniquement.pour.soutenir.votre.utilisation.des.Logiciels.sur.le.Produit.unique.qui.est.accompagné.par.les.

Logiciels..Vous.ne.pouvez.ni.modifier.ni.tenter.de.modifier.les.Logiciels.

E.. Vous.ne.pouvez.céder.les.Logiciels.et.en.octroyer.la.licence.à.une.autre.partie.qu’en.rapport.avec.votre.cession.du.

Produit.unique.qui.est.accompagné.par.les.Logiciels.à.cette.autre.partie..Au.moment.de.cette.cession,.vous.devez.

céder.également.toutes.les.copies,.que.ce.soit.sous.forme.imprimée.ou.lisible.par.la.machine,.de.tous.les.Logiciels.

ainsi.que.de.la.documentation.les.accompagnant,.à.la.même.partie.ou.détruire.les.copies.non.cédées.

F.. Vous.ne.pouvez.retirer.aucune.marque.de.droits.d’auteur,.marque.de.commerce.ou.autre.ni.aucune.identification.

de.produit.des.Logiciels.et.vous.devez.reproduire.et.inclure.toutes.ces.notices.ou.identifications.de.produit.sur.

toutes.les.copies.des.Logiciels.

Vous.ne.pouvez.assembler.en.sens.inverse,.compiler.en.sens.inverse.ni.retracer.les.Logiciels.ni.aucune.de.leurs.copies,.de.façon.électronique.ou.mécanique,.en.tout.ou.en.partie.

Vous.ne.pouvez.utiliser,.copier,.modifier,.altérer.ni.céder.les.Logiciels.ni.aucune.de.leurs.copies,.en.tout.ou.en.partie,.à.

l’exception.de.ce.qui.est.expressément.stipulé.dans.ce.contrat.

Si.vous.cédez.la.possession.de.toute.copie.ou.de.tout.Logiciel.à.une.autre.partie,.à.l’exception.de.ce.qui.est.autorisé.

au.paragraphe.E.ci-dessus,.votre.licence.est.automatiquement.résiliée.

Termes, clauses et conditions

Cette.licence.n’est.effective.que.pour.la.durée.de.possession.ou.de.crédit-bail.du.Produit,.à.moins.d’une.résiliation.antérieure..Vous.pouvez.résilier.cette.licence.à.tout.moment.en.détruisant,.à.vos.frais,.les.Logiciels.et.la.documentation.

les.accompagnant.avec.toutes.leurs.copies,.sous.quelque.forme.que.ce.soit..Cette.licence.sera.également.résiliée,.

avec.application.immédiate,.si.les.conditions.de.résiliation.définies.ailleurs.dans.ce.contrat.se.sont.réalisées.ou.si.vous.

ne.respectez.pas.les.termes,.clauses.et.conditions.qui.y.sont.contenues..Au.moment.de.la.résiliation,.vous.acceptez.

de.détruire,.à.vos.frais,.les.Logiciels.et.la.documentation.les.accompagnant.avec.toutes.leurs.copies,.sous.quelque.

forme.que.ce.soit.

Vous.reconnaissez.avoir.lu.ce.contrat,.en.avoir.compris.toute.la.substance.et.avoir.accepté.de.respecter.ses.termes,.

clauses.et.conditions..Vous.reconnaissez.en.outre.qu’ils.sont.la.description.complète.et.exclusive.du.contrat.conclu.

entre.nous,.contrat.qui.remplace.et.annule.toute.proposition.ou.contrat.précédent,.écrit.ou.oral,.et.toute.autre.communication.entre.nous,.relativement.à.l’objet.du.présent.contrat.

31

2011/05/26 11:04:00 DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 31

Specifications

32

This.page.provides.the.specifications.for.the.basic.model...

The.model.number.is.different.according.to.the.unit.configuration.

l

. To.check.the.model.number:

Check.the.bottom.of.the.computer.or.the.box.the.computer.came.in.at.the.time.of.purchase.

l

. To.check.CPU.speed,.memory.size.and.the.hard.disk.drive.(HDD).size:

Run.the.Setup.Utility.(è.

.Reference Manual.“Setup.Utility”).and.select.[Information].menu.

[CPU.Speed]:.CPU.speed,.[Memory.Size]:.Memory.size,.[Hard.Disk]:.Hard.disk.drive.size

n

Main Specifications

Model.No.

CPU

Chipset

Memory

*1*2

Video.Memory

*1*4

CF-19AHUAXDM

Intel.Core.i5-2520M.SV.2.5.

GHz

Mobile.Intel

®

.QM67

4.

GB

.(8.

GB

.Max.)

*3

CF-19ADUAXDM

<Only.for.model.with.32bit>

UMA.1557.

<Only.for.model.with.64bit>

UMA.1696.

MB

.Max..(When.memory.is.either.4.

.Max..(When.memory.is.either.4.

GB

GB

.or.8.

.or.8.

GB

GB

)

)

Hard.Disk.Drive

*5

UMA.1024.

MB

.Max.

320.

GB

Display.Method

Internal.LCD

*6

External.Display

*7

Wireless.LAN

*8

Bluetooth

TM

.

*9

Wireless.WAN

*10

LAN

Modem

Sound

Security.Chip

Card.Slot

PC.Card

ExpressCard

*12

Smart.Card

*13

SD.Memory.Card

*14

RAM.Module.Slot

Interface

Keyboard./.Pointing.Device

Power.Supply

AC.Adaptor

*16

Battery.Pack

Operating.Time

*17

Charging.Time

*18

Clock.Battery

Power.Consumption

*19

Physical.Dimensions.(W.×.H.×.D)

(excluding.the.hand.strap/shoulder.strap)

Approx..10.

GB

.(HDD.Recovery.partition).and.Approx..300.

recovery.partitions..(Users.cannot.use.these.partitions.)

MB

.(Recovery.partition).are.as.

10.1.XGA.type.(TFT)

65,536/16,777,216.colors.(800.×.600.dots/1024.×.768.dots)

65,536/16,777,216.colors.(800.×.600.dots/1024.×.768.dots/1280.×.768.dots/1280.×.1024.dots)

è

.page.33

è

.page.33

Sierra™.Wireless.High-speed.module

IEEE.802.3.10Base-T,.IEEE.802.3u.100Base-TX,.IEEE.802.3ab.1000Base-T

Data:.56.

kbps

.(V.92).FAX:.14.4.

kbps

WAVE.and.MIDI.playback,.Intel

® .High.Definition.Audio.subsystem.support,.Monaural.speaker

TPM.(TCG.V1.2.compliant) *11

Type.I.or.Type.II.x.1.(3.3.

V

:.400.

mA

,.5.

V

:.400.

mA

)

ExpressCard/34.or.ExpressCard/54.x.1

x.1

x.1

*15

DDR3.SDRAM,.204-pin,.1.5.

V

,.SO-DIMM.PC-10600.Compliant

*3

USB.port.(4-pin,.USB.2.0).x.2,.Serial.Port.(Dsub.9-pin.male),.Modem.port.(RJ-11),.LAN.port.

(RJ-45),.External.display.port.(VGA).(Mini.Dsub.15-pin.female),.Expansion.Bus.Connector.

(Dedicated.100-pin.female),.External.Antenna.Connector.(Dedicated.50.W coaxial.connector).

x.2,.IEEE.1394a.Interface.Connector.(4-pin.x.1),.Microphone.Jack.(Miniature.jack,.3.5.DIA,.

Stereo),.Headphone.Jack.(Miniature.jack,.3.5.DIA,.Impedance.32.W,.Output.Power.4.

mW

.x.2)

82.keys./.Touch.Pad./.Touchscreen.(Anti-

Reflection,.Stylus.(included).touch.capable)

AC.adaptor.or.Battery.pack

82.keys./.Touch.Pad./.Dual.Touch.(Anti-Reflection,.Stylus.(included).touch.capable)

Input:.100.

V

.to.240.

V

.AC,.50.

Hz

/60.

Hz

,.Output:.16.0.

V

.DC,.5.0.

A

Li-ion.10.65.

V

,.5.7.

Ah

.(typ.),.5.4.

Ah

.(min.)

Approx..9.0.hours

Approx..3.5.hours

Approx..8.5.hours

Coin.type.lithium.battery.3.0.

V

Approx..30.

W

*20

./.Approx..90.

W

.(maximum.when.recharging.in.the.ON.state)

271.

mm

.×.49.

mm

.×.216.

mm

.{10.7.×.1.93.×.8.5}

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 32 2011/05/27 13:47:06

n

Main Specifications

Weight.

(excluding.the.hand.strap/shoulder.strap)

Operation.Environment

Storage.Environment

Approx..2.30.

kg

.{Approx..5.06.

lb.

}

Temperature:.-10.

Humidity:.30

°C

.to.80

.to.50.

°C

.{14.

°F

.to.122.

°F

.RH.(No.condensation)

}.(IEC60068-2-1,.2)

*21

Temperature:.-20.

Humidity:.30

°C

.to.60.

°C

.{-4.

°F

.to.140.

°F

}

%

.to.90

%

.RH.(No.condensation)

Operating.System

Genuine.Windows

®

.7.Professional.32-bit.Service.Pack.1./.Genuine.Windows.7.Professional.

64-bit.Service.Pack.1

Utility.Programs

*23

Genuine.Microsoft

®

.Windows

nologies.(NTFS.File.System)

Genuine.Microsoft

®

.Windows

®

*22

®

.XP.Professional.Service.Pack.3.with.Advanced.Security.Tech-

.XP.Tablet.PC.Edition.Service.Pack.3.(NTFS.File.System)

*22

Adobe.Reader,.PC.Information.Viewer,.Loupe.Utility,.Wireless.Switch.Utility,.Hotkey.Settings,..

Battery.Recalibration.Utility,.Panasonic.Hand.Writing,.Display.Rotation.Tool,.Infineon.TPM..

Professional.Package

*24

,.Power.Saving.Utility,.Wireless.Connection.Disable.Utility

*24

Concealed.Mode.Utility

*25

,.Wireless.Manager.Mobile.Edition.5.5f

*26

,.

,.Quick.Boot.Manager.

,Dashboard.for.Panasonic.PC,.Aptio.Setup.Utility,.Hard.Disk.Data.Erase.Utility

*27 tic.Utility

,.PC-Diagnos-

Recovery.Disc.Creation.Utility

Intel

® larger

.PROSet/Wireless.Software

*8

,.Bluetooth™.Stack.for.Windows

®

.by.TOSHIBA

*9

,.Icon.Enn

Wireless LAN <Only for model with wireless LAN>

Data.Transfer.Rates

Standards.Supported

Transmission.method

Wireless.Channels.Used

RF.Frequency.Band

IEEE802.11a.:.54/48/36/24/18/12/9/6.Mbps.(automatically.switched)

*28

IEEE802.11b.:.11/5/2/24/1.Mbps.(automatically.switched) *28

IEEE802.11g.:.54/48/36/24/18/12/9/6.Mbps.(automatically.switched)

*28

IEEE802.11n.:.(HT20).144/130/117/115/104/86/78/65/58/57/52/43/39/28/19/14/13/6.Mbps.(automatically.switched)

*28

(HT40).300/270/243/240/216/180/162/130/120/117/108/104/90/81/78/60/54/52/

39/30/27/26/13.Mbps.(automatically.switched)

*28

IEEE802.11a./.IEEE802.11b./.IEEE802.11g./.IEEE802.11n

OFDM.system,.DSSS.system

IEEE802.11a.:.Channels.36/40/44/48/52/56/60/64/100/104/108/112/116/132/136/140/149/153/

157/161/165

IEEE802.11b./.IEEE802.11g.:.Channels.1.to.11

IEEE802.11n.:.Channels.1-11/36/40/44/48/52/56/60/64/100/104/108/112/116/132/136/140/149/

153/157/161/165

IEEE802.11a.:.5.18.GHz.-.5.32.GHz,.5.5.GHz.-.5.58.GHz,.5.66.GHz.-.5.7.GHz,.5.745.GHz.-

5.825.GHz

IEEE802.11b./.IEEE802.11g.:.2.412.GHz.-.2.462.GHz

IEEE802.11n.:.2.412.GHz.-.2.462.GHz,.5.18.GHz.-.5.32.GHz,.5.5.GHz.-.5.58.GHz,.5.66.GHz.-

5.7.GHz,.5.745.GHz.-.5.825.GHz

n

Bluetooth TM <Only for model with Bluetooth>

Bluetooth.Version

Transmission.method

Wireless.Channels.Used

RF.Frequency.Band

2.1.+.EDR

FHSS.system

79.Channels

2.402-2.480.GHz

*1

*2

*3

*4

*5

*6

*7

. 1.

. 1.

MB

. You.can.physically.expand.the.memory.up.to.8192.MB,.but.the.total.amount.of.usable.memory.available.will.be.less.depending.

on.the.actual.system.configuration..

. <Only.for.model.with.camera>

The.memory.cannot.be.increased.

. A.segment.of.the.main.memory.is.allotted.automatically.depending.on.the.computer’s.operating.status..The.size.of.the.Video.

Memory.cannot.be.set.by.the.user.

GB

.=.1,048,576.bytes/1.

GB

.=.1,073,741,824.bytes

.=.1,000,000,000.bytes...Your.operating.system.or.some.application.software.will.report.as.fewer.

GB

.

. A.16,777,216.color.display.is.achieved.by.using.the.dithering.function.

. Maximum.resolution.depends.on.the.specifications.of.the.external.display..Display.may.be.impossible.using.some.connected.

external.displays.

33

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 33 2011/05/26 11:04:00

Specifications

.

*8

*9

*10

. Only.for.model.with.wireless.WAN

*11

. Only.for.model.with.wireless.LAN

. Only.for.model.with.Bluetooth

. Only.for.model.with.TPM.

. For.information.on.TPM,.

*12.

*13.

*14.

*15.

*17

. Measured.at.LCD.brightness:.60.cd/m

. Varies.depending.on.the.usage.conditions,.or.when.an.external.device.is.attached.

*18

*19 and.press

.Enter

.click.[start].-.[Run].and.input.“c:\util\drivers\tpm\README.pdf”,.and.refer.to.the.Installation.Manual.of.“Trusted.

Platform.Module.(TPM)”.

Only.for.model.with.ExpressCard.slot

Only.for.model.with.Smart.Card.slot

SD.Memory.Cards.that.support.high-speed.transfer.rates.can.be.used..

supported.

. Operation.has.been.tested.and.confirmed.using.Panasonic.SD.Memory.Cards.and.SDHC.Memory.Cards.with.a.capacity.of.up.

to.32.

GB

,.and.

. Operation.on.other.SD.equipment.is.not.guaranteed..

The.theoretical.value.and.actual.speeds.may.differ..The.transfer.rate.does.not.become.higher.even.if.you.use.a.card.that.supports.the.higher.transfer.rate.

*16

. The.AC.adaptor.is.compatible.with.power.sources.up.to.240.

The.unit.for.North.America.(identified.by.the.suffix.‘M’.on.the.model.number).is.supplied.with.a.125.

20-M-1-1

2

. Varies.depending.on.the.usage.conditions.

. Approx..0.9.

W

. <When.using.with.115.

.

click.

.

(Start).and.input.“c:\util\drivers\tpm\README.pdf”.in.[Search.programs.and.files].

,.and.refer.to.the.Installation.Manual.of.“Trusted.Platform.Module.(TPM)”.

.Panasonic.SDXC.Memory.Card.with.a.capacity.of.up.to.64.

.when.the.battery.pack.is.fully.charged.(or.not.being.charged).and.the.computer.is.OFF..

V

.AC>

*20

. Rated.power.consumption.....

23-E-1

*21.

Even.when.the.AC.adaptor.is.not.connected.to.the.computer,.power.is.consumed.(Max..0.2.

plugged.into.an.AC.outlet.

W

).simply.by.having.the.AC.adaptor.

Do.not.expose.the.skin.to.this.product.when.using.the.product.in.a.hot.or.cold.environment..(

. When.using.in.hot.or.cold.environment,.some.peripherals.may.fail.to.work.properly..Check.the.operation.environment.of.the.

peripherals.

. Using.this.product.continuously.in.a.hot.environment.will.shorten.the.product.life..Avoid.use.in.these.types.of.environments.

.

Click.

V

.AC.adaptor.

.

Windows.ReadyBoost.function.is.also.

GB

..

è

V

.AC.compatible.AC.cord......

page.10)

. When.using.in.low.temperature.environment,.startup.may.become.slow.or.battery.operation.time.may.become.short..The.computer.consumes.power.when.the.hard.disk.is.warming.up.during.startup..Therefore,.if.you.are.using.battery.power.and.the.

*22.

remaining.power.is.low,.the.computer.may.not.start.up.

The.downgrade.service.is.available.only.for.corporate.users.who.fulfill.certain.conditions.

*23.

When.reinstalling.Windows.using.the.data.of.the.recovery.area.on.the.hard.disk,.you.can.select.the.OS.to.be.installed.(either.

Windows.7.(32-bit).or.Windows.7.(64-bit))..An.OS.that.has.been.installed.at.the.time.of.purchase.or.an.OS.that.has.been.in-

*24 stalled.using.the.hard.disk.recovery.function.or.the.recovery.disc.can.be.supported.

. You.need.to.install.to.use.the.feature.

*25

. Concealed.Mode.may.not.work.properly.during.battery.recalibration.

*26

. For.information.on.Wireless.Manager,.refer.to.the.“Supplementary.Instructions.for.Wireless.Manager.mobile.edition.5.5”.by.the.

following.procedure..

.

(Start).and.input.“c:\util\wlprjct\Supplementary.Instructions.pdf”.in.[Search.programs.and.files].and.press

.

Enter

.

.

Click.[start].-.[Run].and.input.“c:\util\wlprjct\Supplementary.Instructions.pdf”.and.click.[OK].

.

*27

. Perform.on.the.recovery.partition..(If.this.software.can.not.be.performed.on.the.recovery.partition,.perform.from.the.recovery.

*28 disc)

. It.does.not.correspond.to.IEEE802.11a+b+g+n.standards.

Actual.speeds.may.differ.

34

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 34 2011/05/26 11:04:00

LIMITED WARRANTY

For U.S.A.

Panasonic.Solutions.Company.-.Worldwide.Product.Warranties

Section 1: Limited Warranty - Hardware

Panasonic.Solutions.Company.(referred.to.as.“Panasonic”).will.repair.the.products.listed.below.with.new.or.rebuilt.parts,.free.of.

charge.in.the.U.S.A..or.other.Panasonic.approved.location.for.the.period.specified.below.from.the.date.of.original.purchase.in.the.

event.of.a.defect.in.materials.or.workmanship..These.warranties.are.extended.solely.to.the.original.purchaser..A.purchase.receipt.or.

other.proof.of.date.of.original.purchase.will.be.required.before.warranty.performance.is.rendered..

. Laptop.Computers.–.3.Years

. PDRC.-.LCD.and.Keyboard.Assemblies.–.3.Years

. MDWD.–.Mobile.Computer.and.Wireless.Display.Assemblies.(CF-07/CF-08).-.3.Years

. Ultra-Mobile.PC.(CF-U1/CF-H1).–.3.Years

. Hand-held.Computers.(P1/P2).–.1.Year

. Arbitrator.Video.Camera.–.1.Year

. Arbitrator.Recorder.Unit.–.1.Year

. Arbitrator.Remote.Control.Panel.–.1.Year

. Arbitrator.Wireless.Receiver.Unit.–.1.Year

. Arbitrator.P2.Card(s).(All.Sizes).–.1.Year

. Arbitrator.Wireless.Microphone(s)./.Transmitter.–.90.Days

. Arbitrator.System.Component.Interconnect.Cables.–.90.days

Battery Warranty

The.battery.supplied.with.the.product.is.covered.under.the.warranty.for.one.(1).year.from.date.of.purchase,.except.as.excluded.

in.Section.3..Batteries.purchased.separately.are.covered.under.the.warranty.for.one.(1).year.from.the.date.of.purchase..A.battery.

furnished.under.the.warranty.is.covered.for.the.remaining.period.of.the.one.year.warranty.on.the.original.or.purchased.battery.

Wireless Module Warranty

Panasonic.approved.wireless.modems.installed.in.Panasonic.brand.computers.and.integrated.by.Panasonic.or.an.Authorized.Panasonic.Wireless.Integrator.are.covered.under.the.warranty.for.the.remaining.warranty.period.of.the.computer.in.which.the.modem.

is.installed..For.computers.with.less.than.three.(3).months.remaining.on.the.unit.warranty,.the.wireless.modem.will.be.covered.for.

a.period.of.three.(3).months.from.the.date.of.installation.of.the.modem,.covering.only.modem.replacement.or.modem.installation.

related.issues.

All.modems.must.be.approved.by.the.wireless.carrier.prior.to.use..Any.use.or.attempted.use.of.a.wireless.modem.not.approved.and.

activated.by.the.carrier.for.use.on.their.network.is.strictly.prohibited.and.is.not.sanctioned.or.warranted.by.Panasonic.and.may.result.

in.legal.action..In.addition,.all.modems.must.be.approved.by.Panasonic.as.compatible.with.the.computer.hardware.before.installation.or.use...

Panasonic’s.sole.responsibility.for.the.warranty.or.technical.support.of.the.software.required.to.install.or.operate.the.modem.is.

defined.in.Section.2.(Limited.Software.Warranty)..Any.attempted.software.installation.by.anyone.other.than.a.Panasonic.Authorized.

Wireless.Integrator.is.not.covered.under.warranty.and.may.result.in.service.charges.to.re-image.or.replace.the.hard.drive.

Installation.or.attempted.installation.by.any.party.other.than.Panasonic.or.an.Authorized.Panasonic.Wireless.Integrator.is.strictly.not.

covered.under.the.warranty.and.may.void.the.computer.warranty.if.damage.results..

Options and Accessories warranties

The.below.listed.Panasonic.brand.or.supplied.options.and.accessories.are.covered.under.this.limited.warranty.for.the.period.specified.from.the.date.of.purchase.or.as.specifically.stated:

• . AC.Adaptor./.Power.Cord.–.3.Years

• . Memory.Card.(Panasonic.Brand).–.3.Years.

• . Car.Mount.Docking.Station.PCB.or.Complete.Vehicle.Docking.Station.–.3.Years

• . Port.Replicator./.I-O.Box./.Device.Cradle.(like.CF-08).–.3.Years

• . Antenna.Pass-through.Cable.–.3.Years

• . Backlit.or.Full-sized.keyboard.-.3.Years.or.assumes.warranty.of.the.unit.in.which.it.is.installed

• . Integrated.Panasonic.supplied.options.and.kits.including,.but.not.limited.to.Wireless.WAN,.Media.Bay.Drives.(Floppy,.

CD/DVD,.Combo),.Camera,.GPS,.Bluetooth,.Smartcard.Reader,.Magnetic.Card.Reader,.Barcode.Scanner.and.Fingerprint.

readers.–.3.Years.or.assumes.warranty.period.of.the.unit.in.which.it.is.installed.provided.the.integration.was.performed.by.

Panasonic.or.an.Authorized.Options.Integrator.

• . Hard.Drive.(separately.purchased).–.1.Year

• . External.USB.Drives.(CD./.DVD./.Floppy./.Hard.Drive).–.1.Year

• . Optional.Battery.–.1.Year

• . Battery.Charger./.Multi-Bay.Battery.Charger.–.1.Year

• . Digitizer.pen.or.stylus.–.90.Days.(physical.damage.excluded)

35

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 35 2011/05/26 11:04:01

LIMITED WARRANTY

Section 2 - Limited Warranty - Software

Panasonic.Solutions.Company.(referred.to.as.“Panasonic”).warrants.to.you.only.that.the.disk(s).or.other.media.on.which.the.Programs.are.furnished.will.be.free.from.defects.in.material.and.workmanship.under.normal.use.for.a.period.of.sixty.(60).days.from.the.

date.of.delivery.thereof.to.you,.as.evidenced.by.your.purchase.receipt.

This.is.the.only.warranty.Panasonic.makes.to.you..Panasonic.does.not.warrant.that.the.functions.contained.in.the.Programs.will.

meet.your.requirements.or.that.the.operation.of.the.Programs.will.be.uninterrupted.or.error.free..Panasonic.shall.have.no.obligation.

for.any.defects.in.the.disk(s).or.other.media.on.which.the.Programs.are.furnished.resulting.from.your.storage.thereof,.or.for.defects.

that.have.been.caused.by.operation.of.the.disk(s).or.other.media

Panasonic’s.entire.liability.and.your.exclusive.remedy.under.this.warranty.shall.be.limited.to.the.replacement,.in.the.United.States.

or.other.Panasonic.designated.location,.of.any.defective.disk.or.other.media.which.is.returned.to.Panasonic’s.Authorized.Service.

Center,.together.with.a.copy.of.the.purchase.receipt,.within.the.aforesaid.warranty.period..The.customer.is.responsible.for.ensuring.

that.all.data.is.backed.up.and.made.secure.during.normal.use.and.before.sending.a.unit.for.service..

Section 3 - Limited Warranty Exclusions

Specifically.excluded.from.the.warranty.are:

. All.consumable.items;.such.as.screen.protection.films,.logo.badges,.labels,.cleaning.cloths,.carry.cases,.manuals,.cables,.

straps,.belts,.holsters,.tethers,.and.harnesses.and.any.other.options.and.accessories.not.listed.above.or.covered.under.a.

separate.warranty.

. Failures.related.to.the.product.operating.system,.hard.drive.image,.software.setup,.software.program,.virus,.other.program(s).

or.file(s).on.the.hard.drive.or.in.any.computer.memory.location..

. Failures.due.to.BIOS.settings.or.changes,.as.well.as.any.cosmetic.or.physical.damage.to.the.unit..

. Any.unit.or.device.with.a.missing.or.altered.model.number.or.serial.number.label

. Damage.which.occurs.in.shipment

. Failures.which.are.caused.by.products.not.supplied.by.Panasonic.

. Failures.which.result.from.alteration,.accident,.misuse,.introduction.of.liquid.or.other.foreign.matter.into.the.unit,.abuse,.neglect,.installation,.maladjustment.of.consumer.controls,.improper.maintenance.or.modification,.use.not.in.accordance.with.

product.use.instructions.

. Failures.due.to.service.by.anyone.other.than.a.Panasonic.Authorized.Service.Provider

. Failures.caused.by.improper.integration.by.any.company.other.than.Panasonic.or.a.Panasonic.Authorized.Integrator.

. Damage,.failure,.or.loss.due.to.the.unit.being.stolen,.lost,.misplaced,.or.used.by.anyone.other.than.the.original.purchaser

. Damage.that.is.attributable.to.acts.of.God

This.warranty.only.covers.failures.due.to.defects.in.materials.or.workmanship.which.occur.during.normal.use..

THIS.PRODUCT.IS.NOT.INTENDED.FOR.USE.AS,.OR.AS.PART.OF,.NUCLEAR.EQUIPMENT/SYSTEMS,.AIR.TRAFFIC.CON-

TROL.EQUIPMENT/SYSTEMS,.OR.AIRCRAFT.COCKPIT.EQUIPMENT/SYSTEMS

*1

..PANASONIC.WILL.NOT.BE.RESPONSIBLE.

FOR.ANY.LIABILITY.RESULTING.FROM.THE.USE.OF.THIS.PRODUCT.ARISING.OUT.OF.THE.FOREGOING.USES.

*1

. AIRCRAFT.COCKPIT.EQUIPMENT/SYSTEMS.include.Class2.Electrical.Flight.Bag.(EFB).Systems.and.Class1.EFB.Systems.

when.used.during.critical.phases.of.flight.(e.g.,.during.take-off.and.landing).and/or.mounted.on.to.the.aircraft..Class1.EFB.Systems.and.2.EFB.Systems.are.defined.by.FAA:.AC.(Advisory.Circular).120-76A.or.JAA:.JAA.TGL.(Temporary.Guidance.Leaflets).

No.36.

Other Limits and Exclusions:.There.are.no.other.express.warranties.except.as.listed.above.

PANASONIC.SHALL.NOT.BE.LIABLE.FOR.LOSS.OF.DATA.OR.OTHER.INCIDENTAL.OR.CONSEQUENTIAL.DAMAGES.RE-

SULTING.FROM.THE.USE.OF.THIS.PRODUCT,.OR.ARISING.OUT.OF.ANY.BREACH.OF.THIS.WARRANTY..ALL.EXPRESS.AND.

IMPLIED.WARRANTIES,.INCLUDING.THE.WARRANTIES.OF.MERCHANTABILITY.AND.FITNESS.FOR.A.PARTICULAR.PUR-

POSE.ARE.LIMITED.TO.THE.APPLICABLE.WARRANTY.PERIOD.SET.FORTH.ABOVE..Some.states.do.not.allow.the.exclusion.

or.limitation.of.incidental.or.consequential.damages,.or.limitations.on.how.long.an.implied.warranty.lasts,.so.the.above.limitations.or.

exclusions.may.not.apply.to.you.

This.limited.warranty.gives.you.specific.legal.rights,.and.you.may.also.have.other.rights.which.vary.from.state.to.state..

For.technical.support.or.to.arrange.for.service.on.your.Panasonic.computer.product,.call.our.toll-free.hotline.at.1-800-LAPTOP5.

DIAL.TOLL.FREE:.1-800-LAPTOP5.(1-800-527-8675)

Web.Site.:.www.panasonic.com/toughbook

36

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 36 2011/05/26 11:04:01

For Canada

PANASONIC COMPUTER AND PERIPHERALS LIMITED WARRANTY

Coverage.–.Panasonic.Canada.Inc..(“PCI”).warrants.to.you,.the.first.end.user.customer,.this.computer.product.(excluding.software.

media),.when.purchased.from.PCI.or.from.a.PCI.authorized.reseller,.to.be.free.from.defects.in.materials.and.workmanship.under.

normal.use,.subject.to.the.terms.set.forth.below,.during.the.period.of.warranty.coverage.specified.

Scope of Coverage

. Laptop.Computers.(except.Battery).and.AC.Adaptor

• . Factory/PCI.installed.options.including.Wireless.WAN,.GPS,.

Bluetooth,.Finger.print.reader,.Backlit.keyboard,.Memory.Card.

and.Media.Bay.Drives.(Floppy,.CD/DVD)

. Mobile.Wireless.Display.

• . PDRC.–.LCD.and.Keyboard.Assemblies

. Port.Replicator

. Hand-held.Computers

• . Battery

. Battery.charger

• . Auto.Adaptor

. External.USB.Drives

. Digitizer.pen.or.stylus

. All.consumable.items.including.protection.film,.cleaning.cloth,.

carry.case,.tether.and.harness

Period of Coverage

Three.(3).Years.from.Date.of.

Original.End.User.Customer.

Purchase

One.(1).Year.from.Date.of.

Original.End.User.Customer.

Purchase

Ninety.(90).Days.from.Date.of.

Original.End.User.Customer.

Purchase

No.Coverage

Type of Failure Coverage

Defective.Materials.or.Workmanship

Defective.Materials.or.Workmanship

Defective.Materials.or.Workmanship nature.of.the.defect.claimed,.at.1-800-668-8386.between.9:00.A.M..and.5:00.P.M.,.Eastern.Time.Zone,.Mon..–.Fri..(excluding.

holidays).for.instructions.on.how.to.obtain.service..A.purchase.receipt.or.other.proof.of.date.of.original.purchase.is.required.before.

warranty.service.is.performed..Defective.parts.covered.by.this.Limited.Warranty.will.be.repaired.or.replaced.with.new.or.comparable.

rebuilt.parts.on.an.exchange.basis..Warranty.replacement.or.repair.is.subject.to.the.terms.of.this.Limited.Warranty.for.the.balance.

of.the.original.period.of.warranty.coverage.

No Coverage.–.This.Limited.Warranty.does.not.cover.products.purchased.outside.Canada..Neither.does.it.cover.damage.to,.failure.

of,.or.defects.in.a.product.or.accessory.through.mishandling,.improper.installation,.abnormal.use,.misuse,.neglect,.accident,.introduction.of.liquid.or.other.foreign.matter.into.the.product,.alteration.or.servicing.by.anyone.not.authorized.by.PCI,.or.act.of.God.

THIS.PRODUCT.IS.NOT.INTENDED.FOR.USE.AS,.OR.AS.PART.OF,.NUCLEAR.EQUIPMENT/SYSTEMS,.AIR.TRAFFIC.CON-

TROL.EQUIPMENT/SYSTEMS,.OR.AIRCRAFT.COCKPIT.EQUIPMENT/SYSTEMS

*2

..PANASONIC.WILL.NOT.BE.RESPONSIBLE.

FOR.ANY.LIABILITY.RESULTING.FROM.THE.USE.OF.THIS.PRODUCT.ARISING.OUT.OF.THE.FOREGOING.USES.

. AIRCRAFT.COCKPIT.EQUIPMENT/SYSTEMS.include.Class2.Electrical.Flight.Bag.(EFB).Systems.and.Class1.EFB.Systems.

when.used.during.critical.phases.of.flight.(e.g.,.during.take-off.and.landing).and/or.mounted.on.to.the.aircraft..Class1.EFB.Systems.and.2.EFB.Systems.are.defined.by.FAA:.AC.(Advisory.Circular).120-76A.or.JAA:.JAA.TGL.(Temporary.Guidance.Leaflets).

No.36.

IF YOU SHIP THE PRODUCT FOR WARRANTY SERVICE

Carefully.pack.the.product,.preferably.in.the.original.carton..Include.details.of.defect.claimed.and.proof.of.date.of.original.purchase..No.liability.is.assumed.for.loss.or.damage.to.the.product.while.in.transit,.if.you.chose.your.own.transportation.carrier.

SOFTWARE MEDIA LIMITED WARRANTY

supplied.will.be.free.from.defects.in.materials.and.workmanship.under.normal.use.in.Canada.for.a.period.of.sixty.(60).days.from.

date.of.receipt.as.evidenced.by.your.purchase.receipt.for.your.Panasonic.Computer.product.

THIS.IS.THE.ONLY.WARRANTY.THAT.PCI.MAKES.RESPECTING.THE.SOFTWARE.MEDIA..PCI.does.not.warrant.the.software..

Please.refer.to.the.software.licensor’s.written.warranty.(accompanying.the.copy.of.the.software).for.any.software.warranty.claim.

Claim Procedure.–.In.the.event.of.a.defect.in.material.or.workmanship.in.the.media.during.the.sixty.(60).day.warranty.period,.and.

you.return.it,.transportation.costs.prepaid,.to.Panasonic.Canada.Inc.,.Computer.Products.Marketing,.5770.Ambler.Drive,.Mississauga,.Ontario.L4W.2T3,.within.the.warranty.period,.together.with.a.copy.of.your.purchase.receipt,.and.an.explanation.of.the.suspected.

defect,.PCI.will.replace.in.Canada.the.defective.disk(s).or.other.media.

Remedy.–.PCI’s.entire.liability,.and.your.only.remedy.for.any.breach.of.this.software.media.warranty.is.limited.to.replacement.of.the.

media.only..It.does.not.cover.any.other.damages,.including,.but.not.limited.to,.loss.of.use.or.profit.loss,.or.special,.indirect.or.consequential.damages,.or.other.claims,.whether.or.not.of.similar.character.

No Coverage.–.This.limited.warranty.does.not.apply.if.the.disk(s).or.other.media.has.been.used.in.other.than.a.Panasonic.product,.

or.in.environmental.conditions.other.than.those.specified.by.PCI.or.the.manufacturer,.or.if.subjected.to.misuse,.neglect,.mishandling,.modification.or.attempted.modification.of.the.program,.or.if.damaged.by.accident.or.act.of.God..PCI.is.not.responsible.for.

damage.to.or.loss.of.any.program,.data.or.removable.storage.media.

GENERAL

NO.OTHER.WARRANTIES.–.PCI.DISCLAIMS.ALL.OTHER.WARRANTIES,.EITHER.EXPRESS.OR.IMPLIED,.INCLUDING,.BUT.

NOT.LIMITED.TO,.IMPLIED.WARRANTIES.OF.MERCHANTABILITY.AND.FITNESS.FOR.A.PARTICULAR.PURPOSE,.WITH.RE-

SPECT.TO.THE.SOFTWARE,.SOFTWARE.MEDIA,.COMPUTER.PRODUCT,.OPTIONS.AND.ACCESSORIES.

NO.LIABILITY.FOR.CONSEQUENTIAL.DAMAGES.–.IN.NO.EVENT.SHALL.PCI.BE.LIABLE.FOR.ANY.SPECIAL,.INDIRECT.OR.

CONSEQUENTIAL.DAMAGES.ARISING.FROM.ANY.BREACH.OF.THE.LIMITED.WARRANTIES.SET.OUT.IN.THIS.DOCUMENT,.

OR.FROM.THE.USE.OF.THE.COMPUTER.PRODUCT,.INCLUDING,.WITHOUT.LIMITATION,.LOSS.OF.DATA,.BUSINESS,.PROF-

IT.OR.GOODWILL.

IN.ANY.EVENT,.PCI’S.MAXIMUM.LIABILITY.FOR.ANY.BREACH.SHALL.NOT.EXCEED.THE.AMOUNT.ACTUALLY.PAID.BY.YOU.

FOR.THE.COMPUTER.PRODUCT.

NO.ACTION,.REGARDLESS.OF.ITS.BASIS,.MAY.BE.BEGUN.AGAINST.PCI.MORE.THAN.TWO.(2).YEARS.AFTER.THE.CAUSE.

OF.ACTION.AROSE.

Statutory Warranties.–.Some.jurisdictions.do.not.allow.these.limitations.or.exclusions,.so.they.may.not.apply.to.you.

37

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 37 2011/05/26 11:04:01

GARANTIE LIMITÉE

Pour le Canada

GARANTIE LIMITÉE – ORDINATEURS ET PÉRIPHÉRIQUES PANASONIC

Couverture.–.Panasonic.Canada.Inc..(«.PCI.»).garantit.à.l’acheteur.original.que.ce.produit.informatique.(à.l’exclusion.des.supports.des.

logiciels).est,.au.moment.de.sa.vente.par.PCI.ou.d’un.revendeur.agréé.par.PCI,.exempt.de.défauts.de.pièces.et.de.fabrication.dans.les.

conditions.normales.d’utilisation,.et.ce,.pendant.la.période.de.couverture.de.la.garantie,.sous.réserve.des.modalités.décrites.ci-dessous.

Éléments couverts

. Ordinateurs.blocs-notes.(sauf.batteries).et.adaptateur.secteur

• . Options.installées.en.usine/par.PCI.incluant.:.WAN.sans.fil,.

GPS,.Bluetooth,.lecteur.d’empreintes.digitales,.clavier.rétroéclairé,.carte.mémoire.et.lecteurs.(disquettes,.CD/DVD)

. Écran.mobile.sans.fil

• . Ensembles.PDRC.–.ACL.et.clavier

. Duplicateur.de.port

. Ordinateurs.de.poche

• . Batterie

. Chargeur.de.batterie

• . Adaptateur.pour.voiture

. Périphériques.USB

. Stylo.pointeur.standard.ou.pour.numériseur.graphique

Durée de couverture

Trois.(3).ans.à.partir.de.la.

date.d’achat.original.

Un.(1).an.à.partir.de.la.date..

d’achat.original.

Type de couverture

Défauts.de.pièces.et.de.fabrication

Défauts.de.pièces.et.de.fabrication

• . Tous.les.articles.consommables.incluant.les.pellicules.protectrices,.

chiffons.de.nettoyage,.étuis.de.transport,.longes.et.sangles

Quatre-vingt-dix.(90).jours.à.

partir.de.la.date.d’achat.original.

Aucune.couverture

Défauts.de.pièces.et.de.fabrication

Recours.–.Pour.obtenir.des.informations.sur.la.marche.à.suivre.dans.le.cas.où.une.réclamation.en.vertu.de.la.garantie.deviendrait.

nécessaire,.communiquez.par.téléphone.avec.un.représentant.de.PCI.au.1-800-668-8386,.entre.9h00.et.17h00.(heure.de.l’Est).du.lundi.

au.vendredi.(sauf.les.jours.fériés),.avant.l’échéance.de.la.garantie.applicable,.en.prenant.soin.d’identifier.la.nature.de.la.défaillance...

Un.reçu.ou.toute.autre.pièce.justificative.de.la.date.d’achat.original.sera.exigé.avant.toute.réparation..Toute.pièce.défectueuse.couverte.

par.la.présente.garantie.limitée.sera.réparée.ou.remplacée.par.une.pièce.neuve.ou.remise.à.neuf..Le.remplacement.ou.la.réparation.

sera.fait.conformément.aux.modalités.de.la.présente.garantie.limitée.pendant.la.durée.restante.de.la.période.originale.de.la.garantie.

Produits non couverts.–.La.présente.garantie.limitée.ne.couvre.pas.les.produits.achetés.à.l’extérieur.du.Canada..Elle.ne.couvre.

pas.non.plus.les.dommages,.la.défaillance.ou.les.défauts.attribuables.à.une.manutention.inadéquate,.une.mauvaise.installation,.

une.utilisation.anormale.ou.abusive,.de.la.négligence,.un.accident,.un.déversement.ou.la.pénétration.d’un.objet.étranger,.une.modification,.un.cas.fortuit.ou.une.réparation.effectuée.par.une.personne.non.agréée.par.PCI.

CE.PRODUIT.N’EST.PAS.DESTINÉ.À.ÊTRE.UTILISÉ,.EN.TOUT.OU.EN.PARTIE,.COMME.SYSTÈME/ÉQUIPEMENT.NUCLÉAIRE,.SYS-

TÈME/.ÉQUIPEMENT.DE.CONTRÔLE.DU.TRAFFIC.AÉRIEN.OU.SYSTÈME/ÉQUIPEMENT.DE.POSTE.DE.PILOTAGE.D’AVION

*3

..PANA-

SONIC.DÉCLINE.TOUTE.RESPONSABILITÉ.CONCERNANT.L’UTILISATION.DE.CE.PRODUIT.DANS.LES.CAS.SUSMENTIONNÉS.

. Les.SYSTÈMES/ÉQUIPEMENTS.DE.POSTE.DE.PILOTAGE.D’AVION.sont.dotés.de.systèmes.OEPP.(organiseur.électronique.

de.poste.de.pilotage).de.classe.2.et.de.classe.1.utilisés.pendant.des.phases.critiques.de.vol.(par.exemple,.pendant.le.décollage.et.l’atterrissage).et(ou).montés.sur.l’avion..Les.systèmes.OEPP.de.classe.1.et.de.classe.2.sont.définis.par.le.circulaire.

d’information.FAA:.AC.(Advisory.Circular).120-76A.ou.le.feuilet.n°.36.JAA:.JAA.TGL.(Temporary.Guidance.Leaflets).No.36.

EXPÉDITION DU PRODUIT POUR SERVICE SOUS GARANTIE

Emballez.soigneusement.le.produit,.de.préférence.dans.son.emballage.d’origine..Joignez.une.description.de.la.défaillance.de.

même.qu’une.pièce.justificative.de.la.date.d’achat..Panasonic.Canada.Inc..ne.peut.être.tenue.responsable.pour.tout.dommage.ou.

perte.subi.pendant.le.transport.si.vous.avez.choisi.le.transporteur.

38

GARANTIE LIMITÉE – SUPPORTS DES LOGICIELS

Couverture.–.Panasonic.Canada.Inc..(«.PCI.»).garantit.à.l’acheteur.original.que.la.ou.les.disquettes.ou.tout.autre.support.sur.

lequel.le.ou.les.programmes.sont.fournis.sont.exempts.de.défauts.de.pièces.et.de.fabrication.dans.des.conditions.normales.

d’utilisation.au.Canada,.et.ce,.pour.une.période.de.soixante.(60).jours.suivant.la.date.de.réception.indiquée.sur.la.preuve.d’achat.

LA.PRÉSENTE.GARANTIE.EST.LA.SEULE.OFFERTE.PAR.PCI.COUVRANT.LES.SUPPORTS.DE.LOGICIELS..PCI.ne.garantit.

pas.les.logiciels..Reportez-vous.à.la.garantie.écrite.du.concédant.de.licence.d’utilisation.du.logiciel.(qui.accompagne.la.copie.du.

logiciel).pour.toute.réclamation.en.vertu.de.la.garantie.

Réclamation – marche à suivre.–.Panasonic.Canada.Inc..remplacera.toute.disquette.ou.support.défectueux.si.l’article.en.question.est.

retourné,.port.payé,.à.son.service.de.Marketing.–.produits.informatiques,.5770.Ambler.Drive,.Mississauga.(Ontario).L4W.2T3,.dans.les.soixante.(60).jours.suivant.la.date.d’achat.original..Joignez.à.votre.envoi.une.pièce.justificative.de.votre.achat.et.une.description.du.problème.

Recours.–.La.responsabilité.de.PCI.-.et.votre.seul.recours.-.dans.le.cas.de.toute.défaillance.couverte.par.la.garantie.sur.ce.support.de.

logiciel.est.limitée.au.seul.remplacement.du.support..Elle.ne.couvre.aucun.autre.dommage,.y.compris,.mais.non.exclusivement,.la.perte..

d’usage.ou.de.profits,.ni.aucun.dommage.spécial,.indirect.ou.consécutif,.ni.aucune.autre.réclamation.de.nature.similaire.ou.autre.

Produits non couverts.–.La.présente.garantie.limitée.ne.s’applique.pas.si.la.ou.les.disquettes.ou.autre.support.ont.été.utilisés.dans.un.

produit.d’une.marque.autre.que.Panasonic.ou.dans.des.conditions.environnementales.autres.que.celles.spécifiées.par.PCI.ou.le.fabricant,.

ou.soumis.à.une.mauvaise.utilisation,.à.la.négligence,.à.une.manutention.inadéquate.ou.encore.si.le.programme.a.été.modifié.ou.subi.une.

tentative.de.modification.ou.des.dommages.attribuables.à.un.accident.ou.à.un.cas.fortuit..De.plus,.PCI.n’assume.aucune.responsabilité.

pour.toute.perte.de,.ou.tout.dommage.à,.un.programme,.des.données.ou.un.support.de.sauvegarde.amovible.

GÉNÉRALITÉS

PCI.NE.RECONNAÎT.AUCUNE.AUTRE.GARANTIE,.EXPLICITE.OU.IMPLICITE,.Y.COMPRIS,.MAIS.NON.EXCLUSIVEMENT,.LES.

GARANTIES.IMPLICITES.DE.VALEUR.COMMERCIALE.ET.D’UTILITÉ.À.UNE.FIN.QUELCONQUE,.À.L’ÉGARD.DU.LOGICIEL,.

SUPPORTS.DE.LOGICIELS,.PRODUITS.INFORMATIQUES,.PÉRIPHÉRIQUES.ET.ACCESSOIRES.

SOUS.AUCUNE.CIRCONSTANCE.PCI.NE.POURRA.ÊTRE.TENUE.RESPONSABLE.DES.DOMMAGES.SPÉCIAUX,.INDIRECTS.

OU.CONSÉCUTIFS.ATTRIBUABLES.À.UN.MANQUEMENT.AUX.GARANTIES.LIMITÉES.DÉCRITES.DANS.LE.PRÉSENT.DOCU-

MENT.OU.À.L’UTILISATION.DU.PRODUIT.INFORMATIQUE,.Y.COMPRIS,.SANS.RESTRICTION,.LA.PERTE.DE.DONNÉES,..

D’AFFAIRES,.D’ACHALANDAGE.OU.DE.PROFIT.

DANS.TOUS.LES.CAS,.LA.RESPONSABILITÉ.MAXIMALE.DE.PCI.POUR.TOUT.MANQUEMENT.NE.POURRA.EXCÉDER.LE.

PRIX.DE.VENTE.DU.PRODUIT.INFORMATIQUE.

AUCUNE.RÉCLAMATION,.SANS.ÉGARD.À.SES.MOTIFS,.NE.POURRA.ÊTRE.FAITE.AUPRÈS.DE.PCI.PLUS.DE.DEUX.(2).ANS.

APRÈS.LES.FAITS.INVOQUÉS.À.LA.BASE.D’UNE.TELLE.RÉCLAMATION.

Garantie statutaires.–.Certaines.juridictions.interdisent.de.telles.limitations.ou.exclusions;.aussi,.pourraient-elles.ne.pas.s’appliquer.

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 38 2011/05/26 11:04:01

MEMO

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 39

39

2011/05/26 11:04:01

As an

E

NERGY product meets the

S

TAR

E

®

Partner, Panasonic Corporation has determined that this

NERGY

S

TAR

®

guidelines for energy efficiency. By enabling available power management settings, Panasonic computers enter a low-power sleep mode after a period of inactivity, saving the user energy. To learn more about power management, please visit the web site: www.energystar.gov/index.cfm?c=power_mgt.pr_power_management

The international

Outline of the International

E

NERGY

S

TAR

®

E

NERGY

S

TAR ® Office Equipment Program

Office Equipment Program is an international program that promotes energy saving through the use of computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, displays, printers, facsimiles, and copiers. Their standards and logos are uniform among participating nations.

For information about

E

NERGY

Web Site: www.energystar.gov

S

TAR ® , refer to the following web site:

22-M-1

Panasonic Solutions Company

3.Panasonic.Way,.Panazip.2F-5,

Secaucus,.NJ.07094

©.Panasonic.Corporation.2011

Printed.in.Japan

DFQW5522ZA_CF-19mk5_XP7_OI_M.indb 40

Panasonic Canada Inc.

5770.Ambler.Drive,.Mississauga,

Ontario.L4W.2T3

HS0611-0

DFQW5522ZA

2011/05/26 11:04:01

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Languages
