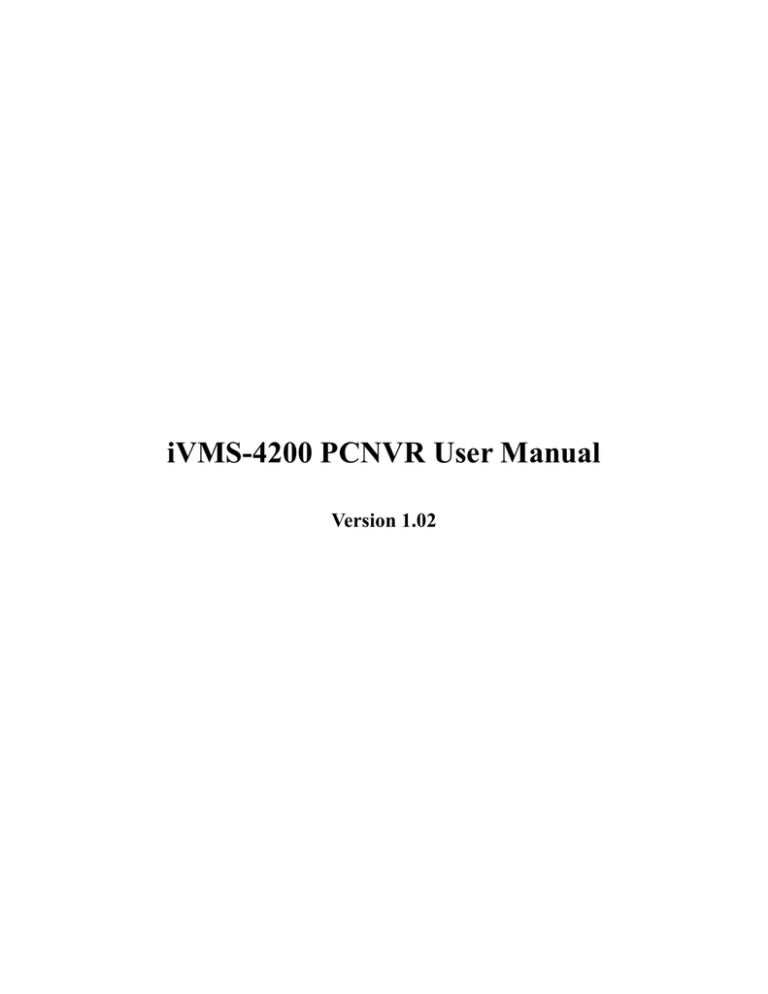

Version 1.02

User Manual of iVMS-4200 PCNVR

Table of Contents

CHAPTER 1. OVERVIEW

.................................................................................................................... 5

1.1

D

ESCRIPTION

......................................................................................................................................... 5

1.2

R

UNNING

E

NVIRONMENT

...................................................................................................................... 5

1.3

C

ONVENTIONS

....................................................................................................................................... 6

CHAPTER 2 STARTING IVMS-4200 PCNVR

..................................................................................... 6

2.1

U

SER

L

OGIN

.......................................................................................................................................... 6

2.2

W

IZARD FOR

I

MPORTING

D

EVICE

.......................................................................................................... 6

2.3

C

ONTROL

P

ANEL AND

M

AIN

M

ENU

B

AR

I

NTRODUCTION

.................................................................... 16

2.4

A

CCOUNT

M

ANAGEMENT

.................................................................................................................... 18

CHAPTER 3 ADDING FRONT-END DEVICES FOR MANAGEMENT AND RECORDING

........ 20

3.1

C

AMERA

A

DDING

................................................................................................................................ 20

3.2

R

EMOTE

M

ANAGEMENT

...................................................................................................................... 22

3.2.1 Remote Configuration

................................................................................................................. 22

3.2.2 Camera Settings

.......................................................................................................................... 30

CHAPTER 4 LIVE VIEW

................................................................................................................... 36

4.1

B

ASIC

O

PERATIONS IN

L

IVE

V

IEW

....................................................................................................... 37

4.2

C

APTURE IN

L

IVE

V

IEW

....................................................................................................................... 41

4.3

PTZ C

ONTROL IN

L

IVE

V

IEW

.............................................................................................................. 42

CHAPTER 5 RECORDING

................................................................................................................. 47

5.1

S

CHEDULE

R

ECORDING

....................................................................................................................... 47

5.2

M

ANUAL

R

ECORDING

......................................................................................................................... 50

CHAPTER 6 PLAYBACK

................................................................................................................... 52

6.1

N

ORMAL

P

LAYBACK

............................................................................................................................ 52

6.2

E

VENT

P

LAYBACK

............................................................................................................................... 55

6.3

S

IMULTANEOUS

P

LAYBACK

................................................................................................................. 56

6.4

I

NSTANT

P

LAYBACK

............................................................................................................................ 57

CHAPTER 7 RECORD FILE EXPORTING

...................................................................................... 58

7.1

E

XPORTING

R

ECORD

F

ILES

.................................................................................................................. 58

7.2

E

XPORTING

V

IDEO

C

LIPS

.................................................................................................................... 59

CHAPTER 8 EVENT MANAGEMENT AND ALARM I/O SETTINGS

........................................... 60

2

User Manual of iVMS-4200 PCNVR

8.1

A

LARM

S

ETTINGS

................................................................................................................................ 60

8.1.1 Manually turn on/off alarm output

.............................................................................................. 60

8.1.2 Alarm Parameter settings

............................................................................................................ 60

8.1.3 Alarm Schedule and Handlings Settings

..................................................................................... 62

8.2

C

ONFIGURING

M

OTION

D

ETECTION

.................................................................................................... 66

8.3

C

ONFIGURING

T

AMPERING

A

LARM

..................................................................................................... 68

8.4

C

ONFIGURING

V

IDEO

L

OSS

................................................................................................................. 70

8.5

C

ONFIGURING

PIR A

LARM

.................................................................................................................. 72

8.6

C

ONFIGURING

W

IRELESS

A

LARM

........................................................................................................ 73

8.7

C

ONFIGURING

E

MERGENCY

A

LARM

.................................................................................................... 74

8.8

C

ONFIGURING

E

XCEPTIONS

................................................................................................................. 76

8.9

V

IEWING

A

LARM OR

E

VENT

I

NFORMATION

......................................................................................... 77

CHAPTER 9 MANAGING E-MAP

..................................................................................................... 79

9.1

A

DDING AN

E-

MAP

.............................................................................................................................. 79

9.2

T

HE

H

OT

S

POT

F

UNCTION

................................................................................................................... 80

9.2.1 Adding a Hot Spot

....................................................................................................................... 80

9.2.2 Editing a Hot Spot

....................................................................................................................... 83

9.3

T

HE

H

OT

R

EGION

F

UNCTION

............................................................................................................... 84

CHAPTER 10 SYSTEM CONFIGURATION

..................................................................................... 86

10.1

V

IEWING THE

S

YSTEM

I

NFORMATION

................................................................................................ 86

10.2

G

ENERAL

C

ONFIGURATION

................................................................................................................ 87

10.3

S

ETTING THE PATHS FOR THE MANUAL RECORD

,

CAPTURED PICTURE AND

C

ONFIGURATION

F

ILE

...... 88

10.4

S

ETTING THE

N

ETWORK

I

NFORMATION

............................................................................................. 89

10.5

A

LARM

S

OUND

C

ONFIGURATION

....................................................................................................... 90

10.6

E

MAIL

C

ONFIGURATION

.................................................................................................................... 91

10.7

K

EYBOARD AND

J

OYSTICK

C

ONFIGURATION

..................................................................................... 92

CHAPTER 11 DISK MANAGEMENT

................................................................................................ 94

CHAPTER 12 WEB BROWSING

....................................................................................................... 95

12.1

L

OGON

.............................................................................................................................................. 95

12.2

C

AMERA

C

ONFIGURATIONS

............................................................................................................... 95

12.3

L

IVE

V

IEW

......................................................................................................................................... 97

12.4

D

ISK

M

ANAGEMENT

......................................................................................................................... 98

12.5

R

ECORD

C

ONFIGURATIONS

................................................................................................................ 99

3

User Manual of iVMS-4200 PCNVR

12.5.1 Manual Record

.......................................................................................................................... 99

12.5.2 Schedule Record

...................................................................................................................... 100

12.6

P

LAYBACK

....................................................................................................................................... 101

12.7

L

OG

M

ANAGEMENT

........................................................................................................................ 103

4

User Manual of iVMS-4200 PCNVR

Chapter 1. Overview

1.1 Description

The iVMS-4200 PCNVR is designed to manage the embedded network surveillance devices, such as network cameras and DVS and provide mainly the storage and management function for the input video stream. It functions as a NVR installed on your PC, only it has not a specific hardware device and dedicated record file storage HDDs. The software cuts the complexity of the surveillance application.

This user manual describes the function, configuration and operation steps of iVMS-4200 PCNVR software.

To ensure the properness of usage and stability of the software, please refer to the contents below and read the manual carefully before installation and operation.

What can this software do?

Live view, recordings and playback on your PC

Event and alarm management function

Maintenance and storage handling

Easy control of PTZ and PTZ dome network cameras

Synchronized playback from up to 16 video sources simultaneously

E-map adding functions for a convenient management for the location of cameras and alarms.

User-based permission control

1.2 Running Environment

Operating system: Microsoft Windows 7/Windows 2008 ( 32/64 bit operating system ), Windows

2003/Windows XP(32 bit operating system)

CPU: Intel Pentium IV 3.0 GHz or above

Memory: 1G or above

Display: 1024*768 or above

Notes

1. To simultaneously live view for many channels, or for the channel with high resolution, the higher hardware configuration is needed.

2. The software does not support 64-bit operating system; the above mentioned 64-bit operating system refers to the system which supports 32-bit applications as well.

5

User Manual of iVMS-4200 PCNVR

1.3 Conventions

In this document, the iVMS-4200 PCNVR client software is referred to as software, client, or PCNVR.

Chapter 2 Starting iVMS-4200 PCNVR

2.1 User Login

When you open the iVMS-4200 PCNVR software after registration, the login dialog box pops up, shown as follows:

Figure 2.1 User Login

Input the user name and password, and then click . The user name is admin and password is

12345 by default. You can also enable the auto-login by checking the checkbox.

2.2 Wizard for Importing Device

After registration and login, you enter the camera adding wizard interface of iVMS-4200 PCNVR. This wizard helps you to go through the basic operations of the PCNVR, such as adding cameras, to ensure the normal operation of the PCNVR

.

Step 1: Start Guide

6

User Manual of iVMS-4200 PCNVR

Figure 2.2 Start Guide

Click to continue the wizard, or click to exit the wizard and you can open the wizard from Help menu.

Step 2: Disk Management

Disk management is the management of recording storage devices. Select one or more HDDs on the disk list shown as follows:

Figure 2.3 Disk Management

Note:

The total preallocated space should be no less than channel number*0.5 G.

1) Click to preallocate the HDD and the following message box pops up:

7

User Manual of iVMS-4200 PCNVR

Figure 2.4 HDD Preallocation

Note: The preallocation function in the software won’t delete the original data of your disk. It just preallocates the disk space for recording.

2) Click to continue and the process bar shows the preallocation process of the HDD.

After the preallocation completed, the following message box pops up:

Figure 2.5 Information

3) Click to reboot the software.

4) Input the user name and password to login again. The status of the preallocated HDD changes from Unformatted to Normal. The normal HDD can be used as the recording storage device.

5) Click to the next step, or click to the previous step.

Step 3: Import Camera

Note:

Up to 64 channels can be added.

Click icon to enter the Add Camera interface.

8

User Manual of iVMS-4200 PCNVR

Figure 2.6 Import Camera

Figure 2.7 Add Camera iVMS-4200 PCNVR provides 5 different adding modes: Online Detection, IP/Domain, IP Segment, IP

Server and hkDDNS.

Online Detection

Steps:

1) Select Online Detection mode, and the online cameras that are in the same network segment with that of the PCNVR are displayed on the list, shown in the above figure.

2) Check the checkbox of the online camera you want to add.

9

User Manual of iVMS-4200 PCNVR

3) Input the user name and password. The User Name and Password are admin and 12345 respectively by default.

4) Click to add the selected camera and close the Add Camera interface.

You can click to update the online cameras information and can also click

to set the network parameters of the selected camera.

IP/Domain

Steps:

1) Select IP/Domain mode to enter the dialog box shown as follows:

Figure 2.8 IP/Domain

2) Input the IP address, port, user name and password of the camera.

3) Click to add the camera and close the dialog box.

Note:

The port, user name and password are 8000, admin and 12345 by default.

IP Segment

IP Segment mode provides a way to search the online cameras with IP address value between the start

IP and end IP.

Steps:

10

User Manual of iVMS-4200 PCNVR

1) Select IP Segment mode and input the start IP address, end IP address, port, user name and password, shown as the follows:

Figure 2.9 IP Segment

Click to continue and the Channel List will be displayed.

2) You can check the Online Status of the cameras with IP address value between the start IP address and end IP address, shown as follows:

11

User Manual of iVMS-4200 PCNVR

Figure 2.10 Channel List

3) Select the online channels, and click to add the selected cameras.

IP Server

Steps:

1) Select IP Server mode to enter the dialog box shown as follows:

12

User Manual of iVMS-4200 PCNVR

Figure 2.11 IP Server

2) Input the server address, and the server address should be the IP address of the PC that runs

IPServer.

3) Input the device name, device serial No., user name, and password of the camera.

4) Click to add the camera and close the dialog box.

hkDDNS

Steps:

1) Select hkDDNS mode to enter the dialog box shown as follows:

Figure 2.12 hkDDNS

2) Input the server address of the hkDDNS server: www.hiddns.com.

3) Input the device domain name. You can register the alias of the device domain name on the hkDDNS server first and then input the alias in the device domain name text field; you can also input the domain name directly in the device to create a new one.

4) Click to add the camera and close the dialog box.

Note: If a new alias of the device domain name is defined in the device, it will replace the old one registered on the server.

To Register a device on the hkDDNS server.

Steps:

1) Go to the hkDDNS website: www.hiddns.com

.

13

2) Click log in.

User Manual of iVMS-4200 PCNVR

to register an account if you do not have one and use the account to

Figure 2.13 Register an Account

3) In the Device Management interface, click the icon to register the device.

Figure 2.14 Register the Device

Note:

Only lower-case English alphabet, numeric and ‘-‘ can be used in the alias of the device and the alias must be started with letter of the lower-case English alphabet.

To delete the camera added, you can select the camera on the list and click the icon

To configure the camera added, you can select the camera on the list and click the icon

. Please refer to Section 3.2 Remote Management for details.

Step 4: Record Schedule

.

14

User Manual of iVMS-4200 PCNVR

Select the camera added and click the icon as follows:

to enter Modify Record Schedule interface shown

Figure 2.15 Record Schedule

Figure 2.16 Modify Record Schedule

You can configure the record parameters and schedule template of the selected camera. And the motion settings and capture settings are also allowed. Please refer to Section 5.1 Schedule Recording for detailed information.

15

User Manual of iVMS-4200 PCNVR

Step 5: Wizard Completed

The wizard is completed and you can click to close the wizard interface.

Figure 2.17 Wizard Completed

2.3 Control Panel and Main Menu Bar Introduction

The main control panel of the iVMS-4200 PCNVR is shown as follows:

Figure 2.18 Control Panel

Menu Bar:

File Open Captured picture

Search the captured picture(s) from the start time to end time.

16

User Manual of iVMS-4200 PCNVR

System

View

Tool

Help

Open Video File

Enter the video player and select the folder location of the exported video file(s). You can also capture pictures during the playing of the video file.

Open the log file stored on your PC.

Open Log File

Auto Run

Exit

Lock

Run the software automatically when you start your PC.

Exit the iVMS-4200 PCNVR client.

Lock the screen operation. Log in the client again to unlock the operation.

Switch the login user.

Switch User

Import Configuration

File

Import client configuration file from your computer.

Export Configuration

File

Export client configuration file to your computer.

Restore Default Settings

Click to restore the default settings for the software.

1024*768

Display window at size of 1024*768 pixels.

1280*1024

Display window at size of 1280*1024 pixels.

1440*900

Display window at size of 1440*900 pixels.

1680*1050

Display window at size of 1680*1050 pixels.

Full Screen

Display window in full screen.

Main View

Enter Main View interface.

Playback

Enter Playback interface.

E-map

Enter E-map interface.

Configuration

Enter Configuration interface.

Auxiliary Screen Preview Open Auxiliary Screen Preview window.

Import Camera

Enter Import Camera interface.

Camera Settings

Enter Camera Settings interface.

Record Schedule

Enter Record Schedule interface.

Event Management

Enter Event Management interface.

I/O Settings

Enter I/O Settings interface.

Account Management

Enter Account Management interface.

Disk Management

Enter Disk Management interface.

System Configuration

Enter System Configuration interface.

Log Search

Enter Log Search interface.

Broadcast

Select camera to start broadcasting.

I/O Control

Turn on/off the alarm output.

Soft Keyboard

Operate the client software using the PC keyboard.

Open Wizard

Open the guide for the client configuration.

Click to open the User Manual; you can also open the

User Manual (F1)

User Manual by pressing F1 on your keyboard.

About

Language

View information of the client software, including company, software name, version, etc.

Select the language for the client software and reboot the software to activate the settings.

There are 4 tabs on the control panel shown as follows:

Main View: The live view interface for all the added cameras. Please refer to Chapter 4 Live View for detailed information.

17

User Manual of iVMS-4200 PCNVR

Playback: The playback page for the record files. Please refer to Chapter 6 Playback for detailed information.

E-map: On the E-map page you can link the location of the camera to the e-map and sub-map are also supported. Please refer to Chapter 9 E-map Management for detailed information.

Configuration: The configuration panel of the client software.

There are 8 icons on the configuration panel, and their functions are described in the following table:

Operating

Options

Management

Options

Configuration options

Import Camera

Record Schedule

Event Management

Account Management

Disk Management

Camera Settings

I/O Settings

System Configuration

Add, modify, delete or do remote configuration of the camera.

Edit the record schedule by configuring the recording parameters, schedule template and so on.

Configure the alarm source, linkage method and so on.

Add, modify or remove the user account parameters; and assign operating permission to each user.

Manage recording storage devices.

Configure camera parameters including picture settings, video quality, video display and PTZ control.

Manage alarm input/output, including the name and the mode.

Configure general parameters including saving path of files, alarm sound, Email, etc.

2.4 Account Management

Steps:

1. Click to enter the following account management interface:

18

2. Click the icon

User Manual of iVMS-4200 PCNVR

Figure 2.19 Account Management

, and the Add User dialog box pops up as follows:

Figure 2.20 Add User

There are two parts of the Add User dialog box: User Information and User Privilege.

User Information—provides two user types (Guest and Operator) to support the users with different permissions.

User Permissions—include 8 channel access permissions and 16 operation permissions.

Note:

The admin user has all the permissions by default and the permissions of the Operator user and

Guest user can be selected from the permission list. All the selected permissions will immediately take effect.

3. Customize the user name and password, and then click to add a new user.

. To modify the user settings, you can select the user and click the icon

To delete the user, you can select the user and click the icon .

19

User Manual of iVMS-4200 PCNVR

Chapter 3 Adding Front-end Devices for Management and Recording

3.1 Camera Adding

Click the icon on the configuration panel to enter the Import Camera interface, and click the icon

to enter the Add Camera interface. iVMS-4200 PCNVR provides 5 different modes to add camera(s):

 Online Detection

 IP/Domain

 IP Segment

 IP Server

 hkDDNS

For more detailed information of adding camera(s), please refer to Section 2.2 Wizard for Importing Device.

Figure 3.1 Camera Adding Interface

After adding the cameras, the basic information of the cameras added will be displayed on the Import

Camera interface, shown as follows:

20

User Manual of iVMS-4200 PCNVR

Figure 3.2 Import Camera

You can click the refresh icon to update the camera information on the list.

You are also allowed to change to the thumbnail view format by clicking the icon . To switch to the list view format, click the icon .

Figure 3.3 Import Camera-Thumbnail Format

Note:

In thumbnail view format, the image displayed on the interface is the still image but not the live view of the camera. If the scene in the camera changes, you can click the refresh icon to get the new image.

21

User Manual of iVMS-4200 PCNVR

3.2 Remote Management

3.2.1 Remote Configuration

Steps:

1. Click the icon on the configuration panel to enter the Import Camera interface shown below:

Figure 3.4 Device Configuration

2. Select the camera you want to configure, and click configuration interface.

button to enter the remote

Figure 3.5 Remote Configuration

22

User Manual of iVMS-4200 PCNVR

Information

In the information page, the basic status of the device is displayed, including device type, channel number, HDD number, alarm I/O number, device serial number, version information, etc.

General

In the general configuration page, you can set basic parameters of the device.

Figure 3.6 Remote Configuration-General

Device Name: You can define the name of the device as desired, which will be displayed on the device list of the software.

Device No.: device number for the remote controller.

Record Replace: overwrite HDDs when HDDs are full.

Network

In the network configuration page, you can configure network parameters of the device. Two tabs are available for general and advance settings.

23

User Manual of iVMS-4200 PCNVR

General Settings:

Figure 3.7 Remote Configuration-Network

Figure 3.8 Network-General Settings

Please refer to the following table for details of network parameters for general settings:

Description of General Network Parameters

Parameter

NIC Type

Description

Network interface card type of the device

Device IP Address IP address of the device

Subnet Mask Subnet mask for the device

Gateway

MAC Address

MTU

Device Port

Default gateway IP for the device

MAC address of the device, and this is a read-only field

The maximum transport unit, and the default value is 1500

The port number of the device, and the default value is 8000

Multicast Address

Multicast address of the device, and please leave this field

24

User Manual of iVMS-4200 PCNVR

HTTP Port

RTSP Port

Advanced Settings: empty if multicast is not required

Web servicer port. The default port number is 80

Real time streaming protocol port. The default port is 554.

Figure 3.9 Network-Advanced Settings

Please refer to the following table for details of network parameters for advanced settings:

Description of Advanced Network Parameters

Parameter

NTP

Email

PPPOE

DDNS

Description

Set server address, NTP port, synchronization interval, time zone and GMT for NTP time synchronization.

Email account settings for the device.

Set PPPOE address, user name and password for PPPOE.

Set protocol type, server address, user name, password and domain name for DDNS.

Wi-Fi

FTP

Set wireless networking related parameters.

Set FTP server, port, user name, password, etc.

Advanced Settings

Set DNS server address, alarm host IP and Alarm host port.

User

Note:

You can click each button for the advanced settings.

In the user configuration page, you can create users accounts and assign different permissions for each account.

Note:

The users you added, modified or deleted on the Remote Configuration interface are for the device added to the client software.

25

User Manual of iVMS-4200 PCNVR

To add a user

1. Click the icon

Figure 3.10 Remote Configuration-User

and the User Configuration dialog box pops up as follows:

Figure 3.11 User Configuration

2. Input the basic information of the user in the corresponding text field, and the user type is readonly.

3. Select the privilege for the user you created.

26

User Manual of iVMS-4200 PCNVR

4. Click to create the user.

To modify the user, select the user on the user list and click the icon

To delete the user, select the user on the user list and click the icon

Exception

.

.

Select the exception type, and the corresponding alarm triggering mode. You can also select the channel number on the Alarm Output list to trigger the alarm output when an exception occurs.

Figure 3.12 Remote Configuration-Exception

Others

In this interface, you can set the RS232 parameters, upgrade the device remotely and do the remote control settings.

27

User Manual of iVMS-4200 PCNVR

Figure 3.13 Remote Configuration-Others

RS232 Settings

You are allowed to set the RS232 parameters including private port, baud rate, data bit, stop bit, parity, flow control and working mode.

Remote Upgrade

Click the icon to browse and select the upgrade file, and then click button to start upgrading. The upgrading process will be displayed and a reboot is required after the process is finished.

Remote Control Settings

Note

The procedure below is only for the front-end devices supporting the remote control.

Figure 3.14 Remote Control

Status Indicator

Arm

Disarm

Emergency Button

Stream Sending

Switch

Description of Remote Control

Indicating the status of the remote; when you press the button on the remote, the indicator flicks in red.

Press the button to arm the camera. In arming status, the alarm function, such as the wireless alarm and the PIR alarm, is enabled.

Press the button to disarm the camera. In the disarming status, the alarm linkage is disabled.

Press the button to trigger the emergency alarm. The emergency alarm has the highest priority.

Switch for the video stream transmitting. Press the button to stop or start video stream sending. When the video stream is stopped, you can’t see the live view or get the record stream on the remote client or browser.

28

User Manual of iVMS-4200 PCNVR

Steps:

1. Click on the Others interface and the Remote Control Configuration dialog box pops up shown as follow:

Figure 3.15 Remote Control Configuration

2. Click the icon and select Remote Control Arm or Remote Control Disarm in the dropdown list to arm or disarm the remote control function.

3. Select the delay time of the remote control, and click

4. Set the remote control study mode.

To study the remote control

to save the new settings.

1) Click the icon and select Remote Control Study from the drop-down list.

2) Click to save the new settings.

3) Press any of the buttons on the remote control against the camera to send the signal.

To study the wireless magnetic door detector

1) Click the icon and select Wireless Magnetic Door Detector Study from the dropdown list

2) Select the device serial number (1-8) from the drop-down list.

Figure 3.16 Remote Control Study

3) Click to save the new settings.

4) Send the signal from the wireless magnetic door alarm device to the camera.

5. Click to close the dialog box.

29

User Manual of iVMS-4200 PCNVR

3.2.2 Camera Settings

Steps:

1. Click Camera Settings icon on the Configuration panel to enter the camera settings interface.

Figure 3.17 Camera Settings

2. Select a camera from the dropdown list in the upper left corner of the interface. The live image of the camera will be displayed on the screen below.

3. Click the icons in the bottom left area to enter each configuration page. You can also click the icon

to copy the configuration to other cameras.

Camera Settings Descriptions

Icons Description

Set camera parameters of the device.

Set audio input, image quality, resolution and other parameters of the camera.

Set camera display parameter. E.g. OSD and privacy area.

Set PTZ parameters. E.g. baud rate, protocol, etc.

Picture Settings

The quality of the picture can be configured in the picture settings interface. You can adjust the brightness, contrast, saturation and hue of the video image.

30

User Manual of iVMS-4200 PCNVR

Click

Figure 3.18 Camera Settings-Picture Settings

button to configure the parameters shown in the figure below:

Figure 3.19 Advanced Settings

Description of Advanced Picture Settings Parameters

Parameter

Video Settings

Description

Configure the brightness, contrast, saturation, hue, sharpness and AGC for the video.

White Balance

Configure the white balance mode and three types of modes are selectable: Auto White Balance 1, Auto White Balance 2

Exposure and Auto Control.

Configure the exposure time and iris type for the device.

Day/Night Switch Configure the day/night mode and define the filtering time.

Digital Noise

Configure the digital noise reduction mode and DNR level

31

User Manual of iVMS-4200 PCNVR

Reduction

Backlight

Compensation

for the device.

Configure the backlight compensation mode for the device.

Others

Video & Audio Parameters

Configure parameters including flicker filter, mirror, PTZ and local output.

Figure 3.20 Camera Settings-Video Quality

On this page, you can configure parameters for main stream, sub-stream and audio input separately.

You can set the resolution, stream type, frame rate, picture quality, audio input type and volume on the main interface.

To configure the bitrate type, qualification level, max bitrate, frame type, I frame interval and other parameters shown in the following figure, please click

Settings interface.

button to enter Advanced

Figure 3.21 Advanced Settings

Video Display

On the video display page, you can define the following parameters for the camera.

32

User Manual of iVMS-4200 PCNVR

Figure 3.22 Camera Settings-Video Display

Description of Video Display Parameter

Parameter

Display Name

Display Date

Enable Privacy

Mask

Text Overlay

Description

The camera name displayed on the live video.

Display the date on the live video and choose the date format and time format.

Enable privacy mask function on the live video. You can drag the mouse of the live video to set the mask.

Edit user-defined text to be displayed on the live video.

You can set privacy masks, configure OSD and define the text locations on the live video. Perform the following steps below to enable the functions.

To draw a privacy mask

Steps:

1. Check the Enable Privacy Mask checkbox. Select Draw Privacy Mask Area in the dropdown list under the live view area.

2. Drag the mouse to draw a square on the live video. You can move it to change the location or change the size by enlarging or reducing the area.

33

User Manual of iVMS-4200 PCNVR

Figure 3.23 Privacy Mask

3. You can also click icon to delete the mask or click icon to delete all privacy masks.

4. Click to save the settings or click to save and close the dialog box.

To configure the OSD and text

Steps:

1. Check the checkbox in the Text Overlay section and enter content as desired in the corresponding text field.

2. Click and you can see the text shown in the left upper corner of the live view area.

3. You can click the OSD or the defined text window and drag the mouse to change its location on the live video

Figure 3.24 Configure the OSD and text

4. Click again to save the new settings.

PTZ Parameters Settings

34

User Manual of iVMS-4200 PCNVR

On the PTZ parameters configuration page, you can specify the PTZ connection parameters, such as baud rate, data bit, stop bit, parity, flow control, PTZ protocol and PTZ address.

Figure 3.25 PTZ Parameters Settings

Notes:

1.

The PTZ parameters should be consistent with the settings of the camera side to ensure valid PTZ control.

2.

You can click the button to test the new settings.

35

User Manual of iVMS-4200 PCNVR

Chapter 4 Live View

Before you start:

At least one online camera is required to be added to the client software before live view. For details of the importing camera operation, please refer to Section 2.2 Wizard for importing device. And after the successful adding of the camera, the camera list is shown on the left bar on the Main View interface.

Entering the Live View Interface:

Click the main view icon tab, or click View -> Main View on the toolbar to enter the live view interface.

The main view interface is shown in the following figure:

Figure 4.1 Main View

View Types:

Default View:There are 4 kinds of default view:

 1-Screen

 4-Screen

 9-Screen

 16-Screen

Note:

You can customize a new view according to your need.

Camera Status:

Icon Description

Camera is online and works properly.

Camera is offline.

36

Main View Toolbar:

User Manual of iVMS-4200 PCNVR

Camera is in live view.

Button

To set the screen layout:

Name

Layout

Description

Select different layout modes.

Stop Live

View

Stop the display of all the cameras.

Auto Switch

Start auto-switching the screen by cameras.

Volume

Adjust the volume for live audio.

Full Screen

Display video in full screen mode, click again to restore.

Steps:

1. Place the cursor on the icon , and the icons

2. Click icon.

are displayed.

icon, the following box pops up, you can choose the screen layout by clicking the certain

Figure 4.2 Screen Layout

3. You can click the icon to save a new customized view or click the icon to save a view as another one.

4.1 Basic Operations in Live View

Start live view for one camera:

To view the live video, drag the camera from the list to the display window, or double-click the camera name after you select one screen.

37

User Manual of iVMS-4200 PCNVR

Note: You can still change the screen layout after you display the channel on the live view window.

Figure 4.3 Live View

Quick Setting Toolbar in Each Display Window:

Button Description

Capture

Start manual record, click it again to stop.

Remote instant playback about of current camera, you can choose the playback time.

Note:

The screen toolbar needs to be enabled in the system configuration interface. Check the checkbox to enable the toolbar display.

38

User Manual of iVMS-4200 PCNVR

Figure 4.4 System configuration

Right-click Menu in Each Display Window:

Button

Figure 4.5 Right-click Menu

Name

Stop Live View

Stop Live View

Description

Capture

Print Snapshot

Capture

Print Snapshot

Send Snapshot through email Send Snapshot through email

Start Recording

Start manual record, click again to stop.

Open Window PTZ Control

PTZ control, 8 direction icons will be displayed on the video.

39

User Manual of iVMS-4200 PCNVR

Open Digital Zoom

Playback

Start Two-way Audio

Audio on

Camera Status

Camera Settings

Full Screen

Enable Cycle Live View in Default View:

Steps:

1. Select a certain view in default view mode.

Open Digital Zoom

Instant playback about of the current camera.

Start two-way audio, click again to stop. The two-way audio can be used for only one camera at one time. When you enable the voice talk of one camera, then the voice talk for other camera is stopped.

Enable/disable live audio.

Check the camera status.

Go to the camera settings interface.

Display video in full screen mode, click again to quit.

2. Click the icon next to the

3. Set the interval for the switching.

.

4. Click the icon on the toolbar on the bottom to start the cycle live view.

5. Click the icon to stop the switching.

Note:

Cycle live view in default view mode is the switching of the cameras on the camera list.

Enable Cycle Live View in Customize View:

Before you start:

Some customized views need to be added to the client software.

Step:

1. Click a view you customized to show it on the screen.

2. Click the icon next to the

3. Set the interval for the switching.

.

40

User Manual of iVMS-4200 PCNVR

4. Click the icon on the toolbar to start the cycle live view.

5. Click the icon to stop the switching.

Note:

Cycle live view in customized view mode is the switching of the different customized views.

For instance, there are 3 customized views, choose one view and click turns to be displayed on the screen with the predefined interval time.

button, the 3 views will take

4.2 Capture in Live View

Steps:

1. Select the screen.

2. Click icon on the toolbar of the display window.

Figure 4.6 Capture

A small window of the captured picture will be displayed to notify you whether the capture is done or not.

If the capture is successful, there will be a link to the saving path of the picture, and if not, there will be error messages accordingly.

To view the captured pictures:

 Click the small window of the picture shown on the right bottom after capture.

Or

 Click File button on the toolbar and select Open Captured File.

Then you can see the exported snapshots are list in the pop-up interface.

41

User Manual of iVMS-4200 PCNVR

Figure 4.7 Snapshot Explorer

You can click button to save as the picture to other direction.

You can click button to delete the selected picture.

You can click button to send the email attached with the selected picture. The subject and the content can be edited in the pop-up message box.

Figure 4.8 Send Email

4.3 PTZ Control in Live View

For the PTZ control, click icon in the Right-click Menu or click the expand button in the

banner and the PTZ control panel will be displayed on the left side of the Main

View.

42

User Manual of iVMS-4200 PCNVR

Note:

This chapter only shows the operation of the PTZ control, to configure the PTZ parameters please refer to Section 3.2.2 Camera Settings.

Figure 4.9 Live View

Figure 4.10 PTZ Control Panel

Click on those directional buttons to control the PTZ function, or click the directional buttons on the PTZ control panel. You can also control the PTZ direction by the directional buttons on your keyboard.

Figure 4.11 PTZ Navigation Arrow

43

User Manual of iVMS-4200 PCNVR

Note: You can also control PTZ by dragging and clicking the mouse on the display screen window.

Description of buttons on PTZ Control Panel:

Button

Zoom

Focus

Iris

One-Touch Focus

3D Positioning

Light

Wiper

Lens Initialization

Description

Direction buttons, click to start/stop auto-scan.

Speed adjustment for panning and tilting function

Preset configuration

Pattern configuration

Patrol configuration

Calling preset/pattern/patrol

Adding and editing function

Deleting

To add a preset for the PTZ:

Steps:

1. Click the direction buttons to move the PTZ to a desired location.

2. Select a PTZ preset number from the preset list, and then click icon to add the preset and name this

PTZ preset. To delete a preset, select the PTZ preset from the preset list, and then click icon to remove it.

Figure 4.12 Add Preset

44

User Manual of iVMS-4200 PCNVR

To add a pattern for the PTZ:

Figure 4.13 Add Pattern

Steps:

1. Click the button to enter the PTZ pattern path setup panel.

2. Select a PTZ pattern path number from the pattern list, click icon to enter edit mode.

3. Click to start recording of this pattern path.

4. Use the direction buttons to control the PTZ movement.

5. Click to stop the pattern recording. Click to save the pattern path.

To add a patrol path for the PTZ:

Before you start:

Two or more presets for one channel need to be added.

45

User Manual of iVMS-4200 PCNVR

Figure 4.14 Add Patrol

Steps:

1. Click button to enter the PTZ patrol path setup panel.

2. Select a track number from the list.

3. Click to add a preset (including the dwell time and PTZ speed for the preset) for this patrol path, shown as follows:

Figure 4.15 Patrol Settings

4. Repeat the above operation to add other presets to the patrol.

5. Click to call the patrol path or click to stop calling.

6. Click to edit a preset in the patrol path.

Notes:

 Up to 16 patrols can be configured.

 The patrol time can be set to 1~255 sec, and the patrol speed to level 1~40.

46

User Manual of iVMS-4200 PCNVR

Chapter 5 Recording

5.1 Schedule Recording

Before you start:

Make sure that the HDD has already been pre-allocated.

Purpose:

Set the record schedule, and then the camera automatically starts/stops recording according to the configured schedule.

Steps:

1. Click the Record Schedule button to enter configuring recording schedule interface.

Figure 5.1 Record Schedule Interface

2. Select a channel and click the Edit button.

47

User Manual of iVMS-4200 PCNVR

Figure 5.2 Edit Record Schedule Interface

3. You can modify recording parameters including pre-record time, post-record time, and video expired time.

Pre-record: The time you set to record before the scheduled time or event. For example, when an alarm triggered the recording at 10:00, if you set the pre-record time as 5 seconds, the camera records it at 9:59:55.

Post-record: The time you set to record after the event or the scheduled time. For example, when an alarm triggered the recording ends at 11:00, if you set the post-record time as 5 seconds, it records till

11:00:05.

Expired Time: The expired time is the longest time for a record file to be kept in the HDD, if the deadline is reached, the file will be deleted. You can set the expired time to 0, and then the file will not be deleted. The actual keeping time for the file should be determined by the capacity of the HDD.

You can click the Motion Detection button to enter motion detection settings interface. Please refer to

Section 6.2 Configuring Motion Detection for detailed information.

4. Check the checkbox of Enable Record Schedule.

5. Select record template in the drop-down list; or you can click Edit button to edit the template.

48

User Manual of iVMS-4200 PCNVR

Figure 5.3 Schedule Template Interface

Note:

All-day Template, Weekday Template, Alarm Template, and Motion Detection Template are not configurable.

Steps:

(1) Select a Template name and click Edit button on the top right side.

Figure 5.4 Edit Template Interface

(2) Select a recording type and drag the mouse on the time bar to define the record time window for each day.

means normal scheduled recording. The schedule time bar is green.

means schedule recording for motion detection. The schedule time bar is orange.

means schedule recording triggered by alarm. The schedule time bar is red.

49

User Manual of iVMS-4200 PCNVR

(3) Click the colored bar to display the specific time schedule. You can also shorten or extend the time period by amending the length of the bar.

(4) Click the Save button to save and exit.

6. Click the Confirm button to finish and save schedule settings.

7. Click the Advanced Settings button to configure the capture parameters.

Figure 5.5 Capture Parameters Settings

Steps:

(1) Configure the scheduled capture parameters including resolution, capture quality and capture interval by checking the checkbox of Scheduled Capture.

(2) Configure the event capture parameters including resolution, capture quality, capture interval and capturing number by checking the checkbox of Event Capture.

(3) Click Yes button to save the new settings and exit the dialog box.

8. You can click the Copy to… button to copy the settings to other channels, and click the OK button to save the settings.

5.2 Manual Recording

Manual Recording function allows you to record the live video in the Main View mode.

Steps:

1. In the main view interface, select a camera and double-click it or drag it to the display window to view the live video.

2. Then click the icon on the toolbar of the display window to start to record the live video.

3. To stop recording, please re-click button.

To change the saving path of the record files and captured pictures, go to the system configuration interface.

50

User Manual of iVMS-4200 PCNVR

For more details please refer to Section 10.3 Setting the paths for the manual record, captured picture and

Configuration File.

Figure 5.6 File Saving Path Configuration

51

User Manual of iVMS-4200 PCNVR

Chapter 6 Playback

6.1 Normal Playback

Steps:

1. Click tab to enter Playback interface.

Figure 6.1 Playback Interface

Number Description

Channel/View/Event List

Playback windows

Time Line

2. Search the playback files.

Playback interface descriptions

Number Description

Calendar

Control Bar

You can search files by channel or view mode.

Steps:

(1) Select channels to play back. Or you can unfold the View tab, and select a view mode you configured before.

(2) Select a date on the calendar.

52

User Manual of iVMS-4200 PCNVR

Figure 6.2 Calendar

Note:

If there are record files for that camera in that day. In the calendar, the icon for that day is displayed as . Otherwise it is displayed as .

(3) Select the time period.

You can click the button to pop up a window for time selection.

Figure 6.3 Detailed Calendar

(4) Click the Search button, then the page will jump to File List automatically.

3. Playback Management.

Playback by recording files

You can select a record file in the File List and click the button to play in the playback interface.

53

User Manual of iVMS-4200 PCNVR

Figure 6.4 File List

Playback by time line

Steps:

(1) Click Playback tab to get back to playback interface.

(2) The timeline indicates the time duration for the record file; you can click on the timeline to show the video of the specific time.

Figure 6.5 Time Line

You can click or to scaling up or scaling down the progress bar.

You can click or to go to the previous or the next time period.

You can also click on the time bar and drag it to change the time.

(3) You can select video types in the type window by clicking the

button. Check the checkbox of video type, including Time, Motion Detection, Alarm, and Manual.

Button

/

Figure 6.6 Video Type

Control Bar Button Descriptions

Description

Stop playback of all channels

Pause/Play

Button

/

54

Description

Turn on/off the audio

Full screen

User Manual of iVMS-4200 PCNVR

Single Frame

Playback speed bar

/

Record backup

Open/Close synchronous playback

(4) Click

to play back.

Drag your mouse on the playback window, there will be a control bar for playback, as shown in the figure below.

Figure 6.7 Toolbar

Button

/

Toolbar button descriptions

Description

Start/Stop video clips and export

Capture picture

Digital zoom

Adjust the playback speed by dragging the playback speed bar .

If the video you clipped needs to be exported, you can refer to section 7.2 Exporting Video Clips for detailed information of exporting video clips.

6.2 Event Playback

Purpose:

Play back record files on one or several channels searched by restricting event type.

Steps:

1. Click button to enter Playback interface.

2. Unfold the Event tab and select Motion Detection or Alarm Input.

55

User Manual of iVMS-4200 PCNVR

Figure 6.8 Event Tab

3. Search the playback files.

Steps:

(1) Check the checkbox of the camera or alarm input.

(2) Select a date on the calendar. Please refer to step (2) of the section 6.1 Normal Playback step2.

(3) Select a time period. Please refer to step (3) of the section 6.1 Normal Playback step2.

(4) The page will jump to Event List interface automatically.

4. Click

Figure 6.9 Event List

to play the specific file in the playback interface.

6.3 Simultaneous Playback

Note:

PCNVR supports 16 channels simultaneous playback at the same time.

Steps:

1. Click tab to enter Playback Interface.

56

User Manual of iVMS-4200 PCNVR

2. Search for recording files. Please refer to step 2 of section 6.1 Normal Playback.

3. Select a channel and click on the timeline to show the video of the specific time.

4. Click the button to start simultaneous playback.

6.4 Instant Playback

Steps:

1. Go to Main View panel; drag your mouse on the live view window to enable the toolbar shown as below:

Figure 6.10 Live View toolbar

2. Click the button, there will be a list of time period.

30s, 1 min, 3 min, 5 min, 8 min, and 10 min are selectable.

3. Select a time period to start instant playback.

Example: If the current time is 09:30:00, and you select 3 min, then the instant playback will start from 09:27:00.

When the instant playback is on, drag the mouse on the playback window and the toolbar will display, as shown in the figure below.

Button

/

Figure 6.11 Instant playback toolbar

Description

Pause

Stop

Slow Forward

Instant playback toolbar button descriptions

Button Description

Fast Forward

Single Frame

Capture

/

Start/Stop Recording

Open/Close Audio Mode Switching

4. You can click the button to get back to live view window.

57

User Manual of iVMS-4200 PCNVR

Chapter 7 Record File Exporting

7.1 Exporting Record Files

Purpose:

You can export the recording files to your personal directory. And there are two exporting methods supported.

Steps:

1. Click to enter Playback interface.

2. Search for the recording files. Please refer to step2 of Section 6.1 Normal Playback.

Figure 7.1 Export Video File

3. Check the checkbox of the filename and click to start export. The status of exporting will change to Downloading.

You can click the button to stop downloading.

4. The status will change to Download Completed when the downloading is finished.

Figure 7.2 Downloading Status

58

User Manual of iVMS-4200 PCNVR

Note:

The default saving file path can be modified in the system configuration interface. You can refer to section 10.3 to get more information.

You can also click time.

on the playback interface to backup the record file by setting its start and end

7.2 Exporting Video Clips

You can export video clips when playing back.

Steps:

1. Click the button on playback toolbar to start video clipping.

2. Click it again to stop the operation.

3. The exporting file will be saved by default. There will be note on the bottom right of saving path and name.

You can click the link to enter the directory.

Note:

The default saving path can be modified in the system configuration interface. You can refer to section 10.3 to get more information.

59

User Manual of iVMS-4200 PCNVR

Chapter 8 Event Management and Alarm I/O Settings

8.1 Alarm Settings

8.1.1 Manually turn on/off alarm output

Click Tool in the toolbar, and select I/O Control in the drop-down list to enter I/O Control interface.

Figure 8.1 I/O Control Interface

You can click the On/Off button to turn on/off the alarm output manually.

8.1.2 Alarm Parameter settings

Purpose:

Configuring parameters of an external sensor alarm or relay alarm.

Steps:

1. Click the button to enter configuration interface.

2. Click I/O Settings button to manage alarm I/O parameters.

You can see the alarm I/O information in the pop up window.

60

User Manual of iVMS-4200 PCNVR

Figure 8.2 I/O Settings Information

Alarm Parameters Descriptions

Parameter

IP Address

Alarm Name

Alarm Status

(Only for alarm input)

Output Delay

(Only for alarm output)

Description

IP address of the alarm I/O channel.

Define a name for the alarm I/O channel.

“Normal Open” stands for normally open status and “Normal Closed” stands for normally closed status.

The delay time for the alarm output.

3. Select an alarm channel and click Modify to set parameters.

Figure 8.3 Modify Alarm I/O

4. Edit the parameters and click the Yes button to save it.

You can click Copy to… button to copy the settings to other alarm channels.

Check the checkbox of alarm, and click the Yes button to copy the settings.

61

User Manual of iVMS-4200 PCNVR

Figure 8.4 Copy To

Note:

The Copy to function is only supported with sensor alarms.

8.1.3 Alarm Schedule and Handlings Settings

Steps:

1. Click the event management button to enter event settings interface.

Figure 8.5 Event Settings Interface

2. Unfold the Alarm Input list, and select an alarm input channel.

You can see the name, arming schedule, and linkage method of the alarm in the list.

3. Click the Modify button or double click on the channel number to enter alarm settings interface.

62

User Manual of iVMS-4200 PCNVR

Figure 8.6 Alarm Settings Interface

You can select an alarm input channel in the Event Source drop-down list.

4. Click Edit button to edit the arming schedule.

Schedule Button Description

Button

Figure 8.7 Arming Schedule Editing

Steps:

(1) Select a template name and click the Edit button to enter schedule editing interface.

(2) Drag the mouse on the time bar to define the record time window for each day.

(3) Click the colored bar to display the specific time schedule. You can also shorten or extend the time bar by amending the length of the bar.

Description

Delete the selected schedule

63

User Manual of iVMS-4200 PCNVR

Clear all the record schedules of the selected template

Copy the selected schedule section to other day (s)

Specific time of the colored bar.

(4) Click Save to save the settings.

(5) Click Confirm to finish and save schedule settings.

5. You can modify the Linkage Method, Alarm Output, Triggered Camera and Link PTZ.

Handling Descriptions

Parameter

Linkage Method

Alarm Output

Triggered Camera

Link PTZ

Configuring Linkage Method

Description

Trigger the linkage methods including audible warning, notify surveillance center, upload picture to FTP and email linkage when the event occurs.

Activate one or multiple channels of alarm output when alarm is triggered. Users need to specify the corresponding alarm output channel (s) in Alarm Output Settings.

Trigger the camera to record.

Trigger a PTZ Linking action, including preset, patrol or pattern.

Figure 8.8 Configuring Linkage Method

Check the checkbox of linkage method to enable it.

Configuring Alarm Output

64

User Manual of iVMS-4200 PCNVR

Figure 8.9 Configuring alarm output

1) Check the checkbox of Enable Output.

2) Check the checkbox of alarm output channel name.

Configuring Triggered Camera

Figure 8.10 Configuring triggered camera

Check the checkbox of channel name to trigger it.

Note:

Up to 8 channels can be triggered at one time.

Configuring Link PTZ

65

User Manual of iVMS-4200 PCNVR

Figure 8.11 Configuring PTZ link

1) Select a channel number from drop-down list.

2) Check the checkbox of PTZ action type, and select the number.

Note:

Only one PTZ linking type can be triggered at one time.

6. Click Confirm to save and exit settings.

You can click Copy to… to copy the settings to other alarms.

8.2 Configuring Motion Detection

Steps:

1. Click Event Management button to enter event settings interface.

66

User Manual of iVMS-4200 PCNVR

Figure 8.12 Camera List of Motion Detection

2. Unfold the Motion Detection list to select a channel, and click Modify button or double click on the channel number to enter motion detection settings interface.

Figure 8.13 Motion Detection Settings

3. Click Area Settings to modify detection area and sensitivity.

67

User Manual of iVMS-4200 PCNVR

Figure 8.14 Areas and Sensitivity Settings

Steps:

(1) Click and drag your mouse to draw an area.

(2) Drag the

Button

bar to adjust the sensitivity.

Area Settings Button Description

Description

Set the area to full screen.

Delete the selected area.

Delete all areas.

Sensitivity bar.

(3) Click the Confirm button to save and exit settings.

4. Set arm schedule. Please refer to Section 8.1.3 Alarm Schedule and Handlings Settings step 4 for details.

5. Set handling method for alarm, including Linkage Method, Alarm Output, and Triggered Camera.

Please refer to Section 8.1.3 Alarm Schedule and Handlings Settings step 5 for details.

You can click Copy to… to copy the settings to other channels.

6. Click the Confirm button to save and exit settings.

8.3 Configuring Tampering Alarm

Steps:

1. Click Event Management button to enter event settings interface.

68

User Manual of iVMS-4200 PCNVR

Figure 8.15 Camera List of Tampering Alarm

2. Unfold the Tampering Alarm list to select a channel, and click Modify button or double click on the channel number to enter tampering alarm settings interface.

Figure 8.16 Tampering Alarm Settings

3. Click Area Settings to modify detection area and sensitivity.

69

User Manual of iVMS-4200 PCNVR

Figure 8.17 Area and Sensitivity Settings

Steps:

(1) Click and drag your mouse to draw area.

(2) Drag the bar to adjust the sensitivity.

Area Settings Button Descriptions

Button Description

Set the area to full screen.

Delete the area.

Sensitivity bar.

(3) Click Confirm button to save and exit settings.

4. Set arm schedule. Please refer to section8.1.3 Alarm Schedule and Handlings Settings step 4 for details.

5. Set handling method for tampering alarm, including Linkage Method and Alarm Output. Please refer to section 8.1.3 Alarm Schedule and Handlings Settings step 5 for details.

You can click Copy to… to copy the settings to other channels.

6. Click Confirm to save and exit settings.

8.4 Configuring Video Loss

Steps:

1. Click Event Management button to enter event settings interface.

70

User Manual of iVMS-4200 PCNVR

Figure 8.18 Camera List of Video Loss

2. Unfold the Video Loss list to select a channel, and click Modify button or double click on the channel number to enter video loss settings interface.

Figure 8.19 Video Loss Settings

3. Set arm schedule. Please refer to Section 8.1.3 Alarm Schedule and Handlings Settings step 4 for details.

4. Set handling method for tampering alarm, including Linkage Method and Alarm Output. Please refer to Section 8.1.3 Alarm Schedule and Handlings Settings step 5 for details.

You can click Copy to… to copy the settings to other channels.

5. Click Confirm to save and exit settings.

71

User Manual of iVMS-4200 PCNVR

8.5 Configuring PIR Alarm

Steps:

Note:

This section is only for the cameras with the PIR (passive infrared sensor) alarm function.

1. Click Event Management button to enter event settings interface.

Figure 8.20 Camera List of PIR Alarm

2. Unfold the PIR Alarm list to select a channel, and click Modify button or double click on the channel number to enter PIR Alarm interface.

72

User Manual of iVMS-4200 PCNVR

Figure 8.21 PIR Alarm Settings

3. Set the alarm name as desired in the Alarm Name text field.

4. Set handling method for PIR alarm, including Linkage Method, Alarm Output and Triggered Camera.

Please refer to Section 8.1.3 Alarm Schedule and Handlings Settings step 5 for details.

You can click Copy to… to copy the settings to other channels.

5. Click Confirm to save and exit settings.

8.6 Configuring Wireless Alarm

Note:

This section is only for the cameras with the wireless alarm function.

Steps:

1. Click Event Management button to enter event settings interface.

Figure 8.22 Camera List of Wireless Alarm

2. Unfold the Wireless Alarm list to select a channel, and click Modify button or double click on the channel number to enter Wireless Alarm interface. You can check the checkbox the wireless alarm.

to enable

73

User Manual of iVMS-4200 PCNVR

Figure 8.23 Wireless Alarm Settings

3. Select the alarm input and set the alarm name as desired.

4. Set handling method for wireless alarm, including Linkage Method, Alarm Output and Triggered

Camera. Please refer to Section 8.1.3 Alarm Schedule and Handlings Settings step 5 for details.

You can click Copy to… to copy the settings to other channels.

5. Click Confirm to save and exit settings.

8.7 Configuring Emergency Alarm

Note:

This section is only for the cameras with the emergency alarm function.

Steps:

1. Click Event Management button to enter event settings interface.

74

User Manual of iVMS-4200 PCNVR

Figure 8.24 Camera List of Emergency Alarm

2. Unfold the Emergency Alarm list to select a channel, and click Modify button or double click on the channel number to enter Emergency Alarm interface.

Figure 8.25 Emergency Alarm Settings

3. Select the event source.

4. Set handling method for emergency alarm, including Linkage Method, Alarm Output and Triggered

Camera. Please refer to Section 8.1.3 Alarm Schedule and Handlings Settings step 5 for details.

You can click Copy to… to copy the settings to other channels.

5. Click Confirm to save and exit settings.

75

User Manual of iVMS-4200 PCNVR

8.8 Configuring Exceptions

Steps:

1. Enter Click Event Management button to enter event settings interface.

Figure 8.26 Exception List

Parameter

HDD Full

HDD Exception

Network Disconnected

Illegal Login

Video Standard Mismatch

Record Exceptions

Exception Parameter Descriptions

Description

The HDD is full.

Writing HDD error or unformatted HDD.

Disconnected network cable.

Incorrect user ID or password.

The configured video input standard mismatches with the video output of the camera.

No space for saving recorded files or captured images.

2. Unfold the Exceptions list to select a type of exceptions, and click Modify or double click on the event type to enter exceptions settings interface.

76

User Manual of iVMS-4200 PCNVR

Figure 8.27 Exception Settings

3. You can select event type in the Event Source drop-down list.

Figure 8.28 Event Source

4. Set handling method for tampering alarm. Please refer to Section 8.1.3 Alarm Schedule and Handlings

Settings step 5 for details.

You can click Copy to… to copy the settings to other exceptions.

5. Click Confirm to save and exit settings.

8.9 Viewing Alarm or Event Information

The alarm information can be viewed by clicking the expand button or maximize button in the alarm information field shown in the following figure.

You can also pin the information window on the screen, click .

77

User Manual of iVMS-4200 PCNVR

Figure 8.29 Alarm Information

Item

Description of Buttons:

Description

Twinkles when there are alarms are triggered.

Clear all the alarm information.

Enable or disable the pop-up alarm picture on the screen.

/

Enable or disable the audible alarm.

/

Click to filter the alarm or event information

Linkage Method: Click the button to view the alarm video.

Linkage Method: Click to send the E-mail of the alarm info.

You can also check the checkbox to filter the alarm types.

Note:

Before you use the button to send the E-mail of the alarm information, you must configure the email settings in the system management interface.

78

User Manual of iVMS-4200 PCNVR

Chapter 9 Managing E-map

9.1 Adding an E-map

Note:

Only one map can be added as the main map.

Steps:

1. Click tab to enter E-map interface.

Figure 9.1 E-map

2. Click to add map.

3. Enter the name of map, and select the map file from your local directory.

79

User Manual of iVMS-4200 PCNVR

Figure 9.2 E-Map Information

Note:

Map format should be *. png, *. jpg or *. bmp. After add map successfully, it shows on the window and name of map also appears on the map list.

4. Click the Yes button to finish adding.

Figure 9.3 E-map Display

Toolbar buttons descriptions

Button

/

9.2 The Hot Spot Function

9.2.1 Adding a Hot Spot

Adding Camera as a Hot Spot

Description

Mode switching between editing and preview.

Add alarm input hot spot on the map.

Add hot spot on the map.

Add hot region on the map.

Remove selected hot spot from the map.

Switch to previous map. This icon only shows in Map

Preview mode.

Switch to next map. This icon only shows in Map

Preview mode.

Clear alarm display on E-Map manually. This icon only shows in Map Preview mode.

80

User Manual of iVMS-4200 PCNVR

Purpose:

You can add the hot spot icon on the map to show the location of the camera, and obtain the alarm information through it.

Steps:

1. Click the button and the hot spot adding interface will pop up.

Figure 9.4 Adding Hot Spot

2. Check the checkbox of the camera name and click the Yes button to finish adding.

You can edit the Hot Spot Color and Hot Spot Icon in the drop-down list.

Shortcut Operation:

You can click and drag the camera icon on the list to the map to add it as a hot spot.

You can get the live view image by double-clicking the hot spot icon in the map preview mode

.

Figure 9.5 Live view image of hot spot

You can change the resolution by clicking cif or 4cif on the top right of the window.

81

User Manual of iVMS-4200 PCNVR

Figure 9.6 Live view window

Under the map preview mode, if there is any alarm triggered, icon will appear near the hot spot icon, as shown in the figure below.

Figure 9.7 A hot spot with alarm

You can click the icon for detailed alarm information, including alarm type and time.

Adding an Alarm Input as a Hot Spot

Steps:

1. Click the button and the adding alarm input hot spot interface will pop up.

82

User Manual of iVMS-4200 PCNVR

Figure 9.8 Adding an Alarm Input as a Hot Spot

2. Check the checkbox of the alarm input name and click the Yes button to finish adding.

You can edit the Hot Spot Color and Hot Spot Icon in the drop-down list.

After adding, you can drag the alarm icon to the target position on the map.

9.2.2 Editing a Hot Spot

Click the camera icon on the map, you can see and modify the properties of the spot in the right side bar, including Live View image, Name, Color, Icon and Associated camera.

83

User Manual of iVMS-4200 PCNVR

Figure 9.9 Editing a hot spot parameters

Click the alarm icon on the map, you can see and modify the properties of the spot in the right side bar, including Name, Color, Icon and Associated alarm.

Figure 9.10 Editing an alarm input hot spot parameters

9.3 The Hot Region Function

Purpose:

The hot region function links a map to another map. When you add a map to another map as a hot region, an icon of the link to the added map is shown on the map. And the added map is called child map while the map to which you add the hot region is the parent map.

Note:

You can add up to 16 sub maps under the main map.

Steps:

1. Add another map first.

Figure 9.11 Enter Sub Map information

Note:

The first map you added will be the parent map by default.

2. Click the parent map name on the left side bar and click to add hot region.

3. Check the checkbox of the map in the pop up window; click the Yes button to add.

84

User Manual of iVMS-4200 PCNVR

Figure 9.12 Adding Hot Region

Shortcut Operation:

You can click and drag the sub-map icon on the list to the parent map.

You can edit the Hot Region Color and Hot Region Icon in the drop-down list.

After adding, you can enter the sub map interface by clicking the icon on the main map in the map preview mode, as shown in the figure below.

Figure 9.13 Sub-Map Display

You can also add hot spots on the sub-map. Please refer to the section 9.2 The Hot Spot Function for the detailed information.

85

User Manual of iVMS-4200 PCNVR

Chapter 10 System Configuration

10.1 Viewing the System Information

The system information of the PCNVR software can be read in the system information interface.

Steps:

1. Click tab page on the navigation bar.

2. Click

3. Click button.

icon. field.

Figure 10.1 System Information

is the version information of the software which is a read-only text field.

is the number of the disks are there for scheduled recording which is a read-only text

is the serial number of the PCNVR.

can be select as yes or no, when selecting yes, the HDD record files can be over-written and

86

User Manual of iVMS-4200 PCNVR select no, the data will not be over-written.

10.2 General Configuration

Steps:

1. Click tab page on the navigation bar.

2. Click

3. Click icon.

icon.

Figure 10.2 System Configuration-General

is to set the value for the view scale, and the value can be full screen, 16:9, 4:3 and the original resolution.

is to choose the network performance of the software.

is to set the CPU performance, you are recommended to set the high CPU performance when the CPU load is low, and low CPU performance when the CPU load is high.

check to enable the quick setting toolbar on the live view page.

87

User Manual of iVMS-4200 PCNVR

check to enable the login without user authentication.

check to enable the resume live view status after software rebooting.

check the checkbox the stream type changes to sub-stream when the channel number is over 16.

10.3 Setting the paths for the manual record, captured picture and

Configuration File

Steps:

1. Click tab page on the navigation bar.

2. Click

3. Click icon.

icon.

Figure 10.3 Setting Saving Path of Files

4. Click the button to browse the folder you’d like to save the manual record files, the captured pictures and the configuration file.

88

User Manual of iVMS-4200 PCNVR

Manual record here means the record you enabled on the live view page, by clicking the record button on the quick setting toolbar of the live view page.

10.4 Setting the Network Information

Steps:

1. Click tab page on the navigation bar.

2. Click icon.

3. Click icon.

4. Set the network related parameters for the software.

Figure 10.4 Network Settings-General

General:

The general network parameters are the same with those of the PC installed the software. If you change the settings here, the settings on the PC will be also changed.

DDNS

You can use the DDNS method to avoid the complexity of accessing by the dynamic IP address.

89

User Manual of iVMS-4200 PCNVR

Figure 10.5 Network Settings-DDNS

NTP configuration:

You can configure the NTP server to synchronize the system time at a certain time interval.

Figure 10.6 Network Settings-NTP

10.5 Alarm Sound Configuration

Steps:

1. Click tab page on the navigation bar.

icon. 2. Click

3. Click icon.

90

User Manual of iVMS-4200 PCNVR

You can configure the alarm sound for the audible alarm in this interface.

Figure 10.7 Alarm Sound

10.6 Email Configuration

Email configuration is to configure the email parameters of the linkage action of alarm and event to trigger email sending.

Steps:

1. Click tab page on the navigation bar.

icon. 2. Click

3. Click icon.

91

User Manual of iVMS-4200 PCNVR

Figure 10.8 Email Settings

Enter the information of the email sender account and those of the receivers. You can send a test email to verify your settings. Click to confirm your settings.

10.7 Keyboard and Joystick Configuration

Purpose:

You can choose the COM port for the keyboard and the set the PC keyboard shortcuts for the frequently used function.

Steps:

1. Click tab page on the navigation bar.

icon. 2. Click

3. Click icon.

92

User Manual of iVMS-4200 PCNVR

Figure 10.9 Keyboard and Joystick Configuration

To set the PC keyboard shortcuts and USB joystick for the frequently used operation:

Steps:

1) Click to choose a function.

2) Double-click the item field under the PC Keyboard list and/or USB Joystick.

Figure 10.10 PC keyboard

3) Choose in the dropdown list of the compound keys operation and/or USB Joystick operation.

4) Click button after you finish your settings.

5) Apply it then you can use the shortcut to realize the function on your PC keyboard and USB joystick.

93

User Manual of iVMS-4200 PCNVR

Chapter 11 Disk Management

Purpose:

You need you allocate the HDD spaces for the scheduled recording, and you can do it in the wizard.

Without allocating and formatting the disks, the scheduled recording function is not valid.

Steps:

1. Click on the configuration panel, or click Tool -> Disk Management.

Figure 11.1 Disk Management

2. Check the checkbox of the disk driver to choose the disk.

3. Click to allocate the disk space for recording files storage. And the process bar on the interface shows the progress of the allocating.

After the allocating, the status of the disk changes to Normal.

94

User Manual of iVMS-4200 PCNVR

Chapter 12 Web Browsing

Purpose:

iVMS-4200 PCNVR can also be accessed through web browsing. You can set the functions of live view, playback, log search, parameters configurations, etc.

12.1 Logon

Steps:

1. Input the IP address of PCNVR in the address bar of web browser, and click the Enter key.

Figure 12.1 User Login

You can set the language as Chinese or English on the top right corner of the login interface.

2. Input the user name and password. The user name is admin and password is 12345 by default.

3. Click Login.

12.2 Camera Configurations

Before you start:

The network cameras or encoders to be imported or configured should be in the same network with the

PCNVR.

Steps:

1. Enter the camera adding interface:

Configuration -> Remote Configuration -> Camera Management -> IP Camera

95

User Manual of iVMS-4200 PCNVR

Figure 12.2 Configuration

2. Add the camera to the PCNVR.

Steps:

1) Click Add, and the camera adding dialog box pops up.

Figure 12.3 Adding the Camera

2) Input the IP address, user name, password and other information of the camera.

3) Click OK to add the camera.

3. Check the connection status of the camera.

If the camera is added successfully, the status of the camera in the channel list shows as Online.

Otherwise, the status shows as Offline. Then please check the information of the camera including the

IP address, password, protocol, etc.

4. Modify the camera information.

Figure 12.4 Camera List

96

User Manual of iVMS-4200 PCNVR

Steps:

1) Select the camera in the channel list.

2) Click Modify.

Figure 12.5 Modifying the Camera

3) Modify the camera information including the IP address, protocol, management port, etc.

4) Click OK to save the new settings.

12.3 Live View

Steps:

1. Click Live View tab to enter the live view interface after the camera added successfully.

Figure 12.6 Live View

If it is the first time for live view, the system will remind you to install the ActiveX control. Click and install the ActiveX control.

Live View Toolbar:

Button Name Description

97

User Manual of iVMS-4200 PCNVR

Layout

Start All Live View

Capture

Start All Recording

Digital Zoom

Prev Page

Next Page

Start Two-way Audio

Select the view mode for the live view.

Start the live view for all the channels.

Capture pictures in the live view of the cameras.

Start the recording for all the channels.

Enable the digital zoom funciton.

Jump to the live view of next group.

Jump to the live view of previous group.

Start two-way audio, click again to stop. The two-way audio can be used for only one camera at one time.

Enable/disable live audio.

Audio On

2. Click the icon and select the view mode. Up to 4 kinds of view modes are selectable: 1-Screen and 4-

Screen, 9-Screen and 16-Screen.

3. Select the display window.

4. Click the icon in the channel list or double-click the channel name to get the live view of the camera.

Figure 12.7 Live View for the Camera

5. You can click the icon to start the live view for all the channels.

12.4 Disk Management

Steps:

1. Enter the Disk Management interface:

Configuration -> Remote Configuration -> HDD Management -> Basic Settings

98

User Manual of iVMS-4200 PCNVR

Figure 12.8 HDD Management

2. Select the disk to be formatted by checking the corresponding checkbox.

3. Click Format to start to format the selected disk. A message box pops up as following:

4. Click OK.

5. After the selected disk formatted successfully, the PCNVR reboots automatically. Input the user name and password to login again. The status of the formatted HDD changes from Uninitialized to Normal.

The normal HDD can be used as the recording storage device.

Notes:

1. The disk formatting needs to be finished before the recording.

2. The formatting function won’t delete the original data of your disk. It just preallocates the disk space for recording.

12.5 Record Configurations

12.5.1 Manual Record

Steps:

1. Enter the live view mode of the channel.

2. Click to start the recording of this channel. If the icon does not change to , the note message

“Recording failed” pops up.

3. To stop the recording, click .

99

User Manual of iVMS-4200 PCNVR

When there are multiple channels in live view mode, you may click to start the recording for all the channels, or click to stop.

Note:

The manual record functions in the live view mode.

12.5.2 Schedule Record

Steps:

1. Enter the Schedule Settings interface.

Configuration -> Remote Configuration -> Camera Settings -> Schedule Settings

Figure 12.9 Schedule Record

2. Click the icon and select the channel in the drop-down list.

3. Set the schedule for record.

Steps:

1) Check the checkbox of Enable Record Schedule.

2) Click Edit.

Figure 12.10 Configuring the Schedule

100

User Manual of iVMS-4200 PCNVR

3) Select the record type in the drop-down list.

There are five recording types supported, including

Normal, Motion Detection, Alarm, Motion & Alarm, and Motion | Alarm.

“&” means recording is triggered when both the two events happened at the same time.

“|” means recording is triggered when either the event happened.

4) Select one day in a week by clicking the corresponding tab.

5) Click to select All Day mode for record if required. You can also customize the time period for record. Click to select Customize mode. There are 8 time periods in one day. Then you can set schedule recording from the drop-down menu. You are also allowed to copy the settings to whole week or to any day of the week

Note:

Please make sure that each time period is not overlapped.

6) Click OK.

4. You can copy the schedule to other channels.

Steps:

1) Check the checkbox of the channel to copy to.

2) Click Save.

12.6 Playback

Steps:

1. Click Playback tab to enter the Playback interface.

Figure 12.11 Playback

Playback Toolbar:

Button Name

Layout

Play

Description

Select the view mode for the live view.

Start the playback of the record file.

101

User Manual of iVMS-4200 PCNVR

/

/

Stop

Stop the playback of the record file.

Slow Forward

Audio on / off

Decrease the speed of instant playback

Fast Forward

Single Frame

Increase the speed of instant playback

The video move forward to the next frame.

Stop All Playback

Stop the playback of all channels.

Capture

Capture pictures in the playback of the cameras.

Download

Download the record file.

Start / Stop clipping

Start / Stop the video clipping of the record file.

Enable/disable the audio of in the playback of the record file.

2. Select a channel on the channel list. (Channel 1 is the default).

3. Select a date in calendar.

Figure 12.12 Channel List

Figure 12.13 Calendar

4. Click Search. If some matched record files are searched, they will be shown in the time line area.

You can drag the timeline to select the specific time, or input the time in the pop-up box and click to locate the playback point. The playback will start from the specified time.

Different file types will be indicated with different colors.

5. After the search finished, click to play the record file.

102

User Manual of iVMS-4200 PCNVR

12.7 Log Management

1. Click Log tab to enter the Log Management interface.

Figure 12.14 Log Search

2. Select the type, start time, end time of the log files.

Note: 2 kinds of the log type are selectable: Major Type and Minor Type. Select the major type of the log first, and you can specify the major type by selecting the minor type.

3. Click Search. The matched log files will be displayed as following:

Figure 12.15 Log File List

Note:

Up to 2000 piece of log files can be displayed.

4. Save the log files.

Steps:

1) Select the log file in the log list.

2) Click Save Log.

103

User Manual of iVMS-4200 PCNVR

Figure 12.16 Saving Path of the Log

3) Select the saving path of the log file and input the file name.

4) Click Save.

104

User Manual of iVMS-4200 PCNVR

105

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
