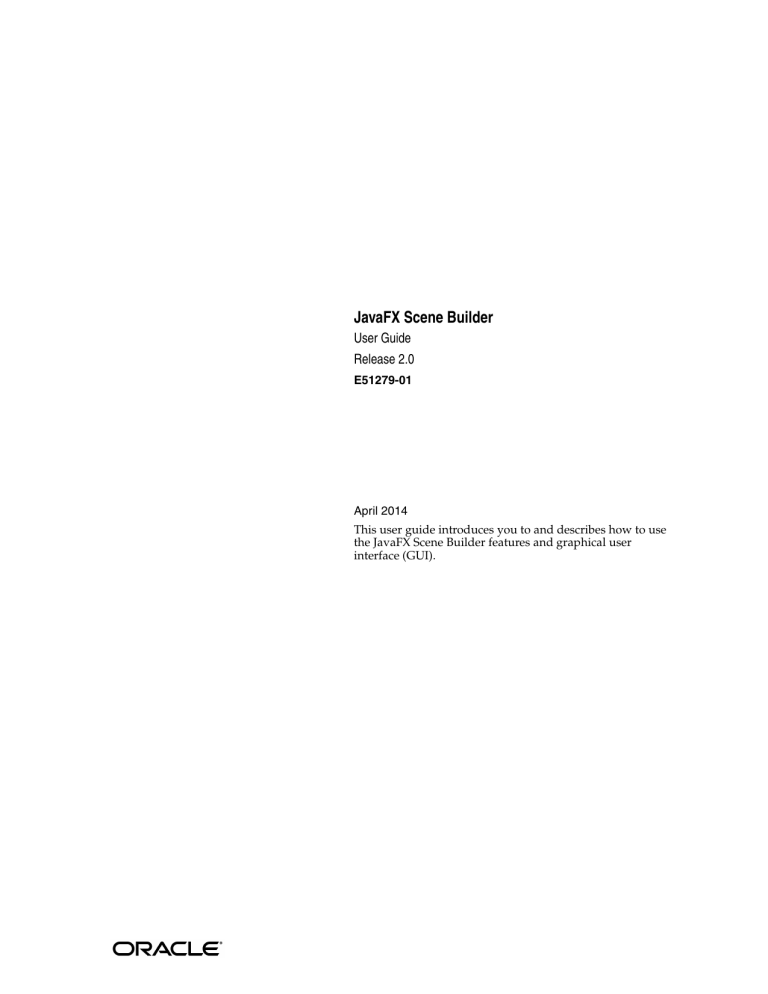

JavaFX Scene Builder
User Guide
Release 2.0
E51279-01
April 2014
This user guide introduces you to and describes how to use
the JavaFX Scene Builder features and graphical user
interface (GUI).
JavaFX Scene Builder User Guide Release 2.0
E51279-01
Copyright © 2012, 2014 Oracle and/or its affiliates. All rights reserved.
Primary Author:
Contributor:
Cindy Castillo
Yves Joan
This software and related documentation are provided under a license agreement containing restrictions on
use and disclosure and are protected by intellectual property laws. Except as expressly permitted in your
license agreement or allowed by law, you may not use, copy, reproduce, translate, broadcast, modify, license,
transmit, distribute, exhibit, perform, publish, or display any part, in any form, or by any means. Reverse
engineering, disassembly, or decompilation of this software, unless required by law for interoperability, is
prohibited.
The information contained herein is subject to change without notice and is not warranted to be error-free. If
you find any errors, please report them to us in writing.
If this is software or related documentation that is delivered to the U.S. Government or anyone licensing it
on behalf of the U.S. Government, the following notice is applicable:
U.S. GOVERNMENT RIGHTS Programs, software, databases, and related documentation and technical data
delivered to U.S. Government customers are "commercial computer software" or "commercial technical data"
pursuant to the applicable Federal Acquisition Regulation and agency-specific supplemental regulations. As
such, the use, duplication, disclosure, modification, and adaptation shall be subject to the restrictions and
license terms set forth in the applicable Government contract, and, to the extent applicable by the terms of
the Government contract, the additional rights set forth in FAR 52.227-19, Commercial Computer Software
License (December 2007). Oracle America, Inc., 500 Oracle Parkway, Redwood City, CA 94065.
This software or hardware is developed for general use in a variety of information management
applications. It is not developed or intended for use in any inherently dangerous applications, including
applications that may create a risk of personal injury. If you use this software or hardware in dangerous
applications, then you shall be responsible to take all appropriate fail-safe, backup, redundancy, and other
measures to ensure its safe use. Oracle Corporation and its affiliates disclaim any liability for any damages
caused by use of this software or hardware in dangerous applications.
Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks of
their respective owners.
Intel and Intel Xeon are trademarks or registered trademarks of Intel Corporation. All SPARC trademarks
are used under license and are trademarks or registered trademarks of SPARC International, Inc. AMD,
Opteron, the AMD logo, and the AMD Opteron logo are trademarks or registered trademarks of Advanced
Micro Devices. UNIX is a registered trademark of The Open Group.
This software or hardware and documentation may provide access to or information on content, products,
and services from third parties. Oracle Corporation and its affiliates are not responsible for and expressly
disclaim all warranties of any kind with respect to third-party content, products, and services. Oracle
Corporation and its affiliates will not be responsible for any loss, costs, or damages incurred due to your
access to or use of third-party content, products, or services.
Contents
Preface ................................................................................................................................................................. v
About This Tutorial.....................................................................................................................................
Audience.......................................................................................................................................................
Documentation Accessibility .....................................................................................................................
Related Documents .....................................................................................................................................
Conventions .................................................................................................................................................
v
v
v
v
vi
1 Introduction
2 Starting Up Scene Builder
3 Getting to Know the Main Window
4 Using the Menu Bar Commands
5 Using the Path, Selection and Message Bar
6 Working with the Content Panel
7 Using the Document Panel
Hierarchy Section ....................................................................................................................................... 7-2
Controller Section ...................................................................................................................................... 7-5
8 Designing GUI with the Library Panel
Managing Custom GUI Elements ........................................................................................................... 8-4
Adding Custom Components to the Library ...................................................................................8-4
Using a Grid Pane Container ................................................................................................................... 8-7
Working with a Border Pane Container ................................................................................................. 8-9
Using a Tab Pane Container .................................................................................................................. 8-10
Working with Menu Controls............................................................................................................... 8-12
9 Defining Properties in the Inspector Panel
Properties Section....................................................................................................................................... 9-3
Layout Section.......................................................................................................................................... 9-10
iii
Code Section............................................................................................................................................. 9-12
10 Internationalizing Your FXML Layout
11 Styling with CSS and the CSS Analyzer
Using the CSS Analyzer Panel.............................................................................................................. 11-3
12 Next Step
iv
Preface
This preface gives an overview about this tutorial and also describes the document
accessibility features and conventions used in this tutorial - JavaFX Scene Builder User
Guide.
About This Tutorial
This guide introduces you to the graphical user interface (GUI) and describes the
features of the JavaFX Scene Builder, a design tool for the JavaFX platform.
Audience
This document is intended for JavaFX developers.
Documentation Accessibility
For information about Oracle's commitment to accessibility, visit the Oracle
Accessibility Program website at
http://www.oracle.com/pls/topic/lookup?ctx=acc&id=docacc.
Access to Oracle Support
Oracle customers have access to electronic support through My Oracle Support. For
information, visit
http://www.oracle.com/pls/topic/lookup?ctx=acc&id=info or visit
http://www.oracle.com/pls/topic/lookup?ctx=acc&id=trs if you are
hearing impaired.
Related Documents
For more information, see the following documents in the JavaFX Scene Builder and
JavaFX documentation sets:
■
JavaFX Scene Builder Installation Guide
■
JavaFX Scene Builder Release Notes
■
Getting Started with JavaFX Scene Builder
■
Using JavaFX Scene Builder with Java IDEs
■
Mastering FXML
v
Conventions
The following text conventions are used in this document:
vi
Convention
Meaning
boldface
Boldface type indicates graphical user interface elements associated
with an action, or terms defined in text or the glossary.
italic
Italic type indicates book titles, emphasis, or placeholder variables for
which you supply particular values.
monospace
Monospace type indicates commands within a paragraph, URLs, code
in examples, text that appears on the screen, or text that you enter.
1
Introduction
1
This chapter discusses what is required before using this JavaFX Scene Builder User
Guide and gives a brief introduction on what is covered in the document.
It is assumed that you have already installed Java SE Development Kit 8 (JDK 8) and
the JavaFX Scene Builder product on your system. You also should have downloaded
the Scene Builder samples bundle file that is provided at the same download site. See
the JavaFX Scene Builder Installation Guide for more detailed information.
The following topics describe the different JavaFX Scene Builder features.
■
Starting Up Scene Builder
■
Getting to Know the Main Window
■
Using the Menu Bar Commands
■
Using the Path, Selection and Message Bar
■
Working with the Content Panel
■
Designing GUI with the Library Panel
■
Using the Document Panel
■
Defining Properties in the Inspector Panel
■
Styling with CSS and the CSS Analyzer
■
Internationalizing Your FXML Layout
■
Next Step
Introduction 1-1
1-2 JavaFX Scene Builder User Guide
2
Starting Up Scene Builder
2
This chapter describes how to start JavaFX Scene Builder and how to open an existing
FXML file, such as the IssueTrackingLite sample provided with the downloadable
Scene Builder samples.
You start a standalone version of JavaFX Scene Builder by using one of the following
methods:
■
■
■
■
On Windows 7 or earlier platforms, do one of the following steps:
–
Double-click the JavaFX Scene Builder 2.0 desktop icon.
–
Select Start, then All Program, then JavaFX Scene Builder, and finally, JavaFX
Scene Builder 2.0.
On Windows 8 platform, use the Search field and type any part of JavaFX Scene
Builder 2.0 to locate it. Alternatively, use the Apps View to locate JavaFX Scene
Builder from the list of installed applications on your system.
On the Mac OS X platform, double-click the JavaFX Scene Builder 2.0 shortcut in
the Applications folder.
On the Ubuntu platform, Scene Builder appears in the Dash desktop search utility
after it is installed. Alternatively, you can launch the Scene Builder executable
from /opt/JavaFXSceneBuilder2.0/JavaFXSceneBuilder2.0.
The initial window that you see is the main window, as shown in Figure 2–1. It
displays an empty and untitled FXML file.
An element is a principal visual object that you can add to the Content panel and
manipulate when editing an application’s GUI layout in JavaFX Scene Builder. An
element can be dragged from the Library panel of predefined GUI elements onto the
Content or Hierarchy panel. You can also group elements so that you can assign
property and layout values on multiple elements at the same time.
Starting Up Scene Builder
2-1
Figure 2–1 JavaFX Scene Builder Startup Window
From within Scene Builder, you can also open an existing FXML document from the
Menu bar using one of the following steps:
■
■
From the File menu, select Open.
From the File menu, select Open Recent and select the file from the list of recently
opened FXML files.
You can also open a new FXML file from an opened Scene Builder window using the
following steps:
■
■
From the File menu, select New.
From the File menu, select New from Template and select from the list of
available FXML templates, as shown in Figure 2–2.
2-2 JavaFX Scene Builder User Guide
Figure 2–2 New from Template File Command
For illustration purposes, use the IssueTrackingLite.fxml sample file that is included
with the JavaFX Scene Builder samples bundle.
1.
Go to where you extracted the javafx_scenebuilder_samples-2_0.zip file.
2.
Expand the IssueTrackingLite, src, and issuetrackinglite folders.
3.
Open the IssueTrackingLite.fxml file.
The file is opened in Scene Builder, if you have Scene Builder properly installed.
You can also use Scene Builder with one of the Java IDEs, such as NetBeans IDE,
Eclipse, or IntelliJ IDEA, to create a new FXML file or open an existing one. Use the
information in Using JavaFX Scene Builder with Java IDEs to learn more.
Starting Up Scene Builder
2-3
2-4 JavaFX Scene Builder User Guide
3
Getting to Know the Main Window
3
This chapter discusses the different major parts of the main window that appears after
Scene Builder is started up.
After you open the FXML file to work with, it’s contents are displayed in the Content
panel of the main window, similar to what is shown in Figure 3–1.
Figure 3–1 Main Window of JavaFX Scene Builder
By default, the main window of JavaFX Scene Builder includes the following sections,
which are labeled in Figure 3–1.
■
■
Menu Bar: Provides access to the menu of commands available in JavaFX Scene
Builder.
Path, Selection and Message Bar: Displays the path to a selected element and
allows you to select an element to put into focus. It also displays any error or
status messages.
Getting to Know the Main Window 3-1
■
■
■
■
Content Panel: The scene container for the GUI elements that make up your
FXML layout. By default, a new empty FXML file is opened in JavaFX Scene
Builder.
Library Panel: Lists the available JavaFX GUI elements or controls, including
custom controls, that you can use to build your FXML layout. You select the GUI
elements from this panel and add them to the Content panel or the Hierarchy
panel.
Document Panel: Contains the Hierarchy and Controller sections. The Hierarchy
section displays a tree view representation of the FXML layout that you are
building in the Content panel. Elements that are not visible in the Content panel
can be placed into focus by selecting it in the Hierarchy panel. The Controller
section enables you to manage the controller source information and gives
information about assigned fx:id values.
Inspector Panel: Contains the Properties, Layout, and Code sections. The
Properties and Layout sections help you manage the properties of the currently
selected GUI element in the Content panel or in the Hierarchy panel. The Code
section enables you to manage the event handling actions to use for the selected
GUI element. The Inspector panel also contains a Search text field that enables you
to isolate specific properties that you want to modify.
The following panel is also displayed in the main window when you select View from
the Main menu and then Show CSS Analyzer.
■
CSS Analyzer Panel: Allows you to explore all the CSS properties available for a
JavaFX component on your FXML layout and helps you to build the CSS rules
The next chapters describe the parts listed above in more detail.
3-2 JavaFX Scene Builder User Guide
4
Using the Menu Bar Commands
4
This chapter describes the commands that are available from the Scene Builder main
Menu bar.
The Menu bar displays the menus of commands that you can perform with an FXML
layout file. The following sections describe the list of subcommands available when
you select a command from the Menu bar. Table 4–1 describes the subcommands for
the File command.
The shortcut key shown in the tables below are for Windows
platform. Replace the Ctrl key with the Cmd key to use the equivalent
shortcut key for the Mac OS X platform.
Note:
Table 4–1
List of File Subcommands
Command (Shortcut Key)
Description
New (Ctrl+N)
Create a new FXML file and opens it in a separate Scene Builder
window.
New from Template
Create a new FXML layout using one of the available templates:
Alert Dialog, Basic Application, Complex Application, Alert
Dialog - CSS, Alert Dialog - Localized, Basic Application - CSS,
Basic Application - Localized, Complex Application - CSS, and
Complex Application - Localized layouts.
Open (Ctrl+O)
From an Open FXML dialog box, select the existing FXML file to
open.
Open Recent
Select the file to open from a list of recently opened FXML files.
Save (Ctrl+S)
Save the changes made since the last Save action was performed.
If it is a new FXML document, you are prompted to provide the
new file name. If it is an existing FXML file, the current file name
is retained.
Save As (Ctrl+Shift+S)
Save the current FXML file you are working on, with the option
to save the changes to a different file.
Revert to Saved
Undo the changes made since the last Save action was
performed.
Reveal in Explorer
Open a native file browser, which displays the folder containing
(Windows),
the current FXML file and gives you the opportunity to open the
Reveal on Desktop (Linux), file.
Reveal in Finder (Mac OS X)
Using the Menu Bar Commands
4-1
Table 4–1 (Cont.) List of File Subcommands
Command (Shortcut Key)
Description
Import
Import an existing image, FXML, or media file.
The Import > FXML command inserts the content of the
imported file into the current FXML file you are working on.
An image or media file should be imported into Scene Builder
from inside your project sources directory. If the image or media
file you are importing is located somewhere other than your
project sources directory, you need to move or copy the file.
Scene Builder does not copy the imported image or media file
for you. It makes a link to the imported media or image file
using a path relative to the location of the FXML file currently
being worked on. Consequently, if the relative location of the
imported image or media file is different at runtime, then your
FXML file may not load properly. You need to ensure all
imported files are packaged properly by your IDE and that their
relative location at runtime and edit time are the same.
The simplest way to achieve this is to only import image or
media files which are already located under your project sources
directory and to instruct your IDE to include these files in the
packaging, which is usually done by default.
Include
Insert FXML, Edit the Included File, or Reveal the Included File.
Insert FXML command inserts an fx:include construct into your
FXML document.
Edit the Included File command allows you to edit any imported
or included FXML file that is referenced by an fx:include
statement defined for the selected element. When you edit an
included FXML file, a new JavaFX Scene Builder window is
opened. Changes you save in the included FXML file are
reflected in the FXML layout file from which you opened the
included FXML file.
Reveal Included File command opens a native file browser to
show the folder that contains the included file.
Close Window (Ctrl+W)
Close the current window. If you have any unsaved changes,
you are prompted to save the file first before the window is
closed. All other active windows remain open until they are
closed or you exit the tool.
Preferences (Ctrl+,)
Set the preferred values to use for certain properties in the tool.
You can change the default values for the root container's width
and height, the image to use for the tool's background, the colors
to use for the alignment guides and drop/parent rings, the
theme to use for the Scene Builder tool, the default display mode
to use for the Hierarchy and Library panels, the order in which
the CSS Analyzer columns are displayed, and the number of
files to list in the Open > Recent Items command. You can reset
to the default values by clicking Reset to Built-in Default
Values.
Quit
Exit the tool. All opened Scene Builder windows are closed. You
are prompted to save any unsaved changes.
Selecting the Edit command menu displays the subcommands that enable you to select
the Undo or Redo command on the last action that you made in the current FXML
layout. In addition, you can select the Cut, Copy, Paste, Paste Into, Duplicate, and
Delete commands that you can apply to the selected elements in the Content or
Hierarchy panel. The Cut, Copy, and Paste commands use the native editor and
clipboard, unless a text field element is selected. This means that when you copy or cut
an element and paste it on a text editor, what is actually copied and pasted is the
4-2 JavaFX Scene Builder User Guide
FXML code that defines a Group element that wraps the selected element and all its
children elements. If the focus is on a text field element then the select, copy, and paste
commands are performed from and to the text field element. With the Paste Into
command, you need to first select where you want to paste an item into before
selecting the Paste Into command.
Select the Select All command to select all of the elements in your FXML layout, while
the Select None command deselects any selected elements. The Select Parent
command selects the parent container of the selected element. Select Next and Select
Previous commands allow you to select next and previous element in the hierarchy,
respectively.
Select the Trim Document to Selection command to delete all of the elements up to
the selected row in the Hierarchy panel. When you select the Trim Document to
Selection command and the selected element is for a container element, that selected
container element becomes the new root node container of your FXML document.
Table 4–2 describes the subcommands available when you select the View command
from the Menu bar.
Table 4–2
List of View Subcommands
Command (Shortcut key)
Description
Content (Ctrl+0)
Place focus on the Content panel.
Properties (Ctrl+1)
Open the Properties section of the Inspector panel and place the
current focus on it.
Layout (Ctrl+2)
Open the Layout section of the Inspector panel and place focus
on it.
Code (Ctrl+3)
Open the Code section of the Inspector panel and place focus on
it.
Hide/Show Library (Ctrl+4) Hide or show the Library panel on the left side of the current
window. If the Document panel is still visible, it automatically
adjusts to occupy the entire left side of the window. If the
Document panel is not visible, the Content panel adjusts to
occupy the rest of the window’s left side.
Hide/Show Document
(Ctrl+5)
Hide or show the Document panel. If the Library panel is still
visible, it is automatically adjusted to occupy the entire left side
of the window. If the Library panel is not visible, the Content
panel is automatically adjusted to occupy the rest of the
window’s left side.
Show/Hide CSS Analyzer
(Ctrl+6)
Show or hide the CSS Analyzer panel. The panel appears at the
bottom of the window.
Hide/Show Left Panel
(Ctrl+7)
Hide or show the panels on the left side of the window. Both the
Library and Document panels are displayed with the Show Left
command, regardless if the Document or Library panel was the
only left panel active when the Hide Left Panel command was
last executed.
Hide/Show Right Panel
(Ctrl+8)
Hide or show the Inspector Panel on the right side of the
window.
Show/Hide Outlines
(Ctrl+E)
Show or hide the outline of each element in your entire layout,
as shown in Figure 4–1. The outline shows the LayoutBounds
property of each element. See the API documentation for more
information about the LayoutBounds property of the Node class
in the javafx.scene package.
Using the Menu Bar Commands
4-3
Table 4–2 (Cont.) List of View Subcommands
Command (Shortcut key)
Description
Show/Hide Sample Data
Show or hide demonstration data for those elements, such as a
tree view, that have some sample data associated with them. The
sample data is not saved in your FXML layout file.
Disable/Enable Alignment
Guides
Disable or enable the alignment guidelines that help you align
the elements with one another.
Zoom
Provides a drop-down list of percentage values into which you
can zoom the current layout.
Show Sample Controller
Skeleton
Open a window that displays sample skeleton code that you can
use to create a controller class for the FXML layout you are
building
Figure 4–1 Show Outlines
Select the Insert command from the Menu bar to enable you to select GUI elements,
such as containers, controls, menu content, shapes, charts, custom components, 3D,
and miscellaneous elements, that you can add to the current FXML layout. These are
the same GUI elements available from the Library panel. If none of the existing GUI
elements in the layout is selected, the insertion point for the new element is the center
of the Content panel. If one of the elements is selected before selecting the Insert
command, the new element being added is placed slightly off to the side, but over the
4-4 JavaFX Scene Builder User Guide
selected element. The Insert submenu displays only the valid GUI controls that can be
inserted to the selected element or container.
The subcommands displayed when you select Modify from the Menu bar are
described in Table 4–3.
Table 4–3
List of Modify Subcommands
Command (Shortcut Key)
Description
Fit to Parent (Ctrl+K)
Resize a selected element to fill the area that its parent container
occupies. The element is also anchored to each of the sides of the
parent. This feature is only available when the parent container
is an AnchorPane element.
Use Computed Sizes
(Ctrl+Shift+K)
Reset the selected element’s layout property values to the
default values. The USE_COMPUTED_SIZE value is used for
the Min Width, Min Height, Pref Width, Pref Height, Max
Width, or Max Height layout properties. (See the API
documentation for the Region class in the javafx.scene.layout
package for more information.)
Grid Pane
Display all the subcommands available for working with the
selected Grid Pane component in your layout. You can delete,
move, add, or resize rows or columns in the selected Grid Pane.
Add Effect
Apply effects, such as a drop shadow or a reflection, to the
selected element or group of elements in the layout.The Effect
editor allows you to set chain of effects to an object.
Add Popup Control
Add a Context Menu or a Tooltip element to the selected
element in your layout. Note that the added Popup control is
only selectable in the Hierarchy panel.
Scene Size
Set the screen size by selecting from the list of pre-defined
dimensions.
Use the Arrange menu, which is shown in Figure 4–2, to bring the selected element to
the front, send it back, or move it forward or backward. Selecting the Wrap In
subcommand places the selected elements into one of the available containers, such as
an Anchor Pane, HBox, or a Grid Pane container. The Unwrap command removes the
currently selected container, but leaves the GUI elements it contains untouched.
Using the Menu Bar Commands
4-5
Figure 4–2 Menu Bar with Arrange Menu Opened
The subcommands displayed when you select the Preview command from the Menu
Bar are described in Table 4–4.
Table 4–4
List of Preview Subcommands
Command (Shortcut Key)
Description
Show Preview in Window
(Ctrl+P)
Display the window that lets you preview the user interface
design rendered by your current FXML code when it is
deployed.
JavaFX Theme
Set the JavaFX Theme to use on the FXML layout being
previewed. The drop-down list shows the available selection.
Scene Style Sheets
Open a submenu that displays commands that enable you to
add a new style sheet that you can apply to your current layout,
remove a style sheet from the list of style sheets being used, or
open an existing style sheet in a separate editor window
specified for the style sheet file type. The layout is immediately
updated.
Internationalization
Enables you to set, remove, or reveal a resource file in the native
file browser.
Preview Size
Allows you to set the size of the Preview window to one of the
predefined scene sizes as an alternative to the preferred size
defined in the FXML document.
4-6 JavaFX Scene Builder User Guide
Selecting the Window menu gives you a list of the names of the FXML file s that are
currently opened in JavaFX Scene Builder windows. When you select one of the file
names in the list, the name is marked with a check mark, and its corresponding Scene
Builder window becomes active.
Selecting Help and then Scene Builder Help opens your default web browser and
displays the web site that contains the available JavaFX Scene Builder documentation.
Select the About Scene Builder command to open a window that displays the release
information for the JavaFX Scene Builder you are using.
Using the Menu Bar Commands
4-7
4-8 JavaFX Scene Builder User Guide
5
Using the Path, Selection and Message Bar
5
This chapter describes the Selection and Message bar that is located just above the
Content panel of the Scene Builder main window.
The Path, Selection and Message bar is shown in Figure 5–1 and Figure 5–2. It serves
the following purposes:
■
It displays the containment path of the selected GUI element. It enables you to
easily go to and place focus on a specific element by clicking that element’s name
in the containment path. When you hover the cursor over an element’s name, it is
underlined, as shown in Figure 5–1.
Figure 5–1 Selection Bar
■
The same area that is used to display the containment path is also used to display
informational and warning messages. After a warning message is displayed for a
couple of seconds, the warning icon remains on the right end of the Message bar.
Click the triangular warning icon, circled in Figure 5–2, to view the list of warning
messages. The number shown in the icon indicates the number of warning
messages that are available for viewing. Informational messages do not persist
after being displayed and are not viewable in the Message Panel.
The appearance of the document-looking icon, shown to the right of the warning
icon in Figure 5–2, indicates that changes have been made to the document since
the last save action was performed.
Figure 5–2 Message Bar Displaying a Warning Message
Figure 5–3 shows a sample of the Message Panel with several messages listed. You
can clear one or all of the messages in the list view.
Using the Path, Selection and Message Bar
5-1
Figure 5–3 Message Panel Displaying a List of Warning Messages
Figure 5–4 illustrates an example of the Message Bar displaying an informational
message.
Figure 5–4 Message Bar Displaying an Informational Message
5-2 JavaFX Scene Builder User Guide
6
Working with the Content Panel
6
This chapter describes the Content panel of the JavaFX Scene Builder.
The Content panel is the rectangular area that occupies the center of the JavaFX Scene
Builder window. It is empty by default when you create a new FXML file. It is your
design canvas and gives you a view of what you are designing. It enables you to
directly manipulate the graphical elements used in your FXML layout. One way to
add a GUI element to your layout is to drag it from the Library panel and place it in a
chosen location in the Content panel. As you drag an object onto the Content panel,
the drop target area is highlighted, as shown in Figure 6–1. An info icon is also
displayed to identify the GUI element being dragged.
Figure 6–1 Dropping a ListView Element into the Content Panel
The selected elements have special handles that enable you to scale or resize the
elements. You move the selected element by using the mouse to drag it to a different
location. Right-clicking anywhere in the Content panel displays a contextual menu of
commands that can be used on the currently selected element, as shown in Figure 6–2.
Working with the Content Panel
6-1
Figure 6–2 Contextual Menu in Content Panel
Double-clicking on a GUI element in the Content panel places that element in an inline
editing mode. If a GUI element with a Text property is selected, pressing Return also
places the element in an inline editing mode.
GUI elements in a FlowPane, TextFlow, TilePane, ToolBar, HBox, and VBox containers
can be re-ordered. A grey line guides you with the placement or order location of the
selected object.
6-2 JavaFX Scene Builder User Guide
7
Using the Document Panel
7
This chapter describes the Document panel of the JavaFX Scene Builder tool.
The Document panel, shown in Figure 7–1, is located at the lower left side of the tool’s
window. It is comprised of the Hierarchy and Controller sections. You can hide the
Document panel by selecting View from the Main menu and then selecting Hide
Document, or Hide Left Side Panel to hide it along with the Library panel.
Using the Document Panel 7-1
Hierarchy Section
Figure 7–1 Document Panel
Hierarchy Section
The Hierarchy section shows all the GUI elements that comprise your FXML layout,
including those that are not visible in the Content panel. You can use the Hierarchy
panel to focus on one specific GUI element, whether it is a parent node or a leaf node.
After the element is isolated, you can use the Content panel or the Inspector panel to
focus your work on that particular element and its properties. The path from the root
of the FXML layout to a particular GUI element is displayed in the Path and Selection
bar when a GUI element is isolated in the Hierarchy panel. The selected GUI object is
highlighted in the Hierarchy panel and in the Content panel.
You can also add a new GUI element to your FXML layout by dragging it from the
Library panel to the desired location in the Hierarchy panel. This is especially helpful
when adding a Popup control, such as a Tooltip or ContextMenu. For example, to add
a Tooltip to a Button element, drag the Tooltip control from the Library panel to the
target Button element in the Hierarchy panel. The Tooltip becomes a child of that
Button element.
7-2 JavaFX Scene Builder User Guide
Hierarchy Section
You can rearrange the position of a GUI element in your layout by dragging it in and
out of containers within the Hierarchy panel. You can select multiple elements at once
in the Hierarchy panel and drag and drop them into a single location.
The Hierarchy panel is also useful for adding a graphic element to a GUI element that
has the graphic property, per its API. For example, you can add a graphic element to a
Button element, but not to a GridPane element. Use the following steps to add a Circle
graphic element to a Button element using the Hierarchy panel:
1.
From the Library panel, drag a Circle element to the target Button layer in the
Hierarchy panel.
2.
Without releasing the mouse cursor, hover over the Button layer for a second and
you will notice a new sub-layer is created for the Circle.
3.
Release your mouse cursor and the Circle appears in the Content panel, with its
default radius of size 100.
4.
In the Layout section of the Inspector panel, reduce the circle’s radius size to 6 so
that it fits more appropriately in the Button.
You can only have one graphic element added to a Button element at any one time.
To add a new graphic, you must first delete the existing one. If the element is a
container, then it can contain any number of graphical elements.
Right-clicking an element in the Content panel or a specific element layer in the
Hierarchy panel displays a contextual menu of commands that you can use for the
selected element, as shown in Figure 7–2. These commands are a subset of the
commands that are available from the Menu Bar. You can click on the right side of the
row for the GUI element listed in the Hierarchy panel to activate the inline property
editor.
Using the Document Panel 7-3
Hierarchy Section
Figure 7–2 Hierarchy Panel with Drop-down List of Commands
When you click the drop-down arrow, which is circled on the top right corner in
Figure 7–3, and select Hierarchy displays, you can select Info, fx:id, or Node Id to
display next to each of the elements listed in the Hierarchy panel. The default display
mode is Info, which displays any related information for the element, or the text
property value if the element has a text property. The fx:id display mode shows the
value of each element’s fx:id property, which is used by the application controller
class. When you select Node Id, the Hierarchy panel shows the same node names used
in the Selection bar for each element.
7-4 JavaFX Scene Builder User Guide
Controller Section
Figure 7–3 Hierarchy Display Menu in Document Panel
Controller Section
The Controller section, shown in Figure 7–4, enables you to manage the controller class
you want to use with your FXML document. The controller class provides the logic to
handle the behavior of the objects in your FXML layout. In the Controller class text
field, you set the fully qualified Java class name of the controller class file you want to
use. This file must be in the same folder, a sub-folder, or a parent folder in which the
FXML file is also located. If the controller class file already exists in the same folder as
the FXML file you are working with, you can select the controller class from the
drop-down list by clicking the down arrow that is circled in Figure 7–4. If you are
using NetBeans IDE with JavaFX Scene Builder and your FXML file is located in a
NetBeans project, then the Controller class java file can be located in any java package
inside your NetBeans project’s src folder.
The list of all the fx:id values used in the FXML document is listed in a table view. Also
included in the Controller section is the fx:root construct checkbox that creates a
reference to a previously defined root element. To learn more about the <fx:root>
element, refer to the JavaFX API document.
Using the Document Panel 7-5
Controller Section
Figure 7–4 Controller Section of the Document Panel
7-6 JavaFX Scene Builder User Guide
8
Designing GUI with the Library Panel
8
This chapter describes JavaFX Scene Builder’s Library panel and the JavaFX GUI
objects that are accessible from it. Information is provided about working with some of
the container elements available. Also discussed in this chapter is how to import
custom GUI objects into JavaFX Scene Builder.
The Library panel, shown in Figure 8–1, is located on the left side of the Main window.
You can hide the Library panel by selecting View from the Main menu and then
selecting Hide Library or Hide Left Side Panel to hide it along with the Document
panel. The Library panel is comprised of collapsible sections for Containers, Controls,
Menus, Shapes, Charts, 3D, and Miscellaneous elements that are available for your use
to build your FXML layout. These GUI elements are the same JavaFX GUI elements
that are delivered with the Java SE release. To locate the GUI components, such as
TextFlow, SwingNode, and 3D objects, that were introduced with the JDK 8 release,
type FX8 in the Library panel’s Search text field.
There is also a Custom section, which lists the custom GUI components that have been
imported into the Library. Custom type elements are those GUI components that were
not delivered with the JavaFX API libraries in JDK 8. See Managing Custom GUI
Elements for more information on how to import your own or third-party custom GUI
components.
Support for 3D GUI elements is limited. You can open FXML files that contain 3D
objects, but you can only edit some of their properties via the Inspector panel and you
can not directly manipulate the objects in the Content panel. Pre-defined 3D shapes
(Box, Sphere, and Cylinder) that are available in the JavaFX API are provided in the
Shapes section of the Library panel. In the 3D section are objects related to lights and
cameras. These are available in the Library so that you can edit their properties and
add their fx:id so that they can be referenced from your controller source code.
Designing GUI with the Library Panel 8-1
Figure 8–1 Library Panel
When you open a new FXML layout in Scene Builder, it is an empty file. You start
building your layout by selecting the top root container from the Containers section
and adding it to the Content or Hierarchy panel. You can then add into that root
container as many containers or GUI elements that are needed for your FXML layout.
To add one of the GUI elements from the Library panel, do one of the following:
■
■
Select an item from the list on the Library panel and drag it onto the Content panel
or the Hierarchy panel.
Select an item from the Library panel and press the Enter key.
8-2 JavaFX Scene Builder User Guide
■
■
Double-click a selected item in the Library panel and it gets added to the Content
panel.
Click the Insert command on the Menu bar and select one of the available GUI
elements from the drop-down list. If the layout is currently empty, the element is
added as the root element. If a root element already exists and nothing is currently
selected in the Hierarchy or Content panel, the element is added inside the root
element. Otherwise, it is added next to the currently selected element.
Use the Search text field, located at the top of the panel, to filter the list of GUI
elements available in the Library. For example, typing button in the Search field
displays all the GUI elements with the button in its name.
To the right of the Library panel’s Search text field is a menu button which when
clicked displays a menu of commands, as shown in Figure 8–2. The commands help
you manage how the Library contents are to be displayed: as a long list, or as groups
of elements listed in separate sections, which is the default. Also available are
commands that allow you to import custom GUI components into the Library. See
Managing Custom GUI Elements for more information.
Selecting the Custom Library Folder menu item displays a sub-menu that includes
Reveal in native file manager and the Show JAR Analysis Report commands. Selecting
the Reveal in native file manager command (where native file manager is Finder for the
Mac OS platform, Explorer for the Windows platform, and Desktop for the Linux
platform) opens your system’s file manager at the location of the folder containing the
custom component JAR and/or FXML files. The command is disabled if the Custom
Library folder is empty.
Selecting the Show JAR Analysis Report command allows you to view an analysis
report for the JAR file(s) located in the Custom Library Folder. This report will list all
of the Java classes which were inspected and determined as custom components that
are unsuitable to be added to the Library. Also provided is an indication of the failed
criteria, such as the fact that the class is not a JavaFX Node, or Scene Builder failed to
instantiate the class. In the latter case, the Java exception is also listed.
Figure 8–2 Library Panel’s Sub-menu of Commands
The following sections discuss some of the container elements that are available in the
Library panel and how to maximize their usage in the JavaFX Scene Builder tool. Also
described is how to manage custom types. To learn more about all the other GUI
elements offered with the JavaFX SDK platform, see the JavaFX API documentation.
■
Managing Custom GUI Elements
Designing GUI with the Library Panel 8-3
Managing Custom GUI Elements
■
Using a Grid Pane Container
■
Working with a Border Pane Container
■
Using a Tab Pane Container
■
Working with Menu Controls
Managing Custom GUI Elements
The first section displayed in the Library panel is the Custom section, as shown in
Figure 8–3,. It lists all the custom GUI elements that are not part of the JavaFX 8 API
libraries, but are available for your use in your GUI layout. A custom GUI element is a
Java class that has been created by the user or by a third party, and added to the
Library of available components you can use in your FXML layout.
Figure 8–3 Custom Section of the Library Panel
Adding Custom Components to the Library
You can import customized GUI components by using the Library panel’s Import
command. You can add any simple or complex graphical object from the Hierarchy or
Content panel into the Library, and make it a reusable component available from the
8-4 JavaFX Scene Builder User Guide
Managing Custom GUI Elements
Library panel. You can also import a graphical component from an FXML document,
or import a JAR file and select a subset of the custom components it contains, to make
them re-usable components permanently available in the Library.
■
To import custom GUI components from a JAR or FXML file:
1.
Select Import JAR/FXML file command from the Library panel’s menu, or
drag the JAR or FXML file directly from your system’s native file manager
(Explorer or Finder) and drop it into the Library panel
2.
In the Open dialog window, navigate to the location of the JAR or FXML file
that you want to import.
The Import Dialog, similar to what is shown in Figure 8–4, is displayed. The
JAR file’s contents are inspected and all the Java classes that are determined as
being suitable custom components are displayed in the dialog window. The
FXML file’s contents are parsed to make sure that the component being added
is valid and self-contained.
3.
From the Import dialog window, select or unselect items from the list of items
that you are able to import.
4.
Click Import Components.
Imported items are added to the Custom section of the Library panel. They
can be used immediately and they persist in the Library even after Scene
Builder is restarted
Figure 8–4 Dialog Window for Importing JAR/FXML File
Designing GUI with the Library Panel 8-5
Managing Custom GUI Elements
■
To add custom GUI objects from your current layout to the Library panel:
1.
Using the Hierarchy or Content panel, select the self-contained component in
your current layout.
2.
From the Library panel’s menu, select the Import Selection command.
Alternatively, drag the selected component from the Content or Hierarchy
panel and drop it in the Library panel.
The selected item is inspected and if there are issues encountered, an error
dialog similar to Figure 8–5 is displayed. If no errors are encountered, the
custom component is added to the Library and a message is displayed in the
Message bar. The name of the FXML file created for the imported selection is
based on the name of the root element. For example, if in your selection the
root element is of the Button class, then the file created when you import the
element for the first time is Button_1.fxml.
You can also import multiple selections made in the Content or Hierarchy
panel. For example, you can select a Button and a CheckBox element in the
Content panel, and drag and drop both elements into the Library. Two rows
for the imported elements appear in the Custom section of the Library panel:
one named Button_1 and the other named CheckBox_1. Both are stored into
corresponding FXML files, Button_1.fxml and CheckBox_1.fxml, respectively
and are created in the Custom Library folder.
Figure 8–5 Sample Error Message When Importing GUI Objects into the Library
When you import the same JAR or FXML file at another time, the newly imported
version of that file replaces the previously imported version. If you import the same
self-contained GUI element from the Content or Hierarchy panel at another time, then
the FXML file created is named with a version number. For example, if a selection with
a Button element as its root has been previously imported, then when it is imported a
second time, the new FXML file created for the custom element is named Button_
2.fxml.
If you decide you no longer need the custom GUI components, you can directly
remove the JAR and FXML files from your Custom Library folder, or delete the whole
folder. This can be safely done even as the Scene Builder tool is running. The Scene
Builder tool periodically checks the content of the Custom Library folder and will
update the content of the Library accordingly.
To work with the Custom Library folder, open the Library panel’s menu, click Custom
Library Folder, and select Reveal in native file manager, where native file manager is
Finder for the Mac OS platform, Explorer for the Windows platform and Desktop for
the Linux platform.
8-6 JavaFX Scene Builder User Guide
Using a Grid Pane Container
Using a Grid Pane Container
The Grid Pane container enables you to create a flexible layout of GUI elements that
are organized in rows and columns. Use the Grid Pane in your layout by selecting
Grid Pane from the Container section of the Library panel and dragging it to the
Content or Hierarchy panel. You can then add other GUI elements within the Grid
Pane container, and elements are automatically arranged based on the padding, gap,
and other properties.
You can also add a Grid Pane container element so that it contains the GUI elements
that you have already added to your layout. Use the following steps:
1.
Select Edit and then Select All from the Main menu to select all of the elements in
your layout.
2.
Add the Grid Pane container by selecting Arrange from the Main menu, Wrap in,
and then Grid Pane from the list of containers.
An empty and unselected grid pane is not visible in the Content panel. To make its
borders visible, click the corresponding layer in the Hierarchy panel for that Grid Pane
element. To work with a specific grid pane, click directly within its perimeter, but not
on any of the elements that it contains. When selected, a Grid Pane is surrounded by a
light blue colored border tabs and each corresponding index number is displayed, as
shown in Figure 8–6. To select either a single column or row, click within the selection
border tab. The tabs of a selected column or row acquires a yellow background, as
shown by column 1 in Figure 8–6. You can also select multiple rows or multiple
columns simultaneously so that you can edit the values for those selected items at
once. You can not, however, select a combination of rows or columns at the same time.
Figure 8–6 Grid Pane in Selected Mode
To see the submenu of actions that you can take on a Grid Pane, do one of the
following:
Designing GUI with the Library Panel 8-7
Using a Grid Pane Container
■
■
Right-click anywhere over the grid pane, select a command from the contextual
menu.
From the Main menu, select Modify and then Grid Pane.
You can move a row up or down, and move a column left or right. You can also delete
or add a row or column, and increase or decrease the span for a row or column.
The Layout section of the Inspector panel also enables you to modify the currently
selected Grid Pane. The properties related to the selected row or column are displayed
and can be managed in the GridPane Row or GridPane Column sections.
You can move an element from one grid cell to another existing grid cell. In the
Content panel, select the element that you want to relocate, and with the mouse button
pressed, drag the element to the target grid cell, as shown in Figure 8–7. Notice that
the target grid cell changes to have a gray background as soon as you hover your
cursor over it. When you release the mouse button, the element is moved to the target
grid cell location in the Grid Pane.
Figure 8–7 Moving an Element to Another Grid Cell
To move an element to a new row or column that has not yet been created, select the
element in the Content panel and drag it to the divider line that is between the rows or
columns where you want the new row or column to be inserted. As you hover the
mouse over the cell divider, the cell divider line becomes thicker and gray. When you
release the cursor, the new row or column is created, and the element is dropped in the
target grid cell. Figure 8–8 shows a Button element being dragged to a new grid cell on
the second row of a new column that is about to be inserted.
Figure 8–8
Moving an Element to a New Row or Column
8-8 JavaFX Scene Builder User Guide
Working with a Border Pane Container
Working with a Border Pane Container
The Border Pane container enables you to layout GUI elements in the top, right, left,
bottom, and center positions of the container. Use the Border Pane in your layout by
selecting the BorderPane element from the Container section of the Library panel and
dragging it to the Content panel. Figure 8–9 shows the Hierarchy panel after the
BorderPane element is added.
Figure 8–9 Hierarchy Panel After BorderPane Container Is Added
You can add a GUI element to the Border Pane container by dragging the element from
the Library panel onto the specific position in the Border Pane. You can also drag an
element from the Library panel to the Hierarchy panel, as shown in Figure 8–10.
Notice that when the element is dragged over a target layer in the Hierarchy panel, the
layer’s corresponding position in the Border Pane changes to a darker shade of color,
as shown on the right side of Figure 8–10.
Figure 8–10 Add Menu Bar Element to the BorderPane
Designing GUI with the Library Panel 8-9
Using a Tab Pane Container
You can move an element from one position to another in the Border Pane. In the
Content panel or the Hierarchy panel, select the element that you want to relocate and
drag the element to the target position, as shown in Figure 8–11. Notice that the
background color of the target position gets darker as soon as you hover your cursor
over it. When you release the mouse button, the element is moved to the target
position in the Border Pane.
Figure 8–11 Moving an Element to Another Position
Using a Tab Pane Container
By default, the Tab Pane comes with two Tab elements, each of which contain an
Anchor Pane element, as shown in Figure 8–12.
Figure 8–12 Tab Pane Element Added in the Hierarchy Panel and Content Panel
You can change a Tab element’s default title by double-clicking the tab and directly
editing its Text property in the Content panel. To add another Tab element to a Tab
Pane container, drag and drop a Tab element from the Library panel to the Tab Pane in
the Content panel or Hierarchy panel. The new Tab element is added to the right of
8-10 JavaFX Scene Builder User Guide
Using a Tab Pane Container
any existing Tab elements. To change the order of the Tab elements within the Tab
Pane, use the Hierarchy panel. Drag and drop the Tab element’s row in the Hierarchy
panel to the target location within the Tab Pane container. You can also use the Content
panel to drag its tab to the target location within the Tab Pane container.
To add GUI elements to a Tab element’s Anchor Pane, click the title of the target Tab
element to select it. Drag and drop the GUI element that you want to add from the
Library panel to the Tab element, as shown in Figure 8–13.
Figure 8–13 Add GUI Elements from Library Panel to the Tab Element in Content Panel
Depending on the length of each Tab element's title and the number of Tab elements in
your Tab Pane container, there comes a point when some Tabs become hidden. When
this occurs, a drop-down menu is automatically added to the Tab Pane container's
menu bar, as shown in Figure 8–14. This drop-down menu enables the tab of choice to
be selected. This menu is not active in the Content panel, but is functional when you
view the layout in the Preview window. If the Tab Pane container is resized so that all
the Tab elements are fully visible, the drop-down menu is automatically removed from
the Tab Pane’s menu bar.
Designing GUI with the Library Panel
8-11
Working with Menu Controls
Figure 8–14 Tab Pane with Multiple Tab Elements and a Drop-Down Menu
Working with Menu Controls
The Controls section of the Library panel contains three menu-related control
elements: MenuBar, Menu Button, and Split Menu Button. When you drag and drop a
MenuBar from the Library panel onto the Content panel, it comes populated with
Menu elements that are labeled File, Edit, and Help. By default, each of these Menu
elements contains one Menu Item element, as shown in Figure 8–15.
Figure 8–15 Menu Bar and Its Contents Displayed in the Hierarchy Panel
The Menu and Menu Item elements do not have graphical representations that are
visible in the Content panel, so you can only use the Hierarchy panel to select and
manage these elements. You can change the order of how the Menu elements are
displayed in the Menu bar by selecting the Menu element in the Hierarchy panel and
dragging it to a new location within the Menu where you want it to appear. You can
directly modify the text property of the Menu or Menu Item element by selecting it
and clicking on the text area, which puts you into edit mode. You can also use the
Properties section of the Inspector panel to modify the Text field.
You can add other menu-related items, such as another Menu Item or a Separator
Menu Item, by dragging the element from the Library panel to the desired Menu
8-12 JavaFX Scene Builder User Guide
Working with Menu Controls
location in the Hierarchy panel. To create a second-level menu, drop a Menu element
within an already existing Menu element in the Hierarchy panel.
Use the Preview menu to see your Menu bar in action. From the Preview window, you
can click a Menu item and any of its submenus.
Designing GUI with the Library Panel
8-13
Working with Menu Controls
8-14 JavaFX Scene Builder User Guide
9
Defining Properties in the Inspector Panel
9
This chapter describes the JavaFX Scene Builder tool’s Inspector panel, including its
Properties, Layout, and Code sections.
On the right side of the Content panel is the Inspector panel, as shown in Figure 9–1
with the Layout section expanded and the Inspector menu displayed. The Inspector
panel is also referred to as the Right Side panel. It contains an Accordion container
with multiple sections. The top section contains a Search text field, which you can use
to quickly locate the properties you would like to edit. The search results are displayed
in the top section, as shown in Figure 9–1. You can directly modify the properties by
using the Search Results section. You can display the Inspector menu by clicking the
drop-down arrow at the top right corner, which is circled in Figure 9–1. By default, the
Show All and View Sections modes are chosen. selecting the Show Edited mode
displays only the properties that appears explicitly in the FXML file. For example, only
the Text, LayoutX, and LayoutY properties are displayed in the Inspector panel when a
Button element is dropped from the Library panel. selecting the View by property
name or the View by property type modes display all the properties in a single tabbed
section, ordered either by name or type.
The Properties, Layout, and Code sections give you access to properties for the
selected GUI element. Each displayed property name shown in the sections is a
representation of the corresponding given property name in the JavaFX API. For
example, minWidth property in the JavaFX API is displayed in the Inspector panel as
Min Width. When you click on the property name, a browser window is opened and
displays the corresponding JavaFX API name for the property and its description.
You can hide the Inspector panel by selecting View from the Main menu and then
selecting Hide Right Side Panel. This feature enables you to have more room for the
Content panel. Select View and then Show Right Side Panel to make the panel visible
again.
Defining Properties in the Inspector Panel
9-1
Figure 9–1 Inspector Panel with the Search Results Displayed and Layout Section
Opened
9-2 JavaFX Scene Builder User Guide
Properties Section
Properties Section
The Properties section of the Inspector panel, shown in Figure 9–2, enables you to
define the style of the selected element in the Hierarchy panel or the Content panel.
Defining Properties in the Inspector Panel
9-3
Properties Section
Figure 9–2 Properties Section of the Inspector Panel
9-4 JavaFX Scene Builder User Guide
Properties Section
When the fx:id value is assigned for the selected GUI element via the Code Section,
that same value is also assigned to the Id field in the CSS subsection of the Properties
section only if that Id field is null.
The Style, Style Class, and Stylesheets text areas in the JavaFX CSS subsection enable
you to specify the style rule and style sheet to use for a particular GUI component and
all of its children components. You can add, delete, and put in order the style sheets
that will be applied. See the Styling with CSS and the CSS Analyzer chapter in this
document for additional information.
A property value can be overridden by a CSS styling defined in a CSS file or in the
Style property. A CSS icon is added to the left side of the affected property whose
property value is overridden by a CSS file definition, as shown in Figure 9–3. You can
navigate to the CSS file or Style property by clicking the property field.
Figure 9–3 CSS Icon for Overridden Property Value
You can go from one property to another by pressing the Tab key. A new value for a
property is saved when you press Enter or when you move to another property field.
You can manipulate the look of the selected GUI element by directly changing the
value of its properties that are available and editable. For example, you can define the
effects of a selected list view element by clicking the down arrow button to display the
menu of available effects, as shown in Figure 9–4. From the list of effects available, you
can select one or more effects to apply to the selected GUI element.
Defining Properties in the Inspector Panel
9-5
Properties Section
Figure 9–4 Effects Menu in the Properties Section of the Inspector Panel
The remaining properties displayed on the Properties section of the Inspector panel
depend on the type of GUI element that is selected in either the Content panel or in the
Hierarchy panel. For example, if you select a radio button, toggle button, or radio
menu item in the Content panel, the Properties section shows the Toggle Group
property. You can use this property to assign the same ToggleGroup id for each toggle
control that you want to add to a toggle group.
9-6 JavaFX Scene Builder User Guide
Properties Section
When an invalid value is entered for a property, a dialog window appears and
prompts you to select one of these commands: Fix the Value or Revert to Previous
Value. The focus returns to the text field with the invalid property value if you select
the Fix the Value command.
If a property is allowed to have a value list assigned to it, a single empty item is
initially shown by default. To add an item, click the + button and enter or select the
value. Click the down arrow to display the menu that allows you to remove, move up
or move down an item for the value list.
When multiple objects of the same type (for example, two button elements) are
selected in the Content panel or the Hierarchy panel, and if any of the properties have
a different value, the minus sign (-) is displayed in the text field for that property. If a
new value is entered, then the new value is set for all the selected objects.
If multiple objects of different types are selected in the Content or Hierarchy panel, the
properties which are common to all objects are displayed.
There are some properties that have a cog menu that appears on the right side of the
property field when the mouse hovers over the property value editor, as shown in
Figure 9–5. The cog menu provides specific actions that can be used for that editor. For
example, you can reset the current property value to the default value in the JavaFX
API by selecting Reset to default command. Figure 9–5 shows actions available for an
Ellipsis String.
Figure 9–5 Cog Menu for Property Value Editors
Defining Properties in the Inspector Panel
9-7
Properties Section
Any numeric value can be increased or decreased using the Up or Down arrow keys,
respectively. Using the Shift-Up and Shift-Down keys increase and decrease the
number value by 10, respectively.
The editor for the Insets, Margins, and Padding properties allows you to enter the
first value (Top) and set the same value to the remaining three text fields (Right,
Bottom, Left) using the following steps:
1.
Enter the value in the first property text field.
2.
Press the Tab key and the focus is placed on the link button.
3.
Press the Enter key to apply the property value you just entered to the remaining
three property text fields.
Figure 9–6 illustrates the uniform values assigned to the Margin property for the
Buttons in an HBox.
Figure 9–6 Margin Property Editor
Auto Suggest editors are available for all properties that have predefined values.
When you click in the property’s text field, a list of suggested values are displayed.
The list is filtered as you start typing in the text field.
Some property values require paths to external resource files, such as image files or
CSS files. You can specify the file paths using one of the formats listed in Table 9–1.
Table 9–1
File Path Formats for External Resource Files
File Format Types
Example
Absolute path
C:/johndoe/css/myCss.css
Path relative to the current
FXML document’s location
@../css/myCss.css
Path relative to the class or
resource file location
@/com/oracle/myProject/resources/myCss.css
A Paint Editor is available for properties that can have color for its value. When you
click on the property value field, the Paint Editor window appears. In Figure 9–7 the
9-8 JavaFX Scene Builder User Guide
Properties Section
Paint Editor window is displayed for the Text Fill color property of the selected Button
element. You can change the color value for the GUI element by moving the cursor
along the color palette.
Figure 9–7
Paint Editor for Color
When you click on the Linear Gradient or Radial Gradient tab, the Text Fill property
value is changed accordingly to Linear Gradient or Radiant Gradient. The Linear or
Radial editor section of the Paint Editor is displayed. Figure 9–8 shows the Linear
section for the Text Fill property. From that section, you can adjust the gradient values
by moving the available sliders on sides until you see the desired color hues you are
trying to achieve. Values for additional properties are displayed and can be edited
from the editor as well.
As you adjust the color, linear gradient, or radiant gradient for the particular GUI
element, the adjustments are also simultaneously reflected on the GUI element that is
displayed in the Content panel.
Defining Properties in the Inspector Panel
9-9
Layout Section
Figure 9–8 Linear Gradient Editor
Layout Section
The Layout section of the Inspector panel, shown in Figure 9–9, helps you to specify
the runtime behavior of the layout when the application’s window is resized. It also
enables you to change the size (such as, Pref Width and Pref Height) and position
(such as, Layout X and Layout Y) of the selected element. Some of the information
displayed in the Layout section pertains to the selected element itself (such as Min
Width, Max Height, or Pref Width), and some of the information depends on the type
of the container element. If the selected element is contained in an AnchorPane
container, then an AnchorPane section is present in the Layout section. If the selected
element is contained in a Grid Pane container, then there is a Grid Pane subsection in
the Layout section of the Inspector panel. Some containers, however, do not have any
associated contextual information, and so no contextual container subsection appears
in the Layout section.
The AnchorPane Constraints subsection only appears when a selected element has an
AnchorPane as its most immediate container. For example, in Figure 9–9, the selected
9-10 JavaFX Scene Builder User Guide
Layout Section
HBox element’s container is an AnchorPane. You can use either the diagram or the text
fields in the AnchorPane Constraint subsection to manage the anchor pane’s anchors.
The anchors help you manage the behavior of the selected GUI element when you
resize the window. You can click the anchor lines to specify whether the object’s size
changes as the application’s window is adjusted. The lines change from solid black
lines to solid red lines when you click them. You can also specify the numerical values
in the fields around the diagram. A grayed out numerical value means the anchor is
disabled. You can use the Tab key to navigate between the anchor fields.
If the HBox element’s most immediate container is a StackPane element, then the top
subsection of the Layout section will be labeled as StackPane Constraints and different
editable properties will be displayed.
The Transforms subsection enable you to define settings for different types of
transformations, such as rotation, scaling, and translation.
Defining Properties in the Inspector Panel
9-11
Code Section
Figure 9–9 Layout Section of the Inspector Panel
Code Section
Figure 9–10 displays the opened Code section when the New button element is
selected in the Hierarchy panel. In the fx:id field, you can assign a unique value for the
9-12 JavaFX Scene Builder User Guide
Code Section
selected GUI element. You can select from the drop-down list of available variables if
you already assigned the controller source class to use with your FXML layout.
Figure 9–10 Code Section of the Inspector Panel When the New Button is Selected
The Code section enables you to specify the action that should be taken when a
drag-and-drop, keyboard, mouse, or any other event occurs on the selected element.
From the drop-down list on the event text field, select the corresponding command
that should be executed when a specific event or events occur for that GUI element.
The given command is a call to the controller method event handler. It is specified by a
leading number sign (#), which is already added by default, followed by the name of
Defining Properties in the Inspector Panel
9-13
Code Section
the handler method. The method is expected to conform to the signature of a standard
event handler, which means that it takes a single argument of a type that extends the
javafx.event.Event class and should return void. For example, Figure 9–10 shows
that when the OnAction event occurs on the button, the newIssueFired() controller
method is executed.
When you click View from the Menu bar and then select Show Sample Controller
Skeleton, a text editor window appears and displays the source file example of what
the method should look like in your controller source code. You can copy the contents
of the skeleton source file to customize as you please.
9-14 JavaFX Scene Builder User Guide
10
Internationalizing Your FXML Layout
10
This chapter discusses the internationalization support that is provided with JavaFX
Scene Builder.
The JavaFX Scene Builder tool enables you to adapt your FXML layout to various
languages and regions through the use of resource bundle files. When you add a new
element to the Content panel, the element’s visible property values are set to default
values. For example, a button element has a default Text property value of Button. This
default value can be changed with an internationalized string by hovering the cursor
over the right of the Text property text field, clicking the round cog icon that appears,
and then selecting Replace with Internationalized String, as shown in Figure 10–1.
Notice that the default value is then replaced by %key.unspecified, which you need to
replace with the appropriate resource key name that is defined in your resource file.
The percent sign (%) prefix is a visible indicator that the Text property value following
it is a resource key name. You can still use the percent sign as a first character for the
Text property value. If you have not selected the Replace with Internationalized String
setting, then in the FXML file, the percent sign will appear as \%. This indicates that
the rest of the property value has no link with internationalization and that it is not a
key name.
Internationalizing Your FXML Layout 10-1
Figure 10–1 Internationalizing a Button Element
The HelloI18N sample can help show the internationalization support. The sample is
included with the JavaFX Scene Builder samples bundle. Its Main class shows how to
load the resource bundle. The sample includes the Bundle.properties and Bundle_fr_
FR.properties files. When you open the <javafx-scenebuilder-samples-2_
0-install-dir>/HelloI18N/src/helloi18n/HelloI18N.fxml file, the FXML file is opened
in its own window and you see a button that is labeled %button.text. To localize this
label, select Preview from the Menu bar, select Internationalization, Set Resource,
and then open the <javafx-scenebuilder-samples-2_
0-install-dir>/HelloI18N/src/helloi18n Bundle.properties file.
Figure 10–2 shows that the button element’s Text property value was set to use the
button.text resource key, which is defined in the Bundle.properties file as having the
value of HelloI18N. The percent sign in front of the Text property’s text field is a
visible indicator that the value in the text field is a resource name. If you replace the
value assigned to button.text in the Bundles.properties file and save the change, the
new value is immediately reflected in the button displayed on the Content panel. You
can define additional resource keys in your resource bundle files and use them in the
FXML layout you are building.
Select the Preview from the Main menu, then Internationalization command, and
then Set Resource. In the select Internationalization Resource File dialog box, select
the Bundle_fr_FR.properties file to see how the HelloI18N sample application
appears when using the French resource file. Notice that the text displayed on the
button is now Bonjour. Changes you make and save to the resource file are reflected in
the FXML layout you are working on in the JavaFX Scene Builder tool.
10-2 JavaFX Scene Builder User Guide
Figure 10–2 Using Resource Key Value to Internationalize the Text Property Value
Internationalizing Your FXML Layout 10-3
10-4 JavaFX Scene Builder User Guide
11
Styling with CSS and the CSS Analyzer
1
This chapter describes the Cascading Style Sheet (CSS) support and describes the CSS
Analyzer feature that JavaFX Scene Builder provides.
The JavaFX GUI controls used by Scene Builder are pre-styled with the default JavaFX
Modena look and feel. Scene Builder immediately renders this predefined JavaFX
style when you drag the GUI control from the Library panel to the Content or
Hierarchy panels. You can change the JavaFX theme used in your layout by selecting
Preview from the Menu bar and selecting one of the JavaFX themes, as shown in
Figure 11–1. From the drop-down list you can select a Modena-based theme specific
for your target platform. You can also select Caspian-based theme, which was the
default theme used in the JavaFX 2.x releases. You can also customize the style used in
your application by changing the component’s properties via the Properties section of
the Inspector panel or by defining your own styling rules in a CSS file.
Figure 11–1 JavaFX Theme Menu
Scene Builder currently does not generate CSS files, but enables you to use your local
CSS editor to create and modify your CSS file. The changes you save in the CSS file
that is used by the current FXML layout displayed in the Content panel is immediately
rendered by Scene Builder.
Styling with CSS and the CSS Analyzer
11-1
You can add the CSS rules at the Scene level, within a given container, or by an inline
styling at the Node level. By using the Stylesheets list view in the JavaFX CSS
subsection of the Properties section of the Inspector panel, you can assign a CSS file to
use on a selected GUI element in your FXML layout if that GUI element is either a
container or a GUI control. You can attach a style sheet to any part of your FXML
layout, from the topmost parent GUI element to the lowest.
The left side of Figure 11–2 shows the Properties section of the Inspector panel with
the IssueTracking.css file assigned to the topmost VBox container used in the layout.
The right side of the figure shows the darkList style class assigned to the ListView
element. The darkList style class is defined in the IssueTracking.css style sheet and
inherited by the ListView element from its container parent, the topmost VBox
container.
Figure 11–2 Properties Section with Style Class and Style Sheet List Views Displayed
CSS rules that are defined on a parent element can be used to style the parent GUI
element itself and all of its children elements. You can define the specific style class to
use with a GUI element by adding it to the Style Class property in the Properties
section of the Inspector panel. The CSS files referenced from the Stylesheets properties
are referenced from within the FXML file and so they are deployed with the FXML file.
In Scene Builder, you can simulate the attachment of a style sheet to an application
Scene by selecting Preview, then Scene Style Sheets, and finally selecting Add a Style
Sheet or Open a Style Sheet option. This Preview command is useful when the “root”
style class is defined in the style sheet. In this case, once the style sheet is attached to
the Scene, the styles defined in the “root” class are applied to the layout in the Content
panel.
You can edit an existing CSS file with your system editor by using the following steps:
1.
In the Properties section of the Inspector panel, locate the Stylesheets property and
click on the CSS file you want to edit.
2.
Click the drop-down arrow on the bottom right of the list view, as shown in
Figure 11–3.
11-2 JavaFX Scene Builder User Guide
Using the CSS Analyzer Panel
3.
Select the Open command for the CSS file you want to edit.
You can reveal the CSS file’s location in your system using the Reveal command that is
also available in the drop-down menu. You can also navigate to the CSS file via the
CSS Analyzer panel, as explained later in Using the CSS Analyzer Panel.
Figure 11–3 Open CSS File From the Properties Section of the Inspector Panel
Using the CSS Analyzer Panel
The CSS Analyzer Panel enables you to understand how various possible CSS rules
can affect aspects of a currently selected GUI element. It displays a synoptic view of all
the possible sources for the property values. Each CSS property value assigned to a
certain aspect of the selected GUI element may originate from either the API or
predefined CSS rules. The sources are listed in prioritized order, which enables you to
understand why a given source takes precedence over another. The panel also
provides a means for you to navigate to the source of CSS property value to help you
develop and troubleshoot CSS stylesheets.
The CSS Analyzer panel is not displayed by default. To display the panel, select View
from the Main menu and then Show CSS Analyzer, as shown in Figure 11–4.
Styling with CSS and the CSS Analyzer
11-3
Using the CSS Analyzer Panel
Figure 11–4 Show CSS Analyzer
The CSS Analyzer panel appears at the bottom of the Main window, similar to what is
shown in Figure 11–5.
11-4 JavaFX Scene Builder User Guide
Using the CSS Analyzer Panel
Figure 11–5 CSS Analyzer Panel Displayed
The panel includes the following sections, most of which are highlighted in
Figure 11–5.
■
■
Search text field: Located at the top right corner of the panel. It enables you to
isolate the specific properties that you want to view.
CSS Analyzer Menu: Located to the right of the Search text field. Click on the
drop-down arrow to see the menu of available commands, as shown in
Figure 11–6.
–
View As: Enables you to select the display format for the style properties. The
default is Table view. The Rules view mode displays the properties in CSS
rules formatting. The Text view mode displays the properties in text styling.
–
Copy Styleable Path: Enables you to copy the current value in the Styleable
Path text field and you can paste it into your CSS file to modify the style of the
currently selected component or its sub-element.
–
Hide Properties with Default Values: Removes from view all the properties
that only have default values assigned to them. Properties that have
non-default values, such as Stylesheets and Inline Styles, continue to be
displayed. The Show Properties with Default Values shows all the properties
for the component.
–
Split Defaults: Refreshes the view of the properties to include two columns
for the default values of the style properties: API Defaults and the FX Theme
Defaults. The Join Defaults command displays the combined default values
into a single column, which is the default.
Styling with CSS and the CSS Analyzer
11-5
Using the CSS Analyzer Panel
Figure 11–6 CSS Analyzer Menu
■
■
■
■
■
■
■
■
Styleable Path text field: Located on the top left corner of the panel. It enables you
to discover the sub-elements when you click on the arrows in the path. You can
copy that path using the CSS Analyzer menu and paste the path in your CSS file to
assign a new style value.
CSS Picking Mode button: Located below the Search text field. This is the default
mode when CSS Analyzer is opened. It allows you to select a sub-element of the
currently selected component. In Figure 11–5, the CSS Picking Mode button is
selected. This allowed you to select the bottom horizontal scrollbar of the
ScrollPane component in the Content panel. The scrollbar is highlighted in yellow
to indicate that it is the currently selected sub-element of the ScrollPane.
Correspondingly, the Styleable Path shows the complete path to the currently
selected element. This feature shows how skins can be styled.
CSS Selection Mode button: Located next to the CSS Picking Mode button. It is
the standard selection mode and allows you to select a component.
Properties column: First column in the table. Displays all of the available style
properties that is available for the currently selected element.
Defaults column: Displays the default values, both from the API and the JavaFX
theme, that are delivered for the style property.
Inspector column: Displays the property value that has been set using the
Inspector panel. Some properties appear in both the Properties section of the
Inspector panel and the CSS Analyzer panel. To edit these properties, hover the
mouse cursor in the corresponding cell of the CSS Analyzer panel and click the
cog icon in the top right corner to select Reveal in Inspector. The corresponding
property is highlighted with a blue ring in the Properties section of the Inspector
panel.
Stylesheets column: Displays the value that is defined for the property via the
CSS file set in the Stylesheets text view in the Properties section of the Inspector
panel. The name of the CSS file the value is derived from is included in the
column. You can also click on the cog icon on the upper right corner of the cell and
select the Open command to open your CSS file in your default CSS editor.
Inline Styles column: Displays the inline style value that is defined for the
property via the Style text view in the JavaFX CSS subsection of the Properties
section of the Inspector panel. You can select the Reveal in Inspector command
using the cell’s cog icon on the upper right corner of the table cell to display the
Style text view in the Inspector panel.
11-6 JavaFX Scene Builder User Guide
Using the CSS Analyzer Panel
You can modify the properties values from your CSS file. Alternatively, you can use
the JavaFX CSS subsection of the Properties section of the Inspector panel to either edit
a CSS property or use the Style property to override any CSS property.
When a CSS property value is assigned to a currently selected GUI component, the
new style is immediately rendered in the Content panel.
To learn more about the CSS Analyzer’s functionalities, use the following steps to
customize the Button component to have rounded edges and use that style for all
buttons that are subsequently added to your FXML layout.
1.
Drag a Button from the Library to the Content panel.
You will see the CSS Analyzer displays the value of -fx -background-radius,
shown in Figure 11–7, as one of the CSS properties for the button.
Figure 11–7 A Button’s Properties Displayed in CSS Analyzer
2.
Click the -fx -background-radius property name in the Properties column and you
are taken to the corresponding online API documentation in the JavaFX CSS
Reference Guide, which provides the syntax you can use with each property’s
value.
3.
Modify the -fx-background-radius property value.
a.
In the Scene Builder window, click on the Properties section of the Inspector
panel.
b.
Click in the Style text field located in the JavaFX CSS sub-section and select
-fx-background-radius from the drop-down list.
Styling with CSS and the CSS Analyzer
11-7
Using the CSS Analyzer Panel
c.
Enter 10px in the Style text field of the JavaFX CSS subsection, as shown in
Figure 11–8.
Notice that the Button component in the Content panel is now rounded
around the corners. Also, in the CSS Analyzer panel, you’ll see that the row for
the -fx-background-radius property now has two values: the default and the
inline style value of 10px that you just entered in the Style property, as shown
in Figure 11–8. That cell’s background color also changed to blue, which
indicates that the value is now the current value being rendered on the
currently selected component
Figure 11–8 Making a Button Rounded
4.
Create a CSS rule so that you can apply the new button style to all of the buttons
you add to your current FXML layout.
a.
Using your system’s command, create am empty CSS file, e.g. test.css, in
the same directory that contains your current FXML layout.
b.
In the Properties section of the Inspector panel, click the + button in the
Stylesheets property, as indicated in Figure 11–8.
c.
In the Add Style Sheet dialog, navigate to the test.css file location, select it,
and click Open to add it to the Stylesheets property.
You’ll see the test.css file added in the Stylesheets property.
d.
Edit the test.css file by clicking on the down arrow in Stylesheets property
and select Open test.css.
e.
Add the following CSS rule to test.css and save the file.
11-8 JavaFX Scene Builder User Guide
Using the CSS Analyzer Panel
Example 11–1
Add CSS Rule for a Rounded Button
.button {
-fx-background-radius: 10px;
}
f. Select the button again in the Content panel. Notice that in the CSS Analyzer
panel, the button is now inheriting the CSS rule from the test.css file because
the button is a child of the AnchorPane component. Since it still has the inline
style value assigned to it, that value has precedence and is the style rendered
in the Content panel. If you do not have a need to change the style for this
particular button, you can remove that style value from the Properties section
of the Inspector panel.
Styling with CSS and the CSS Analyzer
11-9
Using the CSS Analyzer Panel
11-10 JavaFX Scene Builder User Guide
12
Next Step
12
Now that you are familiar with the JavaFX Scene Builder user interface, use Getting
Started with JavaFX Scene Builder to create a simple issue-tracking application.
Next Step
12-1
12-2 JavaFX Scene Builder User Guide
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
