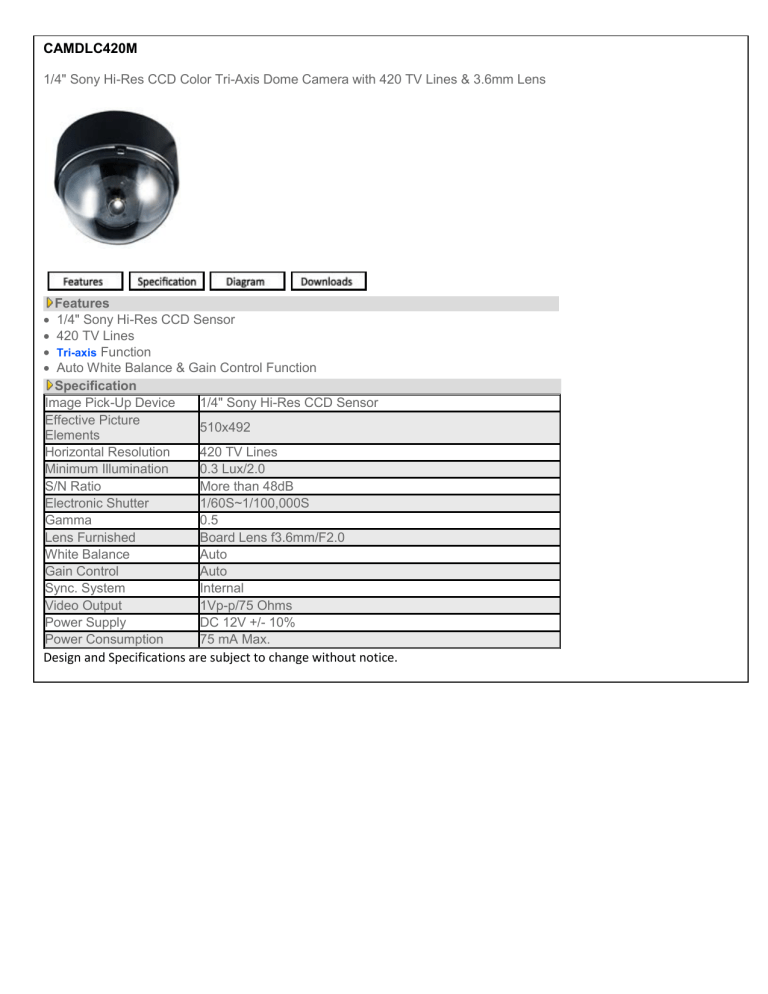

CAMDLC420M
1/4" Sony Hi-Res CCD Color Tri-Axis Dome Camera with 420 TV Lines & 3.6mm Lens
Features
1/4" Sony Hi-Res CCD Sensor
420 TV Lines
Tri-axis Function
Auto White Balance & Gain Control Function
Specification
Image Pick-Up Device
1/4" Sony Hi-Res CCD Sensor
Effective Picture
510x492
Elements
Horizontal Resolution
420 TV Lines
Minimum Illumination
0.3 Lux/2.0
S/N Ratio
More than 48dB
Electronic Shutter
1/60S~1/100,000S
Gamma
0.5
Lens Furnished
Board Lens f3.6mm/F2.0
White Balance
Auto
Gain Control
Auto
Sync. System
Internal
Video Output
1Vp-p/75 Ohms
Power Supply
DC 12V +/- 10%
Power Consumption
75 mA Max.
Design and Specifications are subject to change without notice.




