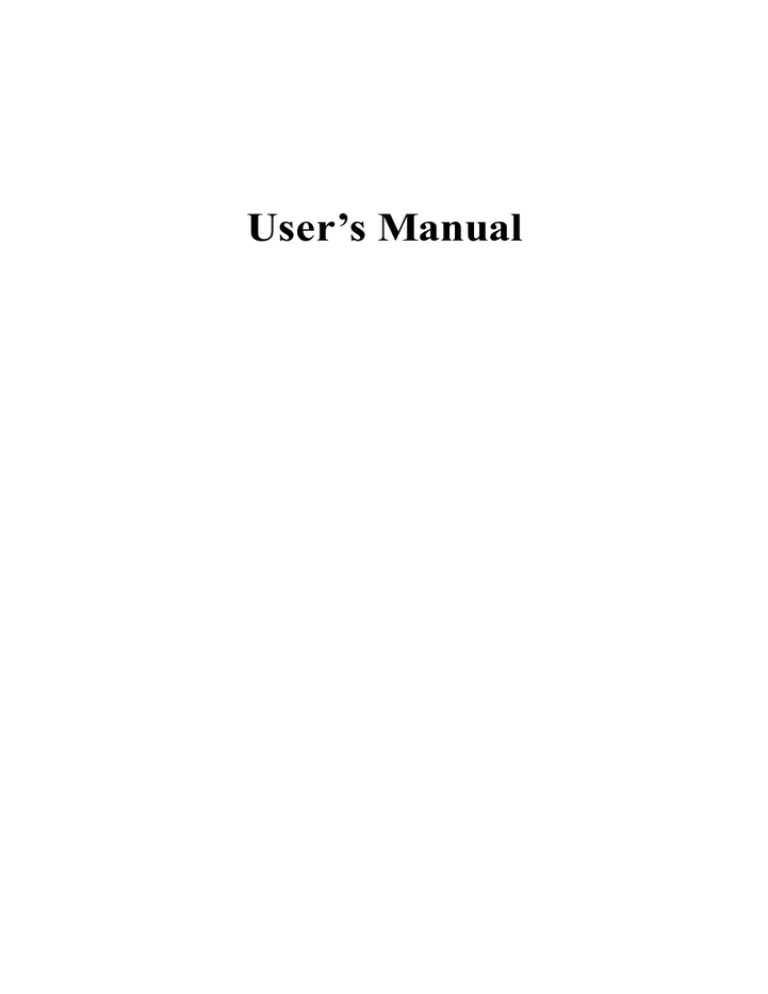

User’s Manual

Copyright

The contents of this publication may not be reproduced in any part or as a whole, stored, transcribed in an information retrieval system, translated into any language, or transmitted in any form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or otherwise, without the prior written permission.

Trademarks

All product, company, brand names are trademarks or registered trademarks of their respective companies. They are used for identification purpose only. Specifications are subject to be changed without prior notice.

-1-

FCC Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio interference in a commercial environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures are necessary to correct the interference.

CE Declaration of Conformity

This equipment complies with the requirements relating to electromagnetic compatibility,

EN 55022/A1 Class B, and EN 50082-1. This meets the essential protection requirements of the European Council Directive 89/336/EEC on the approximation of the laws of the member states relation to electromagnetic compatibility.

-2-

Table of Contents

Chapter 1 Introduction...............................................................................5

1.1 Functions and Features...................................................................5

1.2 Packing List....................................................................................7

Chapter 2 Hardware Installation................................................................8

2.1 Panel Layout...................................................................................8

2.2 Procedure for Hardware Installation ............................................10

Chapter 3 Network Settings and Software Installation ...........................13

3.1 Make Correct Network Settings of Your Computer .....................13

3.2 Install the Software into Your Computers ....................................14

Chapter 4 Configuring Wireless Broadband Router................................17

4.1 Start-up and Log in.......................................................................17

4.2 Status ............................................................................................19

4.3 Toolbox.........................................................................................20

4.4 Primary Setup ...............................................................................21

4.5 DHCP Server ................................................................................24

4.6 Virtual Server................................................................................26

4.7 Special AP ....................................................................................28

4.8 Access Control..............................................................................29

4.9 Misc. Items ...................................................................................31

4.10 Wireless Setting..........................................................................33

4.11 MAC Address Control................................................................35

Chapter 5 Print Server .............................................................................38

5.1 Configuring on Windows 95/98 Platforms ...................................38

5.2 Configuring on Windows NT Platforms .......................................40

5.3 Configuring on Windows 2000 Platforms ....................................41

-3-

5.4 Configuring on Unix based Platforms ..........................................42

Appendix A TCP/IP Configuration for Windows 95/98..........................43

A.1 Install TCP/IP Protocol into Your PC ..........................................43

A.2 Set TCP/IP Protocol for Working with NAT Router ...................44

-4-

Chapter 1 Introduction

Congratulations on your purchase of this outstanding Wireless Broadband Router. This product is specifically designed for Small Office and Home Office needs. It provides a complete SOHO solution for Internet surfing, and is easy to configure and operate even for non-technical users. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product.

1.1 Functions and Features

l High speed for wireless LAN connection

11Mbps data rate by incorporating Direct Sequence Spread Spectrum (DSSS). l Roaming

Provides seamless roaming within the IEEE 802.11b WLAN infrastructure. l IEEE 802.11b compatible

Allowing inter-operation among multiple vendors. l Auto fallback

11M, 5M, 2M, 1M data rate with auto fallback. l Broadband modem and NAT Router

Connects multiple computers to a broadband (cable or DSL) modem or an

Ethernet router to surf the Internet. l Auto-sensing Ethernet Switch

Equipped with a 4-port auto-sensing Ethernet switch. l VPN supported

Supports multiple PPTP sessions and allows you to setup VPN server and VPN clients.

-5-

l Printer sharing (Optional )

Embeds a print server to allow all of the networked computers to share one printer. l Firewall

All unwanted packets from outside intruders are blocked to protect your

Intranet. l DHCP server supported

All of the networked computers can retrieve TCP/IP settings automatically from this product. l Web-based configuring

Configurable through any networked computer’s web browser using Netscape or Internet Explorer. l MAC Address Access Control supported

Allows you to assign different access right for different users. l Virtual Server supported

Enables you to expose WWW, FTP and other services on your LAN to be accessible to Internet users. l User-Definable Application Sensing Tunnel

User can define the attributes to support the special applications requiring multiple connections, like Internet gaming, video conferencing, Internet telephony and so on, then this product can sense the application type and open multi-port tunnel for it. l DMZ Host supported

Lets a networked computer be fully exposed to the Internet; this function is used when special application sensing tunnel feature is insufficient to allow an application to function correctly. l Firmware Upgradable

-6-

Provides firmware upgrade via Web Browser or Windows Application.

1.2 Packing List

l Wireless broadband router unit l Installation CD-ROM l Power adapter l CAT-5 UTP Fast Ethernet cable

-7-

Chapter 2 Hardware Installation

2.1 Panel Layout

2.1.1. Front Panel

The front panel features four 10/100 Mbps Ethernet ports, one Wide Area network

(WAN) port and diagnostic LED indicators. The WAN port connects your DSL or cable modem to the router. The LAN ports are used to connect to your computers or other network devices. LEDs monitor the status of each port.

Figure 2-1 Front Panel

Port:

WAN: the port where you will connect your cable (or DSL) modem or Ethernet router.

Port 1-4: the ports where you will connect networked computers and other devices.

UPLINK: the port where you will connect another hub to expand your Intranet.

-8-

LED:

LED

M2

LAN

Link/Act.

1~4

10/100

1~4

Function

LAN port activity

Color Status

POWER Power indication Green

System status 2 Orange

On

M1 System status 1 Orange Blinking

Blinking

On

Blinking

WLAN Wireless activity Green Blinking

Link status

Data Rate

Green

Green

Green

On

On

Blinking

On

Description

Power is being applied to this product.

This product is functioning properly.

This product is working for some service.

This product is being configured or upgraded. Don’t turn it off !

The LAN port is linked.

The LAN port is sending or receiving data.

Sending or receiving data via wireless

An active station is connected to the corresponding LAN port.

The corresponding LAN port is sending or receiving data.

Data is transmitting in 100Mbps on the corresponding LAN port.

-9-

2.1.2. Rear Panel

Figure 2-2 Rear Panel

Ports:

Port

RESET

12VDC

PRINTER

COM

Description

To reset system settings to factory defaults, please follow the steps:

1. Power off the device,

2. Press the reset button and hold,

3. Power on the device,

4. Keep the button pressed about 5 seconds,

5. Release the button,

6. Watch the M1 and M2 LEDs, they will flash 8 times and then M1 flash once per second.

Power inlet: DC 12V, 1.2A (minimum)

Printer Port (Optional)

Serial port (connect analog modem or console cable)

2.2 Procedure for Hardware Installation

1. Decide where to place your Wireless Broadband Router:

You can place your Wireless Broadband Router on a desk or other flat surface, or you can mount it on a wall. For optimal performance, place your Wireless Broadband

Router in the center of your office (or your home) in a location that is away from any potential source of interference, such as a metal wall or microwave oven.

-10-

2. Setup LAN connection:

a. Wired LAN connection: connects an Ethernet cable from your computer’s

Ethernet port to one of the LAN ports of this product.

b. Wireless LAN connection: locate this product at a proper position to gain the best

transmit performance.

Figure 2-3 Setup of LAN and WAN connections for this product.

3. Setup WAN connection: prepare an Ethernet cable for connecting this product to

your cable/xDSL modem or Ethernet backbone. Figure 2-3 illustrates the WAN connection.

-11-

4. Connecting this product with your printer: use the printer cable to connect your

printer to the printer port of this product. (Optional)

5. Power on:

Connecting the power cord to power inlet and turning the power switch on, this product will automatically enter the self-test phase. When it is in the self-test phase, the indicators M1 and M2 will be lighted ON for about 10 seconds, and then M1 and

M2 will be flashed 3 times to indicate that the self-test operation has finished. Finally, the M1 will be continuously flashed once per second to indicate that this product is in normal operation.

-12-

Chapter 3 Network Settings and Software Installation

To use this product correctly, you have to properly configure the network settings of your computers and install the attached setup program into your MS Windows platform

(Windows 95/98/NT/2000).

3.1 Make Correct Network Settings of Your Computer

The default IP address of this product is 192.168.123.254, and the default subnet mask is

255.255.255.0. These addresses can be changed on your need, but the default values are used in this manual. If the TCP/IP environment of your computer has not yet been configured, you can refer to Appendix A to configure it. For example,

1. configure IP as 192.168.123.1, subnet mask as 255.255.255.0 and gateway as

192.168.123.254, or more easier,

2. configure your computers to load TCP/IP setting automatically, that is, via DHCP server of this product.

After installing the TCP/IP communication protocol, you can use the ping command to check if your computer has successfully connected to this product. The following example shows the ping procedure for Windows 95 platforms. First, execute the ping command

ping 192.168.123.254

If the following messages appear:

Pinging 192.168.123.254 with 32 bytes of data:

Reply from 192.168.123.254: bytes=32 time=2ms TTL=64

a communication link between your computer and this product has been successfully established. Otherwise, if you get the following messages,

Pinging 192.168.123.254 with 32 bytes of data:

Request timed out.

-13-

there must be something wrong in your installation procedure. You have to check the following items in sequence:

1. Is the Ethernet cable correctly connected between this product and your computer?

Tip: The LAN LED of this product and the link LED of network card on your

computer must be lighted.

2. Is the TCP/IP environment of your computers properly configured?

Tip: If the IP address of this product is 192.168.123.254, the IP address of your

computer must be 192.168.123.X and default gateway must be 192.168.123.254.

3.2 Install the Software into Your Computers

Skip this section if you do not want to use the print server function of this product.

Step 1: Insert the installation CD-ROM into the CD-ROM drive. The following window will be shown automatically. If it isn’t, please run “install.exe” on the CD-ROM.

-14-

Step 2: Click on the INSTALL button. Wait until the following Welcome dialog to appear, and click on the Next button.

Step 3: Select the destination folder and click on the Next button. Then, the setup program will begin to install the programs into the destination folder.

-15-

Step 4: When the following window is displayed, click on the Finish button.

Step 5: Select the item to restart the computer and then click the OK button to reboot your computer.

Step 6: After rebooting your computer, the software installation procedure is finished.

Now, you can configure the NAT Router (refer to Chapter 4) and setup the Print Server

(refer to Chapter 5).

-16-

Chapter 4 Configuring Wireless Broadband Router

This product provides Web based configuration scheme, that is, configuring by your Web browser, such as Netscape Communicator or Internet Explorer. This approach can be adopted in any MS Windows, Macintosh or UNIX based platforms.

4.1 Start-up and Log in

Activate your browser, and disable the proxy or add the IP address of this product into

the exceptions. Then, type this product’s IP address (the factory setting is

192.168.123.254) in the Location (for Netscape) or Address (for IE) field and press

ENTER.

After the connection is established, you will see the web user interface of this product.

There are two appearances of web user interface: for general users and for system

-17-

administrator.

To log in as an administrator, enter the system password (the factory setting is ”admin”) in the System Password field and click on the Log in button. If the password is correct, the web appearance will be changed into administrator configure mode. As listed in its main menu, there are several options for system administration.

-18-

4.2 Status

This option provides the function for observing this product’s working status:

A. WAN Port Status.

If the WAN port is assigned a dynamic IP, there may appear a “Renew” or

Release” button on the Sidenote column. You can click this button to renew or release IP manually.

B. Modem Status.

C. Printer Status. The possible kinds of printer status include “Ready”, “Not ready”,

Printing… ”, and “Device error”.

When a job is printing, there may appear a “Kill Job” button on the Sidenote

column. You can click this button to kill current printing job manually.

-19-

4.3 Toolbox

This option enables you to change the administrator password. Besides, you can get the information about Firmware version and WAN's MAC Address.

There are some useful buttons in this page:

View Log

View the system logs

Reboot

Backup Setting

Reboot this device

You can backup your settings by clicking this button and save it as a bin file. Once you want to restore these settings, please click Firmware Upgrade button and use the bin file

Reset to Default

you saved.

Reset the settings of this device to the default values

Firmware Upgrade

Prompt the administrator for a file and upgrade it to this device

Note: we strongly recommend you to change the system password for security reason.

-20-

4.4 Primary Setup

This option is primary to enable this product to work properly. The setting items and the web appearance depend on the WAN type. Choose correct WAN type before you start.

1. LAN IP Address: the local IP address of this device. The computers on your network must use the LAN IP address of your product as their Default Gateway. You can change it if necessary.

2. WAN Type: WAN connection type of your ISP. You can click Change button to choose a correct one from the following four options:

A. Static IP Address: ISP assigns you a static IP address.

B. Dynamic IP Address: Obtain an IP address from ISP automatically.

C. PPP over Ethernet: Some ISPs require the use of PPPoE to connect to their services.

D. Dial-up Network: To surf the Internet via PSTN/ISDN.

-21-

4.4.1 Static IP Address

WAN IP Address, Subnet Mask, Gateway, Primary and Secondary DNS: enter the proper setting provided by your ISP.

4.4.2 Dynamic IP Address

1. Host Name: optional. Required by some ISPs, for example, @Home.

2. Renew IP Forever: this feature enables this product to renew your IP address automatically when the lease time is expiring-- even when the system is idle.

4.4.3 PPP over Ethernet

1. PPPoE Account and Password: the account and password your ISP assigned to you.

For security, this field appears blank. If you don't want to change the password, leave it empty.

2. PPPoE Service Name: optional. Input the service name if your ISP requires it.

Otherwise, leave it blank.

3. Maximum Idle Time: the amount of time of inactivity before disconnecting your

PPPoE session. Set it to zero or enable Auto-reconnect to disable this feature.

4.4.4 Dial -up Network

1. Dial-up Telephone, Account and Password: assigned by your ISP. For security, this field appears blank. If you don't want to change the password, leave it empty.

2. Primary and Secondary DNS: If they are configured as "0.0.0.0.", they will be automatically assigned upon connection.

3. Maximum Idle Time: the amount of time of inactivity before disconnecting your dial-up session.

4. Baud Rate: the communication speed between this product and your MODEM or

ISDN TA.

5. Extra Setting: (initialization string) optional. Used to optimize the communication

-22-

quality between the ISP and your MODEM or ISDN TA

-23-

4.5 DHCP Server

The settings of a TCP/IP environment include host IP, Subnet Mask, Gateway, and DNS configurations. It is not easy to manually configure all the computers and devices in your network. Fortunately, DHCP Server provides a simple approach to handle all these settings. This product supports the function of DHCP server. If you enable this product’s

DHCP server and configure your computers as “automatic IP allocation” mode, then when your computer is powered on, it will automatically load the proper TCP/IP settings from this product. The settings of DHCP server include the following items:

1. DHCP Server: Choose “Disable” or “Enable.”

2. Range of IP Address Pool: Whenever there is a request, the DHCP server will automatically allocate an unused IP address from the IP address pool to the requesting computer. You must specify the starting and ending address of the IP address pool.

-24-

3. Domain Name: Optional, this information will be passed to the client.

Clients List

List the current mapping of the IP and MAC address for each DHCP client.

Fixed Mapping

In general, DHCP server assigns an IP address chosen from the IP addresses pool randomly. Fixed Mapping allows you to assign a specific IP address to the specified MAC address.

-25-

4.6 Virtual Server

This product’s NAT firewall filters out unrecognized packets to protect your Intranet, so all hosts behind this product are invisible to the outside world. If you wish, you can make some of them accessible by enabling the Virtual Server Mapping.

A virtual server is defined as a Service Port, and all requests to this port will be redirected to the computer specified by the Server IP.

For example, if you have an FTP server (port 21) at 192.168.123.1, a Web server (port 80) at 192.168.123.2, and a VPN server at 192.168.123.6, then you need to specify the following virtual server mapping table:

-26-

Service Port

21

80

1723

Server IP

192.168.123.1

192.168.123.2

192.168.123.6

Enable

V

V

V

-27-

4.7 Special AP

Some applications require multiple connections, like Internet games, Video conferencing,

Internet telephony, etc. Because of the firewall function, these applications cannot work with a pure NAT router. The Special Applications feature allows some of these applications to work with this product. If the mechanism of Special Applications fails to make an application work, try setting your computer as the DMZ host instead.

1. Trigger: the outbound port number issued by the application.

2. Incoming Ports: when the trigger packet is detected, inbound packets sent to the specified port numbers are allowed to pass through the firewall.

This product provides some predefined settings. Select your application and click Copy to to add the predefined setting to your list.

Note: At any given time, only one PC can use each Special Application.

-28-

4.8 Access Control

Access Control allows you to assign different access right for different users. First, you have to divide users into different groups. Users are identified by their IP addresses. You can assign the members of Group 1, 2 and 3. The others are all members of Default Group.

Second, you have to assign the access right for each group. Access right can allow or block for access specified TCP and UDP ports. For example:

Group Members

Default -

Access Right

Allow ()

Group 1 50-99 Allow (25,53)

Group 2

Group 3

100-199 Block (21,119)

1-9,20 Block ()

Comments

No access right (allow nothing)

Can browse(80), receive(110) and send(25) email only

Cannot read net news(119) and

FTP(21) only

Fully access (block nothing)

-29-

MAC Level The basic Access Control is based on the IP address only. If a user is able to change his IP address, the user will be out of control. The MAC level access control allows you to control the mapping of MAC addresses and IP addresses. You can also control which MAC address is allowed to connect to this device.

-30-

4.9 Misc. Items

1. IP Address of DMZ Host: The DMZ (Demilitarized Zone) Host is a host without the protection of a firewall. It allows a computer to be exposed to unrestricted 2-way communication for Internet games, video conferencing, Internet telephony and other special applications. (Note that this feature should be used only when needed.)

2. Remote Administrator Host: In general, only Intranet users can browse the built-in web pages to perform administration task. If this feature is enabled, only the specified

IP address can perform remote administration. If the specified IP address is 0.0.0.0, any remote host can connect to the product to perform administration tasks. When this feature is enabled, the web port will be shifted to 88.

3. Administrator Time-out: The amount of time of inactivity before the product will automatically close the Administrator session. Set this to zero to disable it.

-31-

4. Discard PING from WAN side: When this feature is enabled, hosts on the WAN cannot ping this product.

5. Non-standard FTP port: You have to configure this item if you want to access an

FTP server whose port number is not 21. This setting will be lost after rebooting.

-32-

4.10 Wireless Setting

Wireless settings allow you to set the wireless configuration items.

1. Network ID(SSID): Network ID is used for identifying the Wireless LAN (WLAN).

Client stations can roam freely over this product and other Access Points that have the same Network ID. (The factory setting is “default”)

2. Channel: The radio channel number. The permissible channels depend on the

Regulatory Domain. The factory setting is as follows:

USA/Canada

Europe/Australia (ETSI)

Japan (All)

Spain, France

Channel 6

Japan

Channel 10

Channel 14

3. WEP Security: Select the data privacy algorithm you want. Enabling the security can protect your data while it is transferred from one station to another. The standardized

-33-

IEEE 802.11 WEP (64-bit or 128-bit) is used here.

4. WEP Key 1, 2, 3 & 4: When you enable the 64-bit or 128-bit WEP key security, please select one WEP key to be used and then input 10 or 26 hex-decimal (0-9, A-F) digits.

MAC Address Control Setup MAC addresses to control which wireless clients can

associate to the wireless LAN .

-34-

4.11 MAC Address Control

MAC Address Control allows you to assign different access right for different users and to assign a specific IP address to a certain MAC address.

MAC Address Control Check “Enable” to enable the “MAC Address Control”. All of the settings in this page will take effect only when

“Enable” is checked.

Connection control Check "Connection control" to enable the controlling of which wired and wireless clients can connect to this device.

If a client is denied to connect to this device, it means the client can't access to the Internet either. Choose "allow" or

"deny" to allow or deny the clients, whose MAC addresses

-35-

are not in the "Control table" (please see below), to connect to this device.

Association control Check "Association control" to enable the controlling of which wireless client can associate to the wireless LAN. If a client is denied to associate to the wireless LAN, it means the client can't send or receive any data via this device.

Choose "allow" or "deny" to allow or deny the clients, whose MAC addresses are not in the "Control table", to associate to the wireless LAN.

Control table "Control table" is the table at the bottom of the "MAC

Address Control" page. Each row of this table indicates the

MAC address and the expected IP address mapping of a client. There are four columns in this table:

MAC Address MAC address indicates a specific client.

IP Address

Expected IP address of the corresponding client. Keep it empty if you don't care its

IP address.

C

When "Connection control" is checked, check "C" will allow the corresponding client to connect to this device.

A

When "Association control" is checked, check "A" will allow the corresponding client to associate to the wireless LAN.

-36-

In this page, we provides the following Combobox and button to help you to input the

MAC address.

You can select a specific client in the “DHCP clients” Combobox, and then click on the

“Copy to” button to copy the MAC address of the client you select to the ID selected in the “ID” Combobox.

Previous page and Next Page To make this setup page simple and clear, we have

divided the “Control table” into several pages. You can use these buttons to navigate to different pages.

-37-

Chapter 5 Print Server

This product provides the function of network print server for MS Windows

95/98/NT/2000 and Unix based platforms. (If the product you purchased doesn’t have printer port, please skip this chapter.)

5.1 Configuring on Windows 95/98 Platforms

After you finished the software installation procedure described in Chapter 3, your computer has possessed the network printing facility provided by this product. For convenience, we call the printer connected to the printer port of this product as server

printer. On a Windows 95/98 platform, open the Printers window in the My Computer menu:

Now, yon can configure the print server of this product:

-38-

1. Find out the corresponding icon of your server printer, for example, the HP LaserJet

6L. Click the mouse’s right button on that icon, and then select the Properties item:

2. Click the Details item:

-39-

3. Choose the “PRTmate: (All-in-1)” from the list attached at the Print To item. Be sure that the Printer Driver item is configured to the correct driver of your server printer.

4. Click on the button of Port Settings:

Type in the IP address of this product and then click the OK button.

5. Make sure that all settings mentioned above are correct and then click the OK button.

5.2 Configuring on Windows NT Platforms

The configuration procedure for a Windows NT platform is similar to that of Windows

95/98 except the screen of printer Properties:

-40-

Compared to the procedure in last section, the selection of Details is equivalent to the selection of Ports, and Port Settings is equivalent to Configure Port.

5.3 Configuring on Windows 2000 Platforms

The configuration procedure for a Windows 2000 platform is similar to that of Windows

95/98 except the screen of printer Properties:

Compared to the procedure in last section, the selection of Details is equivalent to the selection of Ports, and Port Settings is equivalent to Configure Port.

-41-

5.4 Configuring on Unix based Platforms

Please follow the traditional configuration procedure on Unix platforms to setup the print server of this product. The printer name is “lp.”

-42-

Appendix A TCP/IP Configuration for Windows 95/98

This section introduces you how to install TCP/IP protocol into your personal computer.

And suppose you have been successfully installed one network card on your personal computer. If not, please refer to your network card manual. Moreover, the Section A.2 tells you how to set TCP/IP values for working with this NAT Router correctly.

A.1 Install TCP/IP Protocol into Your PC

1. Click Start button and choose Settings, then click Control Panel.

2. Double click Network icon and select Configuration tab in the Network window.

3. Click Add button to add network component into your PC.

4. Double click Protocol to add TCP/IP protocol.

-43-

5. Select Microsoft item in the manufactures list. And choose TCP/IP in the Network

Protocols. Click OK button to return to Network window.

6. The TCP/IP protocol shall be listed in the Network window. Click OK to complete the install procedure and restart your PC to enable the TCP/IP protocol.

A.2 Set TCP/IP Protocol for Working with NAT Router

1. Click Start button and choose Settings, then click Control Panel.

-44-

2. Double click Network icon. Select the TCP/IP line that has been associated to your network card in the Configuration tab of the Network window.

3. Click Properties button to set the TCP/IP protocol for this NAT Router.

4. Now, you have two setting methods:

A. Get IP via DHCP server

-45-

a. Select Obtain an IP address automatically in the IP Address tab.

-46-

b. Don’t input any value in the Gateway tab.

-47-

c. Choose Disable DNS in the DNS Configuration tab.

-48-

B. Configure IP manually a. Select Specify an IP address in the IP Address tab. The default IP address of this product is 192.168.123.254. So please use 192.168.123.xxx (xxx is between 1 and 253) for IP Address field and 255.255.255.0 for Subnet

Mask field.

-49-

b. In the Gateway tab, add the IP address of this product (default IP is

192.168.123.254) in the New gateway field and click Add button.

-50-

c. In the DNS Configuration tab, add the DNS values which are provided by the ISP into DNS Server Search Order field and click Add button.

-51-

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
