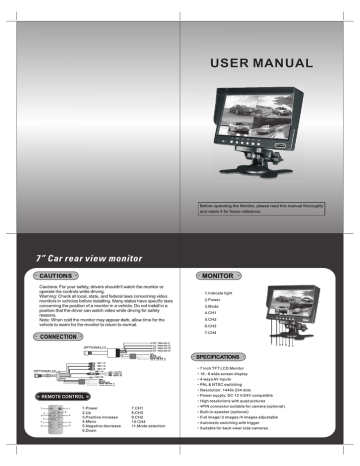

USER MANUAL
MODE
CH1
CH2
CH3
CH4
TFT LCD
Before operating the Monitor, please read this manual thoroughly
and retain it for future reference.
7” Car rear view monitor
CAUT ION S
1.Indicate light
2.Power
3.Mode
4.CH1
MODE
CH1
CH2
CH3
CH4
5.CH2
6.CH3
7.CH4
CONNECTION
1
OPTIONAL(1)
3
4
2 3 4 5
6 7
POWER
GND WIRE
REVERSING WIRE
TURNING LAMP WIRE (L)
CAM 1 IN
CAM 2 IN
CAM 3 IN
CAM 4 IN
OPTIONAL(2)
VIDEO OUT
·7 inch TFT LCD Monitor
+12V OUT
VIDEO IN
AUDIO IN
·16 : 9 wide screen display
·4 ways AV inputs
POWER
GND WIRE
REVERSING WIRE
TURNING LAMP WIRE (L)
·PAL & NTSC switching
·Resolution: 1440x 234 dots
·Power supply: DC 12 V/24V compatible
·High resolutions with quad pictures
11
1
4
2
3
5
6
7
9
8
10
1.Power
2.Up
3.Positive increase
4.Menu
5.Negative decrease
6.Down
7.CH1
8.CH3
9.CH2
10.CH4
11.Mode selection
·4PIN connector suitable for camera (optional)
·Built-in speaker (optional)
·Full image/ 2 images /4 images adjustable
·Automatic switching with trigger
·Suitable for back view/ side cameras.
