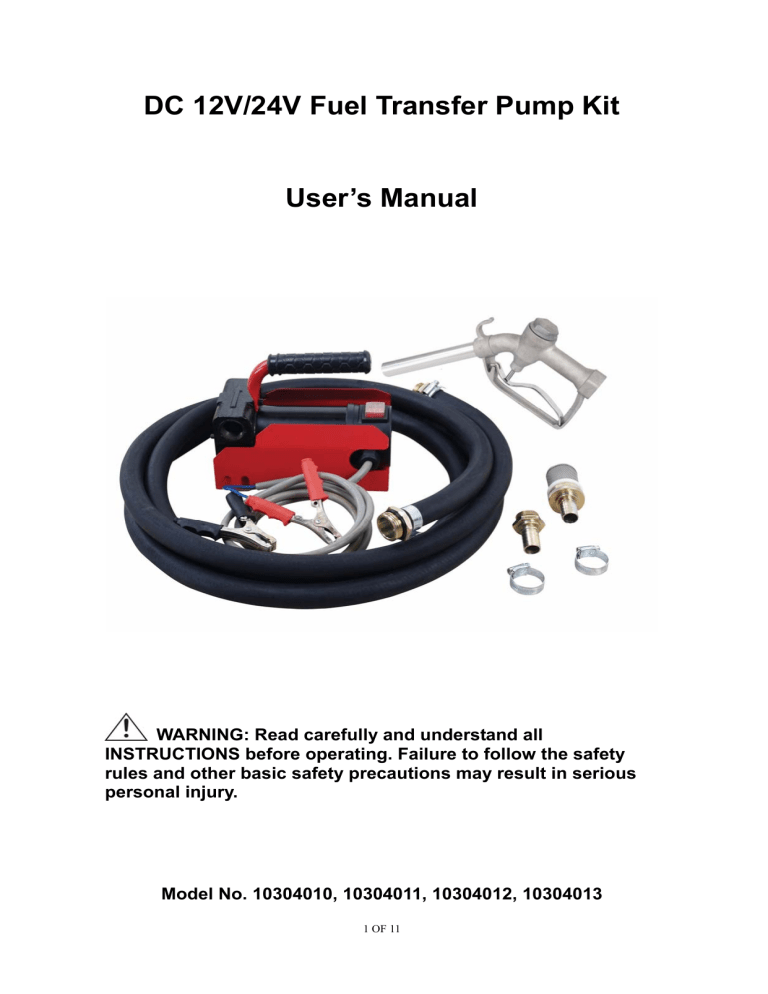

DC 12V/24V Fuel Transfer Pump Kit

User’s Manual

WARNING: Read carefully and understand all

INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

Model No. 10304010, 10304011, 10304012, 10304013

1 OF 11

A. INDEX

A

………………………………………………………………………………………………………………. Index

B

………………………………………………………………………………………..Declaration of Conformity

C

……………………………………………………………………………………………...Machine Description

D

…………………………………………………………………………………………………….Technical Data

D1…………………………………………………………………………………………………Electrical Data

E

……………………………………………………………………………………………...Operating Conditions

E1…………………………………………………………………………………….Environmental Conditions

E2…………………………………………………………………………………….... Electrical Power Supply

E3………………………………………………………………………………………..…………Working Cycle

E4………………………………………………………………………Fluids Permitted / Fluids Not Permitted

F

………………………………………………………………………………………………Moving and Transport

G

……………………………………………………………………………………………………………Installation

G1……………………………………………………………………….......Disposing Of The Packing Material

G2…………………………………………………………………………………………..Preliminary Inspection

G3…………………………………………………………………………………………..Positioning the Pump

G4…………………………………………………………………………………………Connecting the Tubing

G5……………………………………………………..Considerations Regarding Delivery And Suction Lines

G6……………………………………………………………………………………………………Configurations

G7…………………………………………………………………………………………..Electrical Connections

H

………………………………………………………………………………………………………...Initial Start-Up

I

……………………………………………………………………………………………………………….Daily Use

J

……………………………………………………………………………………………...Problems and Solutions

K

…………………………………………………………………………………………………………..Maintenance

L

…………………………………………………………………………………………………………….Noise Level

M

……………………………………………………………………………...Disposing Of Contaminated Materials

N

……………………………………………………………………………………………… Diagram and Parts List

O

……………………………………………………………………………………………………..Install Dimensions

2 OF 11

B. DECLARATION OF CONFORMITY

DECLARATION OF CONFORMITY

IN CONFORMANCE WITH THE DIRECTIVES

98/37/EC (Machinery Directive)

2004/104/EC (EMC Directive)

INTRADIN (SHANGHAI) MACHINERY

118 DUHUI ROAD, MINHANG DISTRICT, SHANGHAI, 201109 CHINA

DECLARES THAT THE FOLLOWING PUMP MODELS:

10304010/10304011/10304012/10304013

To which this declaration refers, conform to the following applicable regulations:

EUROPEAN REGULATIONS:

EN ISO 12100-1: 2003 - Safety of machinery - Basic concepts, general principles for design - Part 1: Basic terminology, methodology

EN ISO 12100-2: 2003 - Safety of machinery - Basic concepts, general principles for design - Part 2: Technical principles

EN 60034-1: 2004 - Rotating electrical machines - Part 1: Rating and performance

EN 55014-1: 2006 - Electromagnetic compatibility - Requirements for household appliances, electric tools and similar apparatus - Part 1: Emission

EN 55014-2: 1997/+A1:2001 - Electromagnetic compatibility - Requirements for household appliances, electric tools and similar apparatus - Part 2: Immunity product family standard

C. MACHINE DESCRIPTION

PUMP:

self-priming, volumetric, rotating vane pump, equipped with by-pass valve.

MOTOR:

Brush motor, DC, low tension with intermittent cycle, closed type in protection class IP55, directly flanged to the pump body.

D. TECHNICAL DATA

D1. Electrical Data

PUMP MODEL FUSES

ELECTRICAL POWER CURRENT

Current Voltage(V)

Maximum(*)

(Amp)

10304010 25 DC 12 24

10304011 15 DC 24

10304012 25 DC 12

10304013 15 DC 24

(*) referred to operations in by-pass mode.

13

24

13

E. OPERATING CONDITIONS

E1. Environmental Conditions

3 OF 11

Temperature: Min. -20

, Max. +60

Relative Humidity: Max. 90%

ATTENTION!

The temperature limits shown apply to the pump components and must be respected to avoid possible damage or malfunction.

E2. Electrical Power Supply

Depending on the model, the pump must be supplied by a single-phase alternating current line whose nominal values are shown in the table in Paragraph D1 – ELECTRICAL DATA.

The maximum acceptable variations from the electrical parameters are: Voltage +/-5% of the nominal value.

Power from lines with values outside the indicated limits can damage the electrical components.

ATTENTION!

Power from lines with values outside the indicated limits can damage the electrical components.

E3. Working Cycle

ATTENTION!

Extreme operating conditions with working cycles longer than 30 minutes can cause the motor temperature to rise, thus damaging the motor itself.

Each 30-minute working cycle should always be followed by a 30-minute power-off cooling phase.

ATTENTION!

Functioning under by-pass conditions is only allowed for brief periods of time (2-3minutes maximum).

E4. Fluids Permitted / Fluids Not Permitted

PERMITTED

DIESEL FUEL at a VISCOSITY from 2 to 5.35 cSt (at a temperature of 37.8

)

Minimum Flash point (PM): 55

NOT PERMITTED

Gasoline

Inflammable Liquids With Pm<55

Liquids With Viscosity>20cst

Fire – Explosion

Fire – Explosion

Motor Overload

Food Liquids

Corrosive Chemical Products

Solvents

Contamination Of The Same

Pump Corrosion, Injury To Persons

Fire – Explosion, Damage To Gasket Seals

F. MOVING AND TRANSPORT

Given the limited weight and size of the pumps (see overall dimensions), moving the pumps does not require

4 OF 11

the use of lifting devices.

The pumps were carefully packed before shipment. Check the packing material on delivery and store in the dry place.

G. INSTALLATION

G1. Disposing Of the Packing Material

The packing material does not require special precautions, not being in any way dangerous or polluting.

Refer to local regulations for its disposal.

G2. Preliminary Inspection

• Check that the machine has not suffered any damage during transport or storage.

• Clean the inlet and outlet openings, removing any dust or residual packing material.

• Check that the electrical specifications correspond to those shown on the identification plate.

G3. Positioning the Pump

• The pump can be installed in any position (pump axis vertical or horizontal)

• Attach the pump using screws of adequate diameter for the attachment holes provided in the base of the pump (see the section “OVERALL DIMENSIONS” for their position and dimension).

ATTENTION!

THE MOTORS ARE NOT OF AN ANTI-EXPLOSIVE TYPE.

Do not install them where inflammable vapours can be present.

G4. Connecting the Tubing

• Before connection, make sure that the tubing and the suction tank are free of dirt and thread residue that could damage the pump and its accessories.

• Before connecting the delivery tube, partially fill the pump body with diesel fuel to facilitate priming.

• Do not use conical threaded joints that could damage the threaded pump openings if excessively tightened.

• The pump is not provided with any filter. Always install suction filter (on all of the models it is included).

SUCTION TUBING:

- Minimum recommended nominal diameter: 3/4”

- Nominal recommended pressure: 10bar/145PSI

- Use tubing suitable for functioning under suction pressure

DELIVERY TUBING:

- Minimum recommended nominal diameter: 3/4”

- Nominal recommended pressure: 10bar/145PSI

ATTENTION!

It is the installer’s responsibility to use tubing with adequate characteristics.

The use of tubing unsuitable for use with diesel fuel can damage pump, injure persons and cause pollution.

5 OF 11

Loosening of the connections (threaded connections, flanging, gasket seals) can cause serious ecological and safety problem.

Check all the connections after the initial installation and on a daily basis after that.

Tighten the connections, if necessary.

G5. Considerations Regarding Delivery and Suction Lines

DELIVERY

The choice of pump mode must be made keeping the characteristics of the system in mind.

The combination of the length of the tubing, the diameter of the tubing, the flow rate of the diesel fuel and the line accessories installed can create back pressure greater than the maximums anticipated such as to cause the (partial) opening of the pump by-pass with the consequent noticeable reduction of the flow rate supplied.

In such cases, to allow correct functioning of the pump, it is necessary to reduce system resistance, using shorter tubing and/or of wider diameter and line accessories with less resistance (e.g. an automatic dispensing nozzle for greater flow rates).

SUCTION

All models are equipped with a self-priming pump with a good suction capacity.

During the start-up phase, with an empty suction tube and the pump wetted with fluid, the electric pump unit is capable of suctioning the liquid with a maximum difference in height of 2 meters. It is important to point out that the priming time can be as long as one minute and the pressure of an automatic dispensing nozzle on the delivery line prevents the evacuation of air from the installation, and, therefore, prevents proper priming.

For this reason, it is always advisable to prime the pump without an automatic delivery nozzle, verifying the proper wetting of the pump. The installation of a foot valve is recommended to prevent the emptying of the suction tube and to keep the pump wet. In this way, the pump will subsequently always start up immediately.

When the system is functioning, the pump can work with pressure at the inlet as high as 0.5bar/7PSI, beyond which cavitation phenomena can begin, with a consequent loss of flow rate and increase of system noise.

As we have said up to this point, it is important to guarantee low suction pressure by using short tubing of a diameter equal to or larger than recommended, reducing curves to a minimum and using suction filter of wide cross-section and foot valves with the lowest possible resistance.

The difference in height between the pump and the fluid level must be kept as small as possible and, at any rate, within the 2 meters anticipated for the priming phase.

If this height is exceeded, it will always be necessary to install a foot valve to allow for the filling of the suction tube and provide tubing of wider diameter. It is recommended that the pump not be installed at a difference in height greater than 3 meters.

ATTENTION!

In the case that the suction tank is higher than the pump, it is advisable to install an anti-siphon valve to prevent accidental diesel fuel leaks.

6 OF 11

Dimension the installation in order to control the back pressure due to water hammering.

G6. CONFIGURATIONS

Electric pump with terminal strip box complete of switch (on 12V and 24V versions), with safety fuse and pincers for connection to the battery, handle for easier moving, 3/4” anti-static tube for diesel fuel dispensing, manual nozzle and foot filter to be installed at the beginning of the suction tube.

G7. Electrical Connections

• Terminal strip box complete of:

- ON/OFF switch;

- Safety fuse against short circuits and overcurrent, featuring the following characteristics:

25A for 12V models

15A for 24V models

• 2m/6.6ft power cable complete of pincers for connection to the battery

RED cable: positive pole (+)

BLACK cable: negative pole (-)

ATTENTION!

IT IS THE INSTALLER’S RESPONSIBILITY TO PREFORM THE ELECTRICAL CONNECTIONS WITH

RESPECT FOR THE APPLICABLE REGULATIONS.

Respect the following (not exhaustive) instructions to ensure a proper electrical installation:

• During installation and maintenance, make sure that the electric supply lines are not live.

• Use cables characterized by the minimum cross-sections, nominal voltages and wiring-type adequate to the electrical characteristics shown in paragraph E2 – ELECTRICAL SPECIFICATIONS and the installation environment.

• Always close the cover of the strip box before supplying electrical power.

• Check the correct rotation direction of the pump.

If it is inverted, check the polarity of the connection cable.

7 OF 11

H. INITIAL START-UP

• Check that the quantity of diesel fuel in the suction tank is greater than the amount you wish to transfer.

• Make sure that the residual capacity of the delivery tank is greater than the quantity you wish to transfer.

• Do not run the pump dry. This can cause serious damage to its components.

• Make sure that the tubing and line accessories and in good condition.

• Diesel fuel leak can damage objects and injure person.

• Never start or stop the pump by connecting or cutting out the power supply.

• Do not operate switches with wet hands.

• Prolonged contact with diesel fuel can damage the skin. The use of glasses and gloves is recommended.

ATTENTION!

Extreme operating conditions with working cycles longer than 30 minutes can cause the motor temperature to rise, thus damage the motor itself.

Each 30-minute working cycle should always be followed by a 30-minute power-off cooling phase.

In the priming phase the pump must blow the air initially present in the entire installation out of the delivery line. Therefore it is necessary to keep the outlet open to permit the evacuation of the air.

ATTENTION!

If an automatic type dispensing nozzle is installed at the end of the delivery line, the evacuation of the air will be difficult because of the automatic stopping device that keeps the valve closed when the line pressure is too low. It is recommended that the automatic dispensing nozzle be temporarily disconnected during the initial start-up phase.

The priming phase can last from several second to a few minutes, as a function of the characteristics of the system. If this phase is prolonged, stop the pump and verify:

• That the pump is not running completely dry;

• That the suction tubing is not allowing air to seep in;

• That the suction filter is not clogged;

• That the suction height does not exceed 2m. (if the height exceeds 2m, fill the suction hose with fluid);

• That the delivery tube is allowing the evacuation of the air.

When priming has occurred, verify that the pump is operating within the anticipated range, in particular:

• That under conditions of maximum back pressure, the power absorption of the motor stays within the values shown on the identification plate;

• That the suction pressure is not greater than 0.5bar;

• That the back pressure in the delivery line is not greater than the maximum back pressure foreseen for the pump.

I. DAILY USE

a. If using flexible tubing, attach the ends of the tubing to the tanks. In the absence of an appropriate slot, solidly grasp the delivery tube before beginning dispensing. b. Before starting the pump, make sure that the delivery valve is closed (dispensing nozzle or line valve). c. Turn the ON/OFF switch on. The by-pass valve allows functioning with delivery closed only for brief

8 OF 11

periods. d. Open the delivery valve, solidly grasping the end of the tubing. e. Close the delivery valve to stop dispensing. f. When dispensing is finished, turn off the pump.

ATTENTION!

Functioning with the delivery closed is only allowed for brief periods (2 / 3 minutes maximum). After use, make sure the pump is turned off.

J. PROBLEMS AND SOLUTIONS

The Motor is not turning

The motor turns slowly when starting

Low or no flow rate

Lack of electric power

Rotor Jammed

Motor Problems

Low voltage in the electric power line

Low level in the suction tank

Foot valve blocked

Filter clogged

Check the electrical connecting

Check for possible damage or obstruction of the rotating components

Contact the Service Department

Bring the voltage back within the anticipated limits

Refill the tank

Clean and/or replace the valve

Clean the filter

Lower the pump with respect to

Excessive suction pressure

By-pass valve blocked the level of the tank or increase the cross-section of the tubing

High loss of head in the delivery circuit (working with the by-pass

Use shorter tubing or of greater diameter open)

Dismantle the valve, clean and/or replace it.

Air entering the pump or the Check the seals of the suction tubing Connections

A narrowing in the suction tubing

Use tubing suitable for working under suction pressure

Low rotation speed

Check the voltage at the pump.

Adjust the voltage and/or use cables of greater cross-section

The suction tubing is resting on the bottom of the tank

Raise the tubing

Cavitation occurring Reduce suction pressure

Increased pump noise by-pass

Air present in the diesel fuel

Leakage from the pump body Seal Damaged purged from the by-pass system

Verify the suction connection

Check and replace the seal

9 OF 11

K. MAINTENANCE

All models are designed and constructed to require a minimum of maintenance.

In any case always bear in mind the following basic recommendations for a good functioning of the pump:

- On a weekly basis, check that the tubing joints have not loosened, to avoid any leakage.

- On a monthly basis, check the pump body and keep it clean of any impurities.

- On a weekly basis, check and keep clean the line suction filter.

- On a monthly basis, check that the electric power supply cables are in good condition.

- Check on a monthly basis and keep clean the dispensing nozzle provided with all the models. Anyway keep clean any other final check valve installed.

- Check on a monthly basis and keep the suction filters clean.

L. NOISE LEVEL

Under normal working conditions the noise emission from all models does not exceed the valve of 70 db at a distance of 1 meter from the electric pump.

M. DISPOSING OF CONTAMINATED MATERIALS

In the event of maintenance or demolition of the machine, do not disperse contaminated parts into the environment.

Refer to local regulations for their proper disposal.

N. DIADRAM AND PARTS LIST

10 OF 11

24

25

26

27

28

29

30

31

32

15

16

17

18

19

20

21

22

23

10

11

12

13

14

6

7

8

9

1

2

3

4

5

O. INSTALL DIMENSIONS

Unit of measurement: mm

SCREW M5×10

FRONT COVER

O-RING

ROTOR

BLADE

PUMP BODY

BY PASS SPRING

HOSE HOLDER 3/4” + O-RING

HANDLE

CLAMP 22-32 SCREW

HOLDER 1”

MANUAL NOZZLE

FUSE 15A/25A

FUSE-CARRIER

SINGLE-POLE SWITCH

LINE CORD 2MT

TERMINAL BOARD

SCREW M4×15

COMPACTION NUT

TAPER RING

NUT M5

POWER LINE

MOTOR 12V/24V

BEARING

SPRING COLLAR

SEAL

TUBE

HOLDER 1”

FILTER

BY PASS VALVE

BASE

KEY

1

1

1

1

1

2

1

1

2

1

1

2

2

1

1

1

1

2

4

1

1

1

1

1

1

2

1

8

1

1

1

5

11 OF 11

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
