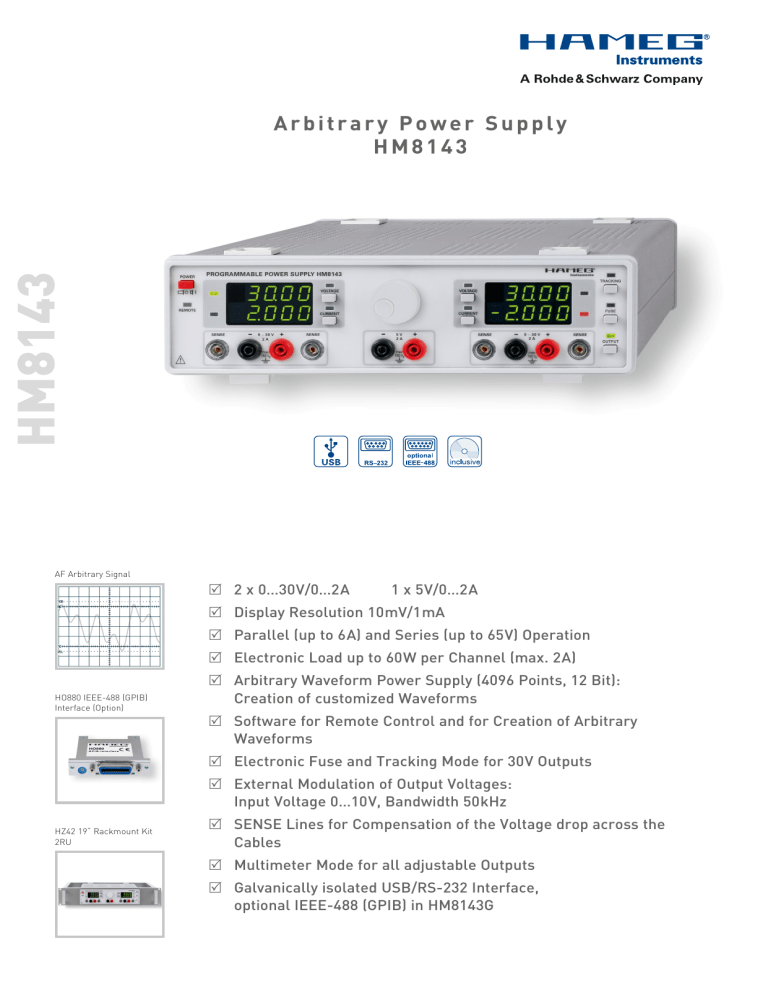

HM8143
Arbitrary Power Supply
HM8143
AF Arbitrary Signal
R 2 x 0…30 V/0…2 A
1 x 5 V/0…2 A
R Display Resolution 10 mV/1 mA
R Parallel (up to 6 A) and Series (up to 65 V) Operation
R Electronic Load up to 60 W per Channel (max. 2 A)
HO880 IEEE-488 (GPIB)
Interface (Option)
R A
rbitrary Waveform Power Supply (4096 Points, 12 Bit):
Creation of customized Waveforms
R S
oftware for Remote Control and for Creation of Arbitrary
Waveforms
R Electronic Fuse and Tracking Mode for 30 V Outputs
R E
xternal Modulation of Output Voltages:
Input Voltage 0…10 V, Bandwidth 50 kHz
HZ42 19“ Rackmount Kit
2RU
R S
ENSE Lines for Compensation of the Voltage drop across the
Cables
R Multimeter Mode for all adjustable Outputs
R G
alvanically isolated USB/RS-232 Interface,
optional IEEE-488 (GPIB) in HM8143G
Arbitrary Power Supply HM8143
All data valid at 23 °C after 30 minutes warm-up.
Outputs
2 x 0…30 V/2 A
1 x 5 V/2 A
On/off pushbutton control, Floating outputs
(allowing parallel and series operation), current limit, electronic fuse, tracking mode
Channels 1+3 (0…30 V)
2 x 0…30 V
Output voltage:
10 mV
Setting resolution:
±3 digits (typ. ±2 digit)
Setting accuracy:
±3 digits (typ. ±2 digit)
Measurement accuracy:
<5 mVrms (3 Hz…300 kHz)
Residual ripple:
Recovery time (10…90 % load variation)
45 µs within ±1 mV of nominal value
16 µs within ±100 mV of nominal value
Max. transient deviation: typ. 800 mV
Recovery time (50 % basic load, 10 % load variation)
30 µs within ±1 mV of nominal value
10 µs within ±100 mV of nominal value
Max. transient deviation: typ. 120 mV
Compensation of line
up to 300 mV
resistances (SENSE):
2 x 0…2 A
Output current:
1 mA
Setting resolution:
±3 digits (typ. ±2 digit)
Setting accuracy:
±3 digits (typ. ±2 digit)
Measurement accuracy:
<100 µs
Recovery time:
Channel 2 (5 V)
5 V ±50 mV
Accuracy:
max. 2 A
Output current:
≤100 µVrms (3 Hz…300 kHz)
Ripple:
Recovery time (10…90 % load variation)
30 µs within ±1 mV of nominal value
0 µs within ±100 mV of nominal value
Max. transient deviation: typ. 60 mV
Recovery time (50 % basic load, 10 % load variation)
30 µs within ±1 mV of nominal value
0 µs within ±100 mV of nominal value
Max. transient deviation: typ. 20 mV
Arbitrary Function (Channel 1 only)
max. 4096
Number of points:
12 Bit
Resolution:
Dwell time and Voltage
Parameters of points:
100 µs…60 s
Dwell time:
1…255 and continuous
Repetition rate:
Inputs:
Modulation input (BNC socket): 0…10 V
1 % of full scale
Accuracy:
Modulations bandwidth
>50 kHz
(-3 dB):
1 V/µs
Slew rate (dV/dt):
Trigger input (BNC socket): Triggering the arbitrary function
TTL
Level:
Miscellaneous
Max. voltage applicable to output terminals
30 V
CH 1 + CH 3:
5 V
CH 2:
max. 150 V
Voltage to earth:
4x 4-digit 7-segment LEDs
Display:
USB/RS-232 (HO820), IEEE-488 (option)
Interface:
I acc. to EN 61010 (IEC 61010)
Protection class:
with protective earth
115…230 V ±10 %; 50/60 Hz, CAT II
Power supply:
115 V: 2 x 6 A slow blow 5 x 20 mm
Mains fuse:
230 V: 2 x 3.15 A slow blow 5 x 20 mm
approx. 300 VA
Power consumption:
+5…+40 °C
Operating temperature:
-20…+70 °C
Storage temperature:
5…80 % (non condensing)
Rel. humidity:
285 x 75 x 365 mm
Dimensions (W x H x D):
approx. 9 kg
Weight:
Accessories supplied: Operator’s Manual and power cable, Software CD
Recommended accessories:
HO880 IEEE-488 (GPIB) Interface (galvanically isolated)
HZ10S 5 x silicone test lead (measurement connection in black)
HZ10R 5 x silicone test lead (measurement connection in red)
HZ10B 5 x silicone test lead (measurement connection in blue)
HZ13
Interface cable (USB) 1.8 m
HZ14
Interface cable (serial) 1:1
HZ42
19’’ Rackmount Kit 2RU
HZ72
GPIB-Cable 2 m
HM8143E/121010 · C&E · Subject to change without notice · © HAMEG Instruments GmbH® · DQS-certified in accordance with DIN EN ISO 9001:2008, Reg.-No.: 071040 QM08
HAMEG Instruments GmbH · Industriestr. 6 · D-63533 Mainhausen · Tel +49 (0) 6182 8000 · Fax +49 (0) 6182 800100 · www.hameg.com · [email protected]
