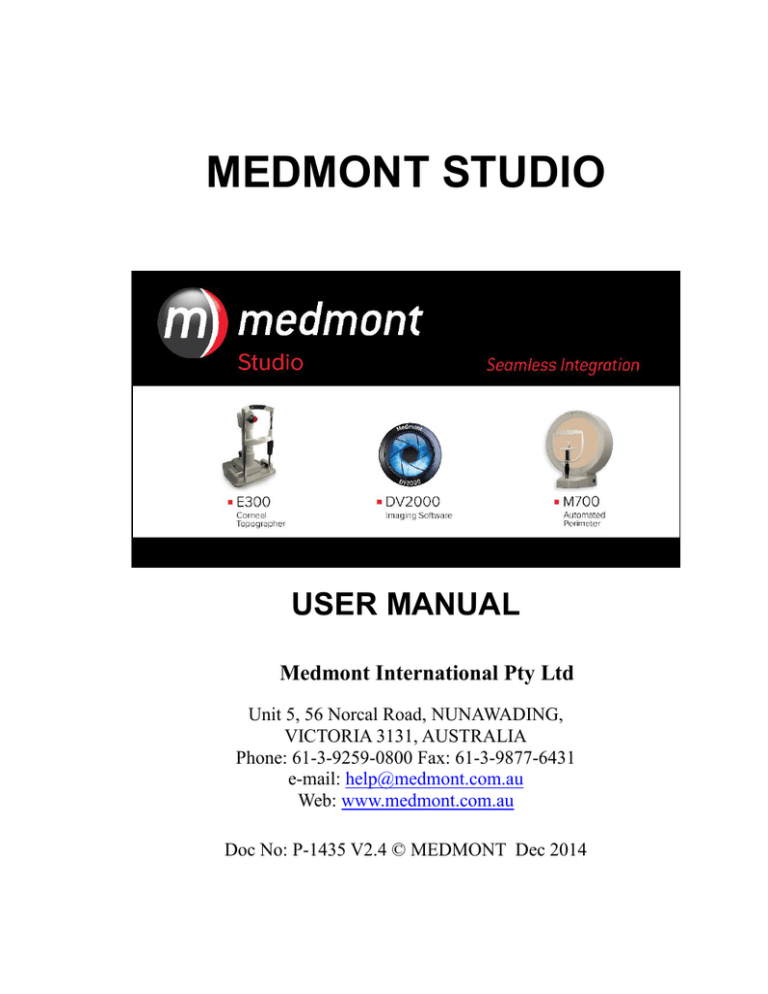

MEDMONT STUDIO

USER MANUAL

Medmont International Pty Ltd

Unit 5, 56 Norcal Road, NUNAWADING,

VICTORIA 3131, AUSTRALIA

Phone: 61-3-9259-0800 Fax: 61-3-9877-6431 e-mail: [email protected]

Web: www.medmont.com.au

Doc No: P-1435 V2.4 © MEDMONT Dec 2014

Table of Contents

1.

INTENDED PURPOSE ................................................................................... 1

Software Conventions .............................................................................. 1

Explanation of Symbols ........................................................................... 1

Accessories .............................................................................................. 2

2.

HARDWARE CONFIGURATION ................................................................ 3

PC and Associated Equipment Requirements .......................................... 3

3.

INSTALLATION CONFIGURATIONS ........................................................ 4

Standalone ................................................................................................ 4

Configuration Typical Use 4

Network (Client / Server) ......................................................................... 5

Configuration Typical Use 5

Single User Review .................................................................................. 5

Configuration Typical Use 5

4.

INSTALLING THE SOFTWARE .................................................................. 6

Common Installation Steps ...................................................................... 6

Installing a Standalone System ................................................................ 7

Installing a Server Based System ........................................................... 10

Installing the Server 11

Installing the Clients 11

Installing with a 3 rd

Party Practice Management System ....................... 13

5.

RUNNING MEDMONT STUDIO ................................................................ 14

For the First Time ................................................................................... 14

Registering your software 14

6.

CONFIGURING A SERVER/CLIENT SYSTEM ...................................... 16

Setup for a Secure System ..................................................................... 16

Setting the Administrator Password ....................................................... 16

Adding Clinicians .................................................................................. 16

Setting Permissions ................................................................................ 17

Database management ............................................................................ 17

Session Management.............................................................................. 17

Database Locks ...................................................................................... 18

7.

PRACTICE MANAGEMENT SYSTEM INTEGRATION ....................... 19

Adding a New Patient in Medmont Studio ............................................ 19

Synchronising the Databases ................................................................. 19

8.

OVERVIEW ................................................................................................... 22

The User Interface .................................................................................. 22

i

9.

THE EXPLORER PANE ............................................................................... 23

Sample Data .......................................................................................... 23

Changing the Size and Position of the Explorer Pane ........................... 23

Docking and Undocking

Unpinning and Pinning

24

24

The Patient View ................................................................................... 24

Expanded Patients View ........................................................................ 24

Adding a Patient .................................................................................... 25

The Refresh Button ............................................................................... 26

Editing a Patient .................................................................................... 26

Selecting Explorer Pane Items .............................................................. 26

Selecting Multiple Items ....................................................................... 27

Filtering ................................................................................................. 27

Searching ............................................................................................... 29

Searching by Patient Name 29

Searching by patient External ID

Searching a 3 rd

-party Practice Management

29

29

Search Behaviour and the Different Filter Modes 30

Sorting ................................................................................................... 30

Using Favourites ................................................................................... 30

10.

THE VIEW PANE .......................................................................................... 31

Displaying Multiple Views .................................................................... 31

Thumbnail View 31

11.

THE RIBBON MENU .................................................................................... 33

File Menu 33

Home Tab

Configure Tab

View Tab

33

33

34

Help Menu 34

12.

THE RIBBON ................................................................................................. 35

13.

HELP ............................................................................................................... 37

14.

ANNOTATIONS ............................................................................................. 38

15.

ATTRIBUTES ................................................................................................. 39

16.

PRINTING ...................................................................................................... 40

The Print Dialog .................................................................................... 40

Print Dialog Settings 40

Print Preview ......................................................................................... 41

17.

USAGE HINTS ............................................................................................... 43

Auto-Capitalisation ............................................................................... 43

ii

Tabbing between Fields.......................................................................... 43

Default Buttons ...................................................................................... 44

Entering Dates ........................................................................................ 44

Numeric / Arrow Key Entry 44

Graphic Calendar Selection 44

18.

UTILITIES ...................................................................................................... 45

Medmont Studio Configuration Tool ..................................................... 45

RSS News Reader .................................................................................. 46

19.

LICENSING .................................................................................................... 47

Installing a Medmont Studio license. ..................................................... 47

Installing a license on a computer with internet access.

Installing a license on a computer without internet access

Authenticating via a web browser

Authenticating via email.

47

48

49

51

Updating an existing License ................................................................. 51

Frequently Asked Questions (FAQ). ...................................................... 52

Session Licenses .................................................................................... 53

20.

DATA BACKUP ............................................................................................. 54

Backup Media ........................................................................................ 54

Backup Locations ................................................................................... 55

Initiating a Backup ................................................................................. 55

iii

Intended Purpose

1. Intended Purpose

Medmont Studio is a powerful software package for controlling the Medmont range of medical instruments from your personal computer or laptop. Medmont Studio is a component of the following instruments:

Medmont Automated Perimeters (all models)Medmont DV2000 Diagnostic Video Imaging

Medmont Corneal Topographers (all models)

The extensibility of Medmont Studio means that its capabilities expand as you purchase new instruments and software, fully integrating into a single working environment.

In addition to controlling the instruments, Medmont Studio provides additional Analysis Tools and

Patient Management facilities. These include complete patient management functions out-of-thebox using Medmont’s own database, or optionally via a 3 rd

party Practice Management system.

Check the Medmont web site for an up-to-date list of supported 3 rd

party systems.

In a small practice Medmont Studio can be run from just one computer, managing both the patient database and controlling the instrument. This is called the standalone configuration.

For larger practices, Medmont Studio contains powerful features for inter-connecting multiple computers to centralise data-storage on one computer called the server. All other computers on the network are called clients. Medmont instruments may be connected to any client in the network.

This document describes the basic Medmont Studio capabilities, including patient management.

Separate on-line and printed documentation is available describing the additional functionality specific to particular instruments.

Software Conventions

When referring to menu selection, the terminology Home > Patient > New means click on the

Home ribbon bar tab, then look for the Patient group on the ribbon bar and click on the New icon.

This format conforms to the Tab > Group > Action system for identifying menu items in a ribbon bar menu system.

Tab

Action

Group

A small glossary is included for terminology that originated with Medmont. It also includes some common terms where they apply to Medmont equipment. It is not a glossary of perimetry. Terms that appear in the glossary are underlined in the text.

Explanation of Symbols

Medmont Studio 1

Intended Purpose

Warning - In event of user error or equipment fault condition there may be a serious risk to health or life of patients or operator, or product damage or loss may occur.

Accessories

- PC incl. Operating system

- User Manual

- Isolation Transformer

(provided by customer)

(optional)

- Dummy plug network connection (optional)

- Dummy plug serial 9 pin serial port (optional)

- Label for Patient environment (optional)

2 Medmont Studio

Hardware Configuration

2. Hardware Configuration

Important: Install the software before inserting or attaching any new hardware to your computer. This allows the software to pre-install the hardware drivers ready for when the hardware is connected.

PC and Associated Equipment Requirements

Check that your computer meets or exceeds the very basic requirements listed below to run

Medmont Studio.

Pentium™ processor-based personal computer, P4 2.8 GHz or Higher (P4 1GHz minimum).

Motherboard using genuine Intel™ PCI chipset highly recommended. VIA chipsets have proven to be unreliable.

Microsoft™ Windows™ 7 and Microsoft™ Windows™ 8

3 GB RAM or more (2 GB minimum)

Video cards that share main memory are not recommended. For stereo viewing using shutter glasses, a compatible NVidia video card is required.

10GB of available hard-disk space setup to use NT File System (NTFS).

2 free USB 2.0 ports.

Use only PC and associated equipment that has been certified to the Standard EN/IEC60950 (Information

Technology Equipment) and the Standards for

Electromagnetic Emissions CISPR22/EN55022.

If used within a patient environment, power the PC and associated equipment with an EN/IEC60601-1 compliant isolation transformer e.g. Medmont TR2450

(230/240V), or an additional fixed protective earth connection.

Cover any open PC communication ports that have accessible conductors with dummy plugs if used in a patient environment.

If you have a previously installed version of Medmont Studio we strongly recommend that you back-up your old database before proceeding.

If you have used the archiving facility of the very old versions of Medmont Studio, you should unarchive old exams to allow the installation data conversion program to upgrade your data. The later versions do not support archiving.

Medmont Studio 3

Installation Configurations

3. Installation Configurations

There are a number of configurations for a Medmont Studio installation that depend on the practice patient management environment and whether a networked computer system exists. Medmont

Studio can be run in three configurations:

Standalone – A small practice configuration consisting of only one computer or alternately a small network system. The latter would have a computer for instrument control and another for administration where the patient data resides, and typically including a 3 rd

party Practice

Management package.

Network (Client/Server) - For large practices with a local area computer network (LAN) in place.

Single User Review - An analysis-only mode is available that allows editing and analysis, but no capture from instruments.

Standalone

The standalone configuration is the most popular and simplest to use. Appropriate licensing for this configuration is included with each Medmont instrument. This is a versatile configuration that can be configured in a number of ways.

Warning! Networking of the instrument computer with other computers may cause unacceptable leakage currents. Only connect through wireless network connections.

A standard configuration consists of

A computer including monitor.

One or more Medmont instruments.

The Medmont Studio software.

Optional supported 3 rd

party practice management software same computer

Printer (wireless unless connected through isolation transformer)

Another common configuration consists of

Two computers. One configured to control the Medmont instrument(s), and the other configured with one of the supported 3 rd

party Practice Management packages, the two typically connected as a Windows Workgroup through a wireless network connection.

One or more Medmont instruments.

The Medmont Studio software.

Both systems would also include:

An activation key with licenses for

Exactly one session.

Instrument license(s).

Additional functionality licenses.

Configuration Typical Use

Conducting exams.

Subsequent review, editing, and analysis of exams.

Patient management.

4 Medmont Studio

Installation Configurations

Network (Client / Server)

The Medmont network configuration works with one or more Medmont client computers connected to a single Medmont server computer. The underlying network can be either a

Workgroup or a Domain based system.

This configuration requires the purchase of a license upgrade from Medmont to allow multiple computers to run the software simultaneously.

Warning! Networking of the instrument computer with other computers may cause unacceptable leakage currents. Only connect through wireless network connections.

Where the Medmont Studio server software is installed depends on the operating system running on the network’s server computer. The options are:

The Medmont Studio server installed on the network server computer itself, as long as the server is running Windows Server 2003 or Windows Small Business Server 2003 or later versions of these products, or

The Medmont Studio server installed on one of the client computers in the network.

The computer on which the Medmont Studio is configured as a server requires:

An activation key with licenses for

Maximum number of sessions (typically more than one).

Instrument license(s).

Additional functionality licenses.

3 rd

party Practice Management software with software license as required (optional).

One or more Medmont client computers with:

Medmont Studio software configured as a client.

Medmont instruments as required, although a computer can be a Medmont client without having an instrument connected.

Configuration Typical Use

Administration - Provides centralized functionality for large practices

One shared database.

One practice management system.

Central maintenance of licensing.

Testing - Exams are conducted from any client computer with an instrument attached.

Review - Any computer in the network can act as a review machine, including the server.

Single User Review

The unlicensed mode is available when no license has been successfully authenticated. This mode replaces the now obsolete Medmont Studio Viewer.

The physical configuration consists of

A computer.

Medmont Studio software.

Configuration Typical Use

Review – For a small numbers of exams on a laptop or home PC. Data is transferred from the licensed system using the import/export facilities.

Referral to specialists - By a specialist (non-Medmont user) who is sent exam data by a practitioner using a Medmont instrument.

Presentation - When giving talks using a laptop and data projector.

Spread the word - Give a copy of the Medmont Studio CD to a colleague to try before they buy.

Medmont Studio 5

4. Installing the Software

Installing the Software

Medmont Studio is provided on a single USB flash drive that contains all the necessary software.

To install Medmont Studio from the USB flash drive follow these steps:

1. Insert the Medmont Studio USB software key into your computer. After a few seconds a Windows Explorer window will display. If not, launch Windows Explorer and select the new removable drive now listed in the left pane labelled “MEDMONT”.

2. Next, expand the removable drive and select folder “Medmont Studio”. Double-click on file setup.exe to start installing the software.

Common Installation Steps

Medmont Studio requires the installation of the Microsoft .Net (pronounced dotNet) Framework.

If the Microsoft .Net Framework was previously installed, or if your operating system has this package preloaded, then the Medmont Studio will skip the installation of this software package.

Otherwise, click Accept to install the Microsoft .Net Framework

Figure 1. .NET Framework Accept screen.

The next dialog will show the progress of the .Net installation (if required). Note that if you select cancel at any stage, then the installation of Medmont Studio will not proceed any further.

Once the software packages are installed, click Next to start the Medmont Studio installation wizard.

6

Figure 2. The Medmont Studio Setup Wizard.

Medmont Studio

Installing the Software

The next dialog allows you to define where the associated files will be stored. Medmont strongly recommend that you leave the chosen default path. Click Next to proceed. Please note this does not decide where the

Figure 3. Installation folder selector.

Note: This step does not decide the location of your patient database. This will be assigned later in the configuration step. This is the location of the application files only.

Next, the dialog asks you to confirm that the installation can begin. Click Back if you need to review or change any of the previous options. Otherwise, click the Install button and the installation will proceed. At this point the setup process displays a dialog with a progress bar to visualise the file copying process.

Figure 4. Installation confirmation.

With all files transferred, the Medmont Studio Configuration Tool will run and asks you to select from the set of Medmont Studio language translations.

The Medmont Configuration tool presents the next series of system configuration dialogs. When the installation is complete, this can be run to re-configure the system at any time from:

Start > Programs > Medmont > Medmont Studio Configuration Tool

Once the language is selected the next dialog asks you to select the type of Medmont Studio installation.

Installing a Standalone System

Click on the Standalone radio button and then on the Next button.

Medmont Studio 7

Installing the Software

Figure 5. Executing mode selection.

The next page of the wizard will ask you what database operation you would like to perform. Once selected click on the Next button and the wizard will guide you through the steps of obtaining all of the relevant information to complete that process.

8

Figure 6. List of database operations

Upgrade a version 3 database

You will need to provide the location of the version 3 database files and a new location to store your new database. These locations cannot be the same. Currently Medmont Studio only supports upgrading a version 3 database to an Access database. Once this conversion is complete you can rerun the configuration tool to convert it to SQL Server® or move it to another location if desired.

Upgrade a version 4 or 5 database

You will need to provide the location of the version 4/5 database that you would like to convert as well as the type of database that is being upgraded (Access® or SQL Server®). Version 4/5 upgrades are performed in place and must use the same database type as used previously. Once this conversion is complete you can re-run the configuration tool to convert the type of database or move it to another location.

Create a new database

This operation will create a new, empty database. You will need to provide an empty folder to install the database to and if you are using SQL Server® you will also need to provide the server location and login credentials.

Use an existing version 6 database

If you have successfully run the configuration process before then this will be the default option. If you select this option and have run the configuration process before then the next step will show the path to the previously chosen database, if you would like to change to a different database then press the Location button and chose a different database path.

Medmont Studio

Installing the Software

Move existing version 6 database

This option will allow you to move the currently configured database to a new location on the current PC. The destination folder for the database must be empty and please remember when changing your database folder you may need to update any automated backup applications you are using to protect your data.

If you are using an SQL Server® database this option will also allow you to move the data to a new server providing you have the relevant login credentials.

Convert database to Microsoft SQL Server® / Access®

This option will allow you to perform an in-place change of the type of database you are currently using. When changing to the SQL Server® technology, as well as requiring valid user credentials you will also need to provide a unique database name. You cannot specify a database name that already exists on the server.

Once you have entered all the required database information, the installation needs to know whether you are integrating Medmont Studio with a 3 rd

party practice management system. This

option seamlessly integrates the patient management of both systems (see Installing with a 3rd

Party Practice Management System on page 13). We will continue with the None option here.

Click the Next button to continue.

Figure 7. Option to select PMI.

An installation typically consists of one or more Medmont instruments. The next dialog allows you to select which instruments to install. Installing instruments for which you do not have a license will use additional computer resources, but nevertheless does offer a review capability where you can view results produced by those instruments on other computers or from other practices.

Figure 8. Instrument selection dialog.

The next dialog is associated with installing the Windows Drivers for M700 instrument features and the various digital image frame grabbers associated with the DV2000 and E300 instruments.

Complete the installation of Medmont Studio before connecting or installing the associated hardware for the first time.

Medmont Studio 9

Installing the Software

Some of these selections may be greyed-out depending on the instruments that were previously selected for installation. Select the drivers associated with your instrument(s).

Figure 9. Windows Driver installation dialog.

The next dialog gives you the option to install the Email linked application. This allows you to send exam’s via email directly from the Medmont Studio application. You will need to have a third party email client installed and configured on the PC for this feature to work correctly.

Important: This feature is only intended for use within a secured network environment. Use of this utility over an insecure intranet or the internet is not recommended, as data exchange over these networks is inherently insecure and liable to eavesdropping. Users of this utility bear full responsibility for all issues arising in case of breach of confidentiality and Medmont International Pty Ltd cannot be held liable for any such issues.

Clicking the Next button will proceed to the final step of the installation. You now have an option to review your previous steps or cancel the setup. Click Back to change any of the previously selected options or click Cancel to stop the setup of your software.

Otherwise, click Finish to finalise the installation. Once this process completes, and depending on the selected instruments and existing installed Windows Drivers, a number of device driver installers will automatically run. Simply follow the prompts and click on the OK button. If previously configured, the database conversion from another version of Medmont Studio will also happen at the end of the installation process.

10

Figure 10. Installation complete screen.

The Medmont Studio icon will now appear on the Windows desktop. Additionally, you can also launch Medmont Studio , Medmont Studio Administrator Tools and Medmont Studio

Configuration Tools from Start > All Programs > Medmont.

Installing a Server Based System

A server based system consists of a computer with Medmont Studio installed as a database server, and one or more additional computers with Medmont Studio installed as clients, all connected with a standard Windows network.

Medmont Studio

Installing the Software

The server is configured to manage the patient database.

Installing the Server

Install the software as per the previous instructions until you are prompted for a Standalone, Server or Client installation. Click on the Server radio button and then the Next button.

Figure 11. Selecting a Server installation.

If you have more than one network connection available in your server computer, the next step of the wizard will ask you which network interface you would like to use to connect to your client

PC’s. This will be the network card that is connected to your local network and thus, your client

PC’s.

The installation will proceed from this point exactly the same as the stand-alone installation. When the installation completes the server starts automatically and you should see the Medmont Studio server icon in the Windows desktop tray.

Installed Medmont Studio clients can now connect to the server. However there are a number of

steps required to license the server and these are covered in Running Medmont Studio starting on page 14.

Installing the Clients

The server installation must be completed, configured, and running on the designated server computer before attempting to install any clients.

Install the software as per the previous instructions until you are prompted for a Stand-Alone,

Server or Client installation. Click on the Client radio button to select a client computer installation

as shown in Figure 12.

Figure 12. Selecting a Client installation.

The next dialog will present a drop-down list with the names of the computers in your network.

Select the computer on which the Medmont Studio server is running, then click Next.

Medmont Studio 11

Installing the Software

Figure 13. Selecting a server.

The next dialog will ask for the instruments attached to this client computer (see Figure 14). Based

on your current license, select the appropriate instruments to be installed and click Next.

The next step will allow you to install Windows drivers for the appropriate instruments. Some of these selections may be greyed-out depending on the instruments that were previously selected for installation. Select the drivers associated with your instrument(s) and click Next.

Figure 14. Final installation dialog.

Review your previous configuration by clicking Back if needed. Otherwise, click the Finish button to complete the setup.

12

Figure 15. Installation complete screen.

Lastly, if the setup will only be used for exam review, then the installation is complete. Double click the Medmont icon on the desktop to start Medmont Studio. Check that the Practice database is visible and that patient and exam details are also visible. Whether these can be edited or changed

will depend on the permissions given to the particular clinician (see Setting Permissions on page

17).

If the computer will have an instrument attached then use the procedure described in the

Installation section of the relevant instrument User Manual.

Medmont Studio

Installing the Software

Installing with a 3

rd

Party Practice Management System

You can integrate a 3 rd

party Practice Management System with Medmont Studio. The option to create a Patient Management Integration (PMI) system is presented during both a Stand-alone and a

Server installation.

Figure 16. Option to select PMI.

When prompted by the configuration tool, select your Patient Management system from the dropdown selection box. The list of supported Patient Management systems will be updated when a new system receives integration support. Please check http://www.medmont.com.au

for an up-to-date list.

Click the Next button and you will be asked for the location of the PMI data files.

Figure 17. Selecting the path to a 3 rd

Party Patient management system.

Click the Location button to make any changes to the default if required. When you click the Next button the install program will examine the entered location for the expected set of files. If they exist the installation will proceed as previous.

Medmont Studio 13

5. Running Medmont Studio

Running Medmont Studio

Double-click the Medmont Studio icon on your Windows desktop. A banner with the Medmont Studio logo is displayed while the software loads.

For the First Time

The first time you run the software after installation you will be prompted to install a license as

shown in Figure 18.

Figure 18. License prompt.

To install a license select the License Medmont Studio now option which will display the License

Manger window, please follow the section Installing a Medmont Studio license. If on the other-

hand you would prefer to run without a license (not connected with an instrument) then you can choose to run as a review station by selecting the Skip licensing now option. Selecting skip will prompt you again next time you run the software.

Next you will be asked to register your Medmont Studio software.

Click No if you do not want to register your software now.

Please note that you will be prompted to register each time your software starts until you have successfully registered.

If you click Yes, the registration window will be displayed as per Figure 19.

Registering your software

You can register your software at any time by clicking on the Help > Register menu. Once selected

the Registration window shall be displayed as per Figure 19.

14

Figure 19. Software registration window.

Medmont Studio

Running Medmont Studio

Before proceeding with the registration process please ensure your computer has a working internet connection. If running in a client/server mode the registration only needs to be performed once and can be done from any client computer.

Enter information into all of the available fields. The fields marked with a red asterisk are required fields and must be completed before proceeding. Once all information is entered click on the

Register Now button. If the registration process is successful the following message shall be displayed.

If a different message is displayed please check your internet connection and try again, if the problem persists please contact your local authorised distributor for support. You can update your contact details at any time by opening the Registration Window by clicking Help > Register and clicking on the Change button, modify your details and press Register Now again.

You are now ready to start using Medmont Studio.

Medmont Studio 15

Configuring a Server/Client System

6. Configuring a Server/Client System

A standalone Medmont Studio system is ready-to-go once the installation completes. However a

Server/Client installation will require some additional configuration.

Setup for a Secure System

By default a system installed with a server and several clients will be an insecure system. This means anybody can use Medmont Studio and have full administrator privileges.

This may be an adequate configuration in a small practice. However, in a large practice with many clinicians, or in a teaching environment, the recommendation is for a password-protected system.

This allows the system administrator some control over the access each clinician has to the

Medmont Studio capabilities. For example, a clinician (or more correctly, a particular password) can be prevented from deleting patients, or from (re-)configuring instruments. In a teaching situation, students can be issued with a generic password that only allows for creating patients and performing tests.

Password protection can be useful even for a small practice, where the system is normally accessed via a password that allows everything except patient deletion. For this case the clinician must log back in using the admin password. This action therefore requires a specific step, and helps to prevent inadvertent deletions.

Setting the Administrator Password

The first step is to setup the administrator password. With Medmont Studio running, on the

Configure tab, click Set Password. It will present the login dialog shown here.

Fill in and confirm the password you will use to administer the networked Medmont Studio system.

The name “admin” has by default all the permissions shown in Figure 21.

Adding Clinicians

The next step is to register the clinicians who will be using the system. On the Configure tab, click

on Clinicians to display the Clinicians dialog shown in Figure 20

16

Figure 20. Manage the Clinicians in the Practice dialog.

Click the New button in this dialog to display the New Clinician dialog shown in Figure 21. Fill in

the text boxes in the Details section. By default this clinician will be enabled to use the system with the Enable Logon checkbox ticked. Enter the name the clinician will use to log on to Medmont

Studio into the Logon text box. Click the Set Password button and enter their password.

Medmont Studio

Configuring a Server/Client System

Setting Permissions

If you tick the Administrator checkbox that clinician will have access to all the listed options.

If you click nothing then that clinician will be able to review results only.

Tick the other options as your situation requires.

Figure 21. Enter and Edit the New Clinicians dialog.

You can prevent a user from logging on by un-checking the Enable Logon checkbox if necessary.

Database management

A separate program to Medmont Studio performs database management.

Click on Start > Programs > Medmont > Medmont Studio Administrator Tool. The Data

Management tab on this dialog provides the path to and size of the Medmont Studio database. Prior

to running a system backup (see Data Backup on page 54) execute the steps listed on this dialog.

The Passwords tab has a single button that will clear the Medmont Studio administrator password.

Session Management

A client logged on to the system constitutes a Session (see also Session Licenses on page 47). You

can review the current sessions at any time by clicking the Tools > Session Manager menu entry.

Figure 22. Medmont Studio Sessions Manager.

Medmont Studio 17

Configuring a Server/Client System

The administrator can kill a session at any time by selecting the entry and clicking the Kill Session button. This does not literally kill the Medmont Studio application on the client computer, but just disconnects it from the database.

If the session is in use there is a strong possibility of data loss for that session.

Database Locks

When a client computer accesses the database by examining a patient’s details or by viewing an exam, there is nothing stopping another client computer examining that same patient or exam.

However, as soon as one client attempts an edit function like adding some patient details or annotating an exam, that entry in the database will be locked. Because an editing session may consist of several edits, the item will remain locked until it is dismissed, typically by the clinician saving it or by moving on to the next patient or exam.

While an entry is locked, if another client attempts to change the same entry, they are immediately presented with a message indicating that someone else has that entry locked.

As an example, if a clinician on client computer A is adding comments to a particular patient’s record, and a clinician on client computer B also attempts to add some comments to the same patient record, client B will be presented with a warning message about the record being locked the instant typing starts. In effect he or she will be prevented from typing anything at all.

As soon as client A moves on, the lock will be removed. At this point if client B tries once more to add his or her comments, at the instant typing starts a message will be presented stating that another user has changed this record. Clicking OK on the message will update the client B display, showing the changes made by client A. Client B can now see these new comments as well as being free to start entering further comments.

Clicking on the Locks tab in the Session Manager dialog shown in Figure 22 will show the current

set of database locks.

18 Medmont Studio

Practice Management System Integration

7. Practice Management System Integration

When Medmont Studio is operating with Practice Management Integration (PMI) activated, it smoothly integrates the patient management of a 3 rd

party Patient Management system with its own

Patient management. Medmont Studio uses the 3 rd

party system only as a source of patient data - it cannot change the data in any way.

An additional license is required to connect Medmont Studio to a 3 rd

party Practice Management system.

Patients who are listed in Medmont Studio are those for whom an examination has been performed using a Medmont instrument. A new Medmont Studio installation will therefore have no patients listed even though the PMI may have hundreds.

While you can still create patients with Medmont Studio by clicking on the Create New Patient icon, they will be unknown to the PMI.

Adding a New Patient in Medmont Studio

The idea is to link Medmont Studio to a patient entry in the PMI. The technique is to use the Find

Patient menu entry when starting a new exam. This displays the Find Patient dialog, which for a

PMI system is directly linked to the 3 rd

Party Patient Management system database.

Figure 23. Find a Patient in 3 rd

party Management System.

Figure 1Figure 25 shows the range of selection options for a patient search. At this point it is more

than likely you will have the PMI application open prior to starting Medmont Studio as part of your initial patient interview. This implies the patient either already existed there or you have just entered the details for a new patient. Now use the Find Patient dialog to copy the patient details to

Medmont Studio.

The quickest method is to copy the 3 rd

party Management System patient ID number into the

Medmont Studio External ID field and click the Search button. This will produce a guaranteed singular match. Click OK to create a matching patient entry in Medmont Studio.

The alternative is to enter some search criteria into one or more of the text boxes. In Figure 23 the

clinician has entered B* in the last name box and then clicked the Search button. This will search for all names in the PMI that start with “B”, as the asterisk is shorthand for “match anything” (see

Searching by Patient Name on page 29). The search example located three patients. Select the

correct one and click OK to create a matching patient entry in Medmont Studio.

Synchronising the Databases

If for some reason a patient has been entered into Medmont Studio without being linked to the

PMI, you can reconcile the entry at some later time.

First select the patient in Medmont Studio and on the Home tab, click on Synchronise Current. If the details previously entered into Studio match those in the PMI, this will reconcile the two

Medmont Studio 19

Practice Management System Integration entries, automatically adding the PMI external ID to the Medmont database. The ID will now be visible in the patient details External Record box.

What if there is no matching entry in the PMI database? As an example, suppose someone had previously entered a patient called Peter Adams with a birth date of 14-5-1956 and proceeded with some exams but without linking to the PMI. Perhaps the network was down. At some later time it is noticed this patient has no external ID number. Select this patient and on the Home tab, click on

Synchronise Current. Medmont Studio displays the dialog in Figure 24, indicating no matching

entry in the PMI.

Figure 24. Example No Patient Match in PMI dialog.

The next step is to check if there is such a patient as Peter Adams in the PMI. On the Home tab, click on Find, entering this name and then clicking the Search button shows the dialog of

Figure 25.

20

Figure 25. Example search PMI database.

The dialog shows that there is such a person, but that the birth date is 14-12-1956 rather than the

14-5-1956 entry in the Medmont Studio database. Re-doing the Synchronise Current sequence and clicking on the Clear button for the Date of Birth entry will remove that criterion. Now clicking on the Search button will find this patient and clicking OK will update the Medmont

Studio database with a complete entry.

Medmont Studio

Practice Management System Integration

Figure 26. Example patient found dialog.

Medmont Studio 21

Ribbon bar

Explorer pane

8. Overview

Overview

The User Interface

Medmont Studio has a single main Windows Explorer style user-interface, and provides point-andclick access to its capabilities. The user can swap between instruments and most tasks with a single mouse click.

View pane

Figure 27. Studio Main Window.

The main window shown in Figure 27 is divided into three areas:

Explorer pane: Lists patients and exams. These can be selected by mouse click. Filtering, sorting and searching are also supported.

View pane: Displays the current patient(s) or exam(s) selected in the Explorer pane.

Ribbon: Tabs to select a function with a single mouse click. Examples are entering a new patient or creating, analysing and editing an exam.

These are described in detail in subsequent sections.

22 Medmont Studio

The Explorer Pane

9. The Explorer Pane

The Explorer pane allows you to select the data you wish to display. The Patients view (Figure 28)

displays patients within the Medmont database as top level elements, with exams for each patient displayed under them.

Figure 28. Explorer pane showing the Patients view

The Exams view (Figure 29) shows exams within the Medmont database as top level elements and

allows you to sort, filter and select exams across all patients.

Exams tab Splitter bar

Figure 29. Explorer pane showing the Exams view

You can select either of these views by clicking on the respective selection tab along the bottom of the Explorer pane as shown below. Additional tabs for specific instruments may also be present depending on the installed components. The data displayed within the Patient and Exam tabs depends on the width of the Explorer pane. Expanding the explorer pane (by dragging the splitter bar) displays additional information in columns which can be sorted and arranged.

Sample Data

If this is the first time you have used Medmont Studio, you can become familiar with most aspects described in this and the instrument manuals by importing the various sample data sets on the distribution CD. There is sample data for the M700, E300 and DV2000 instruments and a corresponding set of patients.

Click on the File menu, then click Import and navigate to the Sample Data folder on the CD. You can import any or all of the files (although only one at a time).

Changing the Size and Position of the Explorer Pane

A vertical splitter bar separates the Explorer pane from the View pane (see Figure 29). The size of

the Explorer pane can be changed by clicking and dragging the splitter bar to the left or right. The

View pane rescales itself correspondingly. Both the Patient and Exam tabs automatically reformat the displayed data when more space is available to display data in columns which can be sorted and arranged.

Medmont Studio 23

The Explorer Pane

A horizontal scroll bar will appear along the bottom edge of either pane if required.

Docking and Undocking

Double clicking on the title bar of the Explorer pane undocks the Explorer pane turning it into a free-floating window. This creates maximum space for the View pane. If your system has dual monitors, dragging the Explorer pane to the other monitor leaves the View pane full-screen.

Double clicking the title bar again re-docks the Explorer pane in its usual spot (left of the View pane).

Unpinning and Pinning

Clicking on the Explorer pane vertical drawing-pin icon (see Figure 30) unpins the pane. The pin

will change to a pin lying on its side and the pane will slide off screen to the left of the main window and auto-hide itself when not in use. The pane appears as a thin vertical strip containing the same set of filter icons as were across the bottom of the expanded pane.

Figure 30. Explorer pane docking pin location.

When the Explorer pane is unpinned, a single click anywhere on the expanded selection tab in this strip will temporarily expand the Explorer pane. Any one of the selection tabs can be selected by hovering the mouse cursor over the tab for a short period - no click is required.

Clicking on the horizontal pin turns off auto-hide.

The Patient View

The patient view lists all patients known to the system in

(by default). An icon represents the patient’s gender. alphabetical order

If the patient has exams stored on the system a small symbol will be visible to the left of their name. Clicking on this symbol will show the exams for that patient, and the symbol will change to a symbol. Clicking on this symbol will hide the exams again and restore the original symbol.

The same symbol will appear for some types of exam that have associated sub-items.

Expanded Patients View

The Patients View can be expanded (see Figure 31) to show a tabular list of the patients and their

exams. The width of the columns can be adjusted by clicking on the vertical line separating adjacent column headings and dragging left or right. Columns can also be moved and reordered by clicking on the column header and dragging.

24 Medmont Studio

The Explorer Pane

Figure 31. Studio Main Window showing the expanded Patient View.

Adding a Patient

From the Medmont Studio main window, on the Home tab, click on the New button to bring up the

New Patient dialog shown in Figure 32.

Figure 32. New Patient dialog.

Text entry boxes in Medmont Studio such as Last Name and First Name in Figure 32 use Auto

Case by default. For details of how this effects entering patient details, see Auto-Capitalisation on page 43.

The General tab provides for entering a standard set of patient identification parameters such as

Name, Date of Birth, Gender, etc. The External Record entry can be used to link the patient to a 3 rd party patient management system.

The Clinical tab dialog shown in Figure 33 provides for selecting clinical details that describe the

patient’s condition. The Current Refraction entries provide for recording a current prescription and are quite straightforward. You can enter numbers directly or by using the up/down spin buttons.

Medmont Studio 25

The Explorer Pane

Figure 33. New Patient Clinical tab.

The three drop-down boxes will present selections from your practice set of categories as entered

into the Configure tab, Lookup Fields option, as shown in Figure 34. Use the Custom Fields

dialog to enter Procedure, Condition and Category descriptions (both patient and exam) that apply in your practice. Note that you cannot make new entries in the Clinical tab from the New Patient dialog; they must be entered from the Custom Fields dialog.

The Comments tab of the New Patient dialog presents a simple text-editing window into which you can enter any relevant details. Once comments have been entered an indicator icon shall appear in the title for the comments tab.

Figure 34. Custom Fields Entry and Editing dialog.

The Refresh Button

The Refresh button in Figure 34 and other dialogs in Medmont Studio software only have a real

function in a networked system. In these systems, clicking the button will update the items associated with the current dialog from the central database. Thus if items have been edited on one client computer, they can be updated on any other client computer by clicking the Refresh button in the relevant dialog.

Editing a Patient

If you click on an existing patient you will see the same dialog shown in Figure 32, only now the

title bar will show the selected patient’s name and the various fields will be filled with data. You can use the dialog to review the patient’s details or make any changes that may be required.

Selecting Explorer Pane Items

To select a single item in the Explorer pane, such as a name, click on the symbol or the label to the right of the symbol (in the tree) or anywhere on the line (in other views). The selected item will be

highlighted and the View pane will show data or image for that item. Figure 35 shows a patient

26 Medmont Studio

The Explorer Pane with the exams shown, a particular exam selected (shown highlighted), and with that exam displayed in the View pane.

Figure 35. Selecting and Displaying an item from the Patient Explorer pane.

Selecting Multiple Items

To select multiple items, hold down the control key while selecting additional items.

To select a range of items, select the first item in the range and then select the last item in the range while holding down the shift key or simply drag the mouse while holding the left button down, over the items you wish to select.

Filtering

The Patient View provides three

One and Filter. These are selected list just above the tabs at the bottom of the Explorer pane. The message “xx found” beside the selector, indicates how many matching patients can be seen using the current filter. filter modes: All, from the dropdown

The selections are:

All - shows all the patients in the system.

One - shows the currently selected patient. This is especially useful where privacy is a concern, for example when showing a patient her or his exam; it will prevent that patient seeing a list of your other patients.

Filter - pops up a custom filter that allows the user to specify more detailed criteria.

Selecting the Filter option will display the dialog of Figure 36 that demonstrates the very extensive

patient filtering capabilities of Medmont Studio. As a simple example, with this dialog displayed, click on the Female radio button and then the Apply button. You should see the Explorer pane redisplay with just the female patients.

Medmont Studio 27

The Explorer Pane

Figure 36. Patient Filter selection dialog.

This dialog provides for selection based a number of standard selection criteria. The Advanced tab however, provides for considerably more detailed selection. The initial dialog is shown in

Figure 37.

Figure 37. Advanced Filter dialog.

You may create a number of conditions via the New condition button, and the resulting selection will be based on each and every one being true if you leave the default AND radio button selected.

Otherwise only one of the conditions need be true if you select the OR button.

Click on the New button to define a new simple condition.

28

Figure 38. Advanced Filter Simple Condition entry dialog.

The Simple Condition dialog shown in Figure 38 provides for selecting a field variable and

equating it in some way with a value or perhaps with another field. A field in the Medmont Studio condition context is a patient or exam attribute. A Patient attribute would be age, name, gender, etc, while Exam attributes are items like an M700 threshold exam false positive count or an E300 exam iris area.

The drop-down Field box allows for selection of the particular attribute. The drop-down

Operation box provides for selecting from the criteria list, and the Value drop-down box provides for selecting a comparison value.

Medmont Studio

The Explorer Pane

Note that this dialog can extend the width of the Field drop-down box by clicking and dragging the left or right edge.

Taken together, the set of simple conditions and whether they are ANDed or ORed provides for very powerful analysis of your patients and their exam results.

Searching

The Patient view has a search box at the top of the pane. It normally reflects the current patient selection.

Figure 39. Patient name Search box.

Searching by Patient Name

Type the last-name or a combination last-name, first-name to search for a particular patient. If a unique match is found that patient will be selected. Otherwise the Find Patient dialog will appear and you can use this to find the patient. The dialog will also appear where the search criteria is not sufficiently unique, such as entering “mi” when the patient database includes a Mills and a

Mitchell.

Recently selected patients can also be found by clicking on the down arrow beside the search box.

Some additional points about searching are:

The search is not case sensitive.

Entering in the first few letters of the surname may be sufficient.

You may enter patterns: o ? stands for any single character (e.g. Jons?n will find Jonson and Jonsen) o * stands for any group of characters (e.g. St*s will find Sticks and Stones)

Tip: Entering (for example) c,j will find all patients with the initials J C like John Citizen.

Searching by patient External ID

You can search by the patient external identifier (the patient index in a 3 rd

party Patient

Management system). If these are numeric, then just enter the number, eg. 2345. If your 3 rd

party system uses an alphabetic or alphanumeric index system, then you must precede the identifier with the hash “#” character to distinguish the identifier from a name, eg. #DF451. No pattern search is available for external IDs.

Searching a 3 rd

-party Practice Management

If a 3 rd

party practice management is installed the patient search is first carried out in the 3 rd

party database.

Medmont Studio 29

The Explorer Pane

If a unique match is found this will result in pertinent information about the patient being read from the 3 rd

party database into Medmont Studio. The information for that patient is either added to

Medmont Studio or updated (the two databases are synchronised).

Search Behaviour and the Different Filter Modes

The exact effect of a search depends on the current filtering:

All - The selection jumps to the sought patient (the simple case).

One - The selection changes to the sought patient.

Filter - If the sought patient is in the filter result, the selection jumps to that patient; otherwise filtering reverts to All and the selection then jumps to that patient.

Sorting

The sort order for both Patient and Exam views can be changed by expanding the view to display

columns and then clicking on a column heading to sort by that criterion (see Figure 31). A second

click reverses the order of the sort.

A small arrow in one of the column headings indicates the current sort criterion and the direction of the sort (ascending or descending).

Using the individual column headers to sort the exams belonging to each patient does not change the patient list order, only the order of the exams belonging to that patient.

Using Favourites

The Favourites menu allows you to add a shortcut to frequently accessed patients and exams.

30

Select the item in the Explorer pane and on the Home tab, click Add Favorites to add a shortcut to the item in the Favourites menu. You can optionally rename the shortcut to indicate its purpose.

The new shortcut is then shown under the Goto drop down box within the Favourites group.

The Organise Favourites displays the dialog shown in Figure 40. This allows you to change the

order of shortcuts by selecting the shortcut and using the up or down arrows, or to edit or delete the selected shortcut.

You can jump to a favourite entry by clicking on it in this dialog. The item referenced by the shortcut will be displayed in the View pane and selected in the Explorer pane.

Figure 40. Organise Favourites dialog.

Medmont Studio

10. The View Pane

The View Pane

The View pane is the area to the right of the Explorer pane. It displays graphics and information for the patient or exam selected in the Explorer pane.

The exact display depends on the current view mode set using the View menu or toolbar. What is displayed depends on the Medmont instrument associated with the selected exam, and this is covered in the respective instrument manuals.

Displaying Multiple Views

When multiple items are selected in the Explorer pane the View pane will display (if possible) a separate view for each selected item.

Active view

Figure 41. Multiple Views.

For this to be possible each selected item must have a view mode that supports Multiple Views. If more than four items are selected, or one of the selected items does not support Multiple Views then no views are displayed.

The title bar of one view is drawn in a different colour to indicate that this is the active view. The menus and toolbars displayed are determined by, and relate to, the active view. You can change the active view by clicking on the title bar of another view.

Any of the views can be temporarily made to fill the View pane by clicking on the explode button or double-clicking the view’s title bar. To restore the Multiple View display, click on the

implode button or double-click on the view’s title bar.

You can use the zoom and pan controls in this view and the translations will apply to all images.

The Ctrl-I key for example, will zoom in on all four images, and the Ctrl-O will zoom them out.

Note that if you have a wheel mouse, the wheel allows you to zoom in and out on just the currently active view.

Thumbnail View

Some Explorer pane items provide a special kind of multi-view known as the thumbnail view.

This View displays a thumbnail image of each item belonging to the current selection (typically a patient). For example, the Thumbnail View for a patient displays images of all exams for that

patient (see Figure 42).

Medmont Studio 31

The View Pane

Figure 42. Thumbnail View.

By default, this view will show a 4x4 grid of the patient’s exams, but this configuration can be changed on the Configure tab, by clicking Preferences, under the Review Pane tab to allow for more (or less) rows and columns.

If the number of exams for that patient exceeds the number of grid squares (e.g. sixteen grid squares for a 4x4 grid), a vertical scrollbar will appear, allowing you to scroll through the images.

32 Medmont Studio

The Ribbon Menu

11. The Ribbon Menu

The following lists the contents of each tab, and gives a brief summary of what each function performs when selected from those tabs. Tabs and function will vary depending on which instruments are installed or what exam is selected.

Items that are inappropriate for the current exam(s) or patient(s) appear

greyed out

(disabled), and clicking will have no effect.

File Menu

Print - Print a report based on the currently selected patient(s) or exam(s).

Print Preview - Preview the appearance of a print report.

Refresh Forces an update of data from the database. Useful in client/server configurations where users on other computers may be making simultaneous changes to the database.

Export - Export a file summarising the currently selected items and other information on which they depend. For example, if an exam is selected, the essential information about the clinician who conducted the exam will be included in the export file.

Import - Reads in a file created by Export.

Close - Close Medmont Studio.

Home Tab

Find – Search for a particular patient based on their name, birth date, or external ID if using

3 rd

party practice management.

New - Create a new Patient

Delete - Permanently delete the currently selected patient(s).

Note - deleting a patient will also delete all of that patient’s exams.

Move To – Copies the selected exam(s) from the current patient to a different patient, and removes them from the current patient. Moving exams whilst a patient is selected moves all exams belonging to that patient to a different patient.

Copy To – Duplicates, without removing, the selected exam(s) from the current patient to a different patient. Copying exams whilst a patient is selected copies all exams belonging to that patient to a different patient.

Delete - Permanently delete the currently selected exam(s).

Digital Image – Opens the DV2000 exam window.

Corneal Topography – Opens the E300 exam window.

Contact Lens – Fit a Contact Lens to an existing E300 exam.

Perimetry Exam – Opens the M700 exam window.

Synchronize All – Synchronise all exiting Medmont Studio patient data with an integrated 3 rd party Practice Management System

Synchronize Current – Synchronise the currently selected patient’s data with an integrated

3 rd

party Practice Management System

Link unlinked – Link a patient in Medmont Studio that is not already linked with an integrated 3 rd

party Practice Management System

Add – Add a patient or exam to the Favourites list.

Organise – Change the order of favourites in the list or add/delete an entry.

Goto – Select a Favourite that has previously been added.

Links - Export data to 3 rd

party tools, for example contact lens designer tools or email results.

Configure Tab

Set Password - Change the password of the current user.

Change User - Switch users without restarting the application.

Practices - Add, modify, import or export associated practice names.

Clinicians - Add or modify clinicians using Medmont Studio and assign or edit their passwords and security access.

Medmont Studio 33

The Ribbon Menu

Lookup Fields - Define or edit conditions, procedures, categories (of exams), and categories

(of patients).

Attributes – Displays the Attributes management dialog.

Licence – Check, install and update licensing details.

Session - Check who is logged on and has exclusive access (data locks) to particular patients and exams.

Preferences – Set global preferences for Medmont Studio.

Instrument Setup (M700) – Opens the M700 instrument setup window, allowing you to install, uninstall and calibrate your M700 instrument

Template Setup (M700) – Opens the M700 Template setup window so Test Templates, used for M700 exams can be created, modified, imported and exported

Instrument Setup (E300) – Similar to the M700, this button opens the E300 instrument setup window, allowing you to install, uninstall and calibrate your E300 instrument

Calibrate – Calibrate your installed E300

System Settings – allows you to configure to adjust the Eccentricity and Shape Factors, the height and Wavefront errors which affects the attribute values.

Image Sources – provides access to the Images Sources dialog, allowing you to setup an image source to create DV2000 exams.

Custom Operations – provides access to the Custom Operations dialog allowing you to create a custom operation with its own icon.

View Tab

The View tab provides buttons to allow you to select the data view to display in the View pane.

The available views depend on the item(s) selected in the Explorer pane.

The available views when a patient is selected are:

Details - View and edit personal details and clinical notes.

Thumbnail - Shows thumbnail-sized images of all the patient’s exams.

Regression - Statistical analysis tools.

For exams, views include a primarily text-based Details view, together with a variety of instrument-specific graphic views.

Help Menu

Links to the various electronic User Manuals and other useful information. See Help on page 37 for

more details.

34 Medmont Studio

12. The Ribbon

The Ribbon

Medmont Studio uses a tabbed ribbon style interface. The ribbon tabs are organized into groups and are labeled according to the function. For example, the Home tab contains all function for creating a new patient or exam. All functions have an icon and are labeled, to assist the user with identifying functions.

Figure 43. Home Tab.

There is also a quick access toolbar which can be used to store a shortcut to a function. The toolbar will become available when a quick access shortcut has been added and is located in the title bar.

The toolbar looks like this:

Figure 44. Quick Access Toolbar

By right-clicking on an icon, you can choose from one of the following options:

Add to Quick Access toolbar – creates a shortcut to the function in the Quick Access toolbar.

Customize the Quick Access toolbar – Opens a dialog box where changes can be made to the quick access toolbar. See (Customizing the Quick Access toolbar).

Place Quick Access toolbar below the ribbon –Moves the quick access toolbar below the ribbon.

Minimize the Ribbon – Hides the ribbon, only leaving the tab labels. To access functions when the ribbon is minimized, click the required tab, which temporarily displays the ribbon containing those functions. The ribbon will then minimize once a function has been selected.

To leave the ribbon on permanently again, double-click on a tab label.

Customizing the Quick Access toolbar:

To customize the toolbar, first right-click on an icon and click Customize the Quick Access

toolbar. Functions are broken down into groups. Select the appropriate group from the Choose

commands from drop down menu and the functions will then appear on left hand side of the divider. Click a function and click add. Functions for the quick access toolbar will now appear on the right hand side of the divider.

Medmont Studio 35

The Ribbon

Figure 45. Customize the Toolbar

You can also remove a function from the quick access toolbar by clicking on it from the right hand side of the divider and clicking remove. Once all changes have been made, click OK.

Placing the quick access toolbar below the ribbon can also be done from this dialog box. Click the box next to Place the quick access toolbar below the ribbon and then click OK to enable this option.

36 Medmont Studio

13. Help

Help

The Help menu provides access to the User Manuals for Studio and the installed instruments.

These are in PDF format and therefore require the installation of a PDF reader such as Adobe

Acrobat or similar. Adobe reader is freely available on the Internet at http://get.adobe.com/reader/ .

The individual manuals include a Bookmark page organised as a directly accessible table of contents that indexes the main section headings. Press F6 to show the bookmarks page or click on the sidebar. Clicking on an entry will navigate to the corresponding page.

Also directly accessible are the internal links within each document such as the italicised chapter headings, page numbers, Figures and Tables. Move the mouse cursor over any of these links and the cursor will change to a pointer. Clicking on any of these will move the displayed page to the reference. Use the Previous View button on the Acrobat toolbar to return to the original page.

Medmont Studio 37

14. Annotations

Annotations

Medmont Studio allows you to define eight types of shapes on your exam images. These are shown

in Figure 46.

Figure 46. Available annotation shapes.

Ruler Annotation

Circle Annotation

Ellipse Annotations

Rectangle Annotation

Square Annotation

Curved Area Annotation

Freehand Area Annotation and

Polygon Area Annotation

Click on the desired shape tool from the Annotate tab. Move the mouse to the image pane, the mouse cursor changes to reflect the type of shape being drawn.

See the individual instrument manuals for examples of how to use Annotations.

38 Medmont Studio

15. Attributes

Attributes

Attributes are named values that apply to a particular type of exam result. They may be a physical measurement or dimension, or they could be a number that is the result of applying some statistical based calculation.

Medmont have supplied a large set of standard attributes for each instrument. In many cases you can extend these attributes or use the underlying exam results to derive your own.

The tools and methods to explore attributes are common to all instruments, with each manual including detailed explanations.

Medmont Studio 39

16. Printing

Printing

The Print Dialog

The File > Print and File > Print Preview menu items bring up a list of reports pertinent to the current selection.

Figure 47. The Print dialog.

Select a report format from the list and click

OK

to Print or Print Preview the report.

Print Dialog Settings

Clicking the

Settings

button in this dialog brings up another that allows you to customize the report

by changing the General settings (see Figure 48).

Figure 48. Print Settings dialog.

For some reports, typically exams, additional options are available from a second tab. An M700 exam for example, would name the second tab an Overview Print, and selecting this tab would

display the dialog in Figure 49.

40 Medmont Studio

Printing

Figure 49. M700 Threshold exam Overview Print dialog.

The New button enables you to name a customized report format and retain it for future use.

Print Preview

The File > Print Preview option brings up a similar dialog to File > Print, but clicking OK now shows a preview window containing a precise version of what the report would look like on paper.

Note that what is printed for a given view is not necessarily the current display in the View pane, depending on the Print settings.

The preview window provides the following options for working with the preview:

Report – Select the type of report to print

Settings - Change the settings for this report.

Print - Prints the report.

Clipboard - Save the preview image to the clipboard.

File - Save the preview image to a file. Supported file formats are: i. Windows bitmap - . bmp ii. Graphics-interchange-format - .

gif iii. JPEG - .

jpg

One Page – Show on one page of the report

Two Pages – Show two pages of the report (if applicable)

Four Pages – Show four pages of the report (if applicable)

Six Pages – Show four pages of the report (if applicable)

Page – Change the currently displayed page of the report (if one page is only shown).

Whole Page – Adjust the current view so the entire page is shown

Page Width – Adjust the current view so only the page width is shown across

200% - Zoom the current page of the report to 200%

150% - Zoom the current page of the report to 150%

100% - Zoom the current page of the report to 100%

50% - Zoom the current page of the report to 50%

Medmont Studio 41

Printing

42 Medmont Studio

17. Usage Hints

Usage Hints

This section provides some hints for making the most of Medmont Studio.

Auto-Capitalisation

Text entry boxes in Medmont Studio use Auto Case by default. This means that if you type

“john citizen”, it will automatically be translated to “John Citizen” as you type. However, this is not what you want if you are entering a name like “McDonald”, so you can change this option with a right mouse click.

For example, if you are entering a Procedure called “Cataract & IOL Surgery” into the custom

Fields dialog, you will need to turn off auto-case so the “IOL” is not entered as “Iol”. A right-click

on the Name text box will popup a window (see Figure 50) that allows you to select from the

available options. The options are: uSer cAse

Auto Case

UPPER

CASE lower case

There is no automatic case control. Only the keyboard Shift key controls case.

The leading character of any single word will be capitalised.

All characters entered will be converted to upper case, regardless of the keyboard Shift key.

All characters entered will be converted to lower case, regardless of the keyboard Shift key.

Figure 50. Right mouse click for Case entry control.

The particularly dialog will remember the auto-case setting. Thus if you have selected uSer cAse to enter a new patient name like “MacDonald”, the next time you enter a new patient the setting will still be uSer cAse.

Tabbing between Fields

When entering data in dialogs, you can navigate between data fields using the

Tab

key. This is often more efficient then swapping continually between using the mouse and keyboard.

Tab

moves the focus to the next field.

Shift-Tab

moves the focus to the previous field.

Medmont Studio 43

Usage Hints

Default Buttons

Many displays and dialogs support default buttons. This is the button with a darker shadow around it, like the OK button shown here.

You can activate the default button at any time by just pressing the

Enter

key. When combined with the use of

Tab,

these keys provide a very efficient mechanism for entering data.

Entering Dates

Many dialogs use the Microsoft Date control for entering dates. This control lets you enter dates in a variety of ways. Choose the one that suits your needs best:

Numeric / Arrow Key Entry

1. Select the date control. The day is highlighted.

2. Type in the day using the numeric keypad.

3. Press the spacebar, “/” key, “–” key, or right arrow key to move to the month. You can change the month using the up/down arrow keys.

4. Move to the year. You can enter either a 2- or 4-digit year. Change the year using the up/down arrow keys.

Graphic Calendar Selection

1. Select the down arrow next to the date control.

2. A small calendar is displayed.

3. Click on the year and use the up/down arrow keys to select the year.

4. Click on the month to select the month from a drop down list, or click on the left/right arrow keys.

5. Select the day on the displayed calendar.

Today’s date can be quickly selected by clicking on “Today” at the bottom of the calendar.

44 Medmont Studio

18. Utilities

Utilities

Medmont Studio Configuration Tool

The Configuration tool allows you to re-configure Medmont Studio without requiring a new installation. Run this tool if, for example, you have purchased a new instrument, selecting it in the

Select Instruments dialog:

Figure 51. Configuration Tool

As another example, if it was necessary to move the Medmont Studio database to a different folder on another disk or even onto another computer, use this tool to manage the transfer. Ensure

Medmont Studio is not running then move through the Configuration dialogs until the data location entry appears. Note the current location, as you will need this later.

Figure 52. Moving a Database

Ensure the new data directory exists. Click on the Location button and navigate to the new folder.

Click on OK and then move through to finish the configuration. This step will have reconfigured

Medmont Studio to now use the new folder, but it has not moved the data. You will need to use

Windows Explorer or similar to actually copy the data from the old to the new location. Remember to copy all the source sub-folders too.

Medmont Studio 45

Utilities

RSS News Reader

Medmont Studio incorporates an RSS news reader to display up-to-date company announcements.

In order for this feature to operate correctly, the computer must have a working internet connection.

When connected to the internet, the software will query the Medmont internet server and alert the user to any new company announcements.

Figure 53. RSS News Reader

To display the RSS news reader at any time, select the Help > Latest News menu item (located on the far right of the ribbon bar menu). From within the news reader, click the desired link to view the full article. The RSS news reader may be disabled or enabled at any time, on the Configure tab, by clicking Preferences, selecting Startup and adding or removing the tick next to the Check

News At Startup option.

46 Medmont Studio

19. Licensing

Licensing

Medmont Studio uses an online licensing scheme which limits access to only licensed software modules called components. A special alpha-numeric code called an Activation Key is required to activate components of Medmont Studio. The Activation Key is then locked to the computer and the lock is sent to Medmont via the internet, this process shall be referred to as “Authenticating your license”. If the computer does not have an active internet connection a license file can be sent via email or other electronic medium. Components can be licensed indefinitely or for a set time period.

In the absence of a valid Activation Key or if your component licenses have expired, Medmont

Studio will function in Single User Review Mode.

Installing a Medmont Studio license.

The first step required to license Medmont Studio is to install the software onto a computer. If the

software is not yet installed please follow the installation instructions in the section titled Installing

the Software.

All licensing tasks are performed from the License Manager. To start the licensing process, open

the License Manager by clicking the Configure > Studio > License button as per Figure 54.

Figure 54. Opening the License Manager

The License Manager window should now be displayed. An example of the License Manager

window is displayed in Figure 55.

Figure 55. License Manger Window with no license installed.

Click on the Install button. The Install License window should now be displayed as per Figure 56.

Figure 56. Install License window

Installing a license on a computer with internet access.

If your computer has a working internet connection enter the Activation Key which was provided

with your instrument into the field marked License Key as per Figure 57 and click the Install

button.

Medmont Studio 47

Licensing

Figure 57. Install License window with Activation Key

The Install License window should now contain the phrase “License Installed” in the License

Status field as per Figure 58. If any other message appears in this field please contact your local

Medmont support agent for support.

Figure 58. Install License window with valid license installed.

The license process is now complete click Close to display a list of active components. Verify you have been assigned the correct licenses. If you believe an error has been made with your license please feel free to contact the agent who supplied you with the instrument for support.

Installing a license on a computer without internet access

If your computer does not have a working internet connection enter the Activation Key which was

provided with your instrument into the field marked License Key as per Figure 57 and click the

Install button.

Figure 59. Install License window with Activation Key installed.

After a brief pause the message in Figure 60 will be displayed.

48

Figure 60. Warning message displayed if no internet connection is available.

Medmont Studio

Licensing

Click No if you would like to repair your internet connection and try again. Click Yes if you would like to save the license to a file. By choosing to save to a file you then have the option of either emailing the file to Medmont or transferring it to a computer with a working internet connection and authenticating it via a web browser.

Authenticating via a web browser

If you would prefer to authenticate your license right away then you can authenticate your license file via a web page available online. Transfer your license file onto a computer with a working internet connection. A USB flash drive is ideal for this task.

From the online computer open a web browser and enter the following web address into the address bar. We recommend using Internet Explorer 9 or higher. http://www.medmont.com/authenticate/AuthenticateFile.aspx

The following web page in Figure 61 should now be displayed.

Figure 61. Authentication web page.

Click on the Browse button and select the License file saved earlier. Click the Authenticate button.

Continue to save the authenticated license file to the local computer as per Figure 62.

Figure 62. Authenticated license file save prompt.

Click Save to write the file on the local hard drive as per Figure 63.

Medmont Studio 49

Licensing

Figure 63. Authentication file download complete.

Click the

Open

folder button to locate the authenticated license file called

AuthenticatedLicense.lic. Transfer the authenticated license file back to the original computer.

From the Install License window press the Load License button as per Figure 64

Figure 64. Install License window showing location of Load License button.

The Load License file window should now be displayed. Navigate to the AuthenticatedLicense.lic file and click Open. The license should now be installed. The text License Installed should be

displayed in the License Status field as per Figure 65.

Figure 65. Install License Window with license installed successfully.

Click Close. The Medmont Studio License Manager should now display a list of components

activated by your license as per Figure 66.

50

Figure 66. License Manager Window will list of active components.

Medmont Studio

Licensing

Authenticating via email.

If you would prefer to have Medmont handle the authentication of your license then you will need to email the license file to your local Medmont representative.

You can close the License Manager while you wait for a response from your local distributor. After receiving a reply email, transfer the attached AuthenticatedLicense.lic file back to the computer where Medmont Studio will be installed.

There could be up to 3-4 business days before a response is received. If you do not receive an email response within this timeframe please check your Junk or Spam email box to see if the return email has been marked as junk. If it cannot be found here then contact your local authorized Medmont distributor for help.

Next you will need to import the authenticated license back into License Manager. Open License

Manager by clicking Configure > Studio > License from the main menu. When the License

Manager window appears click on the Install button which will display the license entry window.

Press the Load License button as per Figure 67

Figure 67. License Entry Window with Load License button highlighted.

You will now be prompted for the authenticated license file which was attached to the email response from Medmont. Specify the location of this file and click Open.

The authenticated license should now be installed. The License Manager Window will now display

a list of components which have been activated by your license as per Figure 68.

Figure 68. License Manager Window with list of installed components highlighted.

Updating an existing License

If you have already licensed your software and you decide to purchase additional components you can easily update your license. The update license process requires a working internet connection. If you do not have a working internet connection you will need to re-license your software using your

original Activation Key as per the section Installing a Medmont Studio license. To update your license

open the License Manager window by clicking on the Configure > Studio > License button on the

main ribbon bar. Once open you can press the Update button to update the license as shown in Figure

69.

Medmont Studio 51

Licensing

Figure 69. License Manager with highlighted update license button.

After a short delay and provided the update process completes without error the following message shall be displayed.

If any other message is displayed please check your internet connection and try again otherwise contact your local authorised distributor for support.

Frequently Asked Questions (FAQ).

How do I transfer my license to another computer?

If you need to transfer your license from one computer to another and the computer where the license is currently installed has an internet connection then you can simply uninstall the software using the Programs and Features applet in Control Panel. During the uninstallation you will be asked to deactivate the license, choose yes. This will release the lock on the license so that it can be re-installed on another computer. If the licensed computer does not have an internet connection then you will need to contact your local authorized distributor to release the lock for you.

What should I do if I cannot find my Activation Key?

If you cannot find your original Activation Key then Medmont can provide you with your key for a small administrative fee.

What’s the best way to contact Medmont for license related questions?

Medmont uses a global network of distributors to handle local support issues like licensing. Please contact your local authorized Medmont distributor. In most cases this will be the company that sold you the instrument originally but since distributors do change from time to time you can find the contact details of your local distributor from the following web page http://www.medmont.com/contact

I already own a fabulous E300 Corneal Topographer from Medmont and I want to buy their equally amazing M700 Automated Perimeter. Can I get a license which combines both instruments?

At the time of purchasing your instrument a sales representative should ask you if you already own any other Medmont instruments. If you do then we can update your license to include the new instrument. Once Medmont has updated your license and provided you have a working internet connection on the computer with the installed license you can update your license using the

Update license function in License Manager. To update a license on a computer without a working

internet connection please follow the step in section Installing a license on a computer without

internet access.

The laptop I use with a licensed version of Medmont Studio was stolen. Can I get a replacement license?

52 Medmont Studio

Licensing

Yes. Please contact a Medmont authorized distributor who will remove the lock on your license so it can be re-used on another computer.

Session Licenses

Sessions are important for network configurations. In these, each active Medmont Studio application running on a client computer needs the server computer to supply it with a session. The maximum number of sessions allowed is controlled by the license and is encoded in the activation key.

This means that licenses can float between computers. The server will assign up to the maximum number of sessions to client machines, so there may be more client computers than sessions as long as at any one time there are only the given number of clients actively using Medmont Studio.

In normal use each time the Medmont Studio software is started on a client computer, the server assigns a license to that client. When the application exits the license is returned to the server pool and becomes available for another client.

Once a license has been assigned to a client that client gains all functionality available under the license.

For example, a local-area network with ten computers attached could run Medmont Studio on all of the computers at different times, but if the maximum number of sessions is five, then no more than five computers can run Medmont Studio simultaneously. A sixth user trying to start Medmont

Studio will get a Not Enough Sessions error message.

If this happens, the user could ask another user to exit, thereby freeing up a license. If this happens often, you may wish to purchase licensing for additional sessions from Medmont.

Extraordinary conditions that could result in the client software ceasing to operate include an administrator logging off a user or the server software shutting down.

Medmont Studio 53

20. Data Backup

Data Backup

It is in your own interests to regularly perform backups to avoid loss of data due to hardware failure or accidental deletion or corruption of the database.

If you have been using a 3 rd

party Practice Management system, it will have its own database files, and it is likely you will have already established a regular backup procedure. If so, then simply add

the Medmont database location (see Backup Locations on page 55) to the list of folders you are

already backing up.

However, if you are just at the planning stage of a backup policy, Medmont suggests that all the various practice databases be regularly backed up to media that can be taken off-site. This could be a laptop computer that is plugged into the practice network, a CD-ROM or DVD, or a USB disk.

Medmont recommend that you periodically backup to media your can store.

Backup Media

The choice of backup media will depend somewhat on the size of your practice, the instruments you are using, and the number and type of exams your practice does in a given period. But no matter how small your practice, the days of using floppy disks for backup are long gone. A medium sized practice that includes imagery as a service can easily require several gigabytes of backup storage.

Backing up to a laptop is convenient in that you can just connect it to the practice network, navigate to the various Medmont and Practice Management data folders, and use Windows

Explorer to copy the files. The feasibility of this method depends on first having a laptop with a large enough disk, having plug-in access to the network, and your confidence in the long-term reliability of the laptop.

USB disks in early 2007 come in sizes up to 4 gigabytes, and this would be adequate for most practices. The amount of storage available on these devices will only get bigger, so with the same caveat about long-term reliability, this could be a satisfactory backup solution.

Backup to a CD-ROM burner is a more reliable option, in that the CD is essentially a permanent system snapshot. However, if you are using instruments that produce imagery such as the Medmont

E300, it will not be long before your overall database size exceeds the around 700 megabytes available on a single CD. In comparison, the hardware costs and procedures to backup to a DVD burner are now no different to a CD-ROM, with the advantage of nearly seven times the backup space.

With all this in mind, Medmont recommend using a DVD burner as your backup medium, either mounted in the server computer or capable of being plugged into its USB2 port.

The next decision is the backup software. Unlike Windows 2000, Windows XP and subsequent versions like Vista provide for direct transfer from the various database storage locations to a DVD using Explorer. However this means manually navigating to the various directories to backup each individual database for the products your practice uses. Windows provides a backup program appropriately called Backup on the Windows distribution CD, and if installed it is available from

Start > Programs > Accessories > System Tools. This has facilities that allow you to pre-program the integration of selected files and folders from a number of locations into a single backup file, along with how it should be stored and to where (an adequate solution if you are backing up to another computer or a laptop). However the program knows nothing about CD-ROMs or DVDs.

The requirement is therefore for backup software that offers facilities to pre-specify the locations and folders that require backup (i.e. it will remember the various locations between backup sessions), and the ability to copy to a CD-ROM or DVD burner. In addition, it should have the ability to span the backup file across multiple disks for when the size of the backup exceeds the media capabilities.

Medmont recommended you survey the market yourself for backup software that meets these requirements.

54 Medmont Studio

Data Backup

Backup Locations

The Medmont Studio 6 database is by default stored in an all users accessible data folder called

Data. In a default installation this will be:

%allusersprofile%\Medmont\Medmont Studio 6\Data.

On Windows 7 this path resolves to:

C:\ProgramData\Medmont\Medmont Studio 6\Data

Do not confuse this Data directory with the data directory belonging to an earlier

Version 3 Medmont Studio that was usually located at C:\Program

Files\Medmont\Data.

At installation this folder can be assigned to any computer in the practice network, to any disk on that computer, and to any folder path on that disk. However, clicking on

Start > Medmont > Medmont Studio Administrator Tool will display the dialog in Figure 70,

and this will list the database location in the Data Location field.

Figure 70. System Administrator Tool.

Initiating a Backup

No matter what Medmont configuration you have installed, all copies of Medmont Studio must be stopped before initiating a backup. For a stand-alone system this is easy, but for a server system you will need to stop the Medmont server using the Server Manager.

Medmont Studio 55

Data Backup

Figure 71. Medmont Studio Server Manager.

The Server Manager icon will be present in the desktop tray of the network server computer.

Double click on this icon to display the Studio Server Manager dialog shown in Figure 71. The

Active Sessions entry will show if any clients are running Medmont Studio. Click the Refresh button if the Manager has been running. You can choose from two options.

1. Find the machine(s) currently running Medmont Studio to ensure no one is using it, shut it down, and then come back and click the Stop Medmont Studio Server button, or

2.

Click the Stop Medmont Studio Server button.

The effect of clicking this button on connected clients is to disconnect them from the server with no mechanism to reconnect other than re-starting, so the second option has the potential for data loss if the computer is currently in use. Avoiding this situation is a company procedures issue, where either a certain time is set-aside for backup or it happens after hours.

The more usual effect of stopping the server is, of course, to prevent clients starting Medmont

Studio. If they try they will see the message shown in Figure 72 and Studio will refuse to start.

Figure 72. Error message for when no server is available.

Once the server is stopped you can proceed with your backup procedure. If necessary, click the

Compact and Repair button on the Administrator tool (see Figure 70) for occasional database

management.

56 Medmont Studio

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
